LG GM600 User manual

GM600GM600 User Guide
Some of the contents in this manual may
differ from your phone depending on
the software of the phone or your service
provider.

Part 15.21 statement
" Change or Modifications that are not expressly approved by the manufacturer could void
the user's authority to operate the equipment. “
Part 15 Class B Compliance
This device and its accessories comply with part15 of FCC rules.
Operation is subject to the following two conditions:
(1) This device & its accessories may not cause harmful interference.
(2) This device & its accessories must accept any interference received,
including interference that may cause undesired operation.
Body-worn Operation
This Device has been tested for typical body-worn operations with the distance
of 0.79inches(2.0cm) from the user’s body.
To comply with FCC RF exposure requirements, a minimum separation distance
of 0.79inches(2.0cm) must be maintained from the user's body.
Additionally, Belt clips, holsters & other body-worn accessories may not contain
metallic components.

6
LG GM600 | User Guide
Getting to know your phone
Smart key
• Accepts and ends a call.
• Goes to home screen directly.
Power/Lock key
• Long press for power on/off.
• Short press to turn on/off the screen.
WARNING: Placing a heavy object on the phone or sitting on it
while it is in your pocket can damage the phone’s LCD and touch screen
functionality.
Side keys
• When the screen is at the
Home screen: Ring tone
and key tone volume.
• During a call: Earpiece
volume.
Charger, cable and
handsfree connector
Camera/Multi-tasking key
• Long press to use the
camera.
• Short press to use multi-
tasking.

7
External camera lens
MicroSD Card Slot
SIM Card Tray
Battery
Battery cover
Open view

8
LG GM600 | User Guide
Installing the SIM and battery
1 Remove the battery cover
Slide the battery cover towards the
bottom of the phone and away
from it.
2 Install the SIM card
Slide the SIM card into the SIM card
holder making sure that the gold
contact area on the card is facing
downwards. Please make sure the
battery is removed from the phone
before installing the SIM card. To
remove the SIM card, pull it gently
outwards.
3 Install the battery
Insert the left side of the battery
into the top edge of the battery
compartment first.
Ensure that the battery contacts
align with the phone’s terminals.
Press the right side of the battery
until down it clicks into place.
WARNING: Do not remove
the battery when the phone is
switched on, as this may damage
the phone.
WARNING: Do not use your
ngernail to remove the battery.

9
Charging your phone
Remove the charger socket cover
on the side of your GM600. Connect
the Travel Adapter (Charger) and the
included USB cable. Connect the USB
cable into the phone and plug it into
a power socket. Your GM600 must
be charged until the “Battery full“
message appears on the screen.
NOTE: The battery must be fully
charged initially to improve battery
lifetime. Disregard the first “Battery
full” message and keep the phone on
charge overnight.
PCB-100 Solar Cell battery cover sold
separately, available from selected
retailers or from
www.lge.co.uk/mobileshop
* It may not be available in all shops based upon
availability

10
LG GM600 | User Guide
Memory card
Installing a memory card
You can expand the memory space
on your phone by using a MicroSD
memory card.
NOTE: A memory card is an optional
accessory.
1Remove the battery cover.
2Push the microSD card slot to
release lock.
3Flip up the slot.
4Put the microSD card on the card
tray. Make sure the gold colour
contact area is facing downwards.
5Flip down then push the slot to
lock.
6Replace the cover.
Formatting the memory card
Your memory card may already be
formatted. If it isn’t, you will need to
format it before you can start to use it.
1From the Home screen select ,
then Phone settings in SETTINGS
tab.
2Touch Memory info then choose
External memory.
3Touch Format and then confirm
your choice.
4Enter the password, if one is set.
Your card will then be formatted
and ready to use.
NOTE: If there is existing content
on your memory card, the folder
structure may be different after
formatting since all files will have
been deleted.

11
Menu map
Touch in the Home screen to open a Top menu. From here you can access
further menus by scrolling through the icons:
COMMUNICATION, ENTERTAINMENT, UTILITIES and SETTINGS.
COMMUNICATION
Contacts
Recent history
Messaging
E-mail
Dialling
Contact search
Speed dials
New message
UTILITIES
Browser
Google search
Alarms
Organiser
Memo
Voice recorder
Tools
Drawing panel
SETTINGS
Profiles
Screen settings
Phone settings
Call settings
Bluetooth
Touch settings
Connectivity
Message settings
ENTERTAINMENT
Camera
Gallery
My stuff
Music
Games & Apps
FM radio
Video camera
Muvee studio

12
LG GM600 | User Guide
Using your touch screen
Touch screen tips
• To select an item, touch the centre
of the icon.
• Do not press too hard. The
touchscreen is sensitive enough to
pick up a light, firm touch.
• Use the tip of your finger to touch
the option you require. Be careful
not to touch any other keys.
• Whenever your GM600 is not in use,
it will return to the lock screen.

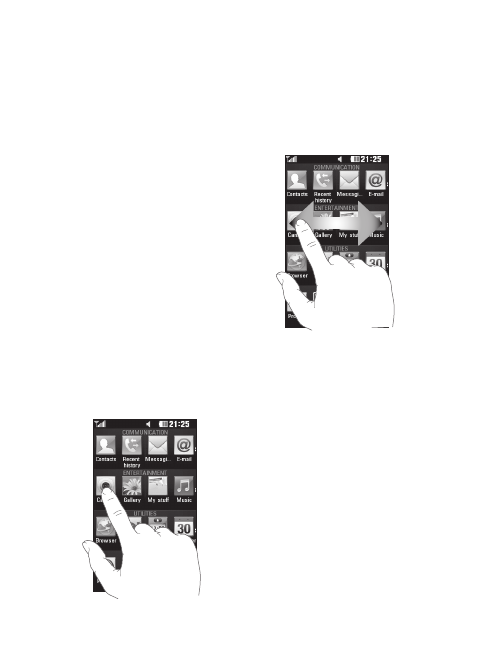

Control the touch screen
The controls on the GM600
touch screen change dynamically
depending on the task you are
carrying out.
Opening Applications
To open any application, simply touch
its icon.
Scrolling
Drag from side to side to scroll.
On some screens, such as the call
history list, you can also scroll up or
down.

13
Your home screen
You can drag and click what you need right away in all home screen types.
Widget home
screen - When you
touch on the
bottom right of the
screen, the mobile
widget panel
appears. When you
register widget by
dragging it, the
widget is created
in the spot where it
was dropped.
Active
Speed dial home
screen - When
you touch
, the speed dial
list appears. You
can call, send
a message or
edit the contact
directly in this
home screen.
Livesquare home screen - On the
Livesquare screen, You can easily
make a call and send a message to
the number allocated to an avatar. To
use the call, messaging or contacts
function, select an avatar and choose
the Quick key icon you want to use.
TIP! The User Interface is based on three types of Homescreen. To swap
between the home screens just wipe quickly over the display from left to
right, or from right to left.
Active
Active
