INSTALLATION MANUAL
PUDCA0
AHU
COMMUNICATION KIT
www.lg.com
Please read this installation manual completely before installing the product.
Installation work must be performed in accordance with the national wiring
standards by authorized personnel only.
Please retain this installation manual for future reference after reading it
thoroughly.
ENGLISH

• Do not cool excessively indoors. This may be harmful for your health and may consume more
electricity.
• Block sunlight with blinds or curtains while you are operating the equipment.
• Keep doors or windows closed tightly while you are operating the equipment.
• Adjust the direction of the air flow vertically or horizontally to circulate indoor air.
• Speed up the fan to cool or warm indoor air quickly, in a short period of time.
For your records
Staple your receipt to this page in case you need it to prove the date of purchase or for warranty
purposes. Write the model number and the serial number here:
Model number :
Serial number :
You can find them on a label on the side of each unit.
Dealer’s name :
Date of purchase :
Here are some tips that will help you minimize the power consumption when you use the air
conditioner. You can use your equipment more efficiently by referring to the instructions
below:
TIPS FOR SAVING ENERGY
TIPS FOR SAVING ENERGY
2
ENGLISH

3
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
Always comply with the following precautions to avoid dangerous situations and ensure peak
performance of your product
WARNING
It can result in serious injury or death when the directions are ignored
CA TION
It can result in minor injury or product damage when the directions are ignored
WARNING
• Installation or repairs made by unqualified persons can result in hazards to you and others.
• Installation MUST conform with local building codes or, in the absence of local codes, with
the Nation Electrical Code NFPA 70/ANSI C1-1003 or current edition and Canadian Electrical
Code Part1 CSA C.22.1.
• The information contained in the manual is intended for use by a qualified service technician
familiar with safety procedures and equipped with the proper tools and test instruments.
• Failure to carefully read and follow all instructions in this manual can result in equipment mal-
function, property damage, personal injury and/or death.
Installation
• Always perform grounding.
- Otherwise, it may cause electrical shock.
• Don’t use a power cord, a plug or a loose socket that is damaged.
- Otherwise, it may cause fire or electrical shock.
• For installation of the product, always contact the service center or a professional installation
agency.
- Otherwise, it may cause fire, electrical shock, explosion or injury.
• Securely attach the electrical part cover to AHU Comm. Kit.
- If the electric part cover of AHU Comm. Kit is not attached securely, it could result in a fire or
electric shock due to dust, water, etc.
• Always install an air leakage breaker and a dedicated switching board.
- No installation may cause a fire and electrical shock.
• Do not keep or use flammable gases or combustibles near the equipment.
- Otherwise, it may cause a fire or the failure of product.
• Do not install, remove or reinstall the unit by yourself.
- Otherwise, it may cause a fire, electrical shock, explosion or injury.
• Do not disassemble or repair the product randomly.
- It will cause a fire or electrical shock.
• Do not install the product in a place where there is the concern of falling down.
- Otherwise, it may result in personal injury.
• Use caution when unpacking and installing.
- Sharp edges may cause injury.
!
!
!
IMPORTANT SAFETY INSTR CTIONS
ENGLISH

Operation
• Do not share the outlet with other appliances.
- It will cause an electric shock or a fire due to heat generation.
• Do not use the damaged power cord.
- Otherwise, it may cause a fire or electrical shock.
• Do not modify or extend the power cord randomly.
- Otherwise, it may cause a fire or electrical shock.
• Take care so that the power cord may not be pulled during operation.
- Otherwise, it may cause a fire or electrical shock.
• Unplug the unit if strange sounds, smell, or smoke comes from it.
- Otherwise, it may cause electrical shock or a fire.
• Keep flames away.
- Otherwise, may occur a fire.
• Take the power plug out if necessary, holding the head of the plug and do not touch it with
wet hands.
- Otherwise, it may cause a fire or electrical shock.
• Do not use the power cord near the heating tools.
- Otherwise, it may cause a fire and electrical shock.
• Do not allow water to run into electrical parts.
- Otherwise, it may cause the failure of machine or electrical shock.
• Hold the plug by the head when taking it out.
- It may cause electric shock and damage.
• Be cautious that water could not enter the product.
- Otherwise, it may cause a fire electrical shock or product damage.
• Do not step on the indoor/outdoor unit and do not put anything on it.
- It may cause an injury through dropping of the unit or falling down.
• Do not place a heavy object on the power cord.
- Otherwise, it may cause a fire or electrical shock.
• When the product is submerged into water, always contact the service center.
- Otherwise, it may cause a fire or electrical shock.
IMPORTANT SAFETY INSTR CTIONS
4
ENGLISH

5
2TIPS FOR SAVING
ENERGY
3IMPORTANT SAFETY
INSTRUCTIONS
6INSTALLATION SCENE
7SUPPLIES
8ACCESSORIES
9PART DESCRIPTION
9Commu icatio Kit (PUDCA0)
10 BEFORE INSTALLATION
13 COMMUNICATION KIT
INSTALLATION
13 Mecha ical i stallatio
14 Electric Wiri g Work
16 Electrical Work
17 Electric Wiri g Work
18 Co troller Setti g Method
24 AHU KIT WIRING CON-
FIGURATION WITH DDC
24 Co figuratio co cept
25 DI Wri g co cept
26 DO Wri g co cept
27 AI Wri g co cept
29 PI 485 co ectio _esse tial accessory
30 FAN Sig al Wiri g Co cept
31 THERMISTORS INSTAL-
LATION
31 Pipe thermistors I stallatio
34 TROUBLESHOOTING
TABLE OF CONTENTS
TABLE OF CONTENTS
ENGLISH

6INSTALLATION SCENE
ENGLISH
Signal
Pipe
Thermistor
4
11
6
8
9
7
2
10
5
1
Field supply
DDC
Airflow
3
Parts and components
No. Name Remarks
1 AHU Field supply
2 Outdoor Unit Single CAC
3 AHU Communication Kit(PUDCA0) -
4 DDC Field supply(Central control Device)
5 Field piping Field supply
Wiring connections
6 Communication Kit Wiring Power supply and communication
between comm. kit and outdoor unit
7 Pipe thermistors Evaporator (In/Out) control of AHU
8 Room thermistor Return air control
9Remote controller
(PQRCVSL0/ PQRCVSL0QW) Optional accessory
10 PI485 (PMNFP14A0/PMNFP14A1) Essential accessory
11 Signal
• Fan signal(Low / Middle / High)
• Defrost / Heating / Cooling signal
• Themal On/Off
CA TION
• For installation of Room thermistor (No. 8), always place it at the inlet of Heat Exchanger.
Otherwise, it might not operate properly.
!
CA TION
• Before installation of outdoor unit, check the serial Number, 1st digit indicates year, and 2nd/3rd
digits mean month of production. For example, 503KCSFONT26 was produced on March 2015.
!
INSTALLATION SCENE
* Applicable ODU model
Type Model Available
Standard
UU18W.UE4
AllUU24W.U44
UU30W.U44
UU70W.U34 Produced from May.2015
UU85W.U74

S PPLIES 7
ENGLISH
PUDCA0
Compo-
nents
AHU Comm.
Kit
Room
thermistor
Pipe
thermistors
Installation
Manual Bracket Option PCB
P/NO
AJT74975201 EB 61106821
EB 61287703(In)
EB 61287704(Out)
MFL50024811 MAZ49398901
EBR65102902~04
EBR52358920
EBR52358921
Shape
WD
H
Quanti-
ty(EA) 1 1 2(Each 1) 1 4 5(Each 1)
Model
Name
Weight (kg) Dimension (mm)
POWER
NET ross
NET ross
W H D W H D
PUDCA0 6.32 7.92 330 180 430 420 232 540
220-240 V~ 50 Hz
220 V~ 60 Hz
208/230 V~ 60 Hz
SUPPLIES

8ACCESSORIES
ENGLISH
* For further details of the accessories, refer to the manual provided at the time of purchasing
the accessories.
Accessories
Components Remote controller PI 485
Model name PQRCVSL0
PQRCVSL0QW
PMNFP14A0
PMNFP14A1
Shape
ACCESSORIES
(Optional accessory) (Essential accessory)

PART DESCRIPTION 9
ENGLISH
Communication Kit (PUDCA0)
1
2
12
4
5
13
8
3
9
14
17
11
10
16
15
18
7
6
No. m Part Name Quantity (EA)
1 Plastic (+) Bolt 6
2 Cover 1
3 Expansion I/O PCB 1
4 Supporter (Connect No. 3) 6
5 Main PCB case 1
6 Main PCB 1
7 Option PCB (24 kBtu/hr) 1
8 Bracket (For Adaptor) 1
9 AC/DC Convertor 1
10 Supporter (Fixing Wiring) 7
11 Terminal Block (Communication) 1
12 Terminal Block (POWER Supply) 1
13 Clamp Cord (For Power Wiring) 1
14 Clamp Cord 5
15 Panel 1
16 Control Box Case 1
17 Cable gland 6
18 Bracket (For Expansion I/O PCB) 1
PART DESCRIPTION

10 BEFORE INSTALLATION
ENGLISH
CA TION
• Don't install or operate the unit in rooms mentioned below.
①Where mineral oil, like cutting oil is present.
②Where the air contains high levels of salt such as air near the ocean.
③Where sulphurous gas is present such as that in areas of hot spring.
④In vehicles or vessels.
⑤Where voltage fluctuates a lot such as that in factories.
⑥Where high concentration of vapor spray are present.
⑦Where machines generating electromagnetic waves are present.
⑧Where acidic or alkaline vapor is present.
⑨The option boxes must be installed with entrances downward.
• Check the mentioned below, when you apply the AHU (Field supply).
①If the AHU (Field supply) provided in the field is exclusively for heating, you must not
change the operating mode to cooling on the remote controller. If not, it can cause
electric shock, injury or death. If you want to operate in cooling mode, AHU (Field sup-
ply) must comply with the following details.
(Following)
- The insulation level of AHU (Field supply) motor must be ‘F’ or above, and the protec-
tion level must satisfy ‘IP 54’.
- AHU (Field supply) must have the drain pan installed.
②Fan speed button on the wired remote controller (PQRCUSA0/1) is not operated.
③For refrigerant piping of outdoor unit, refer to the installation manual supplied with the
outdoor unit.
④For installation of the wired remote controller (PQRCUSA0/1), refer to the manual sup-
plied with the wired remote controller.
⑤For protecting the refrigerant cycle in heating, the inlet Air temperature to the Heat
Exchanger has to be over 5°C.
⑥The EEV or TXV kit has to be installed on the AHU as close as possible to the Heat
Exchanger.
• AHU Communication Kit
①Thermistor cable and remote controller wire should be located at least 50 mm away
from power supply wires and from wires to the controller. Not following this guideline
may result in malfunction due to electrical noise.
②Use only specified wires, and tightly connect wires to the terminals. Keep wiring in
neat order so that it does not obstruct other equipment. Incomplete connections could
result in overheating, and in worse case electric shock or fire.
!
BEFORE INSTALLATION

BEFORE INSTALLATION 11
ENGLISH
CA TION
Selection of Evaporator(AHU)
See table below for applicable units
Selecting the capacity setting 'Option PCB'(Accessory) according to the capacity mentioned
below.
- The corresponding capacity setting 'Option PCB' needs to be selected depending on the
need capacity.
- After checking the need capacity, remove the 24 k Option PCB equipped in the main PCB,
and set up the Option PCB fitted the need capacity in the main PCB.
* Evaporator Saturated Temperature(SST) = 6 °C, SH (Superheat) 5K, Air Temperature =
27 °C DBT / 19 °C WBT
* Heat exchanger volume [m3] : Pipe cross-section × Tube length
-. Pipe cross-section [m2] = π× ID2/4
-. Tube length [m] = Tube length of 1 pipe × Tube step × Tube row
!
Capacity setting
'Option PCB'
Detail
Option PCB
P/NO
Capacity
(Btu/h)
Standard heat
exchanger volume
(10-3 × m3)
Maximum heat
exchanger capacity
(kW)
Air Flow rate
(CMM)
EBR65102902 18 k 2.4 5.0 13~16.5
EBR65102903 24 k 2.6 7.1 14~18
EBR65102904 30 k 2.9 8.0 20~26.5
EBR52358920 70 k 5.2 20.0 60~70
EBR52358921 85 k 5.9 23.0 64~80

12 BEFORE INSTALLATION
ENGLISH
CA TION
• AHU Operation range
- When installing Room thermistor, always place it to the inlet of Heat Exchanger. Other-
wise, it may might not operate properly.
- Range of the inlet Air temperature to the Heat Exchanger is 18 ~ 40°C for cooling & 5 ~
30°C for heating. If the temperature is under 18°C for cooling & over 30°C for heating,
the system might operate ON and OFF because of protection logic system’s.
!
No Connection condition Combination
1
100% Fresh Air Intake
AHU only are connected
with outdoor units
1) The total capacity of 100% Fresh Air Intake AHU should be
50~100% of outdoor unit.

COMM NICATION KIT INSTALLATION 13
ENGLISH
Mechanical installation

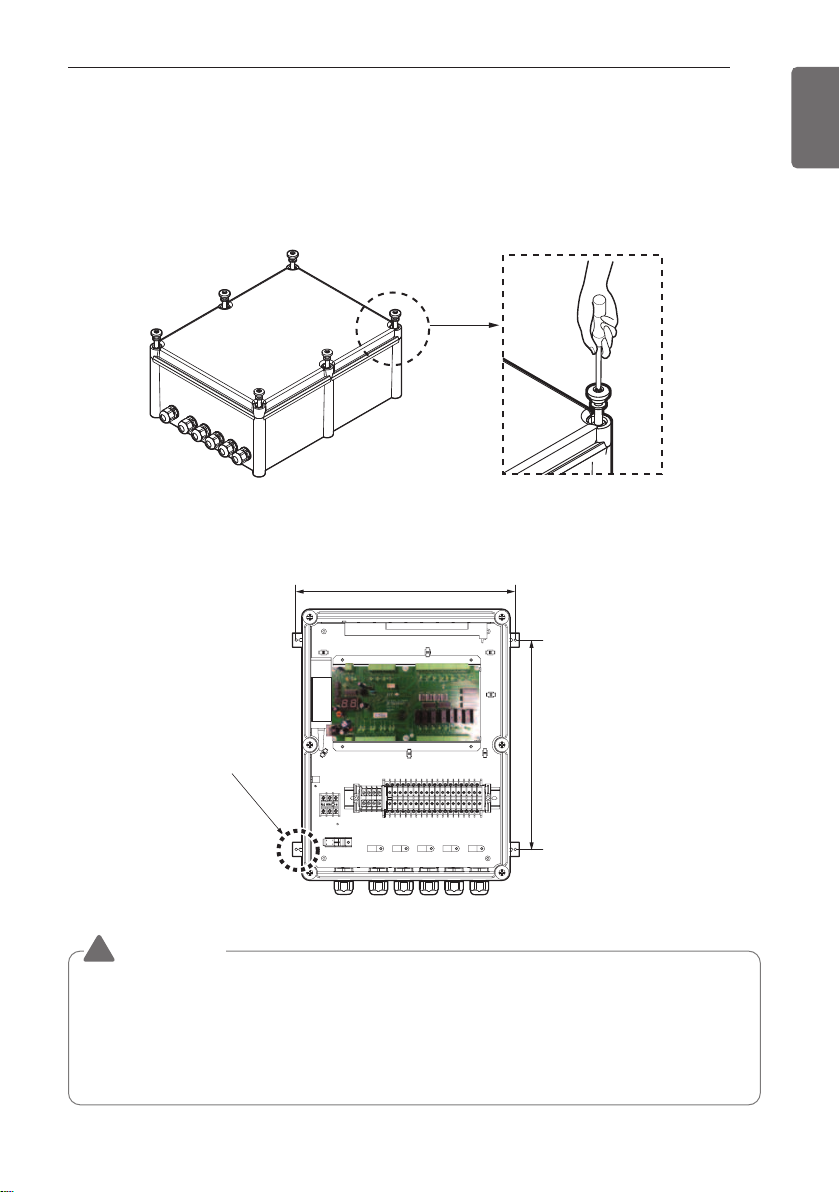

1Remove the Comm. Kit box cover by unscrewing the plastic bolt (6EA)
2Drill 4 holes on correct position and fix the Comm. Kit box securely with 4 screws
(Field supply) through the provided holes Ø4.5 mm (Reference the length of the holes Ø4.5)
348 mm
332 mm
Provided holes
Ø4.5 mm (4EA)
COMMUNICATION KIT INSTALLATION
WARNING
!
• Install where it can sufficiently support the weight of the comm.Kit.
If the support strength is not enough, the outdoor unit may drop and hurt people.
• Install where the comm.kit may not fall in strong wind or earthquake.
If there is a fault in the supporting conditions, the comm.kit may fall and hurt people.
• It is installed at a place with a lot of snowfall, install with the place higher than the most
extreme snowfall amount standard.

14 COMM NICATION KIT INSTALLATION
ENGLISH
CA TION
If you want to use Analogue Input signal for a variable capacity and a set temperature of
room, you have to connect the wiring of AI 10-2, AI 10-3, AI 10-4.
!
Circuit diagram
Electric Wiring Work

COMM NICATION KIT INSTALLATION 15
ENGLISH
Terminal Block No. Connection Function Remark.
1(L) / 2(N) Power Supply
220-240 V~ 50 Hz
220 V~ 60 Hz
208/230 V~ 60 Hz
-
1 To Outdoor Unit Communication Line -
2-4 To Indoor Unit
(AHU) Fan Signal Low/Mid/High
3 DDC Thermostat on/off Signal -
6-8 DDC Defrost, Heating,
Cooling Signal -
9-10
To Indoor Unit
(AHU)
Pipe Out Thermistor -
11-12 Pipe In Thermistor -
13-14 Room Thermistor -
15-17 Remote Controller -
18
Analog Input
AI 10-2 Capacity Control
19 AI 10-3 Common Line
20 AI 10-4 Room Temperature Setting
21-22 To Outdoor Unit RS485 Communication -
23
Digital Input
DI 01-3 Operation ON/OFF
24 DI 01-1 Common Line
25 DI 23-3 Mode Change
26 DI 23-2
27 DI 23-1 Common Line
28 DI 45-3 Air Flow Rate
29 DI 45-2
31
Digital Output
DO 01-4 Running Status (ON/OFF)
32 DO 01-3 Common Line
33 DO 01-2 Comp. Status (ON/OFF)
34 DO 23-4 Running Mode
35 DO 23-2
36 DO 45-4 Air Flow Rate
37 DO 45-2
38 DO 67-4 Error Status
39 DO 67-1 Common Line
CA TION
If you want to use Analogue Input signal for a variable capacity and a set temperature of
room, you have to connect the wiring of AI 10-2, AI 10-3, AI 10-4.
!
Electric Wiring Work

16 COMM NICATION KIT INSTALLATION
ENGLISH
1For connection to outdoor unit and to controller (Field supply) :
Pull the wires inside through the cable gland and close the nut firmly in order to ensure a
good pull relieve and water protection.
2The wires require an additional pull-relief. Strap the wire with the support tie wrap.
3For the wired remote controller wire and outdoor unit communication wire, remove the
coating at the end of the wire to connect and use the ring type (Ø3) to connect to the termi-
nal block.
Support
tie wrap
Nut of cable
gland
(Side view)
(Front View)
Cable Insert
Detail
Ring type (Ø3)
Connection of the wires
Electrical Work

COMM NICATION KIT INSTALLATION 17
ENGLISH
CA TION
• All field supplied parts and materials and electric works must be conform to local codes.
• Use copper wire only.
• All wiring must be performed by an authorized electrician.
• A main switch or other means for disconnection, having a contact separation in all poles,
must be incorporated in the fixed wiring in accordance to relevant local and national legisla-
tion.
• Refer to the installation manual attached to the outdoor unit for the size of power supply
electric wire connected to the outdoor unit, the capacity of the circuit breaker and switch,
wiring and wiring instructions.
!
Electric Wiring Work

18 COMM NICATION KIT INSTALLATION
ENGLISH
Controller Setting Method
If you want to run the Fan(L/M/H) in Heating Mode - defrosting condition, you should set the dip
switch 4 to "On"(As shown below)
• PCB output signal(According to the dip switch 4 setting)
Dip switch setting
(Main PCB)
* Setting : Black
[Default setting]
- . No 1/2/3/5/6/7/8 : Off
- . No 4 : On
12345678
ON
12345678
Output Signal
Condition Thermal
On/Off Fan L/M/H Defrost Heating
Mode
Dip switch Off
Off Off Off Off Off
Cooling Mode Off or On On Off Off
Fan Mode Off On Off Off
Heating Mode Off or On Off or On Off On
Heating Mode – Preheating On Off Off On
Heating Mode – Defrosting On Off On On
Auto Mode The Same as Cooling or Heating Mode
Dip switch On
Off Off Off Off Off
Cooling Mode Off or On On Off Off
Fan Mode Off On Off Off
Heating Mode Off or On On Off On
Heating Mode – Preheating On On Off On
Heating Mode – Defrosting On On On On
Auto Mode The Same as Cooling or Heating Mode

COMM NICATION KIT INSTALLATION 19
ENGLISH
CA TION
- DI requires non-voltage contact
- DO provides relay output (max : 250Vac 1A)
- AI : 0Vdc ~ 10Vdc
- RS485 port : Connect to INTERNET A/B on ODU’s main PCB
!
DIP S/W(SW03)
DIP S/W(SW01)
Communication port
(1ch, RS485)
Analog Input(2ch)
Power(DC 12V) Digital Input(5ch) Digital Output(7ch)
Rotary S/W
Reset
Button
(3EA)
1Analog Input : Control the supply air temperature and Comp. capacity of Single CAC.
2Digital Input : Acquires the control value of AHU operation from DDC (Field supply).
3Digital Output : Send the condition value of AHU operation to DDC (Field supply).
4RS485 : Sends the On/Off signal taking from DDC to the indoor & outdoor unit and send the condition value
taking from indoor & outdoor unit to DDC with On/Off Output.
SW_SPARE SW_GRP SW_IO SW_TYPE
This S/W is for setting up the address of
AHU Comm. Kit (00 ~ FF). This S/W is for setting up the
temperature from AHU Comm. Kit.
Detail information refer to the
ڻRoom Temperature control from DDC or Rotary S/W
Example) AHU Comm. Kit address is ‘0C’ .
SW_GRP SW_IO
00CC
0
1
23456
7
8
9
A
B
C
D
E
F
0
1
23456
7
8
9
A
B
C
D
E
F
①Rotary S/W
Capacity controller
Controller Setting Method
Table of contents
Other LG Conference System manuals
