OWNER’S MANUAL
LG Digital Signage
(MONITOR SIGNAGE)
43UH7J
43UH5J
49UH7J
49UH5J
55UH7J
55UH5J
65UH7J
65UH5J
www.lg.com
Copyright © 2022 LG Electronics Inc. All Rights Reserved.
Please read the user manual before using this product to ensure safe and convenient
use.
(2212-REV01)
*MFL71435720*

2
ENGLISH
TABLE OF CONTENTS
BASIC .............................................3
- Checking the Accessories ............................................3
- Checking the Optional Accessories.........................4
- Learning the Buttons......................................................5
GETTING READY ...........................6
- Connecting the IR Sensors..........................................6
- Mounting and Removing the
LG Logo Bracket................................................................7
- Kensington Lock Device ................................................8
CHECKING BEFORE
INSTALLATION ..............................9
- Installation Orientation .................................................9
- Installation Location.....................................................10
- Wall Mount Holder .......................................................11
PRECAUTIONS FOR USE............ 12
- Dust.......................................................................................12
- Afterimage ........................................................................12
PRODUCT SPECIFICATIONS...... 14
LICENCE...................................... 19
TO SEE THE WEB MANUALS
(SOFTWARE USER GUIDE /
INSTALLATION MANUAL) ......... 20

3
ENGLISH
WARNING - This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may
cause radio interference.
BASIC
NOTE
•The accessories provided with your product may vary depending on the model or region.
•Product specifications or contents in this manual may be changed without prior notice due to upgrade of product
functions.
•SuperSign Software & Manual
- Visit https://partner.lge.com to download the latest SuperSign software and manual.

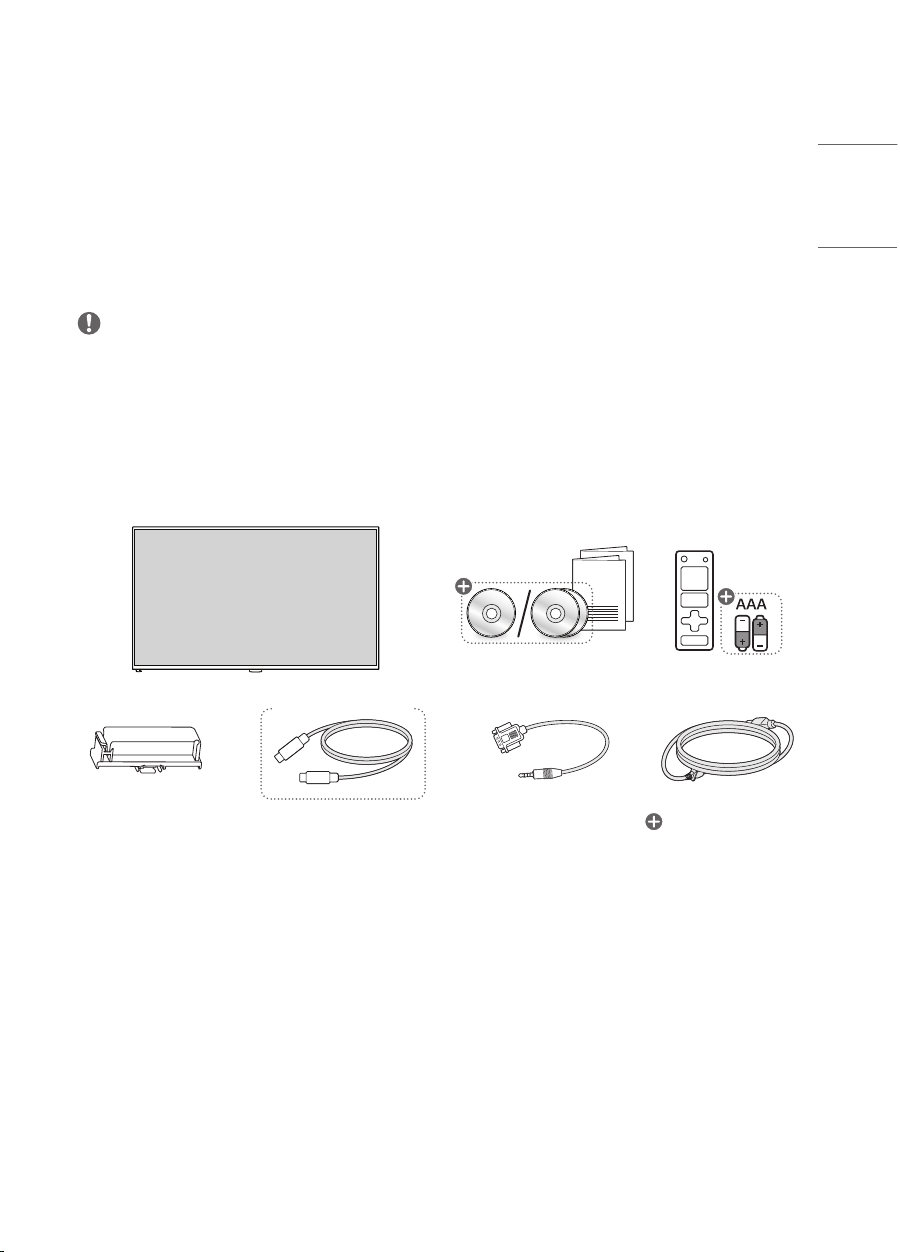

Checking the Accessories
X 2
43/49/55/65UH7J
Depending on country

4
ENGLISH

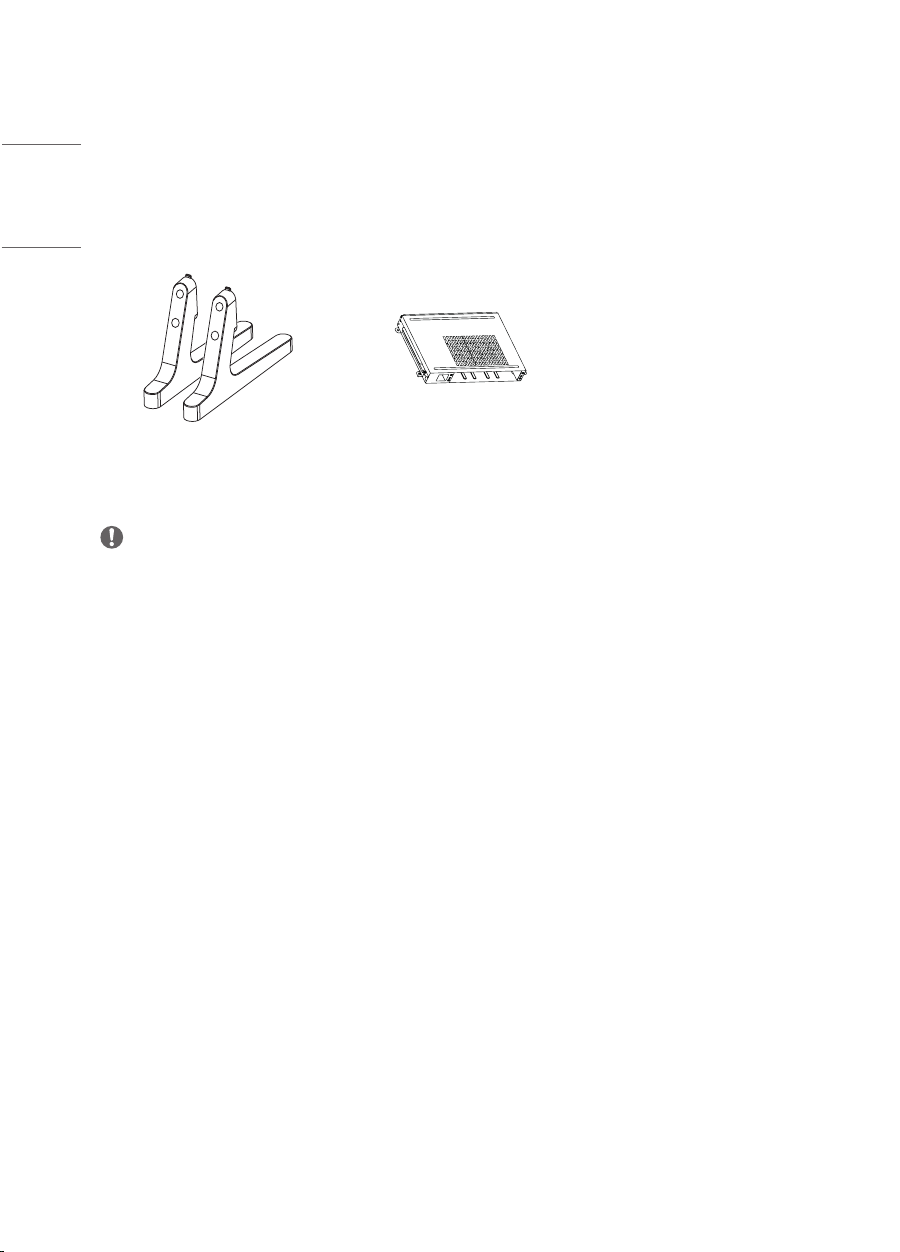

Checking the Optional Accessories
In order to improve product performance, optional accessories are subject to change without prior notice.
The illustrations in this manual may differ from the actual product and its accessories.
Refer to the product manual for the components of the optional accessories.
ST-653T KT-OPSF
NOTE
•Before you attach the OPS (Open Pluggable Specification) PC, connect the cable to the port.

5
ENGLISH
Learning the Buttons
The illustrations may differ depending on the model.
Power On (Press)
Quick Menu (Press 1)
Menu Selection (Press 2)
Power Off 3 (Press and Hold)
Volume Control
Menu Control 2Menu Control 2
1 When the monitor is turned on, press the button one time.
2 You can use the function when you control menu.
3 All running apps will close.
Quick Menu
Turns the power off. Accesses the main menu.
Changes the input source. Close the quick menu.

6
ENGLISH
GETTING READY
Connecting the IR Sensors
Connecting the cable to the product allows it to receive signals from the remote control.
Rotate the IR sensor according to horizontal or vertical use.
- The illustrations may differ depending on the model.
Default Mount - Horizontal Use
(Front) (Back)
Vertical Use
(Front) (Back)

7
ENGLISH
Mounting and Removing the LG Logo Bracket
- Applies only to some models.
- The illustrations may differ depending on the model.
Removing the LG Logo Bracket
Place a clean cloth on the floor, and remove one screw from the LG logo bracket on the lower back of the monitor with
a screwdriver.
LG Logo Bracket
Mounting the LG Logo Bracket on the Right
Screw the LG logo bracket into the hole on the right.
LG Logo Bracket

8
ENGLISH
Kensington Lock Device
(This feature applies only to some models.)
The Kensington lock device connector is located on the back of the monitor. For more information on installation and
use, refer to the user manual provided with the locking device.
Connect the Kensington security system cable between the monitor and a table.
NOTE
•The Kensington lock device is an optional specification.
•This is a general illustration of installation and may look different from the product held by the customer.

9
ENGLISH
CHECKING BEFORE INSTALLATION
We are not responsible for product damage caused by failure to follow the guide.
Installation Orientation
Using Vertically
When installing vertically, rotate the monitor 90 degrees anti-clockwise while facing the front of the screen.
Tilt Angle
40 mm
15˚
Ceiling, Floor Orientation

10
ENGLISH
Installation Location
We are not responsible for product damage caused by failure to follow the guide.
Indoor
Installing on a Wall
A
C
B
BB
A
A : 40mm or more
•The warranty will not cover any damage
caused by using the product in direct sunlight
on the front panel.
Installing on a Recessed Wall
A
C
B
BB
A
A : 40mm or more
B : 50mm or more
C : 70mm or more
•The warranty will not cover any damage
caused by using the product in direct sunlight
on the front panel.
Outdoor
Outdoor Enclosed
