LG 75XF3C-B.AUS User manual

www.lg.com
Copyright © 2017 LG Electronics Inc. All Rights Reserved.
Please read this manual carefully before operating your set and retain it
for future reference.
75XF3C
75XS2C
OWNER’S MANUAL
LG Digital
Signage
(MONITOR SIGNAGE)

ENGLISH
2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS.........3
- Electrical Power Related Precautions....................3
- Precautions for installing the Product ..................5
- Precautions for Moving the Product......................6
- Precautions for Using/Cleaning the Product.....7
- Product Disposal (Only, Hg lamp used LCD
Monitor).................................................................................7
LICENSES.......................................8
ASSEMBLY AND
PREPARATION...............................9
- Optional Accessories.......................................................9
- Parts and Buttons.........................................................10
- Assembling the Memory Cover..............................12
- Portrait Layout................................................................13

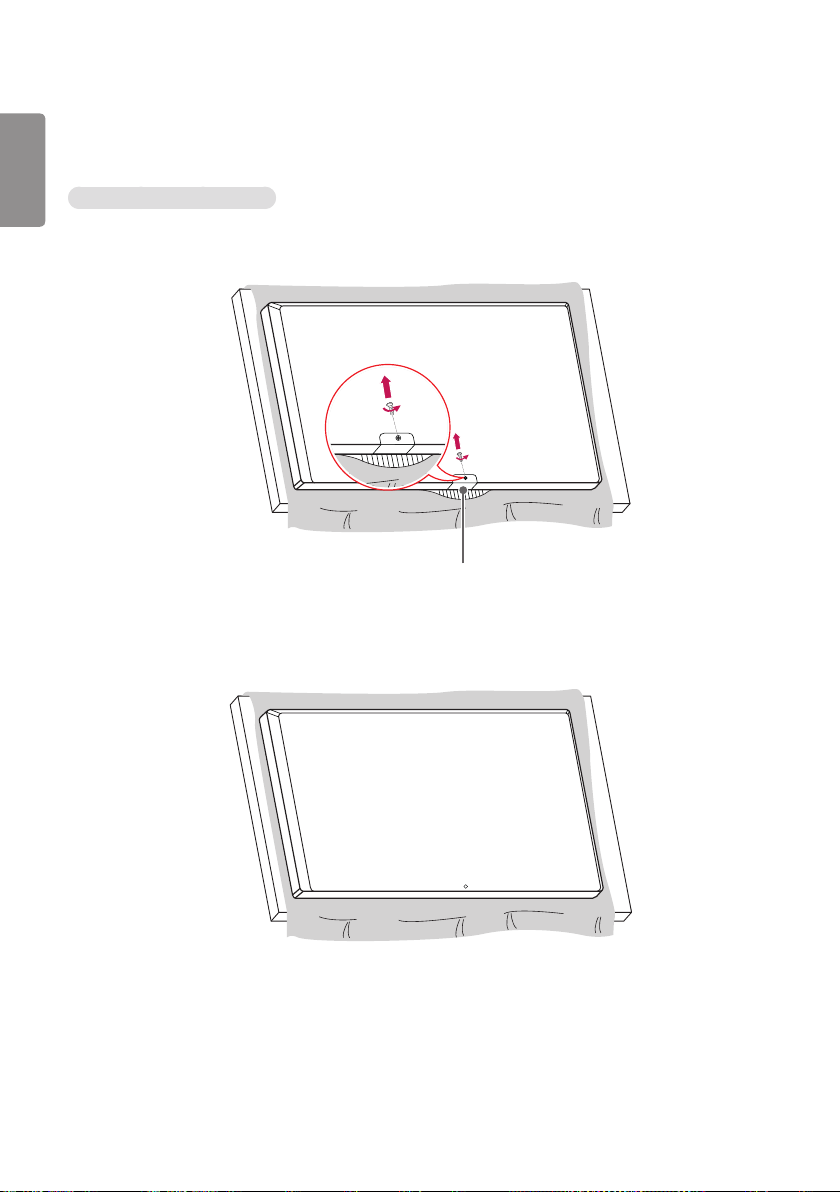

- Attaching and removing the
LG Logo Bracket.............................................................14
- Installing on a Wall........................................................16
- Safety and Precaution Guide for Enclosure
Installation.........................................................................18

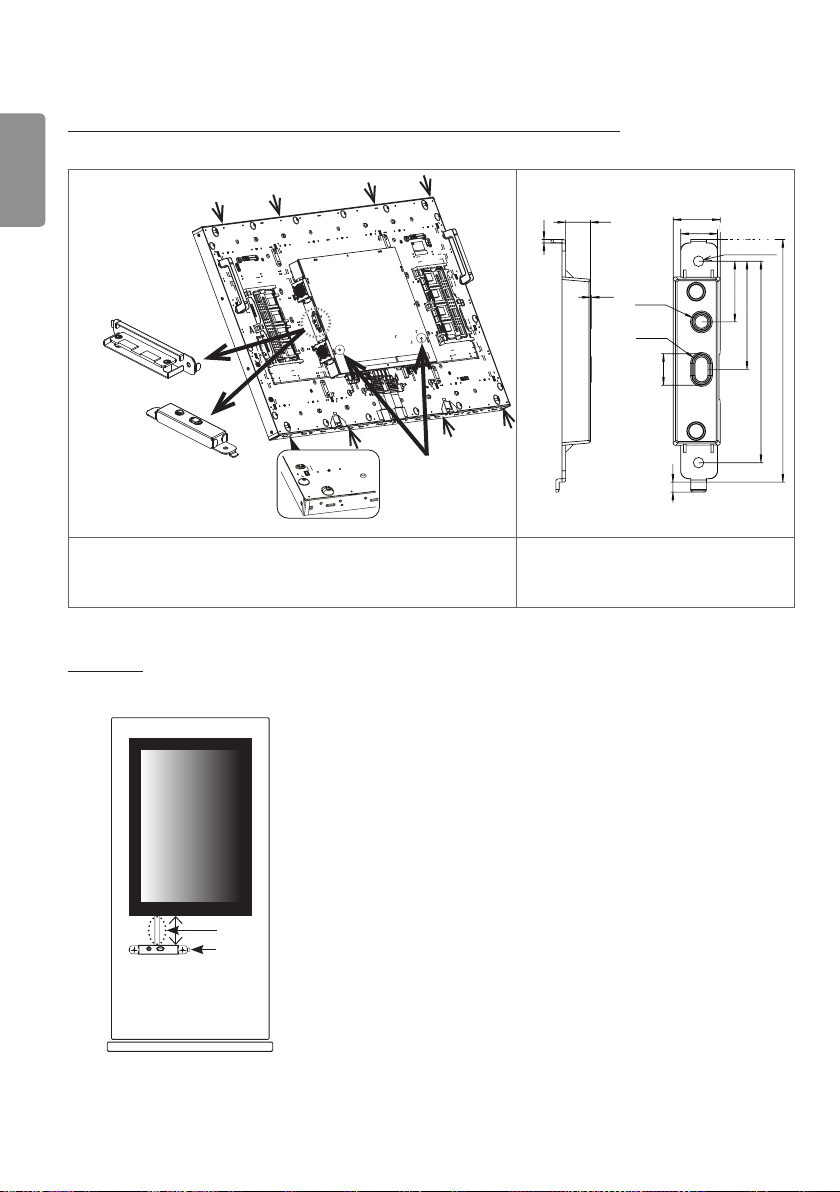

- Enclosure Installation Guide ....................................19
- Safety and Precaution Guide
for Installation.................................................................21
REMOTE CONTROL .................... 22
MAKING CONNECTIONS........... 24
- Connecting to a PC.......................................................24
- External Device Connection.....................................24
- Connecting Multiple Monitors................................26
- Using the Input List ......................................................26
TROUBLESHOOTING.................. 27
PRODUCT SPECIFICATIONS...... 30

ENGLISH
3
WARNING -This is a class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
IMPORTANT PRECAUTIONS
Please read these safety precautions carefully before using the product.
WARNING
Failure to follow those warnings may result in death, serious injury or damage to the product or other property.
CAUTION
If you ignore the caution message, you may be slightly injured or the product may be damaged.
Electrical Power Related Precautions
WARNING
•Use only the power cord supplied with the unit or another manufacturer’s authorized cord.
- Failure to do so may result in fire or electrical shock or damage to the product.
•Use only a properly grounded plug and receptacle.
- If you do not you may be electrocuted or injured. Or the product might be damaged.
•Do not use a damaged or loose plug.
- This may cause electrical shock or fire.
•Operate the display only from a power source(i.e. voltage) indicated in the product specification.
- Otherwise the product can be damaged, fire can occur or you may be electrocuted. If you are not sure what type of
power supply you have, consult a certified electrician.
•In the presence of thunder and lightning, never touch the power cord and signal cable because it can be very
dangerous.
- It can cause electric shock.
•Do not connect several extension cords, electrical appliances or electrical heaters to a single outlet. Use a power strip
with a grounding terminal designed for exclusive use with the computer.
- A fire can break out due to overheating.
•Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power
plug completely or wipe dust off before plugging in the cord.
- You may be electrocuted due to excess moisture.

ENGLISH
4
•If you don’t intend to use the product for a long time, unplug the power cable from the product.
- Layers of dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire.
•Insert the power plug firm so it cannot come loose.
- A loose connection can cause fire.
•Hold the plug when pulling out the power cable. Do not pull the plug out by the wire. Do not bend the power cord
with excessive force or put heavy objects on the power cord.
- The power line can be damaged, which may cause electric shock or fire.
•Do not insert metal or other conductive materials into the product openings. Additionally, do not touch the power
cable right after plugging into the wall input terminal.
- You may be electrocuted.
•Use an appliance coupler as a disconnect device.
•Please make sure the device is installed near the wall outlet to which it is connected and that the outlet is easily
accessible.
•Do not unplug the power cord while the product is in use.
- Electrical shock can damage the product.
•As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if the
unit is turned off.

ENGLISH
5
Precautions for installing the Product
WARNING
•Keep away from heat sources like heaters or open flames.
- Electrical shock, fire, malfunction or deformation may occur.
•Keep the packing anti-moisture material or vinyl packing out of the reach of children.
- Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the
nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.
•Do not put heavy objects on the product or sit upon it.
- If the product collapses or is dropped, you may be injured. Prevent Children from climbing or pulling on the unit.
•Do not leave the power or signal cable where someone can trip over it.
- Pedestrians may become entangled in the cables and cause the device to become damaged causing electrical shock,
fire, or serious injury.
•Install the product in a neat and dry place. Do not use near water.
- Dust or moisture can cause electrical shock, fire or product damage.
•Do not add accessories that have not been designed for this display.
•If you smell smoke or other odors or hear a strange sound from the product unplug the power cord and contact LG
Customer Service.
- If you continue to use without taking proper measures, electrical shock or fire can occur.
•If you dropped the product or the case is broken, turn off the product and unplug the power cord.
- If you continue to use without taking proper measures, electrical shock or fire can occur. Contact LG Customer
Service.
•Do not drop an object on or apply impact to the product. Do not throw any toys or objects at the product.
- It can cause injury to humans, problems to the product and damage the display.
•Keep out of reach of children and do not place toys near the product.
•Make sure the product ventilation hole is not blocked. Install the product more than 100 mm (3.9 inches) from the
wall.
- If you install the product too close to the wall, it may be deformed or fire can break out due to internal heat build-
up.
•Do not cover the product with cloth or other material (eg. plastic) while plugged in.
- The product can be deformed or fire can break out due to internal overheating.
•Place the product on a flat and stable surface that is large enough to support the product.
- If the product is dropped, you may be injured or the product may be broken.
•Install the product where no Electromagnetic Interference occurs.
•Keep the product away from direct sunlight.
- The product can be damaged.
•Do not place the product on the floor.
- Small Children and others may trip over it.
•Do not install this product on a wall if it could be exposed to oil or oil mist.
- This may damage the product and cause it to fall.
•For displays with glossy bezels the user should consider the placement of the display as the bezel may cause
unwanted reflections from surrounding light and bright surfaces.

ENGLISH
6
Precautions for Moving the Product
WARNING
•Make sure to turn off the product.
- You may be electrocuted or the product can be damaged.
•Make sure to remove all cables before moving the product.
- You may be electrocuted or the product can be damaged.
•When lifting or moving the product, do not hold it upside down while holding only the stand.
- This may cause the product to fall resulting in damage or injury.
•Do not shock the product when moving it.
- You may be electrocuted or the product can be damaged.
•Make sure the panel faces forward and hold it with both hands to move.
- If you drop the product, the damaged product can cause electric shock or fire.
•Do not place the product face down.
- This may damage the TFT-LCD screen.

ENGLISH
7
Precautions for Using/Cleaning the Product
WARNING
•Do not attempt to disassemble, repair or modify the product yourself.
- Fire or electric shock can occur.
- Contact LG Customer Service for repair.
•When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not
clean with a wet cloth or spray water or other liquids directly onto the product. An electric shock may occur. (Do not
use chemicals such as benzene, paint thinners or alcohol.)
•Keep the product away from water.
- Fire or electric shock accident can occur.
•Avoid high temperatures and humidity.
•Do not put or store flammable substances near the product.
- There is a danger of explosion or fire.
•Keep the product clean at all times.
•Take a comfortable and natural position when working with the product.
•Take a regular break when working with the product for a long time.
•Do not press on the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it.
•Keep proper distance from the product and rest from time-to-time.
- Your vision may be impaired if you look at the product too closely or for too long.
•Set the appropriate resolution by referring to the User’s Guide.
•Keep small accessories out of the reach of children.
•Displaying a still image for long time on the monitor may leave persistent image or stain on the monitor screen. To
avoid this problem, use a screen saver and power off when this product is not used. Persistent image or stain caused
by long time usage are not covered by the warranty on this product.
•Do not use products using high voltage around the Monitor. (ex. Electrical Swatter)
- Monitor may have malfunction as its electrical shock.
•Spray water onto a soft cloth 2 to 4 times, and use it to clean the front frame;wipe in one direction only. Too much
moisture may cause staining.
WATER CHEMICALS
Product Disposal (Only, Hg lamp used LCD Monitor)
•The fluorescent lamp used in this product contains a small amount of mercury.
•Do not dispose of this product with general household waste.
•Disposal of this product must be carried out in accordance to the regulations of your local authority.

ENGLISH
8
LICENSES
Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered
trademarks of HDMI Licensing LLC in the United States and other countries.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol,
& DTS and the Symbol together, DTS 2.0 Channel, DTS 2.0+Digital Out, DTS-HD, and DTS Virtual:X are registered
trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

ENGLISH
9
ASSEMBLY AND PREPARATION
CAUTION
•Always use genuine components to ensure safety and product performance.
•The product warranty will not cover damage or injury caused by the use of counterfeit components.
NOTE
•The accessories provided with your product may vary depending on the model or region.
•Product specifications or contents in this manual may be changed without prior notice due to upgrade of product
functions.
•SuperSign Software & Manual
- Downloading from the LG Electronics website.
- Visit the LG Electronics website (http://partner.lge.com) and download the latest software for your model.
•The warranty will not cover any damage caused by using the product in an excessively dusty environment.
Optional Accessories
Without prior notice, optional accessories are subject to change to improve the performance of the product, and new
accessories may be added. The illustrations in this manual may differ from the actual product and accessories.
Wi-Fi Dongle kit
AN-WF500
NOTE
•Optional accessories are available for some models. If necessary, please purchase them separately.

ENGLISH
10
Parts and Buttons
The image may be different according to the model.
75XF3C
1 Illuminance sensor / IR Receiver
2 Power Indicator

ENGLISH
11
75XS2C
Screen Buttons
3
4
5
6
7
8
1 Illuminance sensor / IR Receiver
2 Power Indicator
1 Illuminance sensor: Adjusts the screen brightness by measuring the amount of light.
IR Receiver: This is where the unit receives signals from the remote control.
2 Power Indicator: This Indicator lights up red when the display operates normally (on mode). If the display is in
sleep mode (in Power Saving mode), this indicator changes color to amber.
3 Adjusts up and down.
4 Moves left and right.
5 Displays the current signal and mode.
6 Accesses the main menus, or saves your input and exits the menus.
7 Change the input signal.
8 Turns the power on or off.
NOTE
•You can set the status of the power indicator in Installation →Signage Setup.
•You can adjust the volume by using the remote control.

ENGLISH
12
Assembling the Memory Cover
(Only for 75XS2C model)
Assemble the cover with a screw as illustrated to prevent the USB memory from theft.
1
2

ENGLISH
13
Portrait Layout
When installing in a portrait layout, rotate the monitor clockwise 90 degrees (when facing the screen).

ENGLISH
14
Attaching and removing the LG Logo Bracket
(Only for 75XS2C model)
Removing the LG Logo Bracket
1 Lay a clean cloth on the floor, and then put the monitor on it with the screen face down. Using a screwdriver,
remove the screw that secures the LG Logo Bracket to the bottom rear of the monitor.
LG Logo Bracket
2 After removing the screw, remove the LG Logo Bracket. When re-attaching the LG Logo Bracket, repeat the process
in reverse order.

ENGLISH
15
Attaching the LG Logo Bracket on the left side
1 Lay a clean cloth on the floor, and then put the monitor on it with the screen face down. Using a screwdriver,
remove the screw that secures the LG Logo Bracket to the bottom rear of the monitor.
2 After removing the screw, remove the LG Logo Bracket. Align with the hole on the left side to attach the LG Logo
Bracket with a screw.

ENGLISH
16
Installing on a Wall
(Only for 75XS2C model)
For proper ventilation, allow a clearance of 100 mm (3.9 inches) on each side and from the wall. Detailed installation
instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.
100 mm
100 mm
100 mm (3.9 inches)
100 mm 100 mm
To install your monitor on a wall, attach a wall mounting bracket (optional part) to the back of the monitor.
Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall.
1 Use only screws and wall mounting brackets that conform to VESA standards.
2 Screws which are longer than standard length may damage the inside of the monitor.
3 A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable for
any accidents related to the use of non-standard screws.
4 Please use VESA standard as below.
•785 mm (30.9 inches) and above
* Fixing screws: Diameter 8.0 mm x Pitch 1.25 mm x Length 14 mm (Diameter 0.3 inches x Pitch 0.04 inches x
Length 0.5 inches) (75XS2C)
785 mm
(30.9 inches)

ENGLISH
17
CAUTION
•Disconnect the power cord before moving or installing the monitor to avoid risk of electric shock.
•If you install the monitor on a ceiling or slanted wall, it may fall and result in injury. Use an authorized LG wall mount
and contact your local dealer or qualified personnel to assist with the installation.
•Do not over tighten the screws as this may damage the monitor and void your warranty.
•Use only screws and wall mounting brackets that meet the VESA standard. Any damage or injuries caused by misuse
or use of improper accessories are not covered by the warranty.
NOTE
•The wall mount kit includes the installation guide and all necessary parts.
•The wall mounting bracket is optional. You can obtain additional accessories from your local dealer.
•The length of screws required may differ depending on the wall mount. Be sure to use the correct length.
•For more information, please refer to the guide provided with the wall mount.

ENGLISH
18
Safety and Precaution Guide for Enclosure Installation
Enclosure Design Guide
•Design the heat dissipation system so that the panel surface temperature does not exceed 75 °C (167 °F) under
direct sunlight in the installation area. Quality assurance is not provided for failures such as yellowing and black circles
that occur when the panel temperature exceeds 75 °C (167 °F) due to lack of Air Gap 10 mm (0.39 inches), not
applying UV protection function, and insufficient heat dissipation performance.
•Observe the following to ensure that the panel surface temperature does not exceed 75 °C (167 °F).
Air Gap
•Keep at least 10 mm (0.39 inches)
between the panel and the enclosure
protective glass to allow air to flow.
Air Gap
Enclosure Protective Glass
LG Open Frame
UV Protection
•To prevent heat from direct sunlight, apply UV protection to the enclosure protective glass.
Spectrum (nm) 300 ~ 370 ~ 380 ~ 390 ~ 400
Blocking Rate > 96 % > 97 % > 80 % > 60 %
Fan Capacity
•Select the fan capacity for sufficient heat dissipation performance. See the total fan capacity required for your model.
Total Fan Capacity
Display Front
(Panel ~ Enclosure Protective Glass) 440 ~ 520 CFM
Display Back 220 ~ 300 CFM

ENGLISH
19
Enclosure Installation Guide
FIXING THE PANEL SCREW HOLES
(Only for 75XF3C model)
Unit : mm (inches)
580
(22.8)
430
(16.9)
117.7
(4.6)
117.7
(4.6)
430
(16.9)
117.7
(4.6)
117.7
(4.6)
23
(0.9)
23
(0.9)
580
(22.8)
430
(16.9)
430
(16.9)
•Use the side screw holes when mounting the panel.
•Remove the tape when using the side screw holes.
•Side screw hole: M4, Torque - 4 to 5 Kgf (Top and bottom sides: 4 holes for each)
•As the depth of screw hole for the panel module is 10.0 mm (0.3 inches), please use the 12.0 mm (0.4 inches)
screws.
•Using a screw longer than 12.0 mm (0.4 inches) may cause damage to the LCD module.

ENGLISH
20
INSTALLING THE IR UNIT, BRIGHTNESS SENSOR, LED, AND Expansion PCB
(Only for 75XF3C model)
117.7
23
430 580 430 117.7
117.7
23
430 580 430 117.7
Expansion PCB
IR Unit Pemnut
Unit : mm (inches)
76.3 (3.0)
Φ7.3
(0.2)
Φ7.3
(0.2)
11.9
(0.4)
3.8
(0.14)
0.3
(0.01)
9.4
(0.3)
1.3
(0.05)
17.8 (0.7)
13.9 (0.5) Hole2-Φ4
(0.15)
23 (0.9)
41 (1.6)
91.9 (3.6)
<IR Unit>
•If you use pemnut arbitrarily, the product may be damaged.
•Remove the label only when using the side mount. Do not remove
the label when not using the side mount.
•Remove the cable from the sensor.
•Mount the Expansion PCB after
removing the sensor.
Enclosure
(Only for 75XF3C model)
Cable
IR Unit
•Open the cable holder and pull out the cables.
•Loosen the screws and remove the IR unit.
•Install the IR unit in the enclosure in a distance where the cable can be
reached.
