LG HBM-810 User manual

All rights reserved.
LG Electronics Inc., 2010
Note : For the best performance and
to prevent any damage to, or misuse of the
HBM-810, please read all of the information
carefully prior to using the HBM-810.
Any modifications or changes to this manual due to
typographical errors or inaccuracies of stated information
shall only be made by LG Electronics Inc.
LG Electronics
BLUETOOTH®Mono Headset
HBM-810 User manual
English

3
Introduction
The LG Bluetooth®Headset HBM-810 is a light weight wireless
Headset utilizing Bluetooth®technology. This product can be used
as an audio accessory for devices supporting either the Headset
or Handsfree Bluetooth®Profiles. If the Headset is attached to the
Cradle, it can be used as a Hands Free Kit.
Included in package
2
Table of Contents
Introduction 3
- Included in Package 3
Part Description 4
- Headset 4
- Cradle 4
- Small Charging Cradle 4
How to use 5
- Installing in car 5
- Before Use 5
- Charging 5
- Pairing 6
•Easy Pairing 6
•Manual Pairing 7
- Multipoint 7
•Multipoint Connect 7
- Controls 7
•Power on / Power off 7
•Volume control 7
•Battery Status Alert 7
•Low battery 8
•Answering a call / Ending a call 8
•Last number redial 8
•Making a call 8
•Voice dialing 8
•Transferring a call 8
•Call waiting 8
•Call Reject 8
- Use HBM-810 as a Hands Free Kit 8
- Auto Reconnect 9
- Music Play (A2DP) 9
- Name AlertTM 10
•Enable / Disable ‘Name AlertTM’ 10
•Language Selection 10
- Text/SMS Reader 10
•Enable / Disable Text/SMS Reader 10
•Text/SMS Reader 10
Summary of button functions 11
LED indication 12
Troubleshooting 12
Specification 13
Precautions 13
Declaration of confirmation 14
Additional information 14
Limited warranty 16
Important safety information 16
WARNINGS 16
HBM-810
HBM-810
Bluetooth®Headset Ear loop
Cradle Small Charging Cradle
Window mount Charger
Warranty Card
Ear buds Suction cup
User manual Quick Start Guide

Cradle
4 5
Part Description
Charging
USING CRADLE:
- Attach the Headset to the Cradle.
•The headset will charge when attached to the cradle, even if the headset is
powered off.
•If the cradle battery is empty, the headset will not charge (the LED indicator
on the headset will not turn on, while in the cradle).
- The LED indicator on the headset will show a solid blue light while charging.
- It takes 2 hours to fully charge the Headset.
- When charging is complete, the LED indicator will turn off.
USING SMALL CHARGING CRADLE
- Connect the charger to the charging port on the Small Charging Cradle,
then attach the HBM-810 headset.
- The LED indicator on the headset will show a solid Blue light while charging.
Speaker
Volume UP
/Down Button
Mic Charging Contacts
(protective film)
Charging Contacts
Headset
Volume UP
/ Down Button
Charging Port
Speaker Solar Panel
Charging
Contacts
LED indicator(Red)
for charging status
LED indicator(Yellow-Green)
for Solar Panel status
Call Button
Call Button
Power Switch LED indicator(Blue)
for Bluetooth status
Small Charging Cradle
* The Small Charging Cradle can only be used to charge the HBM-810
Headset.
Charging Port
Before Use
How to use
- Before using the HBM-810 headset, you will need to remove the protective
film which is covering the contacts on the headset.
INSTALLING IN CAR
- For the best performance, the HBM-810 should be positioned and installed on
the windshield near the driver.
* WARNING :
•The HBM-810 must be positioned on the windshield in such a way that it
does not obstruct the driver's view of the road.
•Do not position the HBM-810 in the path of any of your vehicle's airbags.

76
How to use How to use
Multipoint
Pairng
- The LG HBM-810 is capable of having two handsets connected to the
headset at the same time. This will give you the freedom of having only one
Headset to operate both of your handsets.
Multipoint Connect
- Pair the headset with one of your Bluetooth-enabled handsets.
(per the easy pairing instructions on Manual Pairing).
- Turn off the headset. Now, follow the manual pairing process with your other
Bluetooth-enabled handset.
(This will be your Primary handset).
- Once this handset is paired and connected, go back and connect the first
paired handset to the headset. (This will be your Secondary handset).
Note: When the HBM-810 is connected to two handsets at the same time
(Multipoint), the headset calling functions will work with the Primary
handset (or handset which made the last outgoing call).
- Before using the headset for the first time, you must pair it with a Bluetooth-
enabled handset.
- There are 2 Pairing Mode Methods with the HBM-810
Easy Pairing (First Time Pairing)
1. Move the Power switch to the ON position to turn on the HBM-810 (you will see
green beneath the power switch). When the Headset enters Pairing Mode, the
LED indicator will show a solid blue light (Speech: "Please pair phone now").
2. Using your handset, find the Bluetooth Menu and “search for” or “add” new
devices.
•Select “LG HBM-810” from the list of devices and pair it with your handset.
3. If asked for the Pass/PIN code please enter “0000” (4 Zeros).*
* Note : If your handset supports Secure Simple Pairing(SSP), you will not
need to enter Pass/PIN code.
•Once pairing has completed successfully, you will hear "Paired to phone
successfully".
4. Once paired, be sure to connect to the phone. You will hear "Connected to
phone".
•Some handsets might ask for permission to access the phone's contact
list. If you receive a message from your handset, please select “OK” or “Allow
access”
•The HBM-810 will automatically turn off if not paired within 3 minutes.
Manual Pairing
•With the Power off, press the CALL button and move the Power Switch to
the on side at the same time. Hold for 2 seconds.
•When the Headset enters Pairing Mode, the LED indicator will show a solid
blue light and you will hear, "Please pair phone now". Repeat Easy Pairing
steps 2 through 5.
Controls
Headset power ON / power OFF
- Slide the Power Switch to the ON (green) / OFF (black) position.
Cradle power ON / OFF
- The cradle does not have power ON/OFF controls. When the headset is
inserted into the cradle with the power ON, the cradle automatically
powers ON. When the headset is removed, the cradle will power OFF.
Volume Control
- Briefly press the VOLUME UP/DOWN button.
Battery Status Alert
- To check the battery status, press and hold the VOLUME DOWN button for
3 seconds.
- There are 4 levels of battery status : “Battery full”,”Battery half”,”Battery low”,
and “Battery very low”
USING SOLAR POWER
•Direct the solar panel on the back of the hands-free car kit toward the sun.
(Please refer to the recommended installation position, as mentioned above.)
•For every 2 hours the cradle Solar Panel receives sufficient sunlight, (while
the headset is attached), the headset will receive an extra one hour of talk
time (up to 4.5 hours total). When using solar power to charge the HBM-810,
the talk time and standby time will be extended, without any need to plug in
the charger.
* WARNING : Do not attempt to charge the HBM-810 with any charger other
than the one provided in the box. Using another charger may damage the
HBM-810.

8
How to use
9
Auto reconnect
Music Play (A2DP)
How to use
The HBM-810 supports music streaming (A2DP).
When you play music from your mobile phone it will automatically transfer to your
headset or cradle. Music will automatically pause when you have an incoming call.
When the call is ended the music will start playing again.
Controlling your music is only possible from your handset.
- If the HBM-810 is turned off (either accidentally or intentionally) while
connected to a handset, the headset and handset will disconnect.The
headset and handset will automatically reconnect when the HBM-810 is
turned back on (provided that both devices are within the required range of
33 feet 10 meters).
[ Out of range ]
- When your handset and HBM-810 are separated by a range of 33 feet (10
meters) or more, the headset and handset will disconnect. When the handset
and HBM-810 are within the required range again, the HBM-810 will
automatically reconnect to the handset.
- If the headset and handset do not automatically reconnect when they are
back within the required range, briefly press the Call button on the HBM-810
to reconnect manually.
Low battery
- An announcement will be made once every 2 minutes.
(Speech:Battery very low, please charge now)
- If the battery is not charged, the headset will turn off.
Answering a call / Ending a call
- Briefly press the CALL button.
Last number redial*
- Press and hold the CALL button for 1second to activate “Last Number
Redial”.
Making a call
- If you make a call from the handset, the call will (subject to phone settings)
automatically transfer to the headset. If the call is not automatically
transferred, you can manually transfer the call by briefly pressing the CALL
button on the headset/cradle. (Headset and handset must be paired).
Voice dialing*
- Briefly press the CALL button to activate “Voice Command”.
NOTE: If the handset does not support Voice Dialing, it is possible that performing
this action will activate Last Number Redial.
Transferring a call*
- While on a call on your handset, briefly press the CALL button on the headset
to transfer the audio to the headset. And to transfer a call from the headset to
handset, press and hold VOLUME UP button for 3 seconds.
Call waiting*
- Answer a second call without hanging up the first call by pressing the
CALL button for 1 second (you will hear a beep). Press the CALL button
for 1second to return to the original call.
- Briefly press the CALL button to terminate the active call or both calls at
once. (subject to handset's support)
Call Reject*
- Press the CALL button for 1second when the handset rings.
Using HBM-810 as a Hands Free Car Kit

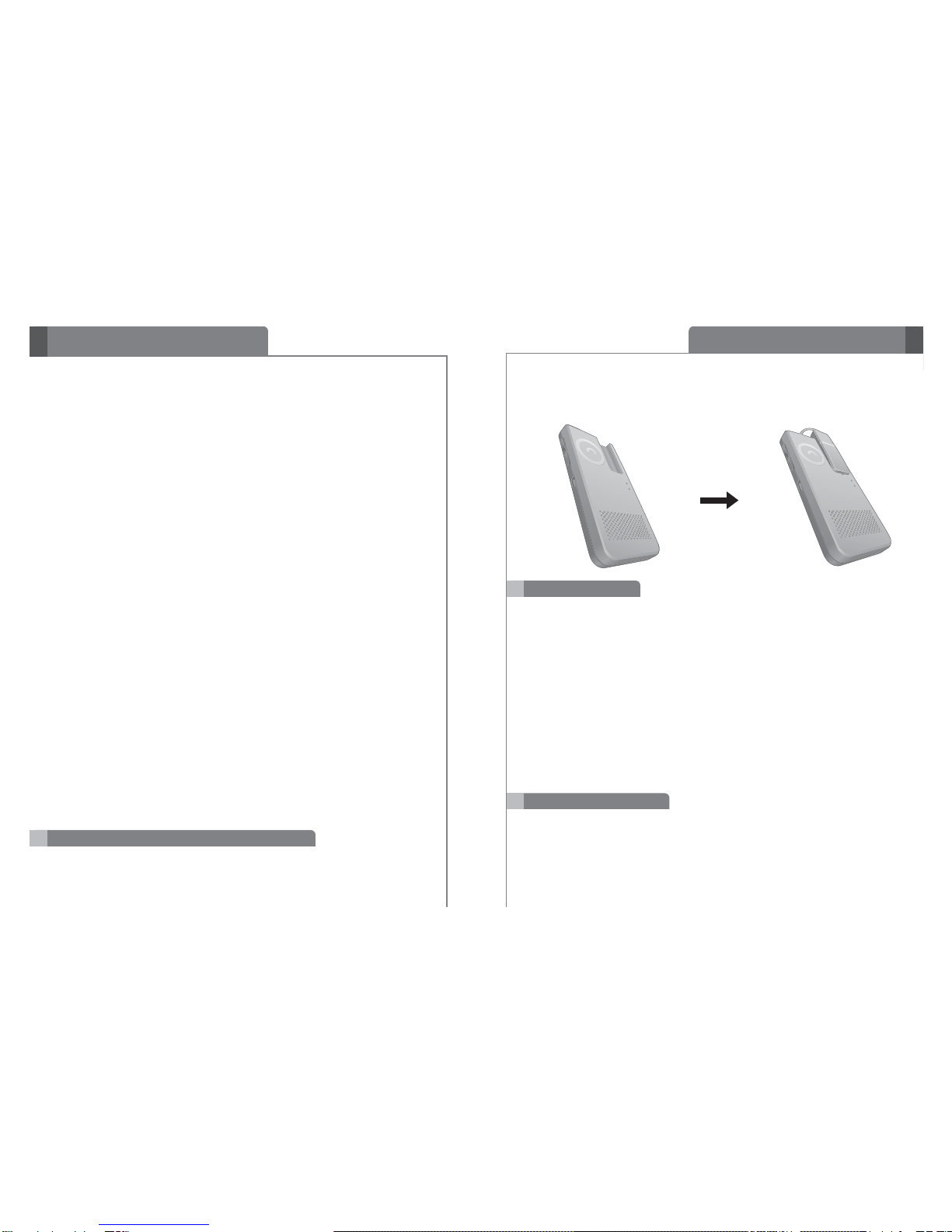

- To use the HBM-810 as a Hands Free Car Kit, attach the headset to the
Cradle.
- When the headset is attached to the Hands-free Car Kit, the headset CALL
button is deactivated, and will not work.
* Calling instructions apply to the headset AND the cradle (when the headset is
attached).
- Once the headset is attached to the cradle, all audio will be played through
the cradle.
- Use the CALL button on the cradle to activate all calling features.

How to use
Name AlertTM Function HBM-810
Status Action
10 11
Power on Power off Move the Power switch to ON position
Power off Power on Move the Power switch to OFF position
Volume up Talking Briefly press the Volume Up button.
Volume down Talking Briefly press the Volume Down button.
Transferring a call Talking - Handset to Headset
Briefly press the CALL button
(must be paired)
- Headset to handset
Press and hold the VOLUME UP button
for 3 seconds.
Answering a call Ringing Briefly press the CALL button.
Ending a call Talking Briefly press the CALL button.
Call waiting Talking Press the CALL button for 1 second.
Last number redial Idle Press the CALL button for 1 second.
Voice dialing Idle Briefly press the CALL button.
(handset must support)
Manual pairing Power off Press and hold the CALL button and
move the Power switch to ON position.
Call reject Ringing Press the CALL button for 1 second.
(Name AlertTM)Activate Idle Press and hold the VOLUME UP button
/ Deactivate for 5 seconds
Enter language Idle Press and hold the VOLUME UP and
selection mode VOLUME DOWN button simultaneously
for 3 seconds
Browse language type Language Press the VOLUME UP or VOLUME
Selection Mode DOWN button.
Select language Language Press CALL button once.
Selection Mode
Check battery status Idle Press and hold the VOLUME DOWN
button for 3 seconds.
Text / SMS Reader Idle Double click the CALL button.
Text / SMS Reader Power off Press and hold the VOLUME UP
Activate/Deactivate button and move the Power switch
to ON position.
Text / SMS Reader
The LG HBM-810 supports Text / SMS Reader function *.
*NOTE: The Text / SMS Reader function is not supported by all handsets.
Enable / Disable Text / SMS Reader
- With the power off, press and hold the VOLUME UP button and move the
power switch to ON position.
- You will hear “Text Reader Disabled” or ''Text Reader enabled”
Text / SMS Reader*
- To read a text message, double click the CALL button.
- You will hear “Message From <number>” or ''Message From <name>”
* It is possible to use these functions only when your handset supports them. If
your handset doesn't support or no message has been received since the
HBM-810 was connected, the headset automatically plays on long beep tone
instead of Text / SMS reading.
Summary of button functions
The LG HBM-810 is capable of announcing the caller's name, and confirmations
of headset operation*.
* NOTE: The Name AlertTM function is not supported by all handsets.
Enable/Disable 'Name AlertTM'
- Press and hold the VOLUME UP button on the HBM-810 for 5 seconds to
enable/disable 'Name AlertTM’. You will hear, "Enabled Name AlertTM" or
"Disabled Name AlertTM".
Language Selection
- The Name AlertTM function allows you to choose from 2 different language
options. They are English and Spanish.
- To enter Language Selection Mode, press and hold the VOLUME UP and
VOLUME DOWN buttons simultaneously on the HBM-810 for 3 seconds.
You will hear "Please select language".
- To browse language type, press the VOLUME UP or VOLUME DOWN
button to scroll through the language options.
- To select a language, press the CALL Button once after hearing your
language. You will hear "English Selected"
- If no language is selected for 3 seconds, the current language will remain.
(Speech: Cancelled).

Precautions
13
Keep unit away from humidity & dust.
Do not place heavy objects on the unit.
•Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
•There is a risk of explosion if the battery is replaced by on incorrect type.
•Dispose of used batteries according to the instructions.
•The earloop is made of a durable plastic. However, bending the earloop repeatedly
is not recommended.
LED indication
Troubleshooting
Do not drop the unit from high places.
Do not modify, repair, or take apart.
Do not expose directly to flammables.
Do not place or keep the unit near flammables.
Do not expose directly to water, alcohol, benzene, etc. for leaning.
Only use the headset with an original LG charger, otherwise it may be
damaged.
12
Specification
Function Action
Charging Charging The red LED light stays on.
Charging complete The red LED light turns off.
Solar charging The yellow-green LED light stays on.
HBM-810(Cradle)
Status
Function Action
Operating Power on The blue LED light flickers 4 times.
Power off The blue LED light flickers 4 times
and then turns off.
Pairing mode The blue LED light stays on.
Headset/handsfree The blue LED light flickers
Profile connected 1 time every 5 seconds.
Call connected The blue LED light flickers
1 time every 5 seconds.
Charging Charging The blue LED light stays on.
Charging complete The blue LED light turns off.
HBM-810(Headset)
Status
Does not turn on Check whether the battery Charge the battery.
of the HBM-810 is fully
charged.
Unable to Check whether Determine whether your
communicate with the handset supports handset supports
the LG Bluetooth
®
the Headset or Handsfree the Headset or Handsfree
Headset HBM-810 Bluetooth profiles. Bluetooth profiles.
Check whether the battery Charge the battery.
of the HBM-810 is low.
Unable to pair the Check and make sure the
Move the Power switch to
HBM-810 with the Headset is on. ON position.
Bluetooth®device Check and make sure Press and hold the CALL
the Headset is placed button and move the
in pairing mode. POWER switch to ON
position.
Low sound (speaker)
Check the speaker volume. lncrease the volume level.
ITEM (Headset) Description
Bluetooth®specification V2.1 +EDR (Handsfree / Headset / A2DP profiles)
Battery Battery 3.7V / 125mAh Li-Polymer
Stand by time Up to 140Hr
Talk Time Up to 4.5Hr
Charging time < 2Hrs
Operation temperature -10℃~60℃
Dimension / weight 52.3 X 17.4 X 8.8 mm / 10.3g
ITEM (Cradle) Description
Battery Battery 3.7V / 520mAh Li-Polymer
Stand by time Up to 230Hr
Talk Time Up to 6.5Hr
Charging time < 2Hrs
Operation temperature -10℃~60℃
Dimension / weight 107 X 54 X 13.5 mm / 67g

Declaration of Confirmation
Additional Information
1514
1. Radio frequency exposure
This Bluetooth®Headset, HBM-810, is a radio transmitter and receiver. When in
operation, it communicates with a Bluetooth®equipped mobile device by receiving
and transmitting radio frequency (RF) electromagnetic fields (microwaves) in the
frequency range 2.4 to 2.4835 GHz. The output power of the radio transmitter is low,
0.001 watt. Your Bluetooth®Headset is designed to operate in compliance with the
RF exposure guidelines and limits set by national authorities and international health
agencies when used any compatible LG Electronics mobile phone.
2. Potentially explosive atmosphere
Turn off your electronic device when in any area with a potentially explosive
atmosphere. It is rare, but your electronic device could generate sparks. Sparks in
such areas could cause an explosion or fire resulting in bodily injury or even death.
Areas with a potentially explosive atmosphere are often, but not always, clearly
marked.
3.Emergency calls
IMPORTANT!
This Bluetooth®Headset and the electronic device connected to the Headset operate
using radio signals, mobile and landline networks as well as user - programmed
functions, which cannot guarantee connection under all conditions. Therefore you
should never rely solely upon any electronic device for essential communications (e.g.
medical emergencies). Remember, in order to make or receive calls, the Headset and
the electronic device connected to the Headset must be switched on and in a service
area with adequate mobile signal strength. Emergency calls may not be possible on
all cellular phone networks or when certain network services and/or phone features
are in use. Check with your local service provider.
FCC NOTICE TO USERS :
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
IMPORTANT NOTE :
To comply with the FCC RF exposure compliance requirements, no change to
the antenna or the device is permitted. Any change to the antenna or the
device could result in the device exceeding the RF exposure requirements and
void user's authority to operate the device.
Hereby, LG Electronics Inc. declares that this HBM-810 is in compliance with
the essential requirements and other relevant provisions of Directive 1999/5/EC.
Additional Information
4. Battery information
A rechargeable battery has a long service life if treated properly. A new battery or one
that has not been used for a long period of time could have reduced capacity the first
few times it is used. Do not expose the battery to extreme temperatures, never above
+60。(+140。F) or under -20。(-4。F). For maximum battery capacity, use the battery in
room temperature. If the battery is used in low temperatures, the battery capacity will be
reduced. The battery can only be charged in temperatures between +10。(+50。F) and +
45。(+113。F). For your safety, do not remove the battery incorperated in the product. If
you need to replace the battery, take it to the nearest authorised LG Electronics service
point or dealer for assistance.
5. Recycling the battery in your Bluetooth® Headset
The battery in your Bluetooth®Headset must be disposed of properly and should never
be placed in municipal waste. The LG Electronics service partner removing battery will
dispose of it according to local regulations.
6. Conditions
- The warranty is valid only if the original receipt issued to the original purchaser by the
dealer, specifying the date of purchase and serial number, is presented with the
product to be repaired or replaced. LG Electronics reserves the right to refuse
warranty service if this information has been removed or changed after the original
purchase of the product from the dealer.
- If LG Electronics repairs or replaces the product, the repaired or replaced product
shall be warranted for the remaining time of the original warranty period or for ninety
(90) days from the date of repair, whichever is longer. Repair or replacement may
involve the use of functionally equivalent reconditioned units. Replaced parts or
components will become the property of LG Electronics.
- This Warranty does not cover any failure of the product due to normal wear and tear,
or due to misuse, including but not limited to use in other than the normal and
customary manner, in accordance with instructions for use and maintenance of the
product. Nor does this warranty cover any failure of the product due to accident,
modification or adjustment, acts of God or damage resulting from liquid.
- This warranty does not cover product failures due to improper repair installations,
modifications or service performed by a non-LG Electronics authorized person.
Tampering with any of the seals on the product will void the warranty.
- THERE ARE NO EXPRESS WARRANTIES, WHETHER WRITTEN OR ORAL,
OTHER THAN THIS PRINTED INCLUDING WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY.
IN NO EVENT SHALL LG ELECTRONICS OR ITS VENDORS BE LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE
WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOST PROFITS OR
COMMERCIAL LOSS, TO THE FULL EXTENT THOSE DAMAGES CAN BE
DISCLAIMED BY LAW.
•Some countries/states do not allow the exclusion or limitation of incidental or
consequential damages, or limitation of the duration of implied warranties, so the
preceding limitations or exclusions may not apply to you. The warranty provided does
not affect the consumer's statutory rights under applicable national legislation in force,
nor the consumer's rights against the dealer arising from their sales/purchase contract.

16
Limited Warranty
WARNINGS
Important Safety Information
Subject to the conditions of this Limited Warranty, LG Electronics warrants this product
to be free from defects in design, material and workmanship at the time of its original
purchase by a consumer, and for a subsequent period of one (1) year. Should your
product need warranty service, please return it to the dealer from whom it was
purchased or contact your local LG Electronics contact center to get further information.
WARNINGS - The failure to avoid the following hazardous situations could
result in an accident or collision resulting in death or serious injury.
Never let your use of this HBM-810 Hands-Free Car kit, or use of a device cradled
within the HBM-810 Hands-Free Car kit, divert your attention in any way from the safe
operation of your vehicle. Always observe safe driving rules and obey all traffic laws.
All adjustments to or repositioning of the HBM-810 Hands-Free Car kit or any device
cradled within the HBM-810 Hands-Free Car kit should be done when the vehicle is
safely parked or stopped.
When installing the unit in a vehicle, make sure the unit is secure and does not obstruct
the driver's view of the road or interfere with vehicle operating controls. Do not mount
this product near or over an airbag cover panel within an airbag deployment zone.
In some states certain operations of devices capable of use with this unit, including
video functionality, while driving is illegal. In addition, some states prohibit or restrict the
manner in which drivers may suction mount devices to their windshields. Please consult
your local laws to determine whether any of the foregoing regulations apply.
Avoiding hearing damage Permanent hearing loss may occur if you use your
headset at a high volume. Set the volume to a safe level. You can adapt over time to
a higher volume of sound that may sound normal but can be damaging to your
hearing. If you experience ringing in your ears or muffled speech, stop listening and
have your hearing checked. The louder the volume, the less time is required before
your hearing could be affected. Hearing experts suggest that to protect your hearing:
•Limit the amount of time you use headset at high volume.
•Avoid turning up the volume to block out noisy surroundings.
•Turn the volume down if you can't hear people speaking near you.
Please refer to your handset user guide for more information on how to adjust
listening levels on your handset.
Using headsets safely Use of headsets to listen to music while operating a vehicle
is not recommended and is illegal in some areas. Be careful and attentive while
driving. Stop using this device if you find it disruptive or distracting while operating
any type of vehicle or performing any other activity that requires your full attention.
Reservados todos los derechos.
LG Electronics Inc., 2010
Nota: lea atentamente toda la información antes de
usar el auricular HBM-810, para obtener el mejor
rendimiento, evitar daños o usar el dispositivo de
forma incorrecta.
De existir errores tipográficos o imprecisiones en la
información contenida en este manual, sólo LG
Electronics Inc podrá realizar cambios o
modificaciones.
LG Electronics
Auricular BLUETOOTH®
HBM-810 Manual del usuario
Español
