LG THERMA V ZHNW16B0 Product guide

Air-to-Water Heat Pump / Hydrosplit Type
R32 / 50Hz
5BPU5-01C(Replaces 5BPU5-01B)
P/No. : MFL66101120

THERMA V
Hydrosplit Type
General Information
Indoor unit
Outdoor unit
Design and installation

General Information
THERMA V
Hydrosplit Type
1.Model Line Up
2.Nomenclature

2
THERMA V Hydrosplit Type General Information
1. Model line up
1.1 Indoor Unit
Note
* : Actual system capacity would be different accordance with combination of outdoor unit.
1.2 Outdoor Unit
Category External
Appearance
Model Name
Heating Capacity * (kW)
16.0
Hydrosplit Type ZHNW16B0 [HN1600MB NK0]
Category
Model Name
Heating Capacity (kW)
12 14 16
1 Phase Model
1 Ø, 220-240 V, 50 Hz ZHBW126B0 [HU121MRB U30] ZHBW146B0 [HU141MRB U30] ZHBW166B0 [HU161MRB U30]
Combination ZHNW16B0
[HN1600MB NK0] OOO
3 Phase Model
3 Ø, 380-415 V, 50 Hz ZHBW128B0 [HU123MRB U30] ZHBW148B0 [HU143MRB U30] ZHBW168B0 [HU163MRB U30]
Combination ZHNW16B0
[HN1600MB NK0] OOO
External Appearance

3
THERMA V Hydrosplit Type General Information
2. Nomenclature
2.1 Indoor Unit
■Factory Model Name
Model Name ZH N W 16 B 0
No.123456
No. Signification
1Air-to-Water Heat Pump for R32
2Classification
N : Indoor unit
3Model Type
W : Inverter Heat Pump
4Heating Capacity (kW)
Ex) 16kW → '16'
5Function
B : Hydrosplit Type
6Serial number

THERMA V Hydrosplit Type
2. Nomenclature
4
General Information
■Buyer Model Name
Model
Name H N 16 0 0 M B N K 0
No.12345678910
No. Signification
1Air-to-Water Heat Pump
2Classification
N : Indoor unit
3Heating Capacity (kW)
Ex) 16kW → '16'
4Electrical ratings
0 : for both 1Ø, 220-240V, 50 Hz and 3Ø, 380-415V,50Hz
5Heater Capacity (kW)
Ex) 0kW → ‘0’
6Leaving Water Combination
M : Mid Temperature
7Function
B : Hydrosplit
8Classification
N : Indoor unit
9Platform (Chassis code)
K : K1 Chassis
10 Serial number

2. Nomenclature
5
THERMA V Hydrosplit Type General Information
2.2 Outdoor Unit
■Factory Model Name
Model
Name ZH B W 16 8 B 0
No.1234567
No. Signification
1Air-to-Water Heat Pump for R32
2Classification
B : Monobloc Type
3Model Type
W : Inverter Heat Pump
4
Heating Capacity (kW)
Ex) 16kW → ‘16’
5
Electrical ratings
6: 1Ø, 220-240V, 50 Hz
8 : 3Ø, 380-415V, 50 Hz
6Function
B : Hydrosplit
7Serial number

THERMA V Hydrosplit Type
2. Nomenclature
6
General Information
■Buyer Model Name
Model
Name H U 16 3 M R B U 3 0
No.12345678910
No. Signification
1Air-to-Water Heat Pump
2Classification
U : Outdoor unit
3Heating Capacity (kW)
Ex) 16kW : ‘16’
4
Electrical ratings
1: 1Ø, 220-240V, 50 Hz
3 : 3Ø, 380-415V, 50 Hz
5Leaving Water Combination
M : Mid Temperature
6Type of Refrigerant
R : R32
7Function
B : Hydrosplit
8Classification
U : Outdoor unit
9Platform (Chassis code)
3 : U3 Chassis
10 Serial number

Indoor unit
THERMA V
Hydrosplit Type
1.List of Functions
2.Specification
3.Dimensions
4.Wiring Diagram
5.Piping Diagram
6.Hydraulic Performance
7.Sound Levels

2
THERMA V Hydrosplit Type Indoor unit
1. List of Functions
■Basic functions of Unit
Note
1. O : Applied, X : Not applied
Accessory : Ordered and purchased separately the accessory package referring to the model name provided and install at field.
Accessory line-ups varies by region, so check your local catalogue or local sales material.
Category Functions ZHNW16B0 [HN1600MB NK0]
Installation Backup heater (Operation) O (Accessory)
Reliability Self diagnosis O
Convenience
Auto Restart O
Child lock O
Sleep mode O
Timer (on/off) O
Timer (weekly) O
Two thermistor control X
Network function Network solution(LGAP) O
Air to Water Heat
Pump Functions
Anti-condensation on floor (cooling) O
Digital output for external pump O
Current flow rate monitoring O
Thermostat interface (230V AC) O
Thermostat interface (24V AC) X
Solar thermal system O
DHW(Domestic Hot Water) heating O (Accessory)
PHEX anti-freezing control O
Water pump anti-stuck function O
Weather compensation
for heating and cooling (Auto mode) O
Low noise operation O
Anti-overheating of water pipe O
Emergency operation O
Weather Dependent Operation with
Thermostat O
Scheduler (DHW Tank Heater) O
Timer (Domestic Hot Water Tank Heater) O
Quick Domestic Hot Water Tank Heating O
Screed Drying Mode O
Base pan heating O
External input and output control(CN_EXT) O
Water flow control O
Water pressure monitoring O
Digital input for energy saving (ESS) O

1. List of Functions
3
THERMA V Hydrosplit Type Indoor unit
■Accessory Compatibility List
Note
1. O: Possible, X: Impossible, - : Not applicable, Embedded : Included with product.
2. * : Some advanced functions controlled by individual controller cannot be operated.
3. ** : It could not be operated some functions.
4. If you need more detail, please refer to the BECON PDB or the manual of product. (http://partner.lge.com/global : Home> Doc.Library> Product > Control(BECON))
*** Meter interface cannot be connected at the same time with 3rd-party controller.
Category Product Remark ZHNW16B0 [HN1600MB
NK0]
Wired Remote
Controller Standard PREMTW101 New standard (White) O
Dry Contact
Simple Contact PDRYCB000 Simple Dry Contact O
Communication Type
PDRYCB400 2 Points Dry Contact (For Setback) X
PDRYCB320 For 3rd party Thermostat O
PDRYCB500 Dry Contact for Modbus X
ETC
Remote temperature sensor PQRSTA0 - O
Group control wire PZCWRCG3 0.25 m X
2-Remo Control Wire PZCWRC2 0.25 m O
Extension wire PZCWRC1 10 m O
Wi-Fi controller * PWFMDD200 USB Cable : 0.6 m
Extension cable : 0.5 m O
Wi-Fi Extension cable PWYREW000 USB Extension cable : 10 m O
Meter Interface*** PENKTH000 Interface between IDU and Meter O
2 Zone Valve Controller PZNVVB200 - O
Accessory Kit
for AWHP
DHW tanks (Single coil)
OSHW-200F 200 L O
OSHW-300F 300 L O
OSHW-500F 500 L O
DHW tanks (Double coil) OSHW-300FD 300 L O
DHW tank kit
PHLTA For Split (1Φ) O
PHLTB For Monobloc X
PHLTC For Split (3Φ) O
DHW sensor PHRSTA0 included in PHLTA kit O
Mixing valve OSHA-MV 3/4” DN20 O
OSHA-MV1 1” DN25 O
Backup heater
AHEH036A [HA031M E1] 220-240 V, 1Φ X
AHEH066A [HA061M E1] 220-240 V, 1Φ X
AHEH066B [HA061B E1] 220-240 V, 1Φ O
AHEH068A [HA063M E1] 380-415 V, 3Φ X
AHEH068B [HA063B E1] 380-415 V, 3Φ O
3way valve OSHA-3V - O
Solar thermal kit PHLLA - X
2nd Circuit or E/Heater
Thermistor PRSTAT5K10 - O
Drain pan PHDPB - X
PHDPC - O
Cover Plate PDC-HK10 For K1 Chassis only O
Buffer Tank (40ℓ)OSHB-40KT For IWT(integrable) X
DHW expansion vessel (8ℓ)OSHE-12KT For IWT (integrable) X
Central
Controller
AC EZ PQCSZ250S0 AC EZ X
AC Ez Touch PACEZA000 AC Ez Touch O
AC Smart PACS4B000 AC Smart IV O
PACS5A000 AC Smart 5 O
ACP PACP4B000 ACP IV O
PACP5A000 ACP 5 O
AC Manager ** PACM4B000 AC Manager IV O
PACM5A000 AC Manager 5 O
Gateway
IDU PI485 PHNFP14A0 Without case X
PSNFP14A0 With case X
ODU PI485 PMNFP14A1 PI 485 Gateway O
BACnet PQNFB17C0 ACP BACnet O
Lonworks PLNWKB000 ACP Lonworks O
Modbus PMBUSB00A - O
ETC PDI PPWRDB000 PDI Standard O PQNUD1S40 PDI Premium O
ACS IO Module PEXPMB000 - X

4
THERMA V Hydrosplit Type Indoor unit
2. Specifications
Note
1. Due to our policy of innovation some specifications may be changed without notification.
2. Wiring cable size must comply with the applicable local and national code. And “Electric characteristics” chapter should be considered for electrical
work and design. Especially the power cable and circuit breaker should be selected in accordance with that.
3. Sound power level is measured on the rated condition in according with ISO 9614 standard.
Therefore, these values can be increased owing to ambient conditions during operation.
4. * DHW 58~80°C operating is available only when the booster heater is operating.
Backup Heater
Note
1. Due to our policy of innovation some specifications may be changed without notification.
2. Wiring cable size must comply with the applicable local and national code. And “Electric characteristics” chapter should be considered for electrical
work and design. Especially the power cable and circuit breaker should be selected in accordance with that.
Indoor Unit ZHNW16B0 [HN1600MB NK0]
Operation Range
(Leaving Water
Temperature)
Cooling Min. ~ Max. °C DB 5 ~ 27
Heating Min. ~ Max. °C DB 15 ~ 65
DHW * Min. ~ Max. °C DB 15 ~ 80
Water Pump
Type - Canned type for hot water circulation
Model GRUNDFOS UPML 20-105 CHBL
Motor Type - BLDC
Steps of Pump Performance - Variable capacity 10% to 100%
Power input Min. ~ Max. W 14 ~ 140
Flow Sensor
Type - Vortex
Model - SIKA VVX20
Measuring Range Min. ~ Max. ℓ/min 5 ~ 80
Flow (Trigger point) Min. ℓ/min 15
Water Pressure Sensor Model - - Sensata OFM(2HMP)
Measuring Range Min. ~ Max. bar(G) 0 ~ 20
Expansion Vessel
Volume Max. ℓ8
Water pressure Max. bar 3
Water pressure Pre-charged bar 1
Relief valve Pressure Limit Upper Limit bar 3.0
Devices for Water Circuit -
- Relief valve / Flow sensor
-Drain hose
- Pressure sensor / Air vent valve
Piping Connections Water Circuit Inlet mm(Inch) Male PT 25.4(1)
Outlet mm(Inch) Male PT 25.4(1)
Wiring Connections Power and Communication Cable (Included Earth,
H07RN-F) mm2 x cores 0.75 x 4
Sound Power Level Heating Rated dB(A) 44
Dimensions Unit W × H × D mm 490 × 850 × 315
Packed Unit W × H × D mm 563 ×1,082 × 375
Weight Unit kg 30.3
Packed Unit kg 34.3
Electrical Specification AHEH066B
[HA061B E1]
AHEH068B
[HA063B E1]
Type - Sheath Sheath
Power Supply V, Ø, Hz 220-240, 1, 50 380-415, 3, 50
Power Connection Wiring - L1, N, Earth R, S, T, N, Earth
Number of Heating Coil EA 2 3
Capacity Combination kW 3 + 3 2 + 2 + 2
Operation - Automatic Automatic
Heating Steps Step 2 2
Current(Rated) A 24 8.7
Power Cable (Included Earth, H07RN-F) mm² x cores 6.0 x 3C 2.5 x 5C
Communication Cable (H07RN-F) mm² x cores - -

5
THERMA V Hydrosplit Type Indoor unit
3. Dimensions
3.1 Internal Layout
[Unit : mm] Chassis : K1 P/No. : TBJ37799101_rev.01

THERMA V Hydrosplit Type
3. Dimensions
6
Indoor unit

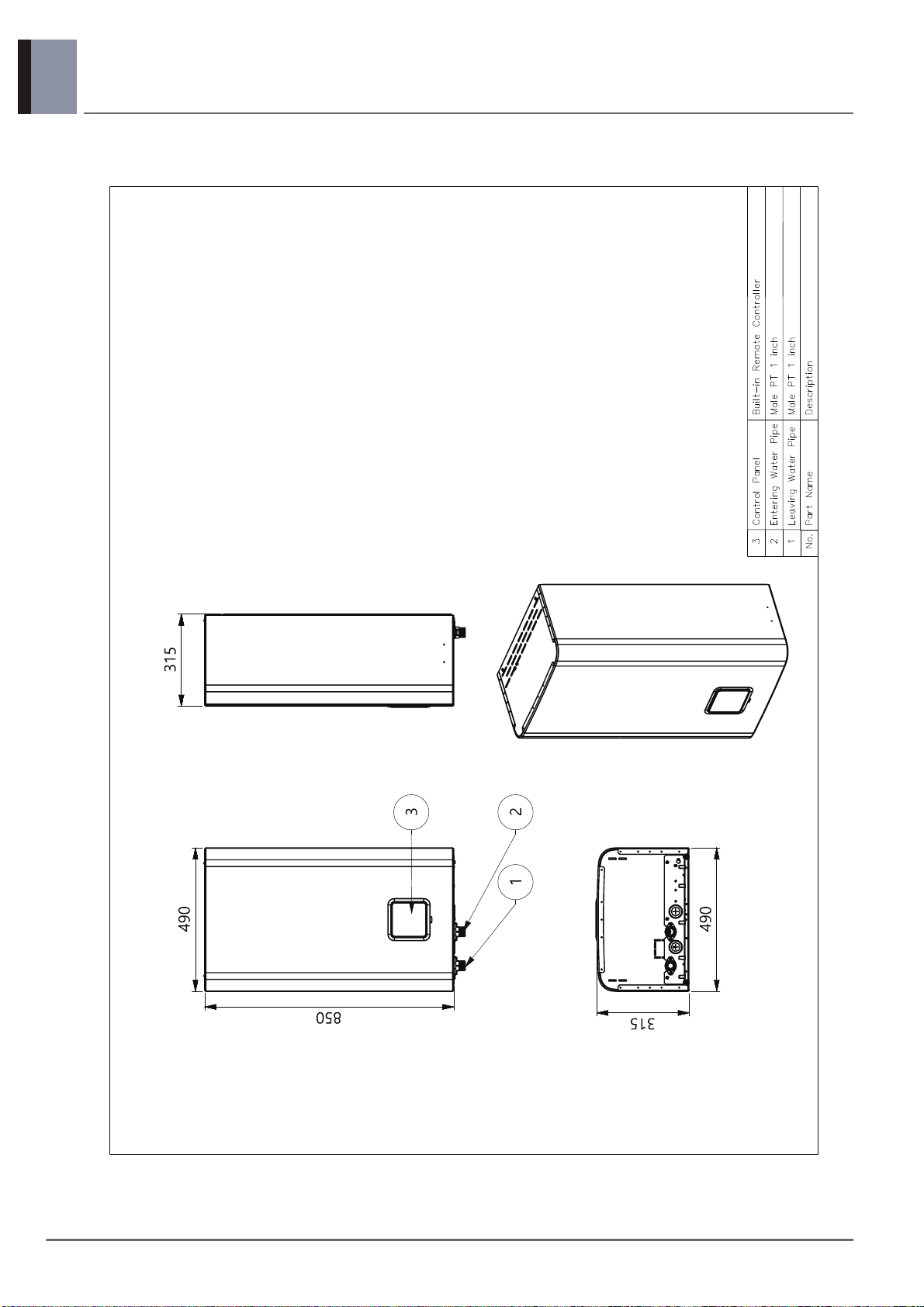

3.2 External Layout
[Unit : mm] Chassis : K1 P/No. : TBJ37799101_rev.01

3. Dimensions
7
THERMA V Hydrosplit Type Indoor unit

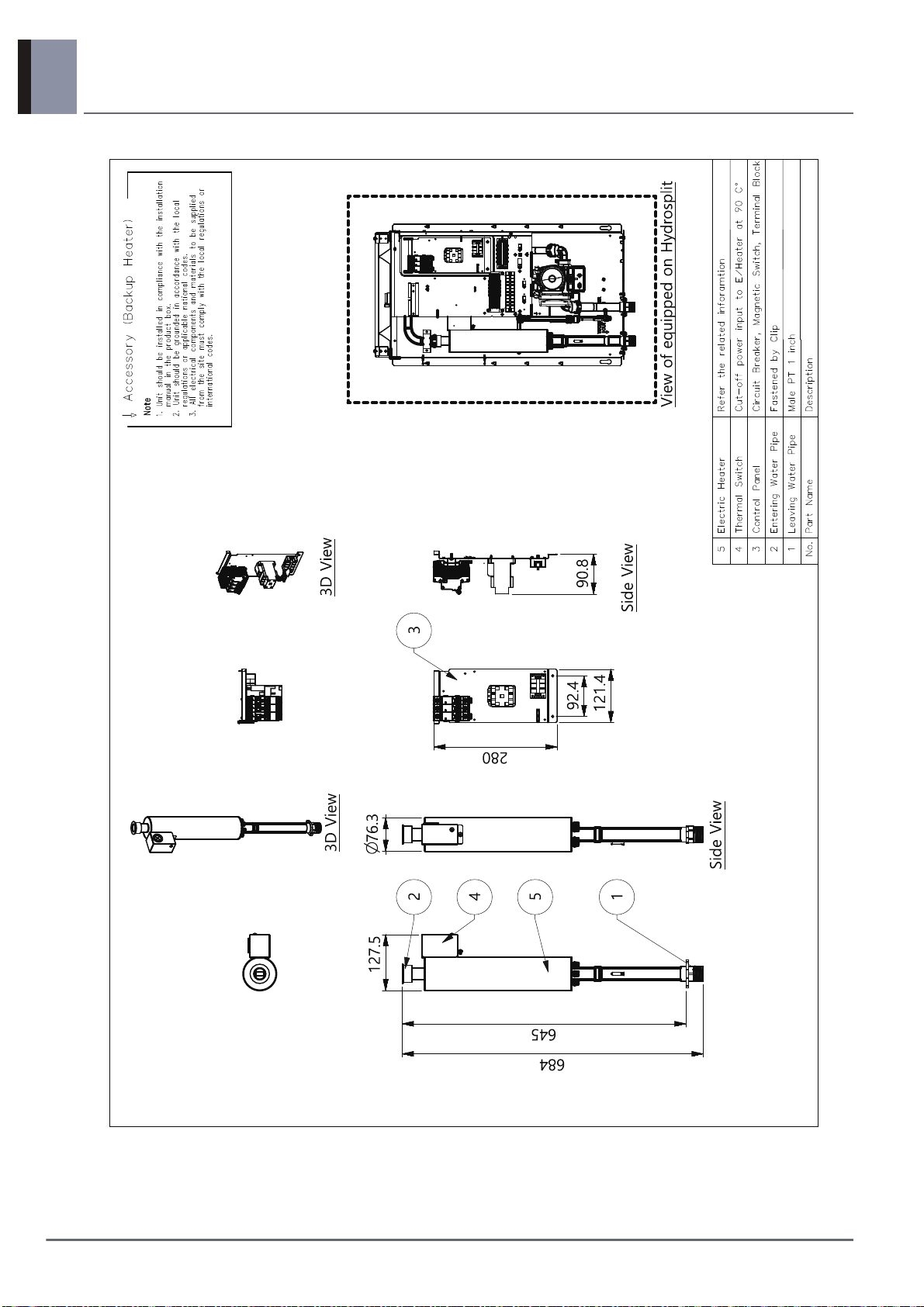

3.3 Backup Heater
1Phase
[Unit : mm] P/No. : TAY38317501_Rev.01

THERMA V Hydrosplit Type
3. Dimensions
8
Indoor unit
3Phase
[Unit : mm] P/No. : TAY38317601_Rev.01

9
THERMA V Hydrosplit Type Indoor unit
4. Wiring Diagrams
■ZHNW16B0 [HN1600MB NK0]

10
THERMA V Hydrosplit Type Indoor unit
5. Piping Diagram
■ZHNW16B0 [HN1600MB NK0]
iG
Opk|GRGvk|P
z
{
j
ko~G{
m
j
|
|
o
vG|
lwV
{hur
hX
n
che
mVz
h_Vh`
pG|
yGy
{UGz
z
w
h\
hXY
jG~
z
hXZ
zvshyG{olyths
zz{lt
h[
hXW
s y
p
ko~G{G
Oko~GG
uP
zGGGG

tVm
zX
zXY
zXX
zX[
zX\
zYX
zX`
zXZ
z

5. Piping Diagram
11
THERMA V Hydrosplit Type Indoor unit
Category Symbol Meaning PCB Connector Remarks
Outdoor Unit
S1 Refrigerant temperature sensor
(Liquid side) CN_PIPE_IN Meaning is expressed based on Cooling mode.
S12 Outlet water temperature sensor CN_WATER_OUT Leaving water temperature sensor
S11 Inlet water temperature sensor CN_WATER_IN Entering water temperature sensor
M/F Magnetic Filter (No connector)
- 3rd party accessory and Field installation (sold separately)
- It is strongly recommended to install an additional filter on
the heating water circuit
Indoor Unit
S19 Entering Water Pressure sensor CN_H20_PRESS
A8 / A9 Backup heater (No connector) -Optional accessory (sole separately)
- HA061B E1 : 1Ø, HA063B E1 : 3Ø
S13 Outlet sensor of backup heater CN_TH3 - Accessory supplied with Backup heater
A1 Internal Water Pump CN_MOTOR1 CN_PUMP_A1 - Water Pump is connected at CN_MOTOR1 and
CN_PUMP_A1
EXP/TANK Expansion Tank (No connector) - Absorb volume change of heated water.
S17 Flow sensor CN_F_SENSOR - To monitor water flow rate in the system
S21 Remoted Air temperature sensor CN_ROOM2 - Optional accessory (sold separately)
- PQRSTA0
CTR/PNL Control Panel (or 'Remote
Controller') CN_REMO - Pre built-in at indoor unit
A12 To control water flow for Fan Coil
Unit CN_2WAY_A - 3rd party accessory and Field installation (sold separately) - 2 wire NO and NC type 2way valve is supported
Water Heating
W/TANK DHW Tank (No connector)
- 3rd party accessory and Field installation (sold separately)
- Generating and storing DHW by AWHP or built-in electric
heater
A10 Booster Heater CN_TANK_HEATER
- 3rd party accessory and Field installation (usually built-in at
W/TANK) -
Supplying additional water heating capacity
A5
- Flow control for water which is
leaving from indoor unit.
- Flow direction switching
between underfloor and water
tank.
CN_3WAY_A - 3rd party accessory and Field installation (sold separately)
CITY
WATER
Water to be heated by indoor unit
and B/HT of W/TANK (No connector) - Field installation
SHOWER Water supplied to end-user (No connector) - Field installation
S14 W/TANK water temperature
sensor CN_TH4 - S14 are connected at 4 pin type connector CN_TH4- S14 is a part of DHW tank kit (Model : PHLTA)
Solar Heating
S15 Solar-heated water temperature
sensor TB_SENSOR SOLAR - 3rd party accessory and Field installation (sold separately)
- PT1000
A13
- Flow control for water which is
heated and circulated by SOLAR
THERMAL SYSTEM.
- Flow direction switching
between SOLAR THERMAL
SYSTEM and
W/TANK
CN_3WAY_B - 3rd party accessory and Field installation (sold separately)
- SPDT type 3way valve is supported
A4 External Water Pump CN_PUMP_A4
- 3rd party accessory and Field installation (sold separately)
- If water pump of SOLAR THERMAL SYSTEM is incapable
of circulation, external water pump can be used.
SOLAR
THERMAL
SYSTEM
- This system can include
following components: Solar
panel, Sensor, Thermostats,
Interim heat exchanger, Water
pump, etc.
(No connector) - 3rd party accessory and Field installation (sold separately)

12
THERMA V Hydrosplit Type Indoor unit
6. Hydraulic Performance
The water pump is variable type which is capable to change flow rate, so it may be required to change default
water pump capacity in case of noise by water flow. In most case, however, it is strongly recommended to set
capacity as Maximum.
■Pressure Drop
Note
• To secure enough water flow rate, do not set water pump capacity as Minimum.
It can lead unexpected flow rate error CH14.
• When installing the product, install additional pump in consideration of the pressure loss and pump performance.
• If flow-rate is low, overloading of product can occur.
Note
Performance test based on standard ISO 9906 with pre-pressure 2.0bar and liquid temperature 20°C.
Capacity
[kW]
Rated flow-rate
[LPM]
Pump Head
[m]
(at rated flow-
rate)
Product pressure drop
[m]
(Plate heat exchanger)
Serviceable
Head
[m]
Min. flow-rate
[LPM]
(Recommend)
16 46 9 1.4 7.6
1514 40.25 9.3 1.1 8.2
12 34.5 9.8 0.8 9







 
*=O?
3=.2/?
100%
3*%JCTV
80%
70%
60%
50%
40%
30%
