LG 22LK33 Series User manual

www.lg.com
OWNER’S MANUAL
LCD TV / LED LCD TV
Please read this manual carefully before operating your
set and retain it for future reference.
P/NO : MFL67099914 (1110-REV05)
Printed in Korea

4. APPLIED LANGUAGE LIST
English
Swedish
Norwegian
Danish
Finnish
1. ATTACHING THE STAND
2. TIDYING CABLES
3. CONNECTING YOUR UNIT
5. TABLE OF CONTENTS
SAFETY INSTRUCTIONS
Precaution in Installing the Product
Electrical Power Related Precautions
Precautions When Moving the Product
Precautions When Using the Product
ASSEMBLING AND PREPARING
Unpacking
Parts and buttons
Not using the Desk Type stand
Mounting on a table
Mounting on a wall

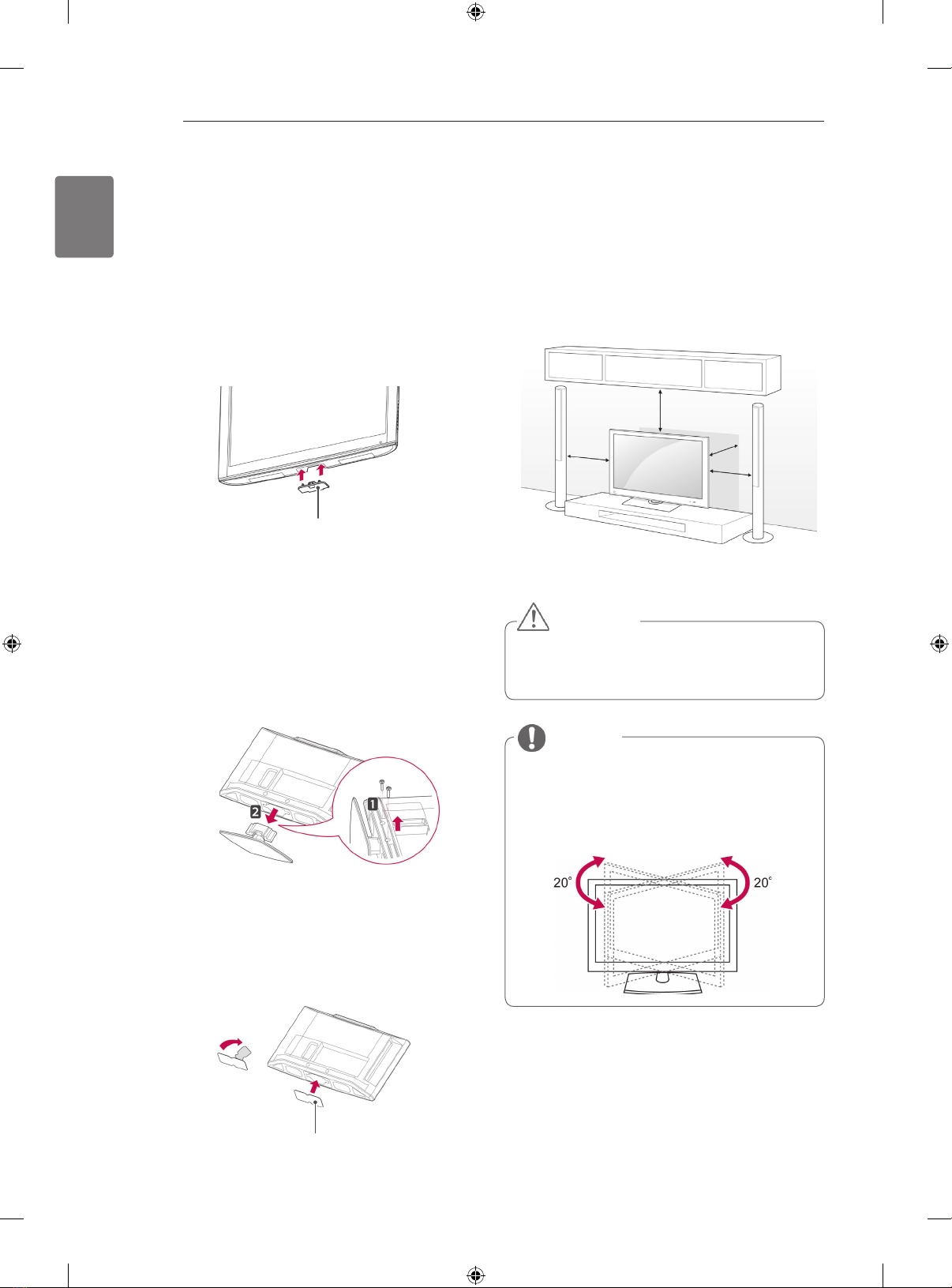

Positioning your display
Connection of TV

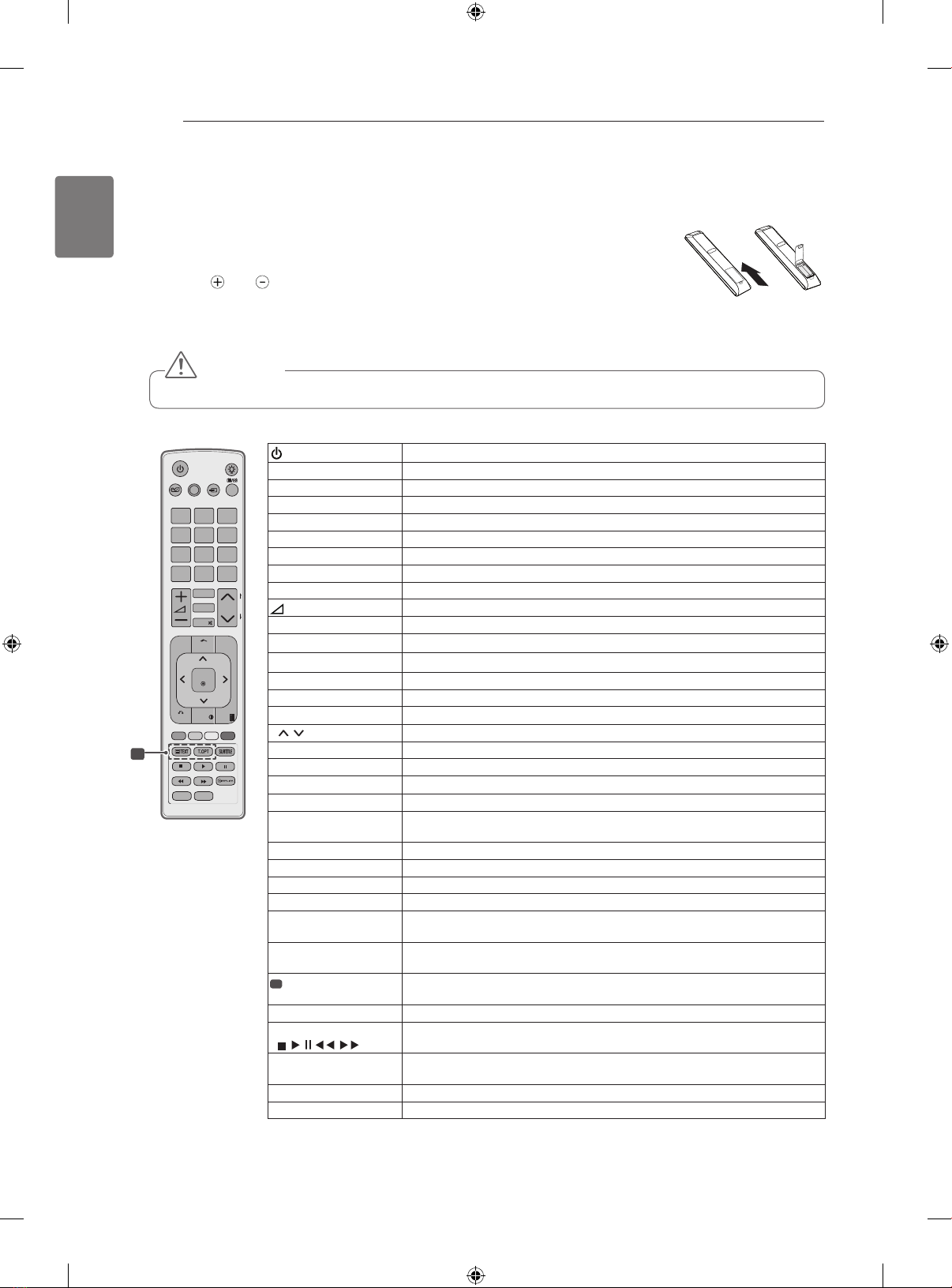

REMOTE CONTROL
WATCHING TV
Connecting an antenna
Turning the TV on for the first time
3D IMAGING
TROUBLESHOOTING
WEIGHT
OPEN SOURCE SOFTWARE NOTICE

3

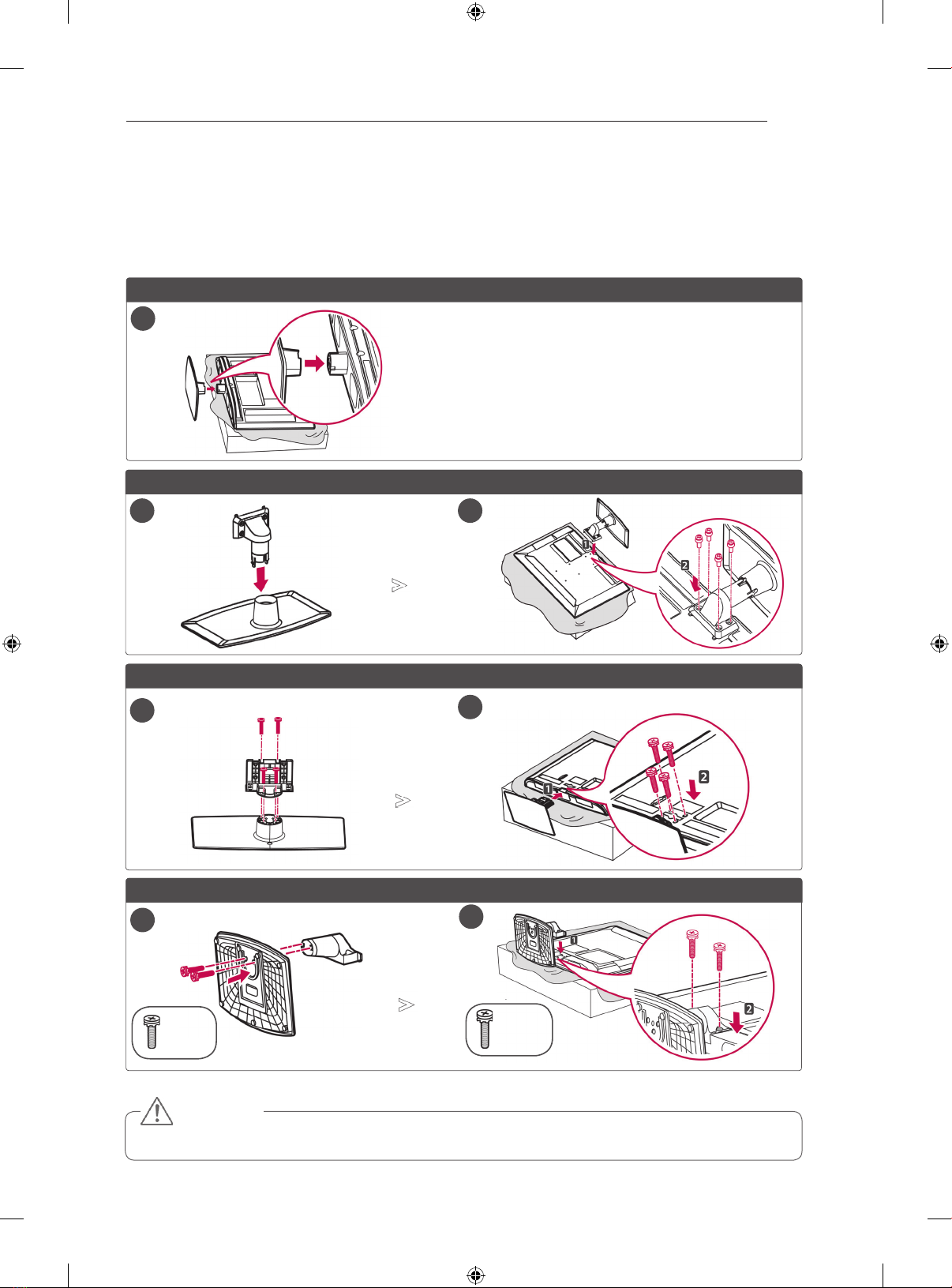

ATTACHING THE STAND
1
22LK33**
 Lay the TV with the screen side down on a flat surface.
 Lay a foam mat or soft protective cloth on the surface to protect the screen from damage.
CAUTION
ATTACHING THE STAND
■ Image shown may differ from your TV.
26/32LK33**, 32/37/42LK43**, 32/42/47LK53**, 32/37/42LK45**, 32/42LK55**
1 2
19/22LV23**
12
19/22/26LV25**, 22/26LV55**
(M4x6) (M4x16)
26/32LK33**, 32/37/42LK43**, 32/42/47LK53**, 32/37/42LK45**, 32/42LK55**
12
26/32LK33**, 32/37/42LK43**, 32/42/47LK53**, 32/37/42LK45**, 32/42LK55**, 47LK95**, 32/37/42LK46**

4ATTACHING THE STAND
12
32LV25**
 Lay the TV with the screen side down on a flat surface.
■ Image shown may differ from your TV.
12
32/42LV34**, 32/37/40/42/47LV35**, 32/37/42/47LV45**, 32/42/47/55LW45**, 32/37/42/47LV36**
12
42/47LW54**
3
 Lay a foam mat or soft protective cloth on the surface to protect the screen from damage.
CAUTION

5
TIDING CABLES
TIDYING CABLES
■ Image shown may differ from your TV.
1
22LK33**, 19/22/26LV25**, 22/26LV55**, 19/22LV23**
26/32LK33**, 32/37/42LK43**, 32/42/47LK53**, 32/37/42LK45**, 32/42LK55**
26/32LK33**, 32/37/42LK43**, 32/37/42LK45**, 32/42/47LK53**, 32/42LK55**, 47LK95**, 32/37/42LK46**
42/47LW54**
1
26/32LK33**, 32/37/42LK43**, 32/42/47LK53**, 32/37/42LK45**, 32/42LK55**
1
32LV25**, 32/37/40/42/47LV35**, 32/42/47/55LW45**, 32/37/42/47LV45**, 32/42LV34**, 32/37/42/47LV36**
1
■ Image shown may differ from your TV.

6CONNECTING YOUR UNIT
O
P
T
I
C
A
L
D
IGIT
A
T
T
L
A
UDI
O
O
UT
A
UDI
O
I
N
(
R
G
B/
D
V
I
)
D
C
-I
N
R
G
B IN
(
P
C
)
R
S
-2
3
2
C
IN
(
CONTROL & SERVICE
)
L/
MONO
R
AUDIO
VIDEO
2
1
ANTENNA
IN
VCR
Connection
2
DVD/STB
2
Antenna
Connection
1
DVD/STB back
USB IN
I
N
3
H/P
or
■ Image shown may differ from your TV.
CONNECTING YOUR UNIT
or
Power Cord
3

www.lg.com
OWNER’S MANUAL
LCD TV / LED LCD TV
Please read this manual carefully before operating your
set and retain it for future reference.

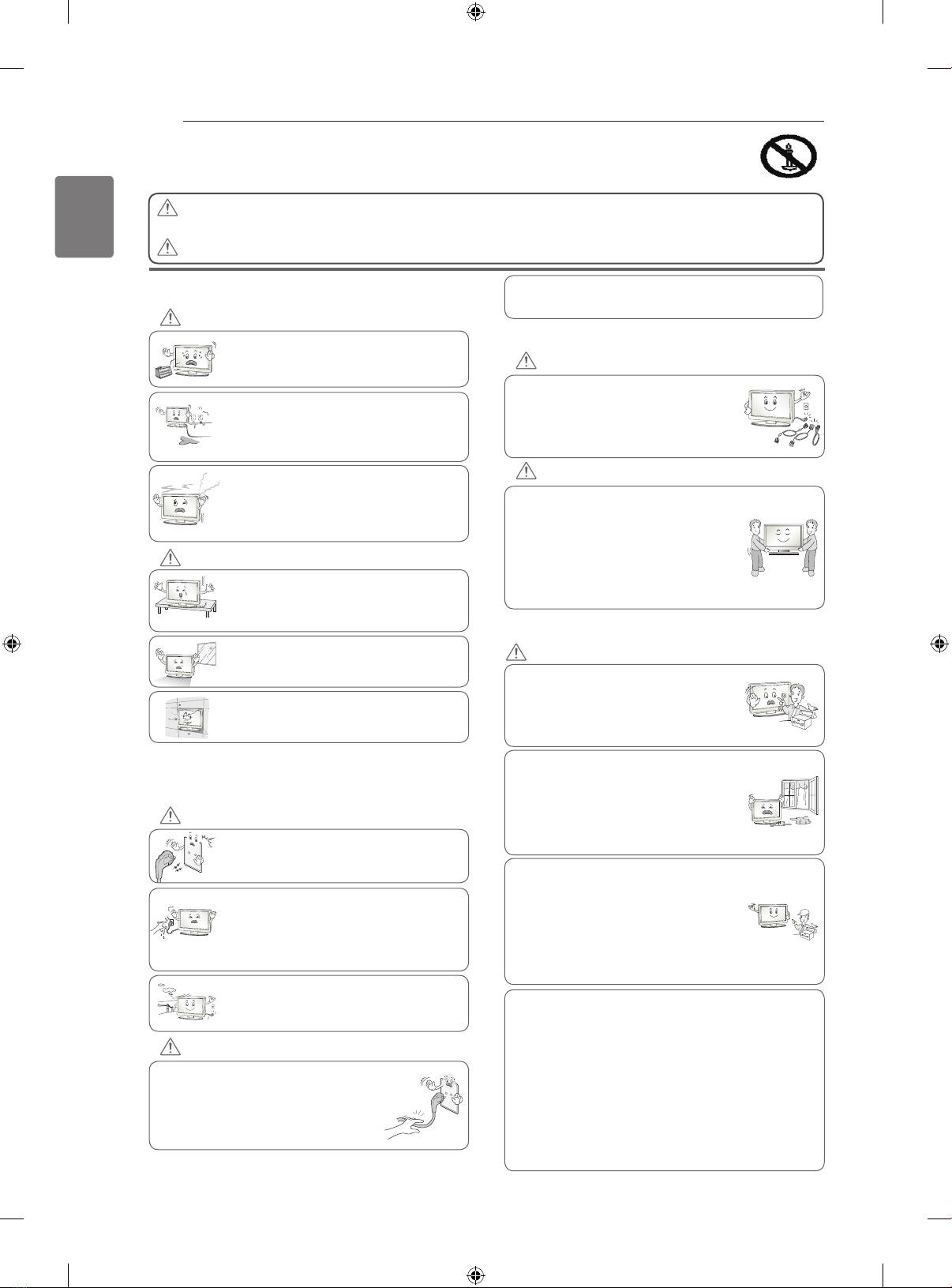

2SAFETY INSTRUCTIONS
ENGLISH
 Please read these safety precautions carefully before using the product.
 In this manual, the illustration may be somewhat different from your product because it is
just example to help the instruction.
PRECAUTION IN INSTALLING THE PRODUCT
Keep away from heat sources such as
electrical heaters.
- Electrical shock, fire, malfunction or
deformation may occur.
If you can smell smoke or other odours or hear
a strange sound unplug the Power cord and
contact the service center.
- If you continue to use without taking proper
measures, an electrical shock or a fire can occur.
Do not use the product in damp place such
as a bathroom or any place where it is likely
to get wet.
- This may cause a fire or could give an
electric shock.
Install the product on a flat and stable place
that has no risk of dropping the product.
- If the product is dropped, you may be injured
or the product may be broken.
Keep the product away from direct sunlight.
- The product can be damaged.
Do not place the product in a built-in
installation such as bookcase or rack.
- Adequate ventilation is required.
ELECTRICAL POWER RELATED
PRECAUTIONS
Make sure to connect the power cable to a
properly earthed outlet.
- You may be electrocuted or injured.
Do not touch the power plug with wet hands.
Additionally, it the cord pin is wet or covered
with dust, dry the power plug completely or wipe
dust off.
- You may be electrocuted due to excess
moisture.
During a thunder or lightning storm, unplug the
power cable or signal cable.
- You may be electrocuted or a fire can break
out.
Protect the Power cord from physical or
mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or walked
upon. Pay particular attention to plugs, wall
outlets, and the point where the cord exits
the appliance.
PRECAUTIONS WHEN MOVING THE PRODUCT
Do not impact the product when moving it.
- You may be electrocuted or the product
can be damaged.
Make the panel face forward and hold it
with both hands to move.
- If you drop the product, the damaged
product can cause electric shock or fire.
Contact your nearest service center for
repair.
Make sure to turn off the product.
Make sure to remove all cables before
moving the product.
- You may be electrocuted or the product
can be damaged.
PRECAUTIONS WHEN USING THE PRODUCT
Do not disassemble, repair or modify the
product at your own discretion.
- Fire or electric shock accident can occur.
- Contact the service center for check,
calibration or repair.
To reduce the risk of fire or electric shock,
do not expose this apparatus to rain or
moisture.
Apparatus should not be exposed to
dripping liquids or splashing and no
objects filled with liquids, such as vases,
should be placed on the apparatus.
Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.
IMPORTANT INFORMATION TO PREVENT “IMAGE BURN /
BURN-IN” ON YOUR TELEVISION SCREEN
- When a fixed image (e.g. logos, screen menus, video game,
computer display and teletext pages) is displayed on the
television for an extended period it can become permanently
imprinted on the screen. This phenomenon is known as “image
burn” or “burn-in”. Image burn is not covered under the
manufacturer’s warranty.
- In order to prevent image burn, avoid displaying a fixed
image on your television’s screen for a prolonged period (2 or
more hours for LCD, 1 or more hours for Plasma).
- Image burn can also occur on the letterboxed areas of
your television if you use the 4:3 aspect ratio setting for an
extended period.
As long as this unit is connected to the AC wall outlet, it is
not disconnected from the AC power source even if you
turn off this unit by SWITCH.
 If you ignore the warning message, you may be seriously injured or there is a
possibility of accident or death.
 If you ignore the caution message, you may be slightly injured or the product may be damaged.
CAUTION
WARNING
WARNING
CAUTION
WARNING
CAUTION
WARNING
CAUTION
WARNING

3
ASSEMBLING AND PREPARING
ENGLISH
Remote control and batteries(AAA) Owner’s Manual Isolator2(This item is not
included for all models.)
Polishing cloth1 (This item is not
included for all models.)
Ferrite core
(Depending on model)
Power cord (This item is not
included for all models.)
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and item.
1 Gently wipe the spots on the cabinet with the polishing cloth.
Isolator Plug1 Plug2
Plug1
Plug2
ANTENNA
IN
ANTENNA
IN
RF Coaxial Wire Isolator
2 Antenna Isolator Installation Guide
 Use this to install TV in a place where there is a voltage difference between GND of power and GND of antenna signal.
- If there is a voltage difference between GND of power and GND of antenna signal, the antenna contact might be
heated and excessive heat might cause an accident.
 You can improve the safety when watching TV by efficiently removing power voltage from TV antenna. Avoid
disconnecting the antenna Isolator after installation.
 Exterior of antenna isolator:
 Connection method :
- Connect Plug 1 with a signal cable.
- Connect Plug 2 with ANT input end on the back of TV.
ANTENNA
IN
ANTENNA
IN
ANTENNA
IN
“Equipment connected to the protective earthing of the building installation through the mains connection or through other
equipment with a connection to protective earthing - and to a cable distribution system using coaxial cable, may in some
circumstances create a fire hazard.
Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a
certain frequency range (galvanic isolator, see EN 60728-11)”
When applying the RF Isolator, a slight loss of signal sensitivity can occur.
RF Coaxial Wire Isolator STB

4ASSEMBLING AND PREPARING
ENGLISH
Only 22LK33**
Cable holder Protection cover
Only 19/22/26LV25**, 22/26LV55**, 19/22LV23**
Screw for assembly Cable holder DC Adapter
(M4x6)
x 2
(M4x16)
x 2
or
x 4
M4 x 14
(Except for 19/22LV23**) (Only 19/22LV23**)
1 The number of 3D glasses may differ depending on the country.
Only 32LV25**, 32/37/40/42/47LV35**, 32/42/47/55LW45**, 32/37/42/47LV45**, 32/42LV34**,
42/47LW54**, 32/37/42/47LV36**
Screw for assembly
(M4x12)
(Except for 32LV25**)
x 8
Screw for fixing
(Only 32LV25**,
32/37LV35**, 32LW45**,
32/37LV45**, 32LV34**,
32/37LV36**)
FPR 3D glasses1
(Only 32/
42/47/55LW45**,
42/47LW54**)
(M4x14)
(Only 32LV25**)
x 8
(M4x20)
x 8
Only 26/32LK33**, 32/37/42LK43**, 32/42/47LK53**, 32/37/42LK45**, 32/42LK55**, 47LK95**,
32/37/42LK46**
Screw for assembly Screw for fixing Protection cover
(Except for 47LK53**,
47LK95**)FPR 3D glasses1
(Only 47LK95**)

5
ASSEMBLING AND PREPARING
ENGLISH
 Do not use any pirated items to ensure the safety and product life span.
 Any damages or injuries by using pirated items are not covered by the warranty.
CAUTION

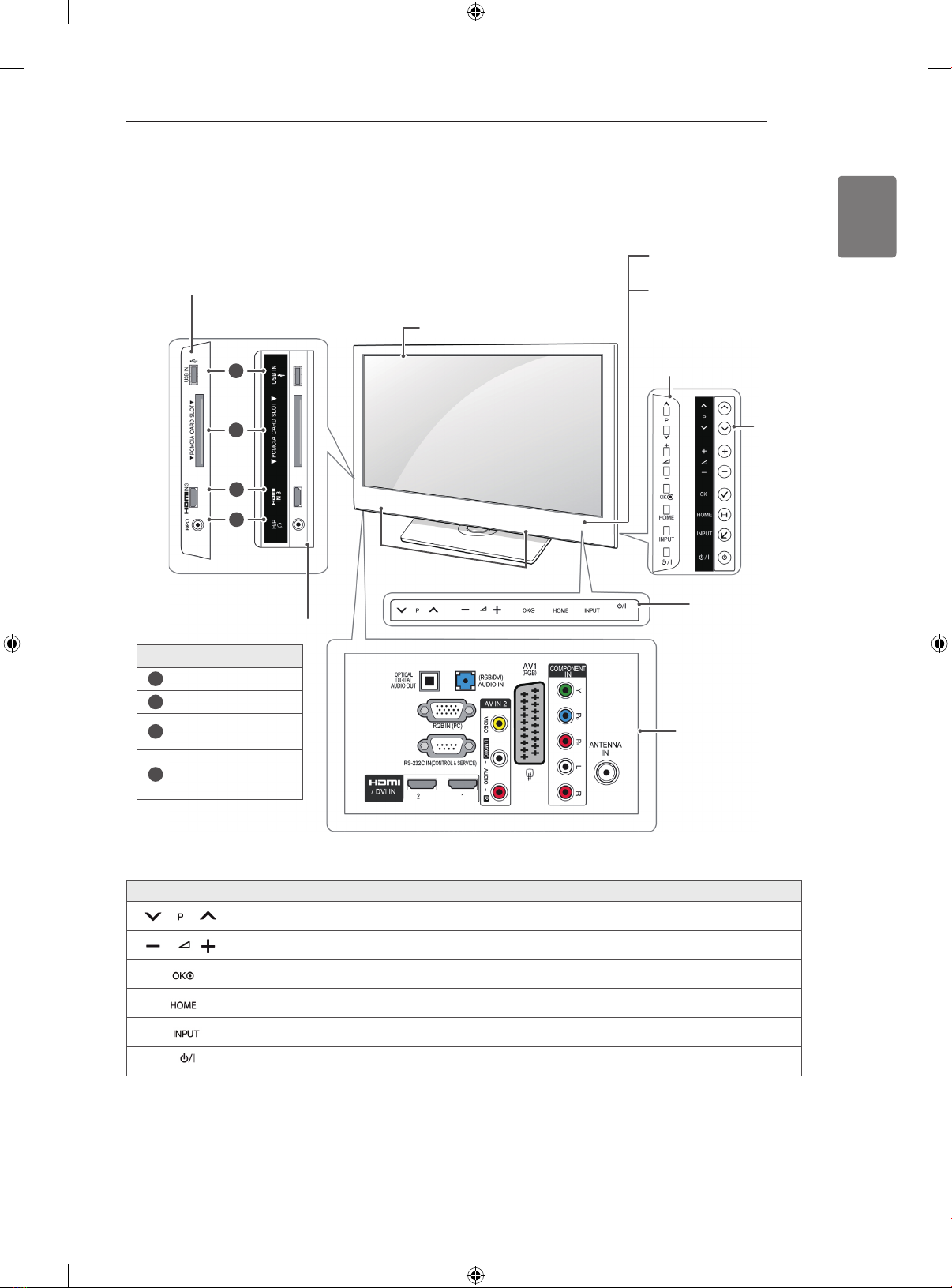

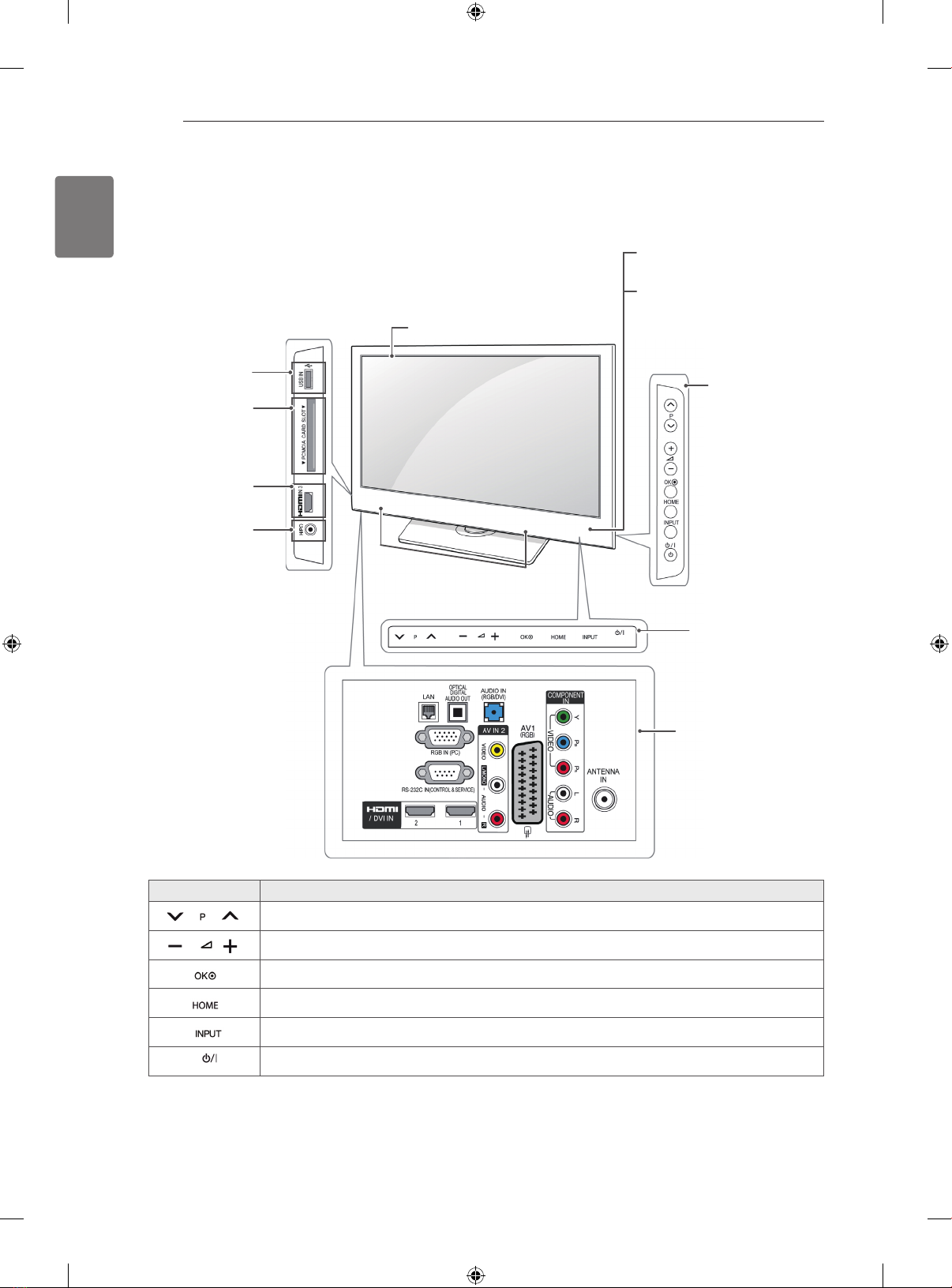

Parts and buttons
 The TV can be placed in standby mode in order to reduce the power consumption. And the TV
should be turned off if it will not be watched for some time, as this will reduce energy consumption.
 The energy consumed during use can be significantly reduced if the level of brightness of the
picture is reduced, and this will reduce the overall running cost.
NOTE
 Do not step on the glass stand or subject it to any impact. It may break, causing possible injury
from fragments of glass, or the TV may fall.
 Do not drag the TV. The floor or the product may be damaged.
 Some models have a thin film attached on to the screen and this must not be removed.
CAUTION
 The items supplied with your product may vary depending on the model.
 Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.
NOTE
 For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm
thick and 18 mm width.(Except for 22/26/32LK33**, 32/37/42LK43**, 32/42/47LK53**, 47LK95**)
*A 10 mm
*B 18 mm

6ASSEMBLING AND PREPARING
ENGLISH
1 Intelligent sensor - Adjusts the image quality corresponding to the surrounding environment.(Only
32/42/47LK53**, 47LK95**)
Button Description
Turns the power on or off
Changes the input source
Accesses the main menus, or saves your input and exits the menus
Selects the highlighted menu option or confirms an input
Adjusts the volume level
Scrolls through the saved programmes
Screen
Connection panel
Speakers
(Only 26/32LK33**)
(Only 22LK33**)
Only 22/26/32LK33**, 32/37/42LK43**, 32/42/47LK53**(Except for 32/42/47LK530T), 47LK95**
Remote control and intelligent1
sensors
Power Indicator
(Can be adjusted using
the Power Indicator in the
OPTION menu.)
 Image shown may differ from your TV.
No. Description
1USB input
2PCMCIA Card Slot
3HDMI IN(Except for
22LK33**)
4Headphone Socket
1
2
3
4
(Only 22/26/32LK33**)
(Only 32/37/42LK43**,
32/42/47LK53**,
47LK95**)
(Except for 22/26/32LK33**)
(Only 32/42/47LK53**,
47LK95**)
(Only 32/37/42LK43**)

7
ASSEMBLING AND PREPARING
ENGLISH
1 Intelligent sensor - Adjusts the image quality corresponding to the surrounding environment.
2. Touch Button - You can use the desired button function by touching.
Button Description
Scrolls through the saved programmes
Adjusts the volume level
Selects the highlighted menu option or confirms an input
Accesses the main menus, or saves your input and exits the menus
Changes the input source
Turns the power on or off
Screen
Connection panel
Speakers
Touch buttons2
PCMCIA Card Slot
Headphone Socket
HDMI IN
(Only 26LV25**, 26LV55**)
USB input
Only 19/22/26LV25**, 19/22LV23**, 22/26LV55**
Remote control and intel-
ligent1 sensors
Power Indicator
(Can be adjusted using
the Power Indicator in the
OPTION menu.)
 Image shown may differ from your TV.
(Only 19/22/26LV25**)
(Only 22/26LV55**, 19/22LV23**)
(Only 19/22/26LV25**, 19/22LV23**) (Only 22/26LV55**)

8ASSEMBLING AND PREPARING
ENGLISH
Screen
Connection panel
Touch buttons2
(Except for
32/42/47LK530T)
1 Intelligent sensor - Adjusts the image quality corresponding to the surrounding environment.
2. Touch Button - You can use the desired button function by touching.
Button Description
Scrolls through the saved programmes
Adjusts the volume level
Selects the highlighted menu option or confirms an input
Accesses the main menus, or saves your input and exits the menus
Changes the input source
Turns the power on or off
Speakers
Only 32/42/47LK530T, 32/42LK550T, 32/37/42/47LV355T
 Image shown may differ from your TV.
Remote control and intel-
ligent1 sensors
Power Indicator
(Can be adjusted using
the Power Indicator in the
OPTION menu.)
PCMCIA Card
Slot
Headphone
Socket
HDMI IN
USB input
(Only
32/42/47LK530T)

9
ASSEMBLING AND PREPARING
ENGLISH
Screen
Connection panel
Touch buttons2
(Except for
32/42LV34**,
42/47LW54**)
1 Intelligent sensor - Adjusts the image quality corresponding to the surrounding environment.
2. Touch Button - You can use the desired button function by touching.
Button Description
Scrolls through the saved programmes
Adjusts the volume level
Selects the highlighted menu option or confirms an input
Accesses the main menus, or saves your input and exits the menus
Changes the input source
Turns the power on or off
Speakers
Only 32/37/42LK45**, 32/42LK55**, 32LV25**, 32/42LV34**, 32/37/40/42/47LV35**, 32/37/42/47LV45**,
32/42/47/55LW45**, 42/47LW54** , 32/37/42LK46**, 32/37/42/47LV36**(Except for 32/42LK550T,
32/37/42/47LV355T) Remote control and intel-
ligent1 sensors
Power Indicator
(Can be adjusted using
the Power Indicator in the
OPTION menu.)
No. Description
1USB input
2PCMCIA Card Slot
3HDMI IN(Except for
32/42LV34**)
4
Headphone Socket
(Except for
32/42LV34**)
1
2
3
4
 Image shown may differ from your TV.
(Only 32/37/42LK45**,
32/42LK55**, 32/37/42LK46**)
(Except for 32/37/
42LK45**, 32/42LK55**,
32/37/42LK46**)
(Only 32/42LV34**)
(Only
42/47LW54**)

10 ASSEMBLING AND PREPARING
ENGLISH
Protection cover
(Only 22LK33**)
1 Lay the TV with the screen side down on a flat
surface.
2 Remove the 2 screws and pull the stand away
from the TV.
3 Push the supplied protection cover into the
opening at the bottom of the TV until it locks in
place.
This will protect the opening from accumulating
dust and dirt.
Protection cover
Mounting on a table
 Image shown may differ from your TV.
1 Lift and tilt the TV into its upright position on a
table.
- Leave a 10 cm (minimum) space from the
wall for proper ventilation.
10 cm
10 cm
10 cm
10 cm
2 Connect the Power cord to a wall outlet.
 Swivel 20 degrees to the left or right
and adjust the angle of the TV to
suit your view.(Except for 22LK33**,
19/22/26LV25**, 22/26LV55**,
19/22LV23**)
NOTE
Not using the Desk Type stand
 Image shown may differ from your TV.
(Only 26/32LK33**, 32/37/42LK43**,
32/42/47LK53**, 32/37/42LK45**, 32/42LK55**,
47LK95**, 32/37/42LK46**)
1 Push the supplied Protection cover into the
opening at the bottom of the TV until clicking
sound.
 Do not place the TV near or on sources
of heat, as this may result in fire or other
damage.
CAUTION

11
ASSEMBLING AND PREPARING
ENGLISH
Securing the TV to a table
 Image shown may differ from your TV.
(Only 26/32LK33**, 32/37/42LK43**,
32/37/42LK45**, 32/42LK53**, 32/42LK55**,
32LV25**, 32/37LV35**, 32LW45**, 32/37LV45**,
32LV34**, 32/37/42LK46**, 32/37LV36**)
Fix the TV to a table to prevent from tilting forward,
damage, and potential injury.
Mount the TV on a table, and then insert and
tighten the supplied screw on the rear of the stand.
 To prevent the TV from falling over, the
TV should be securely attached to the
floor/wall per installation instructions.
Tipping, shaking, or rocking the TV may
cause injury.
WARNING
Securing the TV to a wall
 Image shown may differ from your TV.
1 Insert and tighten the eye-bolts, or TV brackets
and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2 Mount the wall brackets with the bolts to the
wall.
Match the location of the wall bracket and the
eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly
with a sturdy rope.
Make sure to keep the rope horizontal with the
flat surface.
 Use a platform or cabinet that is strong
and large enough to support the TV
securely.
NOTE
 Make sure that children do not climb on
or hang on the TV.
CAUTION

12 ASSEMBLING AND PREPARING
ENGLISH
Mounting on a wall
Attach a wall mount bracket at the rear of the TV
carefully and install the wall mount bracket on a
solid wall perpendicular to the floor. When you
attach the TV to other building materials, please
contact qualified personnel.
LG recommends that wall mounting be performed
by a qualified professional installer.
10 cm
10 cm
10 cm
10 cm
Make sure to use screws and wall mount
bracket that meet the VESA standard. Standard
dimensions for the wall mount kits are described in
the following table.
Model 22LK33**
19/22/26LV25**
22/26LV55**
19/22LV23**
26/32LK33**
32LK43**
32LK45**
32LK53**
32LK55**
32LV25**
32LV35**
32LV45**
32LW45**
32LV34**
32LK46**
32LV36**
VESA (A x B) 100 x 100 200 x 100
Standard screw M4 M4
Number of screws 4 4
Wall mount
bracket
LSW100B, LSW100BG
Model 37/42LK43**
37/42LK45**
42LK55**
42/47LK53**
37LV35**
37LV45**
47LK95**
37/42LK46**
37LV36**
40/42/47LV35**
42/47LV45**
42/47/55LW45**
42/47LV36**
VESA (A x B) 200 x 200 400 x 400
Standard screw M6 M6
Number of screws 4 4
Wall mount
bracket
LSW200B,
LSW200BG
LSW400B,
LSW400BG,
Separate purchase(Wall Mounting Bracket)
Model 42LV34**
42/47LW54**
VESA (A x B) 400 x 400
Standard screw M6
Number of screws 4
Wall mount
bracket
LSW400BX,
LSW400BXG

13
ASSEMBLING AND PREPARING
ENGLISH
 Disconnect the power first, and then move
or install the TV. Otherwise electric shock
may occur.
 If you install the TV on a ceiling or slanted
wall, it may fall and result in injury. Use
an authorized LG wall mount bracket
and contact the local dealer or qualified
personnel.
 Do not over tighten the screws as this may
cause damage to the TV and void your
warranty.
 Use the screws and wall mount bracket that
meet the VESA standard. Any damages
or injuries by misuse or using an improper
accessory are not covered by the warranty.
CAUTION
 Use the screws that are listed on the
VESA standard screw specifications.
 The wall mount kit includes an installation
manual and necessary parts.
 The length of screws may differ
depending on the wall mount. Make sure
to use the proper length.
 For more information, refer to the manual
supplied with the wall mount bracket.
NOTE
Positioning your display
Adjust the position of the panel in various ways for
maximum comfort.
• Tilt range
Connection of TV
DC Adapter
1 Connect the antenna cable to the antenna
input port on the TV.
2 Connect the DC adapter plug to the power
input jack on the TV.
3 Connect the Power cord to the DC adapter first,
then plug the Power cord into the wall power
outlet.
 Image shown may differ from your TV.
(Only 19/22/26LV25**, 22/26LV55**, 19/22LV23**)
(Only 22LK33**)
 Image shown may differ from your TV.
A
B

14 REMOTE CONTROL
ENGLISH
REMOTE CONTROL
The descriptions in this manual are based on the buttons on the remote control.
Please read this manual carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA)
matching and ends to the label inside the compartment, and close the
battery cover. Be sure to point the remote control to the remote control sensor on
the TV.
To remove the batteries, perform the installation actions in reverse.
 Do not mix old and new batteries, as this may damage the remote control.
CAUTION
 Image shown may differ from your TV.
AV MODE INPUT
TV/
RAD
ENERGY
1 2 3
4 5 6
7 8
0
9
LIST
Q.VIEW
FAV
3D
MUTE
MARK
P
P
A
G
E
3D SETTING
SAVING
AD
RATIO
BACK EXIT
OK
GUIDE Q.MENU
INFO
Home
LIGHT
DELETE
CHAR/NUM
(POWER) Turns the TV on or off.
LIGHT Illuminates the remote control buttons.
ENERGY SAVING Adjusts the brightness of the screen to reduce energy consumption .
AV MODE Selects an AV mode.
INPUT Changes the input source; Turns the TV on .
TV/RAD Selects Radio, TV and DTV programme.
Number buttons Enters numbers.
LIST Accesses the saved programme list.
Q.VIEW Returns to the previously viewed programme.
+ - Adjusts the volume level.
MARK Selects a menu or option.
FAV Accesses your favourite programme list.
CHAR/NUM Switches between Letter and Number input modes.
3D (Only 3D Models) Used for viewing 3D video.
DELETE Deletes letters and numbers.
MUTE Mutes all sounds.
P Scrolls through the saved programmes.
PAGE Moves to the previous or next screen.
GUIDE Shows programme guide.
Home Accesses the main menus.
Q. MENU Accesses the Quick menus.
Navigation buttons
(up/down/left/right)
Scrolls through menus or options.
OK Selects menus or options and confirms your input.
BACK Returns to the previous level.
INFO Views the information of the current programme and screen.
EXIT Clears all on-screen displays and return to TV viewing.
Coloured buttons These buttons are used for teletext (on TELETEXT models only),
Programme edit.
3D SETTING
(Only 3D Models)
Use this to view 3D video.
1 TELETEXT
BUTTONS
These buttons are used for teletext.
For further details, see the ‘Teletext’ section.
SUBTITLE Recalls your preferred subtitle in digital mode.
Control buttons
( , , , , )
Controls the MY MEDIA menus, or the SIMPLINK compatible devices
(USB,SIMPLINK).
SIMPLINK Accesses the AV devices connected to the TV;
Opens the SIMPLINK menu.
RATIO Resizes an image.
AD Switches the Audio Description on or off.
1
