LG 42LT560C User manual

LGsolutions.com
EcoSmart™
Dynamic Power Savings
Static Power Savings
ENERGY STAR 5.3 AND RoHS COM LIANT
UBLIC DIS LAY SETTING-
Cloning Capable
BED 1/2/3/4 CONTROLLABILITY
when used with Optional 124-213-10 remote
M EG-2/M EG-4 H.264 DECODING
NATIVE DIS LAY RESOLUTION
1920 x 1080 FHD (42"37")
1366 x 768 HD (32" 26" 22")
BUILT-IN ATSC/NTSC/QAM CLEAR TUNER
SINGLE-TUNER RO:CENTRIC INTERFACE
INVISIBLE S EAKER SYSTEM
Hidden speaker grilles
90° DETACHABLE SWIVEL STAND
LG'S EXCLUSIVE XD ENGINE®
USB 2.0 MEDIA HOST FOR HOTOS AND MUSIC
USB CLONING
CLEAR VOICE II
REAL CINEMA™
3 HDMI™ IN UTS WITH HDC
V.1.3 with deep color
AUTO SENSING REMOTE JACK ACK (RJ ) COM ATIBLE*
MATTE BLACK WITH GLOSSY BLACK EDGE
2 YEAR LIMITED WARRANTY
(parts and labor)
Integrated HDTV with HD- V
Capability
LED Commercial Widescreen
42LT560C
37LT560C
32LT560C
26LT560C
22LT560C
42" class (42.0” measured diagonally)
37" class (36.6" measured diagonally)
32" class (31.7" measured diagonally)
26" class (26.0" measured diagonally)
22" class (21.6” measured diagonally)
LCD TV
The estimated annual energy cost determined in accordance with 16 CFR Part 305.5 for models
42LT560C, 37LT560C, 32LT560C, 26LT560C and 22LT560C are $15, $12, $9, $8 and $5,
respectively.
“Your energy cost depends on your utility rates and use. The estimated cost is based on 11 cents per
kWh and 5 hours of use per day. For more information, visit www.ftc.gov/energy.”1
1FTC Television labeling rule (18 CFR Part 305, as added by 76 Fed. Reg. 1038 (Jan 6, 2011)).

•EcoSmart
Energy Saving Levels - Manually select your choice for the brightness level for the
television.
•CEC Compliant - Meets the Appliance Efficiency Regulations of the California
Energy Commission.
•RoHS Compliant
Meets directive on restriction of hazardous substances.
•Energy Star 5.3 Qualified - Meets current reduction requirements of energy
consumption.
L I F E ’ S G O O D...
WHEN IT’sGREEN.
LG is committed to improving product development,
manufacturing and usage to meet the demand
for environmentally friendlier products. Our LT560C
televisions have technologies to reduce power
consumption and in return increase cost savings
per room.
LG’s newest core technology, Picture Wizard, enables easy self-
calibration by providing on-screen reference points for key picture quality
elements such as black level, color, tint, sharpness and backlight levels. By
using this easy-to-use calibration process, the picture setting can be set to
better fit the type of room application.
Picture Wizard
With Picture Wizard, you can adjust the picture quality of the
original image.
G
NextPrevious
PHOTO LIST MUSIC LIST
Enter
Move

Aspect Ratio : 16:9
Picture Wizard
Energy Saving : Off
Picture Mode:Standard
•Backlight 70
• Contrast90
• Brightness50
• Sharpness70
Manually select your choice for the brightness level for the television. By
selecting Minimum, Medium, or Maximum, the power consumption will
be reduced and an increase in energy savings can be achieved. (Note:
Selecting minimum level may slightly increase power consumption on some models)
Enter
Move
▼
Aspect Ratio:16:9
Picture Wizard
Energy Saving :Off
Picture Mode:Standard
• Backlight 70
• Contrast90
•Brightness50
•Sharpness70
Off
Minimum
Medium
Maximum
Screen off
USB 2.0 will support JPG and MP3 files from a USB storage device.
Page 2/3 No Marked
Photo List
Up Folder
1366x768, 125KB
KY101 06/10/2008
KY102 04/03/2008
JMJ001 01/01/2000
JMJ002 06/15/2008
JMJ003 04/03/2008
JMJ004 02/18/2008
KY103 03/30/2008
KY104 06/19/2008
KY105 01/31/2008
JMJ005 05/13/2008
JMJ006 05/26/2008
JMJ007 02/18/2008
JMJ008 02/18/2008
Up Folder
Drive1
JMJ001
Music List
Up Folder
noitaruDeltiT
Page 2/3 No Marked
Drive1
AA00:00 / 04:16
Up Folder
USB 2.0
M E D I A H O S T
Dramatization
Six distinct processes contribute to picture improvement. LG’s XD Engine® takes
the low resolution of analog signals to near HD levels by improving brightness,
contrast, detail and enhancing color as well as reducing signal noise.
®
ENERGY SAVING LEVELS
Dramatization
Dramatization
O TIONAL ACCESSORY SIM LE 7 BUTTON
REMOTE
Resident / Simple 7 button sanitary membrane remote
control. Model: 124-213-10 (sold separately)
BED1/2/3/4 REMOTE CONTROLLABILITY(with optional remote)
LG TVs with Bed 1/2/3/4 function eliminates the remote control signal
interference between TVs in multiple dwelling rooms. This system will work
using the same LG TV model.

ANTENNA/
CABLE IN
AV IN
VIDEO
L/MONO
-AUDIO-
R
L R
AUDIO IN
(RGB/DVI)
12
/ DVI IN
EXTERNAL
SPEAKER OUT
RS-232C IN
(CONTROL & SERVICE)
RGB IN (PC)
DC IN
USB IN
IN 3
4-Screws
(Not provided as parts of the product)
Desk
Stand
MOUNTING HOLES ON STAND
ATTACHING THE TV TO A DES
USB CLONING
USB cloning will allow for easy transfer of Public
Display Settings from the “Master TV” to an unlimited
number of same type televisions.
AV IN 2
L/MONO
R
AUDIO
VIDEO
USBIN
SOUND IS HEARD, NOT SEEN
Enjoy a combination of smart technology
and stylish design with the invisible
speaker system custom tuned by audio
expert Mr. Mark Levinson. This unique
system provides a clean, polished look
and an enhanced auditory experience
by increasing the sweet spot and
providing a wider sound field.
UBLIC DIS LAY SETTINGS
When used in public areas, these HDTVs can be
easily programmed by the installer to have the
TV turn on at a specified channel/volume level,
set the minimum/ maximum volume, lock out the
control panel/remote, set the aspect ratio, and
return to a factory reset. By using Power
Management, these displays can be
programmed to turn off if there has been no
activity (remote or control panel buttons) for a
preset time (1-7) hours.
Public Display Mode No
Start Channel No
Ch. Type TV
Major 2
Minor 0
Minimum Volume 0
Maximum Volume 100
Start Volume No
Level 20
Power Management No
Setting 1
Key Management 0
Factory Reset 0
Aspect Ratio 0
PDM Plus
Public Display Setting
REAR JACK ANEL SIDE JACK ANEL

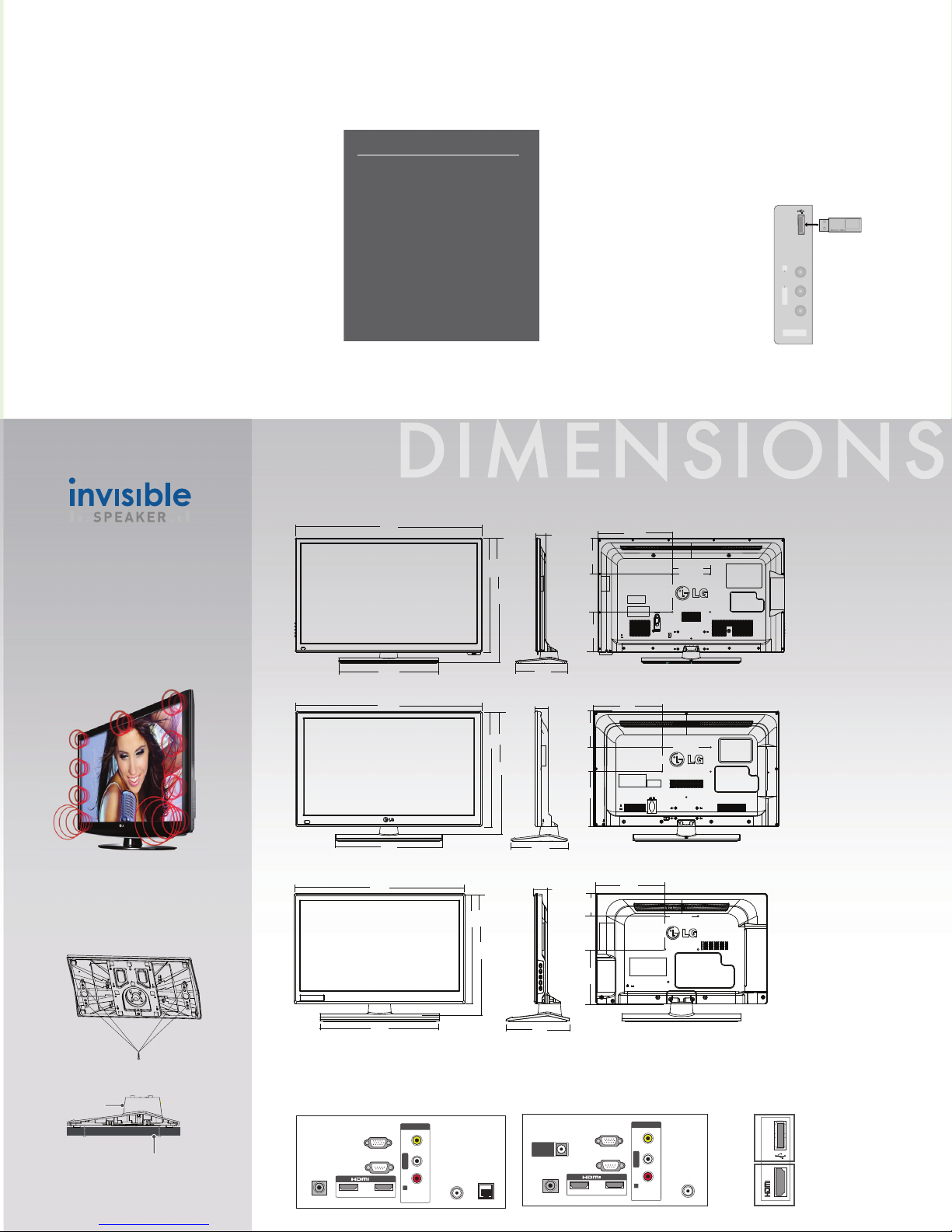

30.1”
17.3” 9.1”
2.2”
100mm
200mm
18.7”
21.1”
11.1”
5.9”
8.9”
32LT560C
20.4”
15.2”
24.6”
17.9”
13.0”
15.5”
14.1”
14.1”
7.6”
7.6”
1.6”
1.6”
100mm
100mm 100mm
100mm
8.2”
10.3”
2.7”
4.1”
6.5”
7.5”
26LT560C/22LT560C
39.1”
20.9”
2.2”
200mm
200mm
26.1”
200mm
200mm
10.8”
9.1”
2.1”
17.3”
34.1”
23.7”
20.5”
23.3”
15.6”
13.1”
7.6”
5.3”
8.3”
7.8”
42LT560C/37LT560C
26LT560C/22LT560C
42LT560C/37LT560C/32LT560C
ANTENNA/
CABLE IN
RJP
INTERFACE
AV IN
VIDEO
L/MONO
-AUDIO-
R
L R
AUDIO IN
(RGB/DVI)
12
/ DVI IN
EXTERNAL
SPEAKER OUT
RS-232C IN
(CONTROL & SERVICE)
RGB IN (PC)
42LT560C/37LT560C/32LT560C/
26LT560C/22LT560C
(32LT450C/37LT450C/42LT450C) only

OWER
Voltage, Hz 100V - 240V, 50/60Hz
Stand-by Mode (Max) Under 1W
Power Consumption Typical 60W(42”),57W(37”), 43W(32”),
32W(26”),21W (22”)
CABINET/ACCESSORIES
Cabinet Color Matte black with glossy black edge
Swivel Stand (degrees) + 90°/-90°
VESA®Standard Mount Compatible (WxH) 200mm x 200mm (42”, 37”)
200mm x 100mm (32”)
100mm x 100mm (26”, 22”)
Remote Control Yes
Optional Accessory 124-213-10 remote
REQUIRED LISTING (CERTIFICATION)
Required Approvals UL, cUL, NOM
RoHS Compliant Yes
ENERGY STAR 5.3 Qualified Yes
DIMENSIONS & WEIGHT
TV without stand (WxHxD) 39.1” x 23.7” x 2.2” (42”)
34.1” x 20.5” x 2.1” (37”)
30.1” x 18.7” x 2.2” (32”)
24.6” x 15.5” x 1.6” (26”)
20.4” x 13.0” x 1.6” (22”)
TV with stand (WxHxD) 39.1" x 26.1" x 10.8" (42”)
34.1" x 23.3" x 9.1" (37”)
30.1" x 21.1" x 9.1" (32”)
24.6" x 17.9" x 7.6" (26”)
20.4" x 15.2" x 7.6" (22”)
Unit Weight with Stand without Stand
34.2 lbs (42”) 29.8 lbs (42”)
24.7 lbs (37”) 22.0 lbs (37”)
20.3 lbs (32”) 17.6 lbs (32”)
10.4 lbs (26”) 9.0 lbs (26”)
8.2 lbs (22”) 6.8 lbs (22”)
Shipping Dimensions (WxHxD) 46.5” x 29.3” x 5.4” (42”)
44.1” x 26.0” x 5.5” (37”)
38.1” x 23.0” x 5.7” (32”)
27.0” x 21.0” x 4.7” (26”)
23.0” x 18.2” x 4.4” (22”)
Shipping Weight 41.7 lbs (42”)
30.2 lbs (37”)
26.0 lbs (32”)
14.8 lbs (26”)
11.0 lbs (22”)
SERVICE/LIMITED WARRANTY 2 Years (Parts/Labor)
U C CODE
42LT560C 7 19192 90403 3
37LT560C 7 19192 90404 0
32LT560C 7 19192 90392 0
26LT560C 7 19192 90391 3
22LT560C 7 19192 90390 6
All screen images are simulated. Dimensions and weights are approximate. Design, features and
specifications subject to change without notice.
© Copyright 2012 LG Electronics USA, Inc. All Rights Reserved. “LG Life’s Good” is a registered
trademark of LG Corp. XD Engine is a registered trademark of LG Electronics, Inc. HealthView and
EcoSmart are trademarks of LG Corp.
ENERGY STAR is a registered trademark of the U.S.
Environmental Protection Agency.Dolby and the double-D symbol are registered trademarks of Dolby
Laboratories. SRS and the SRS symbol, TruSurround XT and WOW are trademarks or registered
trademarks of SRS Labs, Inc.
VESA is a trademark of Video Electronics Standards Association. All other
product and brand names are trademarks or registered trademarks of their respective companies.
Printed in the USA. June 2012
XT
LGsolutions.com
LCD TV
LG Electronics U.S.A., Inc.
HE B2B Division
2000 Millbrook Drive
Lincolnshire, IL 60069
Customer Service: 888.865.3026
www.LGsolutions.com/support
Contact your LG Regional Sales Representative:
Channel: 800.897.8871
Hospitality: 800.228.1236
E-mail: [e-mail]
SPEC_LT560Cseries_061205_PR
42" class (42.0” measured diagonally)
37" class (36.6" measured diagonally)
32" class (31.7" measured diagonally)
26" class (26.0" measured diagonally)
22" class (21.6” measured diagonally)
42LT560C
37LT560C
32LT560C
26LT560C
22LT560C
LCD S ECIFICATION
LED Backlighting Edge lit
Screen Size 42” class (42.0” measured diagonally)
37” class (36.6” measured diagonally)
32” class (31.7” measured diagonally)
26” class (26.0” measured diagonally)
22” class (21.6” measured diagonally)
Native Display Resolution 1920 x 1080 (FHD) (42”, 37”)
1
366 x 768 (HD) (32”, 26”, 22”)
Viewing Angle Degree 178°/178°
Frame Rate 60Hz
BROADCASTING SYSTEM
Analog Yes (NTSC)
Digital Yes (ATSC / Clear QAM / Mpeg4)
VIDEO
XD Engine Yes
24p Real Cinema (24p 5:5/2:2 Pull down) Yes
Eye Care (Anti Dazzling) Yes
AUDIO
Audio Output 10W + 10W(32”, 37”, 42”), 5W + 5W (26”, 22”)
Speaker System 1 Way 2 Speakers
Infinite Sound Yes
Invisible Speaker Yes
Clear Voice II Yes
COMMERCIAL FEATURES
Pro:Centric Yes (1 Tuner) GEM/Flash
TV Link Tuner Yes
Big Size Menu Yes
Hotel Mode/PDM Yes (PDM 2.6)
IR Out Yes (RS-232C)
SIMPLIN Yes
External Speaker Out Yes (Variable, 3.5mm, Stereo, 1W with 8 Ω)
RJP Interface Yes, RJ45 (42”, 37”, 32”) HDMI
RJP Compatibility LG, Teleadapt, Guestlink
USB (2.0) Yes (MP3, Jpeg, HD DivX)
USB Cloning Yes
One Channel Map / Logical Channel Map Simple Channel List
Multi IR Code Yes
Welcome Screen (Splash Image) Yes
Auto Off/Auto Sleep Yes
Video Mute Yes
Smart Energy Saving Yes
Anti-theft System Yes
ensington Lock Yes
Credenza/Security Screw Hole Yes (except 26”, 22”)
AUDIO/VIDEO IN UTS/OUT UTS
HDMI In 1 (side)
USB 2.0 1 (side)
RF In 1 (rear)
AV In 1 (rear)
HDMI/HDCP Input 2 (rear)
RGB In (D-sub 15pin) - PC 1 (rear)
PC Audio Input 1 (Sharing with AV In)
RS-232C (Control / SVC only) 1 (rear)
RJ45 (RJP interface) 1(except 22/26)
External Speaker Out (3.5mm phone jack) 1
specifications
