LG 32LB9D Series User manual

LCD TV PLASMA TV
OWNER'S MANUAL
LCD TV MODEL
32LB9D
PLASMA TV MODELS
42PB4DA
SOPB4DA
60PB4DA
Please read this manual carefuffy before operating
your set.
Retain it for future reference.
Record model number and serial number of the set.
See the [abel attached on the back cover and quote
this information to your dealer
when you require service.
An extended owner's manual that contains information
on the advanced features of these LG TV sets is located
on the CD-ROM provided in an electronic version.
To read these files, you will need to use personal computer
(PC) equipped with a CD-ROM drive.
P/NO :MFL34797023 (0709-REVO0)
Printed in Korea

/
_iiiiiBli

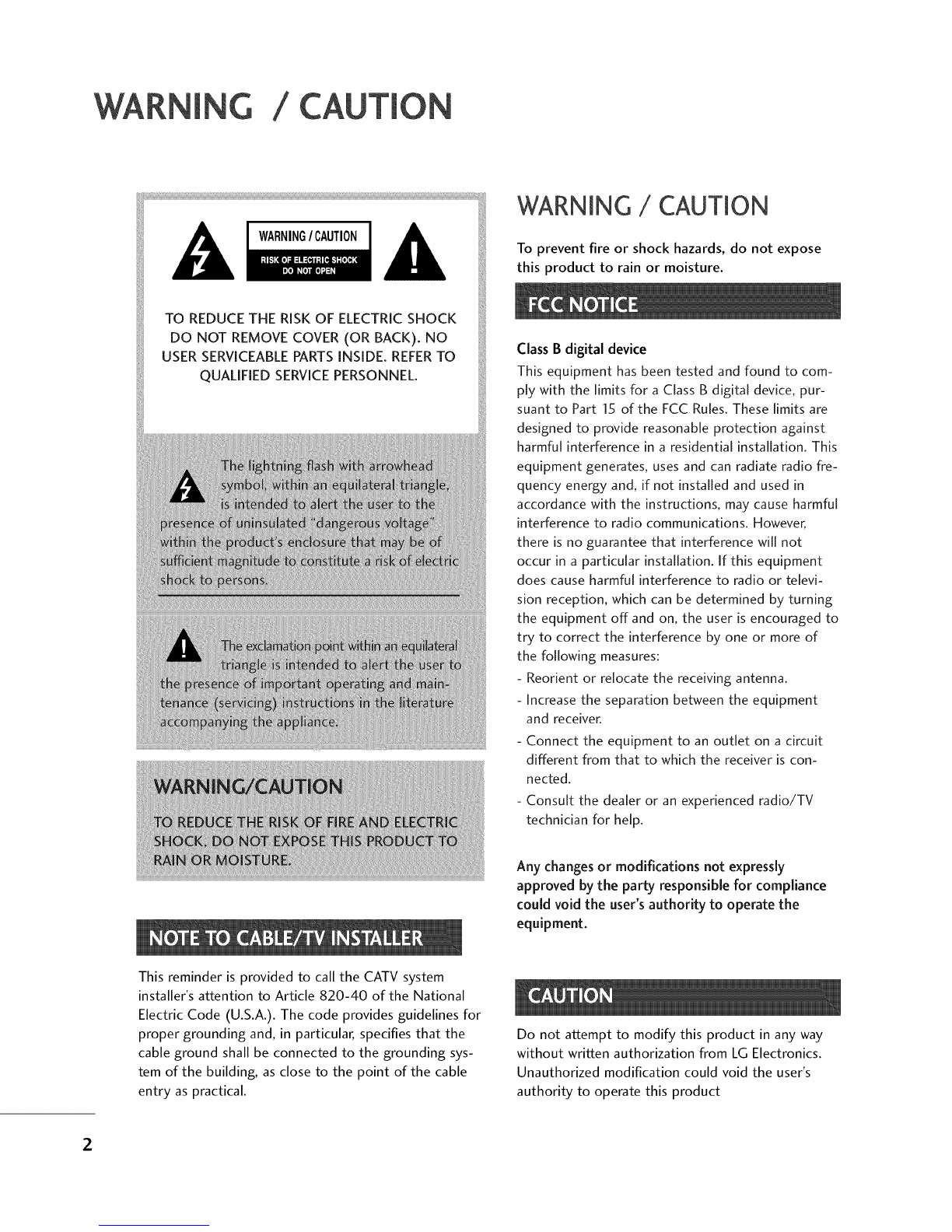

WARNING /CAUTION
To prevent fire or shock hazards, do not expose
this product to rain or moisture.
Class B digital device
This equipment has been tested and found to com-
ply with the limits for a Class B digital device, pur-
suant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio fre-
quency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not
occur in a particular installation. If this equipment
does cause harmful interference to radio or televi-
sion reception, which can be determined by turning
the equipment off and on, the user is encouraged to
try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and receiver.
- Connect the equipment to an outlet on a circuit
different from that to which the receiver is con-
nected.
- Consult the dealer or an experienced radio/TV
technician for help.
Any changes or modifications not expressly
approved by the party responsible for compliance
could void the user's authority to operate the
equipment.
This reminder is provided to call the CATV system
installer's attention to Article 820-40 of the National
Electric Code (U.S.A.). The code provides guidelines for
proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding sys-
tem of the building, as close to the point of the cable
entry as practical.
Do not attempt to modify this product in any way
without written authorization from LG Electronics.
Unauthorized modification could void the user's
authority to operate this product
2

SAFETYIN S

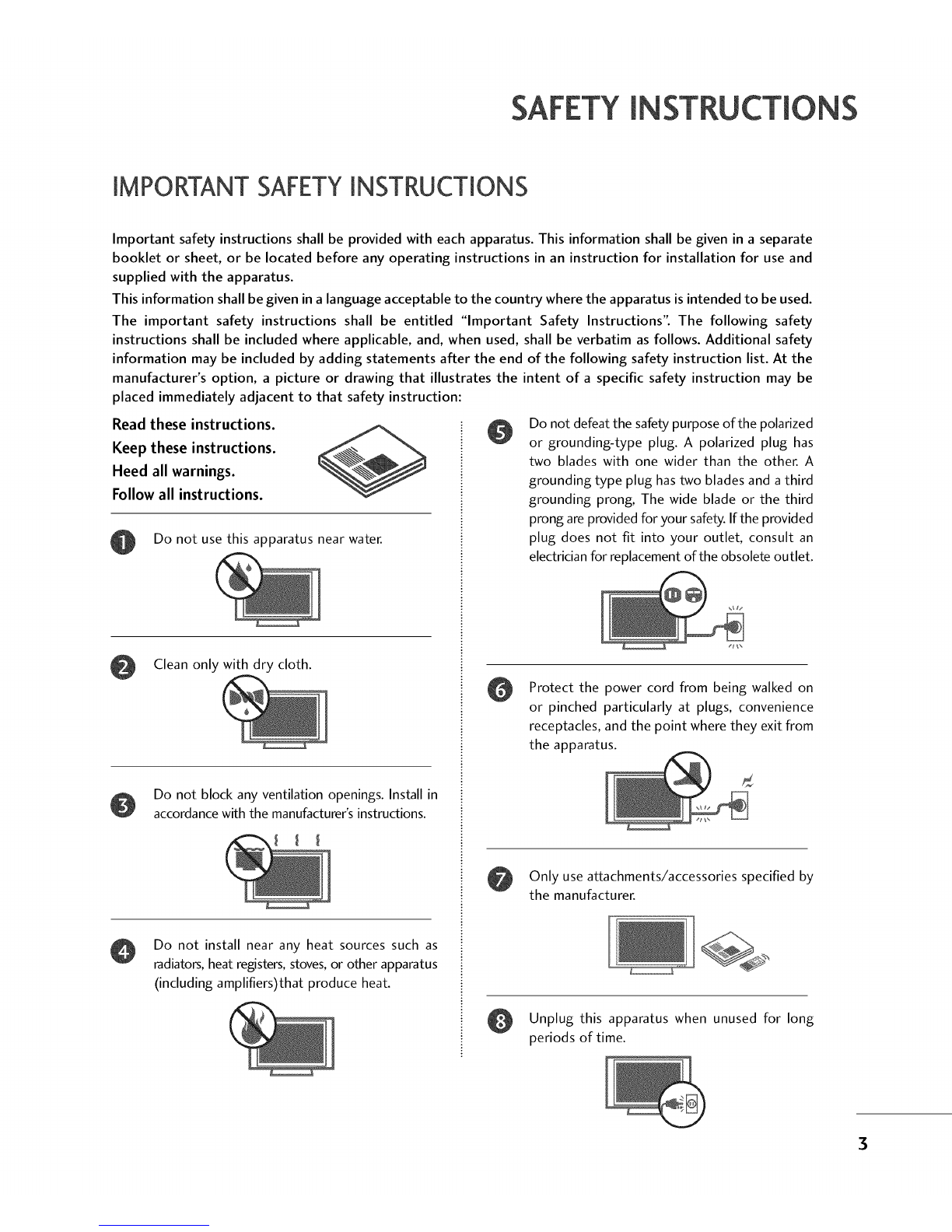

IMPORTANT SAFETYINSTRUCTIONS
Important safety instructions shall be provided with each apparatus. This information shall be given in a separate
booklet or sheet, or be located before any operating instructions in an instruction for installation for use and
supplied with the apparatus.
This information shall be given in a language acceptable to the country where the apparatus is intended to be used.
The important safety instructions shall be entitled "Important Safety Instructions". The following safety
instructions shall be included where applicable, and, when used, shall be verbatim as follows. Additional safety
information may be included by adding statements after the end of the following safety instruction list. At the
manufacturer's option, a picture or drawing that illustrates the intent of a specific safety instruction may be
placed immediately adjacent to that safety instruction:
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers)that produce heat.
Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has
two blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong, The wide blade or the third
prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
Only use attachments/accessories specified by
the manufacturer.
Unplug this apparatus when unused for long
periods of time.
3

SAFETYIN

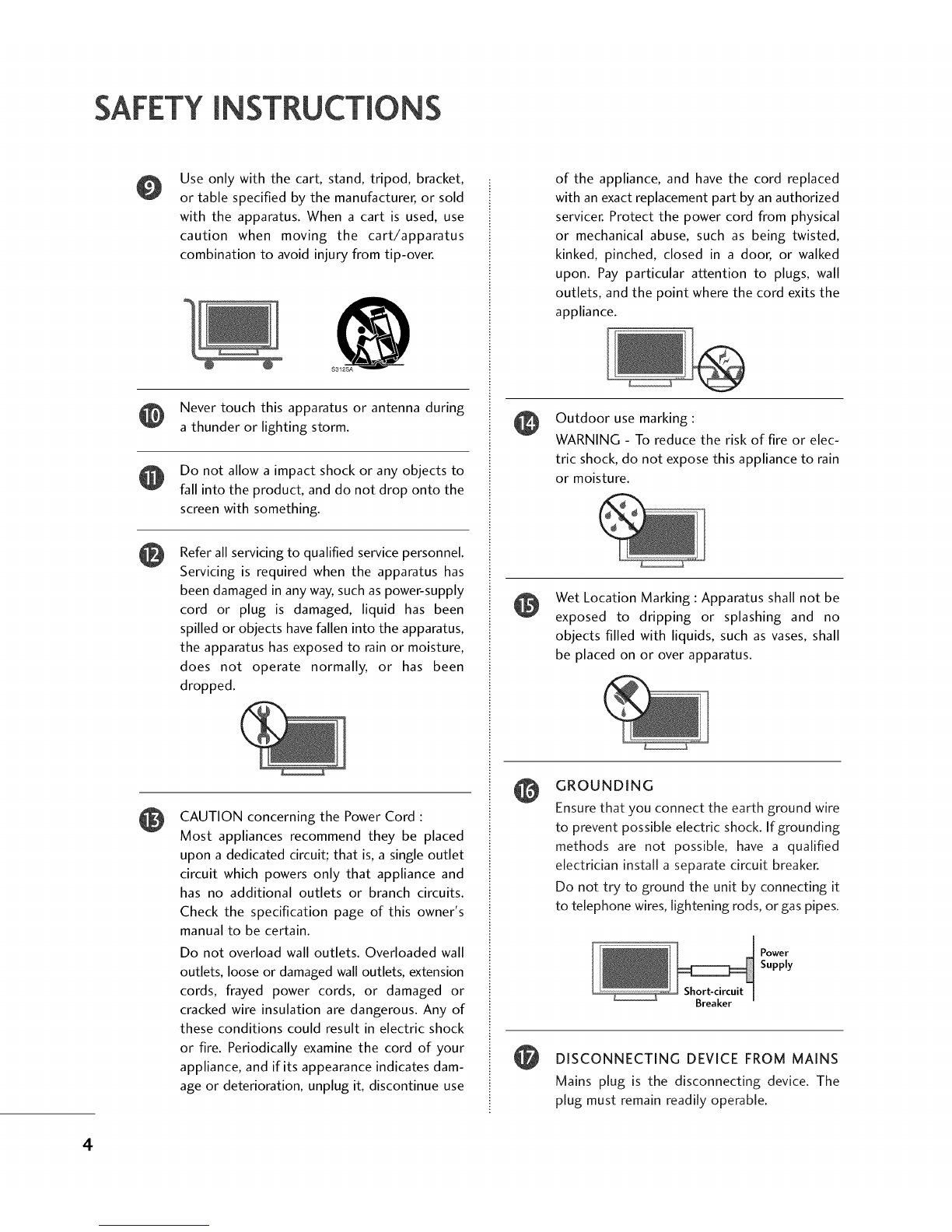

Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
$3125A
Never touch this apparatus or antenna during
a thunder or lighting storm.
@
Do not allow a impact shock or any objects to
fall into the product, and do not drop onto the
screen with something.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus,
the apparatus has exposed to rain or moisture,
does not operate normally, or has been
dropped.
CAUTION concerning the Power Cord :
Most appliances recommend they be placed
upon a dedicated circuit; that is, a single outlet
circuit which powers only that appliance and
has no additional outlets or branch circuits.
Check the specification page of this owner's
manual to be certain.
Do not overload wall outlets. Overloaded wall
outlets, loose or damaged wall outlets, extension
cords, frayed power cords, or damaged or
cracked wire insulation are dangerous. Any of
these conditions could result in electric shock
or fire. Periodically examine the cord of your
appliance, and if its appearance indicates dam-
age or deterioration, unplug it, discontinue use
4
of the appliance, and have the cord replaced
with an exact replacement part by an authorized
servicer. Protect the power cord from physical
or mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or walked
upon. Pay particular attention to plugs, wall
outlets, and the point where the cord exits the
appliance.
Outdoor use marking :
WARNING - To reduce the risk of fire or elec-
tric shock, do not expose this appliance to rain
or moisture.
Wet Location Marking : Apparatus shall not be
exposed to dripping or splashing and no
objects filled with liquids, such as vases, shall
be placed on or over apparatus.
GROUNDING
Ensure that you connect the earth ground wire
to prevent possible electric shock. If grounding
methods are not possible, have a qualified
electrician install a separate circuit breaker.
Do not try to ground the unit by connecting it
to telephone wires, lightening rods, or gas pipes.
Breaker
Power
Supply
DISCONNECTING DEVICE FROM MAINS
Mains plug is the disconnecting device. The
plug must remain readily operable.

CONTENTS
WARNING /CAUTION ............................ 2
SAFETY INSTRUCTIONS ..........................3
++i+!i!i!i_p,+!_i!+_!i!i¸!I!I!I!I!I!I!I!I¸!I!I!I!I!I!I!I!I¸!I!I!I!I!I!I!I!I¸!I!I!I!I!I!I!I!I¸!I!I!I!I!I!I!I!I¸!I!I!I!I!I!I!I!I¸!I!I!I!I!I!I!I!I¸!I!I!I!I!I!I!I!I¸!I!I!I!I!I!I!I!I¸!I!I!I!I!I!I!I!I¸!I!I!I!I!I!I!I!I¸!I!I!I!I!I!I!I!I¸!I!I!I!I!I!I!I!I¸!I!I!I!I!I!I!I!I¸!I!I!I!I!I!I!I!I¸!I!I!I!I!I!I!I!I¸!I!I!I!I!I!I!I!I¸!I!I!I!I!I!I!I!I¸!I!I!I!I!I!I!I!I¸!I!I!I!I!I!I!I!I¸!I!I!I!I!I!I!I!I¸!I!I!I!I!I!I!I!I¸!I!I!I++
Accessories ...................................................... 6
Front Panel Information ...................................... 7
Back Panel Information ...................................... 8
Remote Control Functions ............................... 10
Stand Installation ..............................................
Attaching the TV to a Desk .............................. 13
Back Cover for Wire Arrangement ..................... 14
Attaching the TV to a Wall ............................... 16
Desktop Pedestal Installation ............................ 17
VESA Wall Mounting ........................................ 17
Antenna or Cable Connection .......................... 18
HD ReceiverSetup ......................................... 19
DVD Setup ..................................................... 20
VCR Setup ..................................................... 21
PC Setup ........................................................ 22
Turning On the TV .......................................... 23
Channel Selection ........................................... 23
VolumeAdjustment ......................................... 23
Channel Setup ................................................ 24
On-Screen Menus Selection ............................. 25
Entry Modes ................................................... 28
Photo List ....................................................... 29
Music List ....................................................... 31
Troubleshooting .............................................. 33
Maintenance ................................................... 34
Product Specifications ..................................... 35
Open Source Software Notice .......................... 36
HOW TO USETHE OWNER'S MANUAL ON THE CD-ROM
To view the Owner's Manual on the CD-ROM, Adobe Acrobat Reader must be installed on your PC.
The "ACRORD" folder on the CD-ROM contains the installation programs for them.
If you want to install those programs, Open the "My Computer"--_Open the "LG"--_Open the
"ACRORD"--_ double-click your language.
TO VIEW THE OWNER'S MANUAL ON THE CD-ROM
The Owner's Manual files are included in the supplied CD-ROM.
Load the supplied CD-ROM into the CD-ROM drive of your PC.
After a while, the web page of the CD-ROM will open automatically. (for Window only)
_ur product,
................ .+.
:13i,:_+'_+'.
,+..............
You can find the desired contents
easily using the bookmark.
5

PR
_o
0
z
ACCESSORIES
Ensure that the following accessories are included with your product. If an accessory is missing, please con-
tact the dealer where you purchased the product.
User must use shielded signal interface cables (D-sub 15 pin cable) with ferrite cores to maintain standard
compliance for the product.
For further information, see the the Owner's Manual files supplied CD-ROM.
Owner's Manual CD Manual Remote Control,
(Refer to p.5) Batteries Power Cord 75ohm Round Cable
Polishing Cloth
* Slightly wipe stained spot on the exterior only with the polishing cloth
for the product exterior if there is stain or fingerprint on surface of the
exterior.
* Do not wipe roughly when removing stain. Please be cautions of that
excessive pressure may cause scratch or discoloration. D-sub 15 pin Cable
Cable 2- TV Bracket 2- TV Brackets, 4-Bolts for stand 1- Screw for
Management Bolts 2- Wall Brackets assembly stand fixing
(Refer to p.16) (Refer to p.16) (Refer to p.12) (Refer to p.13)
Twist Holder
Arrange the wires
with the twist holder.
6

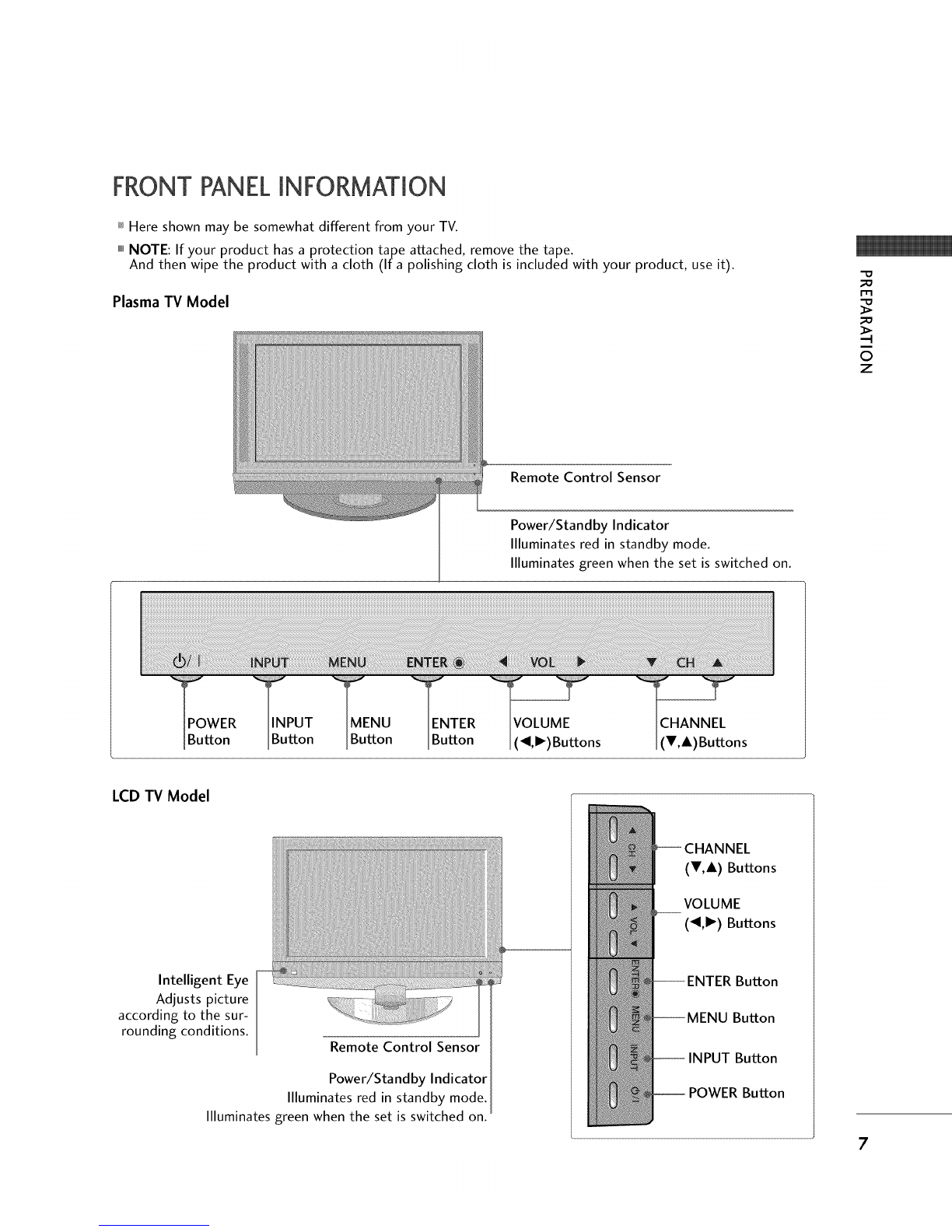

FRONT PANELINFORMATION
Here shown may be somewhat different from your TV.
""_NOTE: If your product has a protection tape attached, remove the tape.
And then wipe the product with a cloth (If a polishing cloth is included with your product, use it).
Plasma TV Model
-0
m
©
z
Remote Control Sensor
Power/Standby Indicator
Illuminates red in standby mode.
Illuminates green when the set is switched on.
:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
)OWER INPUT MENU ENTER VOLUME CHANNEL
Button Button Button Button (_1,1_) Buttons (T,&)Buttons
LCD TV Model
Intelligent Eye
Adjusts picture
according to the sur-
rounding conditions. Remote Control Sensor
Power/Standby Indicator
Illuminates red in standby mode.
Illuminates green when the set is switched on.
(V,&) Buttons
VOLUME
(_1,1_) Buttons
-- ENTER Button
Button
-- INPUT Button
- POWER Button
7

PREPARTION

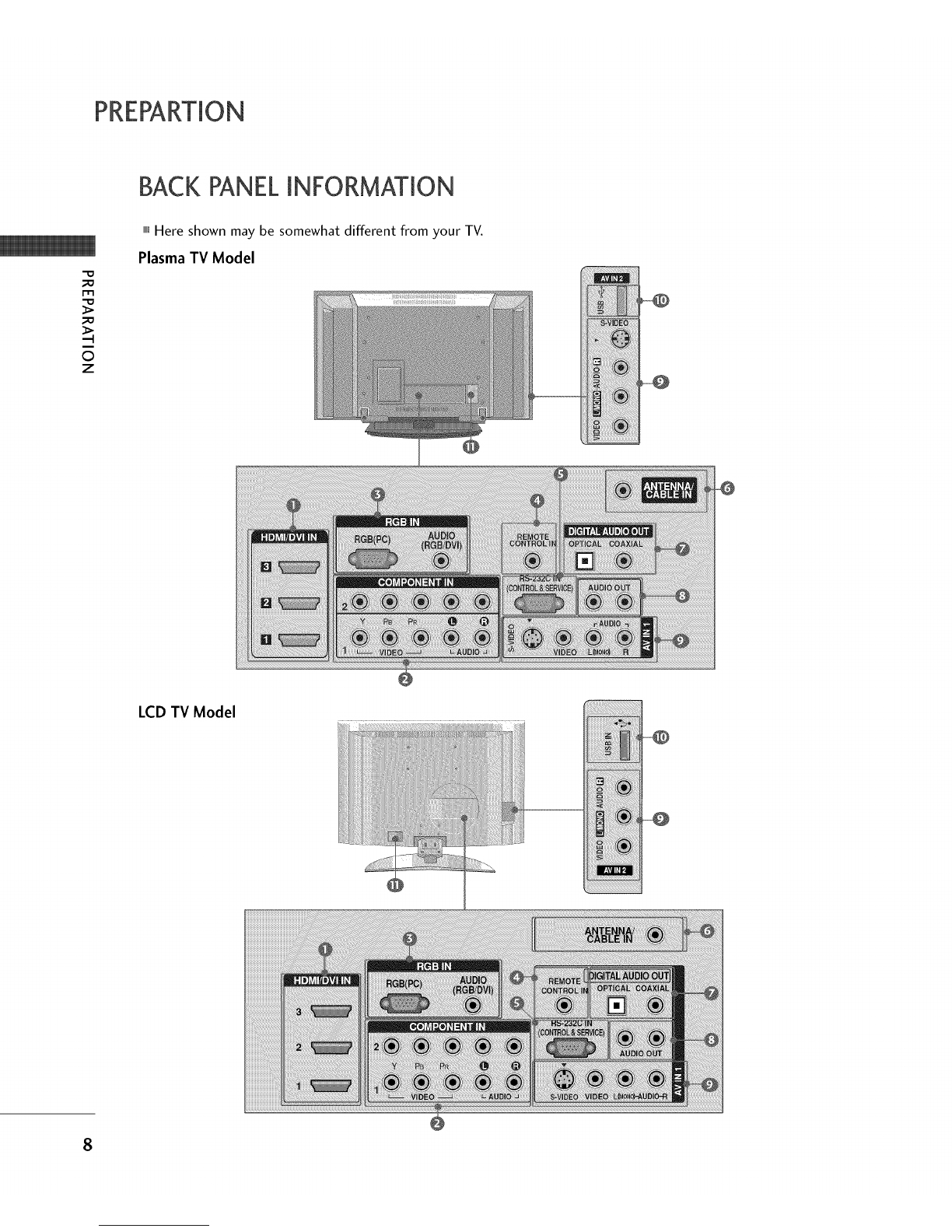

BACK PANELINFORMATION
m
_>
©
Z
""_Here shown may be somewhat different from your TV.
Plasma TV Model
LCD TV Model
:i r._,,,_
8

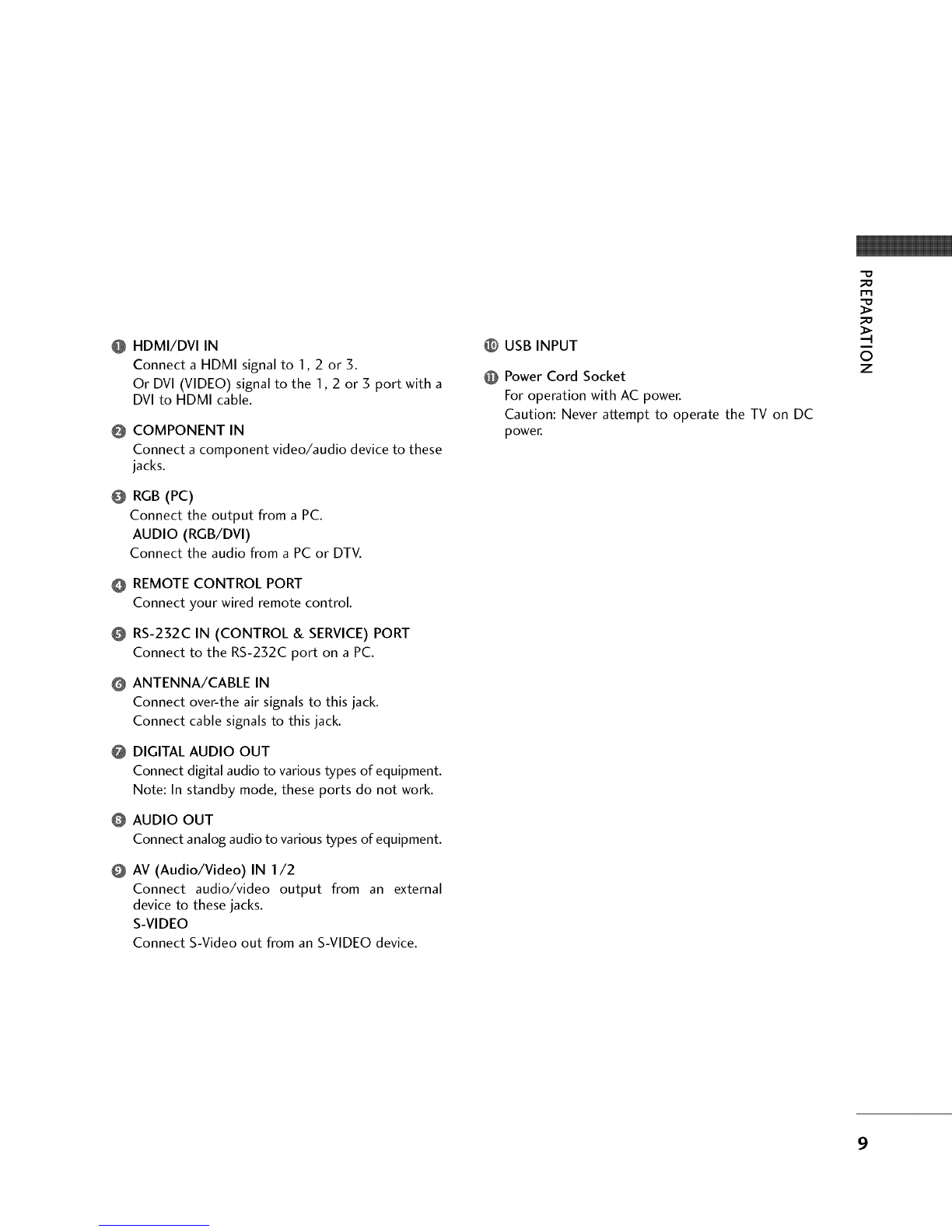

@ HDMI/DVI IN
Connect a HDMI signal to I, 2 or 3.
Or DVI (VIDEO) signal to the I, 2 or 3 port with a
DVI to HDMI cable.
O COMPONENT IN
Connect a component video/audio device to these
jacks.
RGB (PC)
Connect the output from a PC.
AUDIO (RGB/DVI)
Connect the audio from a PC or DTV.
REMOTE CONTROL PORT
Connect your wired remote control.
RS-232C IN (CONTROL & SERVICE) PORT
Connect to the RS-232C port on a PC.
ANTENNA/CABLE IN
Connect over-the air signals to this jack.
Connect cable signals to this jack.
DIGITAL AUDIO OUT
Connect digital audio to various types of equipment.
Note: In standby mode, these ports do not work.
AUDIO OUT
Connect analog audio to various types of equipment.
@ AV (Audio/Video) IN 1/2
Connect audio/video output from an external
device to these jacks.
S-VIDEO
Connect S-Video out from an S-VIDEO device.
@ USB INPUT
Power Cord Socket
For operation with AC power.
Caution: Never attempt to operate the TV on DC
power.
"O
O
z
9

REMOTECONTROL FUNCTIONS
When using the remote control, aim it at the remote control sensor on the TV.
m
©
z
MEDIAHosT
mode control
buttons
VCR/DVD
buttons
Controls the MEDIAHosTmode.
Control video cassette recorders or DVD players.
MENU Displays the main menu.
BRIGHT +/+ Adjust brightness on screen.
THUMBSTICK
(Up/Down/Left
Right/ENTER)
EXIT
TIMER
RATIO
SIMPLINK
Navigate the on-screen menus and adjust the system set-
tings to your preference.
Clear all on-screen displays and return to TV viewing from
any menu.
Select the amount of time before your TV turns off auto-
matically.
Change the aspect ratio.
See a list of AV devices connected to TV.
When you toggle this button, the SimpLink menu appears
at the screen.
VOLUME UP
/DOWN
MUTE
FAV
CHANNEL
UP/DOWN
NUMBER button
BACK
-- (DASH)
Increase/decrease the sound level.
Switch the sound on or off.
Scroll through the programmed Favorite channels.
Select available channels.
Tune to the last channel viewed.
Used to enter a program number for multiple
program channels such as 2-1,2-2, etc.
10

POWER
TV INPUT
INPUT
MODE
Turns your TV or any other programmed equipment on or off, depending on the mode.
In AV 1-2, Component 1-2, RGB-PC, HDMI1, HDMI2 and HDMI3 input sources, screen returns to
the last TV channel.
External input modes rotate in regular sequence: Antenna, Cable, AV1-2, Component 1-2, RGB-PC,
HDMI1, HDMI2, and HDMI3 (AV 1-2, Component 1-2, RGB-PC, HDMI1, HDMI2, and HDMI3
input sources are linked automatically, only if these are connected ).
Select the remote operating mode: TV, DVD, VCR, AUDIO, or STB.
* If the mode of another product is selected, a button on the remote control which is not used for
the selected product can control the TV.
MEDIAHosT Enter to the MEDJAHosTmode.
Inside the Sliding Cover
"0
m
0
z
SOUND
SAP
Adjust the factory preset picture depend
on the viewing environment.
Select the appropriate type of sound for
type of program.
Select MTS sound: Mono, Stereo, and SAP
analog mode. Change the audio language
DTV mode.
CC Select the Caption On/Off.
MARK
-- USB EJECT
Enter the selected functions.
Remove the USB device.
11

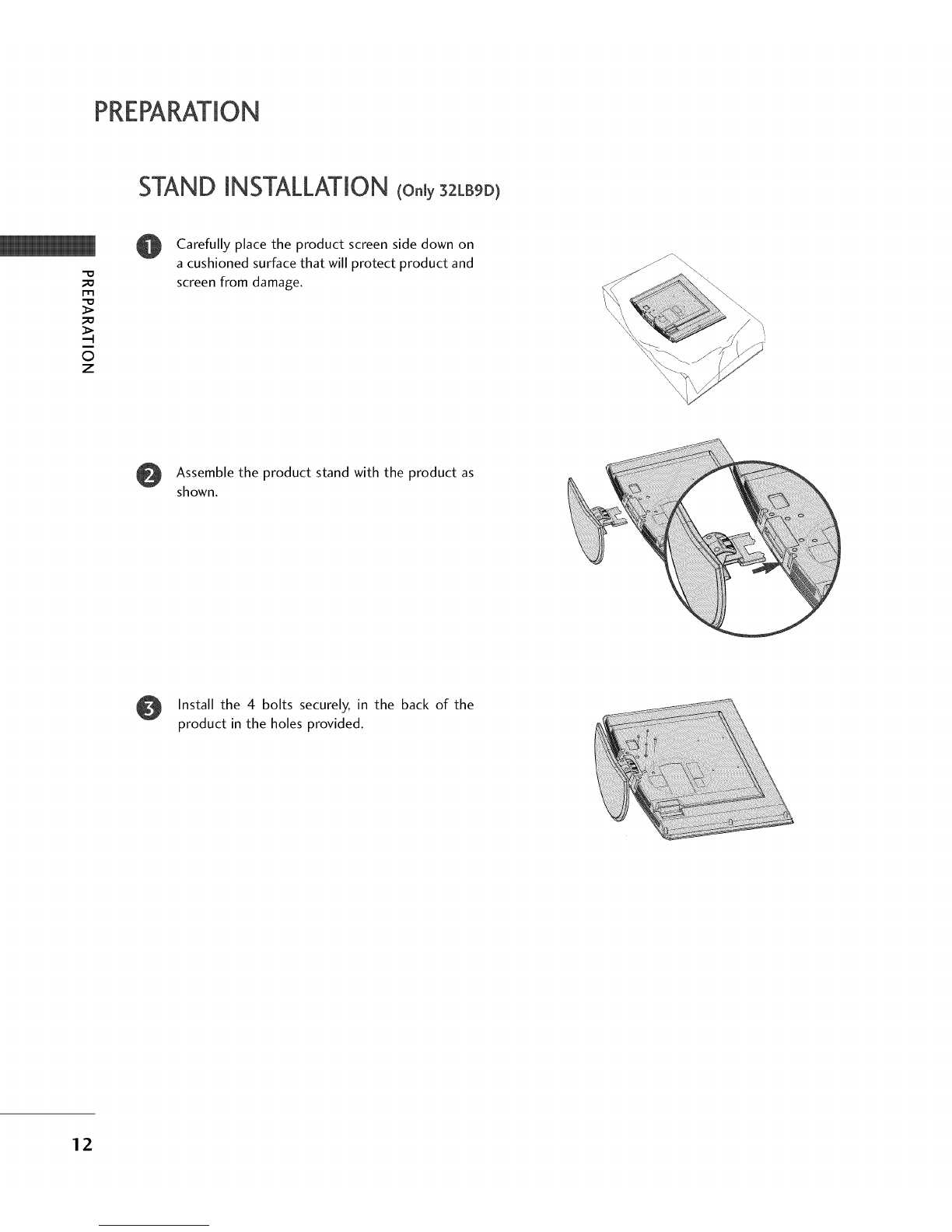

STANDiNSTALLATiON(Oomy32LBgD)
m
O
z
Carefully place the product screen side down on
a cushioned surface that will protect product and
screen from damage.
Assemble the product stand with the product as
shown.
O Install the 4 bolts securely_ in the back of the
product in the holes provided. ......%_i!i!i!ii!i_!i!iii!i!ii!i!!iiii!iiiiiiiiiiii!i!iiii!i_iiil
12

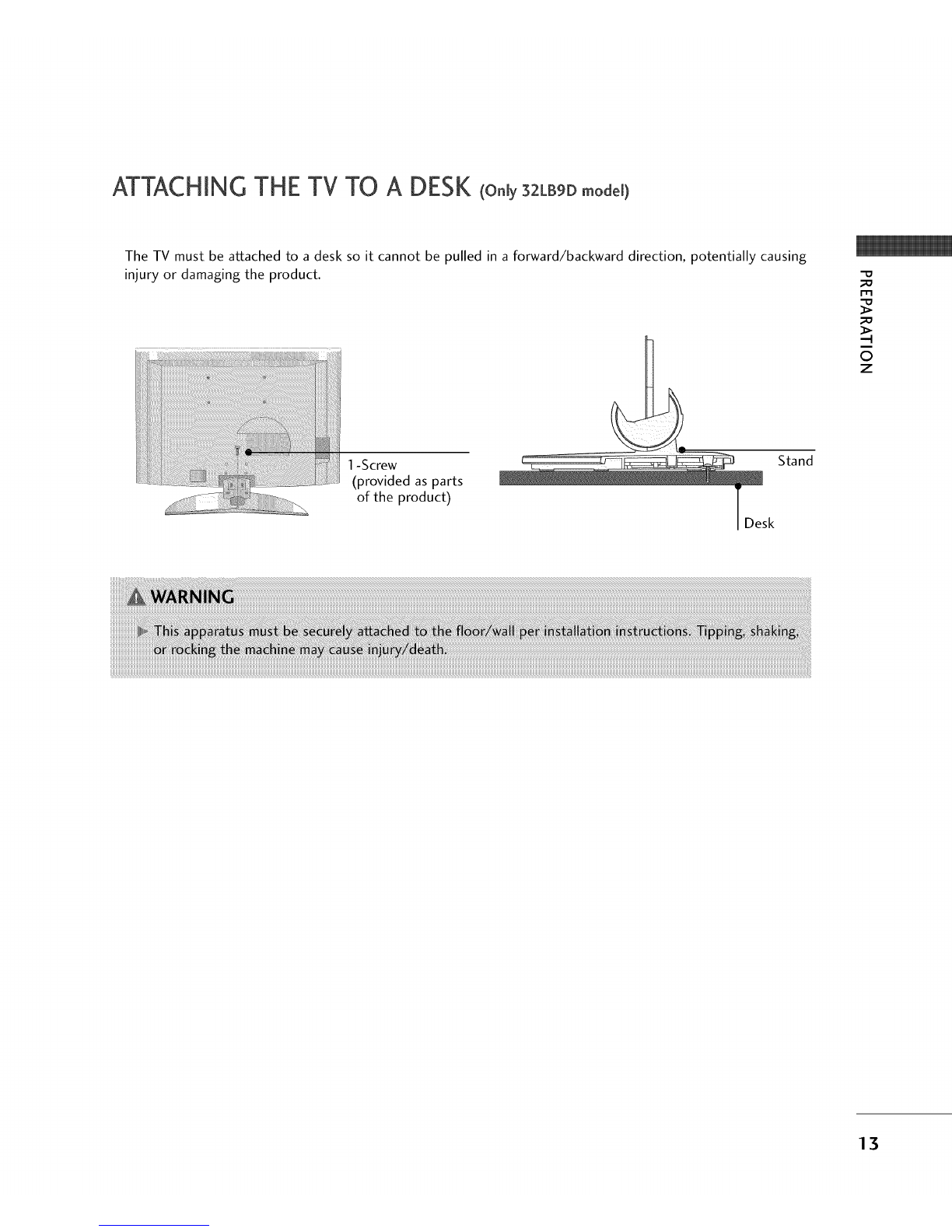

ATTACHINGTHETV TO A DESK(oomy32LBgDmod0m)
The TV must be attached to a desk so it cannot be pulled in a forward/backward direction, potentially causing
injury or damaging the product.
1-Screw
(provided as parts
of the product)
Stand
Desk
"O
m
C)
z
13

m
©
z

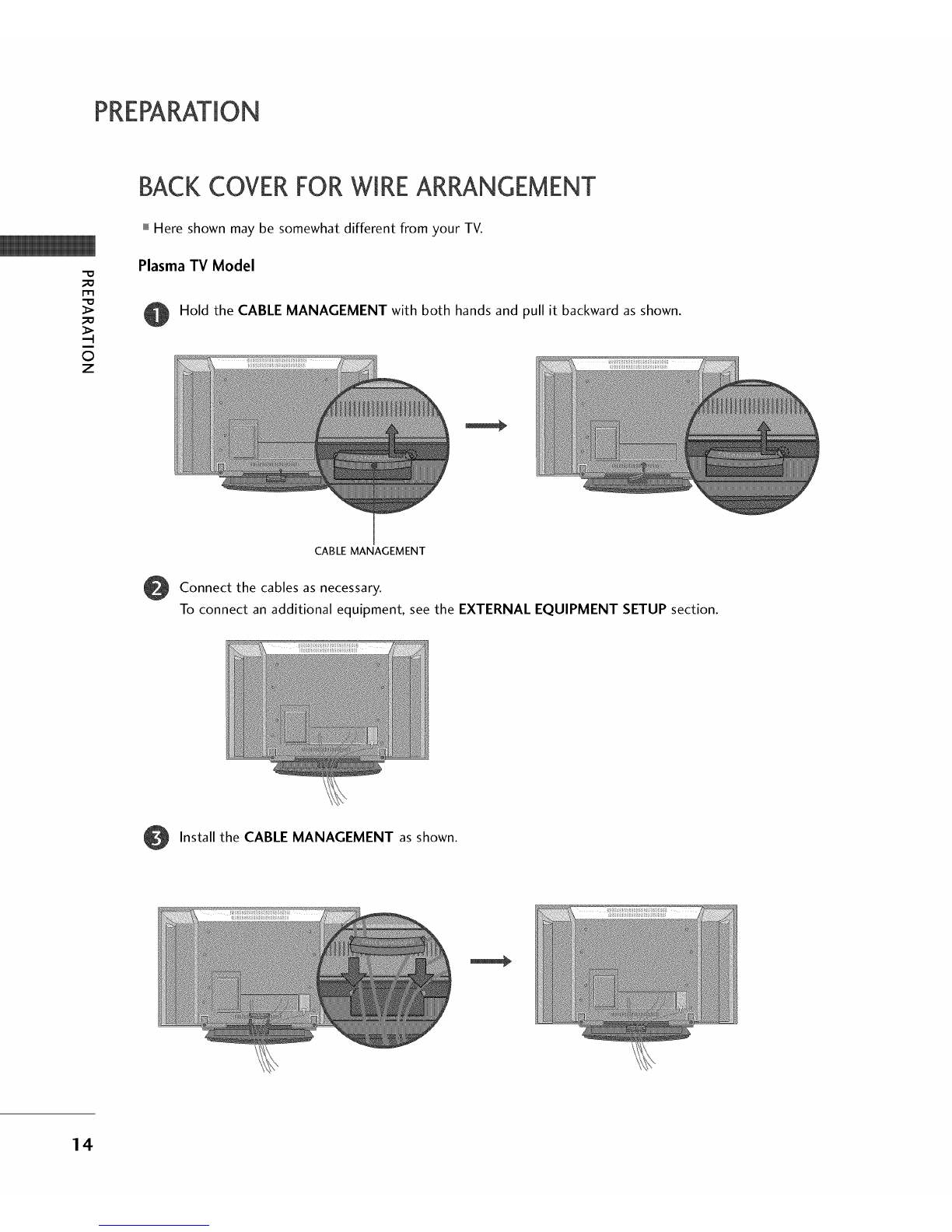

BACK COVERFOR WIREARRANGEMENT
Here shown may be somewhat different from your TV.
Plasma TV Model
Hold the CABLE MANAGEMENT with both hands and pull it backward as shown.
@CABLE MANAGEMENT
Connect the cables as necessary.
To connect an additional equipment, see the EXTERNAL EQUIPMENT SETUP section.
Install the CABLE MANAGEMENT as shown.
14

LCD TV Model
Connect the cables as necessary.
To connect an additional equipment, see the
EXTERNAL EQUIPMENT SETUP section.
"O
m
©
z
OInstall the CABLE MANAGEMENT as shown.
(Insert it as pushing the loops on the both sides
of the cable management.)
Bundle the cables using the supplied TWISTER HOLDER.
(This feature is not available for all models.)
CABLE MANAGEMENT
TWIST HOLDER
15

ATTACHINGTHETV TO A WALL
0
z
This feature is not available for all models.
Here shown may be somewhat different from your TV.
We recommend that you set up the TV close to a wall so it cannot fall over if pushed backwards.
Additionally, we recommend that the TV be attached to a wall so it cannot be pulled in a forward direction,
potentially causing injury or damaging the product.
Caution: Please make sure that children don't climb on or hang from the TV.
Plasma TV Model LCD TV Model
42/50 inches 60 inches
.\
01_Insert the eye-bolts (or TV brackets and
tiI
bolts) to tighten the product to the wall as shown in the picture.
If your product has the bolts in the eye-bolts position before inserting the eye-bolts, loosen the bolts.
Secure the wall brackets with the bolts (not provided as parts of the product, must purchase separately) to
the wall. Match the height of the bracket that is mounted on the wall to the holes in the product.
Ensure the eye-bolts or brackets are tightened securely.
Use a sturdy rope (not provided as parts of the product, must pur-
chase separately) to tie the product. It is safer to tie the rope so it
becomes horizontal between the wall and the product.
16

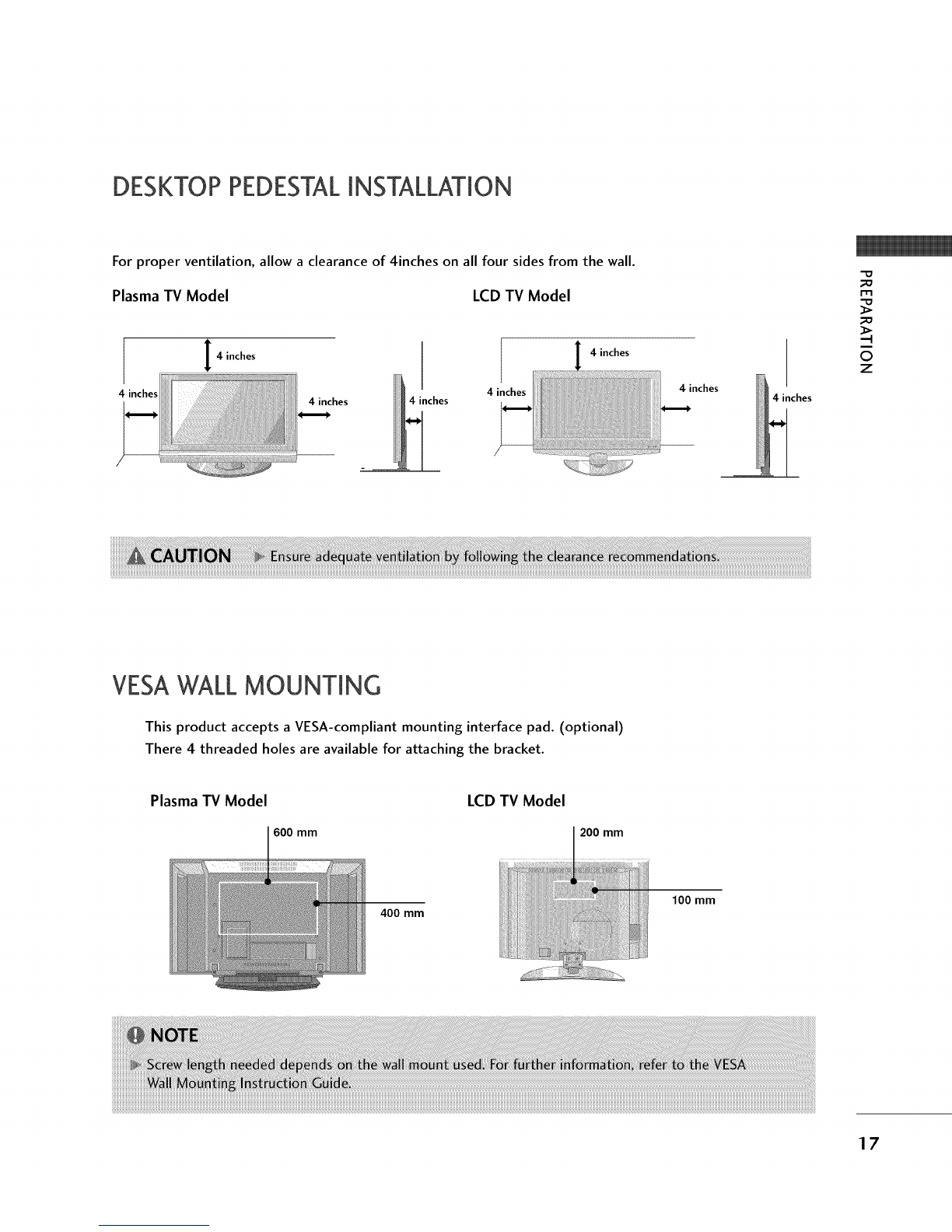

DESKTOP PEDESTALINSTALLATION
For proper ventilation, allow a clearance of 4inches on all four sides from the wall.
Plasma TV Model LCD TV Model
I
4 inches
4inches
4inches 4 inches 4inches
4 inches
4inches 4inches
"0
m
©
z
VESAWALL MOUNTING
This product accepts a VESA-compliant mounting interface pad. (optional)
There 4 threaded holes are available for attaching the bracket.
Plasma TV Model
600 mm
LCD TV Model
400 mm 100 mm
17

ANTENNA OR CABLECONNECTION
_o
©
z
1. Antenna (Analog or Digital)
Wall Antenna Socket or Outdoor Antenna without a Cable Box
Connections.
For optimum picture quality, adjust antenna direction if needed.
al
Antenna
Socket
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
2. Cable
Be careful not to bend the bronze wire
when connecting the antenna.
Cable TV
Wall Jack
RF Coaxial Wire (7S ohm)
3. Using both cable and antenna
J
Cable TV
Wall Jack
RF Coaxial Wire (7S ohm) Diplexer
(Signal
Combiner)
I
"__ UHF
Antenna _____
VHF
To improve the picture quality in a poor signal area, please purchase a signal amplifier and install properly.
If the antenna needs to be split for two TV's, install a 2-Way Signal Splitter.
If the antenna is not installed properly, contact your dealer for assistance.
18

EQUIPMENT
01_To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.
This part of EXTERNAL EQUIPMENT SETUP mainly use picture for Plasma TV model.
HD RECEIVERSETUP
This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do
receive digital signals from a digital set-top box or other digital external device, refer to the figure as shown below.
When connecting Component cable
1. How to connect
Connect the video outputs (Y, PB, PR) of the digital set
top box to the COMPONENT IN VIDEO 1 jacks on
the set. Match the jack colors (Y = green, PB = blue, and
PR = red).
Connect the audio output of the digital set-top box to
the COMPONENT IN AUDIO 1 jacks on the set.
2. How to use
010_Turn on the digital set-top box.
(Refer to the owner's manual for the digital set-top box. operation)
0_Select Component 1 input source byusingtheINPUT
button on the remote control.
01_If connected to COMPONENT IN2 input, select
Component 2 input source.
Y, CB/PB, CR/PR
m
x
m
z
m
KD
c
m
z
m
c
Yes No
Yes Yes
Yes Yes
Yes Yes
Yes Yes
19

EXTERNALEQUIPMENT SETUP
m
x
m
z
m
_D
c
m
z
m
c
DVD SETUP
When connecting Component cable
1. How to connect
Connect the video outputs (Y, PB, PR) of the DVD to the
COMPONENT IN VIDEO1 jacks on the set.
Match the jack colors (Y = green, PB = blue, and PR = red).
Connect the audio outputs of the DVD to the
COMPONENT IN AUDIO1 jacks on the set.
2. How to use
Turn on the DVD player, insert a DVD.
Select Component 1 input source by using the INPUT
button on the remote control.
If connected to COMPONENT IN 2 input, select
Component 2 input source.
Refer to the DVD player's manual for operating instructions.
When connecting HDMI cable
1. How to connect
Connect the HDMI output of the DVD to the
HDMI/DVI IN 1,2, or 3jack on the set.
No separated audio connection is necessary.
HDMI supports both audio and video.
2. How to use
01_Select HDMI1, HDMI2, or HDMI3 input source by using
the INPUT button on the remote control.
01_Refer to the DVD player's manual for operating instructions.
01_If the DVD does not support Auto HDMI, you need to set
the output resolution appropriately.
20
