LG 32LD350 User manual

LCD TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : LD01B
MODEL : 32LD350/350N 32LD350/350N-ZA
MODEL : 32LD358 32LD358-ZA
MODEL : 32LD359 32LD359-ZB
North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com
Internal Use Only
Printed in KoreaP/NO : MFL62863001 (1002-REV00)

LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 2 -
CONTENTS
CONTENTS .............................................................................................. 2
PRODUCT SAFETY ................................................................................. 3
SPECIFICATION ....................................................................................... 6
ADJUSTMENT INSTRUCTION .............................................................. 10
BLOCK DIAGRAM...................................................................................16
EXPLODED VIEW .................................................................................. 18
SVC. SHEET ...............................................................................................

LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 3 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
1.5 Kohm/10W
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
When 25A is impressed between Earth and 2nd Ground
for 1 second, Resistance must be less than 0.1
*Base on Adjustment standard
IMPORTANT SAFETY NOTICE
0.15 uF
Ω

LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 4 -
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the
following servicing precautions and any of the safety precautions on
page 3 of this publication, always follow the safety precautions.
Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug or
other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.
2. Test high voltage only by measuring it with an appropriate high
voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specified otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication of
contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test fixtures specified in this
service manual.
CAUTION: Do not connect the test fixture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged easily
by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques
should be used to help reduce the incidence of component
damage caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed to
prevent potential shock reasons prior to applying power to the
unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as "anti-static" can generate
electrical charges sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such as
the brushing together of your clothes fabric or the lifting of your
foot from a carpeted floor can generate static electricity
sufficient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500 °F to 600 °F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500 °F to 600 °F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500 °F to 600 °F)
b. First, hold the soldering iron tip and solder the strand against
the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.
SERVICING PRECAUTIONS

LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 5 -
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by gently
prying up on the lead with the soldering iron tip as the solder
melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing the
IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close as
possible to the component body.
2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as
possible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC
connections).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the good
copper pattern. Solder the overlapped area and clip off any
excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly
connected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 6 -
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement .
4. Module General Specification
1. Application range
This specification is applied to the LCD TV used LD01B
chassis.
2. Requirement for Test
Each part is tested as below without special appointment.
1) Temperature
: 25 ºC ± 5 ºC (77 ºF ± 9 ºF), CST : 40 ºC ± 5 ºC
2) Relative Humidity : 65 % ± 10 %
3) Power Voltage
: Standard input voltage(AC 100-240 V~ 50 / 60 Hz)
* Standard Voltage of each products is marked by models.
4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
5) The receiver must be operated for about 5 minutes prior to
the adjustment.
3. Test method
1) Performance: LGE TV test method followed
2) Demanded other specification
- Safety: CE, IEC specification
- EMC:CE, IEC
No. Item Specification Remark
1 Display Screen Device 80 cm(32 inch) wide color display module CCFL/EEFL LCD
2 Aspect Ratio 16:9
3 LCD Module 80 cm(32 inch) TFT LCD FHD
4 Storage Environment Temp. : -20 ~ 60 deg
Humidity : 10 ~ 90 %
5 Input Voltage AC 100-240 V~ 50 / 60 Hz
6 Power Consumption Power on (Blue) LCD (Module) + Backlight(Lamp)
AUO Typ : 84.6 W
Sharp Typ : 100 W
7 Pixel Pitch AUO / Sharp 0.3638 mm x 0.3638 mm
8 Back Light AUO CCFL
9 Display Colors 1.06 Billion(FHD LGD),16.7 M (others)
10 Coating 3H, AG

5. Module optical specification
(1) AUO Module
1) Standard Test Condition (The unit has been ‘ON’)
2) Stable for approximately 45 minutes in a dark environment at 25 ºC ± 2 ºC.
3) The values specified are at approximate distance 50Cm from the LCD surface.
(2) Sharp Module
1) Standard Test Condition (The unit has been ‘ON’)
2) Stable for approximately 45 minutes in a dark environment at 25 ºC ± 2 ºC.
3) The values specified are at approximate distance 50Cm from the LCD surface.
- 7 - LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
No. Item Specification Min. Typ. Max. Remark
1. Viewing Angle [CR>10] Right/Left(Up/Down) 178 Degree
2. Luminance Luminance (cd/m2) 360 450
Variation - 1.3 MAX /MIN
3. Contrast Ratio CR 4000 5000
4. CIE Color Coordinates RED Rx 0.640
Ry 0.330
Green Gx 0.290
Gy Typ. 0.600 Typ.
Blue Bx -0.03 0.150 +0.03
By 0.060
White Wx 0.280
Wy 0.290
No. Item Specification Min. Typ. Max. Remark
1. Viewing Angle [CR>10] Right/Left(Up/Down) 176 Degree
2. Luminance Luminance (cd/m2) 360 450
Variation - 1.25 MAX /MIN
3. Contrast Ratio CR 3000 4000
4. CIE Color Coordinates RED Rx 0.646
Ry 0.344
Green Gx 0.278
Gy Typ. 0.607 Typ.
Blue Bx -0.03 0.140 +0.03
By 0.079
White Wx 0.281
Wy 0.293

- 8 - LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
6. Component Video Input (Y, CB/PB, CR/PR)
No. Specification Remark
Resolution H-freq(kHz) V-freq(Hz)
1. 720x480 15.73 60.00 SDTV,DVD 480i
2. 720x480 15.63 59.94 SDTV,DVD 480i
3. 720x480 31.47 59.94 480p
4. 720x480 31.50 60.00 480p
5. 720x576 15.625 50.00 SDTV,DVD 625 Line
6. 720x576 31.25 50.00 HDTV 576p
7. 1280x720 45.00 50.00 HDTV 720p
8. 1280x720 44.96 59.94 HDTV 720p
9. 1280x720 45.00 60.00 HDTV 720p
10. 1920x1080 31.25 50.00 HDTV 1080i
11. 1920x1080 33.75 60.00 HDTV 1080i
12. 1920x1080 33.72 59.94 HDTV 1080i
13. 1920x1080 56.250 50 HDTV 1080p
14. 1920x1080 67.5 60 HDTV 1080p
No. Specification Proposed Remark
Resolution H-freq(kHz) V-freq(Hz) Pixel Clock(MHz)
1. 720*400 31.468 70.08 28.321 For only DOS mode
2. 640*480 31.469 59.94 25.17 VESA Input 848*480 60 Hz, 852*480 60 Hz
-> 640*480 60 Hz Display
3. 800*600 37.879 60.31 40.00 VESA
4. 1024*768 48.363 60.00 65.00 VESA(XGA)
5. 1280*768 47.78 59.87 79.5 WXGA
6. 1360*768 47.72 59.8 84.75 WXGA FHD Model
7. 1366*768 47.56 59.6 84.75 WXGA WXGA Model
8. 1280*1024 63.595 60.0 108.875 SXGA FHD model
9. 1280*720 45 60 74.25 720p DTV Standard
10. 1920*1080 66.587 59.93 138.625 WUXGA FHD model
7. RGB (PC)

- 9 - LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
8. HDMI Input
(1) DTV Mode
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark
1. 720*400 31.468 70.08 28.321 HDCP
2. 640*480 31.469 59.94 25.17 VESA HDCP
3. 800*600 37.879 60.31 40.00 VESA HDCP
4. 1024*768 48.363 60.00 65.00 VESA(XGA) HDCP
5. 1280*768 47.78 59.87 79.5 WXGA HDCP
6. 1360*768 47.72 59.8 84.75 WXGA HDCP
7. 1440*1050 55.5 59.90 88.750 WSXGA Not used(Monitor Panel)
8. 1400*1050 64.744 59.948 101.00 WSXGA Not used(Monitor Panel)
9. 1680*1050 65.16 59.94 147.00 WSXGA Not used(Monitor Panel)
10. 1280*1024 63.595 60.0 108.875 SXGA HDCP/FHD model
11. 1920*1080 67.5 60.00 138.625 WUXGA HDCP/FHD model
(2) PC Mode
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark
1. 720*480 31.469 /31.5 59.94 /60 27.00/27.03 SDTV 480P
2. 720*576 31.25 50 54 SDTV 576P
3. 1280*720 37.500 50 74.25 HDTV 720P
4. 1280*720 44.96 /45 59.94 /60 74.17/74.25 HDTV 720P
5. 1920*1080 33.72 /33.75 59.94 /60 74.17/74.25 HDTV 1080I
6. 1920*1080 28.125 50.00 74.25 HDTV 1080I
7. 1920*1080 26.97 /27 23.97 /24 74.17/74.25 HDTV 1080P
8. 1920*1080 33.716 /33.75 29.976 /30.00 74.25 HDTV 1080P
9. 1920*1080 56.250 50 148.5 HDTV 1080P
10. 1920*1080 67.43 /67.5 59.94 /60 148.35/148.50 HDTV 1080P

LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 10 -
ADJUSTMENT INSTRUCTION
1. Application Range
This specification sheet is applied to all of the LCD TV with
LD01B chassis.
2. Designation
1) The adjustment is according to the order which is
designated and which must be followed, according to the
plan which can be changed only on agreeing.
2) Power Adjustment: Free Voltage
3) Magnetic Field Condition: Nil.
4) Input signal Unit: Product Specification Standard
5) Reserve after operation: Above 5 Minutes (Heat Run)
Temperature : at 25 ºC ± 5 ºC
Relative humidity : 65 % ± 10 %
Input voltage : 220 V, 60 Hz
6) Adjustment equipments: Color Analyzer(CA-210 or CA-
110), DDC Adjustment Jig equipment, SVC remote control.
7) Push The “IN STOP” key - For memory initialization.
3. Main PCB check process
* APC - After Manual-Insult, executing APC
* Boot file Download
1) Execute ISP program “Mstar ISP Utility” and then click
“Config” tab.
2) Set as below, and then click “Auto Detect” and check “OK”
message
If “Error” is displayed, Check connection between
computer, jig, and set.
3) Click “Read” tab, and then load download file (XXXX.bin)
by clicking “Read”
4) Click “Connect” tab. If “Can’t” is displayed, check
connection between computer, jig, and set.
5) Click “Auto” tab and set as below
6) Click “Run”.
7) After downloading, check “OK” message.
* USB DOWNLOAD
1) Put the USB Stick to the USB socket
2) Automatically detecting update file in USB Stick
- If your downloaded program version in USB Stick is Low,
it didn’t work. But your downloaded version is High, USB
data is automatically detecting
3) Show the message “Copying files from memory”
filexxx.bin
(4)
(7) ……….OK
(5)
(6)
(1)
filexxx.bin
(2) (3)
Please Check the Speed :
To use speed between
from 200KHz to 400KHz

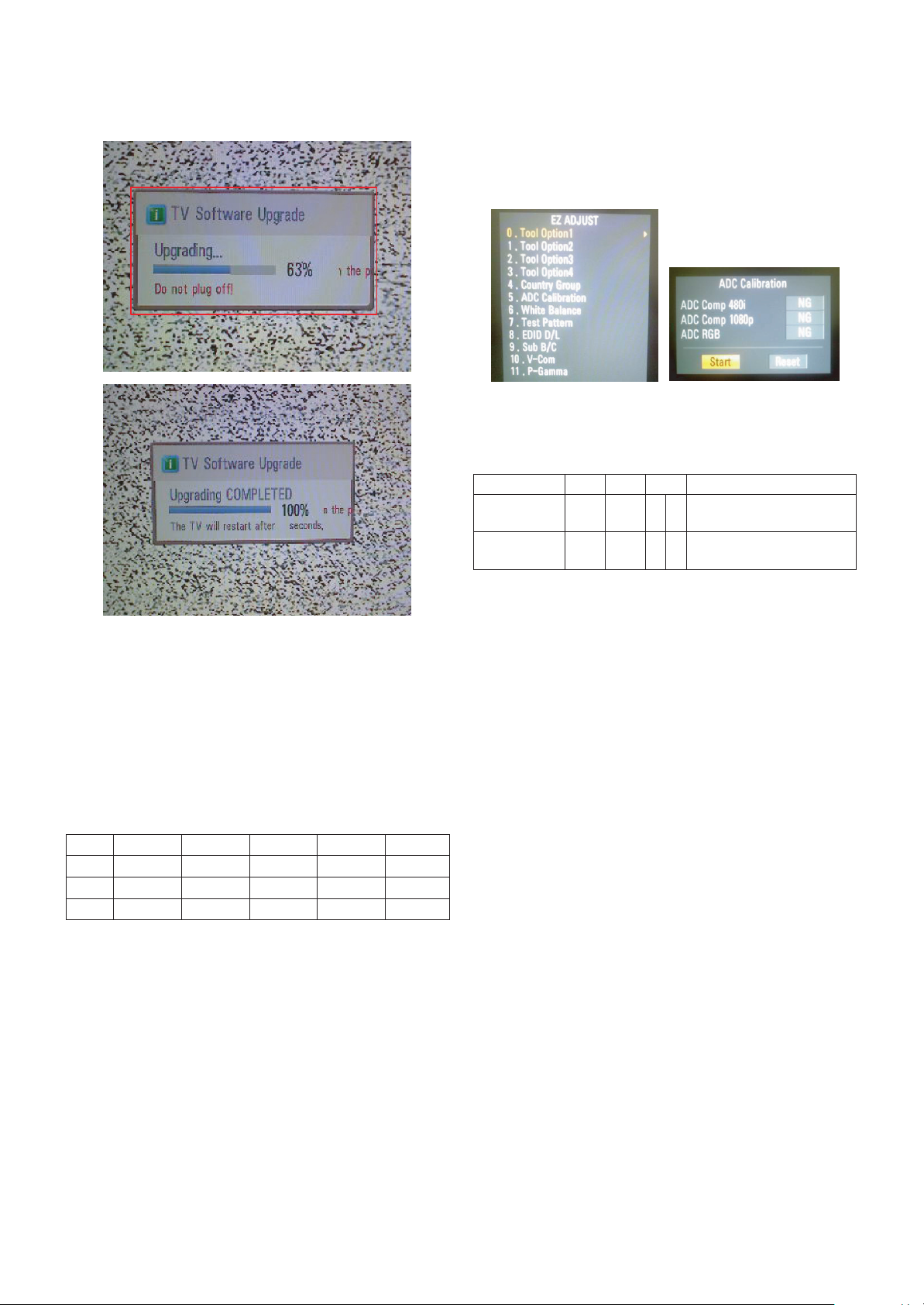

Case1 : Software version up
1. After downloading S/W by USB, TV set will reboot
automatically
2. Push “In-stop” key
3. Push “Power on” key
4. Function inspection
5. After function inspection, Push “In-stop” key.
Case2 : Function check at the assembly line
1. When TV set is entering on the assembly line, Push
“In-stop” key at first.
2. Push “Power on” key for turning it on.
-> If you push “Power on” key, TV set will recover
channel information by itself.
3. After function inspection, Push “In-stop” key.

4) Updating is staring.
5) Uploading completed, The TV will restart automatically.
6) If your TV is turned on, check your updated version and
Tool option.(explain the Tool option, next stage)
* If downloading version is more high than your TV have,
TV can lost all channel data. In this case, you have to
channel recover. if all channel data is cleared, you didn’t
have a DTV/ATV test on production line.
* After downloading, have to adjust Tool Option again.
1) Push "IN-START" key in service remote controller
2) Select “Tool Option 1” and Push “OK” button.
3) Punch in the number. (Each model hax their number)
4) Completed selecting Tool option.
3.1. ADC Process
(1) ADC
- Enter Service Mode by pushing “ADJ” key,
- Enter Internal ADC mode by pushing “G” key at “5. ADC
Calibration”
<Caution> Using ‘power on’ button of the Adjustment R/C,
power on TV.
* ADC Calibration Protocol (RS232)
Adjust Sequence
• aa 00 00 [Enter Adjust Mode]
• xb 00 40 [Component1 Input (480i)]
• ad 00 10 [Adjust 480i Comp1]
• xb 00 60 [RGB Input (1024*768)]
• ad 00 10 [Adjust 1024*768 RGB]
• aa 00 90 End Adjust mode
* Required equipment : Adjustment R/C.
3.2. Function Check
* Check display and sound
- Check Input and Signal items. (cf. work instructions)
1) TV
2) AV (SCART1/SCART2/ CVBS)
3) COMPONENT (480i)
4) RGB (PC : 1024 x 768 @ 60hz)
5) HDMI
6) PC Audio In
* Display and Sound check is executed by Remote control.
- 11 - LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Module Tool option1 Tool option2 Tool option3 Tool option4 Tool option5
SHARP 16397 10800 36868 26893 0
LGD 16385 10800 36868 26893 0
AUO 16393 10800 36868 26893 1
Item CMD1 CMD2 Data0
Adjust ‘Mode In’ A A 0 0 When transfer the ‘Mode In’,
Carry the command.
ADC Adjust A D 1 0 Automatically adjustment
(The use of a internal pattern)

4. Total Assembly line process
4.1. Adjustment Preparation
· W/B Equipment condition
CA210 : CH 9, Test signal : Inner pattern (85IRE)
· Above 5 minutes H/run in the inner pattern. (“power on” key
of adjust remote control)
* Connecting picture of the measuring instrument
(On Automatic control)
Inside PATTERN is used when W/B is controlled. Connect to
auto controller or push Adjustment R/C POWER ON ->
Enter the mode of White-Balance, the pattern will come out.
* Auto-control interface and directions
1) Adjust in the place where the influx of light like floodlight
around is blocked. (illumination is less than 10 lux).
2) Adhere closely the Color Analyzer (CA210) to the module
less than 10 cm distance, keep it with the surface of the
Module and Color Analyzer’s prove vertically.(80° ~ 100°).
3) Aging time
- After aging start, keep the power on (no suspension of
power supply) and heat-run over 5 minutes.
- Using ‘no signal’ or ‘full white pattern’ or the others,
check the back light on.
• Auto adjustment Map(RS-232C)
RS-232C COMMAND
[CMD ID DATA]
Wb 00 00 White Balance Start
Wb 00 ff White Balance End
** Caution **
Color Temperature : COOL, Medium, Warm.
One of R Gain/G Gain/ B Gain should be kept on 0xC0, and
adjust other two lower than C0.
(when R/G/B Gain are all C0, it is the FULL Dynamic Range
of Module)
* Manual W/B process using adjusts Remote control.
• After enter Service Mode by pushing “ADJ” key,
• Enter White Balance by pushing “G” key at “6. White
Balance”.
* After done all adjustments, Press “In-start” button and
compare Tool option and Area option value with its BOM, if
it is correctly same then unplug the AC cable. If it is not
same, then correct it same with BOM and unplug AC cable.
For correct it to the model’s module from factory JIG model.
* Push the “IN STOP” key after completing the function
inspection. And Mechanical Power Switch must be set
“ON”.
4.2. DDC EDID Write (RGB 128Byte )
• Connect D-sub Signal Cable to D-sub Jack.
• Write EDID Data to EEPROM(24C02) by using DDC2B
protocol.
• Check whether written EDID data is correct or not.
* For SVC main Assembly, EDID have to be downloaded to
Insert Process in advance.
4.3. DDC EDID Write (HDMI 256Byte)
• Connect HDMI Signal Cable to HDMI Jack.
• Write EDID Data to EEPROM(24C02) by using DDC2B
protocol.
• Check whether written EDID data is correct or not.
* For SVC main Assembly, EDID have to be downloaded to
Insert Process in advance.
4.4. EDID DATA
1) All Data : HEXA Value
2) Changeable Data :
*: Serial No : Controlled / Data:01
**: Month : Controlled / Data:00
***:Year : Controlled
****:Check sum
- 12 - LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Cool 13,000 K X=0.269(±0.002)
Y=0.273(±0.002) <Test Signal>
Medium 9,300 K X=0.285(±0.002) Inner pattern
Y=0.293(±0.002) (216gray,85IRE)
Warm 6,500 K X=0.313(±0.002)
Y=0.329(±0.002)
Full White Pattern
COLOR
ANALYZER
TYPE: CA-210
RS-232C Communication
CA-210
RS-232C COMMAND MIN CENTER MAX
[CMD ID DATA] (DEFAULT)
Cool Mid Warm Cool Mid Warm
R Gain jg Ja jd 00 172 192 192 192
G Gain jh Jb je 00 172 192 192 192
B Gain ji Jc jf 00 192 192 172 192
R Cut 64 64 64 128
G Cut 64 64 64 128
B Cut 64 64 64 128

- Auto Download
• After enter Service Mode by pushing “ADJ” key,
• Enter EDID D/L mode.
• Enter “START” by pushing “OK” key.
* Edid data and Model option download (RS232)
- Manual Download
* Caution
1) Use the proper signal cable for EDID Download
- Analog EDID : Pin3 exists
- Digital EDID : Pin3 exists
2) Never connect HDMI & D-sub Cable at the same time.
3) Use the proper cables below for EDID Writing
4) Download HDMI1, HDMI2, separately because HDMI1 is
different from HDMI2
1) FHD RGB EDID data
2) FHD HDMI EDID data
* Detail EDID Options are below
ⓐProduct ID
ⓑSerial No: Controlled on production line.
ⓒMonth, Year: Controlled on production line:
ex) Monthly : ‘02’ -> ‘02’
Year : ‘2009’ -> ‘13’
ⓓModel Name(Hex):
ⓔChecksum: Changeable by total EDID data.
ⓕVendor Specific(HDMI)
Model Name HEX EDID Table DDC Function
FHD Model 0001 01 00 Analog/Digital
LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
- 13 -
MODEL MODEL NAME(HEX)
all 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20
Item CMD1 CMD2 Data0
Download A A 0 0 When transfer the ‘Mode In’,
‘Mode In’ Carry the command.
Download A E 00 10 Automatically Download
(The use of a internal pattern)
Item
Manufacturer ID
Version
Revision
Condition
GSM
Digital : 1
Digital : 3
Data(Hex)
1E6D
01
03
D-sub to D-sub DVI-D to HDMI or HDMI to HDMI
For HDMI EDID
For Analog EDID
INPUT MODEL NAME(HEX)
HDMI1 67030C001000B82D
HDMI2 67030C002000B82D
HDMI3 67030C003000B82D
012 3 4 5 67 8 9 A BCD EF
00 00 FF FF FF FF FF FF 00 1E 6D ⓐⓑ
10 ⓒ01 03 68 73 41 78 0A CF 74 A3 57 4C B0 23
20 09 48 4C A1 08 00 81 80 61 40 45 40 31 40 01 01
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 7E 8A 42 00 00 1E 01 1D 00 72 51 D0 1E 20
50 6E 28 55 00 7E 8A 42 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 ⓓ
70 ⓓ00 ⓔ
80 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
90 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
A0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
B0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
C0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
D0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
E0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
F0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
012 3 4 5 67 8 9 A BCD EF
00 00 FF FF FF FF FF FF 00 1E 6D ⓐⓑ
10 ⓒ01 03 80 73 41 78 0A CF 74 A3 57 4C B0 23
20 09 48 4C A1 08 00 81 80 61 40 45 40 31 40 01 01
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 7E 8A 42 00 00 1E 01 1D 00 72 51 D0 1E 20
50 6E 28 55 00 7E 8A 42 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 ⓓ
70 ⓓ01 ⓔ
80 02 03 26 F1 4E 10 1F 84 13 05 14 03 02 12 20 21
90 22 15 01 26 15 07 50 09 57 07 ⓕ
A0 ⓕE3 05 03 01 01 1D 80 18 71 1C 16 20 58 2C
B0 25 00 7E 8A 42 00 00 9E 01 1D 00 80 51 D0 0C 20
C0 40 80 35 00 7E 8A 42 00 00 1E 02 3A 80 18 71 38
D0 2D 40 58 2C 45 00 7E 8A 42 00 00 1E 66 21 50 B0
E0 51 00 1B 30 40 70 36 00 7E 8A 42 00 00 1E 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F9

- 14 - LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

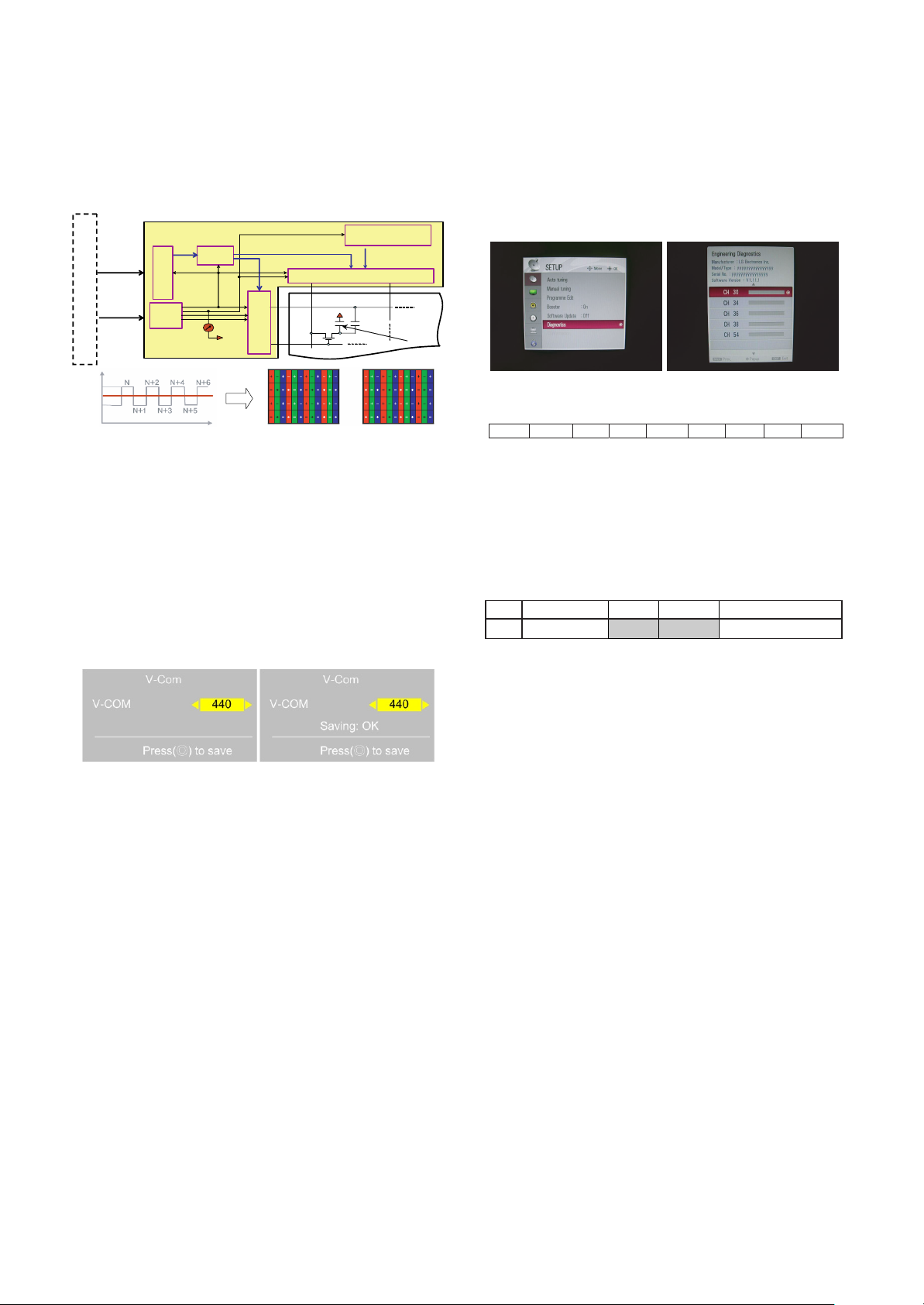

4.5. V-COM Adjust(Only LGD(M+S) Module)
- Why need Vcom adjustment?
AThe Vcom (Common Voltage) is a Reference Voltage of
Liquid Crystal Driving.
-> Liquid Crystal need for Polarity Change with every frame.
- Adjust sequence
· Press the PIP key of th ADJ remote control.(This PIP key is
hot key to enter the VCOM adjusting mode)
(Or After enter Service Mode by pushing “ADJ” key, then
Enter V-Com Adjust mode by pushing “G” key at “10. V-
Com”
· As pushing the right or the left key on the remote control,
and find the V-COM value which is no or minimized the
Flicker. (If there is no flicker at default value, Press the exit
key and finish the VCOM adjustment.)
· Push the “OK” key to store value. Then the message
“Saving OK” is pop.
· Press the exit key to finish VCOM adjustment.
(Visual Adjust and control the Voltage level)
4.6. Outgoing condition Configuration
- When pressing IN-STOP key by SVC remocon, Red LED are
blinked alternatively. And then Automatically turn off.
(Must not AC power OFF during blinking)
4.7. Internal pressure
Confirm whether is normal or not when between power
board’s ac block and GND is impacted on 1.5 kV(dc) or 2.2
kV(dc) for one second.
5. Model name & Serial number D/L
• Press “Power on” key of service remocon.
(Baud rate : 115200 bps)
• Connect RS232 Signal Cable to RS-232 Jack.
• Write Serial number by use RS-232.

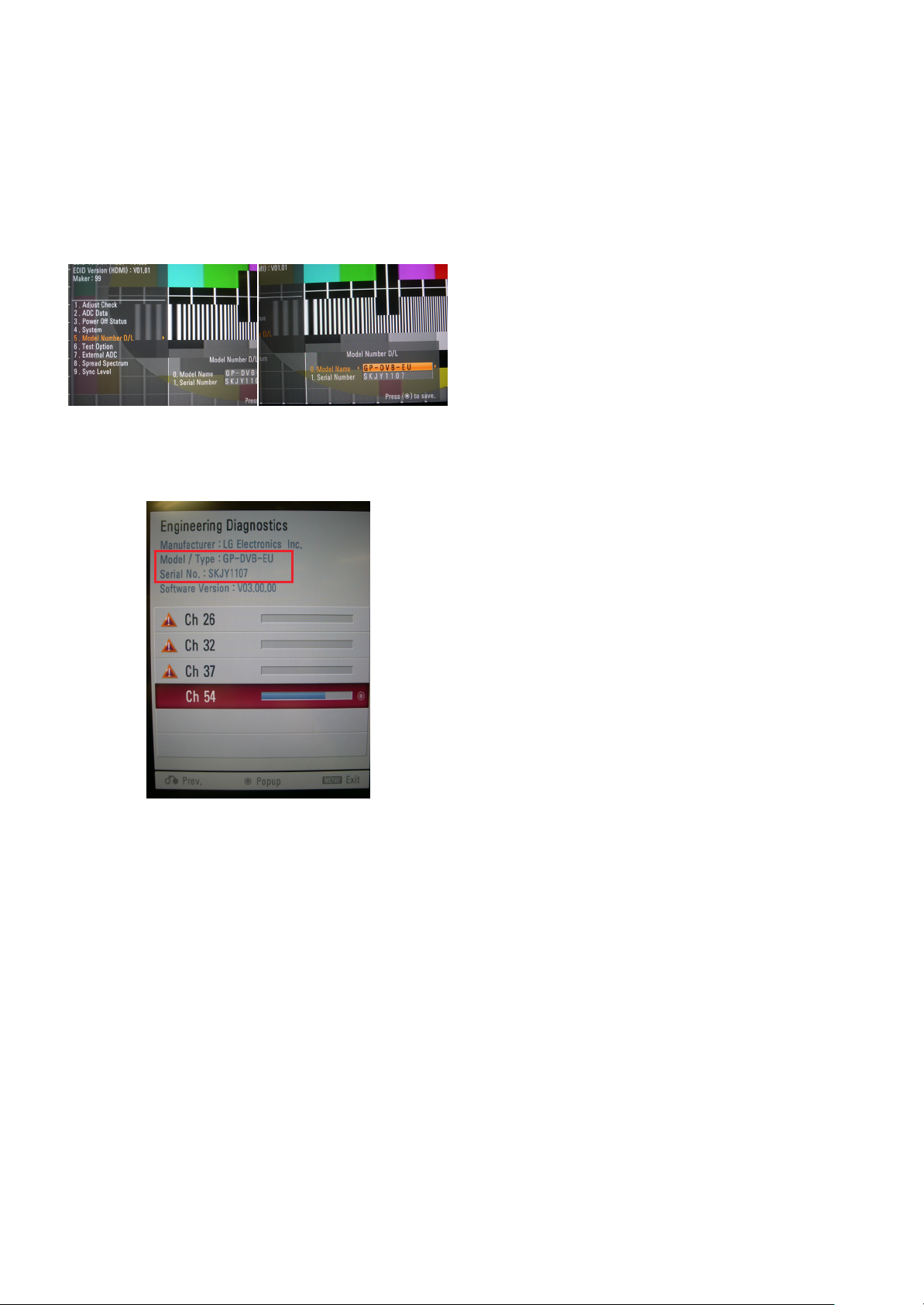

• Must check the serial number at the Diagnostics of SET UP
menu. (Refer to below).
5.1. Signal TABLE
CMD : A0h
LENGTH : 85~94h (1~16 bytes)
ADH : EEPROM Sub Address high (00~1F)
ADL : EEPROM Sub Address low (00~FF)
Data : Write data
CS : CMD + LENGTH + ADH + ADL + Data_1 +…+ Data_n
Delay : 20ms
5.2. Command Set
* Description
FOS Default write : <7mode data> write
Vtotal, V_Frequency, Sync_Polarity, Htotal, Hstart, Vstart, 0,
Phase
Data write : Model Name and Serial Number write in
EEPROM,.
5.3. Method & notice
A. Serial number D/L is using of scan equipment.
B. Setting of scan equipment operated by Manufacturing
Technology Group.
C. Serial number D/L must be conformed when it is produced
in production line, because serial number D/L is mandatory
by D-book 4.0.
CMD LENGTH ADH ADL DATA_1 . . . Data_n CS DELAY
No. Adjust mode CMD(hex) LENGTH(hex) Description
1 EEPROM WRITE A0h 84h+n n-bytes Write (n = 1~16)
Row Line
Column Lin e
CLC CST
Pane l
S
Y
S
T
E
M
Gat e Driv e IC
So urce D r i v e I C
Circuit Block
Ti m i n g
Co nt r o ll e r
Po w e r
Blo ck
VCOM
Ga mma
Re f e r e nce V o ltage
Gamm a R eference
Volta ge
Data (R,G,B) & C ont ro l s ignal
Con tro l si gnal
Data (R,G,B ) &
Con tro l si gnal
In t e r f a c e
TFT
Po w e r I n p u t
Power Input
Da t a I n p u t
Da t a I n p u t
VCOM
Liquid
Crystal
VCOM

* Manual Download (Model Name and Serial Number)
If the TV set is downloaded by OTA or Service man, Sometimes
model name or serial number is initialized.(Not always)
There is impossible to download by bar code scan, so It need
Manual download.
1) Press the ‘instart’ key of ADJ remote controller.
2) Go to the menu ‘5.Model Number D/L’ like below photo.
3) Input the Factory model name(ex 42LD450-ZA) or Serial
number like photo.
4) Check the model name Instart menu -> Factory name
displayed (ex 42LD450-ZA)
5) Check the Diagnostics (DTV country only) -> Buyer model
displayed (ex 42LD450)
- 15 - LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

- 16 - LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

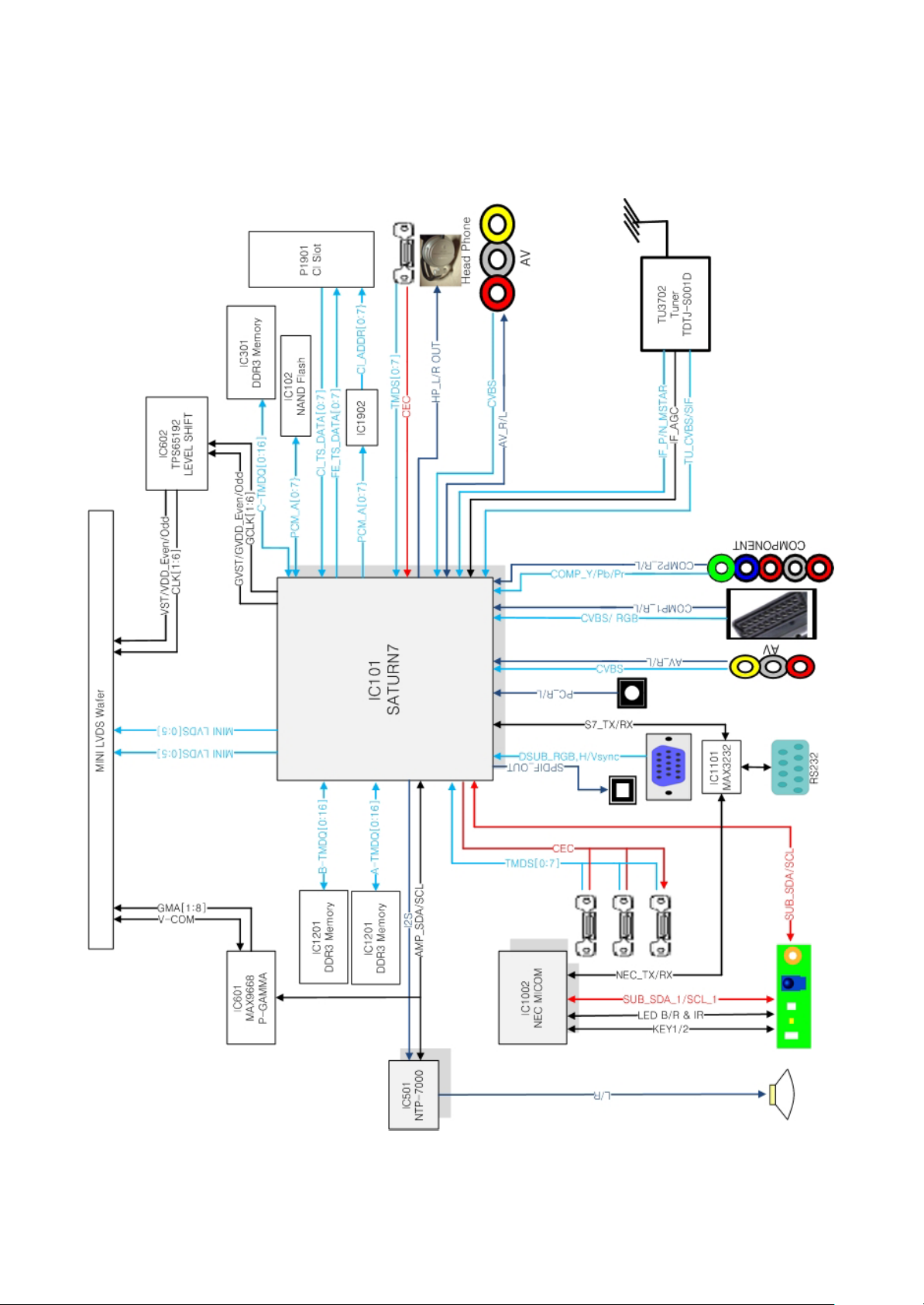

BLOCK DIAGRAM

- 17 - LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
GMA(1~8)
P701, P702P701, P702 MINI LVDSMINI LVDS
IC601IC601
MAX9668ETPMAX9668ETP
IC101IC101
SATURN7MSATURN7M
IC603IC603
MAX17113MAX17113
IC600IC600
TPS62110
PANEL_VCC
12V
PANEL_VCC
12V
GVST
GCLK[1:6]
GVDD_EVEN/ODD
VGH 27V
VGL -5V
VDD_LCM
16V
HVDD 8V
VST
CLK[1:6]
VDD_EVEN/ODD
AMP_SDA / SCL
VCOM
VCOM_FB
POL
SOE
IC602IC602
TPS65192
VCC_LCM
3.3V
P-GAMMA Block
LEVEL Shift Block
Mini LVDS Data L(6 bit)
POWER Block
IC301
H5TQ1G63BFR
DDR3 SDRAM
VGH 27V
VGL -5V
VDD_LCM 16V
VCC_LCM 3.3V
VDD_LCM 16V
VCC_LCM 3.3V
HI GH=VGH Low = VGL
Mini LVDS Data R(6 bit)
C-MA[0:12], C-MDQL[0:7], C-MDQU[0:7]
VDD_LCM
16V
VCC_LCM
3.3V
GIP Model
VGL -5V

- 18 - LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
300
500
510
120
A10
200 800
530
550
810
900
910
540
521
400
A21
A2 A5
LV1

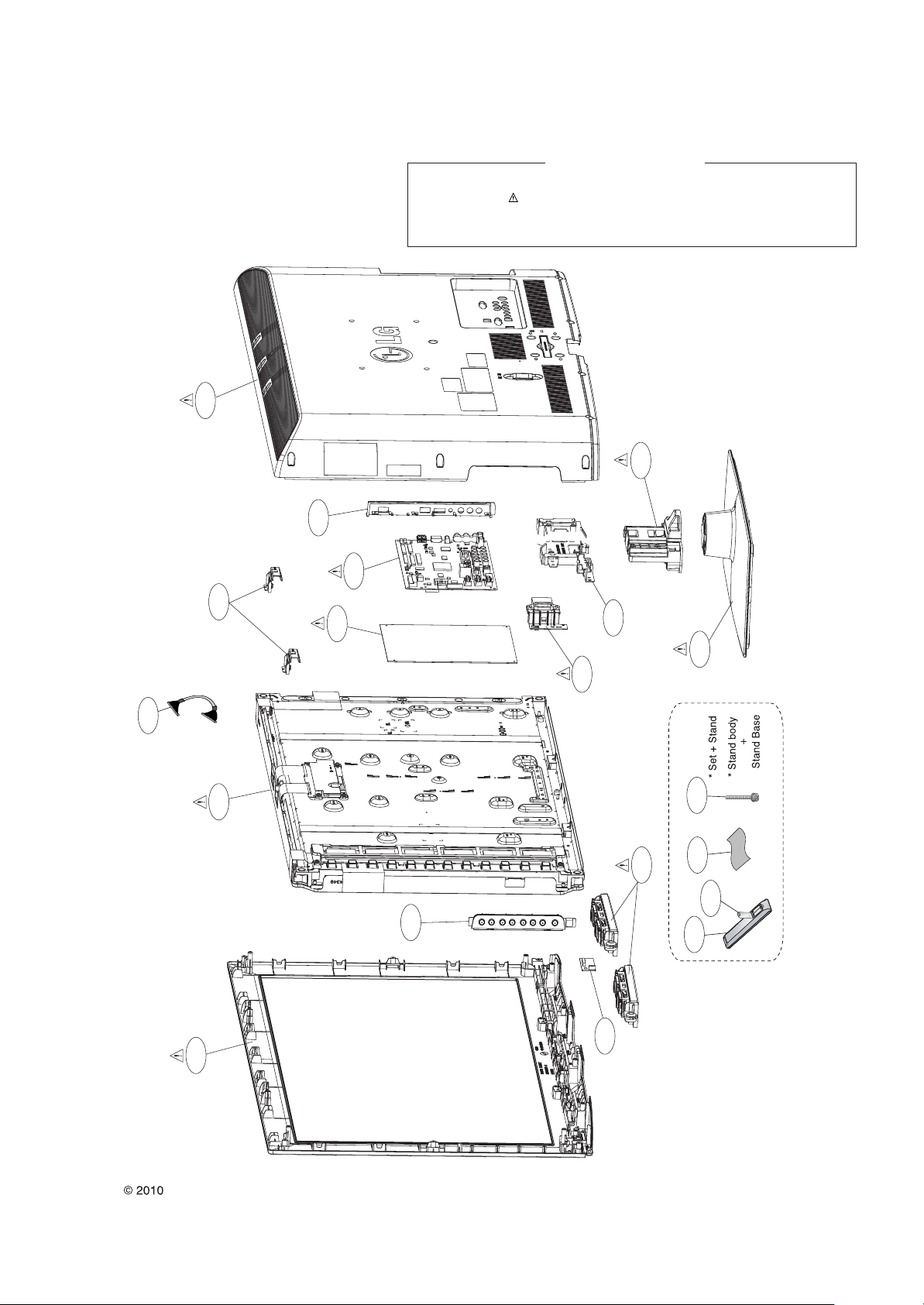

EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
PCM_A[8]
CI_TS_DATA[6]
PCM_A[3]
PCM_A[10]
FE_TS_DATA[5]
PCM_A[0]
PCM_D[6]
CI_TS_DATA[0]
PCM_D[2]
PCM_A[7]
PCM_A[9]
FE_TS_DATA[3]
PCM_A[12]
PCM_A[4]
PCM_D[5]
CI_TS_DATA[3]
PCM_A[5]
FE_TS_DATA[0]
CI_TS_DATA[5]
PCM_A[2]
PCM_A[13]
FE_TS_DATA[4]
PCM_A[1]
PCM_A[3]
PCM_A[2]
CI_TS_DATA[4]
PCM_D[1]
PCM_A[11]
FE_TS_DATA[2]
PCM_D[4]
PCM_A[7]
PCM_A[6]
PCM_A[0]
CI_TS_DATA[7]
PCM_A[4]
PCM_D[0]
FE_TS_DATA[6]
CI_TS_DATA[1]
CI_TS_DATA[2]
PCM_A[6]
PCM_A[14]
PCM_D[3]
PCM_D[7]
FE_TS_DATA[1]
FE_TS_DATA[7]
PCM_A[5]
PCM_A[1]
MODEL_OPT_2
/PCM_WE
R104
10K
OPT
HP_DET
S7_RXD
I2C_SDA
SPI_SDI
FRC_RESET
+3.3V_Normal
I2C_SDA
/PF_OE
PCM_A[0-7]
+3.5V_ST
C104
8pF
OPT
C108
0.1uF
OPT
IC103
CAT24WC08W-T
3
A2
2
A1
4
VSS
1
A0
5SDA
6SCL
7WP
8VCC
TUNER_RESET
FRC_PWM1
CI_TS_DATA[0-7]
R158 100
OPT
M_REMOTE_RX
R105
1K
OPT
UART_FRC_TX
R1081K
OPT
DEMOD_RESET
PCM_D[0-7]
R126
1K
PF_ALE
PF_ALE
SPI_SCK
IC102
HY27UF082G2B-TPCB
2GBIT
26 NC_17
27 NC_18
28 NC_19
29 I/O0
30 I/O1
31 I/O2
32 I/O3
33 NC_20
34 NC_21
35 NC_22
36 VSS_2
37 VCC_2
38 NC_23
39 NC_24
40 NC_25
41 I/O4
42 I/O5
43 I/O6
44 I/O7
45 NC_26
46 NC_27
47 NC_28
48 NC_29
17
ALE
3
NC_3
6
NC_6
16
CLE
15
NC_10
14
NC_9
13
VSS_1
12
VCC_1
11
NC_8
10
NC_7
9
CE
8
RE
7
R/B
4
NC_4
5
NC_5
25 NC_16 24
NC_15
23
NC_14
2
NC_2
22
NC_13
21
NC_12
1
NC_1
20
NC_11
19
WP
18
WE
/PCM_WAIT
R125
1K
OPT
DSUB_DET
R113
4.7K
M_REMOTE_TX
USB1_OCD
/PF_WE
FE_TS_VAL_ERR
R115
1K
ERROR_OUT
R134 22
R159 100
OPT
CI_TS_SYNC
SC1/COMP1_DET
A_DIM
/PCM_REG
FE_TS_SYNC
PCM_5V_CTL
S7_TXD
5V_DET_HDMI_4
R128 22
+3.3V_Normal
/PCM_IRQA
+5V_Normal
/PF_OE
C111
2.2uF
FRC_SCL
R118
1K OPT
SC_RE1
/PCM_IOWR
R103
0
SCAN_BLK1/OPC_OUT
/PF_CE1
SPI_SDO
C107
0.1uF
R14922
M_REMOTE
/PCM_IORD
5V_DET_HDMI_3
PWM2
C105
0.1uF
C103
0.1uF
/PF_WE
R135 22
I2C_SDA
5V_DET_HDMI_2
ET_RXER
R124
1K
MODEL_OPT_3
R120
1K
OPT
C106
8pF
OPT
FRC_PWM0
R123
1K
OPT
R14633
/PF_CE1
/PF_CE0
R101 3.3K
OPT
AV_CVBS_DET
RGB_DDC_SDA
PWM0
MODEL_OPT_1
I2C_SCL
R14822
M_REMOTE
CI_TS_VAL
PCM_A[0-14]
R133
10K
I2C_SCL
/F_RB
/RST_PHY
R155
0
OPT
PWM_DIM
/PCM_OE
UART_FRC_RX
Q101
KRC103S
OPT
E
B
C
R106 1K
R138 22
FE_TS_DATA[0-7]
PCM_RST
R117
1K
/PF_WP
I2C_SCL
SCAN_BLK2
SC_RE2
R116
1K OPT
+3.3V_Normal
R107 1K
R157 100
R132
10K
R137 22
CI_TS_CLK
SIDEAV_DET
/PF_CE0
IC102-*1
HY27US08121B-TPCB
512MBIT
26 NC_17
27 NC_18
28 NC_19
29 I/O0
30 I/O1
31 I/O2
32 I/O3
33 NC_20
34 NC_21
35 NC_22
36 VSS_2
37 VCC_2
38 PRE
39 NC_23
40 NC_24
41 I/O4
42 I/O5
43 I/O6
44 I/O7
45 NC_25
46 NC_26
47 NC_27
48 NC_28
17
ALE
3
NC_3
6
NC_6
16
CLE
15
NC_10
14
NC_9
13
VSS_1
12
VCC_1
11
NC_8
10
NC_7
9
CE
8
RE
7
R/B
4
NC_4
5
NC_5
25 NC_16 24
NC_15
23
NC_14
2
NC_2
22
NC_13
21
NC_12
1
NC_1
20
NC_11
19
WP
18
WE
/PCM_CD
/F_RB
C101
0.1uF
R139 22
5V_DET_HDMI_1
/SPI_CS
/PCM_CE
/PF_WP
R109 3.9K
C109
0.1uF
R127 4.7K
+3.3V_Normal
USB1_CTL
MODEL_OPT_0
PWM0
FRC_SDA
R129 22
PWM1
+3.3V_Normal
PWM2
WIRELESS_DL_RX
R136 22
RGB_DDC_SCL
WIRELESS_DL_TX
R121
1K
FE_TS_CLK
R102
3.3K
R14733
R15133
PWM0
PWM1
AUD_LRCH
AUD_MASTER_CLK
AUD_SCK
+3.3V_Normal
R111 22
R112 22
R156 10K
/FLASH_WP
/RST_HUB
C102
10uF
P3903
12505WS-03A00
URSA_DEBUG
1
2
3
4
P3904
12505WS-03A00
URSA_DEBUG
1
2
3
4
NEC_SDA
I2C_SDA
I2C_SCL
AMP_SCL
R142 3.3K R145 2.2K R143 3.3K R144 2.2K
AMP_SDA
+3.3V_Normal
NEC_SCL
CONTROL_ATTEN
R160
1K
/PIF_SPI_CS
IC104
M24M01-HRMN6TP
3
E2
2
E1
4
VSS
1
NC
5SDA
6SCL
7WP
8VCC
AR104
22
AR103
22
AR101
22
AR102
22
LGE107D (S7M Divx_Non RM)
IC101
S7M_DIVX
PCM_D0
U22
PCM_D1
T21
PCM_D2
T22
PCM_D3
AB18
PCM_D4
AC18
PCM_D5
AC19
PCM_D6
AC20
PCM_D7
AC21
PCM_A0
U21
PCM_A1
V21
PCM_A2
Y22
PCM_A3
AA22
PCM_A4
R22
PCM_A5
R21
PCM_A6
T23
PCM_A7
T24
PCM_A8
AA23
PCM_A9
Y20
PCM_A10
AB17
PCM_A11
AA21
PCM_A12
U23
PCM_A13
Y23
PCM_A14
W23
PCM_REG_N
W22
PCM_OE_N
AA17
PCM_WE_N
V22
PCM_IORD_N
W21
PCM_IOWR_N
Y21
PCM_CE_N
AA20
PCM_IRQA_N
V23
PCM_CD_N
P23
PCM_WAIT_N
R23
PCM_RESET
P22
PCM_PF_CE0Z
AC17
PCM_PF_CE1Z
AB20
PCM_PF_OEZ
AA18
PCM_PF_WEZ
AB21
PCM_PF_ALE
AB19
PCM_PF_AD[15]
AD17
PCM_PF_RBZ
AA19
UART_TX2/GPIO65
M23
UART_RX2/GPIO64
N23
DDCR_DA/GPIO71
M22
DDCR_CK/GPIO72
N22
DDCA_DA/UART0_TX
A5
DDCA_CK/UART0_RX
B5
PWM0/GPIO66
K23
PWM1/GPIO67
K22
PWM2/GPIO68
G23
PWM3/GPIO69
G22
PWM4/GPIO70
G21
SAR0/GPIO31
C6
SAR1/GPIO32
B6
SAR2/GPIO33
C8
SAR3/GPIO34
C7
SAR4/GPIO35
A6
GPIO143/TCON0 N21
GPIO145/TCON2 M21
GPIO147/TCON4 L22
GPIO149/TCON6 L21
GPIO151/TCON8 P21
GPIO36/UART3_RX K21
GPIO37/UART3_TX L23
GPIO38 K20
GPIO39 L20
GPIO40 M20
GPIO41 G20
GPIO42 G19
GPIO50/UART1_RX F20
GPIO51/UART1_TX F19
GPIO6/PM0/INT0 E7
GPIO7/PM1/PM_UART_TX D7
GPIO8/PM2 E11
GPIO9/PM3 G9
GPIO10/PM4 F9
GPIO11/PM5/PM_UART_RX/INT1 C5
PM_SPI_CS1/GPIO12/PM6 E8
PM_SPI_WP1/GPIO13/PM7 E9
PM_SPI_WP2/GPIO14/PM8/INT2 F7
GPIO15/PM9 F6
PM_SPI_CS2/GPIO16/PM10 D8
GPIO17/PM11/INT3 G12
GPIO18/PM12/INT4 F10
PM_SPI_CK/GPIO1 D9
GPIO0/PM_SPI_CZ D11
PM_SPI_DI/GPIO2 E10
PM_SPI_DO/GPIO3 D10
TS0_CLK AA9
TS0_VLD AA5
TS0_SYNC AA10
TS0_D0 AB5
TS0_D1 AC4
TS0_D2 Y6
TS0_D3 AA6
TS0_D4 W6
TS0_D5 AA7
TS0_D6 Y9
TS0_D7 AA8
TS1_CLK AC5
TS1_VLD AC6
TS1_SYNC AB6
TS1_D0 AC10
TS1_D1 AB10
TS1_D2 AC9
TS1_D3 AB9
TS1_D4 AC8
TS1_D5 AB8
TS1_D6 AC7
TS1_D7 AB7
MPIF_CLK D12
MPIF_CS_N D14
MPIF_BUSY E14
MPIF_D0 E12
MPIF_D1 F12
MPIF_D2 D13
MPIF_D3 E13
LGE101 (S7 NON_TON/DiX/RM)
IC101-*5
S7_NON_DIVX
NC_48
AE1
NC_78
AF16
NC_64
AF1
NC_50
AE3
NC_45
AD14
NC_34
AD3
NC_77
AF15
NC_65
AF2
NC_62
AE15
NC_33
AD2
NC_47
AD16
NC_46
AD15
NC_63
AE16
NC_66
AF3
NC_76
AF14
NC_32
AD1
NC_44
AD13
NC_61
AE14
NC_60
AE13
NC_51
AE4
NC_36
AD5
NC_67
AF4
NC_35
AD4
NC_49
AE2
NC_71
AF8
NC_40
AD9
NC_56
AE9
NC_72
AF9
NC_58
AE11
NC_69
AF6
NC_53
AE6
NC_74
AF11
NC_37
AD6
NC_43
AD12
NC_52
AE5
NC_75
AF12
NC_68
AF5
NC_59
AE12
NC_57
AE10
NC_70
AF7
NC_42
AD11
NC_38
AD7
NC_41
AD10
NC_54
AE7
NC_73
AF10
NC_39
AD8
NC_55
AE8
NC_12
Y11
GND_105
Y19
LVACLKP/LLV6P/BLUE[3] W26
LVACLKN/LLV6N/BLUE[2] W25
LVA0P/LLV3P/BLUE[9] U26
LVA0N/LLV3N/BLUE[8] U25
LVA1P/LLV4P/BLUE[7] U24
LVA1N/LLV4N/BLUE[6] V26
LVA2P/LLV5P/BLUE[5] V25
LVA2N/LLV5N/BLUE[4] V24
LVA3P/LLV7P/BLUE[1] W24
LVA3N/LLV7N/BLUE[0] Y26
LVA4P/LLV8P Y25
LVA4N/LLV8N Y24
LVBCLKP/LLV0P/GREEN[5] AC26
LVBCLKN/LLV0N/GREEN[4] AC25
LVB0P/RLV6P/RED[1] AA26
LVB0N/RLV6N/RED[0] AA25
LVB1P/RLV7P/GREEN[9] AA24
LVB1N/RLV7N/GREEN[8] AB26
LVB2P/RLV8P/GREEN[7] AB25
LVB2N/RLV8N/GREEN[6] AB24
LVB3P/LLV1P/GREEN[3] AC24
LVB3N/LLV1N/GREEN[2] AD26
LVB4P/LLV0P/GREEN[1] AD25
LVB4N/LLV0N/GREEN[0] AD24
RLV3P/RED[7] AD23
RLV3N/RED[6] AE23
RLV0P/LVSYNC AE26
RLV0N/LHSYNC AE25
RLV1N/LCK AF26
RLV2P/RED[9] AF25
RLV1P/LDE AE24
RLV2N/RED[8] AF24
RLV4P/RED[5] AF23
RLV4N/RED[4] AD22
RLV5P/RED[3] AE22
RLV5N/RED[2] AF22
TCON3/OE/GOE/GCLK2 AD19
TCON15/SCAN_BLK1 AE19
TCON18/CS7/GCLK5 AD21
TCON19/CS8/GCLK6 AE21
TCON11/CS5/HCON AF21
TCON10/CS4/OPT_N AD20
TCON9/CS3/OPT_P AE20
TCON16/WPWM AF20
TCON12/DPM AF19
TCON1/STV/GSP/VST AD18
TCON5/TP/SOE AE18
TCON14/SACN_BLK AF18
TCON21/CS10/VGH_ODD AB22
TCON20/CS9/VGH_EVEN AB23
TCON13/LEDON AC23
TCON17/CS6/GCLK4 AC22
NC_26 AB16
NC_19 AA14
NC_30 AC15
NC_15 Y16
NC_31 AC16
NC_29 AC14
NC_21 AA16
NC_20 AA15
NC_11 Y10
NC_17 AA11
NC_25 AB15
NC_24 AB14
LGE105 (S7-Tcon Non_Divx/RM)
IC101-*3
S7T_NON_DIVX
NC_43
AE1
NC_73
AF16
NC_59
AF1
NC_45
AE3
NC_40
AD14
NC_29
AD3
NC_72
AF15
NC_60
AF2
NC_57
AE15
NC_28
AD2
NC_42
AD16
NC_41
AD15
NC_58
AE16
NC_61
AF3
NC_71
AF14
NC_27
AD1
NC_39
AD13
NC_56
AE14
NC_55
AE13
NC_46
AE4
NC_31
AD5
NC_62
AF4
NC_30
AD4
NC_44
AE2
NC_66
AF8
NC_35
AD9
NC_51
AE9
NC_67
AF9
NC_53
AE11
NC_64
AF6
NC_48
AE6
NC_69
AF11
NC_32
AD6
NC_38
AD12
NC_47
AE5
NC_70
AF12
NC_63
AF5
NC_54
AE12
NC_52
AE10
NC_65
AF7
NC_37
AD11
NC_33
AD7
NC_36
AD10
NC_49
AE7
NC_68
AF10
NC_34
AD8
NC_50
AE8
NC_12
Y11
GND_105
Y19
RLV3P W26
RLV3N W25
RLV0P U26
RLV0N U25
RLV1P U24
RLV1N V26
RLV2P V25
RLV2N V24
RLVCKP W24
RLVCKN Y26
RLV4P Y25
RLV4N Y24
WPWM AC26
OPTP/FLK2 AC25
RLV5P AA26
RLV5N AA25
RLV6P AA24
RLV6N AB26
RLV7P AB25
RLV7N AB24
OPTN/FLK3 AC24
FLK AD26
GCLK6 AD25
GCLK5 AD24
LLV3P AD23
LLV3N AE23
LLV0P AE26
LLV0N AE25
LLV1P AF26
LLV1N AF25
LLV2P AE24
LLV2N AF24
LLVCKP AF23
LLVCKN AD22
LLV4P AE22
LLV4N AF22
GOE/GCLK1 AD19
GSC/GCLK3 AE19
LLV5P AD21
LLV5N AE21
LLV6P AF21
LLV6N AD20
LLV7P AE20
LLV7N AF20
GSPR AF19
GSP/VST AD18
SOE AE18
POL AF18
VDD_ODD AB22
VDD_EVEN AB23
GCLK4 AC23
GCLK2 AC22
NC_23 AB16
DPM AA14
HCON AC15
NC_15 Y16
NC_26 AC16
LEDON AC14
NC_20 AA16
NC_19 AA15
NC_11 Y10
NC_17 AA11
SCAN_BLK AB15
SCAN_BLK1 AB14
LGE107 (S7M Non Divx/RM)
IC101-*1
S7M_NON_DIVX
FRC_DDR3_A0/DDR2_NC
AE1
FRC_DDR3_A1/DDR2_A6
AF16
FRC_DDR3_A2/DDR2_A7
AF1
FRC_DDR3_A3/DDR2_A1
AE3
FRC_DDR3_A4/DDR2_CASZ
AD14
FRC_DDR3_A5/DDR2_A10
AD3
FRC_DDR3_A6/DDR2_A0
AF15
FRC_DDR3_A7/DDR2_A5
AF2
FRC_DDR3_A8/DDR2_A2
AE15
FRC_DDR3_A9/DDR2_A9
AD2
FRC_DDR3_A10/DDR2_A11
AD16
FRC_DDR3_A11/DDR2_A4
AD15
FRC_DDR3_A12/DDR2_A8
AE16
FRC_DDR3_BA0/DDR2_BA2
AF3
FRC_DDR3_BA1/DDR2_ODT
AF14
FRC_DDR3_BA2/DDR2_A12
AD1
FRC_DDR3_MCLK/DDR2_MCLK
AD13
FRC_DDR3_CKE/DDR2_RASZ
AE14
FRC_DDR3_MCLKZ/DDR2_MCLKZ
AE13
FRC_DDR3_ODT/DDR2_BA1
AE4
FRC_DDR3_RASZ/DDR2_WEZ
AD5
FRC_DDR3_CASZ/DDR2_CKE
AF4
FRC_DDR3_WEZ/DDR2_BA0
AD4
FRC_DDR3_RESETB/DDR2_A3
AE2
FRC_DDR3_DQSL/DDR2_DQS0
AF8
FRC_DDR3_DQSLB/DDR2_DQSB0
AD9
FRC_DDR3_DQSU/DDR2_DQS1
AE9
FRC_DDR3_DQSUB/DDR2_DQSB1
AF9
FRC_DDR3_DML/DDR2_DQ7
AE11
FRC_DDR3_DMU/DDR2_DQ11
AF6
FRC_DDR3_DQL0/DDR2_DQ6
AE6
FRC_DDR3_DQL1/DDR2_DQ0
AF11
FRC_DDR3_DQL2/DDR2_DQ1
AD6
FRC_DDR3_DQL3/DDR2_DQ2
AD12
FRC_DDR3_DQL4/DDR2_DQ4
AE5
FRC_DDR3_DQL5/DDR2_NC
AF12
FRC_DDR3_DQL6/DDR2_DQ3
AF5
FRC_DDR3_DQL7/DDR2_DQ5
AE12
FRC_DDR3_DQU0/DDR2_DQ8
AE10
FRC_DDR3_DQU1/DDR2_DQ14
AF7
FRC_DDR3_DQU2/DDR2_DQ13
AD11
FRC_DDR3_DQU3/DDR2_DQ12
AD7
FRC_DDR3_DQU4/DDR2_DQ15
AD10
FRC_DDR3_DQU5/DDR2_DQ9
AE7
FRC_DDR3_DQU6/DDR2_DQ10
AF10
FRC_DDR3_DQU7/DDR2_DQM1
AD8
FRC_DDR3_NC/DDR2_DQM0
AE8
FRC_REXT
Y11
FRC_TESTPIN
Y19
ACKP/RLV3P/RED[3] W26
ACKM/RLV3N/RED[2] W25
A0P/RLV0P/RED[9] U26
A0M/RLV0N/RED[8] U25
A1P/RLV1P/RED[7] U24
A1M/RLV1N/RED[6] V26
A2P/RLV2P/RED[5] V25
A2M/RLV2N/RED[4] V24
A3P/RLV4P/RED[1] W24
A3M/RLV4N/RED[0] Y26
A4P/RLV5P/GREEN[9] Y25
A4M/RLV5N/GREEN[8] Y24
BCKP/TCON13/GREEN[1] AC26
BCKM/TCON12/GREEN[0] AC25
B0P/RLV6P/GREEN[7] AA26
B0M/RLV6N/GREEN[6] AA25
B1P/RLV7P/GREEN[5] AA24
B1M/RLV7N/GREEN[4] AB26
B2P/RLV8P/GREEN[3] AB25
B2M/RLV8N/GREEN[2] AB24
B3P/TCON11/BLUE[9] AC24
B3M/TCON10/BLUE[8] AD26
B4P/TCON9/BLUE[7] AD25
B4M/TCON8/BLUE[6] AD24
CCKP/LLV3P AD23
CCKM/LLV3N AE23
C0P/LLV0P/BLUE[5] AE26
C0M/LLV0N/BLUE[4] AE25
C1P/LLV1P/BLUE[3] AF26
C1M/LLV1N/BLUE[2] AF25
C2P/LLV2P/BLUE[1] AE24
C2M/LLV2N/BLUE[0] AF24
C3P/LLV4P AF23
C3M/LLV4N AD22
C4P/LLV5P AE22
C4M/LLV5N AF22
DCKP/TCON5 AD19
DCKM/TCON4 AE19
D0P/LLV6P AD21
D0M/LLV6N AE21
D1P/LLV7P AF21
D1M/LLV7N AD20
D2P/LLV8P AE20
D2M/LLV8N AF20
D3P/TCON3 AF19
D3M/TCON2 AD18
D4P/TCON1 AE18
D4M/TCON0 AF18
GPIO0/TCON15/HSYNC/VDD_ODD AB22
GPIO1/TCON14/VSYNC/VDD_EVEN AB23
GPIO2/TCON7/LDE/GCLK4 AC23
GPIO3/TCON6/LCK/GCLK2 AC22
FRC_GPIO0/UART_RX AB16
FRC_GPIO1 AA14
FRC_GPIO3 AC15
FRC_GPIO8 Y16
FRC_GPIO9/UART_TX AC16
FRC_GPIO10 AC14
FRC_I2CM_DA AA16
FRC_I2CM_CK AA15
FRC_I2CS_DA Y10
FRC_I2CS_CK AA11
FRC_PWM0 AB15
FRC_PWM1 AB14
LGE101D (S7 Non_Tcon/RM)
IC101-*4
S7_DIVX
NC_48
AE1
NC_78
AF16
NC_64
AF1
NC_50
AE3
NC_45
AD14
NC_34
AD3
NC_77
AF15
NC_65
AF2
NC_62
AE15
NC_33
AD2
NC_47
AD16
NC_46
AD15
NC_63
AE16
NC_66
AF3
NC_76
AF14
NC_32
AD1
NC_44
AD13
NC_61
AE14
NC_60
AE13
NC_51
AE4
NC_36
AD5
NC_67
AF4
NC_35
AD4
NC_49
AE2
NC_71
AF8
NC_40
AD9
NC_56
AE9
NC_72
AF9
NC_58
AE11
NC_69
AF6
NC_53
AE6
NC_74
AF11
NC_37
AD6
NC_43
AD12
NC_52
AE5
NC_75
AF12
NC_68
AF5
NC_59
AE12
NC_57
AE10
NC_70
AF7
NC_42
AD11
NC_38
AD7
NC_41
AD10
NC_54
AE7
NC_73
AF10
NC_39
AD8
NC_55
AE8
NC_12
Y11
GND_105
Y19
LVACLKP/LLV6P/BLUE[3] W26
LVACLKN/LLV6N/BLUE[2] W25
LVA0P/LLV3P/BLUE[9] U26
LVA0N/LLV3N/BLUE[8] U25
LVA1P/LLV4P/BLUE[7] U24
LVA1N/LLV4N/BLUE[6] V26
LVA2P/LLV5P/BLUE[5] V25
LVA2N/LLV5N/BLUE[4] V24
LVA3P/LLV7P/BLUE[1] W24
LVA3N/LLV7N/BLUE[0] Y26
LVA4P/LLV8P Y25
LVA4N/LLV8N Y24
LVBCLKP/LLV0P/GREEN[5] AC26
LVBCLKN/LLV0N/GREEN[4] AC25
LVB0P/RLV6P/RED[1] AA26
LVB0N/RLV6N/RED[0] AA25
LVB1P/RLV7P/GREEN[9] AA24
LVB1N/RLV7N/GREEN[8] AB26
LVB2P/RLV8P/GREEN[7] AB25
LVB2N/RLV8N/GREEN[6] AB24
LVB3P/LLV1P/GREEN[3] AC24
LVB3N/LLV1N/GREEN[2] AD26
LVB4P/LLV0P/GREEN[1] AD25
LVB4N/LLV0N/GREEN[0] AD24
RLV3P/RED[7] AD23
RLV3N/RED[6] AE23
RLV0P/LVSYNC AE26
RLV0N/LHSYNC AE25
RLV1N/LCK AF26
RLV2P/RED[9] AF25
RLV1P/LDE AE24
RLV2N/RED[8] AF24
RLV4P/RED[5] AF23
RLV4N/RED[4] AD22
RLV5P/RED[3] AE22
RLV5N/RED[2] AF22
TCON3/OE/GOE/GCLK2 AD19
TCON15/SCAN_BLK1 AE19
TCON18/CS7/GCLK5 AD21
TCON19/CS8/GCLK6 AE21
TCON11/CS5/HCON AF21
TCON10/CS4/OPT_N AD20
TCON9/CS3/OPT_P AE20
TCON16/WPWM AF20
TCON12/DPM AF19
TCON1/STV/GSP/VST AD18
TCON5/TP/SOE AE18
TCON14/SACN_BLK AF18
TCON21/CS10/VGH_ODD AB22
TCON20/CS9/VGH_EVEN AB23
TCON13/LEDON AC23
TCON17/CS6/GCLK4 AC22
NC_26 AB16
NC_19 AA14
NC_30 AC15
NC_15 Y16
NC_31 AC16
NC_29 AC14
NC_21 AA16
NC_20 AA15
NC_11 Y10
NC_17 AA11
NC_25 AB15
NC_24 AB14
LGE105D(S7-Tcon Divx_ Non_RM)
IC101-*2
S7T_DIVX
NC_43
AE1
NC_73
AF16
NC_59
AF1
NC_45
AE3
NC_40
AD14
NC_29
AD3
NC_72
AF15
NC_60
AF2
NC_57
AE15
NC_28
AD2
NC_42
AD16
NC_41
AD15
NC_58
AE16
NC_61
AF3
NC_71
AF14
NC_27
AD1
NC_39
AD13
NC_56
AE14
NC_55
AE13
NC_46
AE4
NC_31
AD5
NC_62
AF4
NC_30
AD4
NC_44
AE2
NC_66
AF8
NC_35
AD9
NC_51
AE9
NC_67
AF9
NC_53
AE11
NC_64
AF6
NC_48
AE6
NC_69
AF11
NC_32
AD6
NC_38
AD12
NC_47
AE5
NC_70
AF12
NC_63
AF5
NC_54
AE12
NC_52
AE10
NC_65
AF7
NC_37
AD11
NC_33
AD7
NC_36
AD10
NC_49
AE7
NC_68
AF10
NC_34
AD8
NC_50
AE8
NC_12
Y11
GND_105
Y19
RLV3P W26
RLV3N W25
RLV0P U26
RLV0N U25
RLV1P U24
RLV1N V26
RLV2P V25
RLV2N V24
RLVCKP W24
RLVCKN Y26
RLV4P Y25
RLV4N Y24
WPWM AC26
OPTP/FLK2 AC25
RLV5P AA26
RLV5N AA25
RLV6P AA24
RLV6N AB26
RLV7P AB25
RLV7N AB24
OPTN/FLK3 AC24
FLK AD26
GCLK6 AD25
GCLK5 AD24
LLV3P AD23
LLV3N AE23
LLV0P AE26
LLV0N AE25
LLV1P AF26
LLV1N AF25
LLV2P AE24
LLV2N AF24
LLVCKP AF23
LLVCKN AD22
LLV4P AE22
LLV4N AF22
GOE/GCLK1 AD19
GSC/GCLK3 AE19
LLV5P AD21
LLV5N AE21
LLV6P AF21
LLV6N AD20
LLV7P AE20
LLV7N AF20
GSPR AF19
GSP/VST AD18
SOE AE18
POL AF18
VDD_ODD AB22
VDD_EVEN AB23
GCLK4 AC23
GCLK2 AC22
NC_23 AB16
DPM AA14
HCON AC15
NC_15 Y16
NC_26 AC16
LEDON AC14
NC_20 AA16
NC_19 AA15
NC_11 Y10
NC_17 AA11
SCAN_BLK AB15
SCAN_BLK1 AB14
R141 1K R140 1K
R1100
R1500
MODEL_OPT_6
IC102-*2
NAND01GW3B2CN6E
1GBIT
26 NC_17
27 NC_18
28 NC_19
29 I/O0
30 I/O1
31 I/O2
32 I/O3
33 NC_20
34 NC_21
35 NC_22
36 VSS_2
37 VDD_2
38 NC_23
39 NC_24
40 NC_25
41 I/O4
42 I/O5
43 I/O6
44 I/O7
45 NC_26
46 NC_27
47 NC_28
48 NC_29
17
AL
3
NC_3
6
NC_6
16
CL
15
NC_10
14
NC_9
13
VSS_1
12
VDD_1
11
NC_8
10
NC_7
9
E
8
R
7
RB
4
NC_4
5
NC_5
25 NC_16 24
NC_15
23
NC_14
2
NC_2
22
NC_13
21
NC_12
1
NC_1
20
NC_11
19
WP
18
W
FLASH/EEPROM/GPIO
GP2_Saturn7M
DIMMING
URSA degug port
for WIRELESS READY
for SERIAL FLASH
/PF_CE0
H : Serial Flash
L : NAND Flash
/PF_CE1
H : 16 bit
L : 8 bit
Boot from SPI flash : 1’b0
Boot from NOR flash : 1’b1
Addr:10101--
I2C
A0’h
<T3 CHIP Config>
(AUD_SCK, AUD_MASTER_CLK, PWM1, PWM0)
EEPROM
<T3 CHIP Config(AUD_LRCH)>
for ETHERNET PHY
HDCP EEPROM
NAND FLASH MEMORY
from CI SLOT
TO SCART1
MIPS_no_EJ_NOR8 : 4’h3 (MIPS as host. No EJ PAD. Byte mode NAND flash.)
MIPS_EJ1_NOR8 : 4’h4 (MIPS as host. EJ use PAD1. Byte mode NAND flash.)
MIPS_EJ2_NOR8 : 4’h5 (MIPS as host. EJ use PAD2. Byte mode NAND flash.)
B51_Secure_no scramble : 4’hb (8051 as host. Internal SPI flash secure boot, no scramble)
B51_Sesure_scramble : 4’hc (8051 as host. Internal SPI flash secure boot with scarmble)
for SYSTEM/HDCP
EEPROM&URSA3
Internal demod out
/External demod in
$0.199
Ver. 1.3
1
LD650 Scan
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
C4058 0.1uF
FRC_LPLL
C219 0.047uF
C227 0.047uF
FRCVDDC
VDD33
L212
BLM18PG121SN1D
+1.5V_DDR
DDC_SDA_1
SIDEAV_L_IN
C4019 0.1uF
C4056 0.1uF
C4027 0.1uF
FRC_AVDD
C291
0.1uF
FRC
C4032 0.1uF
C263
10uF
LNA2_CTL
DDC_SCL_2
D2-_HDMI1
R257 33
SCART1_Lout
R203 100
DSUB_B-
C218 0.047uF
COMP2_R_IN
C4011 0.1uF
C236 2.2uF
AVDD_DDR0
SC1_R-/COMP1_Pr-
VDD33_DVI
L227
BLM18PG121SN1D
R230 33
TU_SDA
IF_AGC_SEL
D1-_HDMI1
R4016 33
DEMOD_SDA
EPHY_MDIO
SC1_B-/COMP1_Pb-
R239 33
R282 33
ETHERNET
R255 33
+3.3V_Normal
SC1/COMP1_L_IN
COMP2_Y-
IF_P_MSTAR
R289 100
C4038 0.1uF
TU_CVBS
AVDD_DDR0
+3.3V_Normal
COMP2_Pb-
R252 68
COMP2_L_IN
C264 1000pF
OPT
MODEL_OPT_0
R231 68
+1.26V_VDDC
MVREFAVDD_DDR_FRC
L219
BLM18PG121SN1D
AMP_SDA
R285 33
ETHERNET
C222 0.047uF
MODEL_OPT_1
R237 33
R4014 1K 1/16W 1%
AUD_SCK
L226
BLM18SG700TN1D
HPD1
X201
24MHz
C283 0.1uF
C4009 0.1uF
C4002 0.1uF
R232 33
C204 0.047uF
PC_R_IN
C225 0.047uF
SC1_B+/COMP1_Pb+ C215 0.047uF
C233 0.047uF
AU25
+1.5V_FRC_DDR
VDD_RSDS
COMP2_Y+
R228 33
AVDD2P5
AVDD25_PGA
AVDD_DDR0
R256 68
R253 33
DDC_SCL_1
DSUB_B+
BT_LOUT
R244 33
R4024 22
HP_LOUT
ADC2P5
BT_DP
L225
BLM18SG700TN1D
AVDD_DMPLL
D0-_HDMI2
MODEL_OPT_5
C4059 2.2uF
SIDE_USB_DM
R4018
22
FRC
DEMOD_SCL
R4023
10K
C244 2.2uF
L213
BLM18PG121SN1D
OPT
C4012 0.1uF
C205 0.047uF
AVDD_DDR0
C238 2.2uF
EPHY_RXD1
SOC_RESET
+3.3V_Normal
AVDD_DMPLL
C295 0.1uF
C4017 0.1uF
MVREF
C4062 0.1uF
C211 0.047uF
C285 0.1uF
R236 0
NON_EU
D1+_HDMI1
COMP2_Pr-
CEC_REMOTE_S7
EPHY_TXD0
C4023 0.1uF
EPHY_TXD1
AV_L_IN
+3.3V_Normal
C203
1000pF
OPT
SC1_CVBS_IN
R238 68
L207
BLM18PG121SN1D
R4027
0
1/10W
5%
R201 100
DSUB_VSYNC
AVDD_DMPLL
C207 0.047uF
AVDD25_PGA
FRC_RESET
R278 33
ETHERNET
C230 0.047uF
DSUB_HSYNC
AVDD_DDR1
D0-_HDMI1
FRC_VDD33_DDR
C245 2.2uF
DSUB_G-
C286 0.1uF
C237 2.2uF
C210 1000pF
COMP2_Pr+
C4015
0.1uF
C258 0.1uF
VDD33
AVDD2P5
R249 33
L209
BLM18PG121SN1D
R4020
10K
C292 0.1uF
C294 0.1uF
C226 0.047uF
EPHY_REFCLK
AVDD2P5
C243 2.2uF
C253
1uF
CK+_HDMI1
SC1_G-/COMP1_Y-
R288 100
R4019
1K
C221 0.047uF
VDD33
RF_SWITCH_CTL
C4007 0.1uF
PC_L_IN
C208 0.047uF
TP204
R204 100
AU33
+2.5V_Normal
CK-_HDMI1
+2.5V_Normal
+2.5V_Normal
D2+_HDMI1
D0+_HDMI2
C213 0.047uF
C4003 0.1uF
R254 68
C229 0.047uF AVDD_DDR_FRC
+2.5V_Normal
MODEL_OPT_3
SC1_FB
C212 0.047uF
COMP2_Pb+
SIDEAV_CVBS_IN
C247 2.2uF OPT
AMP_SCL
C4006 0.1uF
C217 1000pF
AU33
L222
BLM18PG121SN1D
R4002 47
C280 0.1uF
R245 33
CK-_HDMI2
SPDIF_OUT
EPHY_RXD0
R4006
10K
C4013 0.1uF
R4026
10K
SC1_ID
BT_ON/OFF
L214
BLM18PG121SN1D
S7M
+1.26V_VDDC
R202 100
SC1_SOG_IN
L217
BLM18PG121SN1D
FRC_AVDD
D2-_HDMI2
R258 68
R283 33
ETHERNET
L210
BLM18PG121SN1D
FRC
C206 0.047uF
C232 0.047uF
DTV/MNT_VOUT
C290 0.1uF
C4026 0.1uF
COMP2_DET
TU_SIF
C231 0.047uF
CK+_HDMI2
C4057 0.047uF
TU_SCL
TP206
C4036 0.1uF
R233 68
AUD_LRCH
L221
BLM18PG121SN1D
VDD33
MIU1VDDC
C4004
0.1uF
FRC
D2+_HDMI2
+1.26V_VDDC
ADC2P5
AUD_LRCK
C4008 0.1uF
C298
0.1uF
FRC
R243 0
R4015 1K 1/16W 1%
EPHY_CRS_DV
AV_R_IN
BT_DM
D1+_HDMI2
C216 0.047uF
C4041 0.1uF
C297 0.1uF
DSUB_R-
R287
1M
SC1_G+/COMP1_Y+
DSUB_G+
R296 100
D0+_HDMI1
C256
0.1uF
R242 68
C214 0.047uF
R284 33
ETHERNET
EPHY_EN
C4024 0.1uF
C235 2.2uF
OPT
R4022
0
1/10W
5%
L215
BLM18PG121SN1D
HPD2
C4028 0.1uF
C234 2.2uF
OPT
IR
C4065
0.022uF
16V
IF_AGC_MAIN
C257 0.1uF
AUD_MASTER_CLK
C296 0.1uF
C239 2.2uF
FRC_AVDD
R246 33
TP205
VDD33_DVI
R241 33
R4003 47
SCART1_Rout
R298 100
OPT
FRC_VDD33_DDR
C4064
0.1uF
IF_N_MSTAR
C4014 0.1uF
R248 33
DSUB_R+
HP_ROUT
AVDD_DDR1
R251 33
R234 0
C242 2.2uF
VDD33
C224 1000pF
C209 0.047uF
C251 0.1uF
AVDD2P5
SIDEAV_R_IN
C4016 0.1uF
R280 33
ETHERNET
C246 2.2uF OPT
C223 0.047uF
SIDE_USB_DP
MODEL_OPT_2
C4060 2.2uF
SC1_R+/COMP1_Pr+
TP201
R250 33
R4025 22
L211
BLM18PG121SN1D
R240 68
FRC_LPLL
AV_CVBS_IN
DDC_SDA_2
C250 0.1uF
C220 0.047uF
R229 68
+1.26V_VDDC
TP202
AU25
VDD_RSDS
R4017
10K
FRC
C277 0.1uF
L206
BLM18PG121SN1D
C299 0.1uF
L204
BLM18PG121SN1D
FRCVDDC
EPHY_MDC
C4040 0.1uF
TP203
D1-_HDMI2
C288
0.1uF
VDD33
SC1/COMP1_R_IN
C4010
0.1uF
FRC
L202
BLM18SG121TN1D
L223
BLM18SG121TN1D
C4005
0.1uF
TP207
TP208
TP209
TP210
D1+_HDMI3
D0-_HDMI3
HPD3
CK+_HDMI3
CK-_HDMI3
D1-_HDMI3
DDC_SCL_3
D2+_HDMI3
D0+_HDMI3
DDC_SDA_3
D2-_HDMI3
D1-_HDMI4
D2+_HDMI4
HPD4
DDC_SCL_4
D0+_HDMI4
D0-_HDMI4
DDC_SDA_4
D2-_HDMI4
CK+_HDMI4
D1+_HDMI4
CK-_HDMI4
10uFC275 10uFC276
C279
10uF
FRC C278
10uF
C282
10uF
FRC C281
10uF
10uFC284
C287
10uF
C289 10uF 10uFC293
10uFC4001
C4018
10uF
C4022
10uF
C4061 10uF
C4063 10uF
C249
4.7uF
C4045 1uF
C4020 0.1uF
C4025 0.1uF
C4031 0.1uF
MIU1VDDC
VDD33
NEC_SCL
NEC_SDA
R4029 0OPT
R4028 0OPT
AMP_SCL
AMP_SDA
CHB_CVBS_IN
R4032 0
R4033 0
R292 22
CHINA_OPT
R291 22
CHINA_OPT
AV_CVBS_IN2
AV_CVBS_IN2 TP211
R227 1K
NO_FRC
R212 1K
LVDS
R226 1K
FRC
R209 1K
DDR_256MB
R211 1K
MINI_LVDS
R207 1K
HD R206 1K
FHD
R208 1K
DDR_512MB
MODEL_OPT_4
C4066 10uF
L228
BLM18SG700TN1D
MODEL_OPT_5
MODEL_OPT_4
R294 1K
100/120Hz LVDS
R297 1K
50/60Hz LVDS
R295 1K
GIP
R293 1K
NON_GIP
MIU0VDDC
MIU0VDDC
+1.26V_VDDC
10uFC228
C240
0.1uF
FRC
C241
0.1uF
C4042 0.1uF
C4046 0.1uF
C4043 0.1uF C4044 0.1uF
C261 27pF
C262 27pF
+3.3V_Normal
R205
10K
OPT
3D_POWER_EN R210 100
3D
/3D_FPGA_RESET R213 100
3D
C268 4.7uF C272 4.7uF
L205 5.6uH
CM2012F5R6KT
L203 5.6uH
CM2012F5R6KT
LGE107D (S7M Divx_Non RM)
IC101
S7M_DIVX
A_RXCP
F1
A_RXCN
F2
A_RX0P
G2
A_RX0N
G3
A_RX1P
H3
A_RX1N
G1
A_RX2P
H1
A_RX2N
H2
DDCDA_DA/GPIO24
F5
DDCDA_CK/GPIO23
F4
HOTPLUGA/GPIO19
E6
B_RXCP
D3
B_RXCN
C1
B_RX0P
D1
B_RX0N
D2
B_RX1P
E2
B_RX1N
E3
B_RX2P
F3
B_RX2N
E1
DDCDB_DA/GPIO26
D4
DDCDB_CK/GPIO25
E4
HOTPLUGB/GPIO20
D5
C_RXCP
AA2
C_RXCN
AA1
C_RX0P
AB1
C_RX0N
AA3
C_RX1P
AB3
C_RX1N
AB2
C_RX2P
AC2
C_RX2N
AC1
DDCDC_DA/GPIO28
AB4
DDCDC_CK/GPIO27
AA4
HOTPLUGC/GPIO21
AC3
D_RXCP
A2
D_RXCN
A3
D_RX0P
B3
D_RX0N
A1
D_RX1P
B1
D_RX1N
B2
D_RX2P
C2
D_RX2N
C3
DDCDD_DA/GPIO30
B4
DDCDD_CK/GPIO29
C4
HOTPLUGD/GPIO22
E5
CEC/GPIO5
D6
HSYNC0
G5
VSYNC0
G6
RIN0P
K1
RIN0M
L3
GIN0P
K3
GIN0M
K2
BIN0P
J3
BIN0M
J2
SOGIN0
J1
HSYNC1
G4
VSYNC1
H6
RIN1P
K5
RIN1M
K4
GIN1P
J4
GIN1M
K6
BIN1P
H4
BIN1M
J6
SOGIN1
J5
HSYNC2
H5
RIN2P
N3
RIN2M
N2
GIN2P
M2
GIN2M
M1
BIN2P
L2
BIN2M
L1
SOGIN2
M3
CVBS0P
N4
CVBS1P
N6
CVBS2P
L4
CVBS3P
L5
CVBS4P
L6
CVBS5P
M4
CVBS6P
M5
CVBS7P
K7
CVBS_OUT1
M6
CVBS_OUT2
M7
VCOM0
N5
VIFP W2
VIFM W1
IP V2
IM V1
SSIF/SIFP Y2
SSIF/SIFM Y1
QP U3
QM V3
IFAGC Y5
RF_TAGC Y4
TGPIO0/UPGAIN U1
TGPIO1/DNGAIN U2
TGPIO2/I2C_CLK R3
TGPIO3/I2C_SDA T3
XTALIN T2
XTALOUT T1
SPDIF_IN/GPIO177 G14
SPDIF_OUT/GPIO178 G13
DM_P0 B7
DP_P0 A7
DM_P1 AF17
DP_P1 AE17
I2S_IN_BCK/GPIO175 F14
I2S_IN_SD/GPIO176 F13
I2S_IN_WS/GPIO174 F15
I2S_OUT_BCK/GPIO181 D20
I2S_OUT_MCK/GPIO179 E20
I2S_OUT_SD/GPIO182 D19
I2S_OUT_SD1/GPIO183 F18
I2S_OUT_SD2/GPIO184 E18
I2S_OUT_SD3/GPIO185 D18
I2S_OUT_WS/GPIO180 E19
LINE_IN_0L N1
LINE_IN_0R P3
LINE_IN_1L P1
LINE_IN_1R P2
LINE_IN_2L P4
LINE_IN_2R P5
LINE_IN_3L R6
LINE_IN_3R T6
LINE_IN_4L U5
LINE_IN_4R V5
LINE_IN_5L U6
LINE_IN_5R V6
LINE_OUT_0L U4
LINE_OUT_2L W3
LINE_OUT_3L W4
LINE_OUT_0R V4
LINE_OUT_2R Y3
LINE_OUT_3R W5
MIC_DET_IN R4
MICCM T5
MICIN R5
AUCOM T4
VRM P7
VAG R7
VRP P6
HP_OUT_1L R1
HP_OUT_1R R2
ET_RXD0 E21
ET_TXD0 E22
ET_RXD1 D21
ET_TXD1 F21
ET_REFCLK E23
ET_TX_EN D22
ET_MDC F22
ET_MDIO D23
ET_CRS F23
AVLINK F8
IRINT G8
TESTPIN K8
RESET A4
U3_RESET Y17
LGE107D (S7M Divx_Non RM)
IC101
S7M_DIVX
VDDC_1
H11
VDDC_2
H12
VDDC_3
H13
VDDC_4
H14
VDDC_5
H15
VDDC_6
J12
VDDC_7
J13
VDDC_8
J14
VDDC_9
J15
VDDC_10
J16
VDDC_11
L18
A_DVDD
H16
B_DVDD
K19
FRC_VDDC_0
L19
FRC_VDDC_1
M18
FRC_VDDC_2
M19
FRC_VDDC_3
N18
FRC_VDDC_4
N19
FRC_VDDC_5
N20
FRC_VDDC_6
P18
FRC_VDDC_7
P19
FRC_VDDC_8
P20
U3_DVDD_DDR
Y12
AVDD1P2
J11
DVDD_NODIE
L7
AVDD2P5_ADC_1
H7
AVDD2P5_ADC_2
J7
AVDD25_REF
J8
AVDD_AU25
L8
PVDD_1
W15
PVDD_2
Y15
AVDD25_PGA
U8
AVDD_NODIE
M8
AVDD_DVI_1
N9
AVDD_DVI_2
P9
AVDD3P3_CVBS
N8
AVDD_DMPLL
P8
AVDD_AU33
T7
AVDD_EAR33
U7
AVDD33_T
T9
VDDP_1
R8
VDDP_2
R9
VDDP_3
T8
FRC_VD33_2_1
V20
FRC_VD33_2_2
W20
FRC_AVDD_RSDS_1
U19
FRC_AVDD_RSDS_2
U20
FRC_AVDD_RSDS_3
V19
FRC_AVDD
W19
FRC_AVDD_LPLL
U18
FRC_AVDD_MPLL
T20
FRC_VDD33_DDR
Y14
AVDD_MEMPLL
R19
FRC_AVDD_MEMPLL
W14
AVDD_DDR0_D_1
D15
AVDD_DDR0_D_2
D16
AVDD_DDR0_D_3
E15
AVDD_DDR0_D_4
E16
AVDD_DDR0_C
E17
AVDD_DDR1_D_1
F16
AVDD_DDR1_D_2
F17
AVDD_DDR1_D_3
G16
AVDD_DDR1_D_4
G17
AVDD_DDR1_C
H17
FRC_AVDD_DDR_D_1
AB11
FRC_AVDD_DDR_D_2
AB12
FRC_AVDD_DDR_D_3
AC11
FRC_AVDD_DDR_D_4
AC12
FRC_AVDD_DDR_C
AA12
MVREF
G15
NC_1
Y7
NC_2
Y8
GND_1 G18
GND_2 H9
GND_3 H10
GND_4 H18
GND_5 H19
GND_6 J10
GND_7 J17
GND_8 J18
GND_9 J19
GND_10 K9
GND_11 K10
GND_12 K11
GND_13 K12
GND_14 K13
GND_15 K14
GND_16 K15
GND_17 K16
GND_18 K17
GND_19 K18
GND_20 L9
GND_21 L10
GND_22 L11
GND_23 L12
GND_24 L13
GND_25 L14
GND_26 L15
GND_27 L16
GND_28 L17
GND_29 M9
GND_30 M10
GND_31 M11
GND_32 M12
GND_33 M13
GND_34 M14
GND_35 M15
GND_36 M16
GND_37 M17
GND_38 N10
GND_39 N11
GND_40 N12
GND_41 N13
GND_42 N14
GND_43 N15
GND_44 N16
GND_45 N17
GND_46 P10
GND_47 P11
GND_48 P12
GND_49 P13
GND_50 P14
GND_51 P15
GND_52 P16
GND_53 P17
GND_54 R10
GND_55 R11
GND_56 R12
GND_57 R13
GND_58 R14
GND_59 R15
GND_60 R16
GND_61 R17
GND_62 R18
GND_63 T10
GND_64 T11
GND_65 T12
GND_66 T13
GND_67 T14
GND_68 T15
GND_69 T16
GND_70 T17
GND_71 T18
GND_72 T19
GND_73 U10
GND_74 U11
GND_75 U12
GND_76 U13
GND_77 U14
GND_78 U15
GND_79 U16
GND_80 U17
GND_81 V7
GND_82 V8
GND_83 V9
GND_84 V10
GND_85 V11
GND_86 V12
GND_87 V13
GND_88 V14
GND_89 V15
GND_90 V16
GND_91 V17
GND_92 V18
GND_93 W7
GND_94 W8
GND_95 W9
GND_96 W10
GND_97 W11
GND_98 W12
GND_99 W13
GND_100 W16
GND_101 W17
GND_102 W18
GND_103 Y13
GND_104 Y18
GND_105 AA13
GND_106 AB13
GND_107 AC13
GND_FU J9
PGA_VCOM U9
MODEL_OPT_6
R215 1K
LCD R214 1K
OLED
GP2_Saturn7M
MAIN_2
ANALOG SIF
RMII For Ethernet
RSDS Power OPT
FRC
I2S_I/F
PIN NAME
DSUB
Normal 2.5V
Close to MSTAR
MODEL OPTION
FRC_LPLL:13mA
Normal Power 3.3V
DTV_IF
AVDD_DMPLL/AVDD_NODIE:7.362mA
FRC_MPLL:4mA
AU25:10mA
Close to MSTAR
AVDD_MEMPLL:24mA
F7
VDD33_DVI:163mA
FHD
SCART1_RGB/COMP1
G19
AVDD2P5/ADC2P5:162mA
MODEL_OPT_3
AVDD25_PGA:13mA
C5
VDDC : 2026mA
AVDD_DDR0:55mA
H/P OUT
VDDC 1.26V
PIN NO.
NO FRC
MODEL_OPT_0
CVBS In/OUT
AUDIO OUT
TU/DEMOD_I2C
FRC_AVDD:60mA
HD
AUDIO IN
VDD_RSDS:88mA
MODEL_OPT_1
FRC_VDD33_DDR:50mA
COMP2
DDR_512MB
Close to MSTAR
SIDE USB
DDR3 1.5V
VDD33_T/VDDP/U3_VD33_2:47mA
B6
MODEL OPTION
HDMI
AVDD_DDR_FRC:55mA
LOW
AU33:31mA
DDR_256MB
HIGH
MODEL_OPT_2
B/T USB
Close to MSTAR
RSDS Power OPT
AVDD_DDR1:55mA
Ver. 1.4
2
MINI LVDS LVDS
MODEL_OPT_4
MODEL_OPT_5
100/120Hz LVDS
E18
GIP NON_GIPD18
50/60Hz LVDS
MODEL_OPT_6 F9 LCDOLED
Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
