LG 32LK450 User manual

LCD TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : LC01U
MODEL : 32LK450 32LK450-CC
North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com
Internal Use Only
Printed in ChinaP/NO :MFL67002803 (1104-REV00)
37LK450 37LK450-CC

- 2 -
CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ......................................................................... 3
SPECIFICATION ....................................................................................... 6
ADJUSTMENT INSTRUCTION ..............................................................61
EXPLODED VIEW ..................................................................................82
SVC. SHEET ...............................................................................................

- 3 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩand 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.

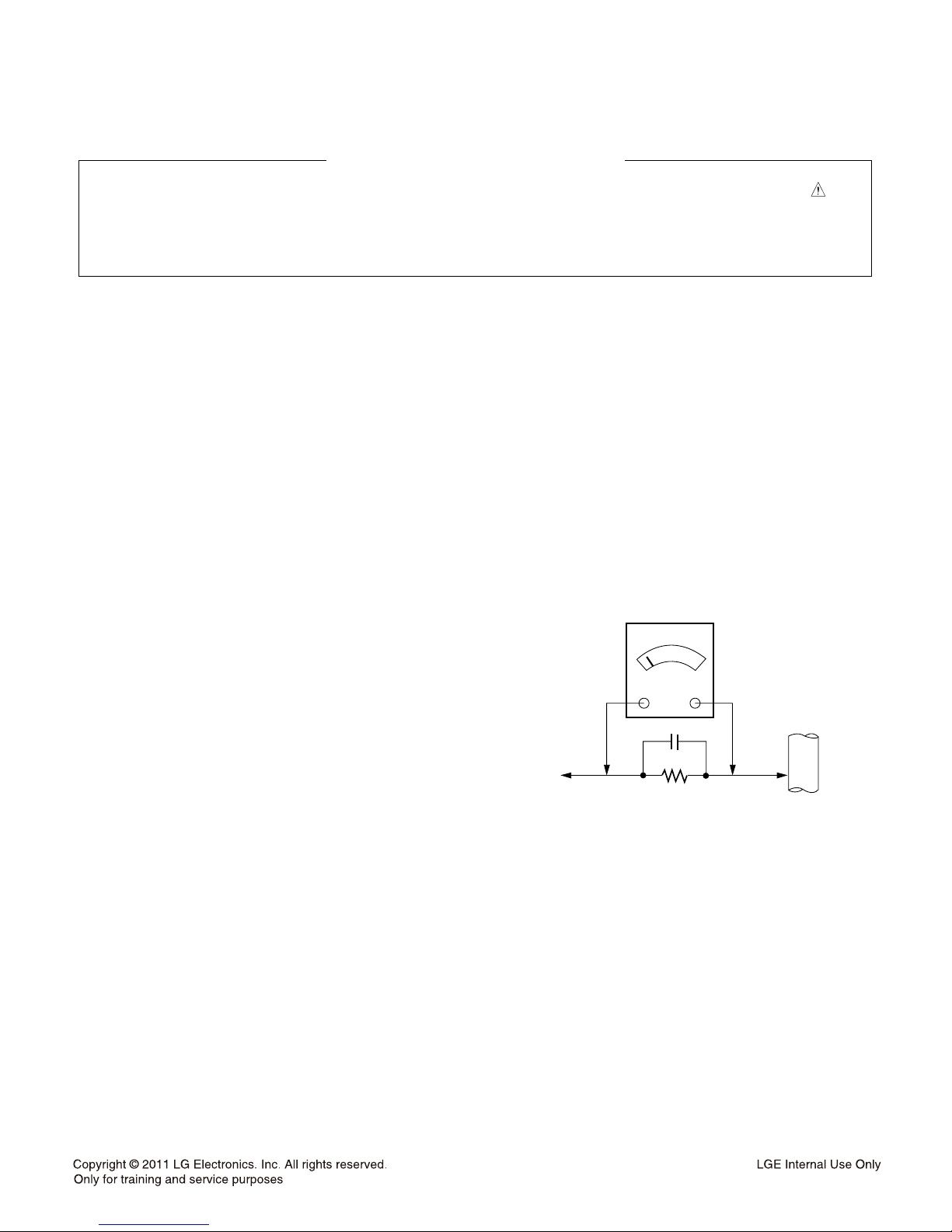

Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
1.5 Kohm/10W
To Instrument’s
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

- 4 -
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the
following servicing precautions and any of the safety precautions on
page 3 of this publication, always follow the safety precautions.
Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug or
other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.
2. Test high voltage only by measuring it with an appropriate high
voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specified otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10% (by volume) Acetone and 90% (by
volume) isopropyl alcohol (90%-99% strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication of
contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test fixtures specified in this
service manual.
CAUTION: Do not connect the test fixture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged easily
by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques
should be used to help reduce the incidence of component
damage caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed to
prevent potential shock reasons prior to applying power to the
unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as "anti-static" can generate
electrical charges sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such as
the brushing together of your clothes fabric or the lifting of your
foot from a carpeted floor can generate static electricity
sufficient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500°F to 600°F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500°F to 600°F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500°F to 600°F)
b. First, hold the soldering iron tip and solder the strand against
the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.
SERVICING PRECAUTIONS

- 5 -
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by gently
prying up on the lead with the soldering iron tip as the solder
melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing the
IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close as
possible to the component body.
2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as
possible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC
connections).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the good
copper pattern. Solder the overlapped area and clip off any
excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly
connected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

LGE DisplayDivision LG(56) C1-1480-00
Establish:
Reform :
LG 전자
LC01U Product Specification
PDN
Internal Use Onl
y
LG Electronics
Internal Use Onl
y
LG Electronics
LC01U
PRODUCT SPEC.
Display Research lab.
LCD TV Product Development.
LG ELECTRONICS Inc.

LGE DisplayDivision LG(56) C1-1480-00
Establish:
Reform :
LG 전자
LC01U Product Specification
- Contents -
1. Application Range
2. Specification
3. Test Method
4. Electrical Specification
5. Feature and Function
6. Safety and Regulation
7. Video
8. Digital Receiver
9. DVB-C
10. Chroma & Brightness
11. Audio
12. Power
13. External interface
14. Screen Size (over scan spec)
15. The others
16. Reliability
17. SET factoring condition
18. Accessories
19. Additional Rules

LGE DisplayDivision LG(56) C1-1480-00
Establish:
Reform :
LG 전자
LC01U Product Specification
1. Application Range.
This spec sheet is applied to the LC01U chassis.
Chassis Model Name Market Place Brand Remarks
LC01U
32/37LK450-CC
42/47/55LK530-CC
32/37LV3500-CB
32LK330-CB
42/47/55LV4500-CA
42LV3650-CA
42/47/55LW4500-CA
CHINA, HONG KONG (PAL/DTMB Market) LG
2. Specification
Each part is tested as below without special appointment.
2.1 Temperature : 25±5℃(77±9℉), CST : 40±5℃
2.2 Relative Humidity : 65±10%
2.3 Power Voltage : Standard input voltage (100-240V~ 50/60Hz)
Standard Voltage of each product is marked by models
2.4 Specification and performance of each parts are followed each drawing and specification by part number in accordance with BOM .
2.5 The receiver must be operated for about5 minutes prior to the adjustment

LGE DisplayDivision LG(56) C1-1480-00
Establish:
Reform :
LG 전자
LC01U Product Specification
3. Test method
3.1 Performance : LGE TV test method followed.
3.2 Demanded other specification
Safety : CE, IEC specification
EMC : CE, IEC
Model Market Appliance Remarks
32/37LK450-CC
42/47/55LK530-CC
32/37LV3500-CB
32LK330-CB
42/47/55LV4500-CA
42LV3650-CA
42/47/55LW4500-CA
CHINA, HONG KONG(PAL/DTMB Market) Safety : IEC/EN60065, EMI : EN55013, EMS : EN55020

LGE DisplayDivision LG(56) C1-1480-00
Establish:
Reform :
LG 전자
LC01U Product Specification
4. Electrical Specification
4.1 Module Specification
4.1.1 General Specification
No Item Specification Meas
urem
ent Result Remark
1 Display Screen Device 32”/37”/42”/47”/55”Wide color display module CCFL/EEFL LCD
2 Aspect Ratio 16:9
3 LCD Module
32” TFT LCD HD
32” TFT LCD FHD
37” TFT LCD FHD
42” TFT LCD FHD
47” TFT LCD FHD
55: TFT LCD FHD
BOE,IPS: 32LK330-CB
AUO,IPS:32LK450-CC
CMI:32LV3500-CB
LGD:32LV3500-CB
LGD:37LK450-CC
AUO,LGD:37LV3500-CB
LGD : 42LK530-CC/42LW4500/
42LV4500/42LV3650
LGD : 47LK530-CC/47LW4500/LV4500
LGD:55LK530-CC/55LW4500/LV4500
4 Storage Environment Temp. : -20 ~ 60 deg, Humidity : 10 ~ 90 %
5 Input Voltage 100-240V~ 50/60Hz
Power on (Blue)
32” BOE(HD) Typ:80W
32” IPS(HD) Typ:TBD
32” AUO(FHD) Typ:78W
32” IPS(FHD) Typ:TBD
32”CMI(FHD) Edge Typ:95W
32”LGD(FHD) Edge Typ:48.2W
37” LGD(FHD) Typ : 132.68W
37” AUO(FHD) Edge Typ : 61 W
37” LGD(FHD) Edge Typ : 55.12 W
42”LGD(FHD,100Hz) Typ: 158 W
42”LGD(FHD) Edge Typ:91.3W
47”LGD(FHD,100Hz) Typ: 203.1 W
6 Power Consumption
55” LGD(FHD,100Hz) Typ: 248.2W
LCD(Module) + Backlight(Lamp)
32/37LV3500 Backlight(EDGE)

LGE DisplayDivision LG(56) C1-1480-00
Establish:
Reform :
LG 전자
LC01U Product Specification
No Item Specification Meas urem
ent Result Remark
42”LGD(FHD,100Hz)3DA Typ:90.5W
42”LGD(FHD,100Hz) Edge Typ: 80.2 W
47”LGD(FHD,100Hz)3D Typ:101.1W
47”LGD(FHD,100Hz) Edge Typ:90W
55”LGD(FHD,100Hz)3D Typ:108.5W
55”LGD(FHD,100Hz) Edge Typ:108.5W
32” BOE(HD) (H) 760.0 × (V) 450.0 × (t) 46.9 (m
m
32” IPS(HD) (H) 760.0 × (V) 450.0 × (t) 46.9 (m
m
32” AUO(FHD) 760(H)x450(V)x46.9(D) mm
32” IPS(FHD) (H) 760.0 × (V) 450.0 × (t) 46.9
32”CMI(FHD) Edge 698.4 (H) x 392.85 (V)
32”LGD(FHD) Edge 735.4(H)× 433.0(V)X10.8(B)/23.6(D)mm
37” LGD(FHD) 877(H)x516.8(V)x46.9mm(D)
37” AUO(FHD) Edge 856.4(H) x 501(V) x 21 (D)
37” LGD(FHD) Edge 856.4(H)× 501.0(V)X10.8(B)/23.6mm(D)
42”LGD(FHD,100Hz) 983.0(H) x 576.0 (V) x 46.0mm(D)
42”LGD(FHD) Edge 968.4(H)× 564(V)X10.8(B)/18.3mm(D)
47”LGD(FHD,100Hz) 1096.0(H) x 640.0 (V) x 35.5 mm(D)
55” LGD(FHD,100Hz) 1286.0(H) x 745.0 (V) x 60.0 mm(D)
42”LGD(FHD,100Hz)3D 968.4(H) x 564.0 (V) x 10.8(B) / 22.9 m
m
42”LGD(FHD,100Hz) Edge 968.4(H) × 564(V) X 10.8(B)/18.3 mm(
D
47”LGD(FHD,100Hz)3D 1078.6(H) x 626.0 (V) x 10.8(B) / 22.9
m
47”LGD(FHD,100Hz) Edge 1078.6(H) × 626.0(V) X 10.8(B)/22.9 m
m
55”LGD(FHD,100Hz)3D 1255.6(H) × 726.4(V) X 19.0(B)/10.8 m
m
Module Size
55”LGD(FHD,100Hz) Edge 1255.6(H) × 726.4(V) X 19.0(B)/10.8
m
32” BOE(HD) 170.25(H)x510.75(V)xRGB
32” IPS(HD) (H)0.51075×(V)0.51075
32” AUO(FHD) 0.36375(H)x0.36375(W) mm
32” IPS(FHD) : (H) 0.36375 × (V) 0.36375
Pixel Pitch
32”CMI(FHD) Edge 0.12125 (H) x 0.36375 (V)

LGE DisplayDivision LG(56) C1-1480-00
Establish:
Reform :
LG 전자
LC01U Product Specification
No Item Specification Meas urem
ent Result Remark
32”LGD(FHD) Edge 0.36375mmx0.36375mm
37” LGD(FHD) 0.42675mmx0.42675mm
37” AUO(FHD) Edge 0.4268 (H) x 0.4268 (W)
37” LGD(FHD) Edge 0.42675mmx0.42675mm
42”LGD(FHD,100Hz) 0.4845 mm x 0.4845 mm
42”LGD(FHD) Edge 0.4845 mm x 0.4845 mm
47”LGD(FHD,100Hz) 0.5415 mm x 0.5415 mm
55” LGD(FHD,100Hz) 0.630 mm x 0.630 mm
42”LGD(FHD,100Hz)3D 0.4845 mm x 0.4845 mm
42”LGD(FHD,100Hz) Edge 0.4845 mm x 0.4845 mm
47”LGD(FHD,100Hz)3D 0.5415 mm x 0.5415 mm
47”LGD(FHD,100Hz) Edge 0.5415 mm x 0.5415 mm
55”LGD(FHD,100Hz)3D 0.630 mm x 0.630 mm
55”LGD(FHD,100Hz) Edge 0.630 mm x 0.630 mm
32” BOE(HD) CCFL
32” IPS(HD) CCFL
32” AUO(FHD) CCFL
32” IPS(FHD) CCFL
32”CMI(FHD) Edge
32”LGD(FHD) Edge
37” LGD(FHD) EEFL
37” AUO(FHD) Edge
37” LGD(FHD) Edge
42”LGD(FHD,100Hz) EEFL
42”LGD(FHD) Edge Edge
47”LGD(FHD,100Hz) EEFL
55” LGD(FHD,100Hz) EEFL
42”LGD(FHD,100Hz)3D Edge
42”LGD(FHD,100Hz) Edge Edge
47”LGD(FHD,100Hz)3D Edge
Back Light
47”LGD(FHD,100Hz) Edge Edge

LGE DisplayDivision LG(56) C1-1480-00
Establish:
Reform :
LG 전자
LC01U Product Specification
No Item Specification Meas urem
ent Result Remark
55”LGD(FHD,100Hz)3D Edge
55”LGD(FHD,100Hz)Edge
Display Colors 1.06 Billion, 16.7 Milion
Coating 3H, AG

LGE DisplayDivision LG(56) C1-1480-00
Establish:
Reform :
LG 전자
LC01U Product Specification
4.2 MODEL General Specification
No Item Specification Measurement Result Remarks
1 Market China(Hong Kong) DTV & Analog - China, Hong Kong
2 Broadcasting system
1) PAL-DK
2) PAL-I
3) NTSC-M
4) DTMB
5) DVB-C
DTMB : DMB-T 와ADTB-T 포함
3 Receiving system Analog : Upper Heterodyne
Digital : COFDM, QAM
4 Video Input RCA(2EA) PAL, NTSC Rear 1EA, Side 1EA
5 Component Input (2EA) Y/Cb/Cr, Y/Pb/Pr
6 RGB Input RGB-PC
Analog (D-SUB 15PIN)
7 HDMI Input(3EA)
HDMI1-DTV/DVI
HDMI2-DTV (side/rear)
HDMI3-DTV (side Except 42LV3650 )
PC(HDMI version 1.3), Support HDCP
8 Audio Input (3/4/5EA)
RGB/DVI Audio
Component(1/2EA)
AV(1/2EA)
L/R Input
9 SDPIF out (1EA) SPDIF out Rear
10. Earphone out (1EA) Side( Except 42LV3650 )
l11 USB (1EA) Divx(HD), EMF(JPEG, MP3), SVC(download) Side
5. Feature and Function
No Item Specification Measurement Result Remarks
1. TV/ DTV Input 2 Analog : PAL DK, I, NTSC-M
Digital : DTMB, DVB-C
Rear (2EA)
2. RGB Input 1 Analog RGB (Separate) D-Sub 15 pin, Rear (1EA)
3. HDMI Input 3 Rear(2EA), Side (1EA)
4. AV Input 2 CVBS/L/R Rear (1EA) Side(1EA)

LGE DisplayDivision LG(56) C1-1480-00
Establish:
Reform :
LG 전자
LC01U Product Specification
No Item Specification Measurement Result Remarks
5. Component Input 2 Rear (2EA)
6. RS-232C 1 Control & Service Rear (1EA)
7. Audio Input 5 RGB/DVI(1EA), Component(2EA), AV(2EA) Rear (4EA), Side (1EA)
8. SPDIF Output 1 SPDIF out Rear (1EA)
9. USB 1 Divx(HD),EMF (JPEG, MP3),SVC (download) Side (1EA)
10 Remocon Code LG code
11 Remote control Wireless Remote Control
12 Local Key POWER ON/OFF, INPUT, MENU, OK, -△+, ▼P▲
8EA
13 Set Installation Wall Mount / Desk top
14 Main Power Key O
15 Favorite O
16 AVL O
17 On/Off Timer O
18 Aspect Ratio 16:9 / Original / 4:3 / 14:9 / Zoom / Cinema Zoom
19 Picture Mode Vivid / Standard / Natural /
Cinema / Sport / Game / Expert1 / Expert2
20 Sound Mode Standard / Music / Cinema / Sport / Game
Auto Tuning
Quick(Home Tuning/Network ID/Start and End frequency) / Full
OK
Close
Manual Tuning
DTV (UHF CH)
TV (Storage, System, Band, Channel, Search, Name)
Cable DTV (Frequency,Symbol Rate, Modulation)
Cable TV (Storage, System, Band, Channel, Search, Name)
Programme Edit Pr.change, Favourite Pr. Q.Menu, Block/unblock, Page Change,
Previous, Skip, Move, Delete
(common except Cable DTV
and Cable RADIO)
(only for TV and Cable TV)
Booster On/Off
DTV Mode
CI Information *Except Hong Kong
21 Menu
(SETUP)
Cable DTV Setting
Service Operator
Channel Auto update : On/Off
Audio Auto Mode : On/Off
*Except Hong Kong

LGE DisplayDivision LG(56) C1-1480-00
Establish:
Reform :
LG 전자
LC01U Product Specification
No Item Specification Measurement Result Remarks
Aspect Ratio
- 16:9 : DTV, ATV, AV1/2, Component1/2, RGB, HDMI1~3
- Original : DTV, ATV, AV1/2
- 4:3 : DTV, ATV, AV1/2, Component1/2, RGB, HDMI1~3
- 14:9 : DTV, ATV, AV1/2, Component1/2, HDMI1~3
- Zoom : DTV, ATV, AV1/2, Component1/2, HDMI1~3
- Cinema Zoom : DTV, ATV, AV1/2, Component1/2, HDMI1~3
HDMI(720P↑)
Component(720P↑)
Picture Wizard
Energy Saving
Auto
Off
Minimum
Medium
Maximum
Screen Off
Intelligent Sensor except LK330
Vivid / Standard / Cinema / Sport /
Game / Expert1 / Expert2
Backlight
Contrast
Brightness
Sharpness
Colour
Tint
Colour Temp.
Advanced
Control
Dynamic Contrast : Off, Low, Medium, High
Dynamic Colour : Off, Low, High
Clear White : Off, Low, High
Skin Color : -5 ~ 5
Noise Reduction : Off, Low, Medium, High, Auto
Digital Noise Reduction : Off, Low, Medium, High
Gamma : Low, Medium, High
Black Level : Low, High, Auto
Eye Care : on/off
Real Cinema : on/off
Color Gamut : Wide, Standard
xvYCC : On, Off
22 Menu
(PICTURE)
Picture Mode
Picture reset

LGE DisplayDivision LG(56) C1-1480-00
Establish:
Reform :
LG 전자
LC01U Product Specification
No Item Specification Measurement Result Remarks
TruMotion
User
Low
High
Only LK530 /LW4500
/LV4500
LED Local Dimming On
Off Only LW4500
Screen
Resolution
Auto Config
Position
Size
Phase
Reset
RGB
Auto volume Off / On
Clear Voice II Off / On(Level -6 ~ 6)
Balance 0 (L50 ~ R50)
Sound Mode
Standard /Music /Cinema /Sport /Game
Infinite Sound : Off/On
Treble
Bass
Reset
Digital Audio Out Auto, PCM
TV Speaker On/ Off
23 Menu
(Audio)
DTV Audio Setting Auto, HE-AAC, AAC, Dolby Digital+, Dolby Digital, MPEG
Clock Auto / Manual (Year, Month, Date, Hour, Minute)
Off Time Repeat(Off, Once, daily, Mon~Fri, Mon~Sat, Sat~Sun, Sun),
Hour, Minute
On Time Repeat(Off, Once, daily, Mon~Fri, Mon~Sat, Sat~Sun, Sun),
Hour, Minute, Input, Programme, Volume
24 Menu
(TIME)
Sleep timer Off/10min/20min/30min/60min/90min/120min/180min/240min
Set Password Off / On
Lock System Off / On(Block Programme, Input Block)
25 Menu
(Lock) Key Lock Off / On

LGE DisplayDivision LG(56) C1-1480-00
Establish:
Reform :
LG 전자
LC01U Product Specification
No Item Specification Measurement Result Remarks
Menu Language Chinese / English
Audio Language Mandarin / English
Language
Subtitle Language Mandarin / Cantonese / English
City/Area Mainland China, Hong Kong
Hard of hearing Off / On
Power Indicator Standby Light/Power Light : Off/On
MHEG Guide Off / On
* Only Hong Kong
Factory Reset Yes / No
Set ID 1 ~ 99
26 Menu
(Option)
Mode Setting Home Use / Store Demo
27 Menu
(Input)
Antenna, Cable, USB,
AV1/2, Component1/2,
RGB, HDMI1/2/3
28 Menu (USB)
Movie List,
Photo List,
Music List
INPUT
TV/RAD
Energy saving
Q.MENU
MENU
GUIDE
RETURN
INFO
AV MODE
Etc.
POWER, Navigation key (Up, Down ,Left ,Right ), OK,
Numeric(0~9), P +/-, Δ+/-,
RED key, GREEN key, YELLOW key, BLUE key, SUBTITLE,SIMPLINK
MARK Favorite List
MUTE Audio Mute
29 Hot Key
(Remote)
LIST

LGE DisplayDivision LG(56) C1-1480-00
Establish:
Reform :
LG 전자
LC01U Product Specification
6. Safety and Regulation
No Item Min Typ Max Unit Remarks
1. Force Stability – Incline Plane Tip Test 10 12 Deg IEC60065
2. Clearances & Creepage : AC-AC 3 mm 
3. Clearances & Creepage : AC-GND 3 mm 
4. Clearances & Creepage : Primary ↔
Secondary 6 mm 
32LK450-CC(AUO) 85 120 Test method for
Power consumption(Typ.)
32LK450-CC(IPS) TBD 120
37LK450-CC 118 160 And Energy saving :
refer to 14 page.
42LK530-CC 139 200 
47LK530-CC 150 250 Dielectric Voltage
(AC↔FG)
55LK530-CC 208 320 - 1.5kV/100mA/1min
32LV3500-CB(CMI) 59 80
32LV3500-CB(LGD) TBD 80 - 1.8kV/100mA/1sec(M/P)
37LV3500-CB(AUO) 72 100 
37LV3500-CB(LGD) TBD 100 
32LK330-CB(BOE) 96 120 
32LK330-CB(IPS) 91 120 Dielectric Voltage
(WITHOUT FG)
42LV3650-CA TBD 110 
42LV4500-CA TBD 120 
5. Power Consumption,
Max
47LV4500-CA

TBD 140
W 


LGE DisplayDivision LG(56) C1-1480-00
Establish:
Reform :
LG 전자
LC01U Product Specification
55LV4500-CA TBD 160 
42LW4500-CA 108 120 
47LW4500-CA 112 140 
55LW4500-CA 125 160
7. Power Consumption,
Stand by All-inch 1 W External interface signal
line↔AC
8. Dielectric Voltage 1.5 Kv - 3kV/100mA/1min
9. Dielectric Voltage(for M/P) 1.8 Kv 10 ㏁- 3.6kV/100mA/1sec
10. Isolation Resistance 4 ㏁ 
UL/CSA 0.5 mA (rms) 
11. Leakage Current Etc. 0.35 V Peak 
12. Power cord Length 1.6 1.8 3 M 
13 Sharp Edge None 
Safety K60065 Not
Applied 
Korea Compliance
EMC MIC Class A / B Not
Applied 
Safety UL6500 
UL Compliance EMC FCC Part 15 Class A / B Applied 
Safety CSA60065 
CSA Compliance EMC GRR Part II A 
Safety IEC60065, D 
IEC Compliance EMC CISPR Applied

Safety EN60065 Applied  
EN55013, EN55020 Applied 
EN61000-3-2 Harmonics 
EN61000-3-3 Flicker 
14
CE Compliance
EMC
EN61000-4-2 ESD 
