LG 32LM6200 User manual

Printed in ChinaP/NO : MFL67464703(1203-REV00)
CHASSIS : LC22E
MODEL :32LM6200
MODEL : 32LM6200-CC
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
LED LCD TV
SERVICE MANUAL
North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com
Internal Use Only

- 2 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ........................................................................ 3
SERVICING PRECAUTIONS ................................................................... 4
SPECIFICATION ...................................................................................... 5

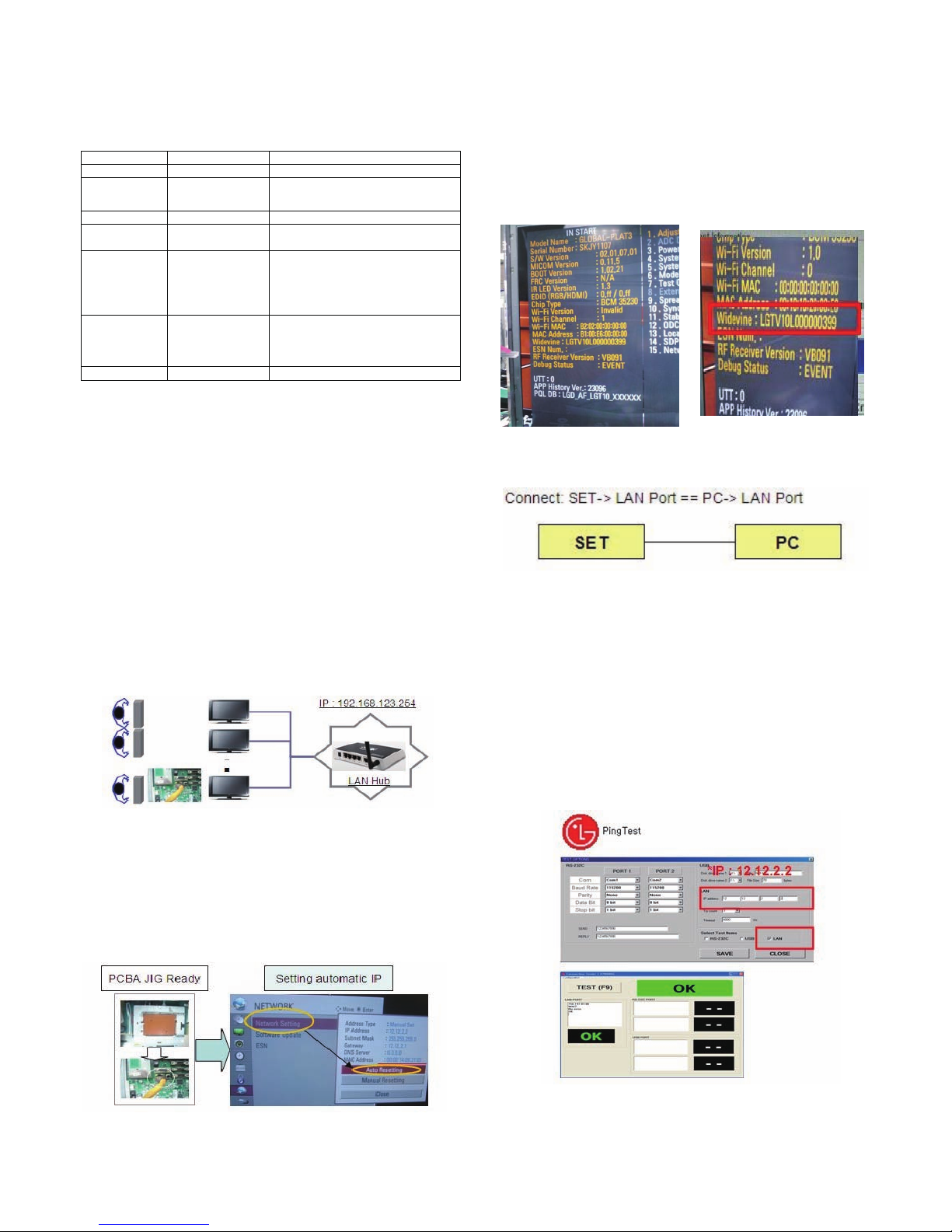

ADJUSTMENT INSTRUCTION ............................................................... 9

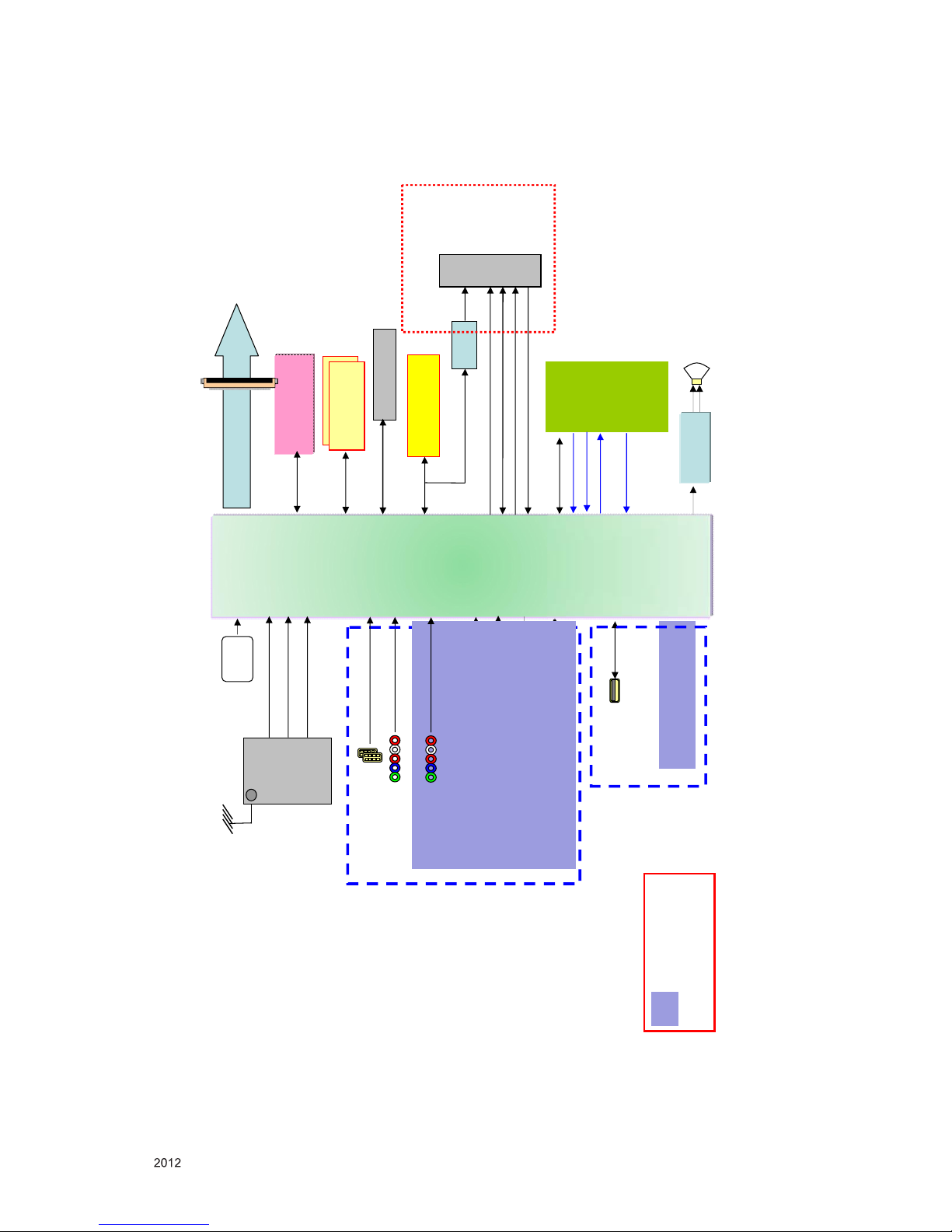

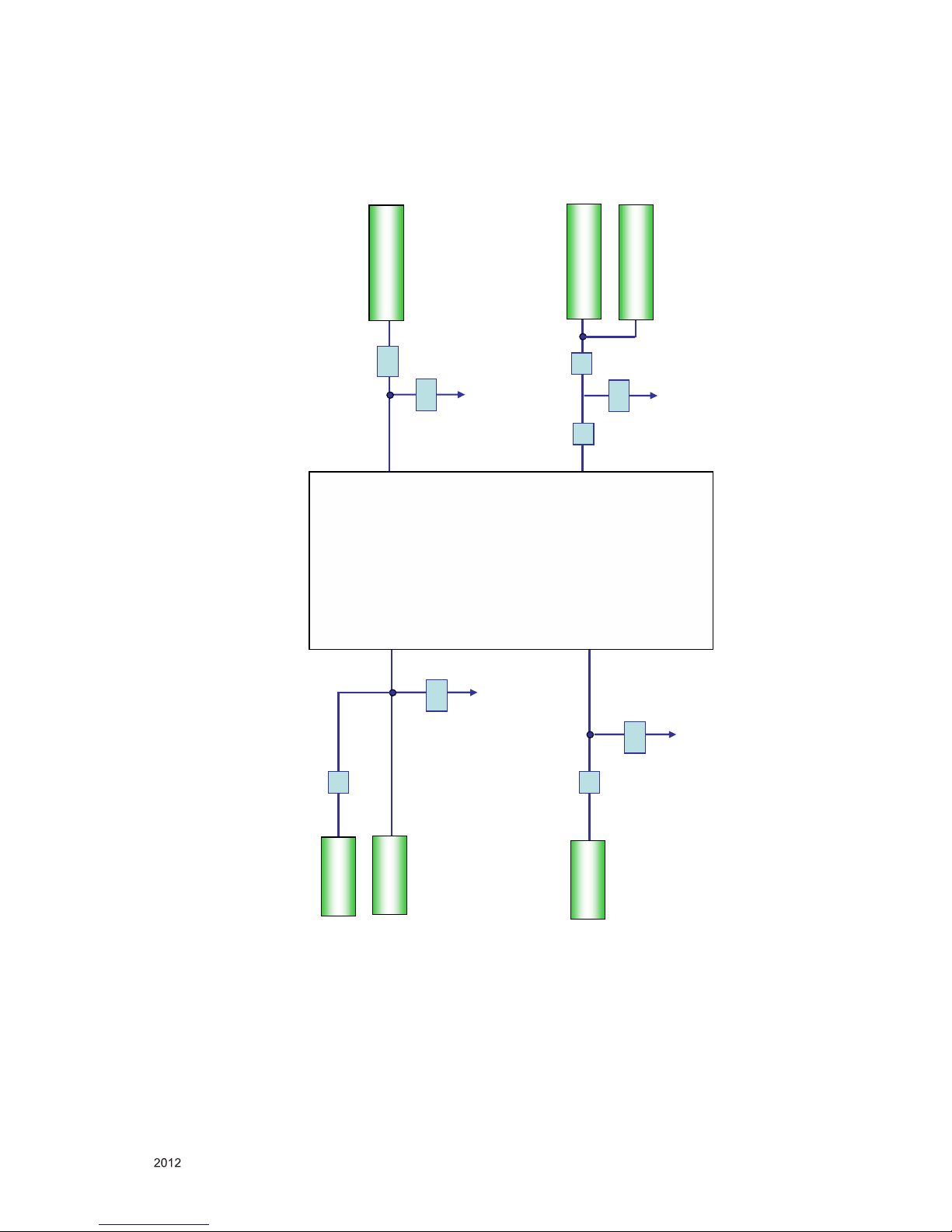

BLOCK DIAGRAM ................................................................................. 17
EXPLODED VIEW .................................................................................. 19
SCHEMATIC CIRCUIT DIAGRAM ..............................................................

- 3 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

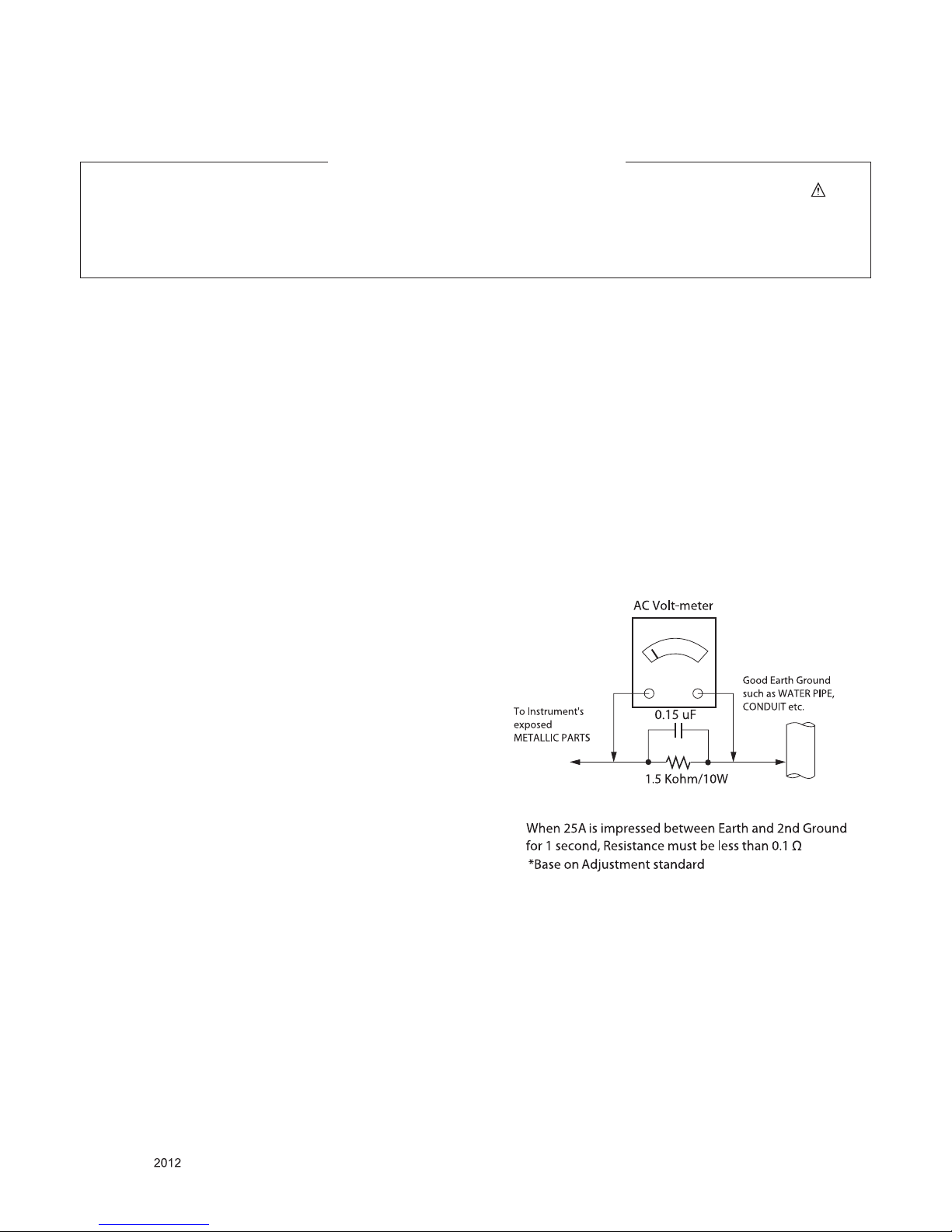

Leakage Current Hot Check circuit
IMPORTANT SAFETY NOTICE
SAFETY PRECAUTIONS

- 4 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conict between the
following servicing precautions and any of the safety precautions
on page 3 of this publication, always follow the safety precautions.
Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board mod-
ule or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug or
other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an explo-
sion hazard.
2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specied otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)
CAUTION: This is a ammable mixture.
Unless specied otherwise in this service manual, lubrication of
contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test xtures specied in this
service manual.
CAUTION: Do not connect the test xture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged eas-
ily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some eld-effect transistors
and semiconductor “chip” components. The following techniques
should be used to help reduce the incidence of component dam-
age caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground. Alter-
natively, obtain and wear a commercially available discharging
wrist strap device, which should be removed to prevent poten-
tial shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or expo-
sure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an anti-static type solder removal device. Some solder
removal devices not classied as “anti-static” can generate
electrical charges sufcient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufcient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads electri-
cally shorted together by conductive foam, aluminum foil or
comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replace-
ment ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your
foot from a carpeted oor can generate static electricity suf-
cient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500 °F to 600 °F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500 °F to 600 °F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500 °F to 600 °F)
b. First, hold the soldering iron tip and solder the strand against
the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder ows onto and around both the compo-
nent lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.

- 5 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent at against the cir-
cuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing
the IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close
as possible to the component body.
2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as pos-
sible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC connec-
tions).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the
good copper pattern. Solder the overlapped area and clip off
any excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly con-
nected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

- 6 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
: Standard input voltage (AC 100-240 V~, 50/60 Hz)
* Standard Voltage of each products is marked by models.
4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
5) The receiver must be operated for about 20 minutes prior to
the adjustment.
4. Model General Specification
No. Item Remarks
1. Market CHINA , HONG KONG
(PAL/DVB Market)
2. Broadcasting system
1) PAL/SECAM-B/G/D/K
2) PAL-I/II
3) NTSC-M
4) DVB-T
3.
Receiving system Analog : Upper Heterodyne
Digital : COFDM(DVB-T)
► DTMB
( Carrier , Code Rate , Constellation , Frame Header ,
Interleaving )*. China
- MODE1 : 3780 , 0.4 , 16QAM , PN945 , 720 , 9.626Mbps
- MODE2 : 1 , 0.8 , 4QAM , PN595 , 720 , 10.396Mbps
- MODE3 : 3780 , 0.6 , 16QAM , PN945 , 720 , 14.438Mbps
- MODE4 : 1 , 0.8 , 16QAM , PN595 , 720 , 20.791Mbps
- MODE5 : 3780 , 0.8 , 16QAM , PN420 , 720 , 21.658Mbps
- MODE6 : 3780 , 0.6 , 64QAM , PN420 , 720 , 24.365Mbps
- MODE7 : 1 , 0.8 , 32QAM , PN595 , 720 , 25.989Mbps
*. HONG KONG
- MODE : 3780 , 0.4/0.6 , 4/16/64QAM , PN945 , 720
QPSK : 1/2, 2/3, 3/4, 5/6, 7/8
16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
► DVB-C
- Symbolrate :
4.0Msymbols/s to 7.2Msymbols/s
- Modulation :
16QAM, 64-QAM, 128-QAM and 256-QAM
4 Video Input RCA(1EA) AV gender jack 1EA
5. Component Input Y/Cb/Cr, Y/Pb/Pr
6. RGB Input RGB-PC Analog(D-SUB 15PIN)
7. HDMI Input HDMI1-DTV/DVI,HDMI2-DTV/DVI
HDMI3-DTV/DVI,HDMI4-DTV/DVI PC(HDMI version 1.3)
Support HDCP
8. Audio Input RGB/DVI Audio Component
AV
9. SPDIF out SPDIF out
10 USB Input FEMF, DivX HD, For SVC (download)
L/R Input
JPEG, MP3, DivX HD
11 Lan Jack
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement .
1. Application range
This specification is applied to the LCD TV used LC22E
chassis.
2. Requirement for Test
Each part is tested as below without special appointment.
1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C
2) Relative Humidity: 65 % ± 10 %
3) Power Voltage
3. Test method
1) Performance: LGE TV test method followed
2) Demanded other specification
- Safety : CE, IEC specification
- EMC : CE, IEC
- Wireless : Wireless HD Specification (Option)

- 7 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5. Component Video Input (Y,
Cb/Pb, Cr/Pr)
6. RGB input (PC)
No. Resolution H-freq(kHz) V-freq.(Hz) Proposed Remark
1
2
3
720*400 31.468 70.08 VESA(VGA) For only DOS mode
Input 848*480 60Hz,
852*480 60Hz
->640*480 60Hz Display
4
640*480 31.469 59.94 VESA(SVGA)
5
800*600 37.879 60.31 VESA(XGA)
6
1024*768 48.363 60.00 VESA
1360*768 47.72 59.8 VESA(WXGA)
1920*1080 66.587 59.93 WUXGA(CEA 861D) FHD only
No. Resolution H-freq(kHz) V-freq(Hz) Porposed
1 720×480 15.73 60.00 SDTV, DVD 480i
2 720×480 15.63 59.94 SDTV, DVD 480i
3 720×480 31.47 59.94 480p
4 720×480 31.50 60.00 480p
5 720×576 15.625 50.00 SDTV, DVD 625 Line
6 720×576 31.25 50.00 HDTV 576p
7 1280×720 45.00 50.00 HDTV 720p
8 1280×720 44.96 59.94 HDTV 720p
9 1280×720 45.00 60.00 HDTV 720p
10 1920×1080 31.25 50.00 HDTV 1080i
11 1920×1080 33.75 60.00 HDTV 1080i
12 1920×1080 33.72 59.94 HDTV 1080i
13 1920×1080 56.250 50 HDTV 1080p
14 1920×1080 67.5 60 HDTV 1080p

- 8 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
7. HDMI Input
7.1. DTV mode
No. Resolution H-freq(kHz) V-freq.(kHz) Proposed Proposed
1. 720*480 31.469 / 31.5 59.94 / 60 27.00/27.03 SDTV 480P
2. 720*576 31.25 50 54 SDTV 576P
3. 1280*720 37.500 50 74.25 HDTV 720P
4. 1280*720 44.96 / 45 59.94 / 60 74.17/74.25 HDTV 720P
5. 1920*1080 33.72 / 33.75 59.94 / 60 74.17/74.25 HDTV 1080I
6. 1920*1080 28.125 50.00 74.25 HDTV 1080I
7. 1920*1080 26.97 / 27 23.97 / 24 74.17/74.25 HDTV 1080P
8. 1920*1080 33.716/ 33.75 29.976/30.00 74.25 HDTV 1080P
9. 1920*1080 56.250 50 148.5 HDTV 1080P
10. 1920*1080 67.43 / 67.5 59.94 / 60 148.35/148.50 HDTV 1080P
7.2. PC mode
No. Resolution H-freq(kHz) V-freq.(Hz) Proposed Remark
1 31.468 70.08
2720 x 400 31.469 59.94 VESA
3640 x 480 37.879 60.31 VESA
4800 x 600
5
1024 x 768 48.363 60.00 VESA(XGA)
6 63.595 60.0
60.0
7
1280 x 1024 WXGA
SXGA HDCP / FHD model
HDCP / FHD model
HDCP
HDCP
HDCP
HDCP
HDCP
1360 x 768 47.712 59.8
1920 x 1080 67.5 WUXGA

- 9 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

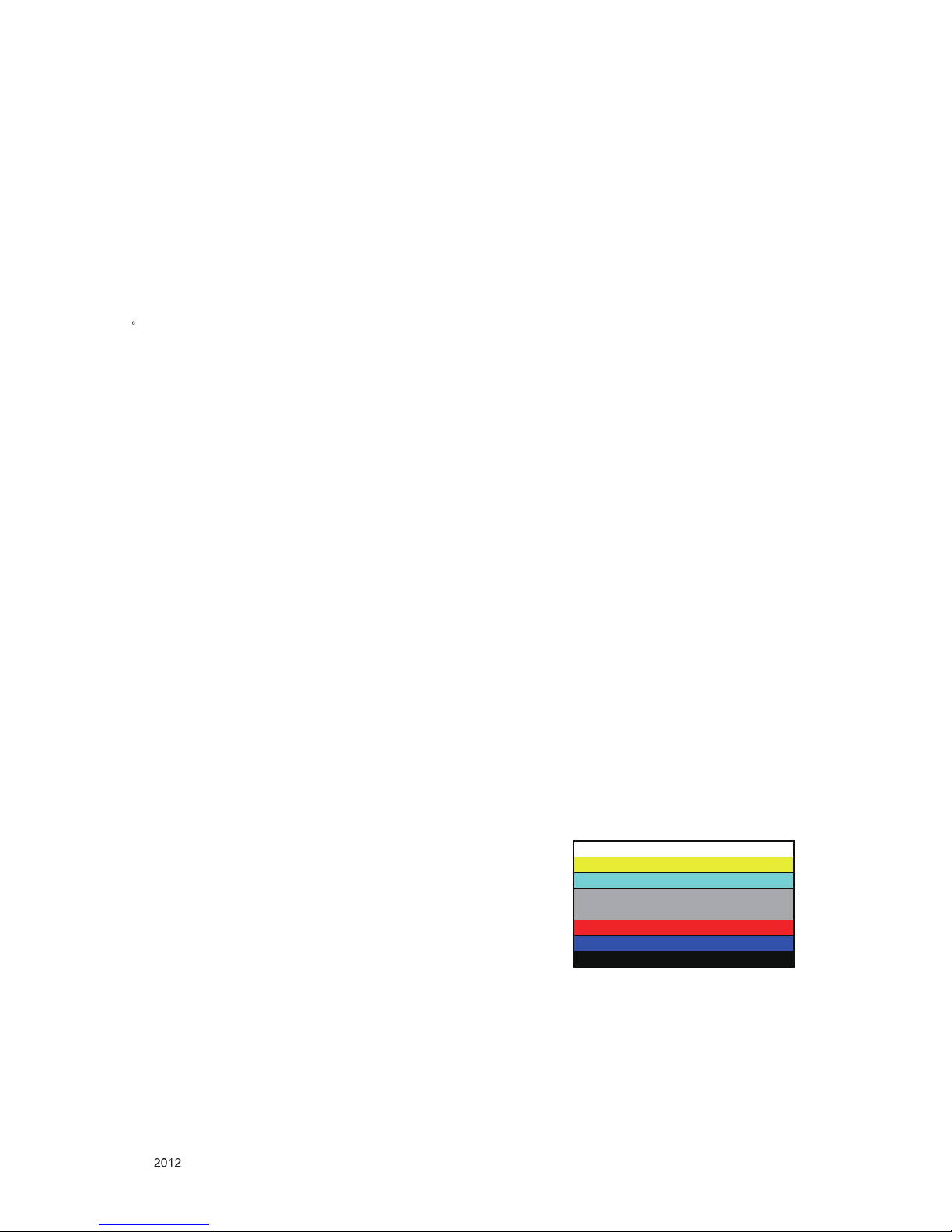

ADJUSTMENT INSTRUCTION
1. Application Range
This specification sheet is applied to all of the LED LCD TV
with LC22E chassis.
2. Designation
(1) ecause this is not a hot chassis, it is not necessary to
use an isolation transformer. However, the use of
isolation transformer will help protect test instrument.
(2) Adjustment must be done in the correct order.
(4) The input voltage of the receiver must keep 100~240V, 50/60Hz.
(5) The receiver must be operated for about 5 minutes prior to
the adjustment when module is in the circumstance of over 15.
In case of keeping module is in the circumstance of 0 °C, it
should be placed in the circumstance of above 15 °C for 2
hours
In case of keeping module is in the circumstance of below -20
°C, it should be placed in the circumstance of above 15 °C for
3 hours.
(3) The adjustment must be performed in the circumstance of
25 ±5 C of temperature and 65±10% of relative humidity if
there is no specific designation.
Caution) When still image is displayed for a period of 20
minutes or longer (especially where W/B scale is strong.
Digital pattern 13ch and/or Cross hatch pattern 09ch),
there can some afterimage in the black level area.
3.1 Main PCB check process
3. Adjustment items
4.Automatic Adjustment
■ Enter Service Mode by pushing “ADJ” key,
■ Enter ADC mode by pushing “► key at “8. ADC Calibration”
■ There are 2 ways for ADC Calibration. ( OTP, External )
*. OTP mode
: Automatic ADC Calibration. (Internal ADC Calibration) On the
manufacture line, OTP is used for ADC Calibration automatically.
*. External mode
: Manual ADC Calibration. When OTP mode is failed, ADC
calibration should be “OK” by using External mode.
3.2. Final assembly adjustment
▪White Balance adjustment
▪RS-232C functionality check
▪ PING Test
▪Factory Option setting per destination
▪Ship-out mode setting (In-Stop)
3.3. Etc
▪Ship-out mode
▪Service Option Default
▪USB Download(S/W Update, Option, Service only)
▪ISP Download(Option)
▪MAC Address Download
▪Wide-Vine Key Download
▪Adjust 1920*1080 Comp1
▪Adjust 1920*1080 RGB
▪EDID/DDC download
Above adjustment items can be also performed in
Final Assembly if needed. Both Board-level and
Final assembly adjustment items can be check
using In-Start Menu.
1.ADJUST CHECK.
4.1. Final assembly adjustment
1. Change the ADC type “OTP” by using “►”key.
2. Enter “Start” key.
3. Check the sign “OK” below ADC type.
4.1.2 External ADC Adjustment
Overview
ADC adjustment is needed to find the optimum black level and gain
in Analog-to-Digital device and to compensate RGB deviation.
Equipment & Condition
1) USB to RS-232C Jig
2) MSPG-925 Series Pattern Generator(MSPG-925FA, pattern -65)
- Resolution: 1080P Comp1
1920*1080P RGB
- Pattern : Horizontal 100% Color Bar Pattern
- Pattern level : 0.7±0.1 Vp-p
- Image
Adjustment method
▪ Using USB, adjust items listed in 3.1 in the other shown in “4.1.3.3”

- 10 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Adj. protocol
Ref.) ADC Adj. RS232C Protocol_Ver1.0
. WIDEVINE Key Inspection
- Confirm Key input Data at the “IN START” MENU Mode
4.3 LAN PORT INSPECTION(PING TEST)
4.4.1. Equipment setting
1) Play the LAN Port Test PROGRAM.
2) Input IP set up for an inspection to Test
Program.
*IP Number : 12.12.2.2
4.4.2. LAN PORT inspection (PING TEST)
1) Play the LAN Port Test Program.
2) connect each other LAN Port Jack.
3) Play Test (F9) button and confirm OK Message.
4) remove LAN CABLE
Adj. order
▪aa 00 00 [Enter ADC adj. mode]
▪xb 00 04 [Change input source to Component1(480i&1080p)]
▪ad 00 10 [Adjust 480i&1080p Comp1]
▪xb 00 06 [Change input source to RGB(1024*768)]
▪ad 00 10 [Adjust 1920*1080 RGB]
▪aa 00 90 End adj.
Ref) ADC adj. RS232C Protocol_Ver1.0
4.2 LAN Inspection
4.2.1 Equipment & Condition
▪ Each other connection to LAN Port of IP Hub and Jig。
4.2.2 LAN inspection solution
LAN Port connection with PCB
▪ Network setting at MENU Mode of TV
▪ setting automatic IP
▪ Setting state confirmation
If automatic setting is finished, you confirm IP and MAC Address.
Protocol
Command
Set ACK
Enter adj. mode
aa 00 00
a 00 OK00x
Source change
xb 00 04
xb 00 06
b 00 OK04x (Adjust 480i, 1080p Comp1 )
b 00 OK06x (Adjust 1920*1080 RGB)
Begin adj.
ad 00 10
Return adj. result
OKx (Case of Success)
NGx (Case of Fail)
Read adj. data
(main)
ad 00 20
(sub )
ad 00 21
(main)
000000000000000000000000007c007b006dx
(Sub)
000000070000000000000000007c00830077x
Confirm adj .
ad 00 99
NG 03 00x (Fail)
NG 03 01x (Fail)
NG 03 02x (Fail)
OK 03 03x (Success)
End adj.
aa 00 90
a 00 OK90x
4.2.3 WIDEVINE Key Inspection

- 11 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4.3 Model name & Serial number
Download
4.3.1 Model name & Serial number D/L
b. check the menu on in-start
5. Manual Adjustment
5.1. ADC adjustment is not needed because\
of OTP(Auto ADC adjustment)
5.2. EDID (The Extended Display Identific-
ation Data) / DDC (Display Data Channel)
download
5.2.1 Overview
It is a VESA regulation. A PC or a MNT will display an optimal
resolution through information sharing without any
necessity of user input. It is a realization of “Plug and Play”.
5.2.2 Equipment
▪ Since embedded EDID data is used, EDID download JIG,
HDMI cable and D-sub cable are not need.
▪ Adjust remocon
5.2.3 Download method
1) Press Adj. key on the Adj. R/C, then select “12.EDID D/L”.
By pressing Enter key, enter EDID D/L menu.
2) Select [Start] button by pressing Enter key, HDMI1 / HDMI2 / HDMI3
/ HDMI4 / RGB are Writing and display OK or NG.
■ Press “Power on” key of service remocon.(Baud rate :
115200 bps)
■ Connect RS-232C Signal to USB Cable to USB.
■ Write Serial number by use USB port.
■ Must check the serial number at Instart menu.
4.3.2 Method & notice
A. Serial number D/L is using of scan equipment.
B. Setting of scan equipment operated by Manufacturing
Technology Group.
C. Serial number D/L must be conformed when it is produced in
production line, because serial number D/L is mandatory by
D-book 4.0
* Manual Download (Model Name and Serial Number)
If the TV set is downloaded By OTA or Service man,
Sometimes model name or serial number is initialized.( Not always)
There is impossible to download by bar code scan, so It need
Manual download.
a. Press the ‘instart’ key of ADJ remote controller.
b. Go to the menu ‘5.Model Number D/L’ like below photo.
c. Input the Factory model name(ex 47LM6200-CC) or Serial
number like photo.
d. Check the model name Instart menu -->Factory name displayed
(ex 47LM62000-CA)
e. Check the Diagnostics (DTV country only) --> Buyer model
displayed (ex 47LM6200-CC)
4.4 WIFI MAC ADDRESS CHECK
a. Using RS232 Command
Command
Set ACK
T
ransmission
[A][l][][Set ID][][20][Cr]
[O][K][x] or [N][G]
For Analog EDID
For HDMI EDID
D-sub to D-sub
DVI-D to HDMI or HDMI to HDMI

- 12 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
RGB_EDID DATA *Vendor Specific(HDMI)DATA
5.3 White Balance Adjustment
5.3.1 Overview
▪ W/B adj. Objective & How-it-works
- Objective: To reduce each Panel’s W/B deviation
- How-it-works: When R/G/B gain in the OSD is at 192, it means the
panel is at its Full Dynamic Range. In order to prevent saturation
of Full Dynamic range and data, one of R/G/B is fixed at 192, and the
other two is lowered to find the desired value.
-Adj. condition : normal temperature
2) Warm-up time: About 5 Min
3) Surrounding Humidity: 20% ~ 80%
5.3.2 Equipment
1) Color Analyzer: CA-210 (LED Module : CH 14)
2) Adj. Computer(During auto adj., RS-232C protocol is needed)
3) Adjust Remocon
4) Video Signal Generator MSPG-925F 720p/204-Gray(Model:217,
Pattern:49)
→ Only when internal pattern is not available
▪Color Analyzer Matrix should be calibrated using CS-100。

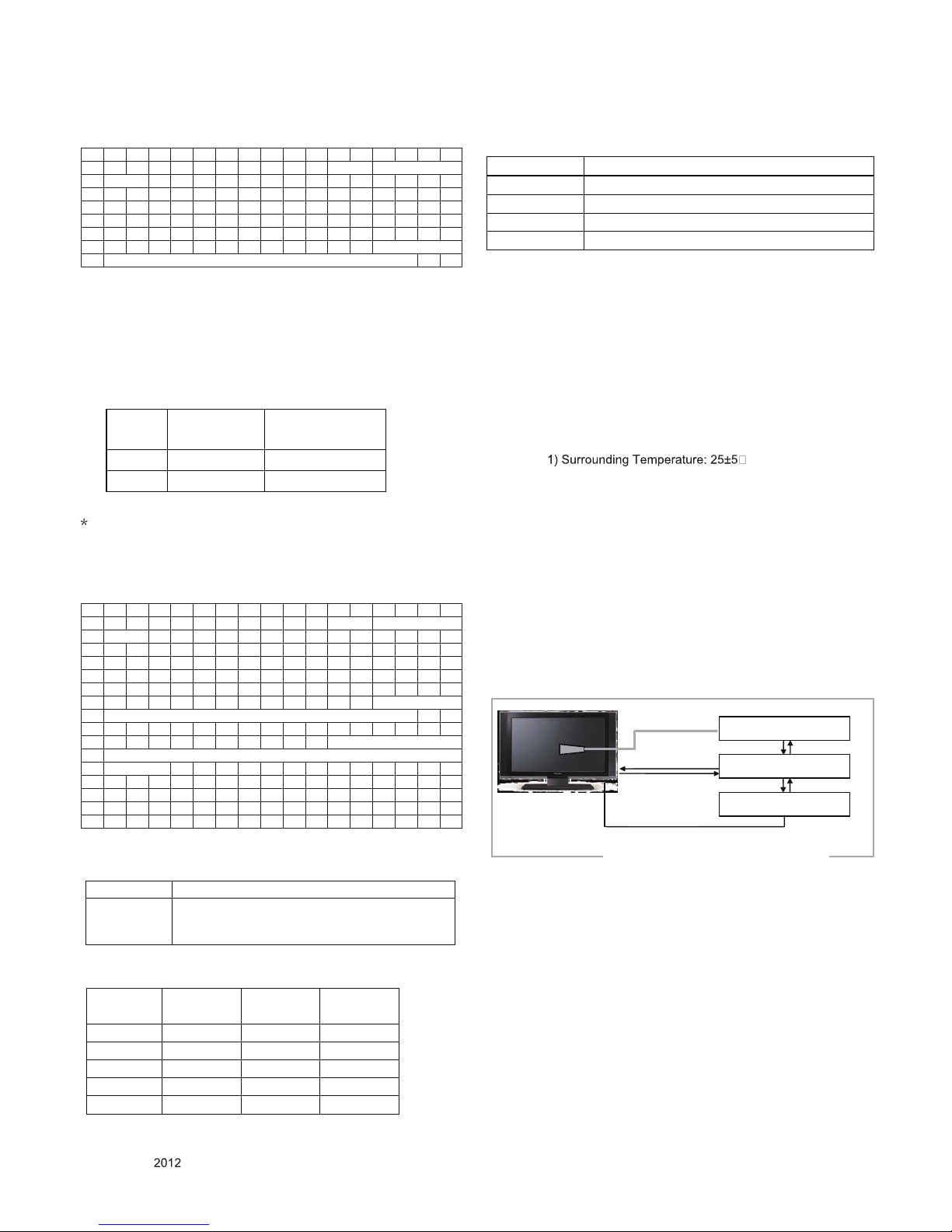

5.3.3 Equipment connection MAP
5.3.4 Adj. Command (Protocol)
<Command Format>
START 6E A 50 A LEN A 03 A CMD A 00 A VAL A CS A STOP
- LEN: Number of Data Byte to be sent
- CMD: Command
- VAL: FOS Data value
- CS: Checksum of sent data
- A: Acknowledge
Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX]
▪RS-232C Command used during auto-adj.
5.2.4 EDID DATA
▪Reference
- HDMI1 ~ HDMI4 / RGB
- In the data of EDID, bellows may be different by S/W or Input mode.
*Product ID
Serial No: Controlled on production line.
*Month, Year: Controlled on production line: ex)
Monthly : ‘01’ -〉 ‘01’
*Model Name(Hex): LGTV
*Checksum(LG TV): Changeable by total EDID data.
3D FHD RGB EDID data
0x00 0x01 0x02 0x030x04 0x05 0x060x07 0x08 0x09 0x0A0x0B0x0C 0x0D0x0E0x0F
0x00 00 FF FF FF FF FF FF 00 1E 6D a b
0x01 c01 03 68A0 5A78 0A EE 91 A3 54 4C 99 26
0x02 0F50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
0x0301 01 01 01 01 01 02 3A 80 18 71 38 2D40 58 2C
0x04 45 00 A0 5A00 00 00 1E 66 21 50 B0 51 00 1B 30
0x05 40 70 36 00 A0 5A00 00 00 1E00 00 00 FD 00 3A
0x06 3E 1E5310 00 0A20 20 20 20 20 20 d
0x07 d00 e3
0x00 0x01 0x02 0x030x04 0x05 0x060x07 0x08 0x09 0x0A0x0B0x0C 0x0D0x0E0x0F
0x00 00 FF FF FF FF FF FF 00 1E 6D a b
0x01 c01 0380 A0 5A78 0A EE 91 A3 54 4C 99 26
0x02 0F50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
0x0301 01 01 01 01 01 02 3A 80 18 71 38 2D40 58 2C
0x04 45 00 A0 5A00 00 00 1E 66 21 50 B0 51 00 1B 30
0x05 40 70 36 00 A0 5A00 00 00 1E00 00 00 FD 00 3A
0x06 3E 1E5310 00 0A20 20 20 20 20 20 d
0x07 d01 e1
0x00 02 03 37 F1 4E10 9F04 13 05 14 0302 12 20 21
0x01 22 15 01 2615 07 50 09 57 07 f
0x02 f
0x03 f E3 05 0301 02 3A 80 18 71 38 2D 40 58
0x04 2C 45 00 A0 5A 00 00 00 1E 01 1D 80 18 71 1C 16
0x05 20 58 2C 25 00 A0 5A 00 00 00 9E01 1D 00 72 51
0x06D0 1E 20 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00
0x07 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 e2
HEX
EDID Table
DDC
Function
0001
0100
Analog
0001
0100
Digital
Chassis
MODEL NAME(HEX)
LD22E
00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 20
ⓔ1
ⓔ2
ⓔ3
HDMI1
9D
49
X
HDMI2
9D
39
X
HDMI3
9D
29
X
HDMI4
9D
19
X
RGB
X
X
80
INPUT
MODEL NAME(HEX)
HDMI1
78 03 0C 00 10 00 B8 2D 20 C0 0E 01 40 0A 3C 08 10 18 10 98 10 58 10 38 10
HDMI2
78 03 0C 00 20 00 B8 2D 20 C0 0E 01 40 0A 3C 08 10 18 10 98 10 58 10 38 10
HDMI3
78 03 0C 00 30 00 B8 2D 20 C0 0E 01 40 0A 3C 08 10 18 10 98 10 58 10 38 10
HDMI4
78 03 0C 00 40 00 B8 2D 20 C0 0E 01 40 0A 3C 08 10 18 10 98 10 58 10 38 10
Color Analyzer
Computer
Pattern Generator
※
※If TV internal pattern is used, not needed
Signal Source
Probe
RS-232C
RS-232C
USB to RS-232C

- 13- LGE Internal Use OnlyCopyright ©
LG Electronics. Inc.All rights reserved.
Only for training and service purposes
5.4 EYE-Q function check
Step 1) Turn on TV
Step 2) Press EYE key of Adj. R/C
Step 3) Cover the Eye Q II sensor on the front of the using your hand
and wait for 6 seconds
Step 4) Confirm that R/G/B value is lower than 10 of the “Raw Data
(Sensor data, Back light )” . If after 6 seconds, R/G/B value is
not lower than 10, replace Eye Q II sensor
Step 5) Remove your hand from the Eye Q II sensor and wait for 6
seconds
Step 6) Confirm that “ok” pop up. s
If change is not seen, replace Eye Q II sensor
5.5 Local Dimming Function Check
Step 1) Turn on TV
Step 2) At the Local Dimming mode, module Edge Backlight moving
right to left
Back light of IOP module moving
Step 3) confirm the Local Dimming mode
Step 4) Press “exit” Key.
5.6 Magic Motion Remocon test
-equipment : RF Remocon for test, IR-KEY-Code Remocon for test
-You must confirm the battery power of RF-Remocon before test
(recommend that change the battery per every lot)
-Sequence (test)
a)if you select the ‘start key(OK)’ on the controller, you can
pairing with the TV SET.
b)You can check the cursor on the TV Screen, when select the
‘OK Key’ on the controller
c) You must remove the pairing with the TV Set by
‘Mute + OK Key’ on the controller。
5.7 3D function test
(Pattern Generator MSHG-600, MSPG-6100 [SUPPORT HDMI1.4])
* HDMI mode NO. 872 , pattern No.83
1) Please input 3D test pattern like below
(HDMI mode NO. 872 , pattern No.83)
2.When 3D OSD appear automatically ,
then select green button.
3. Don’t wear a 3D Glasses,
Check the picture like below .
5.8 3D Depth function TEST
5.9 Wi-Fi Test(LM6200 not support
Wi-Fi)
5.10 LNB voltage and 22KHz tone
check (only for DVB-S/S2 model)
Test method
Aging time Cool Medium Warm
(Min) x y x y x y
GP4
269 273 285 293 313 329
1 0-2 280 287 296 307 320 337
2 3-5 279 285 295 305 319 335
3 6-9 277 284 293 304 317 334
4 10-19 276 283 292 303 316 333
5 20-35 274 280 290 300 314 330
6 36-49 272 277 288 297 312 327
7 50-79 271 275 287 295 311 325
8 80-119 270 274 286 294 310 324
9 Over 120 269 273 285 293 309 323

No Item Min Typ Max Unit Remark
9 10 12 W
1. Audio practical max
Output, L/R
(Distortion=10%
max Output) 8.10 10.8 Vrms
EQ Off
AVL Off
Clear Voice Off
2. Speaker (8Ω
Impedance)
10 12 W EQ On
AVL On
Clear Voice On
1. Set TV in Adj. mode using POWER ON.
2. Connect cable between satellite ANT and test JIG.
4. Press Yellow Key (ETC+SWAP) in Adj Remocon to make LNB on.
5. check LED light ‘ON’ at 18V menu.
6. check LED light ‘ON’ at 22KHz tone menu.
7. Press Blue Key (ETC+PIP INPUT) in Adj Remocon to make LNB off.
8. check LED light ‘OFF’ at 18V menu.
9. check LED light ‘OFF’ at 22KHz tone menu.
Test result
1. After press LNB On key, ‘18V LED’ and ‘22KHz tone LED’ should be
ON.
2. After press LNB OFF key, ‘18V LED’ and ‘22KHz tone LED’ should
be OFF.
5.11 Option selection per country
5.11.1 Overview
▪ Option selection is only done for models in Non-EU
5.11.2 Method
1) Press ADJ key on the Adj. R/C, then select Country Group Meun
2) Depending on destination, select Country Group Code 04 or
Country Group EU then on the lower Country option, select US, CA,
6.0 Tool Option selection
▪
Method: Press Adj. key on the Adj. R/C, then select Tool option.
6.1 Ship-out mode check (In-stop)
▪ After final inspection, press In-Stop key of the Adj. R/C and check
that the unit goes to Stand-by mode.
6.2 GND and Internal Pressure check
6.2.1 Method
1) GND & Internal Pressure auto-check preparation
- Check that Power Cord is fully inserted to the SET.
(If loose, re-insert)
2) Perform GND & Internal Pressure auto-check
- Unit fully inserted Power cord, Antenna cable and A/V arrive to
the auto-check process.
- Connect D-terminal to AV JACK TESTER
- Auto CONTROLLER(GWS103-4) ON
- Perform GND TEST
- If NG, Buzzer will sound to inform the operator.
- If OK, changeover to I/P check automatically.
(Remove CORD, A/V form AV JACK BOX)
- Perform I/P test
- If NG, Buzzer will sound to inform the operator.
- If OK, Good lamp will lit up and the stopper will allow the pallet to
move on to next process.
Measurement condition:
1. RF input: Mono, 1KHz sine wave signal, 100% Modulation
2. CVBS, Component: 1KHz sine wave signal 0.5Vrms
3. RGB PC: 1KHz sine wave signal 0.7Vrms.
8.1 SET Factoring Condition
No
1
6.2.2 Checkpoint
▪ TEST voltage
- GND: 1.5KV/min at 100mA
- SIGNAL: 3KV/min at 100mA
▪ TEST time: 1 second
▪ TEST POINT
- GND TEST = POWER CORD GND & SIGNAL CABLE METAL GND
- Internal Pressure TEST = POWER CORD GND & LIVE & NEUTRAL
▪ LEAKAGE CURRENT: At 0.5mArms.
7. Audio
No. Item Condition Remark
1. Power Off
2. Volume Level 10
3. Main Picture Input DTV DTV&ATV
4. Main Last Channel N.A.
5. Mute Off
6. ARC 16:9(DTV)
Energy Saving Auto
3D Settings
Standard
Backlight Energy Saving
Contrast 100
Brightness 50
Sharpness 25
Colour 60
Tint 0
7. PICTURE
Picture Mode
Colour Temp 0
- 14-LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

- 15-LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Sound Mode
Standard
Stanard
Music
Cinema
Sport
Game
Vivid
User setting
User EQ
Auto Volume
Off
Volume Mode
Volume Control
Medium
Dynamic EQ
On
Natural Sound
Bass Enhancer
On
Sound Optimizer
Normal
Infinite
Surround
On
Clear Voice II
Off
AV sync.
Off
DTV
Audio Setting
Auto
ARC Mode
Off
Balance
0
TV Speaker
On
8.
AUDIO
Audio Setting
Digital Audio Out
PCM
Auto Tuning
Manual Tuning
DTV/TV
Programme Edit
DTV/Radio/TV
9.
SETUP
(DTV&ATV)
CI information
Module
Clock
-- : --
User control
Off time
Off
On time
Off
Sleep Timer
Off
10.
Time
Automatic
Standby
4 hours
Product/Service
Info.
Initialization of
Premium
Set Password
New * * * *
Confirm * * * *
Off
Block Programme
DTV/RADIO/TV
Parental Guidance
Blocking Off
11.
LOCK
Lock System
Input Block
Menu Language
English
Audio Language
English
Language
Subtitle Language
English
Country
- -
Hard of Hearing
Off
Audio Description
Off
Volume
0
Disability
Assistance
Beep
Off
Stand by Light
On
Power Indicator
Power Light
On
Speed
Normal
Shape
Type D
Size
Medium
Pointer
Alignment
On
Factory Reset
Set ID
1
12.
OPTION
Mode Setting
Home Use
Network
Connection
Network Status
Wi-Fi Direct /
Wi-Fi Screen
13.
Network
Smart Share
Setting
Software Update
Picture Test
Sound Test
14.
SUPPORT
Signal Test
Energy Saving
Auto
3D Settings
Standard
Backlight
Energy Saving
Contrast
100
Brightness
50
Sharpness
25
Colour
60
Tint
0
Colour Temp
0
Dynamic
Contrast
Medium
Dynamic
Colour
Low
Clear White
off
Skin Colour
0
Grass Color
0
Sky Color
0
Noise
Reduction
Low
Super
Resolution
On
MPEG Noise
Reduction
Medium
Gamma
Medium
Black Level
Auto
Eye Care
Low
Real
Cinema
On
Colour
Gamut
Wide
xvYCC
Off
Picture Mode
Picture Reset
7.
Aspect Ratio
16:9

- 16-LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
8.2 USB S/W Download (option, Service only)
1. Put the USB Stick to the USB socket
2. Automatically detecting update file in USB Stick
- If your downloaded program version in USB Stick is Lower, it didn’t work.
But your downloaded version is Higher, USB data is automatically detecting
(Download Version High & Power only mode, Set is automatically Download)
3. Show the message “Copying files from memory
4. Updating is staring.
5. Updating Completed, The TV will restart automatically
6. If your TV is turned on, check your updated version and Tool
option. (explain the Tool option, next stage)
* If downloading version is more high than your TV have, TV
can lost all channel data. In this case, you have to channel
ecover. if all channel data is cleared, you didn’t have a DTV/ATV
test on production line.
* After downloading, have to adjust TOOL OPTION again.
1. Push "IN-START" key in service remote controller.
2. Select "Tool Option 1" and Push “OK” button.
3. Punch in the number. (Each model has their number.)
9.3 Tool Option selection
▪ Method: Press Adj. key on the Adj. R/C, then select Tool option.
HK (17)
118
8907
17229
37324
24093
1321
4907
32LM6200-CC
Area(Code)
Option1 Option2 Option3 Option4 Option5 Option6 Option7

- 17 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
BLOCK DIAGRAM
Ethernet
RGB PC
SPDIF
Component/AV
HDMI1/2(DVI)
Tuner
Tuner
PC/DVI Audi In
TU_CVBS
SIF
L/R
LG2111A
IC101
SERIAL FLASH
IC1401 (8M bit)
MX25L8005M2I
LVDS
(FHD/50Hz)
USB
DP/DM
SPK L/R
X-tal
24M
FPC(51P)
I2S
SPDIF
CVBS, Y/Pb/Pr, L/R
RGB/H/V
Rear
TMDS
DDR3 Add. DDR3 Data
SPI
Side
NAND FLASH
IC102 (2Gbit)
PCM_A[0:7]
TMDS
HDMI3
DDR3 1Gb
IC1202
H5TQ1G63BFR
DDR3 1Gb
IC1201
H5TQ1G63BFR
CONTROL
IR & LED /
SOFT TOUCH
(TACT SWITCH)
SENSOR
_SCL/SDA
LED_R
KEY1
KEY2
IR
M24M01-HRMN6TP
IC104 256Kbit
I2C
Except of LM4600/LM3100/ LM3400/LS4100/ LS3500/CS460
CI Slot
74LCX244 Buffer
TS_DATA[0:7]
PCM_DATA[0:7] FE_TS_DATA[0:7]
PCM_A[8:14]
EPHY
FE_TS_DATA[0:7]
Audio AMP
STA380BWE
Component
Y/Pb/Pr, L/R
CI Slot: Only LM5700 for China

- 18 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
IC104
NVRAM
IC101
LGE2111A
22Ω
+3.3V_Normal
2.2KΩ
IC103
HDCP EEPROM
TUNER(A,D)
1KΩ
+3.3V_TU
TU_SCL TU_SDA
I2C_SCL I2C_SDA
DrivingCurrent:2/4/6/8mA
Wecanbechangedbysoftware
configuration.
+3.3V_Normal
1KΩ
IR BOARD
Intelligentsensor
SENSOR_SCL SENSOL_SDA
100Ω
33Ω
AMP_SCL (DEMOD_SCL) AMP_SDA (DEMOD_SDA_
IC3400
STA380BW
1KΩ
+3.3V_Normal
22Ω
AMP_SCL AMP_SDA
22ΩTUNER(D.D)
DEMOD_SCL DEMOD_SDA

- 19 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
300 200
800 530 540
550
810
910
900
521
LV1
A2 A5 AG1
400
120
511
510
310
ÀýÀü¸ðµå ¿ÜºÎÀÔ·Â
¤¿¤Ã
ÀÔü¿µ»ó
3D TV
À½·®
À§Á¬
½º¸¶Æ®TV
ÀÌÀü £Æí ¼³Á¤
3D ¿É
¼Ç
³ª¡±â
È®ÀÎ
ÇöÀç¹æ¼Û
¹æ¼Û¾È³» Á¤º¸Ç¥½Ã
³ìÈ-
¼±È£
ä³Î
Æä ÀÌ Áö
¿µ»óä³Î¸ñ·Ï
Á¶¿ëÈ÷
¼±ÅÃ
Áö¿ò
ÇÑ/¿
µ/¼ýÀÚ
ä³Î
ȹÃß¡ ÀÌÀüä³Î
WM1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
CI_DATA[5]
CI_DATA[7]
MT5369_TS_OUT[2]
CI_DATA[2]
CI_DATA[4]
CI_ADDR[2]
CI_ADDR[10]
MT5369_TS_OUT[1]
CI_ADDR[13]
FE_TS_DATA[7]
CI_ADDR[5]
EMMC_DATA[7]
EMMC_DATA[6]
FE_TS_DATA[5]
CI_ADDR[8]
CI_DATA[0]
CI_ADDR[6]
CI_ADDR[1]
EMMC_DATA[4]
CI_ADDR[11]
CI_ADDR[12]
CI_DATA[1]
EMMC_DATA[2]
FE_TS_DATA[6]
FE_TS_DATA[0]
CI_ADDR[7]
FE_TS_DATA[4]
MT5369_TS_OUT[4]
CI_DATA[3]
EMMC_DATA[3]
EMMC_DATA[5]
FE_TS_DATA[3]
CI_ADDR[0]
MT5369_TS_OUT[7]
CI_ADDR[3]
CI_DATA[6]
FE_TS_DATA[1]
MT5369_TS_OUT[5]
MT5369_TS_OUT[0]
CI_ADDR[9]
CI_ADDR[14]
FE_TS_DATA[2]
MT5369_TS_OUT[3]
CI_ADDR[4]
MT5369_TS_OUT[6]
MODEL_OPT_2
JTRST#
FE_TS_SYNC
STB_SCL
USB_CTL3
SOC_RX
C116
0.1uF
R150
1K
MODEL_OPT_0
MT5369_TS_VAL
R147
1K
OPT
/CI_CD2
R155
10K
OPT
R166
2.7K
OPT
EMMC_CLK
R151
1K
OPT
MT5369_TS_SYNC
MT5369_TS_IN[1]
R165
4.7K
OSDA0
L/DIM0_MOSI
/USB_OCD3
R172
22
/PCM_CE1
OSDA1
+3.3V_NORMAL
MODEL_OPT_8
MODEL_OPT_6
R148
1K
JTMS
SOC_TX
CI_ADDR[0-14]
FE_TS_VAL
R167
4.7K
L/DIM0_VS
R103
4.7K
MT5369_TS_OUT[0-7]
MT5369_TS_IN[5]
EMMC_DATA[2-7]
R168
4.7K
OPT
R157
4.7K
OPT
R158 33
OPT
MODEL_OPT_1
CI_DATA[0-7]
JTDI
/PCM_IORD
MT5369_MISTRT
MODEL_OPT_1
CI_A_VS1
LED_PWM0
/PCM_REG
MT5369_XTAL_OUT
MT5369_MIVAL_ERR
I2C_SDA5
MT5369_XTAL_IN
AVDD_33SB
JTCLK
MODEL_OPT_5
A_DIM
FE_TS_CLK
USB_CTL2
MT5369_TS_IN[4]
SOC_RESET
/USB_OCD2
MT5369_MCLKI
/USB_OCD1
/PCM_OE
MT5369_TS_CLK
AVDD_33SB
PCM_RST
MODEL_OPT_3
MT5369_TS_IN[6]
USB_CTL1
MODEL_OPT_10
L/DIM0_SCLK
R153
1K
OPT
LED_PWM1
/PCM_IOWR
JTDO
C118
0.1uF
M_REMOTE_TX
OSCL0
VDD3V3
LED_PWM1
/PCM_WE
M_REMOTE_RX
R136 33
MT5369_TS_IN[0]
MODEL_OPT_5
MODEL_OPT_3
MT5369_TS_IN[2]
MT5369_TS_IN[3]
MODEL_OPT_0
+3.3V_NORMAL
ERROR_OUT
MT5369_TS_IN[7]
MODEL_OPT_6
+3.3V_NORMAL
IC104
AT24C256C-SSHL-T
NVRAM_ATMEL
3
A2
2
A1
4
GND
1
A0
5SDA
6SCL
7WP
8VCC
FE_TS_DATA[0-7]
MODEL_OPT_9
R174
10K
OPCTRL3
/PCM_WAIT
EMMC_CLK
/PCM_IRQA
R169 10K
OPT
R171
22
R170 22
OSCL1
PWM_DIM2
R137 33
R161
4.7K
OPT
R178
4.7K
OPT
PWM_DIM1
/CI_CD1
LED_PWM0
M_RFModule_ISP
+3.3V_NORMAL
IR
R154
1K
C117
0.1uF
I2C_SCL5
+3.3V_NORMAL
STB_SDA
X100
27MHz
MT5369_XTAL_OUTMT5369_XTAL_IN
+3.3V_NORMAL
R143 33
MTK_JTAG
JTMS
+3.3V_NORMAL
R144
10K
R152
1K
MTK_JTAG
JTDO
JTRST#
JTCLK
JTDI
AR100
10K
R149
10K
MTK_JTAG
R146
10K
MTK_JTAG
R145
10K
MTK_JTAG
+3.3V_NORMAL
R139
2.7K
OSDA2
I2C_SDA2
R117 33
+3.3V_NORMAL
R115 33
I2C_SDA6
R188
2.7K
I2C_SCL4
I2C_SDA4
OSCL2
I2C_SCL5
R122 33
R160
2.7K
R116 33
I2C_SDA5
R142
2.7K
OSCL0
I2C_SCL2
STB_SDA R111 33
R123 33
R134
2.7K
I2C_SDA1
I2C_SCL3
R114 33
R110 33
OSCL1
I2C_SCL6
I2C_SDA3
R113 33
R164
2.7K
OSDA1
R173
2.7K R156
2.7K
R118 33
R185
2.7K
OSDA0
R177
2.7K
R112 33
I2C_SCL1
R121 33
STB_SCL
R176 10K
SC_ID_SOC
M_RFModule_RESET
R162 10K
R163 10K
/TU_RESET
RF_SWITCH_CTL
AV1_CVBS_DET
OPCTRL3
DSUB_DET
HP_DET
COMP1_DET
SC_DET
OPCTRL_1_SCL
OPCTRL_11_SCL
/S2_RESET
SMARTCARD_VCC
SMARTCARD_RST
SMARTCARD_DATA
SMARTCARD_CLK
SMARTCARD_DET
SMARTCARD_PWR_SEL
SMARTCARD_VCC
SMARTCARD_PWR_SEL
SMARTCARD_RST
SMARTCARD_CLK
SMARTCARD_DATA
SMARTCARD_DET
+3.3V_NORMAL
R140 4.7K
MTK_DVB_T2_TUNER
R106 4.7K
MTK_Int_FRC/URSA5
R135 4.7K
MTK_CP_BOX
R101 4.7K
MTK_FRC3/URSA5
R189 4.7K
MTK_EPI
R186 4.7K
MTK_DVB_C2_TUNER
R125 4.7K
MTK_OPTIC_Tx_IC
R130 4.7K
MTK_3D_DEPTH_IC
R108 4.7K
MTK_FHD
R175 4.7K
MTK_DVB_S_TUNER
R132 4.7K
MTK_DDR_768MB
R190 4.7K
MTK_NON_EPI
R127 4.7K
MTK_NON_OPTIC_Tx_IC
R133 4.7K
MTK_DDR_DEFAULT
R129 4.7K
MTK_NON_3D_DEPTH_IC
R141 4.7K
MTK_NON_DVB_T2_TUNER
R102 4.7K
MTK_NO_FRC/Int_FRC
R138 4.7K
MTK_NON_CP_BOX
R109 4.7K
MTK_HD
R187 4.7K
MTK_NON_DVB_C2_TUNER
R184 4.7K
MTK_NON_DVB_S_TUNER
R107 4.7K
MTK_NO_FRC/FRC3
EPI_LOCK6
OPCTRL_0_SDA
OPCTRL_10_SDA
OPCTRL_1_SCL
OPCTRL_11_SCL
OPCTRL_0_SDA
OPCTRL_10_SDA
C101
0.1uF
16V
R191 22
+3.3V_NORMAL
R192 22
I2C_SCL1
R181 4.7K
I2C_SDA1
+3.3V_NORMAL
MDS62110213
M100
MTK_H/S_3.5T
MDS62110213
M101
MTK_H/S_3.5T
MDS62110213
M102
MTK_H/S_3.5T
MDS62110213
M103
MTK_H/S_3.5T
+3.3V_NORMAL
R159 4.7K
P100
12507WS-12L
MTK_JTAG
1
2
3
4
5
6
7
8
9
10
11
12
13
C120
2.2uF
10V
OPT
R193 10K
NON_EU
OPC_EN
/S2_RESET
R128
1.2K R131 1.2K
EMMC_DATA[0]
EMMC_DATA[1]
EMMC_CMD
R119
0
IC104-*1
M24256-BRMN6TP
NVRAM_ST
3
E2
2
E1
4
VSS
1
E0
5SDA
6SCL
7WC
8VCC
C115
24pF
C113
24pF
AMP_RESET_SOC AMP_RESET_N
R124
33
AMP_RESET_BY_SOC
AMP_RESET_SOC
IC105
LGE2112
MTK5369_NON_RM
JTCK
AP14
JTDI
AM14
JTDO
AR14
JTMS
AR15
JTRST
AN14
OSDA0
AP12
OSCL0
AN12
OSDA1
AP15
OSCL1
AN15
XTALI
AT34
XTALO
AU34
AVDD33_XTAL_STB
AK27
AVSS33_XTAL_STB
AH26
AVDD33_VGA_STB
AK18
AVSS33_VGA_STB
AK17
AVDD33_PLLGP
AK23
AVSS33_PLLGP
AM27
AVDD10_LDO
AJ20
GPIO0
H32
GPIO1
F37
GPIO2
F36
GPIO3
G37
GPIO4
G36
GPIO5
G35
GPIO6
G34
GPIO7
H34
GPIO8
L34
GPIO9
L32
GPIO10
K33
GPIO11
K32
GPIO12
H33
GPIO13
L35
GPIO14
K36
GPIO15
J32
GPIO16
J34
GPIO17
K34
GPIO18
K35
GPIO19
K37
GPIO20
J36
GPIO21
J37
GPIO22
J35
GPIO23
J33
GPIO24
G33
GPIO25
H35
GPIO26
H31
GPIO27
F34
GPIO28
E36
GPIO29
N33
GPIO30
P32
GPIO31
M35
GPIO32
M37
GPIO33
M33
GPIO34
F35
GPIO35
E35
GPIO36
E37
GPIO37
N32
GPIO38
M34
GPIO39
M36
GPIO40
M32
GPIO41
L33
GPIO42
E33
GPIO43
E32
GPIO44
F32
GPIO45
A29
GPIO46
D31
GPIO47
C31
GPIO48
E30
GPIO49
E31
GPIO50
F31
GPIO51
E29
GPIO52
AP9
GPIO53
AT9
GPIO54
AR9
GPIO55
AU9
ADIN0_SRV
AN23
ADIN1_SRV
AN24
ADIN2_SRV
AP23
ADIN3_SRV
AR23
ADIN4_SRV
AU23
ADIN5_SRV
AT23
ADIN6_SRV
AM24
ADIN7_SRV
AM23
U0TX AR18
U0RX AP18
U1RX AU16
U1TX AT16
POWE A35
POOE C33
POCE1 B34
POCE0 D33
PDD7 D29
PDD6 C30
PDD5 D30
PDD4 B31
PDD3 A31
PDD2 B32
PDD1 A32
PDD0 C32
PARB D32
PACLE A34
PAALE C34
EMMC_CLK C29
OPWRSB AM20
ORESET AM22
OIRI AU21
FSRC_WR D27
STB_SCL AT21
STB_SDA AR21
DEMOD_RST T34
DEMOD_TSCLK T32
DEMOD_TSDATA0 T36
DEMOD_TSDATA1 U36
DEMOD_TSDATA2 T33
DEMOD_TSDATA3 T30
DEMOD_TSDATA4 V33
DEMOD_TSDATA5 V32
DEMOD_TSDATA6 V31
DEMOD_TSDATA7 V30
DEMOD_TSSYNC T35
DEMOD_TSVAL T31
CI_INT N36
CI_TSCLK T37
CI_TSDATA0 R35
CI_TSSYNC R37
CI_TSVAL R36
PVR_TSCLK R34
PVR_TSVAL R32
PVR_TSSYNC R33
PVR_TSDATA0 P33
PVR_TSDATA1 P34
SPI_CLK1 N37
SPI_CLK P35
SPI_DATA N34
SPI_CLE N35
OPWM2 AU12
OPWM1 AT12
OPWM0 AR12
SD_D0 A37
SD_D1 C35
SD_D2 A36
SD_D3 B35
SD_CMD B36
SD_CLK B37
LDM_CS AT11
LDM_CLK AU11
LDM_VSYNC AR10
LDM_DO AM9
LDM_DI AP10
LED_PWM1 AN22
LED_PWM0 AP21
OPCTRL11 AU20
OPCTRL10 AT20
OPCTRL9 AN18
OPCTRL8 AP20
OPCTRL7 AM18
OPCTRL6 AN19
OPCTRL5 AP19
OPCTRL4 AR19
OPCTRL3 AN21
OPCTRL2 AM19
OPCTRL1 AN20
OPCTRL0 AR20
IC104-*2
R1EX24256BSAS0A
NVRAM_RENESAS
3
A2
2
A1
4
VSS
1
A0
5SDA
6SCL
7WP
8VCC
R100
10K AMP_RESET_BY_SOC
C114
0.1uF
16V
C105
0.1uF
OPT
C106
0.1uF
OPT
C100
0.1uF
OPT
C103
0.1uF
OPT
C102
0.1uF
OPT
C104
0.1uF
OPT
R120
1K
PWM1_PULL_DOWN_1K
R126
1K
PWM2_PULL_DOWN_1K
MDS61887710
M104
MTK_H/S_9.5T
IC100
M24C16-R
HDCP_EEPROM_ST
3
NC_3
2
NC_2
4
VSS
1
NC_1
5SDA
6SCL
7WC
8VCC
IC100-*1
24LC16B
HDCP_EEPROM_MICRO
3
A2
2
A1
4
VSS
1
A0
5SDA
6SCL
7WP
8VCC
R105
4.7K
OPT
R104
4.7K
OPT
M_RFModule_ISP
C108
2.2uF
10V
C107
2.2uF
10V
IC105-*1
LGE2112-AL
MTK5369_RM
DDRV_44
AC1
DDRV_45
AC2
DDRV_1
A3
DDRV_2
A4
DDRV_5
B4
DDRV_8
C4
DDRV_10
D4
DDRV_4
B3
DDRV_7
C3
DDRV_46
AC3
DDRV_47
AC4
MEMTP
G10
MEMTN
G9
RVREF_B
G13
RVREF_A
G21
ARCKE
F10
ARCLK1
D9
ARCLK1
C9
ARCLK0
A20
ARCLK0
A21
ARODT
E18
ARRAS
F17
ARCAS
E17
ARCS
E16
ARWE
D14
ARRESET
B14
ARBA0
A13
ARBA1
G11
ARBA2
D16
ARCSX
F18
ARA14
C15
ARA13
A15
ARA12
F13
ARA11
C14
ARA10
F11
ARA9
E15
ARA8
D13
ARA7
B15
ARA6
E14
ARA5
F16
ARA4
E13
ARA3
B13
ARA2
A14
ARA1
F14
ARA0
F15
ARDQM0 C19
ARDQS0 C21
ARDQS0 B21
ARDQ0 C23
ARDQ1 B17
ARDQ2 D23
ARDQ3 C17
ARDQ4 D24
ARDQ5 C16
ARDQ6 C24
ARDQ7 D15
ARDQM1 D21
ARDQS1 B20
ARDQS1 C20
ARDQ8 A17
ARDQ9 A23
ARDQ10 D17
ARDQ11 B23
ARDQ12 D20
ARDQ13 D22
ARDQ14 D19
ARDQ15 C22
ARDQM2 A7
ARDQS2 B9
ARDQS2 A9
ARDQ16 C12
ARDQ17 D6
ARDQ18 B12
ARDQ19 C5
ARDQ20 C13
ARDQ21 A5
ARDQ22 A12
ARDQ23 B5
ARDQM3 E10
ARDQS3 C8
ARDQS3 D8
ARDQ24 C6
ARDQ25 D10
ARDQ26 D7
ARDQ27 C11
ARDQ28 C7
ARDQ29 C10
ARDQ30 B7
ARDQ31 B10
AVDD33_MEMPLL N14
AVSS33_MEMPLL N15
DVSS_50 R1
DVSS_48 P21
8
MID_MAIN_1 2011.12.09
LG FRC2
3D DEPTH
T2 Tuner
MODEL OPTION 8 is just for CP Box
It should not be appiled at MP
NON_3D_Depth_IC
S Tuner
SoC
internal
FRC
SOC -> CI SLOT
NON_OPTIC
CI SLOT -> SOC
SOC -> CI SLOT
MODEL_OPT_9
OPTIC
1
MODEL_OPT_7
MODEL_OPT_3
Support
FHD
Write Protection
- Low : Normal Operation
- High : Write Protection
Disable
Reserved
DDR_768MB
EPI
Reserved
MODEL_OPT_2
DDR
MODEL_OPT_6
HIGH
MODEL_OPT_8
CI SLOT -> SOC
MODEL_OPT_0
Not Support
Default
1
Not Support
CP BOX
MODEL_OPT_5
0
0
CI SLOT -> SOC
Support
Enable
LOW
1
NO_FRC
NVRAM
Model Option
0
Close to eMMC Flash
(IC8100)
MODEL_OPT_10
0
CI SLOT -> SOC
HD
STRAPPING LED_PWM0 LED_PWM1 OPCTRL3
ICE mode + 27M + Serial boot 0 0 0
ICE mode + 27M + ROM to Nand boot 0 0 1
ICE mode + 27M + Rom to eMMC boot 0 1 0
from eMMC pins (share pins w/s NAND)
ICE mode + 27M + ROM to eMMC boot 0 1 1
from SDIO pins
DDR_Default
EXTERNAL DEMOD
-> SOC
MODEL_OPT_1 1
MODEL_OPT_4 3D_Depth_IC
X-TAL
JTAG
I2C
I2C_1 : AMP, L/DIMMING,HDCP KEY
I2C_2 : T-CON
I2C_3 : MICOM
I2C_4 : S/Demod,T2/Demod, LNB
I2C_5 : NVRAM
I2C_6 : TUNER_MOPLL(T/C,ATV)
FOR JAPAN
FOR JAPAN
HDCP EEPROM
Support Not Support
HEAT SINK SMD GASKET
5V Tolerance
MODEL_OPT_4
MODEL_OPT_4
Crystal Matching Test result
: 27pF -> 20pF -> 24pF
IC
EAX6430790* : LD22* / LC22*
EAX6443420* : LT22* / LJ22* / LA22* / LB22*
MODEL_OPT_7
MODEL_OPT_7
