LG 55LM8600 User manual
Printed in KoreaP/NO : MFL67364402 (1204-REV00)
CHASSIS : LJ23E
MODEL : 55LM8600 55LM8600-SA
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
LED LCD TV
SERVICE MANUAL
North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com
Internal Use Only
- 2 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
CONTENTS
CONTENTS .............................................................................................. 2
PRODUCT SAFETY ................................................................................. 3
SPECIFICATION ....................................................................................... 4
ADJUSTMENT INSTRUCTION .............................................................. 13
EXPLODED VIEW .................................................................................. 19
SCHEMATIC CIRCUIT DIAGRAM ..............................................................
- 3 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩand 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
IMPORTANT SAFETY NOTICE
SAFETY PRECAUTIONS
- 4 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement
.
1. Application range
This spec sheet is applied all of the 47”,55” LCD TV with
LJ23E chassis.
2. Test condition
Each part is tested as below without special notice.
1) Temperature : 25 ºC ± 5 ºC (77±9 ºF), CST : 40 ± 5 ºC
2) Relative Humidity: 65 % ± 10 %
3) Power Voltage
- AC 100-240 V~, 50/60 Hz
* Standard Voltage of each products is marked by models.
4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
5) The receiver must be operated for about 20 minutes prior to
the adjustment.
3. Test method
1) Performance: LGE TV test method followed
2) Demanded other specification
- Safety : CE, IEC specification
- EMC : CE, IEC
No Item Specication Remark
1. Display Screen Device 47” wide Color Display Module
55” wide Color Display Module
Resolution: 1920*1080
Resolution: 1920*1080
2. Aspect Ratio 16:9 All
3. LCD Module 47” TFT WUXGA LCD
55” TFT WUXGA LCD
4. Operating Environment 1) Temp. : 0 ~ 40 deg LGE SPEC
2) Humidity : 0 ~ 85%
5. Storage Environment 1) Temp. : -20 ~ 60 deg
2) Humidity : 10 ~ 90%
6. Input Voltage AC100 ~ 240V, 50/60Hz
7. Power Consumption(Max) =
LCD(Module) + Backlight(LED)
T240Hz
Semi-LCM
47” 83 W FPR : LC470EUH-PEF1 [47LM8600-SA]
55” TBD W FPR : LC550EUH-PEF1 [55LM8600-SA]
4. General Specification
8. LCD Module Size Maker Inch (H) × (V) × (D)
LGD 47”
1058.7 x 615.8 x 20.7
LC470EUH-PEF1
55” 960.4 x 560.4 x 17.4
LC550EUH-PEF1
Pixel Pitch Maker Inch (H) × (V) × (D)
LGD 47” 0.5415 x 0.5415
LC470EUH-PEF1
55” 0.630 x 0.630 LC550EUH-KEF1 : Edge 3D_T240Hz
Back Light LGD 47” Semi-LCM LC470EUH-PEF1
55” Semi-LCM LC550EUH-PEF1
- 5 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5. Supported video resolutions
5.1. Component (Y, PB, PR)
5.2. RGB( PC ) : RGB-PC EDID DATA : Refer to adjust specification
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed
1. 720*480 15.73 60 13.5135 SDTV ,DVD 480I
2. 720*480 15.73 59.94 13.5 SDTV ,DVD 480I
3. 720*480 31.50 60 27.027 SDTV 480P
4. 720*480 31.47 59.94 27.00 SDTV 480P
5. 720*576 15.625 50* 13.5 SDTV 576I
6. 720*576 31.25 50* 13.5 SDTV 576P
7. 1280*720 37.5 50* 74.25 HDTV 720P
8. 1280*720 45.00 60.00 74.25 HDTV 720P
9. 1280*720 44.96 59.94 74.176 HDTV 720P
10. 1929*1080 28.125 50* 74.25 HDTV 1080I
11. 1920*1080 33.75 60.00 74.25 HDTV 1080I
12. 1920*1080 33.72 59.94 74.176 HDTV 1080I
13. 1920*1080 56.25 50* 148.5 HDTV 1080P
14. 1920*1080 67.50 60 148.50 HDTV 1080P
15. 1920*1080 67.432 59.94 148.352 HDTV 1080P
16. 1920*1080 27.00 24.00 74.25 HDTV 1080P
17. 1920*1080 26.97 23.976 74.176 HDTV 1080P
18. 1920*1080 33.75 30.00 74.25 HDTV 1080P
19. 1920*1080 33.71 29.97 74.176 HDTV 1080P
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed
1 640*350 31.468 70.09 25.17 EGA X
2 720*400 31.469 70.08 28.32 DOS O
3 640*480 31.469 59.94 25.17 VESA(VGA) O
4 800*600 37.879 60.31 40 VESA(SVGA) O
5 1024*768 48.363 60.00 65 VESA(XGA) O
6 1360*768 47.712 60.015 85.5 VESA (WXGA) O
7 1600*1200 75.00 60.00 162 VESA (UXGA) O
8 1920*1080 67.50 60.00 148.5 HDTV 1080P O
- 6 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5.3. HDMI : EDID DATA : Refer to adjust specification
No Resolution H-freq(kHz) V-freq.(Hz) Pixel
clock(MHz) Proposed Remark
PC
1 640*350 31.468 70.09 25.17 EGA
2 720*400 31.469 70.08 28.32 DOS
3 640*480 31.469 59.94 25.17 VESA(VGA)
4 800*600 37.879 60.31 40 VESA(SVGA)
5 1024*768 48.363 60.00 65 VESA(XGA)
6 1152*864 54.348 60.053 80.002 VESA(VGA)
7 1360*768 47.712 60.020 84.75 VESA(WXGA)
8 1280*1024 63.981 60.015 109.00 SXGA Only FHD Model
(Support to HDMI-PC)
9 1920*1080 67.5 60.00 158.40 WUXGA(Reduced Blanking) FHD only
DTV
1 720*480 15.73 59.94 13.500 SDTV, DVD 480I(525I)
2 720*480 15.75 60.00 13.514 SDTV, DVD 480I(525I)
3 720*576 15.625 50.00 13.500 SDTV, DVD 576I(625I) 50Hz
4 720*480 31.47 59.94 27 SDTV 480P
5 720*480 31.5 60.00 27.027 SDTV 480P
6 720*576 31.25 50.00 27 SDTV 576P
7 1280*720 44.96 59.94 74.176 HDTV 720P
8 1280*720 45 60.00 74.25 HDTV 720P
9 1280*720 37.5 50.00 74.25 HDTV 720P
10 1920*1080 28.125 50.00 74.25 HDTV 1080I
11 1920*1080 33.72 59.94 74.176 HDTV 1080I
12 1920*1080 33.75 60.00 74.25 HDTV 1080I
13 1920*1080 26.97 23.976 63.296 HDTV 1080P
14 1920*1080 27.00 24.000 63.36 HDTV 1080P
15 1920*1080 33.71 29.97 79.120 HDTV 1080P
16 1920*1080 33.75 30.00 79.20 HDTV 1080P
17 1920*1080 56.25 50.00 148.5 HDTV 1080P
18 1920*1080 67.432 59.94 148.350 HDTV 1080P
19 1920*1080 67.5 60.00 148.5 HDTV 1080P
- 7 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5.4. HDMI Input (PC/DTV)
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed
PC
1 640*350 31.468 70.09 25.17 EGA X
2 720*400 31.469 70.08 28.32 DOS O
3 640*480 31.469 59.94 25.17 VESA(VGA) O
5 800*600 37.879 60.31 40 VESA(SVGA) O
6 1024*768 48.363 60.00 65 VESA(XGA) O
7 1280*768 47.776 59.87 79.5 CVT(WXGA) O
8 1360*768 47.712 60.015 85.5 VESA (WXGA) O
9 1280*1024 63.981 60.02 108.00 VESA (SXGA) O
10 1600*1200 75.00 60.00 162 VESA (UXGA) O
11 1920*1080 67.50 60.00 148.5 HDTV 1080P O
DTV
1 720*480 31.50 60 27.027 HDTV 720P
2 720*480 31.47 59.94 27.00 HDTV 720P
3 720*576 31.25 50* 13.5 HDTV 1080I
4 1280*720 37.5 50* 74.25 HDTV 1080I
5 1280*720 45.00 60.00 74.25 HDTV 1080I
6 1280*720 44.96 59.94 74.176 HDTV 1080P
7 1929*1080 28.125 50* 74.25 HDTV 1080P
8 1920*1080 33.75 60.00 74.25 HDTV 1080P
9 1920*1080 33.72 59.94 74.176 HDTV 1080P
10 1920*1080 56.25 50* 148.5 HDTV 1080P
11 1920*1080 67.50 60 148.50 HDTV 1080P
12 1920*1080 67.432 59.94 148.352 HDTV 1080P
13 1920*1080 27.00 24.00 74.25 HDTV 1080P
14 1920*1080 26.97 23.976 74.176 HDTV 1080P
15 1920*1080 33.75 30.00 74.25 HDTV 1080P
16 1920*1080 33.71 29.97 74.176 HDTV 1080P
- 8 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5.4. 3D mode
5.2.1. RF Input
No Resolution Proposed 3D input proposed mode
1 HD 1080I
720P
2D to 3D
Side by Side(Half)
Top & Bottom
2 SD 576P
576I
2D to 3D
5.2.2. RF Input (3D supported mode automatically)
5.2.3. HDMI Input 1.3(3D supported mode manually)
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark
1 1280*720 45.00 60.00 74.25 HDTV 720P 2D to 3D
Side by Side(half),
Top & Bottom,
Single Frame Sequential
2 1280*720 37.500 50 74.25 HDTV 720P 2D to 3D
Side by Side(half),
Top & Bottom,
Single Frame Sequential
3 1920*1080 33.75 60.00 74.25 HDTV 1080I 2D to 3D
Side by Side(half),
Top & Bottom
4 1920*1080 28.125 50.00 74.25 HDTV 1080I 2D to 3D
Side by Side(half),
Top & Bottom
5 1920*1080 27.00 24.00 74.25 HDTV 1080P 2D to 3D
Side by Side(half),
Top & Bottom,
Checkerboard
6 1920*1080 28.12 25 74.25 HDTV 1080P 2D to 3D
Side by Side(half),
Top & Bottom,
Checkerboard
7 1920*1080 33.75 30.00 74.25 HDTV 1080P 2D to 3D
Side by Side(half),
Top & Bottom,
Checkerboard
8 1920*1080 56.25 50 148.5 HDTV 1080P 2D to 3D
Side by Side(half),
Top & Bottom,
Checkerboard,
Single Frame Sequential,
Row Interleaving,
Column Interleaving
9 1920*1080 67.50 60.00 148.5 HDTV 1080P 2D to 3D
Side by Side(half),
Top & Bottom,
Checkerboard,
Single Frame Sequential,
Row Interleaving,
Column Interleaving
No Signal 3D input proposed mode
1 Frame Compatible Side by Side(Half), Top & Bottom
- 9 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5.2.4. HDMI Input 1.4b (3D supported mode automatically)
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed
mode
Proposed
1 640*480 31.469 / 31.5 59.94/ 60 25.175/25.2 Top-and-Bottom
Side-by-side(half)
Secondary(SDTV 480P)
Secondary(SDTV 480P)
2 62.938 / 63 59.94/ 60 50.35/50.4 Frame packing
Line alternative
Secondary(SDTV 480P)
(SDTV 480P)
3 31.469 / 31.5 59.94/ 60 50.35/50.4 Side-by-side(Full) (SDTV 480P)
4 720*480 31.25 50 27 Top-and-Bottom
Side-by-side(half)
Secondary(SDTV 480P)
Secondary(SDTV 480P)
5 62.5 50 54 Frame packing
Line alternative
Secondary(SDTV 480P)
(SDTV 480P)
6 31.25 50 54 Side-by-side(Full) (SDTV 480P)
7 720*576 31.25 50 27 Top-and-Bottom
Side-by-side(half)
Secondary(SDTV 576P)
Secondary(SDTV 576P)
8 62.5 50 54 Frame packing
Line alternative
Secondary(SDTV 576P)
(SDTV 576P)
9 31.25 50 54 Side-by-side(Full) (SDTV 576P)
10 15.625 50 27 Top-and-Bottom
Side-by-side(half)
Secondary(SDTV 576I)
Secondary(SDTV 576I)
11 31.25 50 54 Frame packing
Field alternative
Secondary(SDTV 576I)
(SDTV 576I)
12 15.625 50 54 Side-by-side(Full) (SDTV 576I)
13 1280*720 37.5 50 74.25 Top-and-Bottom
Side-by-side(half)
Primary(HDTV 720P)
Primary(HDTV 720P)
14 75 50 148.5 Frame packing
Line alternative
Primary(HDTV 720P)
(HDTV 720P)
15 37.5 50 148.5 Side-by-side(Full) (HDTV 720P)
16 44.96 / 45 59.94 / 60 74.18/74.25 Top-and-Bottom
Side-by-side(half)
Primary(HDTV 720P)
Primary(HDTV 720P)
17 89.91 / 90 59.94 / 60 148.35/148.5 Frame packing
Line alternative
Primary(HDTV 720P)
(HDTV 720P)
18 44.96 / 45 59.94 / 60 148.35/148.5 Side-by-side(Full) (HDTV 720P)
- 10 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed
mode
Proposed
19 1920*1080 33.72 / 33.75 59.94 / 60 74.18/74.25 Top-and-Bottom
Side-by-side(half)
Secondary(HDTV 1080I)
Primary(HDTV 1080I)
20 67.432 / 67.5 59.94 / 60 148.35/148.5 Frame packing
Field alternative
Primary(HDTV 1080I)
(HDTV 1080I)
21 33.72 / 33.75 59.94 / 60 148.35/148.5 Side-by-side(Full) (HDTV 1080I)
22 28.125 50.00 74.25 Top-and-Bottom
Side-by-side(half)
Secondary(HDTV 1080I)
Primary(HDTV 1080I)
23 56.25 50.00 148.5 Frame packing
Field alternative
Primary(HDTV 1080I)
(HDTV 1080I)
24 28.125 50.00 148.5 Side-by-side(Full) (HDTV 1080I)
25 26.97 / 27 23.97 / 24 74.18/74.25 Top-and-Bottom
Side-by-side(half)
Primary(HDTV 1080P)
Primary(HDTV 1080P)
26 43.94 / 54 23.97 / 24 148.35/148.5 Frame packing
Line alternative
Primary(HDTV 1080P)
(HDTV 1080P)
27 26.97 / 27 23.97 / 24 148.35/148.5 Side-by-side(Full) (HDTV 1080P)
28 28.12 25 74.25 Top-and-Bottom
Side-by-side(half)
Secondary(HDTV 1080P)
Secondary(HDTV 1080P)
29 56.25 25 148.5 Frame packing
Line alternative
Secondary(HDTV 1080P)
(HDTV 1080P)
30 28.125 25 148.5 Side-by-side(Full) (HDTV 1080P)
31 33.716 / 33.75 29.976 / 30.00 74.18/74.25 Top-and-Bottom
Side-by-side(half)
Primary(HDTV 1080P)
Secondary(HDTV 1080P)
32 67.432 / 67.5 29.976 / 30.00 148.35/148.5 Frame packing
Line alternative
Primary(HDTV 1080P)
(HDTV 1080P)
33 33.716 / 33.75 29.976 / 30.00 148.35/148.5 Side-by-side(Full) (HDTV 1080P)
34 56.25 50 148.5 Top-and-Bottom
Side-by-side(half)
Primary(HDTV 1080P)
Secondary(HDTV 1080P)
35 67.43 / 67.5 59.94 / 60 148.35/148.50 Top-and-Bottom
Side-by-side(half)
Primary(HDTV 1080P)
Secondary(HDTV 1080P)
5.2.5. HDMI-PC 3D Input (3D supported mode manually)
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode Proposed
1 1024*768 48.36 60 65 2D to 3D,
Side by Side(half)
Top & Bottom
HDTV 768P
2 1360*768 47.71 60 85.5 2D to 3D,
Side by Side(half)
Top & Bottom
HDTV 768P
3 1920*1080 67.500 60 148.50 2D to 3D,
Side by Side(half)
Top & Bottom,
Checker Board,
Single Frame Sequential
Row Interleaving,
Column Interleaving
HDTV 1080P
4 Others - - - 2D to 3D 640*350
720*400
640*480
800*600
1152*864
- 11 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5.2.6. RGB-PC 3D Input (3D supported mode manually)
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode Proposed
1 1024*768 48.36 60 65 2D to 3D,
Side by Side(half)
Top & Bottom
HDTV 768P
2 1360*768 47.71 60 85.5 2D to 3D,
Side by Side(half)
Top & Bottom
HDTV 768P
3 1920*1080 67.500 60 148.50 2D to 3D,
Side by Side(half)
Top & Bottom
HDTV 1080P
4 Others - - - 2D to 3D 640*350
720*400
640*480
800*600
1152*864
1280*1024
5.2.7. USB Input (3D) (3D supported mode manually)
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode Proposed
1 1920*1080 33.75 30 74.25 2D to 3D
Side by Side(Half)*,
Top & Bottom*,
Checkerboard*
Row Interleaving,
Column Interleaving
(Photo : side by Side(half),
Top & Bottom)
HDTV 1080P
5.2.8. DLNA Input (3D)
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode Proposed
1 1920*1080 33.75 30 74.25 2D to 3D
Side by Side(Half)*,
Top & Bottom*,
Checkerboard*
Row Interleaving,
Column Interleaving
(Photo : side by Side(half), Top
& Bottom)
HDTV 1080P
- 12 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5.2.9. Component 3D Input (3D supported mode manually)
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode Proposed
1 1280*720 37.5 50 74.25 2D to 3D,
Side by Side(half),
Top & Bottom
HDTV 720P
2 1280*720 45.00 60.00 74.25 2D to 3D,
Side by Side(half),
Top & Bottom
HDTV 720P
3 1280*720 44.96 59.94 74.176 2D to 3D,
Side by Side(half)
Top & Bottom
HDTV 720P
4 1920*1080 33.75 60.00 74.25 2D to 3D,
Side by Side(half)
Top & Bottom
HDTV 1080I
5 1920*1080 33.72 59.94 74.176 2D to 3D,
Side by Side(half)
Top & Bottom
HDTV 1080I
6 1920*1080 28.12 50 74.25 2D to 3D,
Side by Side(half)
Top & Bottom
HDTV 1080I
7 1920*1080 67.500 60 148.50 2D to 3D,
Side by Side(half)
Top & Bottom
HDTV 1080P
8 1920*1080 67.432 59.94 148.352 2D to 3D,
Side by Side(half)
Top & Bottom
HDTV 1080P
9 1920*1080 27.000 24.000 74.25 2D to 3D,
Side by Side(half)
Top & Bottom
HDTV 1080P
10 1920*1080 28.12 25 74.25 2D to 3D,
Side by Side(half)
Top & Bottom
HDTV 1080P
11 1920*1080 56.25 50 74.25 2D to 3D,
Side by Side(half)
Top & Bottom
HDTV 1080P
12 1920*1080 26.97 23.976 74.176 2D to 3D,
Side by Side(half)
Top & Bottom
HDTV 1080P
13 1920*1080 33.75 30.000 74.25 2D to 3D,
Side by Side(half)
Top & Bottom
HDTV 1080P
14 1920*1080 33.71 29.97 74.176 2D to 3D,
Side by Side(half)
Top & Bottom
HDTV 1080P
- 13 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
ADJUSTMENT INSTRUCTION
1. Application Range
This spec sheet is applied all of the LCD TV with LJ23E/J
chassis.
2. Specification
(1) The adjustment is according to the order which is
designated and which must be followed, according to the
plan which can be changed only on agreeing
(2) Power adjustment : Free Voltage
(3) Magnetic Field Condition: Nil.
(4) Input signal Unit: Product Specification Standard.
(5) Reserve after operation: Above 5 Minutes (Heat Run)
Temperature : at 25 ºC ±5 ºC
Relative humidity : 65 ±10%
Input voltage : 100~220V, 50/60Hz
(6) Adjustment equipments : Color Analyzer (CA-210 or
CA-110), SVC remote controller
(7) Push The “IN STOP KEY” – For memory initialization
3. Main PCB check process
3.1. PCB Assembly Adjustment
(1) ADC adjustment: Component 480i, 1080p / RGB-PC 1080p
(2) EDID downloads for HDMI and RGB-PC
(3) MAC Address / ESN / Widevine Download
※Remark
- Above adjustment items can be also performed in Final
Assembly if needed. Adjustment items in both PCBA and
final assembly stages can be checked by using the INSTART
Menu -> 1.ADJUST CHECK
3.2. Final Assembly adjustment
(1) White Balance adjustment
(2) RS-232C functionality check
(3) Factory Option setting per destination
(4) Shipment mode setting (IN-STOP)
(5) GND and HI-POT test
* After downloading, have to adjust TOOL OPTION again.
1. Push "IN-START" key in service remote controller.
2. Select "Tool Option 1" and Push “OK” button.
3. Punch in the number. (Each of models has their number.)
[See the BOM]
4. Completed selecting Tool option.
3.3 ADC Process
3.3.1. ADC
▪ Using RS-232, adjust items listed in 3.1 in the other shown in
below
Order Command Set response
Enter adj. mode aa 00 00 a 00 OK00x
Source change xb 00 40
xb 00 60
b 00 OK40x (Adjust 480i Comp1 )
(Adjust 1080p Comp1)
b 00 OK60x (Adjust 1080p RGB)
Begin adj. ad 00 10
Return adj. result OKx ( Success condition )
NGx ( Failed condition )
Read adj. data ( main)
ad 00 20
( main )
ad 00 30
(main : component1 480i, RGB 1080p)
000000000000000000000000007c007b-
006dx
(main : component1 1080p)
000000070000000000000000007c0083
0077x
Conrm adj. ad 00 99 NG 03 00x (Failed condition)
NG 03 01x (Failed condition)
NG 03 02x (Failed condition)
OK 03 03x (Success condition)
End adj. ad 00 90 d 00 OK90x
Ref.) ADC Adj. RS232C Protocol_Ver1.0
● Adj. order
▪aa 00 00 [Enter ADC adj. mode]
▪xb 00 40 [Change input source to Component1(1080i)]
▪ad 00 10 [Adjust 480i Comp1]
▪xb 00 60 [Change input source to RGB(1024*768)]
▪ad 00 10 [Adjust 1024*768 RGB]
▪ad 00 90 End adj.
Ref) ADC adj. RS232C Protocol_Ver1.0
Case1 : Software version up
1) After downloading S/W by USB , TV set will reboot
automatically
2) Push “In-stop” key
3) Push “Power on” key
4) Function inspection
5) After function inspection, Push “In-stop” key.
Case2 : Function check at the assembly line
1) When TV set is entering on the assembly line, Push
“In-stop” key at first.
2) Push “Power on” key for turning it on.
=> If you push “Power on” key, TV set will recover channel
information by itself.
3).After function inspection, Push “In-stop” key.
- 14 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
3.4 Function Check
3.4.1 Check display and sound
■ Check Input and Signal items. (cf. work instructions)
(1) TV
(2) AV (CVBS)
(3) COMPONENT (480i)
(4) RGB (PC : 1024 x 768 @ 60hz)
(5) HDMI
(6) PC Audio In
* Display and Sound check is executed by Remote controller.
=> Caution : Not to push the INSTOP KEY after completion if
the function inspection.
3.5. EDID/DDC Download
3.5.1 Overview
It is a VESA regulation. A PC or a MNT will display an optimal
resolution through information sharing without any necessity of
user input. It is a realization of “Plug and Play”.
3.5.2 Equipment
▪ Adjust remocon.
▪ Since embedded EDID data is used, EDID download JIG,
HDMI cable and D-sub cable are not need
3.5.3 Download method
1) Press Adj. key on the Adj. R/C,
2) Select EDID D/L menu.
3) By pressing Enter key, EDID download will begin
4) If Download is successful, OK is display, but If Download is
failure, NG is displayed.
5) If Download is failure, Re-try downloads.
※Caution) When EDID Download, must remove RGB/HDMI
Cable.
3.6. MAC Address, ESN Key and Widevine
Key download
3.6.1. Equipment & Condition
1) Play file: keydownload.exe
3.6.2. Communication Port connection
1) Key Write: Com 1,2,3,4 and 115200 (Baudrate)
2) Barcode: Com 1,2,3,4 and 9600 (Baudrate)
3.6.3. Download process
1) Select the download items.
2) Mode check: Online Only
3) Check the test process
- DETECT -> MAC_WRITE -> ESN_WRITE -> WIDEVINE_
WRITE
4) Play : START
5) Check of result: Ready, Test, OK or NG
3.6.4. Communication Port connection
1) Connect: PCBA Jig -> RS-232C Port == PC -> RS-232C
Port
3.7. LAN port Inspection (Ping Test)
3.7.1. Equipment setting
1) Play the LAN Port Test PROGRAM.
2) Input IP set up for an inspection to Test
Program.
*IP Number : 12.12.2.2.
3.7.2. LAN PORT inspection (PING TEST)
1) Play the LAN Port Test Program.
2) connect each other LAN Port Jack.
3) Play Test (F9) button and confirm OK Message.
4) remove LAN CABLE
- 15 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4. Total Assembly line process
4.1. Adjustment Preparation
■ W/B Equipment condition
CA210 : CH 9, Test signal : Inner pattern (80IRE) – in case of
CCFL back light
CA210 : CH14, Test signal : Inner pattern (80IRE) – in case of
LED back light
■ Above 5 minutes H/run in the inner pattern. (“power on” key of
adjust remote control)
Color
Temperature
Cool 13,000k K
X=0.269
(±0.002)
Y=0.273
(±0.002)
<Test signal>
Inner pattern
(204 Gray
80IRE)
Medium 9,300k K
X=0.285
(±0.002)
Y=0.293
(±0.002)
Warm 6,500k K
X=0.313
(±0.002)
Y=0.329
(±0.002)
■ Edge LED W/B Table in process of time (Only LGD except AUO/
CMI)
LS35/46, LM58 Tool ( LED LCD TV Model )
CA210 : CH 14, Test signal : Inner pattern (80IRE)
▪ Standard color coordinate and temperature using CA-1000 (by
H/R time)
●47/55LM7xxx, 47/55LM8xxx, 47/55LM9xxx
H/R Time(Min)
Cool Medium Warm
x y x x y x
269 273 285 293 313 329
1 0-2 283 293 299 313 320 339
2 3-5 282 291 298 311 319 337
3 6-9 281 290 297 310 318 336
4 10-19 279 289 295 309 316 335
5 20-35 277 284 293 304 314 330
6 36-49 274 279 290 299 311 325
7 50-79 271 277 287 297 308 323
8 80-119 270 274 286 294 307 320
9 Over 120 269 273 285 293 306 319

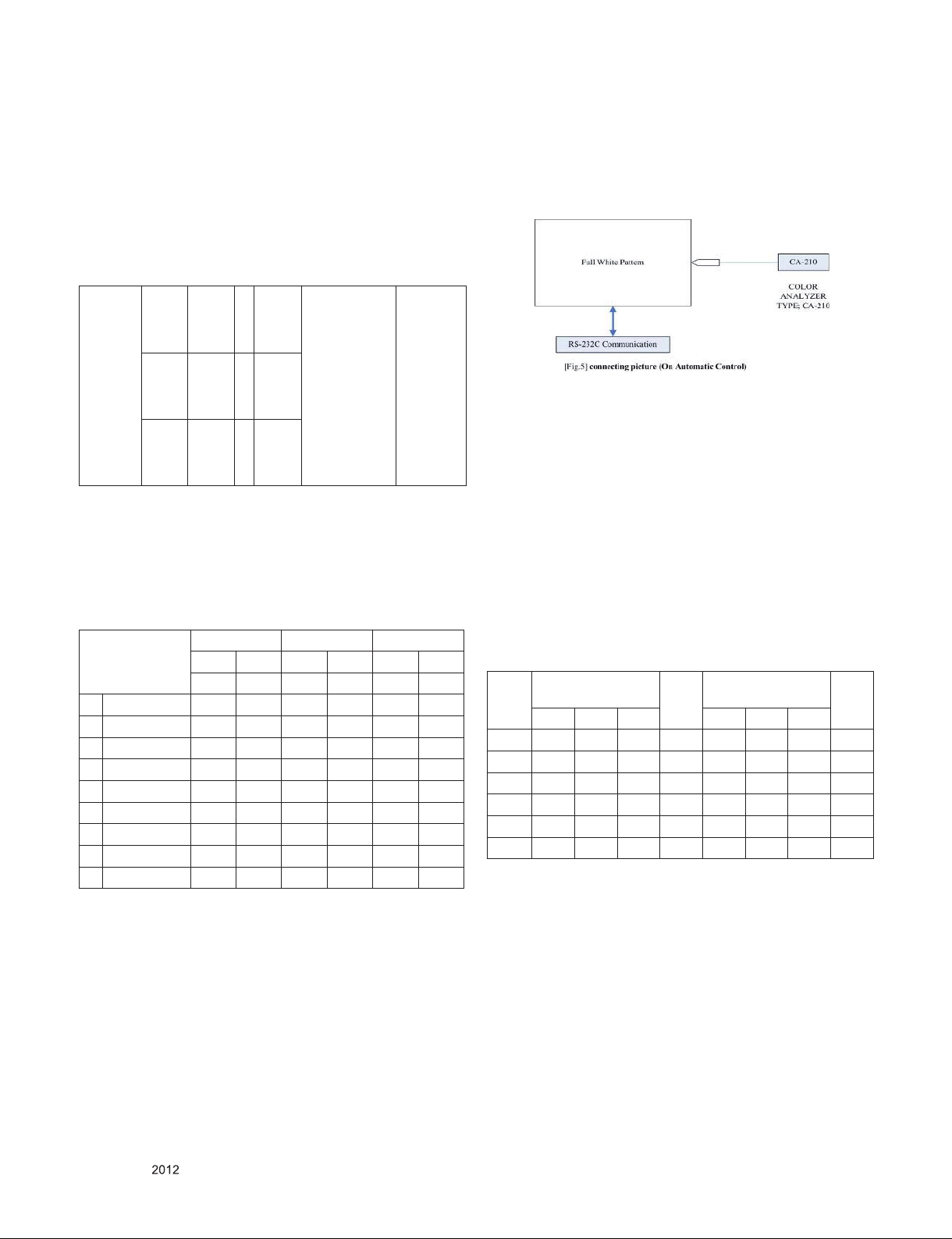

※Connecting picture of the measuring instrument
(On Automatic control)
Inside PATTERN is used when W/B is controlled. Connect to
auto controller or push Adjustment R/C POWER-ON -> Enter
the mode of White-Balance, the pattern will come out.
●Auto-control interface and directions
(1) Adjust in the place where the influx of light like floodlight
around is blocked. (Illumination is less than 10ux).
(2) Adhere closely the Color Analyzer ( CA210 ) to the module
less than 10cm distance, keep it with the surface of the
Module and Color Analyzer’s Prove vertically.(80~100°).
(3) Aging time
- After aging start, keep the power on (no suspension of
power supply) and heat-run over 5 minutes.
- Using ‘no signal’ or ‘full white pattern’ or the others, check
the back light on.
● Auto adjustment Map(RS-232C)
RS-232C COMMAND
[ CMD ID DATA ]
Wb 00 00 White Balance Start
Wb 00 ff White Balance End
RS-232C COMMAND
[CMD ID DATA] MIN
CENTER
(DEFAULT) MAX
Cool Mid Warm Cool Mid Warm
R Gain jg Ja jd 00 172 192 192 192
G Gain jh Jb je 00 172 192 192 192
B Gain ji Jc jf 00 192 192 172 192
R Cut 64 64 64 128
G Cut 64 64 64 128
B Cut 64 64 64 128
- 16 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
** Caution **
Color Temperature : COOL, Medium, Warm.
One of R Gain/G Gain/ B Gain should be kept on 0xC0, and
adjust other two lower than C0.
(when R/G/B Gain are all C0, it is the FULL Dynamic Range of
Module)
*Manual W/B process using adjusts Remote control.
■After enter Service Mode by pushing “ADJ” key,
■Enter White Balance by pushing “►” key at “7. White Balance”.
※After You finish all adjustments, Press “In-start” button and
compare Tool option and Area option value with its BOM, if it is
correctly same then unplug the AC cable.
If it is not same, then correct it same with BOM and unplug AC
cable. For correct it to the model’s module from factory JIG
model.
※Push The “IN STOP KEY” after completing the function
inspection. And Mechanical Power Switch must be set “ON”.
4.2. DDC EDID Write (RGB 128Byte)
■ Connect D-sub Signal Cable to D-Sub Jack.
■ Write EDID DATA to EEPROM (24C02) by using DDC2B
protocol.
■ Check whether written EDID data is correct or not.
* For SVC main Ass’y, EDID have to be downloaded to Insert
Process in advance.
4.3. DDC EDID Write (HDMI 256Byte)
■ Connect HDMI Signal Cable to HDMI Jack.
■ Write EDID DATA to EEPROM(24C02) by using DDC2B
protocol.
■ Check whether written EDID data is correct or not.
* For SVC main Ass’y, EDID have to be downloaded to Insert
Process in advance.
4.4. EDID DATA
1) All Data : HEXA Value
2) Changeable Data :
*: Serial No : Controlled / Data:01
**: Month : Controlled / Data:00
***:Year : Controlled
****:Check sum
- Auto Download
■ After enter Service Mode by pushing “ADJ” key,
■ Enter EDID D/L mode.
■ Enter “START” by pushing “OK” key.
※Edid data and Model option download (RS232C)
NO Item CMD 1 CMD 2 Data 0
Enter
download
MODE
Download
‘Mode In’ A A 0 0
When transfer
the ‘Mode In’,
Carry the com-
mand
Edid data
and Model
option
download
Download A E 00 10
Automatically
download
(The use of a
internal Data)
LM8600-SA
HDMI EDID Data(Model name = LG TV )
- HDMI-1 EDID table (0x43, 0x11)
1) HDMI 1 Check sum : 0x43, 0X11 (CEA Block 0x1E :10)
2) HDMI 2 Check sum : 0x43, 0X01 (CEA Block 0x1E :20)
3) HDMI 3 Check sum : 0x43, 0XF1 (CEA Block 0x1E :30)
4) HDMI 4 Check sum : 0x43, 0XE1 (CEA Block 0x1E :40)
- 17 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
RGB EDID DATA RGB CheckSum : 5C
4.6. Local Dimming Inspection
(1) Press ‘TILT” key of the Adj. R/C and check moving
patterns. The black bar patterns moves from top to bottom.
If a local dimming function does not work, a whole screen
shows full white.
4.7. EYE-Q Check
Step 1) Turn on the TV..
Step 2) Press 'EYE button' on the adjustment remote-
controller.
Step 3) Cover 'Eye Q sensor' on the front of set with your
hands, hold it for 6 seconds.
Step 4) Check "the Sensor Data" on the screen, make certain
that Data is below 10. If Data isn’t below 10 in 6
seconds, Eye Q sensor would be bad. You should
change Eye Q sensor.
Step 5) Uncover your hands from Eye Q sensor, hold it for 6
seconds.
Step 6) Check "Back Light(xxx)" on the screen, check data
increase . You should change Eye Q sensor.
4.8. Magic Motion remote controller Check
4.8.1 Test equipment
- RF-remote controller for check, IR-KEY-CODE remote
controller.
- Check AA battery before test. A recommendation is that a
tester change battery every lots.
4.8.2. Test
(1) Make pairing with TV set by pressing “Mute (START) key”
on RCU.
(2) Check a cursor on screen by pressing ‘ENTER” or “OK”
key of RCU
(3) Stop paring with TV set by pressing “VOL+ (STOP) key.
4.9. 3D pattern test (Only for 3D models)
4.9.1. Test equipment
(1) Pattern Generator MSHG-600 or MSPG-6100 (HDMI 1.4
support)
(2) Pattern: HDMI mode (model No. 872, pattern No. 83)
4.9.2. Test method
(1) Input 3D test signal as Fig.1.
(2) Press ‘OK” key as a 3D input OSD is shown.
(3) Check pattern as Fig2 without 3D glasses. (3D mode
without 3D glasses)
Fig.2 Fig.3
<OK in 3D mode without 3D glasses> <NG in 3D mode without 3D glasses>
<Step 2>
<Step 5> <Step 6>
<Step 3>
<Step 4>
- 18 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4.10. HDMI ARC Function Inspection
4.10.1. Test equipment
- Optic Receiver Speaker
- MSHG-600 (SW: 1220 ↑)
- HDMI Cable (for 1.4 version)
4.10.2. Test method
(1) Insert the HDMI Cable to the HDMI ARC port from the
master equipment (HDMI1)
(2) Check the sound from the TV Set
(3) Check the Sound from the Speaker or using AV & Optic
TEST program (It’s connected to MSHG-600)
* Remark: Inspect in Power Only Mode and check SW version
in a master equipment
4.11. Outgoing condition Configuration
■ When pressing IN-STOP key by SVC remocon, Red LED
are blinked alternatively. And then automatically turn off.
(Must not AC power OFF during blinking)
4.12 Hi-pot Test
Confirm whether is normal or not when between power board's
ac block and GND is impacted on 1.5kV/min at 100mA(GND)
and 3kV/min at 100mA(Signal)
- 19 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
A22 A10 AG1
* Set + Stand
* Stand Base + Body
AG2
900
300
301
200
400
700
710
540 521
530
800
810
541
910
560
410
570
120
510
501
500
580
310
LV1
123
122
Dual Play
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
EB_ADDR[9]
BOOT_MODE0
EB_DATA[0]
EB_DATA[1]
EB_ADDR[3]
EB_DATA[3]
EB_DATA[2]
EB_DATA[4]
EB_ADDR[2]
EB_ADDR[11]
EB_DATA[5]
EMMC_DATA[7]
EMMC_DATA[6]
EB_DATA[6]
EMMC_DATA[5]
EB_DATA[7]
EB_ADDR[12]
EB_ADDR[13]
EB_ADDR[6]
EMMC_DATA[0]
EB_ADDR[14]
EMMC_DATA[1]
EB_ADDR[0]
BOOT_MODE1
EMMC_DATA[2]
EB_ADDR[5]
EMMC_DATA[3]
EB_ADDR[7]
EMMC_DATA[4]
EB_ADDR[4]
EB_ADDR[1]
EB_ADDR[8]
EB_ADDR[10]
PLLSET1
R197
3.3K
+3.3V_NORMAL
I2C_SDA2
/PCM_CE2
R143
22
OPT
I2C_SDA5
+3.3V_NORMAL
/PCM_CE1
R133 10K
OPT
R180
3.3K
R168 10K CI
I2C_SCL2
HW_OPT_7
R167 10K CI
I2C_SDA4
CAM_IREQ_N
UART1_TX
R187
4.7K
R198
3.3K
I2C_SCL6
M_RFModule_ISP
BOOT_MODE1
HW_OPT_6
XO_MAIN
HW_OPT_0
HW_OPT_8
I2C_SDA2
CAM_CD2_N
RF_SWITCH_CTL
HW_OPT_2
R102 22
OPT
HW_OPT_4
R181
3.3K
FRC_RESET
/RST_HUB
TCK0
HW_OPT_1
UART1_RX
SOC_TX
CAM_REG_N
R196
3.3K
/USB_OCD3
R132 10K
OPT
I2C_SCL3
BOOT_MODE0
+3.3V_NORMAL
PLLSET0
TDI0
XIN_MAIN
CAM_CD1_N
C111
0.1uF
CAM_WAIT_N
UART1_RX
+3.3V_NORMAL
R166 10K CI
R131 10K
OPT
ERROR_OUT
R103 22
OPT
R199
3.3K
I2C_SCL5
DSUB_DET
R150 22
+3.3V_NORMAL
I2C_SCL1
M_RFModule_RESET
CAM_INPACK_N
UART1_TX
R112
1M
R185
4.7K
OPT
SC_DET
TDO0
SOC_RX
TMS0
I2C_SCL5
I2C_SDA1
I2C_SCL4
M_REMOTE_TX
R186
4.7K
SOC_RESET
+3.3V_NORMAL
HW_OPT_3
R134 10K
OPT
R188
4.7K
OPT
HW_OPT_5
R142
22
OPT
I2C_SDA3
I2C_SDA6
/RST_PHY
TRST_N0
I2C_SCL2
I2C_SDA5
M_REMOTE_RX
COMP1_DET
HW_OPT_8
HW_OPT_1
R125 10K
UD
R138 10K
OPTIC
R100 10K
FRC_EXTERNAL
R139 10K
NON_OPTIC
R107 10K
FRC_INTERNAL
R140 10K
3D_DEPTH
R154 10K
DVB_S_TUNER
HW_OPT_2
R152 10K
DVB_T2_TUNER
R155 10K
NON_DVB_S_TUNER
HW_OPT_5
R153 10K
NON_DVB_T2_TUNER
HW_OPT_7
R141 10K
NON_3D DEPTH
HW_OPT_3
+3.3V_NORMAL
R146 10K
1GByte R145 10K
OPT
R148 10K
NON_CP_BOX
R111 10K
FRC3
R124 10K
FHD
HW_OPT_4
R147 10K
CP_BOX
HW_OPT_6
R110 10K
URSA5
HW_OPT_0
HW_OPT_9
HW_OPT_9
R158 10K
NON_DVB_C2_TUNER R156 10K
DVB_C2_TUNER
HP_DET
PCM_RST
/TU_RESET
/S2_RESET
I2C_BE_SDA1I2C_SDA1
R151 22
R160 22
R162 22 I2C_BE_SCL1
FRC3_RESET
I2C_SCL1
FRC_RESET
LOCAL_DIM_EN
R170
10K
FRC3
SMARTCARD_RST
SMARTCARD_VCC
SMARTCARD_DET
SMARTCARD_DATA
SMARTCARD_CLK
SMARTCARD_PWR_SEL
SMARTCARD_DATA
SMARTCARD_PWR_SEL
SMARTCARD_DET
SMARTCARD_CLK
SMARTCARD_RST
SMARTCARD_VCC
I2C_SDA3
I2C_SCL3
HDMI_INT
HDMI_S/W_RESET
MHL_DET
SW1
JTP-1127WEM
DEBUG
12
4 3
Q100
2N7002K
S
D
G
Q103
2N7002K
S
D
G
+5V_NORMAL
Q104
2N7002K
S
D
G
Q105
2N7002K OPT
S
D
G
+3.3V_NORMAL
R201
2.7K
1/16W
5%
C100
8pF
50V
C101
8pF
50V
+5V_NORMAL
R202
100K
R203
100K
OPT
R126 10K
NOT_ZORAN_FRC R121 10K
ZORAN_FRC
HW_OPT_10
HW_OPT_10
+3.3V_NORMAL
PLLSET1
EMMC_DATA[0-7]
R176 22
OPT
EB_OE_N
WIFI_DP
BOOT_MODE0
USB_HUB_IC_IN_DM
EMMC_CLK
R174 22
OPT
WIFI_DM
USB_DP3
USB_CTL3
EMMC_CMD
EMMC_RST
EB_DATA[0-7]
DTV_ATV_SELECT
USB_DM3
USB_HUB_IC_IN_DP
AV1_CVBS_DET
EB_BE_N1
EB_BE_N0
BOOT_MODE1
EB_WE_N
EB_ADDR[0-14]
PLLSET0
R105 22
EPHY_RXD0
EPHY_REFCLK
R108 22
EPHY_TXD1
EPHY_EN
EPHY_CRS_DV
EPHY_TXD0
EPHY_MDIO
EPHY_RXD1
EPHY_MDC
R106 22
I2C_SCL3
I2C_SCL5
I2C_SDA4
I2C_SCL6
I2C_SCL4
I2C_SDA6
I2C_SDA3
I2C_SCL1
I2C_SDA1
I2C_SDA2
I2C_SDA5
I2C_SCL2
XIN_MAIN
XO_MAIN R104 560
1%
TDO0
TDI0
TMS0
TCK0
TRST_N0
PCM_5V_CTL
+5V_NORMAL
+3.3V_NORMAL
+3.3V_NORMAL
3D_DEPTH_RESET
FLASH_WP
MO_SENS_TO_MAIN_DOWN
MO_SENS_TO_MAIN_UP
MOTOR_CLOSE_SW
MOTOR_OPEN_SW
MOTOR_CW
MOTOR_CCW
MOTOR_CLOSE_SW
MO_SENS_TO_MAIN_DOWN
MOTOR_CW
MOTOR_CCW
MO_SENS_TO_MAIN_UP
MOTOR_OPEN_SW
R109
10K
+3.3V_NORMAL
P100
12507WS-04L
DEBUG
1
2
3
4
5
R184
1.2K
R183
1.2K
OLED_TCON_RESET
OPTIC_FPGA_RESET
FPGA_LVDS_INFO
OPTIC_SERDES_RESET
OPTIC_SERDES_RESET
OPTIC_FPGA_RESET
OLED_TCON_RESET
EPHY_INT
3D_DEPTH_RESET
IRB_SPI_SS
IRB_SPI_CK
IRB_SPI_MOSI
IRB_SPI_MISO
IR_B_RESET
IRB_SPI_MISO
IRB_SPI_SS
IRB_SPI_CK
IRB_SPI_MOSI
IR_B_RESET
EPHY_INT
SEL_USB3
SEL_USB2
/RST_PHY
SEL_USB3
SC_DET
SEL_USB1
SEL_USB1
HP_DET
SEL_USB2
IC102
R1EX24256BSAS0A
3
A2
2
A1
4
VSS
1
A0
5SDA
6SCL
7WP
8VCC
/USB_OCD2 R101 22
HP_AMP_MUTE R117
22
OPT
DiiVA_POD_CTL
DiiVA_POD_CTL
IC100
LG1152D-B1
LG1152_NON_RM
XIN_MAIN
A22
XO_MAIN
B22
OPM1
AB16
OPM0
AB17
PORES_N
AE3
TRST_N0
V23
TMS0
U25
TCK0
V25
TDI0
V24
TDO0
U24
TRST_N1
Y22
TMS1
AA22
TCK1
AB20
TDI1
AB21
TDO1
W22
PLLSET1
AB9
PLLSET0
AB8
BOOT_MODE1
AB15
BOOT_MODE0
AB14
EXT_INTR3/GPIO48
Y23
EXT_INTR2/GPIO63
W25
EXT_INTR1/GPIO62
W24
EXT_INTR0/GPIO61
W23
UART0_RX/GPIO49
Y5
UART0_TX/GPIO50
W6
UART1_RX
AA6
UART1_TX
Y6
UART2_RX
AB5
UART2_TX
AA5
SPI_DI0/GPIO39
AB23
SPI_DO0/GPIO38
AB24
SPI_SCLK0/GPIO37
AA25
SPI_CS0/GPIO36
AB25
SPI_DI1/GPIO35
Y25
SPI_DO1/GPIO34
AA23
SPI_SCLK1/GPIO33
Y24
SPI_CS1/GPIO32
AA24
SCL0/GPIO60
AB6
SDA0/GPIO59
AB4
SCL1/GPIO58
AC5
SDA1/GPIO57
AC4
SCL2/GPIO56
AD4
SDA2/GPIO71
AE4
SCL3/GPIO70
AE5
SDA3/GPIO69
AD5
SCL4/GPIO68
AE6
SDA4/GPIO67
AD6
SCL5/GPIO66
AC6
SDA5/GPIO65
AC7
RMII_REF_CLK
AD2
RMII_CRS_DV
AB1
RMII_MDIO
AB2
RMII_MDC
AB3
RMII_TXEN
AC2
RMII_TXD1
AC3
RMII_TXD0
AE1
RMII_RXD1
AD3
RMII_RXD0
AD1
CAM_CE1_N
W26
CAM_CE2_N
V28
CAM_CD1_N
Y27
CAM_CD2_N
Y26
CAM_VS1_N
W28
CAM_VS2_N
W27
CAM_IREQ_N
AA28
CAM_RESET
AB26
CAM_INPACK_N
AA27
CAM_VCCEN_N
AA26
CAM_WAIT_N
Y28
CAM_REG_N
V27
CAM_IOIS16_N
V26
SC_CLK/GPIO90
R25
SC_DETECT/GPIO93
U23
SC_VCCEN/GPIO89
T25
SC_VCC_SEL/GPIO88
T24
SC_RST/GPIO91
T23
SC_DATA/GPIO92
R24
SD_CLK/GPIO76
C22
SD_CMD/GPIO73
C23
SD_CD_N/GPIO75
A23
SD_WP_N/GPIO74
B23
SD_DATA3/GPIO72
A24
SD_DATA2/GPIO87
B24
SD_DATA1/GPIO86
C24
SD_DATA0/GPIO85
A25
USB_DP1
B27
USB_DM1
A27
USB_DP2
A26
USB_DM2
B26
USB_TXR_RKL
C25
USB_ANALOGTEST
B25
BT_USB_DP
AA1
BT_USB_DM
AA2
BT_TXR_RKL
AA4
BT_ANALOGTEST
Y4
EMMC_RST E28
EMMC_CLK F27
EMMC_CMD F26
EMMC_DATA7 C26
EMMC_DATA6 E27
EMMC_DATA5 E26
EMMC_DATA4 D27
EMMC_DATA3 D28
EMMC_DATA2 C27
EMMC_DATA1 C28
EMMC_DATA0 D26
NAND_CS1 R23
NAND_CS0 P24
NAND_ALE N25
NAND_CLE P23
NAND_REN N24
NAND_WEN P25
GPIO31 AC1
GPIO30 V7
GPIO29 W5
GPIO28 W4
GPIO27 V6
GPIO26 V5
GPIO25 V4
GPIO24 U6
GPIO23 U5
GPIO22 U4
GPIO21 T6
GPIO20 T5
GPIO19 T4
GPIO18 R6
GPIO17 R5
GPIO16 R4
GPIO15 P6
GPIO14 P5
GPIO13 P4
GPIO12 N6
GPIO11 N5
GPIO10 N4
GPIO9 N3
GPIO8 M6
GPIO7 AC23
GPIO6 AC24
GPIO5 AE24
GPIO4 AD23
GPIO3 AE23
GPIO2 AC22
GPIO1 AD22
GPIO0 AE22
EB_CS3/GPIO64 M25
EB_CS2/GPIO79 M24
EB_CS1/GPIO78 M23
EB_CS0/GPIO77 N23
EB_OE_N T27
EB_WE_N T28
EB_WAIT U27
EB_BE_N1 U26
EB_BE_N0 U28
EB_ADDR17/GPIO84 J22
EB_ADDR16/GPIO83 K22
EB_ADDR15/GPIO82 J23
EB_ADDR14 L26
EB_ADDR13 L27
EB_ADDR12 L25
EB_ADDR11 N26
EB_ADDR10 N27
EB_ADDR9 M26
EB_ADDR8 L28
EB_ADDR7 L24
EB_ADDR6 L23
EB_ADDR5 K28
EB_ADDR4 K27
EB_ADDR3 K26
EB_ADDR2 K25
EB_ADDR1 K24
EB_ADDR0 K23
EB_DATA15 V22
EB_DATA14 U22
EB_DATA13 T22
EB_DATA12 R22
EB_DATA11 P22
EB_DATA10 N22
EB_DATA9 M22
EB_DATA8 L22
EB_DATA7 T26
EB_DATA6 R28
EB_DATA5 R27
EB_DATA4 R26
EB_DATA3 P28
EB_DATA2 P27
EB_DATA1 P26
EB_DATA0 N28
R178
2.2K
R179
2.2K
R182
2.2K
R195
2.2K
R173
R175
X101
24MHz
4
GND_2 1X-TAL_1
2GND_1
3
X-TAL_2
FPGA_LVDS_INFO
D100
RCLAMP0502BA
OPT
SOC_RESET
R113
4.7K
IC100-*1
LG1152_RM
XIN_MAIN
A22
XO_MAIN
B22
OPM1
AB16
OPM0
AB17
PORES_N
AE3
TRST_N0
V23
TMS0
U25
TCK0
V25
TDI0
V24
TDO0
U24
TRST_N1
Y22
TMS1
AA22
TCK1
AB20
TDI1
AB21
TDO1
W22
PLLSET1
AB9
PLLSET0
AB8
BOOT_MODE1
AB15
BOOT_MODE0
AB14
EXT_INTR3/GPIO48
Y23
EXT_INTR2/GPIO63
W25
EXT_INTR1/GPIO62
W24
EXT_INTR0/GPIO61
W23
UART0_RX/GPIO49
Y5
UART0_TX/GPIO50
W6
UART1_RX
AA6
UART1_TX
Y6
UART2_RX
AB5
UART2_TX
AA5
SPI_DI0/GPIO39
AB23
SPI_DO0/GPIO38
AB24
SPI_SCLK0/GPIO37
AA25
SPI_CS0/GPIO36
AB25
SPI_DI1/GPIO35
Y25
SPI_DO1/GPIO34
AA23
SPI_SCLK1/GPIO33
Y24
SPI_CS1/GPIO32
AA24
SCL0/GPIO60
AB6
SDA0/GPIO59
AB4
SCL1/GPIO58
AC5
SDA1/GPIO57
AC4
SCL2/GPIO56
AD4
SDA2/GPIO71
AE4
SCL3/GPIO70
AE5
SDA3/GPIO69
AD5
SCL4/GPIO68
AE6
SDA4/GPIO67
AD6
SCL5/GPIO66
AC6
SDA5/GPIO65
AC7
RMII_REF_CLK
AD2
RMII_CRS_DV
AB1
RMII_MDIO
AB2
RMII_MDC
AB3
RMII_TXEN
AC2
RMII_TXD1
AC3
RMII_TXD0
AE1
RMII_RXD1
AD3
RMII_RXD0
AD1
CAM_CE1_N
W26
CAM_CE2_N
V28
CAM_CD1_N
Y27
CAM_CD2_N
Y26
CAM_VS1_N
W28
CAM_VS2_N
W27
CAM_IREQ_N
AA28
CAM_RESET
AB26
CAM_INPACK_N
AA27
CAM_VCCEN_N
AA26
CAM_WAIT_N
Y28
CAM_REG_N
V27
CAM_IOIS16_N
V26
SC_CLK/GPIO90
R25
SC_DETECT/GPIO93
U23
SC_VCCEN/GPIO89
T25
SC_VCC_SEL/GPIO88
T24
SC_RST/GPIO91
T23
SC_DATA/GPIO92
R24
SD_CLK/GPIO76
C22
SD_CMD/GPIO73
C23
SD_CD_N/GPIO75
A23
SD_WP_N/GPIO74
B23
SD_DATA3/GPIO72
A24
SD_DATA2/GPIO87
B24
SD_DATA1/GPIO86
C24
SD_DATA0/GPIO85
A25
USB_DP1
B27
USB_DM1
A27
USB_DP2
A26
USB_DM2
B26
USB_TXR_RKL
C25
USB_ANALOGTEST
B25
BT_USB_DP
AA1
BT_USB_DM
AA2
BT_TXR_RKL
AA4
BT_ANALOGTEST
Y4
EMMC_RST E28
EMMC_CLK F27
EMMC_CMD F26
EMMC_DATA7 C26
EMMC_DATA6 E27
EMMC_DATA5 E26
EMMC_DATA4 D27
EMMC_DATA3 D28
EMMC_DATA2 C27
EMMC_DATA1 C28
EMMC_DATA0 D26
NAND_CS1 R23
NAND_CS0 P24
NAND_ALE N25
NAND_CLE P23
NAND_REN N24
NAND_WEN P25
GPIO31 AC1
GPIO30 V7
GPIO29 W5
GPIO28 W4
GPIO27 V6
GPIO26 V5
GPIO25 V4
GPIO24 U6
GPIO23 U5
GPIO22 U4
GPIO21 T6
GPIO20 T5
GPIO19 T4
GPIO18 R6
GPIO17 R5
GPIO16 R4
GPIO15 P6
GPIO14 P5
GPIO13 P4
GPIO12 N6
GPIO11 N5
GPIO10 N4
GPIO9 N3
GPIO8 M6
GPIO7 AC23
GPIO6 AC24
GPIO5 AE24
GPIO4 AD23
GPIO3 AE23
GPIO2 AC22
GPIO1 AD22
GPIO0 AE22
EB_CS3/GPIO64 M25
EB_CS2/GPIO79 M24
EB_CS1/GPIO78 M23
EB_CS0/GPIO77 N23
EB_OE_N T27
EB_WE_N T28
EB_WAIT U27
EB_BE_N1 U26
EB_BE_N0 U28
EB_ADDR17/GPIO84 J22
EB_ADDR16/GPIO83 K22
EB_ADDR15/GPIO82 J23
EB_ADDR14 L26
EB_ADDR13 L27
EB_ADDR12 L25
EB_ADDR11 N26
EB_ADDR10 N27
EB_ADDR9 M26
EB_ADDR8 L28
EB_ADDR7 L24
EB_ADDR6 L23
EB_ADDR5 K28
EB_ADDR4 K27
EB_ADDR3 K26
EB_ADDR2 K25
EB_ADDR1 K24
EB_ADDR0 K23
EB_DATA15 V22
EB_DATA14 U22
EB_DATA13 T22
EB_DATA12 R22
EB_DATA11 P22
EB_DATA10 N22
EB_DATA9 M22
EB_DATA8 L22
EB_DATA7 T26
EB_DATA6 R28
EB_DATA5 R27
EB_DATA4 R26
EB_DATA3 P28
EB_DATA2 P27
EB_DATA1 P26
EB_DATA0 N28
MAIN & GPIO
1
A0’h
System Configuration
BOOT_MODE0
PLL SET[1:0] ==> Internal Pull-UP. N.C is high
00 : CPU clock(1056Mhz), Main0,1/2 DDR (792/792 Mhz)
01 : CPU clock(792Mhz), Main0,1/2 DDR (672/792 Mhz)
10 : CPU clock(1152Mhz), Main0,1/2 DDR (792/672 Mhz)
11 : CPU clock(984Mhz), Main0,1/2 DDR (792/792 Mhz)
I2C PULL UP
Write Protection
- Low : Normal Operation
- High : Write Protection
BOOT_MODE1
LG1152 B1
BOOT MODE
"11" or "01" : NOR
"10" : eMMC
"00" : NAND
NVRAM
Debug
MAIN Clock(24Mhz)
JTAG I/F FOR MAIN
Clock for LG1152
BackEnd 2
Pannel Resol
OPTIC I/F
FrontEnd 1
3D Depth IC
FrontEnd 2
CP BOX
BackEnd 1
DDR Size
Place to LVDS Wafer
For ISP
Delete PV
for DiiVA(China)
T2 Tuner
MODEL_OPT_1
MODEL_OPT_3
MODEL_OPT_9
MODEL_OPT_10
Enable
10
DDR Reserved
MODEL OPTION 8 is just for CP Box
It should not be appiled at MP
NON_3D_Depth_IC
1
NON_OPTIC
Support
OPTIC
LOW
0
0
Not Support
MODEL_OPT_6
MODEL_OPT_0
Zoran FRC
DDR_Default
MODEL_OPT_4
LG FRC3
FHD
S Tuner
1
0 1
CP BOX
Support
HIGH
Not Support
3D DEPTH
SoC
internal
FRC
Disable
3D_Depth_IC
MODEL_OPT_7
NO_FRC
UD
MODEL_OPT_5
Support
Not Support
MODEL_OPT_8
MODEL_OPT_2
Not Support
URSA5
Support
C2 Tuner
(For UD)
Place near Jack side
Copyright ⓒ 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
Other manuals for 55LM8600
3
This manual suits for next models
1
Other LG LCD TV manuals
