LG RZ-14LA60 User manual

LCD TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : ML-024H
MODEL : RZ-14LA60
website:http://biz.LGservice.com
e-mail:http://www.LGEservice.com/techsup.html

CONTENTS
CONTENTS .............................................................................................. 2
PRODUCT SAFETY ..................................................................................3
DESCRIPTION OF CONTROLS .............................................................. 4
SPECIFICATION........................................................................................7
ADJUSTMENT INSTRUCTION .................................................................9
TROUBLE SHOOTING............................................................................14

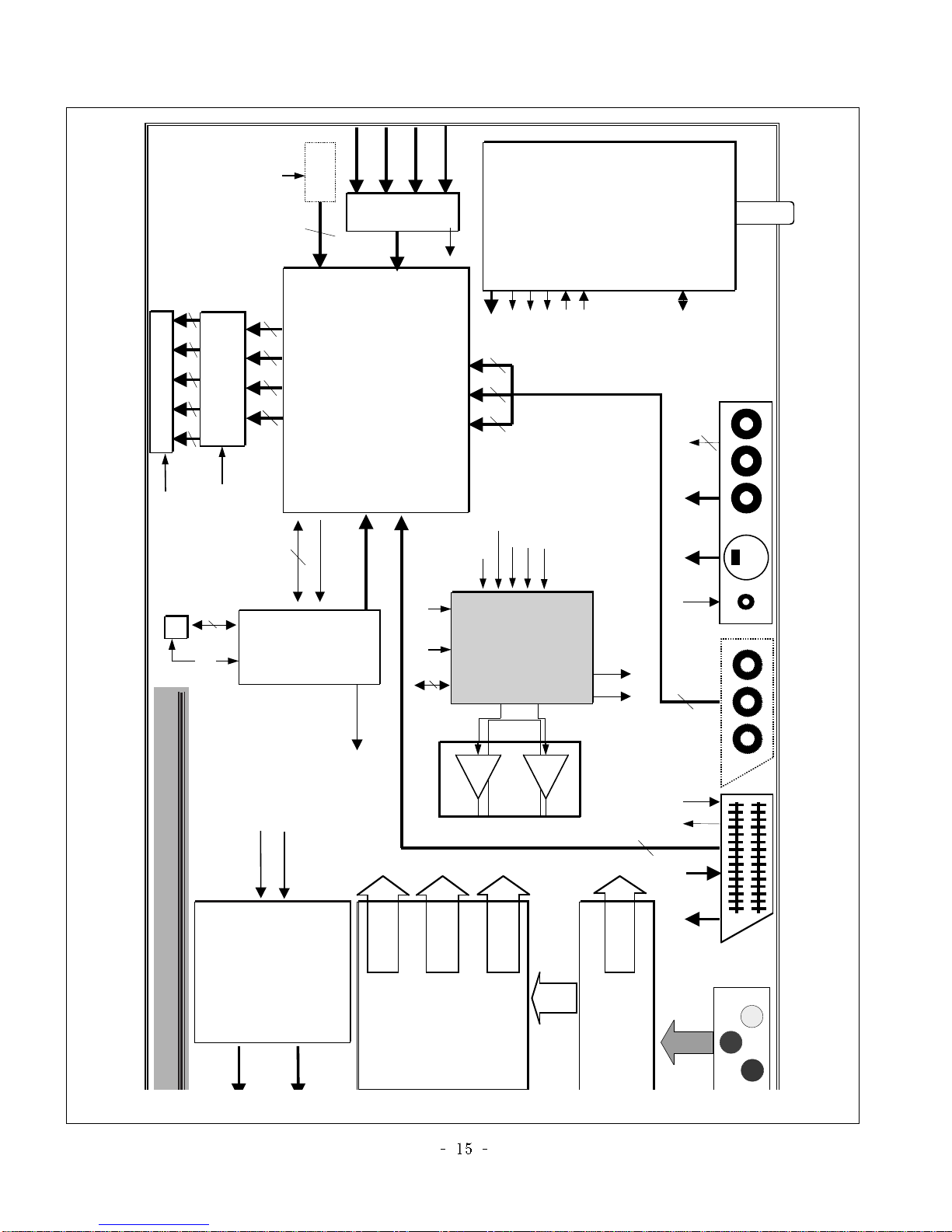

BLOCK DIAGRAM...................................................................................15
EXPLODED VIEW .................................................................................. 16
EXPLODED VIEW PARTS LIST..............................................................17
REPLACEMENT PARTS LIST ............................................................... 18
SVC. SHEET ...............................................................................................

SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Replacement Parts List.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
X-RAY Radiation
Warning:
To determine the presence of high voltage, use an accurate high
impedance HV meter.
Adjust brightness, color, contrast controls to minimum.
Measure the high voltage.
The meter reading should indicate
23.5 1.5KV: 14-19 inch, 26 1.5KV: 19-21 inch,
29.0 1.5KV: 25-29 inch, 30.0 1.5KV: 32 inch
If the meter indication is out of tolerance, immediate service and
correction is required to prevent the possibility of premature
component failure.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩand 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

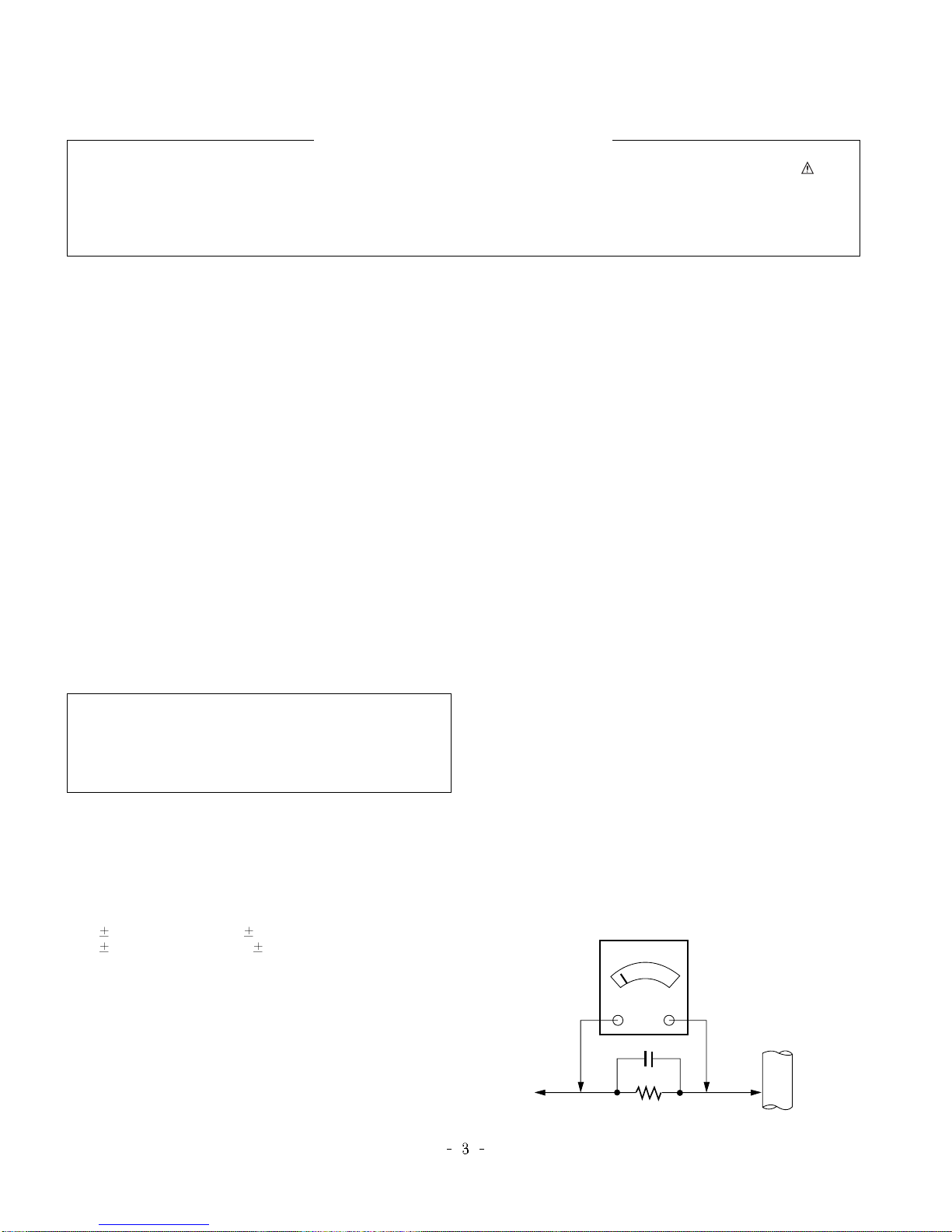

Leakage Current Hot Check circuit
The source of X-RAY RADIATION in this TV receiver is the High
Voltage Section and the LCD PANEL.
For continued X-RAY RADIATION protection, the replacement
panel must be the same type panel as specified in the
Replacement Parts List.
1.5 Kohm/10W
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the
following servicing precautions and any of the safety precautions on
page 3 of this publication, always follow the safety precautions.
Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug or
other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.
2. Test high voltage only by measuring it with an appropriate high
voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specified otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10% (by volume) Acetone and 90% (by
volume) isopropyl alcohol (90%-99% strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication of
contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test fixtures specified in this
service manual.
CAUTION: Do not connect the test fixture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged easily
by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques
should be used to help reduce the incidence of component
damage caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed to
prevent potential shock reasons prior to applying power to the
unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as "anti-static" can generate
electrical charges sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such as
the brushing together of your clothes fabric or the lifting of your
foot from a carpeted floor can generate static electricity
sufficient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500 F to 600 F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500 F to 600 F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the
circuitboard printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500 F to 600 F)
b. First, hold the soldering iron tip and solder the strand against
the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.
SERVICING PRECAUTIONS

IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by gently
prying up on the lead with the soldering iron tip as the solder
melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing the
IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close as
possible to the component body.
2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as
possible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC
connections).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the good
copper pattern. Solder the overlapped area and clip off any
excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly
connected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

1. Application range
This specification is applied to ML-024H chassis.
2. Requirement for Test
Testing for standard of each part must be followed in below
condition.
(1) Temperature: 25°C ± 5°C(But, CST must be tested 40°C ±
2°C (Humidity: 50%))
(2) Humidity: 65% ± 10%
(3) Power: Standard input voltage (AC 100-220V, 50/60Hz)
(4) Measurement must be performed after heat-run more than
15min.
(5) Adjusting standard for this chassis is followed a special
standard.
3. Test and Inspection method
(1) Capacity: Follow LG electronics TV Testing Standard.
(2) Another Required Standard
Follow the standard of each nation.
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement .
4.General Specification
1
2
3
4
5
6
7
8
9
10
Receivable broadcasting system
RF input channel
Input voltage
Tuning system
Screen size
Aspet ratio
Operating temperature
Operating humidity
Storage temperature
Storage humidity
Specification
Min Typ Max Unit
1)PAL/SECAM-BG
2)PAL/SECAM-DK
3)PAL-I/I
4)SECAM-L/L’
5)NTSC -M
VHF: E02 ~ E12
UHF : E21 ~ E69
CATV : S01 ~ S20
HYPER : S21 ~ S41
L/L’ : B,C,D
AC 100 - 220V ± 10%, 50/60Hz
FVS 100 program
354
4:3 0 50 deg
10 90 %RH
-20 60 deg
10 90 %RH
Item Remark
No.
EU/Non-EU
(PAL Market)
PAL
FRANCE
PAL, 200PR.(option)

5. Feature and Function
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Teletext
REMOCON
Scart
AV input
S-viedo input
H/P output
2 Carrier Stereo
NICAM Stereo
2 Carrier Dual
NICAM Dual
Local Key
Sub Power Key
AVL
On/Off Timer
Specification
Min Typ Max Unit
TOP,FLOF
RC-5 & NEC code (PAL), NEC code(NTSC)
1 Rear (Full Scart)
1 Rear
1 Rear
1 Rear
BG,DK
BG,I,LL’
BG,DK
BG,I,LL’
TV/Video, menu, enter(OK), Vol( ,), Channel( ,)
O
O
O
Item Remark
No.
TOP(option)
Option, EU
6. LCD panel specification
1
2
3
4
5
6
7
8
9
10
11
Screen Size
Number of Pixels
Pixel pitch
Video driving method
Dot clock
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Response time, Ton(at 25°C)
Response time, Toff(at 25°C)
Specification
Min Typ Max Unit
326.8(H) x 239.2(V)mm
640(H) x 480(V) dot
0.4425(H) x 0.4425(V)mm
1H inversion 25 MHz
0 50 deg
10 90 %RH
-20 60 deg
10 90 %RH
15 ms
10 ms
Item Remark
No.

1. Application Object
This instruction is for the application to the LCD TV.
2. Notes
(1) This set uses an power, so connect the power and the set
correctly before adjustment.
(2) The adjustment must be performed under the correct
sequence.
(3) The adjustment must be performed in the circumstance of
25 5C of temperature and 65 10% of relative humidity
if there is no specific designation.
(4) The set must be operated for 15 minutes preliminarily
before adjustment if there is no specific designation.
‘Heat Run’ must be performed with the full white signal or TV
noise signal in the internal part of the set.
The time for ‘Heat Run’ can be changed owing to production
plan.
Line Test condition (TV): standard color signal 65 1dBuV
ADJUSTMENT INSTRUCTION

OPTION
Data 200PR
TEXT I/II SV TOP A2 ST SYS
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
SCART
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
OPTION
Data 200PR
TEXT I/II SV TOP A2 ST SYS
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
SCART
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
4. Option 1 data setting (200PR ~ A2 ST:1bit, SYS:2bit composition)

OPTION
Data 200PR
TEXT I/II SV TOP A2 ST SYS
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
SCART
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
OPTION
Data 200PR
TEXT I/II SV TOP A2 ST SYS
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
SCART
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0

OPTION
Data 200PR
TEXT I/II SV TOP A2 ST SYS
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
01
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
SCART
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
OPTION
Data 200PR
TEXT I/II SV TOP A2 ST SYS
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
0
1
2
3
SCART
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1

5. Option2 data(ACMS~BBACK:1bit,LANG:3bit)
OPTION
Data ACMS
VOL BBACK LANG
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
OPTION
Data ACMS
VOL BBACK LANG
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7

6. Option3 data(IIC AFT~CH+AU:1bit)
OPTION
Data HiDEV
TSS IIC T MONO CH+AUS
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1

1 No sound Defective Reset IC of IC604. 1) Check volume and speaker.
- Speaker Defective MSP3410G of IC601. - Sound comes out only when being inputted into Audio
- Earphone Defective B+(8V) of IC604. L/R.
2) Check after replacing IC603.
3) Replace IC601.
4) Check and replace B+ of IC604.
2 Video color beat noise Earphone shield case being touched.
Check the mould of shield and SJ209, Replace shield case.
Soldering IC501. 1) Check signal of Video input.
2) Check signal of R.G.B output.
3) Re-soldering
1 No screen Input error of inverter connector 1) Bend the pin legs of P802B connector -> recheck them
2) Check and repair IC805 SI4925.
P1 and Pin 50 connector 1) Check and fix P1 connector
being slipped out
Cracked components and 1)Check and repair tuner board and main board
soldering at tuner board 2)Solder Q403
2 Dark screen 1) Defective LCD lamp 1) Replace the inverter
2) Defective inverter 2) Replace the LCD lamp
3) Input error of inverter connector 3) Check the connector input.
TROUBLE SHOOTING
1. General Features
No. Symptom Cause Check Point
Check Point
2. TV and external input
No. Symptom Cause

BLOCK DIAGRAM
ML-024H CHASSIS BLOCK DIAGRAM
POWER (SMPS)
DC to AC
INVERTER
INV-On/Off
TUNER
ANT (RF) Input
DVD/DTV Input
(480I/480P
720P/1080I)
R/G/B/FB L/R in
TV L/R out
CVBS in D-4
SCALER(Format Converter)
LG8801
RF V.
AFT SIF AUDIO SW2 SW1 B+ IF-0UT ADC 33V SDA SCL CTR AGC
MSP-34XX SIF : 2, SCART : 4 MONO : 1 I2S : 2 ------18.432MHz--- L-SPK / WOOFER H/P, I2S SCART OUT : 2
Dual Audio AMP LA4282
8.0V 5.0V
RESET 4.2V
EEP
ROM
MICOM / TXT 6.0MHz
SCL1/SDA1
OSD
AC In
FROM MICOM R(8) G(8) B(8)
YUV
ST-BY
3.3V/2.5V
5.0V
R/G/B/FB
SCL/SDA
CVBS
MULTISTANDARD
SOUND PROCESSOR
SCL/SDA
SIF
A/V L,R
PC L,R
S L,R
S L,R H/P L,R
LVDS TRANSMITTER
THC63LVDM83R
H/V Sync
Enable,CLK
TCLK+/- TA+/- TB+/- TC+/- TD+/-
3.3V
TO MODULE(400Nit)
3.3V
15V
-LAMP OUT
(4.8mA/EA)
SCART R/G/B/FB
SCART V.
RGB/YUV SW OSD/TXT
R/G/B/FB
RF V. S L/R S L/R ..
. .
H/P S-Input VIDEO Input
H/P L,R A/V V.S-V. A/V L,R
AUDIO MONO
NTSC/PAL/SECAM Decoder with Analog YPbPr/RGB Input and Digital YCbCr/Digital RGB Input ===============================
33V
15V ST-BY5/5V
ST-BY3.3/3.3V
POWER
(STR-W6853P)
110~240V(AC)
INVERTER, OZ960S MSP34**
TUNER
MICOM, TUNER, ETC LG8801, MODULE, MICOM, AD9883
DC-DC
(MP1583)
15V
RF V.
A/V V.
S-V.
SCART V.
Video
S/W
CXA2040
Video
CVBS(To Micom)
D-Class
Audio AMP
TPA3004D2
1W
1W
Pb Y Pr

4
1
2
3
12
12
13
14
15
17
16
5
5
7
6
9
10
11
8
EXPLODED VIEW

EXPLODED VIEW PARTS LIST
1 3091TKA005A CABINET ASSEMBLY, RZ-14LA60 BRAND NON NON
3091TKA005B CABINET ASSEMBLY, RZ-14LA60 BRAND 3090TKA003 C/SKD
2 6304FAU016A LCD(LIQUID CRYSTAL DISPLAY), T140VN01 AU TFT COLOR MVA 450NITS 25MS
3 3809TKA002B BACK COVER ASSEMBLY, RZ-14LA60 3808TKA002 3850VC0002F
3809TKA002C BACK COVER ASSEMBLY, RZ-14LA60 3808TKA002 C/SKD
3809TKA002D BACK COVER ASSEMBLY, RZ-14LA60 3808TKA002 412-386D UK ONLY SKD
4 4811V00047C BRACKET ASSEMBLY, STAND RJ-13LA60 ML024C .
4811V00047F BRACKET ASSEMBLY, STAND RZ-13LA60 SKD ML024C .
5 6401VB0003Y SPEAKER ASSEMBLY, RU-13LA60 CPT FULL RANGE(R/L) 6400VA0017A (3P + 4P)
6 6871VSMV23A PWB(PCB) ASSEMBLY,SUB, CONT ML024C CONTROL 13
7 6871VSMV22B PWB(PCB) ASSEMBLY,SUB, POWER ML024C POWER 13 SKD
8 3313TP1002A MAIN TOTAL ASSEMBLY, RZ-14LA60 BRAND ML-024H
9 4951TKS151A METAL ASSEMBLY, FRAME .
4951TKS151B METAL ASSEMBLY, FRAME MAIN RZ-14LA60 SKD
10 4940TKC019A KNOB, ROTARY CONTROL BUTTON
11 3550TKK539A COVER, RZ-14LA60 REAR AV
12 4950V00157B METAL, HINGE ASSY NON RJ-13LA60
13 3550V00300C COVER, FRONT RJ-13LA60 ABS .
14 3550V00301C COVER, REAR RJ-13LA60 ABS HINGE
15 4810V00784C BRACKET, STAND RJ-13LA60 ML024C ABS .
16 4810V00785B BRACKET, DECO RU-13LA60 NON ABS, HF-380 .
17 4950V00161B METAL, STAND EGI RJ-13LA60 PRESS
No. PART NO. DESCRIPTION

DATE: 2004. 06.16.
*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION
C10 0CE227DF618 220UF STD 16V M FL TP5
C1107 0CE337BH618 330UF KME 25V M FL TP5
C1150 0CE337BH618 330UF KME 25V M FL TP5
C1151 0CE337BH618 330UF KME 25V M FL TP5
C1200 0CE227DH618 220UF STD 25V M FL TP5
C1235 0CE107DD618 100UF STD 10V M FL TP5
C13 0CE227DF618 220UF STD 16V M FL TP5
C209 0CE476DF618 47UF STD 16V M FL TP5
C211 0CE106DF618 10UF STD 16V M FL TP5
C212 0CE227DD618 220UF STD 10V M FL TP5
C215 0CE106DF618 10UF STD 16V M FL TP5
C216 0CE106DF618 10UF STD 16V M FL TP5
C289 0CE104DK618 0.1000UF STD 50V M FL TP5
C331 0CE107DF618 100UF STD 16V M FL TP5
C351 0CE227DF618 220UF STD 16V M FL TP5
C354 0CE476DF618 47UF STD 16V M FL TP5
C356 0CE106DF618 10UF STD 16V M FL TP5
C362 0CE107DF618 100UF STD 16V M FL TP5
C364 0CE336DF618 33UF STD 16V M FL TP5
C380 0CE105DK618 1UF STD 50V M FL TP5
C381 0CE106DF618 10UF STD 16V M FL TP5
C383 0CE106DF618 10UF STD 16V M FL TP5
C408 0CE106DK618 10UF STD 50V M FL TP5
C410 0CE227DF618 220UF STD 16V M FL TP5
C412 0CE105DK618 1UF STD 50V M FL TP5
C499 0CE476DK618 47UF STD 50V M FL TP5
C501 0CE107DF618 100UF STD 16V M FL TP5
C523 0CE104DK618 0.1000UF STD 50V M FL TP5
C526 0CE107DF618 100UF STD 16V M FL TP5
C541 0CE107DF618 100UF STD 16V M FL TP5
C581 0CE107DF618 100UF STD 16V M FL TP5
C613 0CE106DF618 10UF STD 16V M FL TP5
C614 0CE106DF618 10UF STD 16V M FL TP5
C616 0CE107DF618 100UF STD 16V M FL TP5
C629 0CE107DF618 100UF STD 16V M FL TP5
C633 0CE107DF618 100UF STD 16V M FL TP5
C706 0CE226BK618 22UF KME 50V M FL TP5
C719 0CE227BJ618 220U KME 35V M FL TP5
C728 0CE476BK618 47UF KME 50V M FL TP5
C731 0CE227BJ618 220U KME 35V M FL TP5
C744 0CE107BK638 100UF KME 50V M FM5 TP5
C1127 0CH3105F946 1UF 16V Z F 2012 R/TP
C1128 0CH3105F946 1UF 16V Z F 2012 R/TP
C1131 0CH3153K516 15000PF 50V K B 2012 R/TP
C1132 0CH3105F946 1UF 16V Z F 2012 R/TP
C1133 0CH3105F946 1UF 16V Z F 2012 R/TP
C1134 0CH3105F946 1UF 16V Z F 2012 R/TP
C1137 0CH3105F946 1UF 16V Z F 2012 R/TP
C1207 0CH3105F946 1UF 16V Z F 2012 R/TP
C1208 0CH3105F946 1UF 16V Z F 2012 R/TP
C1209 0CH3105F946 1UF 16V Z F 2012 R/TP
C1210 0CH3105F946 1UF 16V Z F 2012 R/TP
C1211 0CH3105F946 1UF 16V Z F 2012 R/TP
DATE: 2004. 06.16.
*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION
C1226 0CH3105F946 1UF 16V Z F 2012 R/TP
C1227 0CH3105F946 1UF 16V Z F 2012 R/TP
C1228 0CH3105F946 1UF 16V Z F 2012 R/TP
C1229 0CH3105F946 1UF 16V Z F 2012 R/TP
C1231 0CH3105F946 1UF 16V Z F 2012 R/TP
C1234 0CH3105F946 1UF 16V Z F 2012 R/TP
C402 0CH3472K516 4700PF 50V K B 2012 R/TP
C611 0CH3222K516 2200PF 50V K B 2012 R/TP
C612 0CH3222K516 2200PF 50V K B 2012 R/TP
C622 0CH3222K516 2200PF 50V K B 2012 R/TP
C623 0CH3222K516 2200PF 50V K B 2012 R/TP
C716 0CH3222K516 2200PF 50V K B 2012 R/TP
C111 0CH6101K416 100PF 50V J NP0 2012 R/TP
C1121 0CH6271K416 270PF 50V J NP0 2012 R/TP
C122 0CH6330K416 33PF 50V J NP0 2012 R/TP
C123 0CH6330K416 33PF 50V J NP0 2012 R/TP
C1233 0CH6221K416 220PF 50V J NP0 2012 R/TP
C132 0CH6101K416 100PF 50V J NP0 2012 R/TP
C133 0CH6101K416 100PF 50V J NP0 2012 R/TP
C134 0CH6101K416 100PF 50V J NP0 2012 R/TP
C135 0CH6101K416 100PF 50V J NP0 2012 R/TP
C150 0CH6101K416 100PF 50V J NP0 2012 R/TP
C191 0CH6330K416 33PF 50V J NP0 2012 R/TP
C192 0CH6330K416 33PF 50V J NP0 2012 R/TP
C193 0CH6330K416 33PF 50V J NP0 2012 R/TP
C194 0CH6330K416 33PF 50V J NP0 2012 R/TP
C196 0CH6330K416 33PF 50V J NP0 2012 R/TP
C197 0CH6330K416 33PF 50V J NP0 2012 R/TP
C198 0CH6330K416 33PF 50V J NP0 2012 R/TP
C199 0CH6330K416 33PF 50V J NP0 2012 R/TP
C202 0CH6331K416 330PF 50V J NP0 2012 R/TP
C207 0CH6471K416 470F 50V J NP0 2012 R/TP
C208 0CH6471K416 470F 50V J NP0 2012 R/TP
C213 0CH6221K416 220PF 50V J NP0 2012 R/TP
C214 0CH6101K416 100PF 50V J NP0 2012 R/TP
C217 0CH6471K416 470F 50V J NP0 2012 R/TP
C218 0CH6471K416 470F 50V J NP0 2012 R/TP
C221 0CH6471K416 470F 50V J NP0 2012 R/TP
C222 0CH6471K416 470F 50V J NP0 2012 R/TP
C223 0CH6101K416 100PF 50V J NP0 2012 R/TP
C224 0CH6101K416 100PF 50V J NP0 2012 R/TP
C360 0CH6221K416 220PF 50V J NP0 2012 R/TP
C382 0CH6151K416 150PF 50V J NP0 2012 R/TP
C384 0CH6151K416 150PF 50V J NP0 2012 R/TP
C385 0CH6151K416 150PF 50V J NP0 2012 R/TP
C406 0CH6101K416 100PF 50V J NP0 2012 R/TP
C407 0CH6101K416 100PF 50V J NP0 2012 R/TP
C44 0CH6150K416 15PF 50V J NP0 2012 R/TP
C510 0CH6150K416 15PF 50V J NP0 2012 R/TP
C511 0CH6150K416 15PF 50V J NP0 2012 R/TP
C536 0CH6151K416 150PF 50V J NP0 2012 R/TP
C635 0CH6560K416 56PF 50V J NP0 2012 R/TP
C636 0CH6560K416 56PF 50V J NP0 2012 R/TP
C739 0CH6101K416 100PF 50V J NP0 2012 R/TP
REPLACEMENT PARTS LIST
MAIN BOARD
CAPACITOR
For Capacitor & Resistors, the
charactors at 2nd and 3rd digit in the
P/No. means as follows;
CC, CX, CK, CN, CH : Ceramic
CQ : Polyestor
CE : Electrolytic
CF : Fixed Film
RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RH : CHIP, Metal Glazed(Chip)
RR : Drawing

DATE: 2004. 06.16.
*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION
C749 0CH6101K416 100PF 50V J NP0 2012 R/TP
C750 0CH6101K416 100PF 50V J NP0 2012 R/TP
C8 0CH6101K416 100PF 50V J NP0 2012 R/TP
C824 0CH6220K416 22PF 50V J NP0 2012 R/TP
C825 0CH6220K416 22PF 50V J NP0 2012 R/TP
C826 0CH6220K416 22PF 50V J NP0 2012 R/TP
C1120 0CH2473K516 47000P 50V K B 2.0X1.25 R/TP
C1122 0CH2473K516 47000P 50V K B 2.0X1.25 R/TP
C512 0CH2473K516 47000P 50V K B 2.0X1.25 R/TP
C513 0CH2473K516 47000P 50V K B 2.0X1.25 R/TP
C517 0CH2473K516 47000P 50V K B 2.0X1.25 R/TP
C518 0CH2473K516 47000P 50V K B 2.0X1.25 R/TP
C519 0CH2473K516 47000P 50V K B 2.0X1.25 R/TP
C520 0CH2473K516 47000P 50V K B 2.0X1.25 R/TP
C703 181-120P 470 PF 4KV K JE R FL 10
C704 181-120P 470 PF 4KV K JE R FL 10
C708 181-091D DEHR33A102KN2A 1000PF 1KV 10
C709 181-120K 2200PF 4KV M E FMTW LEAD 4.5
C710 181-120K 2200PF 4KV M E FMTW LEAD 4.5
C717 181-091D DEHR33A102KN2A 1000PF 1KV 10
C718 181-091D DEHR33A102KN2A 1000PF 1KV 10
C726 181-091N "SL 100PF 1KV 10%,-10% R/TP T"
C777 181-091D DEHR33A102KN2A 1000PF 1KV 10
C100 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C102 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C103 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C106 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C107 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C108 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C11 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C110 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C1110 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C1111 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C1114 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C1115 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C112 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C1123 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C1124 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C1126 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C1129 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C1130 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C114 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C1140 0CK225DFK4A "2.2UF 2012 16V 20%,-20% F(Y5"
C1141 0CK225DFK4A "2.2UF 2012 16V 20%,-20% F(Y5"
C1142 0CK225DFK4A "2.2UF 2012 16V 20%,-20% F(Y5"
C1143 0CK225DFK4A "2.2UF 2012 16V 20%,-20% F(Y5"
C1144 0CK225DFK4A "2.2UF 2012 16V 20%,-20% F(Y5"
C1145 0CK225DFK4A "2.2UF 2012 16V 20%,-20% F(Y5"
C1146 0CK225DFK4A "2.2UF 2012 16V 20%,-20% F(Y5"
C1147 0CK225DFK4A "2.2UF 2012 16V 20%,-20% F(Y5"
C115 0CH5620K416 62PF 50V 5% NP0 2012 R/TP
C116 0CH5620K416 62PF 50V 5% NP0 2012 R/TP
C117 0CH5620K416 62PF 50V 5% NP0 2012 R/TP
C118 0CH5620K416 62PF 50V 5% NP0 2012 R/TP
C119 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C12 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C120 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C1203 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C1204 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C1205 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C1206 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C121 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
DATE: 2004. 06.16.
*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION
C1220 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C1221 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C1224 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C1225 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C1232 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C124 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C125 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C200 0CK225DFK4A "2.2UF 2012 16V 20%,-20% F(Y5"
C201 0CK225DFK4A "2.2UF 2012 16V 20%,-20% F(Y5"
C204 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C206 0CH6391K416 390PF 50V 5% NP0 2012 R/TP
C210 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C225 0CK225DFK4A "2.2UF 2012 16V 20%,-20% F(Y5"
C226 0CK225DFK4A "2.2UF 2012 16V 20%,-20% F(Y5"
C253 0CH6391K416 390PF 50V 5% NP0 2012 R/TP
C287 0CH6391K416 390PF 50V 5% NP0 2012 R/TP
C288 0CH6391K416 390PF 50V 5% NP0 2012 R/TP
C3 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C352 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C363 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C365 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C4 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C405 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C409 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C411 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C413 0CK224DF56A 220000PF 2012 16V 10% R/TP X
C498 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C5 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C502 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C503 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C504 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C505 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C506 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C507 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C508 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C509 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C514 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C515 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C516 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C527 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C528 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C529 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C530 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C533 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C534 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C535 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C537 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C538 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C539 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C540 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C556 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C557 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C558 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C580 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C587 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C6 0CH5102K416 1000PF 50V 5% NP0 2012 R/TP
C609 0CH3822K516 8200PF 2012 50V 10% B(Y5P) R
C610 0CH3822K516 8200PF 2012 50V 10% B(Y5P) R
C615 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C618 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C619 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C624 0CK224DF56A 220000PF 2012 16V 10% R/TP X

DATE: 2004. 06.16.
*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION
C625 0CK224DF56A 220000PF 2012 16V 10% R/TP X
C626 0CK224DF56A 220000PF 2012 16V 10% R/TP X
C627 0CK224DF56A 220000PF 2012 16V 10% R/TP X
C628 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C631 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C634 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C638 0CH6020K116 2PF 50V 0.5 PF NP0 2012 R/TP
C639 0CH6020K116 2PF 50V 0.5 PF NP0 2012 R/TP
C640 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C644 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C645 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C661 0CH5120K416 12PF 50V 5% NP0 2012 R/TP
C662 0CH5120K416 12PF 50V 5% NP0 2012 R/TP
C663 0CH5120K416 12PF 50V 5% NP0 2012 R/TP
C664 0CH5120K416 12PF 50V 5% NP0 2012 R/TP
C665 0CH5120K416 12PF 50V 5% NP0 2012 R/TP
C666 0CH5120K416 12PF 50V 5% NP0 2012 R/TP
C667 0CH5120K416 12PF 50V 5% NP0 2012 R/TP
C668 0CH5120K416 12PF 50V 5% NP0 2012 R/TP
C669 0CH5120K416 12PF 50V 5% NP0 2012 R/TP
C670 0CH5120K416 12PF 50V 5% NP0 2012 R/TP
C671 0CH5120K416 12PF 50V 5% NP0 2012 R/TP
C672 0CH5120K416 12PF 50V 5% NP0 2012 R/TP
C673 0CH5120K416 12PF 50V 5% NP0 2012 R/TP
C674 0CH5120K416 12PF 50V 5% NP0 2012 R/TP
C675 0CH5120K416 12PF 50V 5% NP0 2012 R/TP
C676 0CH5120K416 12PF 50V 5% NP0 2012 R/TP
C677 0CH5120K416 12PF 50V 5% NP0 2012 R/TP
C678 0CH5120K416 12PF 50V 5% NP0 2012 R/TP
C679 0CH5120K416 12PF 50V 5% NP0 2012 R/TP
C680 0CH5120K416 12PF 50V 5% NP0 2012 R/TP
C681 0CH5120K416 12PF 50V 5% NP0 2012 R/TP
C682 0CH5120K416 12PF 50V 5% NP0 2012 R/TP
C683 0CH5120K416 12PF 50V 5% NP0 2012 R/TP
C684 0CH5120K416 12PF 50V 5% NP0 2012 R/TP
C698 0CK224DF56A 220000PF 2012 16V 10% R/TP X
C699 0CK224DF56A 220000PF 2012 16V 10% R/TP X
C711 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C712 0CH5821K416 820PF 50V 5% NP0 2012 R/TP
C724 0CH5102K416 1000PF 50V 5% NP0 2012 R/TP
C737 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C738 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C740 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C741 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C742 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C748 0CH3103K516 10000PF 50V 10% B(Y5P) 2012
C751 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
C752 0CH3104K566 0.1UF 50V 10% X7R 2012 R/TP
L200 0CK225DFK4A "2.2UF 2012 16V 20%,-20% F(Y5"
C1101 0CC15003G06 "15PF D 3KV 10%,-10% SL FMTW"
C1102 0CC15003G06 "15PF D 3KV 10%,-10% SL FMTW"
C1105 0CC15003G06 "15PF D 3KV 10%,-10% SL FMTW"
C1106 0CC15003G06 "15PF D 3KV 10%,-10% SL FMTW"
C1125 0CH2474F566 0.47UF 16V 10% X7R 2012 R/TP
C1212 0CH2474F566 0.47UF 16V 10% X7R 2012 R/TP
C1213 0CH2474F566 0.47UF 16V 10% X7R 2012 R/TP
C1214 0CH2474F566 0.47UF 16V 10% X7R 2012 R/TP
C1217 0CH2474F566 0.47UF 16V 10% X7R 2012 R/TP
C1218 0CH2474F566 0.47UF 16V 10% X7R 2012 R/TP
C1219 0CH2474F566 0.47UF 16V 10% X7R 2012 R/TP
C151 0CH2272K516 2700PF 50V 10% B(Y5P) 2012 R
C152 0CH2182K516 1800PF 50V 10% B(Y5P) 2012 R
DATE: 2004. 06.16.
*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION
C153 0CH2102K516 1000PF 50V 10% B(Y5P) 2012 R
C630 0CH2152K516 1500PF 50V 10% B(Y5P) 2012 R
C101 0CE107BF618 100UF KME 16V M FL TP5
C113 0CE107BF618 100UF KME 16V M FL TP5
C219 0CE226DF618 22UF STD 16V M FL TP5
C220 0CE226DF618 22UF STD 16V M FL TP5
C353 0CE475DK618 4.7UF STD 50V 20% FL TP 5
C357 0CE225DK618 2.2UF STD 50V 20% FL TP 5
C403 0CE476DH618 47UF STD 25V 20% FL TP 5
C404 0CE687DD618 680UF STD 10V 20% FL TP 5
C617 0CE107BH618 100UF KME TYPE 25V 20% FL TP
C620 0CE335DK618 3.3UF STD 50V 20% FL TP 5
C621 0CE107BF618 100UF KME 16V M FL TP5
C643 0CE476BF618 47UF KME TYPE 16V 20% FL TP
C707 0CE1072V610 100UF KMF 450V 20% FL BULK
C725 0CE4772J618 470UF KMF 35V 20% TP 5 FL
C727 0CE226BN618 22UF KME 100V M FL TP5
C730 0CE4772J618 470UF KMF 35V 20% TP 5 FL
C734 0CE4772J618 470UF KMF 35V 20% TP 5 FL
C743 0CE477BD618 470UF KME TYPE 10V 20% FL TP
C745 0CE477BD618 470UF KME TYPE 10V 20% FL TP
C746 0CE477BD618 470UF KME TYPE 10V 20% FL TP
C747 0CE477BD618 470UF KME TYPE 10V 20% FL TP
C701 0CF474285B0 0.47UF S 275V 10% PCX2 337 B
C1202 0CN475FH67A 4.7UF 3225 25V 20% R/TP X5R
C1222 0CN475FH67A 4.7UF 3225 25V 20% R/TP X5R
C1230 0CN475FH67A 4.7UF 3225 25V 20% R/TP X5R
D701 0DRSA00150A RBV-406 SANKEN BK USC 600V 4
D702 0DD100009AM EU1ZV(1) TP SANKEN
D704 0DD100009AM EU1ZV(1) TP SANKEN
D706 0DR060009AA TVR06J TP GULF SEMICONDUCTOR
D710 0DR340009AA MBRS340 TP FAIRCHILD NON 40V
D711 0DR340009AA MBRS340 TP FAIRCHILD NON 40V
D707 0DRSD00091A SF20JC10 SHINDENGEN ST FTO22
D100 0DS181009AA KDS181 TP KEC SOT-23 80V 3
D1101 0DS181009AA KDS181 TP KEC SOT-23 80V 3
D1102 0DS181009AA KDS181 TP KEC SOT-23 80V 3
D1105 0DS181009AA KDS181 TP KEC SOT-23 80V 3
D1106 0DS181009AA KDS181 TP KEC SOT-23 80V 3
ZD1101 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323
ZD1102 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323
ZD202 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323
ZD203 0DZ510009EE UDZ S 5.1B TP ROHM-K SOD323
ZD704 0DZ110009AD MTZJ11B TP ROHM-K DO34 500MW
ZD400 0DZ330009BA ZENER HZT33 TAPING
ZD701 0DZ910009AJ MTZJ9.1B TP ROHM-K DO34 0.5W
IC701 0IPMGSK012A STR-W6853P SANKEN 6P T0-220
IC502 0ICTMMO005B SC786110DW MOTOROLA SOIC 16P
IC102 0IFA752700A KA75270Z 3 TP RE-SET IC MC-0
IC1106 0IKE704200J KIA7042AF SOT-89 TP 4.2V VOL
IC603 0IKE704200J KIA7042AF SOT-89 TP 4.2V VOL
IC101 0IAL241610B AT24C16A-10PI-2.7 8PIN DIP S
IC1101 0IMCRO2001A OZ960S O2MICRO 20P SSOP R/TP
IC1110 0IMCRRH005A UM6K1N ROHM 6P SOT363 R/TP 3
IC1112 0IMCRRH005A UM6K1N ROHM 6P SOT363 R/TP 3
IC1121 0IMCRMZ001A MP1583DN MONOLITHIC POWER SY
DIODEs
IC
