LG LS66 Series User manual

INSTALLATION MANUAL
LED TV*
Please read this manual carefully before operating your set
and retain it for future reference.
UU76*
UU66*
UU64*
EU96*
WU96*
WT98*
LS66*
www.lg.com
Copyright © 2018 LG Electronics Inc. All Rights Reserved.
*MFL70423710*

ENGLISH
2
Table of contents
4 Location and Function of Controls
4 Parts and Button
4 Basic functions
5 LED Clock Connection
6 First Use Wizard
7 Basic Settings
7 - Language & Location
7 - Network Settings
8 - Portal Settings
8 - Voice Service Coverage
9 Data Cloning
9 Solution Settings
9 - Language & Country selection
10 - Automatically for Setup
14 - Manually for Setup
17 Installation Menu Settings
18 Installation Menu
18 Introduction
19 LG Hotel Mode
19 - Hotel Mode Operation
19 - Power On Status
20 - Volume
20 - Key Management
21 - Limited Mode
21 - DTV Programme Update
22 - Power On Default
22 - Aux Source Setting
22 - Power Management
22 - Radio Video Blank
22 - Factory Reset
23 Network
23 - MAC Address
23 - Network Setting
23 - LG Connect
24 - IP Stream Control
24 - Wake On LAN
24 - VLAN ID
24 - Server Settings
25 Pro:Centric
25 - Mode
25 - WORF
25 - Room Number Setting
25 - MediaType
26 - Receive Data
26 - Native EPG
27 General
27 - Configuration Setup
31 - External Speaker
31 - Set ID Setup
31 - Power Saving
32 - HCEC Setup
33 - Clock Setup
33 - Password Change
34 - Lock Mode
34 - Crestron
34 - WelcomeVideo
34 - Developer Mode
35 Portal Settings
35 - Portal Mode
35 - Auto Start
35 - PreLoaded App
35 - Website Shortcut
36 - Hotel Directory
36 - Portal Editor
37 Media Share
37 - SmartShare
37 - Screen Share
37 - Media Renderer
37 - DIAL
37 - TV Name
38 - SoftAP
39 - Beacon
40 TV Manager
40 - Diagnostics
47 - USB Download Menu
48 CONTENT MANAGER
48 - Web Login
48 - Content Manager
52 - Group Manager 2.0

ENGLISH
3
54 IR Codes
55 External control device Setup
55 RS-232C Setup
55 Phone jackType
55 Type of Connector : D-Sub 9-Pin Male
56 RS-232C Configurations
56 Communication Parameters
56 IR OUT Using Guide
56 - Suitable / Not Recommend remote-controller data
format
56 - IR Receiver specifications
57 Command Reference List
57 Transmission / Receiving Protocol

ENGLISH
4
Location and Function of Controls
Parts and Button
(Except forWT98*)
(Except forWU96*, EU96*)
(Only EU96*)
(OnlyWU96*)
Basic functions
(Except forWU96*, EU96*)
Power On (Press)
Power O1(Press and Hold)
Menu Control (Press2)
Menu Selection (Press and Hold3)
1 All running apps will close.
2 You can access and adjust the menu by pressing the button when
TV is on.
3 You can use the function when you access menu control.
(OnlyWU96*, EU96*)
Power On (Press)
Power O 1(Press and hold)
Volume Control
Programmes Control
1 All running apps will close.

ENGLISH
5
LED Clock Connection
(Depending on model)
ThisTV can be connected to a LED Clock via the CLOCK port.
CLOCK
LED Clock
(*Not Provided)

ENGLISH
6
First Use Wizard
* Image shown may differ from your TV.
(Depending on model)
•There are four options - Basic Settings, Data Cloning, Solution Settings, and Installation Menu Settings. Each menu can access by
START button.

ENGLISH
7
Basic Settings
* Image shown may differ from your TV.
This menu is for basic settings related to language, network, portal, voice service coverage and programme tuning without SI (Pro:Centric) setting.
There are four steps for it.
Language & Location
(Depending on model)
•Select the Language and Country. Some countries need to select the Time Zone.
Network Settings
(Depending on model)
•Set Network connection.You can connect easily to wired/wireless network. (“Network Setting”on page 23)

ENGLISH
8
Portal Settings

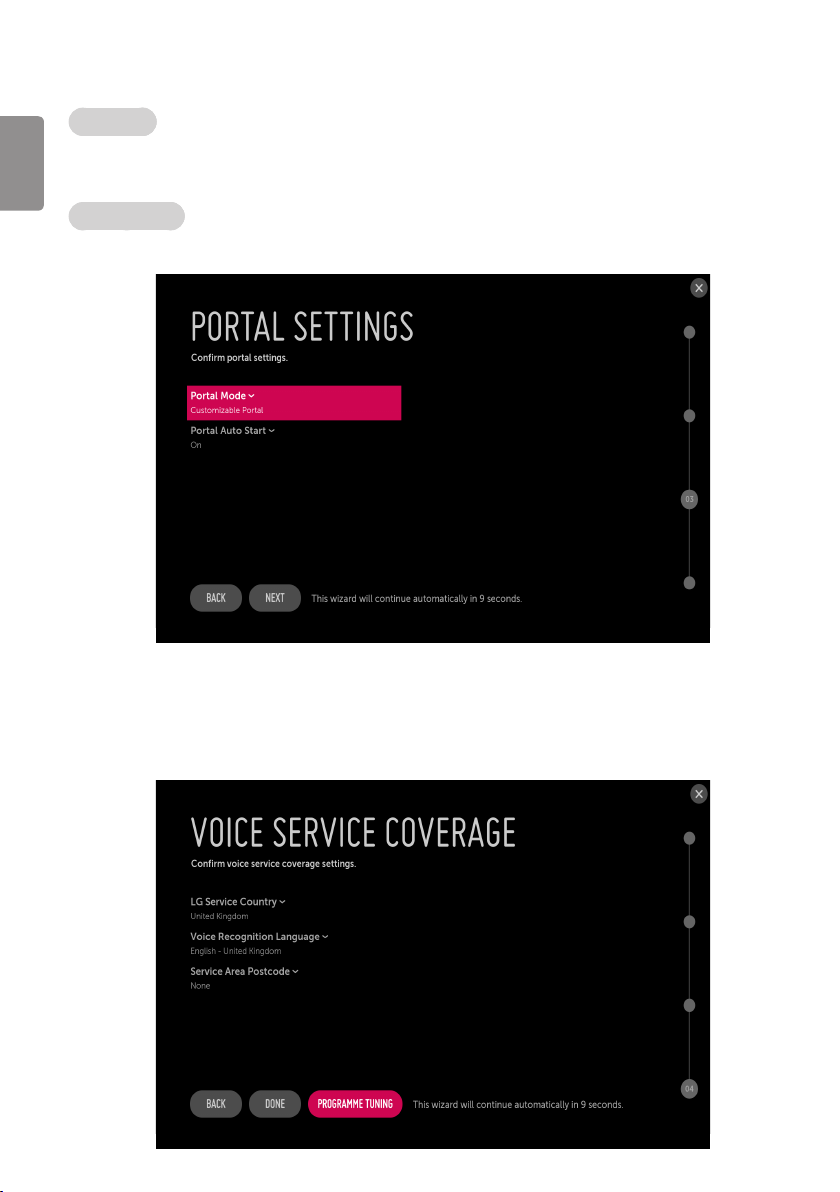

•Set the Portal Mode and Portal Auto Start.
Portal Mode
(Depending on model)
•You can select‘Default Portal’(Use webOS default portal),‘Customizable Portal’(Use editable Portal), or‘None’(Do not use portal).
Portal Auto Start
•You can select‘On’or‘O’. If you select‘On’, Portal (Home Launcher) will be execute automatically after TV on.
Voice Service Coverage
(Depending on model)
•Set the voice service coverage.You can set LG Service Country, Voice Recognition Language, and Service Area Postcode for voice
service.

ENGLISH
9
Data Cloning
(Depending on model)
Access Data cloning menu ofTV Manger application for applying cloning le.
Solution Settings
(Depending on model)
The Pro:Centric Platform enables you to simply install, manage and use guest-centric solutions.The default Domain“procentric.local”and IP Server
Address are needed to be registered in DNSTV will contact the IP Server using the default Domain“procentric.local”via IP on server search page. IfTV
doesn’t contact the Server, TV will search the pre-dened programme earlier than all programmes. (Only DVB-C)
The frequencies of pre-dened programmes are below.
•Germany:‘51000, 858000, 778000, 698000, 618000, 538000, 458000, 378000, 298000, 218000, 138000 khz’.
•Philippines 6 Mhz:‘57000, 651000, 591000, 531000, 471000, 411000, 351000, 291000, 231000, 171000, 111000 khz’.
•Other Country:‘50000, 842000, 762000, 682000, 602000, 522000, 442000, 362000, 282000, 202000, 122000 khz’.
Language & Country selection
(Depending on model)
•Please select the Language and Country. Some countries need to select the Time Zone.

ENGLISH
10
Automatically for Setup
(Depending on model)

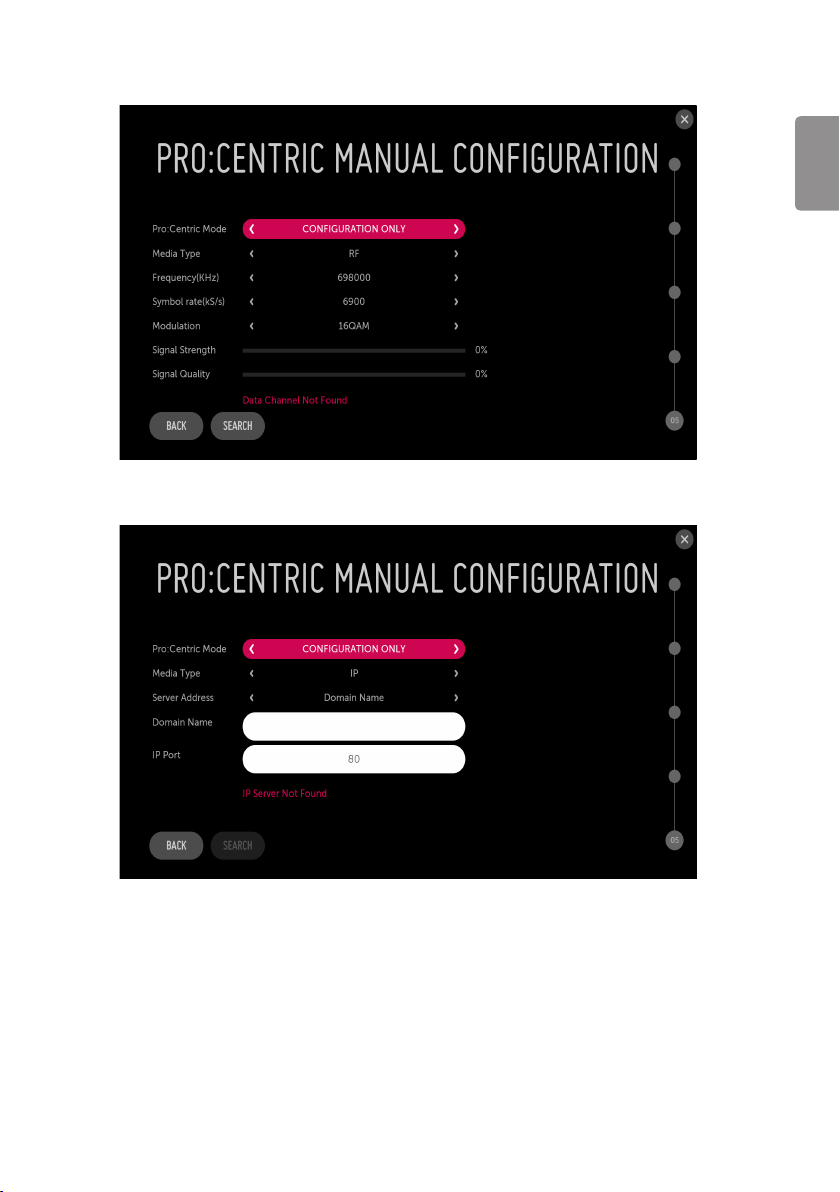

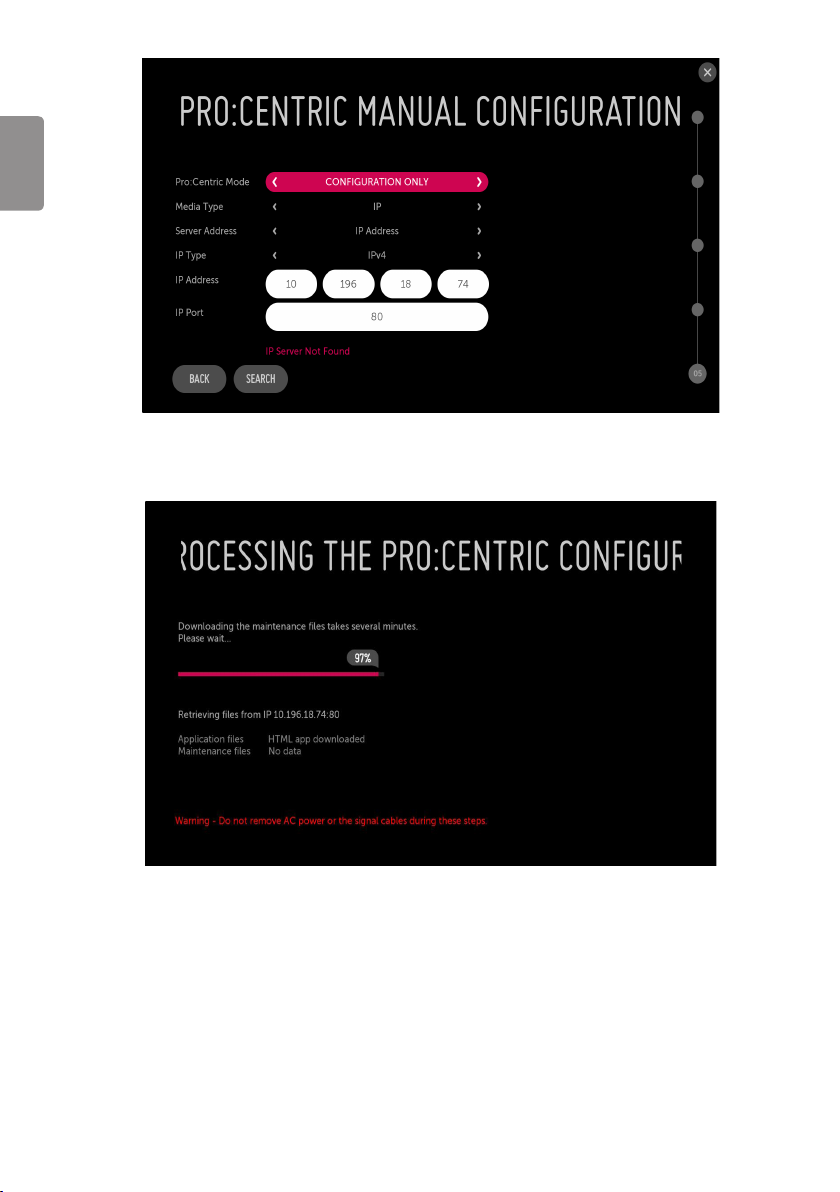

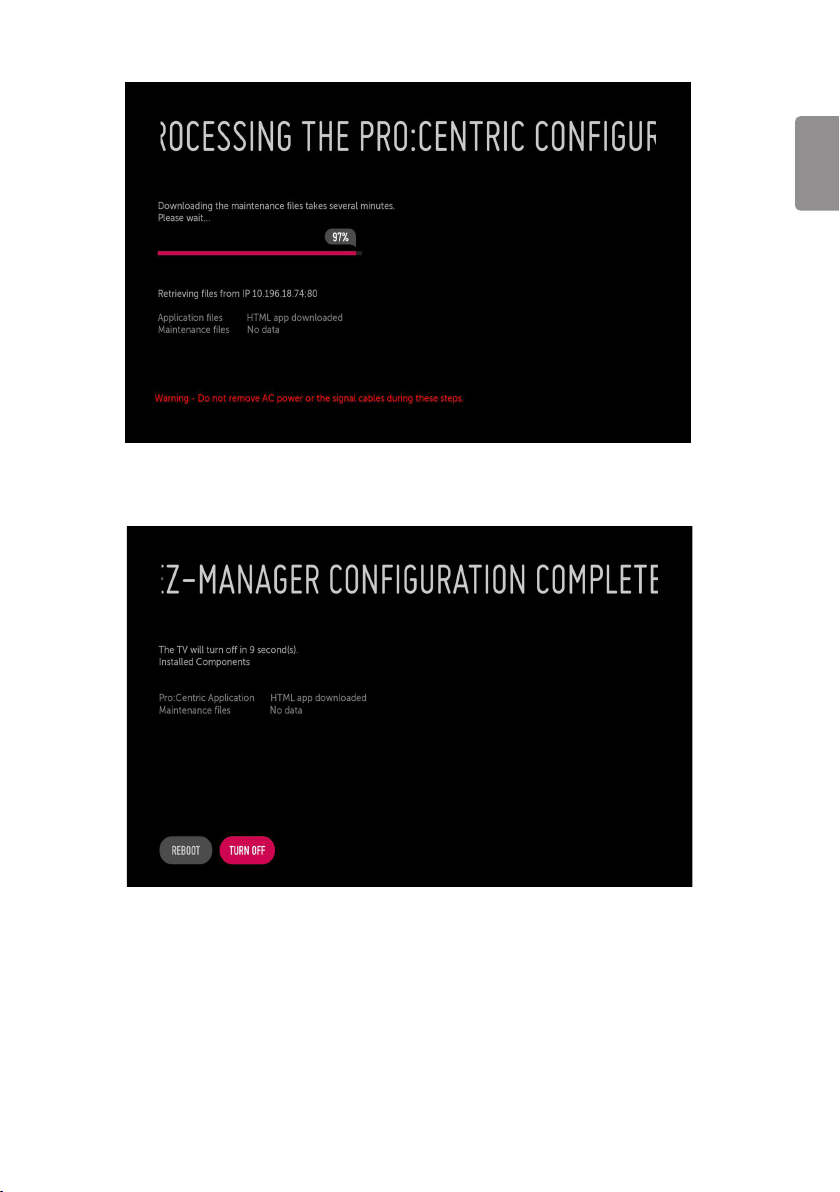

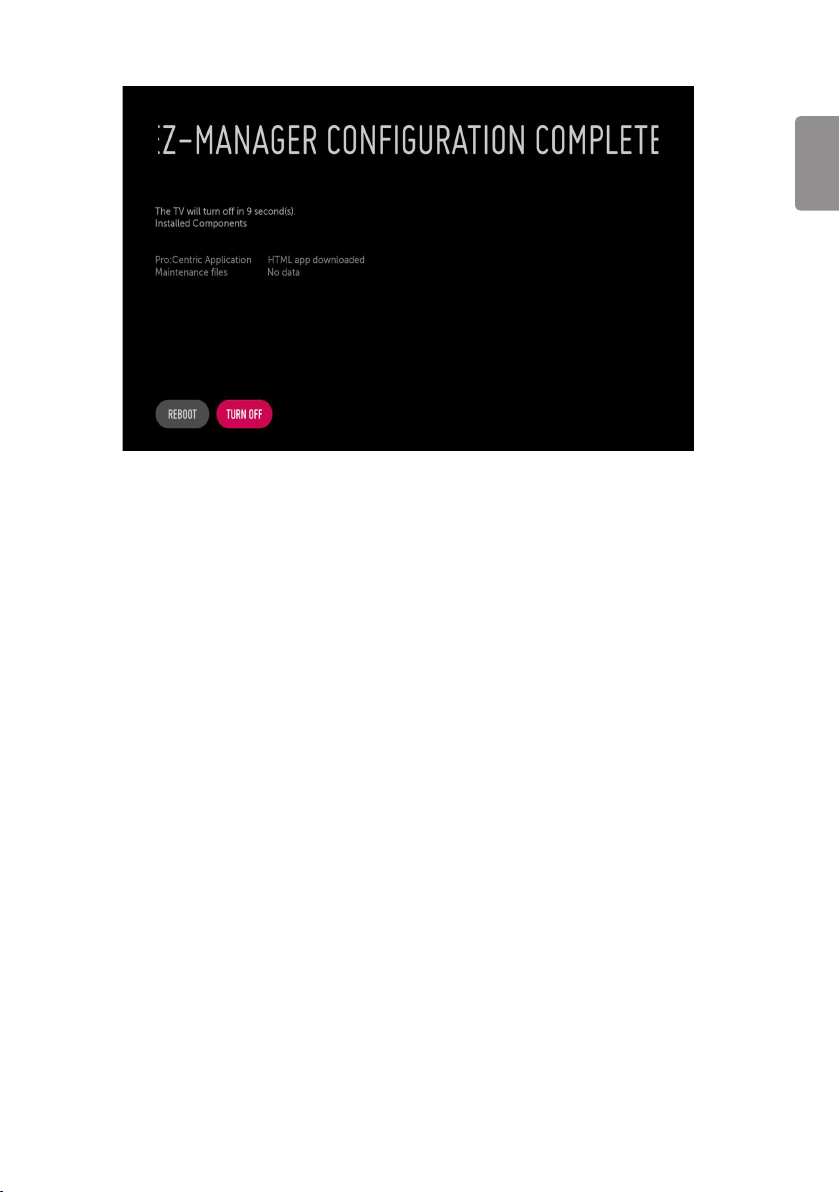

1 From theTV Conguration Options screen, you can choose how to proceed with the conguration of thisTV.Whether you will congure theTV
for Pro:Centric operation via the wizard or use a USB memory device to congure theTV, you may rst wish to set the Room Number on theTV.
Also, you can congure the network environment.
•If you intend to set Room Number as part of the TV conguration, use the Room Number option to assign the Room # for thisTV before you
continue with additional conguration.
•In the Label eld, use the Left/Right arrow keys to specify a North, South, East, or West designation for this TV.
•In the Room Number eld, you can use the number keys on the Installation Remote to direct enter a room number or use the virtual keyboard
on theTV screen.
•If you intend to apply the les via USB, use USB Conguration option to accessTV Manager app. (“TV Manager”on page 40)
•To continue, move and select NEXT.
