A-2 TABLE OF CONTENTS
TABLE OF CONTENTS
A-3 SETTING UP THE TV
A-3 Attaching the stand

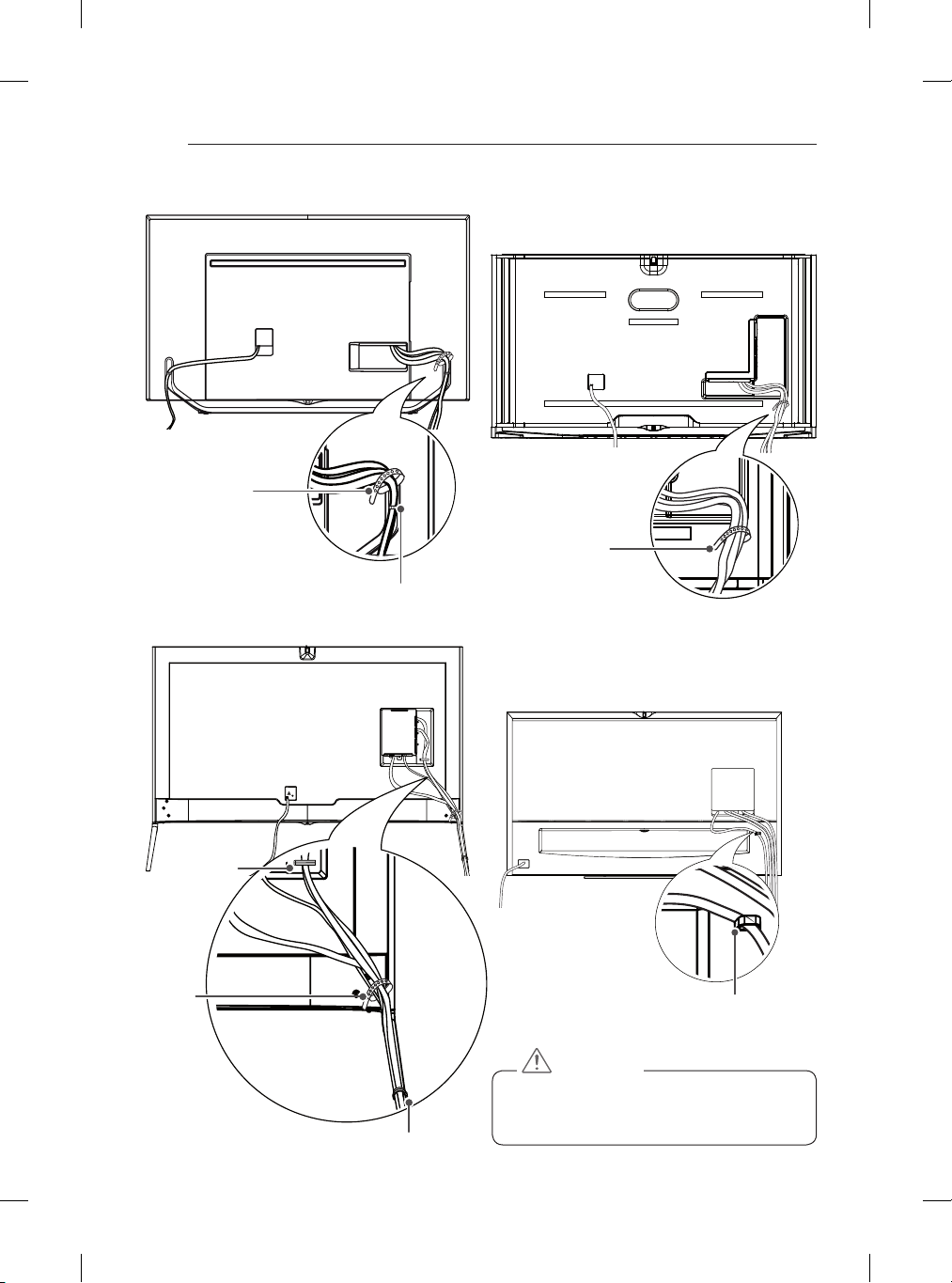

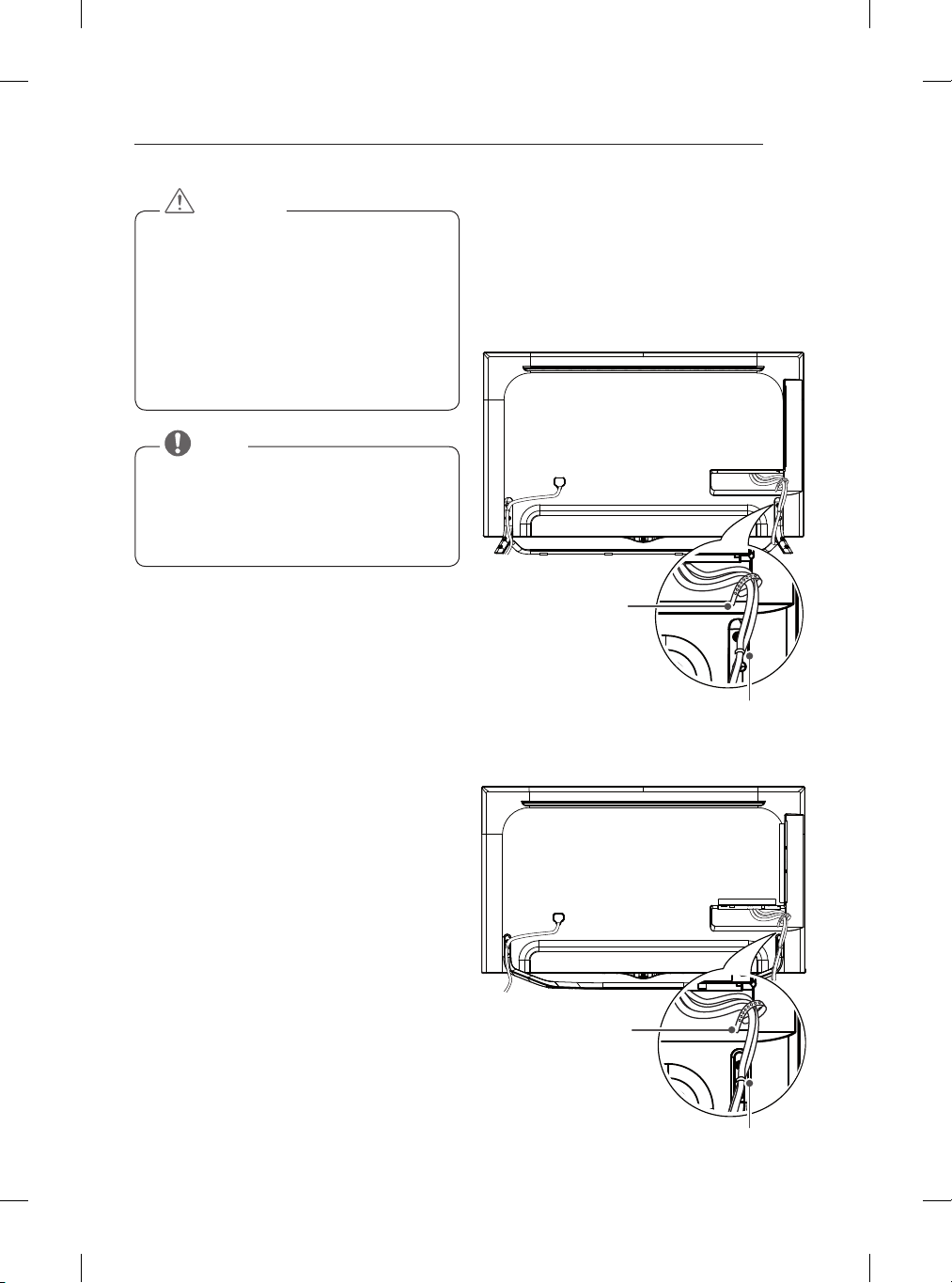

A-9 Tidying cables
A-11 Assembling the AV cover
A-12 MAKING CONNECTIONS

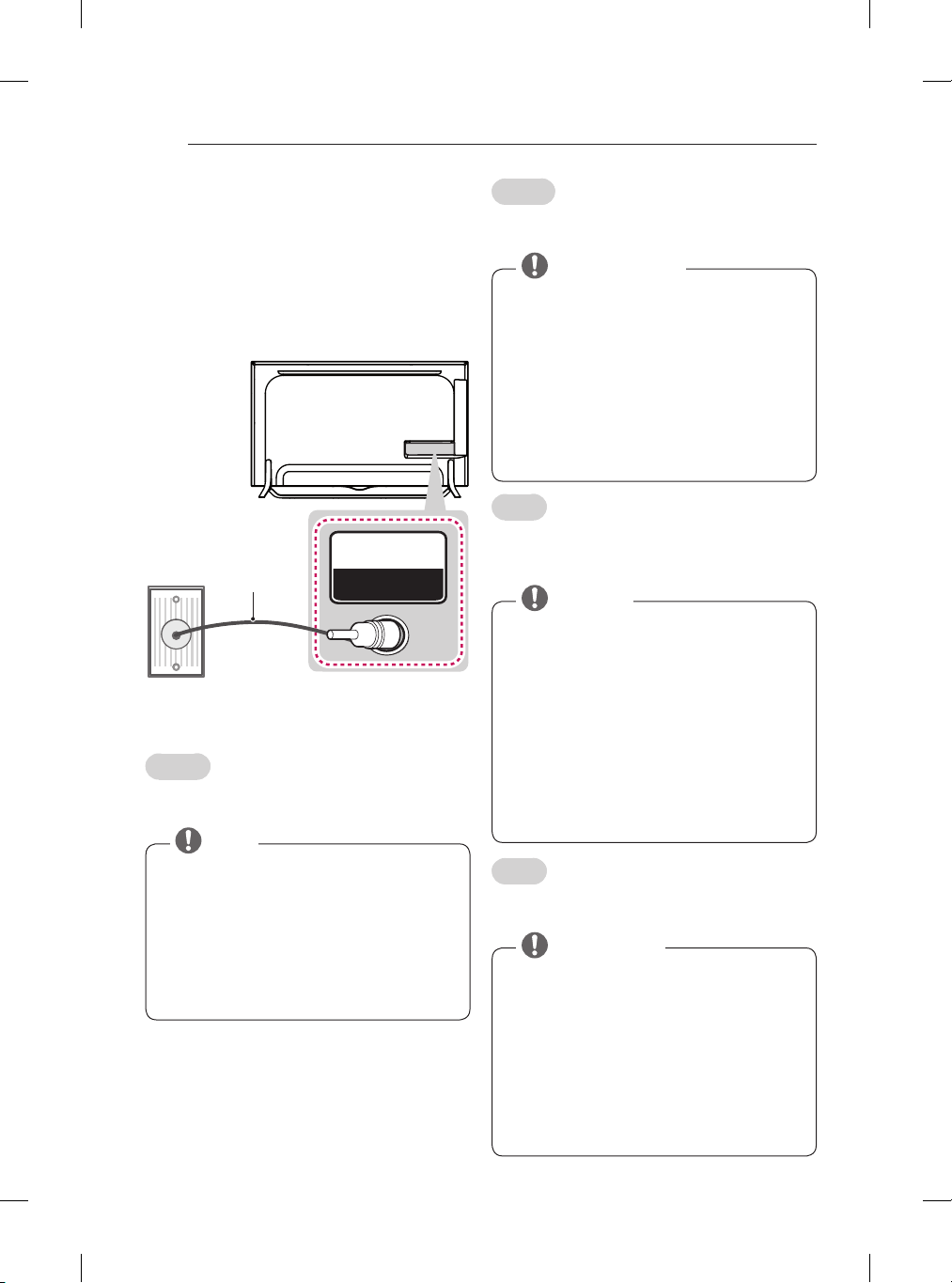

A-12 Antenna Connection

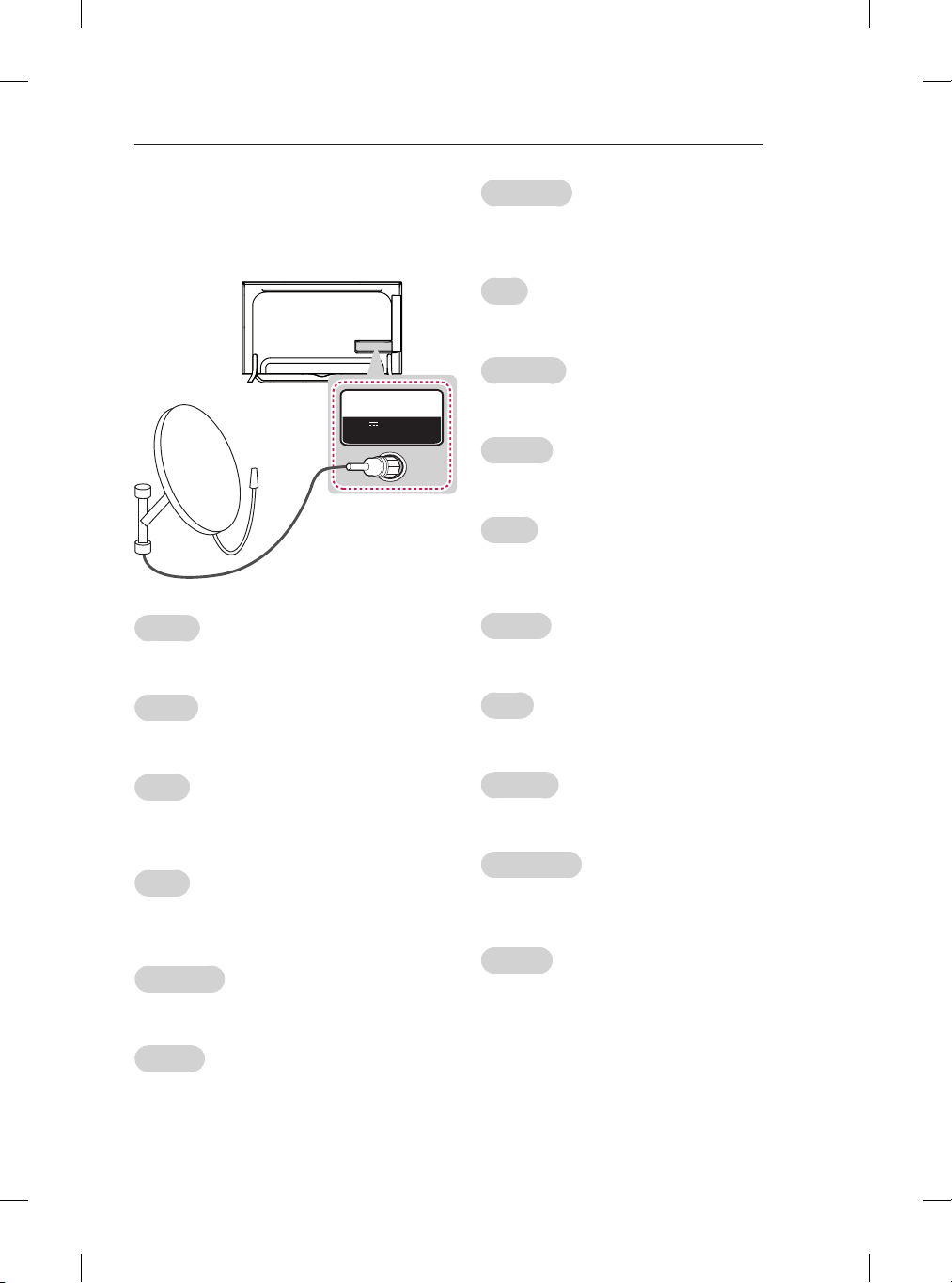

A-15 Satellite dish Connection
A-16 HDMI Connection
A-24 - ARC (Audio Return Channel)
A-26 DVI to HDMI Connection
A-29 Component Connection
A-32 Composite Connection
A-33 MHL Connection
A-38 Audio Connection
A-38 - Digital optical audio Connection
A-41 Headphone Connection
A-44 USB Connection
A-48 CI module Connection
A-51 Euro Scart Connection
LANGUAGE LIST
English
Magyar
Polski
 Česky
 Slovenčina
 Română
 Български
Eesti
 Lietuviųk.
Latviešu
Srpski
Hrvatski
Shqip
Bosanski
 Македонски
 Русский
B-1 SPECIFICATIONS
COMMON
LANGUAGE
COMMON

A-3
SETTING UP THE TV
SETTING UP THE TV
ImageshownmaydifferfromyourTV.
Attaching the stand

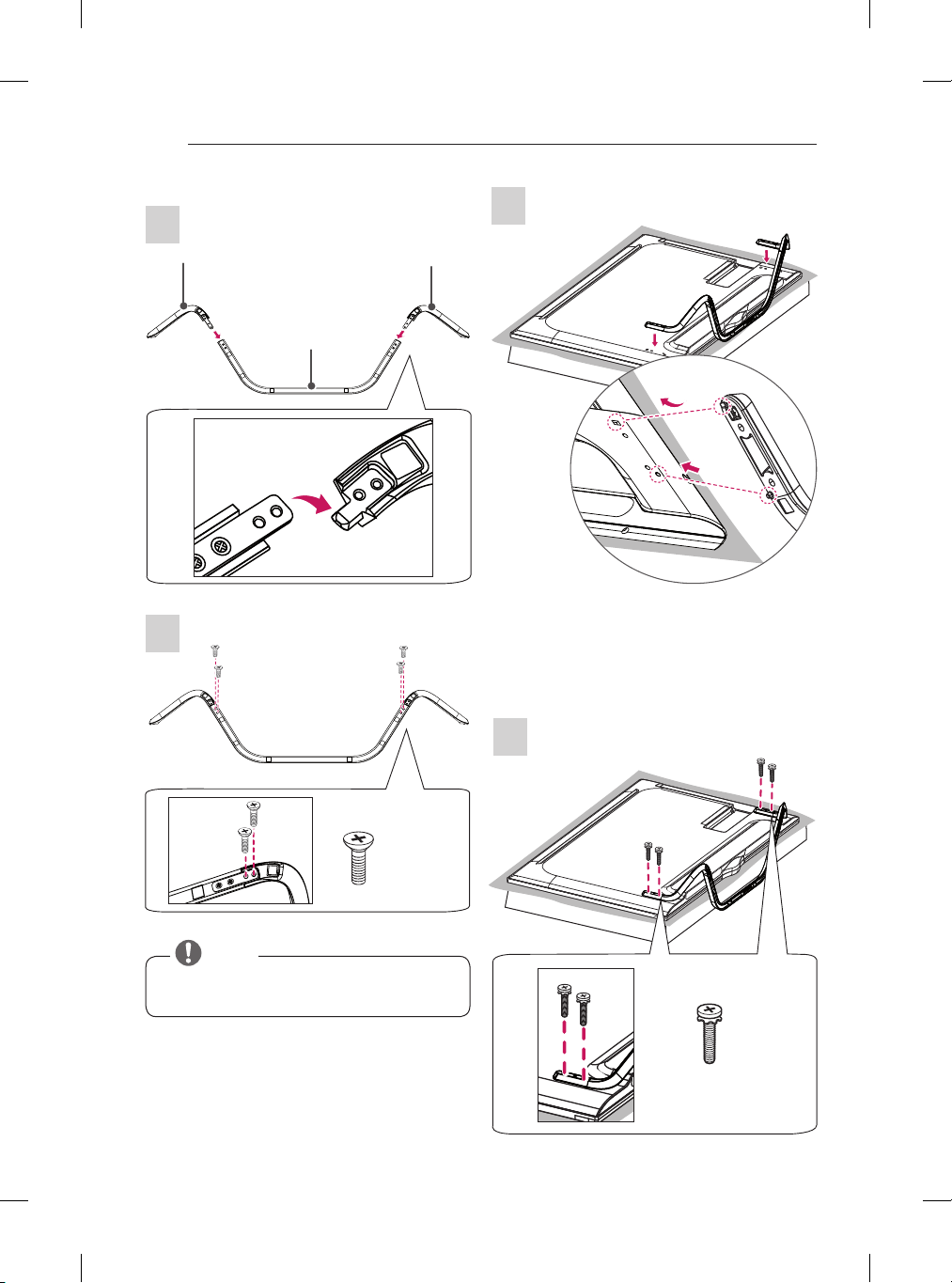

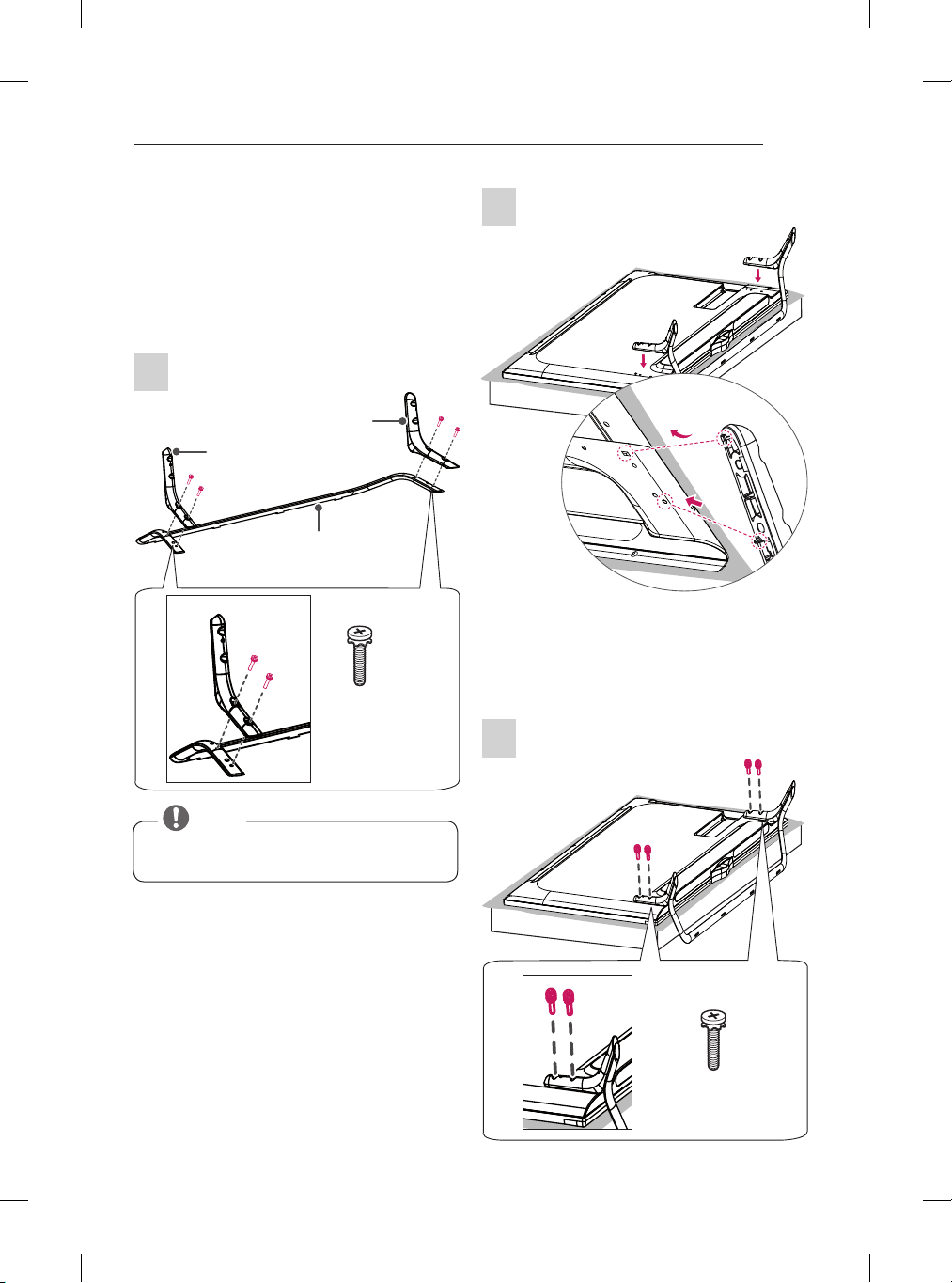

1
2
Stand Base
Stand Body (R)
Stand Body (L)
M4 x L20
4EA
UB85**-ZA, UB93**, UB95**-ZA
1
2
yBe sure to check the Stand Body (L), (R), when
installingonthestandbase.
NOTE
1 Attach the stand to the TV using the upper mounting
holeonthebackoftheTV.
2 Attach the stand to the TV using the lower
connectiononthebackoftheTV.
3
M4 x L20
4EA

A-4 SETTING UP THE TV
1 Attach the stand to the TV using the upper mounting
holeonthebackoftheTV.
2 Attach the stand to the TV using the lower
connectiononthebackoftheTV.
1
2
3
4
M4 x L20
4EA
UB85**-ZD, UB95**-ZB
yBe sure to check the Stand Body (L), (R), when
installingonthestandbase.
NOTE
1
Stand Body (L)
Stand Body (R)
Stand Base
2
4EA
M4 x L10

A-5
SETTING UP THE TV

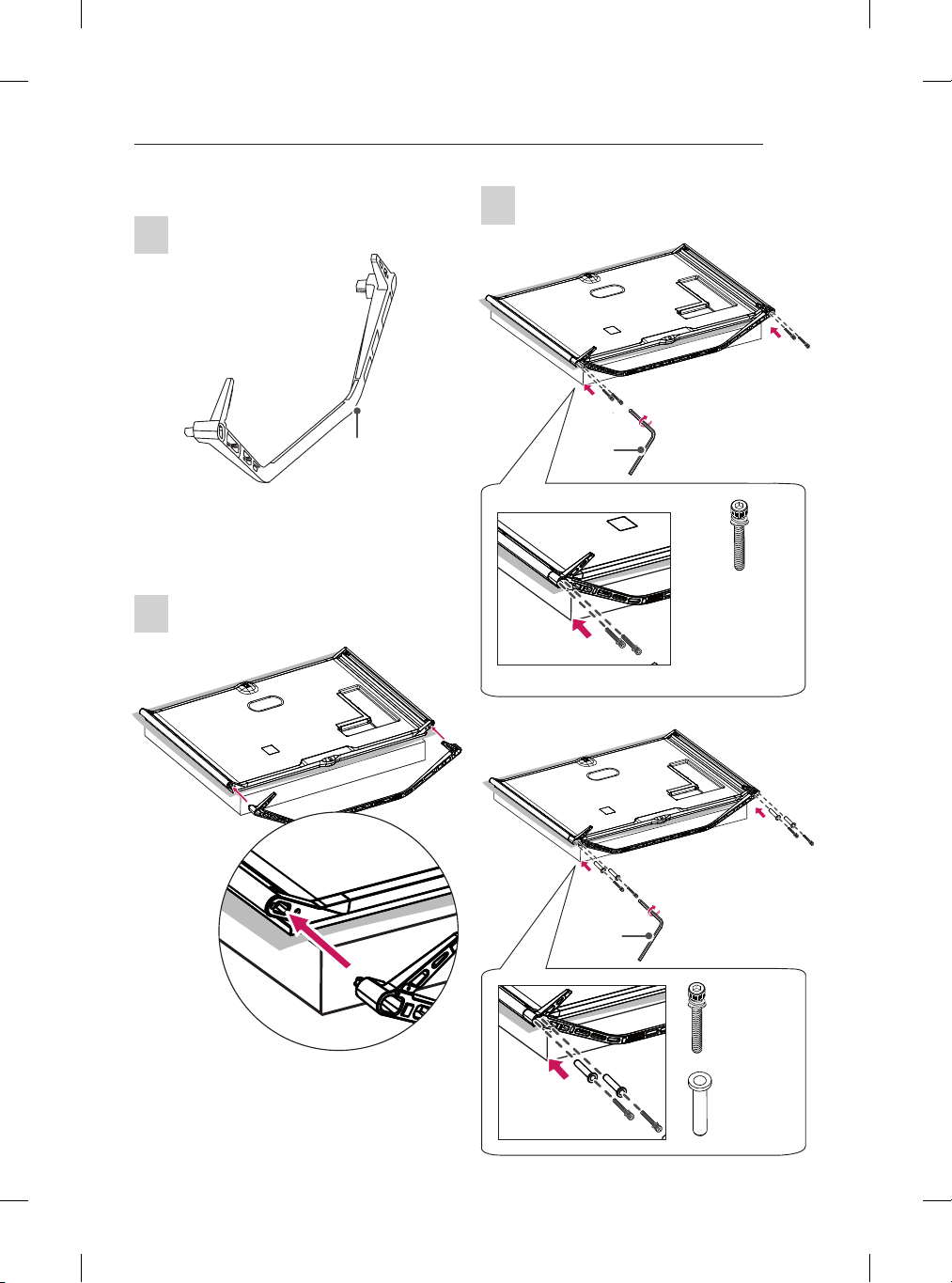

Stand Base
1
65/79/84UB98**
(Only 65/79UB98**)
2
3
1
2
Wrench
1
2
1
2
Wrench
1
2
4EA
(Insulation
Holder)
(Only 84UB98**)
4EA
M6 x L47
(Only 65UB98**)
M6 x L52
(Only 79UB98**)
4EA
M6 x L52
