LG LY33 Series User manual

www.lg.com
LY33**
LY34**
LY54**
LW33**
Please read this manual carefully before operating your TV
and retain it for future reference.
*Disclaimer
LG LED TV applies LCD screen with LED backlights.
OWNER’S MANUAL
LED TV

2
ENG
ENGLISH
TABLE OF CONTENTS
TABLE OF CONTENTS
WARNING
yIf you ignore the warning message, you
may be seriously injured or there is a
possibility of accident or death.
CAUTION
yIf you ignore the caution message, you
may be slightly injured or the product
may be damaged.
NOTE
yThe note helps you understand and use
the product safely. Please read the note
carefully before using the product.
3 LICENSES
3 OPEN SOURCE SOFTWARE
NOTICE INFORMATION
4 ASSEMBLING AND PREPARING
4 Unpacking
6 Separate Purchase
7 Parts and Button
8 - Using the Joystick button
9 Lifting and Moving the TV
10 Setting up the TV
10 - Attaching the stand
13 Mounting on a table

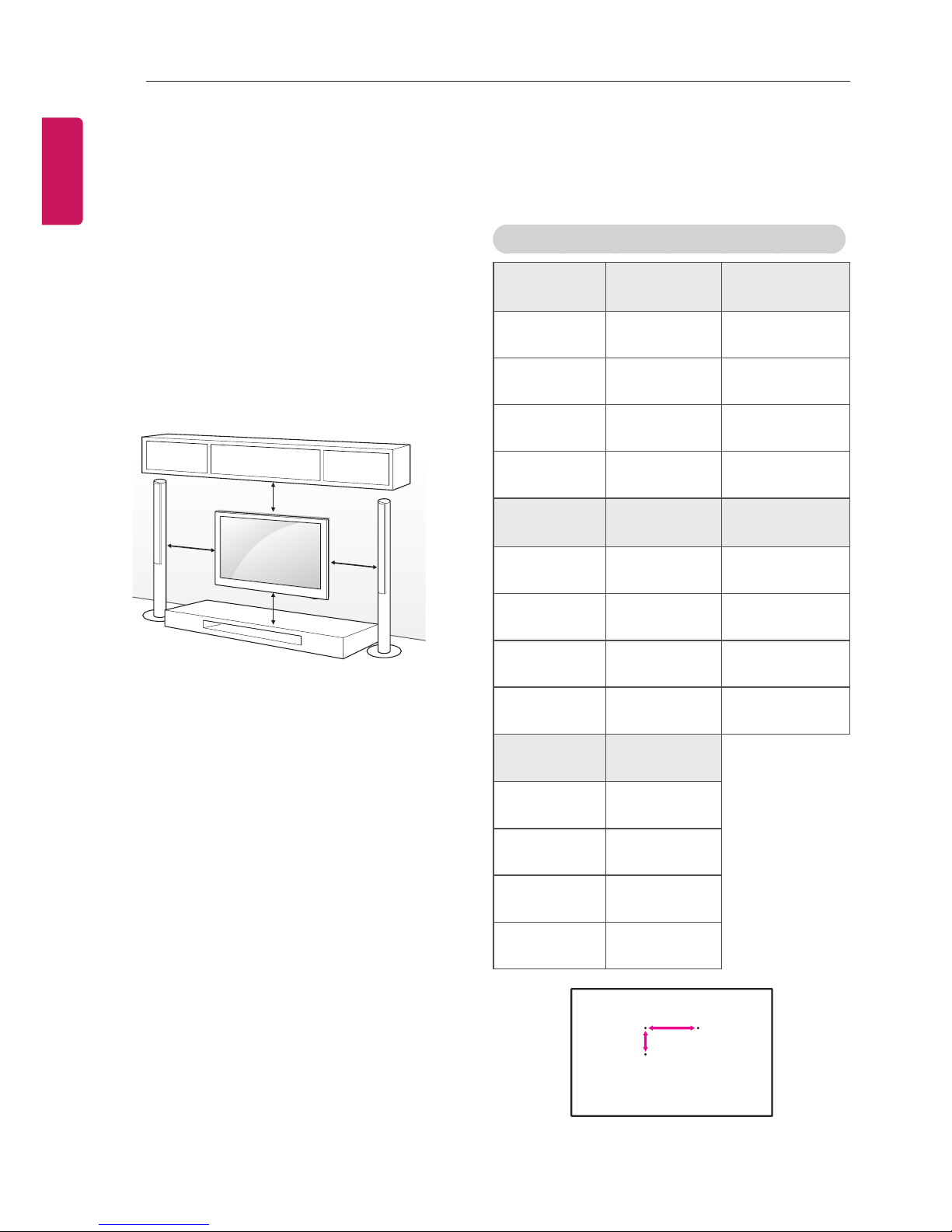

16 Mounting on a wall

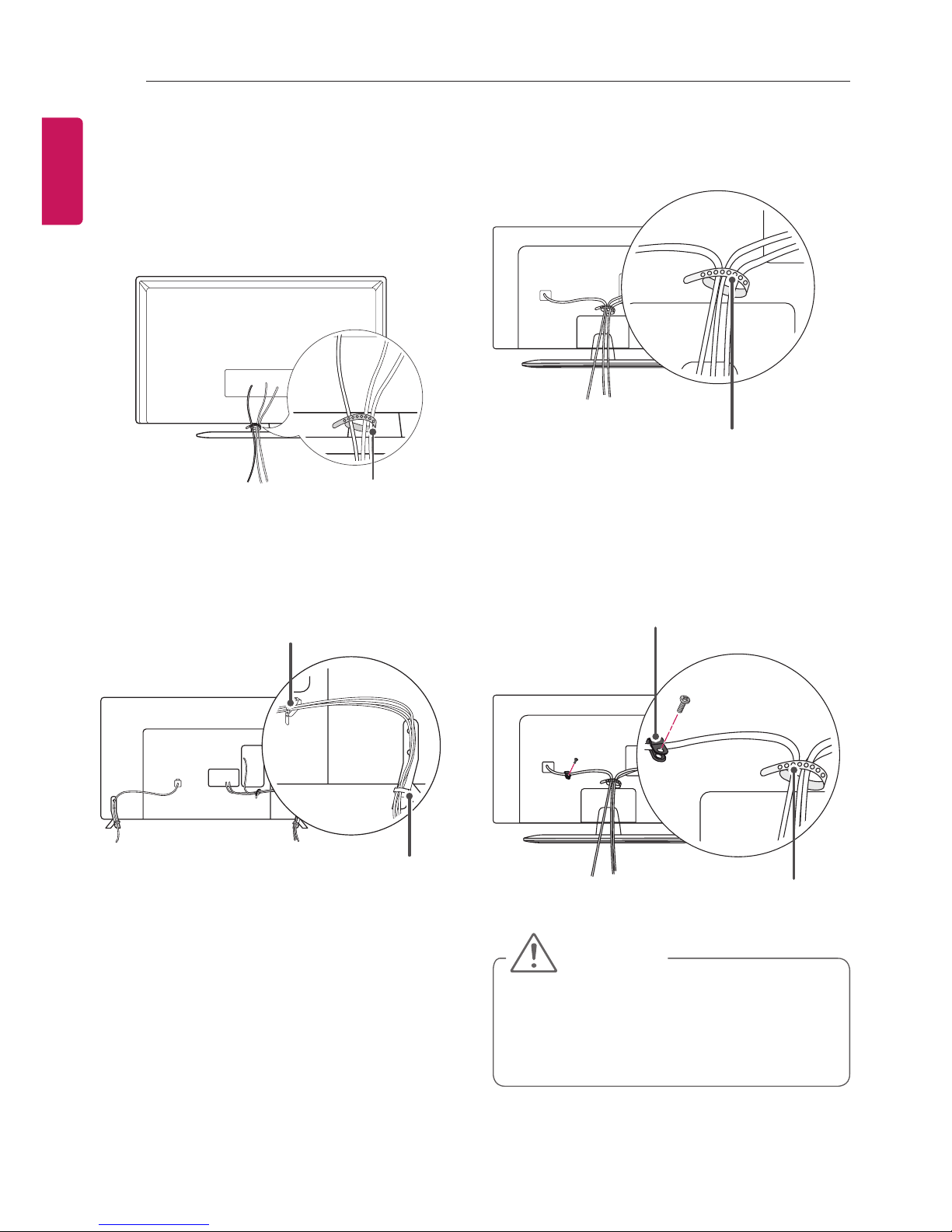

18 Tidying cables
19 MAKING CONNECTIONS

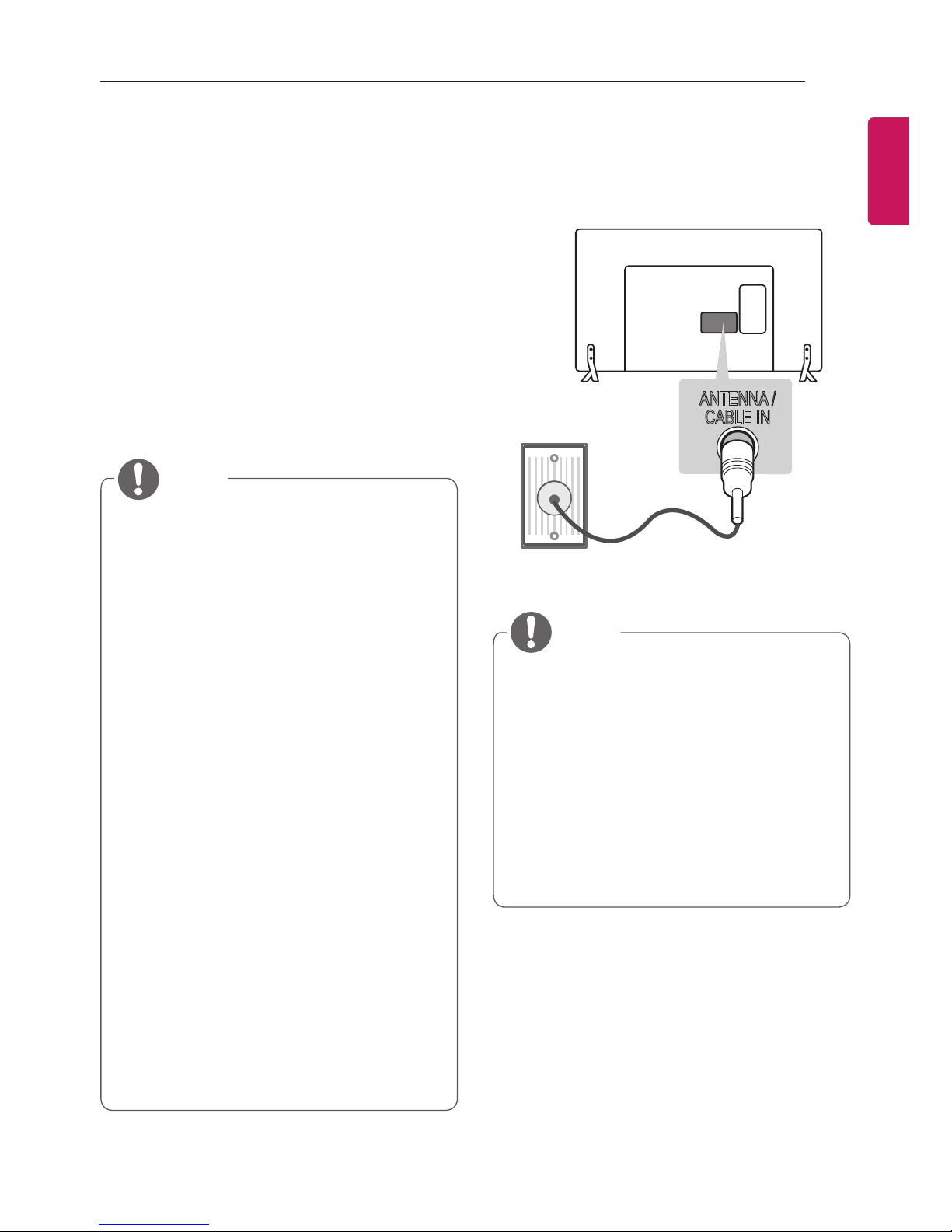

19 Antenna Connection

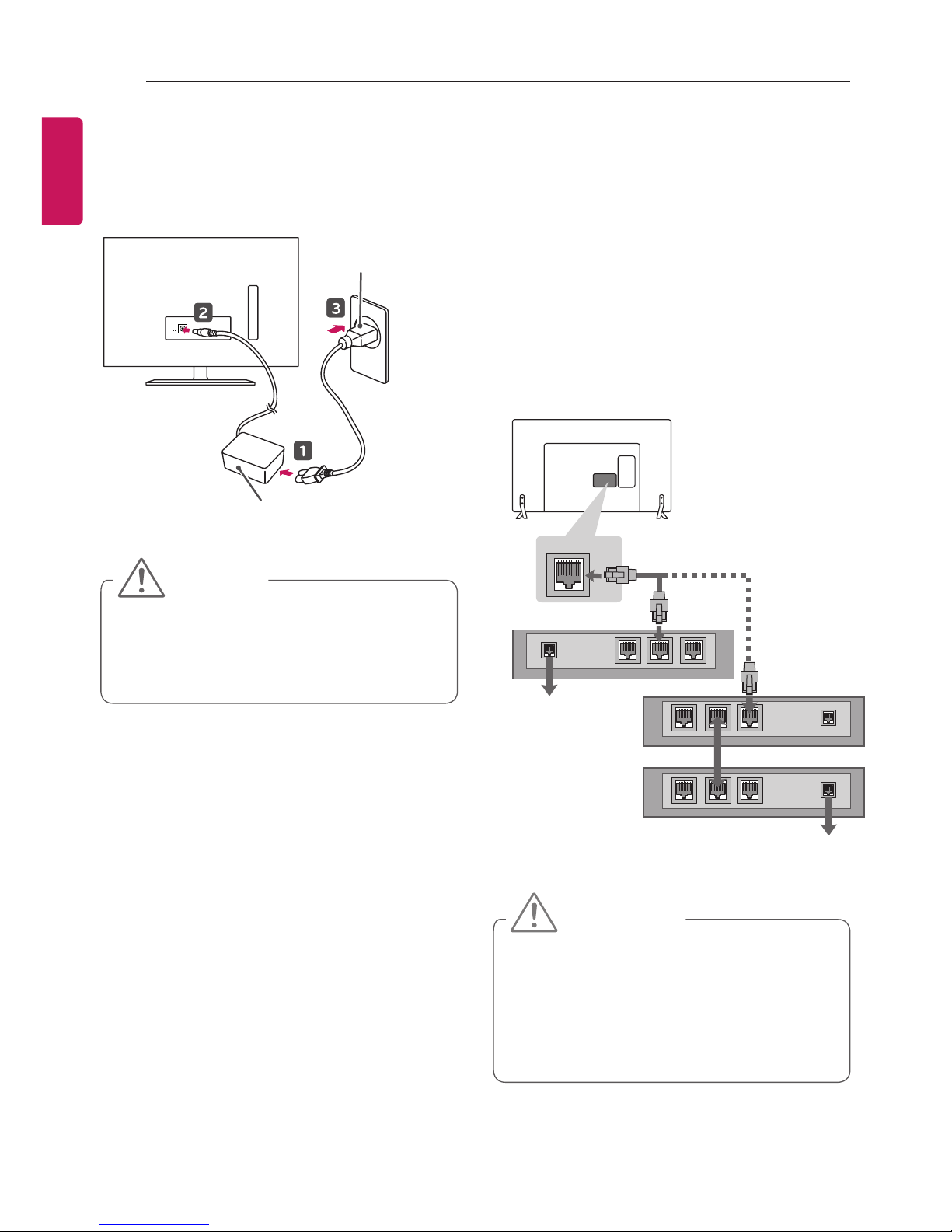

20 Adapter Connection
20 Network Setup
20 - Wired network connection
21 Speaker Output Setup
22 Other Connections
30 REMOTE CONTROL
33 MAINTENANCE
33 Cleaning your TV
33 - Screen, frame, cabinet and stand
33 - Power cord
34 TROUBLESHOOTING
35 SPECIFICATIONS
41 IR CODES
42 EXTERNAL CONTROL DEVICE
SETUP
42 RS-232C Setup
42 Type of Connector:
D-Sub 9-Pin Male
43 RS-232C Configurations
44 Communication Parameters
44 Command Reference List
45 Transmission / Receiving Protocol

3
ENGENGLISH
LICENSES / OPEN SOURCE SOFTWARE NOTICE INFORMATION
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. Dolby and the
double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries.
This DivX Certified®device has passed rigorous testing to ensure it plays
DivX®video.
To play purchased DivX movies, first register your device at vod.divx.com.
Find your registration code in the DivX VOD section of your device setup
menu.
DivX Certified®to play DivX®video up to HD 1080p, including premium
content.
DivX®, DivX Certified®and associated logos are trademarks of DivX, LLC
and are used under license.
Covered by DivX Patents 7,295,673; 7,515,710; RE45,052; and others
available at [www.divx.com/patents].
OPEN SOURCE SOFTWARE NOTICE INFORMATION
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained
in this product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices
are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost
of performing such distribution (such as the cost of media, shipping, and handling) upon email request
to [email protected]. This offer is valid for three (3) years from the date on which you purchased
the product.

4
ENG
ENGLISH
ASSEMBLING AND PREPARING
NOTE
yImage shown may differ from your TV.
yYour TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
yThe available menus and options may differ from the input source or product model that you
are using.
yNew features may be added to this TV in the future.
yThe TV can be placed in standby mode in order to reduce the power consumption. And the
TV should be turned off if it will not be watched for some time, as this will reduce energy
consumption.
yThe energy consumed during use can be significantly reduced if the level of brightness of the
picture is reduced, and this will reduce the overall running cost.
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and item.
CAUTION
yDo not use any unapproved items to ensure the safety and product life span.
yAny damages or injuries by using unapproved items are not covered by the manufacturer’s
warranty.
ySome models have a thin film attached on to the screen and this must not be removed.
NOTE
yThe items supplied with your product may vary depending on the model.
yProduct specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.
yFor an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm
thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB
memory stick does not fit into your TV’s USB port.
A
B
A
B
*A
<
=
10 mm
*B
<
=
18 mm
yUse a certified cable with the HDMI logo attached.
yIf you do not use a certified HDMI cable, the screen may not display or a connection error may
occur. (Recommended HDMI Cable Types)
- High-Speed HDMI®/TM Cable
- High-Speed HDMI®/TM Cable with Ethernet

5
ENGENGLISH
ASSEMBLING AND PREPARING
Remote control,
batteries (AAA)
(See p.30, 31, 32)
Owner’s manual Cable Holder
(Depending on model)
Power cord
(Depending on model)
Stand Screws
4EA, M4 x L14
(Only 42/47/55/60LY34**,
42/47/55/60LY540*,
42/47/55LY541*)
(See p.10, 12)
Stand Screws
4EA, M4 x L20
(Only 32LY34**, 32LY540*,
42/47/55LY541* )
6EA, M4 x L20
(Only 32LY541* )
(See p.10, 11, 12)
Cable Managements
2EA
(Only LY34**, LY540*)
(See p.18)
Wall Mount Spacers
2EA
( Only 42LY34**, 42LY54**)
(See p.17)
Stand Bases
(Only LY34**, LY540*)
(See p.10)
or
Stand Base
(Only LY33**, LW33**)
(Depending on model & country)
(See p.10)
AC-DC Adaptor
(Only LY33**, LW33**)
(Depending on model &
country)
(See p.20)

6
ENG
ENGLISH
ASSEMBLING AND PREPARING
Stand Base/Stand Body
(Only LY541*)
(See p.11, 12)
Power Cord Holder/Screw
1EA
(Only 42/47/55LY541*)
(See p.18)
Torx Plus Star-Head
Screws
2EA
(Only LY541*)
(See p.11, 12)
Rubbers
2EA
(Only LY541*)
(See p.13)
Washers for Stand Fixing
2EA
(Depending on model)
(See p.15)
Nuts for Stand Fixing
2EA
(Depending on model)
(See p.15)
Screws for Stand Fixing
2EA
(Depending on model)
(See p.15)
Separate Purchase
Separate purchase items can be changed or modified for quality improvement without any notification.
Contact your dealer to buy these items.
These devices only work with certain models.
The model name or design may be changed depending on the upgrade of product functions,
manufacturer’s circumstances or policies.
LG Audio Device

7
ENGENGLISH
ASSEMBLING AND PREPARING
Parts and Button
NOTE
yYou can set the power indicator light to on or off by selecting OPTION in the main menus.
A type : LY34**, LY540* B type : 22/28LY33** (Except for India)
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 Joystick Button - This button is located below the TV screen.
C type : 22/28LY33** (Only India), 24LW33**
D type : LY541*
Remote control sensor
Power Indicator
Screen
Speakers
Joystick button2
Remote Control Sensor
Power Indicator
Screen
Speakers
Joystick Button2
Remote control and
intelligent sensors1
(Only LY540H)
Power Indicator
Screen
Speakers
Joystick button2
Screen
Speakers
Remote control and
intelligent sensors1
Power Indicator
Joystick button2

8
ENG
ENGLISH
ASSEMBLING AND PREPARING
Using the Joystick button
You can simply operate the TV functions, pressing or moving the joystick button up, down, left or right.
Basic Functions
Power On When the TV is turned off, place your finger on the joystick
button and press it once and release it.
Power Off
When the TV is turned on, place your finger on the joystick
button and press it once for a few seconds and release it.
(However, if the Menu button is on the screen, pressing and
holding the joystick button will let you exit the Menu.)
Volume
Control
If you place your finger over the joystick button and move it left
or right, you can adjust the volume level you want.
Programmes
Control
If you place your finger over the joystick button and move it up
or down, you can scrolls through the saved programmes you
want.
NOTE
yWhen your finger over the joystick button and push it to the up, down, left or right, be careful
not to press the joystick button. If you press the joystick button first, you may not be able to
adjust the volume level and saved programmes.
Adjusting the Menu
When the TV is turned on, press the joystick button one time.
You can adjust the Menu items ( , , , ) moving the joystick button up, down, left or right.
TV off Turns the power off.
Settings Accesses the main menu.
Close Clears on-screen displays and returns to TV viewing.
Input List Changes the input source.

9
ENGENGLISH
ASSEMBLING AND PREPARING

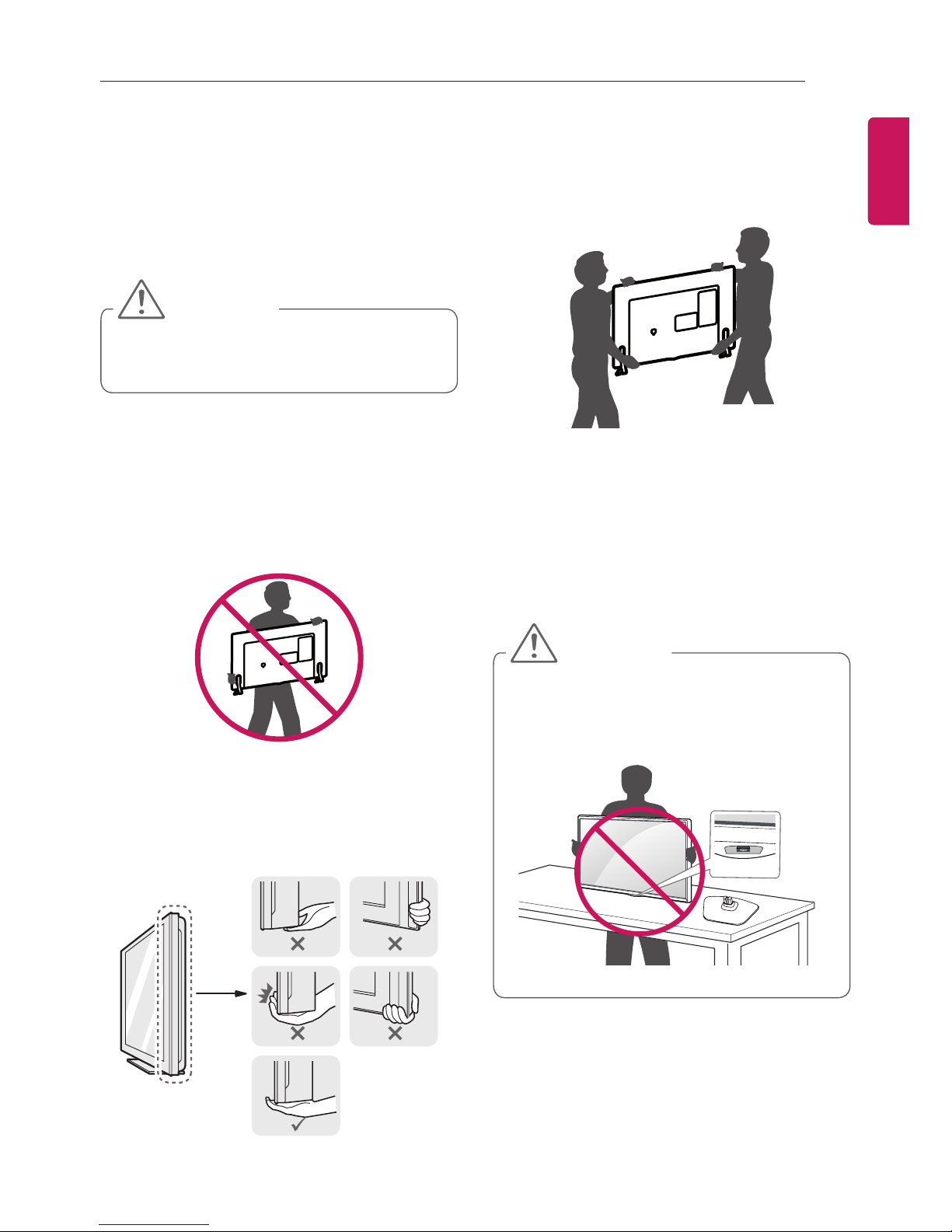

Lifting and Moving the TV
When moving or lifting the TV, read the following
to prevent the TV from being scratched or
damaged and for safe transportation regardless
of its type and size.
CAUTION
yAvoid touching the screen at all times, as
this may result in damage to the screen.
yIt is recommended to move the TV in the
box or packing material that the TV originally
came in.
yBefore moving or lifting the TV, disconnect
the power cord and all cables.
yWhen holding the TV, the screen should face
away from you to avoid damage.
yHold the top and bottom of the TV frame
rmly. Make sure not to hold the transparent
part, speaker, or speaker grill area.
yWhen transporting a large TV, there should
be at least 2 people.
yWhen transporting the TV by hand, hold the
TV as shown in the following illustration.
yWhen transporting the TV, do not expose the
TV to jolts or excessive vibration.
yWhen transporting the TV, keep the TV
upright, never turn the TV on its side or tilt
towards the left or right.
yDo not apply excessive pressure to cause
exing /bending of frame chassis as it may
damage screen.
CAUTION
yWhen handling the TV, be careful not to
damage the protruding joystick button.
(Depending on model)

10
ENG
ENGLISH
ASSEMBLING AND PREPARING
1
2
(Only 22/28LY33**, 24LW33**)
Stand Base
(Only LY34**, LY540*)
1
A Stand Base
B Stand Base
1
2

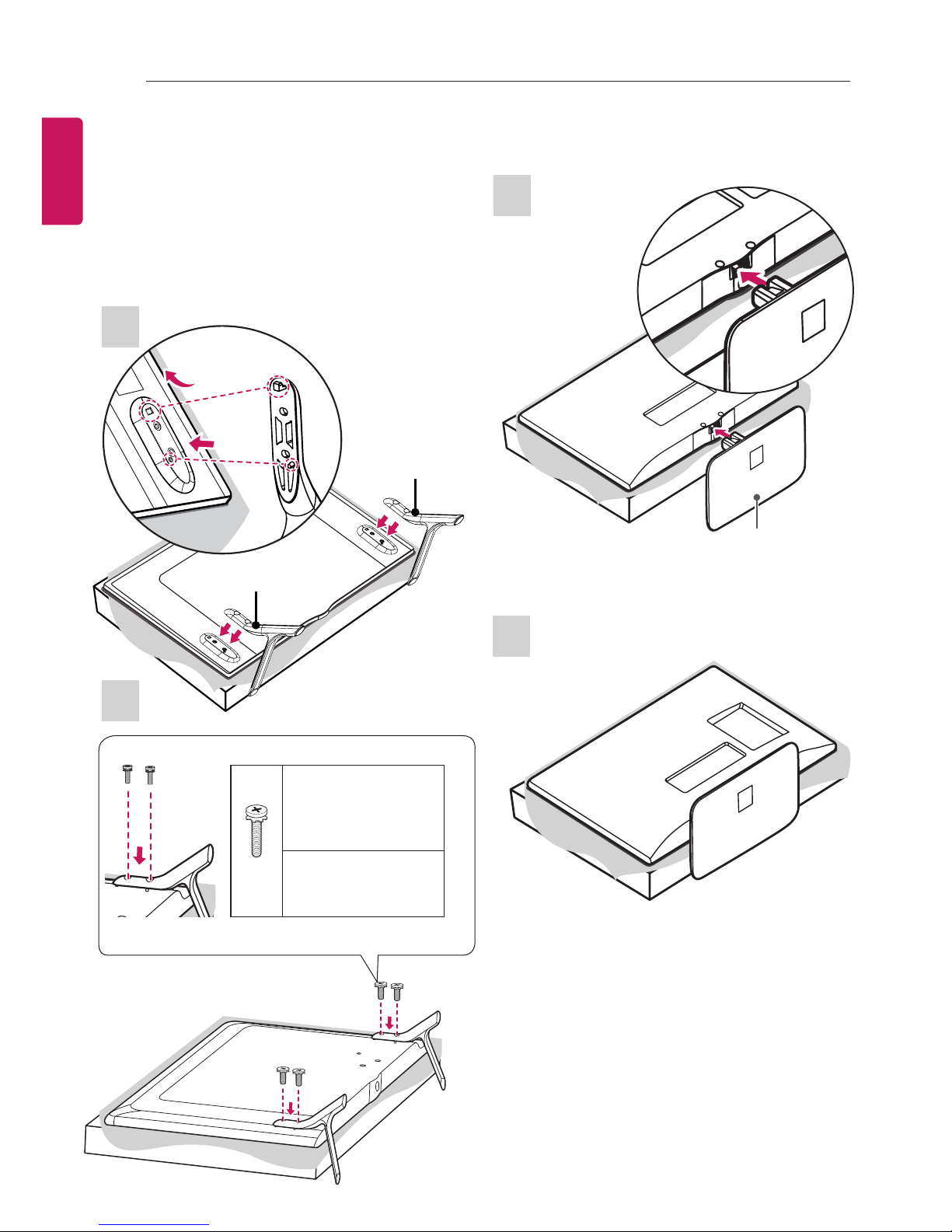

Setting up the TV
Image shown may differ from your TV.

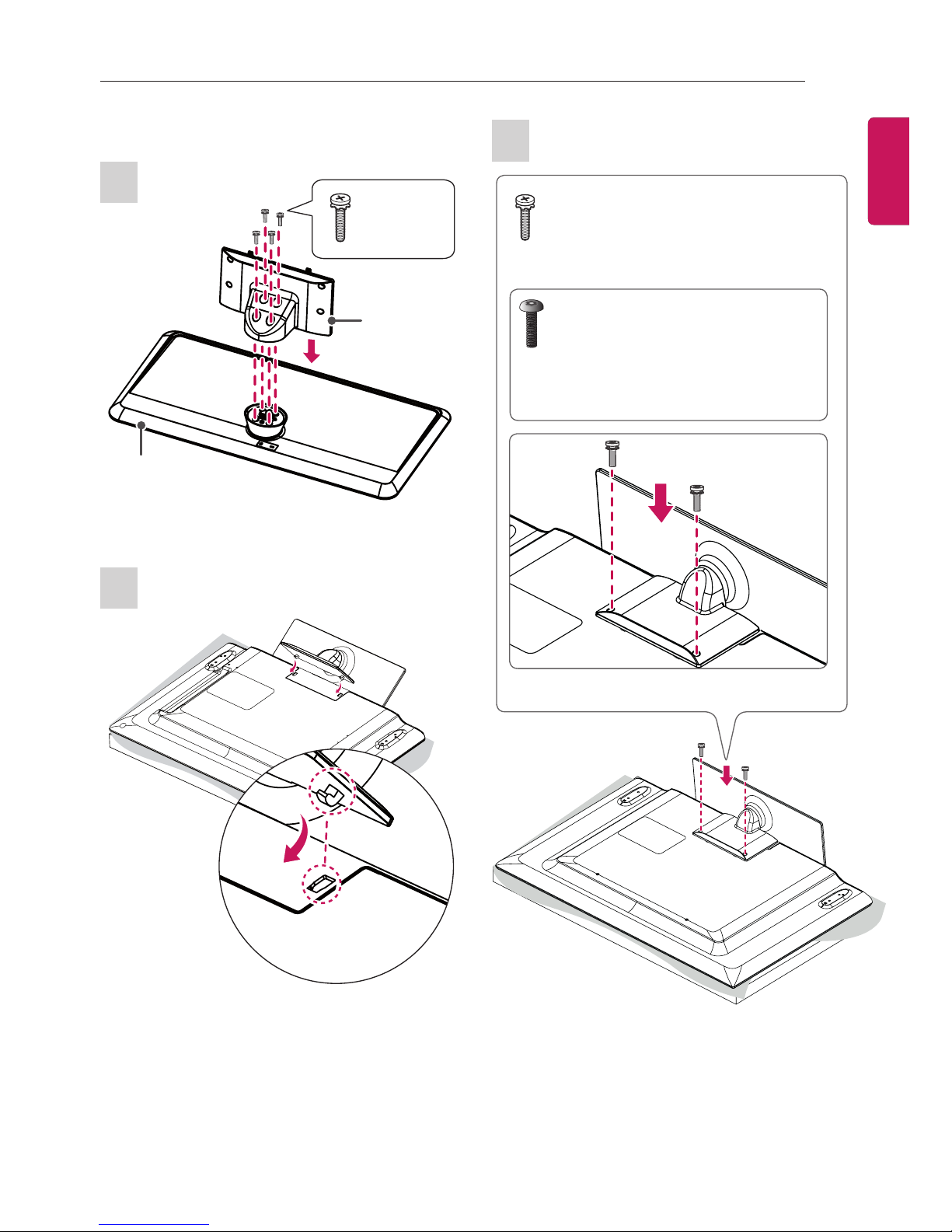

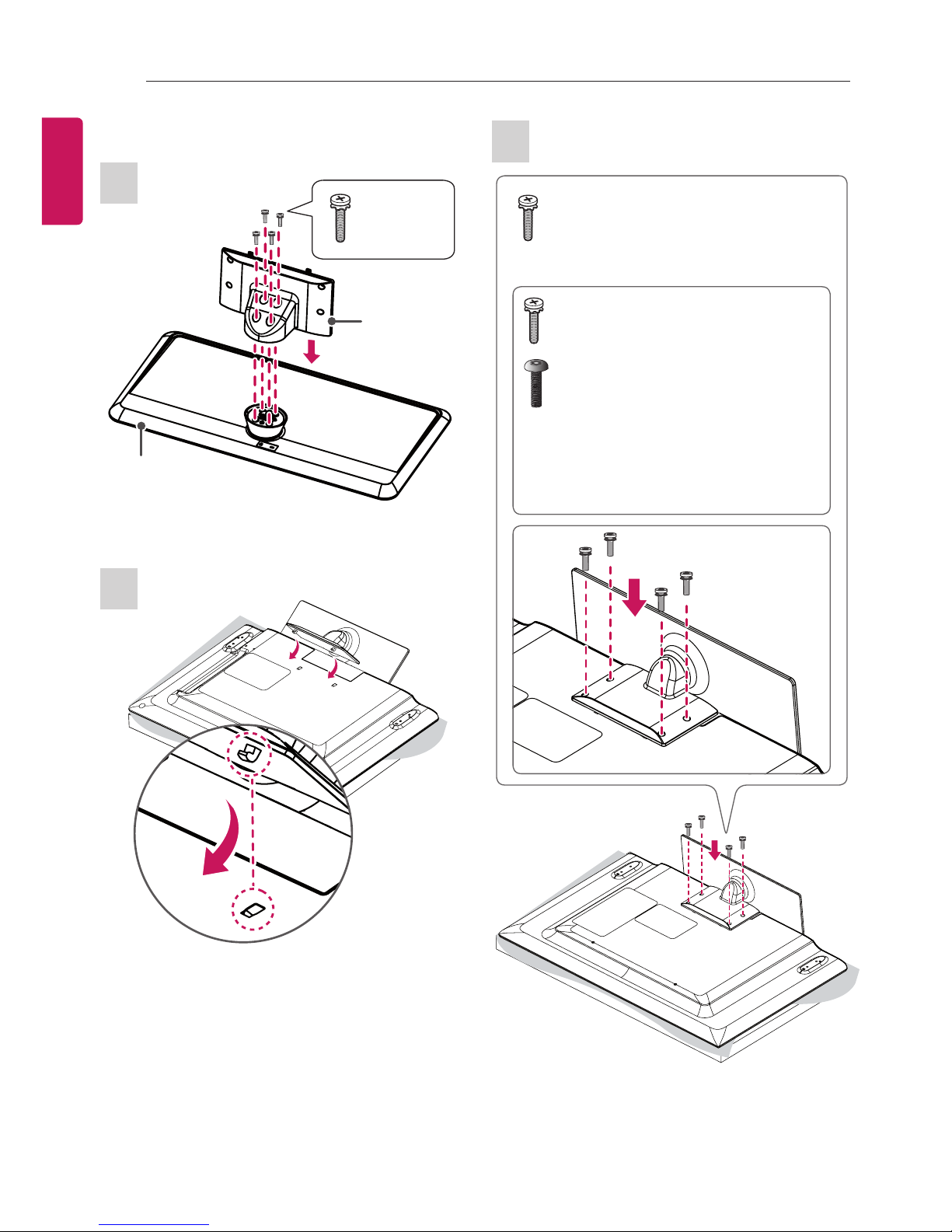

Attaching the stand
2
4EA
M4 x L14
(Only
42/47/55/60LY34**,
42/47/55/60LY540*)
M4 x L20
(Only 32LY34**,
32LY540*)
