LG UW76 Series User manual

INSTALLATION MANUAL
LED TV*
Please read this manual carefully before operating your
set and retain it for future reference.
www.lg.com
UW76**
LW64**
UW96**
UW95**
UW34**
UV34**

ENG
ENGLISH
2TABLE OF CONTENTS
TABLE OF CONTENTS
3 LOCATION AND FUNCTION OF
CONTROLS
3 Using the button
4 LED Clock Connection
5 EZMANAGER
5 INTRODUCTION
5 EZ-MANAGER WIZARD
6 LANGUAGE & COUNTRY SELECTION
8 - Automatically for Setup
11 - Manually for Setup
15 - USB LG Smart Install Utility
18 INSTALLATION MENU
18 INTRODUCTION
19 LG HOTEL MODE
19 - Hotel Mode Operation
19 - Power On Status
20 - Volume
20 - Key Management
21 - Limited Mode
21 - DTV Programme Update
22 - Power On Default
22 - Aux Source Setting
22 - Power Management
22 - Radio Video Blank
22 - Factory Reset
23 NETWORK
23 - MAC Address
23 - Network Setting
24 - Wake On LAN
25 PRO:CENTRIC
25 - Mode
25 - WORF
25 - Room Number Setting
26 - Media Type
26 - Receive Data
26 - Native EPG
27 GENERAL
27 - Configuration Setup
30 - External Speaker
31 - Set ID Setup
31 - Power Saving
31 - HCEC Setup
32 - Clock Setup
33 - Password Change
33 - PreLoaded App
33 - Lock Mode
33 - Crestron
34 MEDIA SHARE
34 - SmartShare
34 - Screen Share
34 - Media Renderer
34 - Bluetooth Sound Sync
35 - DIAL
35 - TV Name
35 - SoftAP

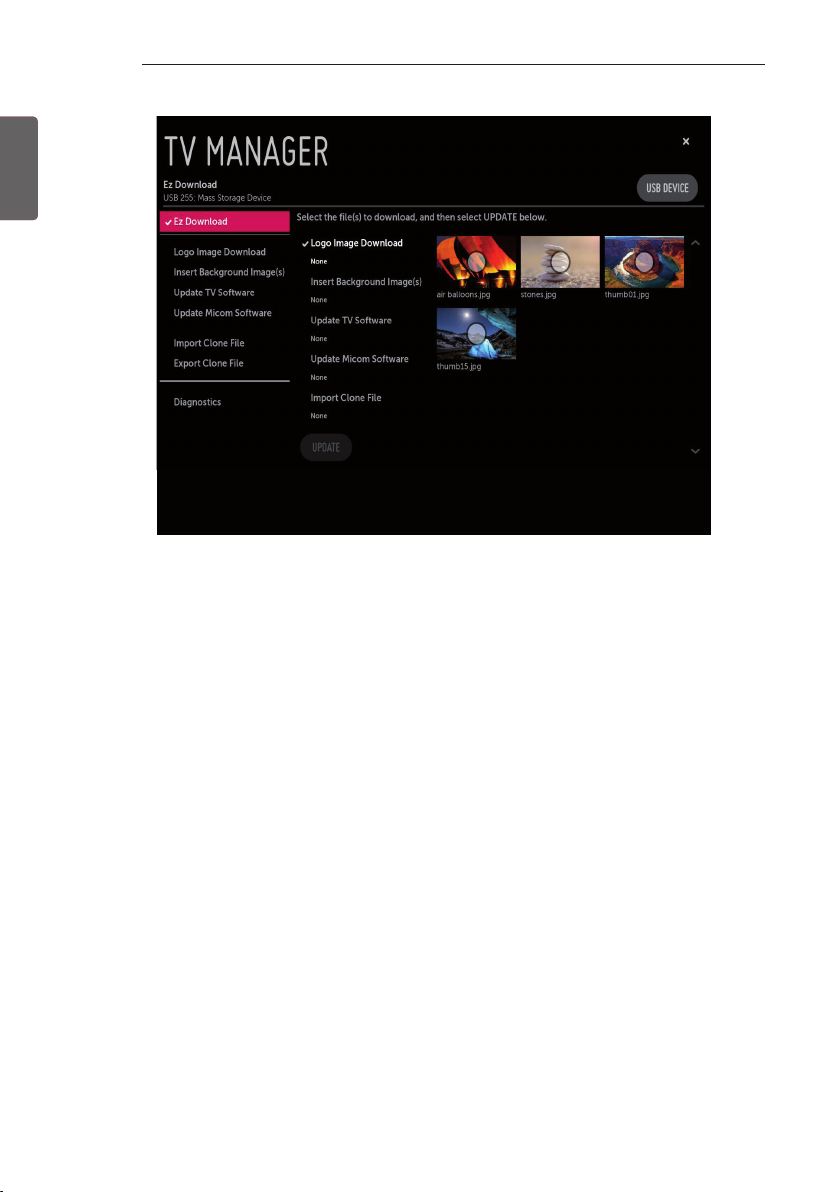

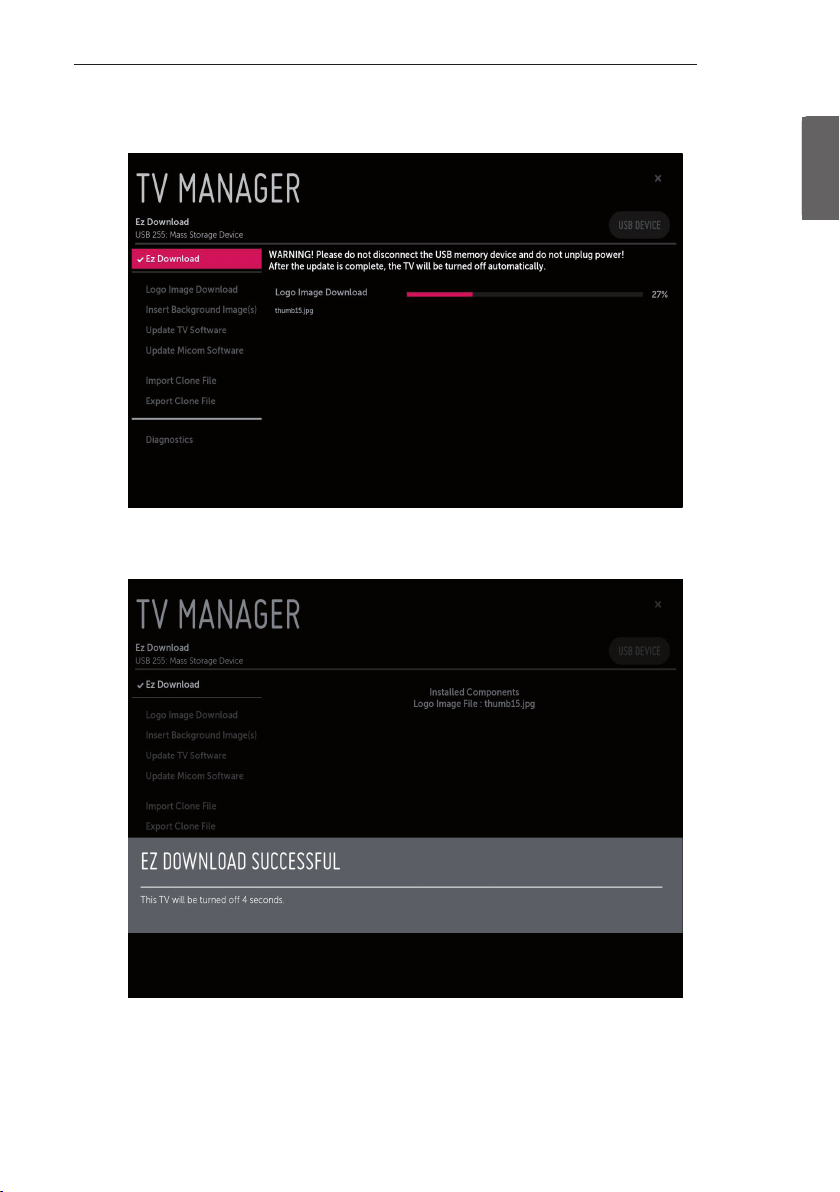

36 TV MANAGER
36 - USB Download Menu

ENGENGLISH
3
LOCATION AND FUNCTION OF CONTROLS
LOCATION AND FUNCTION OF CONTROLS
Using the button
(Depending on model)
You can simply operate the TV functions, using the button.
<A type> <B type>
or
Basic functions
<A type> <B type>
Power On (Press)
Power O1 (Press and hold)
Power On (Press)
Power O1 (Press and Hold)
Menu Control (Press2)
Menu Selection (Press and Hold3)
Volume Control
Programmes Control
1 All running apps will close, and any recording in progress will stop.
2 You can access and adjust the menu by pressing the button whenTV is on.
3 You can use the function when you access menu control.
Adjusting the menu
(Depending on model)
When the TV is turned on, press the button one time.You can adjust the Menu items using the button.
Turns the power o.
Accesses the settings menu.
Clears on-screen displays and returns to TV viewing.
Changes the input source.
Scrolls through the saved programmes.
Adjusts the volume level.

ENG
ENGLISH
4LOCATION AND FUNCTION OF CONTROLS
LED Clock Connection
(Except for LW64**, UW34**, UV34**)
ThisTV can be connected to a LED Clock via the CLOCK port.
CLOCK
LED Clock
(*Not Provided)

ENGENGLISH
5
EZMANAGER
EZMANAGER
•
•Image shown may differ from your TV.
INTRODUCTION
(Except for UW34**, UV34**)
The Pro:Centric Platform enables you to simply install, manage and use guest-centric solutions.The default Domain“procentric.local”
and IP Server Address are needed to be registered in DNSTV will contact the IP Server using the default Domain“procentric.local”via IP
on server search page. IfTV doesn’t contact the Server, TV will search the pre-defined channel earlier than all channels. (Only DVB-C)
The frequencies of pre-defined channels are below.
Germany:‘51000, 858000, 778000, 698000, 618000, 538000, 458000, 378000, 298000, 218000, 138000 khz’.
Philippines 6Mhz:‘57000, 651000, 591000, 531000, 471000, 411000, 351000, 291000, 231000, 171000, 111000 khz’.
Other Country:‘50000, 842000, 762000, 682000, 602000, 522000, 442000, 362000, 282000, 202000, 122000 khz’.

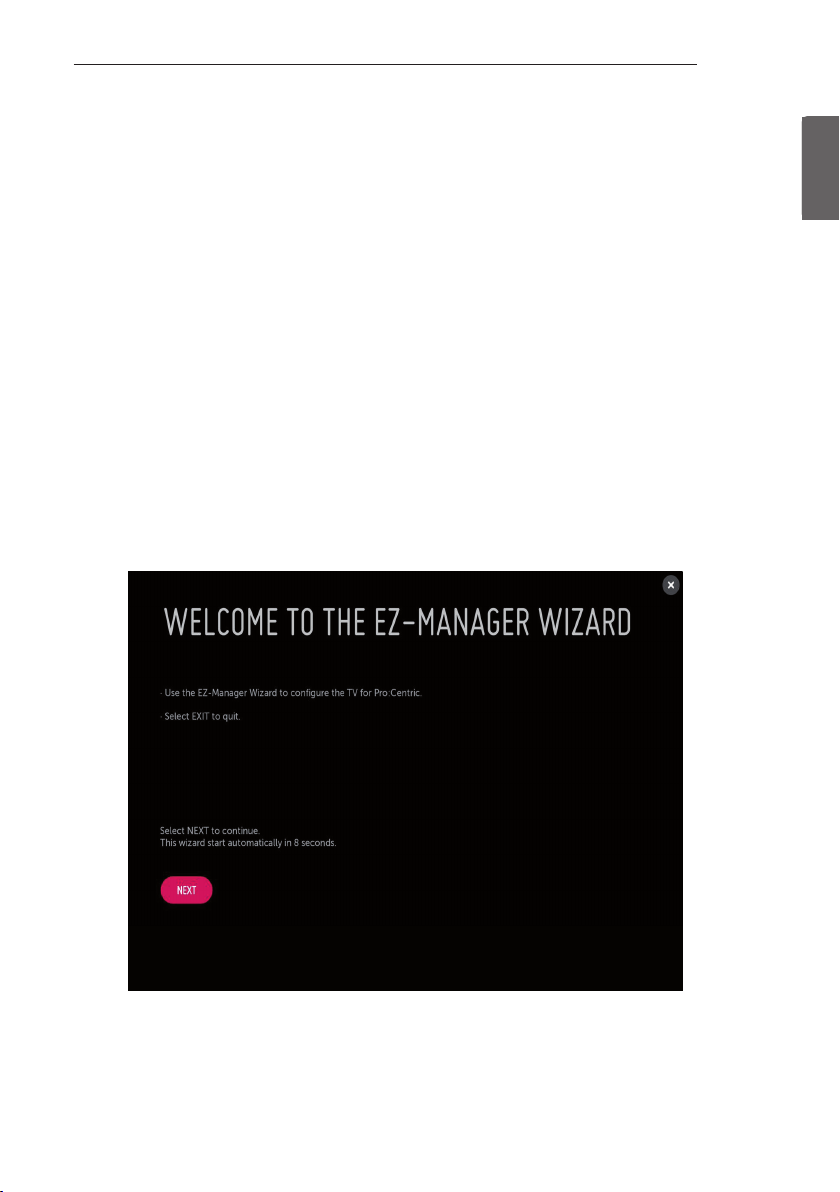

EZ-MANAGER WIZARD
(Except for UW34**, UV34**)
-If you are using Pro:Centric, this setup wizard till help you easily set up theTV. Select ‘NEXT’to continue.
-Otherwise, if you will not be installing a Pro:Centric Server, select ‘EXIT’to quit.

ENG
ENGLISH
6EZMANAGER

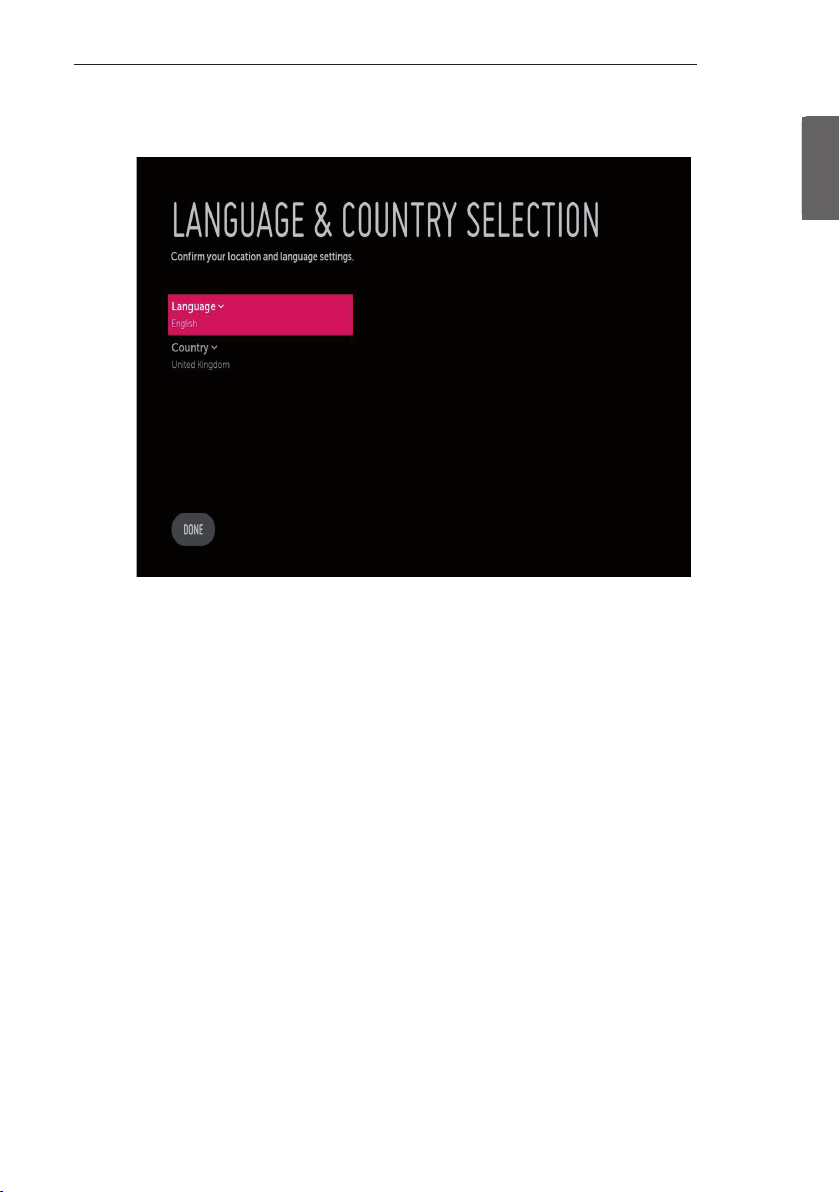

LANGUAGE & COUNTRY SELECTION
(Except for Iran)
-Please select the Language and Country. Some countries need to select the Time Zone.
(Only Iran)
-Please select the Language.

ENGENGLISH
7
EZMANAGER
(Only UW34**, UV34**)
-Please select the Language and Country. Some countries need to select the Time Zone.

ENG
ENGLISH
8EZMANAGER
Automatically for Setup
(Except for UW34**, UV34**)
1 From theTV Conguration Options screen, you can choose how to proceed with the conguration of this TV. Whether you will
congure theTV for Pro:Centric operation via the wizard or use a USB memory device to congure theTV, you may rst wish to set
the Room Number on the TV.
-If you intend to set Room Number as part of the TV configuration, use the Room Number option to assign the Room # for
this TV before you continue with additional configuration.
-In the Label field, use the Left/Right arrow keys to specify a North, South, East, orWest designation for this TV.
-In the Room Number field, you can use the number keys on the Installer Remote to direct enter a room number or use the
virtual keyboard on the TV screen.
-To continue, move and select‘NEXT’.

ENGENGLISH
9
EZMANAGER
2 This step automatically searches for the Pro:Centric Server. If was found the Pro:Centric data channel, select the‘NEXT’.

ENG
ENGLISH
10 EZMANAGER

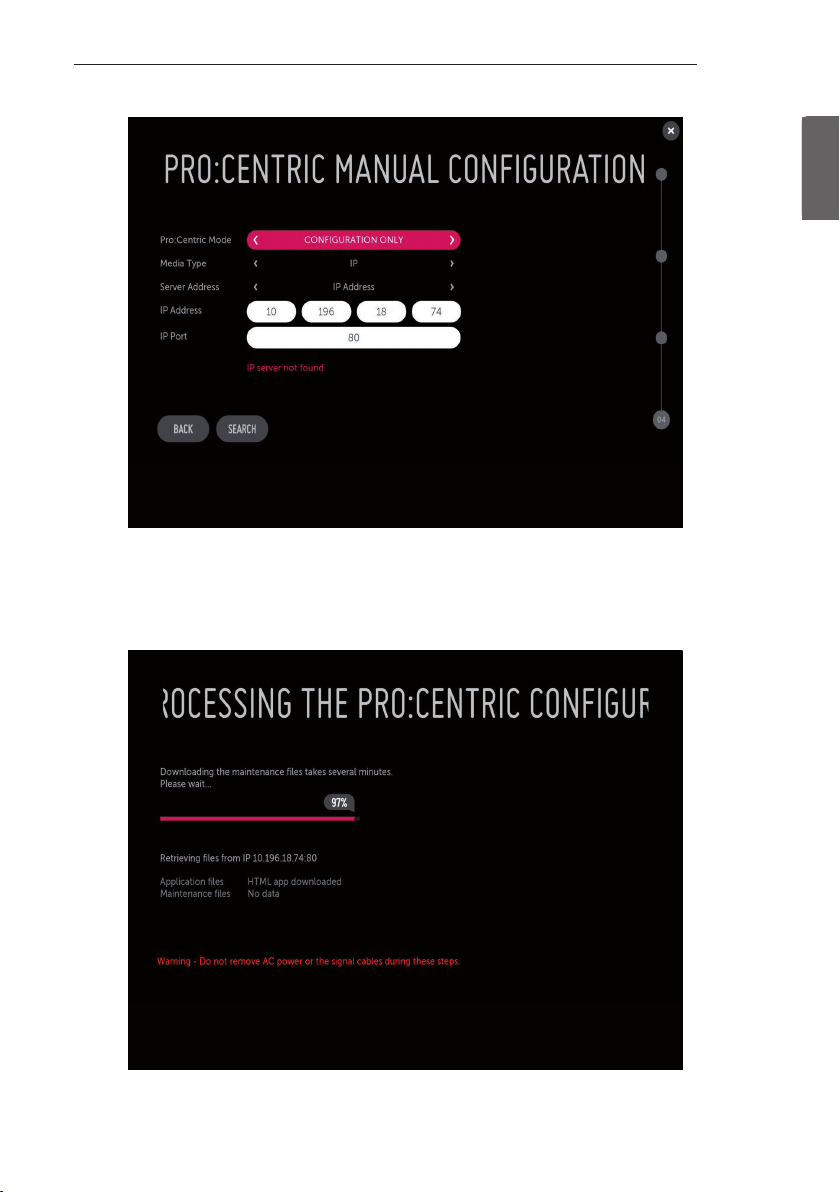

3 Downloading the Pro:Centric application les takes few minutes.
4 After the installation is completed, the following screen will be displayed.
