LG 34UM94 User manual

North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com
Internal Use Only
Printed in KoreaP/NO : MFL63731165 (1408-REV02)
CHASSIS : LM94Q
MODEL : 34UM94/95
MODEL : 34UM94/95-PD/34UM95-PE
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
IPS LED MONITOR
SERVICE MANUAL

- 2 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ........................................................................ 3
SPECIFICATION ....................................................................................... 4
ADJUSTMENT INSTRUCTION ................................................................ 5
BLOCK DIAGRAM.................................................................................... 9
EXPLODED VIEW .................................................................................. 10
SCHEMATIC CIRCUIT DIAGRAM ..............................................................
CONTENTS

- 3 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩand 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

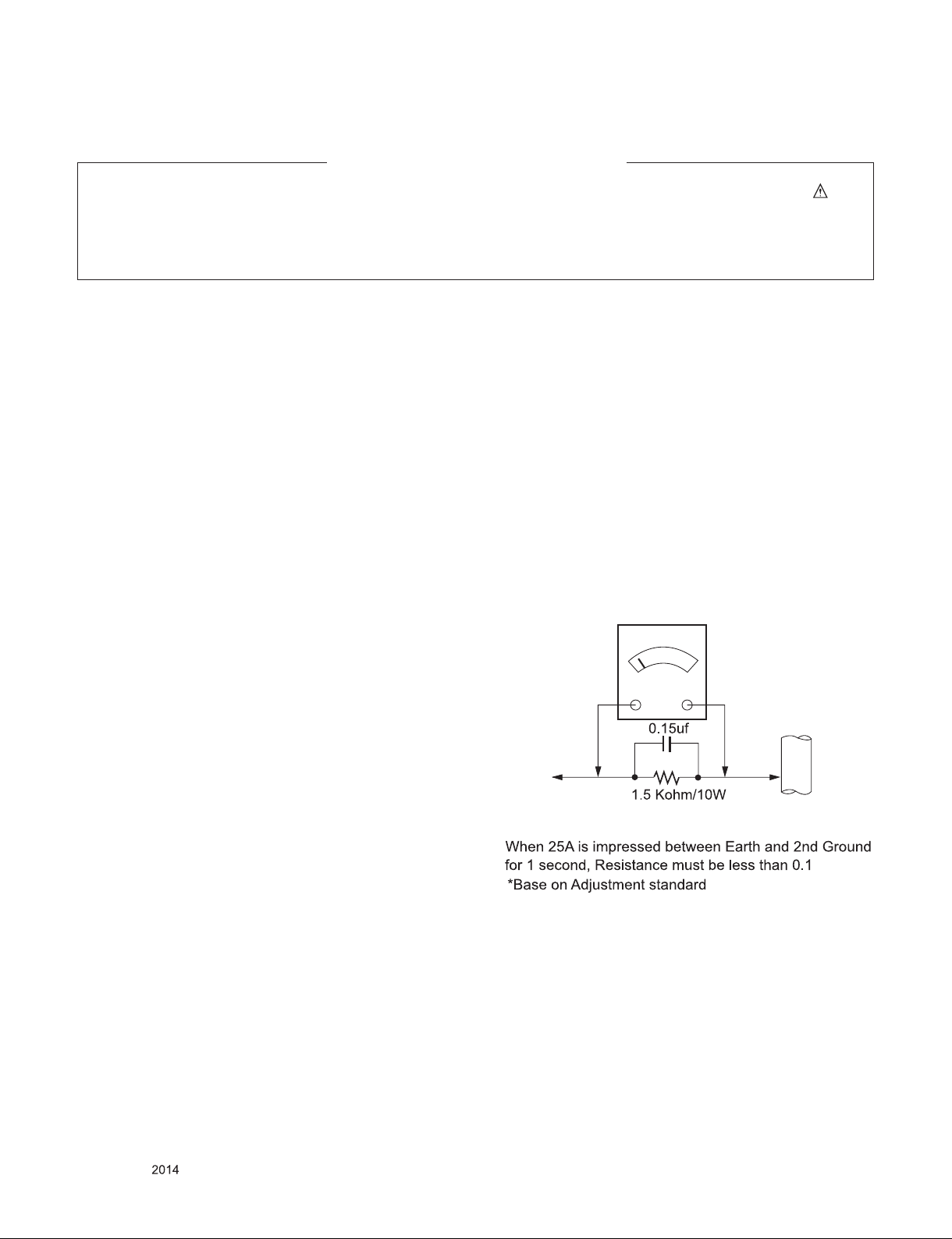

Leakage Current Hot Check circuit
IMPORTANT SAFETY NOTICE
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
SAFETY PRECAUTIONS

- 4 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement .
1. Module General Specification
No Item Content Remark
1 Customer BRAND
2 User Model Name 34UM95
3 Sale region Refer to Sufx standard
4 Feature 34” Wide LCD MONITOR(WQHD)
5 Chassis Name LM94Q
6 General Scope External SW &Adj. 5-way joystick switch
Function PBP, Picture Mode Ratio, Gamma Calibration, SES, Six
Color, 7W speaker x 2, Thunderbolt x 2, Displayport,
HDMI x 2, TCF, Screen split, USB hub(USB3.0 x 1,
USB2.0 x 2), 10-bit color depth(Displayport),
DC switch (34UM95-PE Only)
7 Power Code Length : 1.55±0.05 M
Shape : Wall-out
Color : Black
Weight : 0.16kg
Refer to Sufx stand-
ard and power cord
table
8 Cable TBT(Thunderbolt) Length : ,Shape : ,Color: ,Pin Do not provide
USB Length : ,Shape : ,Color: ,Pin Do not provide
Audio Length : ,Shape : ,Color: ,Pin Do not provide
HDMI Length : 1.8m
Shape : Detachable Type
Color : black
Weight : 0.11kg
EAD00926103
9 Power Input: AC100~240V 50~60Hz, 2A Max
Output: DC 19V 7.37A
140W Adapter
Weight : 0.58kg
EAY62949006
10 Applying module list P/No Specication
EAJ62509601(ZBD)
EAJ62767601(Dot free)
LM340UW1-SSA1

- 5 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
ADJUSTMENT INSTRUCTION
1. Application Range
This document is applied to LM94Q chassis 34” LCD Monitor
which is manufactured in Monitor Factory or is produced on
the basis of this data.
2. Designation
(1) The adjustment is according to the order which is
designated and which must be followed, according to the
plan which can be changed only on agreeing.
(2) Power Adjustment: Free Voltage
(3) Magnetic Field Condition: Nil.
(4) Input signal Unit: Product Specification Standard
(5) Reserve after operation: Above 5 Minutes (Heat Run)
Temperature : at 25 °C ± 5 °C
Relative humidity : 65 % ± 10 %
Input voltage : 100 V~ 240 V, 50/60Hz
(6) Adjustment equipments: Color Analyzer (CA-210 or
CA-110), DDC Adjustment Jig equipment,
3. Main PCB check process
* APC - After Manual-Insult, executing APC
3.1. ADC Process
(1) 34UM95 doesn’t need ADC process because it has only
digital input like DisplayPort and HDMI.
3.2. EDID Process
3.2.1. EDID Download
F/W includes default EDID for All input ports, aging on Mode If
AC ON, default EDID is automatically loaded to EEPROM.
Update serial number in EDID of HDMI1.
* Caution : Never connect HDMI Cable when execute NVRAM
Init and AC On at first for downloading HDMI EDID
automatically.
** Protocol : DDC 2AB

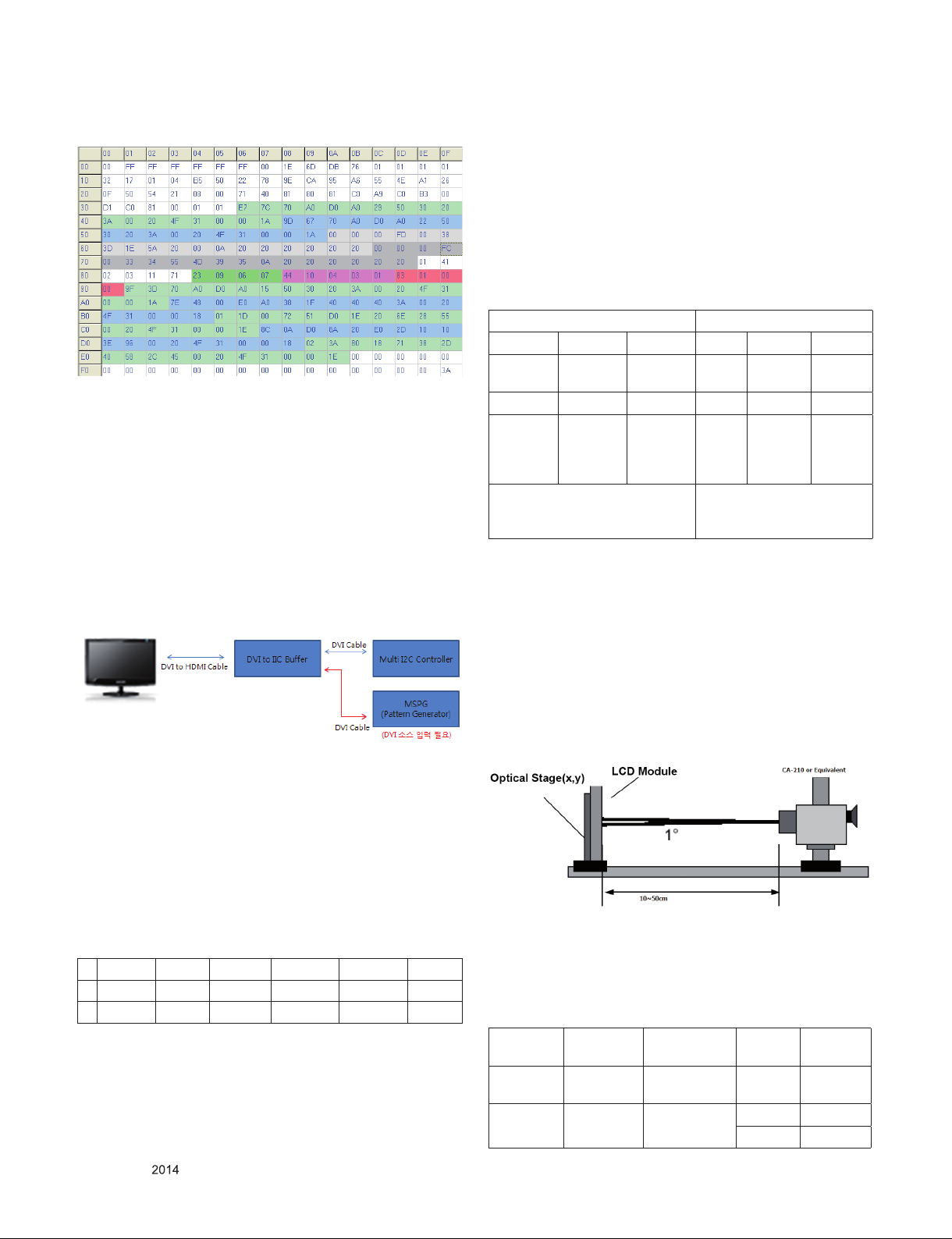

3.2.2. Data ( 128 Bytes )
- EDID Ver. 1.3 FOR HDMI 1 (256Byte)
- EDID Ver. 1.3 FOR HDMI 2 (256Byte)
- EDID Ver. 1.4 FOR Display Port (256Byte)
No Item Content 16 Data
1 Manufacturer ID GSM 1E 6D
2 Product ID HDMI 1 : 30423
HDMI 2 : 30423
Display Port : 30424
Thunderbolt : 30427
D7 76
D7 76
D8 76
DB 76
3 Year 2013 17
4 Version 1 1
5 Revision HDMI : 3
DP : 4
HDMI : 3
DP : 4
6 Serial Number * *
7 Week ** **
8 Model Name 34UM95 --
9 Check Sum **** ****
10 Special Item Need to Input Serial Number

- 6 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

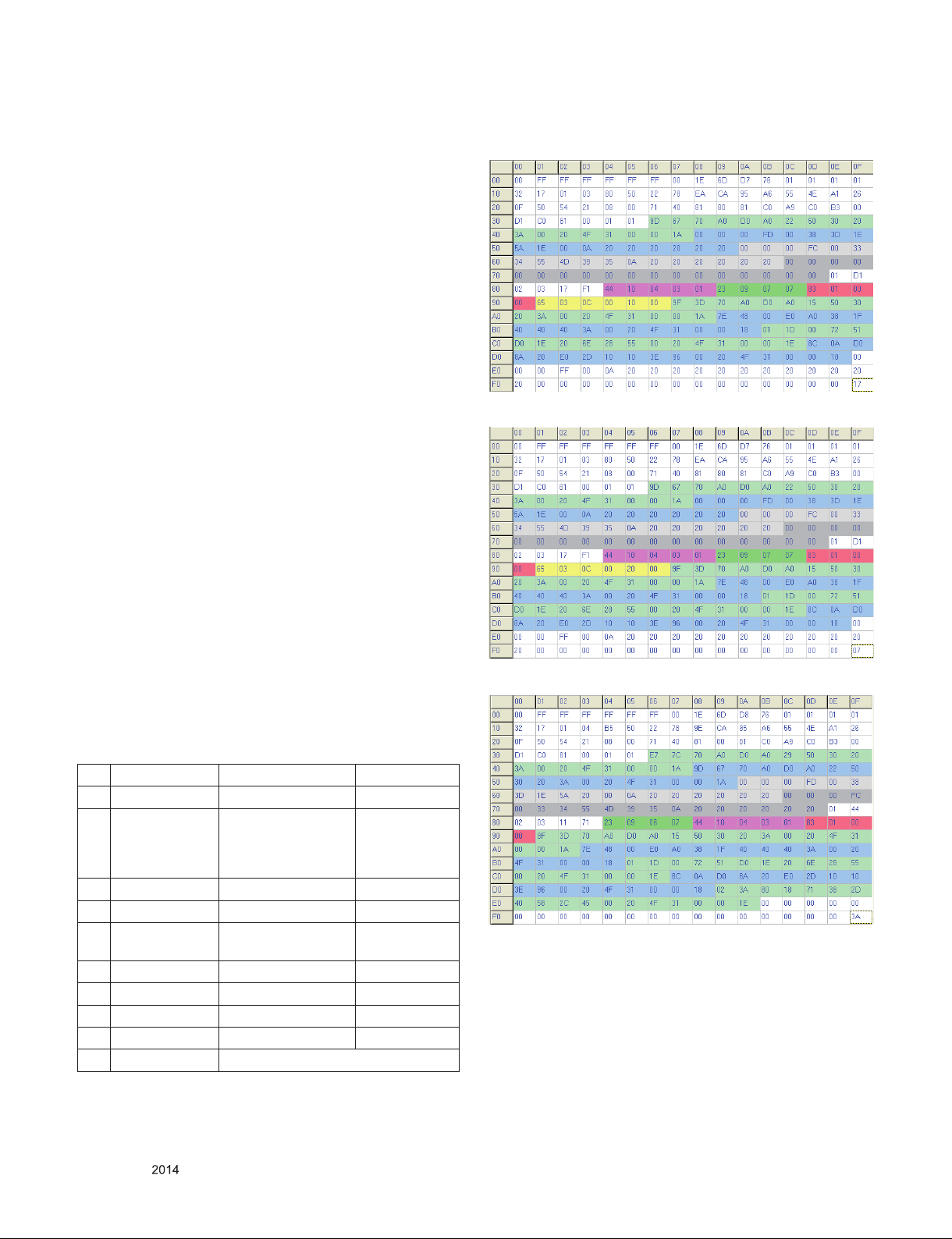

- EDID Ver. 1.4 FOR Thunderbolt (256Byte)
3.3. Function Check
3.3.1. Check Screen
■ Check input and signal items. (cf. work instructions)
1. HDMI1/2 (3440 x 1440 @30Hz)
2. DisplayPort1.2 (3440 x 1440 @60Hz) - using PC
3. Thunderbolt (3440 x 1440 @30Hz) - using PC
4. Total Assembly line process
4.1. Write HDCP Key
- Write HDCP Key into EEPROM by using DDC2AB protocol
& HDCP Adjustment Jig equipment.
- If error is occurred, try to write again.
4.2. White balance adjustment
- Adjust PRESET Warm(6500K) Color coordinates and
Gamma calibration .
■ Input Gamma calibration Pattern (R,G,B, Grey 20 )
■ Set as Warm(6500K) by commanding COLOR_MODE_
CHANGE Command code.
■ Gamma calibration and verify
Start - Read Elapsed time - Measure - Verify - Output
Report - End
■ Warm(6500K) Color adjustment.
Adjust to meet x/y color coordinate as below.
* Save Warm(6500K) Color by commanding COLOR SAVE
Command code.
Insert HDMI Jack which is connected with PC for White
Balance or equivalent device.
-> Total Assembly line should check whether the color
coordinate(x,y) data refer to below table were meet or not.
* Note : Manual W/B process
(1) Push the “OK” key for 3 sec.
(2) and push the “LEFT” or “RIGHT” Key.
(3) In Service Menu.
* When doing Adjustment, Please make circumstance as
below.
*Note : x,y coordinates are drifted about 0.007 after 30 mins
heat-run. So checking color coordinate within 5-min at
total assembly line, consider x,y coordinates might be
up to 0.007 than x,y target of each color temperature.
* Note : Manual W/B process
1) Power off => Power on
( ‘<-’ 3 times, ‘->’ 1 time and push ‘ ◎ ’)
2) and push the “<-” or “->”.
3) In Service Menu.
* When doing Adjustment, Please make circumstance as
below.
4.3. DPM Operation check
■ Measurement Condition: 100 ~ 240 V @ 50/60Hz
(1) Set Input to DVI-D, DisplayPort, HDMI1, HDMI2
(2) Turn off the source device.
(3) Check DPM operation refer to the below table.
Operating
Condition
Sync (H/V)
or Video
EUT
(MSPG6100)
LED
(SET)
Wattage
(W)
Sleep
mode
Off/Off Off RED
blinking
1.2
Off
mode
- - Off 0.5(PD)
Off 0.3(PE)
2~4 min 4~8min 8~10min 10~25min 25~40min 40min~
x 0.318 0.318 0.317 0.316 0.314 0.313
y 0.339 0.338 0.337 0.334 0.332 0.329
Color Temperature Luminance(cd/m2)
Cool Medium Warm Cool Medium Warm
9,300k 8,000k 6,500k Min :
170
Min :
200
Min :
260
°K °K °K
X=0.283
(±0.03)
Y=0.298
(±0.03)
X=0.295
(±0.03)
Y=0.305
(±0.03)
X=0.313
(±0.03)
Y=0.329
(±0.03)
<Test Signal>
Inner pattern
(255gray,100IRE)
<Test Signal>
Inner pattern
(255gray,100IRE)

- 7 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

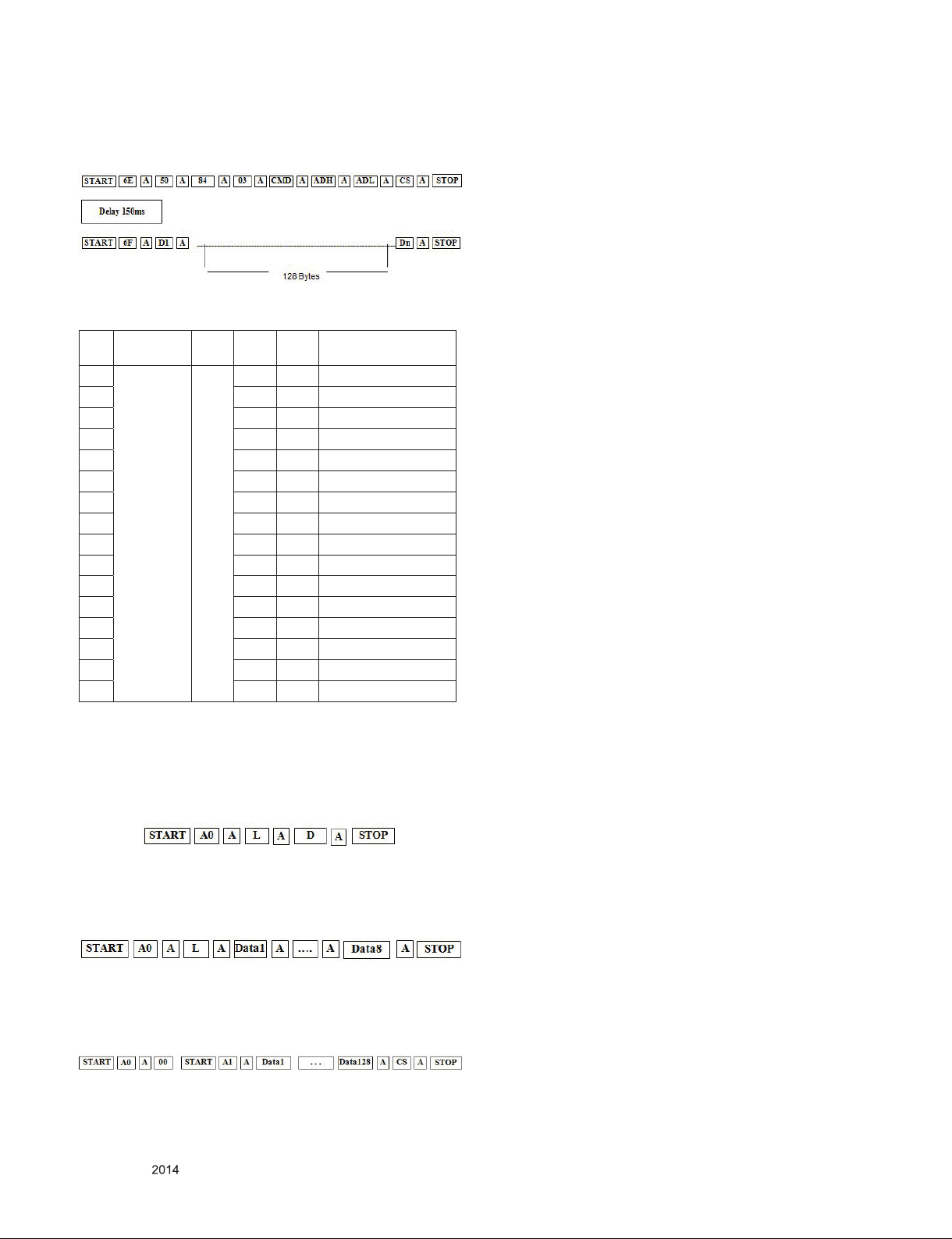

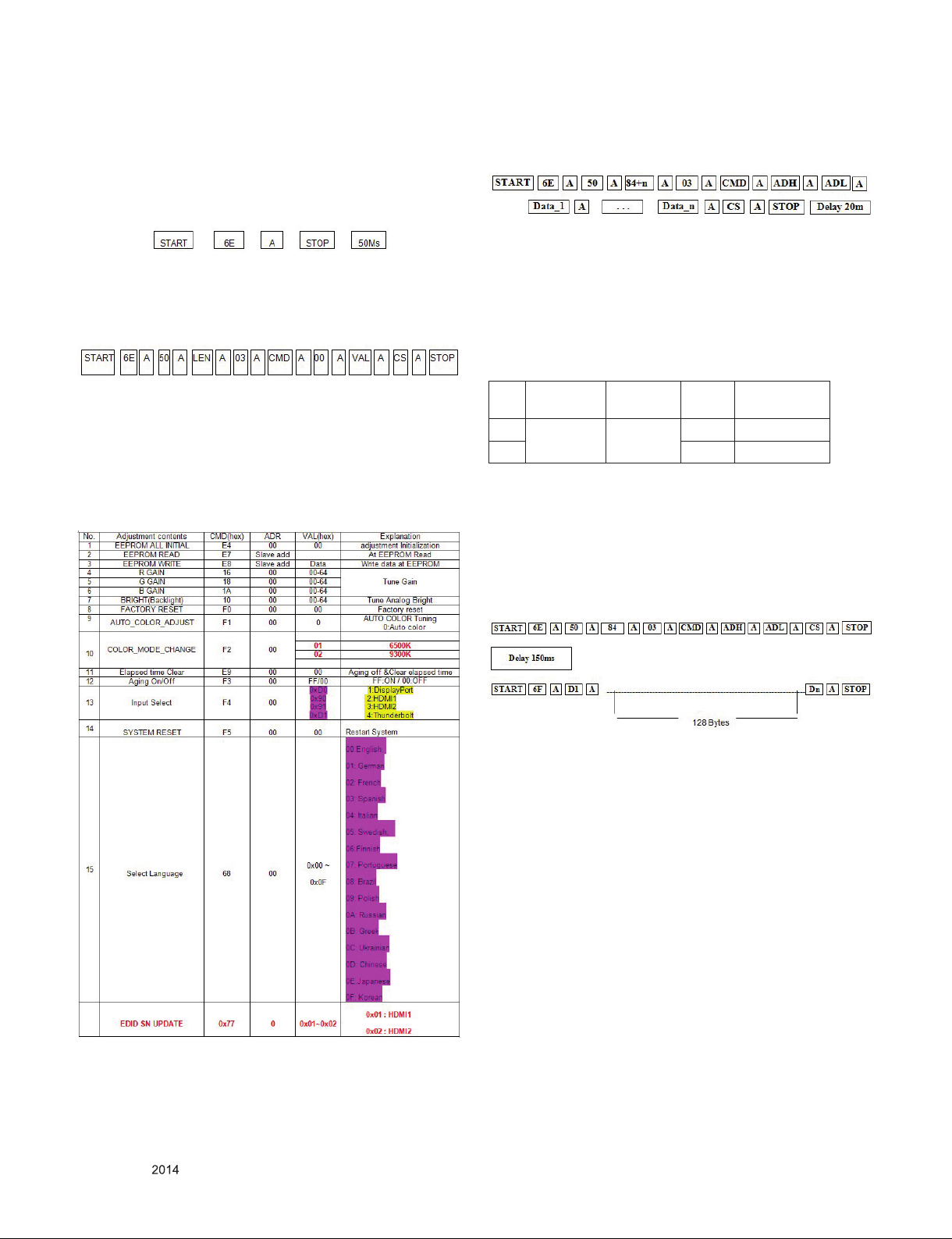

5. Signal composition for adjustment
5.1. I2C (100K BPS)
5.2. COMMUNICATION START
# Until ACK BIT goes LOW, Repeat it.
5.3. Command form.
Command form use DDC2AB standard communication
protocol.
a. LEN : DATA BYTE number to send.
b. CMD : Command language that monitor executes.
c. VAL : FOS DATA
d. CS : Dada’s CHECHSUM that transmit
e. DELAY : 50MS
f. A : Acknowledge
5.4. Screen adjust command (LENGTH = 84)
5.5. EEPROM Data Write
5.5.1 Siganl TABLE
LEN : 84h+Bytes
CMD : E8h
ADH : E2PROM Slave Address(A0,A2,A4,A6,A8,AA,AC,AE),
Not 00h(Reserved by Buffer To EEPROM)
ADL : E2PROM Sub Address(00~FF)
Data : Write data
Delay : 20ms
5.5.2. Command Set
* Use
■ FOS Default write :
<14mode data> write
SyncFlags,HPeriodH, HPeriodL, VtotalH,VtotalL,
SrcHTotalH, SrcHTotalL
SrcHStartH, SrcHStartL, SrcVStartH,SrcVStartL,
HsyncPhase
■ Temporary Data write: Write to particular address of
EEPROM.
No. Adjustment
contents
CMD(hex) LEN Explanation
1 E E P R O M
WRITE
E8 94 16-Byte Write
2 (84+n) n-byte Write

- 8 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5.6. E2PROM Data Read
5.6.1. Signal TABLE
5.6.2. COMMAND SET
5.6.3. Use
Read E2PROM’s specic area as unit of 128(80h)-byte. (84h)
5.6.4 EDID Write
EEPROM access by using DDC2B protocol
■ 1-Byte write
L : 0x00~0x7F
D : data
■ 8-byte write
L : 0x00,0x10,….0x70
5.6.5. EDID Read
- DDC2B Command.(A0/A1)
- 128 Byte transfer of EDID Buffer of MICOM
No. Adjustment
contents
CMD
(hex)
ADH
(hex)
ADL
(hex)
Explanation
1 EEPROM
READ
E7 A0 0 0-Page 0~7F Read
2 80 0-Page 80~FF Read
3 A2 0 1-Page 0~7F Read
4 80 1-Page 80~FF Read
5 A4 0 2-Page 0~7F Read
6 80 2-Page 80~FF Read
7 A6 0 3-Page 0~7F Read
8 80 3-Page 80~FF Read
9 A8 0 4-Page 0~7F Read
10 80 4-Page 80~FF Read
11 AA 0 5-Page 0~7F Read
12 80 5-Page 80~FF Read
13 AC 0 6-Page 0~7F Read
14 80 6-Page 80~FF Read
15 AE 0 7-Page 0~7F Read
16 80 7-Page 80~FF Read

- 9 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
06
/CUVGT
*2. 4QWV
2CPGNZ
&%.-/*\
&7A85 &7A&' &7A(#56A/76' 52+A%.-A+1 *+A+06' 52+A%'A+1 52+A5+1 52+A5+1 52+A5+1 52+A5+1
.8&5
R
*&/+
''241/
.'&&TKXGT+%
&65
'#
(NCUJ
/GOQT[
/
.8&5
R
06
5NCXG
.8&5
R
.8&5
R
9.'&A'0#$.' 9.'&A2&+/ 9.'&A#&+/
&2A6:.KPG &CKU[%JCKP
&&4
5&4#/
)$ &&4
5&4#/
)$
&&4&CVC=?
#FFTGUU=? #FFTGUU=?
&&4&CVC=?
&&4
5&4#/
)$
&&4
5&4#/
)$
#FFTGUUA=? #FFTGUUA=?
&&4&CVCA=?
52.
524
&KIKVCN#/2
&09
5'A92 5'A5%. 5'A5&#
#7&A&#6# #7&A.4%- #7&A5%- #7&A/%.-
*&/+ -- *&/+
#0).'
6/&5
*&/+
''241/
6/&5
&2
''241/
75$A5%. 75$A5&#
%QPVTQN-G[
,Q[UVKEM-G[
#&%-';-'; +%-';A5%.-';A5&#
75$VQ7#46 +%
675$
75$
''241/
%55&192A52+ 5%-5&+
75$
&QYP
5VTGCO
75$
72
5VTGCO
75$
&QYP
5VTGCO
75$
&QYP
5VTGCO
75$*WD+%
#5/ 75$5YKVEJ +%
#5/
6JWPFGT
$1.6,CEM
6JWPFGT
$1.6,CEM
(CNEQP
4KFIG
2QYGT
5YKVEJ
625
(NCUJ
/GOQT[
/
%NQEM)GPGTCVQT (5V41065OGGI8
/*\ %.-(TGSWGPE[ )GPGTCVQT
''A%5A0 ''A&1 ''A%.- ''A&+
&25KIPCN
8 8
2QYGT
5YKVEJ
625
8 8
*2A#176A4 *2A#176A.
(NCUJ
/GOQT[
/
%5A5&1A 92A52+A5%-A  5&+A
(NCUJ
/GOQT[
/
*WD%QPVTQNNGT
#5/#
7RUVTGCO 6JWPFGTDQNV
2%+G

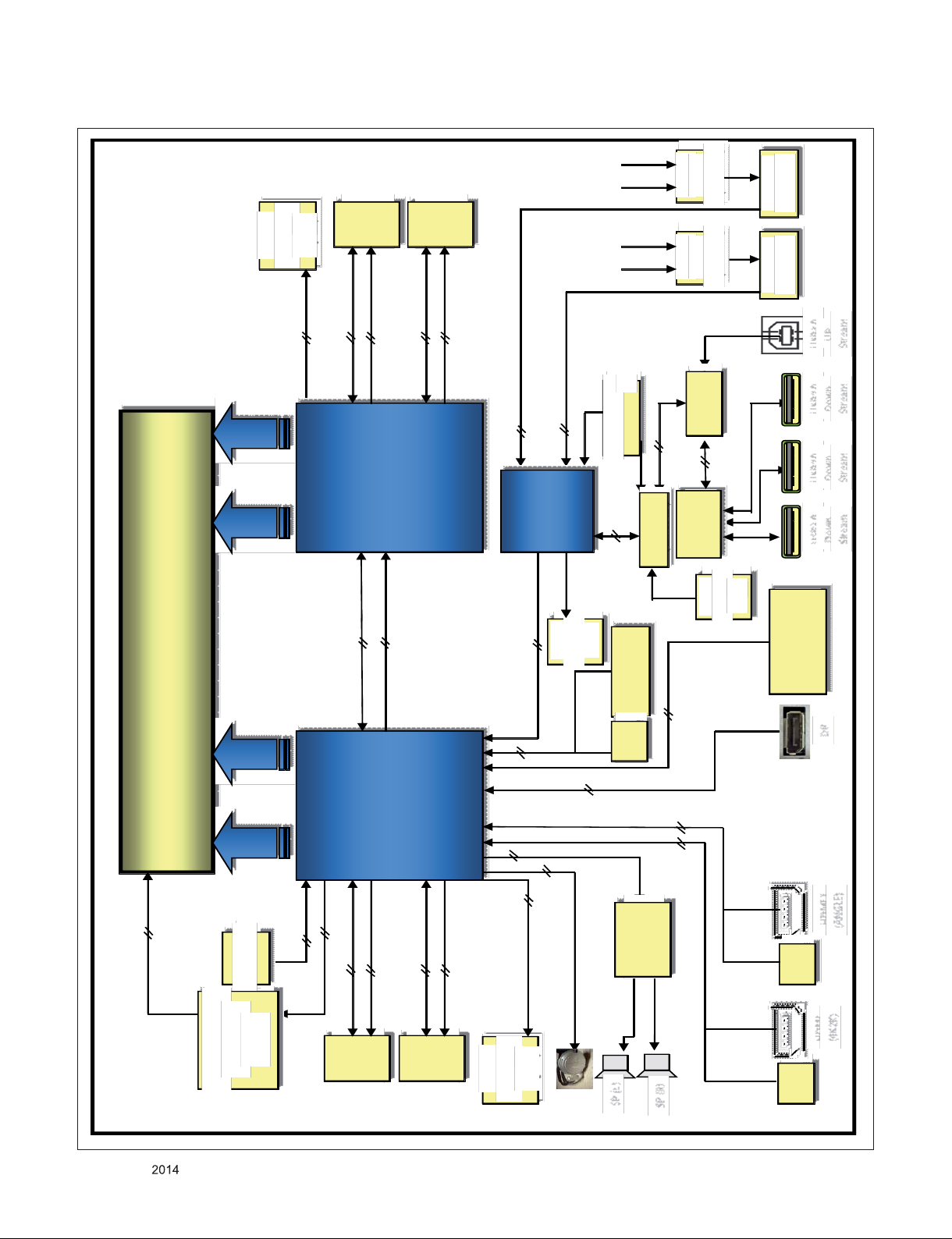

BLOCK DIAGRAM

- 10 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
300
200
400
520 910
900
700
600
710
310
510
800
121
LV2
LV1
A4
A10
120

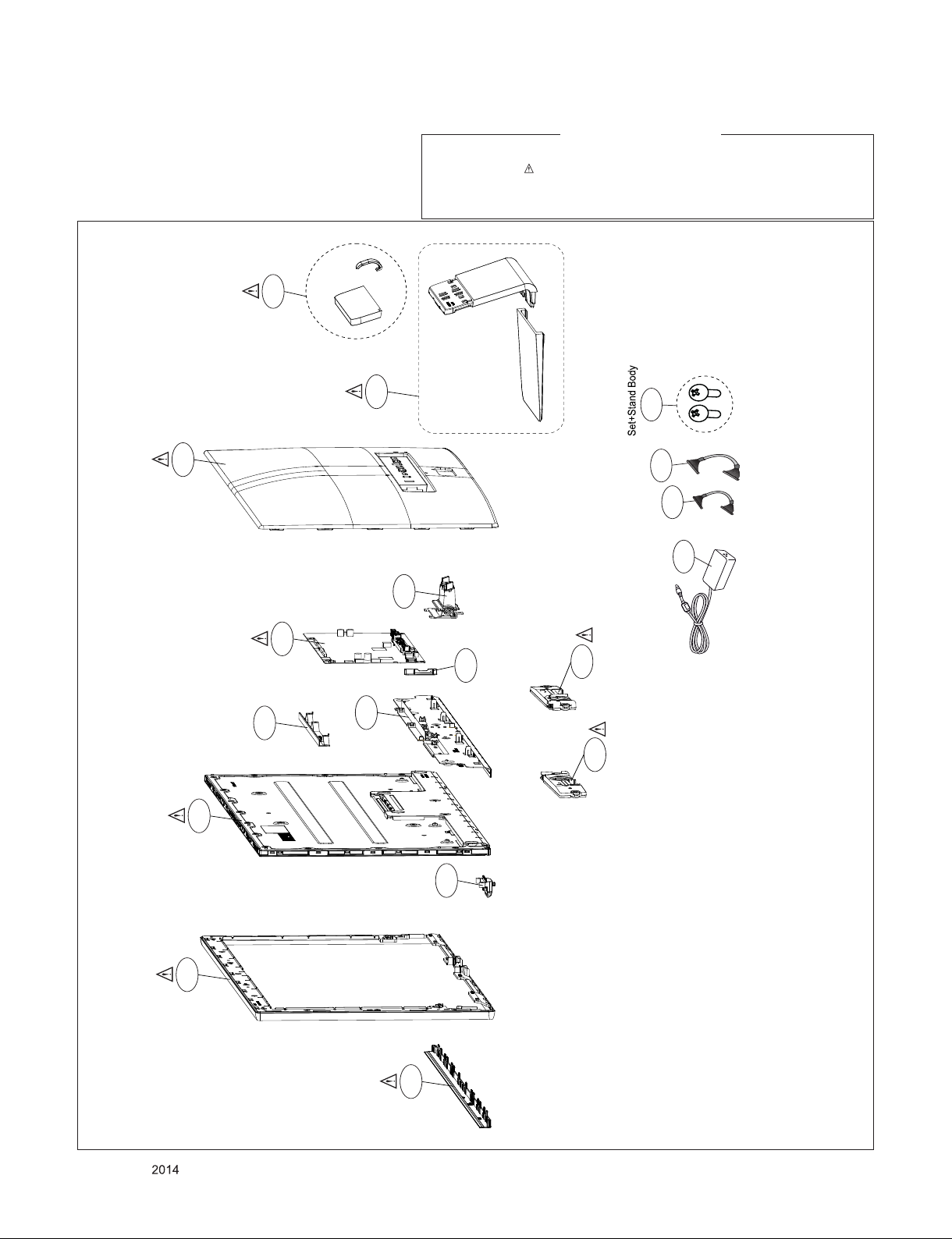

EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
HDMI1_RXC+
C114
1uF 6.3V
105C
HDMI1_SCL
+5V
C100
0.1uF
16V
DP_PLUG
DP_AUXP
C116
1uF 6.3V
105C
DP_RX2N
HDMI1_RX0-
HDMI1_RX0+
HDMI_RXC-
EDID_WP
R117 33
HDMI1_RX0+
HDMI1_RX1+
DP_RX0P
D117
IP4283CZ10-TBA
OPT
3
GND_1
2
TMDS_CH1+
4
TMDS_CH2-
1
TMDS_CH1-
5
TMDS_CH2+ 6NC_1
7NC_2
8GND_2
9NC_3
10 NC_4
D110
ADMC 5M 02 200L
HDMI1_RX1-
DP_DET
R126 1K
DP_DET
DP_RX2N
D114
BAT54C
A2
C
A1
R105
0
DP_AUXN
C105
68pF
OPT
C108
68pF
OPT
R103
100K
R104
0
R133
33
HDMI1_5V
+5V
C117
1uF 6.3V
105C
HDMI1_RXC+
HDMI1_RX2+
R131
33
HDMI_5V
+3.3V
DP_RX2N
DP_RX3N
HDMI_5V
DP_RX2P
DP_RX3P
R111
100K
R101
10K
+3.3V
HDMI1_RXC-
DP_AUXP
DP_RX3P
R122
4.7K
HDMI1_SCL
+3.3V
C118
1uF 6.3V
105C
R121
4.7K
HDMI_RXC-
R123
4.7K
HDMI1_DET
R132
33
IC101
M24C02-RMN6T
3
E2
2
E1
4
VSS
1
E0
5SDA
6SCL
7WC
8VCC
DP_RX0N
DP_RX0P
D106
IP4283CZ10-TBA
OPT
3
GND_1
2
TMDS_CH1+
4
TMDS_CH2-
1
TMDS_CH1-
5
TMDS_CH2+ 6NC_1
7NC_2
8GND_2
9NC_3
10 NC_4
HDMI1_RX0-
C111
1uF 6.3V
105C
TBT_DP_PLUG
IC100
NT68370(D VER.)
RX1CB
D1
RX1C
D2
RX10B
E1
RX10
E2
RX11B
F1
RX11
F2
RX12B
G1
RX12
G2
RX2CB
J1
RX2C
J2
RX20B
K1
RX20
K2
RX21B
L1
RX21
L2
RX22B
M1
RX22
M2
RXAUX1N
C1
RXAUX1
C2
RXAUX2N
H1
RXAUX2
H2
BIN1+
P2
BIN1-
P1
SOGIN
R3
GIN1+
R2
GIN1-
R1
RIN-
T1
RIN+
T2
HSYNCI0
U1
VSYNCI0
U2
RX3CB
A15
RX3C
B15
RX30B
A14
RX30
B14
RX31B
A13
RX31
B13
RX32B
A12
RX32
B12
RX4CB
A11
RX4C
B11
RX40B
A10
RX40
B10
RX41B
A9
RX41
B9
RX42B
A8
RX42
B8
HDMI1_RX1-
R108
100K
R124
0
OPT
DP_RX1N
DP_RX1P
DP_RX1P
DP_HPD
JP102
HDMI_RXC+
JK100
62L020S-34A1N-7T0201-HF_
14
13
5
12
11
2
19
18
10
4
1
17
9
8
3
16
7
6
15
20
21
HDMI1_RX0+
D107
IP4283CZ10-TBA
OPT
3
GND_1
2
TMDS_CH1+
4
TMDS_CH2-
1
TMDS_CH1-
5
TMDS_CH2+ 6NC_1
7NC_2
8GND_2
9NC_3
10 NC_4
DP_RX0P
DP_RX2P
D118
IP4283CZ10-TBA
OPT
3
GND_1
2
TMDS_CH1+
4
TMDS_CH2-
1
TMDS_CH1-
5
TMDS_CH2+ 6NC_1
7NC_2
8GND_2
9NC_3
10 NC_4
HDMI_RX1+
HDMI_RXC+
+3.3V
R137
100K
HDMI_RX2+
HDMI1_RX1-
R136
4.7K
HDMI_RX1-
C107 0.1uF
D112
IP4283CZ10-TBA
OPT
3
GND_1
2
TMDS_CH1+
4
TMDS_CH2-
1
TMDS_CH1-
5
TMDS_CH2+ 6NC_1
7NC_2
8GND_2
9NC_3
10 NC_4
HDMI_RX2-
HDMI1_SDA
HDMI_RXC-
R129
10K OPT
HDMI1_5V
DP_RX3N
HDMI_RX2+
HDMI_RX0+
DP_RX1P
HDMI_RX0+
DP_RX0N
R139 33
Q101
MMBT3904(NXP)
OPT
E
B
C
HDMI_RX0-
HDMI1_RXC-
JP101
HDMI_RX0-
DP_RX2P
R115
10K OPT
D111
ADMC 5M 02 200L
HDMI1_RX2-
R119
33
HDMI1_RX1+
D113
IP4283CZ10-TBA
OPT
3
GND_1
2
TMDS_CH1+
4
TMDS_CH2-
1
TMDS_CH1-
5
TMDS_CH2+ 6NC_1
7NC_2
8GND_2
9NC_3
10 NC_4
MGJ63722801
M100
Jack Shield
TBT_DP_AUXN
HDMI1_RX2-
HDMI_SDA
HDMI_DET
HDMI1_RX1-
DP_RX0N
HDMI1_RX2-
HDMI_HPD
JK102
51V019S-35SN-CR2-B-LG
14 NC
13 CEC
5DATA1_SHIELD
20
SHIELD
12 CLK-
11 CLK_SHIELD
2DATA2_SHIELD
19 HPD
18 +5V_POWER
10 CLK+
4DATA1+
1DATA2+
17 DDC/CEC_GND
9DATA0-
8DATA0_SHIELD
3DATA2-
16 SDA
7DATA0+
6DATA1-
15 SCL
DP_DET
HDMI1_RX2+
HDMI_SCL
C110
68pF
OPT
HDMI_RX0+
DP_RX3N
HDMI1_RXC-
R114
10K
HDMI_RX1-
R138
10K
DP_RX2N
R128
10K
HDMI1_RX1+
R118
33
HDMI_RXC+
D108
IP4283CZ10-TBA
OPT
3
GND_1
2
TMDS_CH1+
4
TMDS_CH2-
1
TMDS_CH1-
5
TMDS_CH2+ 6NC_1
7NC_2
8GND_2
9NC_3
10 NC_4
DP_RX3P
DP_RX3N
HDMI1_RX0-
HDMI1_RX0+
DP_RX2P
R125 10K
OPT
HDMI1_RXC+
C112
1uF 6.3V
105C
HDMI_RX1+
D105
BAT54C
A2
C
A1
HDMI_RX1+
C101
0.1uF
16V
R134
4.7K
C113
1uF 6.3V
105C
R100
1M
HDMI_SDA
DP_AUXN
R110
100K
HDMI_RX2-
HDMI1_RX2-
HDMI1_RX0-
DP_HPD
HDMI1_RXC+
HDMI_RX2-
D104
ADMC 5M 02 200L
HDMI_SCL
R155 1K
HDMI_RX0+
JP100
JP103
EDID_WP
TBT_DP_RX3P
R116
10K
OPT
DP_HPD
C106 0.1uF
HDMI_RX0-
HDMI_RX0-
HDMI_RXC-
R107 1K
C104
0.1uF
HDMI1_RX1+
DP_RX1P
R127
0
R113
0
HDMI_RX1-
R106 10K
OPT
R142
33
OPT
TBT_DP_RX1N
HDMI_RX2-
HDMI_RX2+
R141
1M
OPT
HDMI_RX2+
R120
33
DP_RX3P
HDMI_RX1+
DP_RX1N
TBT_DP_RX2P
IC102
M24C02-RMN6T
3
E2
2
E1
4
VSS
1
E0
5SDA
6SCL
7WC
8VCC
DP_RX3N
TBT_DP_RX2N
R135
4.7K
DP_RX0N
HDMI1_RX2+
DP_RX0P
C102
0.1uF
16V
DP_RX1N
D103
ADMC 5M 02 200L
DP_RX0P
D100
DP_AUXN
DP_RX1N
JK101
51U019S-3441N-6RLGM5-HF
14 RESERVED
13 CEC
5TMDS_DATA1_SHIELD
20
BODY_SHIELD
12 TMDS_CLK-
11 TMDS_CLK_SHIELD
2TMDS_DATA2_SHIELD
19 HOT_PLUG_DETECT
18 VDD[+5V]
10 TMDS_CLK+
4TMDS_DATA1+
1TMDS_DATA2+
17 DDC/CEC_GND
9TMDS_DATA0-
8TMDS_DATA0_SHIELD
3TMDS_DATA2-
16 SDA
7TMDS_DATA0+
6TMDS_DATA1-
15 SCL
TBT_DP_RX0P
DP_AUXP
R140
1M
OPT
D102
BAT54C
A2
C
A1
DP_RX3P
+3.3V
Q100
MMBT3904(NXP)
OPT
E
B
C
C103
0.1uF
DP_RX1N
D109
BAT54C
A2
C
A1
DP_RX2N
HDMI1_RXC-
+3.3V
HDMI1_HPD
TBT_DP_AUXP
R109
100K
R156
1M
C115
1uF 6.3V
105C
TBT_DP_RX1P
DP_RX1P
+3.3V
R130
10K
OPT
DP_RX0N
C109
68pF
OPT
DP_AUXN
TBT_DP_RX0N
DP_RX2P
HDMI_RX1-
TBT_DP_RX3N
+3.3V
HDMI1_SDA DP_AUXP
R112
100K
+3.3V
HDMI1_RX2+
R102
100K
HDMI_RXC+
ML_LANE_3-
AUX_CH-
ML_LANE_3+
ML_LANE_1-
ML_LANE_0+
CONFIG2
HOT_PLUG
GND_4
CONFIG1
GND_2
GND_1
RETURN
DP_PWR[3.3V]
ML_LANE_2+
ML_LANE_1+
GND_0
GND_3
ML_LANE_0-
AUX_CH+
ML_LANE_2-
HDMI
(ANGLE)
DP
[TVS DIODE FOR ESD PROTECTION]
34UM95 2013.11.28
SIGNAL INPUT 1 15
HDMI1
HDMI
EEPROM
HDMI1
EEPROM
For MAC Mini DP issue
Jack Shield
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

THERMAL
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
TXBCLN
Q203
MMBT3904-(F)
E
B
C
C273
0.1uF
16V
TXC3N
PANEL_ON
TXB2N
IC205
W25Q80BVSSIG
3
%WP[IO2]
2
DO[IO1]
4
GND
1
CS
5DI[IO0]
6CLK
7HOLD[IO3]
8VCC
TXA2P
C251
0.1uF
16V
C258
10uF
10V
+3.3V_SCALER
+1.2V_SCALER_C
C205
0.1uF
16V
TXDCLN
TXB3N
C287
0.1uF
16V
D200
DP_TX2N
C268
0.1uF
16V
R273 4.7K
DP_TXHPD
AMP_nMUTE
D203
TP215
TXC2P
R280
33
IC100
NT68370(D VER.)
PC3/CEC
B2
PC0/CEC/SCK_O
B3
PF7/VBUS4/WD_I
D12
PA6/DDC_SCL3/RXD3
C11
PA7/DDC_SDA3/TXD3
D11
PF3/CD_SENSE4
A3
PD5/IR_PORT1/MCLK_O
A4
PE4/CBUS1/HPD1
C3
PF4/VBUS1
B4
PB4/DDC_SCL0/RXD0
C4
PB5/DDC_SDA0/TXD0
D3
PF0/CD_SENSE1
D4
PD4/IR_PORT3
E3
PE5/CBUS2/HPD2
F3
PF5/VBUS2
F4
PB6/DDC_SCL1/RXD1
G3
PB7/DDC_SDA1/TXD1
G4
PF1/CD_SENSE2
H3
PC7/IR_PORT2/SCK_I
H4
PA0/ADC4/PWMA
T3
PA1/ADC5/PWMB
T4
PC4/DDC_SCL4/RXD4
P3
PC5/DDC_SDA4/TXD4
P4
PD7
R4
RSTN
V3
OSCI
N1
OSCO
N2
OPT1
V1
OPT0
V2
PE2/DBC/PWMC/M2_SPI_CE3
AC16
PE3/PWMD/M2_SPI_CE4
AD17
PA2/ADC6/PWMC/DIN_19
AC17
PA3/ADC7/PWMD/DIN_18
AE17
PB2/ADC2/INTE2/DIN_21
AF17
PB3/ADC3/INTE3/DIN_20
AE18
P34/RXD5/DIN_16
AD18
P35/TXD6/DIN_15
AD19
PC6/AMUTE/M2_SPI_CE2/AO_IN/DIN_17
AC18
P30/RXD/AO_OUT/DIN_14
AF18
P31/TXD/AO_OUTB/DIN_13
AC19
PD2/M2_SPI_SO/SD_I/DIN_12
AE19
PD3/M2_SPI_CE1/WD_I/DIN_11
AE20
PD0/M2_SPI_CLK/SCK_I/DIN_10
AF19
PD1/M2_SPI_SI/DIN_9
AF20
SPI_CE
AD20
SPI_SO
AC20
SPI_CLK
AC21
SPI_SI
AD21
PE7/CBUS4 C12
PD6/DIN_VS D13
PF2/CD_SENSE3/DIN_HS_CS C13
PA5/DDC_SDA2/TXD2/DIN_HREF_DE D14
PA4/DDC_SCL2/RXD2/DIN_0 C14
PE6/CBUS3 C15
PF6/VBUS3/SD_I D15
PB1/ADC1/INTE1/DIN_3 C16
PB0/ADC0/INTE0/DIN_4 B16
PE1/ADDR1/DIN_1 A16
PE0/LPD_IN0/ADDR0 D17
PC2/DBC/PWMB/SD_O C17
PC1/LPD_OUT/PWMA B17
OUT_P A20
OUT_N B20
PG3/DIN_6/DUI_INTE C20
PG2/DIN_5/DUI_SPI_SIO D20
PG1/DIN_2/DUI_SPI_CE A19
PG0/DIN_CK/DUI_SPI_CK B19
PG7/DIN_7/DUO_INTE C19
PG6/DIN_8/DUO_SPI_SIO D19
PG5/DIN_23/DUO_SPI_CE A18
PG4/DIN_22/DUO_SPI_CK B18
DU_VS/PA4 D18
DU_DE/PA5 C18
DU_FAST_MUTE/PD0 A17
HI_M_S_SEL J3
HI_SPI_CK/P35 J4
HI_INTE/PA2 K3
SPI_CE3/P34 K4
SPI_CE2/P31 L3
SPI_CE1/P30 L4
SPI_SIO4/PB3 M3
SPI_SIO3/PB2 M4
SPI_SIO2/PB1 N3
SPI_SIO1/PB0 N4
+3.3V_SCALER
USB_HUB/TBT_SEL
C239
0.1uF
16V
R243
1K
TXC4P
C230
10uF
10V
C284
0.1uF
16V
C248
10uF
10V
+1.8V_PD_ENABLE
R246
10K
1%
TXA3N
PD_CTRL
TXA5N
C210
0.1uF
16V
C265
10uF
10V
TXD2P
C203
0.1uF
16V
C243
10uF
10V
C224 0.1uF
16V
TXC2N
KEY_SCL
KEY_SDA
DP_TX3P
TXD5N
JP207
AMP_RESET
R226 22
R270 0
C221 0.1uF
16V
TXC5P
JP211
C225 0.1uF
16V
R238
1K
DP_TX1N
DU_FAST_MUTE
TP211
HDMI_DET
TXD1N
TXC4N
AUD_MCLK
C223 0.1uF
16V
WLED_PDIM
TXC1P
M201
C250
0.1uF
16V
C206
10uF
10V
R247
10K
1%
TXACLN
R209
10K
TP209
C281
0.1uF
16V
R206
10K
OPT
R256
10K
R232
10K
C267
68pF
TXD3P
WLED_ADIM
C270
0.01uF
25V
OPT
R260
10K
R272 4.7K
+1.2V_SCALER
TXA4N
SLAVE_RESET
C232
10uF
10V
R269 4.7K
OPT
R261
1K
R271 4.7K
OPT
C222 0.1uF
16V
C213
0.1uF
16V
R231
1K
C241
0.1uF
16V
C244
0.1uF
16V
C257
0.1uF
16V
R253
100
JP210
OUT_N
TXA4N
+3.3V_SCALER
Q202
AO3435
G
D
S
TXD2N
R265
10K
DP_TX0P
TXD3N
TXCCLN
R230 22
SPI_CE1_IO
TXC4N
R242
10K
TXA4P
TXC3P
R221 22
TXACLP
LED
USB_SDA
R277
4.7K
+3.3V
R285 4.7K
R262
100K
+3.3V
WLED_PDIM
R211
33
+3.3V_SCALER
R228
1K
R208
10K
DP_HPD
TXB5N
PM_S0_EN
+3.3V
C236
10uF
10V
UART_TX R259 33
+1.8V_SCALER
R264 100
KEY2 R212 0 OPT
C274
0.47uF
16V
HDMI1_DET
TBT_B_DET
L201
BLM18PG121SN1D
WHITE LED OPT
TXD1P
TXDCLP
+3.3V
C208
0.1uF
16V
+1.2V_SCALER_C
+1.8V_SCALER
+3.3V_SCALER_C
M203
TXA3P
+10V_PANEL
C234
10uF
10V
R257
10K
TXC4P
HDMI1_SCL
+3.3V_SCALER
C259
10uF
10V
M200
R222 22
C255
0.1uF
16V
TXD4P
C202
18pF
TXC5P
D204
DP_AUXN_TX
MULTI_ON
TXC5N
TXA5P
TXA3N
HDMI1_SDA
SPI_SIO1
SPI_CLK_IO
USB_POWER_EN
R279
10K
ITLC
+3.3V_SCALER_C
DU_DE
D201
R268
1K
R220 22
TXD5P
TXA3P
C264
0.1uF
16V
C290
0.1uF
16V
+3.3V_SCALER_C
R215
4.7K
DP_TX0N
SLAVE_SET
C275
4.7uF
10V
TXBCLP
TXB3P
C261
10uF
10V
JP209
TXCCLN
TXB4P
TXD3N
TXB3P
TXCCLP
TXD2N
C238
0.1uF
16V
TXD5P
OUT_P
DP_TX2P
PD_CTRL
C219 0.1uF
16V
C220 0.1uF
16V TXB4P
C252
10uF
10V
TXA1P
R249
33
C254
10uF
10V
R266
1K
+3.3V_SCALER
R250
33
TBT_DP_PLUG
TXCCLP
SPI_SIO4
C233
0.1uF
16V
X200
12MHz
IC100
NT68370(D VER.)
TXA0N N24
TXA0P N23
TXA1N N26
TXA1P N25
TXA2N P24
TXA2P P23
TXACKN P26
TXACKP P25
TXA3N R24
TXA3P R23
TXA4N R26
TXA4P R25
TXB0N T24
TXB0P T23
TXB1N T26
TXB1P T25
TXB2N U24
TXB2P U23
TXBCKN U26
TXBCKP U25
TXB3N V24
TXB3P V23
TXB4N V26
TXB4P V25
TXC0N W24
TXC0P W23
TXC1N W26
TXC1P W25
TXC2N Y24
TXC2P Y23
TXCCKN Y26
TXCCKP Y25
TXC3N AA24
TXC3P AA23
TXC4N AA26
TXC4P AA25
TXD0N AB24
TXD0P AB23
TXD1N AB26
TXD1P AB25
TXD2N AC24
TXD2P AC23
TXDCKN AC26
TXDCKP AC25
TXD3N AD24
TXD3P AD23
TXD4N AD26
TXD4P AD25
DP_TX0N
C25
DP_TX0P
C26
DP_TX1N
D25
DP_TX1P
D26
DP_TX2N
E25
DP_TX2P
E26
DP_TX3N
F25
DP_TX3P
F26
DP_AUXN
G25
DP_AUXP
G26
DP_TXHDP
G24
DPTX_OSCI
H24
DPTX_OSCIO
J24
EDP_TX0P
H26
EDP_TX0N
H25
EDP_TX1P
J26
EDP_TX1N
J25
EDP_TX2P
K26
EDP_TX2N
K25
EDP_TX3P
L26
EDP_TX3N
L25
EDP_AUXN
M25
EDP_AUXP
M26
EDP_TXHDP
K24
EXT_SWING
AE25
3P_OPEN
AF21
3N_OPEN
AE21
2P_OPEN
AF22
2N_OPEN
AE22
1P_OPEN
AF23
1N_OPEN
AE23
0P_OPEN
AF24
0N_OPEN
AE24
LOCKN_OPEN
AD22
HTPDN_OPEN
AC22
TXC3N
R214
100
TXACLP
EDID_WP1
R239
10K
C269
68pF
OPT
+1.2V_SCALER
PANEL_ON
C256
0.1uF
16V
TP214
TXC2N
R278
4.7K
OPT
Q201
MMBT3904(NXP)
E
B
C
TXB2P
TXB5P
+5V
R204
10K
OPT
C280
0.1uF
16V
TXA1N
R207
10K
TP206
TXD2P
C235
10uF
10V
R205
10K
R223 22
WLED_ADIM
TXBCLN
+5V
R282 100
+1.8V_SCALER
+1.2V_SCALER_C
TXD1P
AMP_RESET
DP_PLUG
TXB1N
+1.2V_SCALER
R244
1K
SPI_SIO3
USB_SCL
D205
C292
0.1uF
16V
R275 4.7K
C294
0.1uF
16V
Q200
MMBT3904(NXP)
E
B
C
R229 22
C240
10uF
10V
JP201
R240
47K
WLED_ENABLE
TBT_A_DET
HDMI_SDA
+3.3V_SCALER
C231
10uF
10V
TXA2N
C260
0.1uF
16V
TXDCLN
C266
0.1uF
16V
C249
0.1uF
16V
TP903
HI_INTE
TXB5P
JP200
+5V
+3.3V_SCALER
+1.2V_SCALER
POWER_CONTROL
TBT_DP_HPD
R283
1K
TXA1N
TXB4N
P201
FI-RE41S-HF-J-R1500
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
R217 22
C276
1uF
10V
TXB5N
R263
100K
TP213
AMP_SDA
R233
10K
C242
0.1uF
16V
P200
FI-RE51S-HF-J-R1500
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
DP_AUXP_TX
AMP_SCL
TXD4N
TXA5P
TXA1P
R267
20K
C228 0.1uF
16V
DU_VS
R203 0
R276
4.7K
OPT
+3.3V_SCALER
HDMI_HPD
TP212
+3.3V_SCALER
C291
0.1uF
16V
+1.2V_SCALER
TXA4P
C262
0.1uF
16V
D202
C285
0.1uF
16V
ITLC
R213 0 OPT
HDMI_SCL
R258 33
C227 0.1uF
16V
+3.3V_SCALER
IC100
NT68370(D VER.)
CVDD_1
G17
CVDD_2
G18
CVDD_3
G19
CVDD_4
H19
CVDD_5
J19
CVDD_6
K19
CVDD_7
L19
CVDD_8
M19
CVDD_9
N19
CVDD_10
P19
CVDD_11
R19
CVDD_12
T19
CVDD_13
U19
CVDD_14
V17
CVDD_15
V18
CVDD_16
V19
VDD12RX_1
G11
VDD12RX_2
H10
VDD33RX_1
G9
VDD33RX_2
H9
VMM_ADC12_1
M9
VMM_ADC12_2
N9
VCCA/VCCD_1
V9
VCCA/VCCD_2
V10
VCC_CLK
V12
VX1_EXT12_1
W18
VX1_EXT12_2
W19
APR1_V12_1
J9
APR1_V12_2
J10
APR1_V12_3
K9
APR1_V12_4
K10
DP_AVDD_PLL_1
J21
DP_AVDD_PLL_2
K21
DP_AVDD_1
J20
DP_AVDD_2
K20
TVCC33_1
E11
TVCC33_2
E12
TVCC33_3
E13
VCC_LDO33
M7
VCC_ADC33
M8
MPLL33
N8
OSC_VCC33
N7
VDD_DLL
P7
VCCA_LVDS_1
R21
VCCA_LVDS_2
T21
DP_AVDD_33_1
G20
DP_AVDD_33_2
H20
VCC33_SSCK
F20
OSC_MVCC3IO
D21
DVDD_1
E15
DVDD_2
E16
DVDD_3
E17
VDD_VBYONE_33V_1
V20
VDD_VBYONE_33V_2
W20
V12T_1
F10
V12T_2
F11
V12T_3
G10
VDD_CORE/VDD_MMU_1
U7
VDD_CORE/VDD_MMU_2
U8
VDD_CORE/VDD_MMU_3
V7
VDD_CORE/VDD_MMU_4
V8
VDD_CORE/VDD_MMU_5
W7
VDD_CORE/VDD_MMU_6
W8
VDD_CORE/VDD_MMU_7
W9
VDD_CORE/VDD_MMU_8
W10
VDD_CORE/VDD_MMU_9
W11
VDD_CORE/VDD_MMU_10
W12
VDD_CORE/VDD_MMU_11
W13
VDD_CORE/VDD_MMU_12
W14
VDD_CORE/VDD_MMU_13
W15
VDD_CORE/VDD_MMU_14
W16
VDD_CORE/VDD_MMU_15
W17
VDD_CORE/VDD_MMU_16
Y7
VDD_CORE/VDD_MMU_17
Y8
VDD_CORE/VDD_MMU_18
Y9
VDD_CORE/VDD_MMU_19
Y10
VDD_CORE/VDD_MMU_20
Y11
VDD_CLK
Y12
MVREF
Y6
GND_1 H12
GND_2 H13
GND_3 H14
GND_4 H15
GND_5 H16
GND_6 H17
GND_7 H18
GND_8 J12
GND_9 J13
GND_10 J14
GND_11 J15
GND_12 J16
GND_13 J17
GND_14 J18
GND_15 K12
GND_16 K13
GND_17 K14
GND_18 K15
GND_19 K16
GND_20 K17
GND_21 K18
GND_22 L12
GND_23 L13
GND_24 L14
GND_25 L15
GND_26 L16
GND_27 L17
GND_28 L18
GND_29 M12
GND_30 M13
GND_31 M14
GND_32 M15
GND_33 M16
GND_34 M17
GND_35 M18
GND_36 N12
GND_37 N13
GND_38 N14
GND_39 N15
GND_40 N16
GND_41 N17
GND_42 N18
GND_43 P12
GND_44 P13
GND_45 P14
GND_46 P15
GND_47 P16
GND_48 P17
GND_49 P18
GND_50 R12
GND_51 R13
GND_52 R14
GND_53 R15
GND_54 R16
GND_55 R17
GND_56 R18
GND_57 T12
GND_58 T13
GND_59 T14
GND_60 T15
GND_61 T16
GND_62 T17
GND_63 T18
GND_64 U12
GND_65 U13
GND_66 U14
GND_67 U15
GND_68 U16
GND_69 U17
GND_70 U18
GND_71 Y3
GND_72 AA3
GND_73 AB3
GND_74 AC3
GND_75 AD3
GND_76 AD4
GND_77 AD5
GND_78 AD6
GND_79 AD7
GND_80 AD8
GND_81 AD9
GND_82 AD10
GND_83 AD11
GND_84 AD12
GND_85 AD13
GND_86 AD14
GND_87 AD15
GND_88 AD16
ADC_GND N10
OSC_GND P10
TP904
C218
10uF
25V
KEY1
C295
0.1uF
16V
TXD1N
C271
0.1uF
16V
R210
33
TXB1N
M202
C204
0.1uF
16V
USB_HUB/TBT_SEL
TXB2P
AUD_SCK
C247
10uF
10V
+3.3V_SCALER
TXC3P
C253
0.1uF
16V
TXA5N
POWER_CONTROL
+1.2V_SCALER
R202 0
L200
BLM18PG121SN1D
RED LED OPT
TP208
AUD_DATA
C263
10uF
10V
DP_TX1P
TXD4P
TXC2P
P202
12507WR-08L
1+3.3V
2KEY1
3KEY2
4GND
5LED
6.
7SCL
8SDA
9
.
TXD4N
R200
10K
R284 4.7K
C200
0.1uF
16V
R201
1M
C272
0.47uF
16V
EDID_WP
R274 4.7K
OSCI
OSCO
OSCI
C282
0.1uF
16V
OSCO
+3.3V_SCALER_C
TXC1P
R281
33
TXBCLP
C289
68pF
MULTI_ON
JP205
R218 22
R251
33
OPT
TXB4N
KEY_SDA
R248
10K
KEY_SCL
C288
68pF
TXACLN KEY1
LED
+1.2V_SCALER
JP203
R252
33
OPT
JP204
TP207
JP202
DP_DET
JP206
TP210
C283
1uF
C226 0.1uF
16V
KEY2
CS
TXB1P
SCK
/USB2SER_RESET
WP_SPI
SDO
TXC1N
SPI_SIO2
R241 22
UART_RX
TXB3N
JP208
TXD3P
C211
0.1uF
TXD5N
R225 22
C237
10uF
10V
R254
100
SDI
C246
10uF
10V
TXDCLP
R216
1K
R224 22
TXA2P
C212
68pF
OPT
C209
68pF
OPT
+3.3V_SCALER
TXB2N
C293
0.1uF
16V
+3.3V
C229
1uF
10V
+3.3V
C214
10uF
10V
TXA2N
C207
68pF
OPT
TXC5N
C201
18pF
HP_DET
WP_SPI
TXC1N
TXB1P
SDI
R227 22
SCK
SDO
CS
C245
0.1uF
16V
R219 22
+1.2V_SCALER_C
C278
0.1uF
16V
AMP_nMUTE C286
0.1uF
16V
HDMI1_HPD
PM_S3_EN
DP_TX3N
+1.2V_SCALER_C
IC210
TPS22965
3
ON
2
VIN_2
4
VBIAS
1
VIN_1
5GND
6CT
7VOUT_1
8VOUT_2
9
[EP]GND
Control key
If h/sink applied,
X200 shall move away h/sink area
FLAH
8MBIT
2 15
GPIO/SCALER POWER/LVDS
34UM95
5V_DET_INT
HIGH:PBP Concept
NC :Normal
3.3V Pull-Up for 5V Open-Drain Port
H: Intelace Mode
L: Normal Mode
For Jig Test
2013.11.28
Closed to G9/H9/G20/H20/D21
Closed to H10/G11/J21/K21/J20/K20
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

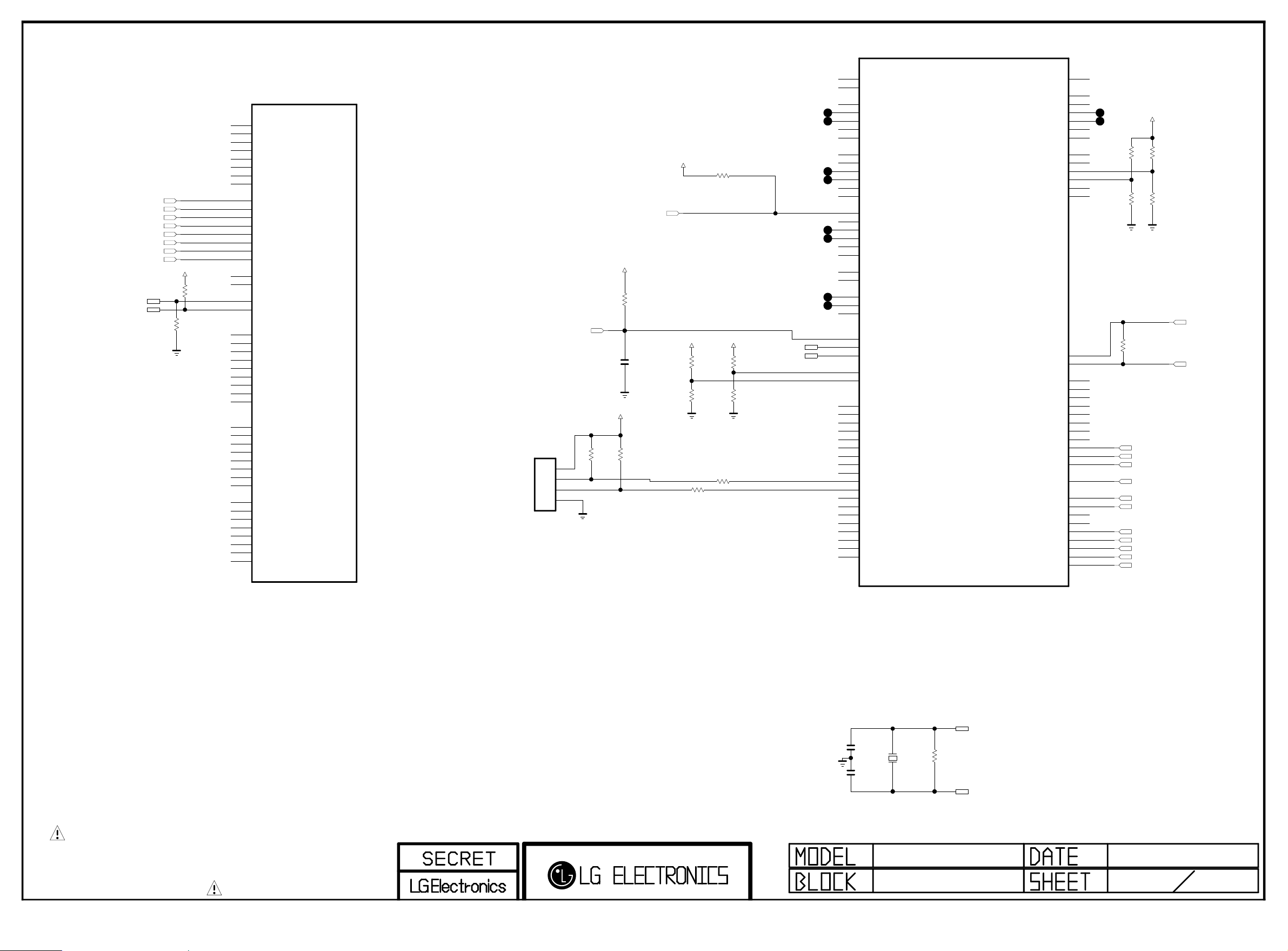

SLAVE SIGNAL INPUT
R313
10K
OPT
+3.3V
SLAVE_SET
SLAVE_RESET
R304
4.7K
M309
C311
18pF
R306
100
+5V
R329
4.7K
DP_TX3N
R301
1M
DP_TX1P
M308
X300
12MHz
IC200
NT68370(D VER.)
PC3/CEC
B2
PC0/CEC/SCK_O
B3
PF7/VBUS4/WD_I
D12
PA6/DDC_SCL3/RXD3
C11
PA7/DDC_SDA3/TXD3
D11
PF3/CD_SENSE4
A3
PD5/IR_PORT1/MCLK_O
A4
PE4/CBUS1/HPD1
C3
PF4/VBUS1
B4
PB4/DDC_SCL0/RXD0
C4
PB5/DDC_SDA0/TXD0
D3
PF0/CD_SENSE1
D4
PD4/IR_PORT3
E3
PE5/CBUS2/HPD2
F3
PF5/VBUS2
F4
PB6/DDC_SCL1/RXD1
G3
PB7/DDC_SDA1/TXD1
G4
PF1/CD_SENSE2
H3
PC7/IR_PORT2/SCK_I
H4
PA0/ADC4/PWMA
T3
PA1/ADC5/PWMB
T4
PC4/DDC_SCL4/RXD4
P3
PC5/DDC_SDA4/TXD4
P4
PD7
R4
RSTN
V3
OSCI
N1
OSCO
N2
OPT1
V1
OPT0
V2
PE2/DBC/PWMC/M2_SPI_CE3
AC16
PE3/PWMD/M2_SPI_CE4
AD17
PA2/ADC6/PWMC/DIN_19
AC17
PA3/ADC7/PWMD/DIN_18
AE17
PB2/ADC2/INTE2/DIN_21
AF17
PB3/ADC3/INTE3/DIN_20
AE18
P34/RXD5/DIN_16
AD18
P35/TXD6/DIN_15
AD19
PC6/AMUTE/M2_SPI_CE2/AO_IN/DIN_17
AC18
P30/RXD/AO_OUT/DIN_14
AF18
P31/TXD/AO_OUTB/DIN_13
AC19
PD2/M2_SPI_SO/SD_I/DIN_12
AE19
PD3/M2_SPI_CE1/WD_I/DIN_11
AE20
PD0/M2_SPI_CLK/SCK_I/DIN_10
AF19
PD1/M2_SPI_SI/DIN_9
AF20
SPI_CE
AD20
SPI_SO
AC20
SPI_CLK
AC21
SPI_SI
AD21
PE7/CBUS4 C12
PD6/DIN_VS D13
PF2/CD_SENSE3/DIN_HS_CS C13
PA5/DDC_SDA2/TXD2/DIN_HREF_DE D14
PA4/DDC_SCL2/RXD2/DIN_0 C14
PE6/CBUS3 C15
PF6/VBUS3/SD_I D15
PB1/ADC1/INTE1/DIN_3 C16
PB0/ADC0/INTE0/DIN_4 B16
PE1/ADDR1/DIN_1 A16
PE0/LPD_IN0/ADDR0 D17
PC2/DBC/PWMB/SD_O C17
PC1/LPD_OUT/PWMA B17
OUT_P A20
OUT_N B20
PG3/DIN_6/DUI_INTE C20
PG2/DIN_5/DUI_SPI_SIO D20
PG1/DIN_2/DUI_SPI_CE A19
PG0/DIN_CK/DUI_SPI_CK B19
PG7/DIN_7/DUO_INTE C19
PG6/DIN_8/DUO_SPI_SIO D19
PG5/DIN_23/DUO_SPI_CE A18
PG4/DIN_22/DUO_SPI_CK B18
DU_VS/PA4 D18
DU_DE/PA5 C18
DU_FAST_MUTE/PD0 A17
HI_M_S_SEL J3
HI_SPI_CK/P35 J4
HI_INTE/PA2 K3
SPI_CE3/P34 K4
SPI_CE2/P31 L3
SPI_CE1/P30 L4
SPI_SIO4/PB3 M3
SPI_SIO3/PB2 M4
SPI_SIO2/PB1 N3
SPI_SIO1/PB0 N4
IC200
NT68370(D VER.)
RX1CB
D1
RX1C
D2
RX10B
E1
RX10
E2
RX11B
F1
RX11
F2
RX12B
G1
RX12
G2
RX2CB
J1
RX2C
J2
RX20B
K1
RX20
K2
RX21B
L1
RX21
L2
RX22B
M1
RX22
M2
RXAUX1N
C1
RXAUX1
C2
RXAUX2N
H1
RXAUX2
H2
BIN1+
P2
BIN1-
P1
SOGIN
R3
GIN1+
R2
GIN1-
R1
RIN-
T1
RIN+
T2
HSYNCI0
U1
VSYNCI0
U2
RX3CB
A15
RX3C
B15
RX30B
A14
RX30
B14
RX31B
A13
RX31
B13
RX32B
A12
RX32
B12
RX4CB
A11
RX4C
B11
RX40B
A10
RX40
B10
RX41B
A9
RX41
B9
RX42B
A8
RX42
B8
C310
0.1uF
16V
DP_AUXP_TX
SPI_SIO4
M301
+3.3V_SCALER_2
DP_TX0N
R300
1M
+3.3V
SPI_SIO3
M300
M305
R302
10K
R327
1M
DP_TX0P
OSCI_2
R345
100
M304
P300
B04B-PASK
DEBUG
1
2
3
4
OSCO_2
+3.3V_SCALER_2
SPI_SIO1
M302
OSCI_2
M307
DU_FAST_MUTE
SPI_CLK_IO
R333
10K
+3.3V_SCALER_2
R330
10K
OPT
DP_AUXN_TX
DP_TX2N
M303
DP_TX3P
R331
10K
R303
4.7K
DU_VS
R332
10K
OPT
DP_TX2P
R324
10K M306
+3.3V
SPI_SIO2
DP_TXHPD
SPI_CE1_IO
R349
10K
OSCO_2
DP_TX1N
R314
10K
OPT
C312
18pF
OUT_N
DU_DE
R305
100
HI_INTE
OUT_P
If h/sink applied,
X300 shall move away h/sink area
34UM95 2013.11.28
3 15
SLAVE SIGNAL INPUT
DEBUG
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

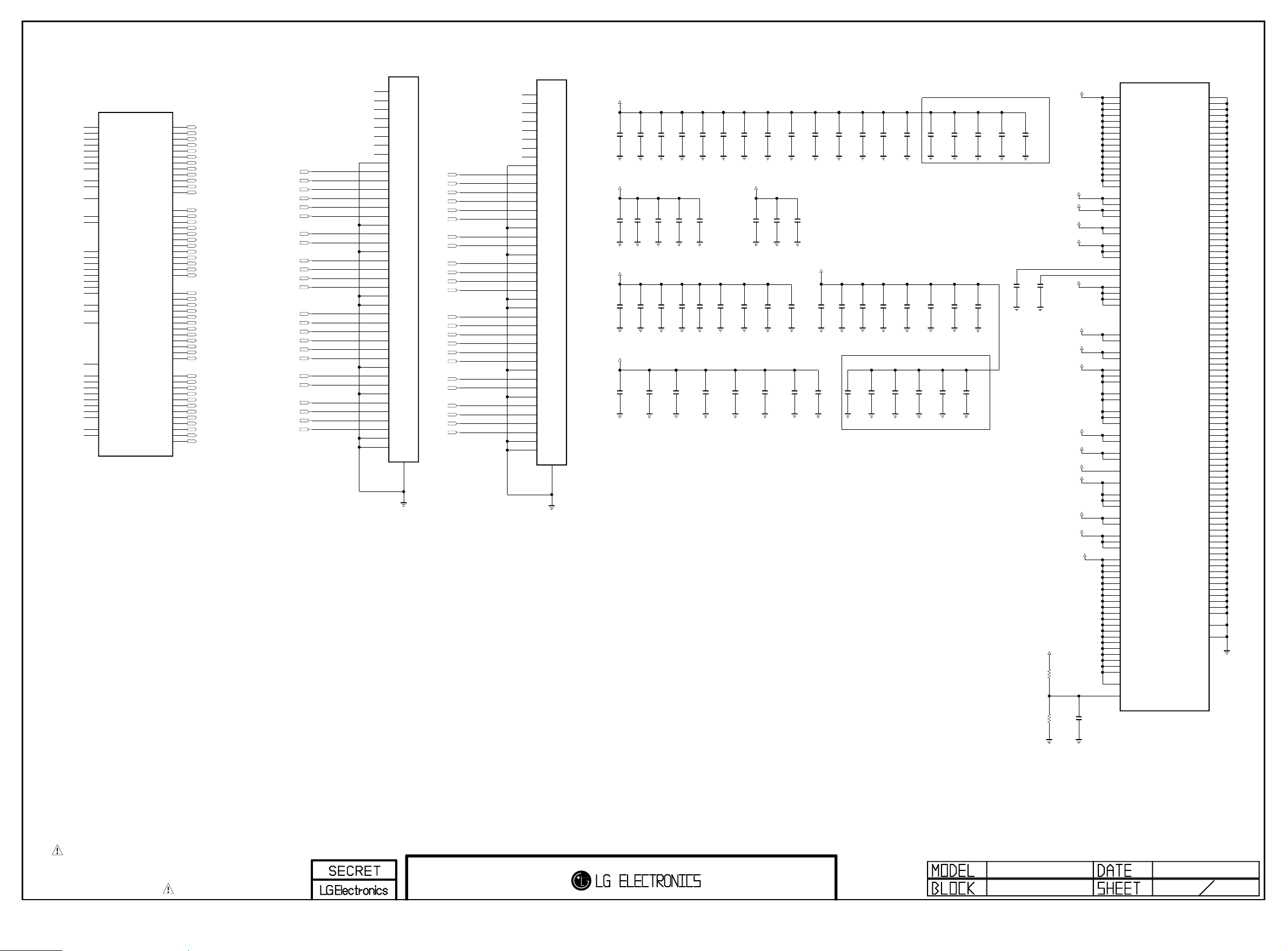

SLAVE SCALER POWER / LVDS
TXA3N_2
TXB4N_2
TXB3N_2
TXC3N_2
TXDCLN_2
TXA4N_2
TXCCLN_2
TXD3N_2
TXB2N_2
TXD4N_2
C408
0.1uF
16V
TXA3P_2
TXD1P_2
TXA2N_2
C438
0.1uF
16V
TXDCLP_2
+1.2V_SCALER_2
TXACLN_2
TXA3P_2
TXB5N_2
TXC2N_2
C420
0.1uF
16V
C404
10uF
10V
C486
0.1uF
16V
C421
0.1uF
16V
TXA4P_2
TXB4P_2
TXD1N_2
TXA3N_2
C443
10uF
10V
C410
10uF
10V
C407
10uF
10V
TXA5P_2
TXB1P_2
C448
10uF
10V
R402
10K
1%
C402
10uF
10V
C490
0.1uF
16V
+1.2V_SCALER_2
C413
0.1uF
16V
C440
10uF
10V
TXB4P_2
TXACLP_2
C436
0.1uF
16V
TXD5N_2
TXD1N_2
TXC5N_2
+3.3V_SCALER_2
TXD5P_2
TXA4N_2
TXA2P_2
TXD5N_2
TXC4P_2
TXC3N_2
C412
0.1uF
16V
C446
10uF
10V
C425
0.1uF
16V
TXB4N_2
+1.2V_SCALER_2
TXCCLP_2
TXD3P_2
TXACLN_2
TXA2P_2
TXB1N_2
C433
0.1uF
16V
TXD4P_2
TXB3N_2
TXC5N_2
TXD4P_2
P400
FI-RE41S-HF-J-R1500
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
TXC2P_2
TXD2N_2
TXB1N_2
C480
0.1uF
16V
TXC1P_2
TXA2N_2
TXA1P_2
C437
0.1uF
16V
C435
0.1uF
16V
C416
0.1uF
16V
C431
0.1uF
16V
C488
0.1uF
16V
TXD3P_2
TXDCLP_2
+3.3V_SCALER_2
C405
10uF
10V
C429
0.1uF
16V
+1.8V_SCALER
TXC4N_2
+1.2V_SCALER_2
TXC1N_2
+1.2V_SCALER_2
C445
10uF
10V
TXD2N_2
C428
0.1uF
16V
C485
0.1uF
16V
C430
0.1uF
16V
TXB2N_2
C419
0.1uF
16V
C400
10uF
10V
+3.3V_SCALER_2
C422
0.1uF
16V
TXCCLN_2
TXC5P_2
TXC5P_2
TXA5N_2
TXB5P_2
P401
FI-RE41S-HF-J-R1500
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
TXC4P_2
TXA1N_2
TXBCLN_2
+1.2V_SCALER_2
C489
0.1uF
16V
C424
0.1uF
16V
TXBCLP_2
TXA4P_2
TXB2P_2
C417
0.1uF
16V
C444
10uF
10V
C418
0.1uF
16V
C483
0.1uF
16V
+3.3V_SCALER_2
TXD4N_2
+3.3V_SCALER_2
C441
10uF
10V
C414
0.1uF
16V
+1.2V_SCALER_2
TXB3P_2
+3.3V_SCALER_2
C401
10uF
10V
+3.3V_SCALER_2
TXC1N_2
TXC2N_2
+1.2V_SCALER_2
TXB5P_2
+3.3V_SCALER_2
C484
0.1uF
16V
C454
0.1uF
16V
+3.3V_SCALER_2
C432
0.1uF
16V
C409
10uF
10V
TXD3N_2
TXACLP_2
+1.8V_SCALER
C411
0.1uF
16V
C442
10uF
10V
TXC3P_2
+1.2V_SCALER_2
C406
10uF
10V
C415
0.1uF
16V
TXC3P_2
C426
0.1uF
16V
C423
0.1uF
16V
C481
0.1uF
16V
TXCCLP_2
R401
10K
1%
C434
10uF
10V
TXB1P_2
TXC4N_2
+3.3V_SCALER_2
TXA5N_2
TXBCLP_2
+1.2V_SCALER_2
IC200
NT68370(D VER.)
TXA0N N24
TXA0P N23
TXA1N N26
TXA1P N25
TXA2N P24
TXA2P P23
TXACKN P26
TXACKP P25
TXA3N R24
TXA3P R23
TXA4N R26
TXA4P R25
TXB0N T24
TXB0P T23
TXB1N T26
TXB1P T25
TXB2N U24
TXB2P U23
TXBCKN U26
TXBCKP U25
TXB3N V24
TXB3P V23
TXB4N V26
TXB4P V25
TXC0N W24
TXC0P W23
TXC1N W26
TXC1P W25
TXC2N Y24
TXC2P Y23
TXCCKN Y26
TXCCKP Y25
TXC3N AA24
TXC3P AA23
TXC4N AA26
TXC4P AA25
TXD0N AB24
TXD0P AB23
TXD1N AB26
TXD1P AB25
TXD2N AC24
TXD2P AC23
TXDCKN AC26
TXDCKP AC25
TXD3N AD24
TXD3P AD23
TXD4N AD26
TXD4P AD25
DP_TX0N
C25
DP_TX0P
C26
DP_TX1N
D25
DP_TX1P
D26
DP_TX2N
E25
DP_TX2P
E26
DP_TX3N
F25
DP_TX3P
F26
DP_AUXN
G25
DP_AUXP
G26
DP_TXHDP
G24
DPTX_OSCI
H24
DPTX_OSCIO
J24
EDP_TX0P
H26
EDP_TX0N
H25
EDP_TX1P
J26
EDP_TX1N
J25
EDP_TX2P
K26
EDP_TX2N
K25
EDP_TX3P
L26
EDP_TX3N
L25
EDP_AUXN
M25
EDP_AUXP
M26
EDP_TXHDP
K24
EXT_SWING
AE25
3P_OPEN
AF21
3N_OPEN
AE21
2P_OPEN
AF22
2N_OPEN
AE22
1P_OPEN
AF23
1N_OPEN
AE23
0P_OPEN
AF24
0N_OPEN
AE24
LOCKN_OPEN
AD22
HTPDN_OPEN
AC22
+1.8V_SCALER
TXD2P_2
TXD1P_2
C447
10uF
10V
C487
0.1uF
16V
C439
10uF
10V
TXBCLN_2
C427
0.1uF
16V
TXA1N_2
TXC1P_2
C482
0.1uF
16V
C403
10uF
10V
TXA5P_2
TXD2P_2
TXB2P_2
TXC2P_2
TXB5N_2
TXDCLN_2
TXD5P_2
TXB3P_2
TXA1P_2
IC200
NT68370(D VER.)
CVDD_1
G17
CVDD_2
G18
CVDD_3
G19
CVDD_4
H19
CVDD_5
J19
CVDD_6
K19
CVDD_7
L19
CVDD_8
M19
CVDD_9
N19
CVDD_10
P19
CVDD_11
R19
CVDD_12
T19
CVDD_13
U19
CVDD_14
V17
CVDD_15
V18
CVDD_16
V19
VDD12RX_1
G11
VDD12RX_2
H10
VDD33RX_1
G9
VDD33RX_2
H9
VMM_ADC12_1
M9
VMM_ADC12_2
N9
VCCA/VCCD_1
V9
VCCA/VCCD_2
V10
VCC_CLK
V12
VX1_EXT12_1
W18
VX1_EXT12_2
W19
APR1_V12_1
J9
APR1_V12_2
J10
APR1_V12_3
K9
APR1_V12_4
K10
DP_AVDD_PLL_1
J21
DP_AVDD_PLL_2
K21
DP_AVDD_1
J20
DP_AVDD_2
K20
TVCC33_1
E11
TVCC33_2
E12
TVCC33_3
E13
VCC_LDO33
M7
VCC_ADC33
M8
MPLL33
N8
OSC_VCC33
N7
VDD_DLL
P7
VCCA_LVDS_1
R21
VCCA_LVDS_2
T21
DP_AVDD_33_1
G20
DP_AVDD_33_2
H20
VCC33_SSCK
F20
OSC_MVCC3IO
D21
DVDD_1
E15
DVDD_2
E16
DVDD_3
E17
VDD_VBYONE_33V_1
V20
VDD_VBYONE_33V_2
W20
V12T_1
F10
V12T_2
F11
V12T_3
G10
VDD_CORE/VDD_MMU_1
U7
VDD_CORE/VDD_MMU_2
U8
VDD_CORE/VDD_MMU_3
V7
VDD_CORE/VDD_MMU_4
V8
VDD_CORE/VDD_MMU_5
W7
VDD_CORE/VDD_MMU_6
W8
VDD_CORE/VDD_MMU_7
W9
VDD_CORE/VDD_MMU_8
W10
VDD_CORE/VDD_MMU_9
W11
VDD_CORE/VDD_MMU_10
W12
VDD_CORE/VDD_MMU_11
W13
VDD_CORE/VDD_MMU_12
W14
VDD_CORE/VDD_MMU_13
W15
VDD_CORE/VDD_MMU_14
W16
VDD_CORE/VDD_MMU_15
W17
VDD_CORE/VDD_MMU_16
Y7
VDD_CORE/VDD_MMU_17
Y8
VDD_CORE/VDD_MMU_18
Y9
VDD_CORE/VDD_MMU_19
Y10
VDD_CORE/VDD_MMU_20
Y11
VDD_CLK
Y12
MVREF
Y6
GND_1 H12
GND_2 H13
GND_3 H14
GND_4 H15
GND_5 H16
GND_6 H17
GND_7 H18
GND_8 J12
GND_9 J13
GND_10 J14
GND_11 J15
GND_12 J16
GND_13 J17
GND_14 J18
GND_15 K12
GND_16 K13
GND_17 K14
GND_18 K15
GND_19 K16
GND_20 K17
GND_21 K18
GND_22 L12
GND_23 L13
GND_24 L14
GND_25 L15
GND_26 L16
GND_27 L17
GND_28 L18
GND_29 M12
GND_30 M13
GND_31 M14
GND_32 M15
GND_33 M16
GND_34 M17
GND_35 M18
GND_36 N12
GND_37 N13
GND_38 N14
GND_39 N15
GND_40 N16
GND_41 N17
GND_42 N18
GND_43 P12
GND_44 P13
GND_45 P14
GND_46 P15
GND_47 P16
GND_48 P17
GND_49 P18
GND_50 R12
GND_51 R13
GND_52 R14
GND_53 R15
GND_54 R16
GND_55 R17
GND_56 R18
GND_57 T12
GND_58 T13
GND_59 T14
GND_60 T15
GND_61 T16
GND_62 T17
GND_63 T18
GND_64 U12
GND_65 U13
GND_66 U14
GND_67 U15
GND_68 U16
GND_69 U17
GND_70 U18
GND_71 Y3
GND_72 AA3
GND_73 AB3
GND_74 AC3
GND_75 AD3
GND_76 AD4
GND_77 AD5
GND_78 AD6
GND_79 AD7
GND_80 AD8
GND_81 AD9
GND_82 AD10
GND_83 AD11
GND_84 AD12
GND_85 AD13
GND_86 AD14
GND_87 AD15
GND_88 AD16
ADC_GND N10
OSC_GND P10
15
SLAVE SCALER POWER
/ LVDS
2013.11.28
4
34UM95
Closed to H10/G11/J21/K21/J20/K20
Closed to G9/H9/G20/H20/D21
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
MDQ[5]
MDQ[1]
MDQ[28]
MA[0]
MDQ[22]
MDQ[29] MA[10]
MDQ[12]
MA[5]
MDQ[13]
MDQ[0]
MDQ[26]
MA[5]
MDQ[27]
MDQ[30]
MA[1]
MDQ[11]
MA[9]
MDQ[3]
MDQ[7]
MDQ[23]
MA[4]
MDQ[23]
MA[6]
MA[7]
MDQ[7]
MDQ[4]
MDQ[14]
MDQ[2]
MA[3]
MDQ[17]
MDQ[19]
MDQ[10]
MA[11]
MDQ[30]
MDQ[8]
MDQ[28]
MDQ[15]
MDQ[12]
MBA[1]
MBA[0]
MDQ[22]
MDQ[10]
MDQ[25]
MDQ[1]
MA[8]
MDQ[16]
MDQ[25]
MA[10]
MDQ[27]
MA[0]
MA[9]
MBA[1]
MA[1]
MBA[0]
MDQ[24]
MDQ[0]
MA[12]
MDQ[24]
MDQ[14]
MDQ[21]
MA[3]
MDQ[29]
MDQ[18]
MDQ[15]
MDQ[26]
MDQ[2]
MA[6]
MDQ[31]
MDQ[11]
MDQ[20]
MDQ[9]
MDQ[4]
MA[2] MDQ[21]
MA[8]
MA[12]
MDQ[13]
MDQ[8]
MA[4]
MDQ[20]
MDQ[9]
MA[11]
MDQ[3]
MDQ[31]
MA[7]
MDQ[16]
MDQ[6]
MDQ[19]
MDQ[6]
MA[2]
MDQ[18]
MDQ[5]
MDQ[17]
MDQ_2[8]
MA_2[6]
MDQ_2[29]
MA_2[7]
MA_2[4]
MA_2[2]
MDQ_2[28]
MA_2[1]
MDQ_2[0]
MDQ_2[3]
MDQ_2[10]
MA_2[2]
MDQ_2[2]
MDQ_2[19]
MDQ_2[5]
MDQ_2[13]
MDQ_2[7]
MDQ_2[31]
MA_2[12]
MA_2[8]
MDQ_2[12]
MDQ_2[14]
MDQ_2[25]
MDQ_2[31]
MDQ_2[29]
MA_2[12]
MDQ_2[21]
MDQ_2[3]
MDQ_2[19]
MDQ_2[20]
MA_2[0]
MDQ_2[17]
MA_2[5]
MBA_2[1]
MA_2[10]
MDQ_2[13]
MDQ_2[4]
MDQ_2[26]
MDQ_2[30]
MDQ_2[25]
MBA_2[1]
MA_2[4]
MDQ_2[18]
MDQ_2[6]
MDQ_2[27]
MDQ_2[0]
MDQ_2[20]
MBA_2[0]
MA_2[7]
MA_2[9]
MDQ_2[16]
MDQ_2[28]
MDQ_2[15]
MDQ_2[12]
MDQ_2[11]
MA_2[3]
MA_2[0]
MDQ_2[9] MA_2[6]
MDQ_2[23]
MDQ_2[22]
MDQ_2[9]
MA_2[3]
MDQ_2[11]
MDQ_2[1]
MDQ_2[18]
MA_2[8]
MDQ_2[7]
MDQ_2[27]
MDQ_2[22]
MA_2[10]
MBA_2[0]
MDQ_2[10]
MDQ_2[16]
MDQ_2[4]
MDQ_2[14]
MDQ_2[24]
MDQ_2[21]
MDQ_2[23]
MDQ_2[8]
MA_2[11]
MA_2[9]
MDQ_2[6]
MDQ_2[2]
MDQ_2[5]
MA_2[11]
MDQ_2[17]
MDQ_2[30]
MDQ_2[15]
MA_2[1]
MDQ_2[26]
MDQ_2[24]
MDQ_2[1]
MA_2[5]
MBA[1]
MBA[0]
MA[12]
MA[11]
MA[10]
MA[9]
MA[8]
MA[7]
MA[6]
MA[5]
MA[4]
MA[3]
MA[2]
MA[1]
MA[0]
MBA_2[1]
MBA_2[0]
MA_2[12]
MA_2[11]
MA_2[10]
MA_2[9]
MA_2[8]
MA_2[7]
MA_2[6]
MA_2[5]
MA_2[4]
MA_2[3]
MA_2[2]
MA_2[1]
MA_2[0]
R50222
R52022
C502
0.1uF
MRASN
R53522
MWEN
ODT
C508
0.1uF
C519
0.1uF
MCLK1P
+1.8V_SCALER
MDQS0N
MBA[0-1]
R51222
MDQS3N
MBA[0-1]
+1.8V_SCALER
MCLK0N
R50722
MDQS2N
MDQS2N
R53122
C504
0.1uF
MCLK0N
MCSN
IC501
H5PS1G63JFR-G7C
J2 VREF
J8 CK
H2
VSSQ2
B7 UDQS
N8 A4
P8 A8
L1 BA2
L2 BA0
R8 NC3
K7 RAS
F8
VSSQ3
F3 LDM
P3 A9
M3 A1
N3 A5
K8 CK
R3 NC5
L3 BA1
J7 VSSDL
L7 CAS
F2
VSSQ4
B3 UDM
M2 A10/AP
K2 CKE
R7 NC6
M7 A2
N7 A6
M8 A0
J1 VDDL
K3 WE
E8 LDQS
P7 A11
K9 ODT
A2 NC1
N2 A3
P2 A7
H8
VSSQ1
F7 LDQS
A8 UDQS
R2 A12
L8 CS
E2 NC2
E7
VSSQ5 D8
VSSQ6 D2
VSSQ7 A7
VSSQ8 B8
VSSQ9 B2
VSSQ10
P9
VSS1 N1
VSS2 J3
VSS3 E3
VSS4 A3
VSS5
G9
VDDQ1 G7
VDDQ2 G3
VDDQ3 G1
VDDQ4 E9
VDDQ5 C9
VDDQ6 C7
VDDQ7 C3
VDDQ8 C1
VDDQ9 A9
VDDQ10
R1
VDD1 M9
VDD2 J9
VDD3 E1
VDD4 A1
VDD5
B9
DQ15 B1
DQ14 D9
DQ13 D1
DQ12 D3
DQ11 D7
DQ10 C2
DQ9 C8
DQ8 F9
DQ7 F1
DQ6 H9
DQ5 H1
DQ4 H3
DQ3 H7
DQ2 G2
DQ1 G8
DQ0
R51322
C505
0.1uF
MCKE
R53822
MDQS1N
MCLK1N
+1.8V_SCALER
R541 0 OPT
MA[0-12]
+1.8V_SCALER
C512
0.1uF
R50922
R52622
C510
0.1uF
MDQ[0-15]
C503
0.1uF
R50122
R540
100
+1.8V_SCALER
MDQS1P
+1.8V_SCALER
+1.8V_SCALER
MWEN
MBA[0-1]
MWEN
ODT
MDQS1N
+1.8V_SCALER
R53322
MDQS2P
C516
0.1uF
C506
0.1uF
R53422
R51422
MCLK0P
MCKE
C500
0.1uF
R571 0 OPT
C507
0.1uF
R52822
R52422
MDQS0P
R53022
MCASN
R51822
C517
0.1uF
C518
0.1uF
R50422
MA[0-12]
R51022
ODT
IC500
H5PS1G63JFR-G7C
J2 VREF
J8 CK
H2
VSSQ2
B7 UDQS
N8 A4
P8 A8
L1 BA2
L2 BA0
R8 NC3
K7 RAS
F8
VSSQ3
F3 LDM
P3 A9
M3 A1
N3 A5
K8 CK
R3 NC5
L3 BA1
J7 VSSDL
L7 CAS
F2
VSSQ4
B3 UDM
M2 A10/AP
K2 CKE
R7 NC6
M7 A2
N7 A6
M8 A0
J1 VDDL
K3 WE
E8 LDQS
P7 A11
K9 ODT
A2 NC1
N2 A3
P2 A7
H8
VSSQ1
F7 LDQS
A8 UDQS
R2 A12
L8 CS
E2 NC2
E7
VSSQ5 D8
VSSQ6 D2
VSSQ7 A7
VSSQ8 B8
VSSQ9 B2
VSSQ10
P9
VSS1 N1
VSS2 J3
VSS3 E3
VSS4 A3
VSS5
G9
VDDQ1 G7
VDDQ2 G3
VDDQ3 G1
VDDQ4 E9
VDDQ5 C9
VDDQ6 C7
VDDQ7 C3
VDDQ8 C1
VDDQ9 A9
VDDQ10
R1
VDD1 M9
VDD2 J9
VDD3 E1
VDD4 A1
VDD5
B9
DQ15 B1
DQ14 D9
DQ13 D1
DQ12 D3
DQ11 D7
DQ10 C2
DQ9 C8
DQ8 F9
DQ7 F1
DQ6 H9
DQ5 H1
DQ4 H3
DQ3 H7
DQ2 G2
DQ1 G8
DQ0
MCLK1P
R52222
R570
100
R51922
MDQS0N
MCKE
C511
10uF
10V
R50622
R51122
MDQS0P
R53222
C501
10uF
10V
R52122
C515
0.1uF
MDQ[0-15]
MCSN
R50022
+1.8V_SCALER
MRASN
MDQS1P
MDQ[16-31]
MRASN
MCSN
R52722
R53622
MDQS3P
R50322
R51522
R55922
R51622
R52922
R50822
R53722
MCLK0P
MCLK1N
MDQS2P
R50522
R51722
R52522
R56922
+1.8V_SCALER
MCASN
C509
0.1uF
MDQS3P
MA[0-12]
R52322
MCASN
C513
0.1uF
MDQ[16-31]
MDQS3N
R53922
C514
0.1uF
MDQS2N_2
MA_2[0-12]
R58322
R58722
C530
0.1uF
R575 0 OPT
R61422
C523
0.1uF
MDQ_2[16-31]
+1.8V_SCALER
MWEN_2
MRASN_2
R58422
R61322
R57922
IC503
H5PS1G63JFR-G7C
J2 VREF
J8 CK
H2
VSSQ2
B7 UDQS
N8 A4
P8 A8
L1 BA2
L2 BA0
R8 NC3
K7 RAS
F8
VSSQ3
F3 LDM
P3 A9
M3 A1
N3 A5
K8 CK
R3 NC5
L3 BA1
J7 VSSDL
L7 CAS
F2
VSSQ4
B3 UDM
M2 A10/AP
K2 CKE
R7 NC6
M7 A2
N7 A6
M8 A0
J1 VDDL
K3 WE
E8 LDQS
P7 A11
K9 ODT
A2 NC1
N2 A3
P2 A7
H8
VSSQ1
F7 LDQS
A8 UDQS
R2 A12
L8 CS
E2 NC2
E7
VSSQ5 D8
VSSQ6 D2
VSSQ7 A7
VSSQ8 B8
VSSQ9 B2
VSSQ10
P9
VSS1 N1
VSS2 J3
VSS3 E3
VSS4 A3
VSS5
G9
VDDQ1 G7
VDDQ2 G3
VDDQ3 G1
VDDQ4 E9
VDDQ5 C9
VDDQ6 C7
VDDQ7 C3
VDDQ8 C1
VDDQ9 A9
VDDQ10
R1
VDD1 M9
VDD2 J9
VDD3 E1
VDD4 A1
VDD5
B9
DQ15 B1
DQ14 D9
DQ13 D1
DQ12 D3
DQ11 D7
DQ10 C2
DQ9 C8
DQ8 F9
DQ7 F1
DQ6 H9
DQ5 H1
DQ4 H3
DQ3 H7
DQ2 G2
DQ1 G8
DQ0
R60322
MDQS1P_2
C532
0.1uF
MCSN_2
R59022
MDQS0P_2
MCKE_2
+1.8V_SCALER
MCLK0P_2
C529
0.1uF
R59322
+1.8V_SCALER
R59922
R59622
C533
0.1uF C535 0.1uF
R64322
R60222
R60722
C522
0.1uF
MBA_2[0-1]
MDQ_2[0-15]
MA_2[0-12]
R58822
C524
0.1uF
R60922
C538
0.1uF
C539
0.1uF
R59222
MDQS1P_2
MCASN_2
C536
0.1uF
R60622
R61022
MCSN_2
MCLK1P_2
C531
10uF
10V
MDQS1N_2
C525
0.1uF
R58022
MCLK1N_2
C537
0.1uF
MCLK1N_2
MCLK0P_2 R644
100
MDQS3P_2
+1.8V_SCALER
R58922
R58622
MDQS2P_2
R60822
+1.8V_SCALER
C520
0.1uF
IC502
H5PS1G63JFR-G7C
J2 VREF
J8 CK
H2
VSSQ2
B7 UDQS
N8 A4
P8 A8
L1 BA2
L2 BA0
R8 NC3
K7 RAS
F8
VSSQ3
F3 LDM
P3 A9
M3 A1
N3 A5
K8 CK
R3 NC5
L3 BA1
J7 VSSDL
L7 CAS
F2
VSSQ4
B3 UDM
M2 A10/AP
K2 CKE
R7 NC6
M7 A2
N7 A6
M8 A0
J1 VDDL
K3 WE
E8 LDQS
P7 A11
K9 ODT
A2 NC1
N2 A3
P2 A7
H8
VSSQ1
F7 LDQS
A8 UDQS
R2 A12
L8 CS
E2 NC2
E7
VSSQ5 D8
VSSQ6 D2
VSSQ7 A7
VSSQ8 B8
VSSQ9 B2
VSSQ10
P9
VSS1 N1
VSS2 J3
VSS3 E3
VSS4 A3
VSS5
G9
VDDQ1 G7
VDDQ2 G3
VDDQ3 G1
VDDQ4 E9
VDDQ5 C9
VDDQ6 C7
VDDQ7 C3
VDDQ8 C1
VDDQ9 A9
VDDQ10
R1
VDD1 M9
VDD2 J9
VDD3 E1
VDD4 A1
VDD5
B9
DQ15 B1
DQ14 D9
DQ13 D1
DQ12 D3
DQ11 D7
DQ10 C2
DQ9 C8
DQ8 F9
DQ7 F1
DQ6 H9
DQ5 H1
DQ4 H3
DQ3 H7
DQ2 G2
DQ1 G8
DQ0
R59722
MCKE_2
MDQS2N_2
MA_2[0-12]
MRASN_2
MDQS3N_2
MBA_2[0-1]
R59122
R63322
MWEN_2
R58222
MBA_2[0-1]
R58522
R645 0 OPT
MDQS0N_2
R61122
R61522
+1.8V_SCALER
R59522
R60522
R58122
R59422
C527
0.1uF
+1.8V_SCALER
MWEN_2
MCKE_2
MDQS1N_2
MCLK0N_2
MCASN_2
R574
100
+1.8V_SCALER
R57622
C528
0.1uF
ODT_2 ODT_2
MDQ_2[16-31]
MDQS3P_2
+1.8V_SCALER
R60122
R60022
C521
10uF
10V
+1.8V_SCALER
R61222
R57722
MCSN_2
R60422
MCLK1P_2
C534
0.1uF
ODT_2
MCLK0N_2
MDQS3N_2
C526
0.1uF
MDQS0N_2
MDQ_2[0-15]
MDQS2P_2
MRASN_2
MDQS0P_2
MCASN_2
R57822
R59822
R647
10K 1%
R616
10K 1%
R617
10K 1%
R646
10K 1%
R572
10K
R542
10K
R543
10K R573 10K
C540
5pF
50V
OPT C541
5pF
50V
OPT
IC200
NT68370(D VER.)
MDQ31
AE2
MDQ30
AB2
MDQ29
AE3
MDQ28
AA2
MDQ27
AA1
MDQ26
AF3
MDQ25
AB1
MDQ24
AF2
MDQ23
AF4
MDQ22
Y1
MDQ21
AF5
MDQ20
W1
MDQ19
W2
MDQ18
AE5
MDQ17
Y2
MDQ16
AE4
MDQ15
AE12
MDQ14
AF9
MDQ13
AE13
MDQ12
AF8
MDQ11
AE8
MDQ10
AF13
MDQ9
AE9
MDQ8
AF12
MDQ7
AF14
MDQ6
AE7
MDQ5
AF15
MDQ4
AE6
MDQ3
AF6
MDQ0
AE14 MDQ1
AF7 MDQ2
AE15
MDQS3B
AD2
MDQS3
AD1
MDQS2B
AC2
MDQS2
AC1
MDQS1B
AF11
MDQS1
AE11
MDQS0B
AF10
MDQS0
AE10
MBA1 AB10
MBA0 AB9
MA12 AB5
MA11 AC14
MA10 AC5
MA9 AC4
MA8 AB14
MA7 AB6
MA6 AC13
MA5 AB8
MA4 AB13
MA3 AB7
MA2 AC12
MA1 AC6
MA0 AB12
MCSN AC11
MCKE AC7
MRASN AC10
MCASN AC9
MWEN AC8
MCLK1- AC15
MCLK1+ AB15
MCLK0- AF16
MCLK0+ AE16
ODT AB11
PHY_TM AB4
IC100
NT68370(D VER.)
MDQ31
AE2
MDQ30
AB2
MDQ29
AE3
MDQ28
AA2
MDQ27
AA1
MDQ26
AF3
MDQ25
AB1
MDQ24
AF2
MDQ23
AF4
MDQ22
Y1
MDQ21
AF5
MDQ20
W1
MDQ19
W2
MDQ18
AE5
MDQ17
Y2
MDQ16
AE4
MDQ15
AE12
MDQ14
AF9
MDQ13
AE13
MDQ12
AF8
MDQ11
AE8
MDQ10
AF13
MDQ9
AE9
MDQ8
AF12
MDQ7
AF14
MDQ6
AE7
MDQ5
AF15
MDQ4
AE6
MDQ3
AF6
MDQ0
AE14 MDQ1
AF7 MDQ2
AE15
MDQS3B
AD2
MDQS3
AD1
MDQS2B
AC2
MDQS2
AC1
MDQS1B
AF11
MDQS1
AE11
MDQS0B
AF10
MDQS0
AE10
MBA1 AB10
MBA0 AB9
MA12 AB5
MA11 AC14
MA10 AC5
MA9 AC4
MA8 AB14
MA7 AB6
MA6 AC13
MA5 AB8
MA4 AB13
MA3 AB7
MA2 AC12
MA1 AC6
MA0 AB12
MCSN AC11
MCKE AC7
MRASN AC10
MCASN AC9
MWEN AC8
MCLK1- AC15
MCLK1+ AB15
MCLK0- AF16
MCLK0+ AE16
ODT AB11
PHY_TM AB4
MDS62110207
M310
MDS62110207
M311
MDS62110207
M312
Close to DDR Power Pin
Close to DDR Power Pin
DDR
1GBIT
DDR2 1.9V By CAP - Place these Caps near Memory DDR2 1.9V By CAP - Place these Caps near Memory
Close to DDR Power Pin
Close to DDR Power Pin
DDR
1GBIT
SLAVE
DDR
1GBIT DDR
1GBIT
SLAVE
34UM95
5
2013.11.28
DDR 15
For 1.4GHz EMI Pk noise on the master scaler side
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

THERMAL
THERMAL
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

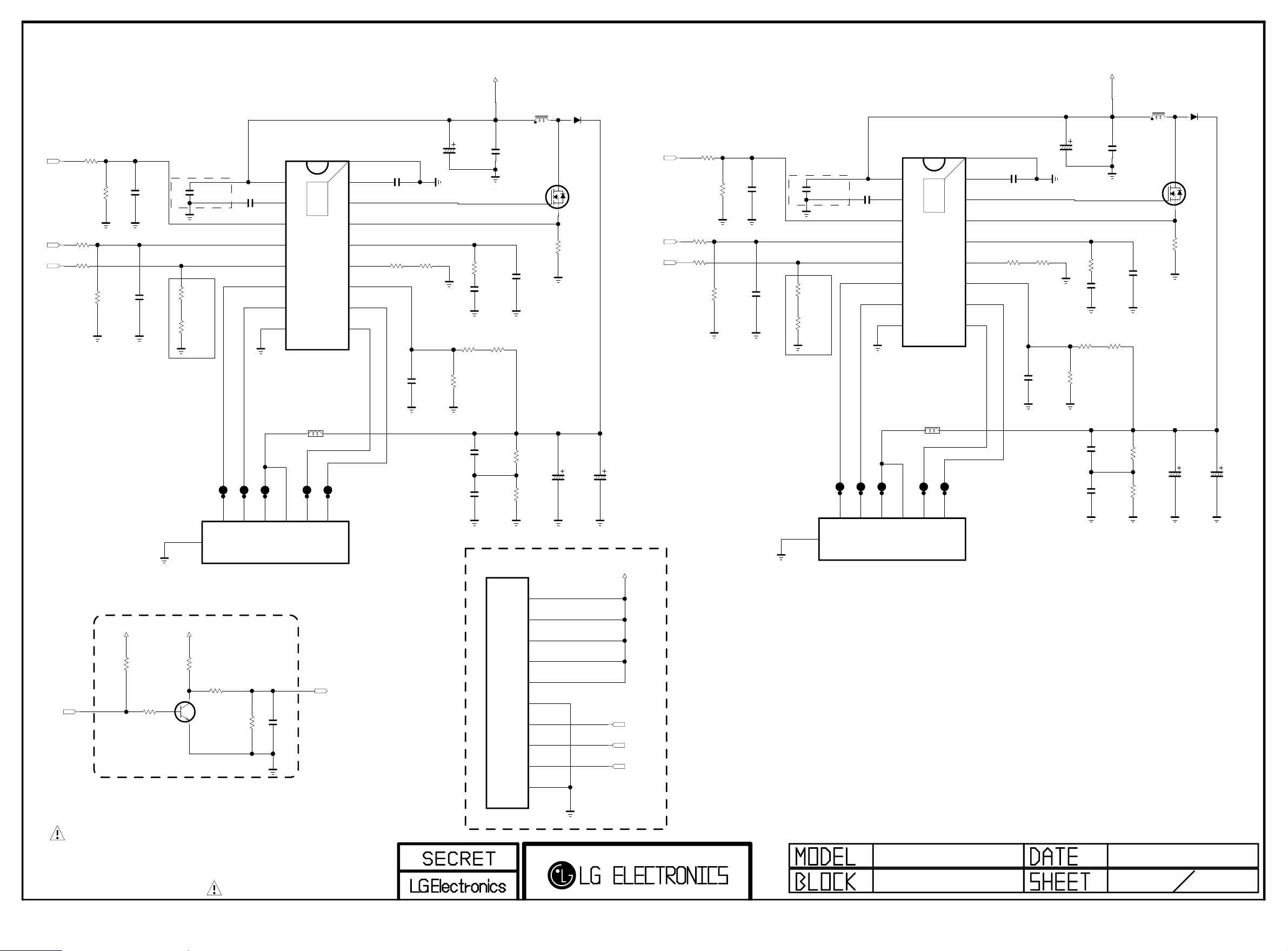

LED DRIVER
C2622
1uF
50V
C2617
1uF
25V
JP2602
L2600
UBW2012-121F
C2616
1uF
50V
IC2600
DT1643S
3
EN
2
VREF1
4
PDIM
1
VIN
6
LS1
5
RISET
7
LS2
8
LGND 9LS3
10 LS4
11 OVP
12 RT
13 COMP
14 CS
15 NDRV
16 VREF2
17
[EP]GND
R2625
36K
1%
JP2603
IC2601
DT1643S
3
EN
2
VREF1
4
PDIM
1
VIN
6
LS1
5
RISET
7
LS2
8
LGND 9LS3
10 LS4
11 OVP
12 RT
13 COMP
14 CS
15 NDRV
16 VREF2
17
[EP]GND
R2607
39K
JP2609
C2614
1000pF
50V
C2612
33uF
100V
R2624
1.5K
C2624
1uF
50V
JP2600
R2604
100K
C2625
4700pF
OPT
R2612
270K
1%
L2601
33uH
P2601
12507WR-06L
1 2 3 4 5 6
7
L2602
UBW2012-121F
L2603
33uH
WLED_ENABLE
JP2607
R2614
100K
C2602
1uF
50V
JP2608
C2615
68pF
50V
R2631
0.1
1W
1%
R2606
16K
1%
R2616
33
+19V
R2626
1.5K
R2608
1.5K
R2627
270K
1%
C2621
0.47uF
R2622
16K
1%
C2618
1uF
25V
R2618
1K
R2611
270K
1%
C2611
4700pF
OPT
C2619
1000pF
50V
JP2606 R2630
100K
C2613
33uF
100V
R2609
36K
1%
JP2605
C2623
1uF
50V
R2603
100K
C2626
33uF
100V
R2610
1.5K
JP2601
R2623
39K
C2608
1uF
50V
C2604
1uF
25V Q2600
AOD478
S
D
G
R2629
100K
R2620
100K
WLED_PDIM
C2607
0.47uF
WLED_ENABLE
C2627
33uF
100V
D2600
100V
SK510B_TSC
JP2604
+19V
R2615
0.1
1W
1%
C2609
1uF
50V
D2601
100V
SK510B_TSC
Q2601
AOD478
S
D
G
C2603
1uF
25V
C2610
1uF
50V
R2619
100K
C2605
1000pF
50V
R2600
33
P2600
12507WR-06L
1 2 3 4 5 6
7
C2601
68pF
50V
R2613
100K
R2628
270K
1%
WLED_PDIM
R2602
1K
C2600
1000pF
50V
P2602
SMW200-10
DEBUG
1
2
3
4
5
6
7
8
9
10
+19V
WLED_PDIM
WLED_ADIM
WLED_ENABLE
C2606
100uF
50V
C2620
100uF
50V
R2635
4.7K
C2628
1uF
10V
Q2602
MMBT3904(NXP)
E
B
C
R2634
2K 1%
R2632
10K
R2636
2K
1%
OPT
WLED_ADIM
A_DIM
+5V +5V
A_DIM A_DIM
R2633
1K
1%
R2605
6.8K
1%
R2621
6.8K
1%
R2601
68K
1%
R2617
68K
1%
6
34UM95
15
2013.11.28
LED DRIVER
Left Bar
LEFT BAR LED DRIVER
(120mA/36V)
RISET = 2480 / ILED
When ILED = 120mA,
RISET = 20.7K
Close to IC
RIGHT BAR LED DRIVER
(120mA/36V)
Right Bar
Close to IC
RISET = 2480 / ILED
When ILED = 120mA,
RISET = 20.7K
For UHD Test
Analog dimming
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

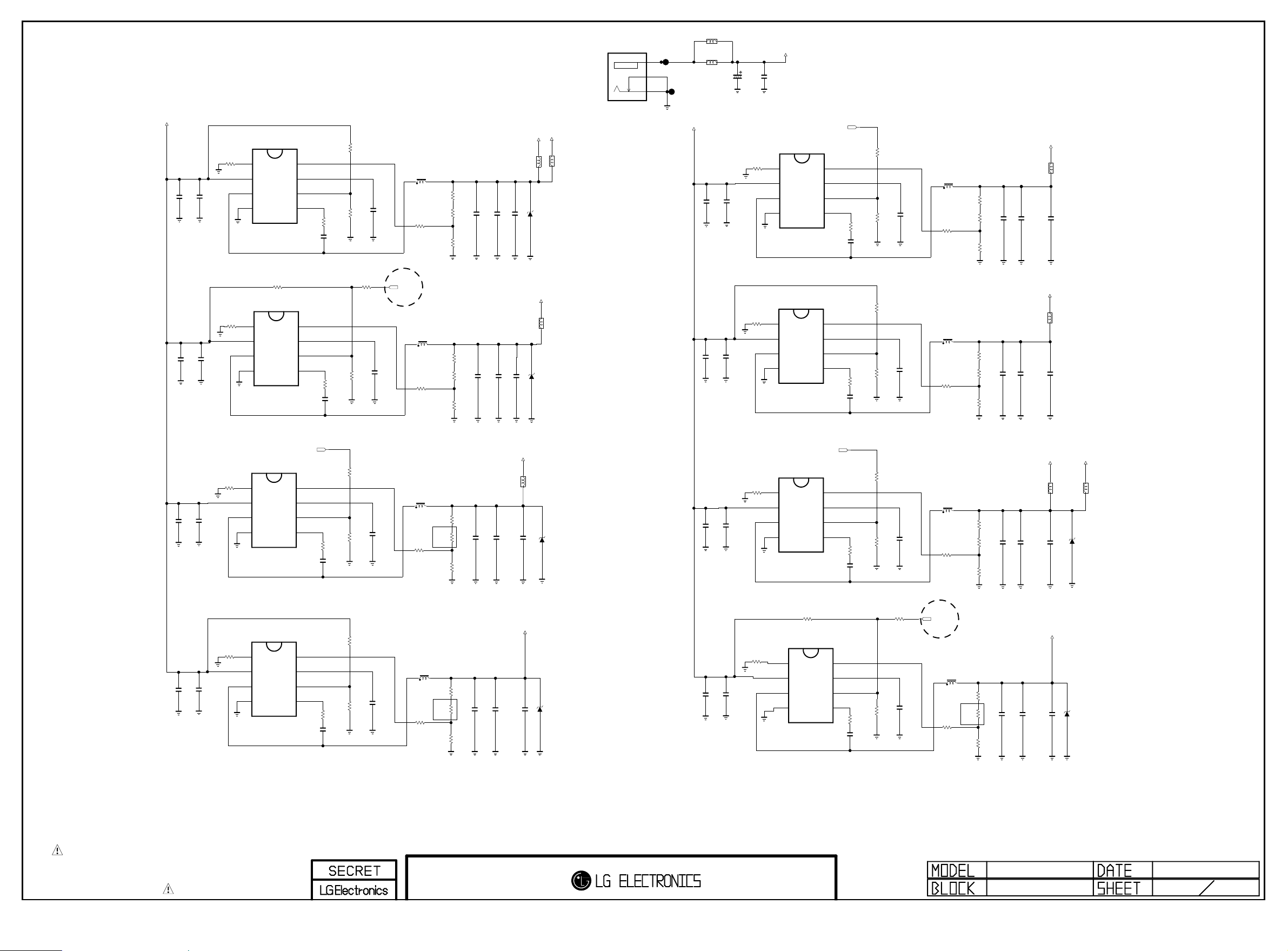

JP700
JP701
C767
68pF
50V
C764
68uF
35V
L723
CB4532UK121E
+19V
R710
100K
+19V
L705
BLM18PG121SN1D
C702
10uF
25V
C718
10uF
10V
C712
0.1uF
16V
R711
20K
R702
47K
R723
15K
1%
C709
0.1uF
50V
C721
10uF
10V
+3.3V_SCALER+3.3V
IC702
MP2315GJ
3
SW
2
IN
4
GND
1
AAM
5BST
6EN/SYNC
7VCC
8FB
L702
10uH
C707
0.1uF
50V
L700
10uH
R700
47K
C700
10uF
25V
C716
10uF
10V
C719
10uF
10V
C710
0.1uF
16V
IC700
MP2315GJ
3
SW
2
IN
4
GND
1
AAM
5BST
6EN/SYNC
7VCC
8FB
C711
0.1uF
16V
R709
20K C720
10uF
10V
IC701
MP2315GJ
3
SW
2
IN
4
GND
1
AAM
5BST
6EN/SYNC
7VCC
8FB
C717
10uF
10V
L701
10uH
C701
10uF
25V
R701
47K
R708
100K
C708
0.1uF
50V
C730
0.1uF
50V
C741
10uF
10V
R725
47K
C722
10uF
25V
+19V
C731
0.1uF
16V
R737
33K
R730
100K
IC705
MP2315GJ
3
SW
2
IN
4
GND
1
AAM
5BST
6EN/SYNC
7VCC
8FB
C740
10uF
10V
R736
33K
R744
15K
1%
R741
15K
1%
C737
10uF
10V
R724
47K
C723
10uF
25V
IC703
MP2315GJ
3
SW
2
IN
4
GND
1
AAM
5BST
6EN/SYNC
7VCC
8FB
R738
33K
R743
1.5K
1%
C728
0.1uF
50V
C724
10uF
25V
L708
10uH
R742
47K
1%
L709
10uH
C729
0.1uF
50V
C732
0.1uF
16V
C733
0.1uF
16V
R726
47K
R731
20K
IC704
MP2315GJ
3
SW
2
IN
4
GND
1
AAM
5BST
6EN/SYNC
7VCC
8FB
C738
10uF
10V
L707
10uH
R722
1.5K
1%
R721
47K
1%
R713
75K
R720
10K
1%
R718
3.3K
1%
R712
56K
R717
15K
1%
R714
33K
+1.8V_SCALER
+1.2V_SCALER
+3.3V_AMP
L714
BLM18PG121SN1D
OPT
L711
BLM18PG121SN1D
+3.3V_UART
R740
47K
1%
R739
33K
1%
+5V
L710
BLM18PG121SN1D
R747
10K
1%
R746
100K
1%
R745
15K
1%
PANEL_ON
R734
10K
R735
2K
OPT
MULTI_ON
R733
2K
OPT
R732
10K
+10V_PANEL
JK700
KJA-DC-1-0032
1
2
4
C703
0.1uF
25V
C727
0.1uF
25V
C704
0.1uF
25V
C726
0.1uF
25V
C705
0.1uF
25V
C725
0.1uF
25V
C734
0.1uF
16V
C735
0.1uF
16V
C736
0.1uF
16V
C713
0.1uF
16V
C715
0.1uF
16V
C714
0.1uF
16V
R715
18K
1%
+1.8V_PD_ENABLE
R706
10K
L713
CB4532UK121E
R704
68
R727
68
R728
68
R705
68
R703
68
R729
68
R707
10K
OPT R716
3K
1%
C742
10uF
25V
C739
10uF
25V
ZD701
5V
ZD700
5V
ZD702
5V
L706
CB2012PK501T
L703
CB2012PK501T
L712
CB2012PK501T
ZD703
5V
L716
CB2012PK501T
C745
0.1uF
16V
R754
1.5K
1%
C748
10uF
10V
R752
33K
R749
68
L715
10uH
R753
47K
1%
C746
0.1uF
16V
R755
15K
1%
C747
10uF
10V
C744
0.1uF
50V
IC706
MP2315GJ
3
SW
2
IN
4
GND
1
AAM
5BST
6EN/SYNC
7VCC
8FB
C706
10uF
25V
R748
47K
R750
100K
OPT
+3.3V_SCALER_2
R751
20K
OPT
C743
0.1uF
25V
MULTI_ON
R756
10K
ZD704
5V
C750
0.1uF
25V
R758
68
L704
10uH
R757
47K
C749
10uF
25V
C751
0.1uF
50V
C754
10uF
10V
C753
0.1uF
16V
+1.2V_SCALER_2
R762
3.3K
1%
ZD705
5V
R764
10K
1%
R761
75K
C755
10uF
10V
R759
100K
OPT
R760
20K
OPT
IC707
MP2315GJ
3
SW
2
IN
4
GND
1
AAM
5BST
6EN/SYNC
7VCC
8FB
C752
0.1uF
16V
MULTI_ON
R765
10K
R719
3.3K
1%
R763
3.3K
1%
MAIN SCALER POWER
Power
Jack
Current Limet:6A
7
34UM95
15
2013.11.28
MAIN POWER
3A
3A
3A
3A
3A
3A
Scaler & DDR
0.8A(CAS)
DC DC output Voltage : 1.92V
Because 1.2V domain IR drop is too big,
changed R719 resistor value(2k --> 3k)
Changed R716 resistor value(2k --> 3k)
3A
Because 1.2V domain IR drop is too big,
changed R719 resistor value(2k --> 3k)
3A
Setting: 1.328V(=0.8(1+6.6K/10K)
Setting: 1.328V(=0.8(1+6.6K/10K)
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

THERMAL
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
C803
4.7uF
10V
C800
10uF
10V
+3.3V_SCALER
C802
0.1uF
+3.3V_SCALER
AUD_LRCK
C820
0.1uF
+3.3V_SCALER_2
R801
1K
JP802
C809
1uF
10V
JP803
HP_DET
JK800
PEJ027-03
6B T_TERMINAL2
7B B_TERMINAL2
5T_SPRING
4R_SPRING
7A B_TERMINAL1
6A T_TERMINAL1
3E_SPRING
JP801
+3.3V_AMP
JP800
R800
100K
C804
0.1uF
16V
AUD_MCLK
AUD_DATA
AMP_RESET
R802
1K
AMP_SDA
AMP_SCL
+3.3V_AMP
C808
0.1uF
16V C813
0.022uF
16V
L802
10.0uH
C815
10uF
25V
C817
0.1uF
50V
R809
3.3
C827
390pF
50V
C828
390pF
50V
L803
10.0uH
R812
3.3
C832
0.47uF
50V
OPT
L807
CB3216PA501E JP808
L806
CB3216PA501E JP807
JP806
P800
SMAW250-H04R
WAFER-ANGLE
1
2
3
4
JP809
L804
CB3216PA501E
L805
CB3216PA501E
C824
0.022uF
16V
C829
1uF
10V
C830
1uF
10V
C823
0.022uF
16V
R808
3.3
C826
390pF
50V
C831
0.47uF
50V
OPT
L801
10.0uH
R807
3.3
L800
10.0uH
C825
390pF
50V
C816
0.1uF
50V
C814
10uF
25V
C812
0.022uF
16V
+3.3V_AMP
C807
0.1uF
16V
AMP_nMUTE
AUD_LRCK
AUD_SCK
TP800
C805
0.1uF
16V
C837
0.1uF
16VOPT
C838
0.1uF
16V
OPT
HP_AOUT_L
HP_AOUT_R
HP_AOUT_R
HP_AOUT_L
+5V +3.3V_AMP
R819
10K
AMP_nMUTE
IC801
AZ7029RTRE1
2
GND
3OUT 1
VCC
C821
0.1uF
16V
C801
4.7uF
10V
C806
4.7uF
10V
R820
0
OPT
+3.3V_AMP
R821
4.7K
R822
4.7K
R823
4.7K
R824
33
JP804
JP805
IC800
DNW116F
1
GPO17/EVNT
2
VSSPLL
3
VPLL18
4
XTALI/CLKIN
5
XTALO
6
GPIO03/SDI1
7
GPIO02/SDI0
8
VDD_1
9
VD18
10
NRESET
11
GPIO04/SDI2
12
GPIO05/SDI3
13
GPO07/SDO1/CLKOUT/REF
14
GPO18/SDO2/I2CMS
15
SDA
16
SCL
17
VDD_2
18
BST2B
19
VSSP2_1
20
OUT2B_1
21
OUT2B_2
22
VDDP2_1
23
VDDP2_2
24
OUT2A_1
25 OUT2A_2
26 VSSP2_2
27 BST2A
28 NU_1
29 NU_2
30 VDR2
31 VDR1
32 NU_3
33 NU_4
34 BST1B
35 VSSP1_1
36 OUT1B_1
37 OUT1B_2 38 VDDP1_1 39 VDDP1_2 40 OUT1A_1 41 OUT1A_2 42 VSSP1_2 43 BST1A 44 VDD_3 45 GPO06/SDO0/NTEST 46 NMUTE/GPIO16 47 GPIO01/SYNC 48 GPIO00/DCLK
49
[EP]
C834
0.22uF
50V
C836
0.22uF
50V
C835
0.22uF
50V
C833
0.22uF
50V
R813
4.7K
R814
4.7K
R817
10K
R818
22K
C819
0.01uF
25V
R828 4.7K
OPT
Q801
MMBT3904(NXP)
E
B
C
Q800 ZXMP3F30FHTA
G
D S
R826
22K
R825
4.7K
+19V
R827
2.7K
C839
1uF
25V
C840
1uF
25V
+19V_AMP
MULTI_ON
+19V_AMP
+19V_AMP
C810
220uF
16V
R803
1K
R810
10
R804
100
C818
2200pF
50V
R805
1K C822
2200pF
50V
R806
10
R811
100
C811
220uF
16V
R815
4.7K
R816
4.7K
D800
5.6V
OPT
D801
5.6V
OPT
D802
5.6V
OPT
IC100
NT68370(D VER.)
AUDIO_VDD
C22
I2S3/AIN2R
B22
I2S2/AIN2L
A22
I2S1/AIN1R
B23
I2S0/AIN1L
A23
WD
C24
SCK/AOUT_R
A24
MCLK/AOUT_L
B24
SPDIF
B25
AUDIO_GND
B21
AUDIO_CEXT2
A21
IC200
NT68370(D VER.)
AUDIO_VDD
C22
I2S3/AIN2R
B22
I2S2/AIN2L
A22
I2S1/AIN1R
B23
I2S0/AIN1L
A23
WD
C24
SCK/AOUT_R
A24
MCLK/AOUT_L
B24
SPDIF
B25
AUDIO_GND
B21
AUDIO_CEXT2
A21
AUDIO
34UM95
158
2013.11.28
HEADPHONE JACK
SPK_L-
SPK_R-
SPK_R+
SPK_L+
Votlage
Detector
Pop Noise Killer
[Divide voltage]
3.4375V
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

THERMAL
THERMAL
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
+3.3V_UART
R918
10K
USB_SDA
UART_TX
C950
20pF
R915
10K
C937
0.1uF
16V
UART_RX
USBDN_DP4
X901
12MHz
USB_SCL
IC905
AT24C32D-SSHM-T
3
A2
2
A1
4
GND
1
A0
5SDA
6SCL
7WP
8VCC
C942
0.1uF
16V
C944
22pF
C948
1uF
C949
20pF
C938
22pF
USB_SCL
R917
10K
R910 1.5K
/USB2SER_RESET
R909
10K
C935
0.01uF
25V
R916
10K
C943
0.1uF
R911
10K
R914
33
USBDN_DM4
+3.3V_UART
USB_SDA
+3.3V_UART
R924
10K
R907 33
+3.3V_UART
IC906
TUSB3410RHBR
1
VREGEN
3
VCC_1
7
DM
9
RESET
10
SDA
11
SCL
12
WAKEUP
13
CTS
14
DSR
15
DCD
16
RI/CP
17 SIN/IR_SIN
18 GND_2
19 SOUT/IR_SOUT
20 RTS
21 DTR
22 CLKOUT
23 TEST0
24 TEST1
25 VCC_2 26 X2 27 X1/CLKI 28 GND_3 29 P3.4 30 P3.3 31 P3.1 32 P3.0
5
PUR
8
GND_1
6
DP
4
VDD18
2
SUSPEND 33
[EP]
R908 33
R923
10K
R919
10K
+3.3V_UART
C936
0.1uF
16V
IC907
BD82020FVJ
3
IN_2
2
IN_1
4
EN
1
GND
5OC
6OUT_1
7OUT_2
8OUT_3
C912
0.1uF
USB1_D_PWR
R920
10K
USB1_D_PWR
OCS1
C929
0.1uF
JK903
SP12-12078-B01
1VBUS
2D-
3D+
4GND
5STDB_SSTX-
6STDB_SSTX+
7GND_DRAIN
8STDB_SSRX-
9STDB_SSRX+
10
SHIELD
USB_UP_TX-
C923
0.1uF
C911
0.1uF
EN_PWR1
USB_SSRXM_DN1
JK900
SP12-12078-A01
1VBUS
2D-
3D+
4GND
5STDB_SSTX-
6STDB_SSTX+
7GND_DRAIN
8STDB_SSRX-
9STDB_SSRX+
10
SHIELD
C921
0.1uF C927 0.1uF
C9080.1uF
USBDN_DP1
USB_SSTXM_DN1
C9070.1uF
USB_SSRXP_DN1
C939
10uF
+3.3V_USB_IN
C945
0.1uF
C925 0.1uF USB_UP_TX+
+USB_5V_1
C913
0.1uF
USB_UP_RX-
C924 0.1uF
C922
0.1uF C926 0.1uF
VBUS_UP
USB_UP_RX+
C910
0.1uF
USB_SSTXP_DN1
+1.05V_USB
USB_DM_UP
USB_DP_UP
USBDN_DM1
JP901
USBDN_DP2
USBDN_DM2
JP903
USB2_D_PWR
JP902
JP900
JP905
USBDN_DP3
USBDN_DM3
JP907
USB3_D_PWR
JP906
JP904
C901
10uF
C903
0.1uF
C905
10uF
USB2_D_PWR
R905
10K
+USB_5V_2
EN_PWR2 OCS2
IC900
AP2151WG-7
3FLG
2GND
4
EN
1OUT 5
IN
USB3_D_PWR
C906
10uF
C904
0.1uF
IC901
AP2151WG-7
3FLG
2GND
4
EN
1OUT 5
IN
C902
10uF
R906
10K
+USB_5V_2
EN_PWR3 OCS3
JK901
KJA-UB-0-0037
1
2
3
4
5
JK902
KJA-UB-0-0037
1
2
3
4
5
C946
100uF
16V
EDID_WP1
R913
0
R912
0
+3.3V_USB_IN
HS_ACTIVE
SS_ACTIVE
EN_PWR1
EN_PWR3
EN_PWR2
+1.05V_USB
X902
25MHz
4GND_2
1
X-TAL_1
2
GND_1 3X-TAL_2
C909
12pF
50V
+3.3V_USB_IN
+1.05V_USB
OCS1 OCS2
OCS3
R932
4.7K
+1.05V_USB
+3.3V_USB_IN
C954
0.1uF
16V
+USB_5V_2
+5V_IN
+5V_IN
C953
0.1uF
16V
+3.3V_USB_IN
+1.05V_USB
+3.3V_USB_IN
HUB_USB_DM_UP HUB_USB_UP_RX+ HUB_USB_DP_UP
C934
0.1uF
C932
0.1uF
HUB_USB_UP_TX- HUB_USB_UP_TX+ HUB_USB_UP_RX-
SMB_CLK SMB_DATA
POR_N VBUS_DET
VBUS_UP
C917
0.1uF
16V
R926
100K
R927
200K
1%
OPT
VBUS_DET POR_N
R929
100K
+3.3V_USB_IN
C947
1uF
6.3V
HS_ACTIVE
SS_ACTIVE
SMB_CLK
SMB_DATA
C951
0.1uF
16V
+3.3V_USB_IN
R925
1K
R930
1K
+3.3V_USB_IN
R931
4.7K
C900
0.1uF C914 0.1uF C916 0.1uF C930 0.1uF
C920
0.1uF C933 0.1uF C957 0.1uF
C952
0.1uF
D908
ENKMC2838-T112
A1
C
A2
R901
0
OPT
PM_S0_EN
+3.3V_UART
+3.3V_USB_IN
+3.3V_USB_IN
+3.3V_USB_IN
R900 4.7K
+3.3V_USB_IN
P900
12507WS-04L
OPT
1
2
3
4
5
R902
4.7K
R928
12.1K
1%
USB_SSTXP_DN1
USB_SSTXM_DN1
USB_SSRXM_DN1
USB_SSRXP_DN1
USBDN_DM1
USBDN_DP1
USBDN_DM3
USBDN_DP3
USBDN_DM2
USBDN_DP2
USBDN_DM4
USBDN_DP4
IC902
W25X40CLSNIG
3
WP
2
DO[IO1]
4
GND
1
CS
5DI[IO0]
6CLK
7HOLD
8VCC
PM_S3_EN
R903
0
R934
10
1/8W
R933
10
1/8W
R935
200K
1%
OPT
D900
5.6V
OPT D903
5.6V
OPT
D901
5.6V
OPT D904
5.6V
OPT
D902
OPT D905 OPT
D906
5.6V
OPT D907
5.6V
OPT
+3.3V_UART
L900
CB2012PK501T
OPT
C956
2.2uF
10V
C955
2.2uF
10V
IC903
ASM1074
1
VCC_1
2
GRN_LED1
3
HS_ACTIVE
4
SS_ACTIVE
5
PRON1
6
PRON3
7
GND_1
8
VDD
9
RXP_3
10
RXN_3
11
GNDA_1
12
TXP_3
13
TXN_3
14
VCCU_1
15
TXP_4
16
TXN_4
17
GNDA_2
18
RXP_4
19
RXN_4
20
VDDU_1
21
XI
22
XO
23
VCCU_2
24
REXT
25
VDDU_2
26
RXN_1
27
RXP_1
28
GNDA_3
29
TXN_1
30
TXP_1
31
VCCU_3
32
TXN_2
33
TXP_2
34
GNDA_4
35
RXN_2
36
RXP_2
37
VDDU_3
38
GRN_LED3
39
GRN_LED4
40
OC_N1
41
UART_RX
42
UART_TX
43
GND_2
44
GND_3
45 TEST_EN
46 PRON2
47 AMB_LED4
48 AMB_LED2
49 AMB_LED3
50 PRON4
51 LPWR_EN
52 GRN_LED2
53 VCC_2
54 DP_3
55 DM_3
56 VCCU_4
57 DP_4
58 DM_4
59 VDDU_4
60 VCCU_5
61 DP_1
62 DM_1
63 DP_2
64 DM_2
65 VCCO
66 VCCA5
67 VDDU_5 68 VCCU_6 69 DM_U 70 DP_U 71 VCCU_7 72 TXN_U 73 TXP_U 74 GNDA_5 75 RXN_U 76 RXP_U 77 VDDU_6 78 GND_4 79 AMB_LED1 80 OC_N2 81 OC_N3 82 OC_N4 83 EX_PWRDET 84 SMB_CLK 85 SMB_DATA 86 POR_N 87 VBUS 88 GND_5
89
[EP]GND
USB
EEPROM
USB TO UART
34UM95
9USB UART 15
2013.11.28
CURRENT
LIMITER
(1A)
[USB Pattern impedance guidance]
USB shall have a 90ohm of pattern impedance not a 100ohm.
(DP,DM,SSTX,SSRX)
[Test pad guidance]
Test pads(jig-point, test-point) and their connecting wire
is unacceptable for Gigabit rate links.
USB3.0 DOWNSTREAM
USB3.0 UPSTREAM
CURRENT
LIMITER
(0.5A)
CURRENT
LIMITER
(0.5A)
Close to IC
+5V_IN: 4.31V
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

THERMAL
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

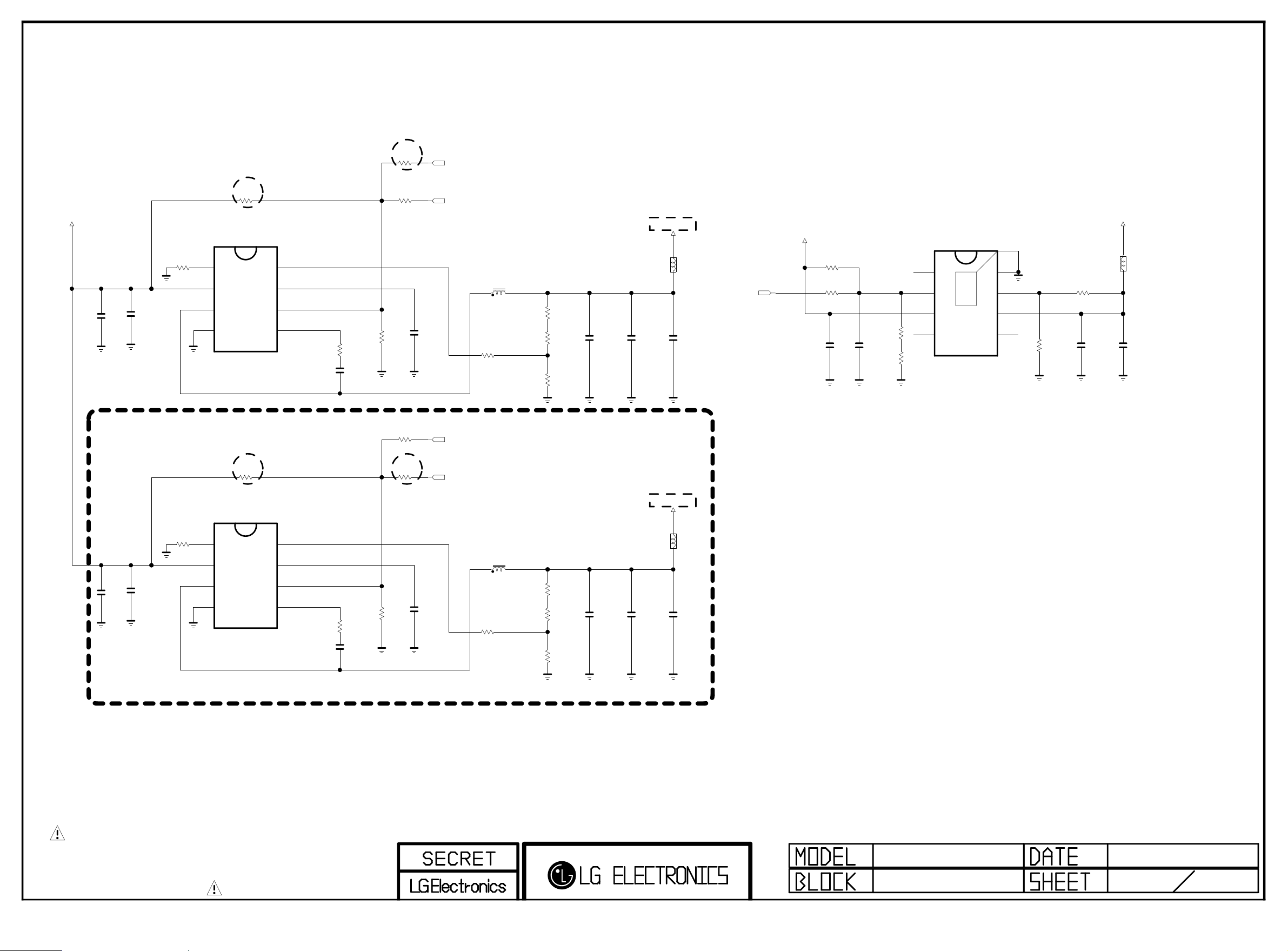

C1006
0.1uF
50V
C1024
0.1uF
16V
C1023
10uF
10V
C1021
10uF
10V
R1007
20K
OPT
C1018
10uF
10V
USB_POWER_EN
+1.05V_USB
+19V
R1017
15K
1%
C1009
0.1uF
16V
VBUS_DET
+USB_5V_1
R1006
100K
OPT
C1022
0.1uF
16V
L1000
10uH
C1015
10uF
10V
IC1003
TJ4220GDP-ADJ
3
VIN3
2
EN2
4
NC4
1
NC_1
5NC_2
6VOUT
7ADJ/SENSE
8GND
9
[EP]GND
L1006
BLM18PG121SN1D
IC1000
MP2315GJ
3
SW
2
IN
4
GND
1
AAM
5BST
6EN/SYNC
7VCC
8FB
R1012
33K
R1015
33K
1%
R1016
47K
1%
R1000
47K
C1003
0.1uF
25V
C1012
0.1uF
16V
C1000
10uF
25V
R1003
68
L1003
CB2012PK501T
POWER_CONTROL
R1008
10K
+USB_5V_2
R1025
12K
1%
R1027
3.9K
1%
R1001
10K
R1002
0
OPT
R1009
10K
OPT
R1004
100K
OPT
R1005
100K
OPT
C1010
10uF
10V
C1005
0.1uF
16V
USB_POWER_EN
R1019
10K
OPT
R1011
100K
OPT
R1013
68 R1020
33K
C1008
10uF
10V
IC1001
MP2315GJ
3
SW
2
IN
4
GND
1
AAM
5BST
6EN/SYNC
7VCC
8FB
C1004
0.1uF
50V
L1001
10uH
POWER_CONTROL
C1007
0.1uF
16V
L1002
CB2012PK501T
R1023
15K
1%
R1022
47K
1%
R1014
20K
OPT
R1018
10K
R1021
33K
1%
R1010
47K
+USB_5V_2
C1002
0.1uF
25V
C1001
10uF
25V
34UM95
USB3.0 POWER 10
2013.11.28
15
USB3.0 POWER
2A
NEW
3A
3A
NEW
Copyright © 2014 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
