OWNER’S MANUAL
LED LCD MONITOR
LED LCD MONITOR MODELS
E1960S/E1960T
E2060S/E2060T
E2260S/E2260T/E2260V
E2360S/E2360T/E2360V
www.lg.com
Please read this manual carefully before operating
your set and retain it for future reference.
ENGLISH

1
Important Precautions
Please read these safety precautions carefully before using the product.
Failure to follow those warnings may result in death, serious injury or damage to the
product or other property.
Warning
Electrical Power Related Precautions
Use only the power cord supplied with the unit or another manufacturer's authorized cord.
- Failure to do so may result in fire or electrical shock or damage to the product.
Use only a properly grounded plug and receptacle.
- If you do not you may be electrocuted or injured. Or the product might be damaged.
Do not use a damaged or loose plug.
- This may cause electrical shock or fire.
Operate the display only from a power source(i.e. voltage) indicated in the product specification.
- Otherwise the product can be damaged, fire can occur or you may be electrocuted. If you are not sure what
type of power supply you have, consult a certified electrician.
In the presence of thunder and lightning, never touch the power cord and signal cable because it can
be very dangerous.
- It can cause electric shock.
Do not connect several extension cords, electrical appliances or electrical heaters to a single outlet.
Use a power bar with a grounding terminal designed for exclusive use with the computer.
- A fire can break out due to overheating.
Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust,
dry the power plug completely or wipe dust off before plugging in the cord.
- You may be electrocuted due to excess moisture.
If you don’t intend to use the product for a long time, unplug the power cable from the product.
- Covering dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire.
Insert the power plug firm so it cannot come loose.
- A loose connection can cause fire.
Hold the plug when pulling out the power cable. Do not pull the plug out by the wire. Do not bend the
power cord with excessive force or put heavy objects on the power cord.
- The power line can be damaged, which may cause electric shock or fire.
Do not insert metal or other conductive materials into the product openings. Additionally, do not touch
the power cable right after plugging into the wall input terminal.
- You may be electrocuted.
The power supply cord is used as the main disconnection device. The socket-outlet shall be installed
near the equipment and shall be easily accessible.
Do not unplug the power cord while the product is in use.
- Electrical shock can damage the product.
As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power
source even if the unit is turned off.
Warning

2
Important Precautions
Keep away from heat sources like eaters or open flames.
- Electrical shock, fire, malfunction or deformation may occur.
Keep the packing anti-moisture material or vinyl packing out of the reach of children.
- Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the
nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.
Do not put heavy objects on the product on sit upon it.
- If the product collapses or is dropped, you may be injured. Children must pay particular attention.
Do not leave the power or signal cable where someone can trip over it.
- The passerby can falter, which can cause electrical shock, fire, product breakdown or injury.
Install the product in a neat and dry place. Do not use near water.
- Dust or moisture can cause electrical shock, fire or product damage.
Do not add accessories that have not been designed for this display.
If you smell smoke or other odors or hear a strange sound from the product unplug the power cord and
contact LG Customer Service.
- If you continue to use without taking proper measures, electrical shock or fire can occur.
If you dropped the product or the case is broken, turn off the product and unplug the power cord.
- If you continue to use without taking proper measures, electrical shock or fire can occur. Contact LG Customer
Service.
Do not drop an object on or apply impact to the product. Do not throw any toys or objects at the product.
- It can cause injury to humans, problems to the product and damage the display.
Keep out of reach of children and do not place toys near the product.
Make sure the product ventilation hole is not blocked. Install the product more than 10cm from the wall.
- If you install the product too close to the wall, it may be deformed or fire can break out due to internal heat build-up.
Do not cover the product with cloth or other material (eg. plastic) while plugged in.
- The product can be deformed or fire can break out due to internal overheating.
Place the product on a flat and stable surface that is large enough to support the product.
- If the product is dropped, you may be injured or the product may be broken.
Install the product where no Electromagnetic Interference occurs.
Keep the product away from direct sunlight.
- The product can be damaged.
Do not place the product on the floor.
- Small Children and others may trip over it.
Precautions in Moving the Product
Warning
Make sure to turn off the product.
- You may be electrocuted or the product can be damaged.
Make sure to remove all cables before moving the product.
- You may be electrocuted or the product can be damaged.
When lifting or moving the product, do not hold it upside down while holding only the stand.
- This may cause the product to fall resulting in damage or injury.
Do not shock the product when moving it.
- You may be electrocuted or the product can be damaged.
Precautions in installing the Product
Warning

Important Precautions
3
Precautions in Using/Cleaning the Product
Warning
Do not attempt to disassemble, repair or modify the product yourself.
- Fire or electric shock can occur.
- Contact LG Customer Service for repair.
When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent
scratching. Do not clean with a wet cloth or spray water or other liquids directly onto the product.
An electric shock may occur. (Do not use chemicals such as benzene, paint thinners or alcohol)
Keep the product away from water.
- Fire or electric shock accident can occur.
Avoid high temperatures and humidity.
Do not put or store flammable substances near the product.
- There is a danger of explosion or fire.
Keep the product clean at all times.
Take a comfortable and natural position when working with the product.
Take a regular break when working with the product for a long time.
Do not press on the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it.
Keep proper distance from the product and rest from time-to-time.
- Your vision may be impaired if you look at the product too closely or for too long.
Set the appropriate resolution by referring to the User’s Guide.
Keep small accessories out of the reach of children.
Leaving a fixed image on the screen for a long time may cause damage to the screen and cause image
retention. Make sure to use a screen saver on the product. Burn-in and related problems are not
covered by the warranty on this product.
Spray water onto a soft cloth 2 to 4 times, and use it to clean the front frame;wipe in one direction only.
Too much moisture may cause staining.
The fluorescent lamp used in this product contains a small amount of mercury.
Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of your local authority.
On Disposal (Only, Hg lamp used LCD Monitor)
Make sure the panel faces forward and hold it with both hands to move.
- If you drop the product, the damaged product can cause electric shock or fire.
Do not place the product face down.
- This may damage the TFT-LCD screen.

4

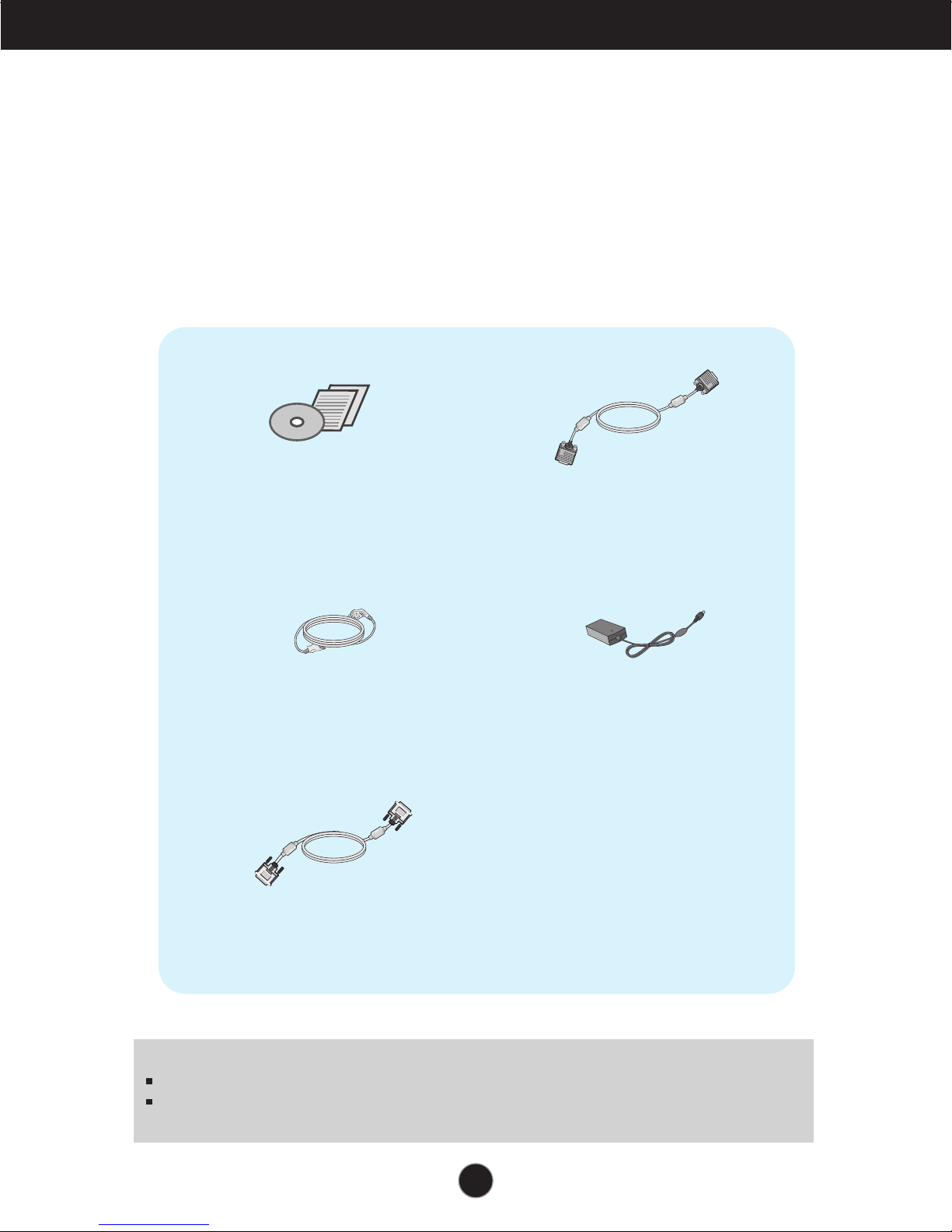

Accessories
Owner's Manual/Cards
Power Cord
15-pin D-Sub Signal Cable
(This signal cable may have been
attached to the monitor before it
shipped.)
DVI-D Signal Cable
(This feature is not available in
all countries.)
NOTE
This accessories may look different from those shown here
User Monitor must use shielded signal interface cables (D-sub 15 pin cable, DVI-D cable) with
ferrite cores to maintain standard compliance for the product
AC-DC adapter
(Depending on the country)
!!! Thank you for selecting this LGE LED LCD monitor !!!
Ensure that the following accessories are included with your
monitor. If an accessory is missing, please contact the dealer where
you purchased the Monitor. The accessories included may differ
from the images below.

Connecting the Display Monitor
5
Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.
Connecting the stand
1.Place the monitor face down on the cushion or soft cloth.
3.Attach the monitor to the Stand Base by turning the screw to the right.
4.Once assembled take the monitor up carefully and face the front side.
2.Assemble the Stand Base into the Stand Body in the correct direction as shown in the picture.
Stand Base
Stand Body
Screw : Turn the
screw by using the
screw handle.

6
Connecting the Display Monitor
IMPORTANT
This illustration depicts the general model of connection. Your monitor may differ from the items
shown in the picture.
Do not carry the product upside down holding only the stand base. The product may fall and get
damaged or injure your foot.
Turn the screw to the left to separate the stand body
from the stand base.
Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.
Positioning your display
Adjust the position of the panel in various ways for maximum comfort.
Tilt Range : -5˚ to 15˚
IMPORTANT
It is recommended that in order to maintain an ergonomic and comfortable
viewing position, the forward tilt angle of the monitor should not exceed 5
degrees.
When adjusting the angle of the screen, do not put your finger(s) in between
the head of the monitor and the stand body. You can hurt your finger(s).
-5 15

7
NOTE
‘ Self Image Setting Function’? This function provides the user with optimal display
settings.When the user connects the monitor for the first time, this function automatically adjusts
the display to optimal settings for individual input signals.
‘AUTO’ Function? When you encounter problems such as a blurry screen, blurred letters,
screen flicker or tilted screen while using the device the monitor or after changing screen
resolution, press the AUTO function button to improve resolution.
A
Connect D-sub(Analog signal) Cable
1. Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.
2. Connect signal input cable and power cord in order, then tighten the screw
of the signal cable.
Connecting the Monitor to a Computer
12
3. Press the power button on the front panel to turn the power on. When monitor power is
turned on, the 'Self Image Setting Function' is executed automatically.
NOTE
This is a simplified representation of the rear view.
This rear view represents a general model; your display computer and monitor may differ from the view
shown.
Connecting the Display Monitor E1960S/E2060S/E2260S/E2360S
A
Mac Adapter : Apple Macintosh needs a
separate plug adaptor to change the 15-pin
supplied D-sub Cable (2 rows) to its 15-pin
High Density D-sub VGA connection(3
rows).
When using a D-Sub signal input cable
connector for Macintosh
Wall-outlet Type
Varies according to model.
Power Button
Connect the signal
input cable and
tighten it up by
turning in the
direction of the
arrow as shown in
the figure.

8

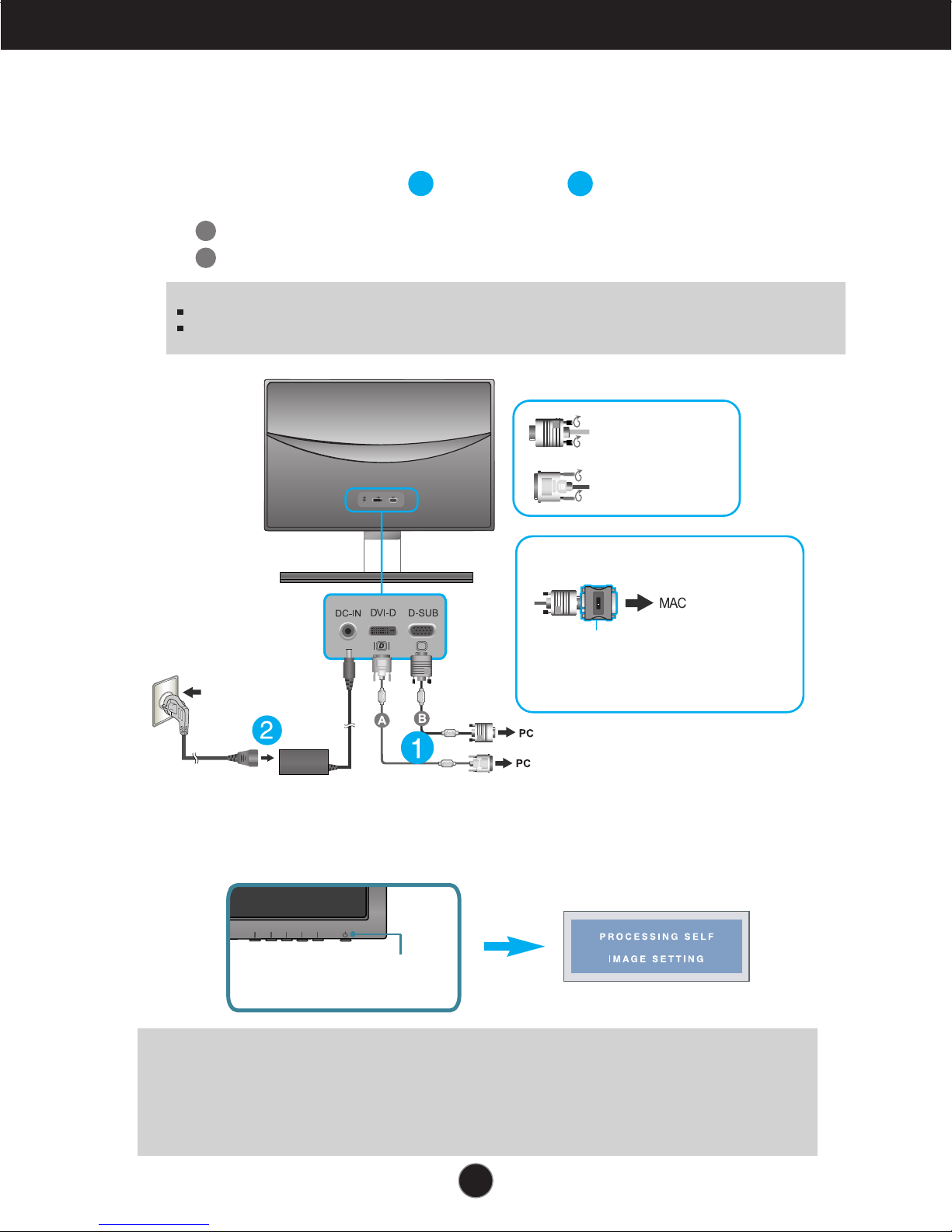

Connecting the Display Monitor E1960T/E2060T/E2260T/E2360T
NOTE
‘ Self Image Setting Function’? This function provides the user with optimal display
settings.When the user connects the monitor for the first time, this function automatically adjusts
the display to optimal settings for individual input signals.
‘AUTO’ Function? When you encounter problems such as a blurry screen, blurred letters,
screen flicker or tilted screen while using the device the monitor or after changing screen
resolution, press the AUTO function button to improve resolution.
A
B
Connect DVI-D(Digital signal) Cable
Connect D-sub(Analog signal) Cable
1. Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.
2. Connect signal input cable and power cord in order, then tighten the screw
of the signal cable.
Connecting the Monitor to a Computer
12
NOTE
This is a simplified representation of the rear view.
This rear view represents a general model; your display computer and monitor may differ from the view
shown.
3. Press the power button on the front panel to turn the power on. When monitor power is
turned on, the 'Self Image Setting Function' is executed automatically.
(Only Analog Mode)
Wall-outlet Type
DVI-D (This feature is not available in all countries.)
Varies according to model.
Power Button
Connect the signal
input cable and
tighten it up by
turning in the
direction of the
arrow as shown in
the figure.
Mac Adapter : Apple Macintosh needs a
separate plug adaptor to change the 15-pin
supplied D-sub Cable (2 rows) to its 15-pin
High Density D-sub VGA connection(3
rows).
When using a D-Sub signal input cable
connector for Macintosh

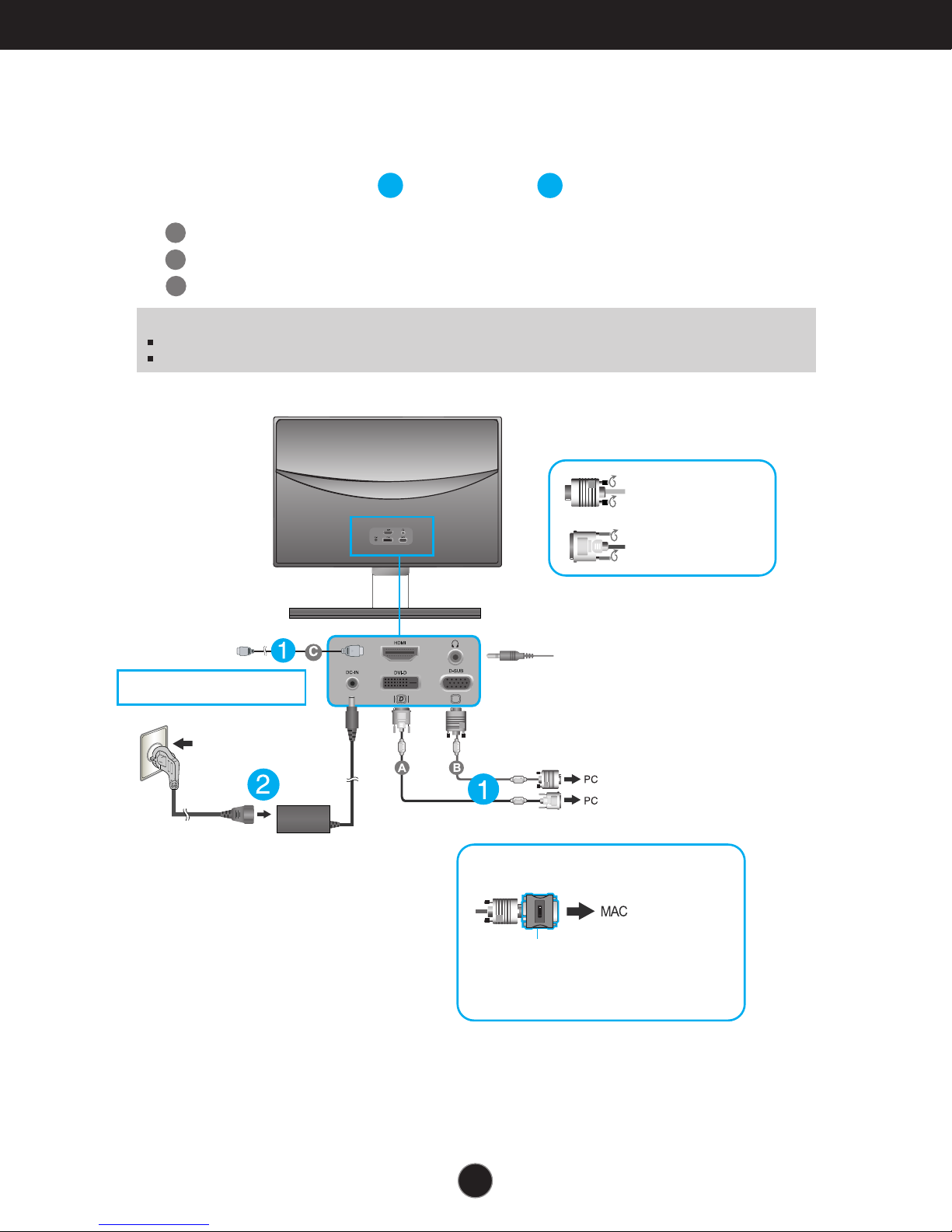

Connecting the Display Monitor E2260V/E2360V
9
A
B
Connect DVI-D(Digital signal) Cable
Connect D-sub(Analog signal) Cable
Connect HDMI Cable
1. Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.
2. Connect signal input cable and power cord in order, then tighten the screw
of the signal cable.
Connecting the Monitor to a Computer
12
NOTE
This is a simplified representation of the rear view.
This rear view represents a general model; your display computer and monitor may differ from the view shown.
C
Wall-outlet Type
Headphone/Earphone Input
AV equipment
(Set-Top Box, DVD,
Video,
Video Game Console)
* HDMI is optimized on the AV equipment.
* Not supported PC
DVI-D (This feature is not
available in all countries.)
Varies according to model.
Connect the signal
input cable and
tighten it up by
turning in the
direction of the
arrow as shown in
the figure.
Mac Adapter : Apple Macintosh needs a
separate plug adaptor to change the 15-pin
supplied D-sub Cable (2 rows) to its 15-pin
High Density D-sub VGA connection(3
rows).
When using a D-Sub signal input cable
connector for Macintosh

10
Connecting the Display Monitor E2260V/E2360V
NOTE
‘ Self Image Setting Function’? This function provides the user with optimal display
settings.When the user connects the monitor for the first time, this function automatically adjusts
the display to optimal settings for individual input signals.
‘AUTO’ Function? When you encounter problems such as a blurry screen, blurred letters,
screen flicker or tilted screen while using the device the monitor or after changing screen
resolution, press the AUTO function button to improve resolution.
3. Press the power button on the front panel to turn the power on. When monitor power is
turned on, the 'Self Image Setting Function' is executed automatically.
Power Button

11
Control Panel Functions E1960S/E2060S/E2260S/E2360S
Front Panel Controls
MODE Button
Use this button to enter F-ENGINE, ORIGINAL RATIO,
PHOTO EFFECT menus.
For more information, refer to page 26 to 31.
MENU Button
OSD LOCKED/UNLOCKED
This function allows you to lock the current control
settings, so that they cannot be inadvertently changed to
avoid inadvertently changing. Press and hold the MENU
button for several seconds. The message "OSD
LOCKED" should appear.
You can unlock the OSD controls at any time by pushing
the MENU button for several seconds. The message
"OSD UNLOCKED" should appear.
Use this button to enter or exit from the On Screen Display.

12
Control Panel Functions
AUTO Button
AUTO IMAGE ADJUSTMENT
When adjusting your display settings, always press
the AUTO button before entering the On Screen
Display(OSD). (Only Analog Mode)
This will automatically adjust your display image to
the ideal settings for the current screen resolution
size (display mode).
The best display mode is
E1960S : 1360 x 768
E2060S : 1600 x 900
E2260S/E2360S : 1920 x 1080
Use this button to turn the display on or off.
The power indicator stays light blue if the display is
running properly (On Mode). If the display is in Sleep
Mode (Energy Saving), the power indicator is red.
Power Button &
Power Indicator
Exit the OSD(On Screen Display).
EXIT Button

13

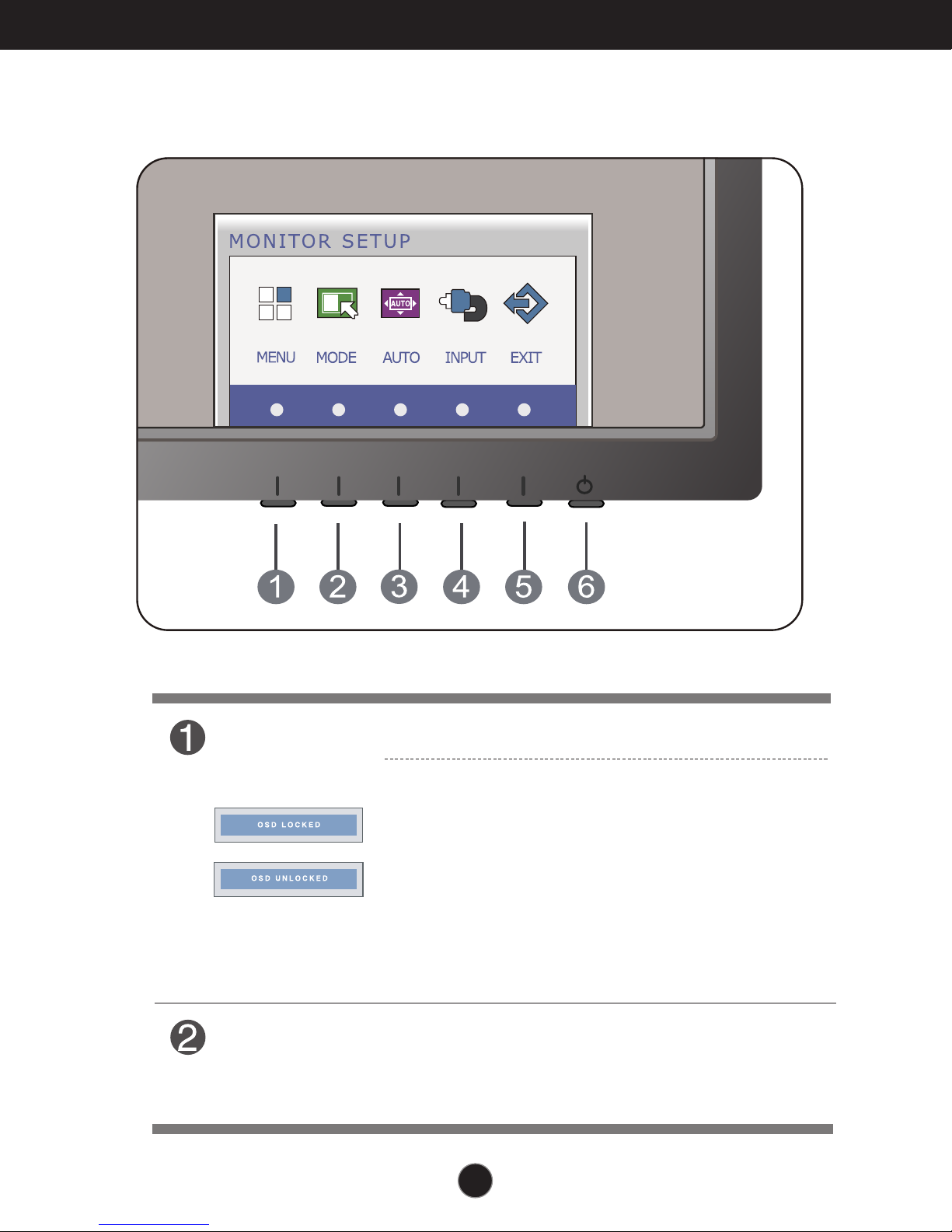

Control Panel Functions E1960T/E2060T/E2260T/E2360T/E2260V/E2360V
Front Panel Controls
MODE Button
Use this button to enter F-ENGINE, ORIGINAL RATIO,
PHOTO EFFECT menus.
For more information, refer to page 26 to 31.
MENU Button
OSD LOCKED/UNLOCKED
This function allows you to lock the current control
settings, so that they cannot be inadvertently changed to
avoid inadvertently changing. Press and hold the MENU
button for several seconds. The message "OSD
LOCKED" should appear.
You can unlock the OSD controls at any time by pushing
the MENU button for several seconds. The message
"OSD UNLOCKED" should appear.
Use this button to enter or exit from the On Screen Display.

14
Control Panel Functions
AUTO Button
AUTO IMAGE ADJUSTMENT
When adjusting your display settings, always press
the AUTO button before entering the On Screen
Display(OSD). (Only Analog Mode)
This will automatically adjust your display image to
the ideal settings for the current screen resolution
size (display mode).
The best display mode is
E1960T : 1360 x 768
E2060T : 1600 x 900
E2260T/E2360T : 1920 x 1080
E2260V/E2360V : 1920 x 1080
INPUT Button
Use this button to turn the display on or off.
The power indicator stays light blue if the display is
running properly (On Mode). If the display is in Sleep
Mode (Energy Saving), the power indicator is red.
Power Button &
Power Indicator
When two input signals at least are connected, you can
select the input signal (D-SUB/DVI/HDMI) you want. When
only one signal is connected, it is automatically detected.
The default setting is D-Sub.
(SOURCE Hot key)
Exit the OSD(On Screen Display).
EXIT Button

15
On Screen Display OSD Control Adjustment E1960S/E2060S/E2260S/E2360S
Screen Adjustment
Making adjustments to the image size, position and operating
parameters of the display is quick and easy with the On Screen
Display Control system.
A short example is given below to familiarize you with the use of the
controls. The following section is an outline of the available
adjustments and selections you can make using the OSD.
To make adjustments in the On Screen Display OSD, follow these steps:
Press the discretionary button, then the main menu of the and OSD appears.
To access a control, use the corresponding buttons.
Use the / buttons to adjust the image to the desired level.
Use the button to select other sub-menu items.
Press the EXIT Button to exit from the OSD.
1
2
3
4

16
On Screen Display OSD Control Adjustment E1960T/E2060T/E2260T/E2360T
Screen Adjustment
Making adjustments to the image size, position and operating
parameters of the display is quick and easy with the On Screen
Display Control system.
A short example is given below to familiarize you with the use of the
controls. The following section is an outline of the available
adjustments and selections you can make using the OSD.
To make adjustments in the On Screen Display OSD, follow these steps:
Press the discretionary button, then the main menu of the and OSD appears.
To access a control, use the corresponding buttons.
Use the / buttons to adjust the image to the desired level.
Use the button to select other sub-menu items.
Press the EXIT Button to exit from the OSD.
1
2
3
4

17
On Screen Display OSD Control Adjustment E2260V/E2360V
Screen Adjustment
Making adjustments to the image size, position and operating
parameters of the display is quick and easy with the On Screen
Display Control system.
A short example is given below to familiarize you with the use of the
controls. The following section is an outline of the available
adjustments and selections you can make using the OSD.
To make adjustments in the On Screen Display OSD, follow these steps:
Press the discretionary button, then the main menu of the and OSD appears.
To access a control, use the corresponding buttons.
Use the / buttons to adjust the image to the desired level.
Use the button to select other sub-menu items.
Press the EXIT Button to exit from the OSD.
1
2
3
4

18
On Screen Display OSD Selection and Adjustment
The following table indicates all the On Screen Display OSD control,
adjustment, and setting menus.
F-ENGINE
ORIGINAL
RATIO
EFFECT
MODE To select or customize desired
image settings
NOTE
The order of icons may differ depending on the model (18 to 31).
To adjust the image size
To adjust the screen color mode
NORMAL
MOVIE
INTERNET
DEMO
WIDE
ORIGINAL
NORMAL
GAUSSIAN BLUR
SEPIA
MONOCHROME
DSUB
DVI-D
LANGUAGE
POWER INDICATOR
WHITE BALANCE
FACTORY RESET
To customize the screen status
for a user's operating
environment
OTHERS
HORIZONTAL
VERTICAL
CLOCK
PHASE
OVERSCAN
DISPLAY To adjust the position of the
screen
COLOR TEMP
GAMMA
COLOR To customize the color of the
screen
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
PICTURE To adjust the brightness,
contrast and sharpness of the
screen
To improve the clarity and
stability of the screen
VOLUME To adjust the headphone/
earphone volume
HDMI
HDMI
HDMI
DVI-D
HDMI
DVI-D
HDMI
DVI-D
HDMI
DVI-D
HDMI
RED
GREEN
BLUE
(PRESET) (USER)
sRGB
6500K
7500K
8500K
9300K
Main menu Sub-menu Supported input Description
VOLUME
D-SUB
D-SUB
D-SUB
D-SUB
D-SUB
D-SUB
D-SUB
: D-SUB(Analog signal) input
: DVI-D(Digital signal) input
: HDMI signal
D-SUB
DVI-D
HDMI
DSUB
DVI-D
HDMI
DSUB
DVI-D
HDMI
STANDARD
MOVIE
GAME
SPORTS
HDMI

19
On Screen Display OSD Selection and Adjustment
You were introduced to the procedure of selecting and adjusting an item using the
OSD system. Listed below are the icons, icon names, and icon descriptions of the
all items shown on the Menu.
Sub-
menus
NOTE
OSD menu languages on the monitor may differ from the manual.
Menu Name
Icons
Button
Tip
Move to the upper menu
Adjust (Decrease/Increase)
Select another sub-menu
Exit
Press the MENU Button, then the main menu of the OSD appears.
E1960T/E2060T/E2260T/E2360T E1960S/E2060S/E2260S/E2360S
