LG Flatron L1718S User manual

1
Contents
English .……………………………………………………………………………2
繁體中文 .………………………………………………………………………..14
简體中文 .………………………………………………………………………..26
Français .…………………………………………………………………………38
Deutsh .…………………………………………………………………………..50
Italiano .…………………………………………………………………………..62
Español …………………………………………………………………………..74
Dutch ….…………………………………………………………………….……86
Português .………………………………………………………………….……98

2
GettingStart
Table of content...........................................................................................................2
View of Monitor............................................................................................................3
Unpacking ...................................................................................................................4
Warning.......................................................................................................................4
Hardware Installation...................................................................................................5
Hardware Installation Step by Step ..........................................................................6-7
Menu control button ....................................................................................................8
Key introduction ..........................................................................................................8
Cleaning Notices.........................................................................................................9
Precaution...................................................................................................................9
Troubleshooting...........................................................................................................9
OSD (On-Screen Display) Menu Mode................................................................10-11
Display Mode ............................................................................................................12
Specification..............................................................................................................13
All Information in this manual may change from time to time without prior notice.

3
View of Monitor

4
Unpacking
Our 17” LCD monitor shall be content with these following items. Make sure you get all these set ready, otherwise
contact to your dealer or store which you purchased it. At last, feel free to contact us.
17” TFT LCD Monitor
External Univ15 pin D-sub
(RGB Analog) input signal cable
Power Cord
External Universal AC Adaptor
(100-240V, 50/60Hz)
Audio connector :
stereo Phone Jack
User’s manual
Quick Start Guide
* DVI Cord
* DVI function is optional.
Warning
1. Make sure that the system power is turned off.
2. Plug the signal cable to the signal connector at the rear of PC.
3. Plug adapter output cable to the jack at the rear of LCD monitor and the power cord to the adapter.
4. Connect the power cord to power source.
5. Turn on the computer and the monitor.
6. For the best quality of the performance, we suggest you to set resolution as “Display Mode”.

5
Hardware Installation
Be carefully to your LCD monitor, it’s very exquisite but easy to broken. Turn off LCD’s and PC’s power before you
set it up. Follow our installation step by step.
Input
VGA Version
【1】DC port：This is for connecting the power cable.
【2】PC In : This can be connected with the D-Sub 15 pin signal Cable.
【3】LINE in：This can be connected to the audio-out connector of any sound resource.
【4】Earphone jack : This is for connecting the earphone.
VGA + DVI Version
【1】DC port：This is for connecting the power cable.
【2】PC In : This can be connected with the D-Sub 15 pin signal Cable.
【3】LINE in：This can be connected to the audio-out connector of any sound resource.
【4】Earphone jack : This is for connecting the earphone.
【5】DVI Port : This can be connected with the DVI signal Cable.
* DVI function is optional.
[1] [4] [2] [5] [3]
[4] [2] [3] [1]

6
Hardware Installation Step by Step(VGA Version)
1. Turn your LCD opposite carefully which can see all the connection port.
2. Inset the signal cable such as RGB analog (standard) to its own port, and the other side connects to
computer.
3. Inset the Audio connector to its own port, and the other side connects to computer line out.
4. Put AC Adaptor and Power Cord together.
5. Inset the DC cable to its own port (DC in), and the other side connect to socket.
6. Congratulations you had done with it. You can enjoy the excellent performance.

7
Hardware Installation Step by Step (VGA + DVI Version)
1. Turn your LCD opposite carefully which can see all the connection port.
2. Inset the signal cable such as RGB analog (standard) to its own port, and the other side connects to
computer.
3. Inset the Audio connector to its own port, and the other side connects to computer line out.
4. Insert the DVI cable to its own port,, and the other side connects to computer line out.
5. Put AC Adaptor and Power Cord together.
6. Inset the DC cable to its own port (DC in), and the other side connect to socket.
7. Congratulations you had done with it. You can enjoy the excellent performance.

8
Monitor Adjusting
Menu control button
Key introduction
Power: Turn the LCD power on and off. When the power is on, the light is showing green,
stand by will be orange.
OSD Menu: Press the button to OSD menu, menu right adjustment.
Auto Tune: Auto adjust, menu left adjustment.
Decrease < - >: Decrease the option value in the OSD menu.
Increase < + >: Switch from DVI operating environment to VGA.Increase the option value in the OSD menu.
OSD Menu Decrease < - >
Increase < + >Power
Auto Tune

9
Cleaning Notice
1. Be gentle to clean the screen.
2. Never, ever, using any kind of corrosiveness chemical dissolvent to clean the screen, it may hurt your
screen surface.
3. We suggest that using a clean camel hair brush or a soft, clean, lint-free cloth to wipe the screen.
4. Don’t give any pressure directly to the LCD
Precaution
1. Do not expose the monitor to direct sunlight or heat.
2. Do not spill liquid on the monitor.
3. Do not attempt to open the monitor. You may be hurt by electric shock. For service, call your place of
purchase.
4. Do not use your monitor when magnets or electronic products are operating nearby.
5. Do not use harsh chemicals or strong cleaning solvents to clean the monitor screen. Wipe it with clean,
soft clothes applied with mild solution.
6. Do not place anything on your monitor. Bad ventilation may elevate temperature in the monitor.
7. Don’t use your fingers to touch the LCD Screen, directly. Fingerprint that contains oil and may by
difficult to clear.
Troubleshooting
Make sure that your monitor is properly installed if you have encountered any trouble using this product.
˙There is no picture on the screen.
Check:
1. Power saving mode. Press any key and move the mouse to deactivate the mode.
2. Signal cable connector pins. If there are bent or missing pins, consult your place of purchase.
˙Characters look too dark or too light
Check:
1. Using OSD Menu to adjust the Brightness.
˙When your monitor shall be Adjusted?
Check:
1. If the resolution of frequency is being changed.
. The Text appears on the screen are unclear.
Check
1. Make sure the resolution or refresh rate match with the Display Mode.

10

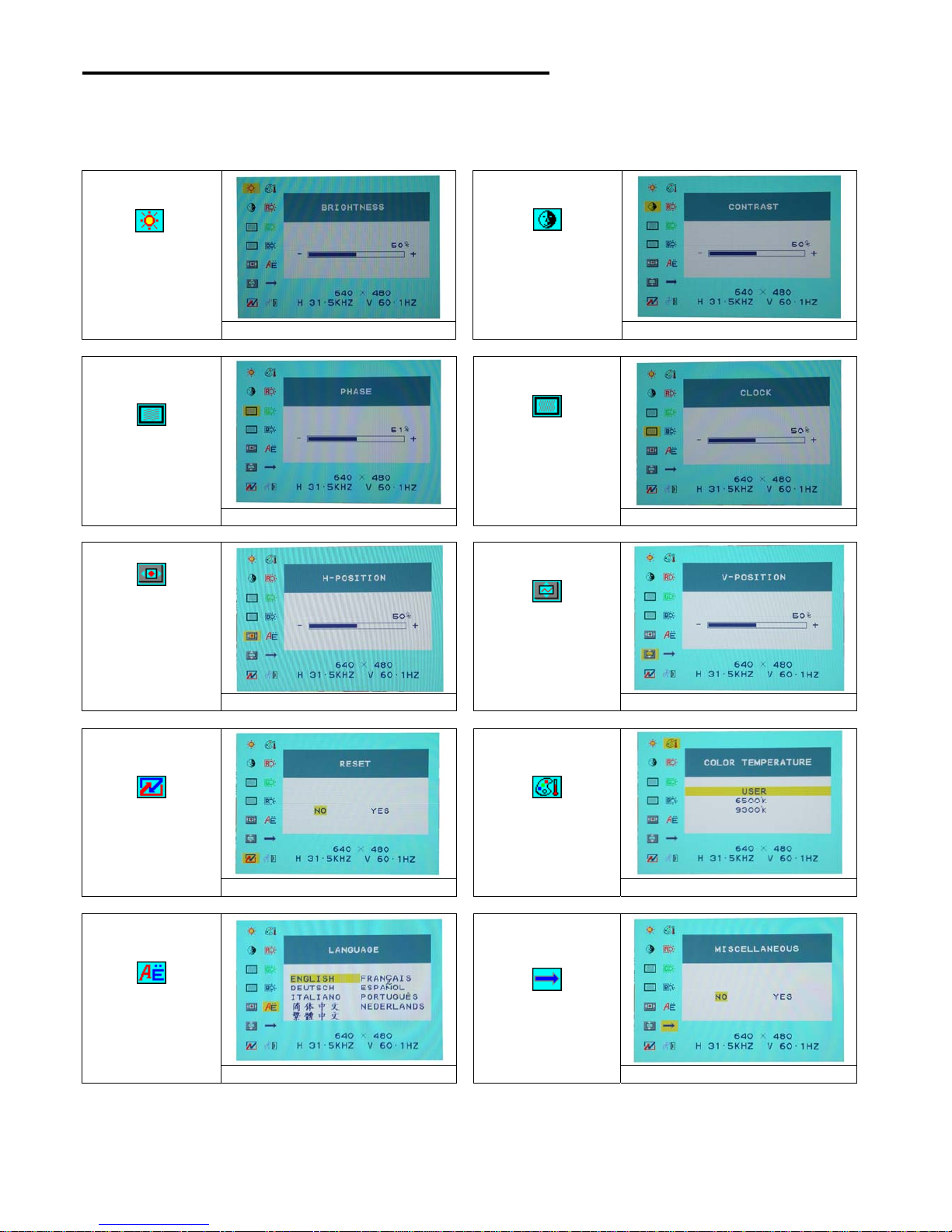

OSD (On-Screen Display) Menu Mode
Option select
1. Press the OSD button to access menu.
2. Using Auto Tune for left adjustment.
3. Press OSD again for right adjustment.
Brightness:
Adjust the
brightness of the
display.
Main menu brightness adjust
Contrast：
Adjust the
difference between
light and dark area.
Main menu contrast adjust
Phase：
Adjust the phase
of pixel clock.
Main menu phase adjust
Clock：
Adjust the
frequency of the
pixel.
Main menu clock adjust
Horizontal
Position：
Adjust the
horizontal
position of the
display.
Main menu H position adjust
Vertical Position：
Adjust the vertical
position of
display.
Main menu V position adjust
Reset :
Recall the default
setting.
Main menu Reset
Color Temp :
Adjust the color
Temperature.
Main menu color temp. adjust
Language :
Language
support.
Main menu language adjust
Miscellaneous :

11
EXIT :
Saving and
Leave.
Main menu EXIT adjust
Miscellaneous
Return :
Return to main
menu.
Return
Horizontal
Position：
Adjust the
horizontal
position of the
OSD.
OSD H position adjust
Vertical
Position：
Adjust the
vertical position
of the OSD.
OSD V position adjust
OSD Duration：
Adjust the timing
of the OSD menu.
OSD duration adjust
Auto color：
Adjust the color
automatically.
Auto color adjust
Volume :
Adjust of
speaker.
Menu Volume adjust

12
DISPLAY MODE
Incoming Display Mode
Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz)
640X350 31.475 70.100
640X480 31.469 59.940
640X480 37.500 75.000
720X400 31.469 70.087
800X600 37.879 60.317
800X600 46.875 75.000
1024X768 48.363 60.004
1024X768 60.023 75.029
1280X1024 63.981 60.020
1280X1024 79.976 75.024
1. We offer you 10 available modes compatible with Windows.
2. If any interference occurs on your screen while you modulating your PC or OSD. It is normal.
3. To have Best quality present on the PC, remember to upgrade your video card Driver. We strongly
recommend you to choose a Mode listed in the table.
4. The other Modes may not be supported that are not list on the table above
5. You may use the power management on your computer. It’s good for last service life of the product.

13
Specification
LCD Panel Type
Viewing Angle
Contrast Ratio
Brightness
Response Time(Tr+Tf)
Display Colors
Max Resolution
Pixel Pitch
17.0” TFT Active Matrix LCD Display
H:140° , V:140°
500 : 1 (Typical)
300 cd/m2 (Typical)
12 ms
16.7M colors(True color)
1280X1024(SXGA)
0.264mm(H)x0.264mm(V)
Input Signals RGB Analog
DVI*
Video Level:0.7Vp-p(75)
Sync TTL with 75internal pull-up resistors
Frequency FH:30~79KHz
FV:56~75Hz
Support digital RGB signal with TMDS signaling type
Compatibility PC Up to 1280X1024@75Hz(Non-interlaced)
Connector RGB Analog
Audio
Power
D-sub 15-pins
Stereo Phone Jack ,RCA-Jack(L/R)
12V/DC Power Jack
Power Voltage
Consumption
Power saving mode
100-240V, 50/60Hz(universal) via external AC Adapter
Active < 48 Watt Max
Standby < 3 Watt
Internal Speaker 2Wx2(Stereo)
User Interface LED Indicator Active -Green
Standby - Orange
Off - Turn off
Operating Condition Temperature
Air Humidity
5°C~40°C
20% ~ 80% R.H.
Dimensions
(W x H x D)
Physical 377.8mm(W) x 385.9mm(H) x 53.5mm(D)
Net Weight 4.0 Kg
DDC DDC1/DDC2B Compliant
Power Management VESA DPMS, EPA Energy Star
Regulation
(Certifications)
CE, FCC, VCCI, UL/CUL,BSMI
* DVI function is optional.

14
開始
目錄.....................................................................................................................14
顯示器前後視圖...................................................................................................15
包裝.....................................................................................................................16
警示.....................................................................................................................16
硬體安裝..............................................................................................................17
圖示硬體安裝..................................................................................................18-19
主要功能鍵..........................................................................................................20
功能鍵介紹……..……………………………………………………………………….20
清潔要點..............................................................................................................21
注意事項..............................................................................................................21
簡易故障排除.......................................................................................................21
OSD 視控模式........................................................................................... …22-23
支援顯示模式.......................................................................................................24
產品規格表..........................................................................................................25
此手冊內的內容可能隨時更改，並不另行通知。

15
顯示器前後視圖

16
包裝
我們 17 吋的液晶顯示器包含下列組件，如有缺件，請向所購買之商店或經銷商聯絡，如有任何疑問歡迎來電。
17 吋TFT 液晶螢幕顯示器
外接式 15 針D-sub
(RGB Analog) 訊號線 電源線
外接式通用變壓器
100-240 伏特, 50/60 赫茲 音源線
使用手冊
快速安裝指南
* DVI 線
* DVI 功能為選配.
警示
1. 確定全部系統電源已關上。
2. 將VGA 訊號線 連接至液晶螢幕及電腦。
3. 將變壓器接上液晶螢幕。
4. 電源線接上變壓器，另一端接上插座。
5. 將電腦及液晶螢幕的電源打開。
6. 想要有最佳的顯示效果， 我們建議您參考支援顯示模式來調整螢幕解析度。

17
硬體安裝
請小心對待您的液晶螢幕，它是非常精緻的產品。在安裝前請務必先將液晶螢幕及電腦的電源關閉，以免發生危險。請依照
指示一步一步地安裝。
輸入
VGA 功能
【1】電源端口：這裡用來連接電源。
【2】電腦輸入端口 : 這裡用來連接 D-Sub 15 孔VGA 影像訊號線。
【3】Line In 端口：這裡用來連接 聲音訊號線。
【4】耳機插孔 : 這裡用來連接耳機。
VGA + DVI 功能
【1】電源端口：這裡用來連接電源。
【2】電腦輸入端口 : 這裡用來連接 D-Sub 15 孔VGA 影像訊號線。
【3】Line In 端口：這裡用來連接 聲音訊號線。
【4】耳機插孔 : 這裡用來連接耳機。
【5】DVI 數位埠 : DVI 影像訊號線接頭。
* DVI 功能為選配.
[1] [4] [2] [5] [3]
[4] [2] [3] [1]

18
圖示硬體安裝 (VGA 功能)
1. 請小心將液晶螢幕反轉以方便安裝。
2. 將VGA 訊號接頭（基本）， 接上電腦輸入端子，另一端接上電腦。
3. 將音源線， 接上音源線輸入端子口，另一端接上電腦。
4. 將變壓器及電源線連接起來。
5. 將電源線另一端插上插座。變壓器的電源端子插上電源輸入，按下顯示器的電源按鍵。
6. 恭喜您完成了安裝手續，您可以開始享受高性能的液晶螢幕了。

19
圖示硬體安裝 (VGA + DVI 功能)
1. 請小心將液晶螢幕反轉以方便安裝。
2. 將VGA 訊號接頭（基本）， 接上電腦輸入端子，另一端接上電腦。
3. 將音源線， 接上音源線輸入端子口，另一端接上電腦。
4. 將DVI 線， 接上 DVI 線輸入端子口，另一端接上電腦。
5. 將變壓器及電源線連接起來。
6. 將電源線另一端插上插座。變壓器的電源端子插上電源輸入，按下顯示器的電源按鍵。
7. 恭喜您完成了安裝手續，您可以開始享受高性能的液晶螢幕了。
