LG 32PC5RV-MF User manual

Please read this manual carefully and completely before
operating your set. Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and quote
this information to your dealer when you require service.
P/NO MFL36546205(0707-REV00)
Printed in Korea
PLASMA TV
OWNER’S MANUAL
32PC5RV

1
WARNING / CAUTION
WARNING / CAUTION
To prevent fire or shock hazards, do not expose
this product to rain or oisture.
FCC NOTICE
Class B digital device
This equipment has been tested and found to com-
ply with the limits for a Class B digital device, pur-
suant to Part 15 of the CC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio fre-
quency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not
occur in a particular installation. If this equipment
does cause harmful interference to radio or televi-
sion reception, which can be determined by turning
the equipment off and on, the user is encouraged to
try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and receiver.
- Connect the equipment to an outlet on a circuit
different from that to which the receiver is con-
nected.
- Consult the dealer or an experienced radio/TV
technician for help.
Any changes or odifications not expressly
approved by the party responsible for co pliance
could void the user’s authority to operate the
equip ent.
CAUTION
Do not attempt to modify this product in any way
without written authorization from LG Electronics.
Unauthorized modification could void the user’s
authority to operate this product
The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of elec-
tric shock to persons.
The exclamation point within an equi-
lateral triangle is intended to alert the
user to the presence of important
operating and maintenance (servicing) instruc-
tions in the literature accompanying the
appliance.
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER TO
QUALIFIED SERVICE PERSONNEL.
WARNING/CAUTION
TO REDUCE THE RISK OF FIRE AND ELEC-
TRIC SHOCK, DO NOT EXPOSE THIS PRO-
DUCT TO RAIN OR MOISTURE.
NOTE TO CABLE/TV INSTALLER
This reminder is provided to call the CATV sys-
tem installer’s attention to Article 820-40 of the
National Electric Code (U.S.A.). The code pro-
vides guidelines for proper grounding and, in
particular, specifies that the cable ground shall
be connected to the grounding system of the
building, as close to the point of the cable entry
as practical.

1
WARNING

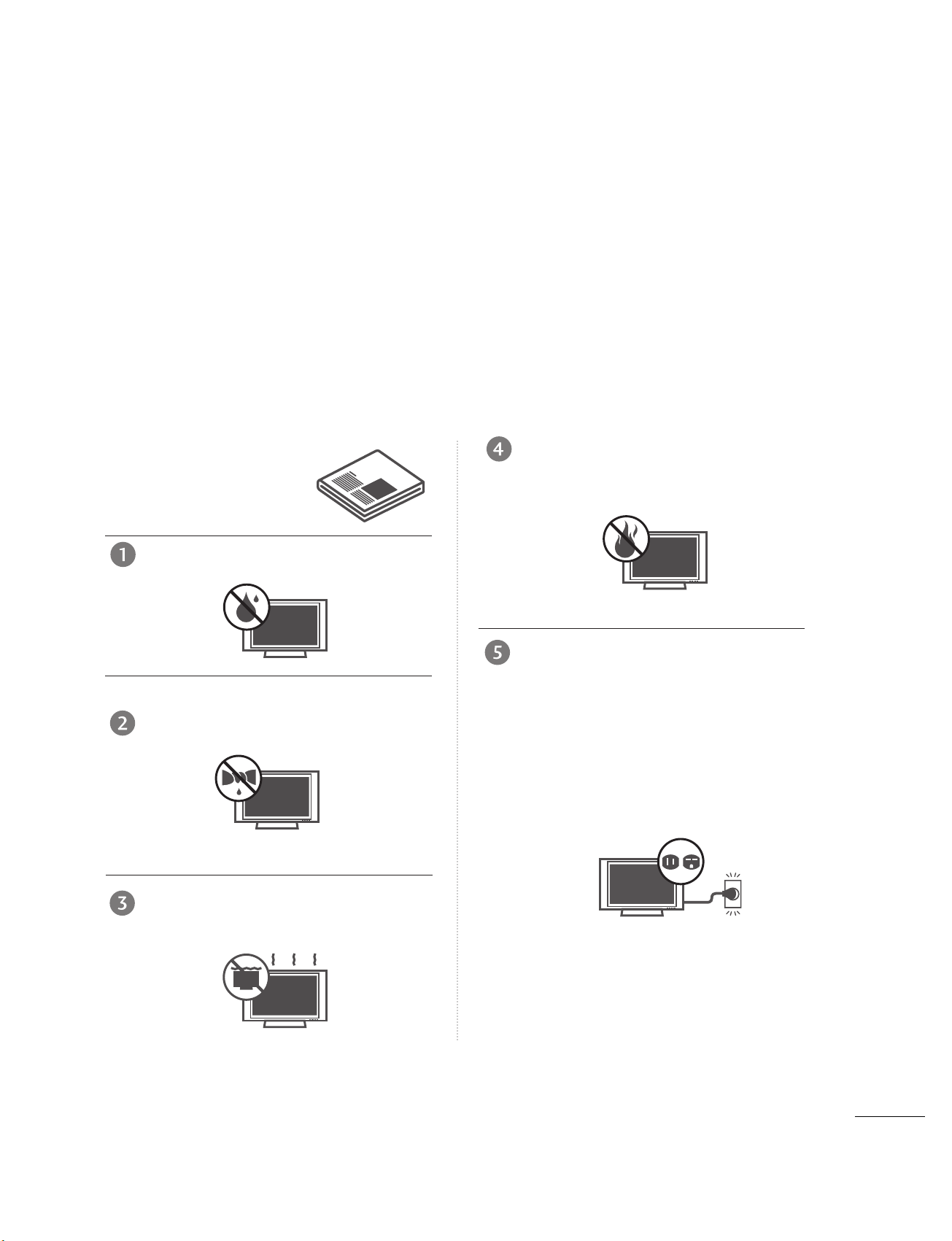

IMPORTANT SAFETY INSTRUCTIONS
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
Do not install near any heat sources such as
radiators, heat registers, stoves, or other appa-
ratus (including amplifiers)that produce heat.
Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong, The wide blade
or the third prong are provided for your safe-
ty. If the provided plug does not fit into your
outlet, consult an electrician for replacement
of the obsolete outlet.
Important safety instructions shall be provided with each apparatus. This information shall be given in a se-
parate booklet or sheet, or be located before any operating instructions in an instruction for installation for
use and supplied with the apparatus.
This information shall be given in a language acceptable to the country where the apparatus is intended to
be used.
The important safety instructions shall be entitled “Important Safety Instructions”. The following safety
instructions shall be included where applicable, and, when used, shall be verbatim as follows. Additional safe-
ty information may be included by adding statements after the end of the following safety instruction list. At
the manufacturer’s option, a picture or drawing that illustrates the intent of a specific safety instruction may
be placed immediately adjacent to that safety instruction :
Owner Manual
Owner Manual
Owner Manual

2

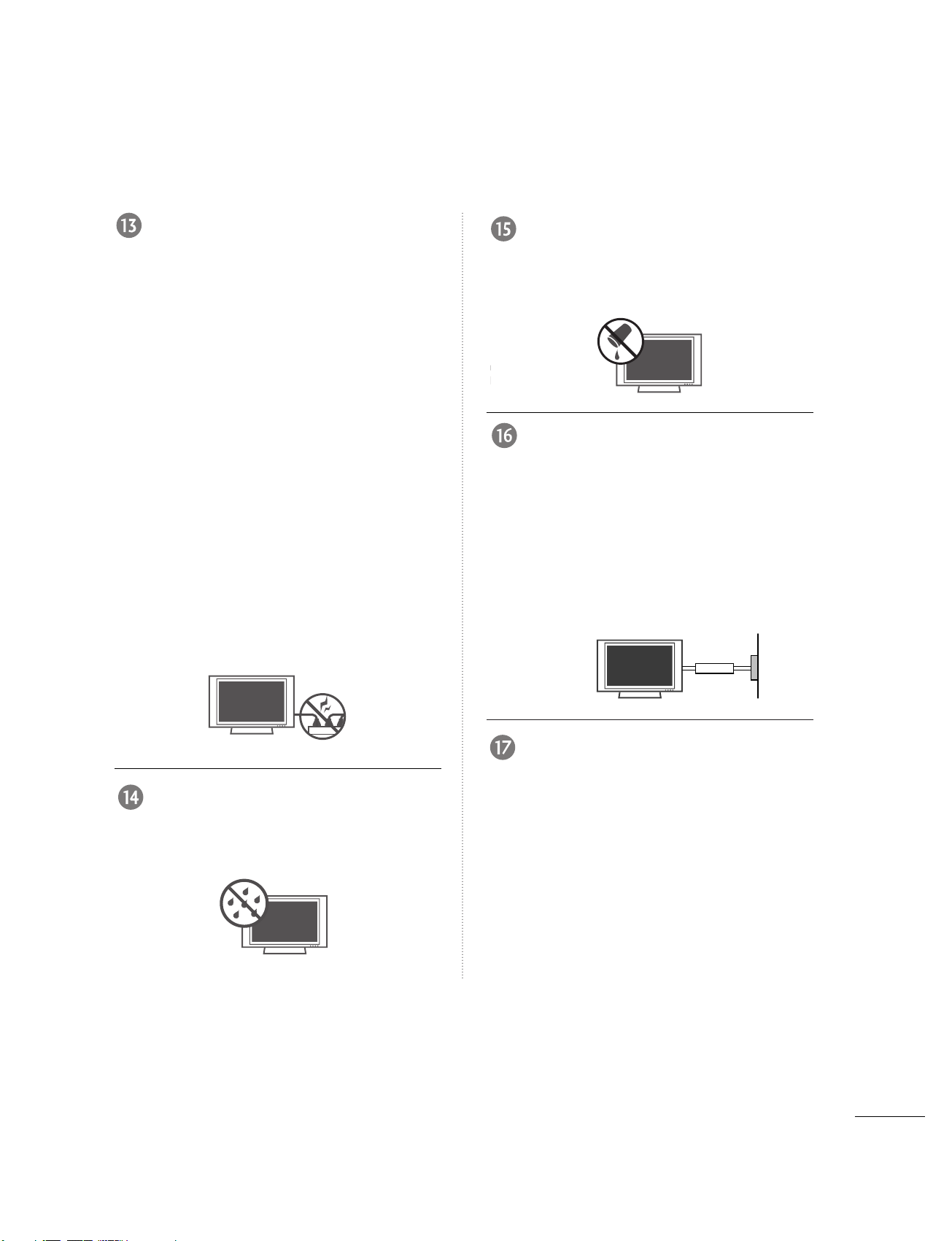

IMPORTANT SAFETY INSTRUCTIONS
WARNING
Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus.
Only use attachments/accessories specified
by the manufacturer.
Unplug this apparatus when unused for long
periods of time.
Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
Never touch this apparatus or antenna during
a thunder or lighting storm.
Do not allow a impact shock or any objects to
fall into the product, and do not drop onto the
screen with something. (You may be injured or
the product can be damaged.)
Refer all servicing to qualified service person-
nel. Servicing is required when the apparatus
has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the
apparatus, the apparatus has exposed to rain
or moisture, does not operate normally, or has
been dropped.
Owner Manual
Owner Manual
Owner Manual

3
WARNING
CAUTION concerning the Power Cord :
Most appliances recommend they be placed
upon a dedicated circuit; that is, a single out-
let circuit which powers only that appliance
and has no additional outlets or branch cir-
cuits. Check the specification page of this
owner's manual to be certain.
Do not overload wall outlets. Overloaded wall
outlets, loose or damaged wall outlets, exten-
sion cords, frayed power cords, or damaged
or cracked wire insulation are dangerous. Any
of these conditions could result in electric
shock or fire. Periodically examine the cord of
your appliance, and if its appearance indi-
cates damage or deterioration, unplug it, dis-
continue use of the appliance, and have the
cord replaced with an exact replacement part
by an authorized servicer. Protect the power
cord from physical or mechanical abuse, such
as being twisted, kinked, pinched, closed in a
door, or walked upon. Pay particular attention
to plugs, wall outlets, and the point where
the cord exits the appliance.
Outdoor Use Marking :
WARNING - To Reduce The Risk Of Fire Or
Electric Shock, Do Not Expose This Appliance
To Rain Or Moisture
Wet Location Marking : Apparatus shall not
be exposed to dripping or splashing and no
objects filled with liquids, such as vases, shall
be placed on or over apparatus.
GROUNDING
Ensure that you connect the earth ground
wire to prevent possible electric shock. If
grounding methods are not possible, have a
qualified electrician install a separate circuit
breaker.
Do not try to ground the unit by connecting
it to telephone wires, lightening rods, or gas
pipes.
DISCONNECTING DEVICE FROM MAINS
Main plug is the disconnecting device. The
plug must remain readily operable.
Owner Manual
Owner Manual
Power Supply
Short-circuit Breaker
Owner Manual
Owner Manual
Owner Manual
Owner Manual

4
CONTENTS
WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
FEATURES OF THIS TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PREPARATION
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . 8

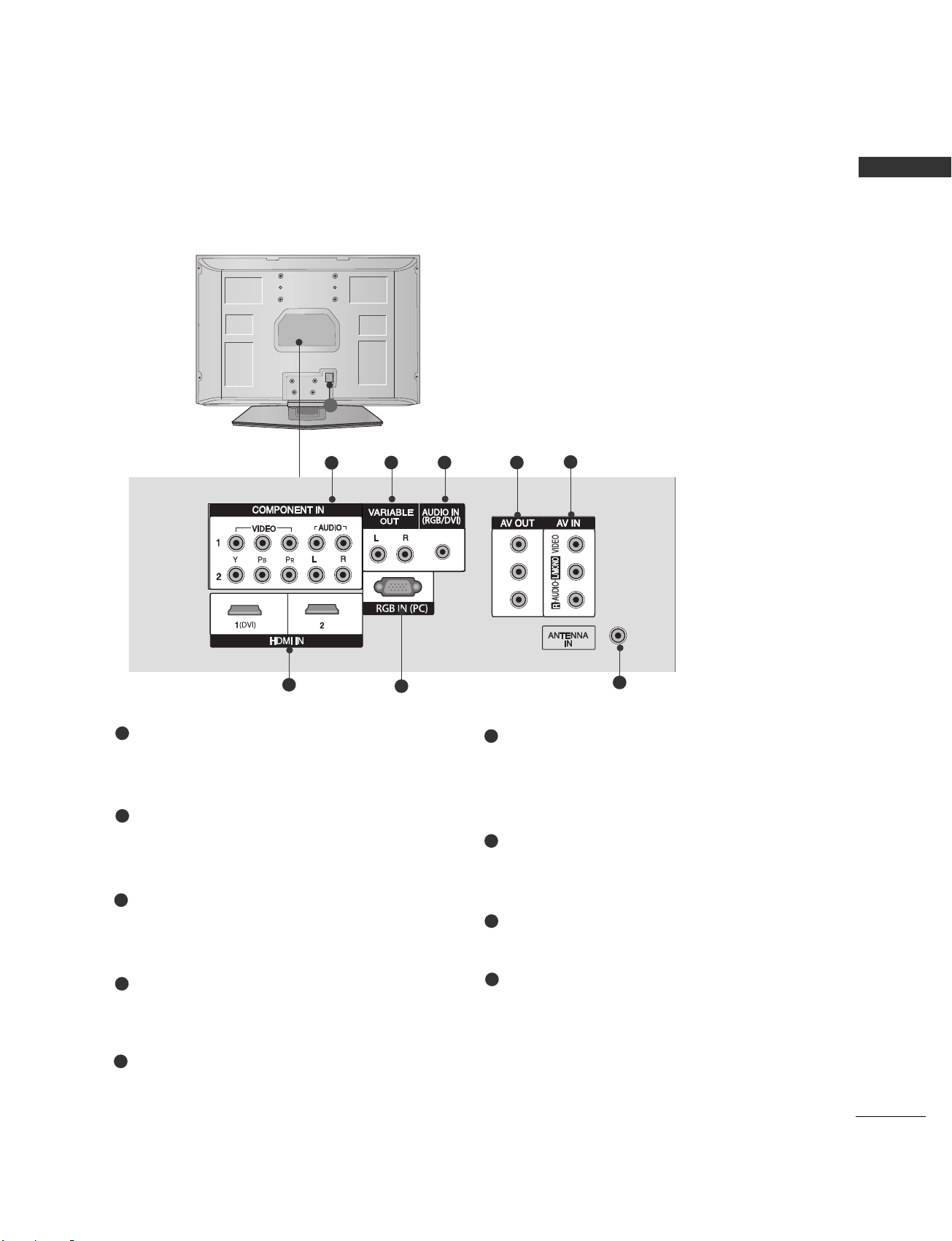

Back Panel Information . . . . . . . . . . . . . . . . . . . . 9

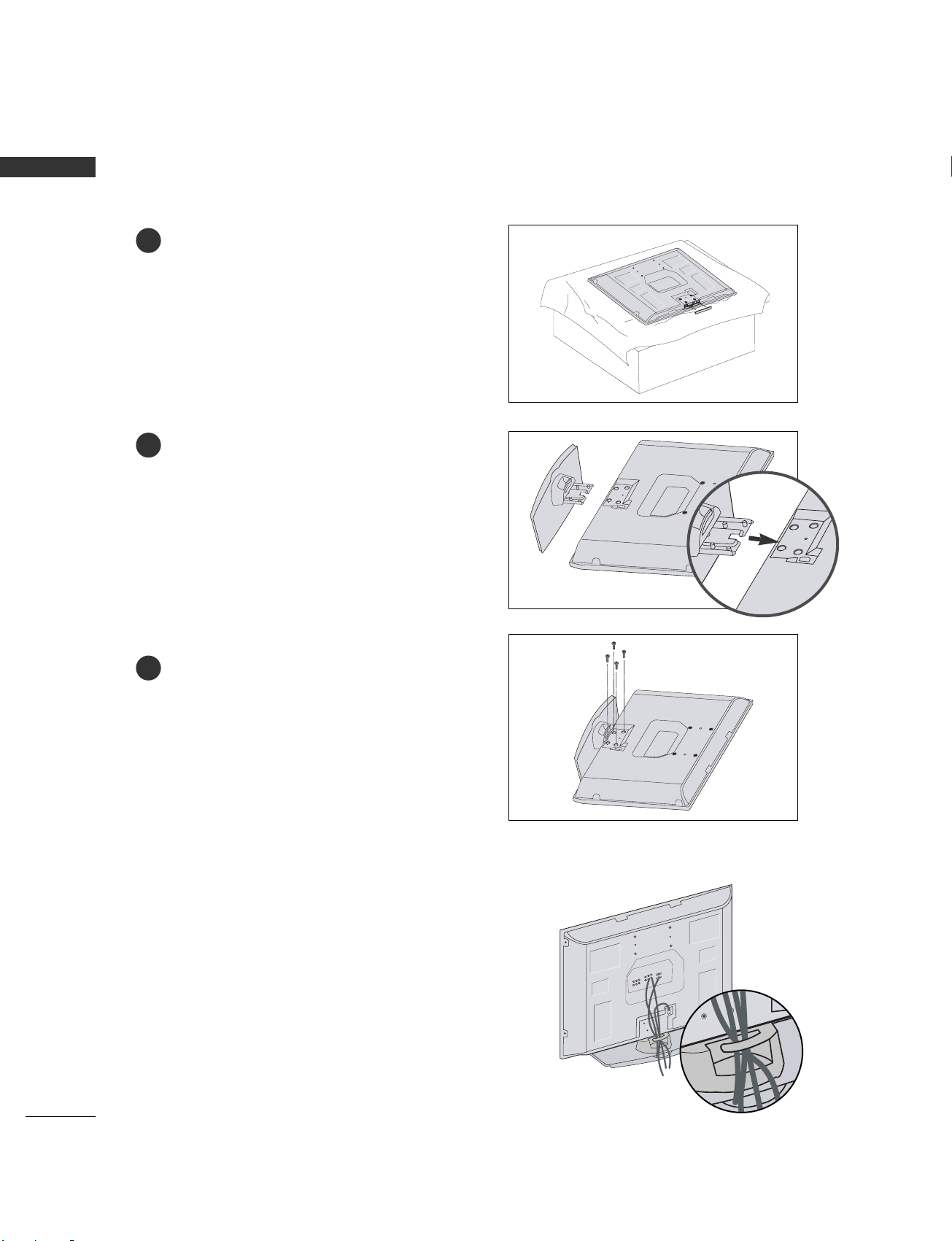

Stand Installation . . . . . . . . . . . . . . . . . . . . . . . . .10
Back Cover for Wire Arrangement . . . . . . . . . . . 10
Attaching the TV to a Wall . . . . . . . . . . . . . . . . . 11
Attaching the TV to a Wall . . . . . . . . . . . . . . . . . 11
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Antenna or Cable connection . . . . . . . . . . . . . . . 13
EXTERNAL EQUIPMENT SETUP
HD Receiver Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
VCR Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Other A/V Source Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
- Screen Setup For PC Mode . . . . . . . . . . . . . 24
AV Out Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
External Stereo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
WATCHING TV / SETUP CONTROL
Turning on the TV . . . . . . . . . . . . . . . . . . . . . . . . 29
On Screen Menus Language Selection . . . . . . . . .30
Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . 30
Channel Adjustment . . . . . . . . . . . . . . . . . . . . . 30
On Screen Menus Selection and Adjustment . . 31
Remote Control Functions . . . . . . . . . . . . . . . . . .32
Channel Setup . . . . . . . . . . . . . . . . . . . . . . . . . . .34
- Auto tuning: Channel Search . . . . . . . . . . . 34
- Manual tuning: Adding/Deleting Channels .35
Fine tuning Adjustment . . . . . . . . . . . . . . . . . . .36
Favorite Channels Setup . . . . . . . . . . . . . . . . . .37
SIMPLINK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
PICTURE CONTROL
PIP/Double Window . . . . . . . . . . . . . . . . . . . . . . .41
- Watching PIP/Double Window . . . . . . . . . 41
-
TV Program Selection for PIP
. . . . . . . . . . . 41
-
Selecting an Input Signal Source for the
PIP/
Double Window . . . . . . . . . . . . . . . . . .42
-
Sub Picture Size Adjustment (PIP mode only) 42
-
Moving the Sub Picture (PIP mode only) . .42
Picture Mode Control . . . . . . . . . . . . . . . . . . . . . 43
Manual Picture Control (Picture mode-User option) . . 44
Color Temperature Control . . . . . . . . . . . . . . . .45
Manual Color Temperature Control (User option)46
XD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Advanced - Cinema Mode Setup . . . . . . . . . . . . 48
Advanced - Black Level . . . . . . . . . . . . . . . . . . . . 49
Aspect Ratio Control . . . . . . . . . . . . . . . . . . . . . 50
Picture Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
XD Demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

5
AUDIO CONTROL
Sound Mode Control . . . . . . . . . . . . . . . . . . . . . 53
Sound Control Adjustment (User option) . . . . . 54
Auto Volume Leveler . . . . . . . . . . . . . . . . . . . . . . . . . 55
Balance Adjustment . . . . . . . . . . . . . . . . . . . . . . .56
TV Speakers On/Off Setup . . . . . . . . . . . . . . . . 57
Stereo/SAP Broadcast Setup . . . . . . . . . . . . . . . 58
TIME SETTING
Clock Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
On/Off Time Setup . . . . . . . . . . . . . . . . . . . . . . .60
Sleep Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Auto Sleep . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
OPTION CONTROL
Key Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Closed Captions . . . . . . . . . . . . . . . . . . . . . . . . 64
ISM (Image Sticking Minimization) Method . . .65
Low Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Factory Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
APPENDIX
Troubleshooting Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Maintenance
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Product Specifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

6
FEATURES OF THIS TV
What is a Plasma TV ?
Using plasma is the best way to achieve flat panel displays with excellent image quality and large screen sizes that
are easily viewable. The Plasma TV can be thought of as a descendant of the neon lamp and or a series of fluo-
rescent lamps.
How does it work?
Plasma TV is an array of cells, known as pixels, which are comprised of three sub-pixels, corresponding to the col-
ors red, green, and blue. Gas in a plasma state is used to react with phosphors in each sub-pixel to produce col-
ored light (red, green, or blue). These phosphors are the same types used in Cathode Ray Tube (CRT) devices
such as televisions and common computer monitors.
Plasma TV offers a rich, dynamic display because each sub-pixel is individually controlled by advanced electronics
to produce over 16 million different colors. This means that you get perfect images that are easily viewable in a
display that is fewer than five inches thick.
160° - Wide angle range of vision
Your flat panel plasma screen offers an exceptionally broad viewing angle of over 160 degrees. This means that
the display is clear and visible to viewers anywhere in the room.
Wide Screen
The wide screen offers a theater-like experience in your own home.
Multimedia
Connect your plasma display to a PC and use it for conferencing, games, and Internet browsing. The Picture-in-
Picture feature allows you to view your PC and video images simultaneously.
Versatile
The light weight and thin size makes it easy to install your plasma display in a variety of locations where conven-
tional TVs do not fit.
The Plasma TV Manufacturing Process: a few minute colored dots may be present on the Plasma
TV screen
The Plasma TV is composed of 0.9 to 2.2 million cells. A few cell defects will normally occur in the Plasma TV
manufacturing process. Several tiny, minute colored dots visible on the screen should be acceptable. This also
occurs in other Plasma TV manufacturers' products. The tiny dots appearing does not mean that this Plasma TV
is defective. Thus a few cell defects are not sufficient cause for the Plasma TV to be exchanged or returned. Our
production technology minimizes these cell defects during the manufacture and operation of this product.

7
PREPARATION
ACCESSORIES
Ensure that the following accessories are included with your product. If an accessory is missing, please con-
tact the dealer where you purchased the product.
Manual de Usuario
1.5V 1.5V
Owner’s Manual Batteries
ENTER
CH
VOL
CH
VOL
FAV
REVIEW
PIP INPUT
0
INPUT MUTE
MENU
EXIT
RATIO
123
456
789
POWER TV
CH EDIT
PIP CH - PIP CH +
SLEEP
CAPTION
MTS
SIZE
POSITION
PIP
Remote Control Power Cord
2- TV Brackets,
2- Wall Brackets
2-Bolts
Polishing cloth
Polish the screen with the cloth.
* Slightly wipe stained spot on the exterior only with the cleans-
ing cloths for the product exterior if there is stain or finger-
print on surface of the exterior.
* Do not wipe roughly when removing stain. Please be cautious
of that excessive power may cause scratch or discoloration.
4-Bolts for stand assembly
(Refer to p.10)
Holder
(Refer to p.11)
Cover

8
PREPARATION
FRONT PANEL CONTROLS
PREPARATION
■
This is a simplified representation of the front panel. Here shown may be somewhat different from your TV.
■
If your product has a protection tape attached, remove the tape and then wipe the product with a cloth.
(If a polishing cloth is included with your product, use it.)
CH
VOL
MENU
INPUT ENTER
CH
VOL
MENU
INPUT ENTER
Power Standby Indicator
Illuminates red in standby mode.
When the TV is turned on, the indicator
blinks green and then illuminates green
before the picture is displayed.
Remote Control Sensor
POWER
Button
INPUT
Button
MENU
Button
ENTER
Button
VOLUME
(FF,GG)Buttons
CHANNEL
(EE,DD)Buttons

9
PREPARATION
BACK PANEL INFORMATION
9
.Component Input 1/2
Connect a component video/audio device to
these jacks.
Variable Output
Connect an external amplifier or add a subwoofer
to your surround sound system.
Audio In (RGB/DVI)
Connect the monitor output from a PC (only
Audio) to the appropriate input port.
AV OUT
Connect second TV or monitor to the AV OUT
socket on the set
AV IN
Connect audio/video output from an external
device to these jacks.
HDMI IN 1/2
Connect a HDMI signal to HDMI IN.
Or DVI(VIDEO)signal to HDMI/DVI port with DVI
to HDMI cable.
RGB PC Input
Connect the monitor output from a PC to the
appropriate input port.
Antenna In
Connect over-the-air signals to this jack.
Power Cord Socket
This TV operates on an AC power. The voltage is
indicated on the Specifications page. Never
attempt to operate the TV on DC power.
1
2
3
4
5
6
7
8
2
67
3
145
8
9

10
PREPARATION
PREPARATION
STAND INSTALLATION
Carefully place the product screen side down on
a cushioned surface that will protect product and
screen from damage.
Assemble the product stand with the product as
shown.
Install the 4 bolts securely, in the back of the
product in the holes provided.
1
2
3
BACK COVER FOR WIRE ARRANGEMENT
Arrange the cables as shown picture.

11

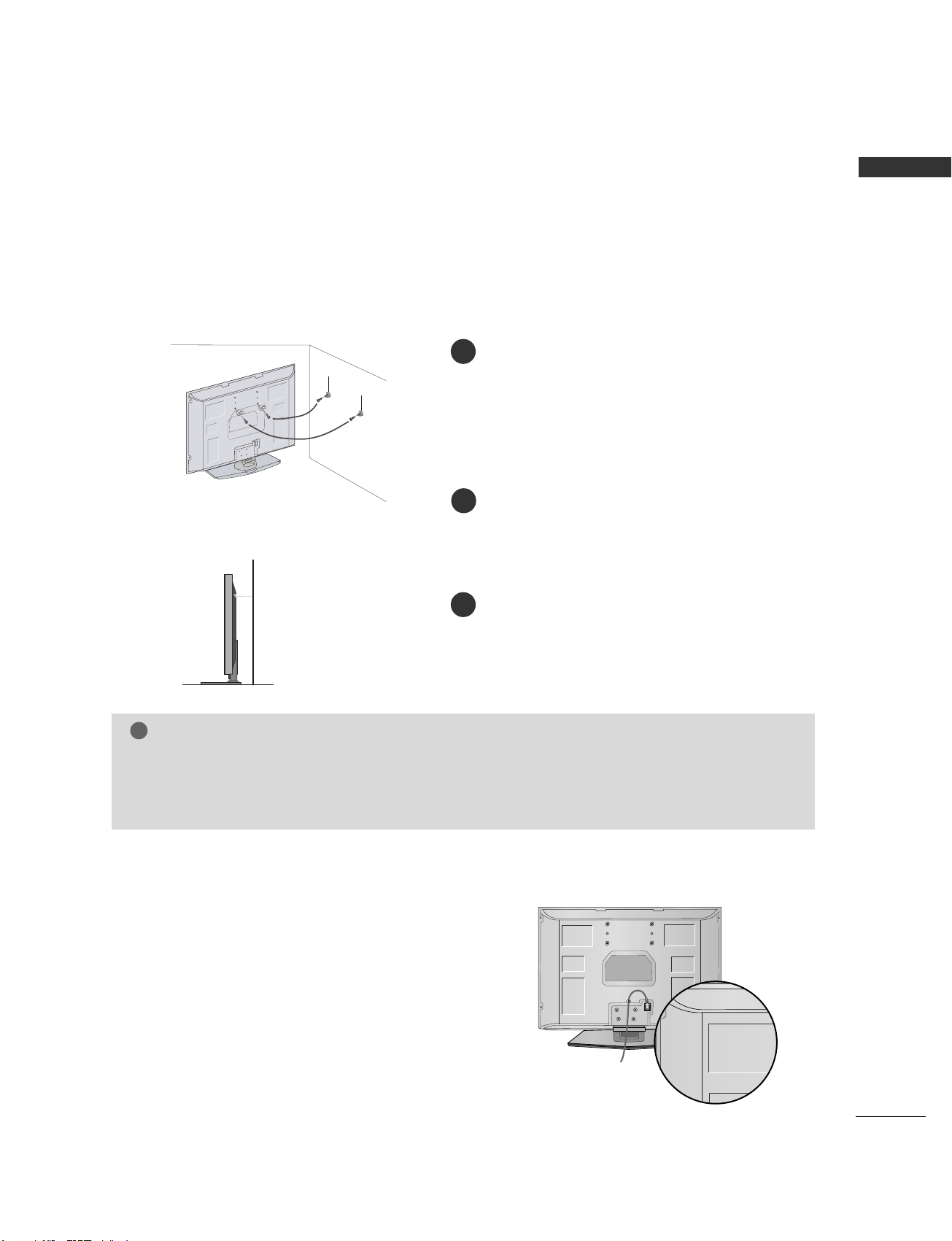

ATTACHING THE TV TO A WALL
PREPARATION
■Set it up close to the wall so the set doesn’t fall over when it is pushed backwards.
■The instructions shown below is a safer way to set up the set, which is to fix it on the wall so the set does-
n’t fall over when it is pulled in the forward direction. It will prevent the set from falling for-ward and hurt-
ing people. It will also prevent the set from damage caused by fall. Please make sure that children don’t
climb on or hang from the set.
Use a sturdy rope (not provided as parts of the set,
must purchase separately) to tie the set. It is safer
to tie the rope so it becomes horizontal between
the wall and the set.
Use the eye-bolts or set brackets/bolts to fix the
set to the wall as shown in the picture.
(If your set has the bolts in the eye-bolts or set brack-
ets/bolts position before inserting the eye-bolts or
set brackets/bolts, loosen the bolts.)
* Insert the eye-bolts or set brackets/bolts and
tighten them securely in the upper holes.
Secure the wall brackets with the bolts (not provid-
ed as parts of the set, must purchase separately) on
the wall. Match the height of the bracket that is
mounted on the wall.
NOTE
!
GGWhen moving the set to another place undo the ropes first.
GGUse a set holder or a cabinet that is big and strong enough for the size and weight of the set.
GGTo use the set safely make sure that the height of the bracket that is mounted on the wall is same as that
of the set.
1
3
2
2
3
1
POEWR CORD ARRANGEMENT
After connecting the power cord to the AC input
terminal, remove the bolt at the hole on the back
cover and fix the power cord at the rear side of the
TV by using the bracket for fixing the power cord.

12
PREPARATION
PREPARATION

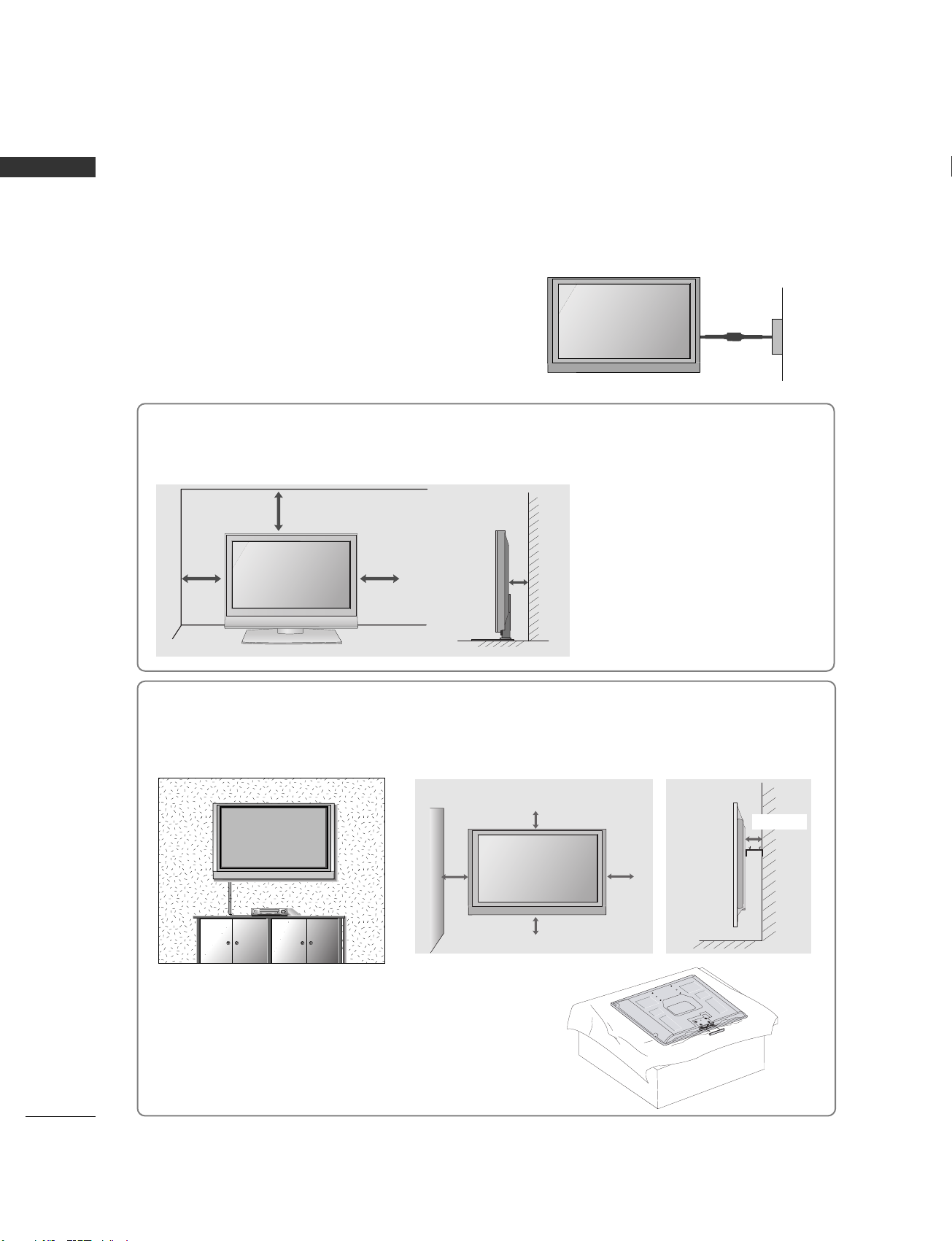

Desktop Pedestal Installation
For proper ventilation, allow a clearance of 4" on each side and from the wall.
Wall Mount: Horizontal installation
For proper ventilation, allow a clearance of 4" on each side and from the wall. Detailed installation instruc-
tions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.
GROUNDING
Ensure that you connect the earth ground wire to prevent
possible electric shock. If grounding methods are not
possible, have a qualified electrician install a separate
circuit breaker. Do not try to ground the unit by connecting
it to telephone wires, lightening rods, or gas pipes.
Power
Supply
Short-circuit
Breaker
■The TV can be installed in various ways such as on a wall, or on a desktop etc.
■The TV is designed to be mounted horizontally.
4 inches
4 inches
4 inches
4 inches
4 inches
4 inches
4 inches
4 inches
4 inches
INSTALLATION

13
PREPARATION
ANTENNA OR CABLE CONNECTION
Wall Antenna Socket or Outdoor Antenna without a Cable Box Connections.
For optimum picture quality, adjust antenna direction if needed.
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Outdoor
Antenna
(VHF, UHF)
Wall
Antenna
Socket
RF Coaxial Wire (75 ohm)
Bronze Wire
Be careful not to bend the bronze
wire when connecting the antenna.
The TV will let you know when the analog and cable scans are complete.
NOTE
!
Antenna
UHF
Signal
Amplifier
VHF
■To improve the picture quality in a poor signal area, please purchase a signal amplifier and install properly.
■If the antenna needs to be split for two TV’s, install a 2-Way Signal Splitter.
■If the antenna is not installed properly, contact your dealer for assistance.

14
PREPARATION
EXTERNAL EQUIPMENT SETUP
HD RECEIVER SETUP
Y L RPBPR
When connecting with a component cable
1. How to connect
Connect the video outputs (Y, PB, PR)of the digital set
top box to the CCOOMMPPOONNEENNTTIINNVVIIDDEEOO11jacks
on the set. Match the jack colors
(Y = green, PB= blue, and PR= red).
Connect the audio output of the digital set-top box to
the CCOOMMPPOONNEENNTTIINNAAUUDDIIOO11jacks on the set.
2
1
2. How to use
■Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top box.)
■Select CCOOMMPPOONNEENNTT11input source with using the
IINNPPUUTTbutton on the remote control.
■If connected to CCOOMMPPOONNEENNTTIINN22input, select
CCOOMMPPOONNEENNTT22input source.
Signal
480i
480p/720p
108 0 i
Component 1/2
Yes
Yes
Yes
HDMI1/DVI,
HDMI2
No
Yes
Yes
1 2
■To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.

EXTERNAL EQUIPMENT SETUP
15
When connecting with a HDMI cable
Connect the digital set-top box to HHDDMMIIIINN11((DDVVII))
or HHDDMMIIIINN22jack on the set.
No separated audio connection is necessary.
1. How to connect
2. How to use
■Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top box.)
■Select HHDDMMII11or HHDDMMII22input source with using the
IINNPPUUTTbutton on the remote control.
2
1
H D M I-DTV OUTPUT
GGTV can receive the video and audio signal simultaneously with
using a HDMI cable.
NOTE
!
1
Resolution
720x480
1280x720
1920x1080i
Supported Display Resolution (HDMI-DTV mode)
Horizontal Vertical
Frequency(KHz) Frequency(Hz)
31.47 59.94
31.50 60.00
44.96 59.94
45.00 60.00
33.72 59.94
33.75 60.00

EXTERNAL EQUIPMENT SETUP
16
EXTERNAL EQUIPMENT SETUP
When connecting with a HDMI to DVI cable
L R
DVI-DTV OUTPUT
1
Connect the DVI output of the digital set-top box to the
HHDDMMIIIINN11((DDVVII))jack on the set.
Connect the audio output of the digital set-top box to
the AAUUDDIIOO((RRGGBB//DDVVII))jack on the set.
1. How to connect
2. How to use
■Turn on the digital set-top box. (Refer to the owner’s manu-
al for the digital set-top box.)
■Select HHDDMMII11input source with using the IINNPPUUTTbutton
on the remote control.
2
1

EXTERNAL EQUIPMENT SETUP
17
DVD SETUP
When connecting with a component cable
Y L RPBPR
Component Input ports
To get better picture quality, connect a DVD player to the component input ports as shown below.
Component ports on the TV
YPBPR
Video output ports
on DVD player
Y
Y
Y
Y
PB
B-Y
Cb
Pb
PR
R-Y
Cr
Pr
Connect the video outputs (Y, PB, PR)of the DVD to
the CCOOMMPPOONNEENNTTIINNVVIIDDEEOO11jacks on the set.
Match the jack colors
(Y = green, PB= blue, and PR= red).
Connect the audio outputs of the DVD to the
CCOOMMPPOONNEENNTTIINNAAUUDDIIOO11jacks on the set.
1. How to connect
2. How to use
■Turn on the DVD player, insert a DVD.
■Select CCOOMMPPOONNEENNTT11input source with using the
IINNPPUUTTbutton on the remote control.
■If connected to CCOOMMPPOONNEENNTTIINN22input, select CCOOMM--
PPOONNEENNTT22input source.
■Refer to the DVD player's manual for operating instructions.
2
1
1 2

18
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
HDMI-DVD OUT P UT
When connecting HDMI cable
Connect the HDMI output of the DVD to the HHDDMMII
IINN11((DDVVII))or HHDDMMIIIINN22jack on the set.
No separated audio connection is necessary.
1. How to connect
2. How to use
■Select HHDDMMII11or HHDDMMII22input source with using the
IINNPPUUTTbutton on the remote control.
■Refer to the DVD player's manual for operating instructions.
2
1
1
GGTV can receive the video and audio signal simultaneously with
using a HDMI cable.
NOTE
!
When connecting with a RCA cable
T
L/MONO
R
AUDIO
VIDEO
L R S- V IDE OV IDE O
OUT P UT
SWITCH
A N T IN
A N T OUT
Connect the AAUUDDIIOO/VVIIDDEEOOjacks between TV and
VCR. Match the jack colors (Video = yellow, Audio Left
= white, and Audio Right = red)
1. How to connect
2. How to use
■Select AAVVIINNinput source with using the IINNPPUUTTbutton
on the remote control.
■Turn on the DVD player, insert a DVD.
■Refer to the DVD player's manual for operating instructions.
1
GGIf you have a mono VCR, con-
nect the audio cable from the
VCR to the AAUUDDIIOO
LL//MMOONNOOjack of the set.
NOTE
!
1
