42" class (41.5" diagonal)
42" class (41.5" diagonal)
42P 60C
42P 65C
w w w. L c o m m e r c i a l . c o m
NEW! 4 POWER SA ING LE ELS
MPEG-2/MPEG-4 H.264 DECODING
HD OD PP ENCRYPTION
integrated Pro:Idiom®
IMPRO ED! LIFE SPAN (APPROXIMATE)
100,000 hours (typical) to half brightness
NEW! IN ISIBLE SPEAKER SYSTEM
no visible speaker grilles
BUILT-IN TUNER
ATSC/NTSC/Clear QAM
NATI E DISPLAY RESOLUTION
1024 x 768
IMPRO ED! DYNAMIC CONTRAST RATIO
30,000:1
HIGH BRIGHTNESS
1500 cd/m2
IMPRO ED! LG’S EXCLUSI E DUAL XD ENGINE®
2 HDMI™ INPUTS WITH HDCP
MPI™ SLOT
AUTO-SENSING REMOTE JACK PACK (RJP) COMPATIBLE
NEW! CUSTOMIZABLE CLOSED CAPTIONS
HIGH GLOSS BLACK CABINET
2 YEAR LIMITED WARRANTY
(parts/labor)
HDT with HD-PP Capability
Plasma Widescreen Commercial
plasma tv
with stand
no stand

Dramatization Dramatization
C L O N I N P R O R A M M E R R E M O T E
F R E E - T O - U E S T C A R D
LT2002
QUICKSET II “CLONE”
The optional LT2002 allows for custom setup and programming
information to be quickly copied from a “master” L or Zenith brand
LCD, Plasma, or CRT TV (with the MPI input) into an unlimited number
of identical models. This saves the installers hours of time duplicating
the hotel TV settings, such as minimum volume, maximum volume, start
up channel, channel mapping, etc.
HC 1410
FREE-TO-GUEST CARD
The optional HCS1410 card can be inserted into the MPI slot on the
back of the P 60 series. It is to be used for properties without a Pay-
Per-View system that still want to receive Pro:Idiom locked free-to-
guest high-definition channels.
42PG60C (high gloss black)
42PG65C (high gloss black)

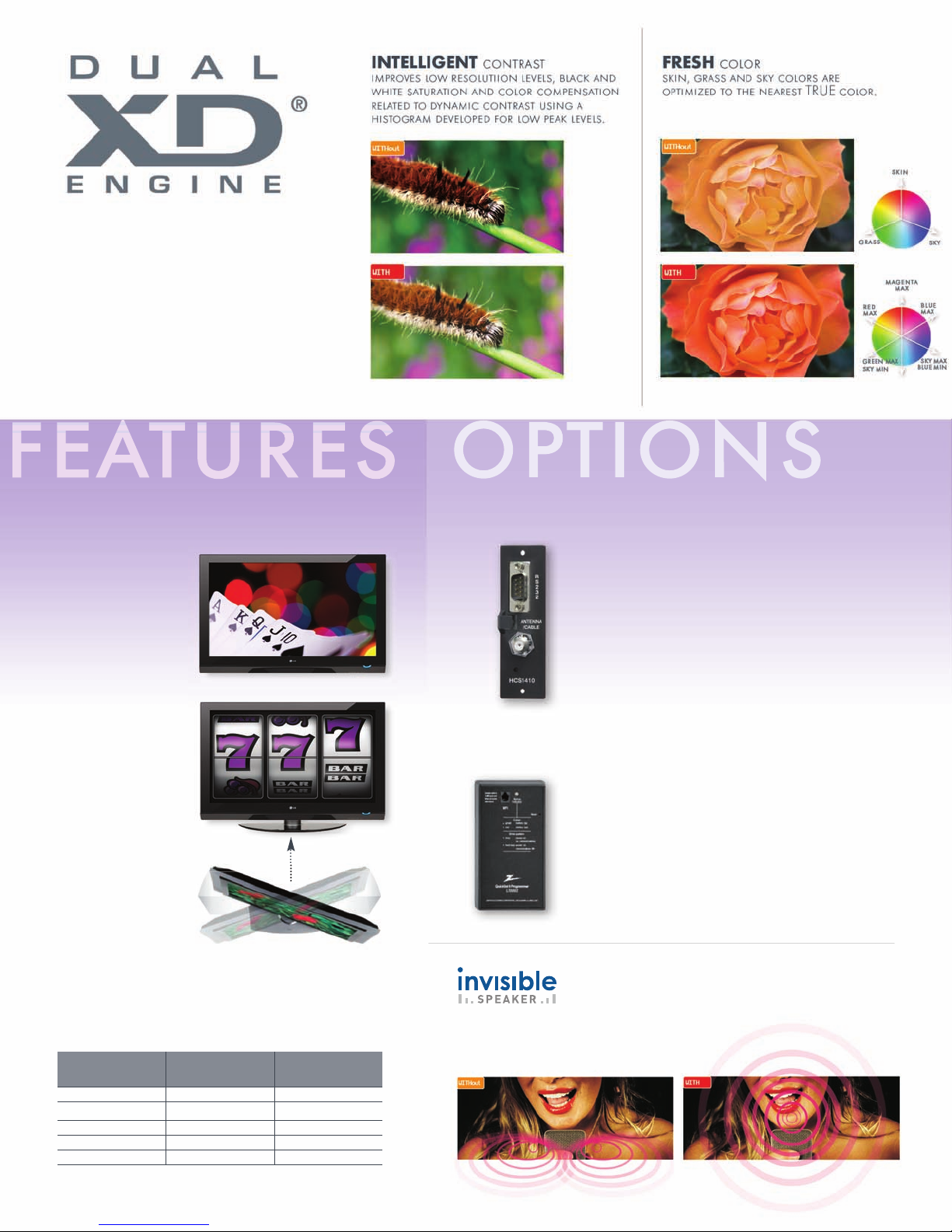

Combines two of L ’s exclusive XD
Engines to help maximize picture
quality for any kind of video content.
By combining XD Engine processors,
panel performance is optimized
providing higher-quality, more realistic
images.
± 20 ° Swivel stand requires
a 1.25” minimum distance
from wall.
BRIGHTNE
(cd /m2)
POWER *
CON UMPTION
(Watts)
Level 0 230 270W
Level 1 97% of Level 0 95% of Level 0
Level 2 79% of Level 0 82% of Level 0
Level 3 66% of Level 0 73% of Level 0
Level 4 52% of Level 0 63% of Level 0
(swivel stand included)
OUND I HEARD, NOT EEN
Breaking through the fixed idea that speaker grills must be exposed,
the Invisible Speaker design provides a “fuller sweet spot” and more
realistic sound. Personally tuned by Mr. Mark Levinson, world-
renowned audio authority, this unique design has rich and lively sound
that can be enjoyed from any angle.
4 POWER AVING LEVEL
Power consumption was measured using IEC62087 dynamic broadcast - content video signal.
Note: These models have a +/- 5% deviation from unit to unit.
By selecting 1 of 4 levels of brightness, a reduction in power
consumption is achieved resulting in energy savings and lower costs.
42P 60C/65C in Vivid Mode
*

REAR JACK PANEL IDE JACK PANEL
VIDEO
AUDIO
VIDEO
AUDIO
MONO
(())
S-VIDEO
REMOTE
CONTROL
OUT
RESET UPDATE
1
HDMI/DVI IN
SPEAKER
OUT
8
AV IN 1
COMPONENT IN
2
LR
LR
AUDIO
(RGB / DVI)
RGB IN
RGB(PC)
RJP
INTERFACE
OPTICAL
DIGITAL
AUDIO OUT
RS-232C IN
(CONTROL&SERVICE )
R
AV IN 2
L/MONO
RR
AUDIO
VIDEO
Dramatization Dramatization Dramatization
41.12”
28.95”
12.13”
3.13”
27.44”
400mm
400mm
41.12”
26.80”
3.13”
400mm
400mm
42PG65C
DIGITAL RIGHT
MANAGEMENT Y TEM
The Pro:Idiom system’s high-quality
security unlocks access to premium
content availability to help
assure rapid, broad deployment
of HDTV and other high value
digital content. Pro:Idiom has
been designed specifically for
industries that use premium HDTV
content from cable, satellite or
video on demand (VOD) services
and as such, could result in lower
costs, and reduced maintenance.
This system is one of the leading
DRM systems embraced by
content providers for both of these
key programming sources. By
using this embedded approach,
security is provided and helps
eliminate the possibility of
customers tampering with or
removing needed components.
(Moving Picture Experts roup)
MPE -4 decodes and delivers
high-definition programming it
receives via satellite. The advanced
coding system is compatible with
current national and local HD
channels, along with digital HD
channels currently launched by
DIRECTV. L built this technology
into its P 60C/65C series TVs to
deliver pure HD without the
need for an external box*.
*Certain functions, such as Pay-Per-View,
may require a set-top box.
MPEG-4 TECHNOLOGY
42PG60C

ULUS
C
LISTED
PLASMA MODULE
PDP Panel Type 42” wide format
Display Area 41.5" diagonal
Aspect Ratio 16:9
Native Display Resolution 1024×768
Decoder Format MPE -4 (H.264 full HD real time decoding, AC-3
decoding)
Dynamic Contrast Ratio 30,000:1
Brightness 1,500 cd/m2
Life Span (approx.) 100,000 hours to half brightness
Anti-reflective screen Non-reflective black matrix structure
Viewing Angle (H/V) 178°/178°
TUNING SYSTEM
Integrated ATSC/NTSC/Clear Yes
QAM Tuner
VIDEO
All Format Converter Yes (1080i/720p/480p/480i » 768p)
Digital Comb Filter 3D
Color Temperature Adjustment 3 Modes (Cool/Med/Warm)
Enhanced Video Yes
Advanced Cinema Mode Yes
Advanced Black Level Yes
DLTI (Digital Luminance Transient Improver) Yes
DCTI (Digital Color Transient Improver) Yes
Black/Blue Stretcher Yes
3:2 Pull Down Yes
Aspect Ratio Control 7 Modes
(Set by Program, 4:3, 16:9, Horizon, Zoom1
Zoom 2, Cinema Zoom)
Picture Control Con/Bri/Tint/Color/Sharpness
Dual XD Engine Yes
XD Picture Improvement Technology Yes (XD Contrast, XD Color, XD NR (Noise), MPE NR)
Integrated Pro:Idiom Yes
EZ Picture 5 Modes (Daylight, Normal, Night Time, User1, User 2)
AUDIO
Invisible Speaker System Yes (No visible speaker grilles)
Speaker System Details 2 Way 4 Speakers
Dolby Digital Decoder Yes
Mono/Stereo/SAP Yes
Surround System 3D EchoSound System
Total Audio Watts (RMS) 2 x 10 W
Bass/Treble/Balance Yes
EZ SoundRite (Auto Volume Limiter) Yes (On/Off)
EZ Sound 6 Modes (Normal, Stadium, News, Music, Theater, User)
REAR INPUTS
RF In 1 (NTSC + ATSC tuner)
A/V In 1
S-Video In 1
Component & R/L Audio In 1 (Y, Pb, Pr) - 480i/p, 720p, 1080i
R B In (DB15-R B) 1(for PC R B)
RS-232C 1
IR In 1
RJ-45 1 (for RJP interface)
MPI Slot 1 (standard type)
Audio In (Phone Jack) 1
HDMI 2
REAR OUTPUTS
Digital Sound Out 1
Speaker Out 1
SIDE OUTPUTS
A/V In 1
S-Video In 1
PECIAL FEATURE
Picture in Picture (1 Tuner) Yes
Swap (Main/Sub) Yes (Only RF/AV)
Main Source Yes
Sub Source Yes
Image Sticking Minimization with Yes
Pixel Orbiter, White Wash, Inversion
Trilingual Menus English, Spanish, French
Audio Language (only in DTV/ Yes
CADTV mode)
EZ Menu Yes
Commercial Installation Menu Yes (English Only)
TV Link Protocol TV Link-Commercial
Discrete IR Yes
Auto/Manual Clock Yes (Manual Clock Only)
Auto Shut-off (no input signal after 10 min.) Yes
On/Off Timer Yes
Sleep Timer Yes
Auto/Manual Programing Yes
Channel Labeling Yes
Closed Captions (customizable) Yes
Mute Yes
Decryption Yes
RJP Plug&Play Support Yes
Flashback (Quick View) Yes
Parental Control/V-Chip Yes
Calibration Mode Yes
Function Menu Yes
POWER
Power Consumption 330 W (measured with static image pattern)
270 Wh (measured with video signal - IE62087
dynamic broadcast)
Power Source 100~240V 50/60Hz
CABINET
Dimensions w/Stand (W×H×D)
41.12"×28.95"×12.13" (42P 65C)
w/o Stand (W×H×D) 41.12"×26.80"×3.13" (42P 60C)
Weight w/Stand 61.30 Ibs (42P 65C)
w/o Stand 55.13 Ibs (42P 60C)
Shipping Dimensions (W×H×D) 52.36" x 30.39" x 10.12 (42P 65C)
44.09" x 31.57" x 11.22" (42P 60C)
Shipping Weight 74.53 lbs (42P 65C)
67.47 lbs (42P 60C)
Table Stand ± 20° Swivel (42P 65C only)
Cabinet Color High loss Black
VESA™ Compatible 400mm × 400mm, M6
Power Button Red (Stand-by); Blue (On)
Cable Management Clip Yes
OPERATING ENVIRONMENT
Storage Temperature Range -4°F to 140°F (-20°C to 60°C)
Storage Humidity Range under 85%
Altitude Up to 9,514 feet (2,900m)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Operating Humidity Range under 80%
COMPATIBLE FORMAT
HDTV, NTSC, V A, SV A, X A, WX A Yes
Max Computer Resolution (R B) 1024 x 768
REQUIRED APPROVAL
UL, c-UL, NOM Yes
RoHS Compliant Yes
ERVICE/LIMITED WARRANTY
Limited Warranty 2 Years Parts/Labor
UPPLIED ACCE ORIE
Owners Manual, Power Cord (6 foot), L Universal Remote Control, cable
management clip
UPC
42P 65C 7 19192 17442 9
42P 60C 7 19192 17441 2
specifications
www.L commercial.com
plasma tv
L Electronics U.S.A., Inc.
Commercial Products Division
2000 Millbrook Drive,
Lincolnshire, IL 60069
Customer ervice: 888.865.3026
Contact Your LG Regional ales Representative:
Hospitality: 800.228.1236
B2B: 800.897.8788
Channel Markets: 800.897.8871
SPEC_42P 60-65C L 070809_PR
42P 60C
42P 65C
42" class (41.5" diagonal)
42" class (41.5" diagonal)
with stand
no stand
All screen images are simulated. Dimensions and weights are approximate. Design,
features and specifications subject to change without notice.
