LG 42PX3DBV User manual

PLASMA TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : AF-044C
MODEL : 42PX3DBV 42PX3DBV-UC
MODEL : 42PX3DLV 42PX3DLV-UC
CANADA : http//biz.lgservice.com
USA : http//www.lgservice.com
: http//lgservice.com/techsup.html
PR
VOL
MENUTV/AV OK
All manuals and user guides at all-guides.com
all-guides.com

- 2 -

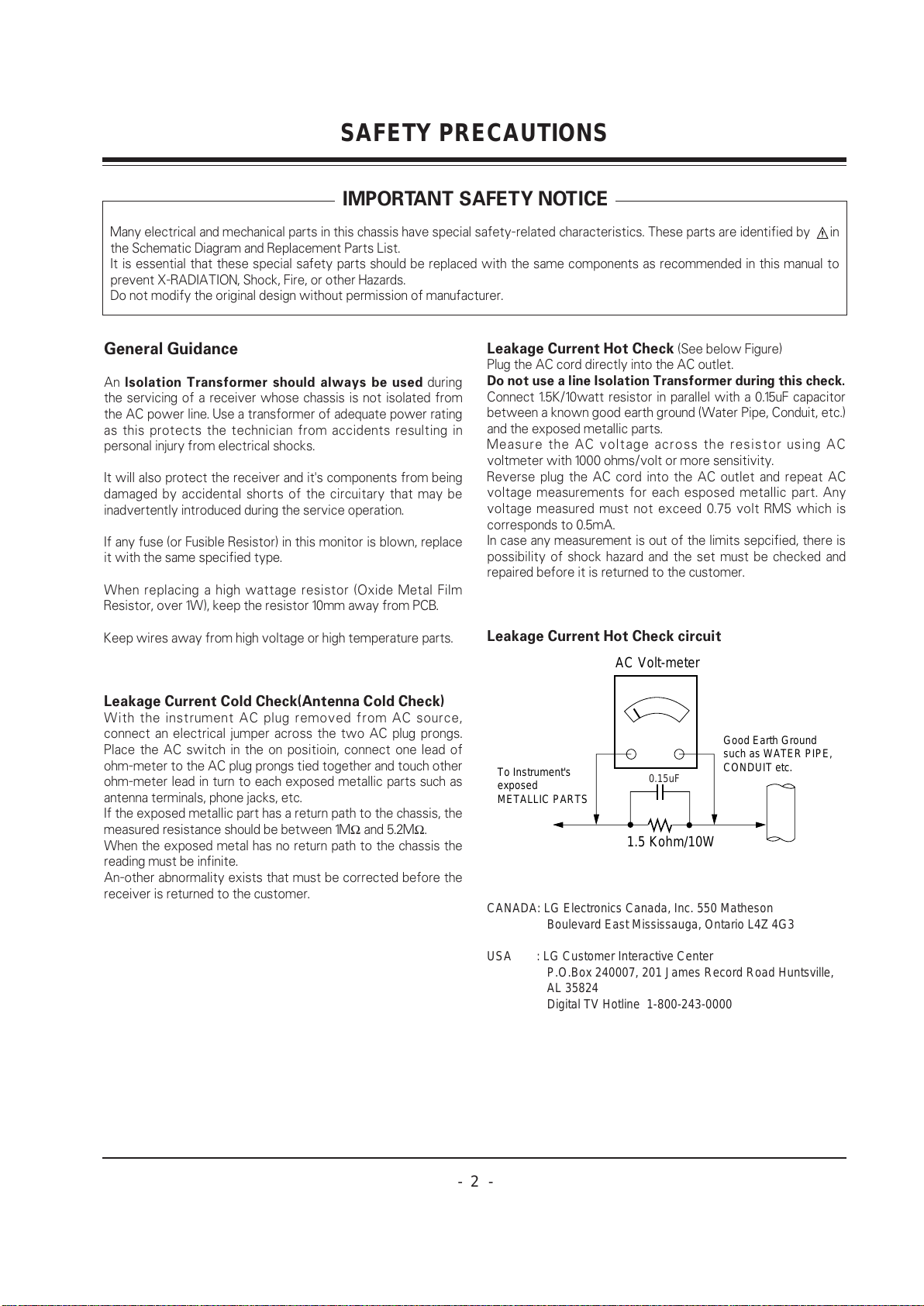

SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in
the Schematic Diagram and Replacement Parts List.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to
prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An lsolation Transformer should always be used during
the servicing of a receiver whose chassis is not isolated from
the AC power line. Use a transformer of adequate power rating
as this protects the technician from accidents resulting in
personal injury from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitary that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this monitor is blown, replace
it with the same specified type.
When replacing a high wattage resistor (Oxide Metal Film
Resistor, over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source,
connect an electrical jumper across the two AC plug prongs.
Place the AC switch in the on positioin, connect one lead of
ohm-meter to the AC plug prongs tied together and touch other
ohm-meter lead in turn to each exposed metallic parts such as
antenna terminals, phone jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An-other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC
voltmeter with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC
voltage measurements for each esposed metallic part. Any
voltage measured must not exceed 0.75 volt RMS which is
corresponds to 0.5mA.
In case any measurement is out of the limits sepcified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
CANADA: LG Electronics Canada, Inc. 550 Matheson
Boulevard East Mississauga, Ontario L4Z 4G3
USA : LG Customer Interactive Center
P.O.Box 240007, 201 James Record Road Huntsville,
AL 35824
Digital TV Hotline [phone]
1.5 Kohm/10W
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF
All manuals and user guides at all-guides.com

- 3 -

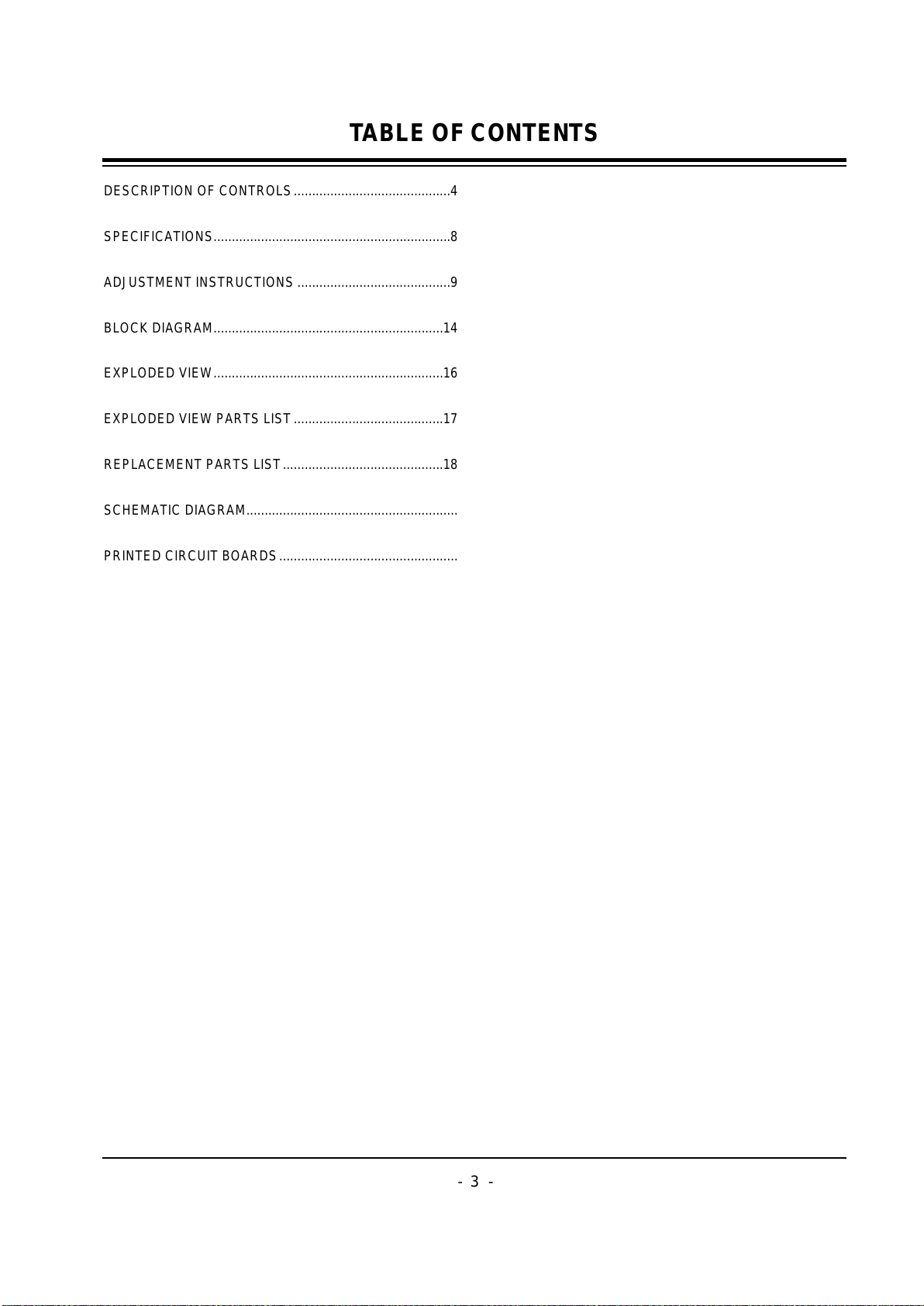

DESCRIPTION OF CONTROLS...........................................4
SPECIFICATIONS.................................................................8

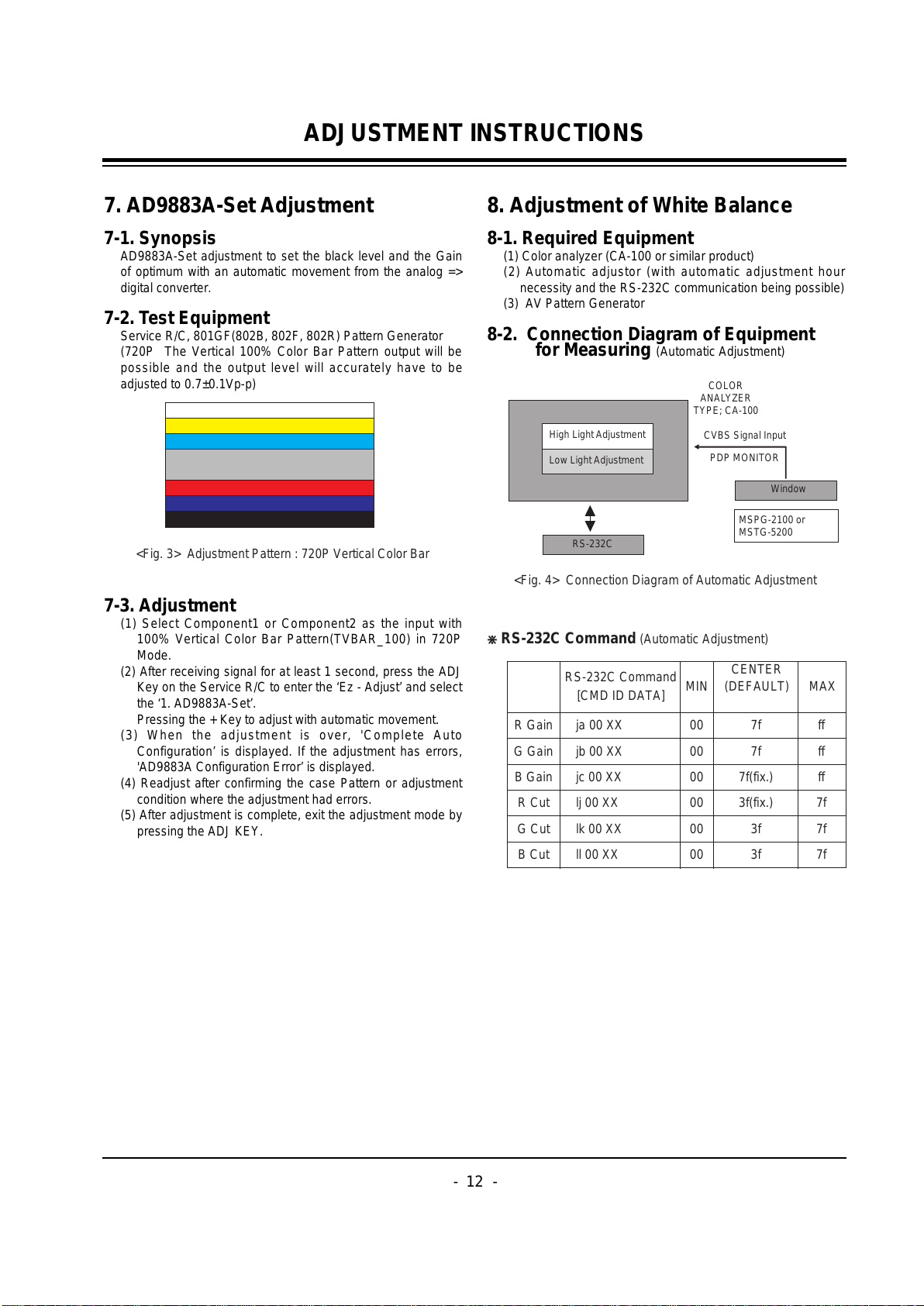

ADJUSTMENT INSTRUCTIONS ..........................................9

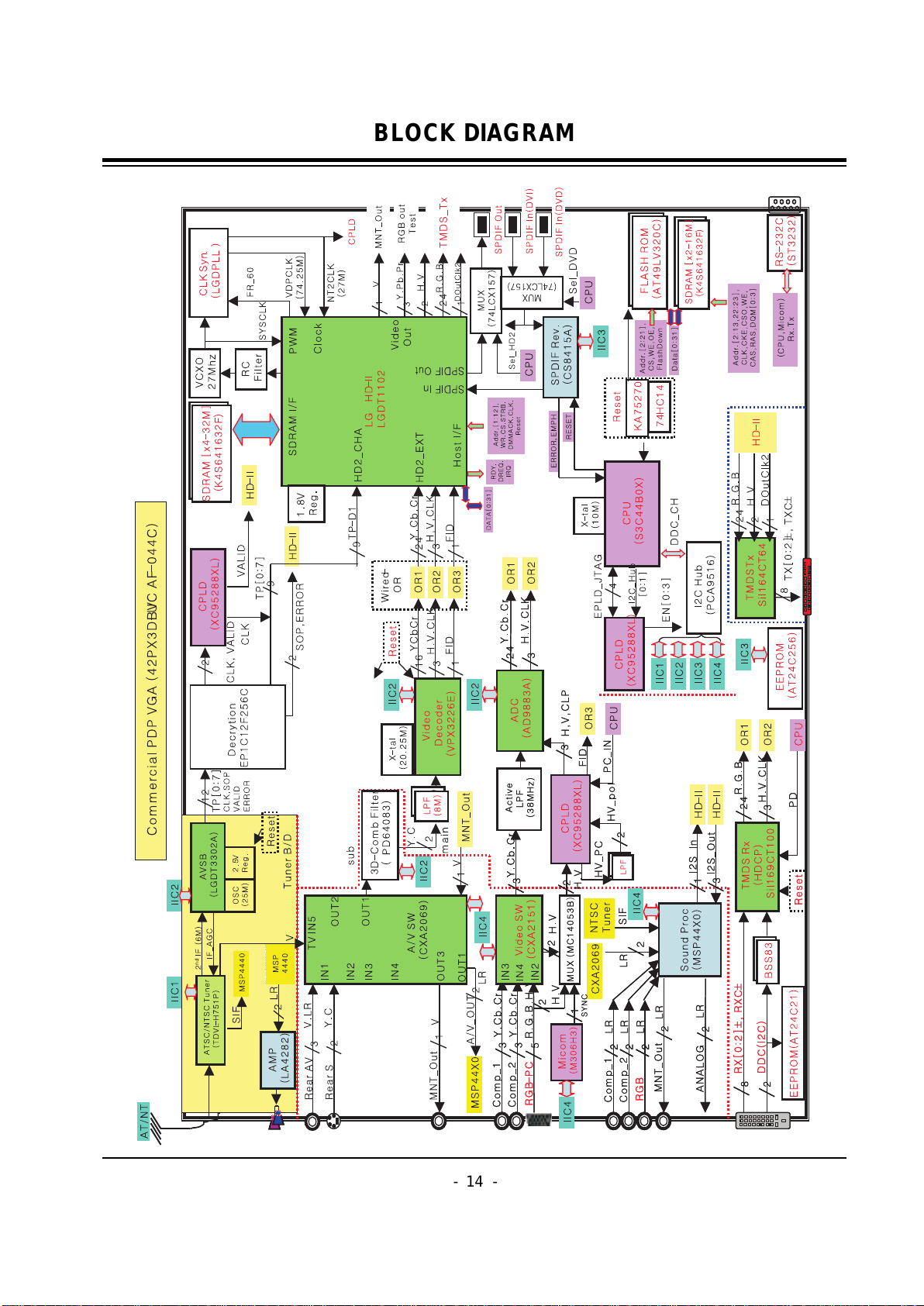

BLOCK DIAGRAM...............................................................14
EXPLODED VIEW...............................................................16

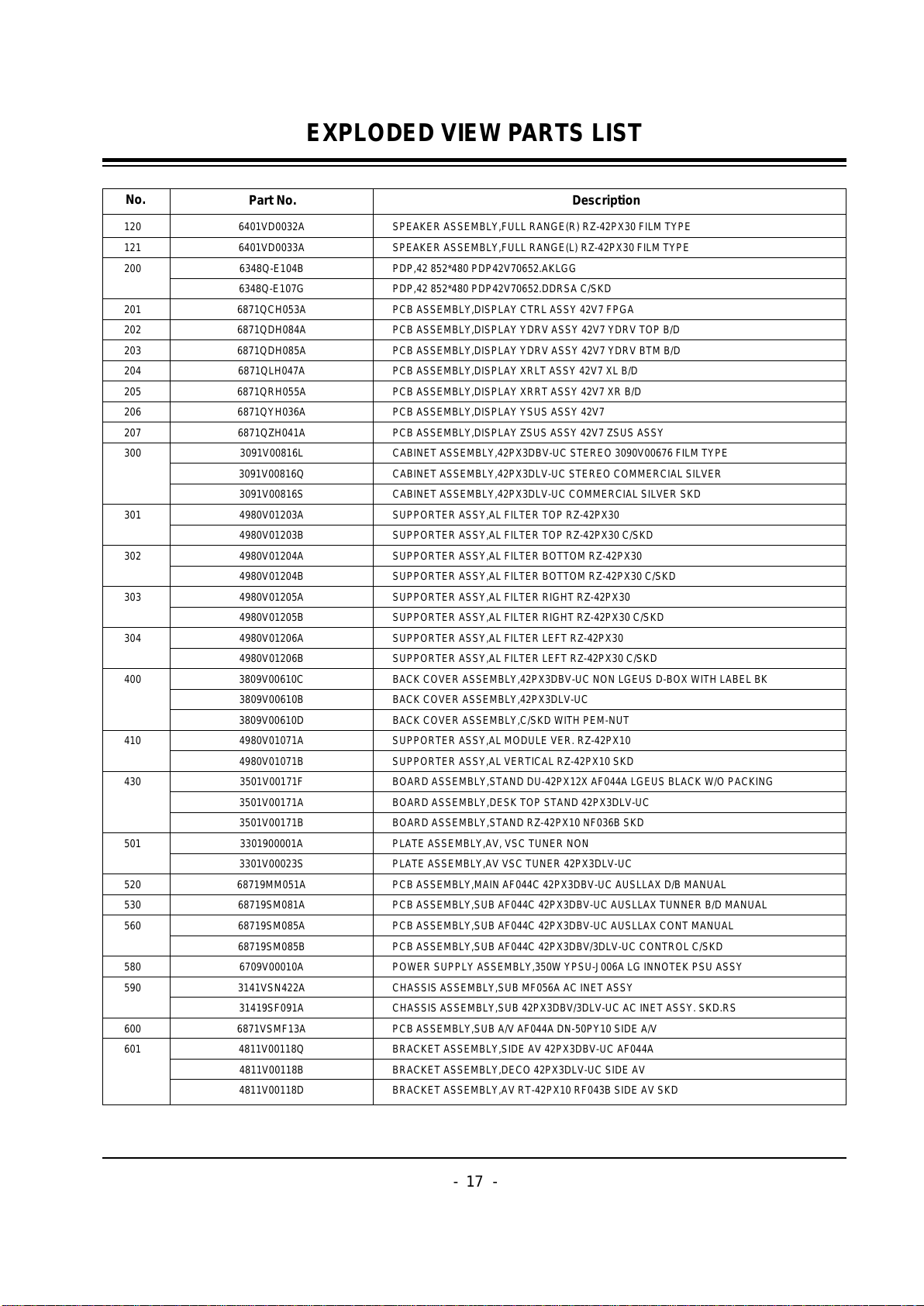

EXPLODED VIEW PARTS LIST.........................................17

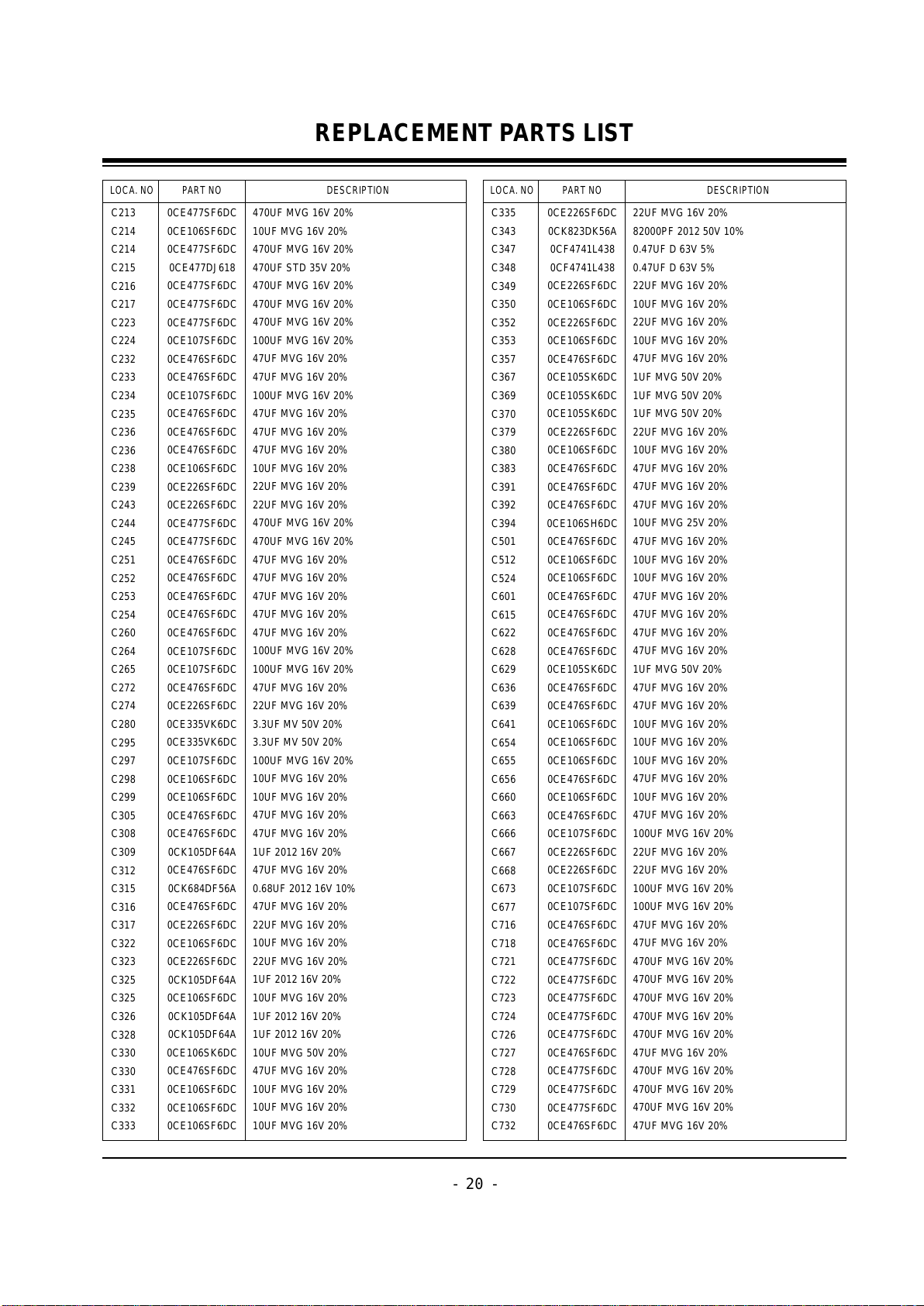

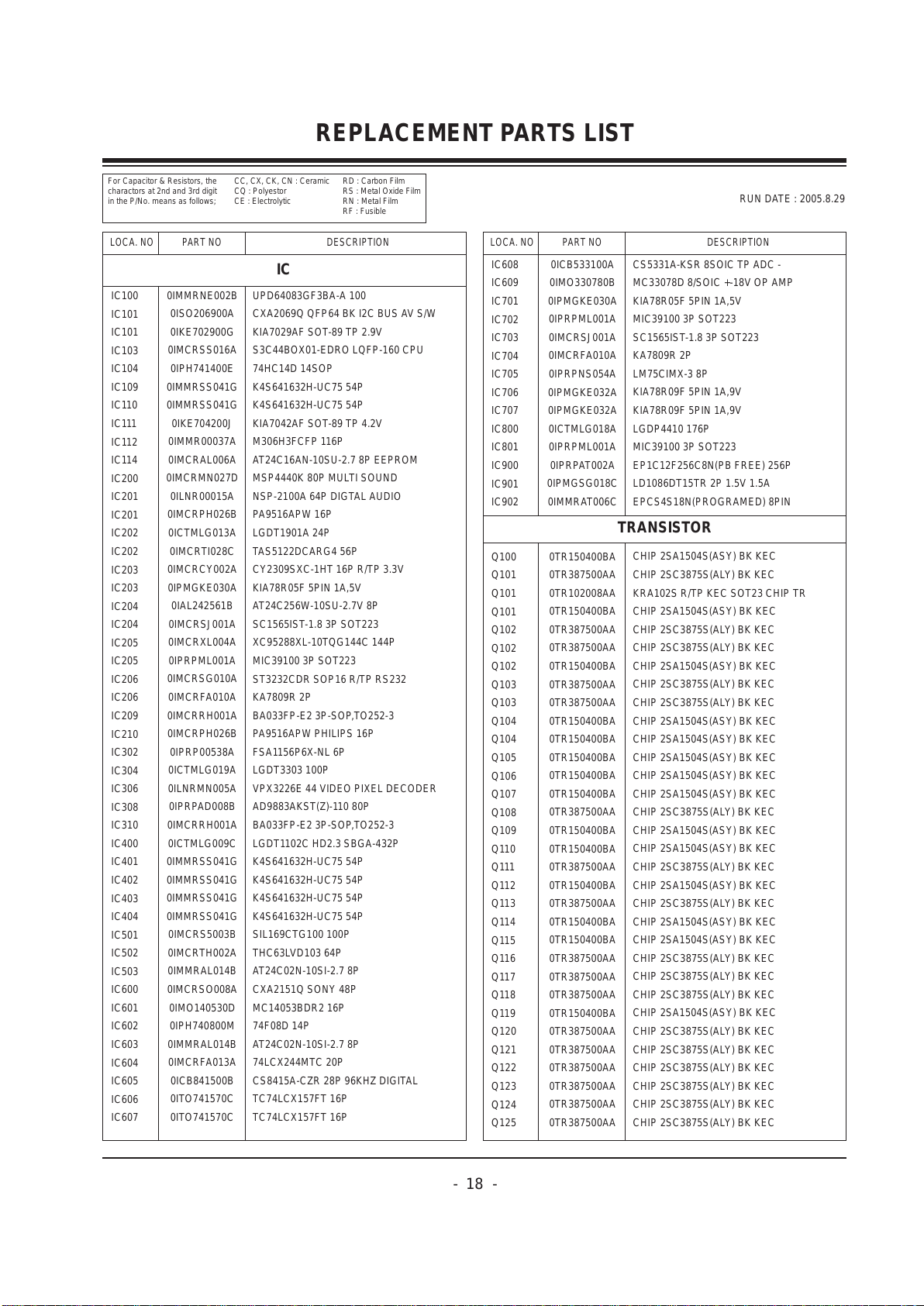

REPLACEMENT PARTS LIST............................................18
SCHEMATIC DIAGRAM..........................................................
PRINTED CIRCUIT BOARDS.................................................
TABLE OF CONTENTS
All manuals and user guides at all-guides.com

- 4 -
Controls
Controls
- This is a simplified representation of front panel.
Image shown may be somewhat different from your TV.
Front Panel Controls
Front Panel Controls
MENU VOL CH
TV/VIDEOENTER
POWER Button
Remote Control Sensor VOLUME (FF, GG) Buttons
Power Standby Indicator
Illuminates red in standby mode, Illuminates
green when the TV is turned on.
CHANNEL (EE, DD) Buttons
MENU Button
TV/VIDEO Button
ENTER Button
DESCRIPTION OF CONTROLS
All manuals and user guides at all-guides.com

- 5 -
Connection Options
Connection Options
RS-VIDEOVIDEO
L/MONO
AUDIO
A/V 2
REMOTE
CONTROL
RS-232CINPUT
(CONTROL/SERVICE)
ACINPUT
AUDIO INPUT
COMPONENT2
COMPONENT1
RL
DIGITAL AUDIO
(OPTICAL)
DVI
INPUT
COMPONENT1
INPUT
OUTPUT
AUDIO INPUT
DVI INPUT
(PC/DTV INPUT)
RGB INPUT
(PC/DTV INPUT)
VIDEO INPUT
DVD
/DTV
INPUT
A/V
INPUT1
AUDIO
RL
(MONO)
VIDEO
S-VIDEO
Antenna
Analog/DTV
Back Connection Panel
Back Connection Panel
Antenna Inputs
Connect cable or antenna signals to the
TV, either directly or through your cable
box.
DVI Input/Audio Input/RGB
Input
Connect the monitor output con-
nector from a PC to the appro-
priate input port.
Digital Audio (DVI: Digital Visual
Interface/Component1) Input/
Digital Audio Output
Connect digital audio from various types
of equipment. Note: In standby mode,
these ports will not work.
Audio/Video Input 1
Connect audio/video out-
put from an external
device to these jacks.
DVD/DTV Input (Component
1-2)
Connect a component
video/audio device to these
jacks.
Remote Control
Port
Connect your wired
remote control here.
S-Video Input
Connect S-Video out from an
S-VIDEO device to the S-
VIDEO input.
Power Cord Socket
This TV operates on an AC power. The voltage is indi-
cated on the Specifications page. Never attempt to oper-
ate the TV on DC power.
S-VIDEO Input
A connection available to provide better
picture quality than the video input.
VIDEO Input
Connects the video signal from a video
device.
AUDIO Input
Use to connect to hear stereo sound
from an external device.
RS-232C INPUT
(CONTROL/SERVICE) PORT
Connect to the RS-232C port
on a PC.
DESCRIPTION OF CONTROLS
All manuals and user guides at all-guides.com

- 6 -
Remote Control Key Functions
Remote Control Key Functions
MODE
FLASHBK
FREEZE
TV/VIDEO
SAP
EXIT
TIMER
CC
XD
COMP/RGB/DVI
INFO
SURF
COMP/RGB/DVI
Selects: Component 1-2, RGB-DTV (or
RGB-PC), DVI-DTV (or DVI-PC) input
sources.
MUTE
Switches the sound on or off.
MODE
Selects the remote operating mode: TV,
DVD, VCR, AUDIO, CABLE or STB. Select
a mode other than TV, for the remote to
operate an external device.
FLASHBK
Tunes to the recent channels.
EXIT
Clears all on-screen displays and returns to
TV viewing from any menu.
TIMER
Lets you select the amount of time before
your TV turns itself off automatically.
MENU
Brings up the main menu to the screen.
EZ PIC
Selects a factory preset picture mode
depending on the viewing environment.
FREEZE
Freezes the currently-viewed picture.
Main picture is frozen.
TV/VIDEO
External input modes rotate in regular
sequence: Antenna, Cable, Video, Front
Video, Component 1-2 and RGB-DTV (or
RGB-PC) input sources.
(Video, Front Video, Component 1-2 input
sources are linked automatically, only if
these are connected )
RATIO
Changes the aspect ratio.
SURF
Scrolls the Favorite channels.
SAP
Selects MTS sound: Mono, Stereo, and
SAP in Analog mode. Change the audio
language in DTV mode.
- When using the remote control, aim it at the remote control sensor on the TV.
DESCRIPTION OF CONTROLS
All manuals and user guides at all-guides.com
all-guides.com

- 7 -

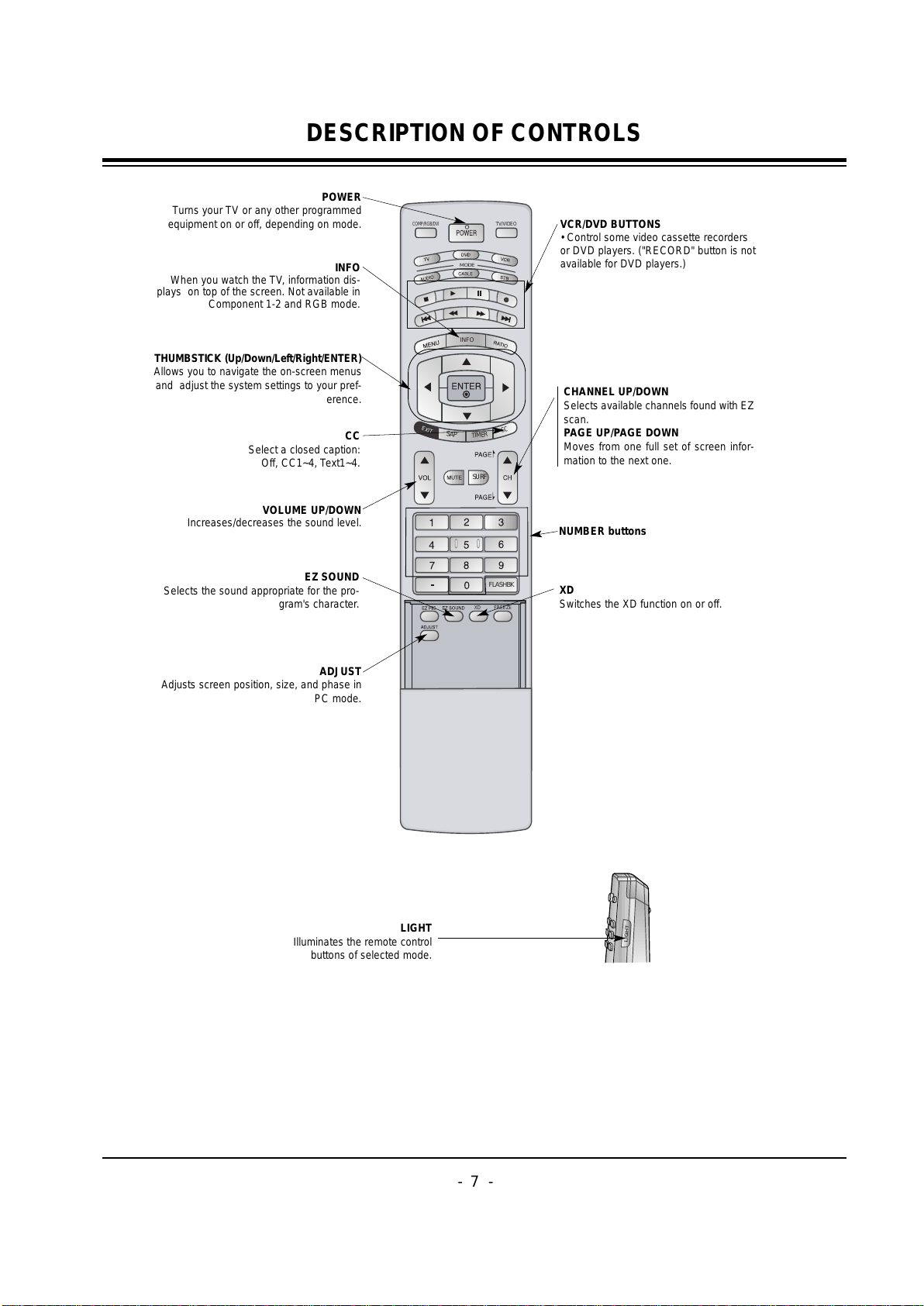

MODE
FLASHBK
FREEZE
TV/VIDEO
SAP
EXIT
TIMER
CC
XD
COMP/RGB/DVI
INFO
SURF
LIGHT
Illuminates the remote control
buttons of selected mode.
NUMBER buttons
VCR/DVD BUTTONS
• Control some video cassette recorders
or DVD players. ("RECORD" button is not
available for DVD players.)
POWER
Turns your TV or any other programmed
equipment on or off, depending on mode.
CC
Select a closed caption:
Off, CC1~4, Text1~4.
THUMBSTICK (Up/Down/Left/Right/ENTER)
Allows you to navigate the on-screen menus
and adjust the system settings to your pref-
erence. CHANNEL UP/DOWN
Selects available channels found with EZ
scan.
PAGE UP/PAGE DOWN
Moves from one full set of screen infor-
mation to the next one.
EZ SOUND
Selects the sound appropriate for the pro-
gram's character. XD
Switches the XD function on or off.
VOLUME UP/DOWN
Increases/decreases the sound level.
INFO
When you watch the TV, information dis-
plays on top of the screen. Not available in
Component 1-2 and RGB mode.
ADJUST
Adjusts screen position, size, and phase in
PC mode.
DESCRIPTION OF CONTROLS
All manuals and user guides at all-guides.com

- 8 -
•The specifications shown above may be changed without prior notice for quality improvement.
MODEL
AC100-240V ~ 50/60Hz
NTSC-M, ATSC, 64 & 256 QAM
VHF 2 ~ 13, UHF 14 ~ 69, CATV 1 ~ 125, CADTV 1 ~ 135. DTV 2 ~ 69
75 Ω
32 ~ 104°F (0 ~ 40°C)
Less than 80%
47.6 / 1210
27.6 / 701
11.6 / 295
66.1 / 30
852 x 480 (Dot)
Width (inches / mm)
Height (inches / mm)
Depth (inches / mm)
Weight (pounds / kg)
Resolution
Power requirement
Television System
Program Coverage
External Antenna Impedance
Operating Temperature Range
Operating Humidity Range
42PX3DBV-UC/42PX3DLV-UC
SPECIFICATIONS
All manuals and user guides at all-guides.com

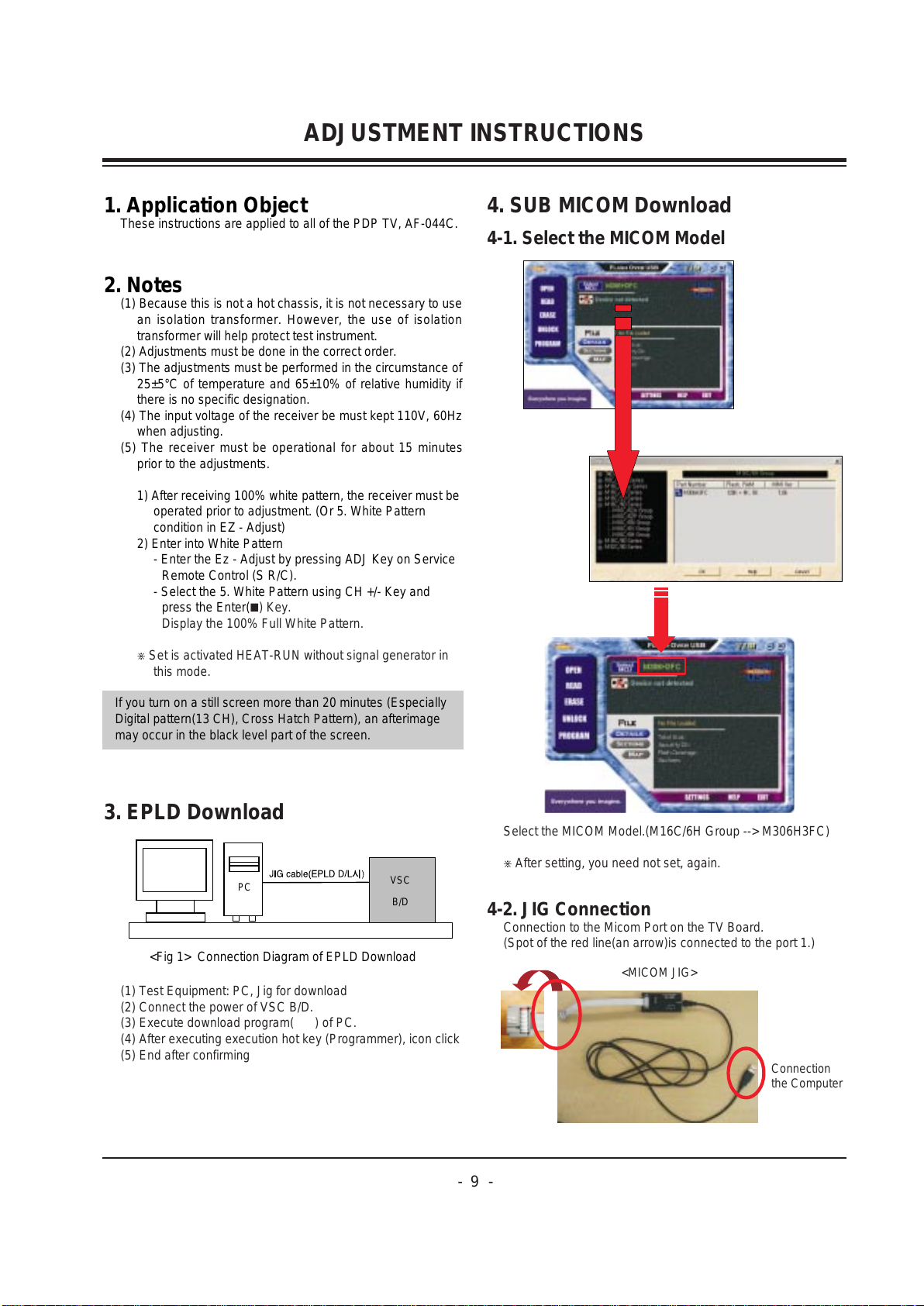

1. Application Object
These instructions are applied to all of the PDP TV, AF-044C.
2. Notes
(1) Because this is not a hot chassis, it is not necessary to use
an isolation transformer. However, the use of isolation
transformer will help protect test instrument.
(2) Adjustments must be done in the correct order.
(3) The adjustments must be performed in the circumstance of
25±5°C of temperature and 65±10% of relative humidity if
there is no specific designation.
(4) The input voltage of the receiver be must kept 110V, 60Hz
when adjusting.
(5) The receiver must be operational for about 15 minutes
prior to the adjustments.
1) After receiving 100% white pattern, the receiver must be
operated prior to adjustment. (Or 5. White Pattern
condition in EZ - Adjust)
2) Enter into White Pattern
- Enter the Ez - Adjust by pressing ADJ Key on Service
Remote Control (S R/C).
- Select the 5. White Pattern using CH +/- Key and
press the Enter(Y) Key.
Display the 100% Full White Pattern.
[Set is activated HEAT-RUN without signal generator in
this mode.
3. EPLD Download
(1) Test Equipment: PC, Jig for download
(2) Connect the power of VSC B/D.
(3) Execute download program( ) of PC.
(4) After executing execution hot key (Programmer), icon click
(5) End after confirming
4. SUB MICOM Download
4-1. Select the MICOM Model
Select the MICOM Model.(M16C/6H Group --> M306H3FC)
[After setting, you need not set, again.
4-2. JIG Connection
Connection to the Micom Port on the TV Board.
(Spot of the red line(an arrow)is connected to the port 1.)
- 9 -
ADJUSTMENT INSTRUCTIONS
If you turn on a still screen more than 20 minutes (Especially
Digital pattern(13 CH), Cross Hatch Pattern), an afterimage
may occur in the black level part of the screen.
PC VSC
B/D
<Fig 1> Connection Diagram of EPLD Download
<MICOM JIG>
Connection
the Computer
All manuals and user guides at all-guides.com

- 10 -
ADJUSTMENT INSTRUCTIONS

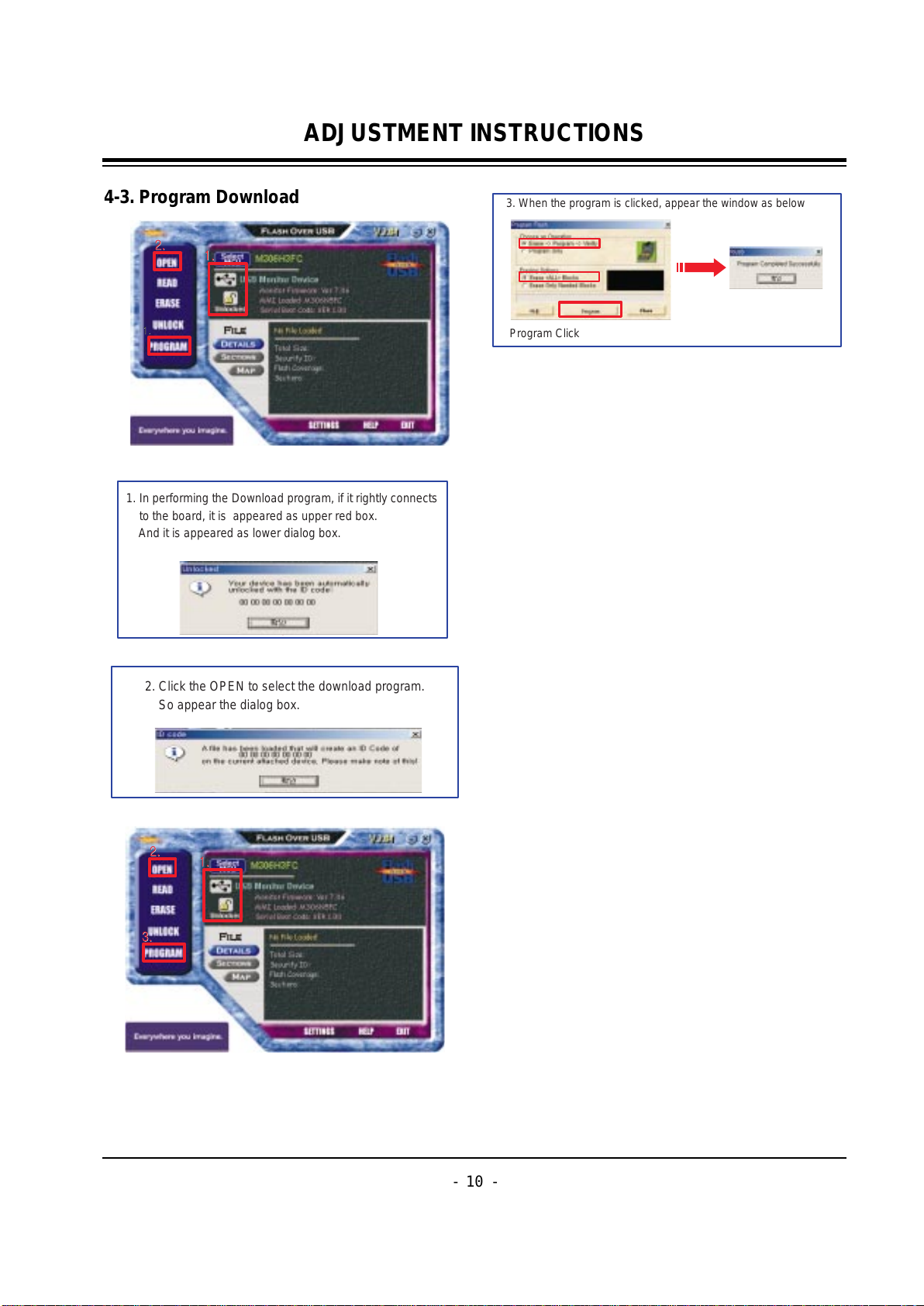

4-3. Program Download
1. In performing the Download program, if it rightly connects
to the board, it is appeared as upper red box.
And it is appeared as lower dialog box.
2. Click the OPEN to select the download program.
So appear the dialog box.
Program Click
3. When the program is clicked, appear the window as below
All manuals and user guides at all-guides.com

- 11 -
ADJUSTMENT INSTRUCTIONS
5. POWER PCB Assy Voltage
Adjustment (Va, Vs Voltage Adjustment)
5-1. Test Equipment :D.M.M 1EA
5-2. Connection Diagram for Measuring
Refer to Fig 1.
5-3. Adjustment
(1) Va Adjustment
1) Connect + terminal of D.M.M to Va pin of P807 and
connect – terminal to GND pin of P807.
2) Adjust RV501 voltage to match that of the label on the
Top/Right of the panel. (Deviation : ±0.5V)
(2) Vs Adjustment
1) Connect + terminal of D.M.M to Vs pin of P807 and
connect – terminal to GND pin of P807.
2) Adjust RV401 voltage to match that of the label on the
Top/Right of the panel. (Deviation : ±0.5V)
6. EDID(The Extended Display
Identification Data)/DDC
(Display Data Channel) download
This is the function that enables “Plug and Play".
6-1. EDID DATA for DVI
:EDID for DVI (DDC (Display Data Channel) Data)
Block(0) EDID table =
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
__________________________________________________
00 | 00 FF FF FF FF FF FF 00 1E 6D 01 01 01 01 01 01
10 | 06 0E 01 03 98 5C 34 96 08 CF 72 A3 57 4C B0 23
20 | 09 45 5D EF CE 00 31 D9 31 59 45 59 01 01 01 01
30 | 01 01 01 01 01 40 C3 1E 00 20 41 00 20 30 10 60
40 | 13 00 98 08 32 00 00 18 00 00 00 FC 00 4C 47 20
50 | 54 56 0A 00 00 00 00 00 00 00 00 00 00 FD 00 30
60 | 4C 1E 64 0F 00 0A 20 20 20 20 20 20 00 00 00 FC
70 | 00 0A 00 00 00 00 00 00 00 00 00 00 00 00 01 1D
Block(1) EDID table =
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
_______________________________________________
00 | 02 01 04 00 01 1D 00 72 51 D0 1E 20 6E 28 55
00
10 | C4 8E 21 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10
3E 20 | 96 00 C4 8E 21 00 00 18 01 1D 80 18 71 1C
16 20 30 | 58 2C 25 00 C4 8E 21 00 00 9E 00 00 00
00 00 00 40 | 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00
50 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00
60 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00
70 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
BF
6-2. EDID DATA for RGB
:EDID table =
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
_________________________________________________
00 | 00 FF FF FF FF FF FF 00 1E 6D 01 01 01 01 01 01
10 | 06 0E 01 03 18 5C 34 96 08 CF 72 A3 57 4C B0 23
20 | 09 45 5D EF CE 00 31 D9 31 59 45 59 01 01 01 01
30 | 01 01 01 01 01 40 C3 1E 00 20 41 00 20 30 10 60
40 | 13 00 98 08 32 00 00 18 00 00 00 FC 00 4C 47 20
50 | 54 56 0A 00 00 00 00 00 00 00 00 00 00 FD 00 30
60 | 4C 1E 64 0F 00 0A 20 20 20 20 20 20 00 00 00 FC
70 | 00 0A 00 00 00 00 00 00 00 00 00 00 00 00 00 9E
Each PCB Assy must be checked by Check JIG Set before
assembly. (Especially, be careful Power PCB Assy which can
cause Damage to the PDP Module.)
<Fig. 1> Connection Diagram of Power Adjustment for the
Measuring (P/N: 6709V00010A)
All manuals and user guides at all-guides.com
all-guides.com

- 12 -
ADJUSTMENT INSTRUCTIONS
7. AD9883A-Set Adjustment
7-1. Synopsis
AD9883A-Set adjustment to set the black level and the Gain
of optimum with an automatic movement from the analog =>
digital converter.
7-2. Test Equipment
Service R/C, 801GF(802B, 802F, 802R) Pattern Generator
(720P The Vertical 100% Color Bar Pattern output will be
possible and the output level will accurately have to be
adjusted to 0.7±0.1Vp-p)
7-3. Adjustment
(1) Select Component1 or Component2 as the input with
100% Vertical Color Bar Pattern(TVBAR_100) in 720P
Mode.
(2) After receiving signal for at least 1 second, press the ADJ
Key on the Service R/C to enter the ‘Ez - Adjust’ and select
the ‘1. AD9883A-Set’.
Pressing the + Key to adjust with automatic movement.
(3) When the adjustment is over, 'Complete Auto
Configuration’ is displayed. If the adjustment has errors,
'AD9883A Configuration Error’ is displayed.
(4) Readjust after confirming the case Pattern or adjustment
condition where the adjustment had errors.
(5) After adjustment is complete, exit the adjustment mode by
pressing the ADJ KEY.
8. Adjustment of White Balance
8-1. Required Equipment
(1) Color analyzer (CA-100 or similar product)
(2) Automatic adjustor (with automatic adjustment hour
necessity and the RS-232C communication being possible)
(3) AV Pattern Generator
8-2. Connection Diagram of Equipment
for Measuring (Automatic Adjustment)
[[RS-232C Command (Automatic Adjustment)
<Fig. 3> Adjustment Pattern : 720P Vertical Color Bar
High Light Adjustment
COLOR
ANALYZER
TYPE; CA-100
CVBS Signal Input
PDP MONITOR
Window
RS-232C
MSPG-2100 or
MSTG-5200
Low Light Adjustment
<Fig. 4> Connection Diagram of Automatic Adjustment
R Gain
G Gain
B Gain
R Cut
G Cut
B Cut
00
00
00
00
00
00
ff
ff
ff
7f
7f
7f
ja 00 XX
jb 00 XX
jc 00 XX
lj 00 XX
lk 00 XX
ll 00 XX
7f
7f
7f(fix.)
3f(fix.)
3f
3f
RS-232C Command
[CMD ID DATA] MIN CENTER
(DEFAULT) MAX
All manuals and user guides at all-guides.com

- 13 -
ADJUSTMENT INSTRUCTIONS
8-3. Adjustment of White Balance
O Operate the Zero-calibration of the CA-100, then attach
sensor to PDP module surface when you adjust.
O Manual adjustment is also possible by the following sequence.
(1) Enter ‘Ez - Adjust’ by pressing ADJ KEY on the Service
Remote Control.
(2) Select "5. WHITE PATTERN" using CH +/- Key and HEAT
RUN at least 15 minutes by pressing the ENTER Key.
(3) Receive the Window pattern signal from DVI Pattern
Generator. (DVI-DTV 720P/60Hz)
(4) Set Picture condition to “CLEAR Image” and ‘XD’ off
(5) After attaching sensor to center of screen, select ‘3. White-
Balance’ of ‘Ez - Adjust’ by pressing the ADJ KEY on the
Service R/C. Then enter adjustment mode by pressing the
Right KEY (
G ) .
(6) Adjust the Hight Light using R Gain/G Gain and adjust the
Low Light using G Cut/B Cut.
(7) Adjust using Volume +/- KEY.
(B Gain: 127/R Cut: 63 Fix.)
High Light: Digital Gray 160Step
Low Light: Digital Gray 55Step
X; 0.290±0.003 Y; 0.285±0.003
Color temperature: 9,200°K±500°K
(8) After adjustment is complete, move to Ez - Adjust screen
by pressing the ENTER(Y) KEY. Then exit the adjustment
mode by press ADJ KEY.
9. DVCO Adjustment
(1) After adjusting Main/Sub Contrast, receive a Digital
Pattern.
(2) Select ‘4. DVCO-Set’ by pressing the ADJ KEY on the
Service R/C and adjust by pressing the Right KEY (
G ) .
(3) When adjustment is complete,“DVCO-Set“ will appear. Exit
the adjustment mode menu by pressing ADJ key.
All manuals and user guides at all-guides.com

- 14 -
BLOCK DIAGRAM
All manuals and user guides at all-guides.com

- 15 -
NOTES
All manuals and user guides at all-guides.com

- 16 -
EXPLODED VIEW
300
301
304
302
202 206
203
204
201
205
580
410
121
601
600
120
400
303
207
200
430
501
590
560
520
530
All manuals and user guides at all-guides.com
all-guides.com

- 17 -
EXPLODED VIEW PARTS LIST
120 6401VD0032A SPEAKER ASSEMBLY,FULL RANGE(R) RZ-42PX30 FILM TYPE
121 6401VD0033A SPEAKER ASSEMBLY,FULL RANGE(L) RZ-42PX30 FILM TYPE
200 6348Q-E104B PDP,42 852*480 PDP42V70652.AKLGG
6348Q-E107G PDP,42 852*480 PDP42V70652.DDRSA C/SKD
201 6871QCH053A PCB ASSEMBLY,DISPLAY CTRL ASSY 42V7 FPGA
202 6871QDH084A PCB ASSEMBLY,DISPLAY YDRV ASSY 42V7 YDRV TOP B/D
203 6871QDH085A PCB ASSEMBLY,DISPLAY YDRV ASSY 42V7 YDRV BTM B/D
204 6871QLH047A PCB ASSEMBLY,DISPLAY XRLT ASSY 42V7 XL B/D
205 6871QRH055A PCB ASSEMBLY,DISPLAY XRRT ASSY 42V7 XR B/D
206 6871QYH036A PCB ASSEMBLY,DISPLAY YSUS ASSY 42V7
207 6871QZH041A PCB ASSEMBLY,DISPLAY ZSUS ASSY 42V7 ZSUS ASSY
300 3091V00816L CABINET ASSEMBLY,42PX3DBV-UC STEREO 3090V00676 FILM TYPE
3091V00816Q CABINET ASSEMBLY,42PX3DLV-UC STEREO COMMERCIAL SILVER
3091V00816S CABINET ASSEMBLY,42PX3DLV-UC COMMERCIAL SILVER SKD
301 4980V01203A SUPPORTER ASSY,AL FILTER TOP RZ-42PX30
4980V01203B SUPPORTER ASSY,AL FILTER TOP RZ-42PX30 C/SKD
302 4980V01204A SUPPORTER ASSY,AL FILTER BOTTOM RZ-42PX30
4980V01204B SUPPORTER ASSY,AL FILTER BOTTOM RZ-42PX30 C/SKD
303 4980V01205A SUPPORTER ASSY,AL FILTER RIGHT RZ-42PX30
4980V01205B SUPPORTER ASSY,AL FILTER RIGHT RZ-42PX30 C/SKD
304 4980V01206A SUPPORTER ASSY,AL FILTER LEFT RZ-42PX30
4980V01206B SUPPORTER ASSY,AL FILTER LEFT RZ-42PX30 C/SKD
400 3809V00610C BACK COVER ASSEMBLY,42PX3DBV-UC NON LGEUS D-BOX WITH LABEL BK
3809V00610B BACK COVER ASSEMBLY,42PX3DLV-UC
3809V00610D BACK COVER ASSEMBLY,C/SKD WITH PEM-NUT
410 4980V01071A SUPPORTER ASSY,AL MODULE VER. RZ-42PX10
4980V01071B SUPPORTER ASSY,AL VERTICAL RZ-42PX10 SKD
430 3501V00171F BOARD ASSEMBLY,STAND DU-42PX12X AF044A LGEUS BLACK W/O PACKING
3501V00171A BOARD ASSEMBLY,DESK TOP STAND 42PX3DLV-UC
3501V00171B BOARD ASSEMBLY,STAND RZ-42PX10 NF036B SKD
501 3301900001A PLATE ASSEMBLY,AV, VSC TUNER NON
3301V00023S PLATE ASSEMBLY,AV VSC TUNER 42PX3DLV-UC
520 68719MM051A PCB ASSEMBLY,MAIN AF044C 42PX3DBV-UC AUSLLAX D/B MANUAL
530 68719SM081A PCB ASSEMBLY,SUB AF044C 42PX3DBV-UC AUSLLAX TUNNER B/D MANUAL
560 68719SM085A PCB ASSEMBLY,SUB AF044C 42PX3DBV-UC AUSLLAX CONT MANUAL
68719SM085B PCB ASSEMBLY,SUB AF044C 42PX3DBV/3DLV-UC CONTROL C/SKD
580 6709V00010A POWER SUPPLY ASSEMBLY,350W YPSU-J006A LG INNOTEK PSU ASSY
590 3141VSN422A CHASSIS ASSEMBLY,SUB MF056A AC INET ASSY
31419SF091A CHASSIS ASSEMBLY,SUB 42PX3DBV/3DLV-UC AC INET ASSY. SKD.RS
600 6871VSMF13A PCB ASSEMBLY,SUB A/V AF044A DN-50PY10 SIDE A/V
601 4811V00118Q BRACKET ASSEMBLY,SIDE AV 42PX3DBV-UC AF044A
4811V00118B BRACKET ASSEMBLY,DECO 42PX3DLV-UC SIDE AV
4811V00118D BRACKET ASSEMBLY,AV RT-42PX10 RF043B SIDE AV SKD
No. Part No. Description
All manuals and user guides at all-guides.com

- 18 -
REPLACEMENT PARTS LIST
LOCA. NO PART NO DESCRIPTION
IC608
IC609
IC701
IC702
IC703
IC704
IC705
IC706
IC707
IC800
IC801
IC900
IC901
IC902
Q100
Q101
Q101
Q101
Q102
Q102
Q102
Q103
Q103
Q104
Q104
Q105
Q106
Q107
Q108
Q109
Q110
Q111
Q112
Q113
Q114
Q115
Q116
Q117
Q118
Q119
Q120
Q121
Q122
Q123
Q124
Q125
0ICB533100A
0IMO330780B
0IPMGKE030A
0IPRPML001A
0IMCRSJ001A
0IMCRFA010A
0IPRPNS054A
0IPMGKE032A
0IPMGKE032A
0ICTMLG018A
0IPRPML001A
0IPRPAT002A
0IPMGSG018C
0IMMRAT006C
0TR150400BA
0TR387500AA
0TR102008AA
0TR150400BA
0TR387500AA
0TR387500AA
0TR150400BA
0TR387500AA
0TR387500AA
0TR150400BA
0TR150400BA
0TR150400BA
0TR150400BA
0TR150400BA
0TR387500AA
0TR150400BA
0TR150400BA
0TR387500AA
0TR150400BA
0TR387500AA
0TR150400BA
0TR150400BA
0TR387500AA
0TR387500AA
0TR387500AA
0TR150400BA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
CS5331A-KSR 8SOIC TP ADC -
MC33078D 8/SOIC +-18V OP AMP
KIA78R05F 5PIN 1A,5V
MIC39100 3P SOT223
SC1565IST-1.8 3P SOT223
KA7809R 2P
LM75CIMX-3 8P
KIA78R09F 5PIN 1A,9V
KIA78R09F 5PIN 1A,9V
LGDP4410 176P
MIC39100 3P SOT223
EP1C12F256C8N(PB FREE) 256P
LD1086DT15TR 2P 1.5V 1.5A
EPCS4S18N(PROGRAMED) 8PIN
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
KRA102S R/TP KEC SOT23 CHIP TR
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
LOCA. NO PART NO DESCRIPTION
IC100
IC101
IC101
IC103
IC104
IC109
IC110
IC111
IC112
IC114
IC200
IC201
IC201
IC202
IC202
IC203
IC203
IC204
IC204
IC205
IC205
IC206
IC206
IC209
IC210
IC302
IC304
IC306
IC308
IC310
IC400
IC401
IC402
IC403
IC404
IC501
IC502
IC503
IC600
IC601
IC602
IC603
IC604
IC605
IC606
IC607
0IMMRNE002B
0ISO206900A
0IKE702900G
0IMCRSS016A
0IPH741400E
0IMMRSS041G
0IMMRSS041G
0IKE704200J
0IMMR00037A
0IMCRAL006A
0IMCRMN027D
0ILNR00015A
0IMCRPH026B
0ICTMLG013A
0IMCRTI028C
0IMCRCY002A
0IPMGKE030A
0IAL242561B
0IMCRSJ001A
0IMCRXL004A
0IPRPML001A
0IMCRSG010A
0IMCRFA010A
0IMCRRH001A
0IMCRPH026B
0IPRP00538A
0ICTMLG019A
0ILNRMN005A
0IPRPAD008B
0IMCRRH001A
0ICTMLG009C
0IMMRSS041G
0IMMRSS041G
0IMMRSS041G
0IMMRSS041G
0IMCRS5003B
0IMCRTH002A
0IMMRAL014B
0IMCRSO008A
0IMO140530D
0IPH740800M
0IMMRAL014B
0IMCRFA013A
0ICB841500B
0ITO741570C
0ITO741570C
UPD64083GF3BA-A 100
CXA2069Q QFP64 BK I2C BUS AV S/W
KIA7029AF SOT-89 TP 2.9V
S3C44BOX01-EDRO LQFP-160 CPU
74HC14D 14SOP
K4S641632H-UC75 54P
K4S641632H-UC75 54P
KIA7042AF SOT-89 TP 4.2V
M306H3FCFP 116P
AT24C16AN-10SU-2.7 8P EEPROM
MSP4440K 80P MULTI SOUND
NSP-2100A 64P DIGTAL AUDIO
PA9516APW 16P
LGDT1901A 24P
TAS5122DCARG4 56P
CY2309SXC-1HT 16P R/TP 3.3V
KIA78R05F 5PIN 1A,5V
AT24C256W-10SU-2.7V 8P
SC1565IST-1.8 3P SOT223
XC95288XL-10TQG144C 144P
MIC39100 3P SOT223
ST3232CDR SOP16 R/TP RS232
KA7809R 2P
BA033FP-E2 3P-SOP,TO252-3
PA9516APW PHILIPS 16P
FSA1156P6X-NL 6P
LGDT3303 100P
VPX3226E 44 VIDEO PIXEL DECODER
AD9883AKST(Z)-110 80P
BA033FP-E2 3P-SOP,TO252-3
LGDT1102C HD2.3 SBGA-432P
K4S641632H-UC75 54P
K4S641632H-UC75 54P
K4S641632H-UC75 54P
K4S641632H-UC75 54P
SIL169CTG100 100P
THC63LVD103 64P
AT24C02N-10SI-2.7 8P
CXA2151Q SONY 48P
MC14053BDR2 16P
74F08D 14P
AT24C02N-10SI-2.7 8P
74LCX244MTC 20P
CS8415A-CZR 28P 96KHZ DIGITAL
TC74LCX157FT 16P
TC74LCX157FT 16P
IC
RUN DATE : 2005.8.29
For Capacitor & Resistors, the
charactors at 2nd and 3rd digit
in the P/No. means as follows;
CC, CX, CK, CN : Ceramic
CQ : Polyestor
CE : Electrolytic
RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible
TRANSISTOR
All manuals and user guides at all-guides.com

- 19 -
LOCA. NO PART NO DESCRIPTION
Q128
Q129
Q130
Q131
Q132
Q133
Q200
Q200
Q201
Q204
Q303
Q304
Q305
Q305
Q306
Q306
Q307
Q307
Q308
Q309
Q501
Q502
Q503
Q600
Q601
Q602
Q605
Q606
Q607
Q613
Q614
Q615
Q616
Q701
D109
D200
D201
D202
D203
D204
D501
D701
D702
DL700
DL702
DL703
DL704
DL705
IC102
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR150400BA
0TR150400BA
0TR150400BA
0TR150400BA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR150400BA
0TR387500AA
0TR387500AA
0TR830009BA
0TR830009BA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR150400BA
0TR387500AA
0TR387500AA
0TR387500AA
0TR387500AA
0TR102009AG
0TR387500AA
0DL233309AC
0DD226239AA
0DD226239AA
0DD226239AA
0DD226239AA
0DZRM00248A
0DD184009AA
0DD226239AA
0DD100009AM
0DL233309AC
0DL233309AC
0DL233309AC
0DL233309AC
0DL233309AC
0DD184009AA
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
BSS83
BSS83
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SA1504S(ASY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP 2SC3875S(ALY) BK KEC
CHIP KRC102S SOT-23 NA NA
CHIP 2SC3875S(ALY) BK KEC
LED,SAM2333
KDS226 TP KEC
KDS226 TP KEC
KDS226 TP KEC
KDS226 TP KEC
ZENERS,RLZ8.2B-TE11
KDS184 85V 300MA
KDS226 TP KEC
EU1ZV(1) 200V 0.25A 15A
LED,SAM2333
LED,SAM2333
LED,SAM2333
LED,SAM2333
LED,SAM2333
KDS184 85V 300MA
LOCA. NO PART NO DESCRIPTION
LD101
ZD101
ZD102
ZD103
ZD110
C103
C104
C105
C106
C117
C118
C1203
C121
C122
C1255
C1260
C1265
C127
C133
C138
C138
C139
C1400
C143
C144
C148
C148
C149
C150
C158
C1606
C1607
C161
C161
C1610
C165
C166
C167
C169
C170
C171
C172
C174
C202
C205
C206
C207
C208
C212
0DL200000CA
0DR050008AA
0DR050008AA
0DR050008AA
0DR050008AA
0CE4763F618
0CE1059K538
0CE1059K538
0CE106SF6DC
0CE106SF6DC
0CE105SK6DC
0CE226SF6DC
0CE106SF6DC
0CE106SF6DC
0CE476SF6DC
0CE108DJ618
0CE108DJ618
0CE107SF6DC
0CE107SF6DC
0CE476SF6DC
0CE476SF6DC
0CE476SF6DC
0CE226SF6DC
0CE476SF6DC
0CE105SK6DC
0CE105SK6DC
0CE226SF6DC
0CE226SF6DC
0CE476SF6DC
0CE105SK6DC
0CE226SF6DC
0CE226SF6DC
0CE107SF6DC
0CE105SK6DC
0CE226SF6DC
0CE106SF6DC
0CE106SF6DC
0CE106SF6DC
0CE106SF6DC
0CE106SF6DC
0CE106SF6DC
0CE106SF6DC
0CE106SF6DC
0CE226SF6DC
0CE476SF6DC
0CE226SF6DC
0CE477DJ618
0CE226SF6DC
0CE477SF6DC
LED,SAM5670(DL-2LRG)
SD05.TC SOD323 5V 5A 15A
SD05.TC SOD323 5V 5A 15A
SD05.TC SOD323 5V 5A 15A
SD05.TC SOD323 5V 5A 15A
47UF SRE,SE 16V 20%
1UF HI STABILITY 50V 10%
1UF HI STABILITY 50V 10%
10UF MVG 16V 20%
10UF MVG 16V 20%
1UF MVG 50V 20%
22UF MVG 16V 20%
10UF MVG 16V 20%
10UF MVG 16V 20%
47UF MVG 16V 20%
1000UF STD 35V M
1000UF STD 35V M
100UF MVG 16V 20%
100UF MVG 16V 20%
47UF MVG 16V 20%
47UF MVG 16V 20%
47UF MVG 16V 20%
22UF MVG 16V 20%
47UF MVG 16V 20%
1UF MVG 50V 20%
1UF MVG 50V 20%
22UF MVG 16V 20%
22UF MVG 16V 20%
47UF MVG 16V 20%
1UF MVG 50V 20%
22UF MVG 16V 20%
22UF MVG 16V 20%
100UF MVG 16V 20%
1UF MVG 50V 20%
22UF MVG 16V 20%
10UF MVG 16V 20%
10UF MVG 16V 20%
10UF MVG 16V 20%
10UF MVG 16V 20%
10UF MVG 16V 20%
10UF MVG 16V 20%
10UF MVG 16V 20%
10UF MVG 16V 20%
22UF MVG 16V 20%
47UF MVG 16V 20%
22UF MVG 16V 20%
470UF STD 35V 20%
22UF MVG 16V 20%
470UF MVG 16V 20%
REPLACEMENT PARTS LIST
DIODE
CAPACITOR
All manuals and user guides at all-guides.com

- 20 -
LOCA. NO PART NO DESCRIPTION
C213
C214
C214
C215
C216
C217
C223
C224
C232
C233
C234
C235
C236
C236
C238
C239
C243
C244
C245
C251
C252
C253
C254
C260
C264
C265
C272
C274
C280
C295
C297
C298
C299
C305
C308
C309
C312
C315
C316
C317
C322
C323
C325
C325
C326
C328
C330
C330
C331
C332
C333
0CE477SF6DC
0CE106SF6DC
0CE477SF6DC
0CE477DJ618
0CE477SF6DC
0CE477SF6DC
0CE477SF6DC
0CE107SF6DC
0CE476SF6DC
0CE476SF6DC
0CE107SF6DC
0CE476SF6DC
0CE476SF6DC
0CE476SF6DC
0CE106SF6DC
0CE226SF6DC
0CE226SF6DC
0CE477SF6DC
0CE477SF6DC
0CE476SF6DC
0CE476SF6DC
0CE476SF6DC
0CE476SF6DC
0CE476SF6DC
0CE107SF6DC
0CE107SF6DC
0CE476SF6DC
0CE226SF6DC
0CE335VK6DC
0CE335VK6DC
0CE107SF6DC
0CE106SF6DC
0CE106SF6DC
0CE476SF6DC
0CE476SF6DC
0CK105DF64A
0CE476SF6DC
0CK684DF56A
0CE476SF6DC
0CE226SF6DC
0CE106SF6DC
0CE226SF6DC
0CK105DF64A
0CE106SF6DC
0CK105DF64A
0CK105DF64A
0CE106SK6DC
0CE476SF6DC
0CE106SF6DC
0CE106SF6DC
0CE106SF6DC
470UF MVG 16V 20%
10UF MVG 16V 20%
470UF MVG 16V 20%
470UF STD 35V 20%
470UF MVG 16V 20%
470UF MVG 16V 20%
470UF MVG 16V 20%
100UF MVG 16V 20%
47UF MVG 16V 20%
47UF MVG 16V 20%
100UF MVG 16V 20%
47UF MVG 16V 20%
47UF MVG 16V 20%
47UF MVG 16V 20%
10UF MVG 16V 20%
22UF MVG 16V 20%
22UF MVG 16V 20%
470UF MVG 16V 20%
470UF MVG 16V 20%
47UF MVG 16V 20%
47UF MVG 16V 20%
47UF MVG 16V 20%
47UF MVG 16V 20%
47UF MVG 16V 20%
100UF MVG 16V 20%
100UF MVG 16V 20%
47UF MVG 16V 20%
22UF MVG 16V 20%
3.3UF MV 50V 20%
3.3UF MV 50V 20%
100UF MVG 16V 20%
10UF MVG 16V 20%
10UF MVG 16V 20%
47UF MVG 16V 20%
47UF MVG 16V 20%
1UF 2012 16V 20%
47UF MVG 16V 20%
0.68UF 2012 16V 10%
47UF MVG 16V 20%
22UF MVG 16V 20%
10UF MVG 16V 20%
22UF MVG 16V 20%
1UF 2012 16V 20%
10UF MVG 16V 20%
1UF 2012 16V 20%
1UF 2012 16V 20%
10UF MVG 50V 20%
47UF MVG 16V 20%
10UF MVG 16V 20%
10UF MVG 16V 20%
10UF MVG 16V 20%
LOCA. NO PART NO DESCRIPTION
C335
C343
C347
C348
C349
C350
C352
C353
C357
C367
C369
C370
C379
C380
C383
C391
C392
C394
C501
C512
C524
C601
C615
C622
C628
C629
C636
C639
C641
C654
C655
C656
C660
C663
C666
C667
C668
C673
C677
C716
C718
C721
C722
C723
C724
C726
C727
C728
C729
C730
C732
0CE226SF6DC
0CK823DK56A
0CF4741L438
0CF4741L438
0CE226SF6DC
0CE106SF6DC
0CE226SF6DC
0CE106SF6DC
0CE476SF6DC
0CE105SK6DC
0CE105SK6DC
0CE105SK6DC
0CE226SF6DC
0CE106SF6DC
0CE476SF6DC
0CE476SF6DC
0CE476SF6DC
0CE106SH6DC
0CE476SF6DC
0CE106SF6DC
0CE106SF6DC
0CE476SF6DC
0CE476SF6DC
0CE476SF6DC
0CE476SF6DC
0CE105SK6DC
0CE476SF6DC
0CE476SF6DC
0CE106SF6DC
0CE106SF6DC
0CE106SF6DC
0CE476SF6DC
0CE106SF6DC
0CE476SF6DC
0CE107SF6DC
0CE226SF6DC
0CE226SF6DC
0CE107SF6DC
0CE107SF6DC
0CE476SF6DC
0CE476SF6DC
0CE477SF6DC
0CE477SF6DC
0CE477SF6DC
0CE477SF6DC
0CE477SF6DC
0CE476SF6DC
0CE477SF6DC
0CE477SF6DC
0CE477SF6DC
0CE476SF6DC
22UF MVG 16V 20%
82000PF 2012 50V 10%
0.47UF D 63V 5%
0.47UF D 63V 5%
22UF MVG 16V 20%
10UF MVG 16V 20%
22UF MVG 16V 20%
10UF MVG 16V 20%
47UF MVG 16V 20%
1UF MVG 50V 20%
1UF MVG 50V 20%
1UF MVG 50V 20%
22UF MVG 16V 20%
10UF MVG 16V 20%
47UF MVG 16V 20%
47UF MVG 16V 20%
47UF MVG 16V 20%
10UF MVG 25V 20%
47UF MVG 16V 20%
10UF MVG 16V 20%
10UF MVG 16V 20%
47UF MVG 16V 20%
47UF MVG 16V 20%
47UF MVG 16V 20%
47UF MVG 16V 20%
1UF MVG 50V 20%
47UF MVG 16V 20%
47UF MVG 16V 20%
10UF MVG 16V 20%
10UF MVG 16V 20%
10UF MVG 16V 20%
47UF MVG 16V 20%
10UF MVG 16V 20%
47UF MVG 16V 20%
100UF MVG 16V 20%
22UF MVG 16V 20%
22UF MVG 16V 20%
100UF MVG 16V 20%
100UF MVG 16V 20%
47UF MVG 16V 20%
47UF MVG 16V 20%
470UF MVG 16V 20%
470UF MVG 16V 20%
470UF MVG 16V 20%
470UF MVG 16V 20%
470UF MVG 16V 20%
47UF MVG 16V 20%
470UF MVG 16V 20%
470UF MVG 16V 20%
470UF MVG 16V 20%
47UF MVG 16V 20%
REPLACEMENT PARTS LIST
All manuals and user guides at all-guides.com
