LG DT-42PY10X User manual

PLASMA TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : AF-046A
MODEL : DT-42PY10X
website:http://biz.LGservice.com
e-mail:http://www.LGEservice.com/techsup.html

- 2 -
CONTENTS
SAFETY PRECAUTIONS ...................................................................................3
DESCRIPTION OF CONTROLS ........................................................................ 4
SPECIFICATIONS ............................................................................................ 13
ADJUSTMENT INSTRUCTIONS ......................................................................14
TROUBLE SHOOTING GUIDE..........................................................................17
BLOCK DIAGRAM.............................................................................................31
EXPLODED VIEW..............................................................................................32
EXPLODED VIEW PARTS LIST........................................................................33
REPLACEMENT PARTS LIST...........................................................................34
SCHEMATIC DIAGRAM ........................................................................................
PRINTED CIRCUIT BOARD ..................................................................................

- 3 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in
the Schematic Diagram and Replacement Parts List.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to
prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during
the servicing of a receiver whose chassis is not isolated from
the AC power line. Use a transformer of adequate power rating
as this protects the technician from accidents resulting in
personal injury from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this monitor is blown, replace
it with the specified.
When replacing a high wattage resistor (Oxide Metal Film
Resistor, over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Due to high vacuum and large surface area of picture tube,
extreme care should be used in handling the Picture Tube.
Do not lift the Picture tube by it's Neck.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source,
connect an electrical jumper across the two AC plug prongs.
Place the AC switch in the on position, connect one lead of
ohm-meter to the AC plug prongs tied together and touch other
ohm-meter lead in turn to each exposed metallic parts such as
antenna terminals, phone jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC
voltmeter with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC
voltage measurements for each exposed metallic part. Any
voltage measured must not exceed 0.75 volt RMS which is
corresponds to 0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

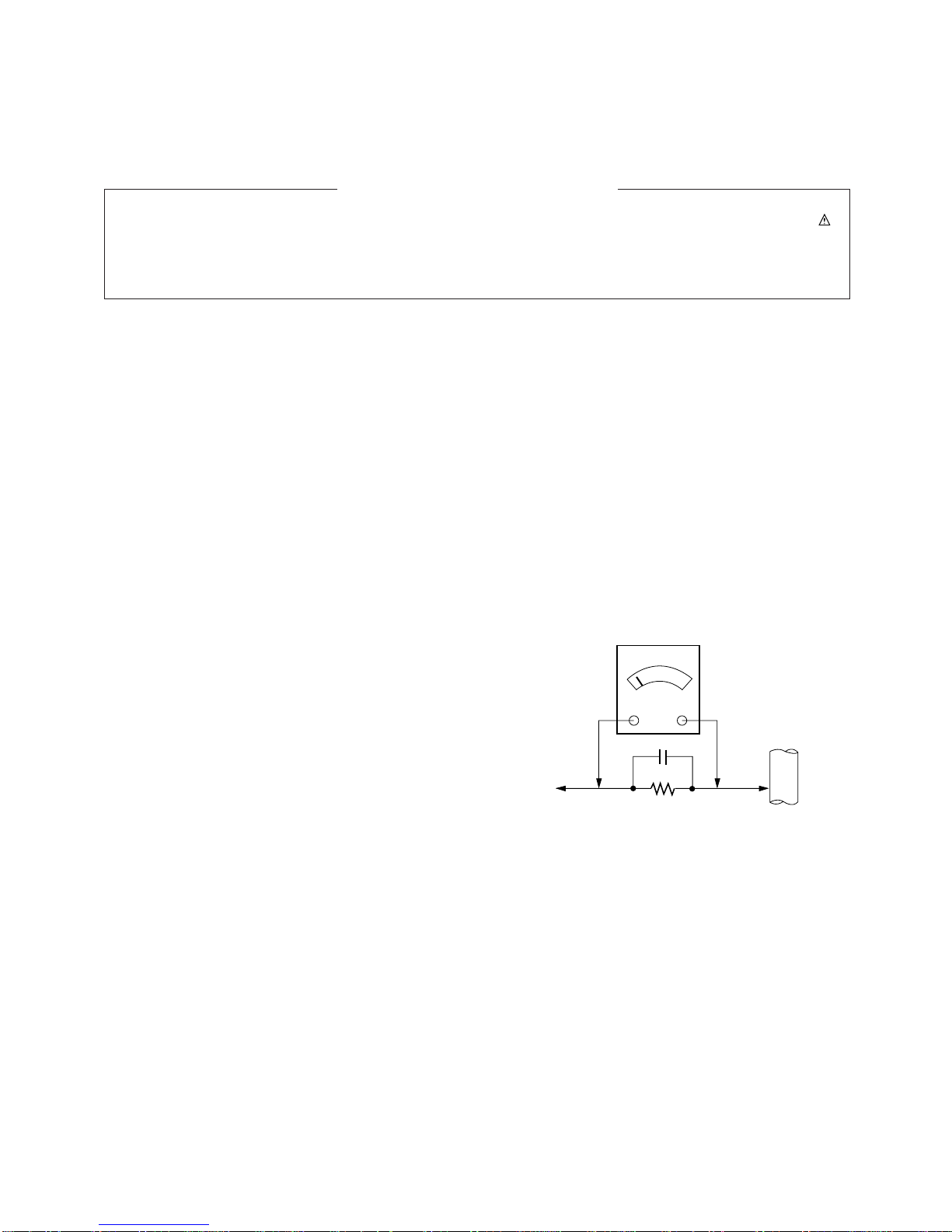

Leakage Current Hot Check circuit
1.5 Kohm/10W
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

- When using the remote control aim it at the remote control sensor of the set.
- There's maybe a defect in consecutive operation of remote control in specified brightness according to this set feature.
123
456
789
0
DVD
HDSTB
AUDIO
MODE
POWER
ARC
D/ATV
TV/AV
MULTIMEDIA
FAVOURITE
TEXT
MUTE
SLEEP
GUIDE
MENU
PIP PR-
TIME
PLAY
REW FF SKIP
PAUSE STOP RECORD
MIX INDEX REVEAL
PIP INPUT
I/II UPDATE SIZE STILL
PIP PR+ SWAP
EXIT
PSM SSM
OK
INFO
PIP
PR
VOL
CABLE
VCR
?
TV
LIST
displays the selected device.
D/A TV
selects analogue or digital mode.
MODE
selects another device.
NUMBER buttons
INFO
displays information on top of the
screen during watching the TV.
(In Digital mode only)
OK
accepts your selection or displays
the current mode.
DD/ EEor FF/ GG
adjusts menu settings.
selects menu item.
POWER
switches the set on from standby or
off to standby.
MULTIMEDIA
selects Component 1/2, RGB-DTV,
RGB-PC, DVI-DTV or DVI-PC modes.
switches the set on from standby.
ARC (Aspect Ratio Control)
changes the picture format.
TEXT
These buttons are used for teletext.
For further details, see the ‘Teletext’
section.
switches the subtitle on or off in Digital
mode.
Note : In teletext mode, the PIP PR +/-,
SWAPand PIP INPUT buttons are used
for teletext function.
VOL +/- (Volume Up/Down)
increases/decreases sound level.
PR +/- (Programme Up/Down)
selects a programme.
switches the set on from standby.
FAVOURITE
selects a favourite programme.
LIST
displays the programme table.
PIP
switches the sub picture on or off.
PIP PR +/-
selects a programme for the sub pic-
ture.
SWAP
alternates between main and sub
picture.
PIP INPUT
selects the input mode for the sub
picture.
EXIT
clears all on-screen displays and
returns to TV viewing from any
menu.
SSM (Sound Status Memory)
recalls your preferred sound setting.
DVD BUTTONS
controls a LG DVD player.
I/II
selects the sound output or the audio
mode.
TV/AV
selects the remote operating mode.
switches the set on from standby.
SLEEP
sets the sleep timer.
MUTE
switches the sound on or off.
GUIDE
shows a programme schedule.
(In Digital mode only)
VCR BUTTONS
controls a LG video cassette
recorder.
PSM (Picture Status Memory)
recalls your preferred picture setting.
MENU
selects a menu.
- 4 -
DESCRIPTION OF CONTROLS

- 5 -
<Front Panel Controls>
TV/AVON/OFF MENU VOL PR
Main Power Button
Remote Control Sensor
TV/AV Button
selects the TV, AV, Component,
RGB or DVI modes. If OSD is dis-
played, selects menu item.
switches the set on from standby.
MENU
displays on screen menus one by one.
exits the current menu.
memorizes menu changes.
DD/ EE(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
FF/ GG(Volume Up/Down)
adjusts the volume.
adjusts menu settings.
Power Standby Indicator
Illuminates red in standby
mode, Illuminates green
when the set is turned on

- 6 -
REMOTE
CONTROL DVI
INPUT
COMPONENT 1
INPUT
OUTPUT
DVI INPUT
(PC/DTV)
RGB INPUT
(PC/DTV)
UPGRADE
PORT
S-VIDEO
MONITOR
OUTPUT
A/V
INPUT 1
Antenna
ANALOG/DTV
AUDIO INPUT VIDEO INPUT
AUDIO VIDEO
AUDIO INPUT
DIGITALAUDIO (OPTICAL)
COMPONENT 2
DVD
DTV
INPUT
.
COMPONENT 1
R L R L AC INPUT
<Back Panel>
1. UPGRADE PORT
This port is used to upgrade the software version and debug
without changing the hardware.
Be careful not to use this port. Just contact your dealer or ser-
vice centre.
2. CONTROL LOCK / REMOTE CONTROL
3. DVI INPUT/COMPONENT 1 INPUT/OUTPUT (DIGITAL
AUDIO (OPTICAL))
Connect digital audio from various types of equipment.
Note: In standby mode, these ports will not work.
4. DVI INPUT / AUDIO INPUT / RGB INPUT (PC/DTV)
Connect the monitor output socket of the PERSONAL COM-
PUTER to this socket.
Note: If you want to use RGB/DVI audio, we strongly recom-
mend that you use the cable that has a core, or the EMI Filter
core along with separate cable.
5. COMPONENT INPUT
Connect DVD video outputs to Y, PB, PRof COMPONENT
INPUT and audio outputs to Audio sockets of AUDIO INPUT.
6. AUDIO/VIDEO IN SOCKETS (A/V INPUT 1)
Connect the audio/video out sockets of external equipment to
these sockets.
S-VIDEO/AUDIO IN SOCKETS
Connect the S-VIDEO out socket of the VCR to the S-VIDEO
socket.
Connect the audio out sockets of the VCR to the audio sock-
ets as in A/V INPUT 1.
AUDIO/VIDEO OUT SOCKETS (MONITOR OUTPUT)
7. ANTENNA INPUT
8. POWER CORD SOCKET
This Monitor operates on an AC power. The voltage is indi-
cated on the Specifications page. Never attempt to operate
the Monitor on DC power.
9. AUDIO/VIDEO IN SOCKETS (A/V INPUT 2)
S-VIDEO/AUDIO IN SOCKETS
9
S-VIDEOVIDEOAUDIO
A/V INPUT 2
R
L/MONO
4 5 6 7 81 2 3
- Shown is a simplified representation of the set.
- Here shown may be somewhat different from your set.
- This manual explains the features available on the DT-50PY10 series.

- 7 -
- Be careful for the bronze wire not to be bended in connecting to antenna input port.
Antenna Connection
Watching VCR
- When connecting the Monitor to external equipment, match the colours of connecting ports (Video - yellow, Audio (L) - white,
Audio (R) -red).
- Connect the VIDEO OUTPUT socket (yellow) to the VIDEO INPUT on the set.
- If you have a mono VCR, connect the audio cable from the VCR to the AUDIO (L/MONO) input on the set.
- If you connect an S-VIDEO VCR to the S-VIDEO input, the picture quality is improved; compared to connecting a regular VCR
to the Video input.
- Use the orbiter function to Avoid having a fixed image remain on the screen for a long period of time. Typically a frozen still pic-
ture from a VCR. (Refer to p. 28)
If a 4:3 picture format is used; the fixed image may remain visible on the screen.
- To avoid picture noise (interference), leave an adequate distance between the VCR and the set.
Watching TV programmes
- Turn the set on and select the programme you
want.
Watching VCR
1. Use the TV/AV button on the remote control to
select VIDEO 1 or VIDEO 2.
- If both S-VIDEO and VIDEO sockets have been
connected to the S-VHS VCR simultaneously, only
the S-VIDEO can be received.
2. Insert a video tape into the VCR and press the
PLAY button on the VCR.
(See VCR owner’s manual)
RGB INPUT
(PC/DTV)
S-VIDEO
MONITOR
OUTPUT
A/V
INPUT 1
Antenna
ANALOG/DTV
AUDIO INPUT VIDEO INPUT
AUDIO VIDEO
T
COMPONENT 2
DVD
DTV
INPUT
.
COMPONENT 1
R L R L AC
< Back panel of the set >
< VCR >
YPBPRLR
L
(MONO)
R
COMPONENT
S-VIDEO VIDEO AUDIO
AUDIO
AV4
Antenna
REMOTE
CONTROL RS-232C INPUT DVI INPUT
(CONTROL/SERVICE)
AUDIO INPUT RGB INPUT
Apartments
(connecting to wall antenna socket)
Private house
(connecting to wall outdoor antenna)
outdoor antenna
wall antenna socket
VHF antenna
UHF antenna
RF coaxial wire (75 ohms) < Back panel of the set >

- 8 -
Watching Cable TV
- After subscribing for a local cable TV station and installing a converter you can watch cable TV.
- For further information of cable TV, contact the local cable TV station.
To watch cable TV
1. Use the TV/AV button on the remote control to
select VIDEO 1 or VIDEO 2.
2. Tune to cable service provided channels using
the cable box.
RGB INPUT
(PC/DTV)
S-VIDEO
MONITOR
OUTPUT
A/V
INPUT 1
Antenna
ANALOG/DTV
AUDIO INPUT VIDEO INPUT
AUDIO VIDEO
NPUT
COMPONENT 2
DVD
DTV
INPUT
.
COMPONENT 1
R L R L AC I
< Back panel of the set >
< Cable box >
Watching DVD
How to use
1. Turn on the DVD player, insert a DVD.
2. Use the TV/AV or MULTIMEDIA button on the remote control to select
Component 1 or Component 2.
(If connected to S-VIDEO, select the VIDEO 1 or VIDEO 2 external input
source.)
3. Refer to the DVD player's manual for operating instructions.
How to connect
1. Connect the DVD video outputs (Y, PB, PR) to the COMPONENT (Y, PB, PR) INPUT jacks on the set and connect the DVD
audio outputs to the AUDIO INPUT jacks on the set, as shown in the figure.
2. If your DVD only has an S-Video output jack, connect this to the S-VIDEO input on the set and connect the DVD audio outputs
to the AUDIO INPUT jacks on the set, as shown in the figure.
Note:
a. If your DVD player does not have component video output, use S-Video.
b. Digital Audio will not work for Component 2 input source. Digital Audio operation has priority if Digital Audio and AUDIO L/R
are connected at the same time. •Component Input ports
You can get better picture quality if you connect
DVD player with component input ports as below.
Component ports of the
set YPBPR
Video output ports
of DVD player
Y
Y
Y
Y
Pb
B-Y
Cb
PB
Pr
R-Y
Cr
PR
M
OTE
N
TROL DVI
INPUT
COMPONENT 1
INPUT
OUTPUT
DVI INPUT
(PC/DTV)
RGB INPUT
(PC/DTV)
S-VIDEO
MONITOR
OUTPUT
A/V
INPUT 1
Antenna
ANALOG/DTV
AUDIO INPUT VIDEO INPUT
AUDIO VIDEO
AUDIO INPUT
DIGITALAUDIO (OPTICAL)
COMPONENT 2
DVD
DTV
INPUT
.
COMPONENT 1
R L R L AC INPUT
BR
(R) AUDIO (L)
DIGITAL AUDIO
OPTICAL (R) AUDIO (L)
S-VIDEO
< Back panel of the set >
< DVD player >
or
or

- 9 -
Watching external AV source
- When connecting the set to an external source, match the colours of AUDIO/VIDEO input jacks on the set with the output jacks
on the audio/video equipment: Video = yellow, Audio (Left) = white, Audio (Right) = red.
How to use
1. Use the TV/AV button on the remote control to
select VIDEO 1 or VIDEO 2.
2. Operate the corresponding external equipment.
See external equipment operating guide.
RGB INPUT
(PC/DTV)
S-VIDEO
MONITOR
OUTPUT
A/V
INPUT 1
Antenna
ANALOG/DTV
AUDIO INPUT VIDEO INPUT
AUDIO VIDEO
AUDIO INPUT
COMPONENT 2
DVD
DTV
INPUT
.
COMPONENT 1
R L R L
RL
AUDIO VIDEO

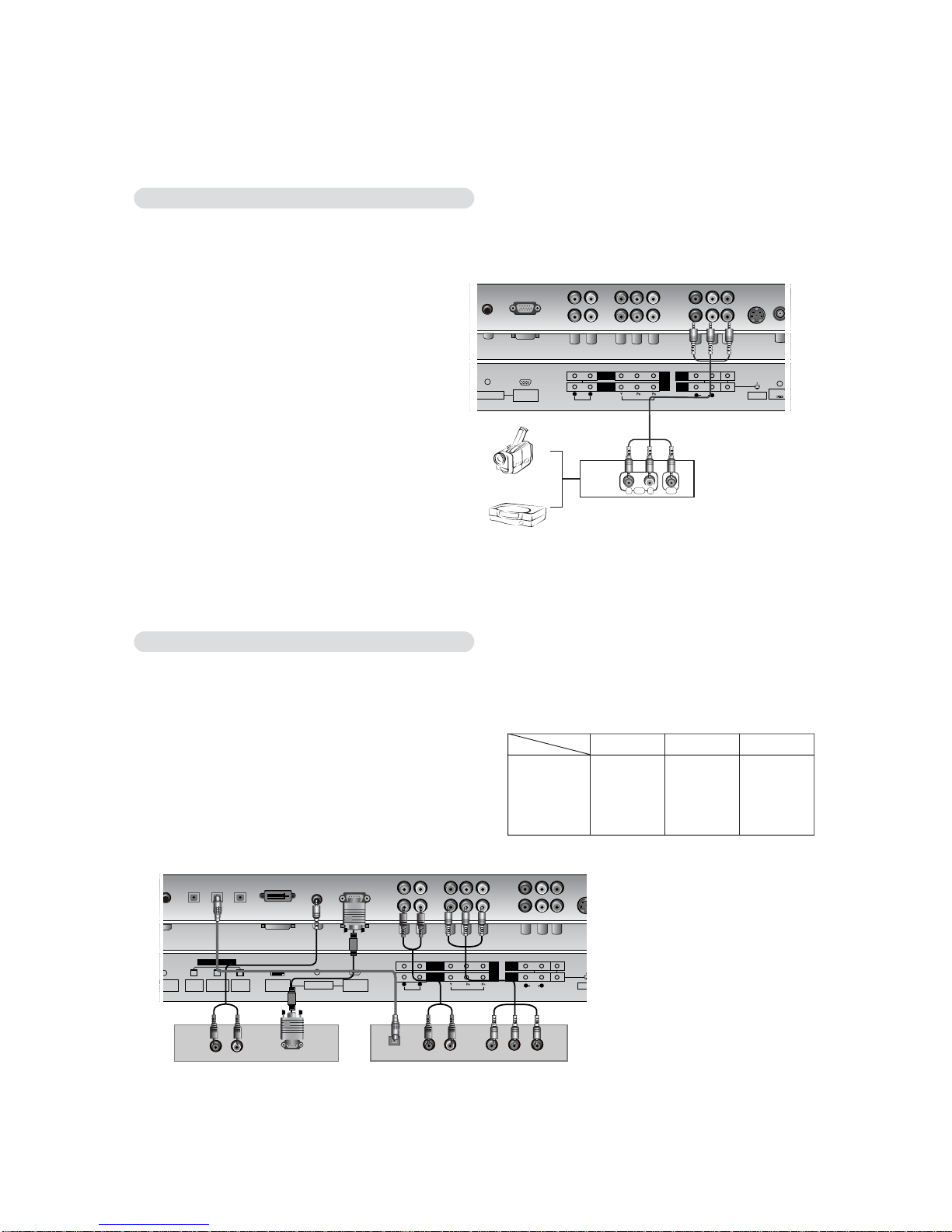

< Back panel of the set >
Camcorder
Video game set
Watching DTV
How to connect
1. Use the monitor’s COMPONENT (Y, PB, PR) INPUT, RGB or DVI
jack for video connections, depending on your set-top box con-
nector. Then, make the corresponding audio connections.
How to use
1. Turn on the digital set-top box. (Refer to the owner’s manual for
the digital set-top box.)
2. Use TV/AV or MULTIMEDIA on the remote control to select
Component 1, Component 2, RGB-DTV or DVI-DTV.
- This set can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do
receive Digital signals from a digital set-top box or other digital external device, refer to the figure as shown below.
(R) AUDIO (L) YP
BR
P
DIGITAL AUDIO
OPTICAL
EMOTE
ONTROL DVI
INPUT
COMPONENT 1
INPUT
OUTPUT
DVI INPUT
(PC/DTV)
RGB INPUT
(PC/DTV)
S-VIDEO
MONITOR
OUTPUT
A/V
INPUT 1
AUDIO INPUT VIDEO INPUT
AUDIO VIDEO
AUDIO INPUT
DIGITALAUDIO (OPTICAL)
COMPONENT 2
DVD
DTV
INPUT
.
COMPONENT 1
R L R L
(R) AUDIO (L) DTV OUTPUT
R
R
R
R
R
< Back panel of the set >
< Digital Set-top Box >
•DTV Input signal
480i / 576i
480p / 576p
720p (50/60Hz)
1080i (50/60Hz)
Mode Terminal Component
o
o
o
o
RGB
x
o
o
o
DVI
x
o
o
o
or
or

- 10 -
Connecting PC
How to connect
1. To get the best picture quality, adjust the PC graphics card to 1024x768, 60Hz.
2. Use the set’s RGB INPUT or DVI (Digital Visual Interface) INPUT port for video connections, depending on your PC connector.
If the graphic card on the PC does not output RGB and DVI simultaneously, connect only one of either RGB INPUT or DVI
INPUT to display the PC on the set.
3. Then, make the corresponding audio connections. If using a sound card, adjust the PC sound as required.
How to use
1. Turn on the PC and apply power to the set.
2. Press the MENU button and then DD/ EEbutton to select the SPECIAL menu.
3. Press the GGbutton and then DD/ EEbutton to select Main input.
4. Press the GGbutton and then DD/ EEbutton to select RGB-PC, RGB-DTV, DVI-PC or DVI-DTV.
PC screen appears on the set.
The set can be operated as the PC monitor.
5. Check the image on your set. There may be noise associated with the resolution, vertical pattern, contrast or brightness in PC
mode. If noise is present, change the PC mode to another resolution, change the refresh rate to another rate or adjust the bright-
ness and contrast on the menu until the picture is clear. If the refresh rate of the PC graphic card can not be changed, change
the PC graphic card or consult the manufacturer of the PC graphic card.
Note:
a. Depending on the graphics card, DOS mode may not work if you use a DVI-D cable.
b. Avoid keeping a fixed image on the TV's screen for a long period of time. The fixed image may become permanently imprinted
on the screen.
c. The synchronization input form for Horizontal and Vertical frequencies is separate.
MOTE
NTROL DVI
INPUT
COMPONENT 1
INPUT
OUTPUT
DVI INPUT
(PC/DTV)
RGB INPUT
(PC/DTV)
MONITOR
OUTPUT
A/V
INPUT 1
AUDIO INPUT VIDEO INPUT
AUDIO INPUT
DIGITALAUDIO (OPTICAL)
COMPONENT 2
DVD
DTV
INPUT
.
COMPONENT 1
R L
< Back panel of the set >
RGB PC / DVI PC mode
Displayable Monitor Specification
Resolution
640x350
640x480
800x600
Horizontal
Frequency(KHz) Vertical Frequency(Hz)
1024x768
70.09
59.94
72.80
75.00
56.25
60.31
72.18
75.00
60.00
70.06
75.02
31.468
31.469
37.861
37.500
35.156
37.879
48.077
46.875
48.363
56.476
60.023
or

- 11 -
1. Press the OK button and then DD/ EEbutton to select the desired picture item.
2. Press the GGbutton and then FF/ GGor DD/ EEbutton to make appropriate adjust-
ments.
Position
This function is to adjust picture to left/right and up/down as you prefer.
Phase & Clock (RGB-PC mode only)
This function allows you to remove any horizontal noise and clear or sharpen the
image of characters.
To correct the screen size, adjust Clock.
• The adjustment range of Phase is 0 ~ 31.
• The adjustment range of Clock is 0 ~ 32.
Note : Some signal from some graphics boards may not function properly. If the results are unsatisfactory, adjust your mon-
itor’s position, size and phase manually.
Reset
This function allows you to return to the good picture reproduction programmed at the factory and cannot be changed.
Screen Adjustments
- This function works in the following mode:
Component 1, Component 2, RGB-PC, RGB-DTV or DVI-DTV
Close Move OK
POSITION GG
CLOCK
PHASE
RESET
DD
FFGG
EE
DD
EE
MENU
- Send the set’s audio to external audio equipment (stereo system) via the
Digital Audio Output (Optical) port.
Caution: Do not look into the optical output port. Looking at the laser
beam may damage your vision.
Digital Audio Output
How to connect
1. Connect one end of an optical cable to the TV Digital Audio (Optical)
Output port.
2. Connect the other end of the optical cable to the digital audio (optical)
input on the audio equipment.
3. Set the “ TV Speaker option - Off” in the AUDIO menu. Refer to page
23.
See the external audio equipment instruction manual for operation.
REMOTE
CONTROL DVI
INPUT
COMPONENT 1
INPUT
OUTPUT
DVI INPUT
(PC/DTV)
RGB INPU
(PC/DTV)
GRADE
ORT
AUDIO INPUT
DIGITALAUDIO (OPTICAL)
< Back panel of the set >
- The set has a special signal output capability which allows you to hook up a sec-
ond TV or monitor.
Connect the second TV or monitor to the set’s MONITOR OUTPUT. See the
Operating Manual of the second TV or monitor for further details regarding that
device’s input settings.
Note: DTV, Component, RGB-PC/RGB-DTV, DVI-PC/DVI-DTV input sources cannot
be used for Monitor out.
Monitor Out Setup
S-VIDEO
MONITOR
OUTPUT
A/V
INPUT 1
Antenna
ANALOG/DT
AUDIO INPUT VIDEO INPUT
AUDIO VIDEO
COMPONENT 2
DVD
DTV
INPUT
.
COMPONENT 1
R L R L
S-VIDEO IN
(R) AUDIO (L) VIDEO
< Back panel of the set >

- 12 -
ASmark
LG TV
Owner’s Manual
1.5V
1.5V
Alkaline batteries
Power Cord
123
456
789
0
DVD
STB
AUDIO
MODE
POWER
MUTE
TV/AV
MULTIMEDIA
ARC
SSM
Q.VIEW
PSM
FAVOURITE
MENU
PIPPR-
REVEAL
LIST
PLAY
REW FF SKIP
PAUSE STOP
RECORD
SPLITZOOM
SLEEP
I/II
WIN.SIZE WIN.POSITION
PIPINPUT
PIPPR+ SWAP
OK
PIP/DW
EXIT
PR
VOL
CABLE
VCR
?
TV
TEXT/
Remote Control handset
- Optional extras can be changed or modified for quality improvement without any notification new optional extras can be
added.
- Contract your dealer for buying these items.
Optional Extras
Accessories
Accessories
Video cables Audio cables
6-RING SPACER
(Only DT-60PY10 series)
2-TV bracket bolts
(or DT-50PY10 series: 4-TV
bracket bolts)
(Only DT-60PY10 series : 6-Wall
mounting bracket bolts)
Ceiling mounting bracket
Wall mounting bracket
(Only DT-60PY10 series) Tilt wall mounting bracket
(Only DT-60PY10 series)
Tilt wall mounting bracket
404250 40 42 50
Ceiling mounting bracket
40
42
50
42
40
2-TV brackets
2-Wall brackets (option)
- Secure the TV assembly by joinning it to a wall by using the TV/Wall brackets.
Joinning the TV assembly to the wall to protect the set tumbling
• After the set must be mounted on s desk top, install the TV brackets on the TV as shown.
Insert the 2 bolts and tighten securely, in the holes on the bracket.
(Only DT-50PY10 series:After removing the existing bolts, insert the 4 bolts and tighten secure-
ly, in the holes on the bracket.)
Install the wall brackets on the wall with 4 bolts, (not supplied with the product), as shown.
Match the height of the TV brackets and the wall brackets.
Check to be sure the brackets are tightened securely.
• Secure the TV assembly to the wall with strong strings or wound wire cables, (not supplied
with the product), as shown.

Maker : SONY(42 inch)
SONY/Sanken(50 inch)
LG(60 inch)
RGB Closed Type
Maker : LG Chemical
- 13 -
SPECIFICATIONS
NOTE : Specifications and others are subject to change without notice for improvement .
PAL-B/G, DTV : DVB-T
VHF : 00~12
UHF : 28~69
CATV : 02~44
PAL : 38.90MHz
DVB-T : 36.167MHz
240V~, 50Hz
PDP42X2xxxx
PDP50X2xxxx
PDP60X5xxxx
16:9
45% Total light transmittance(E-Mesh)
0 40 deg
85 %
-20 60 deg
85 %
1
2
3
4
5
6
7
8
9
10
11
Broadcasting system
Available Channel
Tuner IF
Input Voltage
PDP Module
Aspect ratio
Screen Filter
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
VGeneral Specification
Specification
MIN Typ Max Unit
No Item Remark
VApplication Range
This spec is applied to the 42”, 50”, 60”PDP TV used AF-046A
Chassis.
V Specification
Each part is tested as below without special appointment.
1) Temperature : 25±5°C (77±9°F)
2) Relative Humidity: 65±10%
3) Power Voltage: Standard Input voltage (100-240V~, 50/60Hz)
* Standard Voltage of each product is marked by models.
4) Specification and performance of each parts are followed
each drawing and specification by part number in accordance
with BOM.
5)
The receiver must be operated for about 20 minutes prior to the
adjustment
.
VTest and Inspection Method
1) Performance : LGE TV test method followed.
2) Demanded other specification
Safety: CB specification
EMC : CISPR 13 specification
Remark
Safety : IEC60065, EN60065
EMC : CISPR13 Class B
Model Name
DT-42PY10X
DT-50PY10
DT-60PY10
Market
Australia

- 14 -
1. Application Object
These instructions are applied to all of the PDP TV, AF-046A.
2. Notes
(1) Because this is not a hot chassis, it is not necessary to use
an isolation transformer. However, the use of isolation
transformer will help protect test equipment.
(2) Adjustments must be done in the correct order.
(3) The adjustments must be performed in the circumstance of
25±5°C of temperature and 65±10% of relative humidity if
there is no specific designation.
(4) The input voltage of the receiver be must kept 220V, 60Hz
when adjusting.
(5) The receiver must be operational for about 15 minutes
prior to the adjustments.
OAfter receiving 100% white pattern, the receiver must be
operate prior to adjustment.(Or white condition in HEAT-
RUN mode)
OEnter into HEAT-RUN MODE
- Press the POWER ON KEY on R/C for adjustment.
OSD display and screen display 100% full WHITE
PATTERN.
[Set is activated HEAT-RUN without signal generator in
this mode.
3. EPLD Download
(1) Test Equipment: PC, Jig for download
(2) Connect the power of VSC B/D.
(3) Execute download program of PC.
(4) After executing the hot key on the Programmer, click icon
(5) End after confirming.
4. POWER PCB Assy Voltage
Adjustment (Va, Vs Voltage Adjustment)
4-1. Test Equipment :D.M.M 1EA
4-2. Connection Diagram for Measuring
Refer to Fig 1.
(1) Va Adjustment
1) After receiving 100% Full White Pattern, Heat-Run(over
10min).
2) Connect + terminal of D.M.M to Va pin of P805 and
connect – terminal to GND pin of P805.
3) Adjust RV601 voltage to match that of the label on the
Top/Right of the panel. (Deviation : ±0.5V)
(2) Vs Adjustment
1) Connect + terminal of D.M.M to Vs pin of P805 and
connect – terminal to GND pin of P805.
2) Adjust RV401 voltage to match that of the label on the
Top/Right of the panel. (Deviation : ±0.5V)
If you turn on a still screen more than 20 minutes (Especially
Digital pattern(13 CH), Cross Hatch Pattern), an afterimage
may occur in the black level part of the screen.
ADJUSTMENT INSTRUCTIONS
PC VSC
B/D
<Fig 1> Connection Diagram of EPLD Download
Each PCB Assy must be checked by Check JIG Set before
assembly. (Especially, be careful Power PCB Assy which can
cause Damage to the PDP Module.)
Va ADJ
RV601
P806
P805
P807
Va
GND
NC
VS
DMM
+- P804
P801 P802
Vs ADJ
V401
P803
Va ADJ
RV601
P806
P805
P807
Va
GND
NC
VS
DMM
+- P804
P801 P802
Vs ADJ
V401
P803
<3501V00182B>
<3501V00188A>
<Fig. 2> Connection Diagram of Power Adjustment for
Measuring (Power Board)

- 15 -
5. EDID(The Extended Display
Identification Data)/DDC
(Display Data Channel) download
This is the function that enables “Plug and Play".
5-1. Required Test Equipment
1) PC, Jig for adjusting DDC (PC serial to D-sub.
Connection equipment)
2) D-Sub to DVI Connector
5-2. Composition of Device
5-3. EDID DATA
- Download only EDID for DVI.
6. AD9883A-Set Adjustment
6-1. Synopsis
AD9883A-Set adjustment to set the black level and the Gain
of optimum with an automatic movement from the analog =>
digital converter.
6-2. Test Equipment
Service R/C, 801GF(802B, 802F, 802R) or MSPG3240A
Pattern Generator
(720P 60Hz 100% Color Bar Pattern output will be possible
and the output level will accurately have to be revised with
0.7±0.1Vp-p)
6-3. Adjustment
(1) Input the color Bar Pattern of the 720P 60Hz Mode in the
Component INPUT and the select the Input Mode as
Component2.
(2) After receiving signal for at least 1 second, press the ADJ
Key on the Service R/C to enter the ‘Ez - Adjust’ and select
the ‘1. AD9883A-Set’.
Pressing the Vol + Key to adjust with automatic movement.
(3) When the adjustment is over, 'Adjustment completed
(Press OK)' is displayed. If the adjustment has errors,
'AD9883A-Failed! Try Again' is displayed.
(4) Readjust after confirming the case Pattern or adjustment
condition where the adjustment errors.
(5) After adjustment is complete, exit the adjustment mode by
pressing the ADJ KEY.
7. Adjustment of White Balance
7-1. Required Equipment
(1) Color analyzer (CA-100 or similar product)
(2) Automatic adjustor (with automatic adjustment hour
necessity and the RS-232C communication being possible)
(3) AV Pattern Generator
7-2. Connection Diagram of Equipment
for Measuring (Automatic Adjustment)
PDP
SET
00 |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
A0 |
B0 |
C0 |
D0 |
E0 |
F0 |
00
00
23
0F
01
13
3E
47
00
02
C4
96
58
00
00
00
00
01
FF
0E
4B
01
00
08
20
00
01
8E
00
2C
00
00
00
00
02
FF
01
52
01
4C
00
54
00
04
21
C4
25
00
00
00
00
03
FF
03
2F
01
6C
00
56
00
00
00
8E
00
00
00
00
00
04
FF
80
CE
01
42
00
0A
00
01
00
21
C4
00
00
00
00
05
FF
6E
00
01
00
00
20
00
1D
1E
00
8E
00
00
00
00
06
FF
3E
31
C3
00
00
20
00
00
8C
00
21
00
00
00
00
07
00
78
CA
1E
18
00
20
00
72
0A
18
00
00
00
00
00
08
1E
0A
01
00
00
00
20
00
51
D0
01
00
00
00
00
00
09
6D
31
01
20
00
00
20
00
D0
8A
1D
9E
00
00
00
00
0A
01
30
01
41
00
00
20
00
1E
20
80
00
00
00
00
00
0B
01
A5
01
00
FD
00
20
00
20
E0
18
00
00
00
00
00
0C
01
58
01
20
00
00
00
00
6E
2D
71
00
00
00
00
00
0D
01
3B
01
30
37
FC
00
00
28
10
1C
00
00
00
00
00
0E
01
B8
01
10
4E
00
00
01
55
10
16
00
00
00
00
00
0F
01
26
01
60
1E
4C
01
17
00
3E
20
00
00
00
00
BF
216 FULL WHITE
CVBS Part
PDP MONITOR
COLOR
ANALYZER
TYPE; CA-100
MSPG-2100 or
MSTG-5200
<Fig. 4> Connection Diagram of Automatic Adjustment
<Fig. 3> Adjustment Pattern : 720P 60Hz Color Bar Pattern

[[. RS-232C Command (Automatic Adjustment)
7-3. Adjustment of White Balance(manual)
O Operate the Zero-calibration of the CA-100, then attach
sensor to PDP module surface when you adjust.
O Manual adjustment is also possible by the following sequence.
(1) Enter ‘3.White-Pattern’ by pressing ADJ KEY on the
Service Remote Control.
(2) Select "Test Pattern White" using Vol +/- Key and HEAT
RUN at least 15 minutes by pressing the ENTER Key.
(3) Receive the AV 50Hz, Full size, 216 Gray window pattern
signal from AV Pattern Generator.
Input mode : DT-42PY10X : AV2
DT-50PY10 : AV1
DT-60PY10 : AV1
(4) Select the Screen Adjustment as ‘Dynamic’.
(5) After attaching sensor to center of screen, select ‘2. White-
Balance’ of ‘Ez - Adjust’ by pressing the ADJ KEY on the
Service R/C. Then enter adjustment mode by pressing the
Right KEY (
G ) .
(6) Adjust the High Light using R Gain/B Gain.
(7) Adjust using Volume +/- KEY.(G Gain: 127)
DT-42PY10X : R Offset : 50/ B Offset : 48/ B Offset: 50
DT-50PY10 : R Offset : 52/ B Offset : 45/ B Offset: 60
DT-60PY10 : R Offset : 55/ B Offset : 50/ B Offset: 55
X; 0.290±0.003
Y; 0.290±0.003
Color temperature: 9,000°K±500°K
(7) After adjustment is complete, move to Ez - Adjust screen
by pressing the ENTER(Y) KEY. Then exit the adjustment
mode by press ADJ KEY.
R Gain
G Gain
B Gain
R Cut
G Cut
B Cut
00
00
00
00
00
00
ff
ff
ff
7f
7f
7f
ja 00 XX
jb 00 XX
jc 00 XX
lj 00 XX
lk 00 XX
ll 00 XX
7f
7f(Fix.)
7f
3f(Fix.)
3f
3f
RS-232C Command
[CMD ID DATA] MIN CENTER (DEFAULT) MAX
- 16 -

- 17 -
TROUBLE SHOOTING GUIDE
1. Power Board
1-1. The whole flowchart which it follows in voltage output state
Start check
Manufacture enterprise
meaning of a passage
1. Check the Power Off
condition.
Doesn't the
screen whole come
out?
It is identical
with Power Off
condition?
Yes
Yes
No
No
No
No
No
2. Check the Interface
signal condition.
Is the Interface
signal operated?
Yes
3. Check the St-by 5V
signal circuit.
Doesn't the
low pressure output
come out?
Doesn't the
St-by 5V signal
come out?
Yes
Yes
No
4. Check the 5V Monitor
signal circuit.
Doesn't the
5V Monitor signal
come out?
Yes
7. Check the VSC Vs-ON
signal
Doesn't the
high tension output
come out?
Doesn't the
VSC signal Vs-ON
come out?
Yes
Yes
High tension
output voltage Drop
it occurs?
When
remove the
Y B/D Module
Input Connector, output
voltage Drop
it occurs?
When remove
the Y, Z B/D Module
Input Connector, Power
Board high tension output
voltage Drop
it occurs?
Yes No No
9. Check the Power
Board Output high
tension circuit
Yes
10. Check the Z B/D
Module Coutput circuit
Yes
When
remove the
Z B/D Module
Input Connector, output
voltage Drop
it occurs?
11. Check the Y B/D
Module Coutput circuit
Yes
No
8. Check the Vs, Va
voltage output circuit.
Doesn't the
Vs, Va voltage output
come out?
Yes
No
No
5. Check the VSC RL-ON
signal.
Doesn't the
VSC signal RL-ON
come out?
Yes
6. Check the VSC low
pressure output
Doesn't the
VSC low pressure
output come out?
Yes

- 18 -

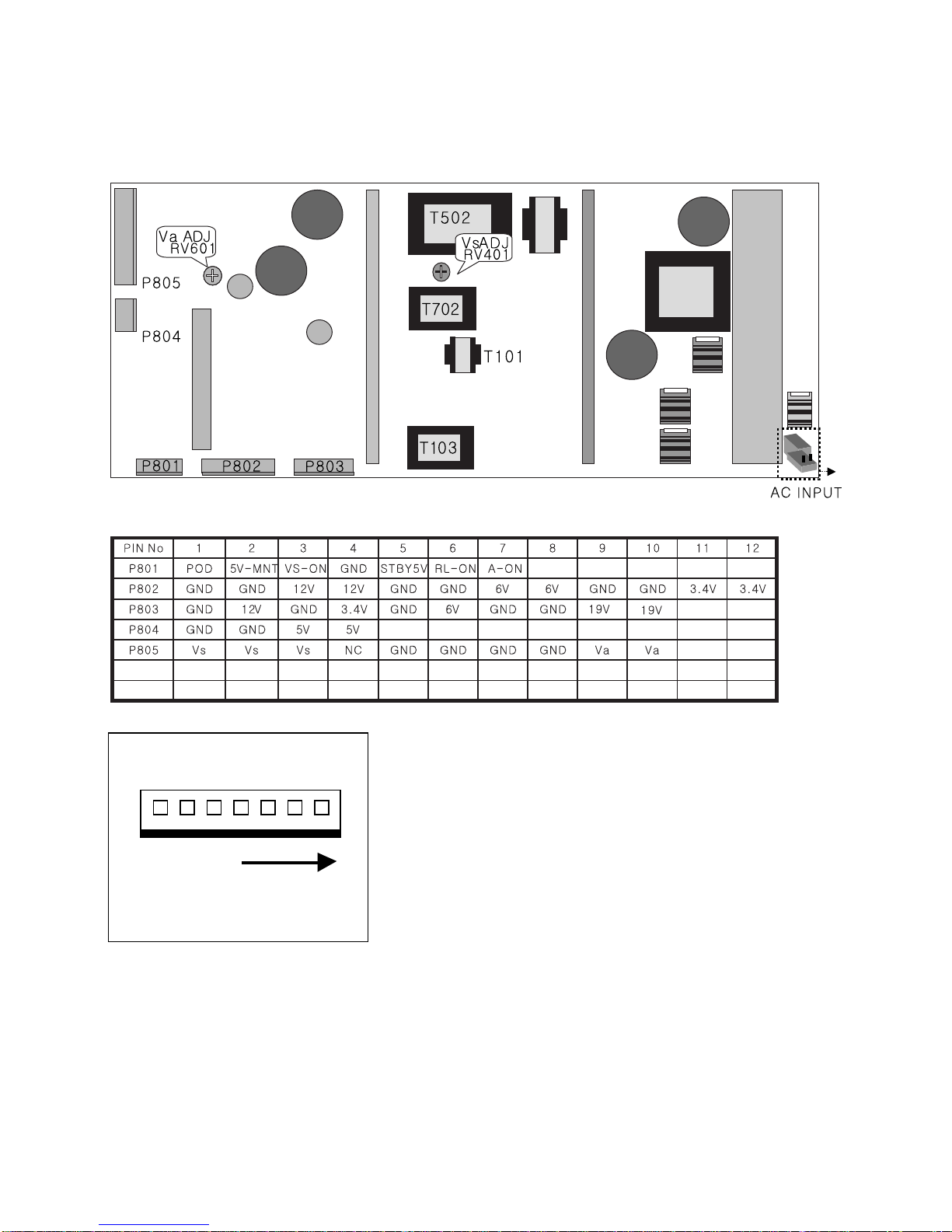

1-2. DT-42PY10X Sony Power Board Structure
1 2 3
T502: Vs Trans
T702: Va Trans
T101: St-by Trans
T103: Low Voltage Trans

- 19 -
1-3. DT-50PY10 Sony Power Board Structure
1 2 3
T502 : Vs Trans
T702 : Va Trans
T101 : St-by Trans
T103 : Low Voltage Trans

- 20 -

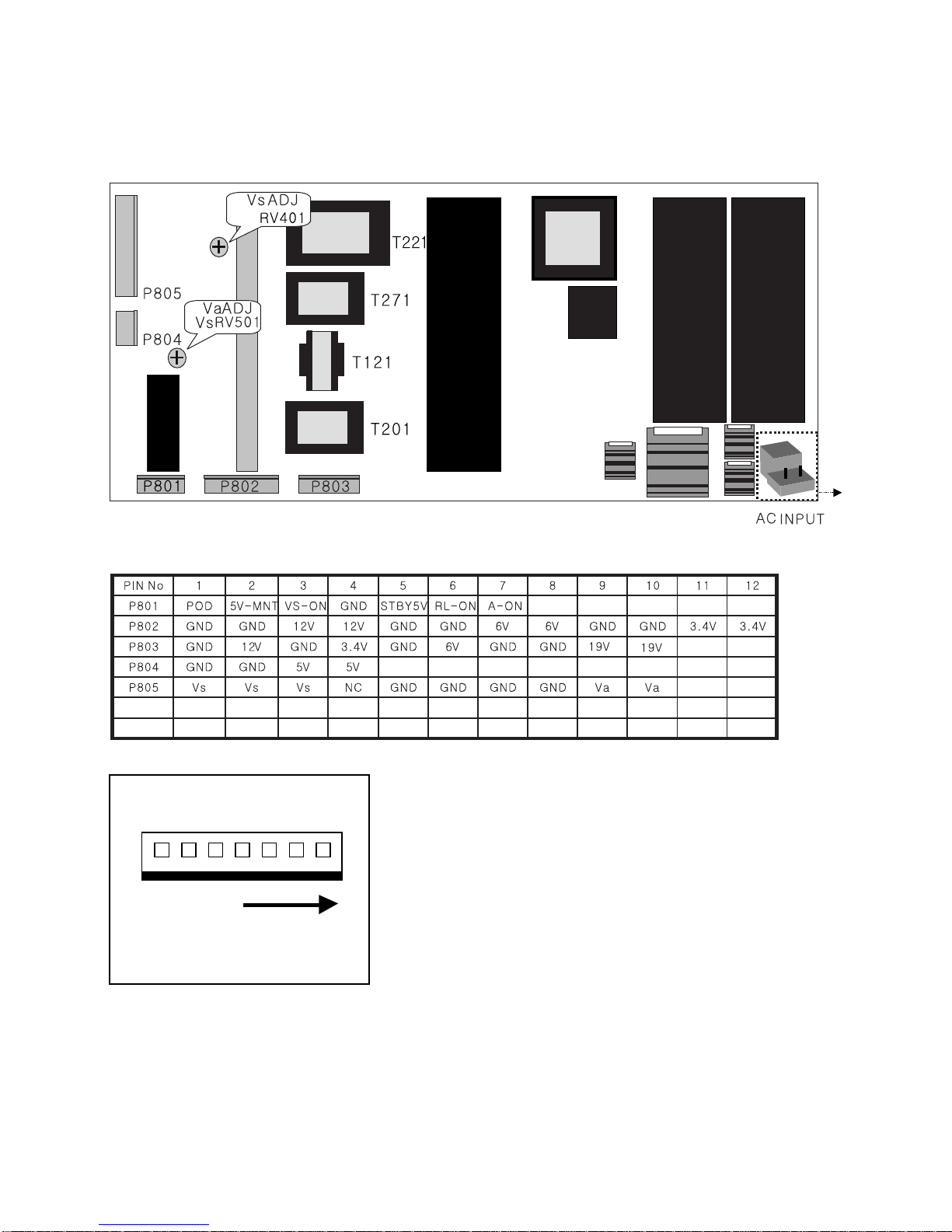

1-3. DT-50PY10 Sanken Power Board Structure
1 2 3
T221 : Vs Trans
T271 : Va Trans
T121 : St-by Trans
T201 : Low Voltage Trans
