LG 42PN4500 User manual

Life's Good
MAMUA{
PLASMA 1V
Please read this manual carefully before operating
your set and retain it for future reference.
42PN4500
50PN4500 50PN5300 60PN5300 50PN6500 60PN6500 60PN6550
P/NO : MFL67701702 (1301=REV02) www.lg.com

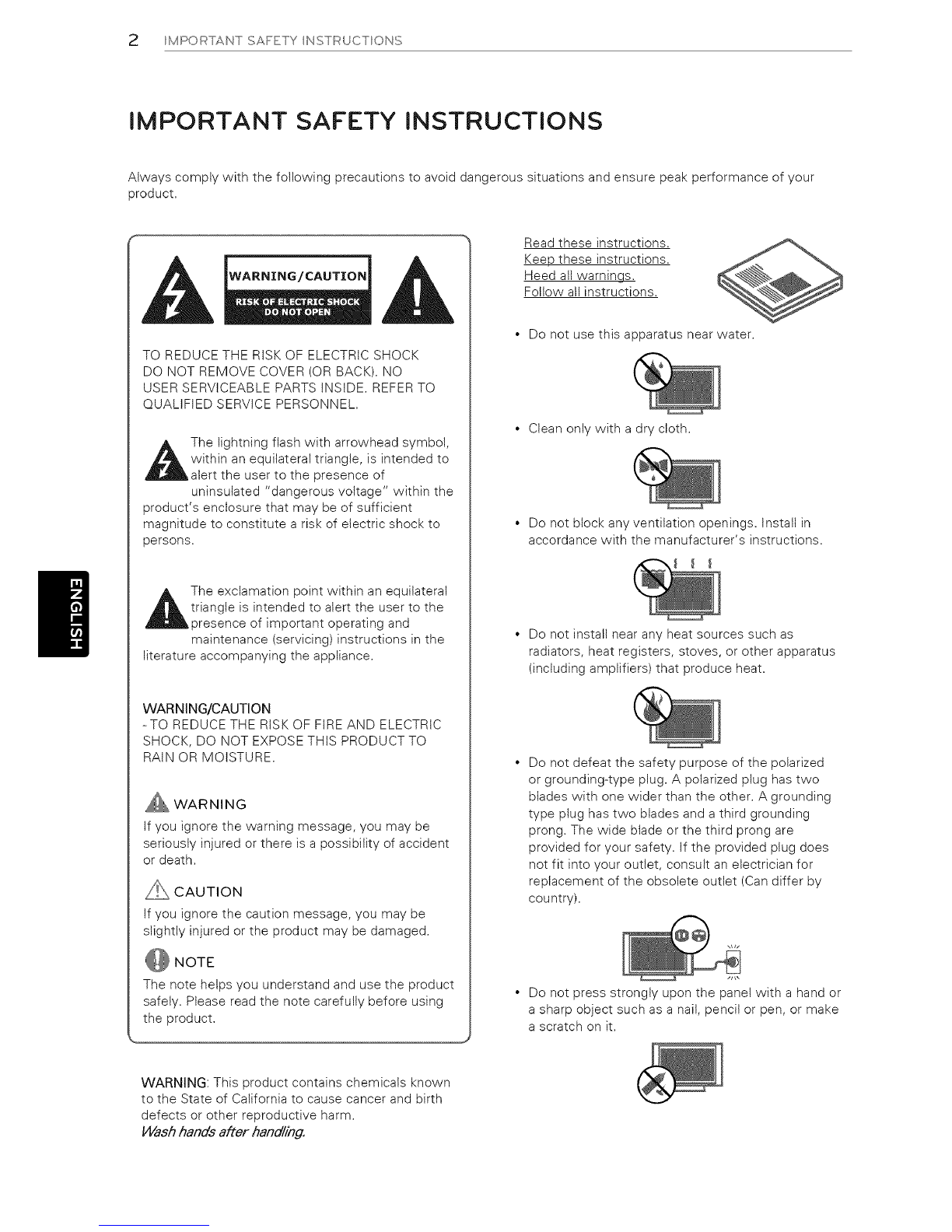

2 MPORTANTSAFETY NSTRUCTONS
IMPORTANT SAFETY INSTRUCTIONS
Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your
product.
WARNING/CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER TO
QUALIFIED SERVICE PERSONNEL.
_hl The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of
uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing)instructions in the
literature accompanying the appliance,
WARNING/CAUTION
-TO REDUCE THE RiSK OF FiRE AND ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
If you ignore the warning message, you may be
seriously injured or there is a possibility of accident
or death.
If you ignore the caution message, you may be
slightly injured or the product may be damaged.
O NOTE
The note helps you understand and use the product
safely. Please read the note carefully before using
the product.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet (Can differ by
country).
Do not press strongly upon the panel with a hand or
a sharp object such as a nail, pencil or pen, or make
a scratch on it.
WARNING: This product contains chemicals known
to the State of California to cause cancer and birth
defects or other reproductive harm.
Wash hands after handling.

MPORTANTSAFETY NSTRUCTONS 3
• Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
• Only use attachments/accessories specified by the
manufacturer.
• Use only with a cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid
injury from tip-over.
• Unplug this apparatus during lightning storms or
when unused for long periods of time.
• Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
CAUTION concerning the Power Cord
(Can differ by country):
It is recommended that appliances be placed upon a
dedicated circuit; that is, a single outlet circuit which
powers only that appliance and has no additional
outlets or branch circuits. Check the specification
page of this owner's manual to be certain. Do
not connect too many appliances to the same AC
power outlet as this could result in fire or electric
shock. Do not overload wall outlets. Overloaded
wall outlets, loose or damaged wall outlets,
extension cords, frayed power cords, or damaged or
cracked wire insulation are dangerous. Any of these
conditions could result in electric shock or fire.
Periodically examine the cord of your appliance, and
if its appearance indicates damage or deterioration,
unplug it, discontinue use of the appliance, and have
the cord replaced with an exact replacement part
by an authorized service. Protect the power cord
from physical or mechanical abuse, such as being
twisted, kinked, pinched, closed in a door, or walked
upon. Pay particular attention to plugs, wall outlets,
and the point where the cord exits the appliance. Do
not move the TV with the power cord plugged in.
Do not use a damaged or loose power cord. Be sure
do grasp the plug when unplugging the power cord.
Do not pull on the power cord to unplug the TV.
• Warning - To reduce the risk of fire or electrical
shock, do not expose this product to rain, moisture
or other liquids. Do not touch the TV with wet
hands. Do not install this product near flammable
objects such as gasoline or candles, or expose the
TV to direct air conditioning.
• Do not stick metal objects or any other conductive
material into the power cord. Do not touch the end
of the power cord while it is plugged in.
• Keep the packing anti-moisture material or vinyl
packing out of the reach of children. Anti-moisture
material is harmful if swallowed. If swallowed
by mistake, force the patient to vomit and visit
the nearest hospital. Additionally, vinyl packing
can cause suffocation. Keep it out of the reach of
children.
• Do not expose to dripping or splashing and do not
place objects filled with liquids, such as vases, cups,
etc. on or over the apparatus (e.g. on shelves above
the unit).

4MPORTANT SAFETY NSTRUCT ONS
Grounding
(Except for devices which are not grounded.)
Ensure that you connect the earth ground wire to
prevent possible electric shock (i.e. a TV with a
three-prong grounded AC plug must be connected
to a three-prong grounded AC outlet). If grounding
methods are not possible, have a qualified
electrician install a separate circuit breaker. Do not
try to ground the unit by connecting it to telephone
wires, lightening rods, or gas pipes.
Power Supply
As long as this unit is connected to the AC walt
outlet, it is not disconnected from the AC power
source even if the unit is turned off.
Do not attempt to modify this product in any way
without written authorization from LG Electronics.
Unauthorized modification could void the user's
authority to operate this product.
Outdoor Antenna Grounding
(Can differ by country):
If an outdoor antenna is installed, follow the
precautions below. An outdoor antenna system
should not be located in the vicinity of overhead
power lines or other electric light or power circuits,
or where it can come in contact with such power
lines or circuits as death or serious injury can occur.
Be sure the antenna system is grounded so as to
provide some protection against voltage surges
and built-up static charges. Section 810 of the
National Electrical Code (NEC) in the U.S.A. provides
information with respect to proper grounding of the
mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna discharge
unit, connection to grounding electrodes and
requirements for the grounding electrode.
Antenna grounding according to the National
Electrical Code, ANSl/NFPA 70
Antenna Lead in Wire
Ground Clamp Antenna Discharge Unit
Electric Service _ (NEC Section 810-20)
Equipment .. Grounding Conductor
Ground Clamp -- (NEC Section 810-21)
_ Power Service Grounding
Electrode System
NEC: National Electrical Code (NEC Art 250 r Part H)
• Cleaning
When cleaning, unplug the power cord and wipe
gently with a soft cloth to prevent scratching. Do
not spray water or other liquids directly on the TV
as electric shock may occur. Do not clean with
chemicals such as alcohol, thinners or benzine.
• Moving
Make sure the product is turned off, unplugged
and all cables have been removed. It may take 2 or
more people to carry larger TVs. Do not press or put
stress on the front panet of the TV.
• Ventilation
Install your TV where there is proper ventilation. Do
not instalt in a confined space such as a bookcase.
Do not cover the product with cloth or other
materials while plugged. Do not install in excessively
dusty places.
• If you smell smoke or other odors coming from
the TV, unplug the power cord and contact an
authorized service center.
• Keep the product away from direct sunlight.
• Never touch this apparatus or antenna during a
thunder or lightning storm.
• When mounting a TV on the wall, make sure not
to install the TV by hanging the power and signal
cables on the back of the TV.
• Do not allow an impact shock or any objects to fan
into the product, and do not drop anything onto the
screen.
• Disconnecting the Main Power
The power outlet used with this device must remain
easily accessible.
• Store the accessories (battery, etc.) in a safe
location out of the reach of children.
• This apparatus use batteries. In your community
there might be regulations that require you
to dispose of these batteries properly due to
environmental considerations. Please contact your
local authorities for disposal or recycling information.
• Do not dispose of batteries in a fire.
• Do not short circuit, disassemble or allow the
batteries to overheat.

MPORTANTSAFETY NSTRUCTONS 5
• Dot Defect
The Plasma or LCD panet is a high technology
product with resolution of two million to six mitlion
pixels, in a very few cases, you could see fine dots
on the screen while you're viewing the TV. Those
dots are deactivated pixels and do not affect the
performance and reliability of the TV.
• Generated Sound
"Cracking" noise: A cracking noise that occurs
when watching or turning off the TV is generated by
plastic thermal contraction due to temperature and
humidity. This noise is common for products where
thermal deformation is required.
Electrical circuit humming/panel buzzing: A low levet
noise is generated from a high-speed switching
circuit, which supplies a large amount of current
to operate a product. It varies depending on the
product.
This generated sound does not affect the
performance and reliability of the product.
• Take care not to touch the ventilation openings.
When watching the TV for a long period, the
ventilation openings may become hot. This does
not affect the performance of the product or cause
defects in the product.
• if a fixed image displays on the TV screen for a long
period of time, it wilt be imprinted and become a
permanent disfigurement on the screen. This is
"image burn" or "burn-in" and not covered by the
warranty.
• If the aspect ratio of the TV is set to 4:3 for a
long period of time, image burn may occur on the
letterboxed area of the screen.
• Avoid displaying a fixed image on the TV screen for
a long period of time (2 or more hours for LCD, 1
or more hours for the Plasma TV) to prevent image
burn.
For USA and Canada
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference wilt not occur in a
particular installation, if this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and the receiver.
- Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected.
- Consult the dealer or an experienced radioFV
technician for help.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference and
(2) this device must accept any interference received,
including interference that may cause undesired
operation of the device.
Any changes or modifications in construction of this
device which are not expressly approved by the party
responsible for compliance could void the user's
authority to operate the equipment.
This reminder is provided to call the CATV system
instatler's attention to Article 820-40 of the National
Electric Code (U.S.A.). The code provides guidelines
for proper grounding and, in particular, specifies that
the cable ground shall be connected to the grounding
system of the building, as close to the point of the
cable entry as practical.

L CENSES
LICENSES
Supported licenses may differ by model. For more information about licenses, visit 'www.lg.com'.
FI] DOLBY
D|GITAL I
Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are
trademarks of Dolby Laboratories.
H lrlrilll
_I_H-D_FmmO_MU_TI_,EOIAI_T_ACE
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.

TABLE OF' CONTENTS 7
TABLE OF CONTENTS
2 IMPORTANT SAFETY INSTRUCTIONS 25 REMOTE CONTROL
6 LICENSES
7 TABLE OF CONTENTS
8 INSTALLATION PROCEDURE
8 ASSEMBLING AND PREPARING
s
10
11
11
12
12
14
15
16
Unpacking
Parts and buttons
Additional information of the manual
Lifting and moving the TV
Setting up the TV
- Attaching the stand
- Mounting on a table
- Mounting on a wall
- Tidying cables
MAKING CONNECTIONS17
17 Connecting to an antenna or cable
18 Connecting to a HD receiver, DVD Player or VCR
18 - HDMI Connection
18 - DVI to HDMI Connection
19 - Component Connection
20 - Composite Connection
21 Connecting to a PC
21 - HDMI Connection or DVI to HDMI Connection
23 Connecting to an Audio System
23 - Digital Optical Audio Connection
24 Connecting a USB Device
27 WATCHING TV
27 Turning the TV on for the first time
28 TROUBLESHOOTING
29 EXTERNAL CONTROL DEVICE SETUP
30 SPECIFICATIONS
/
........NOTE
• image shown may differfrom your TV.
• Your TV's OSD (On Screen Display) may differ
slightlyfrom that shown inthis manual.
• The availablemenus and options may differfrom
the input source or product model that you are
using.
• New features may be added to thisTV inthe
future.

8 NSTALLATONPROCEDURE/ASSEMBL NG AND PREPAR NG
INSTALLATION PROCEDURE
1Open the package and make sure all the accessories are included.
2Attach the stand to the TV set.
3 Connect an external device to the TV set.
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local dealer where you
purchased your product. The illustrations in this manual may differ from the actual product and item.
Remote control, Owner's manual,
Batteries (AAA) CD manual
(See p.25)
(For42PN4500) (For 50PN4500, 50/60PN5300,
50/60PN6500, 60PN6550)
Stand Screws Stand Screws
7 EA, M4x 14 7 EA, M5x 16
(See p.12) (See p.12)
(For 50PN4500, 50PN5300,
50PN6500)
Protection Cover
(See p.13) Power Cord holder (See p.16)
Power Cord
(For 42PN4500)
Desk-mount Screw
(See p.14)
Stand Body, Stand Base
(See p.12)

ASSEMBLNGAND PREPARNG c)
Ferrite core
(Depending on model)
CAUTION ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
• Do not use any unapproved itemstoensure thesafetyand productlifespan.
• Any damages or injuriesby usingunapproveditemsare not coveredby the warranty.
• Some models appearto have a thinfilmon the screen.Itisactuallypartofthe screen,do not remove it.
NOTE
• The itemssuppliedwith your productmay varydepending on the model.
• Productspecificationsorcontentsof thismanual may be changed withoutpriornoticedue to upgradeof product
functions.
• Foran optimalconnection,HDMI cablesand USB devicesshouldhave bezelslessthan10 mm (0.39inches)
thickand 18 mm (0.7inches)width.Use an extensioncablethatsupportsUSB 2.0 ifthe USB cableor USB
memory stickdoes notfitintoyourTV's USB port.
*A _ 10 mm (0.39 inches)
_B_j 18mm (0.7 inches)
• How to use the ferrite core
1 Use the ferrite core to reduce the electromagnetic interference in the power cable,
Wind the power cable on the ferrite core once. Place the ferrite core close to the TV and a wall
plug.
[to a wall plug] [to the TV]
]Figure 1]
2 Use the ferrite core to reduce the electromagnetic interference in the cable.
Place the ferrite core close to the TV,
(Black)
]Cross Section of
Ferrite Core]
Wind the component cable on the ferrite core once.
[to an External device] [to the TV]
[Figure 2-1] 10ram(+/ 5ram)
Wind the PC audio cable on the ferrite core once.
[to an External device]
[Figure 2-2] 10ram(+/ 5ram)
[to the TV]
(Black)
]Cross Section of
Ferrite Core]
k...............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
/

10 ASSEMBLNGANDPREPARNG
Parts and buttons
Bu_ons.
-- Remote control sensor
Power indicator --Screen
Speakers
/_ Scrolls through the saved channels.
/_ Adjusts the volume level.
Selects the highlighted menu option or confirms an input.
Accesses the main menus, or saves your input and exits the menus.
Changes the input source.
_) Turns the power on or off.

ASSEMBL NG AND PREPAR NG 11
Additional information of the
manual
The owner's manual in PDF file format is supplied on the
enclosed CD. Install the Adobe Acrobat Reader to view
the owner's manual on your PC.
1Insert the supplied CD.
The web page appears automatically.
2Click Owner's Manual on the web page.
3View the owner's manual.
Lifting and moving theTV
When moving or lifting the TV, read the following to
prevent the TV from being scratched or damaged and for
safe transportation regardless of its type and size.
_i_ CAUTION
• Avoid touchingthescreen atalltimes,as this
may resultindamage tothe screen.
It is recommended to move the TV in the box or
packing material that the TV originally came in.
Before moving or lifting the TV, disconnect the
power cord and atl cables.
When holding the TV, the screen should face
away from you to avoid damage.
i
Hold the top and bottom of the TV frame firmly.
Make sure not to hold the transparent part,
speaker, or speaker grill area.
;i
...÷
X X
×
• When transporting a large TV, there should be at
least 2 people.
• When transporting the TV by hand, hold the TV as
shown in the following illustration.
When transporting the TV, do not expose the TV
to jolts or excessive vibration.
When transporting the TV, keep the TV upright,
never turn the TV on its side or tilt towards the left
or right.

12 ASSEMBLNGANDPREPARNG
Setting up theTV
You can mount your TV to a wall or attach the stand if you wish to place the TV on an entertainment center or other
furniture
Attaching the stand
If you are not mounting the TV to a wall use the following instructions to attach the stand
CAUTION
• When attaching the stand to the TV set place the screen facing down on a cushioned table or flat surface to
protect the screen from scratches
• Make sure that the screws are fastened completely (if they are not fastened securely enough the TV may tilt
forward after being installed.)
• Do not fasten the screws with too much force; otherwise they may be worn out and get loosened
........................... _For 42PN4500
_ M4x14
Stand Bod,
Stand Base
For 50PN4SO0,
50/60PN5300,
50/60PN6500,
60PN6550
3EA
M5 x 16
f
For 42PN4500
4EA
M4 x 14
For 50PN4500,
50/60PN5300,
50/60PN6500,
60PN6550
4EA
M5 x 16
\

ASSEMBLNGANDPREPARNG13
To detach the stand,
For 50PN4500, 50PN5300, 50PN6500
?////////////////////////_!
_4EA
M5 x 16
1 EA
M5 x 16
Protection cover
| NOTE
• Remove the stand before installing the TV on a
wall mount by performing the stand attachment
in reverse.
• When installing the wall mounting bracket,
use the Protection cover. This will protect the
opening from accumulating dust and dirt.

14 ASSEMBL NG AND PREPAR NG
Mounting on a table
1Lift and tilt the TV into its upright position on a table.
- Leave a 10 cm (4 inches) (minimum) space from
the wall for proper ventilation.
(For 42PN4500)
Fix the TV to a table to prevent from tilting forward,
damage, and potential injury.
Mount the TV on a table, and then insert and tighten the
supplied screw on the rear of the stand.
2Connect the power cord to a wall outlet,
|CAUTION
• Do not place the TV near or on sources
of heat, as this may result in fire or other
damage.
Swivel 20 degrees to the left or right and adjust the
angle of the TV to suit your view.
F-_ CAUTION
|• When adjustingtheangleoftheTV, watch outfor
| yourfingers,
| - Personalinjurymay occurifhands orfingersare
I pinched,Ifthe productistiltedtoo much, itmay
fall, causing damage or injury.

ASSEMBLNGAND PREPARNG 15
(Depending on model)
_Z
Insert and tighten the eye-bolts, or TV brackets and
bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts position,
remove the bolts first.
Mount the wall brackets with the bolts to the wall,
Match the location of the wall bracket and the eye-
bolts on the rear of the TV,
Connect the eye-bolts and wall brackets tightly with
a sturdy rope.
Make sure to keep the rope horizontal with the flat
surface.
Mounting on a wall
An optional wall mount can be used with your LG
Television. Consult with your local dealer for a wall
mount that supports the VESA standard used by your
TV model. Carefully attach the wall mount bracket at the
rear of the TV. Install the wall mount bracket on a solid
wall perpendicular to the floor. If you are attaching the
TV to other building materials, please contact qualified
personnel to install the wall mount. Detailed instructions
wilt be included with the walt mount. We recommend
that you use an LG brand wall mount.
Make sure to use screws and wall mounts that meet the
VESA standard. Standard dimensions for the wall mount
kits are described in the following table.
VESA (A x B)
CZl
Standard screw
Number of screws
Wall mount bracket
(optional)
42/50PN4500
50/60PN5300
50/60PN6500
60PN6550
400 x 400
M6
4
PSW420BX
I

16 ASSEMBLNGANDPREPARNG
-| CAUTION
• Disconnectthe power beforemoving or installing
theTV. Otherwiseelectricshock may occur.
• Ifyou installtheTV on a ceilingor slantedwall,
itmay falland resultinsevereinjury.Use an
authorizedLG wallmount and contactthe local
dealerorqualifiedpersonnel.
• Do not over tighten the screws as this may cause
damage to the TV and void your warranty.
• Use only screws and wall mounts that meet
the VESA standard. Any damages or injuries by
misuse or using an improper accessory are not
covered by the warranty.
_| NOTE
• Use onlyscrews thatare listedon theVESA
standardscrew specifications.
• The wall mount kit includes an installation manual
and necessary parts.
• The wall mount bracket is optional. You can obtain
additional accessories from your local dealer.
• The length of screws may differ depending on the
wall mount. Make sure to use the proper length.
• For more information, refer to the manual supplied
with the walt mount.
Tidying cables
1Install the power cord holder and power cord. It will
help prevent the power cable from being removed
by accident.
(For 42PN4500)
Power cord holder
(For50PN4500, 50/60PN5300, 50/60PN6500, 60PN6550)
Power cord holder
Gather and bind the cables with the cable holder.
Cable holder
CAUTION
• Do not move the TV by holding the cable holder
and power cord holder, as the cable holders may
break, and injuries and damage to the TV may
occur.

MAKNGCONNECTONS 17
MAKING CONNECTIONS
You can connect various external devices to the TV. Supported external devices are: HD receivers, DVD players, VCRs,
audio systems, USB storage devices, PC, gaming devices, and other external devices. For more information on external
device's connection, refer to the manual provided with each device.
...._NOTE ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
• Ifyou recorda TV program on a DVD recorderorVCR, make sureto connectthe TV signalinputcabletothe
TV througha DVD recorderor VCR. For more informationon recording,referto themanual providedwith the
connected device.
• The externaldeviceconnectionsshown may differslightlyfrom illustrationsinthismanual.
• Connect externaldevicesto theTV regardlessofthe orderofthe TV port.
• Ifyou connecta gaming devicetothe TV, use the cablesuppliedwiththegaming device.
• Refertothe externalequipment'smanual foroperatinginstructions.
Connecting to an antenna or cable
Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations may differ from the
actual items and a RF cable is optional.
VHF Antenna
F Antenna /
Terminal
CAUTION
• Make sure not to bend the copper wire of the RF
cable.
Copper wire
• Complete all connections between devices, and
then connect the power cord to the power outlet
to prevent damage to your TV.
-_ NOTE
• Use a signalsplitterto use more than2 TVs.
• Visithttp://Igknowledgebase.comformore
informationaboutthe antenna and cable
connection.Search forantenna.
• DTV Audio Supported Codec: MPEG, DolbyDigital

18 MAKNGCONNECTONS
Connecting to a HD receiver, DVD Player or VCR
Connect a HD receiver, DVD Player or VCR to the TV and select an appropriate input mode.
HDMI Connection
HDMI is the best way to connect a device.
Transmits digital video and audio signals from an external device to the TV. Connect the external device and the TV with
the HDMI cable as shown in the following illustration.
--_ NOTE
•Use the latest High Speed HDMI TM Cable that supports CEC (Customer Electronics Control) function.
• High Speed HDMI TM Cables are tested to carry an HD signal up to 1080p and higher.
• HDMI Audio Supporeted Format: PCM (Up to 192 KHz, 32k/44.1k/48k/96k/192k)-> Not supported DTS.
Choose any HDMI IN input port to connect.
|
|
_mmmmmmmmm_
DVI to HDMI Connection
Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the
DVi-HDMi cable as shown in the following illustration. To transmit an audio signal, connect an audio cable.
(*Not Provided)
DVI OUT
_AU2OUT
_: i i!'
DVD /Blu-Ray /HD Cable Box
(*Not Provided)

MAKNGCONNECTONS19
Component Connection
Transmits the analog video and audio signals from an external device to the TV, Connect the external device and the TV
with the component cable as shown in the following illustration.
- _ NOTE
•Ifcablesare installedincorrectly,itcouldcause the image todisplayinblackand whiteorwith distortedcolor.
•Check to ensure each cable is matched with the corresponding color connection.
/
z
o
-0
!
&
z
o
-0
<s
&
mm ;o m
m rq
Z ID ID
Y PB PR L R
L__VIDE 0 iiJ LAUDIOJ
DVD /Blu-Ray /HD Cable Box

20 MAKNGCONNECTONS
Composite Connection
Transmits the analog video and audio signals from an external device to the TV. Connect the external device and the TV
with the composite cable as shown in the following illustration.
I. NOT
If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L!MONO jack of the TV. |
J
-<
rq
r
r
o
(*Not Provided)
rq
ID
VIDEO
VCR /DVD /Blu-Ray /HD Cable Box
