LGRD-JT40/41 Service Manual
1
RD-JT40/RD-JT41
SERVICEMANUAL
Caution
Besuretoread thismanualbeforeservicing.Toassuresafetyfromfire,electricshock,injury,harmful
radiation and materials,various measures areprovidedinthisAcer DLPprojector.Besuretoread
cautionaryitemsdescribed inthe manualtomaintainsafetybeforeservicing.
Service Warning
1.When replace thelamp,toavoidburns toyorfingers.The lampbecomes too hot.
2.Nevrtouch the lampbulbwithafingeror anything else.Neverdrop itor giveitashock.Theymaycause
bursting ofthe bulb.
3.Thisprojector isprovided withahigh voltage circuit for the lamp.Donottouch the electricpartsof
powrerunit (main),when turnon the pojector.
4.Donottouch theexhaustfan,during operation.
Contents
1.Specifications............................................................................................................................................2
2.SparePartsList.......................................................................................................................................4
3.ShippingCntents......................................................................................................................................5
4.ProjectorDsription....................................................................................................................................6
5.RmoteControl Desription.........................................................................................................................9
6.Insallation................................................................................................................................................11
7.Operation................................................................................................................................................13
8.Shutdown................................................................................................................................................21
9.Maintenance...........................................................................................................................................22
10. LampReplacement..............................................................................................................................23
11. TroubleShooting..................................................................................................................................25
12. Timing Char..........................................................................................................................................33
13. DMDImage Secification.......................................................................................................................34
14. Electrical nterface Caracter..................................................................................................................37
15. Final AssemblyAlignentProcedure......................................................................................................39
16. Pakng Description................................................................................................................................44
17. Appearance Description.......................................................................................................................45
18. Dimension ............................................................................................................................................47
19. Schematics ..........................................................................................................................................48
20. AssyDrawing .......................................................................................................................................85

LGRD-JT40/41 Service Manual
2
1. SPECIFICATIONS
ProjectorSpecifications
Technical Specifications
Note:All specificationsaresubjecttochangewithoutnotice.
General
ProductnamePersonalProjector
ModelnameRD-JT40 1024*768XGA
RD-JT41 800*600SVGA
Optical
Displaysystem1-CHIPDMD
LensF/NumberF/2.6
Lamp210WNSHlamp
Electrical
PowersupplyAC100 ~240V,3.5A,50/60 Hz(Automatic)
Powerconsumption 330 W(Max)
Mechanical
Dimensions308mm/12in(W)x95mm/3.7in(H)x238mm/9.4in(D)
Operating temperaturerange 10 C~40 C
Weight6.9lbs(3.1Kg)
Inputterminal
Computerinput
RGBinputD-sub 15-pin(female)
Videosignalinput
S-VIDEOMiniDIN4-pinportx1
VIDEORCAjackx1
HDTVsignalinputYPBPRRCAjackx3
Audiosignalinput
Audio1Minijacksteroport
Audio2RCAjackL,Rx2
Output
USBmouseconnectorA/Bseriesx1
Speaker2watt x1
Control
RS-232C9-pinx1

LGRD-JT40/41 Service Manual
3
ServiceInformation
Accessories(included inthe StandardPackage)
Description ofparts PartNo.
Powercord(EU) 27.82718.281
Powercord(US) 27.01818.000
Powercord(UK)27.01018.000
VGA signalcable50.J0508.502
Videocable50.73213.501
S-Videocable50.72920.011
PCaudiocable50.74405.501
Softcarryingcase98.J3402.001
HDTVcable50.J2401.001
USBmousecable50.73213.501
Remotecontrol 98.J3401.001
3-2converter22.91007.011
OptionalAccessories(notincludedintheStandardPackage)
Description ofpartsPartNo.
Macadapter(switchable)20.20118.A15
Sparelampmodule60.J3416.CB1

LGRD-JT40/41 Service Manual
4
2. SparePartsList
ItemNo:99.J3477.L11ProjectorLGRD-JT40sparepartslist
PartsNoDescription
55.J3405.001 PCBAFAN CONTROL/BDX660
55.J3408.001 PCBADC-DC/BDX660
60.J3419.001 ASSYPFCMODULE DX660
55.J3407.001 PCBAPFCCONTROL/BDX660
60.J3477.L11 ASSYENGINEDX660-L11
55.J3419.001 PCBATHERMAL/BDX660
60.J3403.021 ASSYLOWERCASEP838 DX660/LG
42.J3415.001 FOOTREARSILICON BLA.DX660
65.J3406.001 ADJUSTFOOTFRONTMARS
55.J3401.001 PCBADMD/BDX660
55.J3402.031 PCBAMAIN/BDLGDX660
60.J3414.031 ASSYOPTICALENG.DX660/LG
55.J3404.001 PCBACHIP/BDX660
60.J3415.021 ASSYHSGDMDDX660/LG
71.01076.001 ICDIGITAIMAG DMD1076-7LGA11
60.J3404.001 ASSYBALLASTMODULE DX660
60.J3405.002 ASSYREARFAN HLDMODULE DX66
60.J3407.021 ASSYREARCVRMODULE DX660/LG
60.J3409.001 ASSYCAPLENSTRANS.DX660
60.J3412.061 ASSYUPPERCASEP896 DX660/LG
55.J3403.001 PCBAKEYPAD BDDX660
60.J3416.001 ASSYLAMPMODULE UDX660
60.J3482.001 ASSYREMOTE+CABLE LGDXS660
27.01018.000 CORDH05VV-F13A250V1830MM U
27.01818.000 CORDSVT#18*3C10A125V1830US
27.82718.281 CORDH05VV-F10A250VEURBLK
50.73213.501 CABLE 4PUSBA-B1800MMBLACK
50.J0508.502 SIGNAL/C15/15P2500MM/BLK
50.J7111.501 CABLE A/V(G.B.R)1800BLK784
50.72918.001 CABLE A/VRCA(R,W,Y)1500MM
50.72920.011 C.AMIN-DIN4P S-VIDEOW/S15
50.74405.501 CABLE AUD PC99PT284C/PT577CB
98.J3403.001 REMOTECONTROLLERDXS660 LG
98.J3404.001 SOFTCASEDXS660 LG
ItemNo:99.J3877.L11ProjectorLGRD-JT41sparepartslist

LGRD-JT40/41 Service Manual
5
PartsNoDescription
55.J3405.001 PCBAFAN CONTROL/BDX660
55.J3408.001 PCBADC-DC/BDX660
60.J3419.001 ASSYPFCMODULE DX660
55.J3407.001 PCBAPFCCONTROL/BDX660
60.J3877.L11 ASSYENGINEDS660-L11
55.J3419.001 PCBATHERMAL/BDX660
60.J3403.021 ASSYLOWERCASEP838 DX660/LG
42.J3415.001 FOOTREARSILICON BLA.DX660
65.J3406.001 ADJUSTFOOTFRONTMARS
60.J3406.061 ASSYINTERFACEMODULE DS660/L
55.J3801.001 PCBADMD/BDFORDS660
55.J3804.M21PCBAMAIN/BDFORLGDS660
60.J3410.001 ASSYBOXLAMPDX660
60.J3411.001 ASSYBKTBLOWERDX660
60.J3414.041 ASSYOPTICALENG.DS660/LG
55.J3802.001 PCBADMDCHIP/BDFORDS660
60.J3415.021 ASSYHSGDMDDX660/LG
71.08460.000 ICDIGITALIMAG DMD8460 LGA11
60.J3404.001 ASSYBALLASTMODULE DX660
60.J3405.002 ASSYREARFAN HLDMODULE DX660
60.J3407.021 ASSYREARCVRMODULE DX660/LG
60.J3409.001 ASSYCAPLENSTRANS.DX660
60.J3412.071 ASSYUPPERCASEP896 DS660/LG
55.J3403.001 PCBAKEYPAD BDDX660
60.J3413.071 ASSYSUBU/CP896 DS660/LG
60.J3416.001 ASSYLAMPMODULE UDX660
60.J3417.021 ASSYDOORLAMPP838 DX660/LG
60.J3481.001 ASSYMANU+WARRANTYLG
60.J3482.001 ASSYREMOTE+CABLE LGDXS660
98.J3403.001 REMOTECONTROLLERDXS660 LG
98.J3404.001 SOFTCASEDXS660 LG

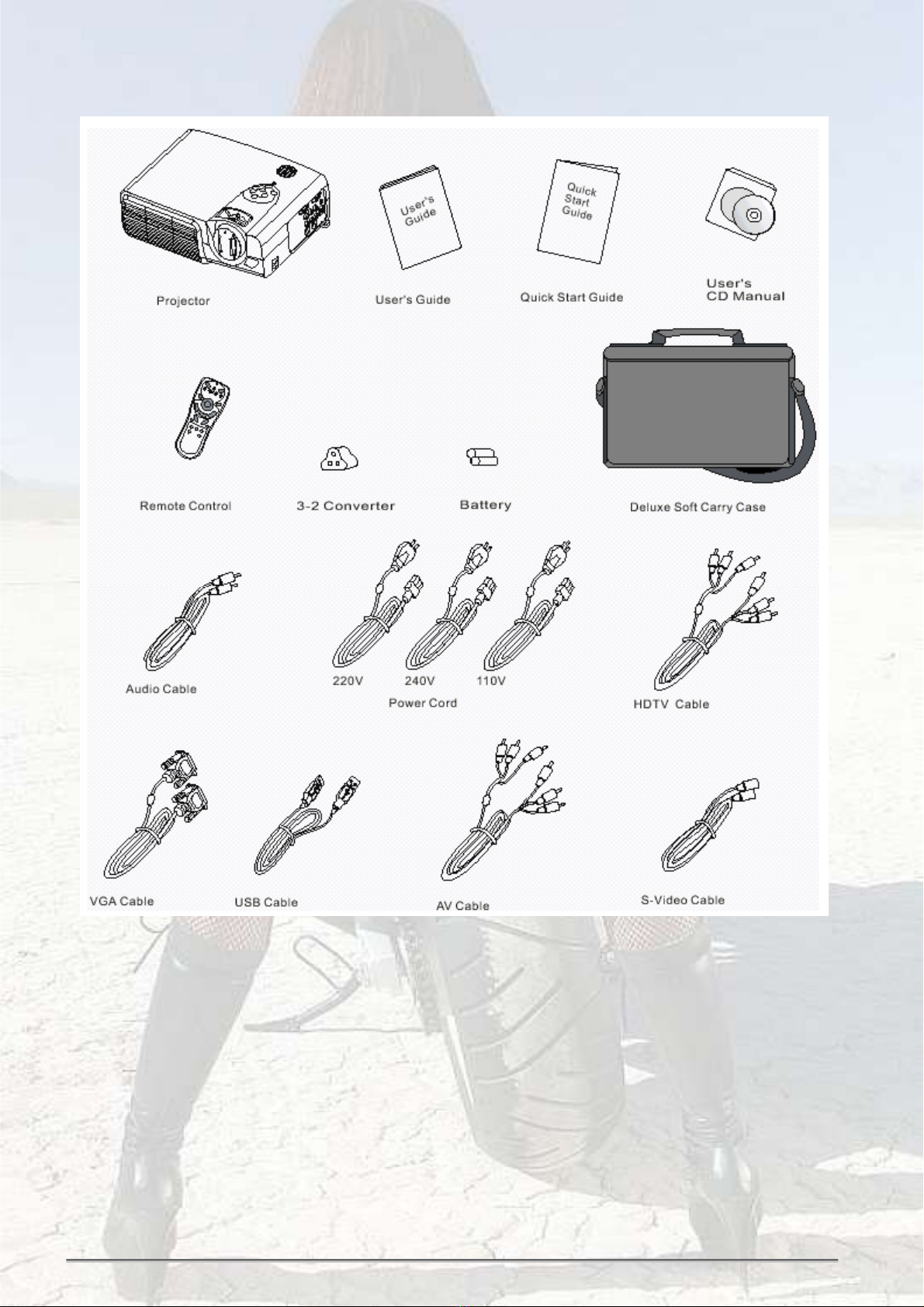

3.ShippingContents
The ProjectorisshippedwiththecablesrequiredforconnectiontostandardPCorlaptop
computers. Carefullyunpack andverifythat youhavealltheitemsshownbelow.If anyof
theseitemsaremissing, pleasecontact personnelat theplaceofpurchase.

LGRD-JT40/41 Service Manual
6
Optional Accessories
1.Macintoshadapter
2. 210WLampmodule
4. ProjectorDescription
Projector

LGRD-JT40/41 Service Manual
7
External Control Panel

LGRD-JT40/41 Service Manual
8
Adjuster

LGRD-JT40/41 Service Manual
9
The projectorisequippedwith2quick-releaseadjusterfeet. Pushthebuttonstoadjust itstilt
angle.
1.Lift theprojectorupandpress theadjusterbuttontoreleasetheadjuster.
2. Theadjusterwilldropintoposition andbelocked.
ProjectorFeatures
The projectorintegrateshigh-performanceopticalengineprojectionandauser-friendlydesign
todeliverhighreliabilityandeaseofuse. Theprojectoroffersthefollowingfeatures:
Smallandlight forportability
Full-functionremotecontrolwithlaserpointer/ remotemousefunction
Hight qualitymanualzoomlens
One-keyauto-adjustment todisplaythebest picturequality
Easy digitalkeystonecorrectionthrough hot keystocorrect distortedimages
Adjustablecolorbalancecontrolfordata/videodisplay
Ultra-high brightness projectionlamp
Abilitytodisplay16.7millioncolors
On-screenmenusin8languages: English, French, German, Italian, Spanish, Korean,
SimplifiedChinese, andTraditionalChinese.
SwitchableNormal/ Videomodefordata/ videodisplay
PowerfulAVfunctiontoprovidehighqualityAVpicture
HDTVcompatibility(YPBPR)
Note:Thebrightnessoftheprojectedimagewill varydependingon the
ambientlighting conditionsand contrast/brightnesssettings.

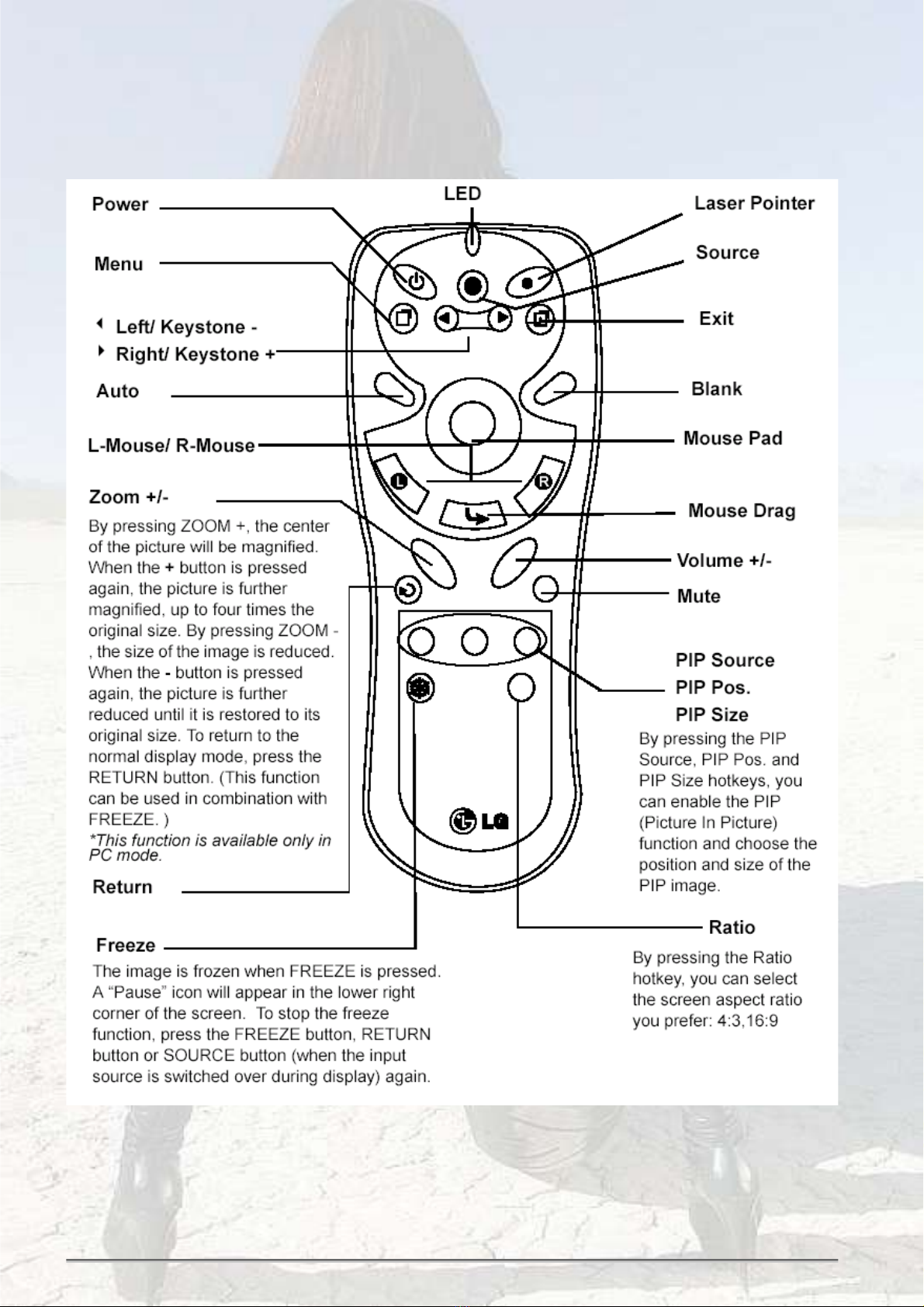

5. RemoteControl Description

LGRD-JT40/41 Service Manual
10
The remotecontrolsensorsarelocatedinthefront/ back of theprojector. Thedistance
betweenthesensorandtheremotecontrolshouldnot exceed6meters.
Installing orReplacing Batteries

LGRD-JT40/41 Service Manual
11
Caution
Avoidexcessiveheat andhumidity.Theremaybedangerof anexplosionifbatteries
areincorrectlyreplaced.Replaceonlywiththesameorequivalent typerecommended
bythemanufacturer.Disposeofusedbatteriesaccording tothemanufacturer!s
instructions.

LGRD-JT40/41 Service Manual
12
6.INSTALLATION
ScreenSize
Placetheprojectorat therequireddistancefromthescreenaccording tothedesiredpicturesize
(seethetablebelow).
ScreenSize (Max.)ScreenSize(Min.)
Diagonal
(cm/in)
A.Width
(cm/in)
C.Height
(cm/in)
L. Projection
distance (cm/in) Diagonal
(cm/in)
B.Width
(cm/in)
D.Height
(cm/in)
77/30.461.8/24 46.3/18 100/39 63/24.950.7/20 38.0/15
154/60.8123.65/49 92.7/36 200/79 127/49.9101.3/40 76.0/30
232/91.2185.3/73 138.9/55 300/118 190/74.7151.9/60 113.9/45
309/121.5247.0/97 185.2/73 400/157 253/99.7202.5/80 151.9/60
386/151.9308.7/122 231.6/91 500/197 316/124.6253.2/100 189.9/75
463/182.3370.5/146 277.9/109 600/236 380/149.5303.8/120 227.9/90
541/213.1432.2/170 324.18/128 700/276 443/174.6354.4/140 266.2/105
617/243.1494.0/194 370.5/146 800/315 506/199.4405.1/160 303.8/120
695/273.5555.7/219 416.7/164 900/354 570/224.3455.7/180 341.8/135
772/303.9617.5/243 463.11/182 1000/394 633/249.2506.3/200 379.8/150
Connecting toVariousEquipment
HDTVdescription
The projectoriscapableof displaying variousHigh DefinitionTVdisplaymodes. Someof
thesesourcesare:
Digital-VHS(D-VHS)player DVDplayer
SatelliteDishHDTVreceiver DTVtuners
Most ofthesesourceswill provideananalog component videooutput, astandardVGA
output, oraYPBPR(default)format.
The projectoriscapableof accepting HDTVdatathroughaYPBPRconnector. Usea
HDTVcablethat camewithyourprojectortodisplayHDTVimages.
The followingstandardsaresupportedintheHDTVfunction:
480i480p
720p1080i
Pleasereferto"MenuSystem"onpage13forinformationontheHDTVOSDselections.

LGRD-JT40/41 Service Manual
13
Connecting toVariousEquipment
It onlytakesafewsecondstoconnect yourprojectortoyourdesktopornotebookcomputer,VCR,
orothersystems. However, aMacadapter(anoptionalaccessory)isneededforconnectionto
Macintoshcomputers.

LGRD-JT40/41 Service Manual
14
7. OPERATION

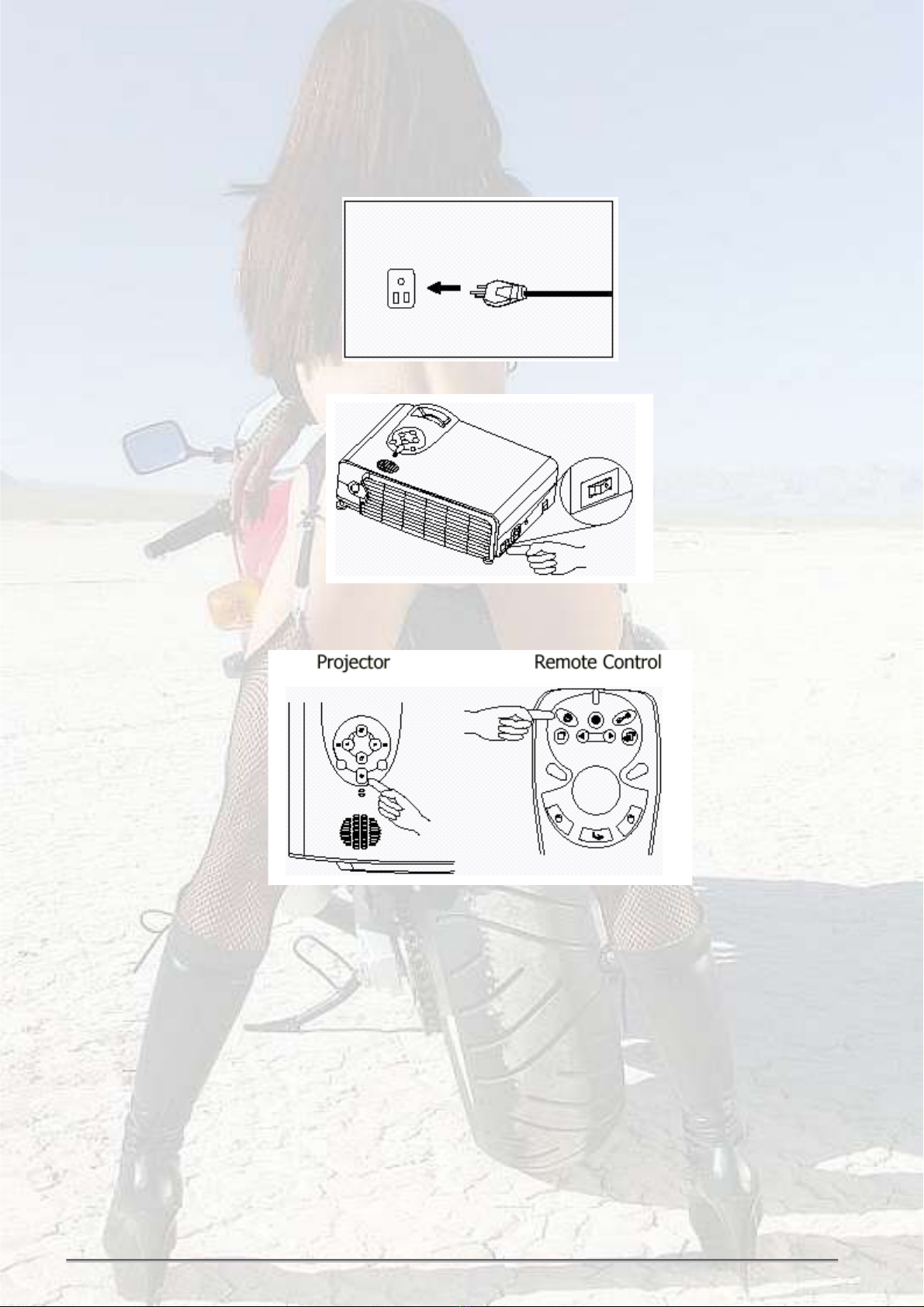

StartUp
1.Plugthepowercordintoawall socket.
2.Turnonthemainpowerswitch.
3.Press POWERtostart theunit. Theback-lit POWERkeyflashesgreenandstaysgreen
whenthepoweristurnedon
(Whenthepoweristurnedoff, thereisa60-secondcoolingperiodbeforetheprojectorcanbe
re-started.)
4.Switchonall connectedequipment.

LGRD-JT40/41 Service Manual
15

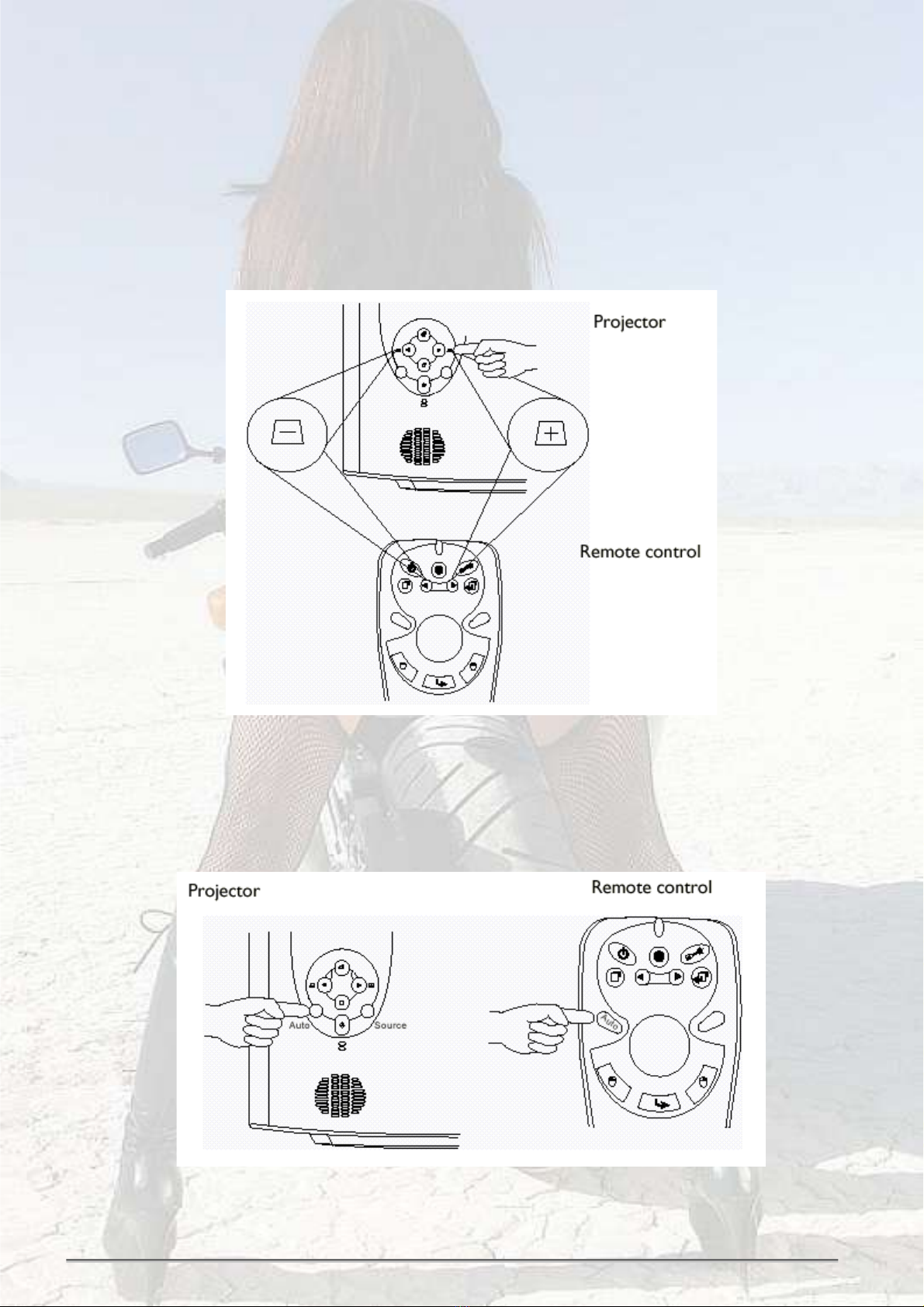

Digital KeystoneCorrection
Keystoningreferstothesituationwheretheprojectedimageisnoticeablywiderat eitherthe
toporbottom. Tocorrect this, pressKEYSTONE+/-(hot key)onthecontrolpanelofthe
projectororontheremotecontrol, andthen adjust theslidingbarlabeledKeystone, as
needed. Press +tocorrect keystoningat thetopoftheimage. Press -tocorrect keystoning
at thebottomof theimage.
AutoAdjustment
Insomecases, youmayneed tooptimizethepicturequality. Todothis, press theAUTO key
onthecontrolpaneloftheprojectororontheremotecontrol. Within3seconds, thebuilt-in
Intelligent AutoAdjustment functionwill re-adjust settingstoprovidethebest picturequality.

LGRD-JT40/41 Service Manual
16
Source Selection
Whenseveralinput sourcesareavailable, press theSOURCEkeytomakeaselection fromthe
controlpaneloftheprojectorortheremotecontrol.

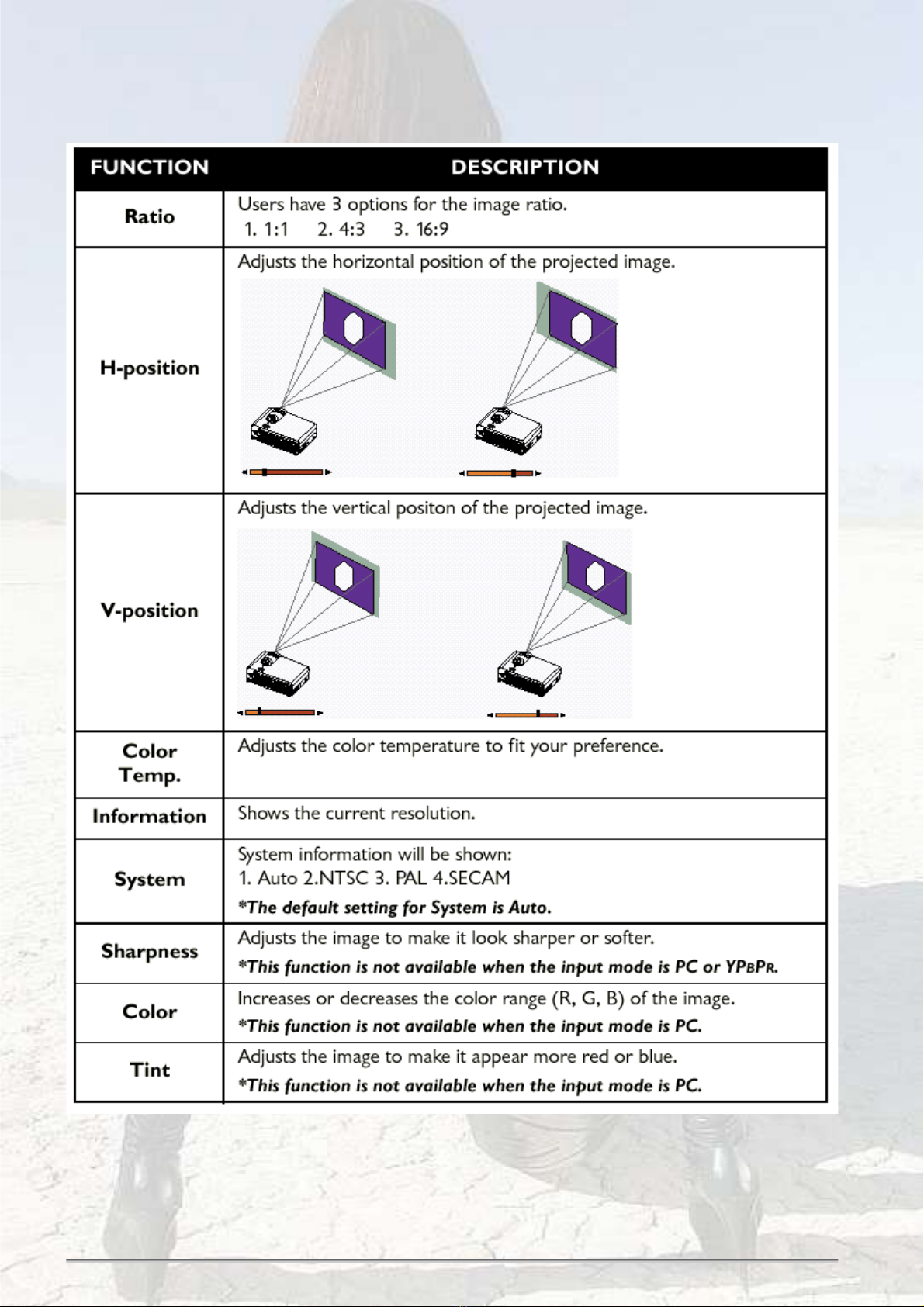

Menu System
Press Menu forthe mainmenu, andthenpress or toselect asub-menu. Press Menu
againtoselect itemsinthesub-menu.

LGRD-JT40/41 Service Manual
17
1.DisplayMenu

LGRD-JT40/41 Service Manual
18
2.ImageMenu

LGRD-JT40/41 Service Manual
19
3.Source Menu

LGRD-JT40/41 Service Manual
20
4.Control Menu
FUNCTIONDESCRIPTION
Language
Languagesets thelanguagefortheOSDcontrolmenus.
Usethe3/4keytoselectthedesiredlanguagefromamongEnglish,French,German,
Italian, Spanish,Korean,SimplifiedChineseand TraditionalChinese.
OSDPos.
SelectsadesiredOSDposition.
OSD OSDTime
SetsthelengthoftimetheOSDwill remainactiveafterthelasttimeyou pressedthe
button.Theran
g
eis from5to60 secondsin5-second increments.
Source scan
Whenselected,activatestheSourcescanfunction.
Keystonehold
Whenselected,preservesthelastkeystonecorrection valueevenwhentheprojectoris
restarted.
Mirrorhold
Whenselected,preservesthelastmirrorcorrection valueevenwhentheprojectoris
restarted.
Blank time
DeterminesthelengthoftimebeforetheprojectorisshutoffwhenBlank isactivated.
Autooff
Setsthelengthoftimebeforethesystemisshutoffwhenno inputis detected.
Setup
Userlogo
Enablestheusertodefinethelogoscreenthatwill displayduringstart-up.Threemodes
areavailable:Default
(
BOXLIGHTlo
g
o
),
blackscreenand bluescreen.
Default Returnsall settingstotheirfactorypresetvalues.
VideoMode Selectsvideomode.
Lamphour Showslampusagetime.
