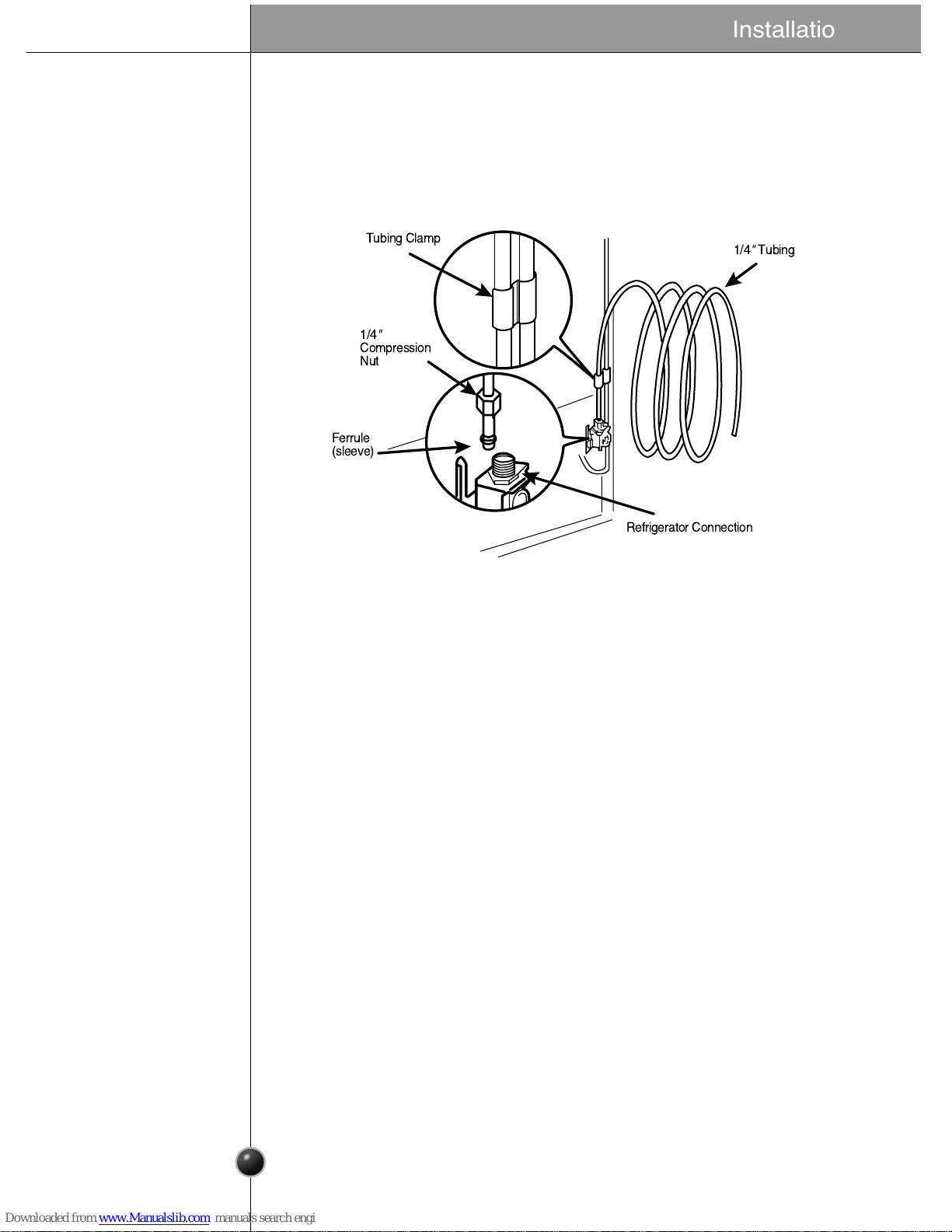

Water connection instruction guide
Height adjustment
Dimensions
Starting

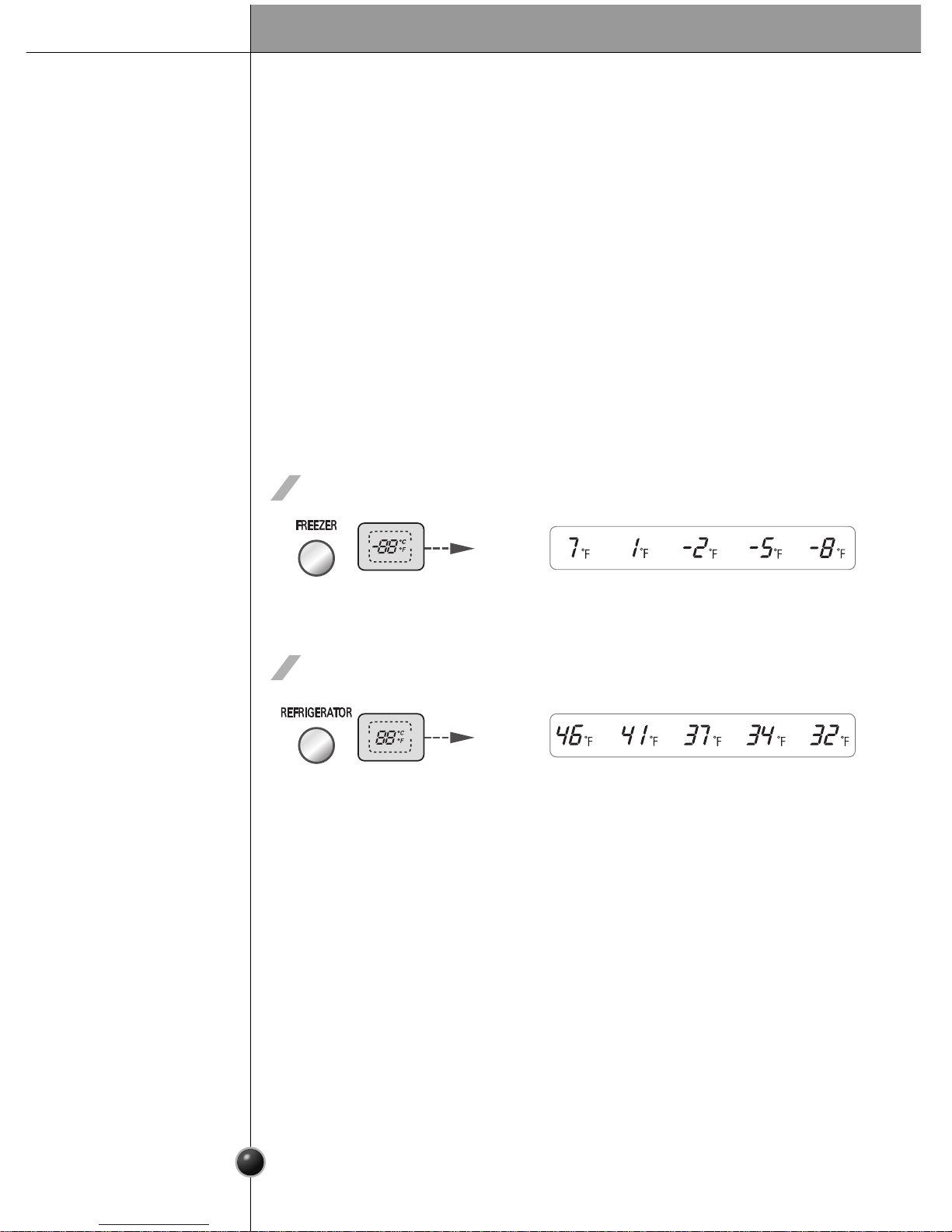

djusting the temperatures and functions
Shelf
Bottle holder ( pplicable to some models only)
Egg box
Humidity control in the vegetable compartment
Deodorizer ( pplicable to some models only)
OptichillTM Temperature Transition Corner
Temperature Change at OptichillTM
OptichillTM
Location of foods
Storing foods
How to remove and replace parts
General information
Cleaning
Troubleshooting
Table of Contents
Introduction
Installation
Operation
Suggestion on
food storage
Care and
maintenance
3
3
10
11
12
13
13
14
17
18
19
19
25
25
26
26
27
27
27
26
28
29
30
32
32
33

Entry
The model and serial numbers are found on the inner case or back of refrigerator
compartment of this unit. These numbers are unique to this unit and not
available to others. You should record requested information here and retain
this guide as a permanent record of your purchase. Staple your receipt here.
Date of purchase
Dealer
Dealer address
Dealer phone no.
Model no.
Serial no.
Introduction
3
Basic safety precautions
This guide contains many important safety messages.
lways read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you
of hazards that can kill or hurt you or others or cause damage to the product. All
safety messages will be preceded by the safety alert symbol and the hazard signal
word DANGER, WARNING, or CAUTION. These words mean:
All safety messages will identify the hazard, tell you how to reduce the chance of
injury, and tell you what can happen if the instructions are not followed.
DANGER
You will be killed or seriously injured if you don’t follow
instructions.
WARNING
You can be killed or seriously injured if you don’t follow
instructions.
CAUTION
Indicates an imminently hazardous situation which, if not
avoided, may result in minor or moderate injury, or product
damage only.

4
Introduction
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using your
product, basic safety precautions should be followed, including the following.
Read all instructions before using this appliance.
1. When connecting the power
The dedicated outlet should be used.
• Using several devices at one outlet may cause fire.
• The electric leakage breaker may damage food and the
dispenser may be leaked.
Prevent the power cord from being squeezed or imprinted if the refrigerator is
pushed in after the power plug is extracted during the installation.
When moving your appliance away from the wall, be careful not to roll over the
power cord or to damage it in any way. Do not crush or damage the water line.
It becomes the cause of fire or electric shock.
Do not allow the power cord bent or pressed by the heavy
object to be damaged.
It may damage the power cord to cause fire or electric shock.
Do not allow the power plug to face upward or to be
squeezed at the back of the refrigerator.
Water may be flown into or the plug may be damaged, which
causes fire or electric shock.
Do not extend or modify the length of the power plug.
It causes electric shock or fire by the electric damage of the
power cord or others.
Unplug the power plug when cleaning, handling or
replacing the interior lamp of the refrigerator.
• It may cause electric shock or injury.
• When replacing the interior lamp of the refrigerator, make
sure that the rubber ring for preventing the electric spark
within the socket is not taken off.

5
Introduction
Remove water or dust from the power plug and insert it
with the ends of the pins securely connected.
Dust, water or unstable connection may fire or electric shock.
Unplug the power cord from the power outlet for cleaning or other
requirements.
It may cause electric shock or injury.
Make sure of grounding.
Consult a qualified electrician or service person if the
grounding instructions are not completely understood,
or if you have doubts on whether the appliance is
properly grounded.
The incorrect grounding may cause breakdown and electric
shock.
Be sure to use grounded exclusive proper voltage consent for the power plug.
Be sure to use grounded extension consents when extension consents are used.
It becomes the cause of fire.
Ground
Wire
Copper
Flat
More than
30 inches
When the power cord or the power plug is damaged or
the holes of the outlet are loosed, do not use them.
It may cause electric shock or short circuit to make fire.
Wait for 5 minutes or longer when reconnecting the plug.
It may cause the operation of the freezer to fail.
Pull out the power plug not by grasping the cord but the
plug of its end.
It may cause electric shock or short circuit to fire.
Do not pull out the cord or touch the power plug with wet
hands.
It may cause electric shock or injury.

6
Introduction
. When using the refrigerator
Do not place the heavy object or the dangerous object
(container with liquid) on the refrigerator.
It may be dropped to cause injury, fire or electric shock when
opening or closing the door.
Do not install the refrigerator in the wet place or the place
which water or rain splashes.
Deterioration of insulation of electric parts may cause electric
leakage.
Do not cling to the door or the shelves of the door or the
home bar of the freezer or the cool chamber.
It may make the refrigerator fallen down or damage the hands.
Especially, do not allow the children to do the above.
Prevent children from entering the product.
It may endanger the life of a child if the child enters the
refrigerator.
Opening and closing the door of the refrigerator vigorously may cause the
stored food in the refrigerator basket to fall by shock and hurt the foot, so take
precautions.
Do not use or store inflammable materials ether,
benzene, alcohol, medicine, LP gas, spray or
cosmetics near or in the refrigerator.
It may cause explosion or fire.
Benzene

Ether
Thinner
Do not use drier to dry the inside, nor light a candle to
remove odor.
It may cause explosion or fire.
Do not store the medicine or the academic materials at
the refrigerator.
When the material with the strict temperature control is
stored, it may be deteriorated or it may make an
unexpected reaction to cause any risk.
The Academic
Medicine
The Medicine

7
Introduction
Do not put heavy things on the Home Bar.
(Only for the models with the Home Bar)
Falling objects may hurt people.
Use the submerged refrigerator after checking it.
It may cause electric shock or fire.
In case of thunder and lightning, or not in use for a long
period of time, detach the power plug.
There is a danger of electric shock or fire.
Do not spray water at the outside or the inside of the
refrigerator or do not clean it with benzene or thinner.
Deterioration of insulation of electric parts may cause electric
shock or fire.
ThinnerThinner
When any strange smell or smoke is detected from the
refrigerator, disconnect the power plug immediately
and contact to the service center.
It may cause fire.
Service
center
Do not place flower vase, cup, cosmetics, medicine or
any container with water on the refrigerator.
It may cause fire, electric shock or injury by dropping down.
Install in places away from the fire such as the place
where flammable gas is leaked.
It may cause fire.
Do not use the combustible spray near the refrigerator.
It may cause fire.

8
Introduction
Do not use the refrigerator for non-domestic purpose
(storing medicine or testing material, using at the ship,
etc.).
It may cause an unexpected risk such as fire, electric shock,
deterioration of stored material or chemical reaction.
When disposing the refrigerator, remove the packing
materials from the door or take off the doors but leave the
shelves in place so that children may not easily climb
inside.
It may cause to lock out the child.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
Install the refrigerator on the solid and level floor.
Installing it on the unstable place may cause death by falling
down the refrigerator when opening or closing the door.
Do not insert the hands or the metal stick into the exit
of cool air, the cover, the bottom of the refrigerator,
the heatproof grill (exhaust hole) at the backside.
It may cause electric shock or injury.
Do not allow any person except the qualified engineer
to disassemble, repair or alter the refrigerator.
It may cause injury, electric shock or fire.
CAUTION
Violating this direction may cause injury or damage house or furniture.
Always be careful, please.
Do not insert the hands into the ice bucket or the ice
dispenser.
Operating the ice maker may cause injury.

9
Introduction
Do not touch food or containers at the freezer with wet
hands.
It may cause frostbite.
Do not put ice in thin crystal cup or ceramic ware.
It may break cup or ceramic ware to cause injury.
When the electricity is off, remove ice from the ice bucket
(only for the model with the dispenser).
The long-time power failure may thaw ice to damage the floor.
When the long-time power failure is expected, remove ice
from the ice bucket.
Supply the automatic ice maker with drinkable water
only (only for the model with the dispenser).
Otherwise, it may cause any risk.
Do not remove the cover of the automatic ice maker.
(Only for the models with automatic ice maker)
The operation mechanic parts of the ice maker may hurt people.
Do not place the food in disorder inside the refrigerator.
The food may fall during opening and closing the door of the refrigerator and hurt
people.
Drinkable
water
Do not put bottle in the freezer.
It may freeze the contents to break the bottle to cause injury.
Do not insert the hands into the bottom of the
refrigerator.
The iron plate of the bottom may cause injury.
Carry the refrigerator with the handle bar at the bottom
of the front and the top of the rear.
Otherwise, your hands may be slipped to cause injury.
Because the product is heavy, carrying it alone may hurt
people or accidents may occur.

10
Introduction
Identification of parts
•
Parts, features, and options vary by model. Your model may not include every option.
NOTE
Freezer
Compartment Refrigerator Compartment
Milk Product Corner
Lamp
Wine Holder
(Plastic or wire)
Drawer
Lamp
Automatic
Icemaker
Shelf
Shelf
Door Rack
Drawer
Door Rack
Lower Cover
Shelf
Snack Drawer
Folding Shelf
Egg Box
Vegetable Drawer
Door Rack
Door Rack
Conversion switch
(Meats/Vegetables)
(Optional)
Hunidity Switch
Optichill (Optional)
Fresh compartment
(Optional)
Because opening or closing the door or the home bar
of the refrigerator may cause injury to the person
around it, be careful, please.
Opening or closing the door may cause feet or hands to be
caught in the chink in door or the child to be get hurt by the
corner.
Do not put any living animal in the refrigerator.

Installation
11
Strong
and even floor
A proper
distance from
adjacent items
Where water
supply can be
easily connected
in a dry place
Where it is free
from heat
To ensure proper air circulation around the
fridge -freezer, please maintain sufficient
space on both the sides as well as top and
maintain at least 2 inches (5 cm) from the
rear wall.
Select a place where a water supply can be
easily connected between the automatic ice
maker and dispenser.
Installing the refrigerator in a wet or damp
area may cause rust and may be an electrical
hazard.
If this refrigerator is installed where the
ambient temperature is high, the freezing
capacity is deteriorated and the cost of
electricity used increases.
Height
More than
"(5 cm)
to back
Where to install
Unstable installation may cause vibration and
noise. If the floor to install the refrigerator on
is not even, make the refrigerator level by
rotating the height adjusting screw. Carpet
or floor covering on which a refrigerator is
installed may be discolored by heat from the
bottom of the refrigerator.
Do not allow carpet or flooring to block
airflow under the refrigerator.
•
Install the refrigerator at a place where the ambient temperature is 5˚C ~ 43˚C
(41˚F~110˚F).
Ambient temperature outside this range may cause product malfunction. Also, the
tube between the dispenser and automatic ice maker may freeze.
NOTE
Bottom Pad

Door removal
Electric Shock Hazard
Disconnect electrical supply to refrigerator before installing.
Failure to do so could result in death or serious injury.
If your entrance door is too narrow for the
refrigerator to pass through, remove the
refrigerator door and pass the refrigerator laterally.
Remove the lower cover by lifting upward and then pull up the water feed tube while
pressing the release ring

shown in the figure to the right.
Remove lower
cover and
water feed tube
Warning
Remove the
freezer
compartment
door
Remove the
refrigerator
door
Installation
12
1) Remove the hinge cover by loosening the
screws. Disconnect all connections except
the ground line.
2) Remove the keeper by rotating it counter
clockwise

and then lifting the upper
hinge up
.
3) Remove the freezer compartment door by
lifting it upward. This time, the door
should be lifted enough for the water feed
tube to be completely pulled out.
1) Loosen the hinge cover screws and remove
the cover. Remove connection wire, if any,
except for the ground line.
2) Remove keeper by rotating it clockwise 
and then remove the upper hinge by lifting
it up  .
3) Remove the refrigerator compartment door
by lifting it up.
•
If a tube end is deformed or abraded, trim the part away.
Disconnecting the tube under the door causes about
1/2
gallon (2 liters) water to flow
out. Please put up a big container to prevent it.
NOTE
•
When removing the upper hinge, be careful that the door does not fall forward .
NOTE
•
After removing the door, take it into the kitchen where you are installing the
refrigerator. Lay it down on a blanket and be careful to avoid damaging the water
feed tube.
NOTE
Lower cover
Lower hinge
Lower hinge
Keeper
Feed water tube
Connection
wires
Hinge
cover
Upper hinge
Keeper Upper hinge
Earth line
Upper hinge
Connection
wires

13
Installation
Mount the freezer and refrigerator
compartment doors
Water supply installation
Pass the refrigerator laterally through the access
door as shown in the right figure.

Automatic icemaker operation needs water pressure of 21~121 psi (1.5~8.5
kgf/cm2) (That is, a paper cup (6 oz. or 180 cc) will be fully filled within
3 seconds.)

If water pressure does not reach the rating 21 psi (1.5 kgf/cm2) or below, it is
necessary to purchase a separate pressure pump for normal automatic icemaking
and cool water feed.

Keep the total length of the feed water pipe tube within 26’ (8 m). Be careful for the
tube to avoid being kinked. If the tube is 26’ (8 m) or longer it may cause trouble in
water feed.

Install the water supply line where it will not be affected by heat.

Connect to a potable water supply only.
Mount them in the reverse sequence of removal after they pass through the access
door.
Pass the
refrigerator
Before
installation
Warning
This appliance contains fluids (refrigerant and lubricant) and is made of parts and
materials which are reusable and/or recyclable.
All the important materials should be sent to the collection center of waste material
and can be reused after rework (recycling). For recycling, please contact the local
recycling authority.
Disposal of the
old appliance
1
2
3
4
5
Max
FRZ
TEMPREF
TEMP
Min5
4
32
1Max

14
Water connection instruction guide
Read all directions carefully before you begin.
Connecting
the refrigerator
to a water source
Connect to a potable water supply only.
Warning
•
If operating the refrigerator before installing the water connection, turn icemaker
to the OFF position to prevent operation without water.
•
All installations must be in accordance with local plumbing code requirements.
•
Use copper tubing and check for leaks.
•
Install copper tubing only in areas where temperatures will remain above freezing.
•
It may take up to 24 hours for your icemaker to begin producing ice.
IMPORTANT
The icemaker water valve contains a flow washer which is used as a water
pressure regulator.
The icemaker needs to be connected to a cold water line with water pressure
20 ~ 120 psi (lb/inch2)
Cold water supply

Standard screwdriver
7/16
-inch and
1/2
-inch open-end wrenches or two adjustable wrenches
1/4
-inch nut driver
1/4
-inch drill bit

Hand drill or electric drill (properly grounded)
Tools required
•
Your refrigerator dealer has a kit available with a 1/4-inch saddle-type shut-off valve,
a union, and copper tubing. Before purchasing, make sure a saddle-type valve
complies with your local plumbing codes. Do not use a piercing-type or 3/16-inch
saddle valve which reduces water flow and clogs more easily.
NOTE
Installation

15
1. Unplug refrigerator or disconnect power.
2. Turn OFF main water supply. Turn on the nearest faucet to relieve the pressure
on the line. It may help to open an outside faucet to allow the water to drain from
the line in the house.
3. Find a 1/2-inch vertical COLD water pipe near the refrigerator.
Connect
the tubing to
water line
•
Horizontal pipe will work, but the following precaution must be taken: Drill on the top of
the pipe, not the bottom. This will help keep water away from the drill. This also keeps
normal sediment from collecting in the valve.
NOTE
4. To determine the length of copper tubing you will need, measure from the
connection on the lower left rear of the refrigerator to the water pipe.
Add 7 feet (2.1m) to allow for moving refrigerator for cleaning.
Use 1/4-inch O.D. (outside diameter) copper tubing. Be sure both ends of
copper tubing are cut square.
5. Using a drill, drill a 1/4-inch hole in the cold water pipe you have selected.
6. Fasten shut-off valve to cold water pipe with pipe clamp.
Be sure the outlet end is solidly in the 1/4" drilled hole in the water pipe and the
washer is under the pipe clamp. Tighten the packing nut. Tighten the pipe
clamp screws carefully and evenly so the washer makes a watertight seal.
Do not overtighten or you may crush the copper tubing, especially if soft
(coiled) copper tubing is used. Now you are ready to connect the copper
tubing.
7. Slip the compression sleeve and the compression nut onto the copper tubing
as shown. Insert the end of the tubing into the outlet end squarely as far as it
will go. Screw compression nut onto the outlet end with a wrench. A flare nut
wrench works best, but an open end wrench will suffice. Do not overtighten.
8. Place the free end of the tubing into a container or sink, and turn on the main
water supply. Flush out the tubing until the water is clear. Turn off the shutoff
valve on the water pipe. Coil the copper tubing as shown below.
Cold Water Pipe
Pipe Clamp
Coil of Polyethylene or
Copper Tubing
Compression NutCompression Sleeve
Shut Off Valve
Packing Nut
Installation

16
Before making the connection to the refrigerator, be sure the refrigerator
power cord is not plugged into the wall outlet.
• If your refrigerator does not have a water filter, we recommend installing
one. If your water supply has sand or particles, that could clog the screen of
the refrigerator’s water valve. Install the filter in the water line near the
refrigerator.
1. Remove the plastic flexible cap from the water valve.
2. Place the compression nut and ferrule (sleeve) onto the end of the tubing as
shown.
3. Insert the end of the copper tubing into the connection as far as possible. While
holding the tubing, tighten the fitting.
Connect the tubing to
the refrigerator
Tighten any connections that leak.

Plug In the Refrigerator
Arrange the coil of copper tubing behind the refrigerator so it does not vibrate
against the back of the refrigerator or against the wall. Push the refrigerator
back to the wall.

Start the lcemaker
Set the icemaker switch to the ON position The icemaker will not begin to
operate until it reaches its operating temperature of 15 °F (-9 °C). It will then
begin operation automatically.
Turn the water on at
the shutoff valve
Tubing Clamp
1/4
"
Compression
Nut
Ferrule
(sleeve)
Refrigerator Connection
1/4
" Tubing
Installation

17
Height adjustment
Make them level by inserting a flat (
- type) driver into the groove of the left height
adjusting screw and rotating it clockwise .
Make them level by inserting a flat ( - type) driver into the groove of the right height
adjusting screw and rotating it clockwise .
The refrigerator door will close smoothly by raising the front side by adjusting the
height adjusting screw. If the door does not close properly because it is improperly
adjusted, the performance of the refrigerator will be affected.
If the freezer
compartment door
is lower than the
refrigerator
compartment door
If the freezer
compartment door
is higher than the
refrigerator
compartment door
- first method
After leveling the
door height
Do not force too hard to level the height. The hinge pin can be pulled out.
(Adjustable range of height is a maximum of 2" (5 cm))

Adjust the level when the refrigerator door is lower than the freezer door during the
use of the refrigerator.
Wrench Size
Adjust Hinge Pin: 11/32”(8mm)
Keeper Nut: 3/4” (18mm)
1. Using the wide side of the tool for adjustment ➂, turn the keeper nut ➁( )
clockwise to loosen the Keeper nut.
2. Using the narrow side of the tool for adjustment, turn the adjustment hinge pin
➁( ) clockwise or ( ) counterclockwise to level the refrigerator and
freezer door.
3. After setting the level of the door, turn the keeper nut( ) counterclockwise to
tighten.
If the freezer
compartment door
is higher than the
refrigerator
compartment door
- second method
(Applicable to
some mdels only)
Keeper nut
Ad ustment
hinge pin
Tool for
ad ustment
Up
Down

Installation
CAUTION

18
Dimensions
Installation
A
F G H
DE
B C
Overall Dimensions
A
B
C
D
E
F
G
H
68 1/2”
68 7/8”
69 3/4”
24 3/8”
35 3/4”
28 1/2”
32 5/8”
35 1/4”
67 3/4”
69 1/4”
69”
17 1/2”
35 1/4”
23 5/8”
28 1/2”
31 1/8”
LSC 79** LSC 19**
A
90°
155°
B
C D
LSC 19**
LSC 79**
Model
40 1/4”
45 1/2”
44 7/8”
50 1/8”
13 7/8”
14 1/8”
ABCD
18”
18 1/4”
Door Swing Dimension
4 1/4”
(108mm)
1 7/8”
(without handle)
A
C
B
D
Cabinet Dimensions
Back 2"
Clearances
36”
(915mm)
Allow the following clearances for ease of
installation, proper air circulation and plumbing and
electrical connections.
- If the refrigerator faces to a fixed wall, leave
4 1/4”(108mm) minimum on each side to
allow for the door to swing open.
LSC 19**
Model
70” 24” 13 7/8”
ABCD
18”

19
Operation
Starting
Adjusting the temperatures and functions
When your refrigerator is first installed, allow it to stabilize at normal operating
temperatures 2~3 hours prior to filling it with fresh or frozen foods.
If operation is interrupted, wait 5 minutes before restarting.
Display Power
Saving Mode Change Display Degree Fahrenheit to Centigrade Mode
(concealed)
•Your model may not include every option.
•The control display is operated by touch. Excessive moisture on the display may
cause a malfunction. Please keep display clean and dry.
NOTE

20
Operation
1. Display Power Saving Mode
This function places the display into power saving mode until the next time the
door is opened.
Press the FREEZER and ICE PLUS buttons simultaneously and hold them for 5
seconds until the Ding sounds. All LEDs will then turn ON, then OFF. When the
power saving mode is activated, the display will remain off until the next time the
door is opened. Then, it will come on whenever a door is opened or a button is
pressed and remain on for 20 seconds after the last door opening or button
selection. To deactivate the power saving mode, press the FREEZER and ICE
PLUS buttons simultaneously and hold them for 5 seconds until the Ding sounds.
2. To change temperature display from Fahrenheit to Celsius press and hold
FREEZER and REFRIGERATOR buttons simultaneously for more than 5 seconds.
Do the same to convert back to Celsius.
Freezer Compartment temperature ad ustment
Setting
temperature
Setting
temperature
Refrigerator Compartment temperature ad ustment
You can adjust temperature of freezer compartment and refrigerator
Compartment.
󳢬To adjust the temperature in the refrigerator compartment, press the
REFRIGERATOR button to cycle through the settings of MEDIUM ➔ COLDER ➔
COLDEST ➔ COOL ➔ COOLER.

The actual inner temperature varies depending on the food status, as the
indicated setting temperature is the target temperature, not actual the
temperature within refrigerator.

Please adjust temperature as above after using the refrigerator for a minimum of
2~3 days.
How to adjust the
temperature in
the freezer
compartment
How to adjust the
temperature in
the refrigerator
compartment
