LG LVS301 series User manual

P/NO : MFL62591920
MODEL
LVS301
LVS311
Please read this manual carefully before operating
your set and retain it for future reference.
OWNER'S MANUAL
Network Video Server

2
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated dangerous voltage within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.
FCC WARNING: This equipment may generate or use radio fre-
quency energy. Changes or modifications to this equipment may
cause harmful interference unless the modifications are expressly
approved in the instruction manual. The user could lose the author-
ity to operate this equipment if an unauthorized change or modifi-
cation is made.
REGULATORY INFORMATION: FCC Part 15
This equipment has been tested and found to comply with the lim-
its for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commer-
cial environment.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruc-
tion manual, may cause harmful interference to radio communica-
tions.
Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to cor-
rect the interference at his own expense.
• Asuitableconduitentries,knock-outsorglandsshallbepro-
vided in the cable entries of this product in the end user.
• Caution:Dangerofexplosionifbatteryisincorrectlyreplaced.
Replaced only with the same or equivalent type recommended
by the manufacturer. Dispose of used batteries according to the
manufacturer’s instructions.
• Holesinmetal,throughwhichinsulatedwirespass,shallhave
smooth well rounded surfaces or shall be provided with brush-
ings.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme
NMB-003 du Canada.

3
Warning: Do not install this equipment in a confined space such as
a bookcase or similar unit.
Warning: Wiring methods shall be in accordance with the National
Electric Code, ANSI/NFPA 70.
Warning: This is a class A product. In a domestic environment this
product may cause radio interference in which case the user may be
required to take adequate measures.
Warning: To reduce a risk of fire or electric shock, do not expose this
product to rain or moisture.
Caution: This installation should be made by a qualified service per-
son and should conform to all local codes.
Caution: To avoid electrical shock, do not open the cabinet. Refer
servicing to qualified personnel only.
Caution: The apparatus shall not be exposed to water (dripping or
splashing) and no objects filled with liquids, such as vases, shall be
placed on the apparatus.
To disconnect power from mains, pull out the mains cord plug.
When installing the product, ensure that the plug is easily acces-
sible.
LG Electronics hereby declares that this/these
product(s) is/are in compliance with the essen-
tial requirements and other relevant provisions
of Directive 2004/108/EC, 2006/95/EC, and
2009/125/EC.
European representative :
LG Electronics Service Europe B.V. Veluwezoom 15,
1327 AE Almere. The Netherlands
(Tel:[phone])
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is
attached to a product it means the product is cov-
eredbytheEuropeanDirective2002/96/EC.
2. All electrical and electronic products should be
disposed of separately from the municipal waste
stream via designated collection facilities appointed
by the government or the local authorities.
3. The correct disposal of your old appliance will help
prevent potential negative consequences for the
environment and human health.
4. Formoredetailedinformationaboutdisposalof
your old appliance, please contact your city office,
waste disposal service or the shop where you pur-
chased the product.

4
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Followallinstructions.
5. Do not use this apparatus near water.
6. Cleanonlywithdrycloth.
7. Do not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
8. Donotinstallnearanyheatsourcessuchasradiators,heatreg-
isters, stoves, or other apparatus (including amplifiers) that pro-
duce heat.
9. Do not defeat the safety purpose of the polarized or grounding-
type plug. A polarized plug has two blades with one wider than
the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are pro-
vided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being walked on or pinched par-
ticularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused
for long periods of time.
14. Referallservicingtoqualifiedservicepersonnel.Servicingis
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate nor-
mally, or has been dropped.

5
Handling of the unit
Be careful not to spill water or other liquids on the unit. Be cautions
not to get combustible or metallic material inside the body. If used
with foreign matter inside, the device is liable to fail or to get cause
of fire or electric shock.
Use a dry soft cloth to clean the body. If it is very dirty, use a•
cloth dampened with a small quantity of neutral detergent then
wipe dry.
Avoid the use of volatile solvents such as thinners, alcohol, ben-•
zene and insecticides.
They may damage the surface finish and/or impair the operation
of the device.
Operating and storage location
Avoid viewing a very bright object (such as light fittings) during an
extended period. Avoid operating or storing the unit in the follow-
ing locations.
Extremely hot or cold places (operating temperature from -10 °C•
to 50 °C, however, we recommend that the unit be used within a
temperaturerangefrom0°Cto45°C)
Damp or dust place•
Places exposed to rain•
Places subject to strong vibration•
Close to generators of powerful electromagnetic radiation such•
as radio or TV transmitters.
Cautions for Safe Operation

6Contents
Contents
Introduction................................................................................... 7
Front Panel...............................................................................................8
Rear Panel ................................................................................................9

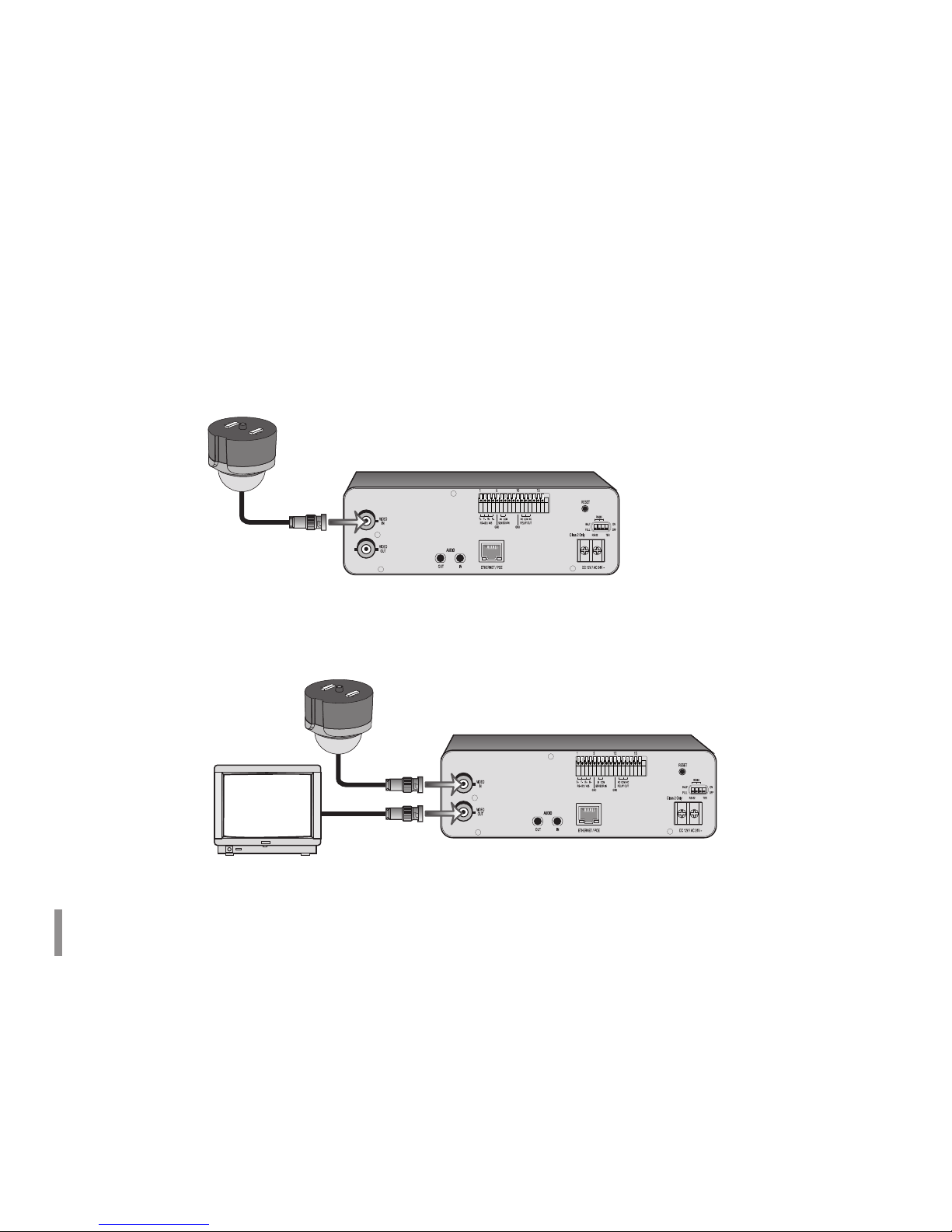

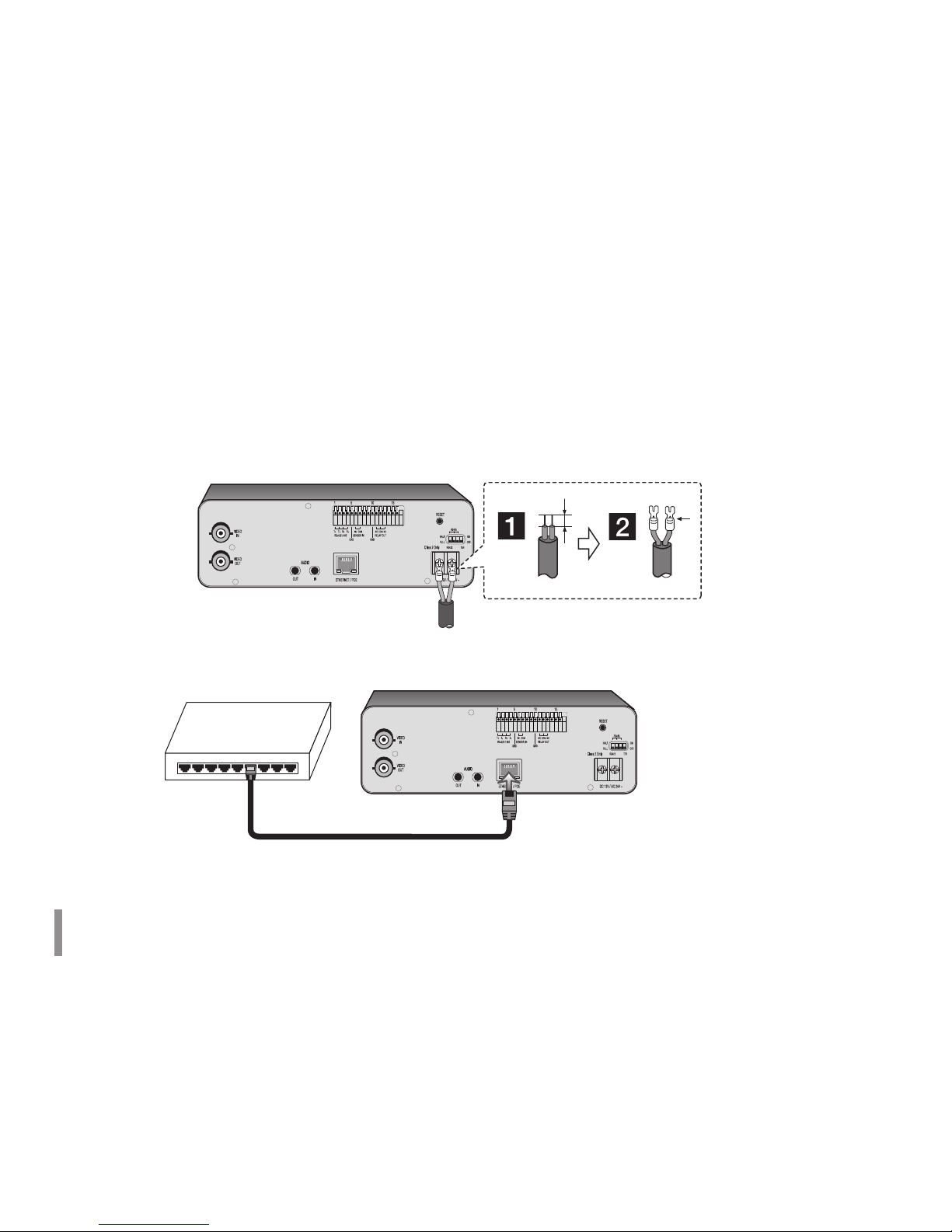

Connections ................................................................................. 11
Precautions...........................................................................................11

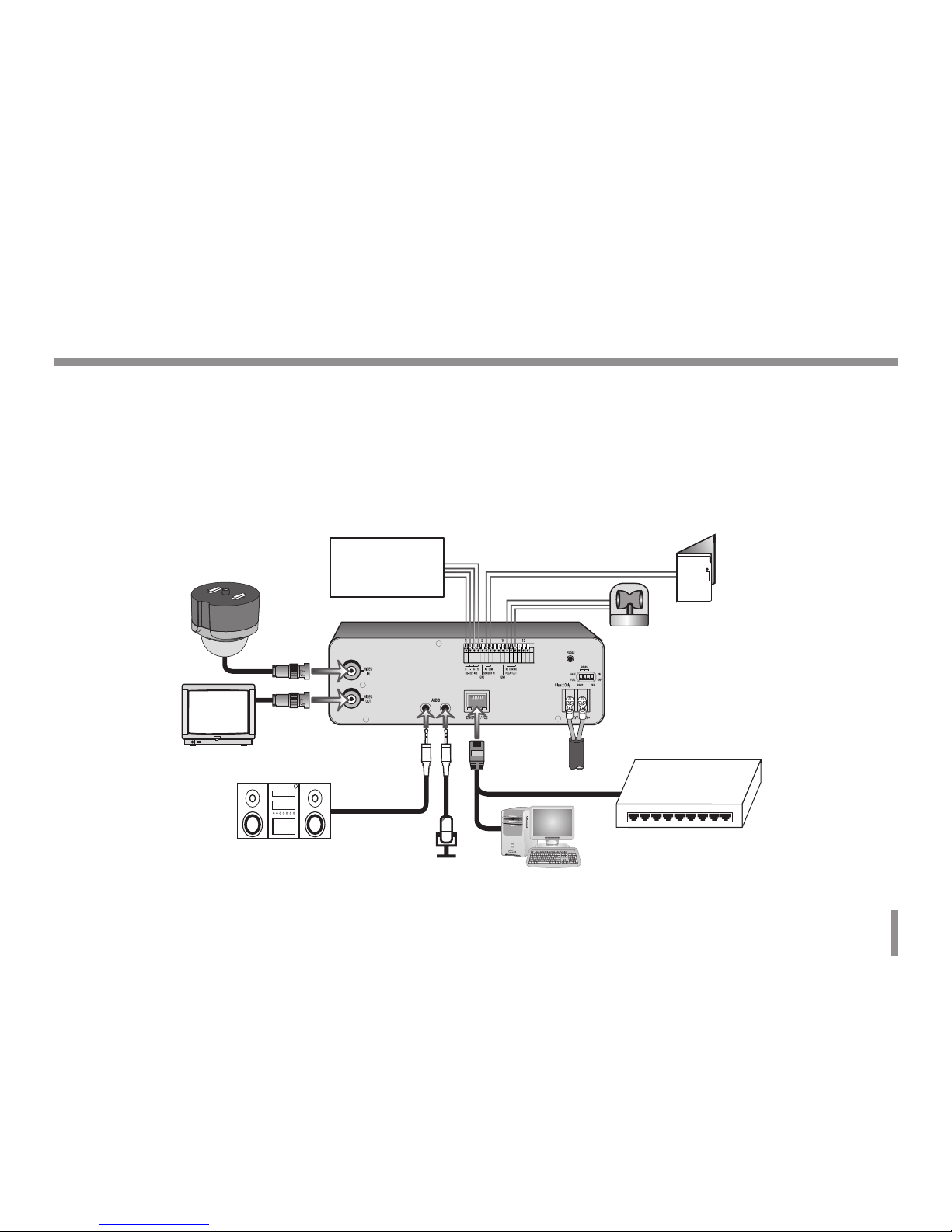

Connection Overview.......................................................................11
Connecting Camera ..........................................................................12
Connecting Display Device ............................................................12
Connecting Network.........................................................................13
Connecting Power Source ..............................................................14
ConnectingRS-422/RS-485Device..............................................15
Connecting Alarm Device...............................................................16
Connecting Microphone and Speaker Device.........................17
Wall Mounting.....................................................................................18
Operation and settings ............................................................... 19
Before using the system ..................................................................19
Recommended PC Requirements................................................19
Accessing the LG IP device..............................................................19
LG Smart Web Viewer Overview ...................................................21
Conguring the LG video server...................................................22
Reference ..................................................................................... 40
Troubleshooting.................................................................................40
Open source software notice.........................................................43
Specications.......................................................................................46

Introduction 7
The LG Video Server is designed to use on an Ethernet network and
must be assigned an IP address to make it accessible.
This manual contains instructions on how to install and manage the
Video Server in your networking environment. Some knowledge of
networking environments would be beneficial to the reader.
Should you require any technical assistance, please contact autho-
rized service center.
Features
TheLGVideoServeroffersthefollowingfunctions:
DualH.264StreamforsingleVideoInput•
Multi-Codec(H.264,MJPEG)Streaming•
Intelligent Video Analysis (Option)•
PoE(PoweroverEthernet)Support(802.3af)•
3Power(AC24V,DC12V,PoE)Support•
AudioSupport(G.711,G.726FullDuplex)•
Pre/Post Alarm Support•
RemotePan/Tilt/ZoomControl(RS-422,RS-485support)•
Direct NAS Writing•
Features Chart
This table shows the differences between the models.
Use LVS311 is used for the description, operations and details pro-
vided in this user manual.
Models LVS301 LVS311
VCA No Yes
PTZ Yes Yes
PRESET Yes Yes
Fan Fail Notification No No
Fan & Heater
Temperature No No
Accessories
Mounting bracket•
Program CD•
User Manual•
Introduction

8Introduction

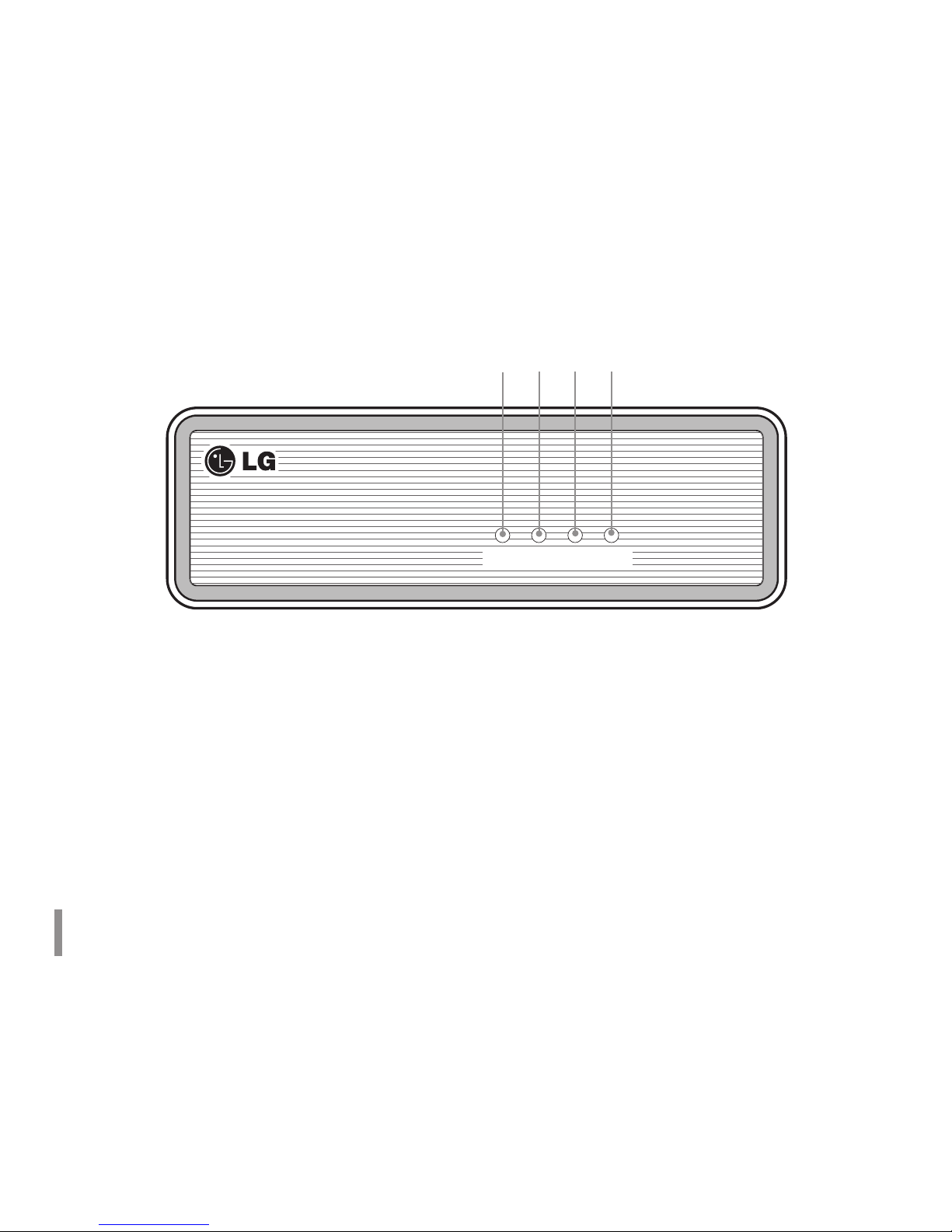

Front Panel
 a b c d
POWER NETWORK VIDEO SENSOR
a POWERIndicator:LightswhentheLGVideoServerispowered.
b NETWORKIndicator:Lightswhenanetworkcableisconnected.
c VIDEOIndicator:Lightswhenthecameraisconnected.
d SENSORIndicator:Lightswhenthealarmoutisinprogress.

Introduction 9
Rear Panel
 a bc d e f
 g h i j k
aVIDEO INPUT
Connect the camera’s video output to this BNC connector.
bRS-485/RS-422 Terminals
ConnectRS-485/RS-422compatiblecameras.
cSENSOR IN Terminal
Input terminal for sensor signal.
dRELAY OUT Terminals
Output terminals for alarm (relay) signal.

10 Introduction
eRESET button
Push the button more than 3 seconds, this would restore the factory default settings.

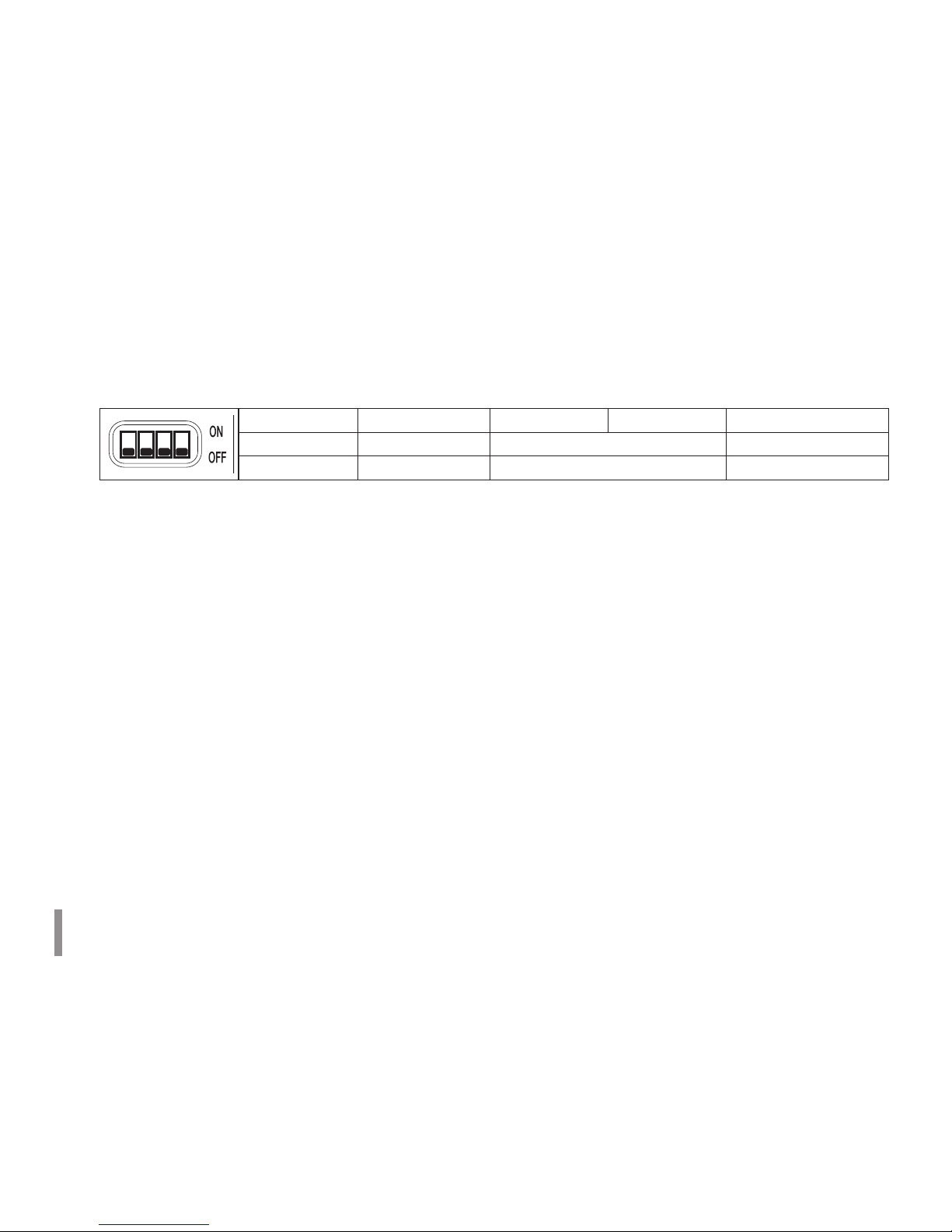

fRS-485/RS-422 Dip Switch
The default position of the dip switch and function are as shown below.
Position SW1 SW2 SW3 SW4
ON RS-485 RS-485HALF TERMINATION ON
OFF RS-422 RS-485FULL TERMINATION OFF
gVIDEO OUT
Supplies analog video signal (composite) to the connected device.
hAUDIO OUT (Line Level Output)
Connect to an active speaker with a built-in amplifier.
iAUDIO IN (Line Level Input)
Input for a mono microphone, or a line-in mono signal.
jETHERNET/POE Port
ConnectstoaPCoranetworkviaahubwitha10BASE-T/100BASE-TXcableattachedRJ-45connector.
Note:
Power over Ethernet (PoE) is a technology that integrates power into a standard LAN infrastructure. It enables power to be provided
to the network device, such as a network camera, using the same cable as that used for network connection. It eliminates the need
for power outlets at the device locations and enables easier application of uninterruptible power supplies (UPS).
kPower input terminal
ConnectstoaDC12VorAC24Vpowersupplyusingpropercables.

Connections 11
Connections
Precautions
Be sure to switch off the unit before installation and connection.•
The installation should be made by qualified service personnel or system installers.•
Do not expose the power and connection cables to moisture, which may cause damage to the unit.•
Connection Overview
RS-485 / 422
Unit
PoE Device
(IEEE802.3af )
PoE Device
(IEEE802.3af)
RS-485/
RS-422Unit

12 Connections
Connecting Camera
Connect the video output of your camera to the LG Video Server, using a standard 75 Ω video coaxial cable with BNC connector. There are
two BNC connectors. Either connector can receive a camera’s signal. This signal is looped-through (directly connected) to the other connec-
tor, so that you can send the camera’s signal to other equipment.
PoE Device
(IEEE802.3af )
PoE Device
(IEEE802.3af )
Router Broadband
Service
Broadband
Service
Connecting Display Device
The video signal connection between the LG Video Server and the monitor.
PoE Device
(IEEE802.3af )
PoE Device
(IEEE802.3af )
Router Broadband
Service
Broadband
Service

Connections 13
Connecting Network
You can control and monitor the system via network. With the remote control (monitoring), you can change the system configuration or
monitor the image via network. After the installation, check the network settings for the remote control and monitoring work.
ConnecttheLGVideoServertoyournetworkusingastandardRJ-45networkcableasshownbelow.
PoE Device
(IEEE802.3af )
PoE Device
(IEEE802.3af )
Router Broadband
Service
Broadband
Service
PoE Device
(IEEE802.3af)
Broadband
Service
Broadband
Service
Router

14 Connections
Connecting Power Source
Connectpower,usingoneofthemethodslistedbelow:
To use the power adapter
ConnectaDC12V/AC24Vpowersourcetothepowerinputterminalasshownbelow.
1. Remove the insulation on the power cable as illustrated.
2. Attach the terminal tips.
3.ConnecttotheDC12V/AC24VULListed,Class2PowerSupplyonlyontheunit.
PoE Device
(IEEE802.3af )
PoE Device
(IEEE802.3af )
Router Broadband
Service
Broadband
Service
To use the PoE (Power over Ethernet) device
ConnectthePoEcabletotheLANportontheunit.Youmustusethe“IEEE802.3af”standardPoEdevice.
PoE Device
(IEEE802.3af )
PoE Device
(IEEE802.3af )
Router Broadband
Service
Broadband
Service
PoE Device
(IEEE802.3af)
Note:
If the video server doesn’t work properly after connect PoE device, please check if the PoE device is supplying enough power.

Connections 15
Connecting RS-422/RS-485 Device
UsetheseportstoconnectPTZDeviceoranexternaldeviceofRS-422/RS-485format.
RS-422 device : Setthedip-switchtoRS-422modeandconnectasshownbelow.
R+
R-
TRX+
TRX-
RS-422
T-
T+
RS-485
(FULL)
RS-485
(HALF)
T+ T- R+ R-
Termination OFF Termination ON
R+
R-
TRX+
TRX-
RS-422
T-
T+
RS-485
(FULL)
RS-485
(HALF)
T+ T- R+ R-
R+
R-
TRX+
TRX-
RS-422
T-
T+
RS-485
(FULL)
RS-485
(HALF)
T+ T- R+ R-
RS-485 device: Setthedip-switchtoRS-485modeandconnectasshownbelow.
R+
R-
TRX+
TRX-
RS-422
T-
T+
RS-485
(FULL)
RS-485
(HALF)
T+ T- R+ R-
RS-485
(FULL)
RS-485
(HALF)
Termination OFF Termination ON
RS-485 HALF
R+
R-
TRX+
TRX-
RS-422
T-
T+
RS-485
(FULL)
RS-485
(HALF)
T+ T- R+ R-
R+
R-
TRX+
TRX-
RS-422
T-
T+
RS-485
(FULL)
RS-485
(HALF)
T+ T- R+ R-
RS-485 FULL
R+
R-
TRX+
TRX-
RS-422
T-
T+
RS-485
(FULL)
RS-485
(HALF)
T+ T- R+ R-
R+
R-
TRX+
TRX-
RS-422
T-
T+
RS-485
(FULL)
RS-485
(HALF)
T+ T- R+ R-
Notes:
If you set the Termination S/W to ON, you must use the input impedance to 120 Ω.•
DonotusethemultipleRS-422/RS-485devicetoconnecttheunit,itmaycausethemalfunction.•

16 Connections
Connecting Alarm Device
Alarm terminals are used to connect the alarm (relay) devices such as sensors, door switches, etc.
Sensor Input
Connect the sensor device to the sensor input terminal.
Sensor Device
Relay Output
Connect the alarm (relay) device to the relay output terminal. Alarm signal is outputted at an event occurrence.
Alarm (Relay)
Device (NO)
Alarm (Relay)
Device (NC)
Note:
The internal switching relay is rated for 0.3 A at 125 V AC or 1 A at 30 V DC.

Connections 17
Connecting Microphone and Speaker Device
Optionally connect an active speaker and/or external microphone with a built-in amplifier.
PoE Device
(IEEE802.3af )
PoE Device
(IEEE802.3af )
Router Broadband
Service
Broadband
Service
Note:
Keep the microphone away from the speaker to avoid howling.

18 Connections
Wall Mounting
The LG Video Server is supplied with a mounting bracket for wall mounting. The mounting bracket can be positioned for mounting the
videoserveronaverticalsurface.Followtheinstructionsbelowtoattachthebracketstothevideoserver:
1. Install the mounting bracket to the wall with four screws.
2. Assemble the LG Video Server and mounting bracket. (Connect the unit by following step aand b.)
3. Connect the cables to the terminals on the LG Video Server.

Operation and settings 19
Before using the system
Before using the LG IP device make sure the connections are cor-•
rect and verify whether proper power supply is used.
Check the connections and the LED indicator of the LG Video•
Server for the correct conditions.
Check that the LG IP device is(are) connected to the network and•
that power is supplied.
Once the connections are made you need to install the LG client•
program to the PC from which you want to access the device.
The LG Smart Web Viewer program is automatically installed
when you connect the LG IP device.
The LG Smart Station and the LG Smart Web Viewer program
are the network program of the LG Video Server and the LG IP
cameras.
JRE(JavaRuntimeEnvironment)isaprerequisiteforLG•
Smart Web Viewer program. If this is missing in the PC please
install the same manually from “http://java.sun.com”website.
(Version1.6.0.11orlater)
The Layouts and the Live view pages may differ with different OS•
(Operating Systems) and Web Browsers.
Care needs to be taken not to run any other applications when•
the Client Program is running as it may cause memory shortage.
Recommended PC Requirements
The LG IP device can be used with most standard operating systems
and browsers.
Items Requirements
Operating System Windows XP Professional or above
CPU IntelCore2QuardQ6700(2.66GHz)or
above
Web Browser MicrosoftInternetExplorer6.0orhigher
DirectX DirectX 9.0 or above
Memory 2 GB or above RAM
Graphics Card 256MBoraboveVideoRAM
Resolution 1280x1024(with32bitcolor)orhigher
Accessing the LG IP device
You can access the LG IP device by following the below steps.
1. Copy the IP Utility to your PC
1.1 Insert the Client Program CD.
1.2 Find and Copy IP Utility folder to your PC.
Operation and settings

20 Operation and settings
2. Discover the LG IP device using the IP Utility
The IP Utility can automatically discover and display LG
IP devices on your network. The IP Utility shows the MAC
address, IP address, Model name and so on.
Note:
The computer running the IP Utility must be on the same
network segment (physical subnet) as the LG IP device.
2.1 Run the IP Utility program.
2.2 Click the [Search] icon or select the [Search] option in
the Device search menu.
After a few seconds the found LG IP devices gets dis-
played in the IP Utility window.
3. Logging in to the LG Smart Web Viewer
The LG Smart Web Viewer can be used with most web
browsers. The recommended browser is Internet Explorer
with Windows.
3.1 Run the IP Utility and find the LG IP devices.
3.2 When the LG IP devices appear in the IP Utility win-
dow, double-click IP address or right click on the
sameIPaddressandselect“ConnecttoWebPage”
to start the LG Smart Web Viewer. When accessing
the LG Smart Web Viewer, the authentication dialog
appears on the screen.
3.3 Enter the user ID and password. (Note that the
default administrator user ID and password are
“admin”.)
3.4 Clickthe[OK]buttonandthentheLGSmartWeb
Viewer is displayed in your browser.
Notes:
You can also access the LG Smart Web Viewer as shown•
below.
3.1 Start your Web browser.
3.2 Enter the IP address of the LG IP device in the address
bar of the browse.
3.3 Enter the user ID and password set by the adminis-
trator.
3.4Clickthe[OK]buttonandthentheLGSmartWeb
Viewer is displayed in your browser.
The LG Smart Web Viewer needs more time to display it•
according to the network conditions.
If the login window is not displayed, check the pop-up•
blocker. If you set the pop-up blocker, the login window
is not displayed. You must allow the pop-ups.
If you connect the LG Smart Web Viewer for the first time,•
the Security Warning window is displayed to install the
LG Smart Web Viewer program. You must install the LG
Smart Web Viewer program for using the LG IP device.
If your computer or network is protected by a proxy or•
firewall, the proxy or firewall settings can prevent the LG
Smart Web Viewer program. Change the proxy or firewall
settings to activate the LG Smart Web Viewer program.
