LG SN5Y Specification sheet

www.lg.com
Copyright © 2020 LG Electronics Inc. All Rights Reserved.

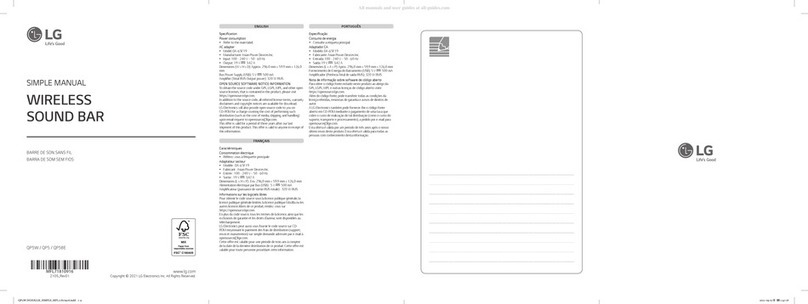

SIMPLE MANUAL
Wireless
Sound Bar
Please read this manual carefully before operating your set and
retain it for future reference.
To view the instructions of advanced features, visit
http://www.lg.com and then download Owner’s Manual.
Some of the content in this manual may differ from your unit.
MODEL
SN5Y
1912_Rev01
MFL71669517
ENGLISH
Additional Information
Specication
Power
consumption Refer to the main label.
AC adapter
• Model : DA-50F25
• Manufacturer : Asian Power
Devices Inc.
• Input : 100 - 240 V ~
50 - 60 Hz
• Output : 25 V 02 A
Dimensions
(W x H x D)
Approx.
890.0 mm X 57.0 mm X
85.0 mm With foot
Bus Power
Supply
(USB)
5 V 0500 mA
Amplier
(Total RMS
Output
power)
400 W RMS
Designandspecicationsaresubjecttochange
without notice.
Rear Speakers Ready
Ready for surround sound with Rear
Speakers Kit sold separately. (SPK8-S)
OPEN SOURCE SOFTWARE NOTICE
INFORMATION
To obtain the source code under GPL, LGPL, MPL, and
other open source licenses, that is contained in this
product, please visit http://opensource.lge.com.
In addition to the source code, all referred license
terms, warranty disclaimers and copyright notices are
available for download.
LG Electronics will also provide open source code to
you on CD-ROM for a charge covering the cost of
performing such distribution (such as the cost of
media, shipping, and handling) upon email request to
opensourc[email protected].
This offer is valid for a period of three years after our
last shipment of this product. This offer is valid to
anyone in receipt of this information.
SN5Y.DPHLLLK_SIM (Sheet)_ENG_MFL71669517.indd 1-2 2020-04-02   4:50:29

Front Panel
The buttons are located on the side.
1(Standby) ··········Switches the unit ON or OFF.
F(Function) ························Selects function.
p/o(Volume)····················Adjustsvolume.
Rear Panel
DC IN·····················Connect to the AC adapter.
OPTICAL IN ············Connect to an optical device.
HDMI IN ··········Connect to device with HDMI OUT.
HDMI OUT (TV ARC)··············· Connect to a TV.
USB Port ····················Connect to a USB device.
Make sure to properly align and connect
the optical cable; improper alignment may
causedamagetothejack.
Subwoofer Connection
Place the wireless subwoofer near the sound bar and
follow steps below.
a Connect the power cord of the sound bar and the
wireless subwoofer to the outlet.
b Turn on the sound bar.
• The sound bar and wireless subwoofer will be
automatically connected. The subwoofer's
green LED turns on.
Manual Subwoofer Connection
If the subwoofer does not make sound, try to
connect manually.
a Press PAIRING on the rear of the wireless
subwoofer.
• The green LED on the rear of the wireless
subwoofer blinks quickly.
(If the green LED does not blink, press and
hold the PAIRING.)
b Turn on the sound bar.
• Pairing is completed. The green LED on the
rear of the wireless subwoofer turns on.
Keep the sound bar and the subwoofer
away from the device (ex. wireless router,
microwave oven, etc.) over 1 m to prevent
wireless interference.
!
1 m
TV Connection
Connect the sound bar and TV using Optical ( ) or
HDMI ARC ( ).
Optical Connection
a Connect the sound bar to the TV using Optical
cable.
b Set up [External Speaker (Optical)] on your TV
setting menu.
TV
HDMI (ARC) Connection
a Connect the sound bar to the TV using HDMI
cable.
b Set up [External Speaker (HDMI ARC)] on your
TV setting menu.
TV
• HDMI connection is unavailable if your TV
does not support HDMI ARC.
• If this unit is connected by OPTICAL and
ARC at the same time, the ARC signal
has a higher priority.
Additional Device Connection
a Connect to the external device like as follow.
TV
OR
(Set-top Box,
Player etc.)
OR
b Set the input source by pressing Frepeatedly.
Remote control
Replacement of Battery
C/V:Skip/Search
N:Play/Pause
-Bluetooth connection lock (BT LOCK): Select
the Bluetooth function by pressing Frepeatedly.
Long press Nand press it again to limit
Bluetooth connection to only BT and LG TV.
SOUND EFFECT: Selects a sound effect mode.
-TV remote: Long press SOUND EFFECT and
press it again to use TV remote control.
FOLDER W/S: Searches a folder.
J:Displaystheinformationofale,aninputsource
or connected Bluetooth device name.
-Auto Power ON/OFF: Long press Jand press
it again.
: Adjustssoundlevelofeachspeaker.
-Surround sound: Long press and press it
again.
REPEAT:Listenstoyourlesrepeatedlyorrandomly.
SN5Y.DPHLLLK_SIM (Sheet)_ENG_MFL71669517.indd 3-4 2020-04-02   4:50:33
