LG LSW240B User manual

OWNER’S MANUAL
Wall Mounting Bracket
P/NO : MFL63640547 (1505-REV01)
Please read this manual carefully before operating
your set and retain it for future reference.
www.lg.com
LSW240B

2
IMPORTANT SAFETY INSTRUCTIONS
- If you are a professional installer, please read this manual carefully before installing the
product.
- If you are a professional installer, please give this manual to the user after installing the
product and ensure that the user also reads the manual carefully and retains it for future
reference.
After reading the manual, please keep it handy for future reference.
Warning
COMPONENT
Wall mount anchor 4 units Wall mount screw 10 units User manual Guide spacer 4 units
Guide space screw 4 units Safety clip 2 units Safety clip screw 2 units
(M4 X 12 mm)
Set protection cushion
4 units
This wall mount should be installed by a trained and
experienced installer designated by the retailer.
Having the product installed by a non-specialized installer is
very dangerous and can cause damage or injury.
Do not install the product where the weight cannot be
supported.
If the strength of the location where the wall mount is installed
is not strong enough, it can fall off and cause an injury.
Use a trained and experienced installer to move or
replace the wall mount, if needed.
Installation requires special techniques and moving or installing
the product on your own can cause serious safety issues.
When installing the wall mount, never hang the
power or signal cable on the rear side the TV.
The cord can be damaged and cause a fire, an electric
shock or damage to the product.
After installing the wall mount, do not hang on the
product or apply severe impact to the product.
The product can fall off and cause injury.

ENGLISH
3
- If you are a professional installer, please read this manual carefully before installing the
product.
- If you are a professional installer, please give this manual to the user after installing the
product and ensure that the user also reads the manual carefully and retains it for future
reference.
After reading the manual, please keep it handy for future reference.
Do not wipe the product with a wet towel and do not use any
heater or humidifier below where the product is installed.
If water flows into the product or if moisture and heat are applied to the
product, it can cause a fire, an electric shock or problem to the product.
Unplug the power cord from the power outlet before
installing the product.
If you install the product with the power cord plugged, it can
cause an electric shock or a fire.
Caution
BEFORE INSTALLATION
* Do not use the product for purposes other than mounting a display on the wall.
* When installing/using the wall mount, be cautious of product damage and avoid accidents.
* If you have not fully read and understood the installation manual, do not install the product and contact the
dealer to have a specialized installer install the product for you.
* Even if you are not a specialized installer, it is advantageous to have experience in mechanical or construction
field in completely understanding this manual and installing the product.
* This product is designed to be mounted to walls that use standard intervals between the studs.
* When installing the wall mount on a concrete wall or on any other wall capable of holding the strength specified
in the manual, you can detach the standard gap bracket for stud wall mounting and then follow the instructions
for attaching the wall mount to make the installation easier.
* Install the screw to attach the wall mount so that it can be assembled at the center from both ends of the studs.
Use of stud finder, a separate device, is recommended.
* Install the product only on a vertical wall.
The manufacturer is not responsible for issue from installing the product on severely wall or on the ceiling.
* Check that the accessories provided with the product are all included before installing. LG Electronics is not
liable for any damage or loss of accessories after the package has been opened.
* Keep the included accessories out of reach of babies or children as it can cause safety issues including
suffocation from swallowing the parts.
* Make sure screws are tight against the wall, but do not overtighten.
* Be careful not to install a TV that exceeds the weight restrictions of the wall mount.
* Be careful with the tools used during installation to prevent accidents or damage.
Wall mount anchor 4 units Wall mount screw 10 units User manual Guide spacer 4 units
Guide space screw 4 units Safety clip 2 units Safety clip screw 2 units
(M4 X 12 mm)
Set protection cushion
4 units
Do not install the product where the weight cannot be
supported.
If the strength of the location where the wall mount is installed
is not strong enough, it can fall off and cause an injury.
After installing the wall mount, do not hang on the
product or apply severe impact to the product.
The product can fall off and cause injury.
Do not wipe the product with a wet towel and do not use any
heater or humidifier below where the product is installed.
If water flows into the product or if moisture and heat are applied to the
product, it can cause a fire, an electric shock or problem to the product.
Unplug the power cord from the power outlet before
installing the product.
If you install the product with the power cord plugged, it can
cause an electric shock or a fire.
Do not install the product near any object that
may cause vibration.
Do not install the product near any high voltage power
cable or power source.
Do not install the product with bare hands. Always
wear proper work gloves.
It can cause an injury.
Do not allow the video connectors connected to the
display to press against the wall. Use the included
right-angle adapters if needed. Only use
attachments/accessories specified by the
manufacturer.
Install the product according to the directions in
the user manual.
If the product is not installed based on the directions in
the user manual, it can cause a serious injury or damage
to the product.
When drilling holes in the wall, always use a drill bit
and drill of designated diameter. Also follow the
designated directions for the depth of the hole.
If the product is installed without following the designated
method, the product may be unstable and cause a safety
issue.
When installing the product or adjusting the height of
the product after installing, always do so with 2 people.
Working alone can cause the product to fall off and result in
injury or damage to the product.
During the installation, check the type of wall
material and use the sealed anchor and screw if the
conditions comply.
If you do not use the designated anchor or screw, the
mount may not be able to withstand the weight of
the product and cause a safety issue.

4

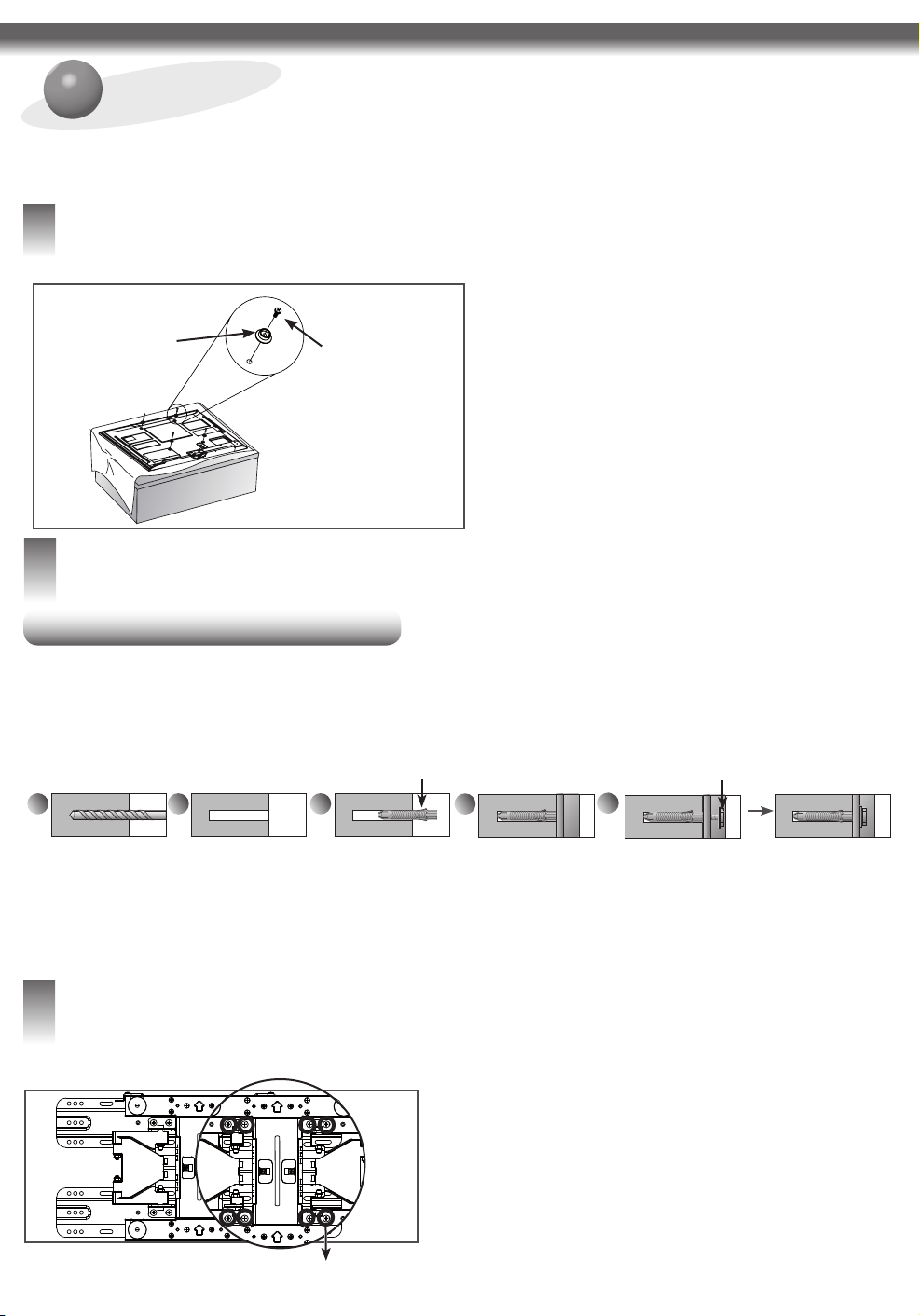

INSTALLATION METHOD
1Attach the mounting bracket to the TV
- If the screw will not fully tighten when using a guide spacer, recheck the assembly depth of the screw and
refer to the technical service manual.
- The actual product may differ from the picture.
<Work procedure>
1. Check to see if the display has screws installed into the
mounting holes. If so, remove those.
2. Assemble the guide spacer and the guide spacer screw in
order as shown in the picture.
- Assemble the guide spacer to the set by tightening the
screws.
- Tighten the screw until the set, guide spacer and the screw
are fully pressing against one another.
- Use a Phillips Head driver (Manual or motorized) when
tightening the screws.
3How to install the wall mount
<When installing on a masonry wall>
- When you separate the 8 screws on the wall mount connected to the wall bracket for use with a wooden wall, it is much
easier to install the product.
→When installing the product on a masonry wall, turn the 8
screws on the A part counterclockwise to separate the
screw and bracket.
→After aligning the wall bracket to the location to install,
mark the part to screw on the wall and then remove the
wall bracket.
→Refer to page 4 to attach the wall bracket.
→Use a level to check whether the wall mount is level.
Separate the wall mount screw.
2How to attach to masonry walls
- Check the material and thickness of the wall.
- Use the anchors for wall material of concrete, light concrete, strong natural stone, soft natural stone masonry brick and hallow
block that do not crack.
- When installing the product on a wooden wall, refer to page 5.
- When installing the product on wall material not designated, install the product so that each fixated location can withstand a pull
out load of 70 kgf (686 N) and shear load of 100 kgf (980 N) or above.
- Use the Ø 8 mm drill bit for concrete and hammer (Impact) drill.
Please follow the below direction.
a. Use a drill bit Ø 8 mm to drill a hole for the anchor location within a depth of 80 mm to 100 mm
b. Clean the drilled hole.
c. Insert the sealed anchor into the hole. (When inserting the anchor, use a hammer.)
d. Set the wall mount on the wall by aligning to the location of the hole. and, set the angle adjusting part to face upward.
e. Align the wall mount bolts to the holes and tighten them by hand. Then, fasten the bolts at a torque of 45 kgf/cm to 60 kgf/cm.
Wall mount screwAnchor
- Tools you will need - Phillips head + driver (manual or motorized) / 8 mm socket wrench / Level / Stud finder / Drill.
You may also need an Ø 4 mm drill bit for wood (or steel) or an Ø 8 mm drill bit for concrete.
abde c
Guide spacer
screw
Guide spacer
A

5
ENGLISH
- When you separate the 8 screws on the wall mount connected to the wall bracket for use with a wooden wall, it is much
easier to install the product.
- Check the material and thickness of the wall.
- Use the anchors for wall material of concrete, light concrete, strong natural stone, soft natural stone masonry brick and hallow
block that do not crack.
- When installing the product on a wooden wall, refer to page 5.
- When installing the product on wall material not designated, install the product so that each fixated location can withstand a pull
out load of 70 kgf (686 N) and shear load of 100 kgf (980 N) or above.
a. Use a drill bit Ø 8 mm to drill a hole for the anchor location within a depth of 80 mm to 100 mm
b. Clean the drilled hole.
c. Insert the sealed anchor into the hole. (When inserting the anchor, use a hammer.)
d. Set the wall mount on the wall by aligning to the location of the hole. and, set the angle adjusting part to face upward.
e. Align the wall mount bolts to the holes and tighten them by hand. Then, fasten the bolts at a torque of 45 kgf/cm to 60 kgf/cm.
→If the screw cannot be assembled in the designated location
inevitably, it can be assembled by rearranging to the closest
location. But, do not change 2 or more locations from the
designated spot.
→Assemble the wall mount screw on 1 left and 1 right location
on the top part and 1 left and 1 right location on the bottom
part.
→At this time, use a Phillips Head driver (Manual or motorized)
or 8 mm wrench to tighten the screw so that the wall, wall
bracket and screw are completely pressed against one
another.
Wall mount
screw
<When mounting to wooden studs>
a. Locate and mark the centers of the wall studs using a stud finder.
b. After aligning the wall bracket on the wall where the center of the wood stud is marked, mark the location of the screws and
then remove the wall bracket.
c. Use a level to make sure your screw marks are level.
d. Use the Ø 4 mm drill bit for wood to drill holes with the depth of 76 mm or above where the wall mount screw location is
marked on the wall.
e. Clean the drilled hole.
f. Tighten the wall mount screws for the wall bracket on the drilled hole.
→At this time, tighten the screw so that the wall, wall bracket and the wall mount screw are pressed against one another.
(Drywall can be damaged when tightened with excessive force, please be careful.)
→ When tightening the screw use the "+" driver (Manual or motorized) or 8 mm wrench.
406 mm
drywall
76 mm drywall
wood stud

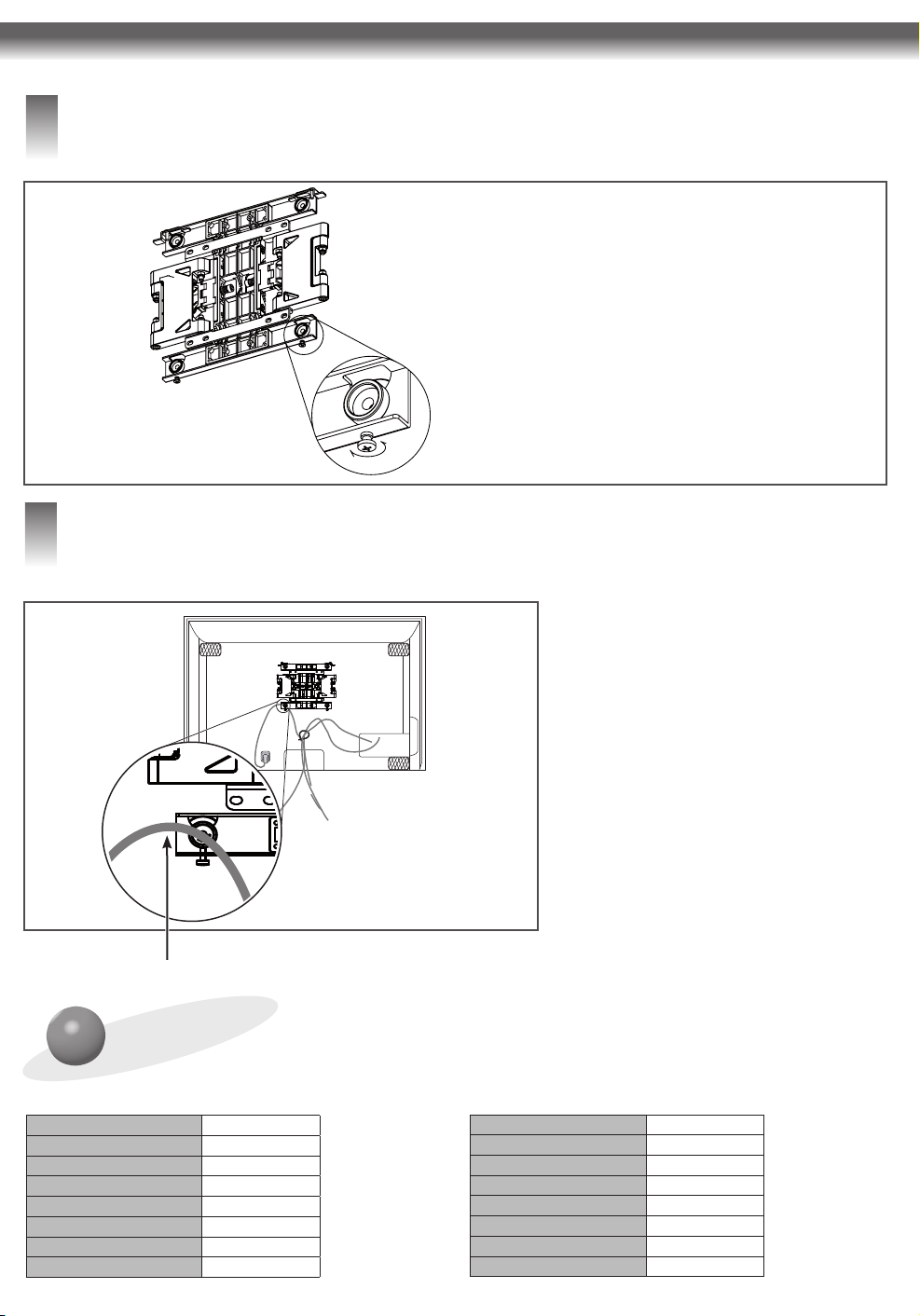

1. Set the display with the guide spacer assembled on the wall
mount bracket on the wall in arrow direction. At this time, align
the bottom assembly part and lift the set up lightly to align the
top part.
2. When adjusting the location, assemble the provide safety clip as
shown in the picture to prevent the product from moving.
Tighten the safety clip screw completely. If the safety clip is not
tightened as shown in the picture, the product can fall off.
→Pull on the bottom of the set to make sure the display is secure.
→ When fixing the product with the speaker to the wall, hold and
lift up the product, not the speaker.
→When installing a display rotated, only rotate the display 90 degrees
(portrait mode).
→ When connecting cables and accessories, make sure that the
product is installed at a sufficient distance from the wall to avoid
stress on them.
→When you push the product with excessive force, the product
can be damaged.
4How to assemble the wall mount support and display
- Always install the display with 2 or more people.
* Assemble the wall mount
support, product and safety
clip.
Safety clip Safety clip screw
* Caution : Prevent the power
cord from being pinched
between the wall mounting
bracket and the set when
installing the set.
(A pinched power cord may
cause an electrical short)

6
5How to level the Display
- After installing the display, check to make sure it is level.
(The wall mount has two screws that make minor adjustments to the level.)
6Cable arrangement and set protection cushion
- Arrange the cables as shown in the picture. Use some type of cable banding device to hold all the cables together.
- Attach the set protection cushion to mitigate the impact between the wall and the set when adjusting the angle. Attach the
set protection cushion as shown in the picture.
PRODUCT SPECIFICATION
<With the bracket removed.> <With the bracket attached.>
The display panel on Cinema Screen models (LM64**, LM66**, LM67**, LM76**, LM86**, LA66**, LA69**, LA74**, LA79**,
LA86**) can be easily damaged by pressure or shock. Please handle the product with care. For more information, please refer
to the owner's manual of the TV.
± 5 mm (Leveling)
Avoid crushing the power cord and the cables between the wall mount and the wall.
Model Name LSW240B
Width (mm) 460
Height (mm) 225
Depth (mm) 20
Weight (kg) 3.2
Weight with packing (kg) 3.9
Wall Mount VESA Specification 200 X 200
Max.UL Load Capacity (kg) 40
Model Name LSW240B
Width (mm) 281
Height (mm) 234
Depth (mm) 14
Weight (kg) 1.5
Weight with packing (kg) 2.2
Wall Mount VESA Specification 200 X 200
Max.UL Load Capacity (kg) 40

7
ENGLISH
151
20
47.5
178.5
° ~ °± °
° ~ °± °
- After installing the display, check to make sure it is level.
(The wall mount has two screws that make minor adjustments to the level.)
Cable arrangement and set protection cushion
Avoid crushing the power cord and the cables between the wall mount and the wall.
° ~ °± °
° ~ °± °
145
41.5
172.5

The model and serial number of the product is located
on the back or one side of the product. Record it below
should you ever need service.
MODEL
SERIAL
Supported Displays
(Please contract the retailers or refer to the TV owner’s
manual for applicable models.)
