LG RL-44NB10RB User manual

PR
MENU MUTE
TV/AV VOL
OK
ON/OFF
COLOR TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : MP-03AB
MODEL : RE/RL-44NB10RB
website:http://biz.LGservice.com
e-mail:http://www.LGEservice.com/techsup.html

- 2 -
CONTENTS
CONTENTS ...................................................................................................... 2
SAFETY PRECAUTIONS .................................................................................3
SERVICING PRECAUTIONS .......................................................................... 4
SPECIFICATIONS ........................................................................................... 6

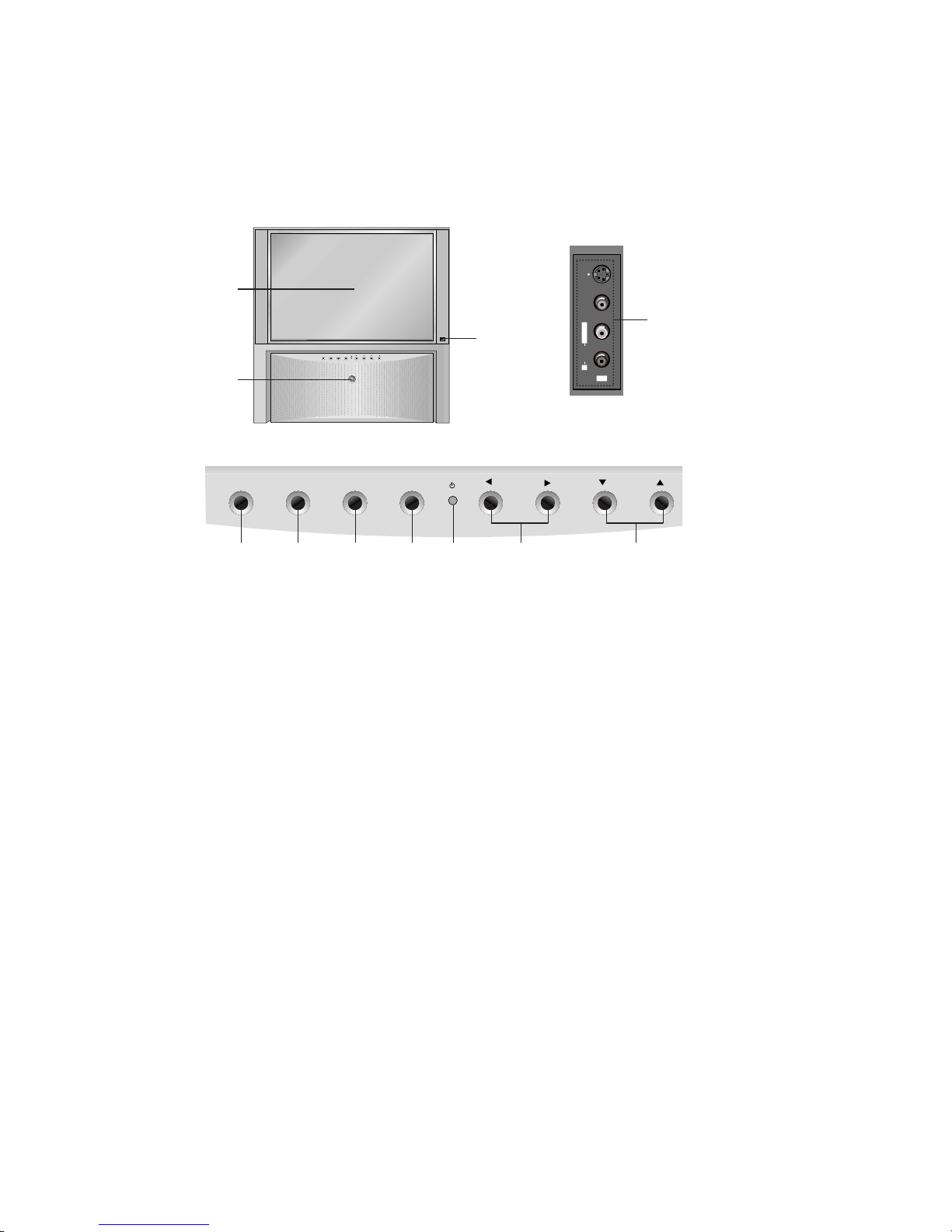

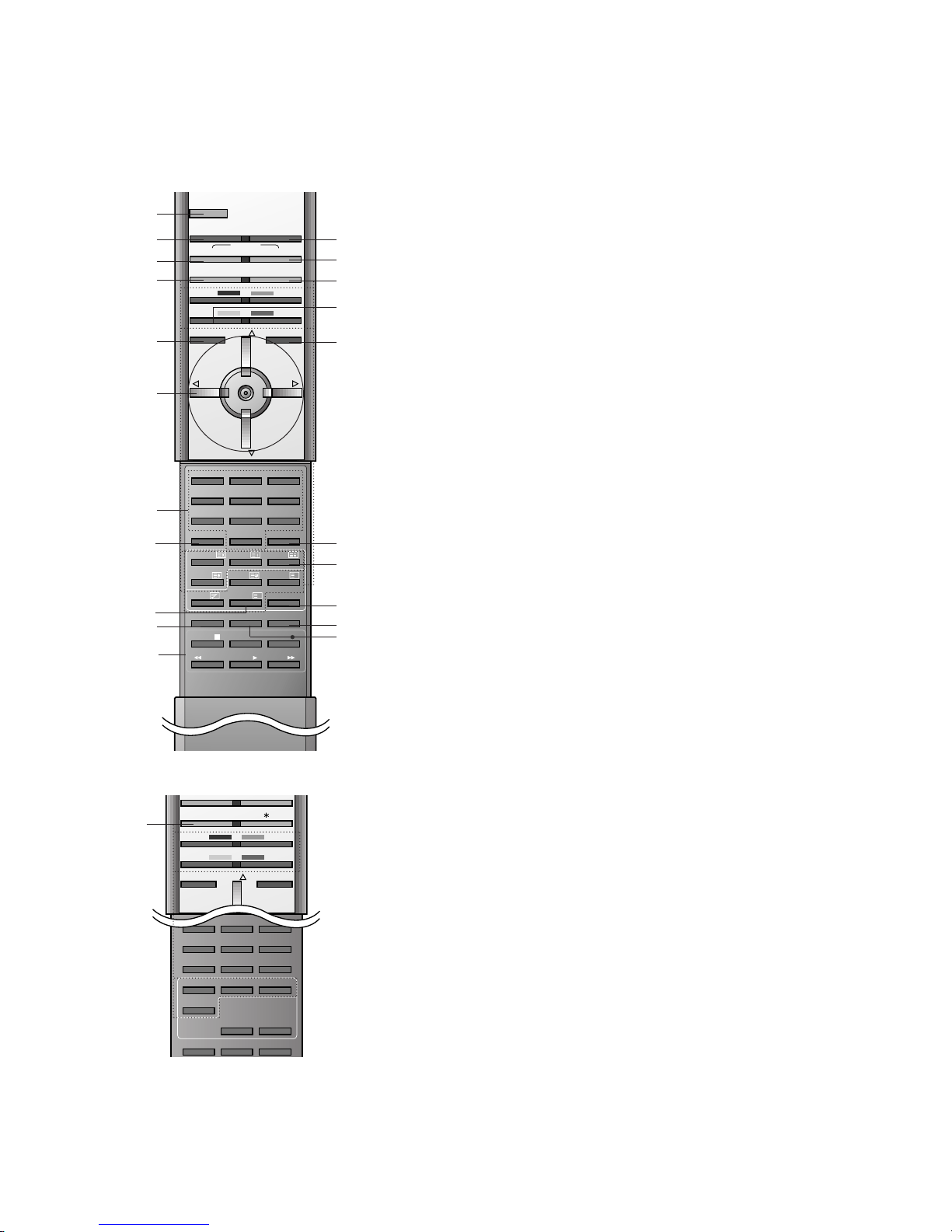

CONTROL DESCRIPTIONS ............................................................................ 9

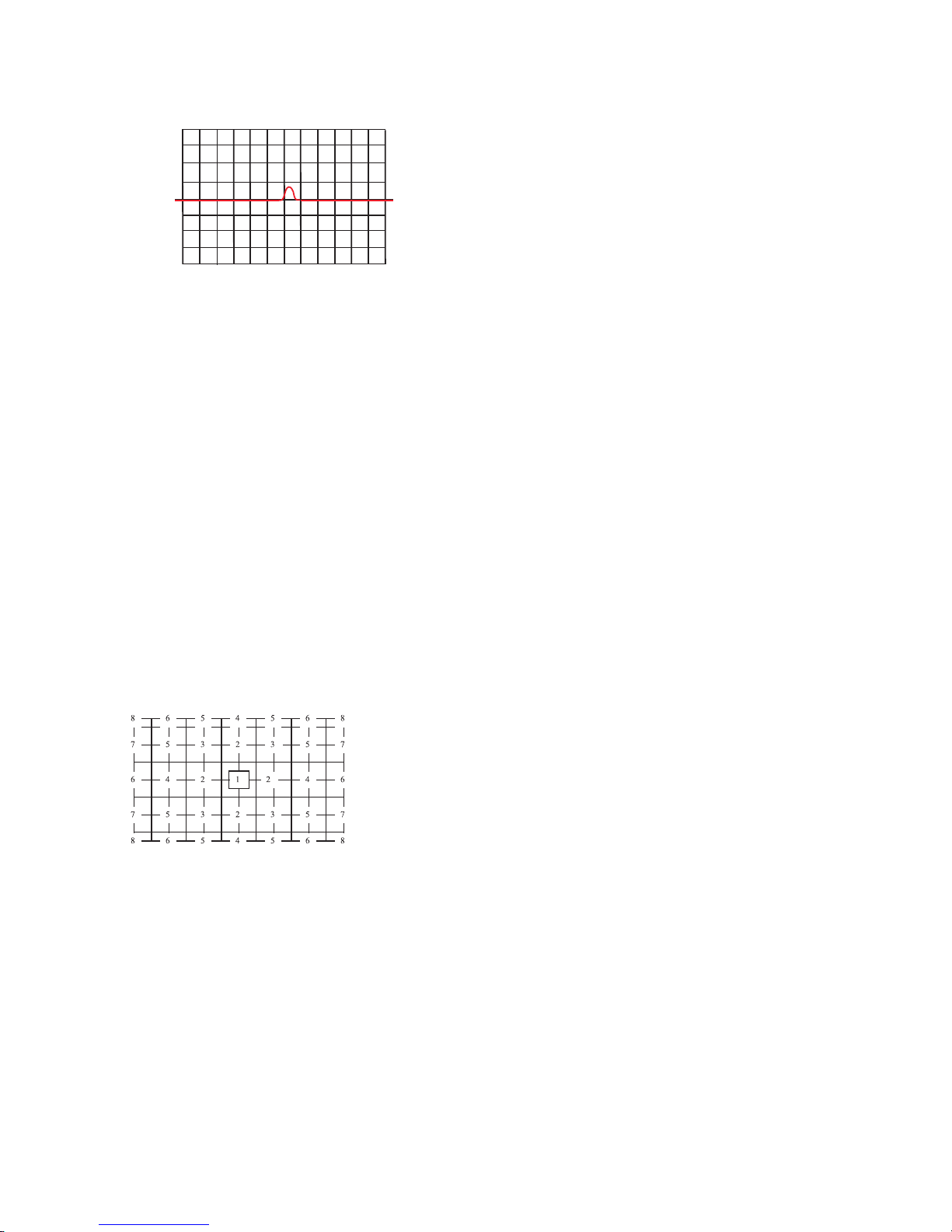

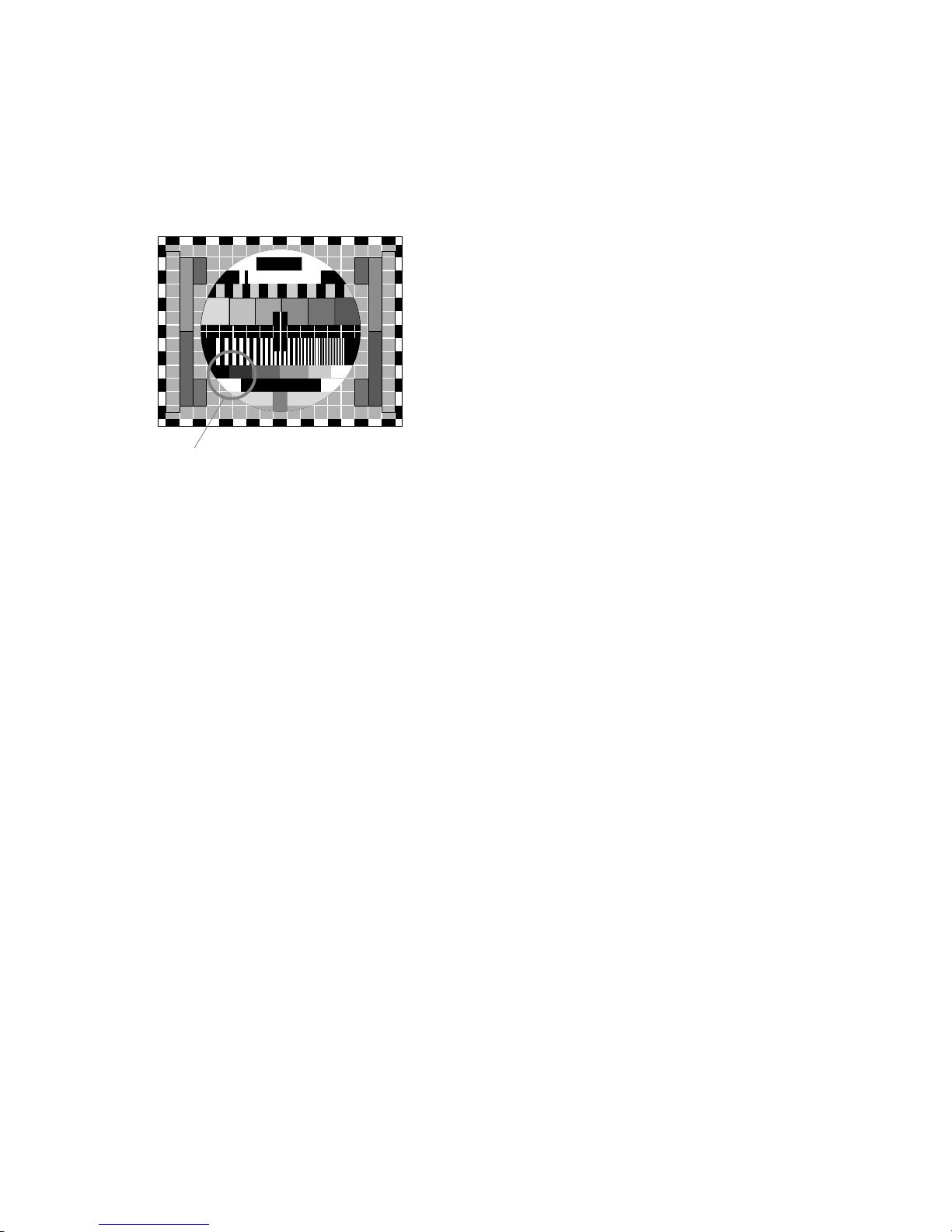

ADJUSTMENT.................................................................................................12
TROUBLE SHOOTING....................................................................................26
BLOCK DIAGRAM ..........................................................................................33
PRINTED CIRCUIT BOARD............................................................................34
EXPLODED VIEW ..........................................................................................44
EXPLODED VIEW PARTS LIST......................................................................45
REPLACEMENT PARTS LIST ...................................................................... 46
SVC. Sheet .........................................................................................................

- 3 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in
the Schematic Diagram and Replacement Parts List.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to
prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during
the servicing of a receiver whose chassis is not isolated from
the AC power line. Use a transformer of adequate power rating
as this protects the technician from accidents resulting in
personal injury from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film
Resistor, over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Due to high vacuum and large surface area of picture tube,
extreme care should be used in handling the Picture Tube.
Do not lift the Picture tube by it's Neck.
X-RAY Radiation
Warning:
To determine the presence of high voltage, use an accurate
high impedance HV meter.
Adjust brightness, color, contrast controls to minimum.
Measure the high voltage.
The meter reading should indicate
31.5 ¡1.5KV
If the meter indication is out of tolerance, immediate service
and correction is required to prevent the possibility of
premature component failure.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc.,
to be sure the set is safe to operate without damage of
electrical shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source,
connect an electrical jumper across the two AC plug prongs.
Place the AC switch in the on position, connect one lead of
ohm-meter to the AC plug prongs tied together and touch other
ohm-meter lead in turn to each exposed metallic parts such as
antenna terminals, phone jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC
voltmeter with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC
voltage measurements for each exposed metallic part. Any
voltage measured must not exceed 0.75 volt RMS which is
corresponds to 0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
The source of X-RAY RADIATION in this TV receiver is the
High Voltage Section and the Picture Tube.
For continued X-RAY RADIATION protection, the
replacement tube must be the same type tube as specified in
the Replacement Parts List.
1.5 Kohm/10W
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

- 4 -
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the
following servicing precautions and any of the safety
precautions on page 3 of this publication, always follow the
safety precautions. Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC
power source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug
or other electrical connection.
c.
Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect
polarity installation of electrolytic capacitors may result
in an explosion hazard.
d. Discharging the picture tube anode.
2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Discharge the picture tube anode only by (a) first connecting
one end of an insulated clip lead to the degaussing or kine
aquadag grounding system shield at the point where the
picture tube socket ground lead is connected, and then (b)
touch the other end of the insulated clip lead to the picture
tube anode button, using an insulating handle to avoid
personal contact with high voltage.
4. Do not spray chemicals on or near this receiver or any of its
assemblies.
5. Unless specified otherwise in this service manual, clean
electrical contacts only by applying the following mixture to
the contacts with a pipe cleaner, cotton-tipped stick or
comparable nonabrasive applicator; 10% (by volume)
Acetone and 90% (by volume) isopropyl alcohol (90%-99%
strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication
of contacts in not required.
6. Do not defeat any plug/socket B+ voltage interlocks with
which receivers covered by this service manual might be
equipped.
7. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks
are correctly installed.
8. Always connect the test receiver ground lead to the
receiver chassis ground before connecting the test receiver
positive lead.
Always remove the test receiver ground lead last.
9.
Use with this receiver only the test fixtures specified in this
service manual.
CAUTION: Do not connect the test fixture ground strap to
any heatsink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged
easily by static electricity. Such components commonly are
called
Electrostatically Sensitive (ES) Devices. Examples of
typical ES devices are integrated circuits and some fieldeffect
transistors and semicounductor "chip" components. The
following techniques should be used to help reduce the
incidence of component damage caused by static by static
electricity.
1. Immediately before handling any semiconductor component
or semiconductor-equipped assembly, drain off any
electostatic charge on your body by touching a known earth
ground. Alternatively, obtain and wear a commercially
available discharging wrist strap device, which should be
removed to prevent potential shock reasons prior to
applying power to the unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder
ES devices.
4. Use only an anti-static type solder removal device. Some
solder removal devices not classified as "anti-static" can
generate electrical charges sufficent to demage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Do not remove a repalcement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum
foil or comparable conductive material).
7. Immediately before removing the protective material from
the ieads of a replacement ES device, touch the protective
material to the chassis or circuit assembly into which the
device will be installed.
CAUTION:Be sure no power is applied to the chassis or
circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such
as the bruching together of your clothes fabric or the lifting
of your foot from a carpeted floor can generate static
electricity sufficient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and
appropriate tip size and shape that will maintan tip
temperature within the range or 500¡£F to 600¡£F.
2. Use an appropriate gauge of RMA resin-core solder
composed of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thorohly clean the surfaces to be soldered. Use a mall
wirebristle (0.5 inch, or 1.25cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500¡£F to 600¡£F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static,
suction-type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the
circuiboard printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal
temperature (500¡£F to 600¡£F)
b. First, hold the soldering iron tip and solder the strand
against the component lead until the solder melts.
SERVICING PRECAUTIONS

- 5 -
c. Qulckly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it
there only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess
or splashed solder with a small wire-bristle brush.
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following
technique should be used to remove and replace the IC. When
working with boards using the familiar round hole, use the
standard technique as outlined in parapraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.
2. Draw away the melted solder with an anti-static suction-
type solder removal device (or with solder braid) before
removing the IC.
Replacement
1. Carefully insert the replacement IC in the circuit boare.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as
close as possible to the component body.
2. Bend into a "U" shape the end of each of three leads
remaining on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the
corresponding leads extending from the circuit board and
crimp the "U" with long nose pliers to insure metal to metal
contact then solder each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heatsink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the
circuit board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heatsink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as
possible to diode body.
2. Bend the two remaining leads perpendicula y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them
and if necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board
hollow stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board
to prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board.
The following guidelines and procedures should be followed
whenever this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper
pattern side of the circuit board. (Use this technique only on IC
connections).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely
necessary).
2. carefully scratch away the solder resist and acrylic coating
(if used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away
copper pattern and let it overlap the previously scraped end
of the good copper pattern. Solder the overlapped area and
clip off any excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper
pattern at connections other than IC Pins. This technique
involoves the installation of a jumper wire on the component
side of the circuit board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a
hazardous condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the
pattern break and locate the nearest component that is
directly connected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of
the nearest component on one side of the pattern break to
the lead of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so
the it does not touch components or sharp edges.

- 6 -
SPECIFICATIONS
NOTE : Specifications and others are subject to change without notice for improvement.
AScope
This specification can be applied to all the Projection television related to MP-03AB Chassis.
ATest Conditin
Conduct the test as mentioned below.
1) Temperature : 25¡5°C
2) Relative Humidity : 65¡10%
3) Power Voltage : Standard input voltage (230V~, 50Hz)
But Standard input voltage mark value is marked by model.
4) Use the parts only designated in B.O.M.,PARTS SPEC.,or drawings.
5) Follow each drawing or spec for spec and performance of parts,based upon P/N of RPL
6)
Warm up TV set for more than 60min before the measurement.
ATest and Inspection Method
1) Performance : Follow the Standard of LG TV test
2) Extra requirement
Chassis
MP-03AB RE-44NA14T/13RB
RE-40NZ60RB/RP
RT-44NA13/23RB
RT-40NZ60RB/RP
RT-44NA43RB/RP
RL-44NA14T/13RB
RL-40NZ60RB
Europe (except Fance)
China, Asia, Afreca,
Middle East
France
LG
‘T’/ ‘RB’ : Teletext option
Model Name Market Place Brand Remark
Model
RE-44NA14T
RE-39NZ60RB
Market
EUROPE
Remark
SAFETY : CB
CE EMI : EN55013
EMS : EN55020
Appliance
OK

- 7 -
ATest and Inspection Method
Item
Recieving System
Available Channel
Input Voltage
Market
Screen Size
Aspect Ratio
Tuning System
TUNER IF
Operating Environment
Storage Environment
No
1
2
3
4
5
6
7
8
9
10
Remark
AV can be input NTSC-M
S(RL model for Fance)
S(RT model w/o China)
S(RE,RL, China model)
S(With Teletext model)
S(W/O Teletext model)
Specification
PAL, SECAM-BG
PAL, SECAM-DK, PAL-I
PAL, SECAM-BG
SECAM-LL’
PAL, SECAM-BG,
PAL, SECAM-DK, PAL-I
NTSC-M
1) VHF : E2 ~ E12
2) UHF : E21 ~ E69
3) CATV : S1~S20
4) HYPER : S21~S41
LL’VHF : B,C,D
AC 110-240V~, 50/60Hz
AC 230V~, 50/60Hz
Europe except France
France
Asia, Africa, Middle East
44/49/54, 39/40/45/50/57 inch
4:3, 16:9
FVS 100 Program
FVS 200 Program
38.9MHz, 39MHz
1)Temperature : -5 ~ 40 °C
2) Humidity : 30 ~ 95 %
3) Temperature :-20 ~ 50 °C
4) Humidity : 30 ~ 95 %
RE
RL
RT
(SMark : Option Item)
RE
RL
RT

AFeature and Function
- 8 -
Item
Feature AV Input
AV Output
Component Input
S-Video Input
SCART
key Local Key
Remocon
Picture PSM
User Control
DRPC
XD
VM
Convergence
Sound SSM
AVL
DBS
TV Speaker
Balance
Timer Clock
Off time
On time
Auto sleep
Special Language
Input
PIP Input
child lock
Etc. Convergence
Comb Filter
SVM
ARC
ACMS
Auto Off
Teletext
No
1
2
3
4
5
6
7
Remark
Side
S (Rear, RT model)
S (Rear, RT model)
Rear 480i/ 480P/ 576i
(1080i for CHINA)
side 1, Rear 1
S (Rear, RE,RL model)
Front
SINDEX (With Index)
Tint : NTSC system only
SNA 5, NZ 5, NZ60
SNB10, NA 5, NZ 5
S 3*3 EDC
S Dolby virtual (Option)
S
S S-VIDEO4 (EU ONLY)
S S-VIDEO4 (EU ONLY)
S
S
S
S
Specification
1 V/L/R
2 V/L/R
1 V/L/R
2 COMPONENT1, L/R
COMPONENT2, L/R
2 Y/C
3 Full SCART (with RGB Input) : 1
Half SCART : 1 (AV In/Out)
Half SCART ; 1 (AV In, YC In)
POWER, MENU, VOL(F,G), PR(D,E)
TV/AV, OK, MUTE (W/O Index)
NEC Code
Dynamic/ Standard/ Mild/ Game/ User
Contrast/ Brightness/ Colour/ Sharpness/ Tint
On/ Off
On/ Off
1/ 2/ 3/ 4
1[+] Point/ 9[+] Point
Auto Convergence
Dolby Virtual/ Flat/ Music/ Movie/ Speech/ User
On/ Off
On/ Off
On/ Off
L 50 ~ 0 ~ R 50
-- : -- AM
-- : -- AM Off (On)
-- : -- AM Pr 1 VOL 30 Off(On)
On/ Off
Multi language
TV/ AV1/ AV2/ AV3/ AV4/ S-VIDEO4/
Component1/ Component2
TV/ AV1/ AV2/ AV3/ AV4/ S-VIDEO4
On/ Off
MANUAL ADJUST
Auto Adjust
Digital comb filter
O
4:3/ 16:9 (4:3 Model)
16:9/ 14:9/ ZOOM/ AUTO/ 4:3 (16:9 Model)
O
On/ Off
TOP/ FLOF/ LIS

- 9 -
CONTROLS DESCRIPTION
All the functions can be controlled with the remote control handset.
Some functions can also be adjusted with the buttons on the front
panel of the set.

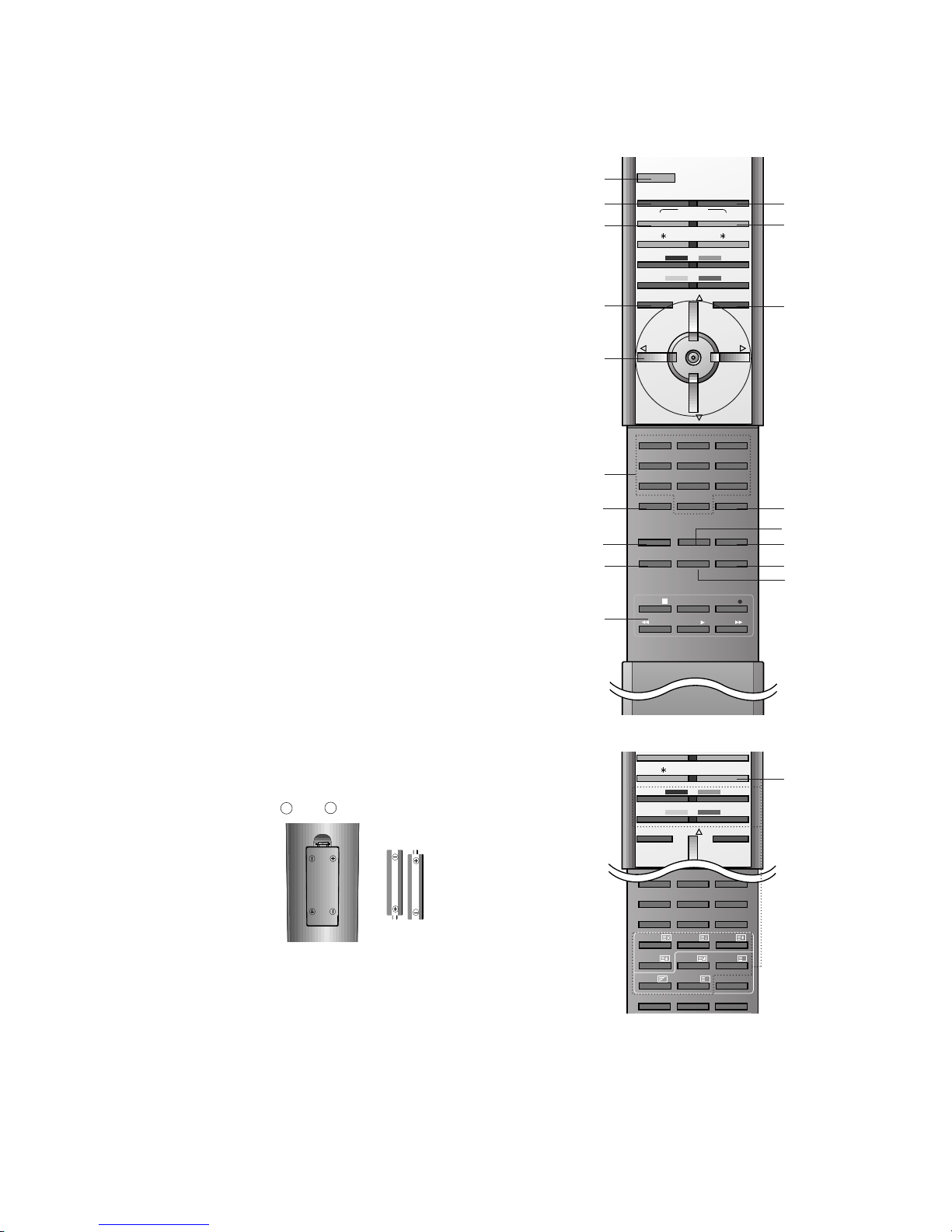

Remote control handset
Before you use the remote control handset, please install the bat-
teries. See the next page.
1. POWER
switches the set on from standby or off to standby.
2. TV/AV (option)
selects TV or AV mode.
switches the set on from standby.
3. TURBO SOUND BUTTON
selects Turbo sound.
4. PIP BUTTONS (option)
PIP
switches the sub picture on or off.
PR +/-
selects a programme for the sub picture.
SWAP
alternates between main and sub picture.
INPUT (option)
selects the input mode for the sub picture.
SIZE
adjusts the sub picture size.
STILL
freezes motion of the sub picture.
POSITION
relocates the sub picture in clockwise direction.
SCAN
switches on or off the programme scan mode 12 sub pictures.
5. MENU
selects a menu.
6. D / E(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
F / G (Volume Up/Down)
adjusts the volume.
adjusts menu settings.
OK
accepts your selection or displays the current mode.
7. NUMBER BUTTONS
switches the set on from standby or directly select a number.
8. PSM (Picture Status Memory)
recalls your preferred picture setting.
9. SLEEP
sets the sleep timer.
10. I/II
selects the language during dual language broadcast.
selects the sound output (option).
11. VCR BUTTONS
control a LG video cassette recorder.
123
456
7
PSM SSM
8
0
POSITION STILL
SCAN
MIX
REVEAL
?
M
TIME
SIZE
LIST
SLEEP
I/II ARC
EYE
STOP REC
P/STILL
REW FF
PLAY
9
POWER
TV/AV MULTIMEDIA
SOUND PICTURE
TURBO
PIP TEXT
PR -PR +
INPUTSWAP
MENU PR
VOL OK VOL
PR
MUTE
4 5 6
7
PSM SSM
8
0
LIST
SLEEP
I/II ARC
EYE
9
SOUND PICTURE
MENU PR MUTE
PIP
PR -PR +
INPUTSWAP
POSITION STILL
SCAN
SIZE
1
12
13
14
16
17
19
20
21
15
2
3
4
5
6
7
8
10
9
11
(With TELETEXT / PIP)
(Without TELETEXT/With PIP)
4
18

- 10 -
12. MULTIMEDIA (option)
selects Component 1 or Component 2 modes.
13. TURBO PICTURE BUTTON
selects Turbo picture.
14. TELETEXT BUTTONS (option)
These buttons are used for teletext.
For further details, see the ‘Teletext’ section.
15. YELLOW BUTTON
returns to the previously viewed programme.
selects a favourite programme.
16. MUTE
switches the sound on or off.
17. SSM (Sound Status Memory)
recalls your preferred sound setting.
18. STILL
freezes motion of the picture.
19. LIST
displays the programme table.
20. ARC
select your desired picture format.
21. EYE (option)
switches the eye function on or off.
*: No function
COLOURED BUTTONS : These buttons are used for teletext (only
TELETEXT models) or programme edit.
Note : In teletext mode, the PR +/-,SWAP and INPUT buttons are
used for teletext function.
Battery installation
The remote control handset is powered by two AAA type batteries.
To load the batteries, turn the remote control handset over and
open the battery compartment. Install two batteries as indicated by
the polarity symbols ( and ) marked inside the compartment.
Note : To avoid damage from possible battery leakage, remove the
batteries if you do not plan to use the remote control handset for an
extended period of time.
+
-
4 5 6
7
PSM SSM
8
0
I/II ARC
EYE
9
SOUND PICTURE
MENU PR MUTE
TEXT
UPDATE HOLD
INDEX
MIX
REVEAL
?
M
TIME
SIZE
LIST
SLEEP
(With TELETEXT/Without PIP)
1 2 3
4 5 6
7
PSM SSM
8
0
STILL
LIST
SLEEP
I/II ARC
EYE
STOP REC
P/STILL
REW FF
PLAY
9
POWER
TV/AV MULTIMEDIA
SOUND PICTURE
TURBO
MENU PR
VOL OK VOL
PR
MUTE
1
12
13
16
17
18
20
2
3
5
6
7
8
9
10
11
(Without PIP/TELETEXT)
14
19
21

- 11 -
S-VIDEO VIDEO L/MONO RAUDIO
AV3
(Side panel)
1. MAIN POWER
switches the set on or off.
2. REMOTE CONTROL SENSOR
3. TV/AV (option)
selects TV or AV mode.
clears the menu / text from the screen.
switches the set on from standby.
4. MENU
selects a menu.
5. OK
accepts your selection or displays the current
mode.
6. MUTE
switches the sound on or off.
7. POWER/STANDBY INDICATOR
illuminates brightly when the set is in standby
mode.
dims when the set is switched on.
8. FF/ GG(Volume Up/Down)
adjusts the volume.
adjusts menu settings.
9. DD/ EE(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
10. EYE (option)
adjusts picture according to the surrounding
conditions.
11. AUDIO/VIDEO IN SOCKETS (AV3)
Connect the audio/video out sockets of exter-
nal equipment to these sockets.
S-VIDEO/AUDIO IN SOCKETS (S-AV)
Connect the video out socket of an S-VIDEO
VCR to the S-VIDEO socket.
Connect the audio out sockets of the S-
VIDEO VCR to the audio sockets as in AV3.
*CASTERS (on the bottom)
turn and move the set easily.
Front panel
•RT-44NB10 series
PR
MENU MUTE
TV/AV VOL
OK
ON/OFF
PR
MENU MUTE
TV/AV VOL
OK
3 4 5 6 7 8 9
2
10 11
1

- 12 -
These instructions are applied to only MP-03AB chassis.
Notes
1.Because this is not a hot chassis, it is not necessary to use an
isolation transformer.
However, the use of isolation transformer will help protect
test instrument.
2.Adjustment must be done in the correct order.
3.The receiver must be operated for about 60 minutes proir to
the adjustment.
Pre-heatrun must be operated receiving moving pictures or
100% white pattern.
[Never operate the SET over 10 minutes with still picture
because a fluorescent material may get damage.
O Raster Slope/Focus 1th Adjustment
1. Preliminary steps
1) Apply power to the unit and switch the unit ON.
2) Receive the EU 05 CH signal.
3) Select INSTART key on the Remote Control and then select
“0 RASTER ADJ” move the cursor or by pressing the key
No. 0.
4) Adjust Lens Focus/Electric focus temporarily.
[When select “0 RASTER ADJ” mode after entering adjustment
mode with INSTART key, the convergence reset and then
preparation for adjustment complete.
[The convergence reset is possible even from convergence
adjustment mode.
1) Enter into convergence adjustment mode: Select INSTART
key on the Remote Control and then select “3
CONVERGENCE” move the cursor or using the key No..
2) Convergence reset: After press the key No. 5, press the
ENTER key.
3) Adjustment mode release: Press the INSTART key
2. Adjustment
1) Display only the Green raster using lens covers to block Red
and Blue.
2) Rotate the Green DY and tilt the screen like the figure below.
3) Make 2color raster with Red or Blue and Green.
4) Coincide the slope of red and blue raster to that of green.
Note) 1. When adjusting raster slope, loosen the DY and fasten
itafter adjusting.
2. Never rotate and adjust the fixed DY without loosing it.
O Adjustment Of BEAM Aligment
1. Test Equipment
Video Test Generator(801GF) or Signal Generator can produce
NTSC DOT pattern(408NPS or 5518/5418 equipment)
2. Preparation
1) Heat run over 60 minutes.
2) Pre-adjust Raster slope,Raster position & Lens focus &
centering Magnet.
3) Check if the Magnet is located 45mm from the end of CRT.
4) In case of using 801GF : Receive #13 DOT Pattern of VGA
mode(Format #5) through PC input terminal.
In case of using NTSC generator : Receive Dot signal
through the external input terminal.
3. 2-Pole Magnet Adjustment
(1) Make Green raster using lens cover.
(2) Check the center position of DOT pattern on the center of
the screen after turning Green focus volume left.
(3) Turning green focus volume right and adjust 2-Pole magnet
so the position to coincide that of item ”(2)”.
(4) Adjust not to shift the screen by turning green focus volume
clockwise and counter clockwise.
(5) If the screen shifts, readjust (2)~(4).
(6) Do the same method in Red and Blue.
4. Beam Shape (4 & 6-Pole Magnet) Adjustment
(1) Do after 2-Pole magnet adjustment.
(2) Make Green raster using lens cover and turn the focus
volume right.
(3) Make the dot in the center a perfect circle using 4 & 6-Pole
magnet.
(4) Do the same method in Red & Blue.
(5) Fasten the Magnet after adjustment.
(6) Adjust focus accurately.
ADJUSTMENT INSTRUCTIONS
LL
Mechanical
center
L ¡´!2mm
Red/Blue Light Green Light
45mm

O Centering Magnet Adjustment
1. Preliminary steps
1) Receive the EU 05 CH signal.(PR.1 : PAL B/G 175.25MHZ)
2)
Press the keys of Remote Controller for adjustment to reset the
convergence.
a.Adjustment mode:Press the IN-START key.
b.Data reset : Press 0 KEY.
c.Adjustment mode cancellation : Press the
ENTER key.
2. Adjustment
1) Operate adjustment about Red,Green,Blue centering
magnet.
2) SGS-THOMSON Convergence assy
Adjust until the center of blue signal is shifted up to 40mm
left from that of green signal and center of red signal is
shifted up to 40mm right from that of green signal with
turning the centering magnet.
3) After adjustment, re-adjust convergence data and exit the
adjusting mode.
a.Adjustment mode:Press the IN_START key.
b.Data reset : Press 0 KEY.
c.Adjustment mode cancellation : Press the Enter key.
O High Voltage Regulation Adjustment
1. Test Equipment
Digital Multi-Meter(DMM)
2. Preparation for Adjustment.
Select picture mode to ‘DYNAMIC’ in no signal input.
3. Adjustment
1) Press the IN_START key and then press ‘1’ key.(HV ADS)
2) Connect “+” terminal(Red) of DMM to the P415 of the
Deflection PCB, [+] and the “-”terminal(Black) to the P416,[-].
3) Adjust VR401 so that the voltage of multimeter to be below
voltage.
Voltage: 21.7 ! 0.1V.
4) Exit the adjustment mode by pressing the enter key
OCUT-OFF Voltage Adjustment
1. Preliminary steps
(1) Select INSTART key on the Remote Control and then
select “2 SCREEN ADJ” move the cursor or using the key
No..
(2) Adjustment must be operated in a dark room (simple dark
room)
2. Adjustment
(1) Test Equipment: Oscilloscope, 100:1 Probe
(2) Connect oscilloscope to cathode of R, G, B(R926R/B/G:
SCREEN ADJ on the PCB) and GND.
(3) Turning Screen Volume (R/G/B) in Focus Pack and adjust
R/G/B is 165V!0.5V.
(4) After adjustment complete, exit the RASTER adjustment
mode using ENTER key and exit the SVC adjustment mode
using INSTART key.
O Deflection Adjustment
1. Preliminary steps
1) NTSC mode should be adjusted after adjusting PAL mode.
2) NTSC adjustment should be done in STANDARD mode of
picture after receiving 13CH signal or MULTI 48CH
signal,and PAL adjustment should be done in STANDARD
mode of picture after receiving EU05 CH.
3) Reset the data in convergence adjustment mode,quit the
mode.
Adjustment Mode : Press the IN_START key and then
‘0’
key.
Data reset : Press the “0” key.
Adjustment mode cancellation :Press the
ENTER key.
4) Display only the Green raster using lens covers to block Red
and Blue.
2. PAL Mode Deflection adjustment
Do not adjust V-LIN, S-COR, A-BOW, A-ANG, UCPIN, LCPIN,
V-ASP, V-SCR in PAL MODE. At SVC mode, press the ‘0’
key get into the deflection adjustment mode.
1) VS (Vertical Shift)
Adjust until the geometric vertical center line is accord with
the vertical center line of screen JIG in EU 05 CH by
pressing the VOLUME F,Gkey.
2) VA (Vertical Amplitude)
Adjust until sixth vertical line from upper and lower center of
the screen is accord with the last point of the frame.
3) HS (Horizontal Shift)
Adjust until the geometric horizontal center line is accord with
the horizontal center line of screen JIG.
4) EW (East-west Width)
Adjust until the outermost left and right vertical line of the
screen is accord with the last point of the frame.
5) EP (East-west Parabola)
Adjust so that middle portion of the outermost left and right
vertical line looks like parallel with vertical lines of the PRT.
- 13 -
0V 165V±0.5V
2 Pole Magnet
4 Pole Magnet
6 Pole Magnet

6) ET(East-west Trapezium)
Adjust to make the width of top horizontal line same with it of
the bottom horizontal line.
7) A-ANG(AFC Angle)
Vertical slope adjustment
8) A-BOW(AFC BOW)
Vertical get bending adjustment
9) U-C(Upper Corner Pincushion)
Upper part pin cushion adjustment
10) L-C(Lower Corner Pincushion)
Lower part pin cushion adjustment
11) U-VL(Upper Vertical Linearity)
Adjust vertical linearity of upper screen
12) L-VL(Lower Vertical Linearity)
Adjust vertical linearity of lower screen
13) VL (Vertical Linearity)
Adjust the top/bottom size of circle to be same in the EU 05CH.
14) SC (Vertical “S” Correction)
Adjust so that all distance between each horizontal lines are
to be the same.
15) V-ASP(Vertical Aspect Ratio)
Adjust the vertical aspect ratio.
16) Store the adjusted data in EEPROM by pressing the “OK”
key before exiting adjustment mode.
17) Exit the Adjustment mode by pressing the ‘TV/AV’ key.
3. NTSC Mode Deflection Adjustment
1) Adjust vertical size (VA Adjustment) until fifth vertical bar
from upper and lower center screen is accord with the edge
of the frame.
2) Adjust horizontal size (EW Adjustment) until third bar to
indicate horizontal size of circle is accord with the edge of
the frame.
3) Do other adjustments the same as in PAL mode.
4. 1080i Mode deflection Adjustment (option)
(1) Test Equipment
SETTOP BOX with 1080i output or MSPG-925LTH
(Programmble VIDEO Signal Generator).
(2) Preliminary steps
1) After adjust 1080i with output of the SETTOP BOX,
connects the Y signal which is output from SETTOP
BOX with the VIDEO input terminal of the SIDE-
AV(AV3).
2) Select INSTART key on the Remote Control and then
select “5 1080I-ADJ” move the cursor or using the key
No5.
3) Adjust vertical size (V-SIZE Adjustment) util fifth vertical
bar from upper and lower center screen is accord with
the edge of the frame.
4) Adjust horizontal size(H-SIZE Adjustment) until twelfth
vertical bar is accord with the edge of the frame.
5) Do other adjustments the same as in PAL mode.
O Lens Focus & Electronic Focus Adjustment
1. Preliminary steps
1) Electronic focus,Raster slope & Raster position must be pre-
adjusted.
2) Heat-run over 60 minutes.
3) Receive Crosshatch pattern.
(PAL:EU07(PR 8) or NTSC:09CH(PR 13))
- 14 -
Fourth Vertical Line
Third Bar
Sixth Vertical Line
Fig. 3
Fifth Vertical BAR

4) Adjustment must be done in a dark room(simple dark room)
Be careful not to touch the lens during adjustment.
5) Make any one color raster using lens covers.
6) Rotating lens right from the front side chromatic haze occurs
beside Cross-hatch line changes as follows;
* Note: Loosen the butterfly nut in
the lens tub slightly,being careful that it is mot loosened to the
point that the lens can move out of focus.
2. G-lens Adjustment
1) Turn the lens until the chromatic aberration changed Blue to
Red point.
2)
Viewing the all screen, in no case of the chromatic aberration
appeared slimly within 3.5 cross-Hatch of the picture center. At
this time, in case that the red chromatic aberrations bright line
isn't equal, adjust Green lens so that the red chromatic
aberration is appeared more than previous time.
3) Switching the signal to 13CH or EU07 and operate
adjustment minutely.
4) Adjust Green focus control volume of focus pack so that the
external big circle's part appeared clearly.
5) Adjust accurately by repeat the upper control.
6) Especially, noting to the Green light because it influenced on
picture’s function.
3. R-lens adjustment
1) Turn the R-lens util the chromatic aberration changed
oranged to scarlet.
2) Adjust to appear Red chromatic aberration in right within 3.5
cross-hatch of the picture center. Adjust the chromatic
aberration so that it located center correctly
3) Switching the signal to 13CH or EU07 and adjust it as same
method of Green lens.
4) Adjust as same method of Green lens with Red focus control
volume of focus pack.
4. B- lens adjustment
1) Turn the B-lens until the chromatic aberration of 3.5 Cross-
hatch left from center point changes from purple to green.
2) Adjust as same as method of Green lens with Red focus
control volume of focus pack.
3) Adjust the R-focus control volume of focus pack as same
method of Green lens.
Note) After adjustment Red, Green & Blue lens, remove lens
cover and receive Cross-hatch pattern and check the overall
focus. If need, repeat above.
O Convergence Adjustment
1. Preliminary steps
This adjustment should be performed after warming up 60
minutes.
1) Adjust after Horizontal/Vertical Raster position,Beam
alignment magnet, and focus adjustments have been
completed.
2) Do it always with crosshatch pattern.
3) Adjust for both PAL and NTSC system.
4) Use the JIG screen with the cross hatch pattern for
Adjustment.
2. Convergence Key
1) Convergence Mode : IN_START, ‘3’
2) Cursor shift : F , G , D ,E
3) Cursor Movement/Adjustment Selection : OK
4) Cursor Color Selection : TV/AV
5) Adjustment mode out : IN_START
*Note: When cursor flashes,set is in adjustment mode When
R,G or B selected color flashes,the set is in cursor movement
mode.
O PAL Mode Adjustment
1. Preliminary steps
1) Receive the EU 05CH signal.
2) Press the buttons IN_START, ‘3’ of Remote Controller for
adjustment to get into the convergence adjustment mode.
2. Horizontal/Vertical phase adjustment
1) Press the buttons 9 & 5 to get into the phase adjustment
mode.
2) Horizontal Phase Adjustment.
Move the convex curve to the quarter of Vertical center by
pressing the Volume F / Gbutton.
3) Press the OK button to escape from the adjustment.
- 15 -
Lens
Red
Green
Blue
Change of chromatic aberration
Orange ¤AScarlet
Blue ¤ARed
Purple ¤AGreen
CHROMATIC
ABERRATION
CROSS HATCH
SIGNAL

3. Pattern position adjustment
1) Change into pattern shift mode.
(Press numeric buttons “9” & “4”)
2) Make sure to overlap pattern and image.
(Use MUTE button)
3) Accord the center of image and pattern.
(Use F , G , D ,Ebuttons)
4) Quit pattern shift mode. (Press “OK” button)
5) Save adjusted phase/pattern position adjustment
mode.(Press “9”, “2” & “OK” buttons)
4. Auto convergence Adjustment by Camera
Convergence is based on the auto adjustment using PC and
Camera, if need, adjust manually like below method.
5. Green convergence adjustment
1) Show the OSD on screen by pressing 2 button,then change the
OSD to green(G) adjustment mode with pressing TV/AV button.
2) Close the cover of red PRT and blue PRT so that green
display on screen only.
3) Adjust to coincide green pattern with screen JIG pattern.
(Use F , G , D ,Ebuttons)
Here, do it in the same order from center listed in figure.
6. Red convergence adjustment
1) Display “R” red color on the screen by the TV/AV button .
2) If the need to do, close the cover of the blue lens.
3) Coincide the red screen with the green screen or screen in
same way with that of green convergence adjustment.
7. Blue convergence adjustment
1) Display “B” blue color on the screen by the TV/AV button.
2) Coincide the blue screen with the green screen in same way
with that of red convergence adjustment.
8. Adjusted data saving
1) To save the data after adjustment,Press “9”, “1” & “OK”
button.
2) Exit convergence adjustment mode. (“IN_START” button)
9. Auto-Convergence measuring or Measuring back
up data (option)
1) Operate the auto-convergence measuring or the measuring
back up data separately in PAL,NTSC and 1080i(Option)
mode.
2) Operate in the condition of ‘Zero magnetometer ‘ in room
after correcting convergence manually.
3) How to measuring
Press the ‘IN_START -> 3 ->MENU->3’ key to operate Auto
convergence measuring or the measuring back up data.
4) Exit convergence adjustment mode by the IN-START key.
O White Balance Adjustment
1. Test Equipment
Brightness meter(CA110)
2. Adjustment
1) This adjustment must be operated in a dark room or
equivalent.
2) Adjust after Cut-Off and Focus adjustment.
3) The brightness meter must be located in 20¡5cm distance
from the center of the screen.
4) Receive WINDOW signal.
* High Light :
RE/RL : 250!10 cd/m^2 (16:9)
RT : 160!10 cd/m^2 (16:9)
* Low Light : 10!3 cd/m^2
RE/RL : 190!10 cd/m^2 (4:3)
RT : 160!10 cd/m^2 (4:3)
5) Set BRIGHT to H/Light adjustment mode in 4) and enter
SVC mode by pressing the “IN_START” button. Adjust RG
(R Gain) and BG (B Gain) until color coordinate becomes
RE/RL - X=0.283 and Y=0.292, RT - X=0.269 and Y=0.274
(Deviation : !0.03).
6) Set BRIGHT to L/Light adjustment mode and adjust CR (R
Cut Off) and CB (B Cut Off) until color coordinate becomes
RE/RL - X=0.280 and Y=0.260, RT - X=0.269 and Y=0.274
(Deviation : !0.03).
7) Repeat adjusting until the color coordinate of H/Light and
L/Light is satisfied.
8) Save the data after adjustment.
(Press “ENTER” button)
9) Exit adjustment mode. (“ INSTART ” button)
- 16 -
Adjustment Order Of Convergence
Convergence Phase Adjustment

O Sub-Bright Adjustment(Option)
1) Tune the TV set to receive a EU 05 CH.
2) Enter WB mode by pressing the IN_START & ‘4’ button.
Adjust S-BRI data until 100% and 80% GRAY PATTERN is
classified.
(Use F , G , D ,E,OK buttons)
O Auto-Convergence Check (option)
1) Check the Auto-Convergence in PAL/NTSC mode
separating.
2) Press the IN_START key on R/C for adjustment and press
the Time key to check whether Auto-Convergence works
normally in each mode.
3) If not,check the Convergence condition or Measuring
condition and SENSOR condition.
4)The shipment must be done after restoring the final auto
convergence data value.
(Restore a Convergence data : IN_START -> ‘3’
-> TEXT)
O Check the Option Adjustment
1) Check the OPTION1~5 data of attach 6 is well recorded.
2) The option value of each suffix is started on JOB EXP of
3141VMN chassis Assy.
- 17 -
Fifth Vertical Line
100% and 80% GRAY PATTERN
SUB BRIGHT Adjustment Signal

- 18 -
O Convergence Adjustment Mode
- INSTART -> 3 -> MENU
* This Mode is for engineering. So,don’t change before permission from Design Department.
0.AC POSITION READ : Distance data(After auto convergence measuring)
1.Save to 50Hz/60Hz : Save (convergence adjustment data)
It’s same 9,1,Enter.
2.Save Control data : Save (A phase adjustment data)
It’s same 9,2,Enter.
3.AC Position Meas/ Meas backup data. : Execute( auto convergence measuring)
4.Pattern : Adjust location of convergence pattern.
It’s same 9,4,Enter.
5.Phase : Adjust a phase of convergence pattern.
It’s same 9,5,Enter.
6.GRID Border
7.ADJUST: Set the Dynamic focus data&auto-convergence data
HGD
HRD
VGD
BPH
BPV
29
42
44
22
35
27
55
23
20
18
Horizontal Grid Distance
Horizontal Retrace Distance
Vertical Grid Adjustment
Border Position Horizontal
Border Position Vertical
Item Description (PAL) (1080i)
27
55
38
18
26
(NTSC)
24
19
30
6
31
31
110
70
7
7
MICOM
NO
NO
29
23
31
9
31
31
110
70
7
7
MICOM
NO
NO
29
23
31
9
31
31
110
70
7
7
MICOM
NO
NO
30
27
32
13
31
31
110
70
7
7
MICOM
NO
NO
28
26
31
5
31
31
110
70
7
7
MICOM
NO
NO
30
27
32
0
31
31
110
70
7
7
MICOM
NO
NO
Item Description
Focus parabola top value
Focus parabola middle value
Focus parabola bottom value
Focus parabola position
Start of the retrace value
Focus value during frame retrace
Force the video pattern fast blanking
Auto convergence offset
Pattern Bright Horizontal
Pattern Bright Vertical
EEPROM/MICOM selection
Initialization of AC Pattern data
Initialization of ADJ. Focus data
4:3 TV (WIDE = 0 )
PALNTSC 1080i NTSC PAL 1080i
16:9 TV (WIDE =1)
FV1
FV2
FV3
VFP
FSB
FVR
STA
ACO
PBH
PBV
OPT
ACINIT
ADJINIT

8.OSD POSITION
9.AC PATTERN ADJ ( Option : Only for Auto Convergence)
O SVC Adjustment mode & Initial data
1. White Blalane adjustment data (IC:CXA2180Q)
2. Sound adjustment data (IC:MSP3411G)
- 19 -
• MDB(MICRONAS DYNAMIC BASS)
14
53
12
66
66
2D
19
09
OB
FC
FM
NP
SP
S1 VOL
S2 VOL
MDB-STR
MDB-HMC
MDB-HP
MDB-LP
MDB-LIM
Menu Description
FM Prescaler
NICAM Prescaler
SCART Prescaler
SCART 1 Volume
SCART 2 Volume
MDB Effect Bass Strength
MDB Harmonic Content
MDB High Pass
MDB Low Pass
MDB Amplitude Limit
Range Default
14
27
29
0D
1F
09
20
75
09
1F
2D
14
1F
13
20
75
RD
GD
BD
RC
GC
BC
S-BRI
DVCO
Menu Description
Red Drive
Green Drive
Blue Drive
Red Cut-off
Green Cut-off
Blue Cut-off
Sub BRIGHT
Digital VCO
Range Default
RE/RL RT

- 20 -
03
00
00
00
03
01
02
03
02
00
01
02
03
02
0C
05
0B
07
1F
1F
07
00
00
00
02
02
06
00
00
D-COL
EXTSW
SHPFO
BLKBT
PREOV
CTILE
LTILE
PLMTL
ABLMO
CTI-M
LTI-M
GAMMA
DPIC
DC-TR
S-CON
LRGB2
P-ABL
ABLTH
CB-OF
CR-OF
Y-OFF
AGN-W
AGN-B
SYSTM
VM-DL
VM-FO
VM-LE
FLCOL
FL-SW
Menu Description
Dynamic color mode setting
Selects the Y/Cb/Cr input or EY/ECb/Ecr
Sharpness f0 setting
RGB output bottom limiter level control (for blanking/signal)
Pre-shoot/over-shoot ratio setting
CTI level setting
LTI level setting
RGB output amplitude level setiing
ABL mode setting
CTI mode setting
LTI mode setting
RGB output GAMMA correction amount control
Dynamic picture(black expansion) control
Y system DC transmission ratio setting
Sub Contrast control
Picture level control for LRGB2
RGB output level detection DC setting for PEAK ABL
Threshold voltage adjustment for ABL_IN input
DC_OFFSET canceling for Cb signal
DC_OFFSET canceling for Cr signal
DC_OFFSET canceling for Y signal
White(80IRE) output aging mode ON/OFF switch
All blank(0IRE) output aging mode ON/OFF switch
Selects the signal band
VM_OUT phase control
VM_OUT level control
VM_OUT f0 setting
Flesh color enhancement function control
Flesh color enhancement function ON/OFF switch
NTSC
3.Picture adjustment data (IC : CXA21801)
V3.50
V3.50
V3.50
Remark
03
00
00
00
03
01
02
03
02
00
01
02
03
02
0C
05
0B
07
1F
1F
07
00
00
00
02
02
06
00
00
PAL
