LG CordZero A9 Series User manual

-1-
Caution : Please read the safety cautions of this booklet
before checking theproduct.
Buyer Model Name : A9******
Factory Model Name : VS97******
P.No MFL68043134 July, 2017
Printed in Korea
LG Code Zero
SVC Manual

-2-
Content
■ Product features ..............................................................................................................3
■ Parts and names ...............................................................................................................4
■ Cleaner features ...............................................................................................................5
■ Check these out before use .......................................................................................6
■ Cautions for general usage ............................................................................. 7~12
■ Technical descriptions of parts ............................................................................ 13
■ How to use .............................................................................................................14~19
■ Disassembly, assembly and repairing of main parts ........................20~26
■ Cautions and what to check for repairing .................................................... 27
■ Circuit diagram .....................................................................................................28~31
■ Symptoms of malfunctions and measures ...........................................32~33
■ Cleaning functions and error modes ................................................................ 34
■ Exploded diagram ...............................................................................................35~41

-3-
Product features
Item/Model VS97******
Dimensions 260 mm(W) X 270 mm(L) X 1120
mm(H)
Weight 2.7 kg
Power
consumption:
400 W (Maximum of 450 W)/
250 W/ 80 W (Turbo/Power/
Standard)
Suction
power 140 W(In Turbo mode) 1)
Battery DC 25.55 V
Battery life
(After
full charge, In
handy mode)
Approx. 6 minutes in Turbo
Approx. 9 minutes in Power
Approx. 40 minutes in Standard
Item Charger (Adaptor)
Input 100 - 240 V~ 50/60 Hz, 0.8 A
Output DC 29.4 V 1.0 A
Item/Model Battery
Type Rechargeable Lithium Battery
Rated DC 25.55 V , 1900 mAh
Number of
battery cells 7 ea.
Manufactured
by
LG Chem (Battery pack manufactured
by TWS TECHNOLOGY
(GUANGZHOU) LIMITED)
1) The suction power measurement standard is an average value
measured by an independent testing institute by borrowing
and some changes, and individual measured values may differ.

-4-
Parts and names
Standing type
6
1
4
9
52
3
7
8
6
1 4
9
2
3
8
Wall type
6
1
4
9
52
3
7
8
6
1 4
9
2
3
8
1 Product body
2 Extension pipe
3 Charging station
4 Adapter
5 Charging station pipe
6 2-in-1, blade-shaped inlet holder
7 Charging station support
8 Adaptor
9 Battery
• Parts may vary depending on the specific model that you purchased.
※There may be local gradation thanks to the eco-friendly design technology instead of the traditional coating
method that generates harmful substances. Rest assured that the performance of the product will not be
affected at all by the gradation.
Battery Inlet port for carpet Inlet port for bedclothing Blade shaped inlet
port 2 in 1 inlet port
Wall anchoring
block Screw anchor (2) Double sided tape (2) Mattress Tool Hard Dirty Tool
Anchoring screw for
wall type (Φ 3.5 mm,
length 90 mm)
Anchoring screw for
standing type (Φ 3.5
mm, length 50 mm)
Body parts

-5-
Cleaner features
1. The product boasts of powerful suction that can be adjusted per purpose and site.
The integrated inverter motor ensures consistent suction and you can adjust the
suction strength depending on where you are cleaning.
2. Anti tangle power nozzle
For cleaning ultrafine particles
3. Dual lithium batteries
Two long-life dual lithium batteries eliminates the need for chargingin the middle of
cleaning. Each battery lasts about 40 minutes in the Standard mode and thetwo give
you approximately 80 minutes of cleaning.
4. Independent wall mounting charging station
Independent wall mounting charging station eliminates the need tosecuring the space
for the charging station.
5. Wireless convenience
The product can be used remotely so that the inconvenience fromcables can be
eliminated.

-6-
Check these out before use
What to be aware of about using
the product
• Make sure that the dust bin lid is on prior
to using the product. Otherwise, suction
strength will deteriorate and cleaning will not
be satisfactory.
• Support the bottom of the product when
cleaning an elevated surface.
• While leaving the product unattended or not
using the product for extended period, make
sure to properly put it in the charging station
or lie it on a floor. Otherwise, the product
may fall and get damaged or cause injury to
people.
• Make sure that the exhaust filter is properly
assembled before using the product.
• Environmental conditions such as tempera-
ture and humidity may cause static on the
product. Please contact the customer service
of LG Electronics if a same issue persists.
• Any foreign object on the inlet port or exten-
sion pipe will prevent the product from prop-
er operation. Make sure to remove any for-
eign object such as a sock or stocking before
using the product.
• Battery life will be shortened after using the
product for extended period thanks to its
nature.
• When battery is about to get fully dis-
charged, the last block on the battery indica-
tor starts to flash and the product will power
off after a while. Fully charge the battery in
this case.
• Please use the product at room temperature
as the battery life will deteriorate severely if
used at temperatures lower than 5℃ or high-
er than 38℃ for an extended period of time.

-7-
Cautions for general usage
The following cautions intend to protect you from unexpected risk or property loss by
ensuring safe and correct usage of the product.
Cautions are categorized into ‘Warning’ and ‘Care’, which mean:
The pictogram aims to remind you of matters and usage that may pose risks to the user.
Make sure to carefully read the item with this symbol and comply with it to prevent any potential
risk.
Warning - Failure to comply with this may cause serious damage, injury or even death to the user.
Care - Failure to comply with this may cause damage to the product or moderate injury to the user.
Warning
Please put the charging sta-
tion on an even surface.
••Otherwise,•the•product•may•
fall•and•get•damaged•or•
cause•injury.
If you intend to use the
charging station as “wall
type”, make sure to anchor-
ing it on the wall with a
screw for wall type.
••It•may•damage•the•product•
and/or•injure•people.
Never install the charging
station on the wall if there
is any piping (power, water)
or power cable behind the
walls.
••There•is•risk•of•injury•from•
electric•shock•or•󽗉re.
Installation
Do not install the prod-
uct where it is exposed to
water, rainfall or severe
moisture.
••Such•locations•make•the•
product•vulnerable•to•󽗉re•
while•charging•the•battery.
••Please•install•the•product•in•a•
well-ventilated•place.
Make sure to avoid places
with leakage of 󽗊ammable
gas, industrial oil or metal-
lic dust.
••It•may•cause•malfunction•of•
the•product•or•damage•it.
If you intend to use the
charging station as “stand-
ing”, make sure to anchor-
ing it on the wall with a
screw for standing type.
••Otherwise,•the•station•or•
product•may•slant•and•get•
damaged•or•cause•property•
damage•or•injury.

-8-
Cautions for general usage
Power requirements
This product is to be used
AC 220V only. Make sure to
check the power speci󽗉ca-
tions of the place to use the
product.
••Wrong•speci󽗉cations•will•
result•in•electric•shock•or•
damage•the•product•upon•
short-circuiting.
AC 110V
Do not apply excessive
force on power cord to
bend it, or put it under
heavy object to cause dam-
age.
••The•power•cord•may•get•
damaged•and•cause•electric•
shock•or•injury.
Please refrain from using
multiple power appliances
in one power strip or power
socket and make sure to
use the power socket with
capacity of +15A.
••Such•usage•may•result•in•󽗉re•
due•to•abnormal•overheating•
of•the•socket.
••Or•it•may•activate•the•circuit•
breaker•and•you•will•lose•
power.
Never get in contact with
the power cord and plug
with a wet hand.
••Otherwise,•you•may•get•in-
jured•or•su󽗈er•electric•shock.
Please clear any dust or
water from the power cord
and plug with a dry cloth.
••It•may•cause•electric•shock,•
short•circuit•or•󽗉re.
When unplugging the pow-
er cord, never pull the cord
itself and always hold the
power plug.
••Pulling•the•cord•damages•it•
and•causes•electric•shock•or•
󽗉re.
Please stop using the
product and contact the
customer service of LG Elec-
tronics upon 󽗉nding that
the power cord or power
plug is damaged or that the
holes of the power socket
are loose.
••It•may•cause•electric•shock•
or•󽗉re.
Make sure to unplug the
power cord when cleaning
or maintaining the charging
station.
••Otherwise,•you•may•get•in-
jured•or•su󽗈er•electric•shock.
Make sure to unplug the
power cord when the prod-
uct is not to be used for
extended period of time.
••Otherwise,•you•may•su󽗈er•
electric•shock,•short•circuit•
or•󽗉re.
Make sure to organize the
power cord of the charging
station while using or
cleaning the product.
••Otherwise,•the•cord•may•
get•tangled•on•the•product’s•
body•to•cause•malfunction•of•
the•product,•electric•shock•
or•injury•when•it•gets•discon-
nected/broken.
Make sure to avoid touch-
ing the pins of the power
plug with your 󽗉nger(s)
when unplugging the pow-
er cord.
••It•may•cause•electric•shock•
or•󽗉re.

-9-
Cautions for general usage
Proper usage
Make sure that no child is
allowed to use the prod-
uct.
••The•product•weighs•too•
much•for•a•child•to•handle•
properly.
Make sure that no hand,
foot, hair or cloth gets
stuck in the rotating
brush or wheel while
using or cleaning the
product.
••It•may•damage•the•prod-
uct•and/or•injure•people.
No one other than a
quali󽗉ed technician/
service engineer from LG
Electronics may disas-
semble, repair or modify
the product.
••It•may•cause•electric•
shock,•injury•or•󽗉re.
Never use the battery
and the charging station
for other appliances than
the product.
••It•may•cause•malfunction-
ing•or•󽗉re.
Do not use the battery
from other appliances
with the product.
••It•may•cause•malfunction-
ing•or•󽗉re.
Do not arbitrarily disas-
semble, remove or short
circuit the battery.
••It•may•cause•electric•
shock,•injury•or•󽗉re.
Do not apply heat or
shock to the battery.
••It•may•cause•electric•
shock,•injury•or•󽗉re.
Never insert a sharp
metallic object such as
an awl in the hole or gap
on the product or the
charging station.
••Otherwise,•you•may•get•
injured•or•su󽗈er•electric•
shock.
Make sure that no wa-
ter, beverage or deter-
gent may get inside the
product or the charging
station.
••Otherwise,•you•may•get•
injured•or•su󽗈er•electric•
shock.
Do not apply or spray
󽗊ammable substance(-
gasoline or thinner) or
surface active agent(de-
tergent or bath soap) on
the product.
••It•may•cause•malfunction-
ing•or•󽗉re.
Bath
Good s
Gasoline
Thineer
Sham -
poo
If there is gas leak-
age(propane or urban
gas), make sure to ven-
tilate the area 󽗉rst with-
out getting into contact
with the product or its
power plug.
••Otherwise,•there•will•be•
sparks•which•cause•explo-
sion,•󽗉re•or•injury.
Do not use or store a
heating device or 󽗊am-
mable substance(ether,
benzene, alcohol, chem-
icals, combustible spray,
insecticide, air freshener
or cosmetics) in close
proximity to the product.
••It•may•cause•malfunction-
ing•or•󽗉re.

-10-
Cautions for general usage
Do not clean liquid(such as
water, beverage), metallic
object(such as blade, pins),
󽗊ammable substance,
surface active agent, glass
shards with the product.
••It•may•cause•malfunctioning•
or•󽗉re.
••In•the•event•that•any•liquid,•
metallic•object,•glass•shard•
or•spark•got•into•the•inside•
of•the•product,•immediately•
power•o󽗈•the•product•and•
contact•the•customer•service•
of•LG•Electronics.
Bath
Goods
Sham -
poo
Flammability
Do not use the product with
the exhaust or inlet port
blocked.
••It•causes•the•product•to•over-
heat•and•will•result•malfunc-
tions•or•󽗉re.•
Nozzle
Exhaust
In the event that there is
smoke from the product
while it is charged, immedi-
ately unplug the power cord
and contact the customer
service of LG Electronics.
••It•may•cause•electric•shock•
or•󽗉re.
Do not expose the product,
and battery in particular,
to heat, heating device or
direct sunlight
••it•may•cause•electric•shock,•
explosion•or•󽗉re.
Do not keep the product or
its battery inside a vehicle
which is exposed to direct
sunlight.
••It•may•cause•󽗉re•or•explo-
sion.
In the event that some kind
of liquid come from the bat-
tery, make sure that it does
not get into contact with
the skin or the eye.
••It•may•cause•󽗉re•or•severely•
damage•the•eye.
••If•the•liquid•from•the•battery•
got•into•contact•with•a•part•
of•skin,•immediately•wash•o󽗈•
with•ample•amount•of•water•
and•seek•medical•advice.
hospital
Do not wash the inlet port
with water or detergent.
••As•the•inlet•port•has•a•motor•
inside,•you•may•su󽗈er•electric•
shock•or•󽗉re.
Bath
Goods
Sham -
poo
Always use the provided
charging station only to
charge the product and its
battery.
••Any•charging•device•other•
than•the•provided•station•will•
cause•damage•the•battery•
and•result•in•electric•shock,•
explosion•or•󽗉re.
Never allow any water, bev-
erage or detergent to get
inside of the battery.
••it•may•cause•electric•shock,•
explosion•or•󽗉re.
Do not touch the charging
terminals on the product
and the charging station, or
insert an electri󽗉ed object
inside the product or the
station.
••Otherwise,•you•may•get•in-
jured•or•su󽗈er•electric•shock.

-11-
Cautions for general usage
Always keep the product
on the charging station
when it is not in use.
••Otherwise,•the•product•may•
fall•and•get•damaged•or•
cause•injury.
In the event that the earth
leakage breaker gets
activated when the prod-
uct is put on the charging
station, immediately
remove the product from
the station and contact
the customer service of LG
Electronics.
••It•may•cause•electric•shock•
or•󽗉re.
Do not wash the dust bin
with water.
••The•water•will•get•into•the•
motor•and•cause•electric•
shock•or•󽗉re.
Do not clean 󽗉ne dust
such as cement with the
product.
••It•may•cause•malfunction-
ing•or•󽗉re.
Cement
Make sure that no child
may play with the prod-
uct, the charging station
or the battery.
••It•may•damage•the•product•
and/or•injure•people.
••Especially•when•they•put•
the•product•or•batter•into•
the•mouth,•it•will•cause•
electric•shock•or•injury•to•
them•or•damage•the•prod-
uct•or•battery.
Disposal
Discard packing materi-
als(plastic vinyl, styro-
foam) so that no child may
get into contact with them.
••Such•materials•may•cause•
su󽗈ocation.
When disposing of the
product, make sure to re-
move the battery from the
product’s body.
••It•may•cause•󽗉re•or•explo-
sion.

-12-
Cautions for general usage
Care
Proper usage
Do not apply shock to the
product or drop it from
height.
••It•may•damage•the•product•
and/or•injure•people.
Make sure that the product
never falls.
••It•may•cause•injury•or•dam-
age•the•product.
Make sure that the product
has a 󽗉lter installed each
time prior to using the
product.
••It•may•cause•the•product•to•
malfunction.
Make sure to clear liquid
such as water or oil or
excrement of a pet from
the 󽗊oor before using the
product.
••Such•substances•will•further•
contaminate•the•󽗊oor.
Do not clean the product
with volatile or organic sol-
vent(thinner or acetone).
••It•damages•the•product.
••Always•use•a•soft•cloth•to•
clean•the•product.
Make sure to avoid running
into a person or a pet while
using the product.
••It•may•cause•injury.
Do not kick the product
with a foot.
••It•may•cause•the•product•to•
malfunction.
Do not put any object other
than the product, especial-
ly a metallic or magnetic
object, on the charging
station.
••Such•an•object•may•damage•
the•product•or•cause•electric•
shocks.
Do not clean the same spot
repeatedly for extended
time.
••Vibration•from•the•inlet•port•
may•damage•the•󽗊oor•or•the•
carpet.
Make sure that your 󽗉nger
does not get stuck when
assembling the product or
the charging station.
••You•󽗉nger•may•get•injured.
Do not let a child or a pet
hang onto the charging
station.
••It•may•cause•injury•or•dam-
age•the•product.
Do not put double-sided
tape on the wallpaper di-
rectly since it may get torn
by external force.
••Anchor•the•charging•station•
with•the•wall•anchoring•
screw•to•prevent•tearing•of•
the•wallpaper.
Wall Paper
Do not apply force on the
dust net.
••The•dust•net•may•get•de-
formed.

-13-
Technical descriptions of parts
Item VS97******
Category Integrated motor
Power DC 25.55V
Power consumption 400 W (MAX : 450 W)
R. P. M 115000 R.P.M
Lifecycle More than 205 hours
Model

-14-
How to use
Note about using the product
What to be aware of about using the product
• Make sure that the dust bin lid is on prior to using the
product. Otherwise, suction strength will deteriorate
and cleaning will not be satisfactory.
• Support the bottom of the product when cleaning an
elevated surface.
• While leaving the product unattended or not using the
product for extended period, make sure to properly put
it in the charging station or lie it on a floor. Otherwise,
the product may fall and get damaged or cause injury
to people.
• Make sure that the exhaust filter is properly assembled
before using the product.
• Environmental conditions such as temperature and hu-
midity may cause static on the product. Please contact
the customer service of LG Electronics if a same issue
persists.
• Any foreign object on the inlet port or extension pipe
will prevent the product from proper operation. Make
sure to remove any foreign object such as a sock or
stocking before using the product.
• Battery life will be shortened after using the product
for extended period thanks to its nature.
• When battery is about to get fully discharged, the last
block on the battery indicator starts to flash and the
product will power off after a while. Fully charge the
battery in this case.
• Please use the product at room temperature as the
battery life will deteriorate severely if used at tempera-
tures lower than 5℃ or higher than 38℃ for an extend-
ed period of time.

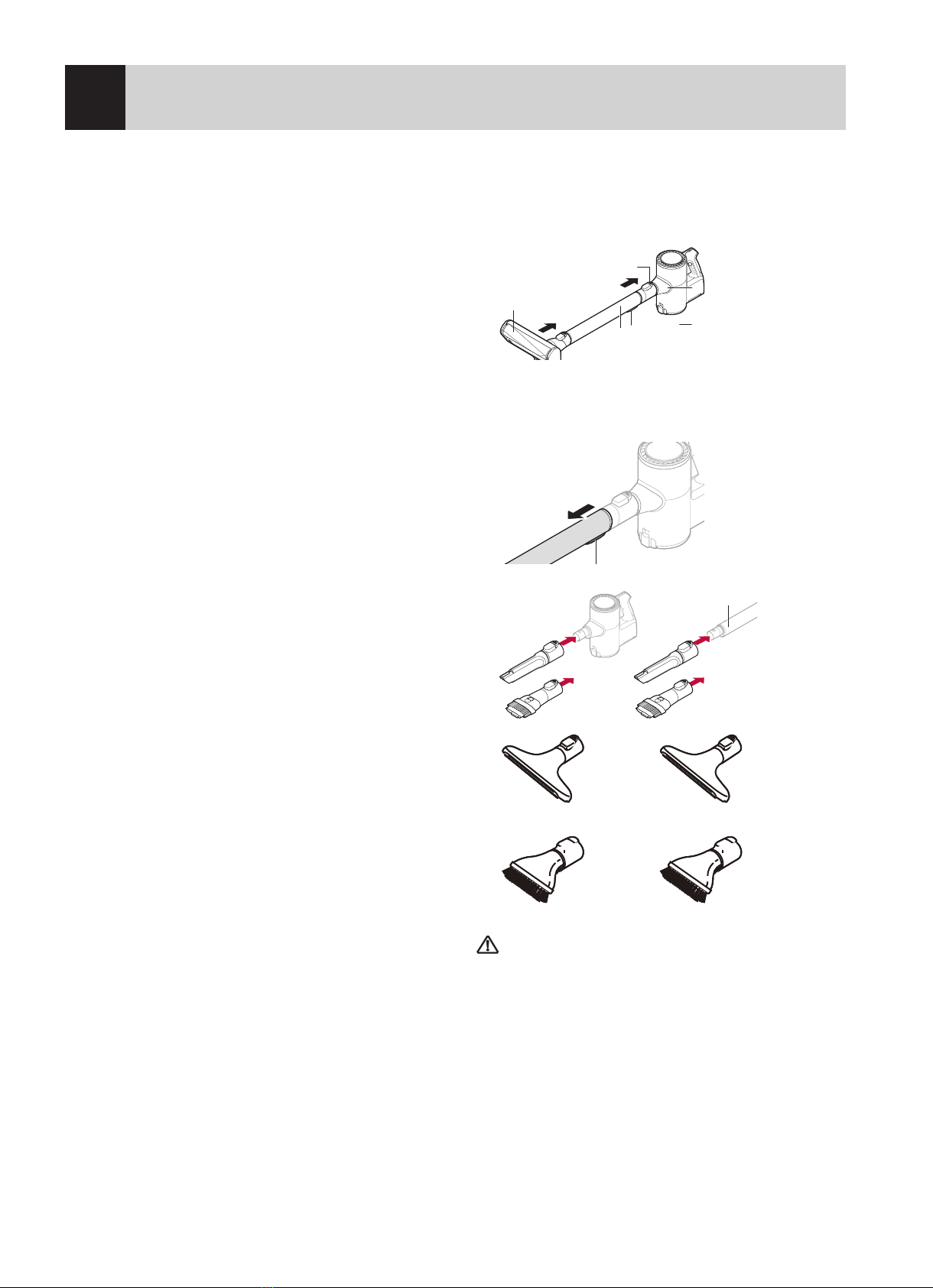

Using the product
1Assemble the body, extension pipe, inlet, and battery
in that sequence.
제품 연결 버튼
연장관 길이 조절 버튼
Inlet port
Extension pipe Battery
Product
body
2Press the button on the extension pipe to adjust its
length.
• The pipe has 4 lengths.
연장관 길이 조절 버튼
Extension pipe
length button
3Attach the inlet to the body or extension pipe.
Extension pipe
4
Care
• Using the product for a long time with the accessory
inlet port attached may overburden the motor.
• Using the accessory inlet port on a TV, monitor or LCD
display may leave a scratch on the surface.
• Apply caution to avoid getting your finger stuck in a
gap.
• Any foreign object sucked during cleaning in the inlet
will stop the inlet in order to prevent damage to the
body or inlet. Remove the object before resuming
cleaning.

-15-
How to use
2Put the battery in the auxiliary charging station.
보조 배터리
충전 지시등
Charging indicator of
the auxiliary battery
Please note
• Make sure that the power adapter is connected to both
the charging station and the power outlet
• While the main battery is charged on the charging sta-
tion, the auxiliary battery will start to be charged after
the main battery is fully charged.
• The auxiliary battery indicator flashes when charging
starts.
• The indicator will stay on when the auxiliary battery is
fully charged.
Power / Strength button
You can adjust the suction strength with the strength
button on the body. The product does not switch from
standard mode to turbo mode immediately.
Turbo
(3sec)
1
2
1 Power on/off button
2 Mode button
• Press “+” once to enable Power mode.
• Press and hold “+” for more than 3 seconds to
enable Turbo mode.
• Press “-” to switch from Turbo to Power, or from
Power to Standard.
Please note
Battery life per mode (After full charge)
• Standard: 40 minutes
• Power: 9 minutes
• Turbo: 6 minutes
Charging the product
1Put the product in the charging station.
• The battery indicator starts to flash and charging
will start in 3 steps.
2The battery indicator starts to flash and charging
will start.
• The indicator will stay on when the battery is fully
charged.
Care
• Make sure to fully fit the product in the station. Other-
wise, the product may fall and get damaged.
Please note
• The batteries need to be fully charged for the first
usage after purchase as they are not charged.
• The battery indicator will flash if the product is fully
charged, removed from the station, and charged again
soon. The flashing stops soon, and the indicator stays
on.
Charging auxiliary battery
1Hold the product and pull the battery by pressing
both ends of the battery.

-16-
How to use
Using inlet port
• Please note that the following are applied to the corre-
sponding models:
• The inlet can be attached to the product body or the
extension pipe.
• Use a different mode if the inlet gets stuck on the floor,
carpet, or bedclothes or if you need a more powerful
mode.
Care
• Do not use the product for purposes other than clean-
ing.
Floor inlet
• It is suitable for cleaning general floors.
Carpet inlet
• It is suitable for cleaning carpets or rugs.
• It can be used to clean floors but may generate some
noise; thus, we recommend using a suitable inlet.
Care
• Do not use this inlet as play mat for children.
• Any foreign object sucked during cleaning in the inlet
will stop the inlet in order to prevent damage to the
body or inlet. Remove the object before resuming
cleaning.
Bedclothes inlet
• This inlet lets you clean bedclothes more easily.
• Attach it to the extension pipe.
Blade shaped inlet port
It is suitable for cleaning dust in a corner or a narrow
space.
Mattress inlet
• Use this tool when cleaning mattress.
Hard Dirty inlet
• Use this tool when cleaning all dust stuck on the floor.
2 in 1 inlet port
The accessory inlet port is helpful for cleaning a corner or
small gap.
Basic
For cleaning flat surfaces such as a sofa or mattress.
Brush type
For cleaning delicate surfaces such as a frame or furniture.
버튼
Button
Care
• Using the product for a long time with the accessory
inlet port attached may overburden the motor.
• Using the accessory inlet port on a TV, monitor or LCD
display may leave a scratch on the surface.
• Avoid getting your finger stuck in a gap.
•
Any foreign object sucked during cleaning in the inlet
will stop the inlet in order to prevent damage to the
body or inlet. Remove the object before resuming clean-
ing.

-17-
How to use
Cleaning the dust bin
1Remove the battery from the product before
cleaning.
2Please move close to a wastebasket or where
dust/foreign object can be emptied easily.
3Press the dust bin button downward to open it.
• Empty the bin.
• Be careful as dust/foreign object may spill when
you open the dust bin.
Dust bin button
4Insert the blade-shaped inlet into the large dust
separation device and turn counterclockwise to
remove it.
5Wash the dust separation device with running
water.
• Be sure to dry the device completely before
using it.
Large dust
separation
device
6Remove the dust separation device and use the
2-in-1 inlet port to clear the dust inside the dust
bin.
2 in 1 inlet port
Warning
• Never wash the product’s body with water. Water may
reach the motor and cause electric shock or fire.
• Do not apply force or shock on the dust net of the dust
separation device. The net may get damaged.
• Use the product only after cleaning the dust separation
device and assembling it back on the product. Operat-
ing the product without assembling the device back on
the product will damage the product.
Cleaning filters
The pre-filter and exhaust filter need to be cleaned at
least monthly to maintain the cleaning performance of
the product.
1Turn the exhaust filter counterclockwise to re-
move it and take out the pre-filter.
Exhaust lter Pre-lter
2Use the 2-in-1 inlet to clear dust from the motor
part.
2 in 1 inlet port

-18-
How to use
3Brush dust off from the exhaust filter.
• Make sure to clean the exhaust filter every
month to ensure optimal cleaning performance.
Care
• Do not wash the exhaust filter with water.
4Clean the pre-filter by brushing dust off or with
running water.
• Washing the pre-filter with water and not
completely drying, it may cause it to smell. Make
sure to use it after drying it completely.
• The more often the filters are cleaned, the more
optimal the suction power will be.
• Filters are consumables.
• Please purchase more filters at our authorized
service center.
5
Attach the pre-filter first followed by the exhaust
filter to fit the white circle and turn it clockwise.
Warning
• Never wash the product’s body with water. Water may
reach the motor and cause electric shock or fire.
• Make sure that no foreign object reaches the motor. It
damages the product or causes explosion or fire.
• Do not insert a finger or a sharp object where the mo-
tor is. It damages the product or cause injury or electric
shock.
Care
• Make sure to reattach the exhaust filter and pre-filter
back to the product after washing them. Using the
product with these filters will cause dust reach the
motor inside the product and cause malfunction.
Please note
• Too much dust will deteriorate suction power; thus,
we recommend cleaning the filters before and after
cleaning.
※ Removing foreign object from inside the
product
In order to maintain product performance, be sure to
remove any foreign object and dust from inside of the
product (body, extension pipe, inlets).
Product body
Foreign object
Extension pipe
Foreign object
Inlet port
Foreign object

-19-
How to use
Cleaning floor/carpet inlets
Please clean the floor and carpet inlets as follows:
1Remove the inlet from the product.
2Put the inlet port upside down and turn the ro-
tating brush removal screw counterclockwise.
• Use a coin or a flat head screwdriver to turn the
screw.
Rotating the brush
removal screw
3Pull the brush in the direction of the arrow to
remove it.
①②
4Attach the blade-shaped inlet to the body and
remove dust/foreign object from the brush and
the bottom of the inlet<?>.
Rotating
brush
5Use wet towel or tissue to move any remaining
foreign object and dust from the brush and the
bottom of the inlet port.
Rotating
brush
6Assemble the brush in reverse order after clean-
ing.
①
②
Care
• Avoid getting your finger stuck in a gap.
• Do not wash the rotating brush and the inlet port with
water.
• Do not use the rotating brush as a mop.
• Do not use the inlet port to absorb any liquid.
Cleaning the bedclothes inlet
1Remove the inlet and put it upside down.
2Attach the blade-shaped inlet to the body and
remove dust/foreign object from the bottom of
the inlet<?>.
3Use wet towel or tissue to move any remaining
foreign object and dust.
Warning
• Do not wash the inlet port with water.
•
Do not suck in any liquid including water with the inlet
port.

-20-
Disassembly, assembly and repairing of main parts
Cautions for disassembling
▶ Make sure to remove the batteries before disassembling the product.
1. Most parts are screwed in or inserted mutually. Please refer to theexploded diagram to disassem-
ble the product in the correctsequence.
2. Please refrain from disassembling parts other than main ones. Alsothere is no need to disassemble
the product in more details than theexploded diagram.
How disassemble main parts
1. Replacing the handy part
(1) Remove the screws on the
bottom of the product.
(2) Push the lever upwards to
remove the plate.
(3) Remove the screws in the
lower part.
(4) Push and pull the
supporter cover as in the
figure to remove it.
(5) Push the handy part as
much as you can.
(6) Reassemble the whole part
in the reverse sequence.
