LG VK7920NHTY User manual

www.lg.com
VK7920NHTY
New type cyclone vacuum cleaner
This information contains important instructions for the safe use and maintenance of the
vacuum cleaner. Especially, please read all of the informationon page 4-6 for your safety.
Please keep this manual in an easily accessible place and refer to it anytime.
7-9

2

3
Important safety instructions ..............................................................................4~6
How to use .................................................................................................................10
Assembling vacuum cleaner....................................................................................................................10
Operating vacuum cleaner.....................................................................................................................12

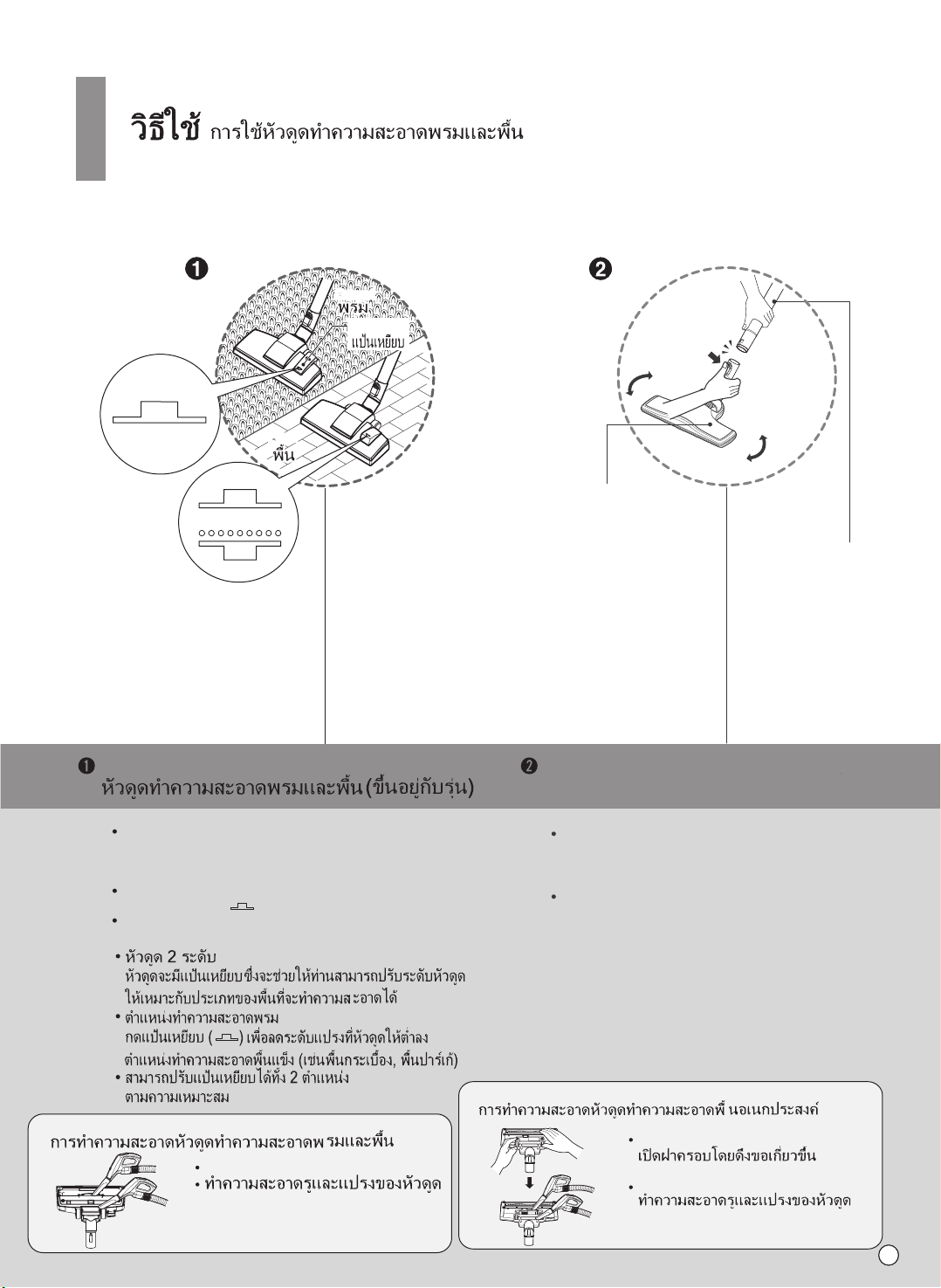

Using carpet and floor nozzle / all floor nozzle ....................................................................................13

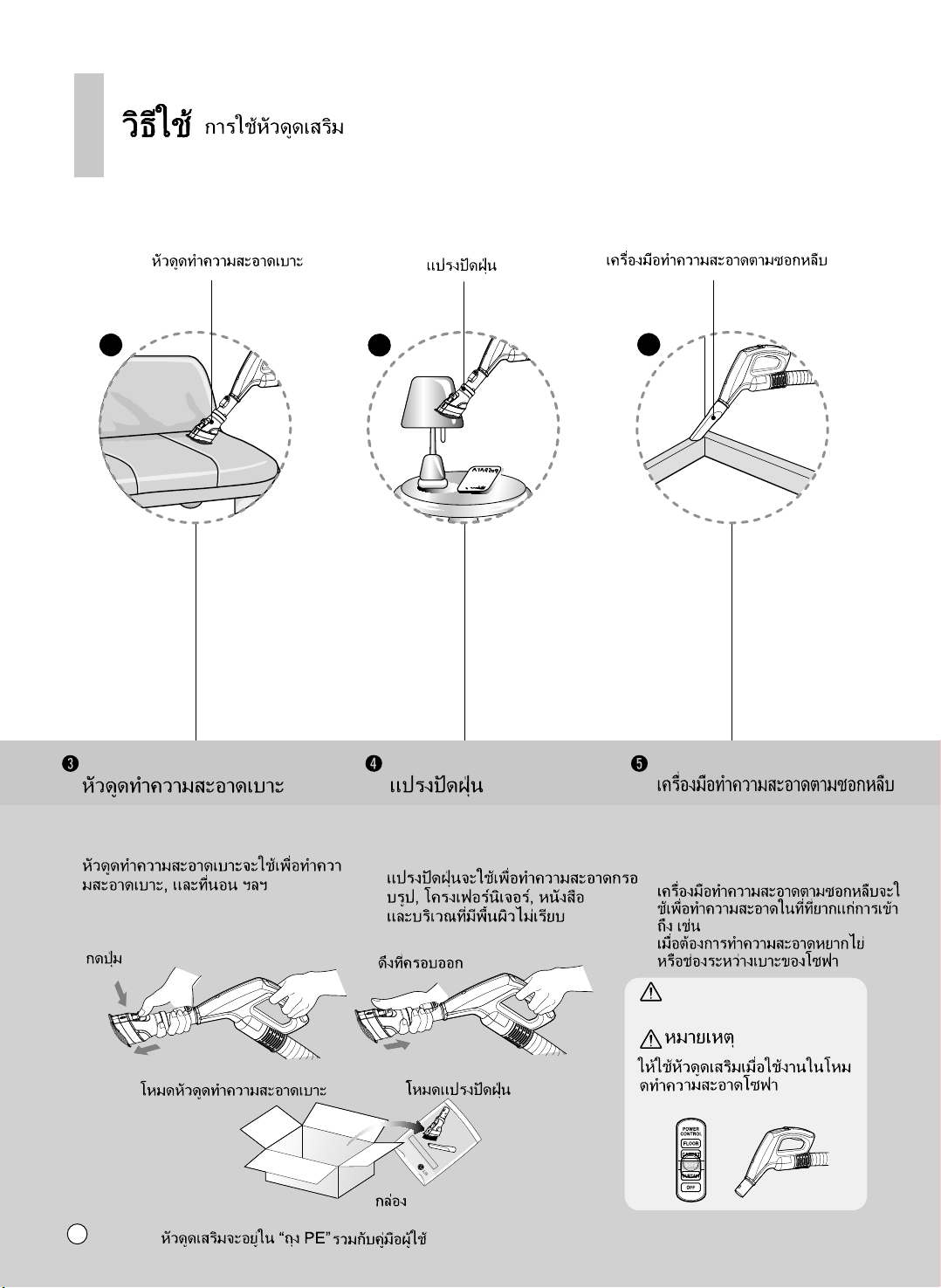

Using accessory nozzles .......................................................................................................................14
Using the sani punch nozzle ...........................................................................................................15~19
Emptying dust tank ................................................................................................................................ 20
Cleaning dust tank................................................................................................................................. 21
Cleaning air filter and motor safety filter ................................................................................................22
Cleaning exhaust filter ...........................................................................................................................23
What to do if your vacuum cleaner does not work ..............................................24
What to do when suction performance decreases ..............................................24
T able of contents
..............................................................................7~9
การใช้งานหัวดูดไรฝุ่นสำหรับที่นอน และโซฟา Sani Punch

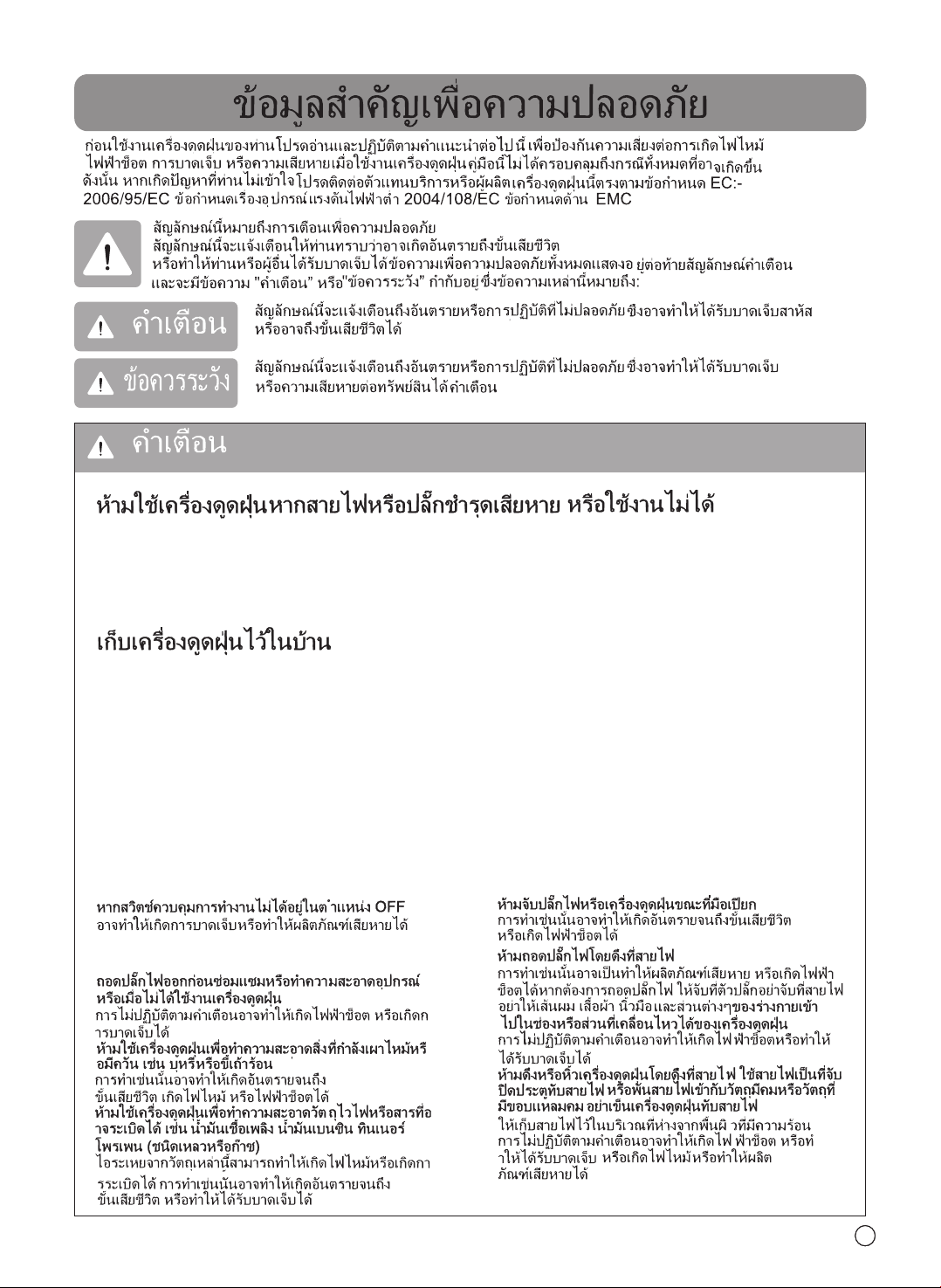

IMPORTANT SAFETY INSTRUCTIONS
Read and follow all instructions before using your vacuum cleaner to prevent the risk of fire, electric shock, personal injury, or
damage when using the vacuum cleaner. This guide do not cover all possible conditions that may occur. Always contact your
service agent or manufacturer about problems that you do not understand. This appliance complies with the following EC
Directives :-2006/95/EC Low Voltage Directive -2004/108/EC EMC Directive.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “WARNING” or “CAUTION.”
These words mean:
This symbol will alert you to hazards or unsafe practices which could cause serious
bodily harm or death.
This symbol will alert you to hazards or unsafe practices which could
cause bodily injury or property damage.
WARNING
CAUTION
WARNING
Do not usethevacuumcleaner ifthe powercord orplug is
damaged or faulty.
Personalinjury or productdamage couldresult. In these cases,
contactLG Electronics ServiceAgent toavoidhazard.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
Children should be supervised to ensure that they do not play
with the appliance.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
4

Do not plug in if control knob is not in OFF position.
Personalinjury or productdamage couldresult.
Keepchildrenawayand beware of obstructions
whenrewindingthecord to prevent personal injury
The cordmovesrapidlywhenrewinding.
Disconnectelectricalsupply beforeservicing or
cleaningthe unit or whencleaner is not in use.
Failure todo so couldresult in electrical shock or personal
injury.
Do not vacuum liquid,blade,gesso,substances,or small
particles like cement,burning or smoking such as
cigarettes,orhot ashes in cleaning.
Do notvacuumflammable orexplosivesubstances
suchas gasoline, benzene,thinners, propane
(liquids or gases).
The fumes from these substances can create a firehazard
or explosion.Doing so couldresultindeath or personal
injury.
Do not handle plug orvacuumcleaner with wet
hands.
Doing so couldresultindeath or electrical shock.
Do not unplug by pulling on cord.
Doing so couldresultinproductdamage or electrical shock.
To unplug,grasp theplug,not the cord.
Keep hair, loose clothing,fingers,andall parts of
the bodyawayfrom openingsandmoving parts.
Failure todo so couldresult in electrical shock or personal
injury.
Do not pull orcarry by cord, usecordasahandle,
closea door on cord, or pull cordaroundsharp
edges or corners.Do notrunvacuumcleaner over
cord.Keepcordawayfrom heatedsurfaces.
Failure todo so couldresult in electrical shock or personal
injuryor fireorproductdamage.
The hosecontainselectrical wires.Do not use it if it is
damaged, cut punctured.
Failure todo so couldresultindeath, or electrical shock.
Do notallowto be used as toy. Closeattention is
necessary when used by or nearchildren.
Personalinjury or productdamage couldresult.
Do not usevacuum cleaner if it has been under water.
Personalinjury or productdamage couldresult. In these
cases, contact LG Electronics Service Agent toavoid
hazard.
Do notcontinue to vacuum ifany partsappear
missing or damaged.
Personalinjury or productdamage couldresult. In these
cases, contact LG Electronics Service Agent toavoid
hazard.
Do not use an extensioncord withthisvacuum
cleaner.
Firehazard or productdamage couldresult.
Using proper voltage.
Usingimproper voltagemayresult in damage to themotor
andpossibleinjury to theuser. Proper voltageislisted on
thebottomof vacuum cleaner.
Turn offallcontrols before unplugging.
Failure todo so couldresultinelectrical shock or personal injury.
Do notchangethe plug in any way.
Failure to do so couldresultinelectrical shock or personal
injury or productdamage.Doing so result in death. If plug
doesnot fit, contact a qualifiedelectrician toinstall the
properoutlet.
If the supply cord is damaged, it must be replaced by
themanufacturer, its serviceagentor similarlyqualified
persons in order toavoidahazard.
Repairs to electricalappliancesmay only be
performed by qualifiedservice engineers.
Improperrepairsmaylead to serioushazards for theuser.
Do not putfingers nearthe gear.
Failure to do so couldresultinpersonalinjury.
WARNING
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
Do not putany objects into openings.
Failure to do so couldresult in productdamage.
Do not use withany opening blocked:keepfree of
dust, lint, hair, and anythingthatmayreduceair
flow.
Failure to do so couldresult in productdamage.
Do not usevacuum cleaner withoutthe dusttankand/
or filters in place.
Failure todo so couldresultinproductdamage.
Alwayscleanthe dust bin aftervacuumingcarpet
cleaners orfresheners, powdersandfine dust.
Theseproducts clog the filters,reduceairflowand can
causedamage to the cleaner. Failure to clean thedustbin
could causepermanentdamage to the cleaner.
335

IMPORTANT SAFETY INSTRUCTIONS
Do not usevacuumcleanerto pick up sharp hard
objects,small toys, pins, paperclips,etc.
Theymaydamage the cleaner or dustbin.
Storethevacuumcleaner indoors.
Put the vacuum cleanerawayafteruse to prevent tripping
overit.
Thevacuumcleaner is not intendedto use by young
children or infirm people without supervision.
Failure todo so couldresult in personalinjury or product
damage.
Only use parts produced or recommended by LG
Electronics ServiceAgents.
Failure todo so couldresult in productdamage.
Use onlyas described in thismanual.Use only with
LG recommended or approvedattachmentsand
accessories.
Failure to do so couldresult in personalinjury or product
damage.
To avoid personal injuryand to preventthemachine
from falling whencleaningstairs, always place it at
the bottom of stairs.
Failure to do so couldresult in personalinjury or product
damage.
Useaccessory nozzles in sofamode.
Failure todo so couldresult in productdamage.
Don’t graspthetank handle whenyouaremoving
thevacuumcleaner.
The vacuum cleaner’sbodymay fallwhen separating tank
andbody. Personalinjury or productdamage couldresult.
You shouldgrasp the carrierhandlewhen youare
moving the vacuum cleaner. (Page19)
If afteremptyingthe dust tank the alarmsounds,
cleanthe dusttank.
Failure to do so couldresult in productdamage.
Makesurethefilters(exhaustfilterandmotorsafety
filter)arecompletely dry beforereplacing in the
machine.
Failure to do so couldresult in productdamage.
Do not drythefilter in an oven or microwave.
Failure todo so couldresultin firehazard.
Do not dry the filter in a clothes dryer.
Failure to do so couldresultin firehazard.
Do not dry nearan openflame.
Failure to do so couldresultin firehazard.
Do not usefiltersthat is not dried.
If the powercord is damaged, itmust bereplaced by
an approved LG Electronics ServiceAgenttoavoid a
hazard.
Thermal protector :
This vacuum cleanerhasa special thermostat thatprotects thevacuum cleanerin caseofmotor
overheating. If the vacuum cleaner suddenly shuts off, turn off the switchandunplug the vacuum cleaner.
Check the vacuum cleaner forpossible source of overheating suchasafulldust tank, a blockedhose or
clogged filter. If these conditionsare found, fix themandwaitatleast 30 minutesbeforeattempting to use
the vacuum cleaner. After the 30 minuteperiod,plug the vacuum cleanerbackinand turnon the switch.
If the vacuum cleaner stilldoesnotrun, contactaqualified electrician.
CAUTION
6

•
•

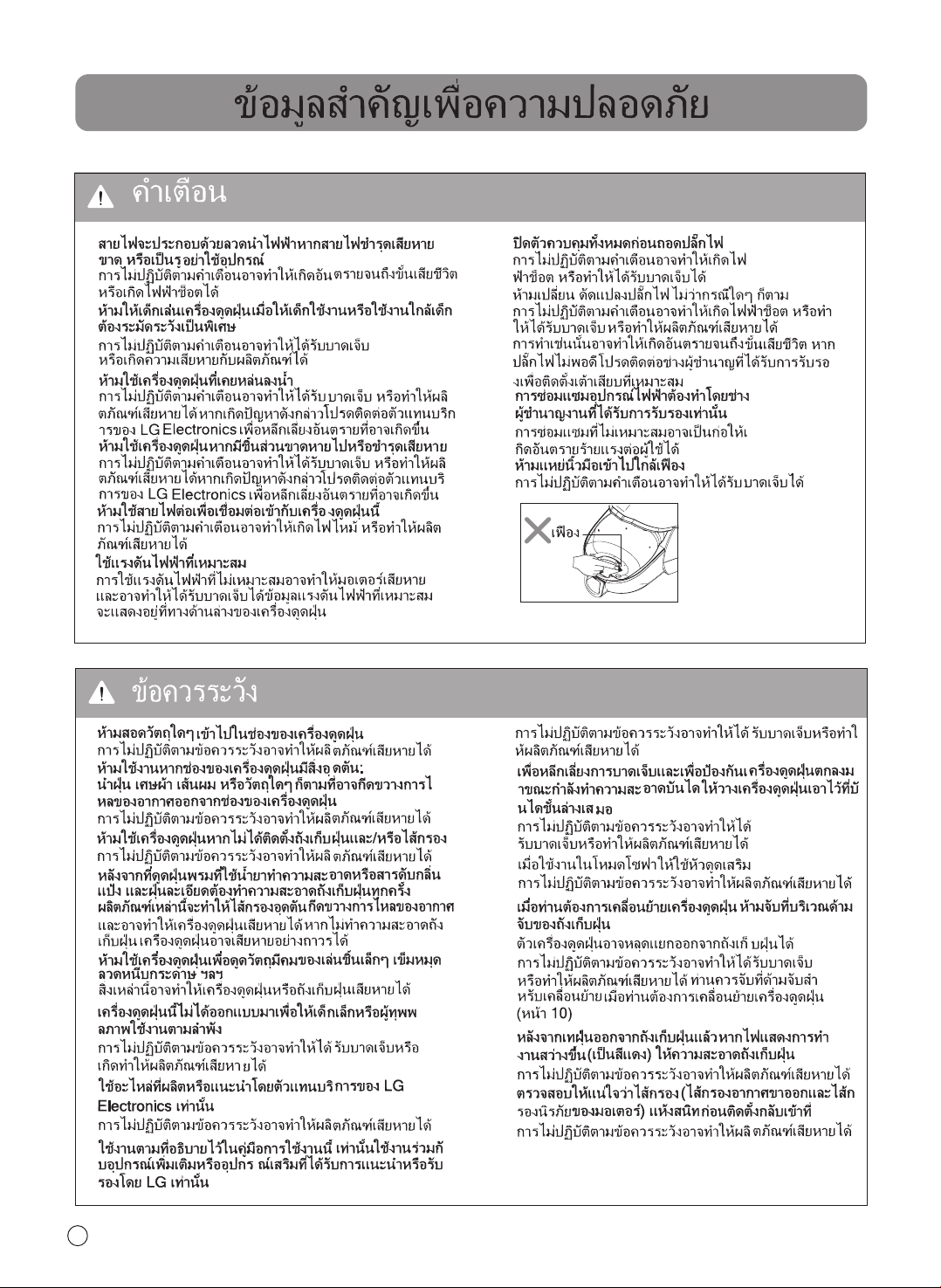

• เครื่องใช้ไฟฟ้าชนิดนี้ไม่ควรถูกใช้งานโดยเด็กอายุต่ำกว่า 8 ปี
และบุคคลที่ทุพลภาพหรือไม่มีความรู้เกี่ยวกับสินค้า ควรมีผู้เชี่ยวชาญ
ให้คำแนะนำวิธีการใช้งานที่ถูกต้องเพื่อความปลอดภัยในการใช้งาน
ไม่ควรให้เด็กใช้เครื่องใช้ไฟฟ้านี้เป็นของเล่น และการทำความสะอาด
ตลอดจนการดูแลรักษาต้องไม่ถูกกระทำโดยเด็ก
•
•
•
•
•
• ห้ามดูดของเหลว, ของมีคม, วัตถุไวไฟ หรือวัตถุชื้นเล็ก
ที่มีความแข็ง รวมไปถึงขี้เถ้า เช่น บุหรี่ เป็นต้น •
•
•
337
การไม่ปฏิบัติตามคำเตือนอาจทำให้ได้รับบาดเจ็บ หรือทำให้ผลิตภัณฑ์เสียหายได้
หากเกิดปัญหาดังกล่าวโปรดติดต่อศูนย์บริการแอลจี เพื่อหลีกเลี่ยงอันตราย
ที่อาจจะเกิดขึ้น
หลังจากใช้งานให้เก็บเครื่องดูดฝุ่นเอาไว้ในที่ๆ มิดชิด เพื่อหลีกเลี่ยงมิให้ผู้ใด
สะดุดหกล้ม

•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
8

•
•
•
•
•
339

Telescopic pipe
Spring latch
Hose handle
(depending on model)
How to use Assembling vacuum cleaner
(depending on model)
Carpet and floor nozzle(depending on model) Telescopic pipe
Push the nozzle into the telescopic pipe. ŖPush telescopic pipe firmly into hose handle.
ŖGrasp the spring latch to expand.
ŖPull out the pipe to desired length.
Ŗ
Ŗ
Ŗ
10

Click!
Attachment point
Flexible hose
Fitting pipe
Button
Connecting the hose to the vacuum cleaner
Push the fitting pipe on the flexible hose
into the attachment point on the vacuum cleaner.
To remove the flexible hose from the vacuum
cleaner,press the button situated on the fitting pipe,
then pull the fitting pipe out of the vacuum cleaner.
11

Control knob
Cord reel button
How to use Operating vacuum cleaner
How to operate
Pull out the power cord to the desired
length and plug into the socket.
Place the control knob of the hose
handle to the required position.
To turn off, slide control knob to
OFF position.
Press the cord reel button to
rewind the power cord after use.
When alarm sounds :
1. Dust tank is full
slide handle knob to OFF position and empty dust tank
2. Power is on without dust tank
slide handle knob to OFF position and reattach dust tank
3. Rotating plate in the dust tank is restricted because of obstruction
slide handle knob to OFF position and remove obstruction
Alarm sound
After about 1 min 30 sec, vacuum
cleaner will turn itself off and alarm
will sound.
Empty the dust tank and reuse the
vacuum cleaner
Park mode
To store during vacuuming, for
example to move a small piece
of furniture or a rug, use park
mode to support the flexible
hose and nozzle.
-Slide the hook on the nozzle
into the slot on the side of
vacuum cleaner.
Storage
When you have switched off
and unplugged the vacuum
cleaner, press the cord reel
button to automatically
rewind the cord.
You can store your vacuum
cleaner in a vertical position
by sliding the hook on the
nozzle into the slot on the
underside of the vacuum
cleaner.
NOTE
-
1
Plug
MAX
MIN
OFF
FLOOR
POWER
CONTROL
CARPET
SOFA
CURTAIN
2
Alarm will sound when the dust tank
is full or the air filter is clogged.
เสียงเตือน
เสียงเตือนจะดังขึ้น เมื่อถังเก็บฝุ่นเต็ม
หรือแผ่นกรองอุดตัน
เมื่อเสียงเตือนดังขึ้น

-
Carpet
Pedal
FloorFloor
How to use Using carpet and floor nozzle / all floor nozzle
The 2 position nozzle
This is equipped with a pedal which allows you to
alter its position according to the type of floor to be
cleaned.
Carpet or rug position
press the pedal ( ) to lower brush.
Hard floor position (tiles, parquets floor)
Both pedal position are suitable.
Carpet and floor nozzle (depend on model)
Cleaning carpet and floor nozzle
Clean the hole and brush of the nozzle.
Cleaning carpet and floor nozzle
Open the cover by pulling the hook.
Clean the hole and brush of the nozzle.
Suction Hole for Device
Protection
ช่องสำหรับดูดฝุ่น
ช่องสำหรับดูดฝุ่น
คุณสามารถทำความสะอาดได้ ทุกที่ไม่ว่าจะเป็นตามมุม
รอบแตก ต่างๆ บนพื้น
ท่อดูดแบบปรับ
ความยาวได้
Extension Pipe for
Lenght Adjustment
Suction hole for device protection
You can perform cleaning at any place like corner or
crevice since revolution of the suction hole is free.
1113

Upholstery nozzle Dusting brush Crevice tool
How to use Using accessory nozzles
Upholstery nozzle Dusting brush Crevice tool
Upholstery nozzle is for vacuuming
upholstery, mattresses, etc.
Dusting brush is for vacuuming picture
frames, furniture frames, books
and other irregular surfaces.
Crevice tool is for vacuuming in those
normally hard-to-reach places such as
reaching cobwebs, or between the
cushions of a sofa.
345
Push the button Pull the cover
< Upholstery nozzle mode > < Dusting brush mode >
• BOX •
••
• Accessory nozzles include in the "PE BAG" with owner's manual.
NOTICE
Use accessory in the sofa mode
•
<><>
14

How to use Using the sani punch nozzle
Sani punch nozzle(depending on model)
Set the suction power control switch to MAX POWER before vacuuming.
Depending on the type of bedding, handling may be awkward or it may
cause a lot of noise.
If this is the case, adjust the suction power control switch to a lower setting.
This nozzle picks up even dust inside through beating.
The bottom part can be separated to be cleaned.
Since the bottom does not stick to the surface, vacuuming is easy.
Features
Follow the directions below for proper use.
Assembly
Connect the nozzle to the telescopic tube.
How to use
15
การใช้งานหัวดูดไรฝุ่นสำหรับที่นอน และโซฟา Sani Punch
หัวดูดไรฝุ่นสำหรับที่นอน และโซฟา Sani Punch (เฉพาะรุ่น)

When using on the bed
Lay outthe blanket
and vacuum it on the bed
When using on the floor
It is easier to cleanalight blanket or sheet
by pushingthenozzleinthedirectionofthearrow.
To increasecleaningefficiency for light blankets,
lay on top of a bulky blanket andthenclean.
This sani punch nozzle is for effective cleaning of beds and blankets to remove mites and dust.
Effective cleaning
Bed & blanket
Bulky & heavy blanket Light blanket&sheet
16
หัวดูด Sani Punch

Since the vibrator inside is composed of precision parts, never disassemble the body.
Be careful not to let foreign objects clog the air suction part on top of the vacuum nozzle.
Since removal of the punch bar may cause performance problems, do not warp or remove it.
Attach the bottom plate properly before using. Without this bottom plate, it may not function.
For simple cleaning of the vacuum nozzle, detach the Sani Punch nozzle from the telescopic tube and attach the crevice tool
to vacuum dust.
mottoBpoT
Since this vacuum nozzle has been made exclusively for cleaning beds, blankets and
upholstery, use it only for these cleaning purposes.
(Using it to clean the floor may result soiling it or a drop in performance, do not use it
for such purposes.)
17

Bottom plate
Bottom plate
Punch bar
Punch bar
Press the button on the
rear side of the vacuum
nozzle to separate the
bottom plate.
Straighten the punch bar
on the lower section.
Insert the attachment
projections on bottom
plate to the vacuum
nozzle grooves.
Push down the tabs
to secure.
Wipe all the soiled parts
of the vacuum nozzle
body with a cloth.
Wash the removed bot-tom
plate with water and dry it.
Follow the instruction below for through washing.
(Do not soak the entire body of the vacuum nozzle in water, it may cause the vibrator to malfunction)
1 2 3
4 5 6
18

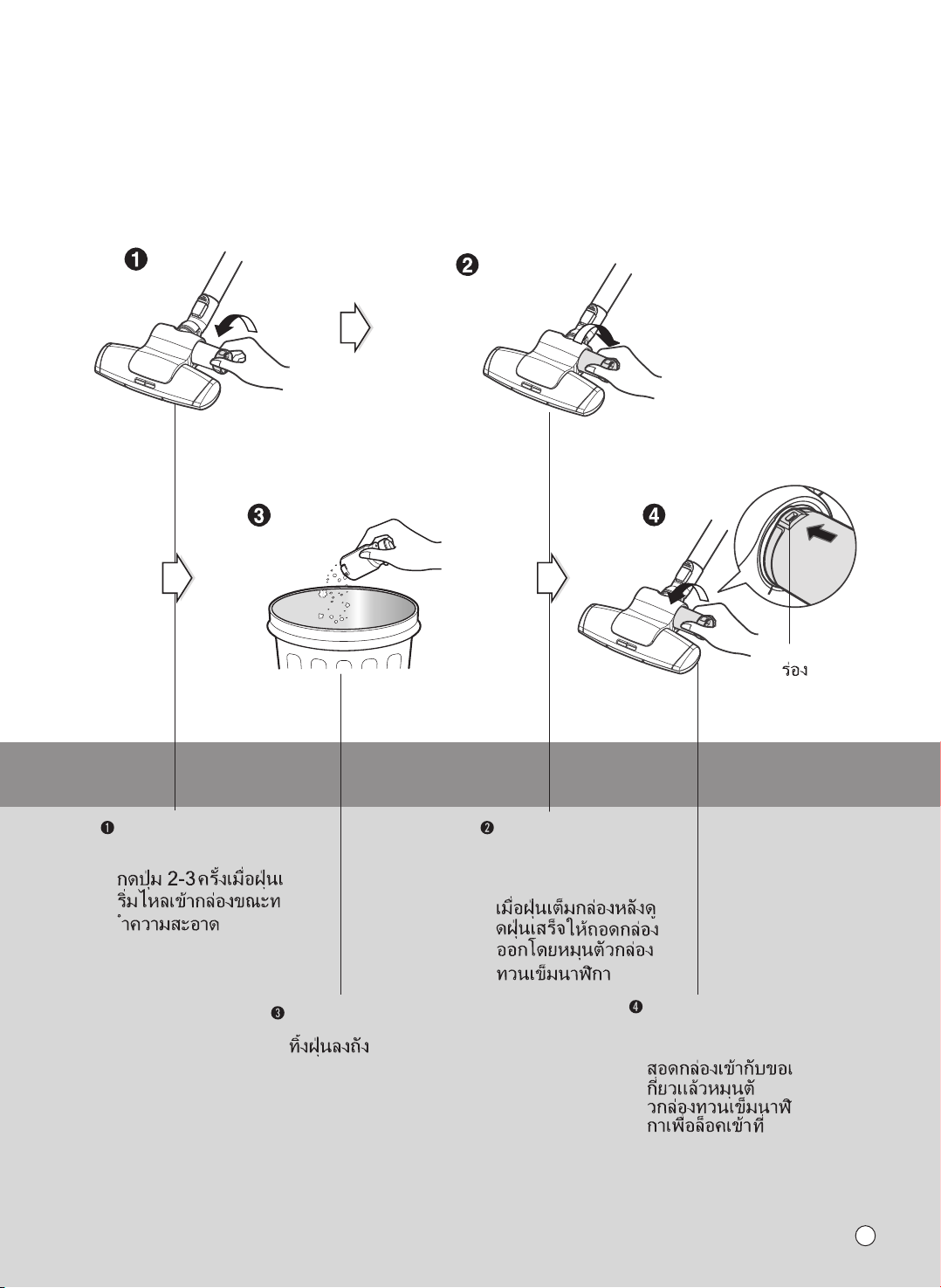

Push the button 2-3 times
when the dust is filled in
the dustbin while cleaning
Take the bin to fix into
the projection part and
then turn it clockwise to
connect.
When the dust is fully
filled after cleaning,
take the bin and turn it
counterclockwise to
disconnect
Waste the dust in
the bin
Projection
19

Pull out
Tank handle
Tank separation lever
Dust tank cap
How to use Emptying dust tank
The dust tank needs emptying when indicator light is on.
Turn off the vacuum cleaner and unplug it.
Grasp the handle of the tank and then press the tank separation lever.
Pull out the dust tank.
Empty the tank and then assemble the dust tank as below
If suction power decreases after empting dust tank,
clean dust tank next page
Since dust tank is full,indicator continues to flash for 1 minute
and suction power will decrease for a while, then vacuum
cleaner will turn itself off.
NOTICE,
Assembling dust tank
20
