Chapter 1: Introduction
About C-DiGit Blot Scanner
The C-DiGit Blot Scanner is designed to image membranes for chemiluminescent Western blot
analysis using digital methods, eliminating the need for traditional exposure to film. Before image
acquisition is started, a membrane is placed on the scanning surface and the lid is closed. Image
acquisition is started via Image Studio™ Software (see the Image Studio Software help for details).
The C-DiGit has one detection channel that detects visible wavelength emissions from
chemiluminescent substrates.
The C-DiGit Blot Scanner is a networkable device, and can be connected directly to a computer
(Macintosh® or PC) via Ethernet or USB cables.
Click here to watch an introductory video about the C-DiGit Blot Scanner.
C-DiGit®Blot
Scanner
Page 1

Chapter 1: Introduction
What’s in the Box
In addition to the C-DiGit Blot Scanner, you will find the items shown below*(l-r): 1) Ethernet and
2) USB cables, 3) a power supply with interchangeable plugs, 4) a C-DiGit Target image, and 5)
Image Studio and Resource CDs.
The C-DiGit Target is a photosensitive card used to verify that your C-DiGit Blot Scanner is
functioning properly; the card is briefly exposed to room light and then imaged on the instrument.
If the acquired pattern matches the target image, the C-DiGit Blot Scanner is functioning as it
should, and is ready to image your sample. Instructions for using the Target are given below in the
Quick Start Tutorial on page7. The Target should be stored in the blue envelope when not in use.
Placement in the Laboratory
The C-DiGit Blot Scanner weighs approximately 2.18 kg (4.8 lbs.). The instrument should be placed
on a level surface that is at a workable height for the user.
Ambient Laboratory Conditions
Place the C-DiGit Blot Scanner away from external heat sources (furnaces, windows, etc.).
Additional heating can cause high temperatures within the enclosure. Place the instrument away
from sinks or other sources of water that pose a shock hazard. Recommended operating conditions
are 15-30 °C and a dew point no greater than 25 °C to prevent condensation on the instrument.
Space Requirements
The C-DiGit Blot Scanner requires an area 27.94 cm L (11.0") x 22.23 cm W (8.75") x 7.3 cm H
(2.875", lid closed), or 31.12 cm, (12.25”, lid open).
*Use only the provided cables with the C-DiGit Blot Scanner.
Page 2

C-DiGit®Blot Scanner
Safety Considerations
Chemical Safety
LI-COR Biosciences recommends that all chemicals be handled carefully, and that safe laboratory
procedures be followed at all times. Be aware of the hazards associated with any chemical before you
begin work.
WARNING: The C-DiGit Blot Scanner should not be used with any radioactive materials.
Electrical Considerations
The C-DiGit Blot Scanner includes a power supply that plugs into a wall outlet, with an output that
plugs into the C-DiGit instrument.
Do not locate the C-DiGit Blot Scanner where the power supply cord will be walked on or exposed
to water or chemical spills.
The C-DiGit Blot Scanner draws a maximum of 1 ampere at 120V (see Specifications on page33). If
a power strip or surge protector is used, make sure the total of the ampere ratings on the
instruments plugged into the extension cord does not exceed the extension cord ampere rating. Also
make sure the total amperage of instruments plugged into the wall outlet does not exceed the
amperage capacity for the outlet (usually 15 or 20 amperes in the United States).
Scanning Surface and Rear Safety Labels
Figure 1-1. Scanning surface instrument safety label.
Figure 1-2. Rear instrument safety label.
Fuse Replacement
There are no user replaceable fuses in this instrument.
Page 3

Chapter 1: Introduction
External Panels and Controls
Front Panel
!
Red error condition indicator
Power indicator
Green image acquisition indicator
Figure 1-3. Front panel features and controls of the C-DiGit Blot Scanner.
Power Indicator: While the C-DiGit Blot Scanner is performing its startup or shutdown procedure, the
blue power indicator light on the instrument front panel blinks. When the blue indicator light is
continuously on, the instrument is ready for operation.
Image Acquisition Indicator: This green indicator light blinks during image acquisition and is
continuously on at other times, as long as communication with the Image Studio software is maintained.
The indicator light is off only when communication is lost, the Image Studio software is closed, or the
instrument is powered off.
!
Error Indicator: The red error indicator light illuminates when a process could not be completed. See the
Status Message History dialog in the Image Studio software and Maintenance & Troubleshooting on
page27 for details about the error condition.
Page 4

C-DiGit®Blot Scanner
Back Panel
The C-DiGit back panel has the instrument ON/OFF switch and connectors for the USB and
Ethernet cables and the power supply.
LAN
USB
Amphenol
12VDC 1A
Scanning Surface
The scanning surface is accessed by opening the lid on the C-DiGit Blot Scanner (Figure 1-4).
!
Place membrane here
10 cm
8.5 cm
Face down,
top of membrane
facing rear of
C-DiGit
Figure 1-4. The imaging surface is designed to scan a single membrane up to 10 cm x 8.5 cm.
Scanning Surface Safety
Be careful not to get your fingers caught between the C-DiGit instrument lid and the base of the
scanning surface when the lid is closed. Do not put excessive pressure on the scanning surface.
Page 5

Chapter 1: Introduction
Clean the scanning surface with 100% methanol, then water. CAUTION: DO NOT use acetone to
clean the imaging surface.
Sample Placement
The C-DiGit Blot Scanner Imaging Surface has a clear window that delineates the edges of the
C-DiGit Blot Scanner scanning surface. Membranes up to 10 cm x 8.5 cm placed within these
markers will be fully imaged. Membranes can be placed anywhere within the imaging area to be
scanned.
Membranes should be placed sample side down with the top toward the back of the instrument.
Tips for handling and imaging membranes are given in Scanning Membranes on page19.
Page 6

Chapter 2: Quick Start Tutorial
The Quick Start Tutorial Guide included with the C-DiGit Blot Scanner is intended as a quick
verification tool to ensure that the C-DiGit is working properly, before you proceed to scan your
own membranes. The Tutorial Guide is reproduced in this section, with some additional detail.

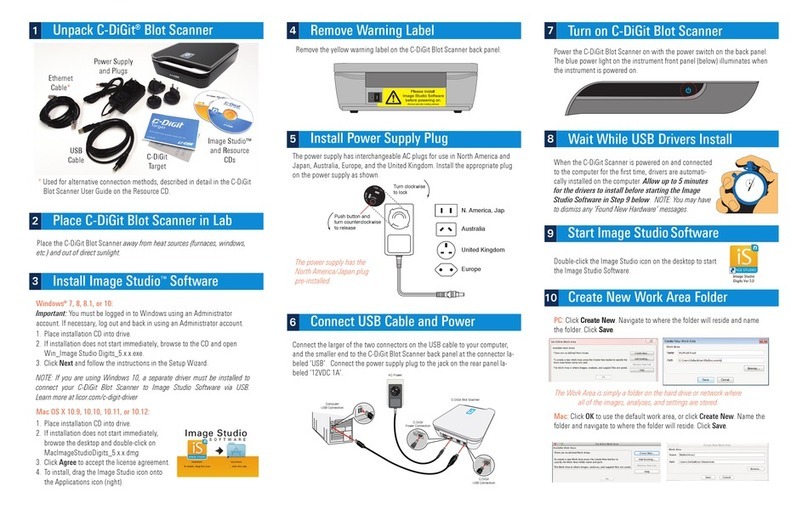

1) Unpack C-DiGit
In addition to the C-DiGit Blot Scanner, you will find the items shown below (l-r): 1) Ethernet
and 2) USB cables, 3) a power supply with interchangeable plugs, 4) a C-DiGit Target, and 5)
Image Studio and Resource CDs.
The USB cable is the default method used to connect to the C-DiGit Blot Scanner; the Ethernet
cable is used for alternative connection methods described in Computer Connections & Net-
working on page25.
2) Place C-DiGit in the Lab
Place the C-DiGit Blot Scanner away from heat sources (furnaces, windows, etc.) and out of dir-
ect sunlight.
3) Install Image Studio Software
Insert the Image Studio DiGits CD, and follow the instructions below to install the Image Stu-
dio software. Note that you should make sure that your user account has administrator rights
on the computer.
Click here to watch a video that describes the requirements for Image
Studio.
C-DiGit®Blot
Scanner
Page 7

Chapter 2: Quick Start Tutorial
Macintosh Users
Note: Compatible with OS X 10.9 (Mavericks) or 10.10 (Yosemite).
a. Place installation CD into drive.
b. If installation does not start immediately, browse the Desktop and double- click on
MacImageStudioDigits_5.x.x.dmg.
c. Click Agree to accept the license agreement.
d. To install, drag the Image Studio icon into the Applications folder.
Click here to watch a video that demonstrates how to install Image Studio
on a Macintosh computer.
PC Users
Note: Compatible with Windows® 7, 8, and 8.1.
a. Place installation CD into drive.
b. If installation does not start immediately, browse to the CD or Desktop and double-click on
Win_Image Studio Digits_5.x.x.exe.
c. Click Agree to accept the license agreement.
d. Follow the instructions to install the Image Studio software.
Click here to watch a video that demonstrates how to install Image Studio
Software on a Windows-based computer.
Page 8

C-DiGit®Blot Scanner
4) Remove warning label from the back panel
Remove the yellow warning label on the C-DiGit Blot Scanner back panel (below).
LAN
USB
Amphenol
12VDC 1A
5) Install the Power Supply Plug
There are two power supplies available for use with the C-DiGit; you will have received either
the Cincon (p/n 591-13058) or SL Power Electronics (p/n 591- 13032) power supply. Each of
these power supplies is a universal 100-240VAC input, 12VDC power output supply with inter-
changeable AC plugs for use in North America and Japan, Australia, Europe, and the United
Kingdom. Install the appropriate plug on the power supply as shown below. NOTE: The SL
Power Electronics supply has the North American/Japanese plug pre-installed. For use in other
countries, remove this plug and replace with the appropriate plug.
Page 9

Chapter 2: Quick Start Tutorial
Cincon Power Supply
N. America,
Japan
United
Kingdom
Australia
Europe
Push button and
slide out to release
Align metal contacts on
power supply and plug,
and then slide down
until plug locks into
position
SL Power Electronics Power Supply
N. America, Japan
United Kingdom
Australia
Europe
P
U
S
H
LOCK
OPEN
Turn clockwise
to lock
Push button and
turn counterclockwise
to release
Page 10

C-DiGit®Blot Scanner
6) Connect the USB and Power Cables
Plug the power supply into the wall outlet, and plug the power cord into the receptacle on the
C-DiGit back panel (below). Connect the flat (Type A) connector on the USB cable to your com-
puter, and the square (Type B) connector to the C-DiGit Blot Scanner back panel at the con-
nector labeled ‘USB’.
P
U
S
H
LOCK
OPEN
AC Power
C-DiGit Blot Scanner
Computer
USB Connection
C-DiGit
USB Connection
C-DiGit
Power Connection
USB
12VDC 1A
7) Turn on C-DiGit Blot Scanner
Power C-DiGit Blot Scanner on with the power switch on the back panel. The blue power light
on the instrument front panel (below) illuminates and blinks when the instrument is first
powered on, and stops blinking when the instrument has fully started up and is ready to use.
8) Wait While USB Drivers Install
When C-DiGit is powered on and connected to the computer for the first time, drivers are auto-
matically installed on the computer. Allow up to 5 minutes for the drivers to install before starting
the Image Studio software in Step 9 below.NOTE: You may have to dismiss any Windows®
‘Found New Hardware’ messages.
9) Start Image Studio
Double-click the Image Studio icon (below) on the desktop to start Image Studio.
Page 11

Chapter 2: Quick Start Tutorial
10) Create a New Work Area Folder
The first time you start the software you will need to create the first Work Area. The Work Area
is a folder on the hard drive or network where the images, analyzes and settings are stored.
Click here to watch a video that demonstrates how to create a Work
Area Folder.
PC: Click Create New… in the Set Active Work Area dialog box to browse to a folder on the
hard drive or network to use as the Work Area.
Navigate to the where the folder will reside, and name the folder; this folder will now appear in
the Available Work Areas window each time the software is opened. Click Save.
Mac: Click Create New. Navigate to where the folder will reside, name the folder, and click
Save.
Page 12

C-DiGit®Blot Scanner
To remove a Work Area from the window, select it and click Remove from List. Removing the
folder from the window does not delete the folder or its contents; it simply makes it unavailable
in the Work Area list.
Note: Each user should create their own Work Area, as previous settings for the instrument, ana-
lysis, image display, etc. from the last session will be applied to the next session in the same
Work Area.
11) Connect to C-DiGit Blot Scanner
If there is only one C-DiGit Blot Scanner detected by the computer, it will connect auto-
matically; if there are multiple C-DiGit Blot Scanners detected, you can choose the desired
C-DiGit Blot Scanner from a list of available instruments (below, listed by serial number).
NOTE: You can find the serial number on a label on the underside of the instrument.
When a connection is established, the green indicator light (below) will illuminate on the
instrument front panel, and the Status panel in the Image Studio window will display ‘Ready’.
NOTE: C-DiGit Blot Scanner uses IPv6 and IPv4 Link-Local Addressing to automatically create
an IP network without any user configuration or additional servers. If you experience con-
nection problems, be sure that IPv6 is enabled on the computer.
12) Expose the C-DiGit Blot Scanner Target
Page 13
