LIANGYE LGS770-5 User manual
INDENTIFICATION
1. Lower shear blade
2. Upper shear blade
3. Hex Bolt
4. Shear blade cover
5. Switch Trigger
6. Blades tightening nut
7. Soft Handle
8.Vents
9. Button of Battery Cartridge
10. Battery Cartridge
11. I/O switch
12. Hex Wrench
13. Machine lubricating oil
14. Inner hexagon wrench
EC Declaration Conformity
LGS770-5
2006/42/EC
2014/30/EU
2011/65/EU
EN 62841-1
EN ISO 12100
EN 55014-1
EN 55014-2
EN IEC 63000
Avrin
Zheng/Product
Management
Mark Chen/Head of
Product Certification
Ningbo Liangye Electric Appliance Co., Ltd.
QianHouChen Village ,YunLong Town,Yinzhou,315137
Ningbo,P.R.China
For European countriesonly
Liangye declares that the following Machine(s):
Designation of Machine: Cordless Pruning Shears
Conforms to the following European Directives:
2ENGLISH
1
5
2 43
6
7 8
11
10
9
12 13 14
SPECIFICATIONS
Model: LGS770-5
Max. cuttingcapacity 30mm
Cutting Speed 1.4S/Time
Overall length (Bare tool) 300mm
Ratedvoltage D.C.20V
Net weight (Bare tool) 0.95 kg
Symbols
The followings show the symbols used for the
equipment. Be sure that you understand their meaning
before use.
Read instructionmanual.
Do not expose to moisture.
Danger; be aware of thrown objects.
Keep bystandersaway.
Ni-MH
Li-ion
Only for EU countries
Do not dispose of electric equipment or
battery pack together with household waste
material!
In observance of the European Directives,
on Waste Electric and Electronic
Equipment and Batteries and Accumulators
and Waste Batteries and Accumulators
and their implementation in accordance
with national laws, electric equipment and
batteries and battery pack(s) that have
reached the end of their life must be col-
lected separately and returned to an envi-
ronmentally compatible recycling facility.
Intended use
The tool is intended for pruning twigs or branches.
Noise
The typical A-weighted noise level determined according
toEN62841-1:
Model LGS770-5
Sound pressure level (LpA) : 67 dB(A) or less
Uncertainty (K) : 3 dB(A)
The noise level under working may exceed
80 dB (A).
WARNING:Wear ear protection.
Vibration
The vibration total value (tri-axial vector sum) deter-
mined according toEN62841-1:
Model LGS770-5
Vibration emission (ah) : 2.5 m/s2 or less
Uncertainty (K) : 1.5 m/s2
NOTE: The declared vibration total value(s) has been
measured in accordance with a standard test method
and may be used for comparing one tool with another.
NOTE: The declared vibration total value(s) may also
be used in a preliminary assessment of exposure.
WARNING: The vibration emission during
actual use of the power tool can differ from the
declared value(s) depending on the ways in which
the tool is used especially what kind of workpiece
isprocessed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
off and when it is running idle in addition to the
trigger time).
3ENGLISH
•
•
•
Due to our continuing program of research and development, the specifications herein are subject to change
without notice.
Specifications and battery cartridge may differ from country to country.
Weight, with battery cartridge, according to EPTA-Procedure 01/2003
Applicable battery cartridge and charger
battery cartridge (1) LY770X-Li-20V(2) LY770XS-Li-20V
battery charger (1) LY77-2150-3000G(B) (2) LY77-2200-2300G(B)
•Some of the battery cartridges and chargers listed above may not be available depending on your region of
residence.
WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges
and chargers may cause injury and/or fire.
Wear protectivegloves.
Wear safetyglasses.
SAFETY WARNINGS
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
7. Power tools can produce electromagnetic
fields (EMF) that are not harmful to the user.
However, users of pacemakers and other similar
medical devices should contact the maker of their
device and/or doctor for advice before operating
this power tool.
Personal Safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the influence of drugs, alcohol or med-
ication. A moment of inattention while operating
power tools may result in serious personal injury.
2. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
will reduce personal injuries.
It is an employer's responsibility to enforce
the use of appropriate safety protective equip-
ments by the tool operators and by other per-
sons in the immediate working area.
Power tool use and care
4ENGLISH
1. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
2. Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the plug from the power source
and/or remove the battery pack, if detachable,
from the power tool before making any adjust-
ments, changing accessories, or storing power
tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
4. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
8. Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action can
cause severe injury within a fraction of a second.
9. Always wear protective goggles to protect
your eyes from injury when using power tools.
The goggles must comply with ANSI Z87.1 in
the USA, EN 166 in Europe, or AS/NZS 1336
in Australia/New Zealand. In Australia/New
Zealand, it is legally required to wear a face
shield to protect your face, too.
Electrical Safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas inviteaccidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to losecontrol.
3. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
your finger on the switch or energising power tools
that have the switch on invites accidents.
General power tool safetywarnings
WARNING: Read all safety warnings, instruc-
tions, illustrations and specifications provided
with this power tool. Failure to follow all instructions
listed below may result in electric shock, fire and/or
serious injury.
Battery tool use and care
1. Recharge only with the charger specified by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of fire
when used with another battery pack.
2. Use power tools only with specifically desig-
nated battery packs. Use of any other battery
packs may create a risk of injury and fire.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
nals together may cause burns or a fire.
4. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, flush with water. If
liquid contacts eyes, additionally seek medical
help. Liquid ejected from the battery may cause
irritation or burns.
5. Do not use a battery pack or tool that is dam-
aged or modified. Damaged or modified batteries
may exhibit unpredictable behaviour resulting in
fire, explosion or risk of injury.
6. Do not expose a battery pack or tool to fire or
excessive temperature. Exposure to fire or tem-
perature above 130 °C may cause explosion.
7. Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specified in the instruc-
tions. Charging improperly or at temperatures
outside the specified range may damage the
battery and increase the risk of fire.
5. Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition that
may affect the power tool’s operation. If dam-
aged, have the power tool repaired before use.
Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed. Use of the power tool
for operations different from those intended could
result in a hazardous situation.
8. Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for
safe handling and control of the tool in unexpected
situations.
9. When using the tool, do not wear cloth work
gloves which may be entangled. The entangle-
ment of cloth work gloves in the moving parts may
result in personal injury.
Service
1. Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool ismaintained.
2. Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
3. Follow instruction for lubricating and chang-
ing accessories.
Pruning shears safetywarnings
WARNING: Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.

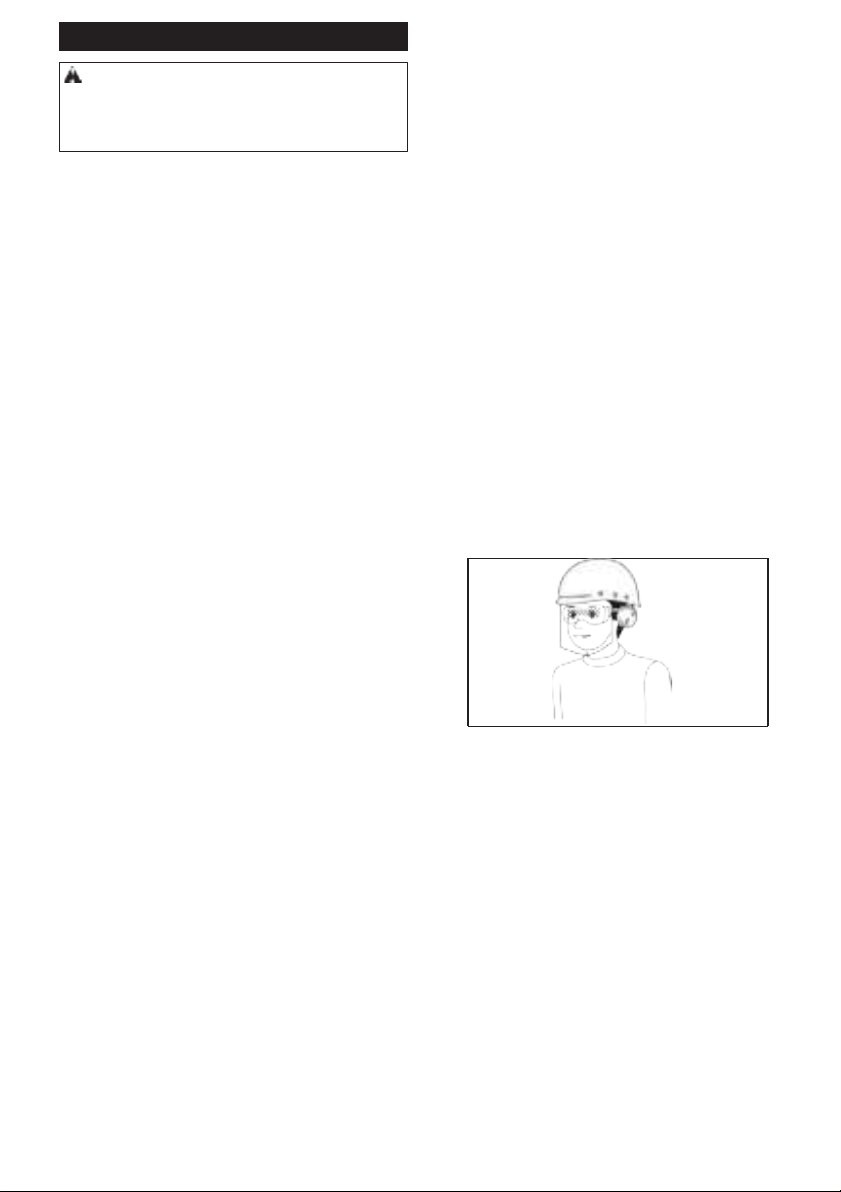

1. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat
or hearing protection used for appropriate
conditions will reduce personal injuries.
2. Always wear protective goggles to protect
your eyes from injury when using power
tools.The goggles must comply with ANSI
Z87.1 in the USA, EN 166 in Europe, or
AS/NZS 1336 in Australia/New Zealand. In
Australia/New Zealand, it is legally required to
wear a face shield to protect your face, too.
It is an employer's responsibility to enforce
the use of appropriate safety protective equip-
ments by the tool operators and by other per-
sons in the immediate working area.
3. Prevent unintentional starting. Ensure the
switch is in the off-position before
connecting to power source and/ or battery
pack, picking up or carrying the tool. Carrying
power tools with your finger on the switch or
energising power tools that have the switch on
invites accidents.
4. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves
away from moving parts. Loose clothes, jewel-
lery or long hair can be caught in moving parts.
5. This tool is for pruning branches. Do not use it
for any job except that for which it is intended.
6. Never allow children, persons with reduced
physical, sensory or mental capabilities or
lack of experience and knowledge or people
unfamiliar with these instructions to use the
tool. Local regulations may restrict the age of
the operator.
5ENGLISH
6ENGLISH
7. Children should be supervised to ensure that
they do not play with the appliance.
8. Never operate the tool while people, especially
children, or pets arenearby.
9. Do not overreach and keep balance at all
times. Always be sure of footing on slopes and to
walk, never run.
10. Do not touch moving hazardous parts before
the tool is disconnected from the mains and/or
the battery pack is removed from the tool.
11. Always wear substantial footwear and long
trousers while operating the tool.
12. Disconnect the supply and/or remove the
battery pack from the tool:
•
•
•
•
•
whenever the tool is left by the user,
before clearing ablockage,
before checking, cleaning or working on the
tool,
after striking a foreign object to inspect the
tool for damage,
if the tool starts to vibrate abnormally, for
immediately check.
13. Never operate the tool with defective guards
or shields, or without safety devices, or if the
cord is damaged or worn.
14. Avoid using the tool in bad weather conditions
especially when there is a risk of lightning.
15. Don’t use the tool or perform battery charging
operations in therain.
16. Don’t leave the tool in rain or wet locations.
17. Be careful not to catch foreign matter between
the blades. If the blades are jammed with foreign
matter, immediately switch off the tool and discon-
nect the battery from the tool. Then remove the
foreign matter from the blades.
18. Never hold the branch you are pruning with
your free hand. Keep your free hand away from
the cutting area. Never touch the blades, they are
very sharp and you may cut yourself.
19. Don’t force the tool to make it cut. You could
slip and injure yourself or cut something else
unintentionally.
20. Avoid cutting electrical wires that may be
hidden.
21. Always check the blades carefully before
operation.
22. Handle the blades with extreme care to prevent
cuts or injury from the blades.
23. Disconnect the battery from the tool after each
use and before attempting to perform inspec-
tion or maintenance.
24. When not in use, always keep the tool in its
holster.
Battery tool use and care
1. Avoid dangerous environment. Don't use the
tool in damp or wet locations or expose it to
rain. Water entering the tool will increase the
risk of electric shock.
2. Recharge only with the charger specified by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of fire
when used with another battery pack.
3. Use power tools only with specifically desig-
nated battery packs. Use of any other battery
packs may create a risk of injury and fire.
4. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
nals together may cause burns or a fire.
5. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, flush with water. If
liquid contacts eyes, additionally seek medical
help. Liquid ejected from the battery may cause
irritation or burns.
6. Do not dispose of the battery(ies) in a fire. The
cell may explode. Check with local codes for
possible special disposal instructions.
7. Do not open or mutilate the battery(ies).
Released electrolyte is corrosive and may
cause damage to the eyes or skin. It may be
toxic ifswallowed.
8. Do not charge battery in rain, or in wet
locations.
Service
1. Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool ismaintained.
2. Follow instruction for lubricating and chang-
ing accessories.
3. Keep handles dry, clean and free from oil and
grease.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
Important safety instructionsfor
battery cartridge
1. Before using battery cartridge, read all
instruc-tions and cautionary markings on (1)
battery charger, (2) battery, and (3) product
using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even anexplosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
orrain.
A battery short can cause a large current
flow, overheating, possible burns and even a
breakdown.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if it
is severely damaged or is completely worn
out. The battery cartridge can explode in a fire.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tape or mask off open contacts and pack up the
battery in such a manner that it cannot move
around in thepackaging.
11. Follow your local regulations relating to dis-
posal of battery.
12. Use the batteries only with the products
specified by Liangye. Installing the batteries to
non-compliant products may result in a fire, exces-
sive heat, explosion, or leak of electrolyte.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Liangye
batteries. Use of non-genuine Liangye batteries, or
batteries that have been altered, may result in the
battery bursting causing fires, personal injury and
damage. It will
also void the Liangye warranty for the Liangye tool
and charger.
7ENGLISH
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 5 °C - 45 °C . Let a hot battery
cartridge cool down before charging it.
4. Charge the battery cartridge if you do not use
it for a long period (more than six months).
FUNCTIONAL
DESCRIPTION

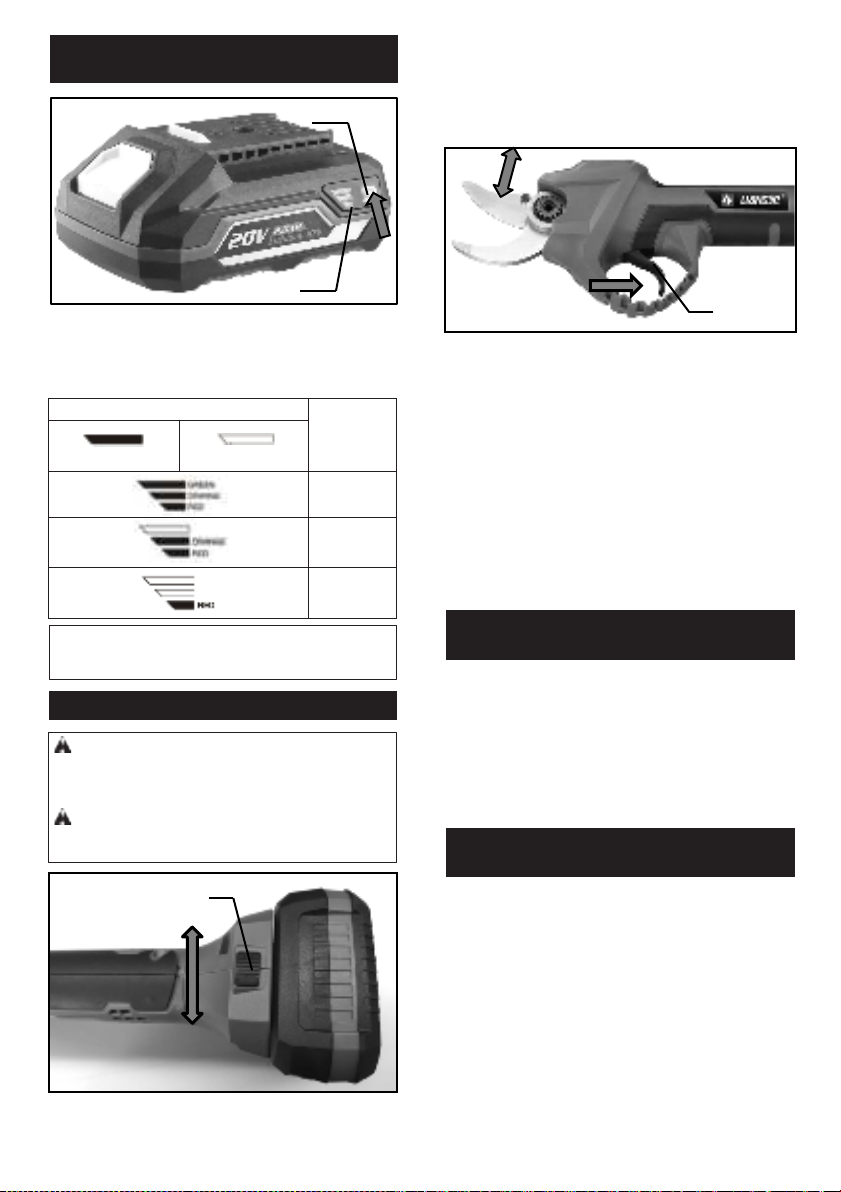

►1. Button 2. Battery cartridge
To remove the battery cartridge, slide it from the tool
while pressing the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click.
CAUTION: Always switch off the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
tridge firmly when installing or removing battery
cartridge. Failure to hold the tool and the battery
cartridge firmly may cause them to slip off your hands
and result in damage to the tool and battery cartridge
and a personal injury.
Installing or removing battery
cartridge
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before adjusting or checking function on the tool.
CAUTION: Always install the battery cartridge
fully. If not, it may accidentally fall out of the tool,
causing injury to you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being insertedcorrectly.
2
1
Tool / battery protectionsystem
The tool is equipped with a tool/battery protection sys-
tem. This system automatically cuts off power to the
motor to extend tool and battery life. The tool will auto-
matically stop during operation if the tool or battery is
placed under one of the following conditions:
Overload protection
When the battery is operated in a manner that causes it
to draw an abnormally high current, the tool automati-
cally stops. In this situation, turn the tool off and stop the
application that caused the tool to become overloaded.
Then turn the tool on to restart.
Overheat protection
When the battery is overheated, the tool stops automat-
ically. In this case, let the tool and battery cool before
turning the tool on again.
Overdischarge protection
When the battery capacity is not enough, the tool stops
automatically. In this case, remove the battery from the
tool and charge the battery.
8ENGLISH
Switch action
CAUTION: Before connecting the battery to
the shears, always check to see that the switch
trigger actuates properly and returns to the “OFF”
position when released.
CAUTION: When not operating the tool,
always make sure that the I/O switch is on the "O"
side.
To turn on the tool, perform as follows:
1. Insert the battery cartridge.
2. Hold the shears firmly, and slide the I/O switch to
the “I” (on) position. The tool makes two
ticking sound to indicate that the I/O switch has
been on the “I” (on) position.
►1. I/O switch
3. The shear blades are on locked-mode when the I/O
switch is on. To release the lock, depress the switch
trigger two times. The upper shear blade opens
automatically.
4. To close the shear blade, depress the switch trigger
once again.
►1. Switch trigger
I
O1
1
To turn off the tool, perform as follows:
1. Depress down and hold on the switch trigger for
about three seconds and then the tool makes two
ticking sound.
2. Slide the I/O switch to the “O” (off) position. The
tool makes continuous ticking sound to indicate that
the I/O switch has been on the “O” (off) position.
3. Remove the battery cartridge.
Accidental re-start preventive
function
Even if suddenly insert the battery cartridge and press
the switch trigger when the I/O switch is locked on the
“I (ON)” position and the shear blades are on
unlocked-mode with the battery removed , the tool
does not start to prevent accidental accident.
To start the tool in this situation, depress the switch
trigger two times and then depress the switch trigger
once by once.
Auto locked-mode and shut-off
mode shift
For safety reasons, the tool shifts into shut-off mode
automatically if the tool is left untouched for a certain
period of time.
After approximately 10 minutes: The tool is shift into
shut-off mode. Slide the I/O switch to the “O” (off)
position once and slide the I/O switch to the “I” (on)
position again, then depress the switch trigger two
times to release the lock.
Indicating the remaining battery
capacity
2
1
►1. Indicator lamps 2. Check button
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. Below for detail
remaining capacity information.
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may differ slightly
from the actual capacity.
Indicator lamps Remaining
capacity
Lighted
Off
75% to100%
25% to50%
10% to25%
9ENGLISH
Replace the upper shear blade
To remove the upper shear blade, perform following
steps:
1. Insert the battery cartridge. Remove the blade cover.
2. Switch on the tool, and pull the switch trigger to open
the upper shearblade fully.
3. With the upper shear blade open, switch off the tool
and remove the battery cartridge.
5. Remove two bolts near the shear blades with the
hex wrench by turning anticlockwise.
Remove the head cover by separating the tongue on
the head cover from the groove of the housing.Take
out the upper shear blade assembly.
►1. Bolts 2. Hex wrench 3. Head cover
4. E-ring 5. Link arm
6. Remove the E-ring on the link arm with a E-ring
plier or alike and replace the upper shear blade with a
new one.
1
2
3
1
5 4
To install the upper shear blade, perform the removal
steps in reverse. When installing the shear blades, pay
attention to the following points:
ASSEMBLY
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before carrying out any work on the tool.
4. Remove the hex bolt near the shear blades with the
hex wrench by turning it anticlockwise.
Remove the blades tightening nut near the shear
blades with a suitable wrench or alike by turning it
anticlockwise and take out the washer.
1
►1. Hex Bolt 2. Hex wrench 3. Blades tightening nut
4. Wrench 5. Washer 6. Upper shear blade 7. Lower
shear blade
2
3
4
3 15
1. Apply machine lubricating oil on to the shear
blade.
2. When installing the head cover, align the tongue
of the head cover with the groove of the housing.
3. Make sure all the bolts are securely tightened.
After installing the blade, always adjust blade
clearance. (Refer to “Adjustment for blade
clearance”.)
CAUTION: Only use shear blades specified in
this manual by Liangye. The use of any other
blades might present a risk of injury to persons or a
damage of the tool.
6
7
The shear blades requires refuel every time before
using. To apply machine oil on to the shear blades,
perform the following steps:
1. Insert the battery cartridge. Remove the blade cover.
2. Switch on the tool, and pull the switch trigger to open
the upper shearblade fully.
3. With the upper shear blade open, switch off the tool
and remove the battery cartridge.
4. Remove the hex bolt near the shear blades with the
hex wrench by turning it anticlockwise.
Note: for steps1~4, refer to 1~4 steps of “Replace
the upper shear blade”
5. Squeeze the oil from the machine oil bottle into the
threaded hole.
►1. Machine Oil bottle 2. Threaded hole
2
1
6. Reinstall the hex bolt by turning it clockwise.
7. Turn on the tool to operate unloaded for several times to
distribute the lubricant evenly.
10 ENGLISH
Before use
Refueling the shear blade
Adjustment for bladeclearance
►1. Hex bolt 2. Blades tightening nut
From time to time, adjust the clearance of the shear
blades as follows:
1. Insert the battery cartridge. Remove the blade cover.
2. Switch on the tool, and pull the switch trigger to open
the upper shearblade fully.
3. With the upper shear blade open, switch off the tool
and remove the battery cartridge.
4. Loosen the hex bolt near the shear blades with the
hex wrench by turning it anticlockwise.
5. Adjust the tightness of the blades tightening nut with
a suitable wrench by turning it clockwise or
anticlockwise (fastening torque for the blade tightening
nut: approximately 0.5 Nm).
Note: for steps1~5, refer to 1~4 steps of “Replace
the upper shear blade” for reference.
6. Tighten the hex bolt again.
7. Check the tightness of the blades whether the
blades never rattle or swing sideways. If the blades are
too tight or loose, adjust the clearance again.
CAUTION: Pay attention to the clearance of
the blades. Too loose clearance may result in dull
cut, and too tight blade clearance may result in
overload for the motor and short running time of the
tool.
CAUTION: When the blades are closed, the
blades should not swing sideways. Lateral swing is
an abnormal state. Lateral swing will create a gap
between the two blades, resulting in the gear teeth
not meshing properly and causing damage to the
mechanical structure.
1
2
OPERATION
CAUTION: Always hold the tool firmly. And
keep firm footing.
CAUTION: Do not put any of your body parts
near to the blades during operation.
CAUTION: Before use, inspect if the blades,
blade bolts or other parts are not worn or damaged.
Replace worn or damaged parts for safe operation.
NOTICE: If the blade is stuck in a branch during
operation, do not twist the blade. In that situation, turn
off the tool and pull the blades straight out slowly from
the branch. Otherwise the blade may be damaged.
NOTICE: Always fill the right amount of lubricating
oil each time. Avoid too much or too little.
Pruning operation
Cut branches one by one. The maximum thickness of
branches which can be cut with these shears is about
30mm. Maintain your proper footing and balance at all
times.
After use
Close the shear blades, press the I/O switch to the “O”
(off) position, and remove the battery cartridge.
Store the shears in dry, high or locked-up place out of
reach of children. Install the shear blade cover on.
NOTICE: Remove the battery when not using the
shears. Otherwise the battery capacity is reduced
during course oftime.
11 ENGLISH
MAINTENANCE
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before attempting to perform inspection or
maintenance.
CAUTION: Wear safety gloves when handling
the blade. Otherwise it may result in personal injury.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
Blade maintenance
NOTICE: Failure to perform blade maintenance may
cause excessive blade friction and shorten the oper-
ating time per battery charge.
Sharpening blades
Upper shear blade
1. Apply the flat surface of the diamond file to the
blade edge. Push the diamond file towards the tip of
the blade to
sharpen along the entire blade edge.
Maintain the same flat contact with the file consistently
along the entire blade edge.
1
►1. Diamond file
2. Apply the flat surface of the diamond file lightly to
the opposite side of the blade.
Move the diamond file towards the tip of the blade
lightly to remove burrs.
NOTICE: Do not sharpen this side too much. File
lightly only for removing burrs. Otherwise the blade
clearance may become too much or the blade life
may beshortened.
1
Before and after operation, check the shear blades
carefully. After operation, clean off the blades with a
stiff brush.
Then wipe the blades with a cloth. And apply Liangye
genuine machine oil onto the blade edge and movable
part.
►1. Shear blade cover
Lower shear blade
1. Apply the round surface of the diamond file to the
blade edge.
Push the diamond file towards the tip of the blade to
sharpen along the entire blade edge.
2. Apply the flat surface of the diamond file lightly to
the opposite side of the blade.
Move the diamond file towards the tip of the blade
lightly to remove burrs.
12 ENGLISH
NOTICE: Do not sharpen this side too much. File
lightly only for removing burrs. Otherwise the blade
clearance may become too much or the blade life
may beshortened.
Trouble shooting
Before making a request for repairs, check for trouble
by yourself. If any abnormality is found, control your
tool according to the description of this manual. If the
remedy mentioned below cannot solve the problem, ask
your local authorized service center for repair. Never
tamper or dismount any part contrary to the description.
State of
abnormality
Probablecause
(malfunction)
Remedy
The shearblade
does not move
even after pull-
ing the switch
trigger.
The batteryis
low.
Charge the battery.
I/O switch is"Off"
position.
Press the I/O switch to
"I"position.
The shearsare
locked.
Unlock the shears by
performing the stepsin
"Switch action".
I/O switch is“on”
position when
inserting the bat-
terycartridge.
Press the I/O switch
to the “O”(off) position
once, and press the I/O
switch to the “I” (on)
positionagain.
Switch trigger
defect.
Stop using the tool
immediately, and ask
your local authorized
service center for
repair.
The shear
blades arestuck
on thebranch.
The branch istoo
thick.
Release the switch
trigger. Press the I/O
switch to "O" position.
Then pull the blades
straight out slowlyfrom
thebranch.
The cut isnot
smooth.
The shearblades
aredull.
Sharpen the shear
blades, or adjust blade
clearance.
The shearblades
are wornout.
Replace theshear
blades.
To maintain product SAFETY and RELIABILITY,
repairs, any other maintenance or adjustment should
be performed by Liangye Authorized or Factory Service
Centers, always using Liangye replacement parts.
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Liangye tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or attachment
for its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Liangye
Service Center.
•
•
•
•
•
•
Upper shear blade
Lower shear blade
Hex Wrench
Machine lubricating oil
Inner hexagon wrench
Liangye genuine battery and charger
NOTE: Some items in the list may be included in the
tool package as standard accessories. They may
differ from country to country.
Table of contents
