Liberator SM8500 L User manual

Liberator
™
Owner’s Manual
Liberator
™
Center-Wheel Drive Power Chair
SM8500 L
Y O U R L I F E I N M O T I O N
1426 East 3
rd
Ave Suite B110,
Kennewick, WA 99336
Tel: [phone]
www.solarmobilityinc.com

Liberator Owner’s Manual – Model # SM8500 L Revised 08/26/2016
2

FOR YOUR RECORDS
Please fill in your Liberator™ information below. This information
will be useful in the event that you ever need to contact Solar
Mobility LLC concerning your power chair.
Your Liberator ™.
Model Serial Number
Date of Purchase Body Color
Options
Your Solar Mobility LLC representative or dealer Name
Company
Address
Please remember to fill in and return your warranty registration
card.

Liberator Owner’s Manual – Model # SM8500 L Revised 08/26/2016
3

Contents
FORYOURRECORDS...............................................................................................................................................................2
INTRODUCTION.......................................................................................................................................................................4
Indicationsforuse..................................................................................................................................................................5
SAFETY.....................................................................................................................................................................................5
EMI/RFI....................................................................................................................................................................................9
LIBERATORSPECIFICATIONS.................................................................................................................................................10
COMPONENTS.......................................................................................................................................................................11
OPERATION...........................................................................................................................................................................14
OPERATION/DIAGNOSTICS...................................................................................................................................................17
OPERATION...........................................................................................................................................................................18
FREEWHEELMODE...........................................................................................................................................................18
OPERATION...........................................................................................................................................................................20
SolarCompanion..............................................................................................................................................................20
BATTERYCHARGING.............................................................................................................................................................21
CAREANDMAINTENANCE....................................................................................................................................................22
ConsumerLimitedWarranty................................................................................................................................................23
SolarMobilityLiberator™WarrantyRegistration...............................................................................................................25


Liberator Owner’s Manual – Model # SM8500 L Revised 08/26/2016
4

INTRODUCTION
Congratulations on the purchase of your new Liberator™ power chair. The Center-
wheel drive Liberator™ combines cutting-edge technology with an attractive design
that is also highly functional in today’s world. We at Solar Mobility LLC know that you
have chosen a power chair that will give you years of dependable operation and also
will enhance the quality of your life by providing you with the mobility to experience
an active daily lifestyle.
Even though your new Liberator™ is both user-friendly and designed for maximum
maneuverability in even the tightest spaces, we ask that you please read, understand
and follow all of the instructions and suggestions in this manual before you operate
your Liberator™ for the first time. The safe use of your new power chair is very
important to us.
If you feel that you do not understand the instructions and suggestions presented in
this owner’s manual, or if, for any reason, you do not feel capable of performing the
activities necessary to assemble, disassemble, operate, or maintain your Liberator™
please contact your local Solar Mobility LLC representative or call Solar Mobility LLC.
Technical Support Services at [phone].
Solar Mobility LLC cannot be held responsible for personal injury or property damage
resulting from the unsafe or the improper use of any of our broad range of health and
personal mobility products. Our Research and Development Department, our Quality
Control Department, and our Engineering Department have used the latest product
specifications and the latest product design information to produce this owner’s
manual. Solar Mobility LLC reserves the right to implement changes into our product
lines when those changes become desirable or necessary. If changes are implemented
into our product line, there may be minor differences between the product you
purchased and the illustrations and instructions in this owner’s manual.
Please fill out and mail the enclosed warranty registration card on page 37. We at
Solar Mobility LLC would appreciate hearing about the dependability of your
Liberator™ and about the convenience of mobility it has provided for you. We would
also appreciate hearing about the service you received from your local Solar Mobility
LLC representative.
Solar Mobility LLC. Phone: [phone]
1426 East 3rd Ave Suite B110,
Kennewic
k
, WA 99336
Web Site:
www.solarmobilityinc.com

Liberator Owner’s Manual – Model # SM8500 L Revised 08/26/2016
5
Indications for use
The intended use of the Liberator™ is to provide mobility for those persons limited to a
seated position, which are capable of operating a simple hand control.
The Liberator may be operated on internal DC batteries, which can be recharged by using
a wall-charger and supplemented by using the detachable solar assisted battery
maintaining device (Solar Companion).
SAFETY
Your Liberator™ is a battery-operated personal mobility vehicle. Please exercise caution
and consideration when you are operating it. Driving your Liberator™ carefully and
thoughtfully will help ensure your personal safety and the safety of other people.
NOTE: Before learning to operate your Liberator™, have your Solar Mobility LLC
representative determine if it is advisable for you to practice getting on
and off your Liberator™ and operating it in the presence of an attendant.
BEFORE GETTING ON YOUR Liberator™
 Check to be certain that the power is turned off. See “Operation” on pages 24-31.
This will eliminate the possibility of accidentally activating the joystick and causing
injury to yourself or to others.
 Check to be certain that your Liberator™ is not in freewheel mode. See the
“Operation” section on pages 24-31.
 Flip up the armrests.
 If your chair is equipped with leg rests, move them to the sides.
 If your chair is equipped with a footrest, flip it to the “up” position.
GETTING ON YOUR Liberator™
 While being careful not to entangle yourself in the leg rests or the footrest, seat
yourself comfortably and securely on the seat.
 Adjust the leg rests or flip down the footrest.
 Flip down or replace the armrests.
 Fasten the lap belt, if your chair is so equipped.
GETTING OFF YOUR Liberator™
 Make certain that the power is turned off.
 Unfasten the lap belt, if your chair is so equipped.
 Flip up the armrests.
 Flip up the footrest, or move the leg rests to the sides.
 While being careful not to entangle yourself in the leg rests or the footrest,
carefully stand and step away from the chair.
MAXIMUM WEIGHT
Your Liberator™ has been rated to a maximum payload (passenger and anything else
being carried on the Liberator™) of 300 pounds. Exceeding the maximum weight rating
will void the warranty.
Exceeding the maximum weight rating may result in injury to
yourself and to others. This will also void your warranty.

Liberator Owner’s Manual – Model # SM8500 L Revised 08/26/2016
6
DRIVING ON AN INCLINE
 Drive with caution when attempting to negotiate any incline, even handicap access
ramps.
 Always climb or descend a gradient by driving straight up or straight down the face of
the slope.
 Do not traverse or drive across the face of a gradient.
 Do not attempt to negotiate an incline that is covered with snow, ice, cut or wet
grass, leaves, or any other potentially hazardous material.
 Do not back down an incline.
 Try to keep your Liberator™ moving when climbing an incline. If you do come to a
stop, restart and accelerate slowly and carefully.
 Do not try to descend or climb an incline that is greater than the maximum incline
stated in the specifications section of this manual.
If, while you are driving down a slope, your chair starts to move faster
than you feel is safe, gently release the joystick and allow your
Liberator™ to come to a stop. When you feel that you again have control
of your power chair, adjust the speed control to a lower setting then
push the joystick forward and continue safely down the remainder of
the slope.
MEDICATION
Always check with your physician to determine if any of the medications you are taking
may affect your judgment and/or your ability to operate your Liberator™.
Do not connect or allow anyone except an authorized Solar Mobility
LLC representative to connect any electrical or mechanical device to
your Liberator™. Unauthorized accessories will
void the warranty and
may cause injury.

Liberator Owner’s Manual – Model # SM8500 L Revised 08/26/2016
7
SAFETY
 Do not attempt to use your Liberator™ on an escalator. Always use an elevator.
 Do not carry passengers on your power chair.
 Do not operate your Liberator™ if it is not functioning properly.

 Do not attempt to perform wheelies with the Liberator™.

 Do not use your wheelchair during workouts.
 Use caution when driving on soft or uneven surfaces such as grass, gravel, and on
decks where there is no railing.
 Never drive on the roadway, except when you must cross the street.
 Always cross streets at intersections and use the most direct route, making sure
that your path is clear and that you are visible to motor traffic.
 Never drive your Liberator™ up or down a step or curb that is higher than 1 1/2
inches.
 Never back up or down a step or curb.
 Never operate your Liberator™ while you are under the influence of alcohol.
 Do not operate or store your power chair where it will be exposed to rain, snow,
mist, and below freezing temperatures.
 Do not operate your power chair on slippery, icy or salted surfaces.
 Never sit on your power chair when it is in freewheel mode and on an incline or
decline.
 Never place your power chair into freewheel mode without a trained assistant
present.
 Do not sit on your power chair when it is freewheel mode without the presence of a
trained assistant.
 Do not modify your power chair or Solar Companion in any way that is not
authorized by Solar Mobility LLC.
 Do not disassemble the tire. If disassembly is required, have your authorized
Liberator dealer perform any necessary maintenance or repair.
 Do not attempt to inflate the tires of your Liberator™. Your Liberator™ is equipped
with foam-filled flat free tires that do not require inflation.

Liberator Owner’s Manual – Model # SM8500 L Revised 08/26/2016
8
SAFETY
 Do not place any weight or objects on top of the Solar Companion, it may damage
the solar panel.
 Do not place hands or fingers near where pinch points are indicated.
 Never transport your Liberator with the Solar Companion in the down position
without the detent pin Tee handles in the holes provided for the down position.
WATCH OUT FOR AND AVOID OPEN LEVER HANDLES ON
DOORS
Please be sure to follow this important warning when transferring onto or off of the
Liberator power wheelchair:
NEVER TRANSFER ONTO OR OFF OF THIS POWER WHEELCHAIR USING THE
SEAT BACKREST FOR SUPPORT DURING TRANSFER. THE SEAT BACK MAY FOLD
DOWN AND MAY CAUSE YOU TO LOSE YOUR BALANCE AND COULD RESULT IN
PERSONAL INJURY.

Liberator Owner’s Manual – Model # SM8500 L Revised 08/26/2016
9
EMI/RFI
The rapid development of electronics, especially in the area of communications, has
saturated our environment with electromagnetic (radio) waves that are emitted by
television transmitters, cellular phones, citizen’s band radios (CBs), amateur radios (ham
radios), wireless computer links, microwave transmitters, paging transmitters, etc. These
electromagnetic (EM) waves are invisible and increase in strength the closer one gets to
the source of transmission. When these energy waves act upon electrical devices and
cause them to malfunction or to function in an erratic or uncontrolled manner, they are
referred to as Electromagnetic Interference (EMI) or Radio Frequency Interference (RFI).
EMI/RFI AND YOUR Liberator™ with Solar Companion
All electrically powered vehicles, including power chairs are susceptible to EMI/RFI. This
interference could result in abnormal, unintended movement of a power
wheelchair.
The FDA has determined that each make and model of power chair can resist EMI/RFI to
a certain level. The higher the level of immunity, the greater the degree of protection from
EMI/RFI measured in volts per meter (V/m). The FDA has also determined that current
technology is capable of providing 20 V/m of immunity to EMI/RFI, which would provide
useful protection against common sources of interference.
Based on that determination, the FDA has written to the manufacturers of power
wheelchairs and asked them to test their new products to be certain that they provide a
reasonable degree of immunity to EMI/RFI. The FDA suggests that power chairs should
have an immunity level of 20 V/m.
The immunity level of the Liberator™ with Solar Companion is 20 V/m.
EMI/RFI RECOMMENDATIONS
 Do not turn on or use hand-held personal electronic communication devices such as
cellular phones, walkie-talkies, and CB radios while your power chair is turned on.
 Be aware of any nearby transmitters (radio, television, microwave, etc.) on your in-
tended route and avoid operating your chair close to any of those transmitters.
 Turn off the power if your Liberator™ is going to be in a stationary position for any
length of time.
 Be aware that adding accessories or components or modifying your power chair may
make it more susceptible to EMI/RFI.
 If unintended movement or brake release occurs, turn your power chair off as soon as
it is safe to do so.
 Report all incidents of unintended movement or brake failure to your Liberator
representative or to Solar Mobility LLC at [phone].
Turn off your power chair as soon as it is safely possible if
unintended or uncontrollable motion occurs or if unintended brake release
occurs.

Liberator Owner’s Manual – Model # SM8500 L Revised 08/26/2016
10
LIBERATOR SPECIFICATIONS
Model SM8500LSC
Weight
Base 101 lbs.
Seat (Width 20” X Depth 18-20.” Captain's Chair Seat) 109 lbs.
Solar Companion with Mounts 20 lbs.
2 Batteries needed to o
p
erate Liberator NF22 - 39 lbs.
Total Weight with NF22 Batteries 308 lbs.
Dimensions
Height 52.5”
Length 40"
Width (outside of tires) 27"
Maximum Incline 10 degrees
Maximum Speed 4.09 mph
Maximum Load Capacity 300 lbs.
Pivot Width - Radius 27.0 "
Wheel Sizes
Drive Wheels (2) 10" X 3.5"
Casters (4) 4" X 2"
Maximum Seat Back Angle 126 degrees
Seat Widths Available in 20.5”– 23”
Effective Seat Depth 18.3”
Armrest Height (Adjustable)
(Measured from seat cushion) 7.5” – 11.5"
Seat Heights (Ground to Top of Seat)
Minimum Seat Height (NF22 Batteries) 24.4"
Maximum Seat Height (NF22 Batteries) 30.5"
Seat Back Heights (Ground to Top of Headrest)
Headrest Not Extended (Captain's Chair)* 53.5”
Headrest Extended (Captain's Chair)* 57.5"
Without Headrest (Captain's Chair)* 46.25"
Chair Height with Solar Companion (Ground to Top)
Minimum Height 58.25"
Maximum Height 64.25”
Footrest (Adjustable Height)
(Measured from top of footrest to ground)
5", 5 5/8",
6 1/4", 6 7/8",
7 1/2"
Footrest (Adjustable Angle) -4 degrees to
17 degrees
Controller - Programmable SHARK
Controller
75+15 Amp
Charger - Off Board 110 VAC 60
Hz, 5 Amp
On Board Solar Assisted Detachable Battery
Maintaining Device: (Sores Solar Companion)
Max output
2.9 Amp
Battery Types (recommended) (2) NF22
Shroud Colors (all models) Candy Apple Red, Artic Blue, Hunter Green
Note: Solar Mobility LLC reserves the right to alter or change any specification without prior notice.

Liberator Owner’s Manual – Model # SM8500 L Revised 08/26/2016
11
COMPONENTS
Your Liberator ™ is shipped partially disassembled in order to maximize the protection of
all its parts during the shipping process.
Caution! The Liberator Power Chair with or without the Solar Companion should
be assembled by a certified dealer or technician for safe assembly.
Main Components
1. Frame with power module, controller cable & connectors for battery cables
2. Battery box cover (Two – one for U1 batteries, one for NF22 batteries)
3. Seat assembly
4. Solar Companion
5. Joystick
6. Batteries (NF22)

Joystick
Batteries
Solar Companion
Seat Assembly
Battery Cover
Caster Arm Shroud
Motor Shroud
Caster Wheel
Fenders
Joystick

Liberator Owner’s Manual – Model # SM8500 L Revised 08/26/2016
12
COMFORT SETTINGS
HEADREST HEIGHT ADJUSTMENT
1. Lift the Headrest Ratchet post of the headrest while you are pulling up or
pushing down on the head rest. See figure 13.
2. The headrest will “click” to a stop in one of the preset positions.
3. Repeat step 1 until the headrest is at the desired height.

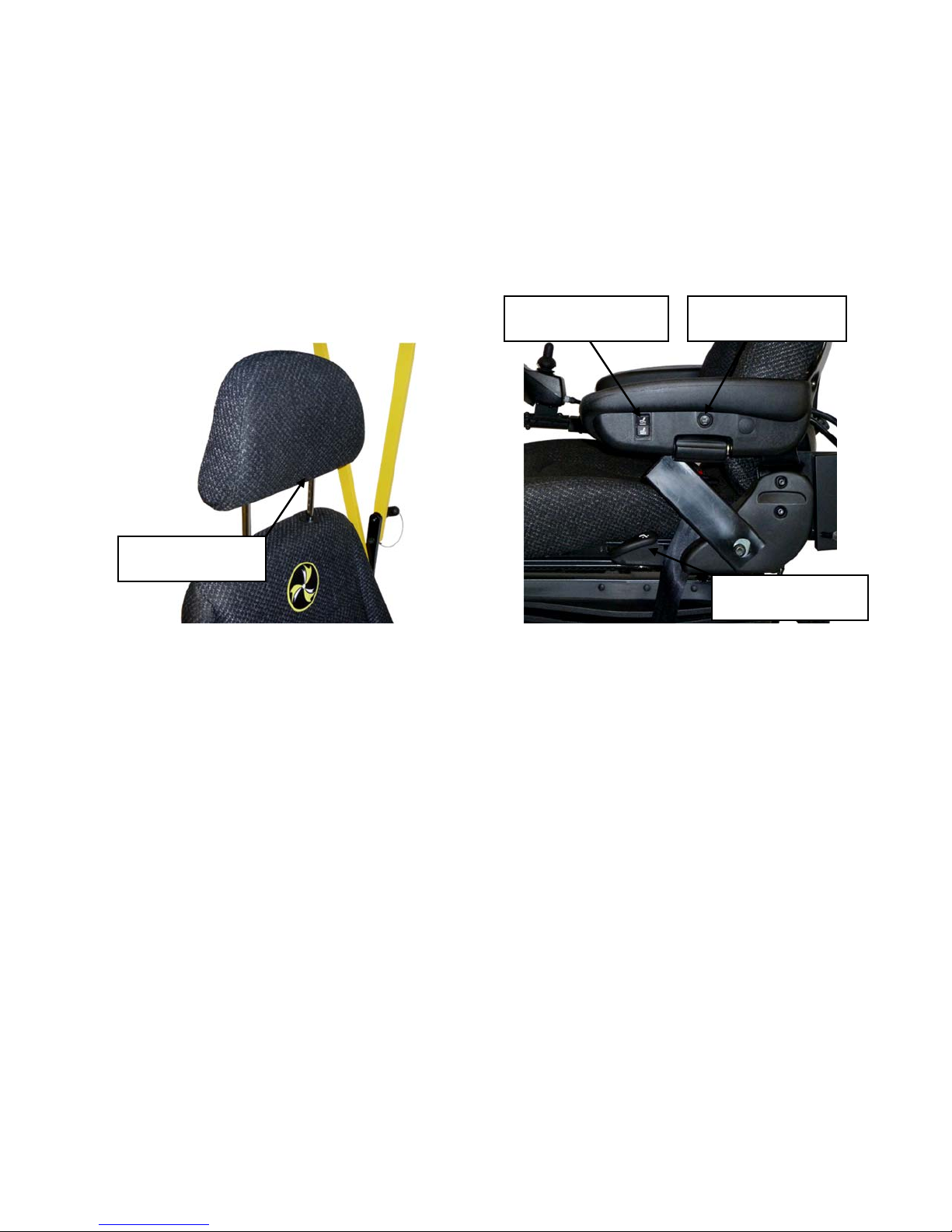

Figure 13 Figure 14
BACKREST ANGLE ADJUSTMENT
NOTE: The backrest can be folded down to minimize chair
height during transport.
1. Pull up on the adjustment lever (see figure 14) and push against the backrest until
the backrest is in the desired position.
2. Release the lever.
3. To return the backrest to the upright position, pull up on the lever and move the
backrest to the desired position.
LEFT ARM COMFORT CONTROL SWITCHS (Figure 14)
1. Adjustment Switch for Air suspension by pushing the switch on top increases the
suspension, by pushing the on the bottom decreases the suspension.
2. Ambient Air Fan speed control switch up position high down position low.
Headrest Ratchet
Ad
j
ustmen
t
Backrest Angle
Ad
j
ustment Leve
r
Air ride Suspension
Ad
j
ustment Switch
Ambient Air
Fan S
p
eed Control

Liberator Owner’s Manual – Model # SM8500 L Revised 08/26/2016
13
COMFORT SETTINGS

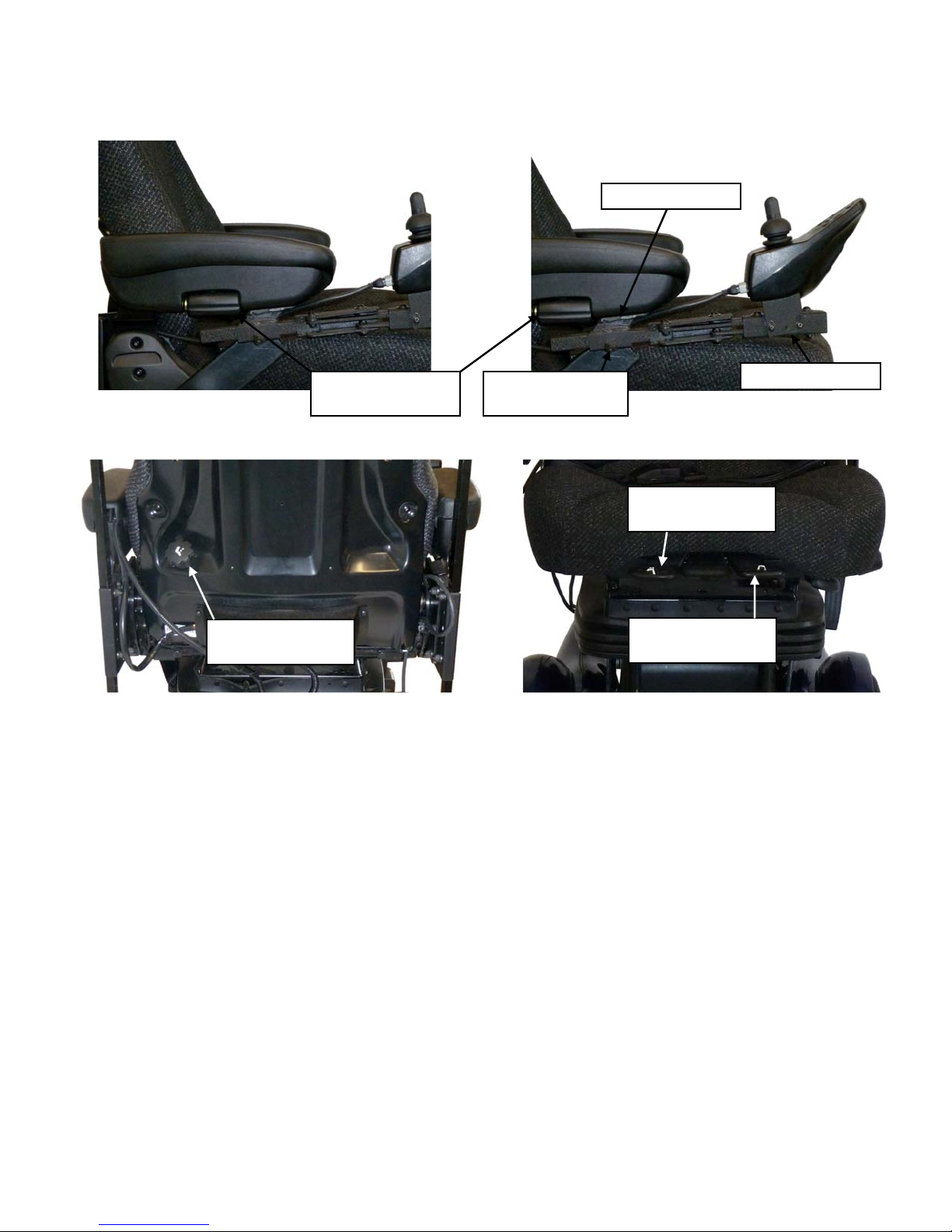

Figure 17 Figure 18
Figure 19 Figure 20
ARMREST HEIGHT ADJUSTMENT
1. Rotate “Armrest Height Adjustment Knob” clockwise or counter clockwise (Figure 17)
until you reach your desired height.
Note: The knob is retained in its housing with a
spring.
JOYSTICK BRACKET LENGTH ADJUSTMENT
1. Loosen the setscrew that adjusts the joystick position. See Figure 18.
2. Slide the joystick bracket in or out of the joystick holder to desired position.
3. Tighten the setscrew.
LUMBAR ADJUSTMENT
1. Turn the adjustment knobs at the rear of the seat to adjust your Lumbar comfort
setting. See Figure 19.
SEAT ADJUSTMENT
1. Lift left lever up to adjust seat in and out. See Figure 20.
2. Lift right lever up to adjust seat up and down. See Figure 20.
Lumbar
Ad
j
ustment Knob
Joystick Bracket
Joystick Holder
Joystick Position
Set Screw
Armrest Height
Ad
j
ustment Knob
In and Out
Seat Ad
j
ustmen
t
Up and Down
Seat Ad
j
ustmen
t

Liberator Owner’s Manual – Model # SM8500 L Revised 08/26/2016
14
OPERATION
Your Liberator ™ is simple to operate. However, for your safety and the safety of others,
Solar Mobility LLC recommends that you carefully read and understand the following
operating instructions. We also recommend that you practice operating your Liberator ™
in an area free of any obstacles. Once you have gained confidence in your ability to
control your power chair, you will more easily be able to operate it in normal daily
conditions.
A WORD OF CAUTION
Before turning on the power of your Liberator ™ , take note of your environment and set
your speed control accordingly. (See “The Speed Control Buttons” Figure 21) For indoor
driving, we recommend that you select the lowest speed setting. For outdoor driving, we
recommend that you select a speed setting at which you feel comfortable, safe, and in
control of your power chair. Familiarize yourself with the features of your Liberator ™
described below and follow the instructions to safely operate your power chair.
DRIVING: The Joystick On/Off Switch
Push the on/off button to turn on the power to your Liberator ™ . See figure 21.
The 8 LEDs (Light Emitting Diodes) will flash once and a number of LEDs will remain
depending on the state of the battery charge.
◆ The LED array, which functions as the battery charge gauge, will light up. See
“Battery Charging” on page 32.
Pressing the on/off button again will turn off the power to your Liberator ™ .
◆ The Joystick is intended to control the speed and maneuvering of the wheelchair only
not the seat functions (which are indicated on page 12 (Figure 14).

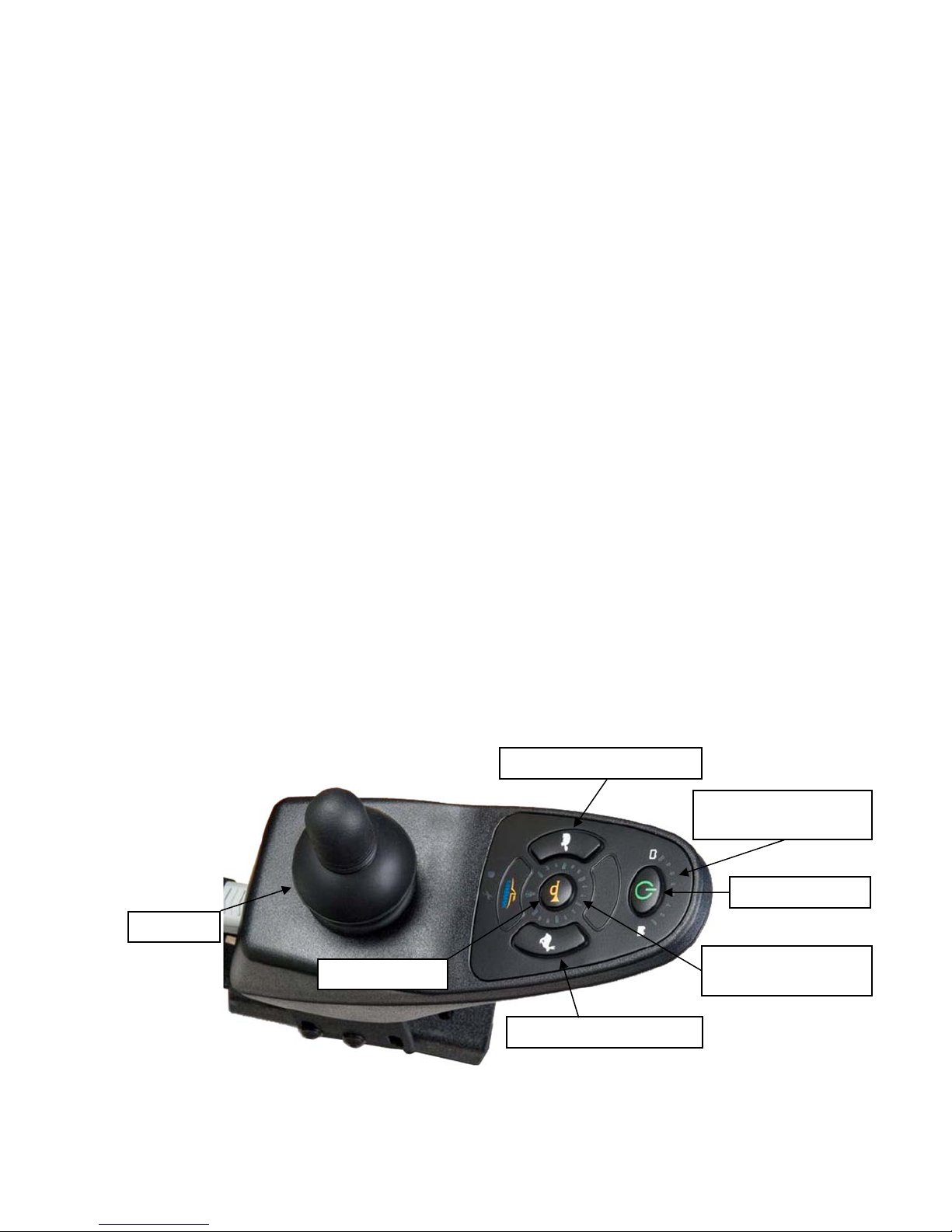

Figure 21
Speed Control - Slower
Battery Charge LED
Array
On/Off Button
Speed Setting LED
Array
Speed Control - Faster
Horn Button
Joystick

Liberator Owner’s Manual – Model # SM8500 L Revised 08/26/2016
15
OPERATION
The Speed Control Buttons
These buttons provide you with a way to control the maximum speed of your
Liberator™.
◆ Press the “turtle” button repeatedly to set your chair’s speed to the slowest setting
(recommended for indoor operation). Slowest speed is indicated by one (1) lit LED
section on the speed indicator scale.
◆ Press the “rabbit” button repeatedly to set your chair’s speed to its highest setting.
Highest speed is indicated by five (5) lit LED sections on the speed indicator scale.
NOTE: For your safety, the controller automatically sets the reverse speed,
acceleration, and deceleration in proportion to the speed control setting.
The Joystick
The joystick (see figure 21 on previous page) controls the speed (up to the maximum limit
set by the speed control knob) and direction of your power chair.
NOTE: When you are not pushing on the joystick, or when you release the joystick,
the joystick will automatically return to the neutral position, the chair will
decelerate, as the electromagnetic brakes are applied, and come to a smooth
stop.
Pushing the joystick away from the neutral (center) position will move your
Liberator™ in the direction that the joystick is pushed.
◆ The farther forward or backward you push the joystick, the faster your power
chair will go.
To operate your power chair, gently push the joystick in the direction in
which you want to travel.
◆ Gentle operation of the joystick will provide you with smoother changes in speed
and direction.
◆ Sharp or jerky operation of the joystick will result in quick and drastic changes in
direction and speed.

Liberator Owner’s Manual – Model # SM8500 L Revised 08/26/2016
16
OPERATION
The Joystick Display
The joystick display (see figure 20 on page 24) is a multifunctional visual display.
This display provides three types of information.
1. On/Off status
2. Battery charge level
3. Fault diagnostics
1. On/Off Status
When you turn on the power to your Liberator™, the LED array will light up
(see figure 20 on page 24).
◆ If the LED array is not lit, the controller and the power chair are not in
operating mode.
2. Battery Charge Level
The joystick LED array is composed of six LED’s.
♦Two red
♦Two amber
♦Four green
When all eight (8) LEDs are lit continuously, there is a full charge on the
batteries. As you use your power chair and the batteries discharge, LEDs in
the array will begin to turn off in descending order. A single lit red LED
indicates the lowest state of operable charge on the batteries. The batteries
should be charged immediately.
NOTE: To ensure a dependable battery charge, we recommend that you charge the
chair’s batteries overnight. Doing this will prolong the life of the batteries
and spare you loss of operational power while you are using your chair
normally.
Do not charge the batteries when all 8 LEDs are lit, indicating that the
batteries are at full charge. Charging the batteries when they are fully
charged will shorten the life of the batteries.
3. . Fault Diagnostics
The joystick LED array is also designed to help you diagnose any problems with the
electrical components of your power chair. The LED array does this by flashing on
and off in a coded sequence.
See the table on the following page to see the list of diagnosable problems and the
flash code sequence.

Liberator Owner’s Manual – Model # SM8500 L Revised 08/26/2016
17
OPERATION/DIAGNOSTICS
For Liberator Units with the SHARK Controller
Flash codes indicate the nature of an abnormal condition directly from the SHARK
Information Gauge. Without the use of any servicing tools, the condition can be
simply diagnosed.
Flash
Code
Description
1 User Fault Possible stall timeout or user error. Release the
joystick to neutral and try again.
2 Battery Fault Check the batteries and cabling. Try charging the
batteries. Batteries may require replacing.
3 Right Motor Fault Check the right motor, connections and
cablin
g
.
4 Left motor fault Check the left motor, connections and
cabling.
5 Right park brake fault Check the right park brake, connections and
cabling.
6 Left park brake fault Check the left park brake, connections and
cabling.
7 SHARK Control Unit Fault Check the SHARK Communications Bus connections
and wiring. Replace the Control Unit
8 SHARK Power Module
Fault
Check SHARK connections and wiring.
Replace the Power Module.
9 SHARK Communications
Fault
Check SHARK connections and wiring.
Replace the SHARK Control Unit.
10 Unknown Fault Check all connections and wiring. Consult a service
agent.
The SHARK modules are not user serviceable. Do not attempt to repair Shark
modules.
Note that joystick OONAPU (Out Of Neutral at Power Up) is not a fault. Simply by
removing your hand from the joystick and allowing it to return to the neutral position,
the fault will immediately clear. If the condition persists after removing your hand, the
joystick may be damaged. Consult a Service agent.

Liberator Owner’s Manual – Model # SM8500 L Revised 08/26/2016
18
OPERATION

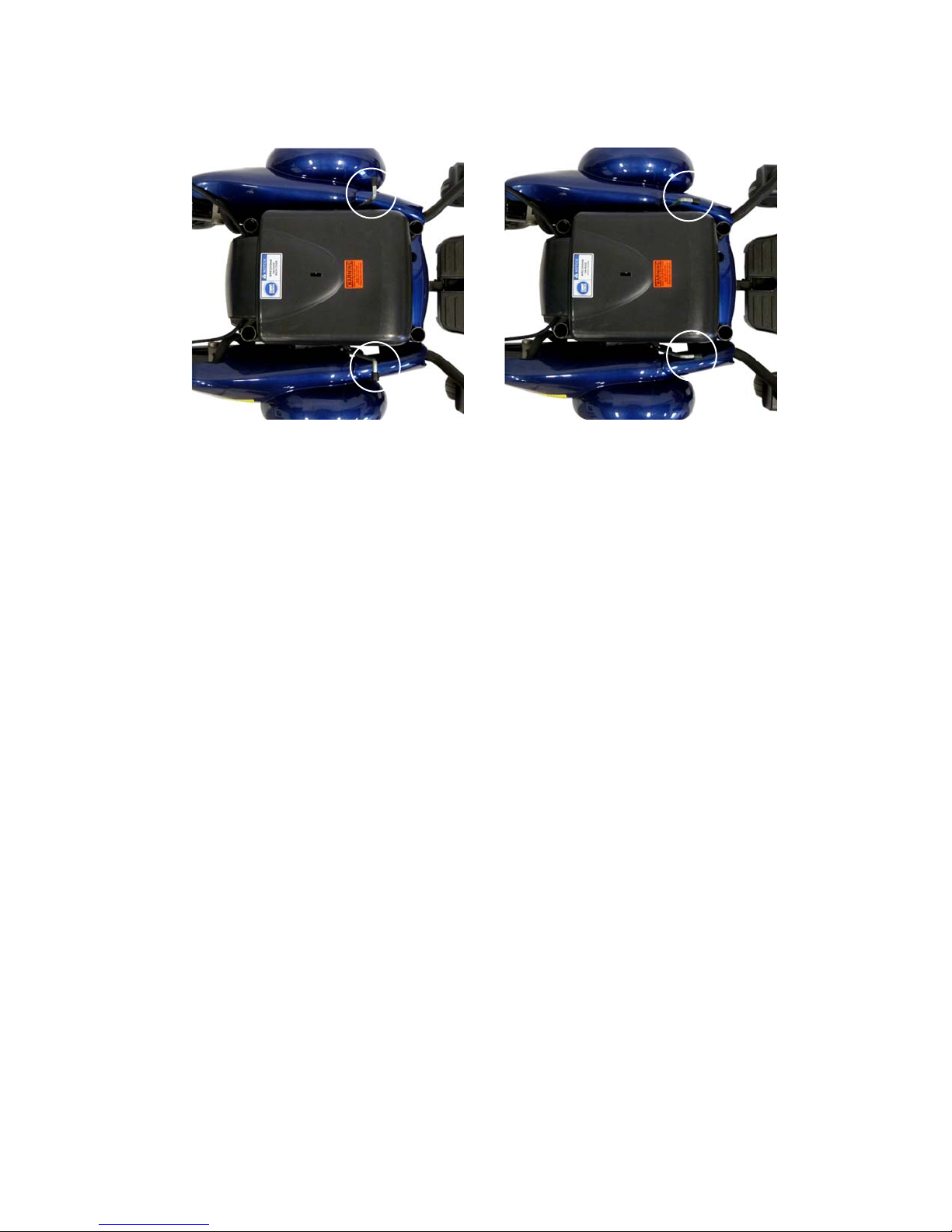

Figure 22 Figure 23
FREEWHEEL MODE
◆ To disengage the gears and put your power chair in freewheel mode, turn the
freewheel levers as shown. See figure 22.
◆ To re-engage the gears and take your chair out of freewheel mode, turn the levers as
shown. See figure 23.
1. Never put your power chair in freewheel mode when it is on a slope or incline
of any type.
2. Never put your power chair in freewheel mode while you are operating your
power chair.
THERMAL ROLLBACK
Your Liberator ™ is equipped with a safety system. A microprocessor monitors the
operating temperatures of the controller. In the event of excessive heat occurring in the
controller, the controller will decrease the speed of your chair. This is done to reduce the
load on the electrical system and allow the components to dissipate heat. The controller
will automatically set the chair’s speed back to full normal when the operating
temperature returns to normal levels.
THE MAIN CIRCUIT BREAKER
The main circuit breaker is another safety feature incorporated into your Liberator ™ .
This device monitors the amount of current being drawn from the batteries when the
chair is in use. When the motors are heavily strained and too high a current draw is
being placed on the batteries, the main circuit breaker will trip and bring your chair to
a stop.

Liberator Owner’s Manual – Model # SM8500 L Revised 08/26/2016
19
OPERATION
Figure 24
Reset Button
If the main circuit breaker trips, please wait for approximately 1 minute and then
push the reset button to reset the main circuit breaker. See figure 24.
NOTE: Usually, the thermal rollback feature is more sensitive than the main circuit
breaker. We recommend that you turn off the power to the chair and wait
for five minutes when the chair suddenly loses speed or power. Doing so will
allow the overheated electrical components to cool to their normal
operating temperatures.
SWING-AWAY DESK ARM
Your Liberator ™ is equipped with a swing-away desk arm that provides you with the
convenience of positioning your chair close to a work surface such as a table or desk.
To swing the desk arm simply push on the side of the joystick until the joystick swings to
the retracted position. See figures 25, 26, and 27.
Figure 25 Figure 26 Figure 27
Reset Button
(Circuit breaker)

Liberator Owner’s Manual – Model # SM8500 L Revised 08/26/16

20

Power Port Rear View
Mirrors
OPERATION
Solar Companion
Positioning the Solar Companion.
To position the Solar Companion in the up or down position you need to locate the Tee
Handel Detent Pins (See figure 28) on either side of the Companion, pull them free by
grabbing the back corners of the canopy on either side one at a time to relieve tension so
the pins can easily be removed, then by grabbing both sides of the canopy at the back,
lift to raise it (see figures 29) or pull back to lower it, (See figure 30) then replace the Tee
Handel Detent Pin (See figure 28)
Caution! If you are physically unable to do these functions, ask for or get assistance.
The user should not be sitting in the chair when the Solar Companion is being
positioned
Figure 28
Figure 29 Figure 30
LED Lights.
The LED lights Red in back Amber on each
side and White in front are controlled by a 3
position switch. To make the light strobe or
flash press the top of the switch, to make the
light stay in a fixed position or (not flashing)
press the bottom of the switch. (See figure 31)
Power Port.
The Solar Companion comes equipped with a
12 Volt water tight Power Port to charge Cell
Phones or other electric devices. (See figure 32)
Rear View Mirrors.
The Solar Companion come with 2 rear view
mirrors for your safety, both mirrors are
completely adjustable (rotating right or left and
up and down. (See figure 33)
Figure 31 Figure 32 Figure 33
Tee Handle
Detent Pin
LED Strobe
LED Fixed
Tee Handle
Detent Pin
