Liberty Pumps ALM-P1 User manual

Installer: Manual must remain
with owner/operator. Record information:
Model:
7000 Apple Tree Avenue
Bergen, NY 14416
ph: 1-800-543-2550
fax: [phone]
www.LibertyPumps.com
Keep this manual handy for future reference.
For replacement manual, visit LibertyPumps.com,
or contact Liberty Pumps at 1-800-543-2550.
Retain dated sales receipt for warranty.
Serial:
Mfg Date:
Install Date:
Installation Manual 2138000H
Copyright © Liberty Pumps, Inc. 2023 All rights reserved.
ALM-Series Indoor Alarms
Features
• NEMA 1 enclosure - rated for indoor use only
• Automatic alarm and alarm silence reset
• 360° red alarm indicator beacon
• 4 ft (1.2 m) power cord
• 9V battery back-up with low battery indicator
• Multiple level sensing options available
• Auxiliary dry contacts for triggering external alarm
• Pre-installed connector on puddle sensor for ease of installation
• Internet connectivity available with NightEye®enabled devices
Models
Standard
•ALM-P1
•ALM-2
• ALM-2-1
•ALM-PK
NightEye®Wireless Enabled
•ALM-P1-EYE
• ALM-2-EYE
• ALM-2-1-EYE
• ALM-PK-EYE
NightEye® enabled version shown

2 | EN Copyright © Liberty Pumps, Inc. 2023 All rights reserved. 2138000H
Contents
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 | EN
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 | EN
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 | EN
Operation and Maintenance . . . . . . . . . . . . . . . . . . . . 4 | EN
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 | EN
Safety Guidelines
Safety Precautions
Always disconnect power before installing or servicing this
product. Qualified personnel must install and service this
product according to applicable electrical and plumbing
codes.
Always wear dielectric rubber boots and other applicable
Personal Protective Equipment (PPE) when water is on the
floor and an energized pump or alarm system must be
servicedassubmergedelectrical connectionscanenergize the
water. Do not enter the water if the water level is higher than
the PPE protection or if the PPE is not watertight.
Do not install this alarm system outdoors. The system is rated
for indoor use only.
All electrical and safety practices shall be in accordance with
the National Electrical Code®, the Occupational Safety and
Health Administration, or applicable local codes and
ordinances.
Do not use this product with or near flammable or explosive
fluids such as gasoline, fuel oil, kerosene, etc.
This product is not to be installed in locations classified as
hazardous in accordance with the National Electric Code®,
ANSI/NFPA 70.
Alarm float adapters cannot be used with puddle sensors.
Do not cut the connectoroff a puddle sensor and wire it to the
float adapter. The sensor uses three wires for communication
and the float adapter has only two terminal blocks.
General Information
Each Liberty Pumps alarm system is tested individually in the
factory to ensure proper performance and operation. Closely
following these instructions will eliminate potential operating
problems, providing years of trouble-free service.
Thishighwaterlevel alarmsystemis designedforapplications such
as monitoring sump pump basins, sewage pump basins, and water
powered back-up pumps. The alarm system comes standard with a
9V battery backup to enable continuous water level monitoring,
even when the power is out. A built-in battery monitor alerts the
user when the 9V battery needs to be replaced. Replace product
immediately if sensor or power cable becomes damaged or
severed.
NightEye® enabled devices come equipped with wireless internet
connectivity. These devices can connect to your wireless network,
by means of an Android® or iOS® device, and send notifications
aboutyour systemin realtime.This systemprovides peaceof mind
about the status of your pump system even when you are not
home.
All of the alarms come standard with Liberty Pumps 360° red alarm
beacon powered by super-bright LEDs. In combination with the
86 dB(at 10 ft/3 m)alarm siren, thealarmis sureto alert occupants
of any high-water condition.
Each device is specifically designed for use in an indoor residential
wastewater application. The system comes with liquid level sensor
that conforms to the needs of the intended application. The sensor
types are as follows:
•Snap-on enclosed float for Sump Pump Applications:
ALM-P1, ALM-P1-EYE, SJ10A, SJ10A-EYE
•Tethered float for Sewage Pump Applications:
ALM-2, ALM-2-1, ALM-2-EYE, ALM-2-1-EYE
•Water puck for Puddle Sensing:
ALM-PK, ALM-PK-EYE
To install up to three sensors, use Liberty Pumps alarm connector
splitter (sold separately, kit #K001633). A maximumof 2 pucks can
be used on a single alarm. Acceptable configurations: 3 floats; 2
floats and 1 puck; or 1 float and 2 pucks.
This safety alert symbol is used in the manual
and on the pump to alert of potential risk for
serious injury or death.
This safety alert symbol identifies risk of
electric shock. It is accompanied with an
instructionintendedto minimizepotentialrisk
of electric shock.
This safety alert symbol identifies risk of fire.
Itisaccompaniedwithaninstructionintended
to minimize potential risk of fire.
This safety alert symbol identifies risk of
serious injury or death. It is accompanied
with an instruction intended to minimize
potential risk of injury or death.
Warns of hazards which if not avoided will
result in serious injury or death.
Warns of hazards which if not avoided could
result in serious injury or death.
Warns of hazards which if not avoided could
result in minor or moderate injury.
Signals an important instruction related to the
pump. Failure to follow these instructions
could result in pump failure or property
damage.
Read every supplied manual before using
pump system. Follow all the safety instructions
in manual(s) and on the pump. Failure to do so
could result in serious injury or death.
RISK OF ELECTRIC SHOCK
RISK OF FIRE
These devices are not for use outdoors, not even when
placed in a secondary enclosure.

2138000H Copyright © Liberty Pumps, Inc. 2023 All rights reserved. 3 | EN
Installation
Do not install this alarm system outdoors. The system is rated
for indoor use only.
Enclosure Installation
1. Select an indoor mounting location for the alarm unit. Liberty
Pumps recommends a location between 48 in (1.2 m) and
66 in (1.7 m) above floor level.

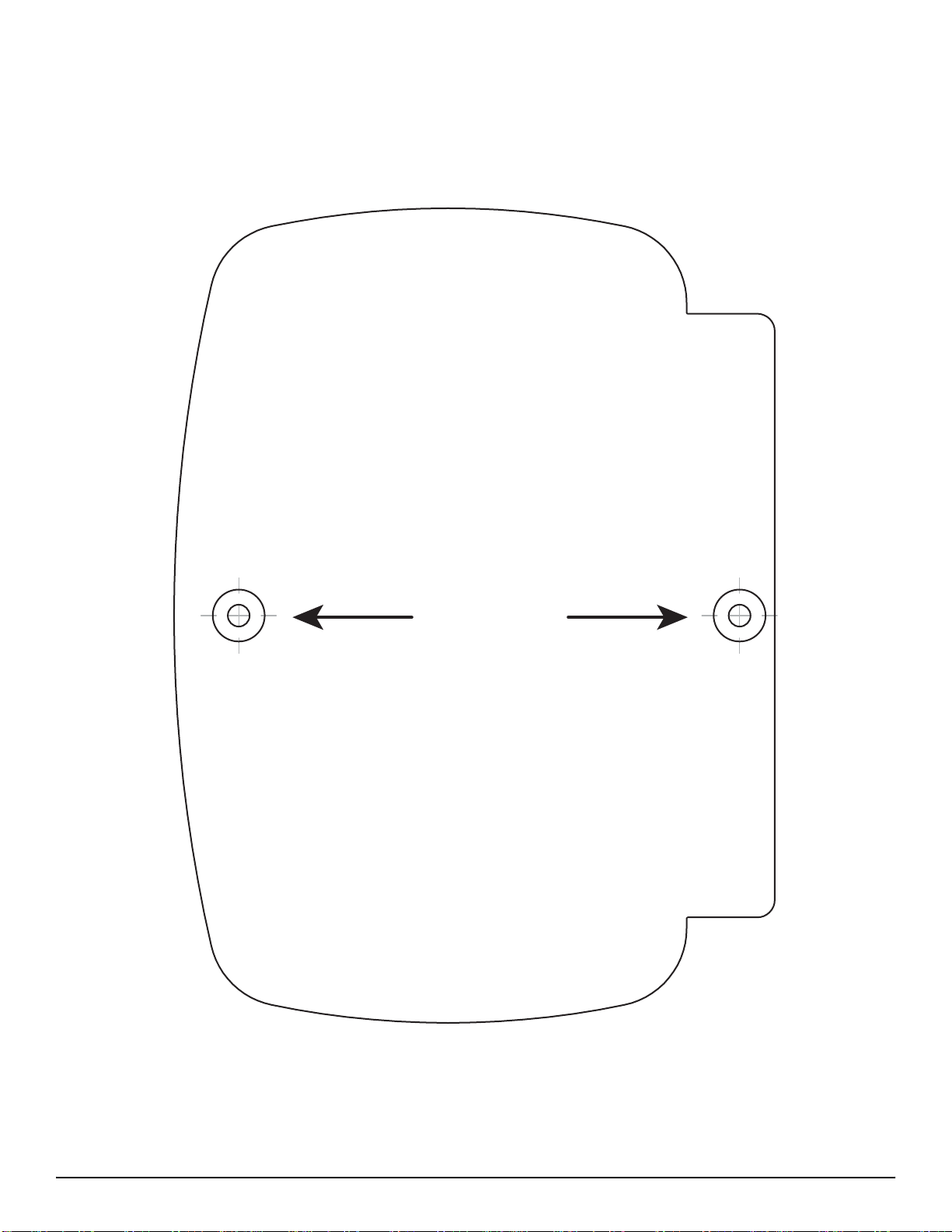

2. Using the supplied template on the rear cover of this manual,
mark screw locations on the mounting surface.
3. If the screw locations are not directly over a wall stud, or the
alarm will be mounted to a masonry wall, the use of the
supplied anchors is recommended. A 3/16” (5 mm) hole must
be drilled before inserting the anchor into the wall.
4. Mount the alarm enclosure to the wall using the supplied
anchors and screws as applicable.
Alarm Float Adapter
Alarm float adapters cannot be used with puddle sensors.
Do not cut the connector off a puddle sensor andwireit to the
float adapter. The sensor uses three wires for communication
and the float adapter has only two terminal blocks.
If your system already has an alarm
float installed, and you do not want
to replace it with the float included
with your Liberty Pumps ALM-Series
product, you can use the included terminal block adapter.
1. Turn both screws in the float adapter counterclockwise, until
the conductor receptacles are fully open.
2. Insert the float conductors into the float adapter, one
conductor per receptacle. Polarity does not matter.
3. Tighten the screws in the float adapter until they bottom out.
4. Insert the float adapter into the connector on your Liberty
Pumps ALM-Series alarm.
Sensor Installation
Sewage Pump Sensor
1. Place the float switch cord
into the clamp as shown.
2. Locate the clamp at the
desired activation level and
secure the clamp to the
pump discharge pipe.
Note: Do not install cord under hose clamp.
3. Tighten the hose clamp using a screwdriver. Over-tightening
may result in damage to the plastic clamp. Make sure the float
cable is not allowed to touch the excess hose clamp band
during operation.
Note: All hose clamp components are made of 18-8 stainless
steel. See your Liberty Pumps distributor for replacements.
4. Route the sensor cable out of the sewage pit and connect it to
the bottom of the alarm enclosure ensuring it does not
interfere with the operation of the primary pump’s float.
Sump Pump Sensor
1. Remove sump pump sensor from
packaging.
2. Apply a small amount of glue to the
inside of the snap feature of the sensor.
Note: Over-gluing the sensor will make
future removal very difficult.
3. Snap sensor over the discharge pipe of
your sump pump as shown.
4. Route the sensor cable out of the sump
pit and connect it to the bottom of the
alarm enclosure as shown in Figure 1.
Water Puddle Sensor
Do not cut the connectoroff a puddle sensor and wire it to the
float adapter. The sensor uses three wires for communication
and the float adapter has only two terminal blocks.
1. Remove the puddle sensor from its packaging.
2. Place sensor in the location susceptible to water intrusion or
buildup (example: under hot water heater, near laundry sink,
near problematic foundation wall, etc.).
3. Route water puck cable such that it will not pose a tripping
hazard.
4. Plug water puck cable into the ALM sensor connector.
5. Test water puck for operation by setting it in a small puddle or
by holding a damp towel on its bottom surface.
Connect Power
1. Connect the supplied power adapter to the alarm unit as
shown. Plug the power adapter into the wall receptacle and
verify that the green “power” indicator illuminates.
2. Install the 9V battery as shown. Paying attention to polarity,
the battery should gently push into place and latch on the
ledge at the bottom of the battery chamber.
Note: A 9V battery must be installed in the device at all times
to ensure proper operation.
Figure 1. Connection Locations on Bottom of Alarm Unit
Figure 2. 9V Battery Installation with Tray
RISK OF ELECTRIC SHOCK
3.5 inch (9 cm)
tether length
Auxiliary contacts
Sensor connector
9V batter
y
slotPower connector
Mid-December 2020
manufacture date
and newer

4 | EN Copyright © Liberty Pumps, Inc. 2023 All rights reserved. 2138000H
NightEye Configuration
Ifthedeviceis NightEye enabled, downloadthe NightEye appfrom
the Apple® App or Google® Play store. Follow the directions
provided in the NightEye app to configure the device.
Alarm Testing

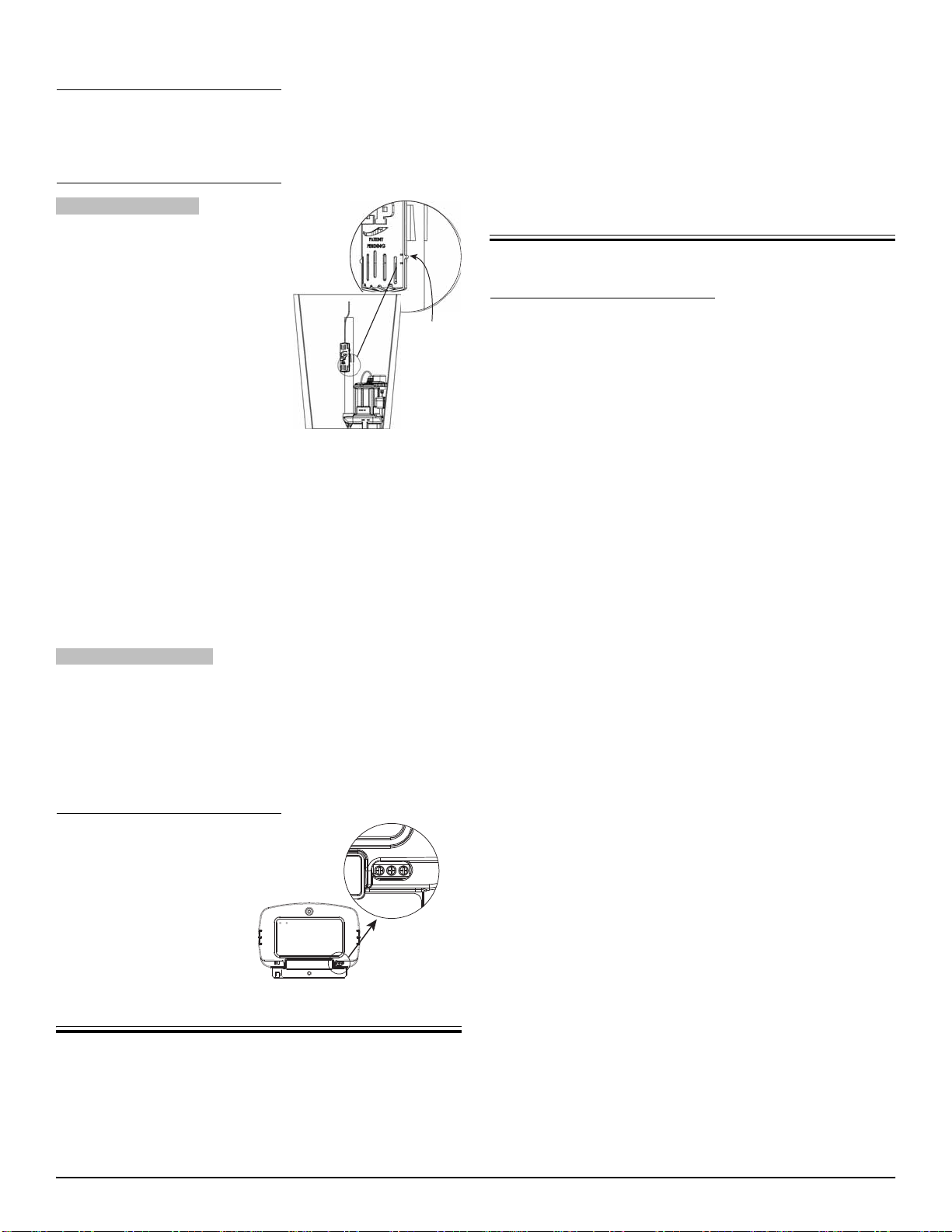

Sump Pump Sensor
This switch is a self-contained unit.
The internal float may not be visible
from the outside of the switch
housing. The switch should be placed
such that the activation point (the
bump on the right) is slightly higher
than the pump activation point.
1. In order to test the proper
operation of the float switch, we
recommend raising the water
level in your sump pit above its
normaloperatinglevel.Whenthe
water level reaches the lowest
mark on the side of the float housing, the alarm will activate.
Alternately, a cup of water can be used to confirm float
operation. Raise the cup of water up to the float, and
submerse the float past the bump on the right. This will
trigger the alarm.
2. Once alarm begins to sound, it will continue to sound until the
waterlevelis lowered. Theaudible alarm can besilencedusing
the Silence button on the front of the device. The alarm will
stay silenced for 6 hours after the Silence button is pressed.
3. Once testing is complete, lower the water level in the pit back
to its normal range.
Sewage Pump Sensor
1. Manually tip the float up.
2. Once alarm begins to sound, it will continue to sound until the
float is tipped down. The audible alarm can be silenced using
the Silence button on the front of the device. The alarm will
stay silenced for 6 hours after the Silence button is pressed.
3. Lower the float back to its resting position to reset the alarm.
Auxiliary Contacts
This device comes equipped
with auxiliary contacts. These
contacts can be used to
integrate the output of this
alarm with an existing home
monitoring system.
Contact Rating: Class 2,
24 VDC/VAC (50/60 HZ)
500 mA maximum.
Operation and Maintenance
Once the alarm unit has been configured and tested, it is ready for
operation.
In the event that an alarm condition is detectedby the system, the
audible and visual alarms will activate. The automatic reset feature
of the alarm will turn the audible and visual alarms off once the
condition has been corrected.
The following is a list of regular maintenance tasks:
1. Test the alarm system every 6 months.Follow the procedure
outlined in Alarm Testing.
2. When the 9V battery is low, the alarm will emit a short chirp
about twice per minute. The 9V battery should be replaced
any time the yellow “low battery” indicator on the alarm unit is
lit or every 12 months.
Warranty
Liberty Pumps Wholesale Products Limited
Warranty
Liberty Pumps, Inc. warrants that Liberty Pumps wholesale
products are free from all factory defects in material and
workmanship for a period of three (3) years from the date of
purchase (excluding* batteries and “Commercial Series” models).
The date of purchase shall be determined by a dated sales receipt
noting the model and serial number of the pump. The dated sales
receipt must accompany the returned pump if the date of return is
more than three years from thedate of manufacture noted on the
pump nameplate.
The manufacturer's sole obligation under this Warranty shall be
limited to the repair or replacement of any parts found by the
manufacturer to be defective, provided the part or assembly is
returned freight prepaid to the manufacturer or its authorized
service center, and provided that none of the following
warranty-voiding characteristics are evident:
The manufacturer shall not be liable under this Warranty if the
product has not been properly installed, operated, or maintained
per manufacturer instructions; if it has been disassembled,
modified, abused, or tampered with; if the electrical cord has been
cut, damaged, or spliced; if the pump discharge has been reduced
in size; if the pump has been used in water temperatures above
the advertised rating; if the pump has been used in water
containing sand, lime, cement, gravel, or other abrasives; if the
product has been used to pump chemicals, grease, or
hydrocarbons; if a non-submersible motor has been subjected to
moisture; or if the label bearing the model and serial number has
been removed.
Liberty Pumps, Inc. shall not be liable for any loss, damage, or
expenses resulting from installation or use of its products, or for
indirect, incidental, and consequential damages, including costs of
removal, reinstallation or transportation.
There is no other express warranty. All implied warranties,
including those of merchantability and fitness for a particular
purpose, are limited to three years from the date of purchase.
This Warranty contains the exclusive remedy of the purchaser,
and, where permitted, liability for consequential or incidental
damages under any and all warranties are excluded.
*Liberty Pumps, Inc. warrants StormCell®batteries for 1 year from
date of purchase, and warrants that pumps of its Commercial
Series are free from all factory defects in material and
workmanship for a period of 18 months from the date of
installation or 24 months from the date of manufacture,
whichever occurs first, and provided that such products are used
in compliance with their intended applications as set forth in the
technical specifications and manuals.
alarm
float
“on”
location
1–2–3
1: Normally Open
2: Common
3: No Connection

2138000H Copyright © Liberty Pumps, Inc. 2023 All rights reserved. Todos los derechos reservados. Tous les droits sont réservés.
This page intentionally left blank.
Esta página se dejó en blanco intencionalmente.
Cette page a été laissée vide intentionnellement.

Copyright © Liberty Pumps, Inc. 2023 All rights reserved. Todos los derechos reservados. Tous les droits sont réservés. 2138000H
Mounting Hole Locations
Ubicaciones de orificios de montaje
Emplacements des trous de montage
