Liberty 36v User manual

1
Liberty 530
Liberty 36v Street Bike
Thank you for your decision to buy this product.
Please use this product according to the instructions.
Please keep the instructions in a handy place.
Liberty 530 Electric Street Bike
36 Volt/10 ah Pb
.
User Manual

2
Introduction
Dear Customer,
Wow! You are excited! You have just received your brand new ebike. We, too, are excited because as designers and developers of our
bikes, we love to make you happy, and we believe your new ebike will give you lots of fun. I know you want to get this bike on the
road immediately, but please STOP!
Why? Well, first of all, you need to charge your batteries fully before using them. So, while your ebike is charging, take the time to
read this manual. We have worked hard to make it as readable as possible. This manual will help prevent injury and teach you how to
care for your new ebike.
It is the owner’s responsibility to carefully read all of the contents of this manual and to comply with all laws pertaining to the
operation of bicycles and/or electric bicycles in your local jurisdiction. If you have any questions, please consult with the laws web
page on www.iloveEbikes.com or consult your local department of motor vehicles for clarification.
These electric bikes are not classified as motor vehicles, however, to drive them on the roads various states have differing laws.
We have worked hard to provide you a quality, well-designed product without defects. That is our responsibility. You, too, have a
part to play. With proper care, maintenance and attention to bicycle safety rules, your ebike will give you years of enjoyment.
Please read the instructions carefully before using your ebike. Do not ride this bicycle until you have read and thoroughly
understand the owner’s manual. It contains information critical to your safety. If you have questions about the operation of this electric
bicycle, consult your authorized dealer. It is extremely important that you follow the safety guidelines contained in this manual in
order to ensure your maximum safety. If you loan your bike to anyone, make sure they also know how to operate it safely.
When using, the load should not be greater than the maximum capacity, and please pay attention to increase the braking distance
during rainy or snowy days.
This ebike can operate in the rain and snow, but it CANNOT be submerged in water. When the motor is submerged in water, it
may short circuit and fail, which is NOT covered by the warranty.
Please don't dismantle and repair the spare parts by yourself, but go to the local dealer.
Please take time to record the following information:
Recording Your Ebike Info
Serial
Number: _______________________________________________________
Model: _______________________________________________________
Color: _______________________________________________________
Date of
Purchase: _______________________________________________________
Dealer’s Name: _______________________________________________________
Dealer’s Ph. #: _______________________________________________________
Dealer’s Email: _______________________________________________________
.
Serial Number Location

3
Important Instructions
Safeguard your battery to insure continued high performance. It should be recharged after each use. The normal full-cycle battery
life, if it is continuously discharged and recharged, is between 300–1000 cycles (depending on which battery came with your bike)
after which the storage capacity of the battery will gradually decline.
CAUTION! Fully charge the batteries before the first use!
Failure to do this can result in decreased battery performance for the life of the bike. Fully charge the battery each time you use the
bike.
Battery performance is affected by the temperature and is generally better in warm temperatures. When the temperature is below
32º F (0º C), the battery current may decrease by a third. Consequently, the travel range on a full charge in cold environments is much
less, but will return to normal when the temperature is back to room temperature.
Frequent stopping and starting, riding uphill, traveling against a strong wind, starting from a standstill, riding on rough or muddy
roads, and carrying more than one person or heavy loads will consume extra battery power and shorten the range. A few tips to
prolong the battery life during these conditions is as follows:
Frequent braking – try to look ahead and coast rather than frequently stopping and starting.
Riding uphill or against a stiff wind – pedal to supplement the battery power.
When starting from a standstill, use the pedals to help bring you up to speed.
When the battery meter indicates the voltage is low, switch to manual power and avoid using the battery, so you don’t
shorten the battery life.
To prevent premature failure of your battery and for your warranty to remain in effect on your battery, YOU MUST CHARGE
AND DISCHARGE THE BATTERY AT LEAST ONCE PER MONTH.
Always turn off the motor and remove the key from the ignition before and during charging to
prevent serious damage to the controller and to the batteries!
This electric bicycle can be used in the rain, however, the motor and other electrical parts must not be submerged in water.
The controller, motor and other electrical devices may be short circuited causing damage, which is NOT covered by warranty, and
creating possible dangerous situations.
DO NOT use chargers or other components other than that which has been approved
and tested by this company. This company is not responsible for damages caused by the use of other
products not specifically designed and tested for use with this electric bike.
Battery chargers contain sensitive electronics. Improper use, dropping, or sudden jolts can damage the charger and its internal
electronics which is NOT covered by warranty. Do not leave the charger on for more than 10 hours!
Check all nuts, bolts, screws, and spokes to make sure they are tight before riding. If any screws, nuts, or bolts are loose, put some
thread lock on the threads and then tighten.
When riding down hill, you MUST have the key on even if you are NOT using the
throttle and even if the battery is not in the bike. The motor will generate enough
electricity to RUIN your controller which is NOT covered by warranty.
.

4
Table of Contents
...............................................................................................................Introduction 2
...............................................................................................Important Instructions 3
......................................................................................................Table of Contents 4
.....................................................................................................Safety Precautions 5
.................................................................................General Operating Instructions 6
...................................................................................................Battery Precautions 7
.................................................................................Specific Operating Instructions 8
..............................................................................................................Maintenance 9
........................................................................................................Troubleshooting 10
...................................................................................................................Warranty 11
.......................................................................................Federal Electric Bike Law 12
.

5
Safety Precautions
• Before operating your bicycle, inspect it carefully to avoid accidents or damage.
• Do not drive close to other vehicles.
• ALWAYS keep the power switched OFF until you are seated on the bike and ready to ride.
Turning the power on and then accidentally twisting the throttle can result in the bike
lurching forward and may cause an accident, damage, or injury.
• NEVER attempt to disassemble the motor, battery, controller or throttle. This can result in
injury, fire, or damage to the bike.
• ONLY use the charger supplied with your bike to charge the battery. Using the improper
charger can result in fire or explosion.
• KEEP the batteries out of the reach of children.
• Obey all traffic laws relevant to the operation of bicycles and electric bicycles.
• Use the turn signals (if equipped) or hand signals at all times when making turns.
• KEEP both hands on the handlebars at all times.
• DO NOT hang objects on or under the handlebars.
• DO NOT brake suddenly in the rain or on slippery, wet surfaces.
• USE extreme caution when riding near other vehicles. Assume they do not see you, and be
careful at intersections and when starting from a stopped position.
• When cleaning your electric bike, do not use a steady direct stream of water from a hose. Use
a cloth to avoid short-circuiting any electrical components. Your electric bike has a durable
finish and does not need to be waxed. Clean with a mild detergent and buff to restore its
original shine.
• Please wear a safety helmet and glasses for your own protection whenever riding.
• Wear bright clothing to help make you visible to other motor vehicles.
•Do not wear loose clothing that can become caught on the bicycle.
•Do not leave the charge connected to the battery for more than 10 hours.
.

6
General Operating Instructions
BEFORE YOU RIDE
1. Charge your battery until the green indicator light on the charger comes on, but do not allow it to charge more
than 10 hours.
2. Check the air pressure of the tires. Make sure they are at the recommended psi embossed on the sidewall of
the tire.
3. Check the front and back brakes, and the condition of the front and back wheels, handlebar, and saddle. Make
sure they are tight and fastened. Make sure all quick releases are locked and secure and that all parts are in
good working order. Inspect your bike completely.
4. If it was removed, install the charged battery in the battery seat of bike and lock it.
5. Raise the kickstand.
6. Sit on the bike and turn the bike on. The power lights/meter should show your battery capacity.
7. Pedaling or using the throttle on the right hand will begin to accelerate the bike.
ATTENTION: After the power is on, if the rider twists the throttle the bike will lurch forward! Do not
turn the power on until you are ready to go.
The hand brake will automatically cut the power to the motor as also will releasing the throttle. While starting
or climbing a hill, pedal as much as possible, so that the electric power will not be drained too much. At the
same time, it can lengthen the life of the battery and motor.
ATTENTION: When riding down hills, do not turn off the power, otherwise the controller and motor will
be easily damaged which is NOT covered under warranty.
While running, if the battery power is getting low, the battery meter will lessen. At this time you should pedal
your ebike like a regular bike and charge the battery as soon as you get to an electrical outlet. Turn off the
power and remove the key while parking. If you decide to push your bike for any reason, make sure to turn the
power off, so you don’t accidentally turn the throttle making the electric bicycle start suddenly and cause an
accident. To help get the best distance out of your electric bike, refrain from a lot of braking and coast as much
as possible.
Battery Charging
It is important that you charge your batteries after every use. This
will extend the total life of your battery. Once the charger has
indicated that your battery is fully charged, the green light will
come on. Unplug the power source from the bicycle and the
electrical outlet and store in a cool, dry place. Do not leave the
charger plugged into the battery for long periods of time as this can
damage the battery.
1. Turn the key to OFF and remove the key.
2. Insert plug of the charger into charging port of the battery box.
You can charge your battery while still in the bike or you can
.
Charging Port

7
take it out of the bike and charge where it is most convenient.
3. Insert the charger into the wall outlet. Do not plug charger into outlet until you first plug the charger
into the battery charging port. A red light will come on. It can take up to 8 hours to recharge the battery
completely. On most chargers, a green light will appear when it is fully charged.
4. When the light turns from red to green, it indicates that the battery is full. If possible, charge for an
additional 2-3 more hours to fully balance the battery.
After the green light comes on, the charger is in trickle charge mode. If you will be gone for many hours,
you should unplug the charger. This is especially true in hot weather. Avoid overcharging and damaging the
battery. The charger will become warm during charging, so keep charger away from any flammable materials.
You can also charge the battery when it is removed from the bicycle. This is especially convenient during cold
nights or when your bike is not parked near an electrical outlet. Because specifications of the charger may
change in the process of production, please read the information on the charger itself or the charger manual (if
included) in detail before using. Always charge the bike in a dry and clean place. Keep the charger dry and
clean.
Battery Precautions
•Do not touch the two poles of the battery with your hands when the battery is removed for charging. Also, the two battery poles
should not be touched with any metal or other material that conducts electricity.
•While charging, put the battery in a secure place where children can't reach.
•Do not use any charger other than the one that came with your Liberty Electric Bike. If you need another charger, contact your
local dealer.
•Do not attempt to open or repair your charger. The electronics contain high-pressure circuits, so don’t dismantle by yourself.
•Prevent liquids, metal and metal filings from permeating the charger, and be careful to not drop or hit the charger which could
cause damage.
•Do not put anything on top of the charger while charging. It must be well-ventilated to allow all the heat generated to dissipate.
•When charging, if there is a peculiar smell or the temperature is too high, please stop charging immediately.
•To prevent premature failure of your battery and for your warranty to remain in effect on your battery, YOU MUST CHARGE
AND DISCHARGE THE BATTERY AT LEAST ONCE PER MONTH. Do NOT use in the battery in a very low state.
•The charger will produce heat up to 185°F (85°C) in the course of using, so keep it away from flammable articles while using.
•It is normal that the mileage capacity will reduce as a result of low temperatures.
•While carrying the charger, DO NOT bump, drop, or damage, otherwise it may result in failure.
•Avoid any contact with water when charging your battery. If a plug or socket gets wet, dry it completely before using.
•Do not leave the charger connected to the battery and the outlet for more than 10 hours.
•Always use the charger according to the instructions.
Removing the Battery from the Bike
•Loosen the quick-release from the seat and
lift seat from the seat post.
•Turn key to release the locking pin.
•Lift handle on top of the battery and slide out
battery from its position in the bike.
.
Removing Battery
Unlocking Battery

8
Specific Operating Instructions

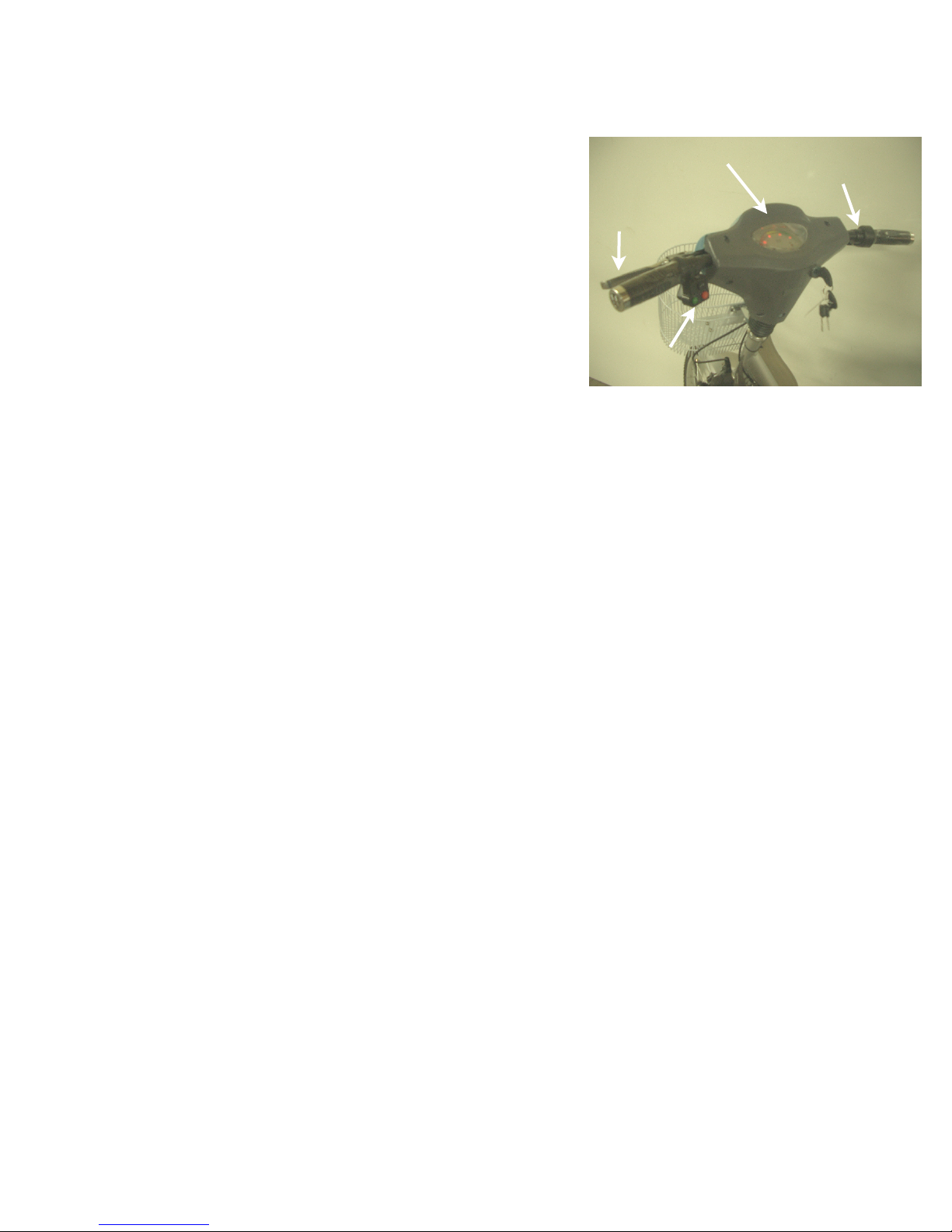

Your bike has a KEY switch on the cowling of the handlebars with
an ON/OFF position (see picture at right). A battery meter is located
on the top of the battery which shows the charge if you press the
button next to the battery meter.
To ride your bike your key switch needs to be ON. Once it is on,
your handlebar battery meter will light up so you can see how much
charge is in your battery. Always make sure it is at full charge when
you begin to ride your bike.
The light switch and turn signal switch is located on the left
handlebar. Press the red button to turn the headlight ON or OFF.
Press L or R for the left and right turn signal.
On the right handlebar is the throttle. You can start your bike by pedaling or by twisting the throttle. As you
pedal, the motor will automatically help you if the key switch is in the ON position on the battery.
Take note that the rear brake lever is on the left of the handlebar, and the front brake lever is on the right
handlebar.
.
Battery Meter
Throttle
Light Switch
Rear Brake
Lever
Key Switch
Front Brake
Lever

9
MAINTENANCE
Wheels: Wheels should be properly placed in the fork or dropouts. If you hear any irregular noise from the
wheels or brakes, they should be checked and adjusted. The wheels should rotate smoothly without wobbling
from side to side. Check the bearing play of the hubs regularly by lifting the bicycle and spinning the wheel.
It should continue to spin for several turns after you stop spinning the wheel. The motorized wheel will NOT
spin as freely as the non-motorized wheel. To check the play of the hubs, try to move the rim from side to
side between the forks. No substantial play should exist. If you detect play or if the wheel is difficult to turn,
please contact your local dealer or your local bike shop to have it serviced.
Rims: The rims should be smooth and without cracks, breaks or bulges.
Spokes: If your bike has spokes, check their tension regularly. About the same tension should be on all the
spokes. If there is some minor loosening of the spokes, you may tighten the nipples, but it is recommended
that you take it to a bicycle mechanic for proper adjustment. If there is a loose spoke or if the rim has side
play of more than 1/8” (4mm), immediately have the wheel trued by a bicycle mechanic. DO NOT RIDE
WITH LOOSE SPOKES! Riding with loose spokes may cause the wheel to fail.
Tires: Inflate your tires to the pressure embossed on the sidewall. Every time you ride, make sure the tires are
properly inflated. Improper tire pressure will make riding more difficult, cause excessive wear, and cause
premature failure of the tires. The tires should be properly seated in the rim and the fitting of the tire beads
and rim beads should be checked. If the tube is pinched between the rim and the tire, it will fail when
inflated. Make sure that the tires are not cracked or worn unevenly. Check for bulges. Check and make sure
that the valve stem is straight in the rim. Irregular tires should be replaced immediately.
Handlebar and Display: We have created the handlebar display so that you can easily see it while riding. To
straighten the handlebars, turn the stem binder bolt to loosen it and straighten the handlebars so they are
aligned properly with the front wheel and tighten. Loose or damaged grips on your handlebars are
dangerous! If your grip comes off, you could lose control of your bicycle. Replace as needed.
Brakes: Riding with brakes that are worn or damaged or with worn cables or wheels in poor condition may
result in losing control of your bicycle. Wet weather may hinder the brake performance. You need more
distance to safely stop in the rain or on a wet or icy street. Before each ride, check to make sure your brake
cables are free of obstacles and are adjusted and working properly.
Batteries/Fuses: Your batteries are in a protective case with a handle to enable you to easily take these on and
off your bike. There is a locking key to lock the batteries on your bike to discourage theft. Do not attempt to
open your battery box without first contacting your dealer. This WILL void your warranty. If you suspect
your battery is not working properly, you can test it with an inexpensive voltage meter. If you get a “zero”
voltage reading, then check and replace your fuse. (Check the pages of this manual that are specific for your
battery.) If this doesn’t fix the issue, then contact your local dealer.
Chain: Lubricate the chain with oil every three months to ensure it stays free of rust as well as every time that
it is ridden in wet weather.
.

10
Troubleshooting
Problem
Solution
A. You turn the power on, the
indicator lights are all on, but
with throttle or pedal assist, the
ebike doesn’t work.
1. Your controller needs to be replaced, or
2. Your motor needs to be replaced.
B. You turn the power on, the
indicator lights are all on, bike
works with throttle, but not with
pedal assist.
1. Your controller needs to be replaced, or
2. Your pedal assist module needs to be replaced, or
3. Your motor needs to be replaced.
C. You turn the power on, the
indicator lights are all on, bike
works with pedal assist, but not
with throttle.
1. Your controller needs to be replaced, or
2. Your throttle needs to be replaced, or
3. Your motor needs to be replaced.
D. You turn the power on, then
twist the throttle, but the ebike
doesn’t work.
1. Check your battery to see if it needs to be charged, or
2. Your fuse needs to be replaced, or
3. Your controller needs to be replaced, or
4. Your motor needs to be replaced.
E. The switch is turned on, and the
ebike takes off without using the
throttle.
1. Check whether the throttle is stuck in the on position.
2. Lubricate or replace the throttle if it is faulty.
F. After stopping, the ebike doesn’t
start when the throttle is twisted.
1. Check whether the brake handles are fully released.
2. Check A., B., and C. above.
G. The speed is unusually slow.
1. Make sure throttle is operating correctly.
2. Check to see if the battery is fully charged.
3. Make sure speed limiter is not connected.
H. You connect the power to the
charger, but the indicator light
does not come on.
1. Check whether there is electricity to the charger.
2. If you have a voltage meter, you can check to see if the
charger produces the correct current.
I. You plug in the charger to the
ebike and the outlet, and the
green light comes on instead of
the red light. This means it isn’t
charging.
1. Check to see if the batteries are fully charged.
2. Check whether the charger is plugged in properly to
both the battery and the outlet.
3. Check the voltage of the charger and battery.
4. If “zero” voltage on the charger, then it needs to be
replaced.
5. If “zero” voltage from the battery, then check the fuse.
If all above mentioned situations are normal, then there is some other problem.
Please call your local Liberty ebike dealer.
If all above mentioned situations are normal, then there is some other problem.
Please call your local Liberty ebike dealer.
.

11
Warranty
With normal care and recommended maintenance, this electric bicycle is warranted to be free of
defects in materials and workmanship for the following period of time:
3 months – electronic controller, charger, and throttle
6 months – hub motor and battery
1 year – frame.
We will repair or replace, at our option, any product or part that is defective in material or
workmanship without charge if the product is presented to us at our authorized Liberty Electric
Bike Service Center at 1-800-806-7109 with dated proof of purchase inside of warranty period.
Shipping charges are not covered under this warranty.
This limited warranty does not cover the normal wear of items such as tires, brakes, chains, and
other items. All implied warranties are limited to the stated time period.
Liberty Seamless Enterprises, Inc., Liberty Electric Bike Company, and any of its subsidiaries
will not be liable for any incidental or consequential damages.
This limited warranty gives you specific legal rights, and you may have other rights from state
to state.
This warranty applies to normal consumer use of the product. Use in a rental fleet, commercial
setting, or government fleet will void this warranty. Inappropriate use such as trick riding,
abusive riding, or offroad riding will void the warranty as well as violating the instructions in
this manual.
.

12
.
