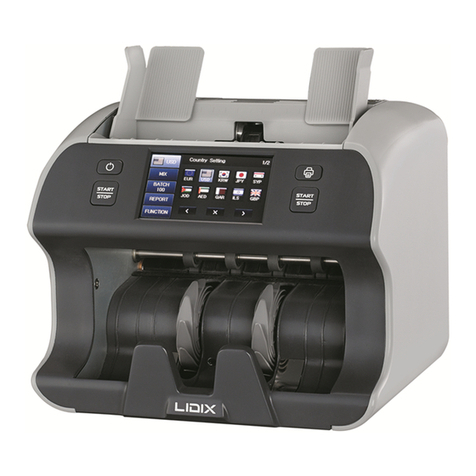

Lidix ML Series User manual

ML-Series
User’s Manual
(USA ONLY)

ML-Series User’s Manual
Contents
1. Safety Information 3
2. Operating Environment 4, 5
3. Installation / Moving 6
4. Maintenance / Checking 7
5. Machine Overview 8
6. Operation Panel Overview 9
7. Basic Operation 12
8. Counting Mode 13
9. User Setting 14
10. Daily Cleaning 20
11. Accessories & Option, Specification 21

ML-Series User’s Manual
Safety Information
3
These warnings and precautions are included in order to prevent injury to you and others, as well as preventing any potential damage to your machine.
Be sure to read and understand all of these instructions before using the machine.
Use common sense for operating any electrical appliance and whenever using your machine. Also, follow all warnings and instructions marked on the
machine and in the accompanying literature.
Important safety symbols
This section explains the meanings of all icons and signs in the user’ guide. These safety symbols are in order, according to the degree of danger.
Warning : Hazards or unsafe practices that may result in severe personal injury.
Caution : Hazards or unsafe practices that may result in severe personal injury.
Do not attempt
Do not touch.
Do not disassemble.
Make sure the machine is grounded to prevent electric shock.
The power plug be pulled out before taking necessary action.
Follow directions explicitly.
Explanation of all icons and signs used in the user’s guide :

ML-Series User’s Manual
4
Operating Environment
Warning
Do not use if the power cord is damaged or if the electrical outlet is not grounded.
►This could result in electric shock or fire.
Do not place anything on top of the machine (water, small metal or heavy objects, etc.).
►This could result in electric shock or fire.
Do not bend, or place heavy objects on the power cord.
►This could result in electric shock or fire.
Do not remove the plug by pulling on the cord; do not handle the plug with wet hands.
►This could result in electric shock or fire.
If the machine gets overheated, it releases smoke, makes strange noises, or generates an odd odor,
immediately turn off the power switch and unplug the machine.
►This could result in electric shock or fire.
Never operate the machine without the protective cover. The reflected beam, although invisible, can
damage your eyes.
►
When using this product, these basic safety precautions should always be followed to reduce risk of
fire, electric shock, and injury to persons.

ML-Series User’s Manual
5
Operating Environment
Caution
Be careful not to put your hand, hairs and clothes(including tie) when handling machine.
Do not forcefully pull the note out during counting.
►It can cause damage to the machine.
Be care when removing jammed notes.
►You may get injured.
Make sure the machine stops completely before opening the covers of the machine.
►Otherwise, there is a risk of an injury.
Do not disassemble the machine except having been instructed in the user manual.
►It can damage the machine.
When removing jammed paper, do not use tweezers or sharp metal objects.
►It can damage the machine.
During an electrical storm or for a period of non-operation, remove the power plug from the electrical
outlet.
►This could result in electric shock or fire.

ML-Series User’s Manual
6
Installation / Moving
Caution
Before moving the machine, turn the power off and disconnect the cord.
Make sure lift the machine using both hands.
►The machine could fall, causing injury or machine damage.
Do not place the machine on an unstable surface.
Make sure you plug the power cord into a grounded electrical outlet.
►Otherwise, this could result in electric shock or fire.
Do not overload wall outlets and extension cords.
►This can diminish performance, and could result in electric shock or fire.
Risk of explosion, if battery is replaced by an incorrect type
Dispose of used batteries according to the instructions

ML-Series User’s Manual
7
Maintenance / Checking
Caution
Unplug this product from the wall outlet before cleaning the inside of the machine. Do not clean the
machine with benzene, paint thinner or alcohol; do not spray water directly into the machine.
►This could result in electric shock or fire.
When cleaning the machines, use dry cloth or cloth moistened with water. Do not pour the water onto
machine.
►It can cause damage to the machine.
When you are working inside the machine replacing supplies or cleaning the inside, do not operate the
machine.
►You could get injured.
Do not use air spray which contains flammable gas for cleaning.
►It may cause failure or a fire.
Do not disassemble, repair or rebuild the machine by yourself.
►It can damage the machine. Call a certified technician when the machine needs repairing.
Keep the power cable and the contact surface of the plug clean from dust or water.
►Otherwise, this could result in electric shock or fire.
Do not remove any covers or guards that are fastened with screws.
Fuse replacement should only be repaired by a certified service technician. Repair by non-certified
technicians could result in fire or electric shock.

ML-Series User’s Manual
8
Machine Overview
1
7
8
2
3
4
5
9
13
14
11
610
12
1
Hopper Guide
8 Lower Cover
2 Display Case
9 Thickness Dial
3 Touch LCD
10 Upper Rear Cover
4 LU Front
Cover
11 Interface Connector
5 Stacker
12 Power Switch
6 Hopper
13 Lower Rear Cover
7 Upper Cover
14
Inlet

ML-Series User’s Manual
9
Operation Panel Overview
Indicator Area
Model: ML-2V Model: ML-2F
Counting Result Area
Mode Setting Area

ML-Series User’s Manual
10
Operation Panel Overview
NO
ICON FUNCTION
NO
ICON FUNCTION
1
Selecting
the currency 6
Checking
the Summary. (Error List, Detail, Serial)
2
Selecting
Different Count Mode.
(Mix,
PreSort, SP, DIR, Unfit, Serial, ATM, Fit)
(Depending
on the software, some modes may not work) 7
User
Mode
3
Selecting
Batch Number 8
Service Mode
4
Accumulating all Counted Notes.
9
Providing
the countermeasures for errors.
5
Moving
to the Next Page 10
Moving
to the Previous Page
NO
KEY FUNCTION
NO
KEY FUNCTION
1
Screen Saver Function.
5
Printing
out the Denomination Information
2
Choosing
Key on the Menu between Left and Right 6
Selecting
Currency
3
Choosing
Key on the Menu between Up and Down 7
Selecting Different Count Mode
4
Counting Stop or Restart.
1. Key Configuration
2. Screen Configuration for Mode Setting Area

ML-Series User’s Manual
11
Operation Panel Overview
3. Screen Configuration for Indicator Area
NO
ICON DESCRIPTION NO ICON DESCRIPTION
1
Current
User ID 6
Icon
will be ON during the data transfer
2
Icon
will be ON when Suspicious Note is detected 7
Icon
will be ON when USB Memory Card
is
connected
3
Icon
will be ON when the Fitness Sorting Mode is ON 8
Icon
will be ON when PC is connected
4
Icon
will be shown when the ATM Sorting Mode is ON 9Icon will be ON when LAN is connected
5
Icon
will be ON when the Serial Number Printing Mode is ON 10
Time

ML-Series User’s Manual
12
Basic Operation
STEP 1. Plug the power cord into the power receptacle.
STEP 2. Turn on the Power Switch.
STEP 3. Select the Currency
STEP 4. Select a Counting Mode.
STEP 5. Adjust Hopper guide to the notes to be counted.
STEP 6. Put the notes onto the Hopper, and counting starts automatically.

ML-Series User’s Manual
13
Counting Mode
Mode Description
MIX MODE It count the all denomination of selected currency.
Presort MODE It sorts out the denomination by preselected batch setting.
(This mode will be activated only when the “Batch by Denom” setting is ON in User Setting)
SP MODE It sorts out the same denomination as first inserted note
DIR MODE
It sorts out the note depending on the front or rear side of note.
- : It sorts out the same face of notes : All denominations counting
- : It sort out the same orientation of notes : Single denomination counting
- : It sort out only the same face and orientation of notes as the first counted note
Unfit MODE It sorts out only the unfit denominations of selected currency.
(Depending on the software, this mode may not work)
ATM MODE It sorts out only the ATM fit denominations of selected currency.
(Depending on the software, this mode may not work)
Fit MODE It sorts out only the fit denominations of selected currency.
(Depending on the software, this mode may not work)
Serial MODE It prints out the serial number of denomination of selected currency
(Depending on the software, this mode may not work)

ML-Series User’s Manual
Icon Sub-Icon DESCRIPTION Sub-Icon DESCRIPTION
Start Method Counting Start Function
(Default: Automatic Start)
Start Delay Counting Start Delay Function
(Default: Normal Start)
Count Detail
Details of counting result will be
displaced in the screen
during counting
(Default: OFF)
Batch Keep Off Batch Counting Time Function
(Default: Off)
Batch by Denom
PreSort mode On/Off Function
(Default: ON)
CF Action Function when CF note is
detected in Reject Pocket
(Default: Continue Counting)
CF Sensor On/Off Each Sensor On/Off Function
(Default: Each Sensor is ON)
(It can be deactivated at Engineer Setting)
S/N & Fitness &
Auto Currency
(note/min.)
Counting Speed when S/N &
Fitness & Auto Currency
functions are used.
(Default: 1000)
Value & Count
(note/min.)
Counting Speed when Value & Counting
Currency functions are used.
(Default: 1200)
14
User Setting
1. Function

ML-Series User’s Manual
15
2. External Device
Icon Sub-Icon DESCRIPTION Sub-Icon DESCRIPTION
Baurate Printer Data Transfer Speed
Setting
(Default: 115200)
Copies Printing Copy Setting
(Default: 1 copy)
Paper Size Printer Paper Size Setting
(Default: 3-inch)
Additional Print
Option Additional Printing Option Setting
(Time & User ID)
PC Comm.
Printing in PC connected
(Default: Off)
Auto Print Auto Printing function
(Default: Off)
S/N Image S/N Printing Setting
S/N Image, OCR, S/N
Image & OCR
(Default: S/N Image)
Use Customer Display (choose between i-click (N) and FND2)
LCD
type
2
-Line FND type

ML-Series User’s Manual
16
User Setting
3-1. UI Config #1
Icon Sub-Icon DESCRIPTION Sub-Icon DESCRIPTION Sub-Icon DESCRIPTION
Alarm
Alarm Sound Setting
(Default: Bubble)
Error
Error Sound Setting
(Default: Beep)
Start Sound
Start Sound
Setting
(When turning
on
the machine)
Touch
Touch Screen Sound
Setting
(Default: Click)
Key
Key Sound Setting
(Default: Tap)
Volume
Volume Setting
ScrSaver
Screen Setting during
Screen Saver
(Default: Clock)
Timeout
Activating Screen Saver Time
(Default: after 30min)
Background
Color
Background Color
Setting
(Default: Black)
Icon Sub-Icon DESCRIPTION Sub-Icon DESCRIPTION
Date Date Setting Time Time Setting
Date Display
Format Date Display Format Setting
(Default: Year/Month/Date)
Numeric Month Numeric Month Display Setting
(Default: ON)

ML-Series User’s Manual
17
User Setting
3-3. UI Config #3
Icon Sub-Icon DESCRIPTION Sub-Icon DESCRIPTION Sub-
Icon
DESCRIPTION
TSP
Calibration Touch Screen
Calibration
(Default: Factory
Setting)
TSP
Sensitivity Touch Screen
Sensitivity Setting
(Default: Normal)
Brightness
Screen Brightness
Setting
4. Pocket Size
Icon Sub-Icon DESCRIPTION Icon DESCRIPTION
Stacker Pocket
Size Maximum Stacker
Pocket Size Setting
(Default: 250)
Reject Pocket
Size Maximum Reject
Pocket Size Setting
(Default: 50)
Icon Sub-Icon DESCRIPTION
Display Language Selecting Language of Software
(Default: English)
3-2. UI Config #2: Display Language

ML-Series User’s Manual
18
5. User ID
Icon DESCRIPTION
When Dual User function is Off
(Default is Off) Single User Identification Setting
When Dual User function is On Dual (Right and Left) User Identification Setting
(The Right User and Left User can be selected separately)
* Remarks
1. Dual User Function can be turned on and off in the Engineer Setting
2. User Identification can be added or removed from the Engineer Setting
3. Before starting counting, right or left Start Key should be pressed to identify the right user or left user
4. The current user ID will be displayed at Indicator area

ML-Series User’s Manual
19
6. Product Info
User Setting
Icon DESCRIPTION
Information of Machine’s Serial Number, Manufacturing Date
Main Hardware Version & GUI Hardware Version
Information of Main Firmware Version & GUI Firmware Version
Information of Each Currency’s Software Version &
Fitness/Serial Number PrintingAvailability
* Remarks
- After changing the User Setting, press the icon to save the new setting, otherwise the setting
will remain unchanged

ML-Series User’s Manual
20
Daily Cleaning
NO NAME
①Hopper Sensor
②UV&FL Sensor and Counter Sensor 1
③Ultrasonic Sensor (Tx)
④Ultrasonic Sensor (Rx)
⑤Lower CIS Sensor (CIS2)
⑥Upper CIS Sensor (CIS1)
⑦MG Sensor
⑧Counter Sensor 2
⑨Counter Sensor 3
⑩Counter Sensor 4
⑪Counter Sensor 5
⑫Reject Sensor
⑬Stacker Sensor
1. Turn off the machine before starting the cleaning.
2. Remove any foreign material or the dust inside of the machine and clean the sensors, which is described as below.
