Lifa Air Hydmaster 40 Operating instructions

LIFA Hydmaster 40
OPERATING AND MAINTENANCE MANUAL
LIFA Hydmaster 40
Electrically operated brushing machine for ventilation ducts, powered by a hydraulic motor
These instructions must always be available to personnel using the equipment. Please read
instructions before operating the machine. Observing the instructions carefully will guarantee many
years of trouble-free use.
IMPORTANT!
Read this manual before you operate the machine

1
Contents
LIFA Hydmaster 40 brushing machine........................................................................................2
Safety Precautions........................................................................................................................3
General Directions........................................................................................................................4
Construction and Control.............................................................................................................5
Operating Principles.....................................................................................................................6
Service and Maintenance .............................................................................................................8
Troubleshooting............................................................................................................................9
Spare parts and accessories......................................................................................................10
Warranty......................................................................................................................................12
Recycling.....................................................................................................................................12
Declaration of Conformity..........................................................................................................13
LIFAair Product Family...............................................................................................................14

2

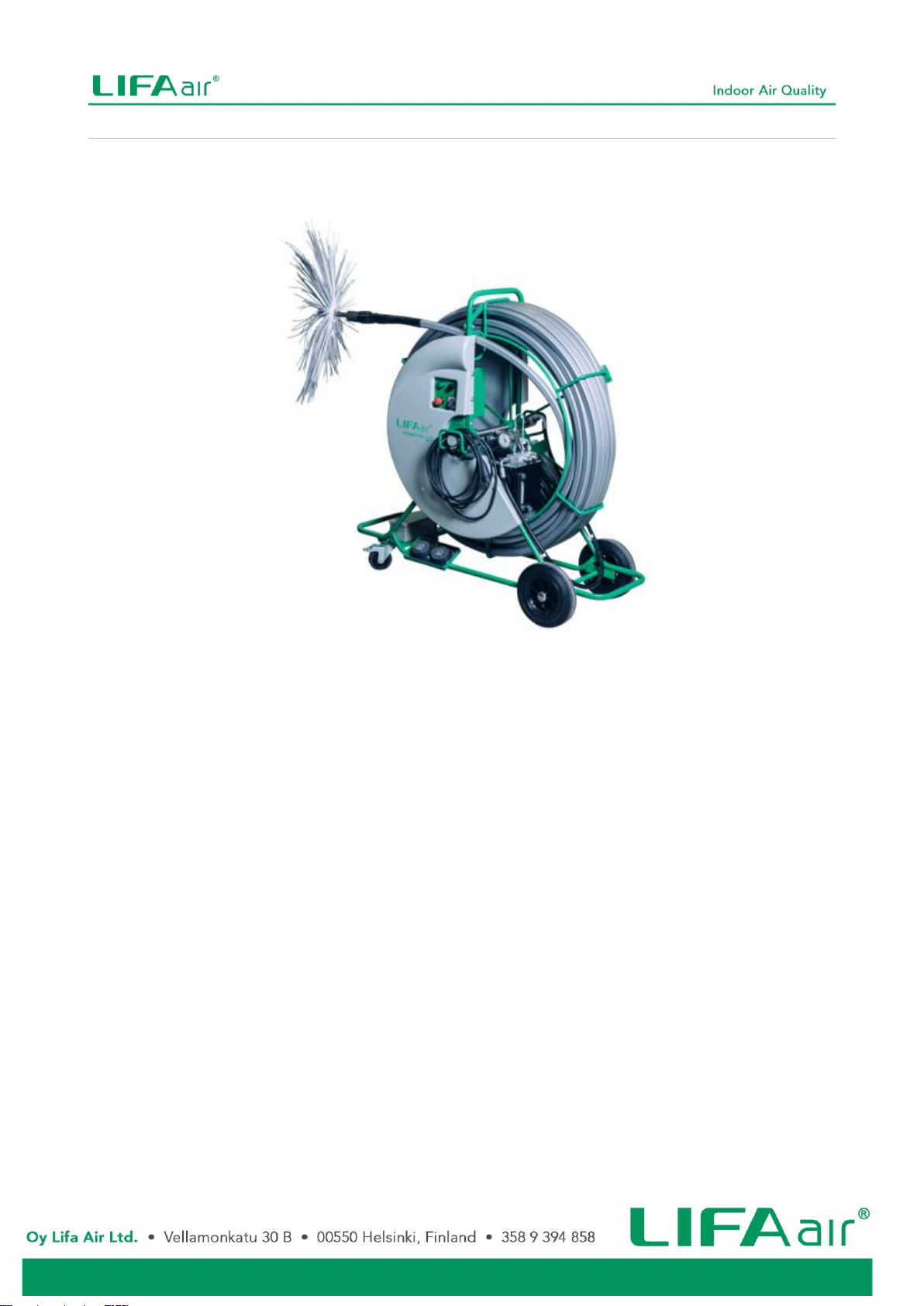

LIFA Hydmaster 40 brushing machine
Congratulations on your new LIFA Hydmaster 40 brushing machine!
LIFA Hydmaster 40 is an electrically operated hydraulic cleaning machine for demanding cleaning
tasks in round and rectangular ventilation ducts. This brushing machine is designed for the brushing
of medium and large ducts where exceptionally powerful force is required.
Hydmaster 40 can also be used in kitchen grease duct and industrial pipe line cleaning. The length
of the cleaning shaft is 40 meters (131 ft.) or so it can be used in cleaning up to 75 m (246 ft.) of
ventilation duct when accessed from the access door into both directions.
The hydraulic motor provides a notably more silent alternative to pneumatically operated machines
that need compressors to work. The brush of Hydmaster 40 rotates in both directions. The rotation
direction and speed is controlled with a foot pedal.
•For demanding cleaning of medium and large (Ø400 –1200 mm (16-47”) ventilation ducts.
•Operation radius 75 meters (246 ft.)
•Rotating speed can be adjusted continuously up to 880 rpm
•Mechanically directed rotating direction to clockwise and counter clockwise.
•The brushed off debris is removed by sucking it to a negative air vacuum, such as a LIFA
HepaClean 1100, 2500, 4000 or LIFA AirClean 3500 negative air machine unit (accessory).

3
Acentering device for the brush is available as an accessory for the Hydmaster brushing machine.
The centering device helps to push the brush in the duct and centres the brush in the duct so
that no part of the duct will remain un-brushed. The use of the centering device is recommended
especially in >400 mm (16”) and rectangular ducts.
Safety Precautions
The following safety directions must be carefully observed to avoid injury to personnel or damage to
the environment or to the LIFA Hydmaster 40 brushing machine itself. Following these instructions
will ensure the safe and uninterrupted use of the machine.
•The equipment must not be positioned or use in places where there is a risk of explosion or
hazardous substances.
•The equipment must not get wet and it must be protected from moisture, vibration and wind.
•Foreign objects must not be inserted or fitted into the equipment.
•The machine cannot be covered during the use
•The user must ensure that the appliance is adjusted for the task and that the statutory
requirements are met.
1. Avoid contamination of the environment
The machine must be kept as clean as possible. The shaft must be cleaned before pushing it back
to the machine. The brushes and the shell of the cleaning shaft must be cleaned after the work has
been completed, before transporting the machine to another location.
2. General safety
The power must be switched off and the power cable unplugged when the machine is not being
used. It is forbidden to make any modifications to the brushing machine or the accessories (for
example brushes).
3. Operator safety
The person/persons performing the work must use personal protective equipment: respirator,
helmet, earmuffs, goggles, overall, protection shoes and other necessary protective equipment that
the task at hand requires.
LIFA Hydmaster 40 brushing machine has a strong rotating force. Clothes or hair can easily get
caught in the brush and cause damage or accidents. The brush must always be placed in the
ventilation duct before switching on the machine. The machine cannot be used when the brush
is outside the ventilation duct. Because of the great rotating force, Hydmaster 40 is recommended
to be used by two persons. One person directs the shaft into the duct while the other person
feeds/draws the shaft and controls the rotating of the brush.

4
4. Workplace conditions
Make sure that the lighting, air conditioning, ladder and trestle are sufficient. If the brush generates
static electricity or sparks in the duct do not use these types of brushes in the duct if there is any
flammable liquids / gases, dust or other sensitive substances nearby. Use antistatic brushes and
safety grounding and by following the special instructions in difficult conditions. Permitted operating
temperature is 5 –50 °C (41 –122 °F).
5. The cleaning shaft
Check the condition of the cleaning shaft before every use. Be careful not to damage the shaft. If the
shaft has been damaged take immediate contact to your local distributor. Minor scratches on the
shaft surface can be fixed by coating it again with a heat shrinkable tube. During storage and
transportation, the cleaned shaft must always be reeled into the drum.
6. Noise level
The sound level of LIFA Hydmaster is low (<70 dB) and it is not dependant of the operating
environment.
7. Transportation and operating position
During the transportation, the machine must be tied firmly to prevent any damage to the machine or
people. Before use make sure that all the components are in place and that the machine functions
well. The machine must be transported, used and stored in an upright position. The machine must
be positioned far enough from walls and other obstacles and placed firmly and straight. Ensure a
free rotation of the brush.
General Directions
1. LIFA Hydmaster 40 can only be used for the purposes that it is designed for and which are
outlined in the instructions. It is forbidden to use the equipment for any other purposes without
written permission from the manufacturer. If this equipment is used for a purpose other than in
which it is designed for, the manufacturer does not take responsibility for any consequences.
2. Persons responsible for operating this equipment / supervising the use of this equipment must
get acquainted with the structure, functions and the safe use of the equipment.
3. It is prohibited to remove or disable any technical protective / safety device while using the
machine.
4. If the machine has to be installed in a way that protective / safety device is disabled or device
functioning is limited, work supervisor / person in charge must immediately be notified of this.
5. Due to the nature of HVAC cleaning (done in intervals, team changing positions etc.), exposure
to vibrations (hands only) is well below all defined levels.

5
Construction and Control
LIFA Hydmaster 40:
1. Main switch
2. Power on indicator LED
3. Emergency stop switch
4. Pneumatic pedal - the change of the rotating and operating direction
5. Control of the rotating speed
6. Oil pressure meter
7. Oil level meter
8. Tool box

6
Operating Principles
Before beginning the work, check the ductwork with
a) LIFA Duct Control (accessory) camera inspection equipment and choose the suitable
b) brushes and other accessories based on the size and construction of the duct as well as the
composition of the removable dirt.
c) Place the machine in a firm position so that the shaft can be put directly inside the duct
d) Ensure enough low pressure in the channel network by using LIFA HepaClean or AirClean
negative pressure unit (NPU).
Before beginning the work, check the ductwork with LIFA Duct Control (accessory) camera
inspection equipment. There may be air volume controllers, noise silencers, fire dampers etc. that
can be damaged during the work.
•In large rectangular ducts, there might be supporter poles inside the duct. Use extra care,
when dealing with ducts equipped with supporters. When cleaning large rectangular or
round ducts the use of LIFA centering device (accessory) is highly recommended.
•Place the machine in a firm position.
•Choose a right sized brush (depending on the size of the duct). Make sure that the brush
isn’t too small or big for the duct that is going to be cleaned. Nylon grease /Tynex brushes
are meant only for grease exhaust duct cleaning.
•Make sure that the working area is cleared and there are no extra personnel.
•Ensure that all the employees performing the work have adequate personal protective
equipment.

7
Make sure that there is enough low pressure in the channel network and that LIFA HepaClean
or AirClean negative pressure unit (NPU) is installed correctly. The brushed off debris is removed by
sucking it to the NPU.
•Place the brush inside the ventilation duct that is going to be cleaned.
•Connect the machine into a current from the protective switch for motor.
•When the operator who is feeding the shaft into the duct gives a permission to start the
machine, the machine can be started.
Avoid to feed to the duct sharp angles and screws etc. This can damage the shaft.
Adjust the rotating speed of the brush. Note that when cleaning “soft” ducts the rotating speed should
be much lower than in normal ducts. Too high a rotation speed may damage the ventilation duct
channel.
The brush can be rotated to clockwise and counter clockwise. Use both rotating directions to achieve
the best cleaning result. In rectangular ducts, it may be required to clean one side first (with rotating
the brush in one direction only) and after that another side.
Feed the shaft evenly into the duct without excessive force. The use of excessive force may harm
the duct, machine or brush and influence on the cleaning result. Always insert the shaft gently and
smoothly into the ductwork, to prevent the brush from ‘jumping’ and leaving unclean spots into the
duct.
It is also advised to use the-one-and-only specially designed centering device and/or shaft holder by
LIFA in big ducts and/or when full rotation speed is being used.
GREASE DUCTS: LIFA Hydmaster brushing machine may be used for grease duct cleanings.
Please ask us more about our grease removal concept!

8
Service and Maintenance
When the machine is in daily professional use it should be delivered to its first regular maintenance
to the manufacturer or to repair shop that has been authorized by the manufacturer after six months
from the first commissioning date (approximately 100 hours). The warranty expires if the machine
has not been delivered to its first maintenance on time.
The following maintenance and upkeep work must be done in regular basis depending on the
purpose of which the machine is being used. This enables a trouble-free use.
General Cleanliness:
Keep the machine as free from dirt and dust as possible. Dirt and grease may cause defects in the
compressed air valves. The machine can be cleaned by wiping it with a rag.
Cleaning shaft:
The cleaning shaft must be cleaned every time after use. The dirt and grease that has collected
to the plastic surface can be removed with a mild grease removal detergent that is meant for plastic
surfaces. Some lubricant (synthetic Vaseline, lubricating oil etc.) must be put between the
turnbuckle and the outer bearing in the brush adapter regularly.
NOTE!
Possible repairs must be carried out by the manufacturer or a servicer authorized by LIFAair. Third
party repairs will void the warranty.

9
Troubleshooting
Possible problem situations and solutions are presented below. If you are not sure on how to handle
problem situations do not hesitate to contact us. Our experts are pleased to advice and help you in
a way we can get the desired outcome together.
1. Protective switch for motor does not stay on/does not go on (turn to construction and
control)
a) Make sure that the supply mains are attached to an electrical network with protective
grounding (230V/50Hz) and that the supply mains are in order.
b) Make sure that there is voltage in the electrical network and that a fuse has not burnt.
2. When loaded the machine does not stay on
a) When the machine is being used continuously for long periods especially with large brushes
the motor and the transmission may overheat. If that happens the automatics cuts off the
operation. The machine is ready automatically when it is cooled.
b) Make sure that there aren’t other machines that have a big power consumption connected to
the same electric circuit. The machine should have its own electric circuit so the machine can
get the power it needs.
3. The cleaning brush does not rotate on steady rotating speed
a) Make sure the level of the oil is sufficient. The minimum is in the +30 ºC the maximum in the
place of +80 ºC.
b) Make sure that the machine is placed firmly. If the machine has been used transported or
stored in uneven place there may be some air in the hydraulic hoses. Because of this the
brush motor may run unevenly for a while. Once the air has come out of the hose the motor
will start to run normally.

10
Spare parts and accessories
SOFT BRUSHES WITH NYLON CENTER AND DISK
6420281010507
200 / 400 mm (8/16 inch)
6420281010514
300 / 500 mm (12/20 inch)
6420281012624
400 / 600 mm (16/24 inch)
6420281010736
500 / 700 mm (20/28 inch)
6420281013027
600 / 800 mm (24/31 inch)
6420281010743
Soft brush with nylon center and disk
700 / 900 mm
6420281021848
Soft brush with nylon center and disk
800 / 1000 mm
6420281012334
Soft brush with nylon center and disk
1000 / 1200 mm
6420281021916
Soft brush with nylon center and disk
1300 / 1500 mm
SOFT BRUSHES WITH NYLON CENTER
6420281010545
200 mm (8 inch)
6420281010569
300 mm (12 inch)
6420281010583
400 mm (16 inch)
6420281010590
500 mm (20 inch)
6420281010606
600 mm (24 inch)
6420281010613
700 mm (28 inch)
6420281010620
800 mm (32 inch)
6420281010637
Soft brush with nylon center
Ø 900 mm
6420281010644
Soft brush with nylon center
Ø 1000 mm

11
AGGRESSIVE NYLON BRUSHES (grease brush) WITH NYLON CENTER
6420281010750
200 mm (8 inch)
6420281010767
300 mm (12 inch)
6420281010774
400 mm (16 inch)
6420281010781
500 mm (20 inch)
6420281010798
600 mm (24 inch)
ABRASIVE BRUSHES WITH NYLON CENTER, TYNEX BRISTLE
6420281023439
200 / 400 mm (8/16 inch)
6420281021213
400 / 600 mm (16/24 inch)
6420281023484
600 / 800 mm (24/32 inch)
6420281023507
Tynex brush with nylon center
800 / 1000 mm
6420281024290
Tynex brush with nylon center
1000 / 1200 mm
6420281024306
Tynex brush with nylon center
1300 / 1500 mm
GREASE AND HEAVY-DUTY BRUSH, CHOPPER (WITH SPECIAL ADAPTER)
6420281020216
Grease Duct chopper, Large 800
mm (32 inch) adjustable for ducts
500-1100 mm (20-43 inch)
6420281020209
Grease Duct chopper, Small 350
mm (14 inch) adjustable for ducts
250-550 mm (10-22 inch)
OTHER ACCESSORIES
6420281021817
Centering Device 40, mechanical for
Hydmaster
6420281013010
Y-Gear -for rectangular ducts
>200mm in height (incl. 2 pairs of
wheels and extra lengthening arms)
6420281011634
LIFA 3-BRUSH GEAR SET; to rotate
3 brushes at same time in
rectangular/OVAL ducts 100-250mm
in height), set including 9 different
types-sizes of brushes
6420281010309
Brush Adapter for LIFA brushes with
nylon center

12
Warranty
The warranty period is one (1) year starting from the date of purchase and is valid according to the
regular terms of delivery, provided that these operational and maintenance instructions have been
carefully followed. Using anything other than original LIFA accessories (brushes, filters etc.) in the
equipment will void the warranty.
Repair is free of charge within the warranty period (proof of purchase / receipt must be presented)
under the following conditions:
•The defect is caused due to defects in materials or defective components.
•Defects caused by normal wear and tear, misuse or insufficient maintenance are NOT
covered by the warranty.
•The machine has been delivered to the first compulsory maintenance check within 6 months
and/or 100 hours of use
•Any maintenance and repairs must be carried out by the manufacturer or by an authorized
representative of the manufacturer. Manufacturer does not take responsibility for
maintenance carried out by a third party.
•A written reclamation form has to be filled out and sent with descriptive photos to the
manufacturer.
The appliance shall be delivered to the authorized Lifa Air representative from whom the buyer has
bought the machine fromOR when agreed mutually in writing beforehand to the factory postage paid
to: Oy Lifa Air Ltd
Vellamonkatu 30 B
FIN-00550 Helsinki, Finland
Tel. [phone]
Email: [e-mail]
Oy Lifa Air Ltd reserves the right to introduce changes without a further notice.
Recycling
The machine can always be returned to the Lifa Air authorized representative from which the buyer
has bought the machine from, or to the address above postage paid in case there is no recycling
facility where the owner lives.
•Metal parts (frame, reel, motor) can be recycled as metal scrap.
•Electrical parts (frequency converter, main switch) should be returned to an authorized
recycling depot
•Other parts can be recycled as mixed normal waste.

13
Declaration of Conformity
Manufacturer’s name: Oy Lifa Air Ltd
Manufacturer’s address: Vellamonkatu 30 B
FIN-00550 Helsinki, Finland
Manufacturer’s telephone: [phone]
Manufacturer’s website: www.lifa.net, www.lifa-air-com
Model: LIFA Hydmaster 40
Oy Lifa Air Ltd, hereby states, with sole responsibility, that the machine models covered by
this announcement comply with the requirements of the following EC directives and
standards:
•EU Low Voltage Directive LVD 2014/35/EY
•EU Electromagnetic Compatibility Directive EMC 2014/30/EY
•EU Directive of the restriction of the use of certain hazardous substances in electrical and
electronic equipment RoHS 2011/65/EC
•EN ISO 12100:2010 Safety of machinery
•EN 60204-1:2007 Safety of machinery. Electrical equipment of machines. General
Requirements.
The product fulfills requirements for CE-marking.
Oy Lifa Air Ltd., 31.01.2018
Johan Brandt, CEO
Oy Lifa Air Ltd. is ISO 9001 and ISO 14001 Certified company.

14
LIFAair Product Family
Special
Cleaner 20
Special
Cleaner 25
Multi
Hydmaster 40
Combi
Cleaner 15
Combi
Cleaner 40
AirJet Combi
20
Duct
Cleaning
Robot
Operating
power
Electricity
Electricity
Hydraulics
Compressed
Air
Compressed
Air
Compressed
Air
Compressed
air (brush) +
electricity
(driving)
Operating
voltage and
frequency
240 VAC (or
110-120
VAC), 1~,
50/60 Hz
240 VAC (or
110-120
VAC), 1~,
50/60 Hz
240 VAC (or
110-120
VAC), 1~,
50/60 Hz
--
--
--
12 VDC
Motor
0,37 kW (0.5
hp)
0,75 kW (1.0
hp)
1,1 kW (1.5
hp)
0,11 kW (0.15
hp)
0,4 kW (0.6
hp)
--
0,11 kW (0,15
hp)
Fuse
10 A
10 A
16 A
--
--
--
5 A
Max torque
5 Nm (3.7
ft·lb)
5 Nm (3.7
ft·lb)
10 Nm (7.4
ft·lb)
3 Nm (2.2
ft·lb)
6,5 Nm (4.8
ft·lb)
--
3 Nm (2.2
ft·lb)
Brush
connection
M12
M12
M12
M12
M12
-
M12
Duct size
recommendati
on
100 –400 mm
(3.9 –15,7")
250 –800 mm
(9.8 –31,5")
400 –1200
mm (15,7 -
47.2")
160 –600 mm
(6.3 - 23.6")
400–1200
mm (15,7 -
47.2")
--
200 –700 mm
(7,9 - 23.6")
Brush rotation
speed
Continuous
adjustment,
225-580 rpm
Continuous
adjustment,
225-580 rpm
Continuous
adjustment,
225 - 880 rpm
Continuous
adjustment
max. 1000
rpm
Continuous
adjustment,
max. 670 rpm
--
Continuous
adjustment,
max. 1000
rpm
Rotation
controls
Foot pedal,
remote hand
control
(accessory)
Foot pedal,
remote hand
control
(accessory)
Foot pedal,
remote hand
control
(accessory)
Manual / Air
valve
Manual / Air
valve
--
Manual / Air
valve
Nozzle
connection
-
Quick coupling
-
Quick coupling
Quick coupling
Quick coupling
Quick coupling
Air volume
consumption
-
Nozzle type
dependant
-
340 l/min (12
CFM), 7 bar
400 l/min (14
CFM), 7 bar
100 - 600
l/min (3.5-21
CFM), 7 bar
340 l/min (12
CFM), 7 bar
Measurements
[mm]
H910 (35.8")
H1290 (50.8")
H1290 (50.8")
H910 (35.8")
H1290 (50.8")
H910 (35.8")
H190 (7.5")
L640 (25.2")
L1100 (43.3")
L1100 (43.3")
L640 (25.2")
L1100 (43.3")
L640 (25.2")
L410 (16.1")
W480 (18.9")
W570 (22.4")
W570 (22.4")
W480 (18.9")
W570 (22.4")
W480 (18.9")
W280 (11")
Weight
38 kg (84 lbs)
71 kg (157
lbs)
93 kg (205
lbs)
17 kg (37 lbs)
45 kg (99 lbs)
15 kg (33 lbs)
8 kg (18 lbs)
Cleaning shaft
20 m (65.6 ft.)
25 m (82 ft.)
40 m (131 ft.)
15 m (49.2 ft.)
40 m (131 ft.)
20 m (65.6 ft.)
25 m (82 ft.)
(driving cable)
Accessories
Mechanical
centering
device, hand
controller
Y-gear,
mechanical
centering
device, hand
controller,
spray bottle,
nozzles
Y-gear, 3-
brush-gear,
mechanical
centering
device, hand
controller
Y-gear, 3-
brush-gear,
mechanical
centering
device, spray
bottle, nozzles
Y-gear, 3-
brush-gear,
pneumatic
centering
device, hand
controller
Mechanical
centering
device, spray
bottle, nozzles
Y-gear, 3-
brush-gear,
spray bottle,
nozzles
