AIRBRUSH-SET PABK 60 B3
AIRBRUSH-SET
Operation and Safety Notes
Translation of the original instructions
www.lidl-service.com
DE CHAT
GB NIIE
AIRBRUSH-SET
Bedienungs- und Sicherheitshinweise
Originalbetriebsanleitung
DE CHAT
6
GB NIIE
Cover.indd 3 16.06.2017 11:11:58

DE / AT / CH Montage-, Bedienungs- und Sicherheitshinweise Seite 21
Klappen Sie vor dem Lesen die beiden Seiten mit den Abbildungen aus und machen Sie sich an
-
schließend mit allen Funktionen des Gerätes vertraut.
DE CHAT
Before reading, unfold both pages containing illustrations and familiarise yourself with all functions
of the device.
GB IE
GB / IE / NI Operation and Safety Notes Seite 5
NI
Cover.indd 4 16.06.2017 11:11:58

12 3
4
2a
11 25
10
9
8
7
A1
2A
2
B3
4
Cover.indd 5 16.06.2017 11:12:03

C6
1
5
Cover.indd 6 16.06.2017 11:12:03

D
EF
G H
12
13
14
15
16
17
18
19
20 21 14
20
22
23
24
Cover.indd 7 16.06.2017 11:12:09

5GB/IE/NI
Table of contents
The following pictograms are used in these instructions for
use/on the device...................................................................................................................Page 6
Introduction...................................................................................................................................Page 6
Intended Use .......................................................................................................................................Page 6
Features ...............................................................................................................................................Page 6
Technical Data ....................................................................................................................................Page 7
General safety instructions for pneumatic tools............................................Page 7
General safety instructions for electrical devices..............................................................................Page 11
Product-specific safety instructions .....................................................................................................Page 12
Before Use......................................................................................................................................Page 12
Initial use.........................................................................................................................................Page 12
Connect airbrush set ...........................................................................................................................Page 13
Mixing paints for use ..........................................................................................................................Page 13
Switching the airbrush compressor on/off .......................................................................................Page 13
Regulating the air pressure.................................................................................................................Page 13
Regulating the result of the spray stylus.............................................................................................Page 13
Connecting the pneumatic hose.........................................................................................................Page 13
Using the mini paint spray gun...........................................................................................................Page 14
Mini spray gun initial use..................................................................................................Page 14
HVLP properties...................................................................................................................................Page 14
Connecting the device........................................................................................................................Page 14
Preparing the spraying surface ..........................................................................................................Page 14
Switching the device on and off.........................................................................................................Page 14
Adjust paint jet.....................................................................................................................................Page 15
Regulating the paint volume...............................................................................................................Page 15
Regulating the air quantity..................................................................................................................Page 15
Maintenance and Cleaning..............................................................................................Page 15
Cleaning and care....................................................................................................................Page 16
Warranty and service information ...........................................................................Page 17
Warranty terms ...................................................................................................................................Page 17
Extent of warranty...............................................................................................................................Page 17
Processing of warranty claims............................................................................................................Page 17
Environmental instructions and disposal information..............................Page 18
Paint disposal instructions................................................................................................Page 18
EC Declaration of Conformity.........................................................................................Page 19
285126_Airbrush-Set PABK 60 B3_content_IE.indd 5 14.06.17 16:34

6 GB/IE/NI
Introduction/ General safety instructions for pneumatic tools
Introduction
The following pictograms are used in these instructions for use/on the device:
Note Supply hose
Observe the warnings and safety
notices! Danger of electric shock
Never use hydrogen, oxygen, carbon
dioxide or another bottled gas as an
energy source.
Risk of burns! Warning - hot surfaces.
Wear ear protection, dust mask, safety
glasses and protective gloves.
Dispose of the packaging and device
in an environmentally-friendly manner!
For indoor use only.
Warning:
Compressor unit can start up without
warning.
Airbrush Set PABK 60 B3
Introduction
Congratulations! You have chosen a
high-quality unit from our company. Fa-
miliarise yourself with the product before
using it for the first time. In addition, please carefully
read the instructions for use and the safety instruc-
tions below. Initial operation of this tool must be
performed by trained personnel.
KEEP OUT OF REACH
OF CHILDREN!
Intended Use
This device is a portable pneumatic compressor
optimised for use with airbrush devices.
With the accessories included, it is suitable for use
in numerous applications. It is maintenance-free
and equipped with noise suppression so it is also
suitable for use in closed rooms. Keep these instruc-
tions in a safe place.
When passing this product on to others, please
also include all the documents. Any use other than
the intended is prohibited and potentially
dangerous. Damages resulting from noncompliance
or misuse are not covered by the warranty and are
not included in the manufacturer's liability. This de-
vice was designed for household use and may not
be used for commercial or industrial purposes.
Features
Check that all the items are present and
that the product is in perfect condition
immediately after unpacking. Never use
the product if it is defective.

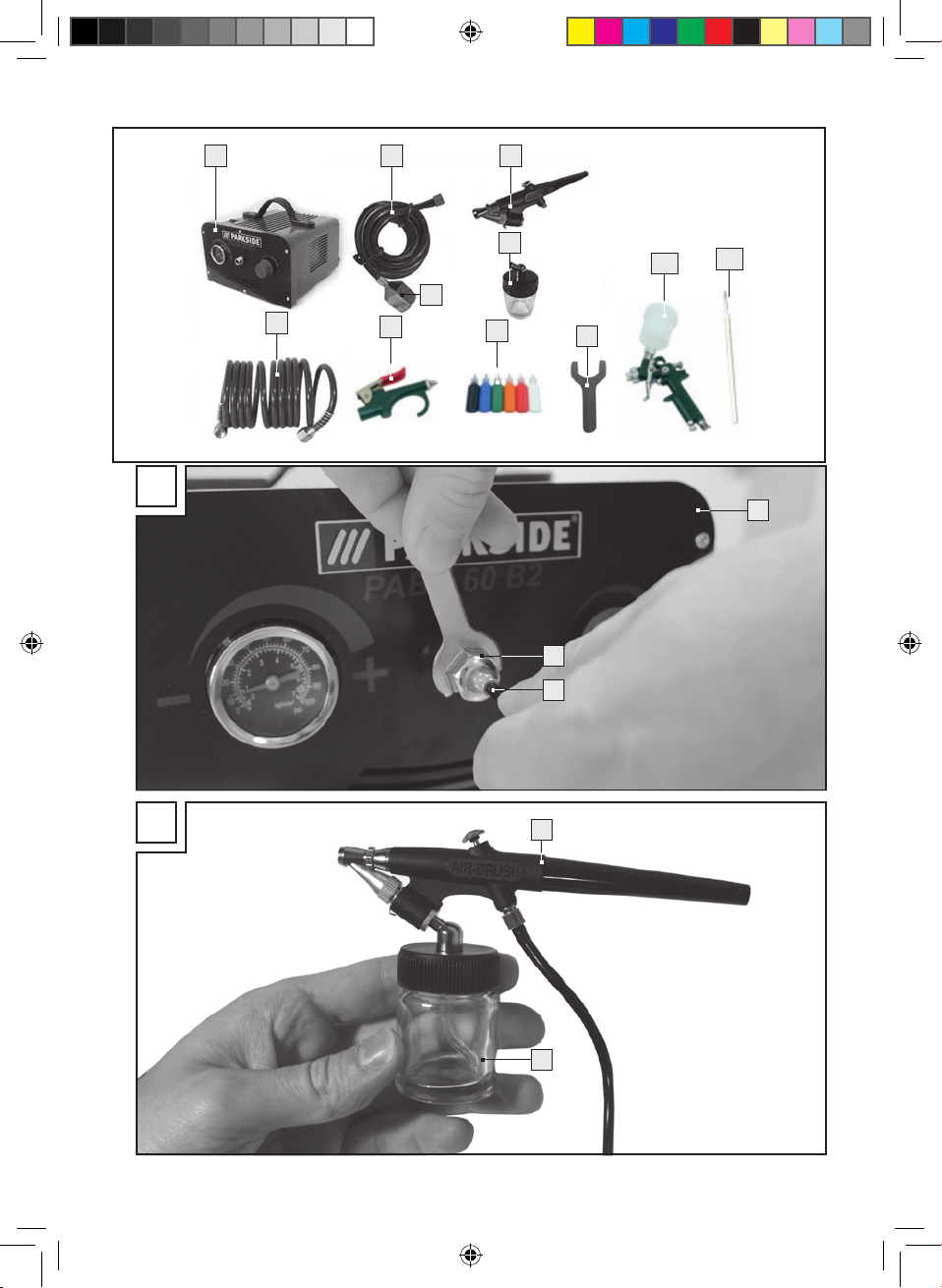

1Airbrush compressor
2Coiled hose
2a Coiled hose adapter
3Spray stylus
4Paint mixing beaker with connection lid
5On/Off switch
6Air pressure regulator
7Compressed air hose
8Air blow gun
96 colours
10 Open-end wrench
11 Mini paint spray gun
12 Lid of the gravity flow cup
13 Gravity flow cup
14 Material amount regulation screw
285126_Airbrush-Set PABK 60 B3_content_IE.indd 6 14.06.17 16:34

7GB/IE/NI
Introduction/ General safety instructions for pneumatic tools
Introduction
15 Regulator for round jet / broad jet
16 Compressed air connection
17 Regulator for air quantity control
18 Trigger
19 Nozzle head
20 Needle
21 Spring
22 Brush (not included in delivery, tooth / nail
brush)
23 Filter
24 Inner screw thread
25 Stirring rod
In addition, this pack contains six different coloured
high concentrate and water soluble paints in plastic
pots. These are referred to as "consumables" in the
following.
Technical Data
Output power: approx. 15 l / min
Theoretical suction capacity: max. 40 l/min
Operating pressure: max. 0.26 MPa
Max. pressure: 0.32 MPa (approx.
3 bar)
Weight without accessories: 2.5kg
Engine power without load: 180W
Operating voltage: 230V∼, 50Hz
Operating mode S3 15%
Duty cycle 10 min: S3 = intermittent duty
without the influence
of start-up process.
Within a period of
10 minutes the maxi-
mum operating time
may amount to 15%
(1.5min).
Operating level of
compressor speed: 4440 min-1
Protection type: IPX0
Protection class: I/
Ambient temperature
during operation: 10°C - 30°C
Mini spray gun:
Operating pressure: max. 3 bar
Nozzle size: Ø 1.4mm
Gravity flow cup: approx. 100 ml
Recommended viscosity: 18-23 DIN/sec.
Noise emission value:
Measurement for noise level, determined according
to EN 14462. The evaluated noise level at the
position
of the user is:
Noise level: LPA=72.1dB(A)
Uncertainty: KPA=2.5dB (A)
General safety
instructions for
pneumatic tools
Note: the term "pneumatic device"
or "device" used in the following
text refers to the pneumatic device
that is the subject of these instructions
for use.
Basic safety
measures must be followed when
using compressed air devices, to
eliminate the risk of fire, electric
shock and personal injury. Be sure
to read and follow the notices within
these operating instructions prior to
using the equipment and store them
in a safe location. The manufacturer
assumes no liability for damages or
285126_Airbrush-Set PABK 60 B3_content_IE.indd 7 14.06.17 16:34
