Congratulations...
and welcome to the world of Life Fitness
and the Life Fitness 9500HR / 9100 / 8500 / C9i / C7i
Exercise Bikes.
The following Parts Identification Listing and the step by step assembly
procedures have been assembled to make the set-up of the Exercise Bikes as
quick and easy as possible.
Please take special note of the following important points prior to choosing a
location and beginning assembly of the Exercise Bikes.

IMPORTANT SAFETY INSTRUCTIONS!
⇒DO NOT locate the Exercise Bike outdoors, near swimming pools, or in areas of high
humidity.
⇒DO NOT operate your Exercise Bike if it has been dropped, damaged, or even partially
immersed in water. Contact Life Fitness Customer Support Services at the number in the
Operation Manual.
⇒DO NOT locate the Exercise Bike any closer than 30 inches ( 76 cm ) to a television set.
⇒DO NOT locate additional Exercise Bike any closer than a minimum of 42 inches (107 cm)
from center to center to avoid interference (cross talk) between Heart Rate monitors.
⇒DO keep the area around your Exercise Bike clear of any obstructions, including walls and
furniture.
⇒DO verify the contents of the delivery carton against the accompanying Parts Listing prior to
setting the cartons and shipping material aside. If any parts are missing, contact Life Fitness
Customer Support Services at the number listed in the Operation Manual. Save the shipping
cartons in case of return.
⇒DOread the entire Operation Manual prior to attempting to operate this machine as this is
essential for proper use.

TOOLS REQUIRED FOR ASSEMBLY...Phillips screwdriver

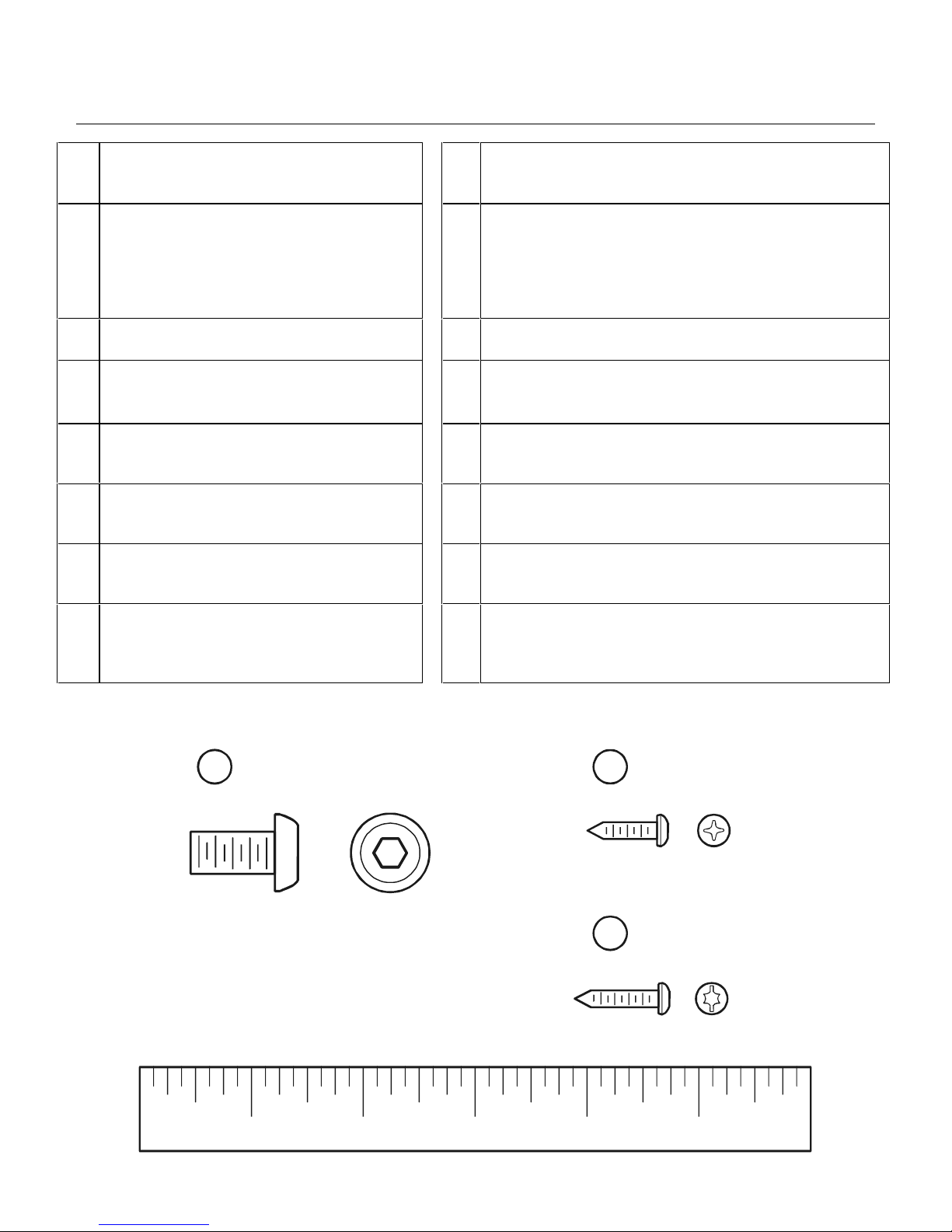

PARTS DESCRIPTION
1 Hex Button Mounting Bolt Qty: 8
3/8-16 x 3/4”
0017-00101-1704
2 Phillips Pan Head Screw (Model 9500 / 9100 / C9i ) Qty: 12
8-18 x 5/8” (Model 8500 / C7i ) Qty: 8
0017-00101-1253
3 Accessory Tray Qty: 1
(Models 9500HR / 9100 / C9i Only)
0K63-01030-0000
4 Console Assembly Qty: 1
AK63-00070-0001 (Model 9500HR)
AK63-00071-0001 (Model 9100)
AK63-00072-0001 (Model 8500)
AK63-00073-0001 (Model C9i)
AK61-00074-0001 (Model C7i)
5 Top Polar Cover Qty: 1
0K63-01145-0000 6 Bottom Polar Cover Qty: 1 0K63-01146-0000
7 Left Seat Post Shroud Qty: 1
(Models 8500/9100/9500HR Only)
0K63-01092-0002
8 Right Seat Post Shroud Qty: 1
(Models 8500/9100/9500HR Only)
0K63-01092-0001
9 Left Pedal Strap Qty: 1
0K63-01238-0002 (Model 9500HR / 9100)
0K63-01237-0002 (Model 8500 / C9i / C7i )
10 Right Pedal Strap Qty: 1
0K63-01238-0001 (Model 9500HR / 9100)
0K63-01237-0001 (Model 8500 / C9i / C7i )
11 Handlebar Qty: 1
AK63-00091-0000 (Model 9500HR/C9i Only)
AK63-00101-0000 (Model 9100/8500/C7i Only)
12 Battery Qty: 1
(Models 8500/C7i Only)
0017-00003-0757
13 Polar Receiver Qty: 1
(Model 9500HR / 9100 / C7i )
118E-00001-0101
14 Polar Receiver Sleeve Qty: 1
(Model 9500HR / 9100 / C7i )
0K36-01059-0002
15 Torx / Standard Screw Qty: 1
#8-18 x 3/4”
(Model 9500HR / 9100 / 8500)
0017-00101-0991
1” 2” 3” 4” 5”
1 2
15

5
11
6
3
7
8
2
4
15
1
1
12
22

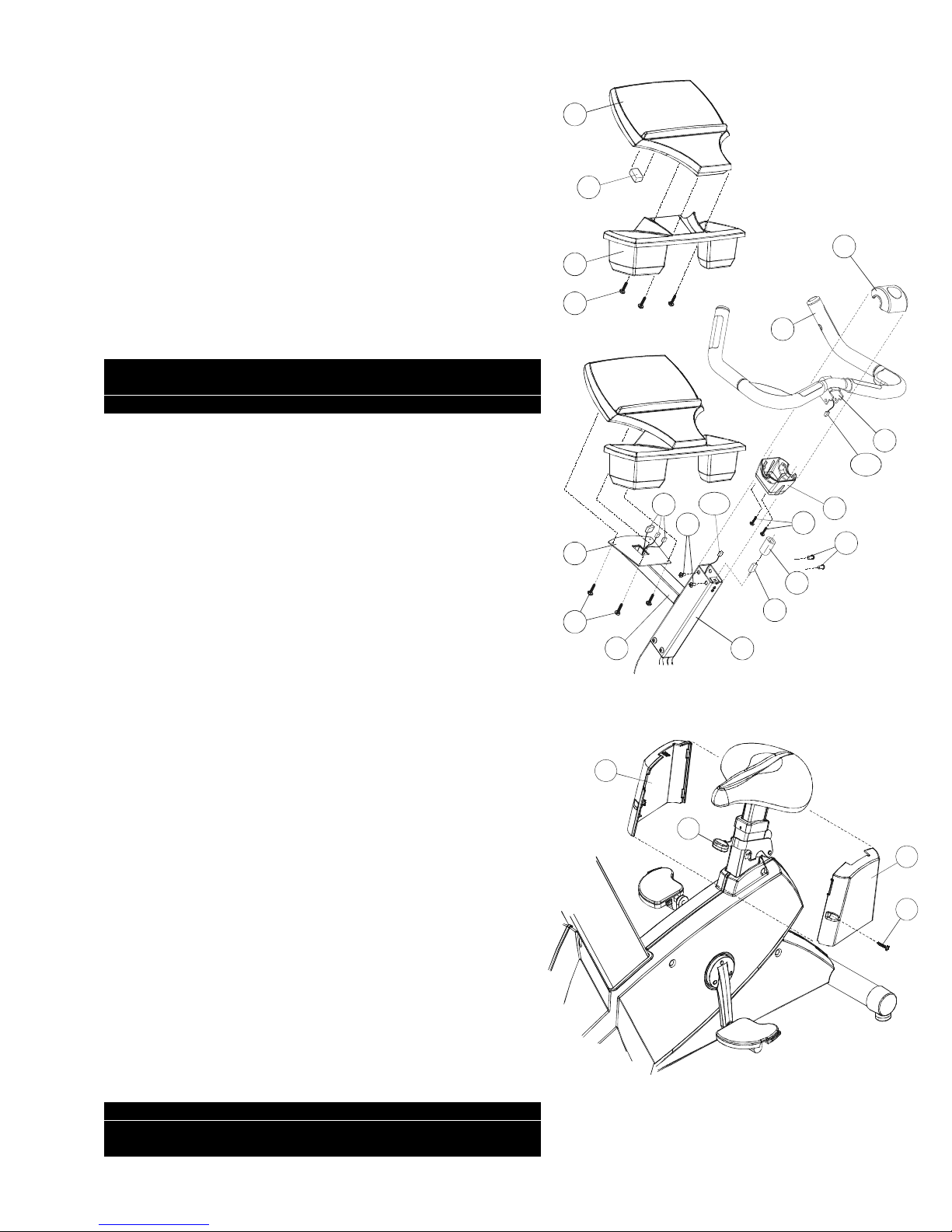

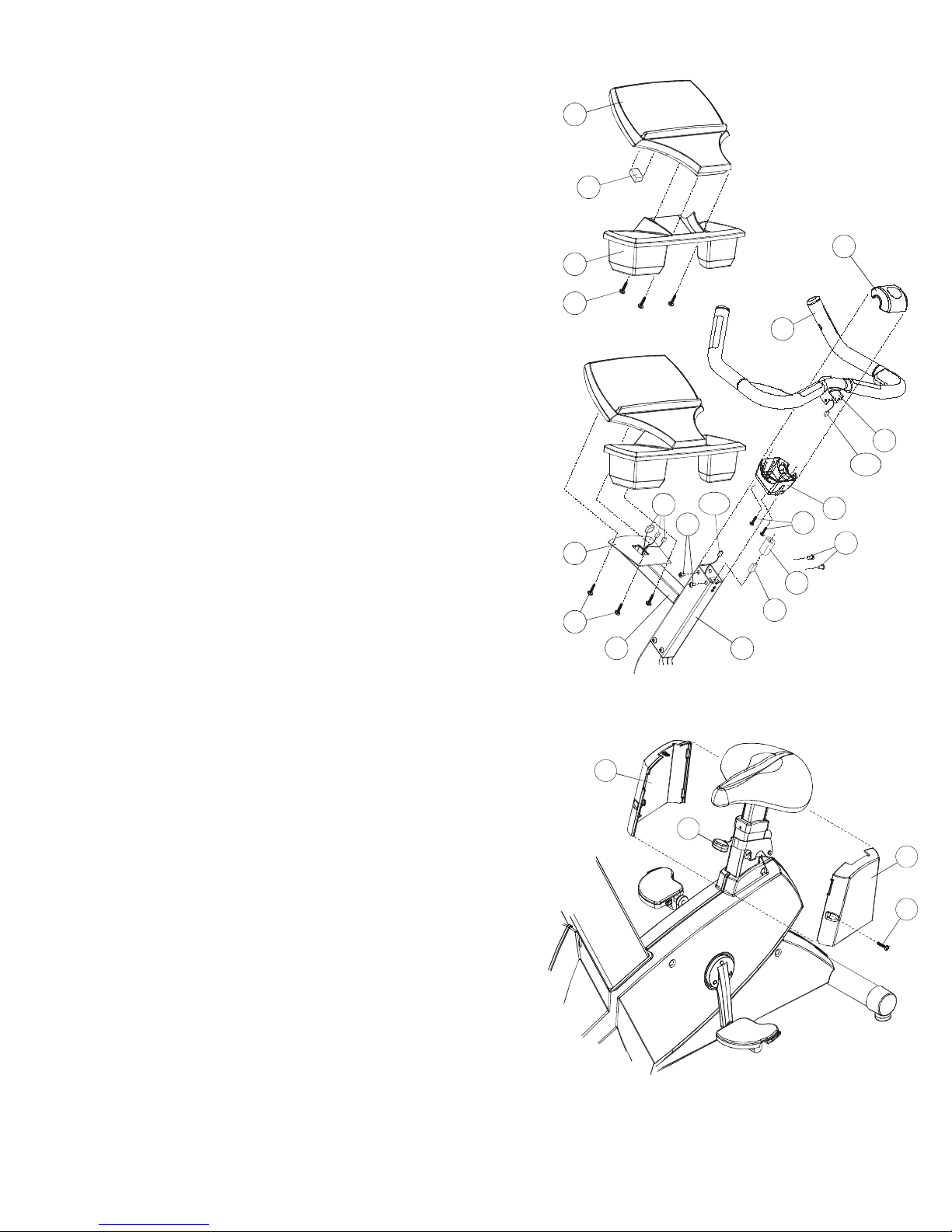

1. Locate the BOTTOM POLAR COVER (#6). Position the cover
as shown with the notch of the center hole facing downward.
Slide the BOTTOM POLAR COVER down over the UPPER
CONSOLE SUPPORT TUBE (A) until it rests against the
FRONT TUBE EXTENSION (B).
2. Position the HANDLEBAR (#11) as shown near the UPPER
CONSOLE SUPPORT TUBE (A).
3. Models C9 and 9500HR Only
Connect the 2-PIN HEART RATE CONNECTOR (2P) leading
from the HANDLEBAR (#11) center to the 2-PIN HEART
RATE CONNECTOR (2P) leading from the UPPER CONSOLE
SUPPORT TUBE (A).
4. Carefully slide the HANDLEBAR MOUNTING FLANGES (C)
into the UPPER CONSOLE SUPPORT TUBE (A).
NOTE: BE CAREFUL NOT TO PINCH THE HEART RATE
CABLE WHEN INSERTING THE HANDLEBAR FLANGES
(C) INTO THE UPPER CONSOLE SUPPORT TUBE (A).
5. Secure the HANDLEBAR (#11) to the UPPER CONSOLE
SUPPORT TUBE (A) using four MOUNTING BOLTS (#1).
Tighten the SCREWS to 15-20 ft. lbs.
6. Models C7, 9100 and 9500HR Only
Insert the POLAR RECEIVER (#13) into the polar receiver
receptacle located at the center of the UPPER CONSOLE
SUPPORT TUBE (A). Slide the POLAR RECEIVER SLEEVE
(#14) over the POLAR RECEIVER covering the entire POLAR
RECEIVER.
7. Locate the TOP POLAR COVER (#5). Slide the BOTTOM
POLAR COVER (#6) upward toward the HANDLEBAR (#11)
until it contacts the HANDLEBAR. Position the TOP POLAR
COVER over the POLAR RECEIVER (#13) and HANDLEBAR
and align it to the BOTTOM POLAR COVER. Secure the TOP
POLAR COVER to the BOTTOM POLAR COVER using four
PHILLIPS SCREWS (#2) as shown.
8. Models C9, 9100 and 9500HR Only
Align the ACCESSORY TRAY (#3) to the bottom of the
DISPLAY CONSOLE (#4) as shown. Secure the ACCESSORY
TRAY to the DISPLAY CONSOLE using four PHILLIPS
SCREWS (#2).
9. Models C7 and 8500 Only
Remove the BATTERY DOOR located on the back of the
DISPLAY CONSOLE (#4). Locate the supplied 9-VOLT
BATTERY (#12) and connect it to the battery lead. Place the
BATTERY into the DISPLAY CONSOLE and replace the
BATTERY DOOR.
10. Position the DISPLAY CONSOLE (#4) above the MOUNTING
BRACKET (D) as shown. Attach all CONNECTORS (E)
leading from the DISPLAY CONSOLE MOUNTING BRACKET
to the corresponding CONNECTORS located on the back of
the DISPLAY CONSOLE.
11. Attach the DISPLAY CONSOLE (#4) to the DISPLAY
CONSOLE MOUNTING BRACKET (D) using four SCREWS
(#2).
NOTE: BE CAREFUL NOT TO PINCH ANY CABLES WHEN
SECURING THE DISPLAY CONSOLE (#4) TO THE
DISPLAY CONSOLE MOUNTING BRACKET (D).
Tighten the screws securely.
2
3
4
2
14
6
C
5
13
A
2P
2P
D
E
11
B
11
12
2
7
15
8
F

12. Models 8500, 9100 and 9500HR Only
Locate the USER LEFT AND RIGHT SEAT POST COVERS
(#7 & #8). Position the USER LEFT SEAT POST COVER (#7)
below the seat covering the ADJUSTMENT LEVER (F) as
shown. Interlock the two tabs of the USER RIGHT SEAT
POST COVER (#8) to the corresponding slots of the USER
LEFT SEAT POST COVER and pivot it forward to meet the
USER LEFT SEAT POST COVER enclosing the SEAT
ADJUSTMENT LEVER. Secure the SEAT POST COVERS
together using one SCREW (#15).

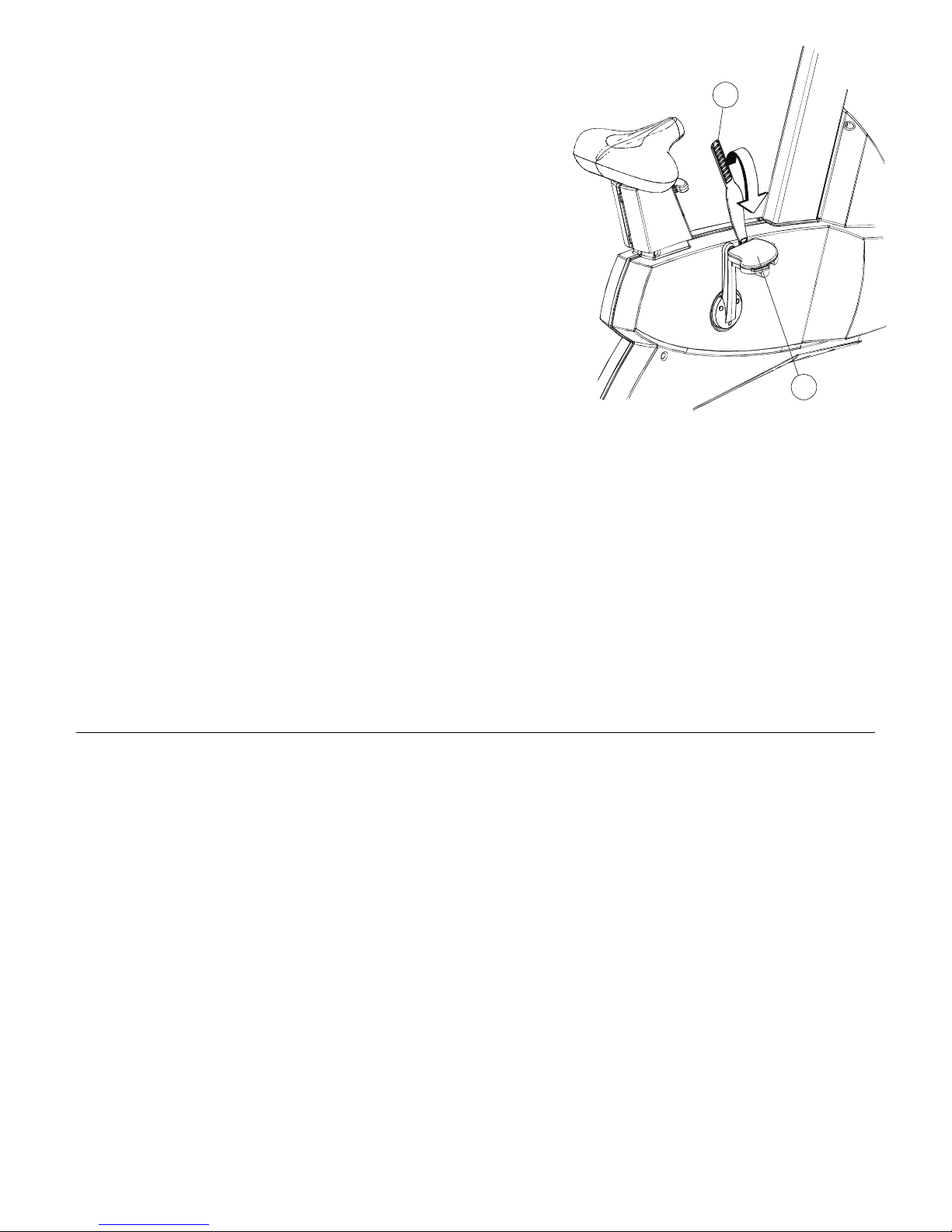

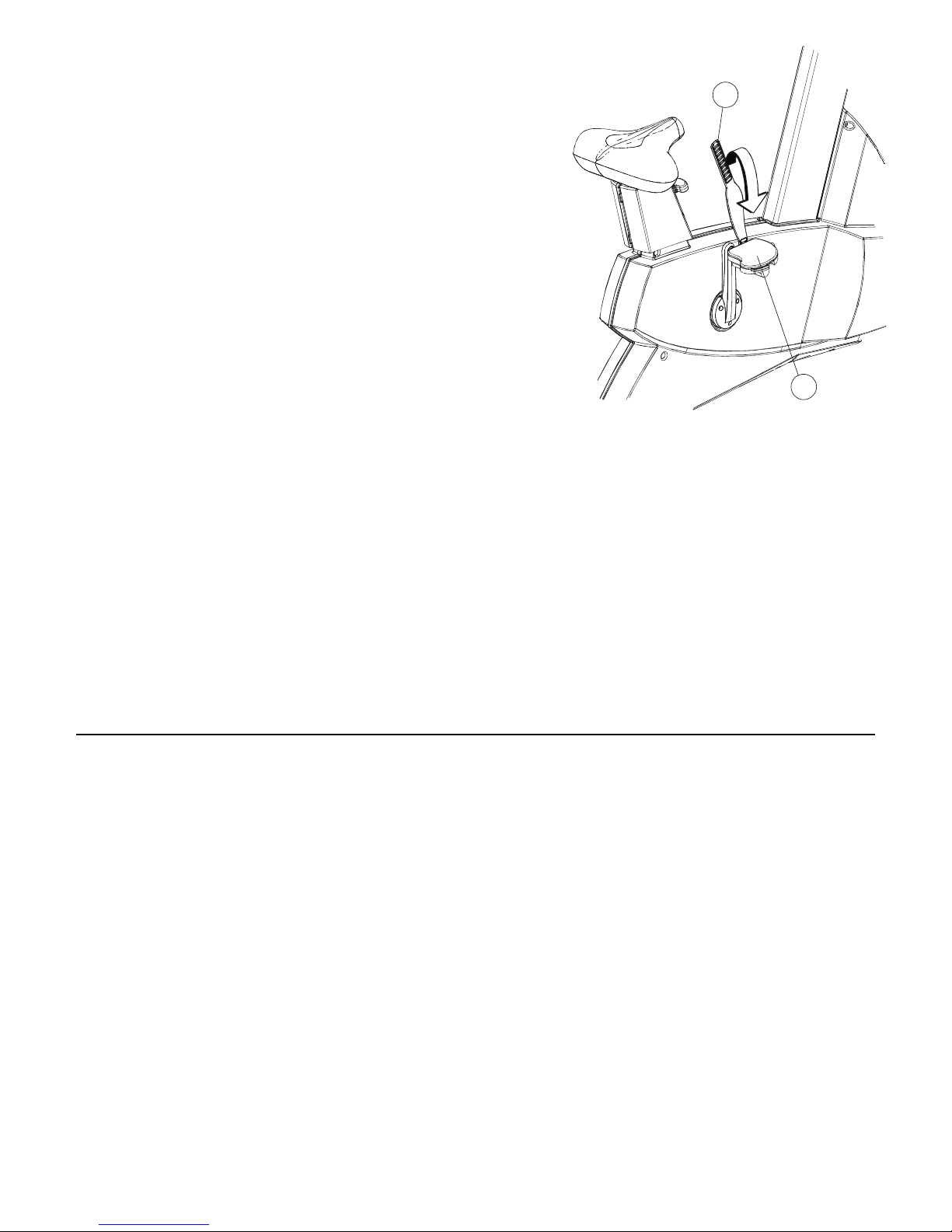

13. Locate the RIGHT PEDAL STRAP (#10) marked with an “R”.
Attach the RIGHT PEDAL STRAP to the RIGHT PEDAL (G)
with the double slot on the inward pedal strap tab looping
upward and attaching to the outward pedal strap tab. Repeat
for the LEFT PEDAL STRAP (#9) marked with an “L”.
PRE-OPERATION CHECKLIST
Ensure that the console support screws are tight.
Make sure the Exercise Bike is properly leveled and stable.
Ensure that the Leveler Jam Nuts are tight.
Read the entire Operation Manual before using the Exercise Bike.
Before attempting to operate your Exercise Bike, it is imperative that you familiarize yourself with the
contents of the Operation Manual. If your Exercise Bike does not respond as described in the
OPERATION MANUAL, contact the nearest Life Fitness service center as listed in the Operation Manual.
10
G

© 2002 Brunswick Corporation. All rights reserved. Life Fitness is a trademark of Brunswick Corporation.
Polar is a registered trademark of Polar Electro, Inc.
M051-00K63-B007
3.02

Technical Communications Department
Printed Document Cover Sheet
Models Covered:
Description:
Language:
Part Number:
Print Specifications:
Printing Format:
Stock:
Finish:
Page Count:
The original electronic artwork for this Unpacking Instruction resides in the Technical Communications Department
of the Marketing Communications Department. This Unpacking Instruction was published on a PC using Microsoft
Word 97, CorelDRAW Version 9.0 (both Windows Versions).
11“ 1/4"
8 5/16” 1/4”
+
+

M051-00K63-B006
Life Fitness Models 9500HR / 9100 / 8500 / C9i / C7i Exercise Bike Unpacking Instructions
UNPACKING INSTRUCTIONS
Tools Required: 7/32” Allen Wrench (supplied with C9i and C7i Only)
1. Remove the four straps from the corrugated shipping container and remove the TOP TRAY (A).
2. Carefully lift and remove the CENTER SPACER (B).
3. Remove the DISPLAY CONSOLE BOX (C) and set aside. Lift and remove the two REAR SUPPORT POSTS (D).
4. Lift and remove the two FRONT SUPPORT POSTS (E). Carefully lift and remove the SHIPPING SLEEVE (F).
5. Remove the SHIP KIT (G) and set aside.
6. Locate the 7/32” ALLEN WRENCH and four 3/8-16 x ¾” BUTTON HEAD SCREWS (H) from the hardware bag located
in the SHIP KIT (G).
7. Carefully remove all protective plastic wrapping.
8. The CONSOLE SUPPORT (J) is shipped hooked onto the top of the MONOCOLUMN (K). Carefully slide the
CONSOLE SUPPORT upward to disengage it from the MONOCOLUMN. Carefully remove the CONSOLE SUPPORT
SPACER (L).
CAUTION: BE CAREFUL NOT TO DAMAGE THE
WIRE HARNESS (M) WHEN HANDLING
THE CONSOLE SUPPORT (J).
9. Pivot the CONSOLE
SUPPORT (J) upward. Align
and insert the console
support mounting flange into
the top of the
MONOCOLUMN (K). Secure
the CONSOLE SUPPORT to
the MONOCOLUMN using
the four 3/8-16 x ¾”
BUTTON HEAD SCREWS
(H). Tighten the screws to
15-20 ft. lbs.
CAUTION: BE CAREFUL NOT
TO DAMAGE THE WIRE
HARNESS (M) WHEN
ATTACHING THE CONSOLE
SUPPORT (J) TO THE
MONOCOLUMN (K).
10. Carefully lift the exercise bike from the BOTTOM
TRAY (N).
11. Follow the Assembly Instructions included in the
parts bag to complete the assembly of your
exercise bike.
IMPORTANT
SAVE YOUR PACKING MATERIALS IN CASE OF RETURN
Ship Kit (G) Contents:
'Handlebars
'Parts Bag
'Assembly Instructions
'Operation Manual
'Top and Bottom
Polar Covers
( 8500 / 9100 / 9500HR Only )
'Seat Post Covers
A
F
B
L
C
D
G
EN
J
K
M
H

95Ci, 93C, 90C, C9i, C7
Upright Exercise Bikes
Assembly Instructions

Congratulations...
and welcome to the world of
The following Parts Identification Listing and the step by step assembly
procedures have been assembled to make the set-up of the Exercise Bikes as
quick and easy as possible.
Please take special note of the following important points prior to choosing a
location and beginning assembly of the Exercise Bikes.

IMPORTANT SAFETY INSTRUCTIONS!
⇒DO NOT locate the Exercise Bike outdoors, near swimming pools, or in areas of high humidity.
⇒DO NOT operate your Exercise Bike if it has been dropped, damaged, or even partially immersed
in water. Contact Life Fitness Customer Support Services at the number in the Operation Manual.
⇒DO NOT locate the Exercise Bike any closer than 30 inches ( 76 cm ) to a television set.
⇒DO NOT locate additional Exercise Bike any closer than a minimum of 42 inches (107 cm) from
center to center to avoid interference (cross talk) between Heart Rate monitors.
⇒DO keep the area around your Exercise Bike clear of any obstructions, including walls and furniture.
⇒DO verify the contents of the delivery carton against the accompanying Parts Listing prior to setting
the cartons and shipping material aside. If any parts are missing, contact Life Fitness Customer
Support Services at the number listed in the Operation Manual. Save the shipping cartons in case of
return.
⇒DOread the entire Operation Manual prior to attempting to operate this machine as this is essential
for proper use.
⇒NE PAS placer le vélo d’exercice allongé Lifecycle à l’extérieur, près d’une piscine ou dans un
endroit très humide.
⇒NE PAS faire fonctionner le vélo d’exercice allongé Lifecycle s’il est tombé, s’il a été endommagé ou
s’il a été partiellement plongé dans l’eau. Téléphoner au service après-vente de Life Fitness dont le
numéro figure sur la couverture arrière du guide d’installation.
⇒NE PAS placer le vélo d’exercice allongé Lifecycle à moins de 76 cm (30 po) d’un poste de
télévision.
⇒MAINTENIR la zone autour du vélo d’exercice allongé Lifecycle libre de toute obstruction, y compris
murs et meubles.
⇒VÉRIFIER si l’emballage contient toutes les pièces de la liste jointe avant de le mettre de côté. Si des
pièces manquent, téléphoner au service après-vente de Life Fitness dont le numéro figure sur la
couverture arrière du guide d’installation. Conserver l’emballage au cas où l’appareil devrait être
renvoyé.
⇒LIRE le manuel de l’utilisateur tout entier avant d’essayer de faire fonctionner cet appareil. Ceci est
indispensable à son utilisation correcte.

TOOLS REQUIRED FOR ASSEMBLY...Phillips screwdriver, T-45 Torx Driver, T-20 Torx Driver
PARTS DESCRIPTION
1 Torx Button Mounting Bolt Qty: 8
3/8-16 x 3/4” 2 Phillips Pan Head Screw (Model 95Ci / 93C / C9i ) Qty: 12 8-18 x 5/8” (Model 90C / C7 ) Qty: 8
3 Accessory Tray Qty: 1 4 Console Assembly Qty: 1
5 Top Polar Cover Qty: 1 6 Bottom Polar Cover Qty: 1
7 Left Seat Post Shroud Qty: 1
(Model 95Ci / 93C / 90C) 8 Right Seat Post Shroud Qty: 1 (Model 95Ci / 93C / 90C)
9 Left Pedal Strap Qty: 1 10 Right Pedal Strap Qty: 1
11 Handlebar Qty: 1 12 9 Volt Alkaline Battery Qty: 1
(Model 90C / C7)
13 Polar Receiver Qty: 1
(Model 95Ci / 93C / C9i / C7 / International 90C) 14 Polar Receiver Sleeve Qty: 1 (Model 95Ci / 93C / C9i / C7 / International 90C)
15 Torx / Standard Screw Qty: 1
#8-18 x 3/4”
(Model 95Ci / 93C / 90C)
1” 2” 3” 4” 5”
1 2
15

5
11
6
3
7
8
2
4
15
1
1
12
22

1. Locate the BOTTOM POLAR COVER (#6). Position the cover
as shown with the notch of the center hole facing downward.
Slide the BOTTOM POLAR COVER down over the UPPER
CONSOLE SUPPORT TUBE (A) until it rests against the
FRONT TUBE EXTENSION (B).
2. Position the HANDLEBAR (#11) as shown near the UPPER
CONSOLE SUPPORT TUBE (A).
3. Models 95Ci and C9i Only
Connect the 2-PIN HEART RATE CONNECTOR (2P) leading
from the HANDLEBAR (#11) center to the 2-PIN HEART
RATE CONNECTOR (2P) leading from the UPPER
CONSOLE SUPPORT TUBE (A).
4. Carefully slide the HANDLEBAR MOUNTING FLANGES (C)
into the UPPER CONSOLE SUPPORT TUBE (A).
NOTE: BE CAREFUL NOT TO PINCH THE HEART RATE
CABLE WHEN INSERTING THE HANDLEBAR FLANGES
(C) INTO THE UPPER CONSOLE SUPPORT TUBE (A).
5. Secure the HANDLEBAR (#11) to the UPPER CONSOLE
SUPPORT TUBE (A) using four MOUNTING BOLTS (#1).
Tighten the SCREWS to 15-20 ft. lbs.
6. Models 95Ci, 93C, C9i, and C7 Only
Insert the POLAR RECEIVER (#13) into the polar receiver
receptacle located at the center of the UPPER CONSOLE
SUPPORT TUBE (A). Slide the POLAR RECEIVER SLEEVE
(#14) over the POLAR RECEIVER covering the entire POLAR
RECEIVER.
7. Locate the TOP POLAR COVER (#5). Slide the BOTTOM
POLAR COVER (#6) upward toward the HANDLEBAR (#11)
until it contacts the HANDLEBAR. Position the TOP POLAR
COVER over the POLAR RECEIVER (#13) and HANDLEBAR
and align it to the BOTTOM POLAR COVER. Secure the TOP
POLAR COVER to the BOTTOM POLAR COVER using four
PHILLIPS SCREWS (#2) as shown.
8. Models 95Ci, 93C, and C9i Only
Align the ACCESSORY TRAY (#3) to the bottom of the
DISPLAY CONSOLE (#4) as shown. Secure the
ACCESSORY TRAY to the DISPLAY CONSOLE using four
PHILLIPS SCREWS (#2).
9. Models 90C and C7 Only
Remove the BATTERY DOOR located on the back of the
DISPLAY CONSOLE (#4). Locate the supplied 9-VOLT
BATTERY (#12) and connect it to the battery lead. Place the
BATTERY into the DISPLAY CONSOLE and replace the
BATTERY DOOR.
10. Position the DISPLAY CONSOLE (#4) above the MOUNTING
BRACKET (D) as shown. Attach all CONNECTORS (E)
leading from the DISPLAY CONSOLE MOUNTING BRACKET
to the corresponding CONNECTORS located on the back of
the DISPLAY CONSOLE.
11. Attach the DISPLAY CONSOLE (#4) to the DISPLAY
CONSOLE MOUNTING BRACKET (D) using four SCREWS
(#2).
NOTE: BE CAREFUL NOT TO PINCH ANY CABLES WHEN
SECURING THE DISPLAY CONSOLE (#4) TO THE
DISPLAY CONSOLE MOUNTING BRACKET (D).
Tighten the screws securely.
2
3
4
2
14
6
C
5
13
A
2P
2P
D
E
11
B
11
12
2
7
15
8
F

12. Models 95Ci, 93C, and 90C Only
Locate the USER LEFT AND RIGHT SEAT POST COVERS
(#7 & #8). Position the USER LEFT SEAT POST COVER (#7)
below the seat covering the ADJUSTMENT LEVER (F) as
shown. Interlock the two tabs of the USER RIGHT SEAT
POST COVER (#8) to the corresponding slots of the USER
LEFT SEAT POST COVER and pivot it forward to meet the
USER LEFT SEAT POST COVER enclosing the SEAT
ADJUSTMENT LEVER. Secure the SEAT POST COVERS
together using one SCREW (#15).
13. Locate the RIGHT PEDAL STRAP (#10) marked with an “R”.
Attach the RIGHT PEDAL STRAP to the RIGHT PEDAL (G)
with the double slot on the inward pedal strap tab looping
upward and attaching to the outward pedal strap tab. Repeat
for the LEFT PEDAL STRAP (#9) marked with an “L”.
PRE-OPERATION CHECKLIST
Ensure that the console support screws are tight.
Make sure the Exercise Bike is properly leveled and stable.
Ensure that the Leveler Jam Nuts are tight.
Read the entire Operation Manual before using the Exercise Bike.
Before attempting to operate your Exercise Bike, it is imperative that you familiarize yourself with the
contents of the Operation Manual. If your Exercise Bike does not respond as described in the OPERATION
MANUAL, contact the nearest Life Fitness service center as listed in the Operation Manual.
10
G

©2003 Life Fitness, a division of Brunswick Corporation. All rights reserved. Life Fitness is trademark of Brunswick Corporation.
Polar is a registered trademark of Polar Electro, Inc. MO51-00K63-A081 06.03

C7i/C9i Exercise Bikes
O P E R A T I O N M A N U A L

1
CORPORATE HEADQUARTERS
10601 West Belmont Avenue
Franklin Park, Illinois 60131 • U.S.A.
847.288.3300 • FAX: [phone]
800.735.3867 (Toll-free within U.S.A., Canada)
INTERNATIONAL OFFICES
LIFE FITNESS ASIA PACIFIC LTD
Room 2610, Miramar Tower
132 Nathan Road
Tsimshatsui, Kowloon
HONG KONG
Telephone: [phone]
FAX: [phone]
LIFE FITNESS ATLANTIC BV
LIFE FITNESS BENELUX
Bijdorpplein 25-31
2992 LB Barendrecht
THE NETHERLANDS
Telephone: [phone]
FAX: [phone]
LIFE FITNESS DO BRAZIL
Av. Dr. Dib Sauaia Neto 1478
Alphaville, Barueri, SP
06465-140
BRAZIL
Telephone [phone]
FAX: [phone]
LIFE FITNESS AUSTRIA
Vertriebs GmbH
Hintschiggasse 1
1100 Vienna
AUSTRIA
Telephone: [phone]
FAX: [phone]
LIFE FITNESS IBERIA
Pol. Ind. Molí dels Frares. c/C, nº 12
08620 Sant Vicenç dels Horts (Barcelona)
España
Telephone: [phone]
Fax: [phone]
LIFE FITNESS EUROPE GMBH
Siemensstrasse 3
85716 Unterschleissheim
GERMANY
Telephone: [phone]
FAX: [phone]
LIFE FITNESS ITALIA S.R.L.
Via Elvas 92
39042 Bressanone (BZ)
ITALY
Telephone: [phone]
FAX: [phone]
LIFE FITNESS LATIN AMERICA
and CARIBBEAN
10601 West Belmont Avenue
Franklin Park, Illinois 60131
U.S.A.
Telephone: [phone]
FAX:[phone]
LIFE FITNESS UK LTD
Queen Adelaide
Ely, Cambs CB7 4UB
UNITED KINGDOM
Telephone: [phone]
FAX: [phone]
LIFE FITNESS JAPAN
Nippon Brunswick Bldg., #8F
5-27-7 Sendagaya
Shibuya-Ku, Tokyo
Japan 151-0051
Telephone: [phone]
FAX: [phone]
