“Airway Larry”
AIRWAY
MANAGEMENT TRAINER
LF03699U
INSTRUCTION MANUAL
List of Components:
“Airway Larry” Airway Management
Trainer
8 oz. Bottle of Lubricant
Left and Right Simulated Lungs
Simulated Stomach
1
About the Simulator…
The Life/form® Airway Management
Trainer, “Airway Larry”, is the most real-
istic simulator available for the training
of intubation and other airway manage-
ment skills.
This particular trainer has been specially
designed to build students’ confidence
and expertise with an easy-to-use model,
while still providing a realistic intubation
experience.
NASCO has taken great care to create
an airway management trainer that is
anatomically correct in respect to both
size and detail. Landmarks include:
nostrils, teeth, tongue, oral and nasal
pharynx, larynx, cricoid ring, epiglottis,
arytenoid, false and true cords, trachea,
esophagus, self-deflating lungs, and
stomach.
NASCO’s “Airway Larry” allows you
to practice oral, digital, and nasal
intubation. E.T., E.O.A., PTL®, and
Combitube® insertion can all be prac-
ticed as well (please see section titled
“Using the Combitube®”). Suction tech-
niques and proper cuff inflation can also
be performed and evaluated.
In addition, this model also allows stu-
dents to apply cricoid pressure dur-
ing the intubation procedure (Sellick’s
Maneuver). By locating the larynx and
depressing the cricoid ring, the student
may realistically lower the vocal cords
farther into the field of view. This also
effectively closes off the esophagus of
the simulator.
The Airway Management Trainer head
can be detached from the training stand
and placed on
CPARLENE®
or Resusci®
Disinfecting the Airway:
To disinfect, repeat the standard cleaning
procedure, but this time using a bleach
solution, as specified by the Centers
for Disease Control instead of soapy
water. Fill the system with the solution
until it reaches the corners of the mouth.
Remember to start filling with the head
flat, and finish with the neck slightly ele-
vated to ensure that the solution com-
pletely fills all airway passages. Once
completely filled with the bleach solu-
tion, allow the head to sit for at least 10
minutes. Drain as described earlier and
repeat the rinsing process to flush out
all of the bleach solution. Set the head
aside and allow it to dry completely.
4
Supplies/Replacement Parts for the
“Airway Larry” Airway Management
Trainer:
LF03605U Replacement Lung Kit
LF03606U Replacement Stomach Kit
LF03644U NASCO Pump Spray
Lubricant
W09919U REN Cleaner
Cleaning the Face:
Normal soil can be removed from the
face of the trainer with mild, soapy water.
REN Cleaner (W09919U) will remove
stubborn stains. Simply apply REN to
the soiled area and wipe clean with a
soft cloth or paper towel. NOTE: Do not
use REN Cleaner around the mouth and
nostrils, as the residue of the cleaner
could be toxic.
Caution:
Never place the trainer on any kind of
printed paper or plastic. These materi-
als will transfer indelible stains. Ballpoint
pens will also make indelible stains. Do
not use cosmetics.
*Resusci® Anne™ is a trademark of Laerdal
Medical Corporation.
Continue filling until the water level
covers the tongue. At this point, take
a small soft brush and gently scrub
the inside of the mouth (a small tooth-
brush works well for this). Cotton
swabs can be used to scrub inside
the nostrils. When done, pull the plug
from the esophagus and drain the
water into the sink. Now pick the head
up to a vertical position and pull the
plugs from the trachea to completely
empty the system (Figure 10).
Rinsing the Airway:
To rinse the airway, follow the same
procedure using clean, warm tap
water. Repeat this process until all the
soap has been flushed from the sys-
tem.
Anne™* brand manikins, creating a
valuable mega-code component. With
proper care, your Life/form® Airway
Management Trainer will provide years
of valuable service. Please review the
instructions carefully for set-up, clean-
up, and maintenance procedures.
Figure 1
Figure 2
Figure 10
Set Up:
The Airway Management Trainer is
ready to use upon delivery. Simply
remove it from the carton and unwrap
the packaging material. The lung and
stomach bags are already in place
and ready to use.

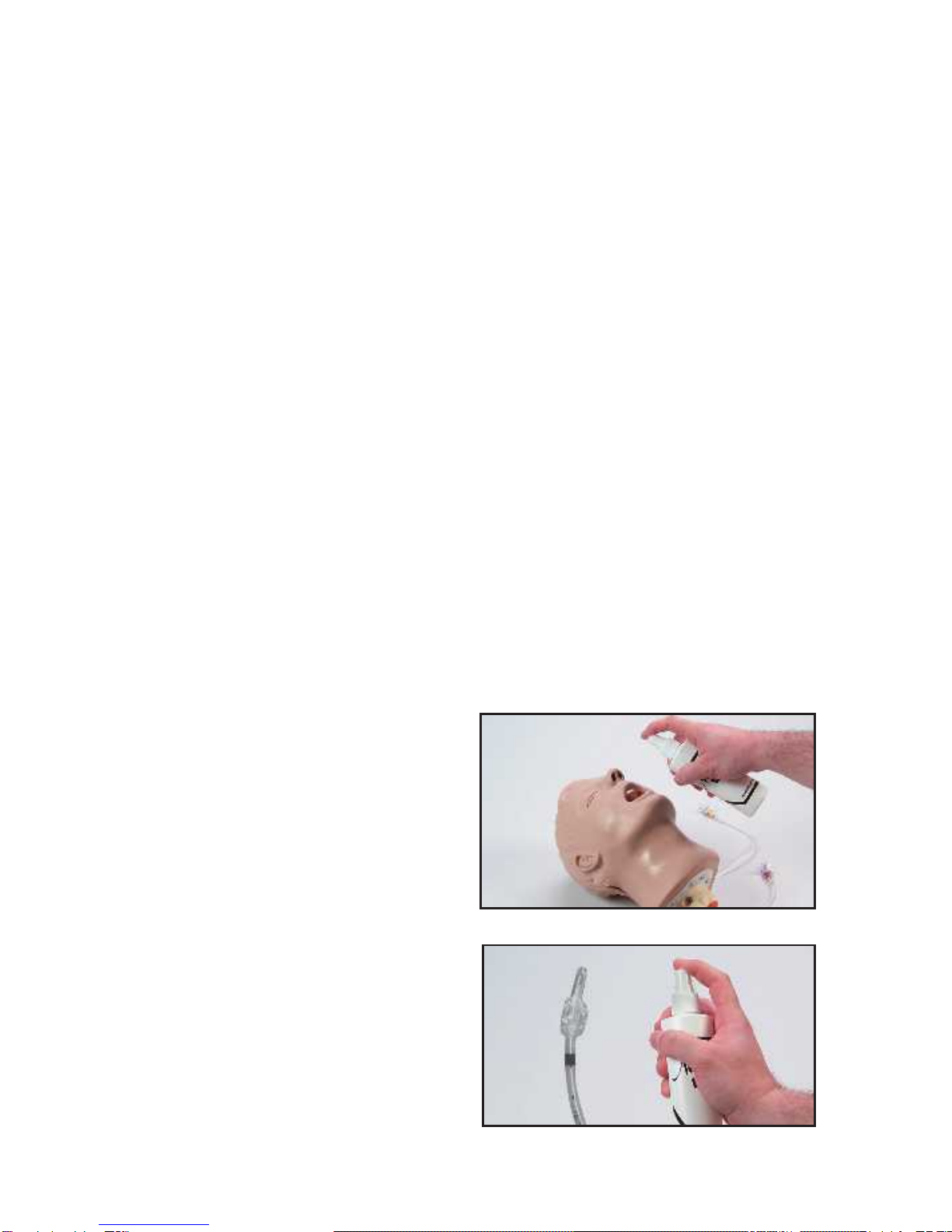

Lubrication:
Before using the Airway Management
Trainer, lubricate both the simula-
tor and supplies being used with the
NASCO lubricant provided (Figures 1
& 2).
3
2
*Resusci® Anne™ is a trademark of Laerdal
Medical Corporation.
Attaching the Head to the Manikin:
As explained earlier, NASCO’s Airway
Management Trainer has the ability to
be attached to both
CPARLENE®
and any
of the Resusci® Anne™* brand mani-
kins. To attach the Airway Management
Trainer head to the above manikins, you
must first remove the lung and stomach
bags if they are attached to the trainer.
Next, turn the head face down and begin
inserting it at the shoulders. Tip the head
upward slightly until the two keyways on
the back of the neck slide under the ring
and into the top of the torso (Figure 5).
Now match the single keyway on the
neck front up to the slot on the backside
of the torso, and push the head down
until it snaps into place. Rotate the head
back around so that it is facing up and
in the correct position.
Cleaning and Maintenance:
To clean the Airway Management
Trainer you will first need to remove
the head from the stand. Next, take
the trainer to an area with a sink and
open counter space. Using the 3 red
caps supplied, plug off the esophagus
and the bronchi (Figure 9).
Next, turn the head slightly to the side to
align the keyways with the slots, and pull
the head from the stand (Figure 4).
Figure 9
Figure 8
Figure 7
Figure 3
Figure 4
Figure 5
Using the Combitube®:
Thoroughly read and follow the instruc-
tions that come with the Combitube®.
The trainer will accept either a full-size
or a small adult tube. As with a live
patient, it may be necessary to back
the tube out slightly if ventilation can-
not be established.
NOTE: Depending on tube placement,
the large cuff may not accept the rec-
ommended 100 ml of air. If so, sim-
ply inflate the cuff to its maximum vol-
ume (when the plunger stops). While
holding the plunger down, detach the
syringe from the blue pilot balloon, and
proceed.
Removing the Head from the Stand:
To remove the head from the stand,
the lungs and stomach bag must first
be removed. Do this by sliding each
lung out from the connector fitting
and removing the clamp that holds
the stomach in place (Figure 3).
Then use the provided red cap plugs to
plug the esophagus and the left bron-
chus (Figure 7). This will ensure the sys-
tem is sealed and operational.
Figure 6
Connecting the Airways:
Once the head is in place, connect the
CPARLENE®
lung bag to the right bron-
chus by sliding the cap plug over the
white adapter in the bronchus (Figure 6).
Remove the Resusci® Anne™* head
and the connected section of corru-
gated tubing down to the valve. Install
the Airway Management Trainer head
and hook it up to the lung system with
the adapter piece. Place the red cap
end over the white fitting of the right
bronchus and hook the other end to
the lung bag valve nipple (where the
previous corrugated tubing had been
connected).
To remove the head from the manikin,
reverse the attachment procedure.
PLEASE NOTE: NASCO recommends
the use of the provided lubricant or a
similar vegetable-based lubricant for
the “Airway Larry” Airway Management
Trainer. The use of a silicone-based
lubricant may cause damage to the
simulator, thus voiding NASCO’s war-
ranty on the trainer.
To remount the head on the stand,
simply reverse this procedure.
NOTE: Our Airway Management Trainer
will fit on all models of
CPARLENE®
and
Resusci® Anne™* manikins. To adapt
the Airway Management Trainer head to
the Resusci® Anne™*, we have included
an adapter piece (Figure 8).
Stabilize the head on the counter
face-up (towels work well for this)
with the plugged tubes hanging over
the sink. Carefully pour warm soapy
water (a mild dish soap works best)
into the mouth until the water level
reaches halfway up the tongue.
Now tilt the head back and bring
the neck up 3" off the countertop.
3
2
*Resusci® Anne™ is a trademark of Laerdal
Medical Corporation.
Attaching the Head to the Manikin:
As explained earlier, NASCO’s Airway
Management Trainer has the ability to
be attached to both
CPARLENE®
and any
of the Resusci® Anne™* brand mani-
kins. To attach the Airway Management
Trainer head to the above manikins, you
must first remove the lung and stomach
bags if they are attached to the trainer.
Next, turn the head face down and begin
inserting it at the shoulders. Tip the head
upward slightly until the two keyways on
the back of the neck slide under the ring
and into the top of the torso (Figure 5).
Now match the single keyway on the
neck front up to the slot on the backside
of the torso, and push the head down
until it snaps into place. Rotate the head
back around so that it is facing up and
in the correct position.
Cleaning and Maintenance:
To clean the Airway Management
Trainer you will first need to remove
the head from the stand. Next, take
the trainer to an area with a sink and
open counter space. Using the 3 red
caps supplied, plug off the esophagus
and the bronchi (Figure 9).
Next, turn the head slightly to the side to
align the keyways with the slots, and pull
the head from the stand (Figure 4).
Figure 9
Figure 8
Figure 7
Figure 3
Figure 4
Figure 5
Using the Combitube®:
Thoroughly read and follow the instruc-
tions that come with the Combitube®.
The trainer will accept either a full-size
or a small adult tube. As with a live
patient, it may be necessary to back
the tube out slightly if ventilation can-
not be established.
NOTE: Depending on tube placement,
the large cuff may not accept the rec-
ommended 100 ml of air. If so, sim-
ply inflate the cuff to its maximum vol-
ume (when the plunger stops). While
holding the plunger down, detach the
syringe from the blue pilot balloon, and
proceed.
Removing the Head from the Stand:
To remove the head from the stand,
the lungs and stomach bag must first
be removed. Do this by sliding each
lung out from the connector fitting
and removing the clamp that holds
the stomach in place (Figure 3).
Then use the provided red cap plugs to
plug the esophagus and the left bron-
chus (Figure 7). This will ensure the sys-
tem is sealed and operational.
Figure 6
Connecting the Airways:
Once the head is in place, connect the
CPARLENE®
lung bag to the right bron-
chus by sliding the cap plug over the
white adapter in the bronchus (Figure 6).
Remove the Resusci® Anne™* head
and the connected section of corru-
gated tubing down to the valve. Install
the Airway Management Trainer head
and hook it up to the lung system with
the adapter piece. Place the red cap
end over the white fitting of the right
bronchus and hook the other end to
the lung bag valve nipple (where the
previous corrugated tubing had been
connected).
To remove the head from the manikin,
reverse the attachment procedure.
PLEASE NOTE: NASCO recommends
the use of the provided lubricant or a
similar vegetable-based lubricant for
the “Airway Larry” Airway Management
Trainer. The use of a silicone-based
lubricant may cause damage to the
simulator, thus voiding NASCO’s war-
ranty on the trainer.
To remount the head on the stand,
simply reverse this procedure.
NOTE: Our Airway Management Trainer
will fit on all models of
CPARLENE®
and
Resusci® Anne™* manikins. To adapt
the Airway Management Trainer head to
the Resusci® Anne™*, we have included
an adapter piece (Figure 8).
Stabilize the head on the counter
face-up (towels work well for this)
with the plugged tubes hanging over
the sink. Carefully pour warm soapy
water (a mild dish soap works best)
into the mouth until the water level
reaches halfway up the tongue.
Now tilt the head back and bring
the neck up 3" off the countertop.
List of Components:
“Airway Larry” Airway Management
Trainer
8 oz. Bottle of Lubricant
Left and Right Simulated Lungs
Simulated Stomach
1
About the Simulator…
The Life/form® Airway Management
Trainer, “Airway Larry”, is the most real-
istic simulator available for the training
of intubation and other airway manage-
ment skills.
This particular trainer has been specially
designed to build students’ confidence
and expertise with an easy-to-use model,
while still providing a realistic intubation
experience.
NASCO has taken great care to create
an airway management trainer that is
anatomically correct in respect to both
size and detail. Landmarks include:
nostrils, teeth, tongue, oral and nasal
pharynx, larynx, cricoid ring, epiglottis,
arytenoid, false and true cords, trachea,
esophagus, self-deflating lungs, and
stomach.
NASCO’s “Airway Larry” allows you
to practice oral, digital, and nasal
intubation. E.T., E.O.A., PTL®, and
Combitube® insertion can all be prac-
ticed as well (please see section titled
“Using the Combitube®”). Suction tech-
niques and proper cuff inflation can also
be performed and evaluated.
In addition, this model also allows stu-
dents to apply cricoid pressure dur-
ing the intubation procedure (Sellick’s
Maneuver). By locating the larynx and
depressing the cricoid ring, the student
may realistically lower the vocal cords
farther into the field of view. This also
effectively closes off the esophagus of
the simulator.
The Airway Management Trainer head
can be detached from the training stand
and placed on
CPARLENE®
or Resusci®
Disinfecting the Airway:
To disinfect, repeat the standard cleaning
procedure, but this time using a bleach
solution, as specified by the Centers
for Disease Control instead of soapy
water. Fill the system with the solution
until it reaches the corners of the mouth.
Remember to start filling with the head
flat, and finish with the neck slightly ele-
vated to ensure that the solution com-
pletely fills all airway passages. Once
completely filled with the bleach solu-
tion, allow the head to sit for at least 10
minutes. Drain as described earlier and
repeat the rinsing process to flush out
all of the bleach solution. Set the head
aside and allow it to dry completely.
4
Supplies/Replacement Parts for the
“Airway Larry” Airway Management
Trainer:
LF03605U Replacement Lung Kit
LF03606U Replacement Stomach Kit
LF03644U NASCO Pump Spray
Lubricant
W09919U REN Cleaner
Cleaning the Face:
Normal soil can be removed from the
face of the trainer with mild, soapy water.
REN Cleaner (W09919U) will remove
stubborn stains. Simply apply REN to
the soiled area and wipe clean with a
soft cloth or paper towel. NOTE: Do not
use REN Cleaner around the mouth and
nostrils, as the residue of the cleaner
could be toxic.
Caution:
Never place the trainer on any kind of
printed paper or plastic. These materi-
als will transfer indelible stains. Ballpoint
pens will also make indelible stains. Do
not use cosmetics.
*Resusci® Anne™ is a trademark of Laerdal
Medical Corporation.
Continue filling until the water level
covers the tongue. At this point, take
a small soft brush and gently scrub
the inside of the mouth (a small tooth-
brush works well for this). Cotton
swabs can be used to scrub inside
the nostrils. When done, pull the plug
from the esophagus and drain the
water into the sink. Now pick the head
up to a vertical position and pull the
plugs from the trachea to completely
empty the system (Figure 10).
Rinsing the Airway:
To rinse the airway, follow the same
procedure using clean, warm tap
water. Repeat this process until all the
soap has been flushed from the sys-
tem.
Anne™* brand manikins, creating a
valuable mega-code component. With
proper care, your Life/form® Airway
Management Trainer will provide years
of valuable service. Please review the
instructions carefully for set-up, clean-
up, and maintenance procedures.
Figure 1
Figure 2
Figure 10
Set Up:
The Airway Management Trainer is
ready to use upon delivery. Simply
remove it from the carton and unwrap
the packaging material. The lung and
stomach bags are already in place
and ready to use.
Lubrication:
Before using the Airway Management
Trainer, lubricate both the simula-
tor and supplies being used with the
NASCO lubricant provided (Figures 1
& 2).
901 Janesville Avenue, P.O. Box 901
Fort Atkinson, Wisconsin 53538-0901
Fort Atkinson
COPYRIGHT © NASCO 1998 PRINTED IN U.S.A. NP 67-98/RV 3-05
Nasco logo 2/4/94 created 2 1/2 by 6 3/4 inches
Trapped with .3 pt overprinting stroke at this size.
Fill not set to overprint. Trapping should be changed
when the logo is scaled to different sizes.
Set black fill to overprint if desired.
Products by NASCO
Other Available Simulators
LF00698U Adult Injectable Arm (White)
LF00856U Female Catheterization
LF00901U Prostate Examination
LF00906U Ostomy Care
LF00929U Surgical Bandaging
LF00957U Enema Administration
LF00958U Pediatric Injectable Arm
LF00961U Intramuscular Injection
LF00984U Breast Examination
LF00995U Arterial Puncture Arm
LF00997U Adult Injectable Arm (Black)
LF00999U Pediatric Injectable Head
LF01008U Intradermal Injection Arm
LF01012U Heart Catheterization (TPN)
LF01019U Ear Examination
LF01020U Supplementary Ear Set
LF01025U Male Cath-Ed I
LF01026U Female Cath-Ed II
LF01027U Peritoneal Dialysis
LF01028U Suture Practice Arm
LF01036U Spinal Injection
LF01037U Hemodialysis Arm
LF01062U Pelvic, Normal & Abnormal
LF01063U Stump Bandaging, Upper
LF01064U Stump Bandaging, Lower
LF01069U Cervical Effacement
LF01070U Birthing Station
LF01082U Cricothyrotomy
LF01083U Tracheostomy Care
LF01084U Sigmoidoscopic
Examination
LF01087U
Central Venous Cannulation
LF01095U Blood Pressure Arm
LF01108U Intraosseous Infusion
Simulator
LF01121U Advanced IV Arm
LF01139U Advanced IV Hand
LF01142U Auscultation Trainer
LF01162U Venatech IV Trainer
LF03000U CPARLENE® Series
LF03601U Adult Airway Management
Trainer
LF03602U Adult Airway Management
on Manikin
LF03603U Adult Airway Management
Head Only
LF03609U Child Airway Management
Trainer
LF03610U Child Airway Management
Trainer Head Only
LF03611U Child Defibrillation Chest
Skin
LF03612U Child IV Arm
LF03613U Child Blood Pressure Arm
LF03614U Child Intraosseous Infusion/
Femoral Access Leg Only
LF03615U Complete Child CRiSis™
Update Kit
LF03616U Child CRiSis™ Manikin
LF03617U Deluxe Child CRiSis™
Manikin with Arrhythmia Tutor
LF03620U PALS Update Kit
LF03621U Infant Airway Management
Trainer Head Only
LF03622U Intraosseous Infusion Right
Leg
LF03623U Infant Airway Management
Trainer
LF03626U Child Femoral Access
Injection Pad Replacement
LF03632U Child Intraosseous Infusion/
Femoral Access Leg on a
Stand
LF03633U Child Airway Management
Trainer with Torso
LF03693U Basic Buddy CPR Manikin
LF03699U “Airway Larry” Airway
Management Trainer
LF03720U Baby Buddy Infant CPR Manikin
LF03953U CRiSis™ Manikin
LF03955U Deluxe CRiSis™ Manikin
LF03965U Deluxe “Plus” CRiSis™ Manikin
LF04001U GERi™ Nursing Manikin
LF04020U KERi™ Nursing Manikin
LF04021U KERi™ Basic Manikin
LF04022U KERi™ Advanced Manikin
LF04030U GERi™ Advanced Manikin
LF04040U GERi™ Basic Manikin
LF06001U CPR Prompt™ Adult/Child
Manikin
LF06012U CPR Prompt™ Infant Manikin
LF06200U CPR Prompt™ Keychain
Rescue Aid
LF06200U CPR Prompt™ Rescue and
Practice Aid
“Airway Larry”
AIRWAY
MANAGEMENT TRAINER
LF03699U
INSTRUCTION MANUAL
Other Life form Science Education Product manuals
