Life Smart HF9309BLQR-M40 User manual

Owner’s Manual
HF9309BLQR-M40
IMPORTANT SAFETY INFORMATION:
ety, always comply with all warnings and safety instructions contained in this manual to prevent personal
injury or property damage.

2
Table of Contents
or service agency to repair
!NOTE: Procedures and
techniques that are considered
important enough to emphasize.
CAUTION: Procedures and
techniques which, if not carefully
followed, will result in damage to
the equipment.
WARNING: Procedures
and techniques which, if not
carefully followed, will expose
serious injury, or death.
IMPORTANT INSTRUCTIONS ................. 3
Fireplace Installation ........................ 5
Operation................................. . 9
Maintenance.............................. .12
Warranty .............................. . 13
Trouble Shooting ....................... .14
Replacement Parts ....................... .15

3
When using electrical appliances,
basic precautions should always
be followed to reduce the risk of
fire, electric shock, and injury to
persons, including the following:
①Read all instructions before
installing or using this heater.
②This heater is hot when in use.
To avoid burns, do not let bare
skin touch hot surfaces. Keep
combustible materials, such as
furniture, pillows, bedding, papers,
clothes, etc. and curtains at
least 3 feet ( 0.9m) from the front
of the heater and keep them away
from the sides and rear.
WARNING: High tempera-
tures may be generated under
certain abnormal conditions.
Do not partially or fully cover
or obstruct the front of this
heater.
③Extreme caution is neces-
sary when any heater is used by
or near children or invalids and
whenever the unit is left operating
and unattended.
Do not operate any heater
⑥
Do not use outdoors.
IMPORTANT INSTRUCTIONS
⑦
⑧To prevent a possible fire, do not
⑨
⑩
⑤
④
To disconnect heater, turn
Do not insert or allow foreign
All electric heaters have hot
Use this heater only as described
after it malfunctions.Disconnect
power at service panel and have
heater inspected by a reputable
electrician before reusing.
controls to off, and then remove
plug from outlet.
objects to enter any ventilation
or exhaust opening as this may
cause an electric shock or fire,
or damage the heater.
block air intakes or exhaust in
any manner.
and arcing or sparking parts
inside. Do not use it in areas
where gasoline,paint, or flammable
vapors or liquids are used or
stored.
in this manual. Any other use not
recommended by the manufacturer
may cause fire, electric shock,
or injury to persons.
Do not operate any heater with
a damaged cord or plug, or if the
heater has malfunctioned, or if it
has been dropped or damaged
in any manner, contact
Technical Service at
⑪

4
⑮
Do not burn wood or other
⑯
Do not strike the front glass.
⑰
-
cian should new circuits or outlets
be required.
Always use properly grounded,
fused and polarized outlets.
Disconnect all power supply
before performing any cleaning,
maintenance or relocation of the
heater.
When transporting or storing
the heater and cord, keep in a
dry place, free from excessive
vibration and store so as to avoid
damage.
WARNING: Remote control
contains a small battery. Keep
away from children. If swallowed,
seek medical attention immedi-
ately.
WARNING: Do not install bat-
or mix with used or other battery
types - may explode or leak caus-
ing injury.
!NOTE: -
tions not expressly approved by
the party responsible for compli-
ance could void user's authority to
operate the equipment.
IMPORTANT INSTRUCTIONS
⑫
⑬
⑭
SAVE THESE INSTRUCTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICEABLE PARTS INSIDE

5
Fireplace Installation
WARNING: Ensure the power
cord is not installed so that it is
pinched or against a sharp edge
and ensure that the power cord is
stored or secured to avoid tripping
or snagging to reduce the risk of
-
sons.
WARNING: Construction and
electrical outlet wiring must comply
with local building codes and other
applicable regulations to reduce the
to persons.
WARNING: Do not attempt
to wire your own new outlets or
electric shock or injury to persons,
always use a licensed electrician.
WARNING: To reduce the risk
-
liquids in the vicinity of the heater.
CAUTION:
High temperature,
drapery, furnishings, and other
combustibles at least 3 ft (0.9 m)
from the front of the heater.
!NOTE: A 15 Amp, 120 Volt
alternating current (VAC) circuit
is required. A dedicated circuit
is preferred but not essential in
all cases. A dedicated circuit will
be required if, after installation,
the circuit breaker trips or fuse
blows on a regular basis when the
heater is operating. Additional
appliances on the same circuit
may exceed the current rating of
the circuit breaker.

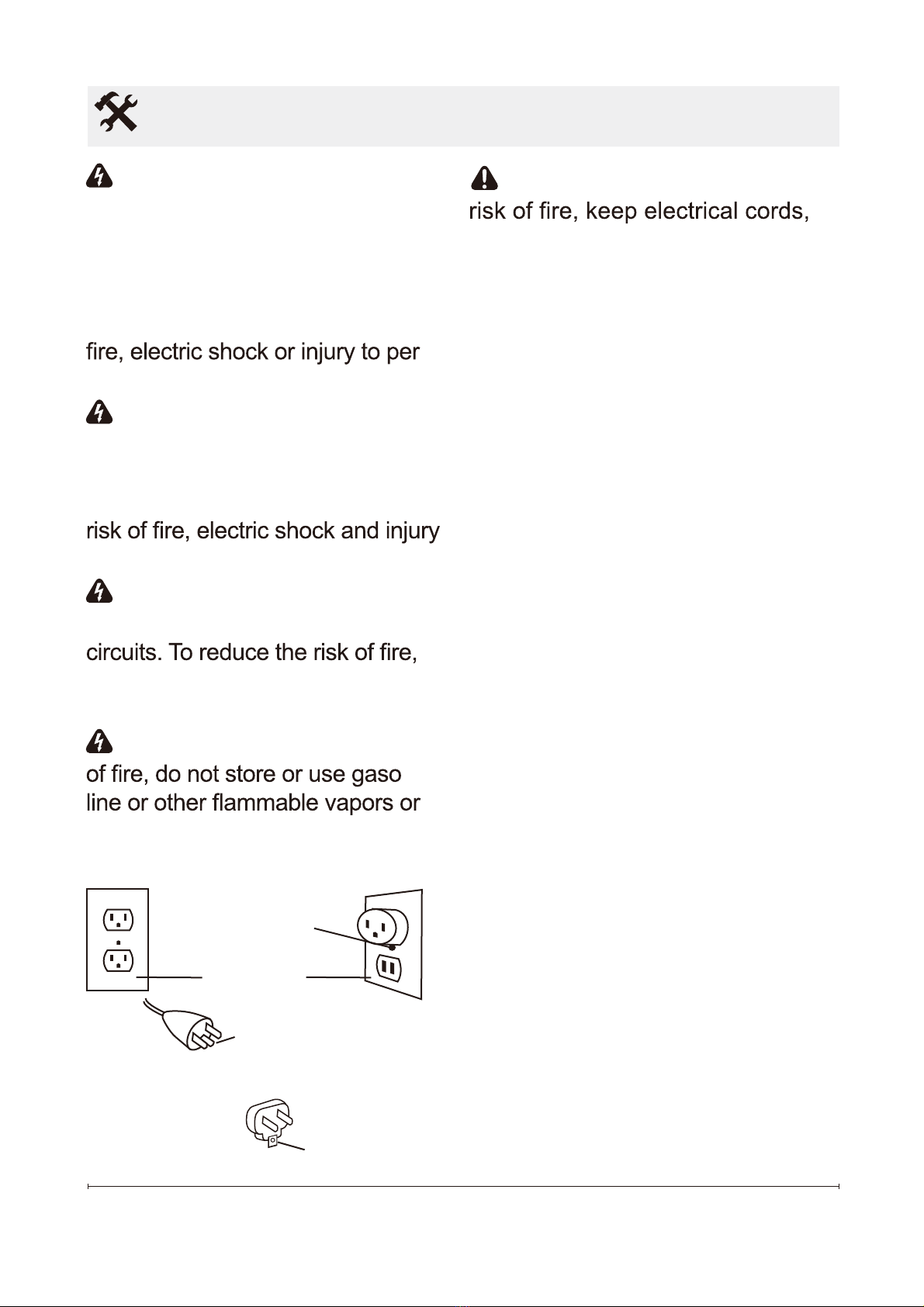

Grounding Methods
Metal Screw
(A)
Not allowed in Canada
Grounding Means
Adapter
Grounding Pin
Cover of
grounded
outlet box
(C)
(B)
!NOTE: Grounding the appliance
This appliance is for use on 120 volts.
The cord has aplug as shown in (A).
An adapter as shown in (C) is available
for connecting three-blade grounding
type plugs to two-slot receptacles, as
shown in (B). The green grounding plug
extending from the adapter must be
connected to a permanent ground such
as a properly grounded outlet box.
The adapter should not beused if a
three-slot grounded receptacleis
available. To disconnect appliance,
turn controls to off, then remove plug
from outlet. (Fig 1)
Figure 1

6
Fireplace Installation

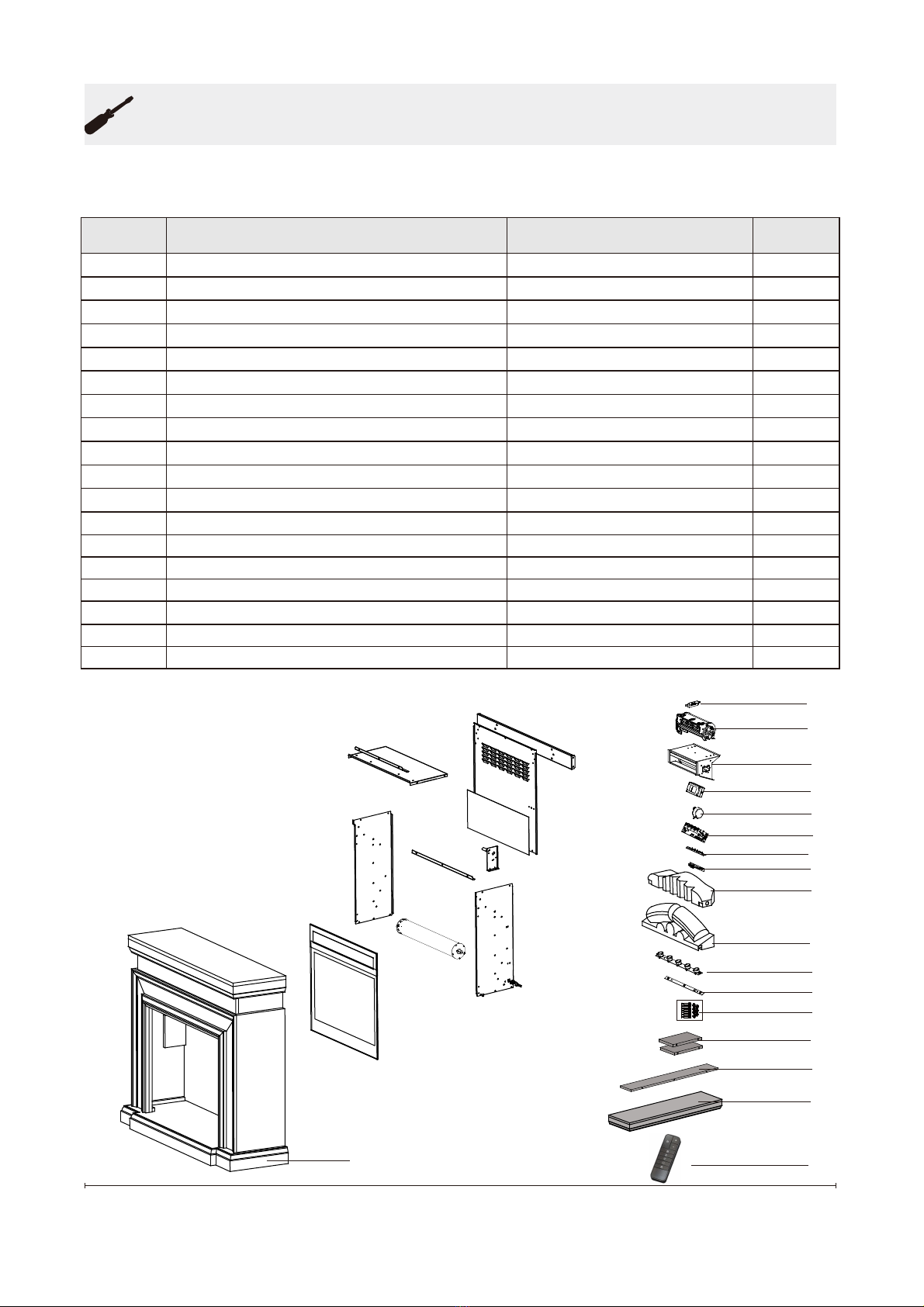

WHAT’S IN THE BOX
2
6
4
NOTE:
Hardware not shown to actual size.
3
5
1
Ref. Description Quantity
1
Fireplace HF9309BLQR-M40 1pc
2
Top Panel (A) 1pc
3
Front Frame (B) 1pc
4
Side Frame (C) 2pcs
5
3 in 1 Blot (DD) 14pcs
6
3 in 1 Cam (EE) 14pcs
7
Remote control 1pc
8
AAA Batteries 1set(2pcs)
9
Owner’s Manual
1pc
789
PLANNING ASSEMBLY
Before beginning assembly of product, make sure all parts are present.Compare parts with Hardware Included and
Package Contents lists.If any part is missing or damaged, do not attempt to assemble, install or operate the product.
Contact customer service for replacement parts.
Estimated Assembly Time: 30Minutes

7
Fireplace Installation
BEFORE YOUR FIRST USE:
1. Remove your appliance from the packaging.
2. Install your appliance in accordance with the installation & safety instructions.
3. Your appliance is now ready for normal use.
Dispose of the packaging in a responsible manner.
WARNING: This product must be installed correctly, failure to do so may result in injury,
electric shock to the user or damage to your product and your Property.
Phillips Screwdriver
Tools Required for Assembly (not included):

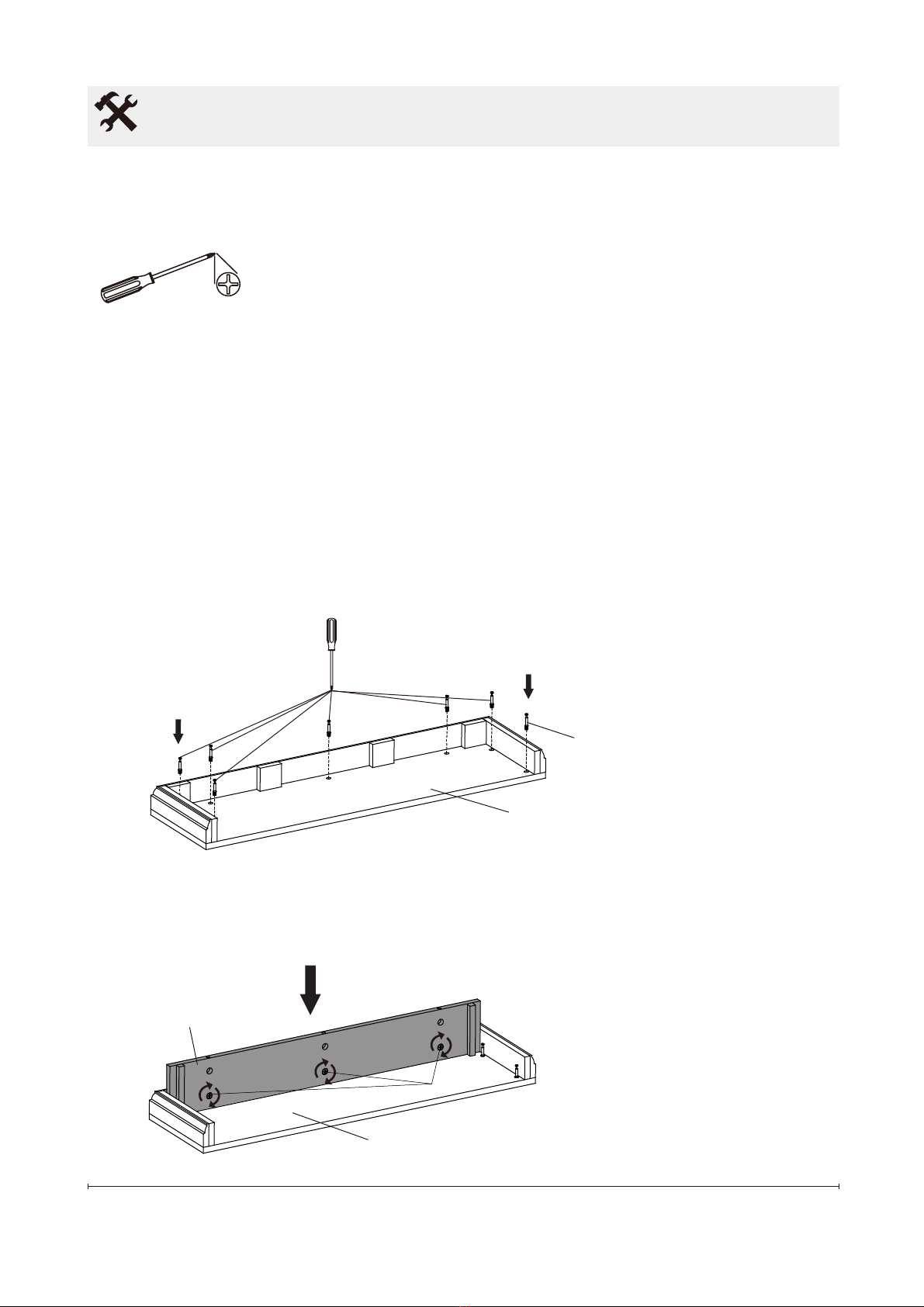

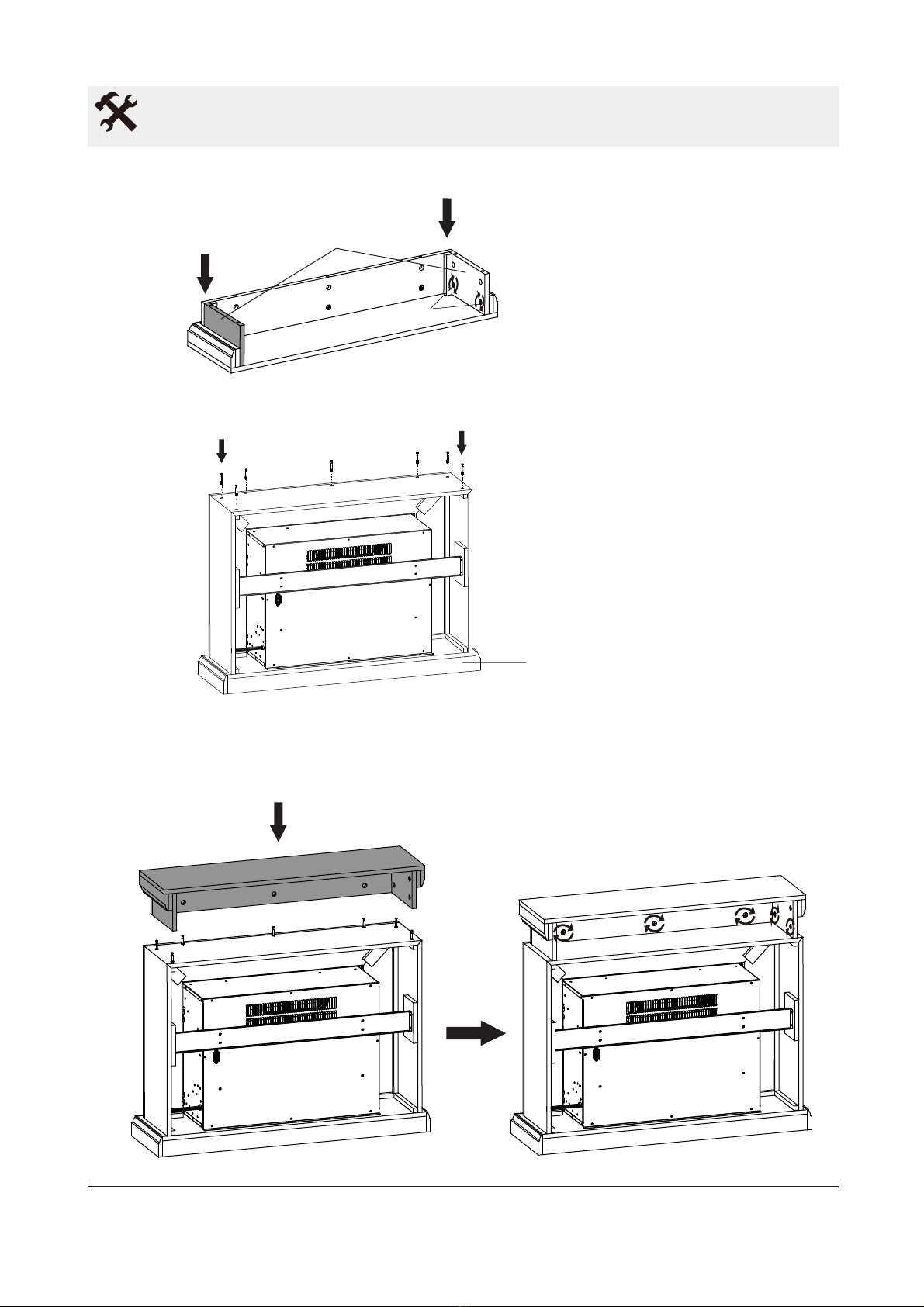

Installing Top Panel
1. Secure provided 3 in 1 bolts (DD) into the pilot nuts.
(On the back of top panel (A))
2. Put the front Frame in place, ensure the bolts are fully inserted to the holes.
Put the 3 in 1 Cam (EE) in place and secured them.
DD
B
A
A
EE

8
Fireplace Installation
3. Put the Side Frames (C) in place, place the 3 in 1 Cam (EE) in place and secured them.
C
EE
4. Secure the 3 in 1 Bolts (DD) into Fireplace top.
5. Place the top Assembly finished on Step 3 onto fireplace top. Ensure all the bolts are
fully inserted into the holes, put the 3 in 1 Cams (EE) into and secured.
Fireplace

9
Operation
WARNING: This electric
before it is used.
The unit can be controlled by
either the manual controls which
are located on the upper right of
3 & 4).
IR multifunction remote control.
This remote control has a range
of approximately 16 ft (5 m). To
operate correctly, the remote con-
trol must be pointed towards the
Floating DisplayTM.
!NOTE: Before attempting any
operation with the remote, slide
the remote back cover and insert
provided 2 AAA batteries.
T
ControlPanel
Display
1. Power Button
3. Heater Button
4. Thermostat Down
4. Thermostat up
6. Timer button
Figure 3
Figure 4
4. Thermostat Down
4. Thermostat up
2. Flame effect button
3. Heater Button
5. Brightness button
6. Timer button
Remote Control
1. Power Button
7. Child Lock

10
Operation（Continued）
When appliance is Off:
1 press-Puts appliance into Standby Mode.
2 presses-Turns appliance on.
When appliance is On:
1 press-Turns appliance off.
1
3
2
Powering the Fireplace
NOTE:
NOTE: All previous settings are held in memory, so the next
time you power up the fireplace, the unit will turn on
with the same settings.
Turns the Flame Effect On and Off, actived by pressing
the button on the remote. Cycles the unit through
the four settings:
Press the Thermostat button on the control panel or
on remote control to change the setting temperature.
4
The thermostat setting range is 59°F- 86°F or 15°C- 30°C.
The thermostat is adjustable by 1°F or 1°C increments by press-
ing the Up or Down “ “ buttons on the remote control
or buttons on control panel.
Turns the Heater On and Off, actived by pressing the
button on the remote or control panel. Cycles the
unit through the three settings:
NOTE:
The unit can be operated in Demo Mode,Press and hold the
button on the control panel (not by using the remote) for
more than 5 seconds, to change to Demo mode.The heater
and thermostat are disabled, and "dE" will be displayed on
the Digital Display. Press and hold again for 5 seconds to
exit Demo mode.
The default temperature setting is 77°F (25°C)
then press and hold the button on the control panel for
5 seconds, or vice versa.
That can be only operated on the control panel.
NOTE:
The unit can be operated in Heat Only Mode, when the unit is
only running with the heater, Low heat (H1) or high heat (H2),
icon will continuously be displayed on the control panel.
‘H2’ on display. High Heat. Indicated icon
‘H1’ on display. Low Heat. Indicated icon
Blower and Heater OFF, Indicated icon is off.
NOTE:
After the heater is switched off, there is a 60 seconds fan
Adjusting the Flame Eect
Adjusting the Heater Adjusting the Thermostat
To change between °F and °C,hold the button down,
‘FE’, Flame and Fuel bed ON.
‘F-’, Flame ON, Fuel bed OFF.
‘-E’, Flame OFF, Fuel bed ON.
‘--’, Flame and Fuel bed OFF.
7Child Lock
Press and Hold Child Lock button on remote control for
5 seconds to Active or Cancel Child Lock function.
Child Lock is actived, “LC” is on flashing and displayed on
the DIGITAL DISPLAY when press any button. And function
is locked.
delay, where the fan will continue running before turning off.
6
Icon is indicated on display when timer is on and working.
Setting the Timer
Press the Timer button on control panel or remote to cycle
through the nine timer settings (30 minutes, 1Hour, 2H,3H,
4H,5H,6H,7H,8H) and the timer OFF.
Press the Brightness button on the remote control to change
the Fuel bed color between the 3 settings: High, Middle and
Low. Indicated by the second digit on the Floating Display™
changing to show: "P" (high), "C"(middle) and "L" (low).
5Adjusting the Brightness

11
Resetting the Temperature
Cutoff Switch
Should the heater overheat, an auto-matic cut out
will turn the heater off and it will not come back on
without being reset. It can be reset by unplugging
the unit and waiting 30 minutes before plugging the
unit back in.
CAUTION: If you need to con-
tinuously reset the heater, unplug
the unit and call technical support.
Operation
CAUTION: “E3” is on Display
Once cut out is tripping.
NOTE: Please operate the remote control at a slow measured
pace. Press the remote control buttons with an even motion and
gentle pressure.Repeatedly pressing buttons in rapid succession
may cause the transmitter to malfunction.
NOTE: Do not mix old and new batteries. Do not mix alkaline,
standard (carbonzinc), or rechargeable (nicad,nimh, etc) batteries.
Close the battery compartment door.
The battery may contain hazardous substances that
could endanger the enviroment and human health.
This symbol marked on the battery and/or packaging
indicates that used battery shall not be treated as
municipal waste.Instead it should be left at the
appropriate collection point for recycling.
By correctly disposing used batteries, you prevent
potential negative consequences for the environment
and human health.Recycling used materials also
conserves natural resources.
For more information about collecting and recycling
used batteries, please contact your local municipality,
your waste disposal service or the point of sale where
you purchased this product.
Disposing of Used Batteries
NOTE: Batteries should be removed if the product is to be left
unused for a long time.
Replacing the remote control
Batteries
When the remote control stops operating or its range
seems reduced, it is time to replace the batteries with
new ones.
Insert two AAA batteries, checking that the + and -
sides of the battery match inside the battery compartment.
On the back end of the remote, press and slide the
battery door open and remove the old batteries.

12
WARNING: Disconnect
power before attempting any
maintenance or cleaning to
shock or damage to persons.
Glass Cleaning
The glass is cleaned in the factory
during the assembly operation.
During shipment, installation,
handling, etc., the front glass
panel may collect dust particles;
these can be removed by dusting
lightly with a clean dry cloth.
marks, the front glass panel can
be cleaned with a damp cloth.
The front glass panel should be
completely dried with a lint free
cloth to prevent water spots. To
prevent scratching, do not use
abrasive cleaners or spray liquids
on the glass surface.
Fireplace Cleaning
Use warm water only to clean
painted surfaces of the Compact
Fireplace. Do not use abrasive
cleaners.
To prolong the life of your unit and
optimize the performance of your
heater, vacuum or dust the outlet
of the heater, and under and
basis.
Servicing
Except for the cleaning described
above, an authorized service rep-
resentative should perform any
other servicing.
Maintenance

13
Warranty

14
Trouble Shooting
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Display shows “ ”. The thermostat sensor is broken
or disconnected.
U
that the thermostat is plugged into the main circuit board. If this does not
solve the problem contact customer service for a replacement thermostat
sensor.
Display shows “ ”. The thermostat sensor is
broken. Contact customer service for a replacement thermostat sensor.
Display shows “ ”. Manual Reset overheat
protection has triggered.
Inspect the heater and check that the air inlets and outlets are not blocked
as this may cause overheating. Unplug the heater for 30 minutes and allow
it to cool down. Replug, operate, and monitor the heater for signs of
overheating. If the problem persists discontinue use of the heater and
contact customer service.
The heater does not blow warm
air.
The heater is in a cool down
cycle.
This is normal operation and the heater will continue to run for several
minutes before shutting down. Times will vary based on temperatures.
During this time cool air will blow.
There is no power. There is no power to the unit.
Check that unit is plugged into a standard 120V outlet. Press the Power
button several times and make sure the power is set to the “ON” position.
The heater does not blow any
air.
Thermostat setting is preventing
heater from turning on.
Adjust the temperature settings to ensure that the thermostat is set higher
than the current room temperature.
The heater does not work, but
Power and Heater settings are
“ON” and thermostat is set.
Manual reset overheat
protection triggered.
Turn the Power to “OFF” and unplug the unit from the wall outlet for 5
minutes. After 5 minutes plug the unit back into wall outlet, and operate as
normal. If the problem persists contact customer service.
Flame effect works but heater
Heater or
Thermostat button is pressed.
The product is on Demo Mode.
The heater and thermostat are
disabled.
With the power on press and hold the Heater button on the control panel
for more tahn 5 seconds. Once re-enabled the ‘dE’ on the display
disappears.
The remote control is not
working.
There are no batteries or the
signal is poor.
Change the remote batteries.
Operate remote transmitter at a slow measured pace.
Press the remote control buttons with an even motion
and gentle pressure. Repeatedly pressing buttons in rapid
succession may cause the transmitter to malfunction.
The noise when the heater is on
is louder than normal.
a. The air intakes are dirty or
obstructed.
b. The blower/heater assembly
is defective.
a. Check the air intakes for obstructions or high dust build up.
b. Contact Customer Service for a new Heater/Blower Assembly.
Abnormal noise when the heater
is on. The spinner motor is defective. Contact Customer Service for a new Gear Motor.
front
‘dE’

15
Replacement Parts
Part Description Part Number Qty.
A Remote Control - 8 Buttons 1pc
B 1pc
C
Flame Circuit Board
1pc
D 2pcs
E 1set (14pcs)
F 1pc
G
Main Circuit Board
1pc
H 1pc
I
Gear Motor
1pc
J 1pc
K 1pc
L 1pc
For replacement parts, call our customer service department at 8 a.m.-7 p.m., EST, Monday-Friday,
9 a.m. - 6 p.m., EST, Saturday.
Power Supply
M1pc
N 1pc
A
F
G
H
J
K
L
M
N
O
Q
P
R
Infrared Element Assembly
I
1set
O
Control Circuit Board
Display Circuit Board
Back Log Set
Front Log Set
Log LED Board
Top panel
HF9309BLQR-M40-N
HF9309BLQR-M40-M
HF9309BLQR-M40-L
HF9309BLQR-M40-K
HF9309BLQR-M40-J
HF9309BLQR-M40-I
HF9309BLQR-M40-H
HF9309BLQR-M40-G
HF9309BLQR-M40-F
HF9309BLQR-M40-E
HF9309BLQR-M40-D
HF9309BLQR-M40-C
HF9309BLQR-M40-B
HF9309BLQR-M40-A
Cut Out
P1pc
Q 1pc
Blower Motor Assembly
1pc
RM40
Mantel
HF9309BLQR-M40-Q
HF9309BLQR-M40-P
E
D
C
B
3 in 1 Bolts set
Side Frame
Front Frame
HF9309BLQR-M40-O
