OWNERS INSTALLATION AND OPERATING MANUAL
I
In nf fr ra ar re ed d M Mo od du ul la ar r F Fi ir re ep pl la ac ce e H He ea at te er r
W
Wi it th h R Re em mo ov va ab bl le e M Me ed di ia a C Ce en nt te er r M Ma an nt tl le e a an nd d C Co or rn ne er r A At tt ta ac ch hm me en nt t
Model: LS-ENTCOMBO-FP
Safety Notice
Please read this entire Installation and Operating Manual BEFORE installing and using your
new Infrared Fireplace Heater. Failure to fully understand and follow instructions may result in
property damage, bodily injury, or even death.
If your Infrared fireplace heater is not used properly, a house fire may result. For everyone’s
safety, FOLLOW all Installation and Operating Directions. Infrared fireplace heaters have been
designed for use in the US and are suitable for mobile homes.
Save These Instructions

2
TABLE OF CONTENTS
Topic Page(s)
Introduction 3
Specifications 4
Safety Information 5-6
Getting Started/Items In the Box 7
Know Your Product 8-9
Assembly Instructions 10-14
Fireplace Placement 15
Fireplace Operation 16
Troubleshooting and Fireplace Maintenance 17
Warranty 18-19
Warranty Claim Contact Information 20

3
INTRODUCTION
Thank you for choosing Lifesmart as your preferred Infrared Heater provider.
Esteemed Customer. . .Until now you have shopped around. You have seen
many Infrared Heaters and Infrared Heater fireplaces. You have seen the
infrared fireplace heaters: 1) without a mantle 2) with an added mantle only 3)
with a media center mantle only 4) And you have even seen the fireplace
heaters used as a luxurious corner furniture addition (with an un-removable
corner piece).

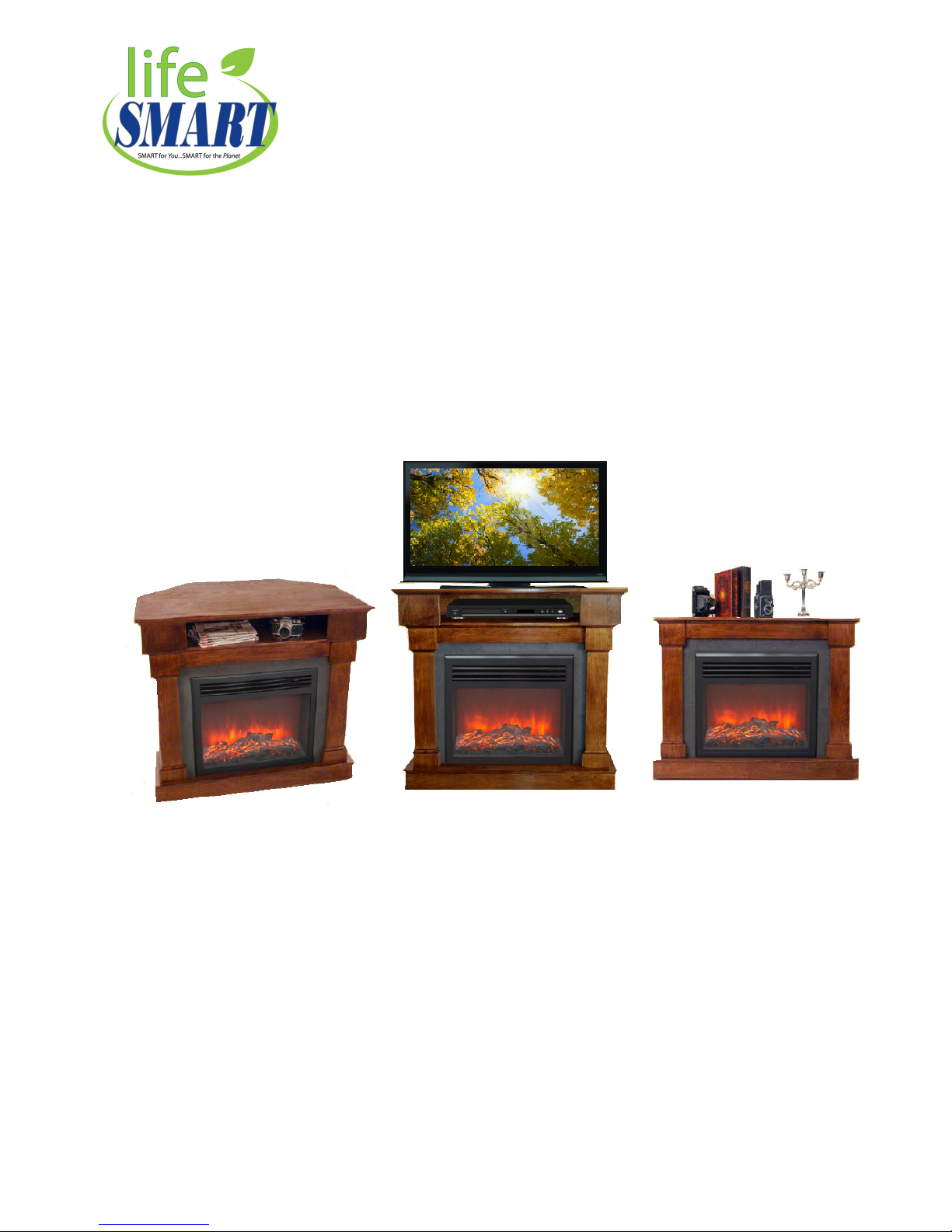

LIFESMART PRODUCTS NOW BRINGS YOU ALL OF THOSE OPTIONS IN
THIS ONE-OF-A-KIND COMBINATION PACKAGE!
You have just purchased one of the most unique, versatile, and best infrared
fireplace heaters available in the market today. This Lifesmart product gives you
the beauty and heat of a simple cozy log fire (heating up to a 1500 square foot
room!), along with the option to add a beautiful functional mantle (that may be
used as an entertainment console). If that wasn’t enough, you are also able to
impress all who visit by displaying the luxurious fireplace in a corner of the room,
with a few minor assembly steps. It is not only fancy, but the conversion and
assembly is as easy as 1-2-3. By using this infrared fireplace heater you can
efficiently.
Stay Warm and Enjoy!!

4
Note that this fireplace heater is NOT intended to replace your home furnace; rather it is
designed to be a supplement to it. It is not an instant heater – it can take up to 24 hours for a
room to reach the desired temperature. Our Infrared fireplace heaters have been tested and
listed for installation in residential and mobile homes by UL:
SPECIFICATIONS:
Electrical:
Voltage: 120V~60Hz
Power consumption: 1000-1500 Watts
Digital Thermostat range: 50-90 Fahrenheit
Coverage:
Up to 1,500 Square Foot Room Maximum
Dimensions:
37.5”Tall x 42.2”Wide x 30.1”Deep, 98 lbs
Safety Features:
Safety Overheat Shut Off Switch
Features:
Remote Control
Vivid Log/ Flame Effect
Removable Mantle Piece/Entertainment Console
Removable Corner Piece Attachment
Eco Friendly Wood

5
IMPORTANT SAFETY INSTRUCTIONS
READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THE
HEATER
WARNING
! POTENTIAL FOR ELECTRICAL HAZARD!
When using electrical appliances, basic precautions should always be followed to reduce the
risk of fire, electric shock, and injury to persons, including the following:
1. Read all instructions before using this heater.
2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot
surfaces. If provided, use handles when moving this heater. Keep combustible
materials, such as furniture, pillows, bedding, papers, clothes, and curtains at
least 3 feet, from the front of the heater and keep them away from the sides and
rear.
3. Extreme caution is necessary when any heater is used by or near children or
invalids and whenever the heater is left operating and unattended.
4. Always unplug heater when not in use.
5. Do not operate any heater with a damaged cord or plug or after the heater
malfunctions, has been dropped or damaged in any manner. Return heater to
authorized service facility for examination, electrical or mechanical adjustment, or
repair.
6. Do not use outdoors.
7. This heater is not intended for use in bathrooms, laundry areas and similar indoor
locations. Never locate heater where it may fall into a bathtub or other water
container.
8. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or
similar coverings. Arrange cord away from traffic area and where it will not be
tripped over.
9. To disconnect heater, turn controls to off, then remove plug from outlet.
10.Connect to properly grounded outlets only.

6
11.Do not insert or allow foreign objects to enter any ventilation or exhaust opening
as this may cause an electric shock or fire, or damage the heater.
12.To prevent a possible fire, do not block air intakes or exhaust in any manner. Do
not use on soft surfaces, like a bed, where openings may become blocked.
13.A heater has hot and arcing or sparking parts inside. Do not use it in areas where
gasoline, paint, or flammable liquids are used or stored.
14.Use this heater only as described in this manual. Any other use not recommended
by the manufacturer may cause fire, electric shock, or injury to persons.
15. Always plug heaters directly into a wall outlet/receptacle. Never use with an
extension cord or re-locatable power tap (outlet/power strip).
This heater has a self – protection function. If the heater does not operate
normally, check cord and heater placement, then UNPLUG IT FROM THE
OUTLET & PLUG IT BACK TO OUTLET TO RESET.
Grou di g
This heater is for use on 120 volts. The cord has a plug with three blades for proper
grounding. DO NOT attempt to modify the plug in any way or use adaptors to defeat the
purpose of the grounding feature. Plug ONLY into a receptacle that accepts three-blade plug.

7
GETTING STARTED
Please check to make sure you have all items included in the box prior to choosing a
permanent heater location or starting the installation process.
*
*C Co on nt te en nt ts s i in n t th he e B Bo ox x ( (14 individual items total) ): :

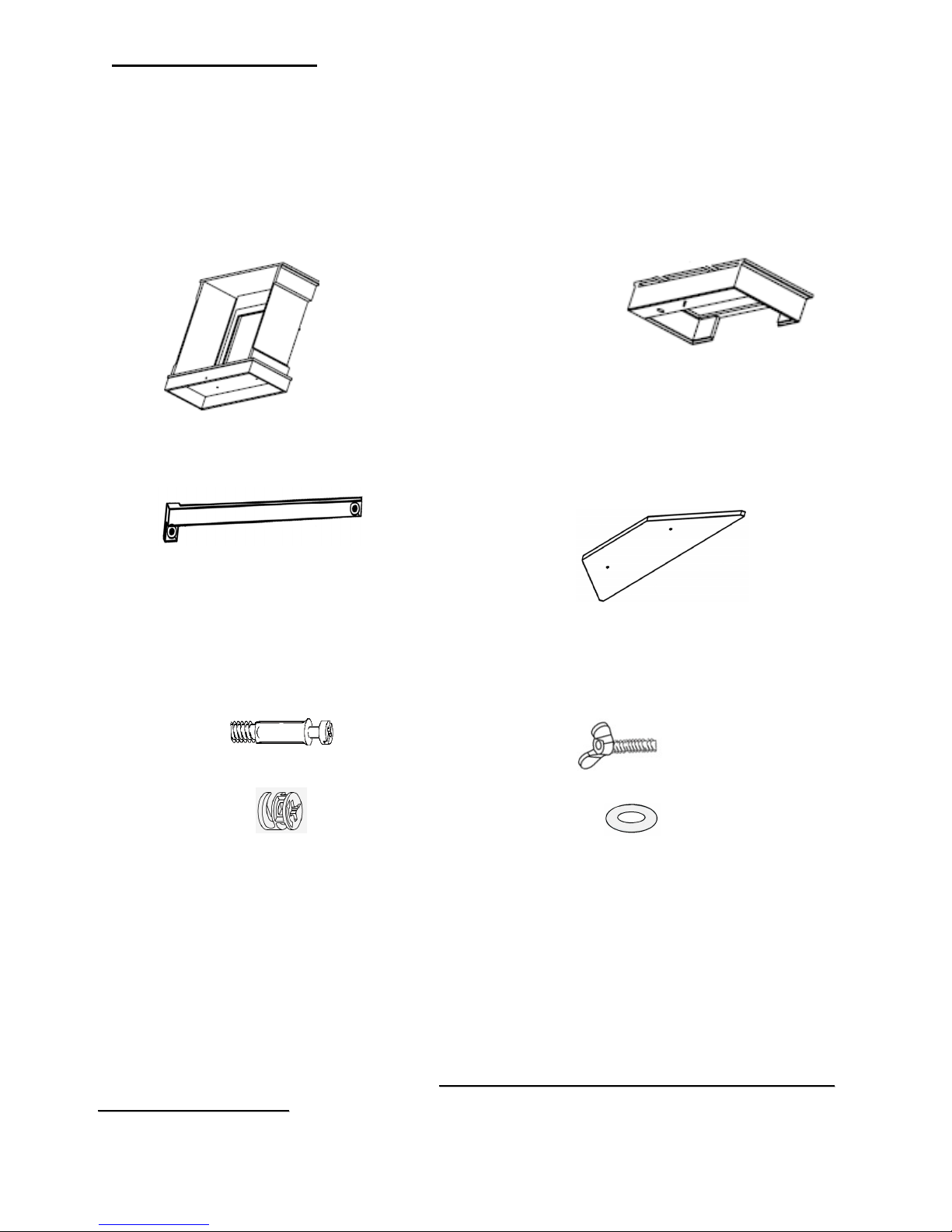

1. Infrared Fireplace Heater (Qty 1) 2. Removable Mantle/Media Insert (Qty 1)
3. Mantle Support “L” Bracket (Qty 1) 4. Corner Piece Attachment (Qty 1)
5. Hardware Pack
A. Hardware Pack includes the following:
a. Cam Screws (Qty 2)
b. Cam Locks (Qty 2)
c. Wing Nut Fasteners (Qty 2)
d. Flat Washers (Qty 2)
6. Instruction Manual
7. Remote Control (2 AAA Batteries Sold Separately)
S
ST TO OP P! !
I
If f a an ny y o of f t th he e i it te em ms s a ab bo ov ve e a ar re e m mi is ss si in ng g c co on nt ta ac ct t L Li if fe es sm ma ar rt t T Te ec ch hn ni ic ca al l S Su up pp po or rt t
I
Im mm me ed di ia at te el ly y f fo or r r re ep pl la ac ce em me en nt t p pa ar rt ts s. . D Do o n no ot t C Co on nt ta ac ct t t th he e P Pl la ac ce e o of f P Pu ur rc ch ha as se e f fo or r
R
Re ep pl la ac ce em me en nt t P Pa ar rt ts s. .

8
Tools/Items Recommended For Assembly
1. Medium Phillips Screwdriver or Flat Head Screwdriver
OR
I
Im mp po or rt ta an nt t T Th hi in ng gs s t to o K Kn no ow w P Pr ri io or r t to o A As ss se em mb bl ly y
1. For aesthetic purposes, this version of the product may not come with transport wheels.
Although is not very heavy, moving it back and forth may become tiresome. For your
safety, and to prevent unnecessary damage, please select a placement location for
your heater prior to assembly. It is recommended you place the main fireplace
body in the location or as close to the selected location as possible. This way, any
moving of the fireplace after assembly is kept to a minimum.
2. The studs (in the wood items) that will support the cam screws are precision
threaded. To avoid unnecessary damage and stripping of the studs, please make
sure you do not cross-thread (screw in at an angle) the cam screws into the studs.
These will be difficult to replace or repair if done so.
3. Although the studs (in the wood) are durable, it is recommended that a
screwdriver be used to tighten the cam screws and to lock the cam locks. A drill
can derail and cause cross-threading, lock jams, stripped screws, and damaged
cam locks. Wing nut fasteners should be hand tightened only.
4. Although the assembly of this product is a simple 3-step process (1. Install mantle
2. Install Support “L” Bracket 3. Install Corner Piece Attachment), unforeseen
issues may occur. If you have trouble assembling the product, reading the
assembly instructions, or accidentally damage something along the way, please
stop immediately and call Technical Support. We are here to help!

9
Know Your Product
This section is for reference, and outlines the main components of your fireplace
heater and their locations. Please study it carefully prior to the actual assembly so
you become familiar with the parts terminology and the shows you how the
assembled product will look like when complete.
Reference
Removable Mantle/
Media Piece
Flame Effe
ct
Control Panel
Access Door
Removable Corner
Piece Attachment
Control Panel
(Inside Access
Door)
Infrared Fireplace
Heater ody

10
This next section shows you the steps it takes to assemble your product. Although
the instructions walk you through the full assembly (from standard fireplaceto
fireplace with mantleto mantle fireplace with corner piece attachment), you may
assemble the fireplace only as far as you choose.
T
Th he e A As ss se em mb bl ly y P Pr ro oc ce es ss s
When you first unpack your product, the Infrared Fireplace Heater Body will come
pre-assembled right out of the box. This includes the fireplace wood case and the
Infrared chamber and electronics (reference below).
REAR VIEW:
INTERNAL
COMPONENTS
OMITTED FOR
REFERENCE

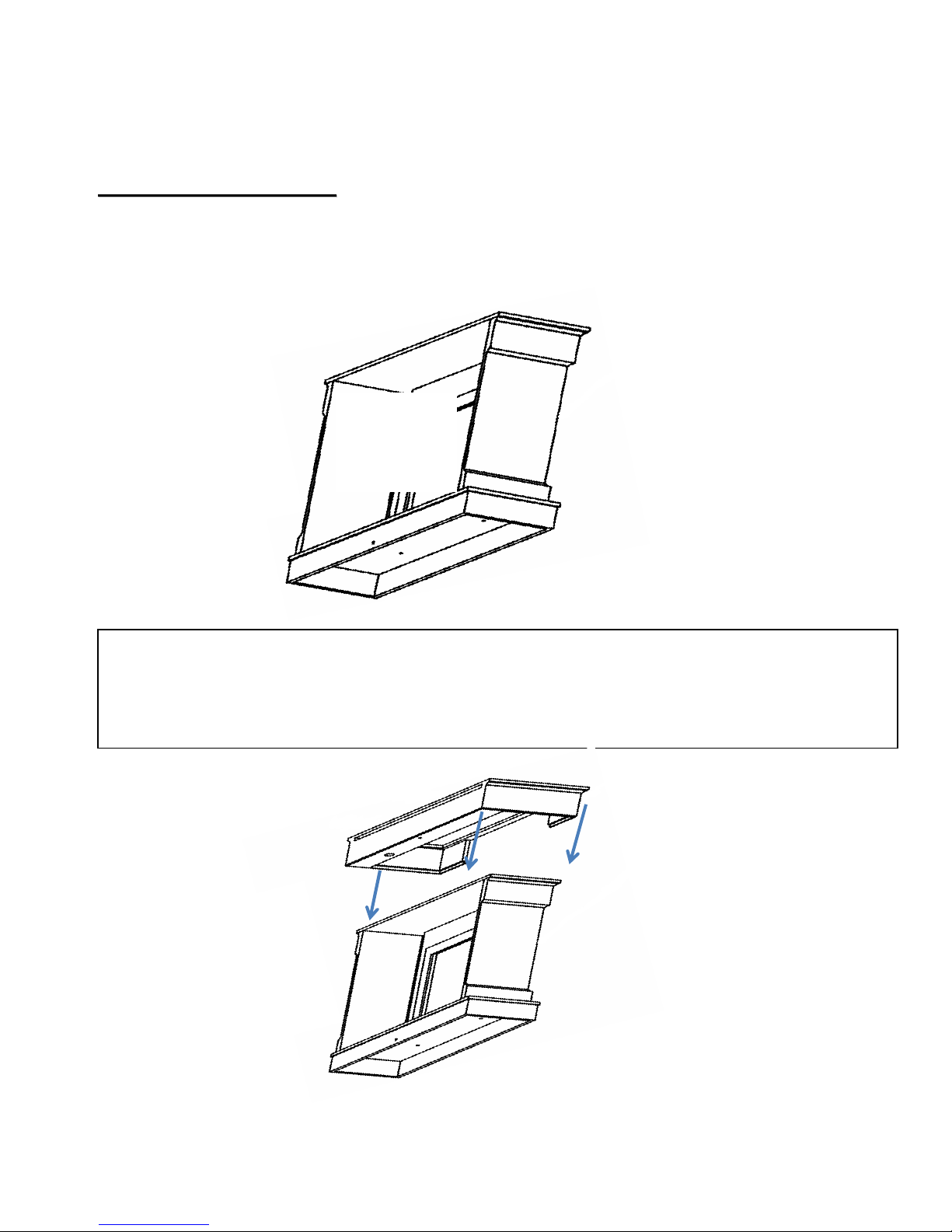

Step 1: Mount the mantle (media piece) to the fireplace heater body. Make sure the
mantle sits flush to the fireplace. The mantle will be slightly larger in diameter than
the fireplace top. It does not sit on top of the fireplace. Rather the mantle encases the
top of the fireplace.

11
Preparation: Once the mantle is seated, prepare the hardware that will
secure the mantle to the fireplace by doing the following:
P1. Use the 2 cam screws supplied in the hardware bag. Install one in the
stud located on the underside of the mantle’s rear overhang. Install the
second one in the stud located on the rear bottom center of the fireplace
body. Make sure they are tightened clockwise. Do not cross thread the
screws, or over tighten the screws (Reference below).
P1
P2. Use the 2 cam locks supplied in the hardware bag. Install one in the
hole located on the top part of the L Bracket. Install the second one in the
hole located on the lower part of the L Bracket. These are simply hardware
that can be press fit with thumb or tapped lightly with screwdriver handle if
snug (reference below). Hint: Orient the open end of the cam locks towards
the ends of the bracket.
P2

12
Step 2: Mount the L Bracket to secure the mantle to the fireplace body ia the 2 cam
screws you prepared in P1 abo e. Re-enforce the bracket by tightening the 2 cam
locks (prepared in P2 abo e) clockwise using the screwdri er. Secure them but do not
o er-tighten (reference below).

13
Preparation: Once the mantle is secured, prepare the mantle for the corner
piece installation by doing the following:
P3. Using your fingers, take the two wooden pivot supports (hidden inside
the rear mantle slot) and rotate them out of the slot, until they are fully
extended. Make sure the holes (on the ends) are facing the rear of the unit
(Reference below).
P3

14
DONE!

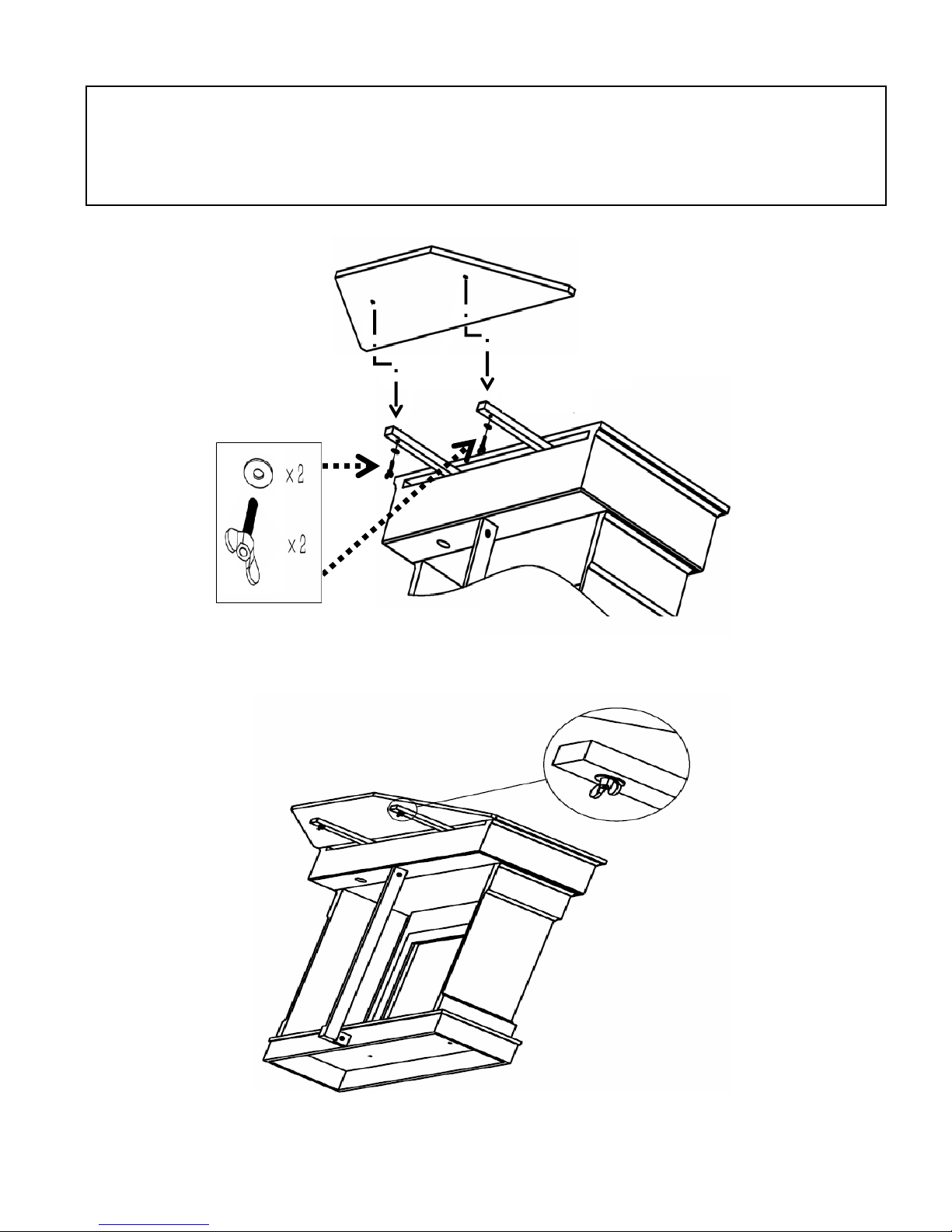

Step 3: Mount the Corner Piece Attachment on to the 2 pi ot supports you prepared in
P3 abo e. Re-enforce the corner piece attachment by aligning and tightening 2 wing
nut fasteners and 2 flat washers. These can be hand tightened. Secure them but do
not o er-tighten (reference below).

15
FIREPLACE PLACEMENT
Our Infrared fireplace heater is a very safe and effective room heater. It produces safe, clean
and economical heat by utilizing quartz infrared heating elements and heat exchangers. The
heating process of the Infrared fireplace heater is similar to the way the sun warms the earth.
The infrared elements warm the heat exchangers and the whisper quiet fan distributes the
accumulated warmth. This process is unique among heaters in that it minimizes wasteful heat
collection at the ceiling height of rooms and targets it toward the living space instead.
To achieve maximum efficiency of your Model LS-ENTCOMBO-FP Infrared fireplace heater,
please consider the following recommendations:
1. Place your Infrared fireplace heater close to an inside wall of the room in which it will be
used. Face the exhaust vents of the heater toward the cooler outside walls of the house.
This positioning will allow the heat to be moved across the room toward the outside walls to
provide more even warmth throughout the room.
2. Make sure that windows and doors are not allowing a high rate of airflow into the room
where you will locate your room heater. High airflow will minimize the effectiveness of your
Infrared fireplace heater as it would any conventional type heater.
3. For best results, always try to maintain a minimum of 40% relative humidity in the
environment to be heated.
4. It is recommended that the Infrared fireplace heater be used in rooms that are insulated
according to code. You can use your heater in a room whether insulated or not, but a non-
insulated room will cause greater and faster heat loss which is counterproductive to the
efficiency of the heater.
5. Keep the area around the heater clear of clutter and obstacles so that there is free airflow to
and from the heater.
6. Be mindful to keep your heater out of the main traffic thoroughfares of the room in which it is
located; it should be a welcome addition to the room rather than an obstacle to be stepped
over or stepped around.

16

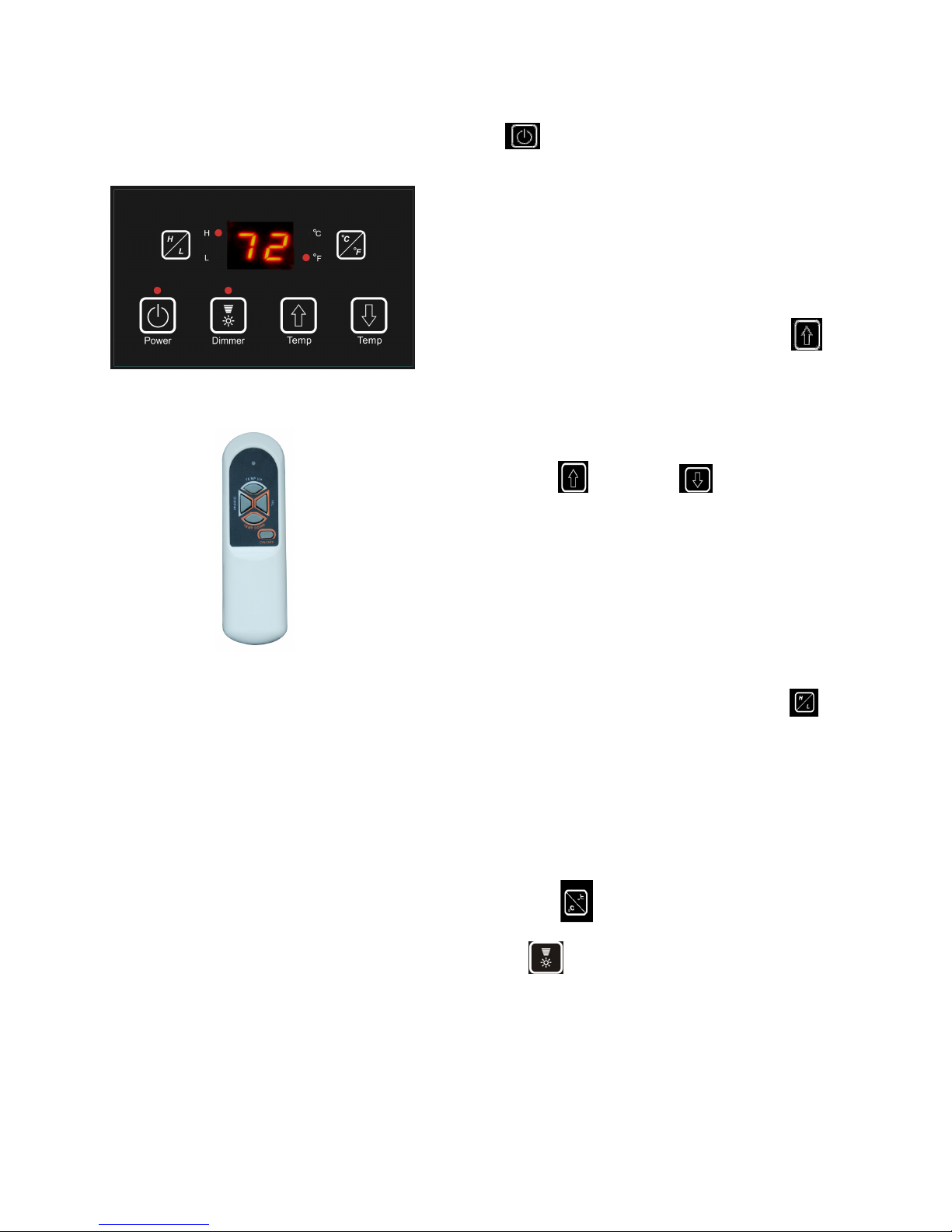

Control Panel
Remote Control
FIREPLACE OPERATION
Plug your Infrared fireplace heater power cord into a 120V, 15amp or 20amp three-bladed receptacle.
To Turn the Fireplace On: Press the Power button on the control panel or on the remote
control.
Default Set Temperature: The default set
temperature every time the heater is powered on is
72°; this cannot be changed and will have to be
adjusted every time the heater is reset.
Ambient Temperature: To view the ambient room
temperature, press and hold the Temp up button
for a few seconds, the room temperature will display
for a short period of time, then return to the desired
set temperature.
To Set Desired Temperature:
Press the UP or DOWN button on the control
panel or on the remote control. When the desired set
temperature is reached by the heater’s internal
thermostat, the heater will stop heating automatically,
but the fan will continue to run for approximately 5
minutes (3 minutes when powered off) so that unit’s
chamber can cool. When the ambient temperature
drops below the set desired temperature, the heater
will cycle on again.
To Set Heat Level: Press the H/L button on the
control panel or remote control to switch between High and Low heat. The corresponding High
(H) or Low (L) light will switch on. In the High mode, the fan will not change speeds. Rather, the
heating elements will allow for higher heat output. The High level uses 1500 watts, while Low
heat level uses approximately 1000 watts.
Celsius and Fahrenheit: The heater displays temperature in Fahrenheit as the default, but has
the capability to display it in Celsius as well.
To change between °Celsius and °Fahrenheit: Press
To Set Flame Brightness: Use the Dimmer button on the control panel or remote control.
The flame brightness control button is used to increase or decrease the brightness of the flame
and ember. Press once, the brightness will start and keep changing. Press again to set the
desired level.
Please note: As a courtesy to customers with sensitive eyes, this product now has an
LED sleep feature. Any time the heater has gone 1 minute without button operation, all
the lights in the control panel will turn off (even during the heat cycle). Pressing any
button on the panel or remote will resume the appropriate LEDs.

17
TROUBLESHOOTING
If your heater unit shuts off unexpectedly:
1. Be sure the power cord is plugged into a working electrical outlet.
2. Check for any obstructions. If you find one, turn the hearting unit OFF and unplug it. Wait at least
10 minutes to allow the heating unit to cool completely before removing any obstruction. When
done, plug in the heating unit and follow the Operation Instructions.
If your heater unit tips over:
1. Set the unit back in its upright position and check for any damage is detected unplug unit and
contact customer service for further assistance.
2. If no damage is detected, push the power button to turn the unit back on.
If your fireplace does not illuminate properly:
1. The light bulbs may have vibrated loose and need to be tightened.
2. The light bulbs may be damaged, and need to be replaced.
FIREPLACE MAINTENANCE
WARNING: Disconnect power before attempting any maintenance or cleaning to reduce the risk
of fire, electric shock to persons or damage.
LIGHT BULB REPLACEMENT
Light bulbs need to be replaced when you notice a dark section of the flame or when the clarity and
detail of the log exterior disappears. There are two bulbs under the log set.
WARNING: Allow at least 5 minutes for light bulbs to cool off before touching bulbs to avoid
burning of skin.
BULB REQUIREMENTS
Quantity of 2 clear chandelier or candelabra bulbs with an E-12 (small) socket base, rating voltage 120
volts, rating power 40 watts.
CAUTION: Do not exceed 40 watts per bulb.
CHANGING LIGHT BULBS
Unplug the unit first.
1. Open the light bulb area: Hold left and right side of the cover of the light bulbs at the bottom of your
firebox and pull straight out. You can see two bulbs in the firebox.
2. Examine the bulbs to determine which bulbs require replacement.
3. Remove old bulb and replace with a new one. Hold the socket while unscrewing or screwing bulbs.
4. Replace the cover of light bulbs.

18
Limited Manufacturer Warranty
3 Year Limited Warranty: LIFESMART warrants this heater against defects in materials and
workmanship on functional parts, for a period of 3 years from the original date of purchase. Your sales
receipt showing the date of purchase of the product is your proof of purchase. Keep it in a safe place
for future reference.
Manufacturer Warranty
All LIFESMART products are manufactured with the highest quality materials and are warranted to be
free from defects in material and workmanship at the time of purchase. This limited warranty applies to
products manufactured or distributed by the LIFESMART brand name, are delivered in the continental
United States, and extends to the original purchaser, or gift recipient. This warranty becomes valid at the
time of purchase and terminates either by the specified time frame listed above and/or owner transfer
(unless otherwise authorized by LIFESMART, as the manufacturer). Any extended warranties (warranties
that cover above and beyond this manufacturer warranty) that are sold through a retailer or third party, are
not directly correlated with this LIFESMART limited warranty, and may be redirected to said retailer or
third party for coverage.
Extent of Warranty
This warranty extends through the manufacturer of the product, and covers functional parts only.
Cosmetics are not covered, unless unequivocally determined it is a manufacturer/workmanship defect. Note
that surface cracks are not considered defects in material or workmanship, as they are normal characteristics
of all wood. Unless LIFESMART was the direct shipper, shipping damage should be addressed with the
shipping company, retailer, or place of purchase, prior to making a claim to LIFESMART, as the
manufacturer.
The manufacturer's sole obligation under this warranty shall be limited to furnishing the original purchaser
replacement parts for units deemed repairable by the LIFESMART warranty department. The purchaser
may also opt to ship the product to LIFESMART to have it repaired. The purchaser will be responsible to
prepay any shipping charges (both ways), export taxes, custom duties and taxes, or any other charges
associated with the transportation of the unit. In addition, the purchaser is responsible for insuring any parts
shipped or returned, if desired. For products the warranty department deems un-repairable, or discontinued,
LIFESMART reserves the right to issue a refurbished product, or product similar in size and functionality
as a replacement for the defective unit, if available. All exchanged parts and products replaced under this
warranty will become the property of LIFESMART.LIFESMART reserves the right to change
manufacturers of replacement parts or products for use, in order to cover any existing warranty. Any parts
determined defective may asked to be returned to LIFESMART or its representatives to validate a claim.
Non-Warranty replacement parts will be warranted 30 days from the time the purchaser receives them.
The purchaser must present LIFESMART with proof of purchase documents (including the date of
purchase) if requested. Any evidence of alteration, erasing, or forgery of proof of purchase documents will
be just cause to VOID this limited warranty. Products, in which the serial number has been defaced or
removed, are not eligible for warranty coverage. Continued…

19
Warranty Limitations
This warranty does not apply if the unit has been subject to negligence, fabrication, misuse, abuse, or repairs
(unless authorized verbally, or in writing, by an Authorized LIFESMART Representative) alteration by non
LIFESMART authorized personnel, inappropriate installations, or any case beyond the control of
LIFESMART. Examples of warranty invalidation may also include, but are not limited to:
•Use of lacquer or paints in (and around) the
heaters
•Heater placed on non-approved surfaces
•Electrical requirement deficiencies (15-20
amp dedicated outlet)
•Use on Extension Cords/Timers/Surge
Protectors/GFCI
•Outdoor applications
•Normal wear/tear/weathering
•Pet/Consumer accidents
•Purchases from dealers unauthorized by
LIFESMART (Authorization in writing)
Disclaimers
LIFESMART shall not be liable for any loss due to use (or misuse) of the heater or other LIFESMART
products or other incidental or consequential costs, expense or damages without irrefutable foundations.
Under no circumstances shall LIFESMART or any of its representatives be held liable for injury to any
person or damage to any property, however arising. Any implied warranty shall have duration equal of
the applicable warranty stated above. Specifications are subject to change without notice or obligation.
Legal Remedies
This limited warranty gives the original purchaser specific legal rights. Other rights may vary from
state to state.

LSENTCOMBOFP Pri ted i Chi a
20
Customer Service and Support
To Obtain Warranty Support or Advice, Please Complete These Two Easy Steps:
Contact L FESMART PRODUCTS Technical Support
E-mail : [e-mail]
Phone : [phone] or 1-214-614-2509
Visit us : www.lifesmartproducts.com
You will need to provide the unit's model number, serial number (located
on the heater’s front panel, rear panel, or on the box), date of
purchase, retailer of purchase, a daytime phone number, and possibly a
copy of your receipt.
Be Patient, Clear, and Concise.
Describe the issue and symptoms you have for, and about the product. A
certified LIFESMART Technical Support agent will give you an evaluation
of your issue and your resolution options. If the answer is not available at
that time, you will be referred to the appropriate channels, or given a call/e-
mail back within 72 hours with an answer or resolution.
*E-Mail is the Preferred Method of Communication
