Life Smart HW93233SMQR User manual

Owner’s Manual
WALL MOUNT FIREPLACE
HW93233SMQR
IMPORTANT SAFETY INFORMATION:
Always read this manual first before attempting to install or use this stove.
For your safety， always comply with all warnings and safety instructions contained in this manual to prevent personal
injury or property damage.

2
Important Instructions...............................................3
Warranty .....................................................................4
Pre-Assembly............................................................. 5
Hardware Included ................................................... 5
Product S ............................................... 5
Tools Required......................................................... 5
Package Contents..................................................... 6
Installation Options ...................................................7
Wall Hanging........................................................... 8
Fuel Bed Setup Instructions 11
Operation .................................................................15
Care & Cleaning.......................................................18
Troubleshooting.......................................................19
Replacement Parts.................................................. 20
Table of Contents
.....................................
Metal Frame Setup Instructions 12
................................

3
Important Instructions
When using electrical appliances,basic
precautions should always be followed
to reduce the risk of fire, electric shock,
and injury to persons, including the
following:
①Read all instructions before installing
or using this heater.
②This heater is hot when in use. To
avoid burns, do not let bare skin touch
hot surfaces. Keepcombustible materials,
such as furniture, pillows, bedding, papers,
clothes, etc. and curtains at least 3 feet
( 0.9m) from the front of the heater and
keep them away from the sides and rear.
③Extreme caution is necessary when
any heater is used by or near children or
invalids and whenever the unit is left
operating and unattended.
Do not operate any heater after it
⑥
Do not use outdoors.
⑦
⑧To prevent a possible fire, do not block air
⑨
⑩
⑤
④
To disconnect heater, turn controls to off, and
Do not insert or allow foreign objects to enter
All electric heaters have hot and arcing or
Use this heater only as described in this
malfunctions.Disconnect power at service
panel and have heater inspected by a
reputable electrician before reusing.
then remove plug from outlet.
intakes or exhaust in any manner.
sparking parts inside. Do not use it in areas
where gasoline,paint, or flammable vapors or
liquids are used or stored.
manual. Any other use not recommended by the
manufacturer may cause fire, electric shock,
or injury to persons.
any ventilation or exhaust opening as this may
cause an electric shock or fire, or damage the
heater.
!NOTE: Grounding the appliance
This appliance is for use on 120 volts.
The cord has a plug as shown in (A).
An adapter as shown in (C) is available
for connecting three-blade grounding
type plugs totwo-slot receptacles, as
shown in (B). The green grounding plug
extending from the adapter must be
connected to a permanent ground such
as a properly grounded outlet box.
The adapter should not be used if a
three-slot grounded receptacle is
available. To disconnect appliance,
turn controls to off, then remove plug
from outlet.
Grounding Methods
Metal Screw
(A)
Not allowed in Canada
Grounding Means
Adapter
Grounding Pin
Cover of
grounded
outlet box
(C)
(B)
SAVE THESE INSTRUCTIONS

4
Warranty

5
Part Description Part Number Quantity
AA AnchorScrew 180000010600 5
BB WallAnchor 5
CC Screw 4mm x 8mm 1
Pre-Assembly

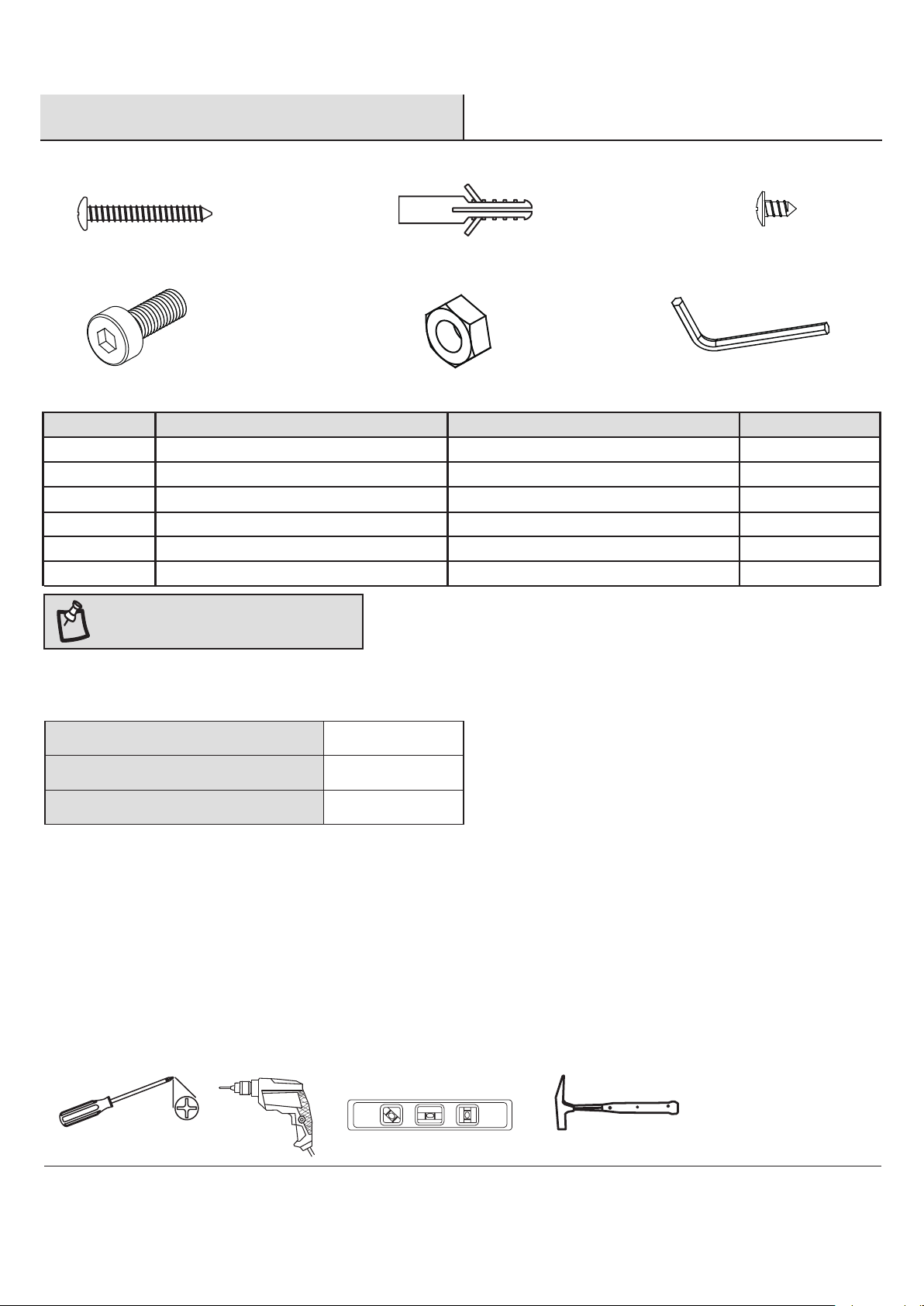

HARDWARE INCLUDED
AA BB CC
NOTE:
Hardware not shown to actual size.
PLANNING ASSEMBLY
Before beginning assembly of product, make sure all parts are present.Compare parts with Hardware Included and Package Contents lists.
If any part is missing or damaged, do not attempt to assemble, install or operate the product.Contact customer service for replacement parts.
EstimatedAssemblyTime: 30Minutes
PhillipsScrewdriver
PRODUCT SPECIFICATIONS
Voltage 120VAC, 60Hz
Amps 12.5 Amps
Watts 1500 Watts
Tools Required forAssembly (not included):
LevelDrill Hammer
300000190100
180000010100
DD Inner hexagonal bolt M4mmx10mm 12
EE Outer hexagonal nut M4mm 12
FF Inner hexagonal bolt Tool 1
DD EE FF
XXXXXXXXXX
XXXXXXXXXX
XXXXXXXXXX

6

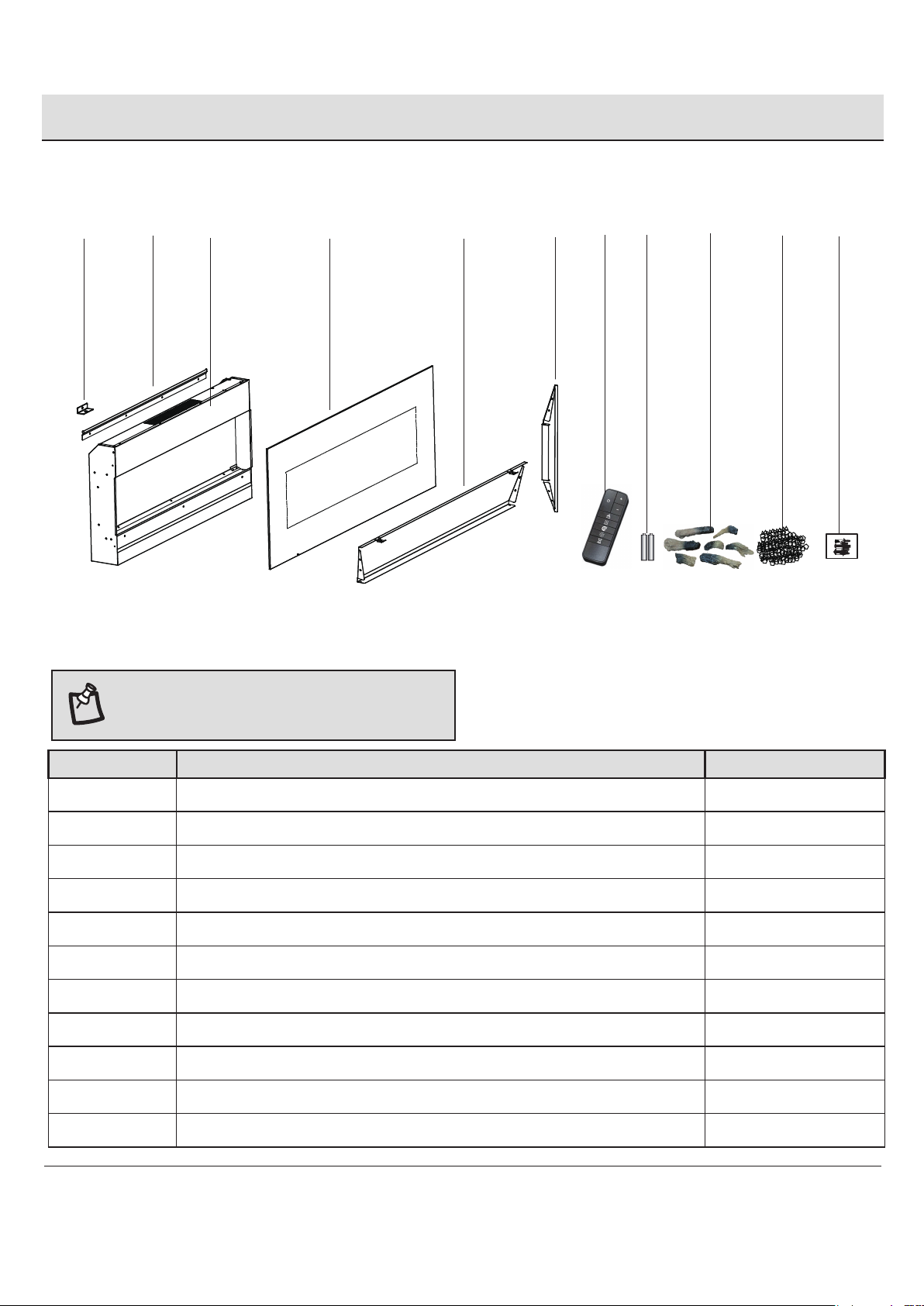

PACKAGE CONTENTS
Pre-Assembly (continued)
CD
Part Description Quantity
A1
B
Fireplace
1
C
Front Glass
1
D1
E2
G
Horizontal Trim
Logs Media
Varies
GJ
H
FLongitudinal Trim 2
K
H
Screw Set
F
EI
Mounting Bracket-bottom
Mounting Bracket-top
I
1
K
Remote Control
Crystal Media
Varies
J
AAA Battery 2
Varies
NOTE: The scale and size of parts may be different
depending on your exact model.
AB

7
Operation
Installation - Wall Hanging
Hanging on a wall
Sides 2 in. / 5 cm
Floor 2 in. / 5 cm
Top 24 in. / 60 cm
Bottom 2 in. / 5 cm
WARNING: Keep drapery and other furnishingsat least 3 ft / 1 m
Clearance to combustibles
Min. 5cm
2in.
Min. 5 cm
2in.
Min. 5 cm
2in.
Min. 60 cm
24 in.
Back 0 in. / 0 cm
Your new electric fireplace may be installed virtually somewhere in your home. However, when choosing a location be sure to follow the
general instructions included. For best results install out of direct sunlight. Power supply service must be either completed or placed
within the electric fireplace prior to finishing to avoid reconstruction.
from the front and sides of the electric fireplace.

8
Drilling the Holes
12
Choosing a Wall Location

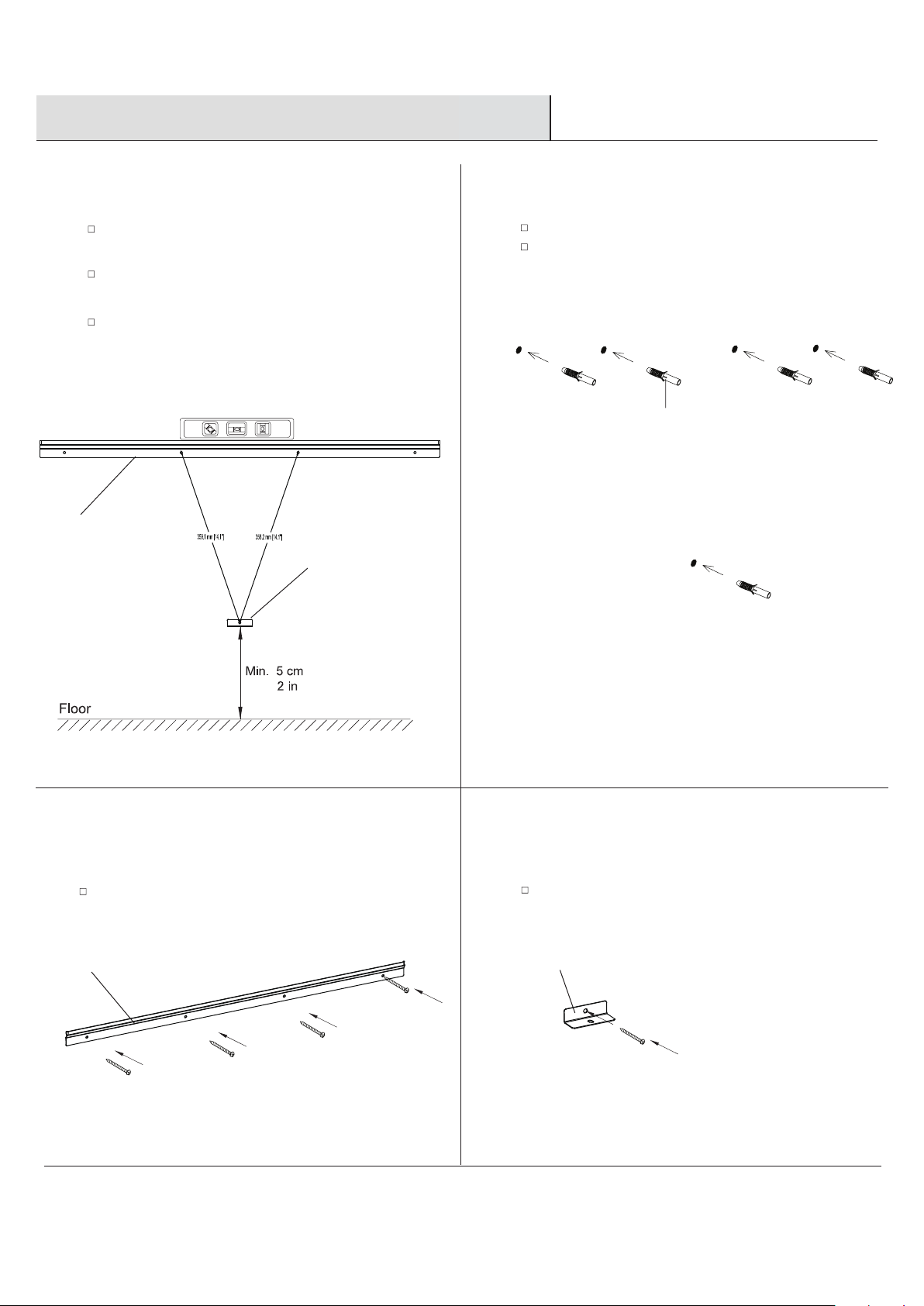

Choose a wall location to attach the Mounting Bracket (B).
Position the Mounting Bracket (B) in the desired location.
Use a level to align the bracket and mark the four holes
with a pencil.
Drill five 7/25 in. (7 mm) holes in the wall.
Insert the Wall Anchors (BB) into the holes using
a hammer.
BB
B
Operation
Installation - Wall Mounting
A
Use the two marked center holes of the Top Mounting
Bracket (B) to measure and locate the hole for the Bottom
Bracket (A). Follow the dimensions in the drawing. Mark
the Bottom Bracket (A) hole with a pencil.
3Attaching the Top Mounting Bracket
Attach the Top Mounting Bracket (B) to the wall by fastening
the four Anchor Screws (AA) into the wall anchors.
AA
B
4
Attaching the Bottom Mounting Bracket
Attach the Bottom Mounting Bracket (A) to the wall by fastening
the Anchor Screw (AA) into the wall anchor.
AA
A

9
Operation
5Hanging the Fireplace
Hang the Fireplace (C&D) on the hook at the top of the Top Mounting Bracket (B)
and let the Fireplace (C&D) sit onto the Bottom Mounting Bracket (A).
Operation
Installation - Wall Mounting (continued)
B
A
C&D

10
6Securing the Fireplace

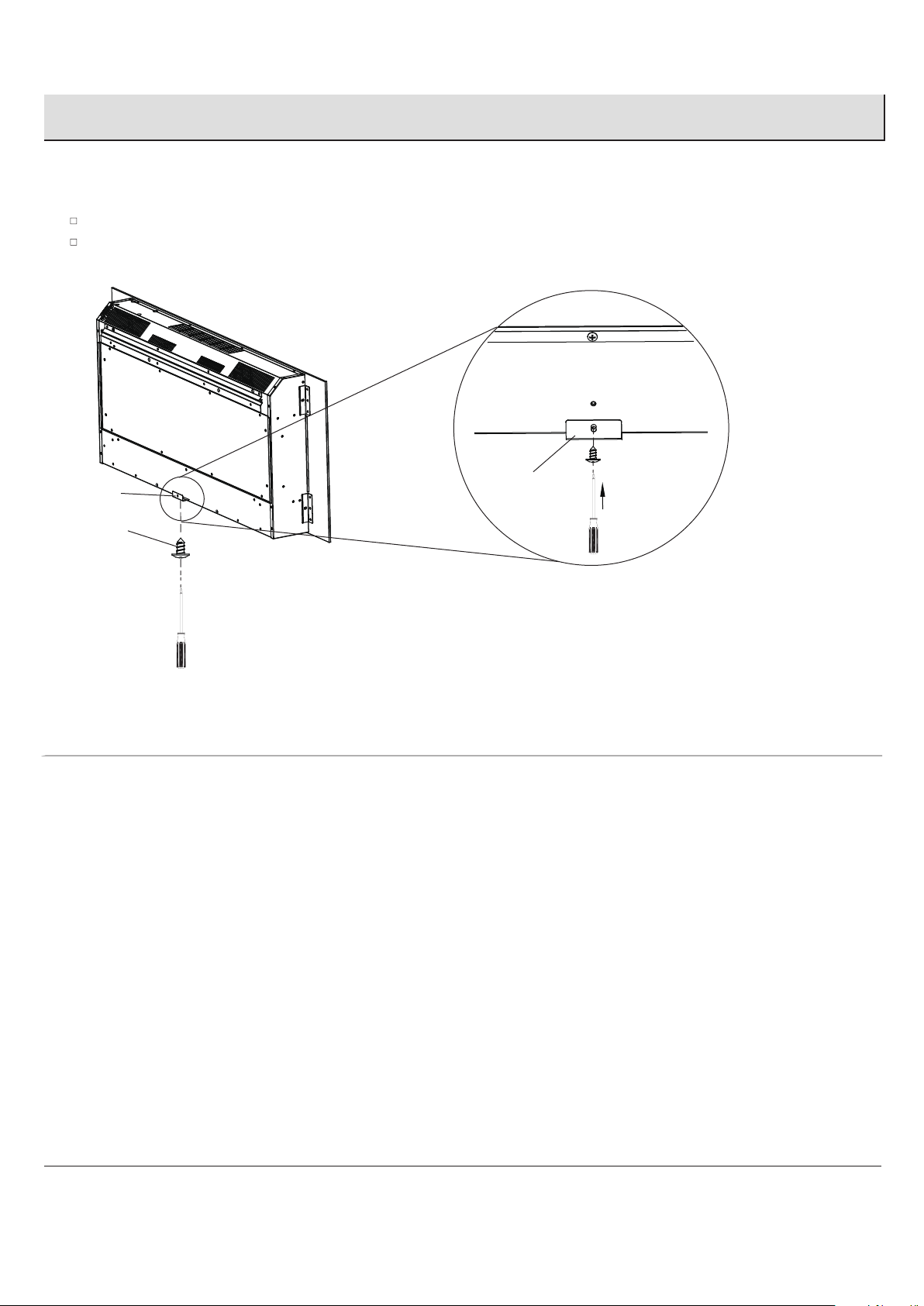

Secure the fireplace (C&D) to the Bottom Mounting Bracket (A) with the retaining Screw (CC).
Continue to the fuel bed setup instructions (Page 15).
Operation Operation
Installation - Wall Mounting (continued)
CC
A
A

11
2
1Removing the Frame
Remove the four screws that attach the Frame (D) to the Fireplace (C) and remove the Frame (D).
Operation
Fuel Bed Setup Instructions
C
D
J
Placing the Logs and media pieces
Place the Crystal Media Pieces (J) on the Fuel bed.
Place the Frame (D) back on the Fireplace (C) with the four screws removed in Step 1.
Place the Logs Media(I) on the Crystal Media Pieces (if need a Log effect view).
ID
C

12
2
1Jointing and Securing the Trims

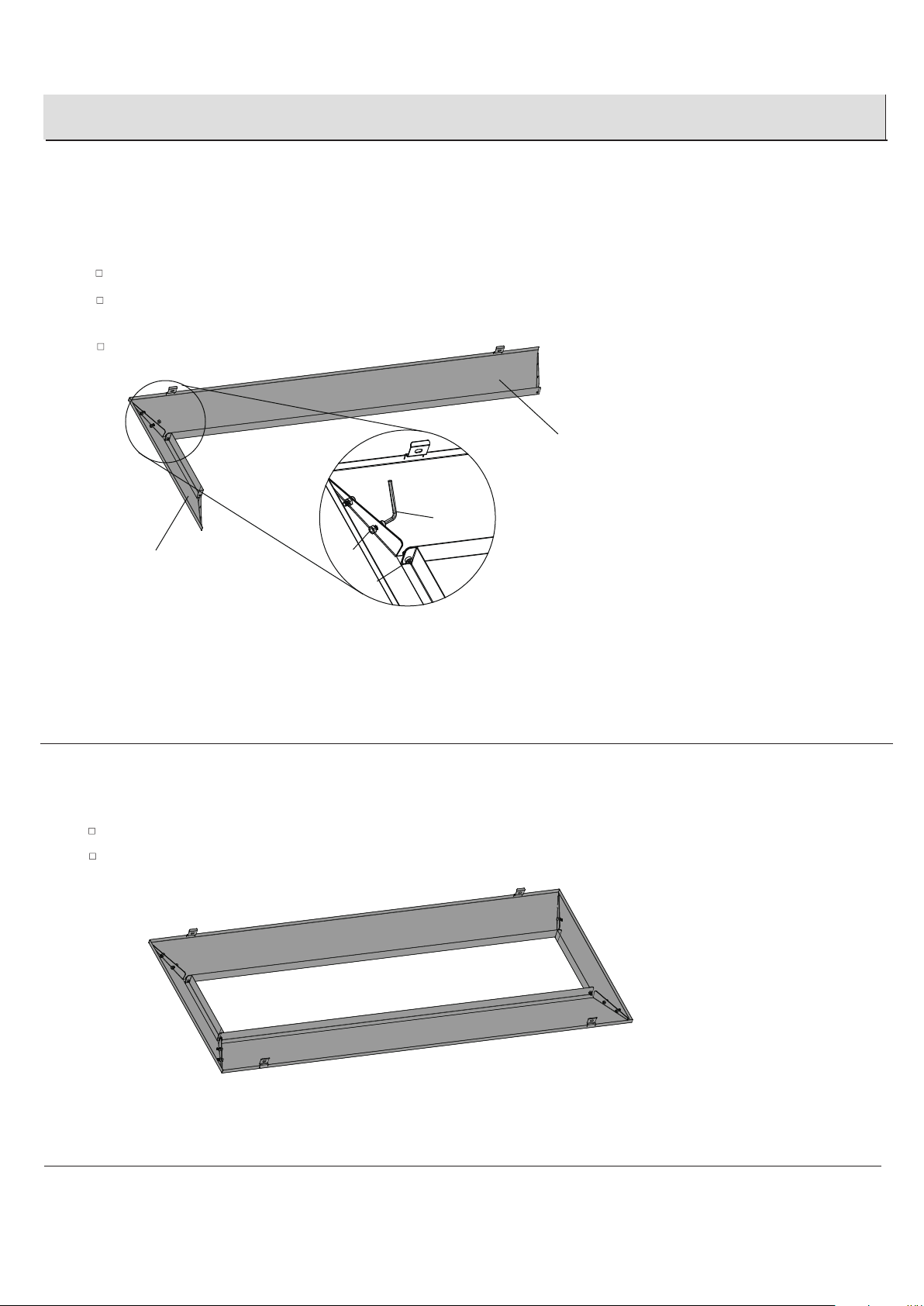

Take one Horizontal Trim (E) and one Longitudinal Trim (F), joint and align the 3 holes on the edges.
Operation
Metal Frame Setup Instructions
Secure other trims to be a finished Frame
Repeat the upper steps to secure all 12 bolts and nuts.
The Wall Fire provided 2 Frames options, it can be Frame option either front glass or Metal Frame,
the Metal Frame is covering the front glass when it was fixed.
Insert Inner hexagonal bolt (DD) to go through the aligned holes, secure the Outer hexagonal nut (EE) on the bolt
by using provided Tool (FF).
Repeat step 2 to secure other 2 nuts.
E
F
FF
EE
DD
The Assembled Metal Frame is as below.

13
4
3Removing the fitting screws on Fireplace

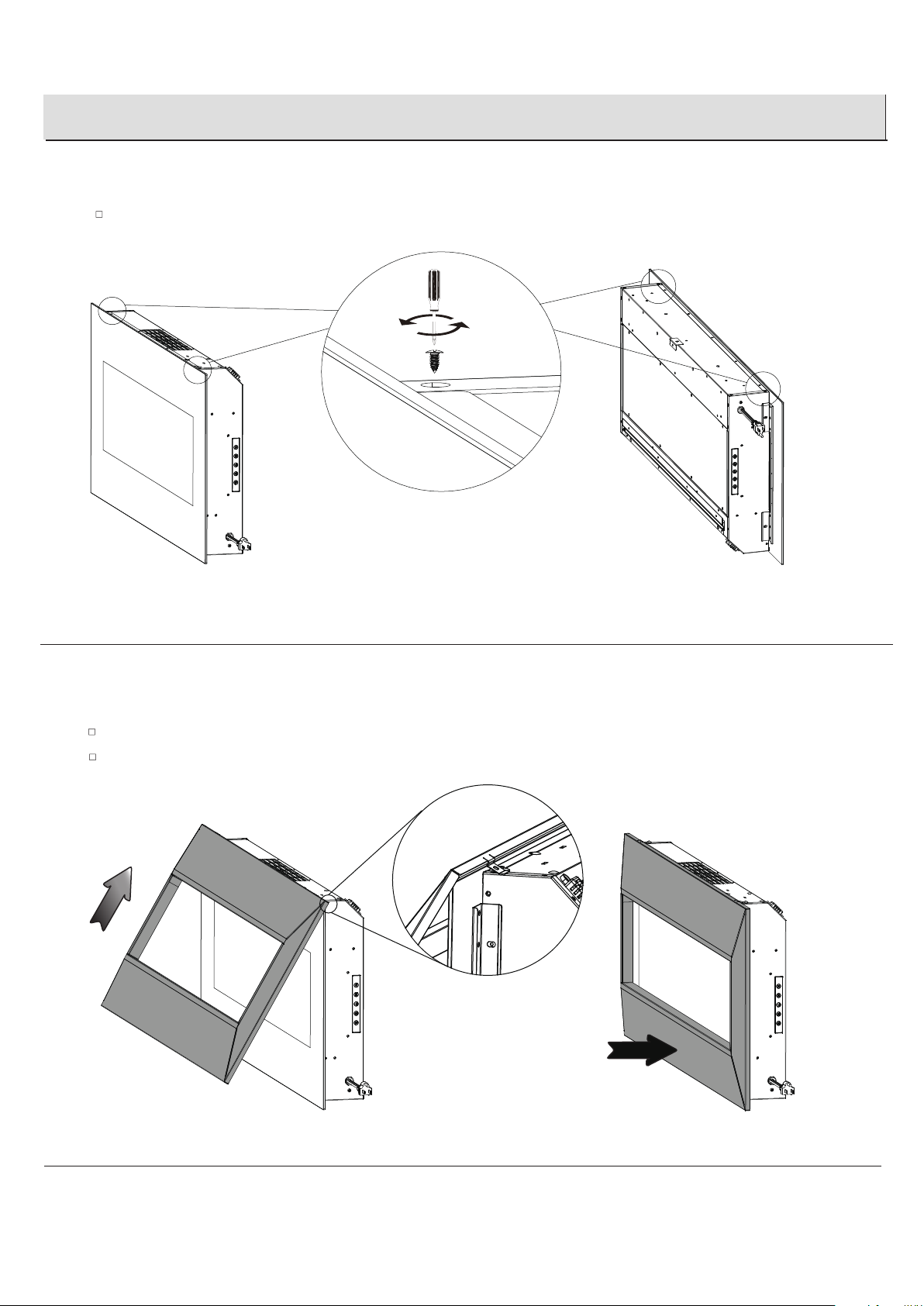

Remove 4 screws on the fireplace (2screws on top and 2 on the bottom).
Operation
Metal Frame Setup Instructions (Continued)
Hooking the Metal Frame
Put and hook top flange onto the fireplace top.
Push and hook the Frame bottom.

14
5Securing the screws onto the Fireplace
Secure Removed 4 screws back on the fireplace (2screws on top and 2 on the bottom).
Operation
Metal Frame Setup Instructions (Continued)

15
Operation
Operation
T

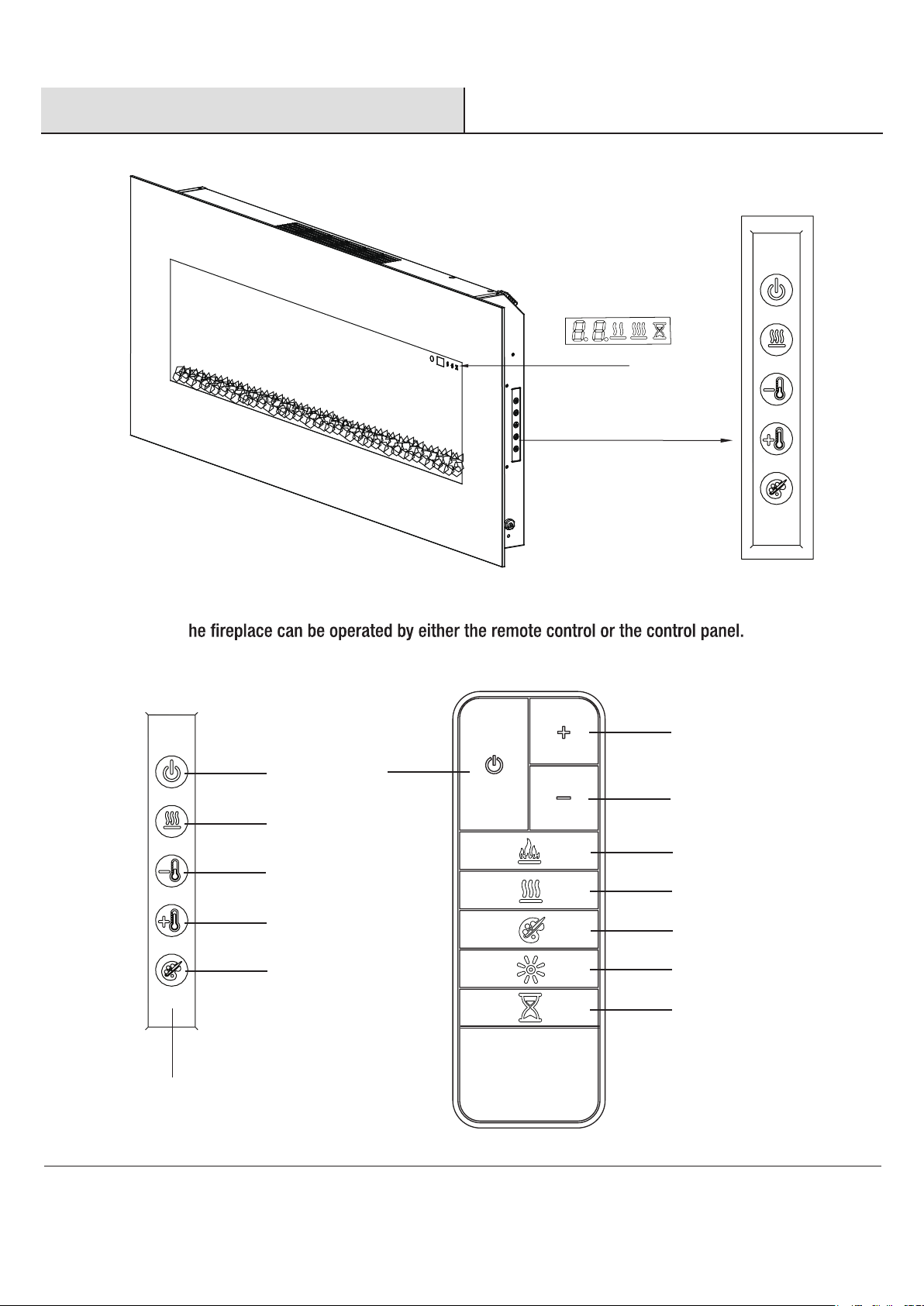

Control Panel
Display
1. Power Button
3. Heater Button
4. Thermostat Down button
4. Thermostat up button
7. Color themes button
4. Thermostat Down button
4. Thermostat up button
2. Flame effect button
3. Heater Button
7. Color themes button
5. Brightness button
6. Timer button
Control Panel Remote Control

16
Press the Brightness button on the remote control to change
the Fuel bed color between the 3 settings: High, Middle and
Low. Indicated by the second digit on the Floating Display™
changing to show: "P" (high), "C"(middle) and "L" (low).
Operation
Operation (continued)
Push the Power button to supply power to all functions
of the fireplace and put the wall fire in a standby mode.
Push the Power button again to turn off all functions.
Press the Timer button on remote to cycle through the nine
timer settings (30 minutes, 1Hour, 2H, 3H, 4H, 5H, 6H,
7H, 8H ) and the OFFsetting.
1
3
2
6
Powering the Fireplace Adjusting the Flame Effect
Adjusting the Heater
Setting the Timer
NOTE: To change between °F and °C ,hold the button
NOTE:
All previous settings are held in memory, so the next
the same settings.
Turns the Flame Effect On and Off, actived by pressing the
button on the remote. Cycles the unit through the
four settings:
‘FE’, Flame and Fuel bed ON.
‘F-’, Flame ON, Fuel bed OFF.
‘-E’, Flame OFF, Fuel bed ON.
‘--’, Flame and Fuel bed OFF.
Adjusting the thermostat
Press the Thermostat button on the control panel to
change the setting temperature.
Adjusting the Brightness
4
5
The thermostat setting range is 59°F - 86°F or 15°C - 30°
The thermostat is adjustable by 1°F or 1°C increments by
pressing the Up or Down “ “ buttons on the remote
control or buttons on control panel.
Turns the Heater On and Off, actived by pressing the
button on the remote or control panel. Cycles the unit
through the three settings:
NOTE:
The unit can be operated in Press and hold
the button on the control panel (not by using the remote)
for more than 5 seconds, to change to Demo mode. The
heater and thermostat are disabled, and "dE" will be
displayed on the Screen Display. Press and hold again for
5 seconds to exit Demo mode.
C.
The default temperature setting is 77°F (25°C)
down, then press and hold the button on the
control panel for 5 seconds, or vice versa.
That can be only operated on the control panel.
NOTE: When the Theme is on cycle, the brightness button
can be only for stop/hold or release cycling.
Icon is indicated on display when timer is on and working.
NOTE:
The unit can be operated in when the unit
is only running with the heater, the (low heat) or the
(high heat) icon and the intake temperature will
continuously be displayed on the On Screen Display.
‘H2’, High Heat. Indicated icon on display.
‘H1’, Low Heat. Indicated icon on display.
Blower and Heater OFF, Indicated icon is off.
NOTE:
After the heater is switched off, there is a 60 seconds
fan delay, where the fan will continue running before
turning off.
time you power up the fireplace, the unit will turn on with

17
NOTE: Please operate the remote control at a slow
measured pace. Press the remote control buttons with
an even motion and gentle pressure. Repeatedly pressing
buttons in rapid succession may cause the transmitter to
malfunction.
NOTE: Do not mix old and new batteries. Do not mix
alkaline, standard (carbonzinc), or rechargeable (nicad,
nimh, etc) batteries.
When the remote control stops operating or its range
seems reduced, it is time to replace the battery with
new ones.
On the back end of the remote, press and slide
the battery door open and remove the old batteries.
Insert two AAA batteries, checking that the + and -
sides of the battery match inside the battery
compartment.
Replace the battery compartment door.
The battery may contain hazardous substances that
could endanger the enviroment and human health.
This symbol marked on the battery and/or packaging
indicates that used battery shall not be treated as
municipal waste. Instead it should be left at the
appropriate collection point for recycling.
By correctly disposing used batteries, you prevent
potential negative consequences for the environment
and human health. Recycling used materials also
conserves natural resources.
For more information about collecting and recycling
used batteries, please contact your local municipality,
your waste disposal service or the point of sale where
you purchased this product.
910
Replacing the Remote Control Battery
Disposing of Used Batteries
8Using the Power Cord Correctly
This heater is for use on 120 volts. The cord has a plug
as shown in the figure.
Connect to properly grounded outlets only.
Do not use a 2 prong adapter. Never use with an
extension cord or relocatable power tap (outlet/
power strip).
NOTE: Batteries should be removed if the product is to
be left unused for a long time.
Operation
Operation (continued)
NOTE:
The last theme 8 isaprism where the unit cycles through a variety
of colours.Pressing the button stops the cycling and holds the
unit on the preferred color, indicated bya solid circle. Use the same
button to release for cycling, When the unit is on cycling through
the colours, arotating circlewill bedisplayed.
Adjusting the Color Themes
Press the Themes button on the control panel or remote control
to change the Color Themes. There are 8 settings: OFF, Red,
Sky Blue,Orange, Blue, Purple, Green and Cycling as indicated
on the Display:
7
1-OFF
2-Red
3-Sky Blue
4-Orange
5-Blue
6-Purple
7-Green
8-Cycle from 2 to 7.

18
Care and Cleaning
Clean the metal trim using a soft cloth, slightly dampened with a citrus oil-based product and buff with a soft, clean cloth. DO NOT use
brass polish or household cleaners as these products will damage the metal trim.
Purchase citrus oil-based products at a hardware store.
WARNING:
Make sure the power is turned off before proceeding with repairs. Any electrical repairs or rewiring of this unit should be
carried out by a licensed electrician in accordance with national and local codes. If repairing or replacing any electrical component or wiring,
the original wire routing, color coding and securing locations must be followed. During any service of this appliance, the power to the unit
must be turned off. First turn the main power switch to the OFF position. Then remove the electrical plug from the wall outlet.
WARNING:
Electrical outlet wiring must comply with local building codes and other applicable regulations to reduce the risk of fire,
electrical shock and injury to persons.
WARNING:
Keep electrical cords, drapery, furniture and other combustibles at least 3 ft (0.9 m) from the front of the heater and away
from the sides.
WARNING:
I
WARNING:

19
Troubleshooting
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Display shows “ ”. The thermostat sensor is broken
or disconnected.
U
that the thermostat is plugged into the main circuit board. If this does not
solve the problem contact customer service for a replacement thermostat
sensor.
Display shows “ ”. The thermostat sensor is
broken. Contact customer service for a replacement thermostat sensor.
Display shows “ ”. Manual Reset overheat
protection has triggered.
Inspect the heater and check that the air inlets and outlets are not blocked
as this may cause overheating. Unplug the heater for 30 minutes and allow
it to cool down. Replug, operate, and monitor the heater for signs of
overheating. If the problem persists discontinue use of the heater and
contact customer service.
The heater does not blow warm
air.
The heater is in a cool down
cycle.
This is normal operation and the heater will continue to run for several
minutes before shutting down. Times will vary based on temperatures.
During this time cool air will blow.
There is no power. There is no power to the unit.
Check that unit is plugged into a standard 120V outlet. Press the Power
button several times and make sure the power is set to the “ON” position.
The heater does not blow any
air.
Thermostat setting is preventing
heater from turning on.
Adjust the temperature settings to ensure that the thermostat is set higher
than the current room temperature.
The heater does not work, but
Power and Heater settings are
“ON” and thermostat is set.
Manual reset overheat
protection triggered.
Turn the Power to “OFF” and unplug the unit from the wall outlet for 5
minutes. After 5 minutes plug the unit back into wall outlet, and operate as
normal. If the problem persists contact customer service.
Flame effect works but heater
Heater or
Thermostat button is pressed.
The product is on Demo Mode.
The heater and thermostat are
disabled.
With the power on press and hold the Heater button on the control panel
for more tahn 5 seconds. Once re-enabled the ‘dE’ on the display
disappears.
The remote control is not
working.
There are no batteries or the
signal is poor.
Change the remote batteries.
Operate remote transmitter at a slow measured pace.
Press the remote control buttons with an even motion
and gentle pressure. Repeatedly pressing buttons in rapid
succession may cause the transmitter to malfunction.
The noise when the heater is on
is louder than normal.
a. The air intakes are dirty or
obstructed.
b. The blower/heater assembly
is defective.
a. Check the air intakes for obstructions or high dust build up.
b. Contact Customer Service for a new Heater/Blower Assembly.
Abnormal noise when the heater
is on. The spinner motor is defective. Contact Customer Service for a new Spinner Motor.
front
‘dE’

20
Replacement Parts
Part Description Part Number Qty.
A1pc
1pc
1pc
1pc
1pc
1pc
1pc
1pc
1pc
2pcs
2pcs
2pcs
2pcs
B1set
CLogs Media
Crystal Media
Gear Motor
Flame Circuit Board
Media Bed Circuit Board
1set
1set
1set
1set
D
E
F
G
Main Circuit Board
Blower Motor Assembly
H
Display Circuit Board
I
J
K
L
NOTE: The scale and size of parts may be different
depending on your exact model.
For replacement parts, call our customer service department at 1-800-986-3460, 8 a.m.-7 p.m., EST, Monday-Friday,
9 a.m. - 6 p.m., EST, Saturday.
A
E
F
G
H
I
J
K
L
D
N
M
Power Supply
Control Circuit Board
Thermostat Sensor
M
Mounting Bracket-Top
N
O
B
P
C
O
P
HW93233SMQR-A
Front Glass
Horizontal Trim
Longitudinal Trim
Q
R
HW93233SMQR-B
HW93233SMQR-C
HW93233SMQR-D
HW93233SMQR-E
HW93233SMQR-F
HW93233SMQR-G
HW93233SMQR-H
HW93233SMQR-I
HW93233SMQR-J
HW93233SMQR-K
HW93233SMQR-L
HW93233SMQR-M
HW93233SMQR-N
HW93233SMQR-O
HW93233SMQR-P
HW93233SMQR-Q
HW93233SMQR-R
Remote Control - 8 Buttons
Screw Set
Infrared Element Assembly
Q
R
