Life Span ROWER-810 User manual

NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanfitness.com.au
Product may vary slightly from the item pictured due to model upgrades
Read all instructions carefully before using this product. Retain this owner’s manual for future
reference.
ROWER-810
OWNER’S MANUAL

2
TABLE OF CONTENTS
1. IMPORTANT SAFETY INSTRUCTIONS 3
2. CARE INSTRUCTIONS 4
3. ASSEMBLY INSTRUCTIONS 5
4. OPERATION GUIDE 10
5. WATER CARE INSTRUCTIONS 15
6. EXERCISE GUIDE 16
7. EXPLODED DIAGRAM 18
8. PARTS LIST 19
9. WARRANTY 21

3
1. IMPORTANT SAFETY INSTRUCTIONS
WARNING - Read all instructions before using this machine.
It is important your machine receives regular maintenance to prolong its useful life. Failing to
regularly maintain your machine may void your warranty.
Please always keep this manual with you
a. It is important to read this entire manual before assembling and using the equipment. Safe and
effective use can only be achieved if the equipment is assembled, maintained and used properly.
Please note: It is your responsibility to ensure that all users of the equipment are informed of all
warnings and precautions.
b. Before starting any exercise program, you should consult your doctor to determine if you have any
medical or physical conditions that could put your health and safety at risk or prevent you from using
the equipment properly. Your doctor’s advice is essential if you are taking medication that affects your
heart rate, blood pressure or cholesterol level.
c. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, and extreme shortness of breath, lightheadedness, dizziness or feelings of nausea. If you do
experience any of these symptoms, you should consult your doctor before continuing with your
exercise program.
d. Keep children and pets away from the equipment. This equipment is designed for adult use only.
e. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the equipment should have at least 2 meters of free space around it.
f. Before using the equipment, check that the nuts and bolts are securely tightened. If you hear any
unusual noises coming from the equipment during use and assembly, stop immediately. Do not use the
equipment until the problem has been rectified.
g. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get caught in
the equipment or that may restrict or prevent movement.

4
h. This equipment is designed for indoor and family use only
i. Care must be taken when lifting or moving the equipment so as not to injure your back.
j. Always keep this instruction manual and assembly tools at hand for reference.
k. The equipment is not suitable for therapeutic use.
l. The pulse or heart rate sensors are not medical devices. Various factors, including the user’s
movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as
exercise aids in determining heart rate trends in general.
2. CARE INSTRUCTIONS
a. Lubricate moving joints with grease after periods of usage
b. Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects
c. The machine can be kept clean by wiping it down using dry cloth
d. All nuts and bolts are to be checked and tightened on a regular basis. This includes pedals and other
moving parts. Failure to do so may cause damage to your thread and void your warranty.
Battery Usage
a. Batteries are to be installed or replaced by adults only
b. Do not use rechargeable batteries. Do not mix different battery types. Do not mix old and new
batteries. Do not mix alkaline, standard (Carbon-Zinc), or rechargeable (Nickel-Cadmium) batteries
c. Remove batteries when product is not in use
d. Remove exhausted batteries from product and dispose of in accordance with the manufacturer’s
recommendation
e. Do not attempt to recharge non-rechargeable batteries
f. Batteries are to be inserted with correct polarity
g. The supply terminals are not to be short-circuited
h. Do not dispose of batteries in fire, batteries may explode or leak

5

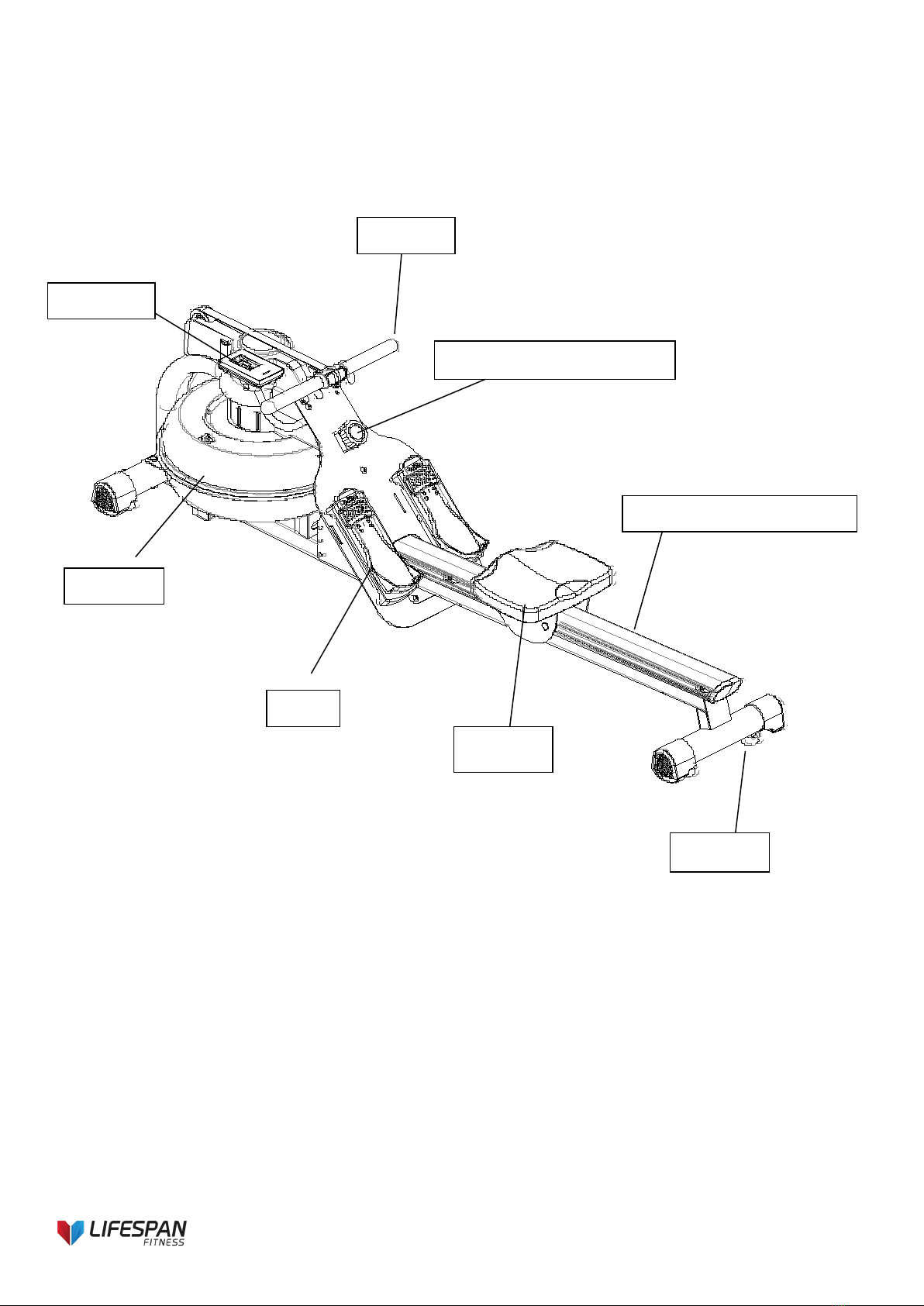

3. ASSEMBLY INSTRUCTIONS
Sliding Rail
Water Tank
Saddle
Cushion
Console
Handlebars
Pedal
Foot pad
Resistance Adjusted Button

6
PARTS
M8×55×20-8
M10×20-4
M10-2
M6×15-2
ST4×16-4
8.2-8
M8×20-2
Bolt Pack
NO NAME SPEC. QTY NO NAME SPEC. QTY
28 Allen cylinder head full
thread bolt M8×20 2 46 High cap nut M10 2
31 Allen pan head half
thread bolt M8×55×20 8 50 Flat washer Φ8.2×Φ25×t2.0 8
94 Allen C.K.S. full thread
bolt M6×15 2 L-shape spanner 5×35×85S 1
40 Allen pan head full
thread bolt M10×20 4 L-shape spanner 6×40×120 1
42
Philips C.K.S. self-
tapping screw ST4×16 4 Open wrench t4.0×32×110 1

7
STEP 1:
STEP 2:
42
42
9
9
12

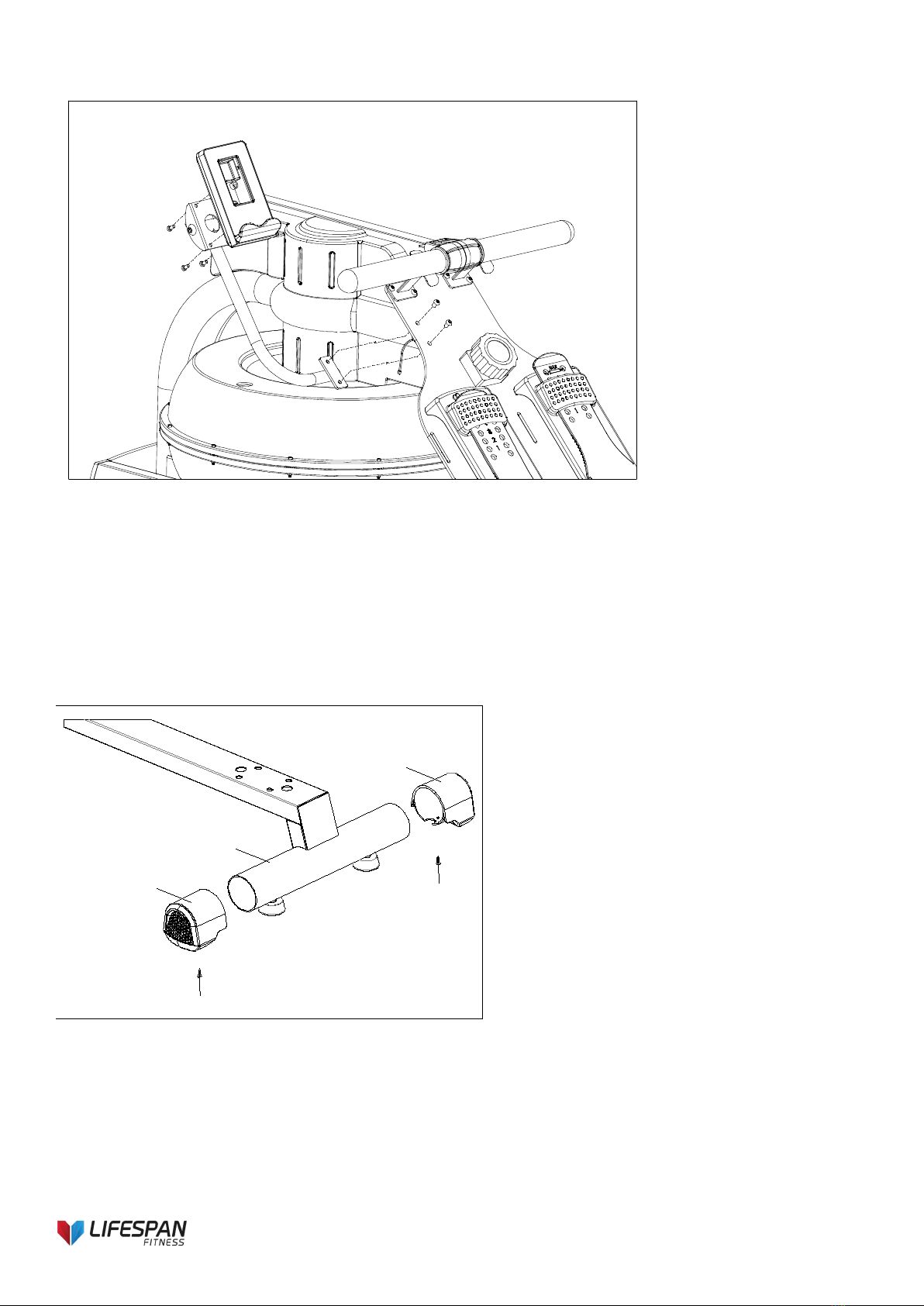

1. Install two Tube plugs (9) on the aluminium
Sliding rail fixed group (12) and lock tight
with two Philips C.K.S. self-tapping screw
(42).
1. Cross Sensor wire (89) through Console fix tube (100), connect with the outgoing line of Console
(88).
2. Attach the Console (88) to the Console fixed plate (18) with Philips C.K.S. full thread bolts (24).
3. Attach Console fix tube (100) to the Console connecting frame (2) with 2 PCS Allen pan head full
thread bolt (34).
**NOTE: (34) is fixed on the Console connecting frame (2) and is not in the Bolt Pack.

8
STEP 3:
46
46
40
40
40
40
12
1
STEP 4:
11
12
50
31
50
31
50
31
50
31
2. Install the Sliding fixed group (12) on
the Main frame (1) and lock tight with
four Allen pan head full thread bolts (40)
and two high cap nuts (46). Lock two of
four Allen pan head full thread bolts (40)
and two high cap nuts (46) on the
bottom.
Note: When installing the screws, first
put all the screws into the tapped holes
and then lock tight.
1. Install the sliding rail (11) on the sliding rail fixed group (12) and lock tight with eight Allen pan
head half thread bolts (31) and eight flat washers (50).
Note: When install the screws, first put all the screws into the tapped holes and then lock tight.

9
STEP 5:
85
22
34
11
28
72
28
72
STEP 6:
63
42
42
11

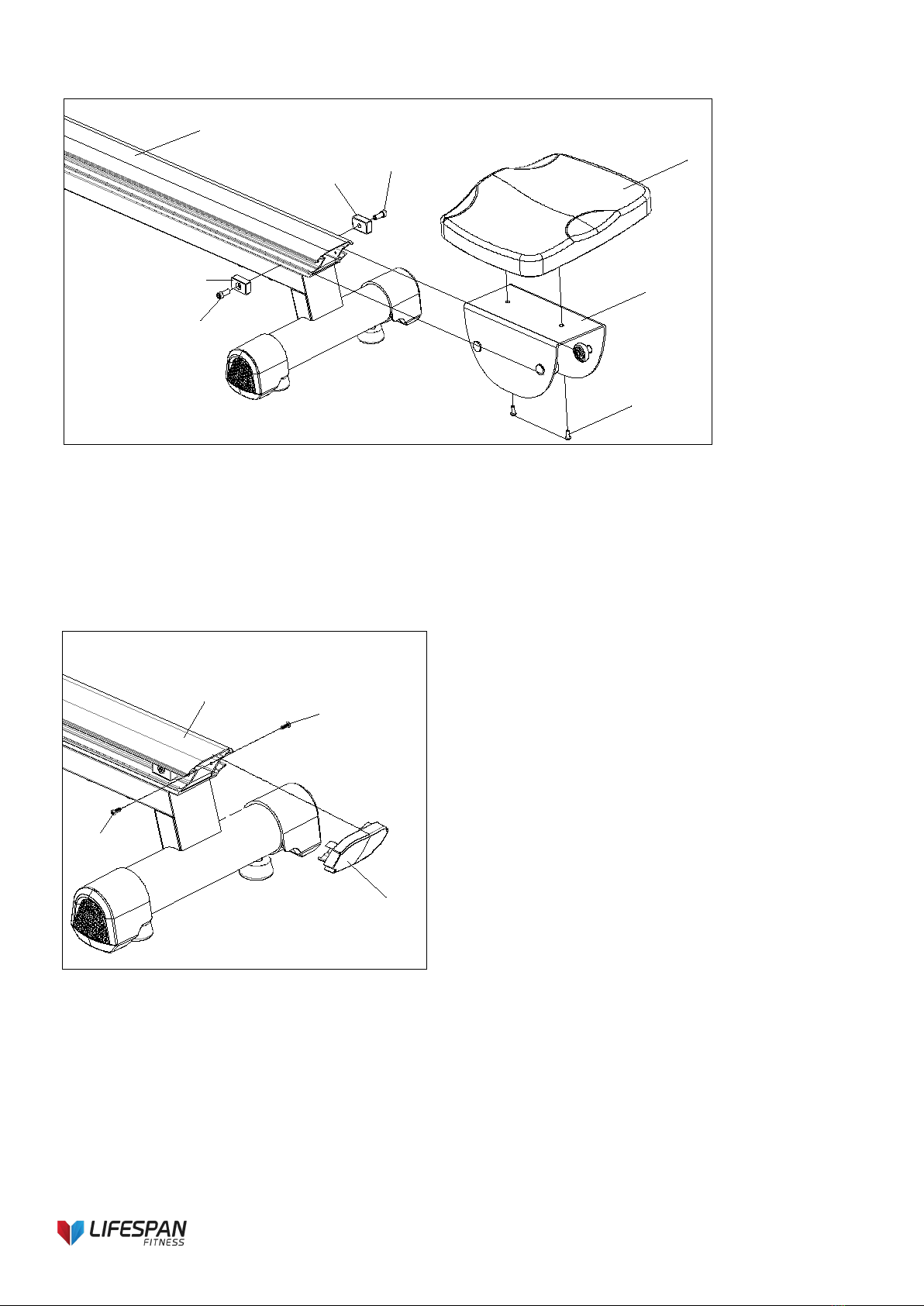

1. Install saddle (85) on the saddle fixed group (22), and lock with two Allen pan head full thread
bolts (34).
2. Install the the last step on the sliding rail (11).
3. Lock two plugs (72) on the sliding rail (11) with two Allen cylinder head full thread bolts (28).
1. Install Aluminium rail rear cover (63) on the
sliding rail (11) and lock tight with two Philips
C.K.S. self-tapping screws (42).

10
4. OPERATION GUIDE

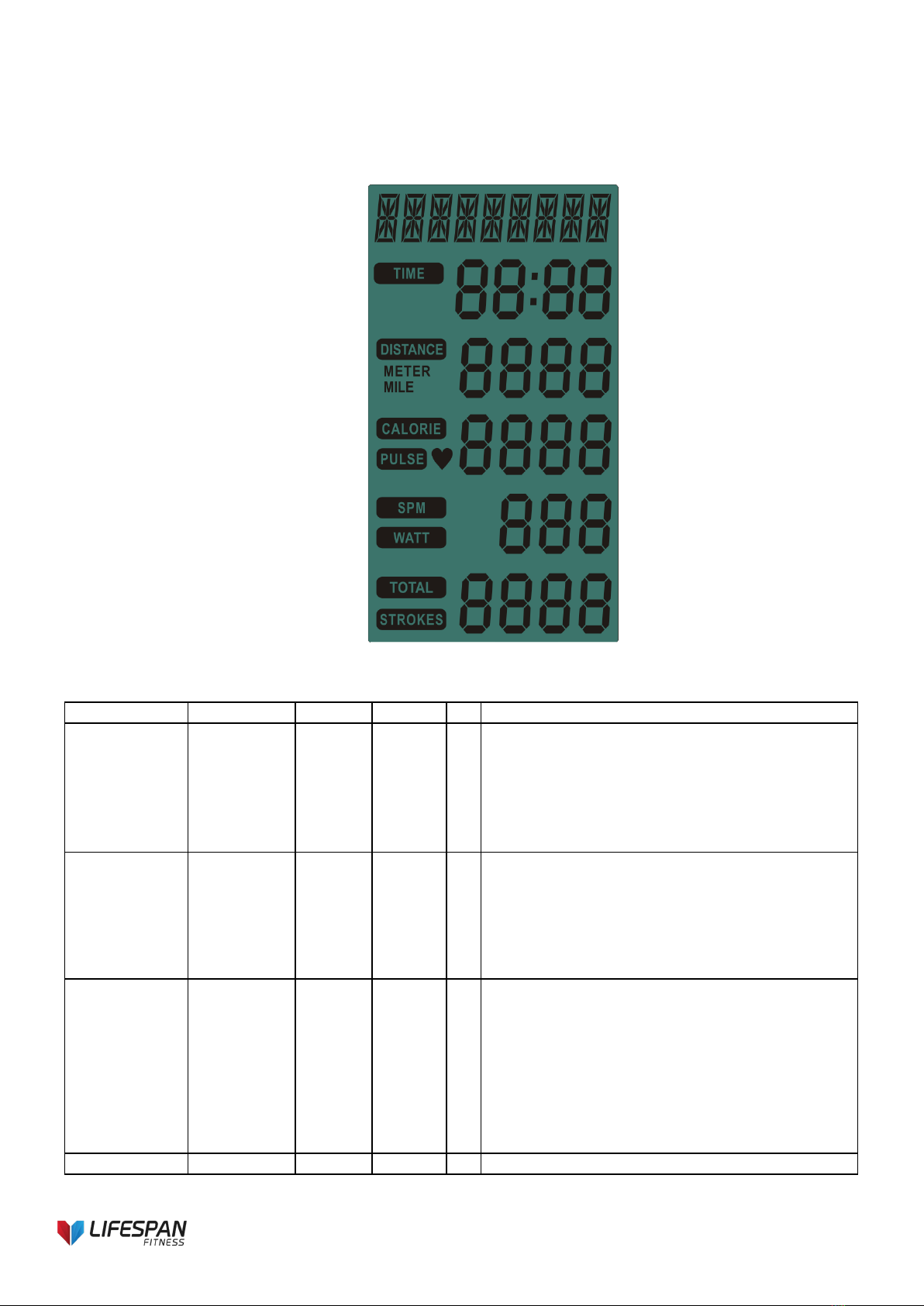

1. LCD DISPLAY
2. MAIN MENU
Function
Range
Setting
Memory
RZ
Brief description
TIME
0:00~99:59
(minute：
second)
±1min Yes Yes
1. Without setting, count-up circularly
2. With setting, count down until zero then
have four beep sound
3.
No input signal in 4 minutes and enter IDLE
mode display.
DIST (distance) 0~9999
0~9990
±10K
±10M
Yes Yes
1. With any setting, count-up circularly
2. With setting, count down until zero then
have four beep sound.
3. 3. No input signal in 4 minutes and enter
IDLE mode display.
CAL
(Calorie) 0~9999cal 0~9990 (±10) Yes Yes
1. If no setting, count-up circularly
2. If setting, count down until zero then have
four beep sound.
3.
No input signal in 4 minutes and enter IDLE
mode display.
4. Display with PULSE alternately every 5
seconds.
SPM (Speed)
0~999
No
No
Yes
In START:

11
1. Display the value after sensor signal input
in 3 seconds.
2. No sensor signals 4.6 seconds later the
value goes zero.
3. Display with WATT alternately every 5
seconds.
STROKES 0~9999
0~9990
(±10)
Yes Yes
ROWING STROKES and TOTAL STROKES
display alternately every 5 seconds.
TOTAL
STROKES
0~9999 No Yes No TOTAL STROKES and STROKES display
alternately every 5 seconds
WATT 0~999 No No No
1. Input sensor signal 3 seconds later and
display the value. No sensor signals 4.6
seconds later the value goes zero.
2. Display with SPM alternately every 5
seconds
PULSE
(Heartbeat:
only available
with a wireless
receiver)
P-30~230
BPM
0-
30~230
(±1) BPM
Yes Yes
1. Input PULSE signal, the initial value of time
is 7.5 seconds (calculate from the first
pulse).
2. No PULSE signal input, 6 seconds later the
value goes zero.
3. The calculation mode please refer to
reference 1.
4. When higher than setting, the values of
PULSE window flicker “PULSE OVER
ALARM” every second with the beep-beep
sound.
5. Display with CAL alternately every 5
seconds.
Manual
Program
When detect the RPM signal but do not enter
any mode, then enter QUICK START.
INTERVAL 20-
10
1. Interval mode
2. Exercise for 20 seconds, then have a rest
for 10 seconds.
INTERVAL 10-
20
1. Interval mode
2. Exercise for 10 seconds, then have a rest
for 20 seconds.
INTERVAL
CUSTOM
1. Interval mode
2. User sets the time of exercising and
relaxing
TARGET TIME
User sets the target TIME
TARGET
DISTANCE
User sets the target DISTANCE
TARGET
CALORIES
User sets the target CALORIES
TARGET
STROKES
User sets the target STROKES
TARGET
PULSE
User sets the target pulse (This function is
optional and only available with a wireless
receiver)

12
3. POWER ON/OFF
Power on:
The LCD will display for 2 seconds (drawing 1) with a beep sound for 2 seconds, then enter IDLE mode.
1. The console turns off when without signal input for 4 minutes.
Drawing 1
Power off:
1. Without signal input in 4 minutes, IC enter SLEEP mode.
2. Have the signal input or click the keys, the console will wake up.
4. OPERATION
1. Power on: When the console is on (or press MODE/RESET for 3 seconds), the BUZZER has a beep
sound for 2 seconds, and the LCD window display all value for 2 seconds and then enter IDLE mode.
2. IDLE mode:
a. When the power is on, console enters into IDLE mode: MANUAL(all display 8), MANUAL(all display
8), INTERVAL(all display 8), TARGET(all display 8), TIME、DISTANCE、CALORIE、SPM、
STROKES、TOTAL STROKES、WATT、PULSE display in order for 1 mins by SCAN(drawing
2~12).
b. In IDLE mode, without any click, RPM signal and PULSE input for four 4 minutes, the console enter
SLEEP mode.

13

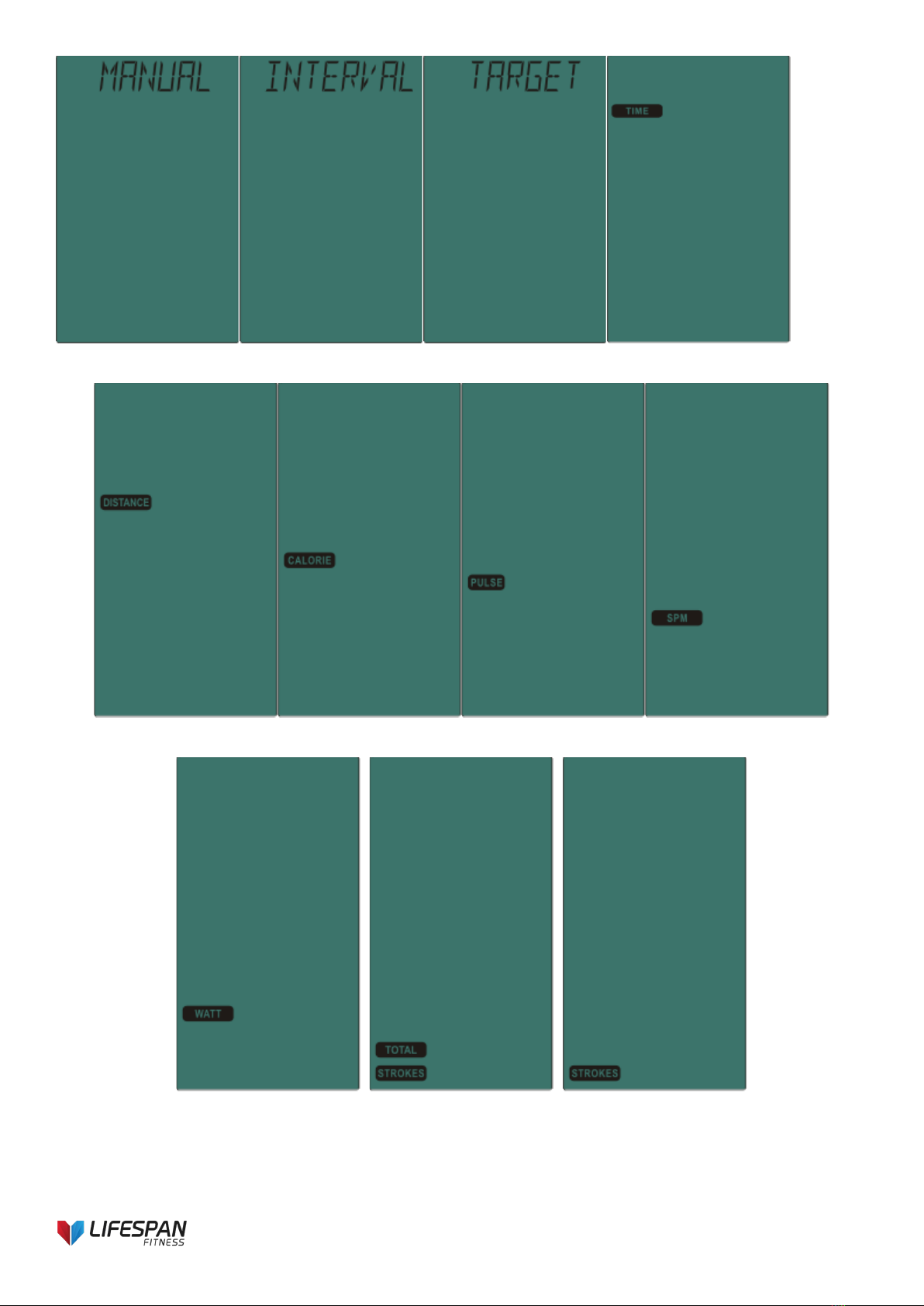

Drawing 2 Drawing 3 Drawing 4 Drawing 5
Drawing 6 Drawing 7 Drawing 8 Drawing 9
Drawing 10 Drawing 11 Drawing 12

14
5. KEY FUNCTIONS
SET KEY
a. Press once to increase once, long press for rapid increase setting.
b. B. TIME range: 0:00~99:00(INTERVAL: Every time the adjustment rises 0:01, TIME: Every time
the adjustment rises 1:00).
c. CAL range: 0~9990(every time the adjustment rises 10).
d. DIST range: 0~9990(every time the adjustment rises 10).
e. STROKES range: 0~9990(every time the adjustment rises 10).
f. PULSE range: 30~230 (the default is 100，every time the adjustment rises 1:00).
g. Press MODE KEY for 2 seconds in IDLE mode to switch between metric and imperial.
MODE KEY
a. In manual mode, press once to confirm.
b. In setting mode, press once to confirm.
c. In running mode, press once to pause.
d. Each press with beep sound.
e. Press SETKEY for 2 seconds in IDLE mode to switch between metric and imperial.
RESET KEY
a. In function setting mode, press once back to preceding function.
b. In setting mode, press once to eliminate current setting value.
c. In pause mode, press once back to IDLE mode.
d. Each press with beep sound.
e. Press 3 seconds to TOTAL RESET, and console will eliminate current workout value except
TOTAL STROKES.
※TOTAL STROKES value will cancel automatically when the power off.
6. FORMULAS & PARAMETERS
1. SPM: pulling frequency per minute (time of one pulling).
2. TIME/500 (min: sec) = 500M/(SPM*DIST) unit is minute.
3. WATT, CALORIES, DISTANCE calculations as CONCEPT II.
4. Induction method as below:
a. Double SENSOR mode: Two RPM input: power on, the sensor which first receive RPM is A
and the other is B. Induction calculation way: ABBA is one time.
b. Signal SENSOR mode: Use the magnetic speed to judge the induction times. Method of
SENSOR induction: slow-quick-slow is one time.
7. ADDING WATER & REMOVING WATER
Adding water:
1. Take off the plug of water tank’s left side.
2. Place a water bucket next to the rowing machine, then put the hard tube of siphon into the bucket and the
hose into the water tank. Please close the valve on the top of the siphon when pouring water into the tank.
3. Press the siphon to pour 17L water into the tank (DO NOT exceed the water line).
4. When pouring to the proper level, please open the valve on the top of the siphon to let extra water flow out.
5. Please make sure the plug is closed after pouring water.
6. Siphon using technique: place the bucket higher than water tank then the water automatically flows into
water tank. (Place a cloth under the water tank when pouring water in case wet the floor.)
Removing water:
1. Take off the plug of water tank’s left side.
2. Put the hard tube of siphon into the water tank and the hose into bucket.

15
3. Start to pour off the water (as the method of pouring in).
8. ADJUST THE ROWING MACHINE
Please adjust the food pad on the floor when the machine is not steady.
5.WATER CARE INSTRUCTIONS
How to keep the water clean or clear:
- Rinse the tank and get out as much of the dirty water before refilling with clean water.
- Use bottled or distilled water rather than tap water.
- Add one purification tablet when you refill with clean water. Please note adding purification tablets to
already cloudy water will not help to clear up the water.
- Store the water tank away from direct sunlight, if possible. This is to prevent algae growth.
How often do you need to add purification tablets?
It is recommended to add one tablet into your tank every 6 months. If your rower is in direct sunlight, it is
recommended to add every 3-4 months.
Algae Growth
If your tank is not regularly maintained, algae growth will occur.
To clean algae you should empty as much of the infested water as you can and refill the tank with clean
water. Add about ¼ cup of algae cleaner solution into the tank and give a few rows to mix the solution.
Once the tank is clear, you can add a purification tablet.

16
6.EXERCISE GUIDE
PLEASE NOTE: Before beginning any exercise program, consult your physician. This is important
especially if you are over the age of 45 or individuals with pre-existing health problems.
The pulse sensors are not medical devices. Various factors, including the user’s movement, may affect
the accuracy of heart rate readings. The pulse sensors are intended only as an exercise aid in
determining heart rate trends in general.
Exercising is great way to control your weight, improving your fitness and reduce the effect of aging and stress.
The key to success is to make exercise a regular and enjoyable part of your everyday life.
The condition of your heart and lungs and how efficient they are in delivering oxygen via your blood to your
muscles is an important factor to your fitness. Your muscles use this oxygen to provide enough energy for daily
activity. This is called aerobic activity. When you are fit, your heart will not have to work so hard. It will pump a lot
fewer times per minute, reducing the wear and tear of your heart.
So, as you can see, the fitter you are, the healthier and greater you will feel.
Warm-up
Start each workout with 5 to 10 minutes of stretching and some light exercises. A proper warm-up increases
your body temperature, heart rate and circulation in preparation for exercise. Ease into your exercise.

17
Training Zone Exercise
After warming up, increase the intensity to your desired exercise program. Be sure to maintain your intensity for
maximum performance. Breathe regularly and deeply as you exercise.
Cool Down
Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of stretching to
cool down. This will increase the flexibility of your muscles and will help prevent post-exercise problems.

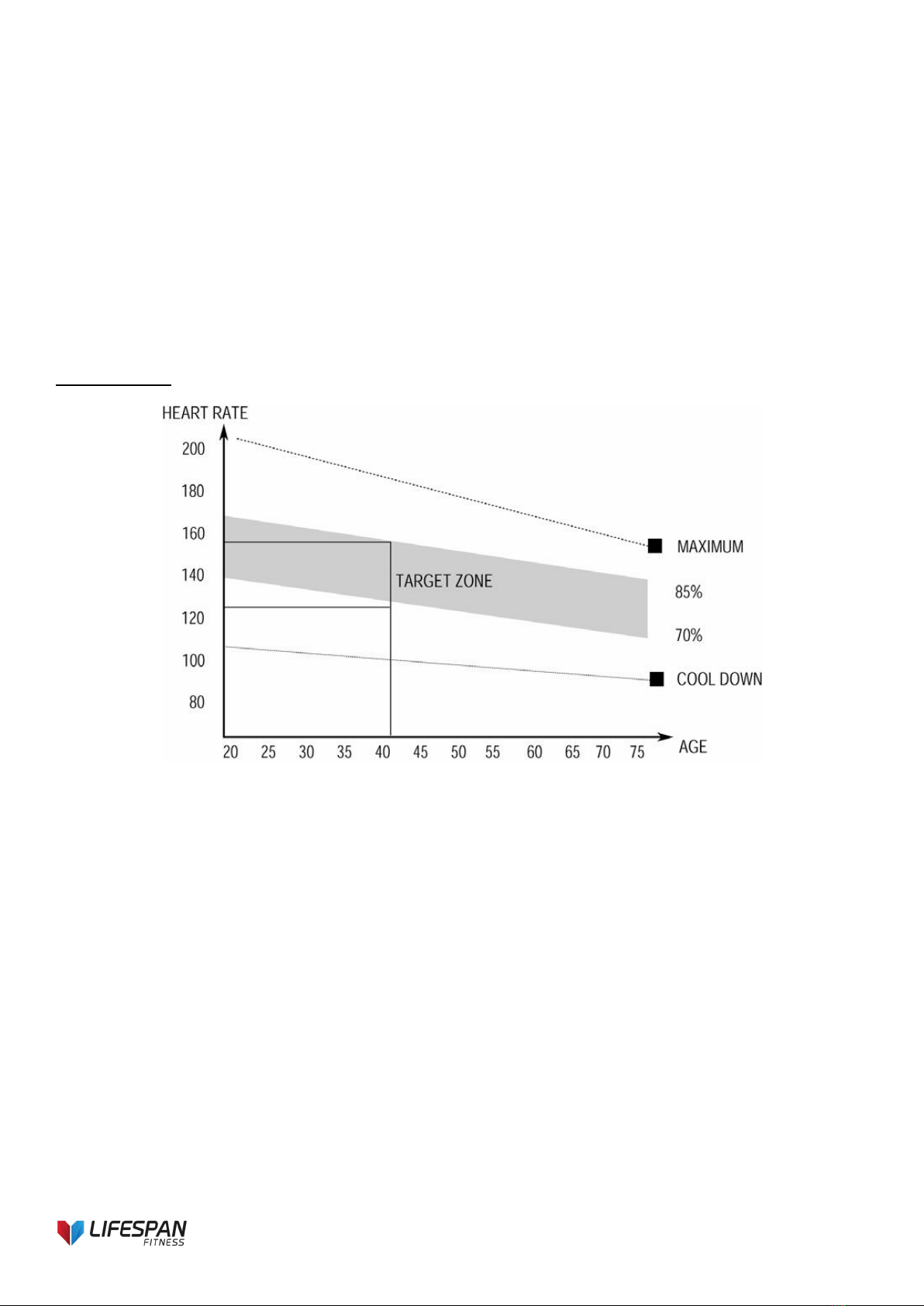

Workout Guidelines
TARGET ZONE
This is how your pulse should behave during general fitness exercise. Remember to warm up
and cool down for a few minutes.

18
7.EXPLODED DIAGRAM
52
81
4
6
7
8
10
19
20
3
12
11
22
13
23
34
34
34
34
34
28
28
28
28
27
40
40
40
40
40
40
40
40
29 29
41
41
41
42
42
42
42
31
31
29
29
36
35
45
44
44
46
46
46
46
46
46
46
46
50
50
51
53
53
56
60
64
65
66
67
72
72
72
72
73
74
76
80
77 78
79
82
83
84
85
86
87
87
63
89
90
90
92
91
91
29
2
5
25
37
39
43
47
35
46
48
54
55
57
57
59
68
69
70
71
81
30
30
61
26
47
49
75
21
52
58
58
18
33 24
49
88
14
17
16
15
34
25
39
39
39
39
38
38
38
47
35
44
81
30
30
87
38
42
44
44
87
87 62
62
1
3
32
32
47
47
9
93
93
94
94
96 95
96 95
9
97
98
93
100 34

19
8.PARTS LIST
NO.
NAME
QTY
NO.
NAME
QTY
NO
NAME
QTY
1
Main frame
1
35
Hex self-locking nut
M6
15
69
Elastic rope fixed
cover
1
2
Console connecting
frame
1
36
Hex self-locking nut
M3
12
70
Sensor turntable
1
3
Handle bar fixed
frame
2
37
Allen C.K.S. half
thread bolt
M6×30×10
1
71
Unidirectional shaft
cover group
1
4
Handle bar group
1
38
Philips C.K.S. full
thread bolt M4×16
8
72
Plug
4
5
Upper adjusted
blade fixed group
1
39
Philips C.K.S. full
thread bolt M5×20
5
73
Pedal
2
6
Resistance adjusted
group
1
40
Allen pan head full
thread bolt M10×20
11
74
Pedal fixed frame
2
7
Adjusted blade fixed
group
1
41
Philips countersunk
head full thread bolt
M6×40
6
75
Webbing guide pulley
set
1
8
Blade group
1
42
Philips C.K.S. self-
tapping screw
ST4×16
7
76
Water tank plug
1
9
tube plug
4
43
Philips hex washer
head self-tapping
screw ST4×12
1
77
Water tank fixed
sealing ring
2
10
Bottom Adjusted
blade fixed group
1
44
Hex nut M10
5
78
Upper water tank
1
11
Sliding rail
1
45
Hex locking nut M8
2
79
Bottom water tank
1
12
Sliding rail fixed
group
1
46
High cap nut M10
10
80
Water tank fixed
sealing ring
1
13
Single sliding rail
connecting sheet
1
47
Hex locking nut M10
5
81
Big pulley set
3
14
Decoration iron
sheet one
2
48
Flat washer
1
82
Webbings
1
Φ40×Φ21×t1.0
15
Decoration iron
sheet four
1
49
Flat washer
3
83
Spring robe
1
Φ10.5×Φ21×t1.5
16
Decoration iron
sheet three
1
50
Flat washer
8
84
adjusted knob
1
Φ8.2×Φ25×t2.0
17
Decoration iron
sheet two
1
51
Spring washerΦ8
4
85
Saddle
1
18
Console fixed plate
1
52
Spring washer for
bearingΦ10
2
86
PU roller group
4
19
Blade
6
53
Spring washer for
bearingsΦ12
2
87
Foot pad
5
20
Water tank fixed
piece
1
54
Spring washer for
bearingsΦ20
1
88
Console set
1
21
Braiding tape guide
pulley
1
55
Elastic Cylindrical
heavy groove 5×45
1
89
Sensor wire
1
22
saddle fixed group
1
56
Elastic Cylindrical
heavy groove 5×30
1
90
Form grip
2

20
23
Pedal fixed plate
2
57
Unidirectional needle
roller bearing
HF2016Z
2
91
Aluminum sliding rail
locking sheet
2
24
Philips C.K.S. full
thread bolt M5×10
4
58
Deep groove ball
bearing 6000Z
2
92
Adjusted whirl Axis
1
25
Allen C.K.S. half
thread bolt
M10×45×20
2
59
Deep groove ball
bearing 61804-Z
1
93
Arc-shaped spacer
4
26
Allen C.K.S. half
thread bolt
M10×60×20
1
60
Angular contact ball
bearing 7007AC
1
94
Allen C.K.S. full
thread bolt M6×15
2
27
Allen cylinder head
full thread bolt
M3×30
12
61
Magnetic sensor
fixer
1
95
Allen C.K.S. hollow
thread
boltΦ8×33×M6×15
2
28
Allen cylinder head
full thread bolt
M8×20
4
62
Square tube cover
2
96
wheel groupΦ55×25.8
2
29
Allen pan head full
thread bolt M8×20
8
63
Aluminum sliding rail
rear cover
1
97
Steel rope
2
30
Bush tube
4
64
Handle cover left
1
98
Pedal webbings
2
31
Allen pan head half
thread bolt
M8×55×20
8
65
Handle cover right
1
99
Console outgoing wire
1
32
Allen C.K.S. half
thread bolt
M10×95×20
2
66
Left outside cover
1
100
Console fix tube
1
33
Allen pan head half
thread bolt
M10×75×15
1
67
Right outside cover
1
34
Allen pan head full
thread bolt M6×15
22
68
Copper base bearing
1
