Safety Guide - Read Completely
Before installation or operation of the LIFE Ionizer®, read this
instruction manual completely.
Note- Some parts may have been altered to improve product quality,
function or ease of use.
Symbols
Indications
Refer to the following key symbols and indicators throughout the manual.
Improper use may cause bodily injury
Improper use may cause structural damage to the unit
or physical injury
Caution, warning, danger symbol
Information on prohibited functions and uses
Make note of important information
Do not open as it may cause electric shock or other injury
Disconnect power plug in case of malfunction
75
7700
As with most electrical appliances, electrical parts in
this ionizer are electrically live even when switch is o.

www.LifeIonizers.com/Support 5
Improper use may cause bodily injury
When drinking Ionized Alkaline Water - Do not take
prescription or other medications for approximately one
hour before and after drinking water.
This machine should not be repaired or otherwise
disassembled by any unauthorized person as it
may cause electrical re or shock, and will void the
manufacturer’s warranty.
Do not place the machine in humid areas such as
bathrooms. Do not clean this machine by spraying
the ionizer with water as it may cause electrical
shock.
75
7700
As with most electrical appliances, electrical parts in this
ionizer are electrically live even when the switch is o.

www.LifeIonizers.com/Support
6
Power cord should not be touched with wet hands.
Power cord should be plugged directly into an electrical
outlet.
Do not connect multiple appliances into a single power
receptacle.
Dusty or dirty electrical outlets may cause safety issues.
Bending, twisting, pulling or putting heavy objects onto
the power cord may cause electrical problems including
re.
If power cord, plug, or electrical outlet are damaged,
discontinue use immediately.
If the ionizer machine falls into water-
1. Unplug power cord from electrical outlet
2. Wipe the machine down and place in shaded area
3. Contact your LIFE IonizerTM dealer
Use only (110v) in the U.S.A. and Mexico. Use (100v) in
Japan. Most other countries require (220v). The power
cord cannot be altered from manufacturer’s specs.
Do not crimp or staple the power cord as it could cause
electrical shock.
75
7700
As with most electrical appliances, electrical parts in this
ionizer are electrically live even when the switch is o.

www.LifeIonizers.com/Support 7
Improper use may cause bodily injury
Improper use may cause structural damage to
the unit or physical injury
Place machine in an upright position only.
If not used for several days, run water through the
unit for 1 to 3 minutes before starting.
Do not install this unit in direct sunlight or near a
heater, replace or other heat source.
Do not use water with a temperature of over 95
degrees Fahrenheit or 35 degrees Celcius.
Store Ionized Alkaline Water in an air-tight glass
container and refrigerate for up to 2 days.
If inexperienced with drinking Ionized Alkaline
Water, users are encouraged to start with lever 1.
DO NOT DRINK ACIDIC WATER.
If wall mounted, secure rmly and correctly.
Do not store Alkaline or Acidic water in metal
containers.
75
7700

Aluminum and brass containers will be tarnished by
Alkaline and acidic water.
Improper use may cause structural damage to the unit
or physical injury.
Do not block the unit vent as it can cause overheating
and/or electrical problems.
Do not use benzene, thinner, or chemicals to clean the
unit as it can damage the housing.
Do not block the water passage or tubing.
If the machine will not be used for several days...
1. Unplug the power cord from the electrical outlet
2. Turn o the water valve to avoid leaking
3. Remove lters, drain and place in refrigerator in
plastic bags.
When handling the pH test (reagent drops)
1. Keep away from eye area. If eyes become irritated,
ush thoroughly and consult a doctor.
2. If accidentally swallowed, drink water and consult a
doctor.
3. Store in an airtight container away from the reach of
children.
4. Drops are ammable. Keep away from children.
www.LifeIonizers.com/Support
8
75
7700

1. Refer to the diagrams on the following pages before
beginning installation.
2. Be aware that a 110v outlet (USA) or 220v outlet is required.
3. If after installation the water has an odor, you may need to
install a pre-lter. Please consult your LIFE Ionizer® dealer.
4. How to use reagent drops: (BTB Chemical). Put 2-3 drops in
approximately 1 ounce of water to be tested. Compare color
to color chart provided in kit to determine pH level.
Reagent Drops
(pH Test Drops)
Alkaline water
outlet hose
(exible)
Tubing Hose
User Manual
BTB Chemical
Parts Guide
www.LifeIonizers.com/Support 975
7700
Power Cord
Counter top
Diverter Valve

Name & Function of Unit
1. Front View
2. Internal Filters
(1) Main Body
(3) LCD Screen
(2) Water Outlet (4) Selection/Function
Touch Control
(5) Sliding Door
(6) First Filter (7) Second Filter
www.LifeIonizers.com/Support
10
75
7700

3. Bottom View
(1) Main Body (case): Outer shell of the system.
(2) Water Outlet: Dispenses alkaline/acid water.
(3) LCD Screen: All the functions of system are displayed on the LCD
screen.
(4) Selection/Fuction Touch Control: Touch controls to select the level of
alkaline/acidic or puried water.
(5) Sliding Door: Provides access to change lters.
the door open.
(6) 1ST Filter: Filters contaminants from the tap water inlet valve.
(7) 2ND Filter: Filters additional sediments from the water after passing
through the1st lter.
(8) Water Inlet: Water inlet from the tap water diverter or water
manifold to the unit.
(9) Drain Outlet: This is to drain the acidic/alkaline water while the water
is ionizing.
(10) Power Cord: To provide electric power.
(11) Power Switch: ON/OFF switch for main power supply.
(10) Power Cord
(11) Power Switch
(8) Water Inlet (9) Drain Outlet
www.LifeIonizers.com/Support 11 75
7700

Special Installation Notes
www.LifeIonizers.com/Support
12
75
7700
The unit should be
placed on a level surface
where there is no danger
of sliding.
Do not put the unit on
top of the drain outlet
hose so that the hose will
not be bent or pressed.
The unit should be
installed within 40
inches of the drain.
Drain water hose
should be installed
lower than the ionizer.
The machine should
be installed away
from direct sunlight or
heaters such as a re
place or oil source.
• Before installation, check the unit’s voltage setting. This unit is only for
use with 110V/220V.
• The unit should be installed away from direct sunlight or cold areas, as
it may cause damage to the unit.
• Be sure to shut o water supply from the tap when not in use. The
ionizer should be connected to cool water. (Never connect to hot
water.)
• Do not install the unit near a heater or other heat source.
• Do not make any modications to the internal or external parts of the
machine.

www.LifeIonizers.com/Support 13 75
7700

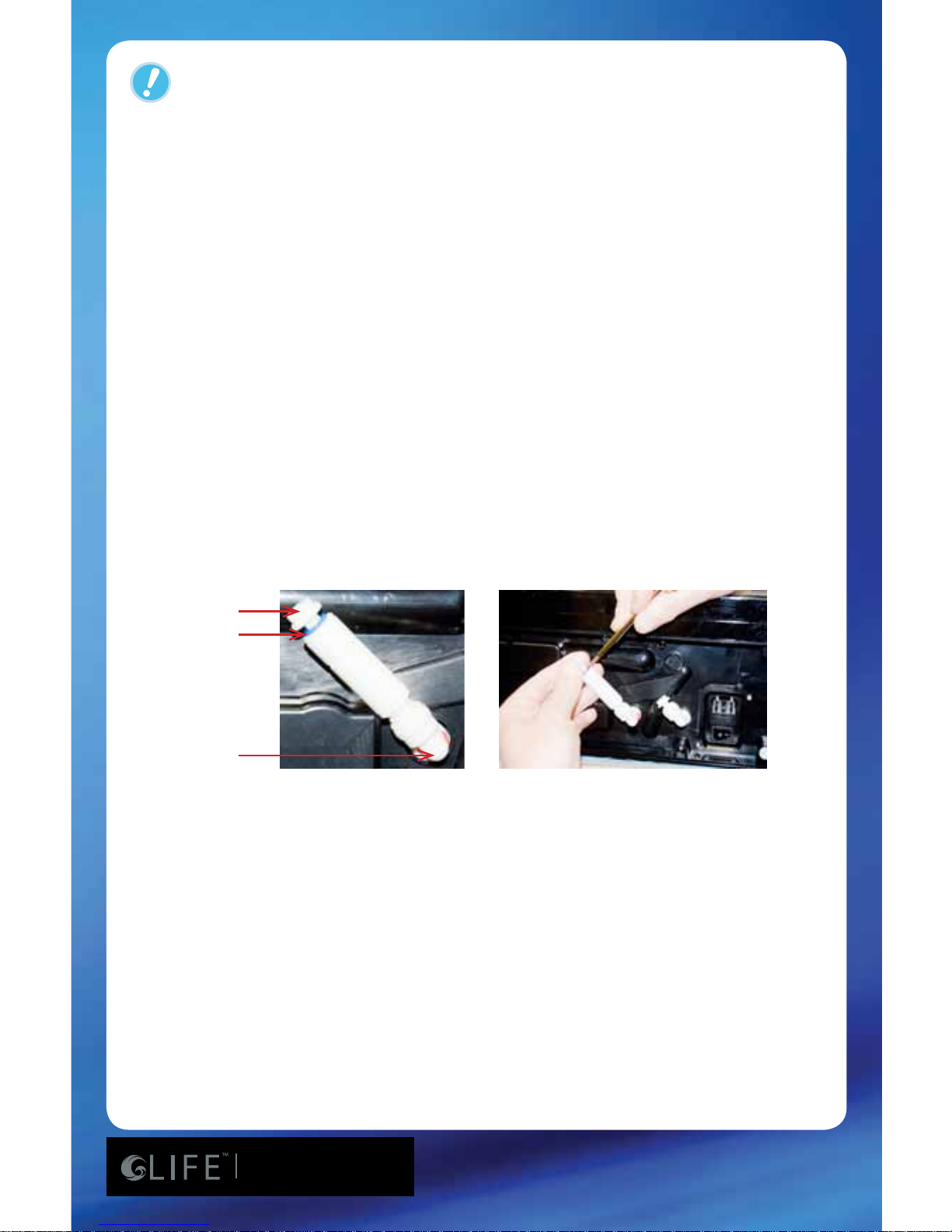

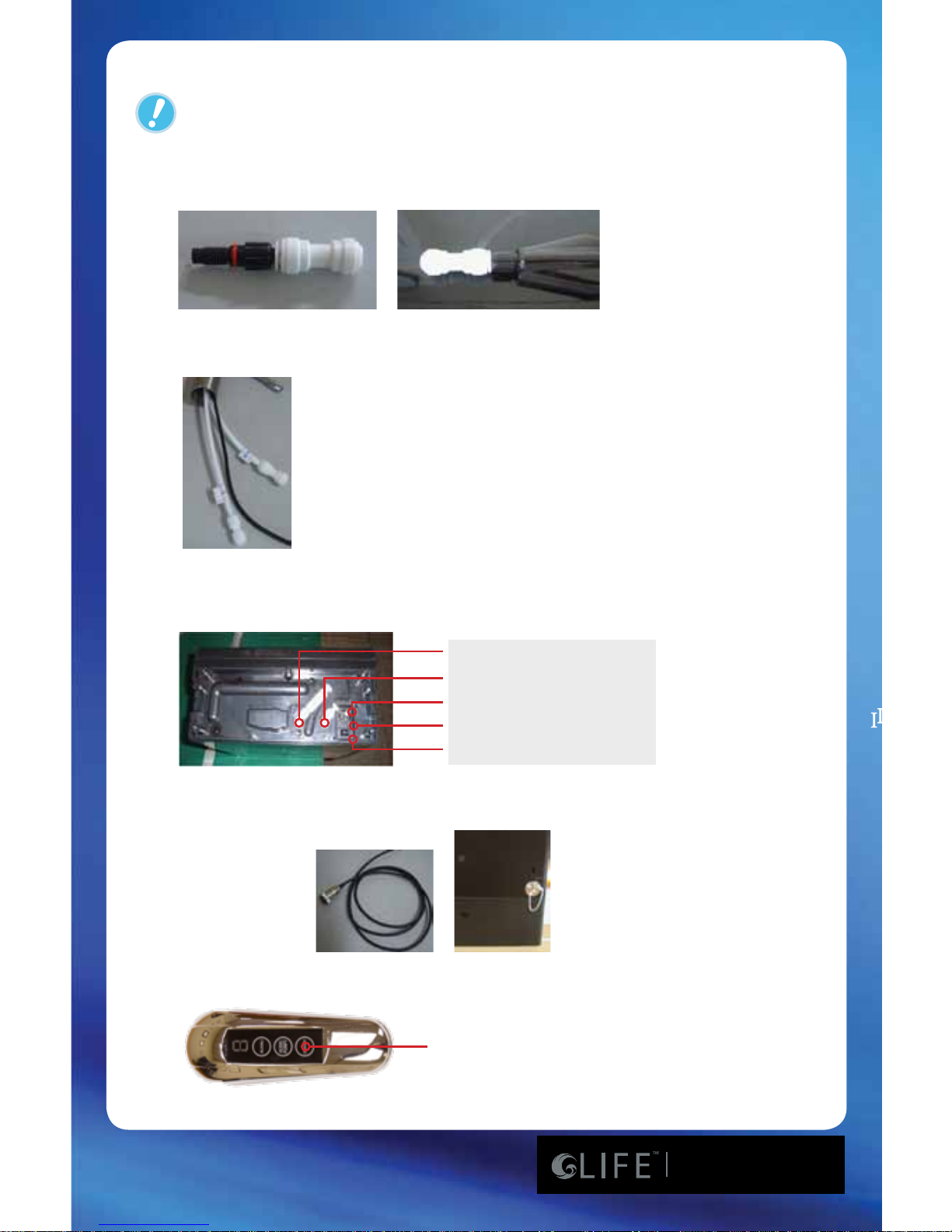

1. Snap in plastic adaptor into top of unit where exible metal hose was in place.
2. Cut a piece of 1/4 inch tubing and connect it to plastic adaptor on top of unit,
then insert other end of tubing into the alkaline tubing connection on faucet.
3. Connect a piece of 1/4 inch tubing from “outlet” on bottom of ionizer, to the
acid connection on faucet.
4. Plug in electrical extension wire into faucet connection and plug in the other
end into the back of the ionizer.
5. Press power button on top of faucet to turn on ionizer.
Conversion from 7700C to 7700UC
Power button
1. Inlet Valve
2. Outlet Valve
3. Power Plug
4. Fuse Box
5. On/O Power Switch

www.LifeIonizers.com/Support
14
Installation Instructions for LIFE IonizerTM 7700
75
7700
Use Cold Water Only With Your Ionizer
STEP 1: Unscrew the existing aerator from your faucet.
STEP 2: Use teon plumbers tape on the threads. Screw the LIFE IonizerTM diverter
valve onto your faucet. Three dierent sized adaptors are included for non-standard
sized faucets.
STEP 3: Unscrew the round nut from the side of the diverter valve. Slide the nut
over the end of the 1/4” tubing and then screw the nut back onto the diverter valve.
Tubing should now t snugly onto the diverter valve.
STEP 4: Lay the ionizer down on its back and you will see two white elbows extrud-
ing from the bottom of the machine. Depress the collar towards the elbow and
extract the plug from the end of the elbow. It is sometimes helpful to use the back
of a butter knife or screw driver to remove the plug. If you ever need to remove the
tubing from the quick release, you will use the same process.
STEP 5: Run tubing from the diverter valve to the inlet valve on the bottom of the
ionizer. Be sure to push the tubing into the quick connect valve 3/4” until it is rmly
seated.
If using a pre-lter, see page 16 for pre-lter installation.
STEP 6: Insert one end of tubing into outlet valve on bottom of unit and run the
other end into the sink securing it with the suction cup provided. Some units may
contain water. Don’t be alarmed; we test units for quality before shipment!
plug
collar (ring)
elbow
Example

www.LifeIonizers.com/Support 15
Installation Instructions for LIFE IonizerTM 7700
C
o
ld
w
a
t
e
r
in
le
t
C
o
ld
w
a
t
e
r
i
n
l
e
t
Assembly method of valve for
wall-mounted water taps
Fix adapter
Quarter turn
for Tap Water
Running
Water
Rubber Gasket
Remove the aerator from the water tap.
Assembly method of valve for Deck-sink water taps
Screw in the adaptor
Remove the aerator from
the water tap.
Connect by rotation
after insertion of rubber
packing
Installation Guide
Cold Water inlet
Assembly method of valve for Deck sink water taps
Assembly method of valve for
wall-mounted water taps
Quarter turn
for Tap Water
Running
Water
Cold Water inlet
Rubber Gasket
Fix adapter
Inlet Valve
Outlet Valve
(Drainage)
75
7700

www.LifeIonizers.com/Support
16
1. Cut the tubing leading to the ionizer at the desired location and length.
2. The cap on top of the lter housing is marked “OUT” and “IN”.
3. The tubing coming from the cold water connector needs to be inserted into the
side of the housing marked “IN”. Firmly press the tubing into the lter-housing cap.
You will feel the tubing stop when it is fully inserted. Pull on the tubing gently to
ensure that it does not come out and a good connection was made. If possible,
ush the lter by turning on the ow of water slowly and point the “OUT” towards
the sink; let it run for 2-3 minutes and turn the water ow o.
4. Insert the tube going to the ionizer into the side of the housing marked “OUT” by
rmly pressing the tube into the lter housing cap.
5. To remove the tubing from the lter cap, press in on the O-ring and tubing simul-
taneously, then gently pull out on the tubing.
TOP VIEW OF FILTER HOUSING
SIDE VIEW OF FILTER HOUSING
Installation of the Pre-Filter
75
9000
75
7700

www.LifeIonizers.com/Support 17 75
7700
Internal Filter Replacement
► LCD Screen Filter Display
1st lter: The 1st lter life is indicated on the left
side of the LCD screen. The lights will decrease as
the lter life diminishes. When the lter life has 100
liters remaining, there will be a voice message to
exchange the lter. The unit will not work when the
lter life is fully used.
► How to Change the Filters
→ Slide the front from left to right side to open up.
→ Select the lter to be changed and turn left to release it out of the socket.
→ Be sure to take the sticker o of the new lter.
→ Turn the lter into the lter socket clockwise to lock.
→ Slide the front closed and then touch the Waking/Stand By control.
→ The system will automatically ush itself and then is ready to use.
1st lter 2nd lter The sticker on the lter
must be removed.
2nd lter: The 2nd lter life is indicated on the right side of the LCD screen. The
lights will decrease as the lter life diminishes. When the lter life has 100 liters
remaining, there will be a voice message to exchange the lter. The unit will not
work when the lter life is fully used.
→ Life of 1st lter: about 4,000 liters (about 4,226 quarts)
→ Life of 2nd lter: about 8,000 liters (about 8,453 quarts)

www.LifeIonizers.com/Support
18
LCD Display
75
7700
LCD Display
1. 1st lter life indicator
2. Wash lamp indicator
3. Mode display indicator
4. Water pH indicator
5. Voice set display lamp
6. Flow meter display
7. Operation display lamp
8. 2nd lter life indicator
9. Alkaline/Acid water level
10. Alkaline water selection lamp
11. Acid water selection lamp
12. Puried water selection lamp
13. Error display lamp
1
2
3
4
5
6
7 8 9
10
11
12
13
Touch Control Panel Functions
ALKALI
ACIDIC
WAKING/
STAND BY
PURIFY
WASHING
SET
UP MODE
2
3
6
14
7
5
1. Touch to turn the unit on.
2. Touch to get alkaline water.
3. Touch to get acidic water.
4. Touch to get puried water.
5. Touch to enter the conguration mode (see pg 22).
6. Touch to exit mode menu.
7. Touch to manually ush the unit.

www.LifeIonizers.com/Support 19 75
7700
LCD Functions
• Alkaline water selection lamp: The Alkali lamp is ON when
alkaline water is selected.
• Acid water selection lamp: The Acidic lamp is ON when acidic
water is selected.
• Purify water selection lamp: The Purify lamp is ON when purify
water is selected.
• Outlet water pH value: It shows the pH value of the outlet water.
• Flow meter display: This displays inlet water ow in liters per
minute.
• Wash lamp indicator: Lights up when washing function is se-
lected and during automatic ushing.
• Mode display indicator: Lit while Mode function is being used.
• 1st lter life indicator: Shows how much life is remaining for the
1st lter.
• 2nd lter life indicator: Shows how much life is remaining for
the 2nd lter.
• Alkaline/Acid water level: Displays what level of alkaline/acid
water is being dispensed.
• Error display lamp: Displays error codes when the unit
malfunctions.
• Voice set display lamp: Displays the volume level for the voice
control.

www.LifeIonizers.com/Support
20
75
7700
Specic Features
1. One-touch ON/OFF and function selection.
2. 9 Platinum coated titanium electrode plates (patented).
3. 9 levels of water - four (4) alkaline, four (4) acidic, one (1) puried.
4. Large multi-color LCD screen.
5. PH value (acid and alkaline concentration) is displayed on the LCD
screen.
6. PH of the water is displayed on screen using 7 dierent colors (red is
most acidic and purple is most alkaline).
7. System is self-diagnosing and displays errors on the LCD screen.
8. Dual internal high capacity lters.
9. LCD screen displays remaining lter life for both lters.
10. Voice message prompts for each function.
11. Amount of water dispensed is displayed by per liter minute
12. SMPS power supply.
13. Automatic ow control system ensures proper PH levels.
14. Automatic self cleaning cycle runs after each use ensures safety and
eciency of the unit.
15. While dispensing water in puried mode, the system will cut o the
waste water outlet, to prevent unnecessary waste.
16. Convenient front sliding door for easy lter access (patented).
