Lighthouse Worldwide Solutions REMOTE 2010 User manual

00

Lighthouse Worldwide Solutions
REMOTE 2010/3010/5010/5100 Airborne Particle
Counter
Operating Manual


Copyright © 2010 by Lighthouse Worldwide Solutions. All rights reserved. No part of this
document may be reproduced by any means except as permitted in writing by Lighthouse
Worldwide Solutions.
The information contained herein constitutes valuable trade secrets of Lighthouse Worldwide
Solutions. You are not permitted to disclose or allow to be disclosed such information except as
permitted in writing by Lighthouse Worldwide Solutions.
The information contained herein is subject to change without notice. Lighthouse Worldwide
Solutions is not responsible for any damages arising out of your use of the LMS program.
REMOTE 2010™, 3010™, 5010™, 5100™, LMS™, ECS™, ACU™, SIU™, AIU™, and
MIU™ are trademarks of Lighthouse Worldwide Solutions.
Microsoft®, Microsoft Windows©, and Excel©are trademarks of Microsoft Corporation.
Lighthouse Part Number 248083200-1 Rev 5

EU DECLARATION OF CONFORMITY
Manufacturer’s Name Lighthouse Worldwide Solutions, Inc.
Manufacturer’s Address: Lighthouse Worldwide Solutions, Inc.
1221 Disk Drive
Medford, OR 97501
Declares that the product:
Product Name: Remote Airborne Particle Counter
Model Number(s): REMOTE 2010/3010/5010/5100
Conforms to the following Product Specifications:
SAFETY EN61010-1:2001 Safety Requirements for Electrical Equipment for
Measurement, Control, and Laboratory Use Part I:
General Requirements IEC 61010-1:2000
CAN/CSA C22.2 Safety Requirements for Electrical
No. 1010.1-1992 Equipment for Measurement, Control, and Laboratory
Use, Part1: General Requirements
LASER SAFETY IEC 60825-1 Am. 2 Guidance on Laser Products: Conforms to
IEC 60601-2-22 FDA 21 CFR Chapter 1 Subchapter J
(Laser Notice 50)
EMC EN61326 Electrical Equipment for Measurement, Control and
Laboratory Use EMC Requirements Part 1: General
Requirements Includes Amendment A1:1998;IEC
61326:1997 + A1:1998
UL 61010A-1 – UL Standard for Safety Electrical Equipment for Laboratory Use; Part 1: General Requirements.
Replaces UL 3101-1
Supplementary information: The product herewith complies with the requirements of the Low Voltage
Directive 73/23/EEC amended by Directive 93/68/EEC and the EMC Directive 89/336/EEC amended by Directive
93/68/EEC, and carries the CE marking accordingly.
Fremont, CA, May 15, 2007 William L. Shade – V.P. Engineering

00
248083200-1 Rev 5 t-i
Table of Contents
About this Manual
Text Conventions ................................................................................................................ i
Additional Help ................................................................................................................... i
Chapter 1 General Safety
Safety Considerations .................................................................................................... 1-1
Laser Safety Information ............................................................................................... 1-1
Electrostatic Safety Information .................................................................................... 1-2
Chapter 2 Introduction
Overview ........................................................................................................................ 2-1
Description ..................................................................................................................... 2-1
Accessories .................................................................................................................... 2-2
REMOTE Specifications ............................................................................................... 2-2
Calibration ..................................................................................................................... 2-3
Chapter 3 Getting Started
Unpacking and Initial Inspection ................................................................................... 3-1
Shipping Instructions ..................................................................................................... 3-1
Interpreting Indicators ........................................................................................ 3-2
Connections ................................................................................................................... 3-2
Installation ..................................................................................................................... 3-3
Installing an Isokinetic Probe ........................................................................................ 3-4
Chapter 4 Technical Data
Data Connector Signals ................................................................................................. 4-1
Cumulative to Differential Output ................................................................................. 4-1
Chapter 5 Maintenance Procedures
Introduction .................................................................................................................... 5-1

Lighthouse REMOTE 2010/3010/5010/5100 Operating Manual
t-ii 248083200-1 Rev 5
Safety ............................................................................................................................. 5-1
Maintenance ................................................................................................................... 5-1
Calibration ......................................................................................................... 5-1
Purge Count Test ........................................................................................................... 5-1
Fault Isolation ................................................................................................................ 5-2
Appendix A Limited Warranty
Limitation Of Warranties: ............................................................................................. A-1
Warranty Of Repairs After Initial Two (2) Year Warranty: ......................................... A-1
Index

00
248083200-1 Rev 5 i
About this Manual
This manual describes the detailed operation and use of the Lighthouse
Remote 2010, 3010, 5010 and 5100 Airborne Particle Counters.
Text
Conventions
The following typefaces have the following meanings:
italics Represents information not to be typed
or interpreted literally. For example, file
represents a file name. Manual titles are
also displayed in italics.
WARNING: A
warning appears in a
paragraph like this one.
A warning tells you that
doing something
incorrectly could lead to
loss or improper storage
of data. A warning
paragraph is boxed and
begins with "Warning" in
boldface.
boldface Introduces or emphasizes a term.
Courier font Indicates command syntax or text
displayed by the diagnostic terminal.
Bold Courier Indicates commands and information that
you type. You can use uppercase or
lowercase letters; in this manual,
commands are shown in uppercase.
Helvetica Italics Indicates a comment on a command or
text output.
Additional
Help
For more information about Lighthouse Remote 2010/3010/5010/5100
Airborne Particle Counters, contact Lighthouse Worldwide Solutions.
www.golighthouse.com
[email protected]
Sales & Support [phone]
Outside the USA [phone]

Lighthouse REMOTE 2010/3010/5010/5100 Operating Manual
ii 248083200-1 Rev 5

00
248083200-1 Rev 5 1-1
1General Safety
Safety
Considerations
Warnings and cautions are used throughout this manual. Familiarize
yourself with the meaning of a warning before operating the particle
sensor. All warnings will appear in the left margin of the page next to
the subject or step to which it applies. Take extreme care when doing
any procedures preceded by or containing a warning.
There are several classifications of Warnings defined as follows:
• Laser - pertaining to exposure to visible or invisible laser radiation
• Electrostatic - pertaining to electrostatic discharge
Laser Safety
Information
This product contains a laser-based sensor that is a Class 1 product (as
defined by 21 CFR, Subchapter J of the Health and Safety Act of 1968)
when used under normal operation and maintenance. Service
procedures on the sensor can result in exposure to invisible radiation.
Service should be performed only by factory-authorized personnel.
The particle counter has been evaluated and tested in accordance with
EN 610109-1:1993, "Safety Requirements For Electrical Equipment
for Measurement, Control, and Laboratory Use" and IEC 825-1:1993,
"Safety of Laser Products".
WARNING: The use
of controls, adjustments,
or performance of
procedures other than
those specified within
this manual may result in
exposure to invisible
(infrared) radiation that
can quickly cause
blindness. Figure 1-1 Warning label on unit
For further technical assistance, contact our Technical Support Team at
[phone].

Lighthouse REMOTE 2010/3010/5010/5100 Operating Manual
1-2 248083200-1 Rev 5
Electrostatic
Safety
Information
WARNING: Using a
wrist-strap without an
isolation resistor will
increase the severity of
an electrical shock. Use
of control or adjustment
or performance of
procedure other than
specified here may result
in hazardous radiation
exposure.
Electrostatic discharge (ESD) can damage or destroy electronic
components. Therefore, all service or maintenance work should be
done at a static-safe work station. A static-safe work station can be
created by doing the following:
• Use a grounded conductive table mat and resistor-isolated wrist-
strap combination
• Earth-ground all test instruments to prevent a buildup of static
charge

00
248083200-1 Rev 5 2-1
2Introduction
Overview This operating guide introduces you to the Lighthouse REMOTE 2010/
3010/5010/5100 Airborne Particle Counter family. Also included in
this guide are instructions for inspecting, using, and maintaining the
instrument. Any changes of instrument operation due to design changes
are covered at the back of this guide.
Description The 2010 instrument is manufactured to count particles at 0.2 micron at
0.1 CFM. The 3010 model counts particles at 0.3 micron at 0.1 CFM.
The 5010 model counts particles at 0.5 micron at 0.1 CFM and the
5100 model counts particles at 0.5 micron at 1.0 CFM.
This instrument is effective in both ultra-clean areas (such as Class 1 or
Class 10) and also in more traditional cleanzones rated as Class 100 or
higher. Refer to Specifications in this manual for additional instrument
information.

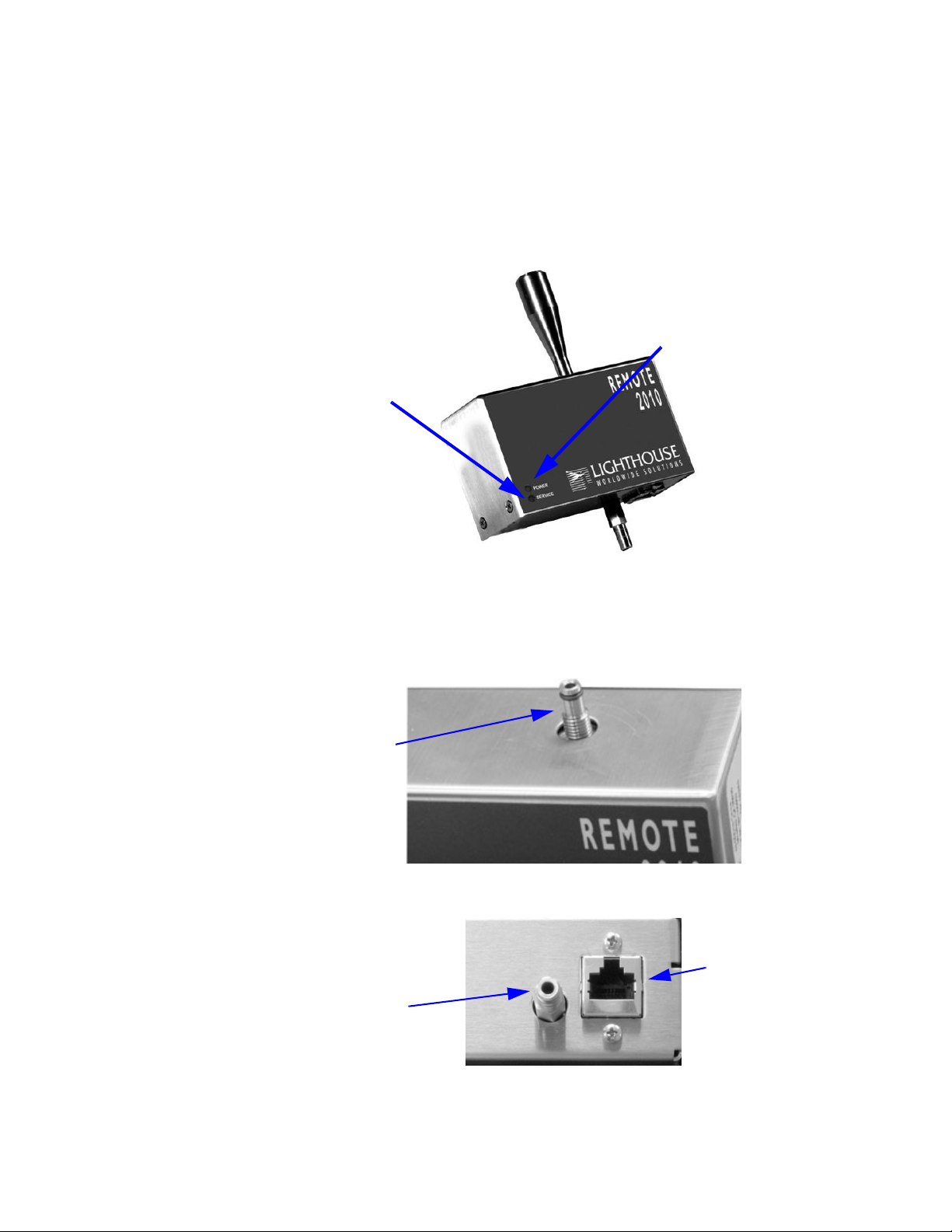

Figure 2-1 REMOTE 2010 Airborne Particle Counter
The particle counter uses a laser diode light source and collection
optics for particle detection. The collection optics collect and focus
light scattered by the particles onto a photo diode that converts the
bursts of light into electrical pulses. The pulse height is a measure of
particle size. Pulses are counted and their amplitude is measured for
particle sizing.

Lighthouse REMOTE 2010/3010/5010/5100 Operating Manual
2-2 248083200-1 Rev 5
The REMOTE 2010/3010/5010/5100 line of Airborne Particle counters
was created for continuous operation 24 hours per day, 7 days per
week.
Using an external vacuum source, the instrument provides versatile
mounting options and can be installed where space is at a premium.
The REMOTE 2010/3010/5010/5100 integrates seamlessly with large
facility monitoring/management systems and transfers up to 2 channels
of simultaneous particle count data using Pulse Output.
Accessories You can order several accessories to tailor the instrument to your
needs. These accessories are listed below.
• Isokinetic Sampling Probe 0.1 CFM (for 2010, 3010 and 5010)
• Isokinetic Sampling Probe 1.0 CFM (for 5100)
• Sample Tubing
•Cabling
• 0.2Pm Purge Filter Assembly 0.1 CFM or 1.0 CFM Flow Rate
with Tubing
• Vacuum tubing per foot
• Cable per foot
REMOTE
Specifications
Size Range 0.2 - 10.0 Pm
REMOTE 2010 Channel
Thresholds:
0.2, 0.5µm
REMOTE 3010 Channel
Thresholds:
0.3, 0.5 µm
REMOTE 5010 Channel
Thresholds:
0.5, 5.0 µm
REMOTE 5100 Channel
Thresholds:
0.5, 5.0 µm
Other sizes available; specify at time of order
REMOTE 2010 / 3010 /
5010 Flow Rate
0.1 CFM (2.83 LPM)
Table 2-1 Specifications

Introduction
248083200-1 Rev 5 2-3
Calibration The manufacturer recommends that your Lighthouse instrument be
calibrated annually by a Certified Lighthouse Service Provider, in order
to ensure that your unit continues to perform within specification.
REMOTE 5100
Flow Rate
1.0 CFM (28.3 LPM)
Counting Efficiency 50% (per JIS)
Laser Source Laser Diode
Zero Count Level <1 count/5 minutes (per JIS)
Vacuum Requirements External Vacuum >18" (45.72 cm) of Hg
Calibration NIST Traceable
Communication Modes Pulse Output
Supporting Software Lighthouse Monitoring System
Enclosure Stainless steel
Power 9-24 VDC
Dimensions: 2010
Dimensions: 3010 / 5010
1.7" (L) x 4.2" (W) x 3" (H) [4.3 x 10.7 x. 7.6 cm]
1.7" (L) x 4.2" (W) x 2.5" (H) [4.3 x 10.7 x. 6.3 cm]
Weight: 2010
Weight: 3010 / 5010 / 5100
14 oz (0.40 kg)
12.5 oz (0.35 kg)
Operating Temp/RH 50° F to 104° F (10° C to 40° C) / 20% to 95%
non-condensing
Storage Temp/RH 14° F to 122° F (-10° C to 50° C) / Up to 98%
non-condensing
Table 2-1 Specifications

Lighthouse REMOTE 2010/3010/5010/5100 Operating Manual
2-4 248083200-1 Rev 5

00
248083200-1 Rev 5 3-1
3Getting Started
Unpacking
and Initial
Inspection
The instrument is thoroughly inspected and tested at the factory and is
ready for use upon receipt.
When received, inspect the shipping carton for damage. If the carton is
damaged, notify the carrier and save the carton for carrier inspection.
Inspect the unit for broken parts, scratches, dents, or other damage.
Verify the contents of the package against the packing list.
If the carton is not damaged, keep for reshipment when you return the
instrument for the annual factory calibration.
Shipping
Instructions
Should it become necessary to return the unit to the factory for any
reason, be sure to contact Customer Service and obtain a Return
Merchandise Authorization (RMA) number. Reference this number on
all shipping documentation and purchase orders. After receipt of the
return number, follow the shipping instructions provided below:
1. Use the original container or carton and packing materials
whenever possible.
2. If the original container and packing materials are not available,
wrap the unit in "bubble pack" plastic; surround with shock-
absorbent material and place in a double-wall carton.
3. Seal container or carton securely. Mark "FRAGILE" and enter
Return Merchandise Authorization (RMA) number in any
unmarked corner.
4. Return to the address instructed by your Lighthouse representative.

Lighthouse REMOTE 2010/3010/5010/5100 Operating Manual
3-2 248083200-1 Rev 5
Operation Interpreting Indicators
Both front-panel indicators have a specific meaning when illuminated.
The figure below shows location of the indicators and gives a brief
description of their meaning.
Figure 3-1 Front Panel Lights
Connections
Figure 3-2 Connections on top of instrument
Figure 3-3 Connections on bottom of instrument
CALIBRATE LED comes
on when laser power is
low, sensor optics are
dirty, or view volume
contains foreign
POWER lights up
when power is
received through the
RJ-45 connector
Inlet
fitting
for external
vacuum
Pulse Output
connector

Getting Started
248083200-1 Rev 5 3-3
Installation Your instrument(s) can be easily prepared for use by performing the
steps below. Depending on the unit’s output, each instrument can be
located up to 1000 feet (330 meters) from the counting device.
1. Locate instrument(s) in areas to be sampled.
2. Attach barbed fitting to top inlet.
3. Attach sample tubing to barbed (top) fitting.
Figure 3-4 Attach sample tubing to inlet
4. Attach tubing from external vacuum source to the barbed fitting on
the bottom of the unit.
Figure 3-5 Attach external vacuum source

Lighthouse REMOTE 2010/3010/5010/5100 Operating Manual
3-4 248083200-1 Rev 5
5. Connect cable fitted with a shielded RJ-45 plug at each end
between the RJ-45 receptacle on the bottom of the instrument to the
connector on the Sensor Interface Unit (SIU).
Note: The unit is pow-
ered through the SIU.
Figure 3-6 Connecting instrument to SIU
6. Power on the SIU.
7. Verify front-panel POWER light of the unit turns on. The
instrument is now ready for use.
Installing an
Isokinetic
Probe
An isokinetic probe can be attached directly to the unit. Screw the
probe directly onto the inlet.
Figure 3-7 Installing probe directly on barb
